Infralittoral coralligenous reefs: structure and spatial variability of macroalgal assemblages

INTRODUCTION

Several marine benthic organisms are able to edify calcified permanent structures called bio-constructions, which, in turn, constitute a secondary substrate, increasing the volume, complexity and heterogeneity of their habitat (Fox 2005Fox W.T. 2005. Bioconstruction. In: Schwartz M.L. (ed.), Encyclopedia of Coastal Science, Springer pubbl., pp. 186-188.). Marine bio-constructions are present worldwide, reaching their greatest development in tropical seas where coral reefs, edified by hermatypic scleractinians, are the key habitat (Bianchi 2002Bianchi C.N. 2002. La biocostruzione negli ecosistemi marini e la biologia marina italiana. Biol. Mar. Mediterr. 8: 112-130.).

In the Mediterranean Sea, coral reefs are almost absent, and coralligenous reefs are the main biogenic habitat for distribution, biodiversity, productivity and role played in the CO₂ cycle (Ballesteros 2006Ballesteros E. 2006. Mediterranean coralligenous assemblages: a synthesis of present knowledge. Oceanogr. Mar. Biol. Ann. Rev. 44: 123-195. https://doi.org/10.1201/9781420006391.ch4 ). Coralligenous reefs are calcareous structures edified mostly by coralline algae which develop from 20-25 m to about 150 m depth, characterizing the circalittoral zone below the deeper limit of seagrass beds (Ballesteros 2006Ballesteros E. 2006. Mediterranean coralligenous assemblages: a synthesis of present knowledge. Oceanogr. Mar. Biol. Ann. Rev. 44: 123-195. https://doi.org/10.1201/9781420006391.ch4 ). Circalittoral coralligenous reefs are included in the European Directives (E.C. 2008E.C. 2008. MSFD 2008/56/EC of the European Parliament and of the Council, of 17 June 2008, establishing a framework for Community action in the field of marine environmental policy (Marine Strategy Framework Directive). Official Journal of the European Commission, G.U.C.E. 25/6/2008, L 164/19) and have been investigated much more than their shallow counterparts in terms of structure and spatial variability of the assemblages (Ponti et al. 2011Ponti M., Fava F., Abbiati M. 2011. Spatial-temporal variability of epibenthic assemblages on subtidal biogenic reefs in the northern Adriatic Sea. Mar. Biol. 158: 1447-1459. https://doi.org/10.1007/s00227-011-1661-3 , Casas-Guell et al. 2015Casas-Güell E., Teixidó N., Garrabou J., Cebrian E. 2015. Structure and biodiversity of coralligenous assemblages over broad spatial and temporal scales. Mar. Biol. 162: 901-912. https://doi.org/10.1007/s00227-015-2635-7 , Doxa et al. 2016Doxa A., Holon F., Deter J., et al. 2016. Mapping biodiversity in three-dimensions challenges marine conservation strategies: The example of coralligenous assemblages in North-Western Mediterranean Sea. Ecol. Indic. 61: 1042-1054. https://doi.org/10.1016/j.ecolind.2015.10.062 ).

The Mediterranean infralittoral bottoms where coralline algae build calcareous structures, alternating with seagrass beds, have often been included in what are called “pre-coralligenous reefs” (Pérès and Picard 1964Pérès J., Picard J.M. 1964. Nouveau manuel de bionomie benthique de la mer Méditerranée. Recl. Trav. Stat. Mar. Endoume 31: 1-131., Gili and Ros 1985Gili J.M., Ros J. 1985. Study and cartography of the benthic communities of Medes islands (NE Spain). P.S.Z.N. Mar. Ecol. 6: 219-238. https://doi.org/10.1111/j.1439-0485.1985.tb00323.x ) or infralittoral coralligenous reefs (enclaves of the circalittoral zone) (Montefalcone et al. 2021Montefalcone M., Tunesi L., Ouerghi A. 2021. A review of the classification systems for marine benthic habitats and the new updated Barcelona Convention classification for the Mediterranean. Mar. Environ. Res. 169: 105387. https://doi.org/10.1016/j.marenvres.2021.105387 , SPA/RAC-UN ENVIRONMENT/MAP 2021SPA/RAC-UN ENVIRONMENT/MAP 2021. Interpretation manual of the reference list of marine habitat types in the Mediterranean of the Barcelona Convention. UNEP/MAP-SPA/RAC publ., Tunis, pp. 426.). The latter are considered by some authors an impoverished facies of the coralligenous biocoenosis (Bressan and Babbini 2003Bressan G., Babbini L. 2003. Corallinales des mers italiennes: connaissance actuelle et futures perspectives. Bocconea 16: 209-224.) because they are shallower, light is more intense, and hence the calcareous rhodophyceans are not capable to develop major bioconstruction and high-diversity assemblages. Other authors consider infralittoral coralligenous assemblages transitional assemblages between the photophilous communities and the deeper coralligenous biocoenosis (Bellan-Santini et al. 1994Bellan-Santini D., Lacaze J.C., Poizat C. 1994. Les Biocénoses marines et littorales de Méditerranée, synthèse, menaces et perspectives. Patrimoines Naturels 19: 1-246.), characterized by lower bio-construction, lower quantity of sciaphilous soft algae and a lower number of invertebrate species than typical coralligenous habitats (Bellan-Santini et al. 2002Bellan-Santini D., Bellan G., Bitar G., et al. 2002. Handbook for interpreting types of marine habitat for the selection of sites to be included in the national inventories of natural sites of conservation interest. RAC/SPA edit., UNEP publ., pp. 217.). However, in some cases coralline algae can constitute conspicuous structures several decimetres wide even on shallow bottoms, where they form peculiar infralittoral biogenic reefs with characteristics similar to circalittoral coralligenous formations (SPA/RAC-UN ENVIRONMENT/MAP 2019SPA/RAC-UN ENVIRONMENT/MAP 2019. Updated reference list of marine habitat types for the selection of sites to be included in the national inventories of natural sites of conservation interest in the Mediterranean. UNEP/MAP-SPA/RAC publ., Tunis, pp. 20., 2021SPA/RAC-UN ENVIRONMENT/MAP 2021. Interpretation manual of the reference list of marine habitat types in the Mediterranean of the Barcelona Convention. UNEP/MAP-SPA/RAC publ., Tunis, pp. 426.). These infralittoral coralligenous reefs are considered to have an ecological role comparable to that of circalittoral coralligenous reefs (SPA/RAC-UN ENVIRONMENT/MAP 2021SPA/RAC-UN ENVIRONMENT/MAP 2021. Interpretation manual of the reference list of marine habitat types in the Mediterranean of the Barcelona Convention. UNEP/MAP-SPA/RAC publ., Tunis, pp. 426.), but they have received much less attention than other Mediterranean habitats. The macroalgal composition of assemblages developing on infralittoral biogenic reefs has been studied since the 1970s (Boudouresque 1973Boudouresque C.F. 1973. Recherche de bionomie analytique, structurale et expérimentale sur les peuplements benthiques sciaphiles de Méditerranée Occidentale (fraction algal). Les peuplements sciaphiles de mode relativement calme sur substrats durs. Bull. Mus. Hist. Nat. Marseille 33: 147-225., 1984Boudouresque C.F. 1984. Groupes écologiques d’algues marines et phytocenoses benthiques en Méditerranée nord-occidentale: une revue. Giorn. Bot. Ital. 118: 7-42., Giaccone et al. 1994Giaccone G., Alongi G., Pizzuto F., Cossu A. 1994. La vegetazione marina bentonica sciafila del Mediterraneo: III. Infralitorale e circalitorale. Proposte di aggiornamento. Boll. Accad. Gioenia Sci. Nat. Catania 27: 201-227.), but the biodiversity patterns, spatial variability and sensitivity to disturbance of infralittoral coralligenous reefs assemblages have been little investigated.

This study aims to contribute to knowledge of the infralittoral coralligenous reefs by describing the associated macroalgal assemblages on a large rocky platform off the Tuscany coasts. In this area infralittoral biogenic outcrops are very common and are the main assemblages between 10 and 20 m depth after seagrass beds. A multifactorial sampling design was used to describe the structure of the assemblages and to evaluate the variability of the system at multiple spatial scales. Moreover, the assemblages were compared with both circalittoral coralligenous reefs and infralittoral rocky bottoms of the same geographic zone, using available datasets.

MATERIALS AND METHODS

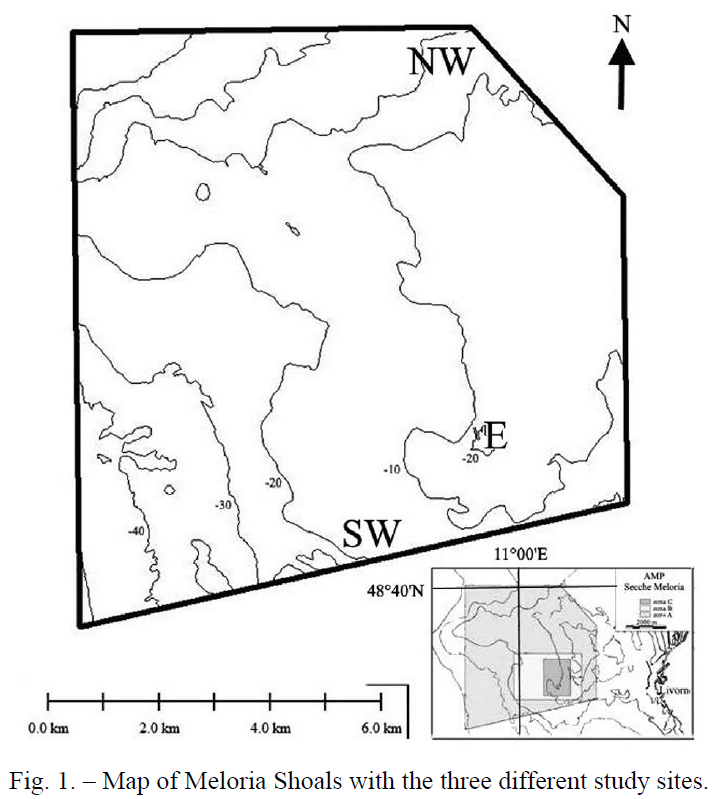

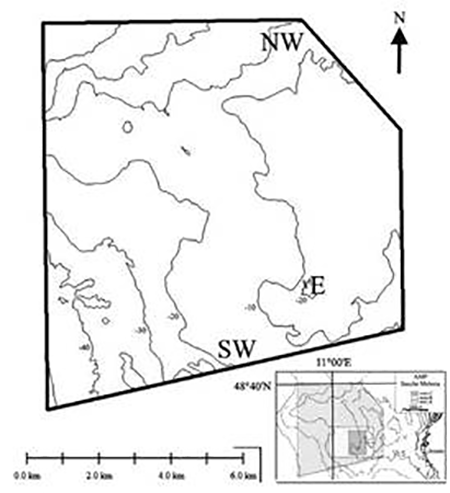

The study was performed in the Meloria Shoals, a rocky platform about 90 km² wide off the Tuscany coast surrounded by sandy bottoms (Fig. 1) that has been part of a marine protected area since 2010. Most of the platform extends between 10 and 20 m depth. Between about 6 and 30 m depth, the Shoal is colonized by Posidonia oceanica (L.) Delile, while its deepest rocky portion is characterized by typical coralligenous assemblages. Many scattered biogenic calcareous outcrops interrupt the seagrass bed between 10 and 20 m depth, covering a total surface of about 10 km². The bio-construction is well developed everywhere, with a thickness ranging from 10 cm to several decimetres.

The field activities were carried out in summer 2020. Three sites kilometres apart from each other were selected in three different portions of the Shoals: the northwestern, southwestern and eastern areas. At each site, two areas hundreds of metres apart were randomly chosen, and in each area three plots tens of metres apart were sampled. On each plot, three replicate samples were collected with a hammer and a chisel scraping all the macroalgae within a frame 400 cm² wide (Boudouresque 1971Boudouresque C.F. 1971. Méthodes d’étude qualitative et quantitative du benthos (en particulier du phytobenthos). Tethys 3: 79-104.). In the laboratory, all the taxa were identified, and their abundance was expressed as percentage cover of the sample surface. The alpha diversity of the assemblages was estimated as the number of species per sample, while the beta diversity was evaluated at each considered spatial scale as the distance of samples from centroids calculated by PERMDISP analysis on a Bray-Curtis similarity matrix of untransformed data (Primer 6 + PERMANOVA; Anderson et al. 2006Anderson M.J., Ellingsen K.E., McArdle B.H. 2006. Multivariate dispersion as a measure of beta diversity. Ecol. Lett. 9: 683-693. https://doi.org/10.1111/j.1461-0248.2006.00926.x ).

Spatial differences in the structure of assemblages (presence and abundance of species) were analysed by a permutational analysis of variance (Primer6 + PERMANOVA, Anderson 2001Anderson M.J. 2001. A new method for a non-parametric multivariate analysis of variance. Aus. Ecol. 26: 32-46. https://doi.org/10.1046/j.1442-9993.2001.01070.x ) based on a Bray-Curtis resemblance matrix after fourth-root transformation. A three-way model was used with Site (NW vs SW vs E) as a fixed factor, Area (two levels) as a random factor nested in Site and Plot (three levels) as a random factor nested in Area. The pairwise test was used to discriminate between levels of significant factors. The Montecarlo procedure was used when the number of permutations was low. The ordination plot was obtained by means of non-metric multidimensional scaling (n-MDS), which gives a clear graphical representation of the results. The number of taxa/groups per sample was analysed by PERMANOVA based on Euclidean distance with the same model applied in the multivariate analysis. One-way PERMANOVA and SIMPER tests were used to compare macroalgal assemblages of Meloria infralittoral outcrops with those of both circalittoral coralligenous reefs and infralittoral rocky bottoms of the same geographic zone, using available datasets (Piazzi et al. 2004Piazzi L., Balata D., Pertusati M., Cinelli F. 2004. Spatial and temporal variability of Mediterranean macroalgal coralligenous assemblages in relation to habitat and substrate inclination. Bot. Mar. 47: 105-115. https://doi.org/10.1515/BOT.2004.010 , Piazzi and Balata 2011Piazzi L., Balata D. 2011. Coralligenous habitat: patterns of vertical distribution of macroalgal assemblages. Sci. Mar. 75: 399-406. https://doi.org/10.3989/scimar.2011.75n2399 ).

RESULTS

The main outcrop builders were the Rhodophyta Mesophyllum alternans (Foslie) Cabioch and M.L. Mendoza and Lithophyllum stictiforme (Areschoug) Hauck. A total of 71 macroalgal taxa were found as epiphytes on the coralline algae, 9 Chlorophyta, 9 Ochrophyta, and 53 Rhodophyta (Table 1, with nomenclature authority). The erect layer of the assemblage was dominated by Laurencia chondrioides, Tricleocarpa fragilis, Flabellia petiolata, Padina pavonica and Dictyota spp. In the turf, the most abundant taxa were Jania virgata, Sphacelaria cirrosa and the introduced Rhodophyta Womersleyella setacea. The prostate layer was constituted by Zanardinia typus and Peyssonnelia spp.

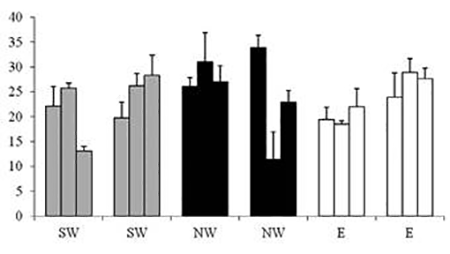

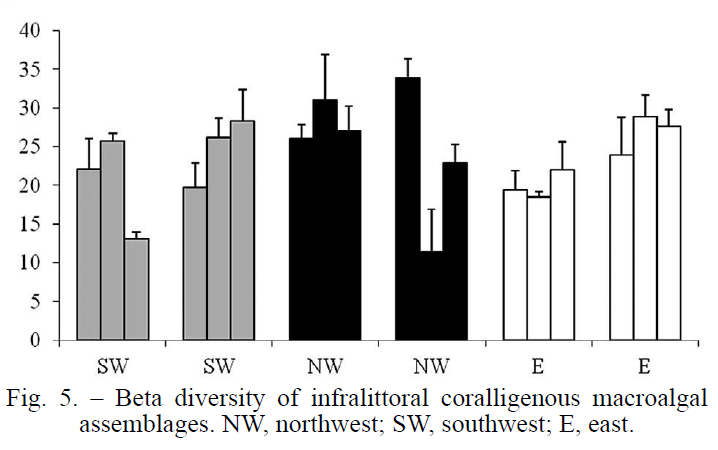

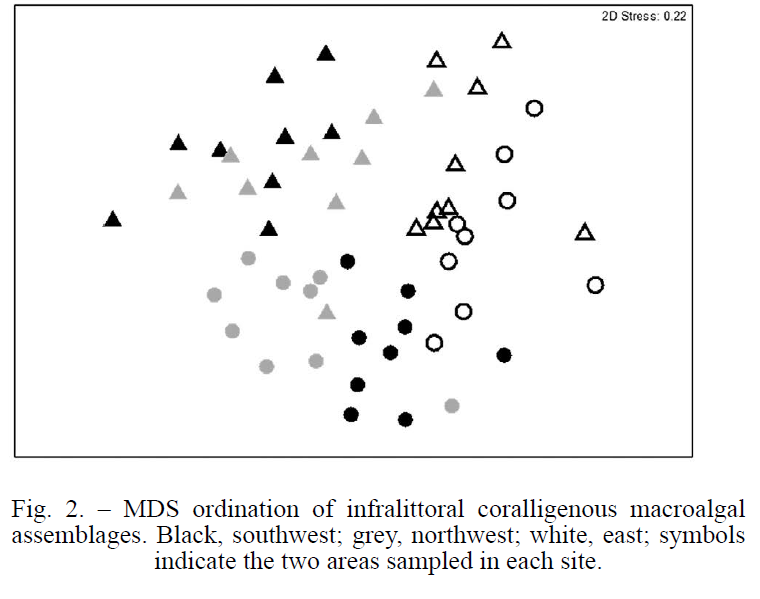

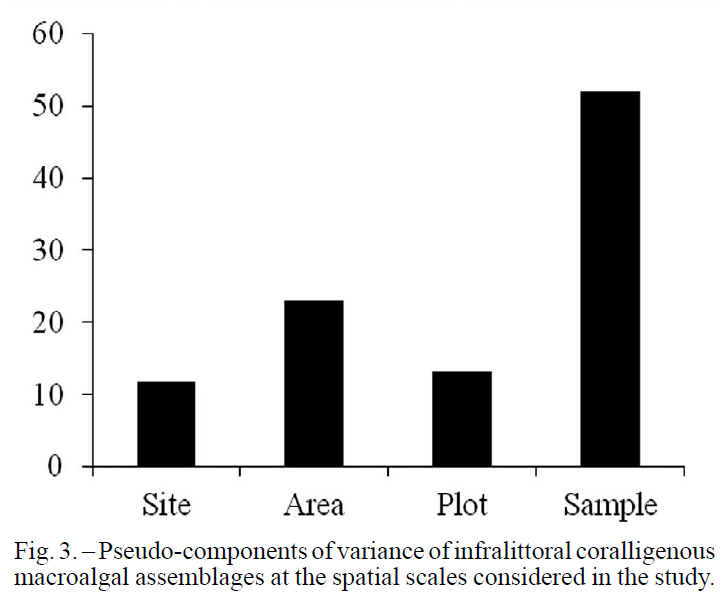

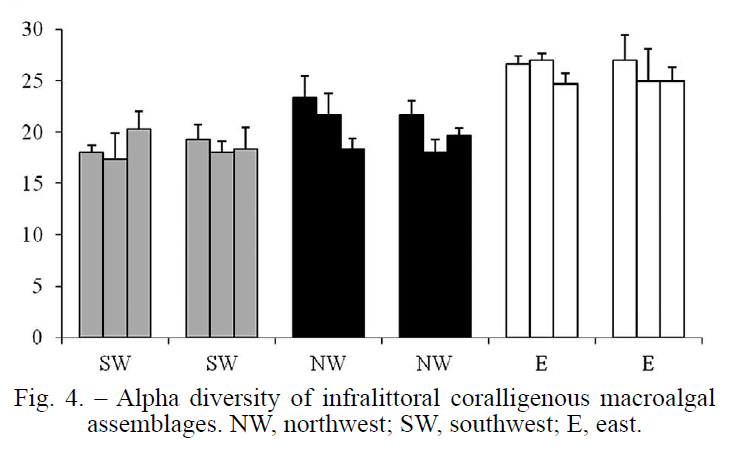

PERMANOVA detected a significant variability between areas and plots, while the sites did not significantly differ from each other (Table 2, Fig. 2). The pseudo-components of variance confirmed this pattern, showing the highest values among samples and the lowest among sites (Fig. 3). On the other hand, the number of species per sample was higher at the eastern site (25.9±1.5) than at the others (18.6±1.6 at the southwestern site, 20.4±1.4 at the northwestern site), whereas no significant differences were found between areas and plots (Table 2, Fig. 4). The beta diversity did not significantly vary at the three spatial scales (F_1,2=3.01, P=0.082 for Site, F_1,5=0.77, P=0.627 for Area, F_1,17=3.12, P=0.217 for Plot, Fig. 5).

The comparison with circalittoral coralligenous reefs and infralittoral rocky bottoms highlighted significant differences from both habitats (F_1,3=11.6, P=0.017). The differences between infralittoral coralligenous reefs and circalittoral coralligenous reefs were mostly due to Peyssonnelia spp., Meredithia microphylla, Osmundea pelagosae and Halopteris filicina that were more abundant in the latter habitat whereas Padina pavonica, Dictyota spp., Sphacelaria cirrosa, Zanardinia typus, Flabellia petiolata, Laurencia chondrioides and Jania virgata were more abundant in the former (Table 3). The differences between infralittoral coralligenous reefs and infralittoral rocky bottoms were mostly due to Ellisolandia elongata, Dictyopteris polypodioides and Halopteris scoparia, which were more abundant in the latter habitat, whereas Zanardinia typus, Tricleocarpa fragilis, Acrodiscus vidovichii, Sphaerococcus coronopifolius and Peyssonnelia spp. were more abundant in the former (Table 3).

DISCUSSION

The results of the study showed that macroalgal assemblages developed on infralittoral coralligenous reefs are well structured, with high values of biodiversity. The dominant taxa included both photophilous species such as Padina pavonica and Jania virgata and sciaphilous species such as Zanardinia typus, Flabellia petiolata, Tricleocarpa fragilis, Acrodiscus vidovichii, Sphaerococcus coronopifolius, Laurencia chondrioides and Peyssonnelia spp. The species composition is intermediate from those described for sciaphilous infralittoral assemblages and coralligenous assemblages (Boudouresque 1984Boudouresque C.F. 1984. Groupes écologiques d’algues marines et phytocenoses benthiques en Méditerranée nord-occidentale: une revue. Giorn. Bot. Ital. 118: 7-42., Giaccone et al. 1994Giaccone G., Alongi G., Pizzuto F., Cossu A. 1994. La vegetazione marina bentonica sciafila del Mediterraneo: III. Infralitorale e circalitorale. Proposte di aggiornamento. Boll. Accad. Gioenia Sci. Nat. Catania 27: 201-227.). On the other hand, Halimeda tuna or Fucales, often characterizing assemblages of infralittoral coralligenous reefs (Ballesteros 1991Ballesteros E. 1991. Structure of a deep-water community of Halimeda tuna (Chlorophyceae, Caulerpales) from the northwestern Mediterranean. Collect. Bot. 20: 5-21. https://doi.org/10.3989/collectbot.1991.v20.72 , Ballesteros et al. 1998Ballesteros E., Sala E., Garrabou J., Zabala M. 1998. Community structure and frond size distribution of a deep water stand of Cystoseira spinosa (Phaeophyta) in the northwestern Mediterranean. Eur. J. Phycol. 33: 121-128. https://doi.org/10.1080/09670269810001736613 ), showed low abundance everywhere.

This floristic feature makes the assemblage unique and different from the typical infralittoral and circalittoral macroalgal assemblages of the same geographic area (Balata and Piazzi 2008Balata D., Piazzi L. 2008. Patterns of diversity in rocky subtidal macroalgal assemblages in relation to depth. Bot. Mar. 51: 464-471. https://doi.org/10.1515/BOT.2008.068 , Piazzi and Ceccherelli 2020Piazzi L., Ceccherelli G. 2020. Alpha and beta diversity in Mediterranean macroalgal assemblages: relevancy and type of effect of anthropogenic stressors vs natural variability. Mar. Biol. 167: 32. https://doi.org/10.1007/s00227-019-3631-0 ). For example, Meredithia microphylla, Osmundea pelagosae and Rodriguezella strafforreloi, which are dominant in coralligenous reefs were poorly present in the studied habitat, where they were replaced by photophilous species not found in the deeper reefs.

The presence of Laurencia chondrioides is also noteworthy. This alga had been wrongly considered an introduced and invasive species in the Mediterranean Sea (Boisset et al. 1998Boisset F., Furnari G., Cormaci M., Serio D. 1998. First record of Laurencia chondrioides (Ceramiales, Rhodophyta) from the Mediterranean Sea. Bot. Mar. 41: 279-284. https://doi.org/10.1515/botm.1998.41.1-6.279 , Hoffmann et al. 2014Hoffman R., Sternberg M., Serio D. 2014. First report of Laurencia chondrioides (Ceramiales, Rhodophyta) and its potential to be an invasive in the eastern Mediterranean Sea. Bot. Mar. 57: 449-457. https://doi.org/10.1515/bot-2014-0053 ), but only recently it has been eliminated from the list of Mediterranean non-indigenous species. This seaweed dominates the erect layer of the studied assemblages along with F. petiolata and P. pavonica, showing higher abundance values than those reported for the nearby circalittoral coralligenous reefs; this pattern suggests that this species prefers the deeper part of the infralittoral zone, though Hoffman et al. (2014)Hoffman R., Sternberg M., Serio D. 2014. First report of Laurencia chondrioides (Ceramiales, Rhodophyta) and its potential to be an invasive in the eastern Mediterranean Sea. Bot. Mar. 57: 449-457. https://doi.org/10.1515/bot-2014-0053 recorded it in a wider depth range. In addition, these findings highlight that, irrespective of its origin, the ecology of this species is still unclear and deserves further studies to understand its potential invasiveness (Hoffman et al. 2014Hoffman R., Sternberg M., Serio D. 2014. First report of Laurencia chondrioides (Ceramiales, Rhodophyta) and its potential to be an invasive in the eastern Mediterranean Sea. Bot. Mar. 57: 449-457. https://doi.org/10.1515/bot-2014-0053 ) and its role in the coastal Mediterranean systems.

Our floristic list includes two alien invasive algae Caulerpa cylindracea and Womersleyella setacea, both showing a wide distribution and the latter showing high abundance values. These species are worth mentioning because they are described as particularly threatening for coralligenous reefs (Piazzi and Balata 2009Piazzi L., Balata D. 2009. Invasion of alien macroalgae in different Mediterranean habitats. Biol. Inv. 11: 193-204. https://doi.org/10.1007/s10530-008-9224-3 , Piazzi et al. 2021aPiazzi L., Atzori F., Cadoni N., et al. 2021a. Monitoring non-indigenous macroalgae in a Mediterranean MPA: lessons from a short-temporal variability of pristine habitats invasion. Ocean Coast. Manag. 207: 105608. https://doi.org/10.1016/j.ocecoaman.2021.105608 ) and are supposed to have similar effects for infralittoral biogenic outcrops, although appropriate monitoring studies are necessary to accept or refute this hypothesis.

The assemblages showed high variability at a small and intermediate scale, while they were homogeneous at a large spatial scale. The high variability at a small scale suggests a patchy distribution of the organisms, which may generally reflect the heterogeneity of the substrate (Piazzi et al. 2016Piazzi L., La Manna G., Cecchi E., et al. 2016. Protection changes the relevancy of scales of variability in coralligenous assemblages. Estuar. Coast. Shelf Sci. 175: 62-69. https://doi.org/10.1016/j.ecss.2016.03.026 , 2021bPiazzi L., Cinti M.F., Guala I., et al. 2021b. Variations in coralligenous assemblages from local to biogeographic spatial scale. Mar. Environ. Res. 169, 105375. https://doi.org/10.1016/j.marenvres.2021.105375 ). On the other hand, the observed variability between sites may be related to their spatial isolation: the seagrass bed surrounding the outcrops creates a sort of barrier that separates them from one another and influences the recruitment modalities, enhancing the beta diversity of the system. The low variability at a large spatial scale indicates that the assemblages have a particular structure that reoccurs across the study areas despite the variability at smaller scales, so a well-defined physiognomy of the assemblages can be recognized.

Irrespective of the floristic differences, the studied system showed a high level of biodiversity comparable to that reported for circalittoral coralligenous macroalgal assemblages (Piazzi et al. 2010Piazzi L., Balata D., Cecchi E., et al. 2010. Species composition and patterns of diversity of macroalgal coralligenous assemblages in the north-western Mediterranean Sea. J. Nat. Hist. 44: 1-22. https://doi.org/10.1080/00222930903377547 , Piazzi and Ceccherelli 2020Piazzi L., Ceccherelli G. 2020. Alpha and beta diversity in Mediterranean macroalgal assemblages: relevancy and type of effect of anthropogenic stressors vs natural variability. Mar. Biol. 167: 32. https://doi.org/10.1007/s00227-019-3631-0 ), suggesting a similar ability in guaranteeing conditions that can support highly diversified assemblages (Cocito 2004Cocito S. 2004. Bioconstruction and biodiversity: their mutual influence. Sci. Mar. 68: 137-144. https://doi.org/10.3989/scimar.2004.68s1137 ). In particular, the presence of biogenic structures similar to those of circalittoral coralligenous habitats helps create a substrate with a high heterogeneity which hosts highly diversified assemblages (Piazzi et al. 2022Piazzi L., Pinna F., Ceccherelli G. 2022. Crustose coralline algae and biodiversity enhancement: The role of Lithophyllum stictiforme in structuring Mediterranean coralligenous reefs. Estuar. Coast. Shelf Sci. 278: 108121. https://doi.org/10.1016/j.ecss.2022.108121 ).

The characteristics of the studied assemblages, between the infralittoral photophilous communities and the deeper coralligenous biocoenosis, evocate those described for pre-coralligenous habitats or for coralligenous reefs (enclaves of the infralittoral zone). However, while the latter are characterized by a low level of bio-construction, the studied habitat consists of large structures with well-developed bio-construction, mainly occurring on horizontal substrata. These features suggest that infralittoral coralligenous reefs may be more complex than has been described until now and they should be considered a peculiar habitat that opens new perspectives and new approaches to obtaining further knowledge (SPA/RAC-UN ENVIRONMENT/MAP 2021SPA/RAC-UN ENVIRONMENT/MAP 2021. Interpretation manual of the reference list of marine habitat types in the Mediterranean of the Barcelona Convention. UNEP/MAP-SPA/RAC publ., Tunis, pp. 426.). In addition, their high biodiversity, comparable to that of deeper coralligenous reefs, suggests that, like the latter, they could provide similar ecosystem services (Thierry de Ville d’Avray et al. 2019Thierry de Ville d’Avray L., Ami D., Chenuil A., et al. 2019. Application of the ecosystem service concept at a small-scale: the cases of coralligenous habitats in the North-western Mediterranean Sea. Mar. Pollut. Bull. 138: 160-170. https://doi.org/10.1016/j.marpolbul.2018.10.057 ). In parallel, the main threats widely described for coralligenous reefs, such as sedimentation, pollution, mechanical destruction and invasion of alien species (Piazzi et al. 2012Piazzi L., Gennaro P., Balata D. 2012. Threats to macroalgal coralligenous assemblages in the Mediterranean Sea. Mar. Pollut. Bull. 64: 2623-2629. https://doi.org/10.1016/j.marpolbul.2012.07.027 ), can potentially affect infralittoral biogenic habitats in a similar way.

In conclusion, our results highlight that infralittoral coralligenous outcrops should be considered a peculiar system, and dedicated studies and appropriate monitoring programmes are desirable. The first step should be to obtain knowledge of the distribution and the extent of the habitat, which is of primary importance for planning further investigations and conservation programmes. Secondly, the structure and biodiversity of infralittoral coralligenous reefs should be investigated at a large spatial scale in order to evaluate their patterns of variability, their ecological values and the effects of human pressures. Finally, a standard, specific protocol should be developed, because the different characteristics prevent us from using the approaches adopted for circalittoral coralligenous reefs and infralittoral rocky bottoms.
