INTRODUCTION
⌅There are more than 32000 species of fish, accounting for over half of all vertebrate animals (Nelson et al. 2016Nelson J.S., Grande T.C., Wilson M.V.H. 2016. Fishes of the world. John Wiley & Sons, Inc, New Jersey, 707 pp. https://doi.org/10.1002/9781119174844 ). They are dispersed over wide geographic areas, and the environmental conditions can affect traits such as reproduction, fertility and longevity (Rawat et al. 2017Rawat S., Benakappa S., Jitendra Kumar A.S., et al. 2017. Identification of fish stocks based on truss morphometric: A review. J. Fish. Life Sci. 2: 9-14.). The situations experienced by fish species in their life cycle may also affect their morphometric characteristics. Variations in growth, development and maturation of fish caused by environmental factors cause differences in body shape even within the same genus and species (Cadrin 2000Cadrin S.X. 2000. Advances in morphometric identification of fishery stocks. Rev. Fish. Biol. Fisher. 10: 91-112. https://doi.org/10.1023/A:1008939104413 ). Information on stock structure, species identification and differentiation is useful for developing management strategies that will help conserve biodiversity associated with species, subspecies, and stocks (Turan et al. 2005Turan C., Yalcin S., Turan F., et al. 2005. Morphometric comparisons of African catfish, Clarias gariepinus, populations in Turkey. Folia Zool. 54: 165-172. , Cadrin et al. 2014Cadrin S.X., Kerr L.A., Mariani S. 2014. Stock identification methods: an overview. In: Cadrin S.X., Kerr L.A., Mariani S. (eds), Stock Identification Methods. San Diego: Elsevier, pp. 1-5. https://doi.org/10.1016/B978-0-12-397003-9.00001-1 ). Furthermore, identifying the intra- and interspecific differences/similarities of fish with variable life history characteristics is quite important for understanding population dynamics and evaluating sustainable harvests (Turan et al. 2005Turan C., Yalcin S., Turan F., et al. 2005. Morphometric comparisons of African catfish, Clarias gariepinus, populations in Turkey. Folia Zool. 54: 165-172. , Cadrin et al. 2014Cadrin S.X., Kerr L.A., Mariani S. 2014. Stock identification methods: an overview. In: Cadrin S.X., Kerr L.A., Mariani S. (eds), Stock Identification Methods. San Diego: Elsevier, pp. 1-5. https://doi.org/10.1016/B978-0-12-397003-9.00001-1 ). There is also a need to determine how many stocks are managed in a given area and clarify how different stocks are susceptible to fishing pressure and unfavourable environmental conditions (Baldwin et al. 2012Baldwin R.E., Banks M.A., Jacobson K.C. 2012. Integrating fish and parasite data as a holistic solution for identifying the elusive stock structure of Pacific sardines (Sardinops sagax). Rev. Fish. Biol. Fisher. 22: 137-156. https://doi.org/10.1007/s11160-011-9227-5 ). Since genotypic and phenotypic differentiation between fish populations that occurs due to isolation may lead to speciation or the formation of a different population, it is important to examine the degree of differentiation at both the intra- and interspecific levels. Morphometric analyses have been used for inter- and intraspecific identification/distinction of many freshwater and marine fish species. such as Rastrelliger kanagurta from peninsular India (Jayasankar et al. 2004Jayasankar P., Thomas P.C., Paulton M.P., et al. 2004. Morphometric and genetic analyzes of Indian mackerel (Rastrelliger kanagurta) from peninsular India. Asian Fish. Sci. 17: 201-215.), Clarias gariepinus from Turkey (Turan et al. 2005Turan C., Yalcin S., Turan F., et al. 2005. Morphometric comparisons of African catfish, Clarias gariepinus, populations in Turkey. Folia Zool. 54: 165-172. ), Pomatomus saltatrix from the Aegean, Black, and Mediterranean seas (Turan et al. 2006Turan C., Oral M., Öztürk B., et al. 2006. Morphometric and meristic variation between stocks of Bluefish (Pomatomus saltatrix) in the Black, Marmara, Aegean and northeastern Mediterranean Seas. Fish. Res. 79: 139-147. https://doi.org/10.1016/j.fishres.2006.01.015 ), the genus Puntius from Assam, India (Choudhury et al. 2011Choudhury S., Saikia P., Sougrakpam N., et al. 2011. Assessment of morphometric variation and establishing taxonomic relationship among six species under Puntius genus. Int. J. Environ. Res. 1: 233-237.), Catla catla from India (Ujjainia and Kohli 2011Ujjainia N.C., Kohli M.P.S. 2011. Landmark-based morphometric analysis for selected species of Indian major carp (Catla catla, Ham. 1822). Int. J. Food Agric. Vet. Sci. 1: 64-74.), rattail fish from New Zealand (Ibáñez and Jawad 2018Ibáñez A.L., Jawad L.A. 2018. Morphometric variation of fish scales among some species of rattail fish from New Zealand waters. J. Mar. Biol. Assoc. U.K. 98: 1991-1998. https://doi.org/10.1017/S0025315418000024 ), Barbonymus spp. from Aceh, Indonesia (Batubara et al. 2018Batubara A.S., Muchlisin Z.A., Efizon D., et al. 2018. Morphometric variations of the genus Barbonymus (Pisces, Cyprinidae) harvested from Aceh Waters, Indonesia. Fish. Aquatic. Sci. 26: 231-237. https://doi.org/10.2478/aopf-2018-0026 ) and Macrognathus pancalus from Bangladesh (Mahfuj et al. 2019aMahfuj M.S., Khatun A., Boidya P., et al. 2019a. Meristic and morphometric variations of barred spiny eel, Macrognathus pancalus populations from Bangladeshi freshwaters: an insight into landmark-based truss network system. Ribarstvo 77: 7-18. https://doi.org/10.2478/cjf-2019-0002 ).
The family Scorpaenidae includes approximately 23 genera (from 210 to 223 species) distributed both in marine and freshwater waters at medium and great (more than 700 m) depths in a variety of aquatic habitats (Froese and Pauly 2020Froese R., Pauly D. 2020. FishBase, World Wide Web electronic publication. Accessed: 12.12.2020. http://www.fishbase.org/ ). Scorpaenid systematics are complicated and unsettled (Froese and Pauly 2020Froese R., Pauly D. 2020. FishBase, World Wide Web electronic publication. Accessed: 12.12.2020. http://www.fishbase.org/ ). Arculeo and Lo Brutto (2014)Arculeo M., Lo Brutto S. 2014. New contribution to the systematic status of various Mediterranean Scorpionfish, as inferred from a mitochondrial DNA sequence. Rev. Biol. Mar. Oceanogr. 49: 367-371. https://doi.org/10.4067/S0718-19572014000200015 and Akalın et al. (2011)Akalın S., İlhan D., Ünlüoğlu A., et al. 2011. Length-weight relationship and metric-meristic characteristics of two scorpion fishes (Scorpaena notata and Scorpaena porcus) in İzmir Bay. J. Fish. Sci. 5: 291-299.https://doi.org/10.3153/jfscom.2011033 indicated that many species of the Scorpaenidae families are quite difficult to define morphologically because small individuals especially are very similar and the characters for describing species are not easy to use. The family includes many fish species that are mostly found in marine waters but rarely spread to freshwaters. One of the popular genera in the family Scorpaenidae is the Scorpaena genus. Currently, six valid species are recognized in this genus from the Turkish coasts; the black scorpionfish (S. porcus Linnaeus, 1758) and the small red scorpionfish (S. notata Rafinesque, 1810) in the Aegean, Black, Mediterranean and Marmara seas; the slender rockfish (S. elongata Cadenat, 1943), the Madeira rockfish (S. maderensis Valenciennes, 1833) and Cadenat’s rockfish (S. loppei Cadenat, 1943) from the Mediterranean Aegean seas; and the red scorpionfish (S. scrofa Linnaeus, 1758) from the Agean, Mediterranean and Marmara seas. Five species belonging to the Scorpaena genus are reported in large numbers in Turkish waters, but S. loppei is reported in very few numbers (Keskin and Eryılmaz 2009Keskin Ç., Eryılmaz L. 2009. The presence of Scorpaena loppei (Osteichthyes: Scorpaenidae), in the Turkish seas. Mar. Biodivers. Rec. 2: 1-2. https://doi.org/10.1017/S1755267208000341 ).
Many studies have provided detailed information with diagnostic features on the distribution and biology of Scorpaena species (Hureau and Litvinenko 1986Hureau J.C., Litvinenko N.I. 1986. Scorpaenidae. In: Whitehead P.J.P., Bauchot M.L., et al. (eds), Fishes of the North-eastern Atlantic and the Mediterranean, Paris: Unesco, pp. 1211-1229., Fischer et al. 1987Fischer W., Schneider M., Bauchot M.L. 1987. Fiches FAO d’identification des espèces pour les besoins de la pêche. Méditerranée et mer Noire. Zone de Pêche 37. Vol. II. Vertébrés. FAO, Rome, 1070 pp. http://www.fao.org/3/x0170f/x0170f00.htm , Morato et al. 2001Morato T., Afonso P., Lourinho P., et al. 2001. Length-weight relationships for 21 coastal fish species of the Azores, North-Eastern Atlantic. Fish. Res. 50: 297-302. https://doi.org/10.1016/S0165-7836(00)00215-0 ). However, no detailed study has been made on the discrimination of Scorpaena species in Turkish marine waters, and only a few studies have been made on Scorpaeniformes species in the Mediterranean Sea. These studies were addressed using cytogenetics (Caputo et al. 1998Caputo V., Sorice M., Vitturi R., et al. 1998. Cytogenetic studies in some species of Scorpaeniformes (Teleostei: Percomorpha). Chromosome Res. 6: 255-262. https://doi.org/10.1023/A:1009210605487 ), meristic characters and genetic analysis of the mitochondrial 16S rDNA gene (Turan et al. 2009Turan C., Gündüz I., Gurlek M., et al. 2009. Systematics of Scorpaeniformes species in the Mediterranean Sea inferred from mitochondrial 16s rDNA sequence and morphological data. Folia Biol. 57: 219-226. https://doi.org/10.3409/fb57_1-2.219-226 ). The literature includes a limited number of morphometric studies of the genus Scorpaena, but no morphology-based study in which intra- and interspecific comparisons were made together. The present study was therefore undertaken to investigate the intra- and interspecific discrimination of five Scorpaena species (S. elongata, S. maderensis, S. notata, S. porcus and S. scrofa) inhabiting the Aegean, Black, Mediterranean and Marmara seas on the basis of morphometric characters.
MATERIALS AND METHODS
⌅Ethical statement
⌅All protocols for fish capture were approved by the Turkish Agricultural Research and Policy General Directorate. The care and use of experimental animals complied with Ordu University Animal Experiments Local Ethics Committee animal welfare laws, guidelines and policies, as approved by the Ordu University Animal Experiments Local Ethics Committee (No:82678388/08).
Sampling
⌅Fish samples were collected during the 2019-2020 fishing season from the eight locations along the coastline of Turkey’s four seas (Fig. 1); İzmir (Aegean Sea), Antalya and Hatay (Mediterranean Sea) for S. elongata; Antalya (Mediterranean Sea), Balıkesir and İzmir (Aegean Sea) for S. maderensis; İzmir (Aegean Sea), Hatay (Mediterranean Sea), Marmara Ereğlisi (Sea of Marmara) and Şile (Black Sea) for S. notata; İzmir (Aegean Sea), Hatay (Mediterranean Sea), Marmara Ereğlisi (Sea of Marmara) and Ordu (Black Sea) for S. porcus; and Çanakkale (Sea of Marmara), İzmir (Aegean Sea) and Hatay (Mediterranean Sea) for S. scrofa. All samples were preserved and fixed in 70% ethanol and deposited at Ordu University.

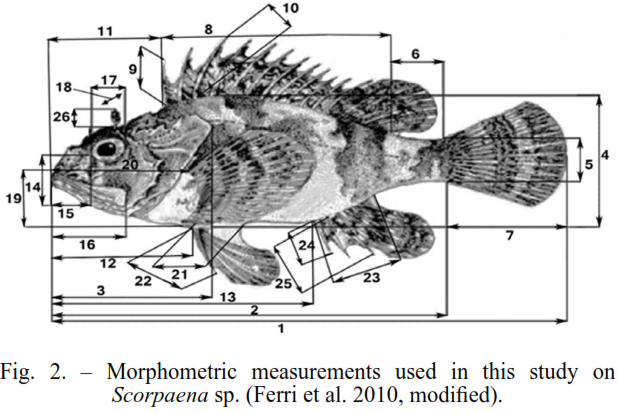

Morphometric analysis
⌅A total of 26 metric measurements were used: total length (TL) (1), standard length (SL) (2), head length (HL) (3), body height (BL) (4), caudal peduncle height (CPH) (5), caudal peduncle length (CPL) (6), caudal fin length (CL) (7), dorsal fin base length (DBL) (8), shortest dorsal fin spine length (SDL) (9), longest dorsal fin spine length (LDL) (10), predorsal length (PDL) (11), preventral length (PVL) (12), preanal length (PAL) (13), preorbital height (POH) (14), snout length (NL) (15), maxilla length (ML) (16), eye diameter (ED) (17), interorbital distance (IOD) (18), pectoral fin base length (PBL) (19), prepectoral length (PPL) (20), ventral fin base length (VBL) (21), ventral fin spine length (VSL) (22), anal fin base length (ABL) (23), shortest anal fin spine length (SAL) (24), longest anal fin spine length (LAL) (25) and supraocular tentacle length (STL) (26) (Fig 2). These metric measurements from each individual were taken on the left side of the fish body by the same researcher using a digital caliper (±0.01 mm) and a millimetre ruler (±0.1 cm). The sex of each fish sample was determined by internal inspections after the morphometric measurements had been obtained.
Statistical analysis
⌅The data were tested for normality and homogeneity of variances using the Kolmogorov-Smirnov (K-S) test and the Levene test, respectively. In addition, we investigated whether there was a difference between the data of male and female individuals. An analysis of variance (ANOVA) with Tukey comparisons of morphometric characters was conducted to test for variation among populations and species. Moreover, before running further analysis, the size effects of all morphometric variables were eliminated, as described by Elliott et al. (1995)Elliott N.G., Haskard K., Koslow J.A. 1995. Morphometric analysis of orange roughy (Hoplostethus atlanticus) off the continental slope of southern Australia. J. Fish Biol. 46: 202-220. https://doi.org/10.1111/j.1095-8649.1995.tb05962.x . The equation is as follows: Madj=M (Ls/Lo)b, where M is the original value of the morphometric measure, Madj is the adjusted size of the measure, Lo is the standard length of the fish and Ls is the mean of the standard length of all fish. The parameter b was estimated for each character from the observed data of slope of the regression of logM in logLo, using all fishes. Size-adjusted data were subjected to principal component analysis (PCA) and canonical discriminant analysis (CDA) to identify intra- and interspecific differences of the five Scorpaena species. Large factor loadings (positive or negative) of PCA indicate that a particular variable has a strong relationship to a particular principal component. Loadings of at least 0.3 magnitude were taken into account when making intra- and interspecific distinctions. The UPGMA clustering method was used to generate a dendrogram for intra- and interspecific discrimination of the genus Scorpaena by computing the Euclidian distance values of morphometric measurements. Wilks’ lambda (λ) was used to evaluate both intra- and interspecific discrimination performance of the CDA. Interspecific and intraspecific variances, total variances and their percentages of agreement between real and predicted group membership were calculated for both the populations and Scorpaena species. Jackknife cross-validation procedures were used to validate similarities for both the populations and the species. All tests were conducted using the SPSS (V.21.0) and Past (V.2.17c).
RESULTS
⌅Intraspecific discrimination
⌅A total of 1865 fish individuals belonging to five species (S. elongata, S. notata, S. maderensis, S. porcus and S. scrofa) from the eight locations of the Aegean, Black, Mediterranean and Marmara seas were studied for morphometric analysis. The morphometric variables showed normality (P>0.05; K-S test) and homogeneous variance (P>0.05; Levene test). There was no statistically significant difference in terms of morphometric data between female and male individuals (P>0.05; t-test). For this reason, intra- and interspecific discrimination analyses were carried out by evaluating the data of male and female individuals together.

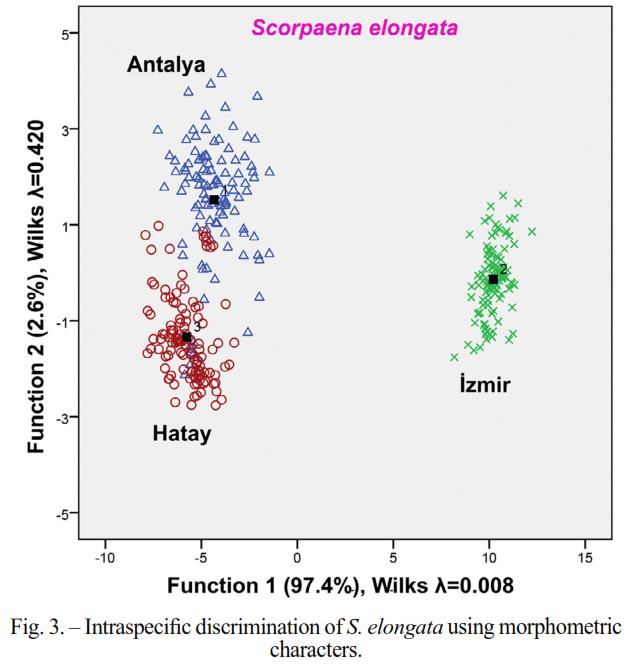

Scorpaena elongata
⌅A total of 332 S. elongata individuals were sampled from the Antalya, İzmir and Hatay stations in the Aegean and Mediterranean seas. The descriptive analysis of morphometric measurements of S. elongata is presented in Table 1. The one-way ANOVA shows significant (P<0.05) differences in all the morphometric measurements (except for STL) among the S. elongata populations (Table 1). As a result of the PCA, it was determined that 12 morphometric measurements taken from the samples (body height, longest dorsal fin spine length, preanal length, preorbital height, snout length, maxilla length, eye diameter, pectoral fin base length, ventral fin base length, ventral fin spine length, anal fin base length and longest anal fin spine length) are quite important in the intraspecific distinction of the S. elongata. Morphometric ratios were calculated between these important morphometric characters and standard length for each S. elongata population (Supplementary Table S1). These morphometric measurements were selected for the CDA. It was determined that the first two functions are important for the CDA analysis performed for the S. elongata populations (F1[97.4%], λ=0.008, P<0.001; F2[2.6%], λ=0.420, P<0.001) (Fig 3). It was determined by CDA results that these 12 characters taken from the fish samples were quite effective for discriminating three S. elongata populations from each other and that they achieved 94.6% success in the intraspecific distinction of S. elongata (Table 2). S. elongata populations were clustered by hierarchical cluster analyses of meristic data. Antalya and Hatay were the closest S. elongata populations and İzmir the most divergent one (Fig. 4).
| Morphometric | Antalya | Hatay | İzmir | ANOVA | |
|---|---|---|---|---|---|
| Measurements | (n=109) | (n=113) | (n=110) | F values | P values |
| TL (cm) | 15.81±4.11b | 14.10±2.72c | 17.26±3.05a | 24.98 | 0.001 |
| SL (cm) | 12.68±3.43b | 11.23±2.25c | 13.94±2.54a | 26.64 | 0.001 |
| HL (cm) | 5.14±1.25b | 4.71±0.94c | 5.76±1.05a | 26.22 | 0.001 |
| BL (mm) | 41.69±12.80b | 36.30±8.06c | 46.18±8.10a | 27.93 | 0.001 |
| CPH (mm) | 12.18±3.65a | 10.55±2.04b | 12.21±2.21a | 13.68 | 0.001 |
| CPL (mm) | 11.72±4.57a | 9.73±1.59b | 10.13±2.00b | 13.52 | 0.001 |
| CL (cm) | 3.13±0.70b | 2.89±0.54c | 3.38±0.57a | 17.86 | 0.001 |
| DBL (cm) | 7.64±2.05b | 6.80±1.40c | 8.39±1.52a | 25.07 | 0.001 |
| SDL (mm) | 10.78±1.96b | 10.79±1.82b | 11.79±1.36a | 12.31 | 0.001 |
| LDL (mm) | 21.34±5.11b | 19.22±3.40c | 23.18±3.79a | 25.48 | 0.001 |
| PDL (cm) | 3.88±1.34b | 3.70±0.62b | 4.25±0.73a | 9.56 | 0.001 |
| PVL (cm) | 5.21±1.33b | 4.64±0.91c | 5.66±1.01a | 24.38 | 0.001 |
| PAL (cm) | 9.05±2.64b | 8.39±1.61c | 10.22±1.87a | 21.96 | 0.001 |
| POH (mm) | 11.30±2.74b | 10.30±1.99c | 12.50±2.30a | 24.26 | 0.001 |
| NL (mm) | 12.42±3.25b | 11.37±2.15c | 13.66±2.31a | 21.54 | 0.001 |
| ML (mm) | 27.13±6.92b | 24.29±4.47c | 29.81±5.21a | 27.04 | 0.001 |
| ED (mm) | 17.84±3.25a | 17.11±2.41a | 11.28±2.15b | 203.03 | 0.001 |
| IOD (mm) | 6.26±1.14a | 5.34±1.04b | 6.50±1.12a | 34.75 | 0.001 |
| PBL (mm) | 15.85±3.78b | 14.60±2.51c | 17.34±2.76a | 22.31 | 0.001 |
| PPL (cm) | 5.02±1.64b | 4.68±0.93b | 5.69±1.04a | 19.08 | 0.001 |
| VBL (mm) | 4.67±1.77b | 3.95±1.25c | 6.38±1.71a | 68.56 | 0.001 |
| VSL (mm) | 18.77±3.56b | 18.12±2.81b | 19.97±2.69a | 10.64 | 0.001 |
| ABL (mm) | 17.75±4.15b | 16.37±2.79c | 19.77±3.05a | 28.62 | 0.001 |
| SAL (mm) | 8.04±1.48b | 7.44±1.10c | 8.74±1.18a | 29.48 | 0.001 |
| LAL (mm) | 18.82±3.95b | 17.60±2.69c | 20.49±2.96a | 22.34 | 0.001 |
| STL (mm) | 2.23±0.04a | 2.14±0.03a | 2.22±0.06a | 1.16 | 0.314 |
| Predicted Group Membership | |||
|---|---|---|---|
| Population | Antalya | İzmir | Hatay |
| Antalya | 91.7 (100) | - | 8.3 (9) |
| İzmir | - | 100.0 (110) | - |
| Hatay | 8.0 (9) | 92.0 (104) | |
| Overall: 94.6% of original grouped cases correctly classified. | |||
The correct classification percentages and numbers are in bold; the number of individuals is given in parentheses.

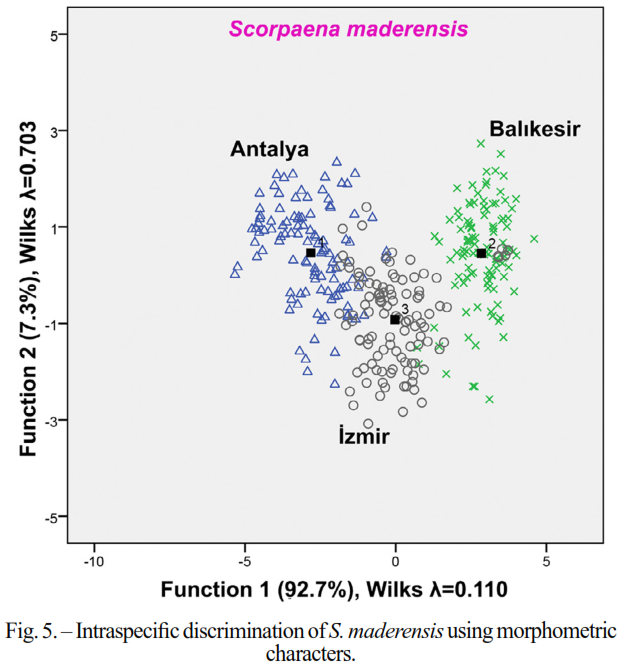

Scorpaena maderensis
⌅A total of 326 S. maderensis individuals were sampled from the Antalya, Balıkesir and İzmir stations in the Aegean and Mediterranean seas. The descriptive analysis of morphometric measurements of S. maderensis is presented in Table 3. ANOVA revealed that there were significant (P<0.05) differences in the TL, SL, HL, BL, CPL, CL, SDL, LDL, PAL, POH, NL, VBL, ABL and LAL measurements among S. maderensis populations, and there was no statistically significant (P>0.05) difference in the CPH, DBL, PDL, PVL, ML, ED, IOD, PBL, PPL, VSL, SAL and STL measurements (Table 3). The PCA analysis indicated that ten morphometric measurements taken from the samples (body height, longest dorsal fin spine length, preanal length, preorbital height, maxilla length, caudal peduncle height, caudal peduncle length, pectoral fin base length, anal fin base length and longest anal fin spine length) are quite important in the intraspecific distinction of S. maderensis. Morphometric ratios were calculated between these important morphometric characters and standard length for each S. maderensis population (Supplementary Table S2). These morphometric measurements were selected for the CDA. It was determined that the first two functions were important for the CDA analysis performed for the S. maderensis populations (F1 [92.7%], λ=0.110, P<0.001; F2[7.3%], λ=0.703, P<0.001) (Fig 5). The CDA results showed that these 10 characters taken from the fish samples were quite effective for discriminating three S. maderensis populations from each other and that they achieved 90.5% success in the intraspecific distinction of S. maderensis (Table 4). S. maderensis populations were clustered by hierarchical cluster analyses of meristic data. Balıkesir and İzmir were the closest S. maderensis populations and Antalya the most divergent one (Fig. 4).
| Morphometric | Antalya | Balıkesir | İzmir | ANOVA | |
|---|---|---|---|---|---|
| Measurements | (n=109) | (n=109) | (n=108) | F values | P values |
| TL (cm) | 12.46±1.78b | 13.07±1.52a | 12.69±1.58ab | 3.82 | 0.023 |
| SL (cm) | 9.55±1.44b | 10.03±1.20a | 9.77±1.27ab | 3.50 | 0.031 |
| HL (cm) | 3.98±0.62b | 4.17±0.50a | 4.05±0.55ab | 3.18 | 0.043 |
| BL (mm) | 34.08±5.11b | 36.27±4.34a | 34.57±4.79b | 6.32 | 0.002 |
| CPH (mm) | 10.13±1.44a | 9.81±1.23a | 10.18±1.28a | 2.42 | 0.090 |
| CPL (mm) | 8.13±0.97a | 6.48±0.57c | 7.23±0.92b | 104.23 | 0.001 |
| CL (cm) | 2.91±0.38b | 3.03±0.32a | 2.94±0.34ab | 3.61 | 0.028 |
| DBL (cm) | 6.12±0.95a | 6.38±0.80a | 6.16±0.77a | 2.91 | 0.056 |
| SDL (mm) | 9.68±1.42a | 9.34±1.42a | 8.73±1.11b | 14.29 | 0.001 |
| LDL (mm) | 16.15±2.28b | 17.12±1.78a | 15.66±1.79b | 15.66 | 0.001 |
| PDL (cm) | 2.87±0.45b | 3.00±0.37a | 2.93±0.39ab | 2.99 | 0.052 |
| PVL (cm) | 3.82±0.53a | 3.88±0.41a | 3.86±0.47a | 0.43 | 0.650 |
| PAL (cm) | 6.67±1.04b | 7.07±0.90a | 6.77±0.91ab | 5.16 | 0.006 |
| POH (mm) | 8.41±1.31b | 8.84±1.19a | 8.54±1.24ab | 3.43 | 0.034 |
| NL (mm) | 10.79±1.49a | 10.82±1.45a | 10.38±1.19a | 3.36 | 0.036 |
| ML (mm) | 20.32±3.03a | 21.01±2.36a | 20.56±2.64a | 1.87 | 0.156 |
| ED (mm) | 9.23±1.00a | 9.13±0.84a | 9.29±0.84a | 0.87 | 0.421 |
| IOD (mm) | 5.55±0.65a | 5.56±0.57a | 5.54±0.85a | 0.01 | 0.988 |
| PBL (mm) | 13.60±2.13a | 14.14±1.77a | 13.68±1.86a | 2.50 | 0.084 |
| PPL (cm) | 3.64±0.50a | 3.68±0.43a | 3.69±0.45a | 0.47 | 0.626 |
| VBL (mm) | 4.56±0.57a | 4.44±0.48ab | 4.38±0.51b | 3.27 | 0.039 |
| VSL (mm) | 14.85±1.47a | 14.51±1.39a | 14.42±1.25a | 2.87 | 0.058 |
| ABL (mm) | 16.56±1.96b | 17.31±1.77a | 16.63±1.75b | 5.49 | 0.005 |
| SAL (mm) | 9.55±1.06a | 9.46±0.99a | 9.35±0.80a | 1.11 | 0.332 |
| LAL (mm) | 17.24±1.81a | 17.68±1.41a | 17.19±1.51a | 3.07 | 0.048 |
| STL (mm) | 4.40±0.61a | 4.21±0.42a | 4.29±0.49a | 0.02 | 0.979 |
| Predicted Group Membership | |||
|---|---|---|---|
| Population | Antalya | Balıkesir | İzmir |
| Antalya | 90.8 (99) | - | 9.2 (10) |
| Balıkesir | - | 94.5 (103) | 5.5 (6) |
| İzmir | 9.3 (10) | 4.6 (5) | 86.1 (93) |
| Overall: 90.5% of original grouped cases correctly classified. | |||
The correct classification percentages and numbers are in bold; the number of individuals is given in parentheses.

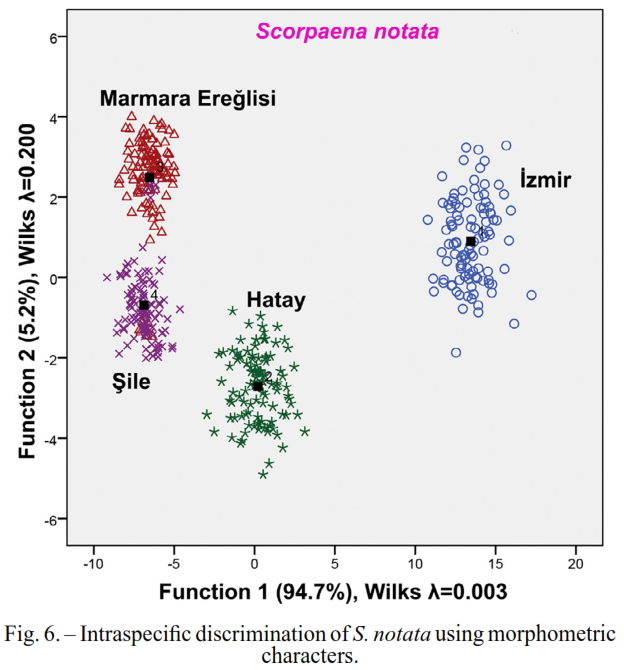

Scorpaena notata
⌅A total of 428 S. notata individuals were sampled from the İzmir, Hatay, Marmara Ereğlisi and Şile stations in the Aegean, Black, Mediterranean and Marmara seas. The descriptive analysis of morphometric measurements of S. notata is presented in Table 5. ANOVA revealed significant (P<0.05) differences in all the morphometric measurements among the S. notata populations (Table 5). As a result of the PCA, it was determined that 13 morphometric measurements taken from the samples (body height, caudal peduncle height, caudal peduncle length, longest dorsal fin spine length, preorbital height, snout length, maxilla length, eye diameter, pectoral fin base length, anal fin base length, longest anal fin spine length, supraocular tentacle length and ventral fin spine length) are quite important in the intraspecific distinction of S. notata. Morphometric ratios were calculated between these important morphometric characters and standard length for each S. notata population (Supplementary Table S3). These morphometric measurements were selected for the CDA. It was determined that the first three functions were important for the CDA analysis performed for the S. notata populations (F1[94.7%], λ=0.003, P<0.001; F2[5.2%], λ=0.200, P<0.001; F3[0.1%], λ=0.947, P<0.019) (Fig. 6). It was determined from the CDA results that these 13 characters taken from the fish samples were quite effective for discriminating four S. notata populations from each other and that they achieved 96.7% success in the intraspecific distinction of S. notata (Table 6). S. notata populations were clustered by hierarchical cluster analyses of meristic data. Marmara Ereğlisi and Şile are the closest populations that were sister populations to the Hatay population. İzmir was the most divergent S. notata population (Fig. 4).
| Morphometric | Hatay | İzmir | Marmara Ereğlisi | Şile | ANOVA | |
|---|---|---|---|---|---|---|
| Measurements | (n=106) | (n=106) | (n=107) | (n=109) | F values | P values |
| TL (cm) | 15.55±3.58b | 18.73±3.63a | 13.52±2.59c | 13.57±2.73c | 63.86 | 0.001 |
| SL (cm) | 12.00±2.84b | 14.46±2.85a | 10.41±2.06c | 10.43±2.19c | 61.54 | 0.001 |
| HL (cm) | 5.10±1.38b | 6.33±1.33a | 4.31±0.92c | 4.36±0.92c | 71.49 | 0.001 |
| BL (mm) | 42.08±8.31b | 48.09±8.44a | 37.94±7.68c | 37.77±7.44c | 39.37 | 0.001 |
| CPH (mm) | 11.80±2.98b | 14.66±3.19a | 10.25±2.04c | 10.41±2.28c | 62.60 | 0.001 |
| CPL (mm) | 8.12±2.59b | 10.40±2.63a | 6.73±1.18c | 6.86±1.75c | 77.39 | 0.001 |
| CL (cm) | 3.56±0.77b | 4.28±0.79a | 3.11±0.55c | 3.15±0.55c | 69.31 | 0.001 |
| DBL (cm) | 7.38±1.45b | 8.51±1.47a | 6.65±1.34c | 6.65±1.39c | 40.68 | 0.001 |
| SDL (mm) | 10.65±2.53b | 12.67±2.50a | 9.60±2.14c | 9.21±1.55c | 52.43 | 0.001 |
| LDL (mm) | 21.08±5.98b | 27.28±6.18a | 17.47±2.96c | 17.47±2.78c | 101.60 | 0.001 |
| PDL (cm) | 3.53±0.80b | 4.05±0.73a | 3.04±0.59c | 3.11±0.68c | 46.82 | 0.001 |
| PVL (cm) | 4.81±1.33b | 6.11±1.39a | 4.01±0.73c | 4.04±0.76c | 85.66 | 0.001 |
| PAL (cm) | 8.53±2.15b | 10.27±2.09a | 7.28±1.53c | 7.31±1.65c | 60.23 | 0.001 |
| POH (mm) | 8.72±2.41b | 11.65±3.13a | 7.36±1.51c | 7.29±1.57c | 87.37 | 0.001 |
| NL (mm) | 13.84±4.20b | 17.66±4.41a | 11.46±2.42c | 11.42±2.60c | 74.53 | 0.001 |
| ML (mm) | 25.78±6.98b | 32.05±7.05a | 21.71±3.89c | 21.97±4.32c | 75.39 | 0.001 |
| ED (mm) | 11.17±3.17b | 14.21±3.18a | 9.31±1.36c | 9.32±1.45c | 94.87 | 0.001 |
| IOD (mm) | 6.88±1.96b | 8.78±1.92a | 5.80±1.10c | 5.83±1.22c | 81.98 | 0.001 |
| PBL (mm) | 16.84±4.13b | 20.69±4.36a | 14.50±2.86c | 14.58±3.20c | 66.14 | 0.001 |
| PPL (cm) | 4.49±1.12b | 5.43±1.13a | 3.81±0.71c | 3.84±0.76c | 67.79 | 0.001 |
| VBL (mm) | 5.30±1.17b | 6.04±1.12a | 4.61±0.85c | 4.62±0.93c | 47.36 | 0.001 |
| VSL (mm) | 17.71±4.41b | 21.63±4.35a | 14.62±2.17c | 14.78±2.17c | 97.08 | 0.001 |
| ABL (mm) | 19.29±2.99b | 21.11±2.88a | 17.61±2.67c | 17.63±2.86c | 36.40 | 0.001 |
| SAL (mm) | 10.64±1.94b | 11.69±1.72a | 9.59±1.61c | 9.77±1.67c | 32.81 | 0.001 |
| LAL (mm) | 20.17±3.78b | 22.59±3.16a | 17.97±2.31c | 18.21±2.52c | 54.70 | 0.001 |
| STL (mm) | 3.15±0.99c | 6.67±1.64a | 4.27±0.69b | 2.69±0.58d | 51.56 | 0.001 |
| Predicted Group Membership | ||||
|---|---|---|---|---|
| Population | İzmir | Hatay | Marmara Ereğlisi | Şile |
| İzmir | 100.0 (106) | - | - | - |
| Hatay | - | 100.0 (106) | - | - |
| Marmara Ereğlisi | - | - | 93.5 (100) | 6.5 (7) |
| Şile | - | - | 6.4 (7) | 93.6 (102) |
| Overall: 96.7% of original grouped cases correctly classified. | ||||
The correct classification percentages and numbers are in bold; the number of individuals is given in parentheses.

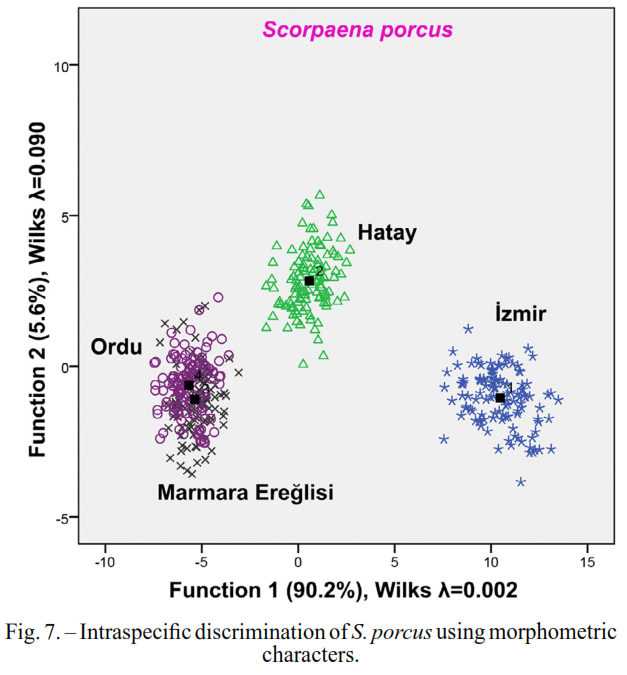

Scorpaena porcus
⌅A total of 459 S. porcus individuals were sampled from the İzmir, Hatay, Marmara Ereğlisi and Ordu stations in the Aegean, Black, Mediterranean and Marmara seas. The descriptive analysis of morphometric measurements of S. porcus is presented in Table 7. The one-way ANOVA showed significant (P<0.05) differences in all the morphometric measurements among the S. porcus populations (Table 7). The PCA analysis indicated that 13 morphometric measurements taken from the samples (body height, caudal peduncle height, caudal peduncle length, shortest dorsal fin spine length, longest dorsal fin spine length, snout length, maxilla length, eye diameter, pectoral fin base length, anal fin base length, longest anal fin spine length, supraocular tentacle length and ventral fin spine length) are quite important for the intraspecific distinction of the S. porcus. Morphometric ratios were calculated between these important morphometric characters and standard length for each S. porcus population (Supplementary Table S4). These morphometric measurements were selected for the CDA. It was determined that the first three functions are important for the CDA analysis performed for the S. porcus populations (F1[90.2%], λ=0.002, P<0.001; F2[5.6%], λ=0.090, P<0.001; F3[4.2%], λ=0.330, P<0.001) (Fig. 7). It was determined from the CDA results that these 13 characters taken from the fish samples were quite effective for discriminating four S. porcus populations from each other and that they achieved 96.5% success in the intraspecific distinction of S. porcus (Table 8). S. porcus populations were clustered by hierarchical cluster analyses of meristic data. Two branches were produced by UPGMA: the first was made up of İzmir and Hatay populations; the second was made up of Marmara Ereğlisi and Şile populations. These were the closest S. porcus populations (Fig.4).
| Morphometric Measurements | Hatay (n=114) | İzmir (n=115) | Marmara Ereğlisi (n=115) | Ordu (n=115) | ANOVA | |
|---|---|---|---|---|---|---|
| F values | P values | |||||
| TL (cm) | 16.55±3.98b | 18.56±4.27a | 14.56±3.82c | 13.94±4.15c | 30.85 | 0.001 |
| SL (cm) | 12.85±3.28b | 14.56±3.43a | 11.81±3.12bc | 10.78±3.43c | 27.42 | 0.001 |
| HL (cm) | 5.26±1.31b | 6.31±1.53a | 5.02±1.36b | 4.52±1.52c | 31.99 | 0.001 |
| BL (mm) | 48.48±12.37b | 63.53±15.88a | 45.04±12.55b | 39.18±12.74c | 69.06 | 0.001 |
| CPH (mm) | 13.42±4.01b | 14.92±3.72a | 11.59±3.29c | 10.67±3.47c | 31.62 | 0.001 |
| CPL (mm) | 10.50±2.37b | 13.94±3.71a | 9.42±2.63c | 8.80±2.63c | 73.52 | 0.001 |
| CL (cm) | 3.70±0.73b | 4.02±0.85a | 2.74±0.73d | 3.23±0.80c | 58.89 | 0.001 |
| DBL (cm) | 8.14±2.04b | 8.94±2.04a | 6.98±1.83c | 6.81±1.99c | 30.12 | 0.001 |
| SDL (mm) | 12.31±3.43b | 13.87±3.05a | 10.36±2.80c | 9.76±3.10c | 42.46 | 0.001 |
| LDL (mm) | 19.53±3.85b | 23.46±4.56a | 17.58±4.81c | 17.85±4.31c | 44.02 | 0.001 |
| PDL (cm) | 3.94±1.07b | 4.62±1.15a | 3.68±1.01b | 3.25±1.21c | 30.94 | 0.001 |
| PVL (cm) | 5.16±1.34b | 5.61±1.31a | 4.45±1.23c | 4.07±1.24c | 33.92 | 0.001 |
| PAL (cm) | 9.24±2.38b | 10.94±2.78a | 8.67±2.33b | 7.71±2.72c | 32.35 | 0.001 |
| POH (mm) | 9.19±2.45b | 10.07±2.41a | 7.29±1.92c | 6.97±1.94c | 53.72 | 0.001 |
| NL (mm) | 13.84±3.28b | 15.94±3.91a | 12.45±3.32c | 11.65±3.71c | 32.19 | 0.001 |
| ML (mm) | 27.16±6.48b | 31.13±7.42a | 24.24±6.43c | 23.02±7.17c | 31.77 | 0.001 |
| ED (mm) | 11.00±1.91b | 15.64±3.64a | 8.86±2.44d | 9.85±2.26c | 148.49 | 0.001 |
| IOD (mm) | 6.61±1.69b | 9.32±2.22a | 6.10±1.64bc | 5.77±1.75c | 89.70 | 0.001 |
| PBL (mm) | 17.64±4.27b | 22.19±5.31a | 18.65±5.06b | 15.75±5.52c | 33.14 | 0.001 |
| PPL (cm) | 4.88±1.33a | 5.19±1.26a | 4.07±1.11b | 3.82±1.15b | 33.00 | 0.001 |
| VBL (mm) | 5.63±1.21a | 5.22±1.47a | 5.50±1.63a | 4.61±0.88b | 13.59 | 0.001 |
| VSL (mm) | 17.92±3.92b | 22.27±4.52a | 17.56±4.71b | 15.38±4.18c | 51.32 | 0.001 |
| ABL (mm) | 20.46±4.49b | 22.89±4.17a | 17.58±4.63c | 17.54±4.45c | 39.06 | 0.001 |
| SAL (mm) | 11.34±2.49b | 13.08±2.61a | 9.81±2.62c | 9.65±2.54c | 45.15 | 0.001 |
| LAL (mm) | 20.02±3.47b | 21.71±3.32a | 16.71±4.74d | 18.28±3.70c | 36.44 | 0.001 |
| STL (mm) | 10.93±1.95b | 15.46±3.62a | 8.86±2.43d | 9.81±2.33c | 1380.04 | 0.001 |
| Predicted Group Membership | ||||
|---|---|---|---|---|
| Population | İzmir | Hatay | Marmara Ereğlisi | Ordu |
| İzmir | 100.0 (115) | - | - | - |
| Hatay | - | 100.0 (114) | - | - |
| Marmara Ereğlisi | - | - | 93.0 (107) | 7.0 (8) |
| Ordu | - | - | 7.0 (8) | 93.0 (107) |
| Overall: 96.5% of original grouped cases correctly classified. | ||||
The correct classifications percentages and numbers are in bold; the number of individuals is given in parentheses.
Scorpaena scrofa
⌅A total of 320 S. scrofa individuals were sampled from the Çanakkale, İzmir and Hatay stations in the Aegean, Mediterranean and Marmara seas. The descriptive analysis of morphometric measurements of S. scrofa is presented in Table 9. ANOVA revealed significant (P<0.05) differences in all the morphometric measurements (except for PPL and STL) among the S. scrofa populations (Table 9). As a result of the PCA, it was determined that ten morphometric measurements taken from the samples (body height, caudal peduncle height, shortest dorsal fin spine length, longest dorsal fin spine length, preorbital height, snout length, maxilla length, pectoral fin base length, ventral fin spine length and anal fin base length) are quite important in the intraspecific distinction of S. scrofa. Morphometric ratios were calculated between these important morphometric characters and standard length for each S. porcus population (Supplementary Table S5). These morphometric measurements were selected for the CDA. It was determined that the first two functions were important for the CDA analysis performed for the S. scrofa populations (F1[93.7%], λ=0.055, P<0.001; F2[6.3%], λ=0.600, P<0.001) (Fig. 8). It was determined from the CDA results that these 10 characters taken from the fish samples were quite effective for discriminating four S. scrofa populations from each other and that they achieved 92.2% success in the intraspecific distinction of S. scrofa (Table 10). S. scrofa populations were clustered by hierarchical cluster analyses of meristic data. Çanakkale and İzmir were the closest S. scrofa populations and Hatay the most divergent (Fig. 4).
| Morphometric Measurements | Çanakkale (n=107) | Hatay (n=107) | İzmir (n=106) | ANOVA | |
|---|---|---|---|---|---|
| F values | P values | ||||
| TL (cm) | 22.88±5.03a | 19.90±5.63b | 21.57±3.91a | 9.90 | 0.001 |
| SL (cm) | 17.71±3.77a | 15.59±4.29b | 16.71±3.01ab | 8.60 | 0.001 |
| HL (cm) | 7.74±1.79a | 6.65±1.98b | 7.51±1.43a | 11.63 | 0.001 |
| BL (mm) | 57.99±12.96a | 50.75±14.27b | 56.04±10.77a | 9.22 | 0.001 |
| CPH (mm) | 18.22±4.46a | 15.42±4.73b | 17.47±3.34a | 12.59 | 0.001 |
| CPL (mm) | 14.28±3.06a | 12.64±3.45b | 13.16±2.59b | 8.14 | 0.001 |
| CL (cm) | 5.18±1.31a | 4.31±1.38b | 4.86±0.95a | 13.62 | 0.001 |
| DBL (cm) | 10.33±2.06a | 9.39±2.62b | 9.87±1.71ab | 5.10 | 0.007 |
| SDL (mm) | 16.10±3.35a | 12.98±2.68c | 14.78±2.60b | 31.43 | 0.001 |
| LDL (mm) | 33.28±8.33a | 27.04±7.67c | 30.66±5.87b | 19.36 | 0.001 |
| PDL (cm) | 5.86±1.37a | 5.19±1.59b | 5.83±1.09a | 8.11 | 0.001 |
| PVL (cm) | 7.32±1.65a | 6.42±1.86b | 6.97±1.32a | 8.21 | 0.001 |
| PAL (cm) | 13.58±3.06a | 11.78±3.36b | 12.85±2.39a | 9.91 | 0.001 |
| POH (mm) | 22.97±5.26a | 19.68±5.83b | 22.41±4.21a | 12.44 | 0.001 |
| NL (mm) | 21.80±6.04a | 17.58±6.44b | 21.42±3.98a | 18.59 | 0.001 |
| ML (mm) | 39.55±8.75a | 34.12±9.56b | 37.42±7.03a | 11.08 | 0.001 |
| ED (mm) | 17.57±2.14a | 16.75±1.99b | 17.13±1.84ab | 4.55 | 0.011 |
| IOD (mm) | 10.42±2.79a | 8.33±2.91b | 10.34±2.01a | 22.32 | 0.001 |
| PBL (mm) | 25.09±6.08a | 20.56±6.21b | 24.69±4.12a | 21.60 | 0.001 |
| PPL (cm) | 6.60±1.47a | 6.59±1.91a | 6.26±1.19a | 1.67 | 0.191 |
| VBL (mm) | 7.80±1.88a | 6.14±2.13b | 7.30±1.73a | 20.94 | 0.001 |
| VSL (mm) | 25.52±4.60a | 22.44±5.09b | 25.35±3.25a | 16.70 | 0.001 |
| ABL (mm) | 24.50±5.10a | 21.76±5.55b | 23.31±3.41a | 8.84 | 0.001 |
| SAL (mm) | 13.01±3.11a | 10.94±3.43b | 12.44±1.38a | 15.67 | 0.001 |
| LAL (mm) | 24.39±4.49a | 22.34±5.30b | 23.81±2.53a | 6.52 | 0.002 |
| STL (mm) | 1.72±0.32a | 1.68±0.20a | 1.71±0.18a | 0.99 | 0.374 |
| Predicted Group Membership | |||
|---|---|---|---|
| Population | Çanakkale | İzmir | Hatay |
| Çanakkale | 87.9 (94) | 12.1 (13) | - |
| İzmir | 10.4 (11) | 89.6 (95) | - |
| Hatay | - | 0.9 (1) | 99.1 (106) |
| Overall: 92.2% of original grouped cases correctly classified. | |||
The correct classification percentages and numbers are in bold; the number of individuals is given in parentheses.
Interspecific discrimination

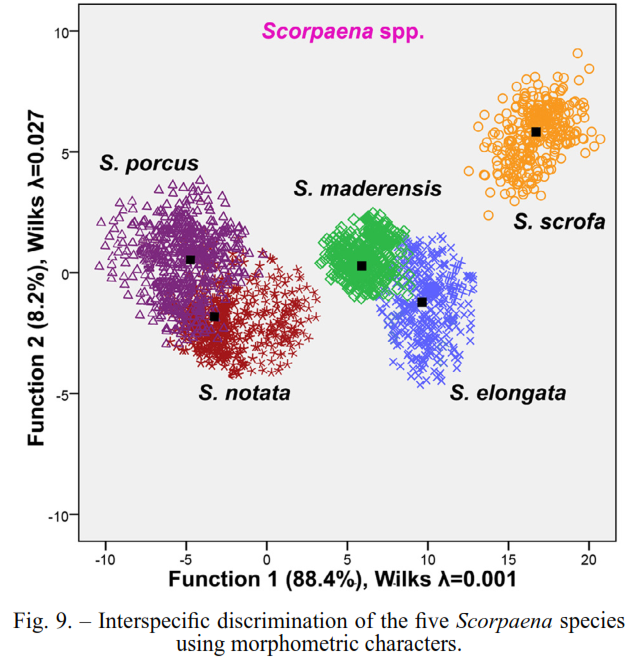

⌅A total of 1865 individuals belonging to five Scorpaena species were sampled from the Antalya, Balıkesir, Çanakkale, İzmir, Hatay, Marmara Ereğlisi, Ordu and Şile stations in the Aegean, Black, Mediterranean and Marmara seas. The descriptive analysis of morphometric measurements of five Scorpaena species is presented in Table 11. The one-way ANOVA showed significant (P<0.05) differences in all the morphometric measurements among the Scorpaena species (Table 11). The PCA analysis indicated that 13 morphometric measurements taken from the samples (body height, caudal peduncle height, caudal peduncle length, longest dorsal fin spine length, preorbital height, snout length, maxilla length, eye diameter, pectoral fin base length, anal fin base length, longest anal fin spine length, supraocular tentacle length and ventral fin spine length) were quite important for the interspecific discrimination of five Scorpaena species. These morphometric measurements were selected for the CDA. It was determined that the first four functions were important for the CDA analysis performed for the five Scorpaena species (F1[88.4%], λ=0.001, P<0.001; F2[8.2%], λ=0.027, P<0.001; F3[2.0%], λ=0.194, P<0.001; F4[1.4%], λ=0.493, P<0.001) (Fig. 9). It is determined from the CDA results that these 13 characters taken from the fish samples were quite effective for discriminating five Scorpaena species from each other and that they achieved 97.4% success in interspecific discrimination of these Scorpaena species (Table 12).

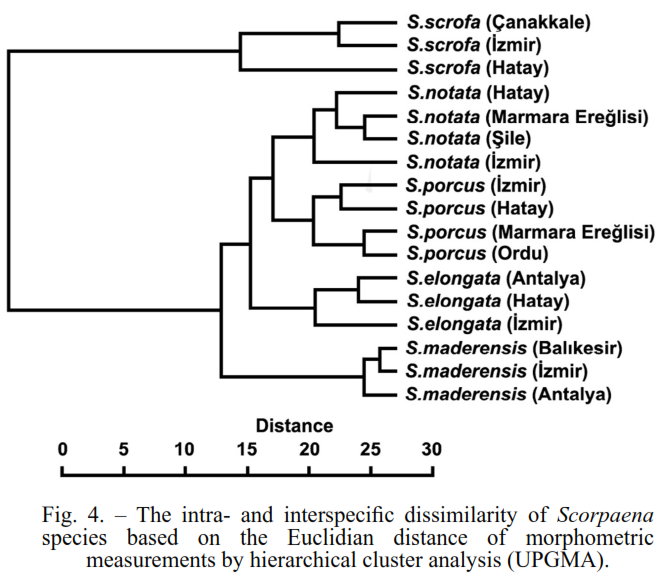

Hierarchical cluster analyses of meristic data clustered Scorpaena species. Three main branches were produced by UPGMA. In the first branch, S. scrofa was seen to be morphometrically most divergent from the other species. In the second branch, S. notata and S. porcus were the closest taxa forming the sister group to S. elongata. The neighbouring branch made up of S. maderensis was seen to be morphometrically most divergent from the other species and was branched as a third group. The third group, the neighbouring branch, included only S. maderensis (Fig. 4).
| Morphometric Measurements | S. elongata (n=332) | S. maderensis (n=326) | S. notata (n=428) | S. porcus (n=459) | S. scrofa (n=320) | ANOVA | |
|---|---|---|---|---|---|---|---|
| F values | P values | ||||||
| TL (cm) | 15.71±3.57b | 12.74±1.64c | 15.33±3.80b | 15.90±4.44b | 21.45±5.05a | 214.96 | 0.001 |
| (9.2-23.6) | (8.7-16.6) | (9.5-22.9) | (8.4-25.1) | (8.9-33.4) | |||
| SL (cm) | 12.60±1.14b | 9.80±0.23d | 11.81±1.66c | 12.50±1.43b | 16.68±0.92a | 1347.22 | 0.001 |
| (7.1-18.9) | (6.7-12.9) | (7.2-17.7) | (6.3-19.8) | (7.1-25.6) | |||
| HL (cm) | 5.21±0.46b | 4.08±0.17d | 5.02±0.84c | 4.95±0.35c | 7.29±0.55a | 1612.65 | 0.001 |
| (2.9-7.9) | (2.6-5.6) | (2.7-8.2) | (2.5-8.6) | (3.2-10.7) | |||
| BL (mm) | 41.16±4.48c | 35.07±1.64d | 41.53±4.59c | 45.41±4.78b | 54.93±4.04a | 1010.49 | 0.001 |
| (21.05-68.98) | (22.86-46.20) | (25.60-62.95) | (22.30-90.21) | (22.18-82.92) | |||
| CPH (mm) | 11.61±0.97c | 10.05±0.43d | 11.75±1.84c | 12.60±1.81b | 16.99±1.45a | 1041.54 | 0.001 |
| (5.79-19.71) | (6.46-13.64) | (6.72-19.46) | (5.52-22.67) | (6.57-25.29) | |||
| CPL (mm) | 10.48±1.20c | 7.27±0.75e | 7.99±1.57d | 10.82±2.79b | 13.38±1.19a | 663.97 | 0.001 |
| (4.96-20.65) | (4.86-10.45) | (4.25-14.71) | (4.42-19.32) | (4.47-21.57) | |||
| CL (cm) | 3.14±0.27d | 2.97±0.13e | 3.53±0.50b | 3.45±0.51c | 4.77±0.47a | 916.02 | 0.001 |
| (1.8-4.8) | (2.0-3.9) | (2.0-5.5) | (1.6-5.4) | (1.7-7.8) | |||
| DBL (cm) | 7.60±0.71b | 6.23±0.23d | 7.32±0.80c | 7.73±0.93b | 9.88±0.53a | 1127.34 | 0.001 |
| (4.1-11.8) | (4.2-8.3) | (4.4-11.1) | (3.8-12.6) | (4.4-15.9) | |||
| SDL (mm) | 11.17±0.80c | 9.29±0.64e | 10.51±1.51d | 11.58±1.79b | 14.68±1.51a | 687.89 | 0.001 |
| (7.06-16.23) | (5.74-13.54) | (6.13-17.04) | (5.34-19.65) | (6.46-21.33) | |||
| LDL (mm) | 21.27±1.95b | 16.31±0.95d | 20.79±4.12b | 19.75±2.55c | 30.29±3.06a | 1105.23 | 0.001 |
| (12.13-32.17) | (11.06-22.10) | (12.22-35.85) | (9.45-30.36) | (12.05-47.17) | |||
| PDL (cm) | 3.93±0.29b | 2.94±0.14d | 3.43±0.44c | 3.85±0.55b | 5.61±0.39a | 2035.03 | 0.001 |
| (2.0-6.6) | (2.0-4.1) | (2.0-5.2) | (1.8-6.5) | (2.1-8.7) | |||
| PVL (cm) | 5.16±0.48b | 3.87±0.13d | 4.73±0.85c | 4.82±0.65c | 6.90±0.45a | 1157.40 | 0.001 |
| (2.8-7.9) | (2.7-5.2) | (2.8-8.0) | (2.4-7.9) | (2.7-10.8) | |||
| PAL (cm) | 9.20±0.84b | 6.84±0.25d | 8.33±1.24c | 9.12±1.26b | 12.74±0.86a | 1522.82 | 0.001 |
| (4.8-13.9) | (4.6-9.2) | (4.8-13.1) | (4.2-15.7) | (5.1-19.5) | |||
| POH (mm) | 11.40±1.03b | 8.58±0.41cd | 8.69±1.77c | 8.37±1.39d | 21.66±1.69a | 5742.23 | 0.001 |
| (6.32-17.12) | (5.28-11.60) | (4.57-15.53) | (3.95-14.15) | (9.34-31.91) | |||
| NL (mm) | 12.53±1.17c | 10.66±0.46d | 13.51±2.59b | 13.46±2.37b | 20.10±2.29a | 1027.10 | 0.001 |
| (7.03-19.48) | (7.40-14.37) | (7.60-24.08) | (6.80-21.70) | (6.92-32.22) | |||
| ML (mm) | 27.10±2.41b | 20.64±0.71e | 25.31±4.21d | 26.47±3.40c | 37.04±2.58a | 1270.19 | 0.001 |
| (15.51-39.46) | (13.90-27.41) | (15.62-41.76) | (13.36-43.47) | (14.94-54.26) | |||
| ED (mm) | 15.48±3.04b | 9.23±0.39e | 10.98±2.04d | 11.37±2.68c | 17.27±0.84a | 843.05 | 0.001 |
| (6.15-24.78) | (7.02-11.60) | (6.55-18.87) | (4.43-20.58) | (10.95-22.16) | |||
| IOD (mm) | 6.05±0.60c | 5.56±026d | 6.81±1.27b | 6.94±1.47b | 9.65±1.25a | 646.45 | 0.001 |
| (3.25-8.84) | (3.54-7.84) | (4.12-11.89) | (3.45-12.95) | (3.75-14.99) | |||
| PBL (mm) | 16.01±1.33d | 13.78±0.61e | 16.61±2.60c | 18.58±2.54b | 23.46±2.69a | 973.11 | 0.001 |
| (9.36-23.47) | (8.65-18.83) | (9.84-27.44) | (9.12-30.65) | (9.69-35.05) | |||
| PPL (cm) | 5.11±0.50b | 3.68±0.14d | 4.39±0.67c | 4.48±0.60c | 6.49±0.32a | 1419.14 | 0.001 |
| (2.6-8.3) | (2.6-4.8) | (2.7-6.9) | (2.3-7.8) | (2.5-11.2) | |||
| VBL (mm) | 4.90±1.11c | 4.46±0.23d | 5.15±0.66b | 5.24±0.46b | 7.04±0.85a | 619.24 | 0.001 |
| (1.55-9.56) | (3.10-5.81) | (3.00-7.80) | (1.68-8.95) | (1.95-11.58) | |||
| VSL (mm) | 19.01±1.24b | 14.64±0.54e | 17.18±2.94d | 18.34±2.66c | 24.57±1.92a | 931.15 | 0.001 |
| (12.39-25.88) | (10.70-18.03) | (10.40-27.26) | (9.68-28.99) | (12.68-33.59) | |||
| ABL (mm) | 18.03±1.68d | 16.84±0.78e | 18.97±1.72c | 19.68±2.42b | 23.27±1.69a | 593.89 | 0.001 |
| (11.19-26.05) | (12.05-21.25) | (12.48-25.95) | (9.58-29.54) | (11.71-37.16) | |||
| SAL (mm) | 8.12±0.67e | 9.46±0.38d | 10.46±1.04c | 10.99±1.56b | 12.13±1.23a | 644.06 | 0.001 |
| (5.41-11.36) | (6.72-11.97) | (6.43-15.43) | (5.63-17.66) | (5.28-18.69) | |||
| LAL (mm) | 19.09±1.58c | 17.41±0.65d | 19.80±2.10b | 19.26±2.17c | 23.63±1.38a | 568.49 | 0.001 |
| (11.91-27.77) | (13.11-21.63) | (12.84-27.71) | (10.00-27.95) | (11.70-34.56) | |||
| STL (mm) | 2.19±0.49c | 4.32±0.33b | 4.17±1.57b | 11.34±2.63a | 1.70±0.24d | 2656.61 | 0.001 |
| (0.74-3.28) | (3.21-5.90) | (1.83-9.29) | (4.43-20.58) | (1.10-2.22) | |||
| Predicted Group Membership | |||||
|---|---|---|---|---|---|
| Species | S. elongata | S. maderensis | S. notata | S. porcus | S. scrofa |
| S. elongata | 98.5 (327) | 1.5 (5) | - | - | - |
| S. maderensis | 1.8 (6) | 98.2 (320) | - | - | |
| S. notata | - | - | 96.7 (414) | 3.3 (14) | |
| S. porcus | - | - | 5.2 (24) | 94.8 (435) | |
| S. scrofa | 100.0 (320) | ||||
| Overall: 97.4% of original grouped cases correctly classified. | |||||
The correct classifications percentages and numbers are in bold; the number of individuals is given in parentheses.
DISCUSSION
⌅The genus Scorpaena is distributed throughout temperate and tropical seas of the world (Hureau and Litvinenko 1986Hureau J.C., Litvinenko N.I. 1986. Scorpaenidae. In: Whitehead P.J.P., Bauchot M.L., et al. (eds), Fishes of the North-eastern Atlantic and the Mediterranean, Paris: Unesco, pp. 1211-1229., Gomon et al. 1994Gomon M.F., Glover J.C.M., Kuiter R.H. 1994. The fishes of Australia’s south coast. State Print, Adelaide, 992 pp., Froese and Pauly 2020Froese R., Pauly D. 2020. FishBase, World Wide Web electronic publication. Accessed: 12.12.2020. http://www.fishbase.org/ ). It is known that Scorpaena species are difficult to identify at the species level using visual observation alone due to colouration similarities and overlapping morphological features in different habitats (Hureau and Livtinenko 1986Hureau J.C., Litvinenko N.I. 1986. Scorpaenidae. In: Whitehead P.J.P., Bauchot M.L., et al. (eds), Fishes of the North-eastern Atlantic and the Mediterranean, Paris: Unesco, pp. 1211-1229., Golani et al. 2006Golani D., Özturk B., Başusta N. 2006. Fishes of the eastern Mediterranean. Turkish Marine Research Foundation, Istanbul, 260 pp., Akalın et al. 2011Akalın S., İlhan D., Ünlüoğlu A., et al. 2011. Length-weight relationship and metric-meristic characteristics of two scorpion fishes (Scorpaena notata and Scorpaena porcus) in İzmir Bay. J. Fish. Sci. 5: 291-299.https://doi.org/10.3153/jfscom.2011033 ). Morphometric characters of the fish species are a strong means to measure and distinguish species and stock relations (Turan et al. 2005Turan C., Yalcin S., Turan F., et al. 2005. Morphometric comparisons of African catfish, Clarias gariepinus, populations in Turkey. Folia Zool. 54: 165-172. , Cadrin et al. 2014Cadrin S.X., Kerr L.A., Mariani S. 2014. Stock identification methods: an overview. In: Cadrin S.X., Kerr L.A., Mariani S. (eds), Stock Identification Methods. San Diego: Elsevier, pp. 1-5. https://doi.org/10.1016/B978-0-12-397003-9.00001-1 ). In this study, the intra- and interspecific discriminations of five Scorpaena species inhabiting the Aegean, Black, Mediterranean and Marmara seas were successfully performed using CDA based on morphometric characters. It was determined that data obtained from Scorpaena species showed some differences among the species but were generally compatible with the data of Froese and Pauly (2020)Froese R., Pauly D. 2020. FishBase, World Wide Web electronic publication. Accessed: 12.12.2020. http://www.fishbase.org/ . The most significant measurements of five Scorpaena species taken into account for discrimination through the traditional analysis were body height, caudal peduncle height, caudal peduncle length, longest dorsal fin spine length, preorbital height, snout length, maxilla length, eye diameter, pectoral fin base length, anal fin base length, longest anal fin spine length, supraocular tentacle length and ventral fin spine length. As a result of CDA analysis, it was determined that morphometric characters are also effective for intraspecific discrimination of five Scorpaena species. For example, the highest intraspecific discrimination was determined for S. notata populations (96.7 %), followed by S. porcus (96.5 %), S. elongata (94.6 %), S. scrofa (92.2 %) and S. maderensis (90.5 %). The intraspecific morphological variations of five Scorpaena species may be due to variation in body shape but not to the total length effect because it was normalized successfully using the Elliott et al. (1995)Elliott N.G., Haskard K., Koslow J.A. 1995. Morphometric analysis of orange roughy (Hoplostethus atlanticus) off the continental slope of southern Australia. J. Fish Biol. 46: 202-220. https://doi.org/10.1111/j.1095-8649.1995.tb05962.x method. Cadrin (2000)Cadrin S.X. 2000. Advances in morphometric identification of fishery stocks. Rev. Fish. Biol. Fisher. 10: 91-112. https://doi.org/10.1023/A:1008939104413 indicated that is difficult to explain the causes of morphological differences between fish populations. However, it is assumed that these differences may be related to genetic factors or may also be related to environmental factors such as feeding, habitat, pH, turbidity and temperature (Wimberger 1992Wimberger P.H. 1992. Plasticity of fish body shape. The effects of diet, development, family and age in two species of Geophagus (Pisces: Cichlidae). Biol. J. Linn. Soc. 45: 197-218. https://doi.org/10.1111/j.1095-8312.1992.tb00640.x ).
Pothin et al. (2006)Pothin K., Gonzales-Salas C., Chabanet P., et al. 2006. Distinction between Mulloidichthys flavolineatus juveniles from Reunion Island and Mauritius Island (south-west Indian Ocean) based on otolith morphometrics. J. Fish Biol. 69: 38-53. https://doi.org/10.1111/j.1095-8649.2006.01047.x indicated that the Wilks’ lambda (λ) value varies between 0 and 1. The discriminating power of CDA is best when Wilks’ lambda (λ) is close to 0. In the current study, the Wilks’ lambda (λ) values for intraspecific discriminations were 0.008 for S. elongata, 0.110 for S. maderensis, 0.003 for S. notata, 0.002 for S. porcus and 0.055 for S. scrofa. The Wilks’ lambda (λ) value was determined as 0.001 for interspecific discrimination of the five Scorpaena species. CDA results show that morphological measurements of the five Scorpaena species produce good discrimination within each species and among the species. These lambda values also support the high accuracy of CDA for morphometric measurements in the present study. Using the morphometric measurements of Scorpaena species, the actual separation rate in CDA was determined to be high (Table 12). Body morphometric traits were reported to provide a moderate level of discrimination in many species and genera from marine and freshwater habitats such as Trachurus mediterraneus in the Aegean, Black, and Mediterranean seas (Turan 2004Turan C. 2004. Stock identification of Mediterranean horse mackerel (Trachurus mediterraneus) using morphometric and meristic characters. ICES J. Mar. Sci. 61: 774-781. https://doi.org/10.1016/j.icesjms.2004.05.001 ), Eugerres spp. in the eastern Pacific (González-Acosta et al. 2005González-Acosta A.F., De La Cruz-Agüero J., Castro-Aguirre J.L. 2005. A review of eastern Pacific species of the genus Eugerres (Perciformes: Gerreidae). Bull. Mar. Sci. 76: 661-673.), Megalaspis cordyla from the Indian coast (Sajina et al. 2011Sajina A.M., Chakraborty S.K., Jaiswar A.K., et al. 2011. Stock structure analysis of Megalaspis cordyla (Linnaeus, 1758) along the Indian coast based on truss network analysis. Fish. Res. 108: 100-105. https://doi.org/10.1016/j.fishres.2010.12.006 ), the genus Labeo in Assam, India (Choudhury and Dutta 2012Choudhury S., Dutta K. 2012. Interrelationships of five species of the genus Labeo by morphometric analysis. IOSR J. Pharm. Biol. Sci. 2: 35-39. https://doi.org/10.9790/3008-0263337 ), Channa punctatus from Indian rivers (Khan et al. 2013Khan M.A., Miyan K., Khan S. 2013. Morphometric variation of snakehead fish, Channa punctatus, populations from three Indian rivers. J. Appl. Ichthyol. 29: 637-642. https://doi.org/10.1111/j.1439-0426.2012.02058.x ), the genus Nemipterus in Malaysia and its surrounding seas (Imtiaz and Naim 2018Imtiaz A., Naim D.M.D. 2018. Geometric morphometrics species discrimination within the genus Nemipterus from Malaysia and its surrounding seas. Biodiversitas 19: 2316-2322. https://doi.org/10.13057/biodiv/d190640 ), Ompok pabo from Bangladeshi freshwaters (Mahfuj et al. 2019bMahfuj M.S., Hossain M.F., Jinia S.S., et al. 2019b. Meristic and morphometric variations of critically endangered butter catfish, Ompok pabo inhabiting three natural sources. Int. J. Biosci. 14: 518-527.) and mullet species in Aceh, Indonesia (Yulianto et al. 2020Yulianto D., Indra I., Batubara A.S., et al. 2020. Morphometrics and genetics variations of mullets (Pisces: Mugillidae) from Aceh waters, Indonesia. Biodiversitas 21: 3422-3430. https://doi.org/10.13057/biodiv/d210802 ).
La Mesa (2005)La Mesa G. 2005. A revised description of Scorpaena maderensis (Scorpaenidae) by means of meristic and morphometric analysis. J. Mar. Biol. Assoc. U.K. 85: 1263-1270. https://doi.org/10.1017/S0025315405012415 revised the description of S. maderensis sampled from the southeastern coasts of Sicily using the metric and meristic characteristics and reported that most of the morphometric characters of S. maderensis evaluated in this study overlap with the S. porcus data, causing some problems in species distinction. The same author reported that supraocular tentacle length and anal fin spine length were the most effective characters for distinguishing S. maderensis and S. porcus species. Similarly, in the present study, it was determined that the supraocular tentacle length, shortest anal fin spine length and longest anal fin spine length were the most effective characters for distinguishing between S. maderensis and S. porcus species. Turan et al. (2009)Turan C., Gündüz I., Gurlek M., et al. 2009. Systematics of Scorpaeniformes species in the Mediterranean Sea inferred from mitochondrial 16s rDNA sequence and morphological data. Folia Biol. 57: 219-226. https://doi.org/10.3409/fb57_1-2.219-226 compared S. elongata, S. maderensis, S. notata, S. porcus, and S. scrofa from Iskenderun Bay (Mediterranean Sea) based on the number of spines and soft rays on anal, ventral and dorsal fins, the number of soft rays on the pectoral and caudal fins, the number of scales on the lateral line, and the number of gill spines and vertebrae. They concluded that caudal fin rays, pectoral fin rays, vertebrae numbers and lateral scale numbers are important for species differentiation.
Ferri et al. (2010)Ferri J., Petrić M., Matić-Skoko S. 2010. Biometry analysis of the black scorpionfish, Scorpaena porcus (Linnaeus, 1758) from the eastern Adriatic Sea. Acta Adriat. 51: 45-53. evaluated 18 morphometric characteristics of S. porcus sampled from the eastern Adriatic Sea. They reported that these characters did not differ statistically between male and female individuals (P>0.05). Similarly, in the present study, 26 morphometric characters were evaluated for S. porcus from the Aegean, Black, Mediterranean seas and Marmara seas, and it was determined that metric characters showed no statistical difference between female and male individuals (P>0.05). Thus, this study contributes to the literature by supporting the data of previous studies over new samples obtained from different stations in different habitats. Akalın et al. (2011)Akalın S., İlhan D., Ünlüoğlu A., et al. 2011. Length-weight relationship and metric-meristic characteristics of two scorpion fishes (Scorpaena notata and Scorpaena porcus) in İzmir Bay. J. Fish. Sci. 5: 291-299.https://doi.org/10.3153/jfscom.2011033 compared 19 metric and 7 meristic characteristics in S. porcus and S. notata sampled from the Aegean Sea. Although they stated that the black spot on the dorsal fin and supraocular tentacle are effective characters for differentiating these two species, there were problems in distinguishing juvenile individuals. Therefore, they stated that a detailed morphometric comparison was needed for Scorpaena species. They found statistical differences between the two species in supraocular tentacle length, upper jaw length, pectoral fin length, caudal peduncle height, eye diameter, longest dorsal fin spine length, pelvic fin spine length, shortest anal fin spine length and longest anal fin spine length. Our study also revealed that morphometric characters may differ statistically among fish species (Table 11). Manilo and Peskov (2016)Manilo L.G., Peskov V.N. 2016. Comparative morphometric analysis of the small-scaled scorpionfish, Scorpaena porcus (Scorpaenidae, Scorpaeniformes), from the southern coast of the Crimea and eastern part of the Adriatic Sea. Vestn. Zool. 50: 533-538. https://doi.org/10.1515/vzoo-2016-0060 evaluated 20 morphometric characteristics of S. porcus sampled from the south coast of Crimea and the eastern part of the Adriatic Sea. They compared the male and female individuals in both regions separately. As a result of this comparison, they reported that the 13 morphometric characteristics were statistically different between these two regions. Similar results were obtained in the present study, and the PCA indicated that 13 morphometric measurements were important for the intraspecific discrimination of five S. porcus from four seas. We also achieved a success rate of 96.5% in the intraspecific separation of S. porcus sampled from different seas using these morphometric data (Table 8). As explained above in the literature review, although there are some intra- and interspecific morphometric-based studies for the genus Scorpaena, no studies based on morphometric measurements of these five Scorpaena species had been carried out in such wide geographic areas. Therefore, this is the first study based on morphometric data to perform intra- and interspecific discrimination of the five Scorpaena species sampled from eight stations in four seas.
In many studies, the characters are considered one of the simplest, most cost-effective and most commonly used tools to distinguish between fish populations (Khan et al. 2013Khan M.A., Miyan K., Khan S. 2013. Morphometric variation of snakehead fish, Channa punctatus, populations from three Indian rivers. J. Appl. Ichthyol. 29: 637-642. https://doi.org/10.1111/j.1439-0426.2012.02058.x , Siddik et al. 2015Siddik M.A.B., Hanif M.A., Chaklader M.R., et al. 2015. Fishery biology of gangetic whiting Sillaginopsis panijus (Hamilton, 1822) endemic to Ganges delta, Bangladesh. Egypt. J. Aquat. Res. 41: 307-313. https://doi.org/10.1016/j.ejar.2015.11.001 ), to determine the structure of fish assemblages (Cheng et al. 2005Cheng Q., Lu D., Ma L. 2005. Morphological differences between close populations discernible by multivariate analysis: a case study of genus Coilia (Teleostei: Clupeiforms). Aquat. Living Resour. 18: 187-192. https://doi.org/10.1051/alr:2005020 ) and to identify fish stocks (Cadrin et al. 2014Cadrin S.X., Kerr L.A., Mariani S. 2014. Stock identification methods: an overview. In: Cadrin S.X., Kerr L.A., Mariani S. (eds), Stock Identification Methods. San Diego: Elsevier, pp. 1-5. https://doi.org/10.1016/B978-0-12-397003-9.00001-1 , Siddik et al. 2016Siddik M.A.B., Chaklader M.R., Hanif M.A., et al. 2016. Stock identification of critically endangered olive barb, Puntius sarana (Hamilton, 1822) with emphasis on management implications. J. Aquac. Res. Dev. 7: 1-6. https://doi.org/10.4172/2155-9546.1000411 ). However, in some cases these morphometric characters may not be suitable for identifying or discriminating every fish species and population. Therefore, the determination of these characters is important for fish biology and fisheries management.
