Natural and anthropic pollution episodes during the Late Holocene evolution of the Tinto River estuary (SW Spain)

Study area

The Tinto River (100 km long) is a small fluvial current that runs in a NE-SW direction through the southwest of the Iberian Peninsula. It shows the typical dynamics of Mediterranean rivers, with highly variable flows depending on the season (<0.1-100 m³ s^-1; Cánovas 2008Cánovas C.R. 2008. La calidad del agua de los ríos Tinto y Odiel. Evolución temporal y factores condicionantes de la movilidad de los metales. PhD thesis, Universidad de Huelva, 425 pp.). This river joins the Odiel River in a wide estuary at its mouth, which is characterized by the presence of two coastal sandy spits (Fig. 1B: Punta Umbría, Punta Arenillas) that protect large internal areas occupied by marshes and old barrier islands that contain cheniers and washover fans (González-Regalado et al. 2018González Regalado M.L., Gómez P., Ruiz F., et al. 2018. Holocene palaeoenvironmental evolution of Saltés Island (Tinto and Odiel estuary, SW Spain) during the Roman period (1st century BC-5th century AD). J. Iber. Geol. 45: 129-145. https://doi.org/10.1007/s41513-018-0089-8 ). In this estuary, the tidal regime is mesotidal (2.1 m), with a low diurnal inequality (Borrego et al. 1993Borrego J., Morales J.A., Pendón J.G. 1993. Holocene flling of an estuarine lagoon along the mesotidal coast of Huelva: The Piedras River mouth, southwestern Spain. J. Coast. Res. 9: 242-254.).

The interaction between tidal and fluvial inputs divides this estuary into three sedimentary sectors (Pendón 1999Pendón J.G. 1999. La costa de Huelva. Una introducción a los procesos y productos sedimentarios. Universidad de Huelva, Huelva, 198 pp.): a) the upper estuary, characterized by dominant tidal processes but with clearly fluvial sedimentation (mainly gravels and coarse sands); b) the middle estuary, with meandering channels separated by silty-clayey salt marsh bodies that eventually merge into one main channel, where the river waters (pH 2.7-5; conductivity 0.4-5 mS) and marine waters (pH 7-8.3; conductivity >110 mS) are mixed (Carro et al. 2006Carro B., Borrego J., López-González N., et al. 2006. Procesos de mezcla de un estuario afectado por drenaje de aguas ácidas (Ría de Huelva, España). Geogaceta 39: 115-118.), with associated flocculation of fine sediment particles (López-González et al. 2006López-González N., Morales J.A., Borrego J., et al. 2006. Variación estacional de las características texturales en los sedimentos intermareales de los estuarios de los ríos Tinto y Odiel (S.O. de España). Geogaceta 40: 291-294.); and c) the marine estuary, with two main channels dominated by tidal dynamics (Fig. 1B: Padre Santo, Punta Umbría), with bioclastic gravels and sands near the mouth (Ruiz et al. 2000Ruiz F., González-Regalado M.L., Baceta J.I., et al. 2000. Comparative ecological analysis of the ostracod faunas from low- and high-polluted southwestern Spanish estuaries: a multivariate approach. Mar. Micropal. 40: 345-376. https://doi.org/10.1016/S0377-8398(00)00048-7 ).

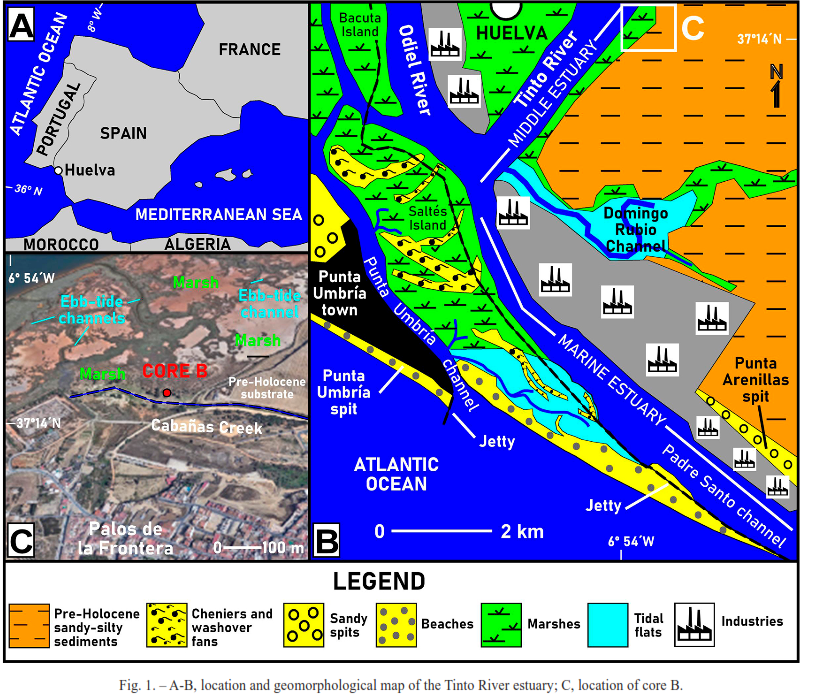

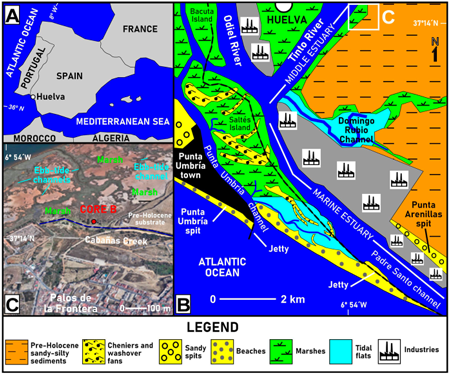

Between 1966 and 1975, two industrial concentrations were located on the estuarine border (Fig. 1B), with the world’s largest processing plant for Australian ilmenite black sand (TIOXIDE) and other alkaline, fertilizer and metallurgic plants. From then until 1990, the estuarine pollution from the mining activities was increased by acidic waste from these industrial sources and, to a lesser extent, by urban effluents. The final consequences of this increasing environmental pollution are the presence of very high concentrations of As (up to 3000 mg kg^-1), Cu (up to 4415 mg kg^-1), Pb (up to 10400 mg kg^-1) and Zn (up to 5280 mg kg^-1) in its surface sediments (Nelson and Lamothe 1993Nelson C.H., Lamothe P.J. 1993. Heavy metal anomalies in the Tinto and Odiel River and estuary system, Spain. Estuaries 16: 496-511. https://doi.org/10.2307/1352597 , Usero et al. 1999Usero J., Morillo J., Gracia I. 1999. Heavy metals in sediments from the Tinto River (Spain). IMWA Proceedings 1999: 243-246., Ruiz 2000 Ruiz F. 2000. Trace metals in estuarine sediments from the southwestern Spanish coast. Mar. Pollut. Bull. 42: 482-490. https://doi.org/10.1016/S0025-326X(00)00192-2 ). Since 1985, this zone has come under a corrective plan for the control of industrial waste disposal.

Coring

Core B (7.5 m length) was extracted in the transition between the alluvial deposits and the marshes located in the middle estuary of the Tinto River, near the town of Palos de la Frontera (Fig. 1C; 37°14´N; 6°54´W). It was obtained by usual rotary drilling techniques with a continuous recovery of sediment and a barrel diameter of 11.6 mm. Twenty-two samples were collected for a multidisciplinary analysis, according to the visual study of the sedimentary facies and their boundaries. These selected samples cover all sedimentary facies observed in core B and the main bioclastic levels.

Sedimentology

The visual lithological description was complemented with the grain-size analysis of 18 samples, selected according to the vertical distribution of sedimentary facies. To determine grain-size distribution the coarser fractions were wet-sieved with pressurized water and floated using sieves of 63, 125, 250 500, 1000 and 2000 µm diameter. Fractions smaller than 63 µm were analysed with a Mastersizer-2000particle counter at the CIDERTA centre of the University of Huelva, Spain. Na-hexametaphosphate was used as a dispersing agent.

Chemical analysis

The trace metal content of 16 samples was determined and certified by MS Analytical, Langley (Canada). Four trace metals (As, Cu, Pb, Zn) selected as tracers of environmental pollution were obtained by ICP Atomic Emission Spectrometry, with less than 5% variation between replicate samples and a quality control based on more than 30 sample references (e.g. OREAS 904). In these samples, detection limits were 0.02 mg kg^-1 for As, 0.2 mg kg^-1 for Cu, 0.5 mg kg^-1 for Pb and 2 mg kg^-1 for Zn. The geoaccumulation index (I_geo; Muller 1969Muller G. 1969. Index of geoaccumulation in sediments of the Rhine River. Geojournal 2: 108-118.) was applied in order to define the environmental pollution in sediments (e.g. Li et al. 2016Li L., Cui J., Liu J., et al. 2016. Extensive study of potential harmful elements (Ag, As, Hg, Sb, and Se) in surface sediments of the Bohai Sea, China: Sources and environmental risks. Environ. Pollut. 219: 432-439. https://doi.org/10.1016/j.envpol.2016.05.034 , Al Mukaimi et al. 2018Al Mukaimi M.E., Kaiser K., Williams J.R., et al. 2018. Centennial record of anthropogenic impacts in Galveston Bay: Evidence from trace metals (Hg, Pb, Ni, Zn) and lignin oxidation products. Environ. Pollut. 237: 887-899. https://doi.org/10.1016/j.envpol.2018.01.027 , Yan et al. 2020Yan Y., Chi H., Liu J., et al. 2020. Provenance and bioaccessibility of rare earth elements in atmospheric particles in areas impacted by the optoelectronic industry. Environ. Pollut. 263: 114349. https://doi.org/10.1016/j.envpol.2020.114349 ). This index is calculated as follows:



where C_n is the measured concentration in a sample for the metal n, B_n is the background value for the metal n in the study area and factor 1.5 is used because of possible variations of the background data due to lithological variations. This index defines six pollution categories: I_geo<1 (unpolluted); 1<I_geo<2 (very low polluted); 2<I_geo<3 (low polluted); 3<I_geo<4 (moderately polluted); 4<I_geo<5 (heavily polluted); and I_geo>5 (very heavily polluted).

I_geo is vulnerable to distortion by grain-size effects. Consequently, a double regional background of the Tinto-Odiel estuary (Ruiz et al. 1998Ruiz F., González-Regalado M.L., Borrego J., et al. 1998. Stratigraphic sequence, elemental concentrations and heavy metal pollution in Holocene sediments from the Tinto-Odiel Estuary, southwestern Spain. Environ. Geol. 34: 270-278. https://doi.org/10.1007/s002540050278 ) was used for (i) silty-clayey sediments (As, 7.3 mg kg^-1; Cu, 13 mg kg^-1; Pb, 15.4 mg kg^-1; Zn, 39 mg kg^-1); and (ii) sandy sediments (As, 6.8 mg kg^-1; Cu, 13.1 mg kg^-1; Pb, 4.3 mg kg^-1; Zn, 15.9 mg kg^-1).

Palaeontology

Eighteen samples were selected for microfaunistic analysis. In each sample, 20 grams of sediment were separated and levigated through a 125 µm mesh sieve. This sieve was selected for three reasons: a) it retains practically all of the malacofauna for which sieves with a larger mesh diameter are usually used (≥250 µm mesh diameter in most cases; Alexandrowicz 2017Alexandrowicz W.P. 2017. Malacofauna of the Holocene tufa in the valleys of the Ociemny Stream (Pieniny Mts, southern Poland. Geol., Geoph. Environ. 43: 5-18. https://doi.org/10.7494/geol.2017.43.1.5 , Cristini and De Francesco 2017Cristini P.A., De Francesco C.G. 2017. Molluscan taphonomy patterns below the sediment-water interface in freshwater shallow lakes from the southeastern Pampa plain, Argentina. Palaios 32: 528-542. https://doi.org/10.2110/palo.2016.081 ); b) the benthic foraminiferal assemblages picked from this fraction provide useful information on prevailing environmental conditions that is useful for an overview of paleoenvironmental changes in coastal settings (Lo Giudice Capelli and Austin 2019Lo Giudice Capelli E., Austin W.E.N. 2019. Size Matters: Analyses of Benthic Foraminiferal Assemblages Across Differing Size Fractions. Front. Mar. Sci. 6: 752. https://doi.org/10.3389/fmars.2019.00752 ), two of the main objectives of this paper; and c) this sieve is suitable for screening the ostracod fauna and preventing the presence of juveniles of these microcrustaceans (stages 1-4), which are very difficult to identify (Danielopol et al. 2002Danielopol D.L., Ito E., Wansard G., et al. 2002. Techniques for Collection and Study of Ostracoda. In: Holmes J.A., Chivas A.R. (eds), The Ostracoda: Applications in Quaternary Research, Geophysical Monograph Series 131, The American Geophysical Union, pp. 65-97. https://doi.org/10.1029/131GM04 ).

The residue was dried in an oven at a constant temperature of 40°C for a period of no less than one day. The total populations of molluscs (bivalves and gastropods) were determined according to Gómez (2017)Gómez G. 2017. Guía de los moluscos marinos de Huelva y el Golfo de Cádiz. Diputación de Huelva, Huelva, 300 pp. and the World Register of Marine Species (WoRMS)World Register of Marine Species (WoRMS). http://www.marinespecies.org/. Last revision: March 16, 2020.. The microfaunal content (foraminifera and ostracods) was also extracted and determined. Foraminifera were classified according to Loeblich and Tappan (1987)Loeblich A.R., Tappan H. 1987. Foraminiferal Genera and Their Classification. Van Nostrand Rienhold Co., New York, 2013 pp. https://doi.org/10.1007/978-1-4899-5760-3 , Milker and Schmiedl (2012)Milker Y., Schmiedl G., 2012. A taxonomic guide to modern benthic shelf foraminifera of the western Mediterranean Sea. Palaeont. Elect. 15: 16A. https://doi.org/10.26879/271 and WoRMS. Ostracoda were classified according to Ruiz et al. (1997Ruiz F., González-Regalado M.L., Muñoz J.M. 1997. Multivariate analysis applied to total and living fauna: seasonal ecology of recent benthic Ostracoda off the North Cádiz Gulf coast (southwestern Spain). Mar. Micropal. 31: 183-203. https://doi.org/10.1016/S0377-8398(96)00060-6 , 2000)Ruiz F., González-Regalado M.L., Baceta J.I., et al. 2000. Comparative ecological analysis of the ostracod faunas from low- and high-polluted southwestern Spanish estuaries: a multivariate approach. Mar. Micropal. 40: 345-376. https://doi.org/10.1016/S0377-8398(00)00048-7 . This micropaleontological record was compared with (i) the assemblages of both groups present in the Neogene formations found in the vicinity of core B (González-Regalado and Ruiz 1996González-Regalado M.L., Ruiz F., 1996. Les foraminiféres benthiques de la baie du sud-ouest de l’Espagne pendant le Néogène supérieur: le Mio-Pliocène de Huelva. Rév. Paléobiol. 15: 109-120., Ruiz and González-Regalado 1996Ruiz F., González-Regalado M.L. 1996. Les ostracodes du Golfe Mio-Pliocene du sud-ouest de l’Espagne. Rév. Micropaléont. 39: 137-151. https://doi.org/10.1016/S0035-1598(96)90038-0 ), in order to identify reworked specimens; and (ii) a database of the distribution of the two groups in the estuaries of southwestern Spain (Ruiz et al. 2000Ruiz F., González-Regalado M.L., Baceta J.I., et al. 2000. Comparative ecological analysis of the ostracod faunas from low- and high-polluted southwestern Spanish estuaries: a multivariate approach. Mar. Micropal. 40: 345-376. https://doi.org/10.1016/S0377-8398(00)00048-7 , González-Regalado et al. 2001González-Regalado M.L., Ruiz F., Baceta J.I., et al. 2001. Total benthic foraminifera assemblages in the southwestern Spanish estuaries. Geobios 34: 39-51. https://doi.org/10.1016/S0016-6995(01)80042-5 ), which was used to recognize paleoenvironmental changes or anthropogenic impacts in this core. These studies analysed the foraminiferal and ostracod assemblages of the main sedimentary facies of these estuaries (high salt marsh, low salt marsh, ebb-tide channel, main channel, tidal plain and beach).

Dating

Two dates were produced at the National Centre of Accelerators (CNA, Seville, Spain), with a subsequent calibration using CALIB version 7.1 and the reservoir effect correction (-108±31 ¹⁴C yr) calculated by Martins and Soares (2013)Martins J.M.M., Soares A.M.M. 2013. Marine radiocarbon reservoir effect in Southern Atlantic Iberian coast. Radiocarbon 55: 1123-1134. https://doi.org/10.1017/S0033822200048037 for this area. The final results correspond to calibrated ages using 2σ intervals. The mean calibrated ages (MCA) were used to produce a chronological framework of core B. They were completed with the comparison between the vertical geochemical variations and the main periods of mining extraction and industrial discharges (see Introduction), in order to obtain additional age references.

Sedimentary facies and macrofauna

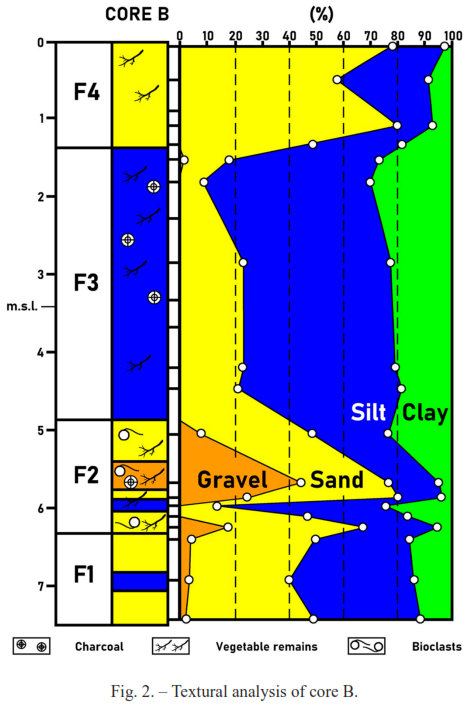

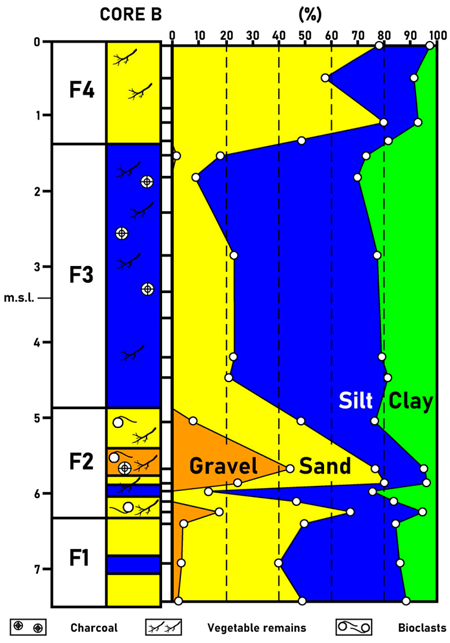

The lowermost 1.2 m of core B (Fig. 2; facies F1: 7.5-6.3 m depth) are composed of similar percentages of sands and silts (35-45%), with minor contributions of clays (<18%) and scarce gravels. This interval does not contain macrofauna. This absence contrasts with the abundance of mollusc fragments observed in the overlying 1.4 m (F2: 6.3-4.9 m depth), consisting of bioclastic sands and gravels with silty intercalations containing frequent vegetable remains. In this facies, a total of 162 specimens were determined belonging to four species of bivalves and four species of gastropods. Two macrofaunistic assemblages were recognized: a) the gastropods Bittium reticulatum (da Costa, 1778) and Peringia ulvae (Pennant, 1777) and the bivalves Ruditapes decussatus Linnaeus, 1758 and Cerastoderma glaucum (Brugiére, 1789), which were very abundant especially in bioclastic gravels (Fig. 2: 5.7-5.4 m depth); and b) the gastrod Bittium reticulatum and the bivalves Ostrea ostentina Payraudeau, 1826, C. glaucum and Cerastoderma edule (Linnaeus, 1758), which were well represented in the uppermost bioclastic sands of this facies (5.4-4.9 m depth).

The third sedimentary facies of core B (F3: 4.9-1.4 m depth) is represented by sandy silts (silt, 54%-63%; sand, 9%-22%) with frequent fragments of charcoal, stems and roots. Macrofauna is also absent in this facies, which is replaced by fine silty sands with frequent vegetable remains in the upper 1.4 metres of the core (F4).

Geochemistry

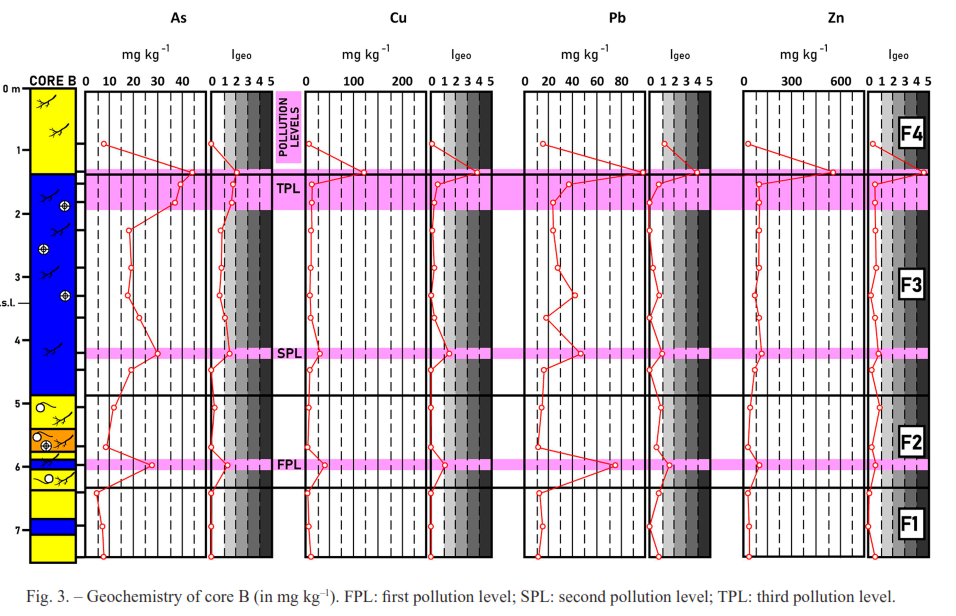

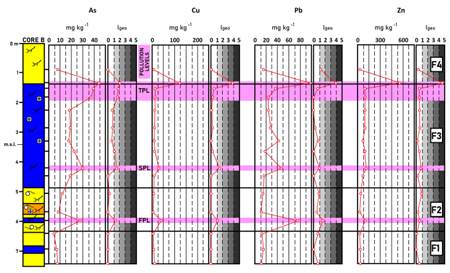

The heavy metal pollution profiles of core B reveal the four sedimentary facies, with the differentiation of three pollution levels (Fig. 3). F1 is characterized by low to very low concentrations of the four measured elements, including some of the lowest values of core B (Fig. 3: As<8 mg kg^-1; Cu<22 mg kg^-1; Pb<15 mg kg^-1; Zn<35 mg kg^-1). Similar contents were also measured in the bioclastic levels of F2, which contrast with the first peak (Fig. 3: FPL) observed in the intercalated silts. In these fine sediments, As (27 mg kg^-1), Cu (39 mg kg^-1), Pb (74 mg kg^-1) and Zn (93 mg kg^-1) are considerably higher.

F3 is characterized by very low to low concentrations of these heavy metals (e.g. As<20 mg kg^-1; Cu<25 mg kg^-1). This facies includes a second relative maximum at 4.2 m depth (Fig. 3: SPL), with As (30 mg kg^-1), Cu (52 mg kg^-1) and Zn (107 mg kg^-1) as the most representative trace elements of this new peak. However, the highest contents of all these trace elements (As, 44 mg kg^-1; Cu, 284 mg kg^-1; Mn and Pb, 98 mg kg^-1; Zn, 539 mg kg^-1) were measured at 2 to 1.4 m depth, with the highest contents near the transition between F3 and F4 (Fig. 3: TPL). This sandy facies has a geochemical signal very similar to that of F1.

The geoaccumulation index clearly identifies the three pollution peaks, and especially TPL (Fig. 3). The first pollution peak (FPL) is defined by very low pollution levels for all four investigated metals (1≤I_geo≤1.68), while similar geoaccumulation indices (1.02≤I_geo≤1.83) were detected during the second pollution peak (SPL). The highest values of I_geo were obtained during the third pollution peak (TPL), with sediments moderately or heavily polluted by Zn (I_geo up to 4.5), Pb (I_geo up to 3.9) and Cu (I_geo up to 3.9). This pollution was weakest for As (1.74≤I_geo≤2.1) during this last peak. The remaining samples were unpolluted, except F4 for Pb (I_geo=1.2).

Microfauna and other groups

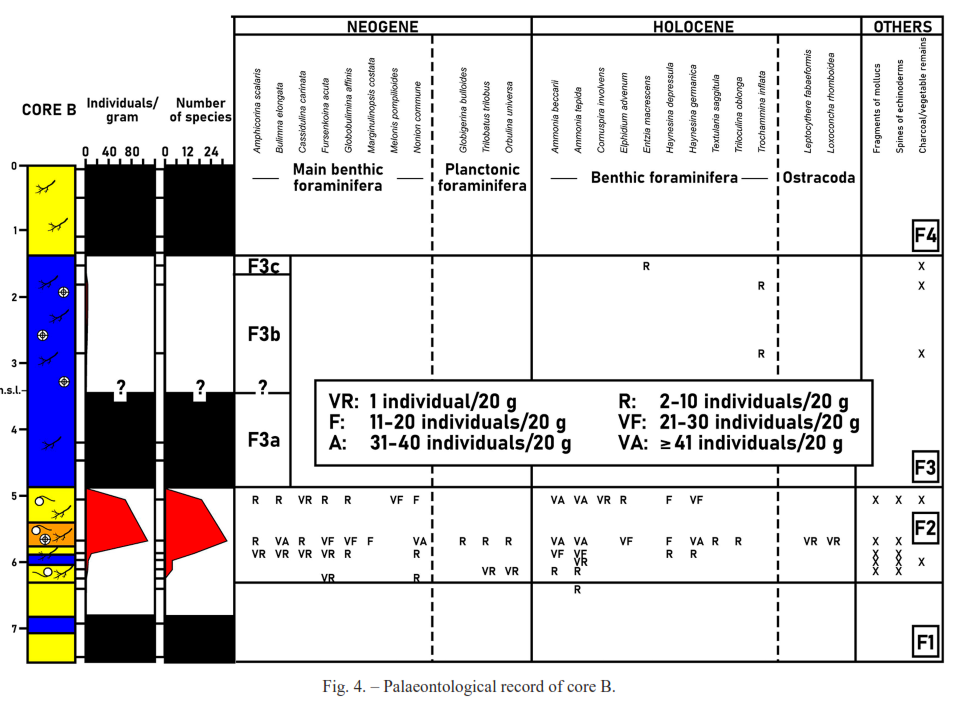

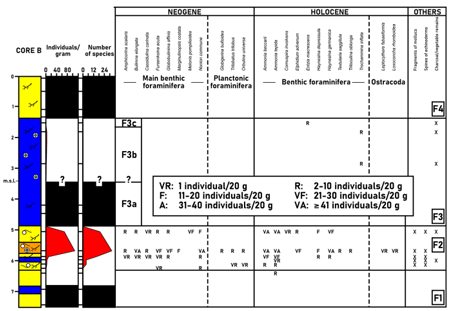

A total of 1839 shells of benthic foraminifera belonging to 11 Holocene species (1395 specimens) and 27 Neogene reworked species (444 specimens) were extracted from the 18 samples studied, with more than 99% of the individuals concentrated in F2 (Fig. 4). In this facies, both Holocene (25-35 ind. g) and Neogene (up to 16 ind. g) foraminifera are abundant.

The Holocene record of these microorganisms starts at the uppermost sandy levels of F1, with rare specimens of Ammonia tepida (Cushman, 1926). This species is very abundant in the upper bioclastic gravels and sands of F2 (994 ind./60 g), together with Ammonia beccarii (Linnaeus, 1758), Haynesina depressula (Walker and Jacob, 1798) and Haynesina germanica (Ehrenberg, 1840). These species (Fig. 5) were found together with the scarce ostracods extracted in this core [Fig. 4: Leptocythere fabaeformis (Mueller, 1894) and Loxoconcha rhomboidea (Fisher, 1855)]. Few specimens of A. tepida and A. beccarii characterize the silty levels of this facies. This facies also contains a considerable number of Neogene species (Fig. 5), the most representative ones being Nonion commune (d’Orbigny, 1846), Bulimina elongata (d’Orbigny, 1826), Fursenkoina acuta (d’Orbigny, 1846), Globobulimina affinis (d’Orbigny, 1839), Melonis pompilioides (Fichtel and Moll, 1798) and Marginulinopsis costata (Bastch, 1791). Echinoderm spines are also very abundant in F2.

Three foraminiferal zones are differentiated within F3 (Fig. 4): a) the basal zone (F3a), characterized by the disappearance of all the previous groups coinciding with the second pollution peak; b) the intermediate zone (F3b), with only specimens of Trochammina inflata (Montagu, 1808) (<5 ind./20 g), an agglutinated-walled foraminifera; and c) the upper zone (F3c), represented by the exclusive presence of Entzia macrescens (Brady, 1870), another agglutinated-walled foraminifera (<5 ind./20 g). Charcoal and small plant remains (stems, roots) are abundant in the two upper zones. Foraminifera, ostracods, other faunal groups and plants were not found from the transition between F3 and F4 (e.g. TPL) and the top of core B.

Dating

Two dates were obtained from two levels, at depths of 6 m (sample CNA-4274; organic matter; 5892-5711 cal yr BP; MCA~5.8 cal kyr BP) and 5.7 m (sample CNA-4272; shell; C. edule; 5483-5368 cal yr BP; MCA~5.4 cal kyr BP).

Sedimentary facies: paleoenvironmental interpretation

The silty-sandy sediments of F1 are characterized by the very low concentrations of all the elements analysed, as well as the absence of fauna and plant remains. This facies is interpreted as alluvial deposits, which probably originated from erosive action of the Tinto River drainage network. Of these all deposits, the Cabañas creek is still preserved in the studied sector (Fig. 1C). Its geochemical signal is similar to that measured in nearby Pleistocene to Holocene fluvial sediments of the Tinto River (Cáceres et al. 2013Cáceres L.M., Olías M., de Andrés J.R., et al. 2013. Geochemistry of Quaternary sediments in terraces of the Tinto River (SW Spain): Paleoenvironmental implications. Catena 101: 1-10. https://doi.org/10.1016/j.catena.2012.09.011 ).

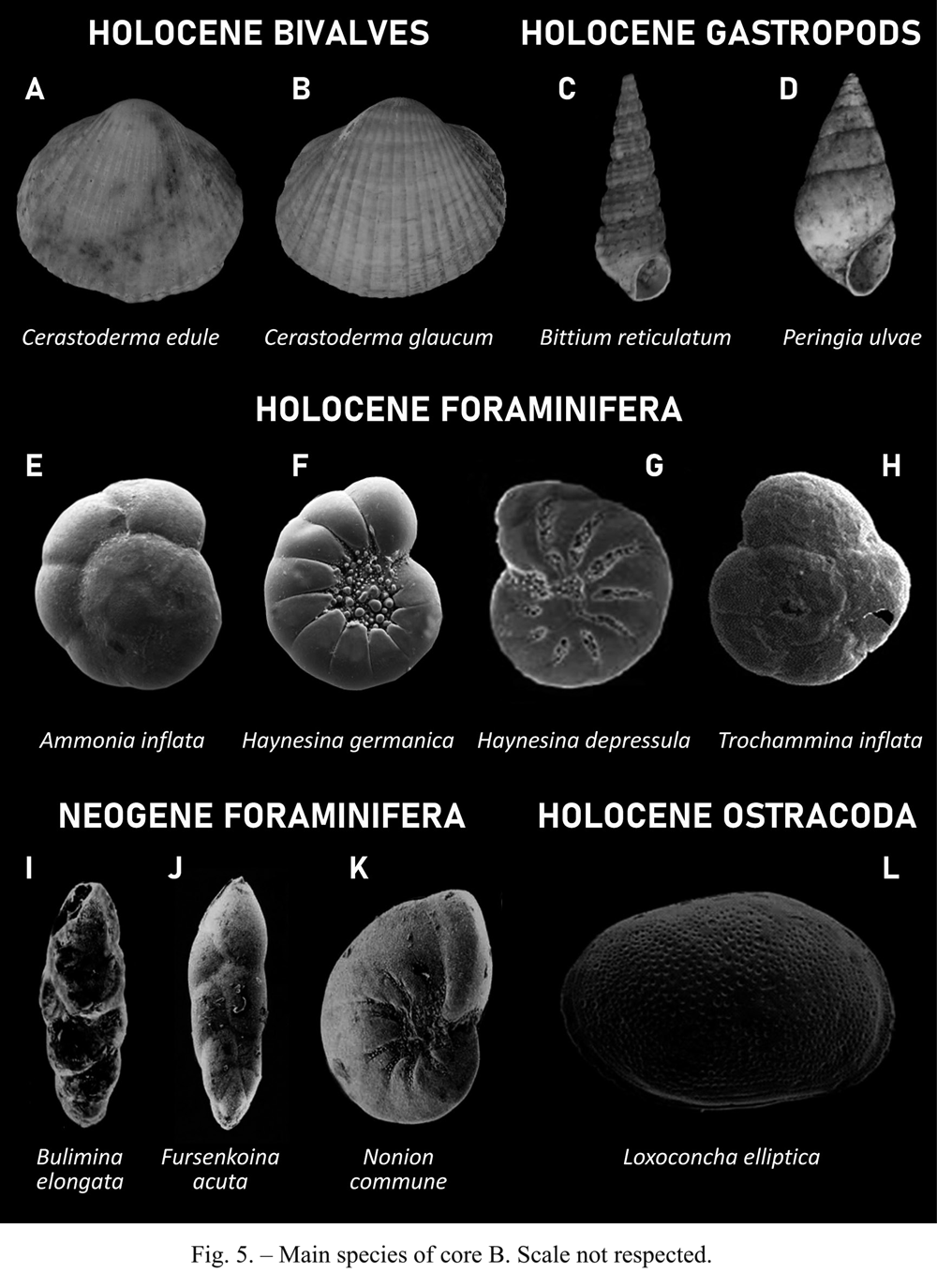

The lower and middle bioclastic gravels and sands of F2 (Fig. 4: 6.3-5.4 m depth) include an assemblage of Holocene molluscs (Bittium, Peringia and Ruditapes), benthic foraminifera (mainly Ammonia and Haynesina genera), ostracods (Leptocythere and Loxoconcha genera) and fragments of echinoderms typical of shallow subtidal ebb-tide channels or sandy tidal flats with variable salinity and partially vegetated bottoms (Ruiz et al. 2000Ruiz F., González-Regalado M.L., Baceta J.I., et al. 2000. Comparative ecological analysis of the ostracod faunas from low- and high-polluted southwestern Spanish estuaries: a multivariate approach. Mar. Micropal. 40: 345-376. https://doi.org/10.1016/S0377-8398(00)00048-7 , González-Regalado et al. 2001González-Regalado M.L., Ruiz F., Baceta J.I., et al. 2001. Total benthic foraminifera assemblages in the southwestern Spanish estuaries. Geobios 34: 39-51. https://doi.org/10.1016/S0016-6995(01)80042-5 ).

In the uppermost sandy layers of this facies (5.4-4.9 m depth), the increasing presence of cockles (C. glaucum, C. edule) and the decreasing density and diversity of foraminifera (Fig. 4) point to a partial restriction of tidal inputs and a decrease in water depth, with a transition to an intertidal, very shallow channel with brackish waters. The silty intercalations probably correspond to a transition to the border of this channel (Gómez 2017Gómez G. 2017. Guía de los moluscos marinos de Huelva y el Golfo de Cádiz. Diputación de Huelva, Huelva, 300 pp., Ordiales et al. 2017Ordiales A., Martínez-García B., Mendioca J. 2017. Distribución y ecología de las asociaciones de foraminíferos bentónicos del estuario del Oriñón (E de Cantabria, N de la Península Ibérica). Geogaceta 61: 131-134.). The presence of abundant Neogene foraminifera involves the simultaneous erosion of the adjacent Mio-Pliocene formations (González-Regalado and Ruiz 1996González-Regalado M.L., Ruiz F., 1996. Les foraminiféres benthiques de la baie du sud-ouest de l’Espagne pendant le Néogène supérieur: le Mio-Pliocène de Huelva. Rév. Paléobiol. 15: 109-120., Ruiz and González-Regalado 1996Ruiz F., González-Regalado M.L. 1996. Les ostracodes du Golfe Mio-Pliocene du sud-ouest de l’Espagne. Rév. Micropaléont. 39: 137-151. https://doi.org/10.1016/S0035-1598(96)90038-0 ). Some of these Neogene foraminifera currently live in the adjacent Gulf of Cádiz, mainly at depths of 30 to 100 m (e.g. B. elongata; Mendes et al. 2012Mendes I., Alveirinho Dias J., Schönfeld J., et al. 2012. Distribution of living benthic foraminifera on the northern Gulf of Cádiz. J. Foram. Res. 42: 18-38. https://doi.org/10.2113/gsjfr.42.1.18 ), but they have not been found in the middle zones of the adjacent estuaries (González-Regalado et al. 2001González-Regalado M.L., Ruiz F., Baceta J.I., et al. 2001. Total benthic foraminifera assemblages in the southwestern Spanish estuaries. Geobios 34: 39-51. https://doi.org/10.1016/S0016-6995(01)80042-5 ).

The few species of benthic foraminifera found in F3 are characteristic of marshes (see Murray 2006Murray A.E. 2006. Ecology and Applications of Benthic Foraminifera. Cambridge University Press, New York, 426 pp. https://doi.org/10.1017/CBO9780511535529 for a review). T. inflata, the most representative species of F3b, is more common in low salt marshes, while E. macrescens (F3c) is usually more abundant in high salt marshes (González-Regalado et al. 2001González-Regalado M.L., Ruiz F., Baceta J.I., et al. 2001. Total benthic foraminifera assemblages in the southwestern Spanish estuaries. Geobios 34: 39-51. https://doi.org/10.1016/S0016-6995(01)80042-5 , Jones 2014Jones R.W. 2014. Foraminifera and their applications. Cambridge University Press, Cambridge, 448 pp.). No foraminifera were found in F3a and F4. This facies corresponds to the anthropic filling of the area during the last third of the 20th century.

Paleoenvironmental evolution of core B: pollution, fauna and sea level

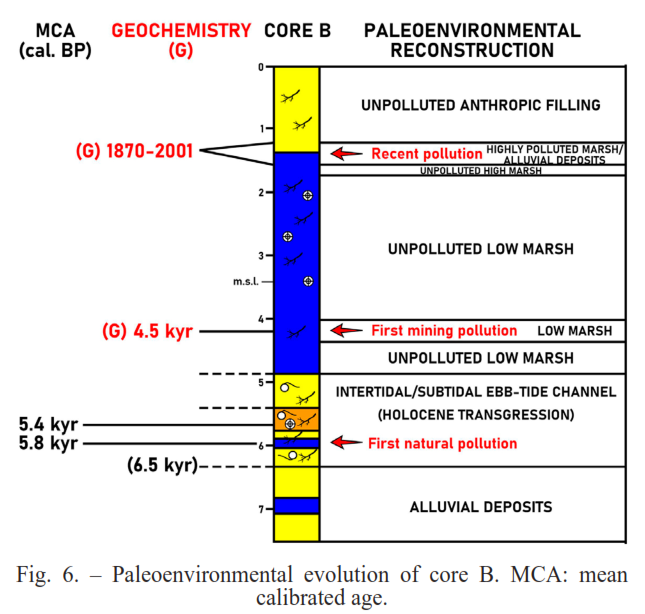

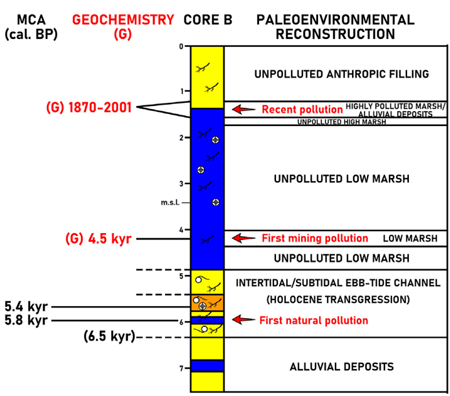

The two dates obtained in F2 indicate the deposit of 0.3 m of bioclastic sediments in about 400 years, with a mean sedimentation rate of 0.75 mm yr^-1. If this average rate is extrapolated to the entirety of F2, the base of this sedimentary facies was deposited around 6.4 cal kyr BP (Fig. 6). The age of its lower limit coincides with the flooding of this estuary during the beginning of the Holocene transgression maximum (~6.5 cal kyr BP; Zazo et al. 1994Zazo C., Goy J.L., Somoza L, et al. 1994. Holocene sequence of sea-level fluctuations in relation to climatic trends in the Atlantic-Mediterranean linkage coast. J. Coast. Res. 10: 933-945.), clearly contrasted by the determined fauna (see the previous section). This would indicate that a) the deposit of basal alluvial sediments (F1) would have occurred before ~6.4 cal kyr BP; b) the transit from subtidal to intertidal paleoenviroments took place around 5.3 cal kyr BP ago within F2; and c) the maximum of the Holocene transgression caused the flooding of this area and the first episod of natural pollution (FPL), clearly reflected within the finest sediments of this facies (Fig. 3). This peak is one of the oldest episodes of natural pollution in southwestern Europe and has been detected in other cores of the Tinto River estuary (Arroyo et al. 2021Arroyo M., Ruiz F., Campos J.M., et al. 2021. Where did Christopher Columbus start?: The estuarine scenario of a historical date. Estuar., Coast. Shelf Sci. 250: 107162. https://doi.org/10.1016/j.ecss.2020.107162 ). This small peak may be due to the coincidence of the Holocene flooding and the weathering/oxidation of the mineral deposits concentrated in the Iberian Pyrite Belt, a process that began in the Oligocene (Essalhi et al. 2011Essalhi M., Sizaret S., Barbanson L., et al. 2011. A case study of the internal structures of gossans and weathering processes in the Iberian Pyrite Belt using magnetic frabrics and paleomagnetic dating. Miner. Depos. 46: 981-999. https://doi.org/10.1007/s00126-011-0361-8 ).

F3 includes a moderate pollution peak at 4.2 m depth (SPL) and the highest concentrations of trace metals at 1.4 m depth (TPL). According to the previous datings and the sedimentation rates obtained by Lario et al. (2002)Lario J., Zazo C., Goy J.L., et al. 2002. Changes in sedimentation trends in SW Iberia Holocene estuaries (SW Spain). Quat. Int. 93-94: 171-176. https://doi.org/10.1016/S1040-6182(02)00015-0 in this estuary, the first of them is attributed to the first mining activities in this area (4.7-4.5 cal kyr BP; Rothenberg and Blanco Freijero 1980Rothenberg B., Blanco Freijero A. 1980. Ancient copper mining and smelting at Chinflon. In: Craddock P.T. (ed.), Scientific studies in early mining and extractive metallurgy, British Museum, London, pp. 41-62., Olías and Nieto 2015Olías M., Nieto J.M. 2015. Background conditions and mining pollution throughout history in the Rio Tinto (SW Spain). Environments 2: 295-316. https://doi.org/10.3390/environments2030295 ).

The uppermost peak is due to the conjunction of intensive mining and industrial discharges during the 19th and 20th centuries (Ruiz 2000 Ruiz F. 2000. Trace metals in estuarine sediments from the southwestern Spanish coast. Mar. Pollut. Bull. 42: 482-490. https://doi.org/10.1016/S0025-326X(00)00192-2 , Ruiz et al. 2009Ruiz F., Borrego J., González-Regalado M.L., et al. 2009. Interaction between sedimentary processes, historical pollution and microfauna in the Tinto estuary (SW Spain). Environ. Geol. 58: 779-783. https://doi.org/10.1007/s00254-008-1551-2 ). Both episodes of pollution coincide with the disappearance of all the faunal groups studied (Fig. 4). This negative impact of pollution on the assemblages of molluscs, foraminifera and ostracods has been contrasted in different littoral environments (Armenteros et al. 2016Armenteros M., Díaz-Asencio M., Fernández-Garcés R., et al. 2016. One-century decline of mollusk diversity as consequence of accumulative anthropogenic disturbance in a tropical estuary (Cuban Archipelago). Mar. Pollut. Bull. 113: 224-231. https://doi.org/10.1016/j.marpolbul.2016.09.023 , Reddy et al. 2016Reddy B.C.S.R., Jayaraju N., Sreenivasulu G., et al. 2016. Heavy metal pollution monitoring with foraminifera in the estuaries of Nellore coast, East coast of India. Mar. Pollut. Bull. 113: 542-551. https://doi.org/10.1016/j.marpolbul.2016.08.051 ) and may even cause the disappearance of these groups (Ruiz et al. 2000Ruiz F., González-Regalado M.L., Baceta J.I., et al. 2000. Comparative ecological analysis of the ostracod faunas from low- and high-polluted southwestern Spanish estuaries: a multivariate approach. Mar. Micropal. 40: 345-376. https://doi.org/10.1016/S0377-8398(00)00048-7 , González-Regalado et al. 2001González-Regalado M.L., Ruiz F., Baceta J.I., et al. 2001. Total benthic foraminifera assemblages in the southwestern Spanish estuaries. Geobios 34: 39-51. https://doi.org/10.1016/S0016-6995(01)80042-5 ).

The time interval between these two episodes witnessed a period of silting, with the transition from a low salt marsh to a high salt marsh in recent centuries (Fig. 6). During the intermediate stage with little mining and industrial activity, the foraminiferal record of this period is very similar to that observed in undisturbed salt marshes (Jones 2014Jones R.W. 2014. Foraminifera and their applications. Cambridge University Press, Cambridge, 448 pp., Soualili 2018Soualili K. 2018. El registro sedimentario antropoceno enel estuario del Deba (Geoparque de la Costa Vasca). CKQ-Est. Cuat. 8: 147-165., Haller et al. 2019Haller C., Smith C.G., Hallock P., et al. 2019. Distribution of Modern Salt-marsh Foraminifera from the Eastern Mississippi Sound, U.S.A. J. Foram. Res. 49: 29-47. https://doi.org/10.2113/gsjfr.49.1.29 ). No evidence of Roman mining pollution (~2.1-1.5 cal kyr BP) has been found in this core, as in other cores of this estuary (e.g. Leblanc et al. 2000Leblanc M., Morales J.A., Borrego J., et al. 2000. 4,500-year-old mining pollution in southwestern Spain: long-term implications for modern mining pollution. Econ. Geol. 95: 655-662. https://doi.org/10.2113/gsecongeo.95.3.655 ). This absence may be due to a) an erosion of the Roman deposits in this fluvial context; or b) the location and paleoenvironmental evolution of these cores, which may include sediments deposited in emerged areas during Roman times. Finally, the upper sandy layer (F4) comes from the anthropic filling of this sector in the last 30 years.

The correlation with other cores collected in the middle estuary of the Tinto River estuary (Ruiz et al. 2020Ruiz F., Rodríguez Vidal, J., Cáceres, L.M., et al. 2020. Silver and copper as pollution tracers in Neogene to Holocene estuarine sediments from southwestern Spain. Mar. Pollut. Bull. 150: 110704. https://doi.org/10.1016/j.marpolbul.2019.110704 , Arroyo et al. 2021Arroyo M., Ruiz F., Campos J.M., et al. 2021. Where did Christopher Columbus start?: The estuarine scenario of a historical date. Estuar., Coast. Shelf Sci. 250: 107162. https://doi.org/10.1016/j.ecss.2020.107162 ) can be used to obtain a synthetic paleoenvironmental evolution of this sector since the Upper Pleistocene, with four main phases: a) the Upper Pleistocene, when the fluvial network eroded the Neogene marine formations and created several coves on a Miocene substrate; b) the Lower Holocene (ca. 10-6.5 kyr BP), with the deposits of alluvial, sandy sediments: c) the Holocene transgression (ca. 6.5 kyr-5.4 kyr BP), with the flooding of this area and the transport of marine bioclastic sands towards the innermost zones of the estuary; and d) the Late Holocene (ca. 5.4 kyr BP), with the development of wide salt marshes and the fit of the main channels.
