INTRODUCTION
⌅In recent years, soundscapes have been used to evaluate marine and terrestrial environments in order to understand several biotic and abiotic relationships better (Pijanowski et al. 2011Pijanowski B.C., Villanueva-Rivera L.J., Dumyahn S.L., et al. 2011. Soundscape Ecology: The Science of Sound in the Landscape. Bioscience 61: 203-216. https://doi.org/10.1525/bio.2011.61.3.6 ). Although it is generally difficult to acoustically assess the marine environment, recent technological advances in equipment and acoustic analysis software have contributed to the knowledge of marine soundscapes and sounds associated with social interactions of different groups of marine organisms (Lammers et al. 2008Lammers M.O., Brainard R.E., Au W.W., et al. 2008. An ecological acoustic recorder (EAR) for long-term monitoring of biological and anthropogenic sounds on coral reefs and other marine habitats. J. Acoust. Soc. Am. 123: 1720-1728. https://doi.org/10.1121/1.2836780 ).
Marine soundscapes are composed of three components: The first component consists of biotic sounds made by the animals themselves, such as fish (Amorim et al. 2006Amorim M.C.P. 2006. Diversity of sound production in fish. Communication in fishes. v. 1: 71-104.), shrimps (Lammers and Munger 2016Lammers M.O. Munger L.M. 2016. From Shrimp to Whales: Biological Applications of Passive Acoustic Monitoring on a Remote Pacific Coral Reef. In: AU W., Lammers M. (eds), Listening in the Ocean. Modern Acoustics and Signal Processing. New York: NY. Springer, pp. 61-81. https://doi.org/10.1007/978-1-4939-3176-7_4 ), bivalves (Coquereau et al. 2016Coquereau L., Grall J., Chauvaud L., et al. 2016. Sound production and associated behaviours of benthic invertebrates from a coastal habitat in the north-east Atlantic. Mar. Biol. 163: 1-13. https://doi.org/10.1007/s00227-016-2902-2 , Lillis et al. 2016Lillis A., Bohnenstiehl D., Peters J.W., et al. 2016. Variation in habitat soundscape characteristics influences settlement of a reef-building coral. PeerJ. 4: e2557. https://doi.org/10.7717/peerj.2557 ), crabs (Boon et al. 2009Boon P.Y., Yeo D.C.J., Todd P.A. 2009. Sound production and reception in mangrove crabs Perisesarma spp. (Brachyura: Sesarmidae). Aquat. Biol. 5: 107-116. https://doi.org/10.3354/ab00136 ), lobsters (Buscaino et al. 2011Buscaino G., Filiciotto F., Gristina M., et al. 2011. Acoustic behaviour of the European spiny lobster Palinurus elephas. Mar. Ecol. Prog. Ser. 441: 177-184. https://doi.org/10.3354/meps09404 ), sea urchins (Radford et al. 2008Radford C., Jeffs A., Tindle C., et al. 2008. Resonating sea urchin skeletons create coastal choruses. Mar. Ecol. Prog. Ser. 362: 37-43. https://doi.org/10.3354/meps07444 ) and marine mammals (Frankel 2009Frankel A.S. 2009. Sound production. In: Perrin W.F., Wúrsig B. et al. (eds), Encyclopedia of marine mammals. (eds). Academic Press, London, pp. 1056-1071. https://doi.org/10.1016/B978-0-12-373553-9.00242-X ). They are associated with several behaviours. The second component is abiotic sounds produced by natural events, such as wind and waves (geophonic). The third component is anthropogenic sounds, such as those of ships.
The soundscape of coastal reefs is important because it is as an orientation for fish larval settlement (Simpson et al. 2004Simpson S.D., Meekan M.G., McCauley R.D., et al. 2004. Attraction of settlement-stage coral reef fishes to reef noise. Mar. Ecol. Prog. Ser. 276: 263-268. https://doi.org/10.3354/meps276263 , Radford et al. 2011Radford C.A., Stanley J.A., Simpson S.D., et al. 2011. Juvenile coral reef fish use sound to locate habitats. Coral Reefs 30: 295-305. https://doi.org/10.1007/s00338-010-0710-6 ), crustaceans (Montgomery et al. 2006Montgomery J.C., Jeffs A., Simpson S.D., et al. 2006. Sound as an orientation cue for the pelagic larvae of reef fishes and decapod crustaceans. Adv. Mar. Biol. 51: 143-196. https://doi.org/10.1016/S0065-2881(06)51003-X ), molluscs (Lillis et al. 2015Lillis A., Bohnenstiehl D.R., Eggleston D.B. 2015. Soundscape manipulation enhances larval recruitment of a reef-building mollusk. PeerJ. 3: e999. https://doi.org/10.7717/peerj.999 , Egglestone et al. 2016Eggleston D.B., Lillis A., Bohnenstiehl D.R. 2016. Soundscapes and Larval Settlement: Larval Bivalve Responses to Habitat-Associated Underwater Sounds. In: Popper A., Hawkins A. (eds) The Effects of Noise on Aquatic Life II. Adv. Exp. Med. Biol. 875: 255-263. https://doi.org/10.1007/978-1-4939-2981-8_30 ) and reef-building corals (Lillis et al. 2016Lillis A., Bohnenstiehl D., Peters J.W., et al. 2016. Variation in habitat soundscape characteristics influences settlement of a reef-building coral. PeerJ. 4: e2557. https://doi.org/10.7717/peerj.2557 , 2018Lillis A., Apprill A., Suca J.J., et al. 2018. Soundscapes influence the settlement of the common Caribbean coral Porites astreoides irrespective of light conditions. R. Soc. Open Sci. 5: 181358. https://doi.org/10.1098/rsos.181358 ).
Passive acoustic monitoring (PAM) is a non-invasive and non-destructive observation tool. It has a permanent or long-term remote monitoring capability, providing important information on daily and seasonal patterns (Rountree et al. 2006Rountree R.A., Gilmore R.G., Goudey C.A., et al. 2006. Listening to fish: applications of passive acoustics to fisheries science. Fisheries, 31: 433-446. https://doi.org/10.1577/1548-8446(2006)31[433:LTF]2.0.CO;2 ). Furthermore, PAM can be used as a complementary tool to assess habitat quality and health of ecosystems (Piercy et al. 2014Piercy J.J., Codling E.A., Hill A.J., et al. 2014. Habitat quality affects sound production and likely distance of detection on coral reefs. Mar. Ecol. Prog. Ser. 516: 35-47. https://doi.org/10.3354/meps10986 , Harris et al. 2016Harris S.A., Shears N.T., Radford C.A. 2016. Ecoacoustic indices as proxies for biodiversity on temperate reefs. Methods Ecol. Evol. 7: 713-724. https://doi.org/10.1111/2041-210X.12527 ) and to monitor biodiversity (Kaplan et al. 2015Kaplan M.B., Mooney T.A., Partan J., et al. 2015. Coral reef species assemblages are associated with ambient soundscapes. Mar. Ecol. Prog. Ser., 533: 93-107. https://doi.org/10.3354/meps11382 ).
Marine protected areas are an effective method for protecting marine biodiversity and habitats. Protected areas of coral reefs, when efficiently and effectively managed, are expected to sustain a high biological diversity and a soundscape composed mainly of biological sounds (Bertucci et al. 2016Bertucci F., Parmentier E., Lecellier G., et al. 2016. Acoustic indices provide information on the status of coral reefs: an example from Moorea Island in the South Pacific. Sci. Rep. 6: 33326. https://doi.org/10.1038/srep33326 ). Although soundscape studies have been conducted on temperate waters of the South American Atlantic (Sánchez-Gendriz and Padovese 2016Sánchez-Gendriz, I., Padovese, L.R. 2016. Underwater soundscape of marine protected areas in the south Brazilian coast. Mar. Pollut. Bull. 105: 65-72. https://doi.org/10.1016/j.marpolbul.2016.02.055 , 2017Sánchez-Gendriz I., Padovese L.R. 2017. Temporal and spectral patterns of fish choruses in two protected areas in southern Atlantic. Ecol. Inform. 38: 31-38. https://doi.org/10.1016/j.ecoinf.2017.01.003 ), there are no studies on equatorial Atlantic coastal reef areas. Therefore, the aim of this work was to investigate soundscapes of protected and unprotected Brazilian equatorial coastal reef areas to provide baseline information for future long-term soundscape monitoring programmes that aim to provide information for conservation actions.
MATERIALS AND METHODS
⌅Study area

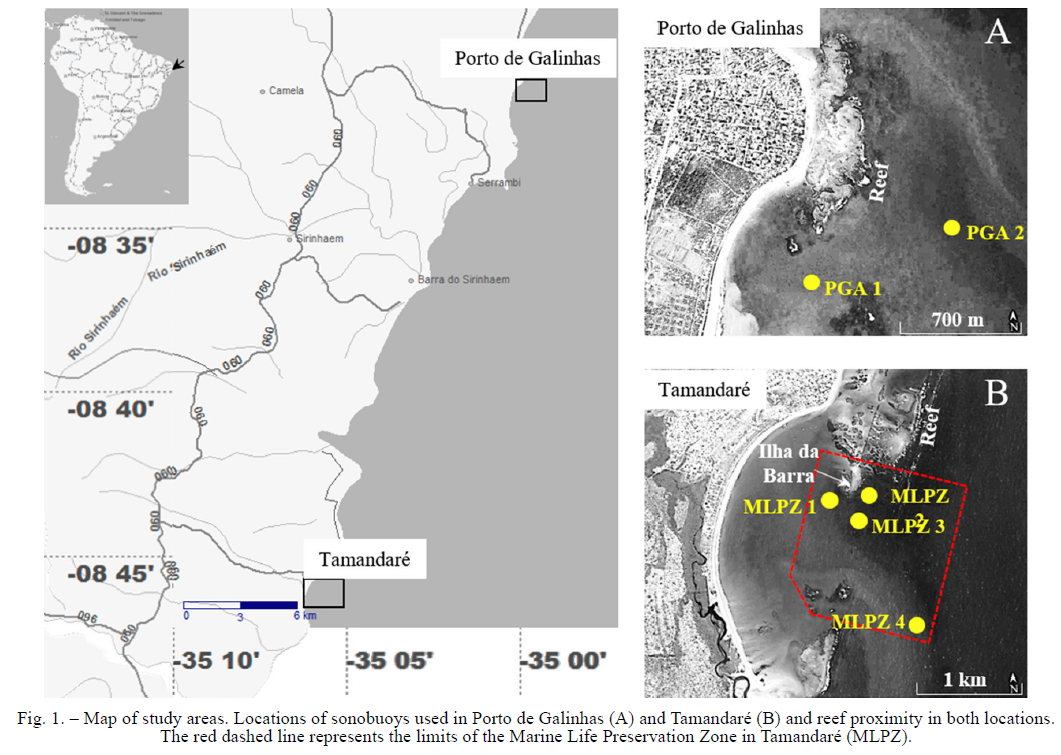

⌅This study was conducted in two coastal reef locations: Tamandaré (a marine protected area) and Porto de Galinhas, Pernambuco state, northeastern Brazil (Fig. 1). The areas are part of the northeastern coral reef system, which is characterized by reef lines parallel to the coast (Rodríguez-Ramírez et al. 2008Rodríguez-Ramírez A., Bastidas C., Cortes J., et al. 2008. Status of coral reefs and associated ecosystems in southern tropical America: Brazil, Colombia, Costa Rica, Panamá and Venezuela. In: Status of coral reefs of the world, pp. 331-348.). The areas consist of elongated and discontinuous reefs with dimensions varying from less of 1 km in length to about 4 km, in reefs close to the beach (Dominguez et al. 2018Dominguez J.M.L., Bittencourt A.C.D.S.P., Leão Z.M.D.A.N., et al. 2018. Geologia do Quaternário costeiro do estado de Pernambuco. Rev. Bras. Geocienc, 20: 208-215. https://doi.org/10.25249/0375-7536.1990208215 ). There are typically three reef lines: one near the beach, then a second line, and a third line exposed to the open sea (Ferreira and Maida 2006Ferreira B.P. Maida M. 2006. Monitoramento dos recifes de coral do Brasil. Secretaria de Biodiversidade e Florestas, Brasília-DF, MMA,120 pp.).
Both areas are popular tourist destinations. Porto de Galinhas, close to Recife (60 km), is one of the most visited beaches in Brazil. Uncontrolled tourism has caused environmental impacts due to trampling, waste deposition and fish feeding (Barradas et al. 2012Barradas J.I., Amaral F.D., Hernández M.I., et al. 2012. Tourism impact on reef flats in Porto de Galinhas beach, Pernambuco, Brazil. Arq. Cienc. Mar. 45: 81-88., 2010Barradas J.I., Amaral F.M.D., Isabel, M., et al. 2010. Spatial distribution of benthic macroorganisms on reef flats at Porto de Galinhas Beach (northeastern Brazil), with special focus on corals and calcified hydroids. Biotemas 23: 61-67. https://doi.org/10.5007/2175-7925.2010v23n2p61 ). Although both areas are within the same reef system, their management is different. Porto de Galinhas has no protection, whereas Tamandaré is part of the largest Brazilian coastal conservation unit, the Costa dos Corais Marine Protected Area (CCMPA), created in 1997. Located inside the CCMPA, Tamandaré is within the Marine Life Preservation Zone (MLPZ). It has been closed to fishing and tourism since 1999 (Ferreira and Maida 2006Ferreira B.P. Maida M. 2006. Monitoramento dos recifes de coral do Brasil. Secretaria de Biodiversidade e Florestas, Brasília-DF, MMA,120 pp.). The fish community in Tamandaré is diverse and comprises estuarine, reef-associated, and pelagic species (Ferreira and Cava 2001Ferreira B.P., Cava F. 2001. Ictiofauna marinha da APA Costa dos Corais: Lista de espécies através de levantamento da pesca e observações subaquáticas. Bol. Técn. Cient. CEPENE, Tamandaré 9: 167-180.).
Soundscape recordings

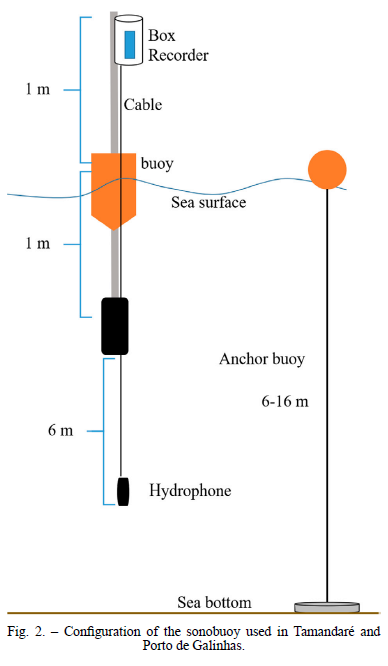

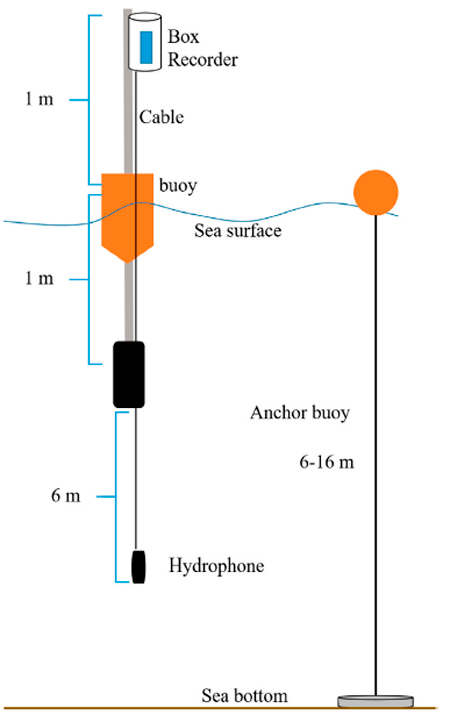

⌅The soundscape was measured using a custom-made sonobuoy (Fig. 2) equipped with a calibrated omnidirectional hydrophone (H2A, Aquarian Audio, Anacortes, WA, USA, useful range 10 Hz to 100 kHz, sensitivity of -180 dB re 1 V/µPa, flat frequency response ±4 dB within the range 20 Hz to 4.5 kHz). The sonobuoy was built using low-cost materials and consists of a 20-mm diameter, 2.5-m long PVC pipe. It is connected to a Panasonic RR-XS450 digital recorder (16-bit WAV format and sampling rate of 44 kHz). A weight was fixed at the lower end of the pipe, and a buoy was installed for flotation. A PVC box of 1000 cm3 located at the upper end (1.5 m out of the water) housed the digital recorder (Fig. 2).
Each sonobuoy was installed at three sites in the MLPZ (MLPZ 1, 2 and 3) near the reef called Ilha da Barra in the bay of Tamandaré (Fig. 1) during non-consecutive days in January 2016. Recordings began at the end of the morning. Recordings lasted 20, 23 and 13 hours at each site, respectively.
Two sonobuoys were used simultaneously to evaluate the acoustic signals at two stations in Tamandaré (MLPZ 3 and MLPZ 4) and at two stations in Porto de Galinhas (PGA 1 and PGA 2) between February and April 2016. Recordings were performed simultaneously at both sites of each location. They began at sunset and ended at dawn. During the summer, the sunset takes place at approximately 5:30 p.m. and the sunrise at 5:20 a.m. The duration of day and night is almost the same.
The sonobuoys were positioned 6-8 m deep near the reef and 14-16 m beyond the last reef line. The hydrophone was submerged 6 m from the surface. The buoys were installed about 1200 m apart, 1.4 and 2 km from the beach line in Tamandaré bay (Fig. 1). Recordings in Porto de Galinhas were performed in relatively equivalent areas located before the last reef line (PGA 1) and beyond the last reef line (PGA 2). They were about 800 m apart and 600 m and 1200 m from the coast, respectively.
Acoustic data analyses
⌅286 hours of recordings were analysed: 180 hours from Tamandaré and 106 hours from Porto de Galinhas. The files were downloaded to a portable computer. A pre-evaluation was performed using the Audacity® software (v. 2.2). Audacity® was also used to select interesting parts of the recordings for in-depth analysis.
To evaluate the frequency bandwidth distribution over time and the energy of the coastal reef soundscape, spectrograms and power spectral density (PSD) were plotted using the PAMGuide toolbox (Merchant et al. 2015Merchant N.D., Fristrup K.M., Johnson M.P., et al. 2015. Measuring acoustic habitats. Methods Ecol. Evol. 6: 257-265. https://doi.org/10.1111/2041-210X.12330 ) of MATLAB 2016. The spectrograms and PSD were initially plotted with a frequency bandwidth of between 50 and 10000 Hz (pre-analyses). A bandwidth of between 50 and 5000 Hz was used for analysis. The root mean square of PSD values was calculated for all days of recording at each point.
To perform the individual analysis of each acoustic signature (“call”), the Raven Pro software 1.4 (Cornell Laboratory of Ornithology) was used. Five-minute sections of each sound recording were used for individual characterization of each call (acoustic unit). The sections were chosen according to quality and energy. The aim was to select parts without signal overlaps whenever possible. The selected parts were band-pass filtered using the frequency bandwidth used in the spectrograms. The signals were characterized using the following parameters: 1) number of pulses/call (n), 2) call duration (time between first and last pulse, ms), 3) pulse rate (n pulses/second), 4) pulse period (time between the peaks of second and third pulses), 5) low-frequency limit (Hz), 6) high-frequency limit (Hz), 7) central frequency (Hz), and 8) dominant frequency (Hz). The description of the latter two parameters was obtained using the method of Charif et al. (2010)Charif R.A., Waack A.M., Strickman L.M. 2010. Raven Pro 1.4 User’s Manual. Cornell Lab of Ornithology, Ithaca: NY.. The acoustic parameters were measured using oscillograms and spectrograms, a fast Fourier transform size of 1024, and 99% overlap. Acoustic parameters of sounds were compared using a non-parametric Kruskal-Wallis multiple comparison test for each variable (P<0.05) in the STATISTICA 7 software (Dell Inc.).
RESULTS
⌅Soundscape and fish chorus recordings

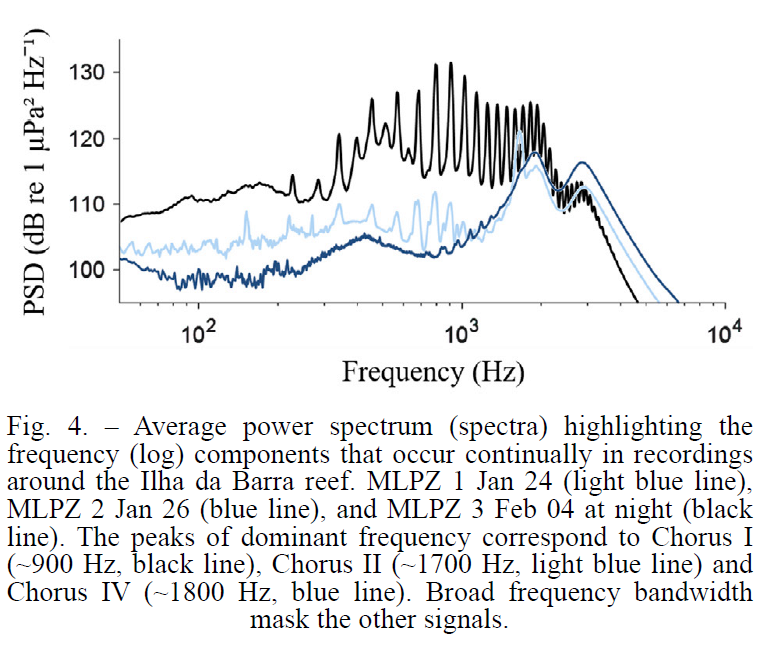

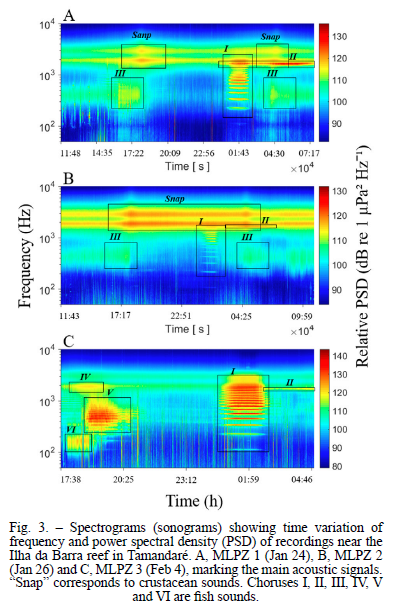

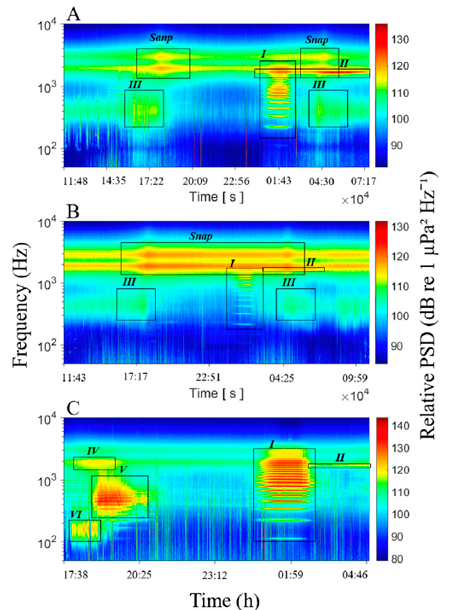

⌅In general, the soundscape was dominated by snapping shrimps and various species of fish around the Ilha da Barra reef in Tamandaré (Fig. 3). The frequency of these sounds was lower than 4 kHz. The acoustic signals were partitioned by time. The snapping sounds showed frequencies of between 2 and 3 kHz, which occurred at higher densities during sunset and dawn. Fish choruses showed frequencies of between 200 and 1800 Hz. We identified six different types of chorus.

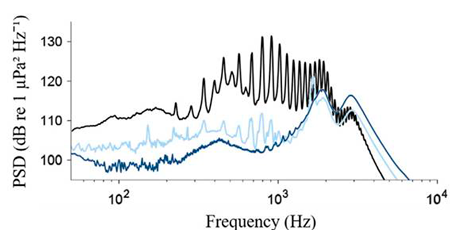

Chorus I around the Ilha da Barra reef was a tonal signal with harmonics within the 400-2000 Hz frequency band. Chorus II slightly overlapped with Chorus I in the frequency band of 1600-1800 Hz with no harmonics (Fig. 3A). It was produced after midnight. Chorus III had a frequency bandwidth of 200-800 Hz and occurred just before sunset and after midnight. In this area, the sound of snapping shrimps dominated the soundscape. Choruses I, II and III showed low amplitude levels (Fig. 3B). A little further away from the Ilha da Barra (MLPZ 3), despite a shorter recording time, three other types of fish chorus were detected: Chorus IV at a frequency band of 800-3500 Hz, Chorus V (150-900 Hz) and Chorus VI (80-300 Hz). These signals occurred at the beginning of the night and overlapped temporally. The snapping sound and Chorus III were not evident in MLPZ 3 (Fig. 3C). PSD analyses indicated high acoustic levels in MLPZ 3, as well as Chorus I peaks in a dominant frequency of approximately 900 Hz, but with a wide frequency band overlapping and masking other signals (Fig. 4).

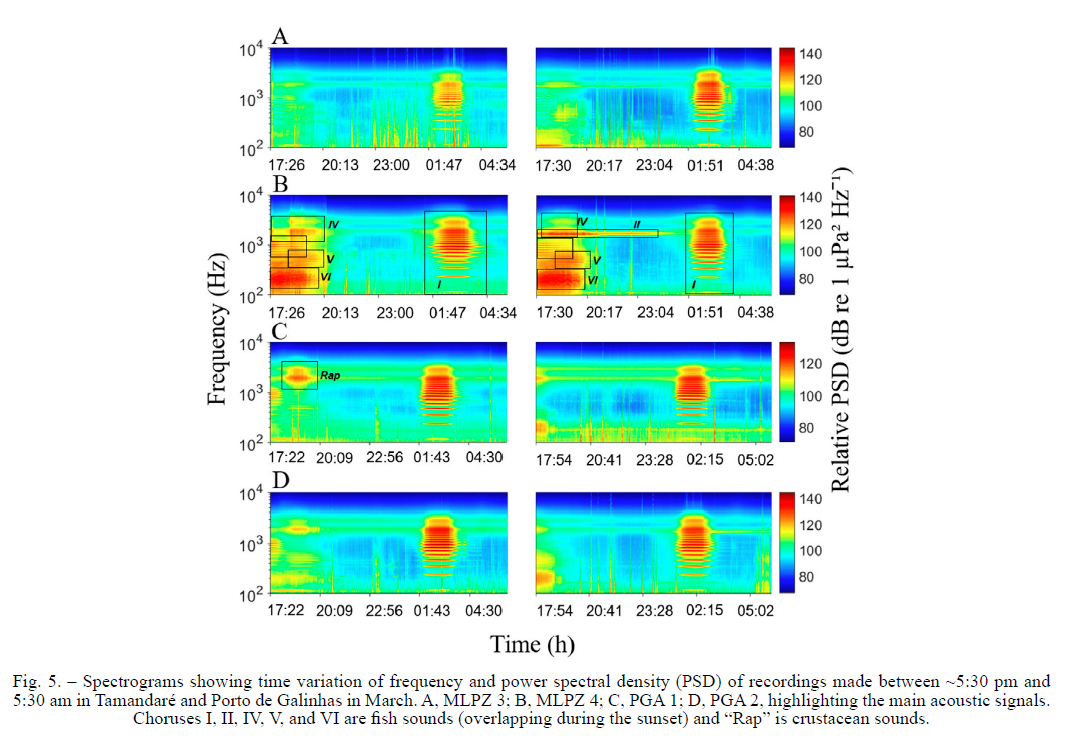

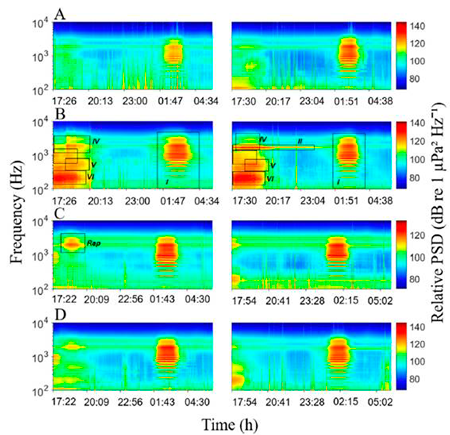

Chorus I occurred more often than the other choruses in Tamandaré and Porto de Galinhas (Fig. 5). The coastal soundscape of Tamandaré (MLPZ 3 and MLPZ 4) and Porto de Galinhas (PGA 1 and PGA 2) consisted of sounds during sunset and late night. Furthermore, fish choruses previously found were better detected at the furthest site in Tamandaré (MLPZ 4).

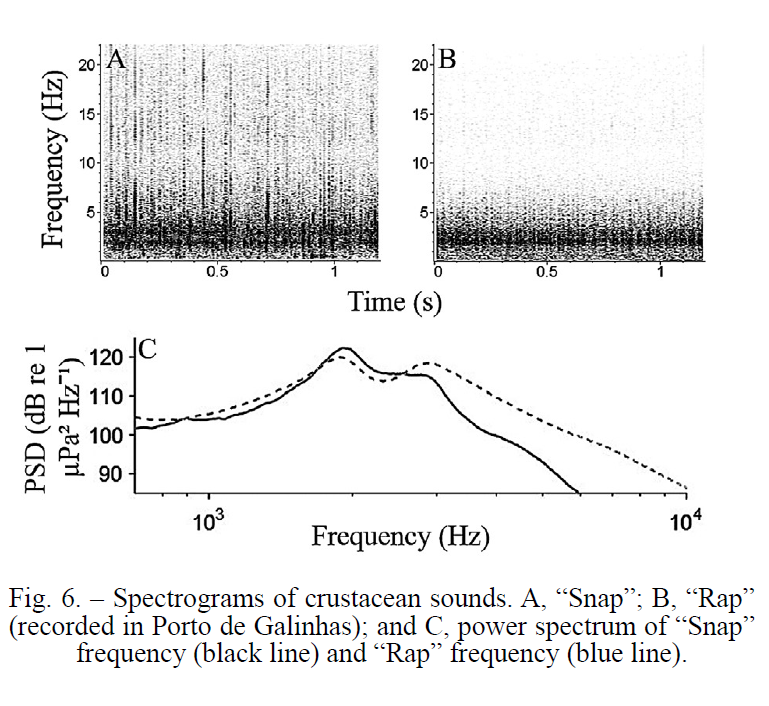

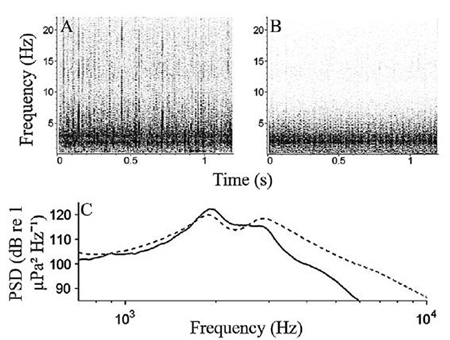

In Porto de Galinhas, there were low energy levels of Chorus V and Chorus VI, as well as a sound similar to rapping (termed “Rap”) at the beginning of the night (Fig. 5C, D) in areas near the second reef line (PGA 1). The Rap sound had characteristics similar as those of the snapping shrimp sound, with dominant frequencies at ~2000 and 2400 Hz, respectively (Table 1). This sound was also recorded near the Ilha da Barra reef in Tamandaré (Fig. 6).
| Sound type | Dominant frequency (Hz) | Low frequency (Hz) | High frequency (Hz) | Pulse duration (ms) |
|---|---|---|---|---|
| Snap | 2413±564a | 1771±416a | 3192±579a | 2.3±1.2a |
| (n=81) | (1637-3618) | (1093-2876) | (1997-4057) | (1.0-7.0) |
| Rap | 2071±319b | 1532±276a | 3000±450b | 3.4±2.1b |
| (n=180) | (1723-3531) | (978-2760) | (2118-4727) | (1.0 -17.0) |

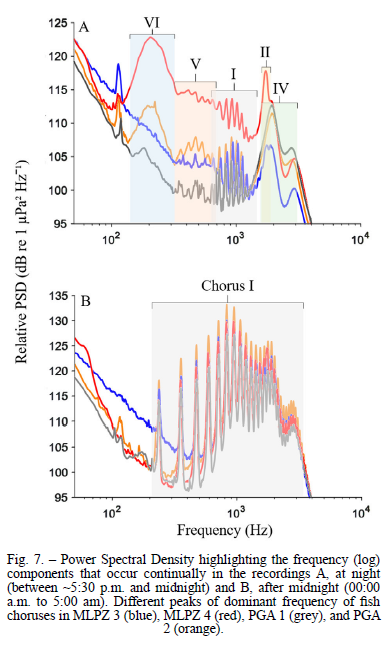

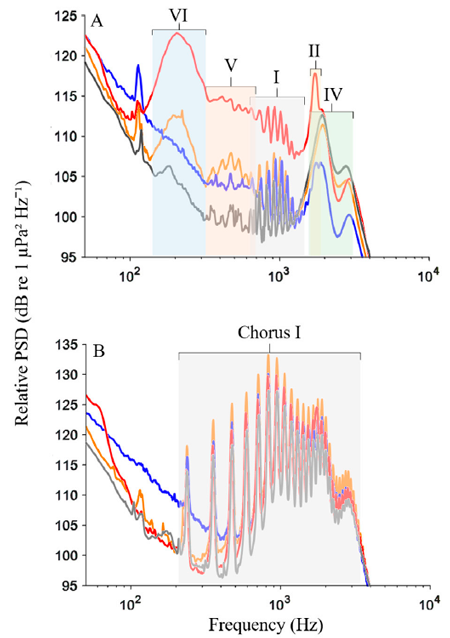

The MLPZ 4 had high acoustic levels for Chorus I, Chorus V, and Chorus VI before sunset (Fig. 7A). Chorus I, detected after midnight, showed a similar acoustic energy at the four stations sampled (Fig. 7B).
Fish call analyses

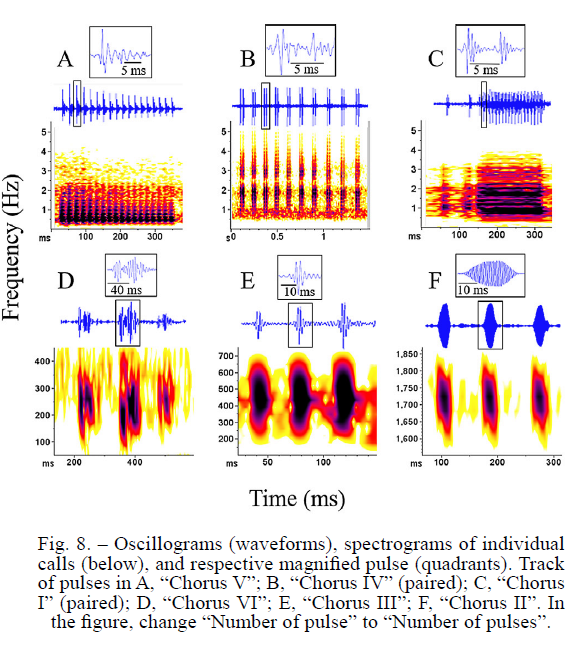

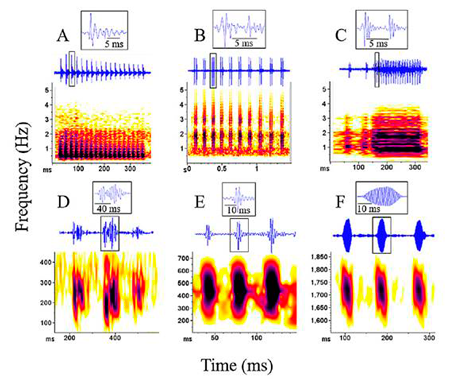

⌅Fish calls were comprised sets of pulse trains with different acoustic characteristics (acoustic signatures). The pulses contained one cycle, several cycles as occurred in Chorus V (Fig. 8A), Chorus III (Fig. 8E), and Chorus II (Fig. 8F), or paired pulses as occurred in Chorus I (Fig. 8B), Chorus IV (Fig. 8C) and Chorus VI (Fig. 8D).
The calls were composed of three to 39 pulses depending on the type of call. Calls with three pulses were found in Choruses II, III and VI. The calls of Chorus I had the highest number of pulses per call (mean of 25.1), followed by Chorus V (mean of 19.3) (Table 2).
| Acoustic parameter | Chorus I (n=84) | Chorus II (n=90) | Chorus III (n=30) | Chorus IV (n=72) | Chorus V (n=64) | Chorus VI (n=90) |
|---|---|---|---|---|---|---|
| No. of pulses/ call | 25.1±4.6c | 2.7±0.5a | 3.4±0.6ab | 9.7±3.8d | 19.3±2.3c | 3.1±0.9ab |
| (12.0-39.0) | (2.0-4.0) | (2.0-5.0) | (4.0-20.0) | (14.0-26.0) | (2.0-6.0) | |
| Call duration (ms) | 205.1±38.4a | 163.3±43.2c | 90.2±25.9e | 556.6±253.2b | 322.5±35.2d | 283.9±138.9a |
| (97.4-320.5) | (90.8-276.2) | (33.7-162.8) | (189.8-1273.0) | (192.5-400.6) | (73.7-758.9) | |
| Pulse rate | 122.4±1.8c | 17.1±1.9a | 38.3±3.8b | 17.8±1.3a | 59.9±4.5b | 12.3±3.8d |
| (119.3-128.5) | (14.5-22.0) | (5.3-27.2) | (14.9-21.1) | (54.7-72.7) | (5.3-27.2) | |
| Pulse period (ms) | 8.7±0.4b | 84.2±4.9d | 37.1±2.4a | 136.6±11.1c | 19.1±2.6a | 111.6±34.3e |
| (7.7-9.9) | (68.1-98.2) | (31.9-41.6) | (122.0-175.7) | (13.5-24.0) | (45.5-210.9) | |
| Low frequency (Hz) | 375.5±124.2b | 1623.0±36.5d | 207.8±44.5ab | 859.8±229.3c | 169.9±62.6a | 83.2±13.5e |
| (120.4-658.4) | (1554.6-1712.6) | (134.7-373.6) | (372.5-1478.9) | (105.1-354.3) | (54.5-112.7) | |
| High frequency (Hz) | 2089.9±329.3a | 1863.3±35.6a | 816.5±97.6bc | 3668.0±725.9.6d | 924.5±98.0b | 332.0±25.8c |
| (1114.6-2964.9) | (1775.7-1927.2) | (569.6-973.9) | (2252.1-5577.7) | (729.8-1178.8) | (281.2-421.5) |
The dominant frequencies were 204, 570, 925 and 1838 Hz for Choruses VI, V, I and IV, respectively. Although there was a frequency overlap between Chorus IV and Chorus II sounds, and their values did not differ significantly, they may be related to pulse rate since this value also showed no differences. Nevertheless, these sounds have a different frequency band (low and high), pulse period, number of pulses and consequently call duration (Table 2). Chorus V and Chorus VI sounds showed similar frequencies. All acoustic parameters indicated a significant difference between the two sounds (p<0.05). Though the dominant frequency values between Choruses III and VI showed no differences, they did not occur at the same location (P>0.05).

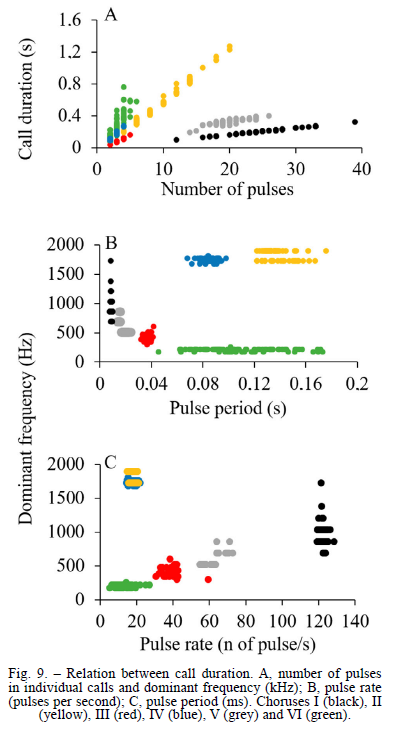

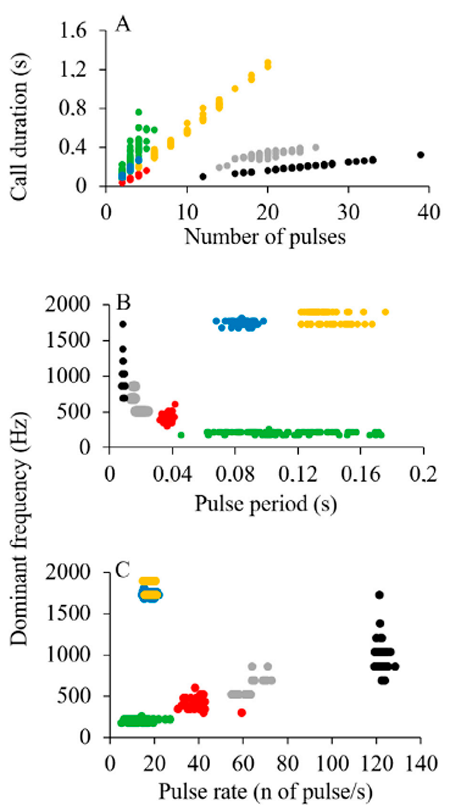

The number of pulses is related to the duration of each individual sound (Fig 9A). The duration increased as the number of pulses increased. This is directly related to both pulse rate and pulse period. The pulse rate was higher in Chorus V and Chorus I: about 60 and 122 pulses per second, respectively. There was a correlation between dominant frequency and pulse period, and between dominant frequency and pulse rate for Choruses I, III, IV and V. The dominant frequency increased as the pulse period decreased (Fig. 9B) and pulse rate increased (Fig. 9C). This did not happen for Choruses II and IV. The Chorus IV sound, unlike the other four choruses, had fewer pulses and lasted approximately one second.
DISCUSSION
⌅Marine soundscapes are composed of physical (e.g. waves), biological (e.g. fish) and anthropogenic components (e.g. ships). Fish sounds are typically clear at frequencies <1 kHz and the sound of benthic invertebrates is clear at >1 kHz (Kennedy et al. 2010Kennedy E.V., Holderied M.W., Mair J.M., et al. 2010. Spatial patterns in reef-generated noise relate to habitats and communities: Evidence from a Panamanian case study. J. Exp. Mar. Bio. Ecol. 395: 85-92. https://doi.org/10.1016/j.jembe.2010.08.017 ). We determined here the soundscape of a marine protected area and of an unprotected area in northern Brazil. Snapping shrimp and six different choruses dominated the soundscape. The choruses ranged from ~200 to 4000 Hz and were likely produced by aggregations of several fish and crustacean species.
Snapping shrimp is a ubiquitous sound source found in all oceans. Depending on the location, they have a varying diurnal snapping activity pattern. Radford et al (2008)Radford C., Jeffs A., Tindle C., et al. 2008. Resonating sea urchin skeletons create coastal choruses. Mar. Ecol. Prog. Ser. 362: 37-43. https://doi.org/10.3354/meps07444 found that snapping shrimp dominate the temperate soundscapes of New Zealand at dawn and dusk. In northeastern Brazil, snapping shrimp are more active at dusk and produce a characteristic snap sound of between 1 and 4 kHz, with a dominant frequency of between 2 and 3 kHz, although frequencies can reach 22050 Hz (our sampling limit). This sound was a constant cacophony during the day, but the highest intensity was at night. The “snap” signal has characteristics similar to those found in some marine invertebrates, particularly Alpheus genera, which produce snapping sounds within a wide frequency band: between ~1 and 15 kHz (Schmitz 2002Schmitz B. 2002. Sound Production in Crustacea with Special Reference to the Alpheidae. Crustac. Nerv. Syst. 536-547. https://doi.org/10.1007/978-3-662-04843-6_40 ; Coquereau et al. 2016Coquereau L., Grall J., Chauvaud L., et al. 2016. Sound production and associated behaviours of benthic invertebrates from a coastal habitat in the north-east Atlantic. Mar. Biol. 163: 1-13. https://doi.org/10.1007/s00227-016-2902-2 ). Snapping shrimp (family Alpheidae) produce the major component of reef noise at frequencies above 2 kHz. The highest intensities occur at the beginning and end of the night in Hawaiian reefs (Lammers and Munger 2016Lammers M.O. Munger L.M. 2016. From Shrimp to Whales: Biological Applications of Passive Acoustic Monitoring on a Remote Pacific Coral Reef. In: AU W., Lammers M. (eds), Listening in the Ocean. Modern Acoustics and Signal Processing. New York: NY. Springer, pp. 61-81. https://doi.org/10.1007/978-1-4939-3176-7_4 ). Another important component of the soundscape is lobster sounds. Species of the genus Palunirus sp. can emit stridulating? sounds at frequencies of between 2 and 5.5 kHz (Mulligan and Fischer 1977Mulligan B.; Fischer R. 1977. Sounds and behavior of the spiny lobster Panulirus argus (Latreille, 1804) (Decapoda, Palinuridae). Crustaceana 32: 185-199. https://doi.org/10.1163/156854077X00575 ); the dominant frequency is between 3.7 and 5.2 kHz (Latha et al. 2005Latha G., Senthilvadivu S., Venkatesan R., et al. 2005. Sound of shallow and deep water lobsters: Measurements, analysis, and characterization (L). J. Acoust. Soc. Am. 117: 2720-2723. https://doi.org/10.1121/1.1893525 ). Kikuchi et al. (2015)Kikuchi M., Akamatsu T., Takase T. 2015. Passive acoustic monitoring of Japanese spiny lobster stridulating sounds. Fish. Sci. 81: 229-234. https://doi.org/10.1007/s12562-014-0835-6 suggested that the frequency of stridulating sounds possibly reflects the activity and presence of commercially important lobsters of the same genus.
The “Rap” sound found as an aggregation in Porto de Galinhas during sunset has similar characteristics to those of sounds produced by Ocypodidae (Brachyura). The frequencies are up to 2 kHz (Horch 1975Horch K. 1975. The acoustic behavior of the ghost crab Ocypode cordimana Latreille, 1818 (Decapoda, Brachyura). Crustaceana 29: 193-205. https://doi.org/10.1163/156854075X00207 ) and dominant frequencies are between 1.1 and 3.2 kHz (Clayton 2001Clayton D. 2001. Acoustic calling in four species of ghost crabs: Ocypode jousseaumei, O. platytarsus, O. rotundata and O. saratan (Brachyura: Ocypodidae). Bioacoustics 12: 37-55. https://doi.org/10.1080/09524622.2001.9753477 ). Males of some Ocypodidae species produce a drumming sound by stridulating their claw during courtship (Mowles et al. 2017Mowles S.L., Jennions M., Backwell P.R. 2017. Multimodal communication in courting fiddler crabs reveals male performance capacities. R. Soc. Open Sci. 4: 161093. https://doi.org/10.1098/rsos.161093 ). Ocypodidae, Alpheidae and Palinuridae species can be commonly found in our study area, particularly in Porto de Galinhas (Giraldes et al. 2015Giraldes B.W., Coelho Filho P.A., Smyth D.M. 2015. Decapod assemblages in subtidal and intertidal zones-Importance of scuba diving as a survey technique in tropical reefs, Brazil. Glob. Ecol. Conserv. 3: 163-175. https://doi.org/10.1016/j.gecco.2014.11.011 ), as well in other areas along the Pernambuco coast (Coelho et al. 2006Coelho P.A., De Almeida A.O., De Souza-Filho J.F., et al. 2006. Diversity and distribution of the marine and estuarine shrimps (Dendrobranchiata, Stenopodidea and Caridea) from North and Northeast Brazil. Zootaxa 1221: 41-62. https://doi.org/10.11646/zootaxa.1221.1.5 , 2007Coelho P.A., Almeida A., Bezerra L., et al. 2007. An updated checklist of decapod crustaceans (infraorders Astacidea, Thalassinidea, Polychelida, Palinura, and Anomura) from the northern and northeastern Brazilian coast. Zootaxa 1519: 1-16. https://doi.org/10.11646/zootaxa.1519.1.1 , Barreto et al. 1993Barreto A., Coelho P., Ramos-Porto M., et al. 1993. Distribuição geográfica dos Brachyura (Crustacea, Decapoda) coletados na plataforma continental do Norte e Nordeste do Brasil. Rev. Bras. Zool. 10: 641-656. https://doi.org/10.1590/S0101-81751993000400010 ). They can contribute to the cacophony of crustaceans found in this study.
The six chorus types detected here have sound characteristics typically representative of fish. They were mainly detected during sunset and after midnight. Chorus III occurred only near the Ilha da Barra reef (MLPZ 1 and 2). It is commonly heard in the study area by divers (authors’ personal observation). This Chorus showed a dominant frequency mean of 414 Hz, which is similar to that of reproductive sounds found in many coral reef damselfish (Pomacentridae) (Mann and Lobel 1997Mann D.A., Lobel P.S. 1997. Propagation of damselfish (Pomacentridae) courtship sounds. J. Acoust. Soc. Am. 101: 3783-3791. https://doi.org/10.1121/1.418425 , Maruska et al. 2007Maruska K.P., Boyle K.S., Dewan L.R., et al. 2007. Sound production and spectral hearing sensitivity in the Hawaiian sergeant damselfish, Abudefduf abdominalis. J. Exp. Biol. 210: 3990-4004. https://doi.org/10.1242/jeb.004390 , Parmentier and Frederich 2016Parmentier E., Frederich B. 2016. Broadening of acoustic repertoire in Pomacentridae: tonal sounds in the Ambon damselfish Pomacentrus amboinensis. J. Zool. 300: 241-246. https://doi.org/10.1111/jzo.12382, Parmentier et al. 2009Parmentier E., Lecchini D., Frederich B., et al. 2009. Sound production in four damselfish (Dascyllus) species: phyletic relationships? Biol. J. Linn. Soc., 97: 928-940. https://doi.org/10.1111/j.1095-8312.2009.01260.x ).
The frequency bandwidth of the choruses varied. It was broad in Choruses I and IV and narrow in Choruses II and VI. Some choruses may therefore have different frequency band distributions and can show spatial and temporal overlapping (Pearson et al. 2016Parsons M.J.G., Salgado-Kent C.P., Marley S.A., et al. 2016. Characterizing diversity and variation in fish choruses in Darwin Harbour. ICES J. Mar. Sci. 73: 2058-2074. https://doi.org/10.1093/icesjms/fsw037 ). Due to the absence of vision during the night, the communication sound plays a more important role (Ruppé et al. 2015Ruppé L., Clément, G., Herrel A., et al. 2015. Environmental constraints drive the partitioning of the soundscape in fishes. Proc. Natl. Acad. Sci. 112: 6092-6097. https://doi.org/10.1073/pnas.1424667112 ). The lack of time and chorus frequency partitioning in hours of darkness illustrates the complexity of monitoring different communities of sound-producing fish (Parsons et al. 2016Parsons M.J.G., Salgado-Kent C.P., Marley S.A., et al. 2016. Characterizing diversity and variation in fish choruses in Darwin Harbour. ICES J. Mar. Sci. 73: 2058-2074. https://doi.org/10.1093/icesjms/fsw037 , in Australia).
Similar frequency band of choruses founded in this study have been found in fish detected in marine protected areas in southeastern sub-tropical regions of Brazil (Sánchez-Gendriz and Padovese 2016 Sánchez-Gendriz, I., Padovese, L.R. 2016. Underwater soundscape of marine protected areas in the south Brazilian coast. Mar. Pollut. Bull. 105: 65-72. https://doi.org/10.1016/j.marpolbul.2016.02.055 ), although they are produced at different times of the day. There was no temporal competition between them, but rather a temporal overlaping observed during the early morning hours (Sánchez-Gendriz and Padovese 2017Sánchez-Gendriz I., Padovese L.R. 2017. Temporal and spectral patterns of fish choruses in two protected areas in southern Atlantic. Ecol. Inform. 38: 31-38. https://doi.org/10.1016/j.ecoinf.2017.01.003 ). This could indicate that fish species emitting this type of signal may have a wide distribution on the Brazilian coast, occurring in both tropical and temperate waters. The timing differences could be related to the migratory patterns of these species.
In this study we present evidence that the acoustic energy of Choruses II, IV, V and VI were higher after the last coastal reef line in Tamandaré. Several habitats showed significantly different energies. There was a decreasing level of energy from the reef towards the coast, showing that closely related habitats separated by 1 km may differ significantly (Bertucci et al. 2015Bertucci F., Parmentier E., Berten L., et al. 2015. Temporal and spatial comparisons of underwater sound signatures of different reef habitats in Moorea Island, French Polynesia. PLoS ONE 10: 1-12. https://doi.org/10.1371/journal.pone.0135733 ). The imperceptive or low acoustic energy of crustaceans observed in MLPZ 4 and PGA 2 may be related to distance from the reef. Kaplan and Mooney (2016)Kaplan M.B., Mooney T.A. 2016. Coral reef soundscapes may not be detectable far from the reef. Sci. Rep. 6: 1-10. https://doi.org/10.1038/srep31862 indicated that the sound of the reef is of low intensity and may not reach distances greater than 1.5 km.
The detection of fish choruses in this area may be associated with the type of substrate at these sites. On coastal reefs on the southern coast of Pernambuco it is possible to find a muddy substrate resulting from river depositions (Kempf 1970Kempf M. 1970. A plataforma continental de Pernambuco (Brasil): nota preliminar sobre a natureza do fundo. Trab. Oceanogr. Univ. Fed. PE, Recife 9: 111-124. https://doi.org/10.5914/tropocean.v9i1.2522 ). Muddy patches are of commercial interest, as artisanal fishery target these areas for shrimp and fish, catching mainly sciaenids (Silva Júnior et al. 2015Silva Júnior C.A.B., Viana A.P., Frédou F.L., et al. 2015. Aspects of the reproductive biology and characterization of Sciaenidae captured as bycatch in the prawn trawling in the northeastern Brazil. Acta Sci. Biol. Sci. 37: 1-8. https://doi.org/10.4025/actascibiolsci.v37i1.24962 ). Some of these species can also be found in Brazilian temperate waters (Schmidt and Dias 2012Schmidt T.C.D.S., Dias J.F. 2012. Pattern of distribution and environmental influences on the Scienidae community of the Southeastern Brazilian coast. Braz. J. Oceanogr. 60: 233-243. https://doi.org/10.1590/S1679-87592012000200013 ). The genera are widely distributed throughout the western Atlantic.
One of the most interesting and well-known aspects of the Scieanidae family is that they produce sounds and are commonly called “croakers”. Several species of this family produce sounds during the reproductive season, particularly during the night (Lagardère and Mariani 2006Lagardère J.P., Mariani A. 2006. Spawning sounds in meagre Argyrosomus regius recorded in the Gironde estuary, France. J. Fish Biol. 69: 1697-1708. https://doi.org/10.1111/j.1095-8649.2006.01237.x , Luczkovich et al. 2008Luczkovich J.J., Mann D.A., Rountree R.A. 2008. Passive Acoustics as a Tool in Fisheries Science. Trans. Am. Fish. Soc. 137: 533-541. https://doi.org/10.1577/T06-258.1 , Mok et al. 2009Mok H.K., Yu H.Y., Ueng J.P., et al. 2009. Characterization of sounds of the blackspotted croaker Protonibea diacanthus (Sciaenidae) and localization of its spawning sites in estuarine coastal waters of Taiwan. Zool. Stud. 48: 325-333. ). Several studies on sciaenid sounds have been conducted in the northwest Atlantic. Field studies using passive acoustics monitored spawning activity of a resident aggregation of Cynoscion nebulosus over a long period (Walters et al. 2009Walters S., Lowerre-Barbieri S., Bickford J., Mann D. 2009. Using a Passive Acoustic Survey to Identify Spotted Seatrout Spawning Sites and Associated Habitat in Tampa Bay, Florida. Trans. Am. Fish. Soc. 138: 88-98. https://doi.org/10.1577/T07-106.1 ). The critical spawning habitats of Cynoscion regalis, Bairdiella chrysoura and Sciaenops ocellatus have also been mapped (Luczkovich et al. 2008Luczkovich J.J., Mann D.A., Rountree R.A. 2008. Passive Acoustics as a Tool in Fisheries Science. Trans. Am. Fish. Soc. 137: 533-541. https://doi.org/10.1577/T06-258.1 ). In the southwest Atlantic, Micropogonias furnieri produces a characteristic seasonal and daily sound of courtship/spawning in the Rio de la Plata estuary from November to March (Tellechea et al. 2011Tellechea J.S., Bouvier D., Norbis, W. 2011. Spawning sounds in whitemouth croaker (sciaenidae): Seasonal and daily cycles. Bioacoustics 20: 159-168. https://doi.org/10.1080/09524622.2011.9753641 ). Larvae of Sciaenidae were highly abundant in areas near our study site (Junior et al. 2011Junior J.L.B., Diaz X.G., Neumann-Leitão S. 2011. Diversidade de larvas de peixes das áreas internas e externas do porto de Suape (Pernambuco-Brazil). Trop. Oceanogr. Online 39: 1-13.), possibly indicating that the sounds we detected could have been made by species of the family Sciaenidae during the reproductive process.

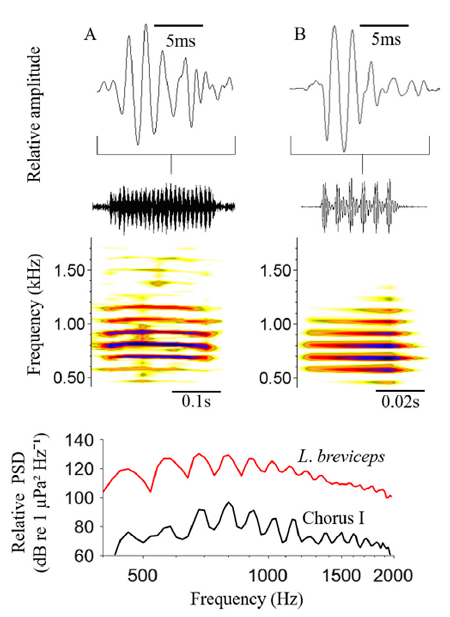

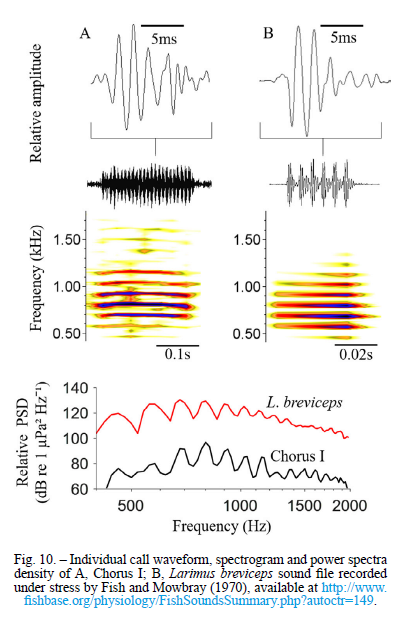

A comparison of individual calls of Chorus I with those of Larimus breviceps found in the western Atlantic (Fish and Mowbray 1970Fish M.P., Mowbray W.H. 1970. Sounds of Western North Atlantic fishes: A reference file of biological underwater sounds. The John Hopkins Press, Baltimore. Rhode Island Univ. Kingston Narragansett Marine Lab.) showed an acoustic similarity. The harmonic distribution of frequency bands occurred at peak intervals every 100 Hz (Fig. 10). L. breviceps is a widely distributed species with harmonious “hornlike” sounds and frequencies of between 500 and 1000 Hz (Ramcharitar et al. 2006Ramcharitar J., Gannon D.P., Popper A.N. 2006. Bioacoustics of Fishes of the Family Sciaenidae (Croakers and Drums). Trans. Am. Fish. Soc. 135: 1409-1431. https://doi.org/10.1577/T05-207.1 ).
Fish and Mowbray (1970)Fish M.P., Mowbray W.H. 1970. Sounds of Western North Atlantic fishes: A reference file of biological underwater sounds. The John Hopkins Press, Baltimore. Rhode Island Univ. Kingston Narragansett Marine Lab., available at http://www.fishbase.org/physiology/FishSoundsSummary.php?autoctr=149.
Several species of the genus Cynoscion, widely distributed throughout the western Atlantic, are known to emit sounds during the reproductive period. Some species emit a wide range of dominant frequencies, from ~347 to 1046 Hz (Connaughton 1995Connaughton M.A., Taylor M.H. 1995. Seasonal and daily cycles in sound production associated with spawning in the weakfish, Cynoscion regalis. Environ. Biol. Fishes 42: 233-240. https://doi.org/10.1007/BF00004916 , Sprague et al. 2000Sprague M.W., Luczkovich J.J., Pullinger R.C., et al. 2000. Using spectral analysis to identify drumming sounds of some North Carolina fishes in the family Sciaenidae. J. Elisha Mitchell Sci. Soc. 116: 124-145.), particularly in the northwest Atlantic. C. gutupaca emits a dominant frequency of 450 Hz in the southwestern Atlantic (Tellechea and Norbis 2012Tellechea J.S., Norbis W. 2012. Sexual dimorphism in sound production and call characteristics in the striped weakfish Cynoscion guatucupa. Zool. Stud. 51: 946-955.). These differences in frequency could be caused by differences in swim bladder size, which is in turn correlated with fish size (Connaughton et al. 2000Connaughton M.A., Taylor M.H., Fine M.L. 2000. Effects of fish size and temperature on weakfish disturbance calls: implications for the mechanism of sound generation. J. Exp. Biol. 203: 1503-1512.). The close relationship between Choruses I, V and VI may also be related to the sound mechanism. Sound production by these fish occurs through a pair of sonic muscles commonly found in males (Chao 1978Chao L. N. 1978. A basis for classifying Western Atlantic Sciaenidae (Teleostei: Perciformes). NOAA Tech. Rep. 415: 1-64.).
The results show a soundscape composed of crustacean and fish choruses (dominant frequencies <1 kHz). The choruses showed high energy after the last reef line in the protected area but low energy in unprotected areas. Higher levels of acoustic energy in the marine protected area may indicate the importance of these environments to fish populations. This information shows the importance and the usefulness of passive acoustics tools in monitoring and protecting coral reef biodiversity to guarantee sustainable fisheries and improve the management of populations. Greater efforts are still needed in order to improve the identification of the sound sources that compose the soundscape in these areas and in other marine ecosystems, with a potential for fast and non-intrusive biodiversity assessments.
