INTRODUCTIONTop

Due to their life history characteristics (Cortés et al. 2012Cortés E., Brooks E., Gedamke T. 2012. Population dynamics, demography, and stock assessment. In: Carrier J., Musick J.A., Heithaus M. (eds.), Biology of Sharks and Their Relatives. CRC Press, Boca Raton, Florida, pp. 453-485.) and the increase in fishing pressure, elasmobranchs are currently one of the most vulnerable fish groups, with high threat levels worldwide (Stevens et al. 2000Stevens J.D, Bonfil R., Dulvy N.K., et al. 2000. The effect of fishing on sharks, rays and chimaeras (chondrichthyans), and the implications for marine ecosystems. ICES J. Mar. Sci. 57: 476-494., Dulvy et al. 2014Dulvy N.K., Fowler S.L., Musick J.A., et al. 2014. Extinction risk and conservation of the world’s sharks and rays. eLife 3: e00590.). Age estimation for these species is therefore important to suggest fishery management measures. This information is also relevant for the estimation of growth and mortality rates, maturity age and longevity, among other parameters, as they are primary inputs in demographic studies that allow the vulnerability and productivity of the populations to be established (e.g. Campana 2001Campana S.E. 2001. Accuracy, precision and quality control in age determination, including a review of the use and abuse of age validation methods. J. Fish Biol. 59: 197-242., Goldman et al. 2012Goldman K.J., Cailliet G.M., Andrews A.H., et al. 2012. Age determination and validation in chondrichthyan fishes. In: Carrier J., Musick J.A., Heithaus M. (eds), Biology of sharks and their relatives, Second edition. CRC Press, Boca Raton, Florida, pp. 423-451.). Despite their importance, the number of age and growth publications in tropical elasmobranchs is relatively low (14.1%; 25 of 177 reviewed papers; e.g. Harry et al. 2010Harry A.V., Simpfendorfer C., Tobin A.J. 2010. Improving age, growth, and maturity estimates for aseasonally reproducing chondrichthyans. Fish. Res. 106: 393-403., O’Shea et al. 2013O’Shea O.R., Braccini M., McAuley R., et al. 2013. Growth of tropical Dasyatid rays estimated using a multi-analytical approach. PLoS ONE 8: e77194., Mejía-Falla et al. 2014Mejía-Falla P.A., Cortés E., Navia A.F., et al. 2014. Age and growth of the Round Stingray Urotrygon rogersi, a particularly fast-growing and short-lived elasmobranch. PLoS ONE 9: e96077..) compared with those in cold and temperate waters (133 papers; e.g. Duman and Başusta 2013Duman O.V., Başusta N. 2013. Age and growth characteristics of marbled electric ray Torpedo marmorata (Risso, 1810) Inhabiting Iskenderun Bay, North-eastern Mediterranean Sea. Turk. J. Fish. Aquat. Sci. 13: 541-549., James et al. 2014James K.C., Ebert D.A., Natanson L.J., et al. 2014. Age and growth characteristics of the Starry Skate, Raja stellulata, with a description of life history and habitat trends of the central California, U.S.A., skate assemblage. Environ. Biol. Fish. 97: 435-448., Kadri et al. 2013Kadri H., Marouani S., Bradai M.N., et al. 2013. Age, growth and reproductive biology of the rough skate, Raja radula (Chondrichthyes: Rajidae), off the Gulf of Gabes (southern Tunisia, central Mediterranean). Mar. Freshw. Res. 64: 540-548.) (Supplementary material Table S1).

Age studies in elasmobranchs are based on counting pairs of growth bands in hard structures (e.g. vertebrae, spines) which are formed periodically. As the visualization of these band pairs in some cases is not simple, over time several methods, such as X-rays (Natanson and Cailliet 1990Natanson L.J., Cailliet G.M. 1990. Vertebral growth zone deposition in Pacific angel sharks. Copeia 1990: 1133-1145.), staining (Goldman et al. 2012Goldman K.J., Cailliet G.M., Andrews A.H., et al. 2012. Age determination and validation in chondrichthyan fishes. In: Carrier J., Musick J.A., Heithaus M. (eds), Biology of sharks and their relatives, Second edition. CRC Press, Boca Raton, Florida, pp. 423-451.) and histological sections (Natanson et al. 2007Natanson L.J., Sulikowski J.A., Kneebone J.R., et al. 2007. Age and growth estimates for the smooth skate, Malacoraja senta, in the Gulf of Maine. Environ. Biol. Fish. 80: 293-308.), have been suggested and tested to enhance the visualization of the growth bands and therefore improve the accuracy of age estimation (Goldman et al. 2012Goldman K.J., Cailliet G.M., Andrews A.H., et al. 2012. Age determination and validation in chondrichthyan fishes. In: Carrier J., Musick J.A., Heithaus M. (eds), Biology of sharks and their relatives, Second edition. CRC Press, Boca Raton, Florida, pp. 423-451.).

Of the aforementioned processes, staining has been the most widely used, mainly because it is the least complex and least expensive procedure, and it is even suggested as a first step before applying more demanding and expensive methods (Goldman et al. 2012Goldman K.J., Cailliet G.M., Andrews A.H., et al. 2012. Age determination and validation in chondrichthyan fishes. In: Carrier J., Musick J.A., Heithaus M. (eds), Biology of sharks and their relatives, Second edition. CRC Press, Boca Raton, Florida, pp. 423-451.). Staining techniques have been used in age studies of several elasmobranch species (e.g. Neer and Cailliet 2001Neer J.A., Cailliet G.M. 2001. Aspects of the Life history of the Pacific electric ray, Torpedo californica (Ayres). Copeia 2001: 842-847., Fernández-Carvalho et al. 2011Fernández-Carvalho J., Coelho R., Erzini K., et al. 2011. Age and growth of the bigeye thresher shark, Alopias superciliosus, from the pelagic longline fisheries in the tropical northeastern Atlantic Ocean, determined by vertebral band counts. Aquat. Living Resour. 24: 359-368., Torres-Palacios et al. 2019Torres-Palacios K., Mejía-Falla P.A., Navia A.F., et al. 2019. Age and growth parameters of the Panamic stingray (Urotrygon aspidura). Fish. Bull. 117: 45-55.). The result of each technique has been found to be species-specific (Goldman et al. 2012Goldman K.J., Cailliet G.M., Andrews A.H., et al. 2012. Age determination and validation in chondrichthyan fishes. In: Carrier J., Musick J.A., Heithaus M. (eds), Biology of sharks and their relatives, Second edition. CRC Press, Boca Raton, Florida, pp. 423-451.), so it is not possible to define a standard protocol for the use of these techniques in elasmobranchs.

Furthermore, few studies have reported in detail the procedures applied to select the most appropriate staining method for each species (e.g. Fernández-Carvalho et al. 2011Fernández-Carvalho J., Coelho R., Erzini K., et al. 2011. Age and growth of the bigeye thresher shark, Alopias superciliosus, from the pelagic longline fisheries in the tropical northeastern Atlantic Ocean, determined by vertebral band counts. Aquat. Living Resour. 24: 359-368., Huveneers et al. 2013Huveneers C., Stead J., Bennett M.B., et al. 2013. Age and growth determination of three sympatric wobbegong sharks: how reliable is growth band periodicity in Orectolobidae? Fish. Res. 147: 413-425., Torres-Palacios et al. 2019Torres-Palacios K., Mejía-Falla P.A., Navia A.F., et al. 2019. Age and growth parameters of the Panamic stingray (Urotrygon aspidura). Fish. Bull. 117: 45-55.), and a large number of studies have applied methods previously described in similar species without evaluating their effectiveness in the particular study species (e.g. Aversa et al. 2011Aversa M., Dans S., García N.A., et al. 2011. Growth models fitted to Dipturus chilensis length at age data support a two-phase growth. Rev. Chil. Hist. Nat. 84: 33-49., Sánchez de Ita et al. 2011Sánchez de Ita J.A., Quiñonez-Velázquez C., Galván-Magaña F., et al. 2011. Age and growth of the silky shark Carcharhinus falciformis from the west coast of Baja California Sur, Mexico. J. Appl. Ichthyol. 27: 20-24., Chin et al. 2013Chin A., Simpfendorfer C., Tobin A., et al. 2013. Validated age, growth and reproductive biology of Carcharhinus melanopte­rus, a widely distributed and exploited reef shark. Mar. Freshw. Res. 64: 965-975.). Given that there is evidence that the results of these techniques are species-specific, the need to assess and test how these tools influence the visualization of the growth bands before carrying out age and growth studies is highlighted. Additionally, recent studies have shown that band formation in some elasmobranch species occurs bi-annually (Wells et al. 2013Wells D.R.J., Smith S.E. Kohn S. et al. 2013. Age validation of juvenile shortfin mako (Isurus oxyrinchus) tagged and marked with oxytetracycline off southern California. Fish. Bull. 111: 147-160.) or irregularly (Huveneers et al. 2013Huveneers C., Stead J., Bennett M.B., et al. 2013. Age and growth determination of three sympatric wobbegong sharks: how reliable is growth band periodicity in Orectolobidae? Fish. Res. 147: 413-425.), so their age may be underestimated (Hamady et al. 2014Hamady L.L., Natanson L.J., Skomal G.B., et al. 2014. Vertebral bomb radio-carbon suggests extreme longevity in white sharks. PLoS ONE 9: e84006., Harry 2018Harry A.V. 2018. Evidence for systemic age underestimation in shark and ray ageing studies. Fish Fish. 19: 185-200., Natanson et al. 2018Natanson L.J., Skomal G.B., Hoffmann S.L., et al. 2018. Age and growth of sharks: do vertebral band pairs record age? Mar. Freshw. Res. 69: 1440-1452.). Therefore, improving the visualization of the bands and facilitating their counting would reduce the sources of error and increase the precision of the readings.

For the above reasons, and because studies based on radiocarbon dating, histology and X-rays are more restrictive in tropical countries, this study aimed to evaluate different staining techniques in vertebrae of nine tropical elasmobranch species to determine those that facilitate the visualization and counting of the growth bands, contributing to future age estimates and population assessments of the evaluated tropical species.

MATERIALS AND METHODSTop

Vertebrae processing

A total of 428 individuals were collected between 2007 ans 2015 from fisheries of the Colombian Pacific region (79°44′W, 5°45′N; 77°12′W, 2°15′N). These individuals belong to four batoid species, Narcine leoparda (n=90 individuals), Urotrygon aspidura (n=90 individuals), Hypanus longus (n=90 individuals) and Potamotrygon magdalenae (n=24 individuals); and five shark species, Alopias pelagicus (n=27 individuals), Carcharhinus falciformis (n=21 individuals), Sphyrna lewini (n=53 individuals), Sphyrna corona (n=18 individuals) and Mustelus lunulatus (n=15 individuals).

Once each specimen was identified at the species level, its sex was determined and total length of sharks or disc width of rays was recorded. From each individual, a section of 14 to 16 vertebrae was extracted from under the first dorsal fin (in sharks) and from the abdominal region (in rays), which were labelled and frozen until laboratory analysis. The excess tissue in the vertebrae was removed using a scalpel. Because affinity of the stains and visualization of the growth bands could be affected by the individual size, vertebrae were separated into three size intervals: small, medium and large diameter. This was done for the species whose sample size allowed it.

As the thickness of the vertebrae sections influences the visualization and reading of the growth bands, size ranges of the vertebrae with different section thicknesses (0.3 to 0.7 mm) were combined per individual. For this purpose, each vertebra was fixed to a slide with Crystalbond 509 and cut sagittally with an Isomet Buehler low-speed saw cutter with two diamond head blades (Buehler, Lake Bluff, IL, USA) to obtain bow-tie sections (Cailliet and Goldman 2004Cailliet G.M., Goldman K.J. 2004. Age determination and validation in chondrichthyan fishes. In: Carrier J.C., Musick J.A., Heithaus M.R. (eds), Biology of Sharks and their relatives. CRC Press, Boca Raton, Florida, pp. 399-448.). The thickness of the section that best allowed the visualization of the bands was based on a qualitative evaluation carried out by expert readers.

In order to assess the effect of the stains used, sections were randomized and stained with alizarin red (0.05%), methylene blue (0.001%), crystal violet (0.001%), basic fuchsin (0.001%), acid fuchsin (0.001%), Bismarck brown (0.05%), light green (0.05%), silver nitrate (1%) and the Dahl staining (alizarin red 0.01% and light green 0.05%). Each dye was applied in successive intervals of one minute until reaching its saturation point in each structure. This was done as a preliminary test for a sub-sample of each species (n=5).

Subsequently, the best three staining times for each dye were qualitatively established and applied to the vertebrae of the individuals selected for the analysis. Biases given by individual variations were avoided using several vertebrae per individual to apply the treatments (stain + staining time). Sections (with and without staining) were mounted on a slide, observed under a microscope using transmitted light and photographed for each treatment. Additionally, vertebral sections without any staining were used to evaluate the effect of immersion oil and distilled water (imbibing each in a drop of the substance) in the visualization of the growth bands. The images obtained were analysed with the Image Pro Plus 7.0 software (Media Cybernetics) in which two skilled readers performed the quantitative counting of the growth bands independently in each sample. Readings were carried out twice per reader, who did not know the details of the sex, size or previous reading of each vertebra. Based on this information, analyses were carried out to establish the accuracy and bias among readers and subsequently to establish the most efficient technique for observing and counting growth bands per species.

Data analysis

In order to assess the degree of precision in the vertebral band readings among readers, the index of average percentage error, the coefficient of variation, the percentage of agreement between readers, Bowker’s symmetry test and the percentage of vertebrae read were calculated and analysed as follows.

The index of average percentage error (IAPE) provided information on the accuracy of age estimations among readers; small values indicated more precise readings (Beamish and Fournier 1981Beamish R.J., Fournier D.A. 1981. A method for comparing the precision of a set of age determinations. Can. J. Fish. Aquat. Sci. 38: 982-983.). The IAPE was calculated as follows:

$$IAPE=\left[\frac{1}{n}\left(\frac{1}{R}{\displaystyle \sum _{i=1}^R\frac{\left|x_{ij}-{\overline{x}}_j\right|}{{\overline{x}}_j}}\right)\right]\times 100$$

where n is the number of samples, x_ij is the ith age estimation for individual j, R is the number of readings and X_j is the average age calculated for individual j.

Coefficient of variation (CV) measured reading accuracy (Campana 2001Campana S.E. 2001. Accuracy, precision and quality control in age determination, including a review of the use and abuse of age validation methods. J. Fish Biol. 59: 197-242.) expressed as the proportion of the mean and standard deviation, as follows:

$$CV=\left[\frac{1}{n}\left(\frac{\sqrt{{\displaystyle {\sum }_{i=1}^R\frac{{\left(x_{ij}-{\overline{x}}_j\right)}^2}{R}}}}{{\overline{x}}_j}\right)\right]\times 100$$

where x_ij is the i^th age for the individual j, is the average age of individual j and R is the number of readers.

Percentage of agreement between readers (PA) allowed us to establish the variation in the reading of bands among readers (Goldman 2002Goldman K.J. 2002. Aspects of age, growth, demographics and thermal biology of two Lamniform shark species. Ph.D. thesis. College of William and Mary, School of Marine Science, Virginia Institute of Marine Science.), using the following equation that was applied to each vertebra size range (diameter) and considering differences between bands (0, ±1, ±2).

$$PA=\left(\frac{\text{number of agreements in the reading}}{\text{total number of reading}}\right)100$$

Bowker’s symmetry test determined, using a chi-square test, whether differences between the readers were systematic (p<0.05) or random (p>0.05; Hoenig et al. 1995Hoenig J.M., Morgan M.J., Brown C.A. 1995. Analyzing differences between two age determination methods by tests of symmetry. Can. J. Fish. Aquat. Sci. 52: 364-368. ), the latter being the expected result because random errors indicate that there is no bias among readers.

Percentage of vertebrae read (RV) estimated the proportion of vertebrae that could be read successfully considering the entire sample; higher values indicated better performance of the assessed technique.

An evaluation of the results of all the tests applied was carried out in order to determine the most efficient technique for observing and estimating the age in each species studied. Subsequently, the final decision per species was taken by comparing the results of each of the treatments as a whole and by vertebrae size.

RESULTSTop

Section thickness

The qualitative evaluation of the section thickness for batoids showed that sections of 0.4 mm were most suitable, except for Narcine leoparda, for which, as for all the shark species assessed, sections of 0.5 mm are recommended. These thicknesses allowed the growth bands to be visualized and counted more easily in the three size classes assessed (large, medium and small) for Narcine leoparda, Urotrygon aspidura and Hypanus longus. In addition to the visibility of the bands, this thickness showed the lowest proportion of fractured vertebrae during the sectioning process. The other thicknesses evaluated did not allow the clear observation of the growth bands because of the low contrast or excess light passage (0.3 mm) or, on the contrary, because of too little light passage through the sections (0.6 and 0.7 mm).

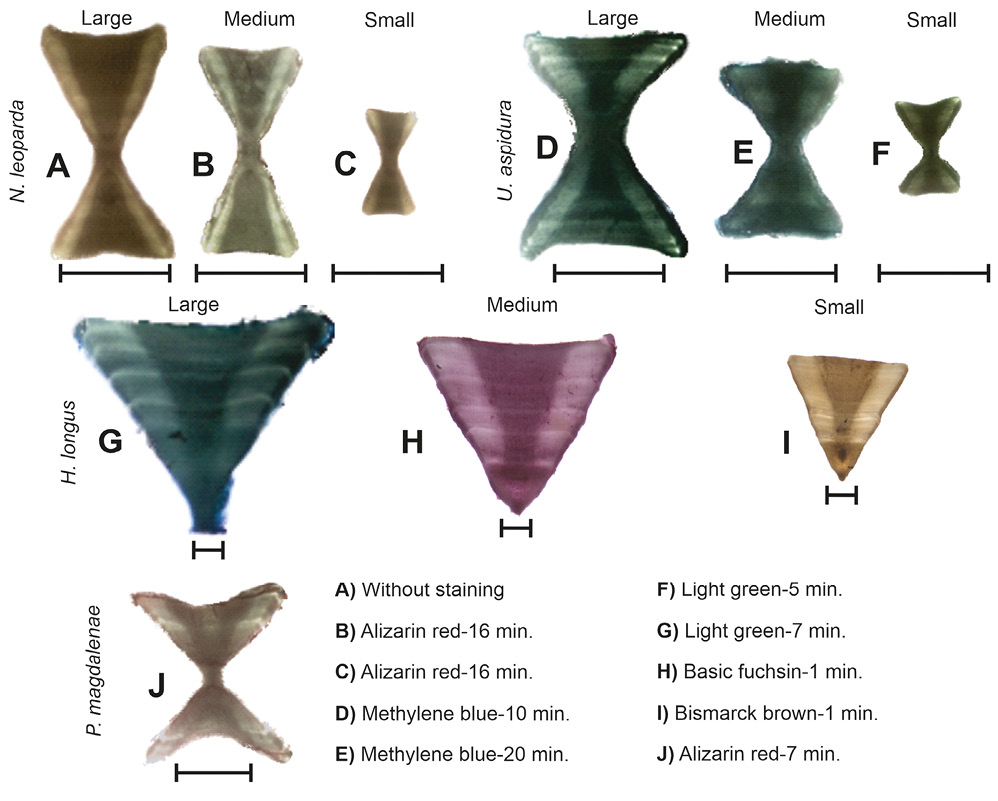

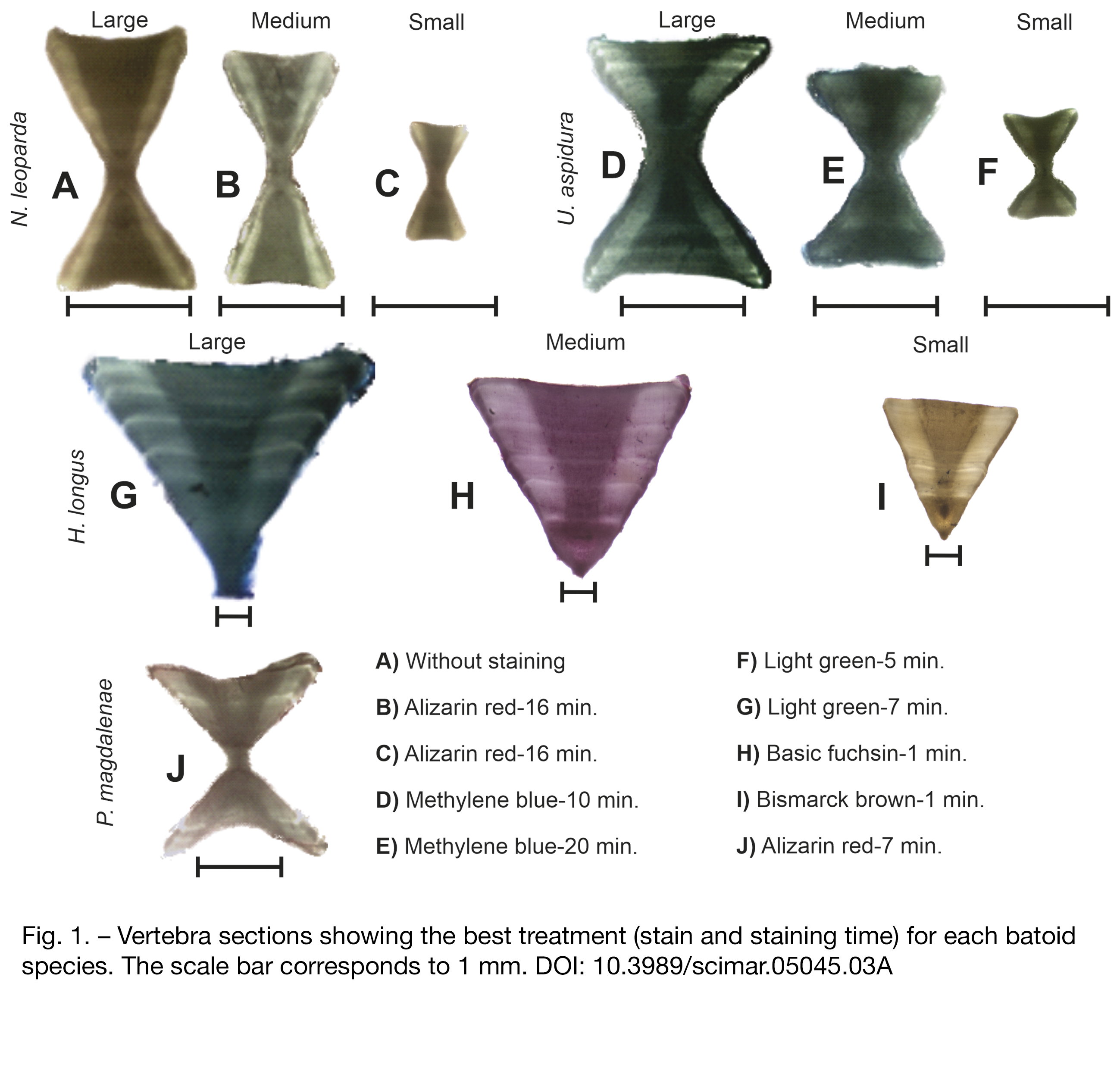

Batoids

Narcine leoparda (n=90 individuals)

For the leopard electric ray, treatments were applied for three vertebrae size intervals: small (diameters of 1.30 to 2.13 mm), medium (2.14 to 2.99 mm) and large (3.00 to 4.84 mm). There was no systematic bias in any of the treatments used for visualization of growth bands, except for small vertebrae stained with alizarin red for 14 min (Supplementary material Table S2).

Treatment analysis by vertebrae size showed that the highest PA (±0 bands) values were found in unstained large vertebrae (91.3%), medium vertebrae stained with basic fuchsin for 7 min (73.1%), and small vertebrae stained with methylene blue for 1 min (75%) followed by alizarin red for 16 min (73.1%) (Table S2). The three vertebrae sizes evaluated showed percentages of read vertebrae (RV) higher than 70% in all treatments. The highest RV values were found for large vertebrae stained with methylene blue and basic fuchsin for 3 min (90%); for medium vertebrae without staining or immersed in oil, basic fuchsin for 7 min or alizarin red for 14 min (86.7%); and for small vertebrae immersed in distilled water or in alizarin red for 14 and 16 min (86.7%) (Table S2). IAPE and CV showed relatively low values in large and medium vertebrae and high values in small vertebrae, except in those stained with alizarin red for 16 min, which showed the best values for small and medium intervals.

In conclusion, unstained large vertebrae and the medium and small vertebrae treated with alizarin red for 16 min (Fig. 1A-C) showed the best combination of values in the precision and bias tests between readers. Further, these treatments obtained the lowest IAPE and CV, the highest total agreement percentage and a high percentage of read vertebrae (Table 1, S2).

Urotrygon aspidura (n=90 individuals)

For the Panamic stingray, treatments were also applied to three vertebrae size: small (diameters of 0.70 to 1.59 mm), medium (1.60 to 2.49 mm) and large (2.50 to 3.30 mm). Only the treatment with basic fuchsin for 1 min in medium vertebrae showed bias in the reading; for all others, the differences were due to random errors (Table S3).

The percentage of read vertebrae was higher than 70% in all treatments for the three size interval assessed, reaching a maximum of 100% with methylene blue for 10 min and alcohol in small vertebrae, with alizarin red for 15 min in medium vertebrae, and with almost all the treatments in the large vertebrae, except with crystal violet (Table S3). The highest PA (±0 bands) between readers occurred with alizarin red for 15 min in small vertebrae, methylene blue for 20 min in medium vertebrae, and methylene blue for 10 min in large vertebrae.

The lowest CV and IAPE values were found with methylene blue for 10 min in large vertebrae (Fig. 1D), with methylene blue for 20 min in medium vertebrae (Fig. 1E), and with light green for 5 min in small vertebrae (Fig. 1F). These stains also showed a high percentage of total agreement and a high percentage of read vertebrae, being chosen as the best treatment for each vertebra size (Tables 1, S3).

Hypanus longus (n=90 individuals)

Vertebra sections of H. longus were also separated in three size intervals: small (diameters of 3.00 to 5.15 mm), medium (5.16 to 8.39 mm) and large (8.40 to 12.34 mm). For this species, four stains were discarded (methylene blue, crystal violet, immersion oil and acid fuchsin) as the vertebral growth bands showed no clear delimitation among them, and this would increase the reading errors.

PA values varied between 80.0% (no staining, basic fuchsin for 1 min and light green for 2 min) and 100% (light green for 7 min) in large vertebrae; between 53.9% (basic fuchsin for 3 min) and 93.3% (basic fuchsin for 2 min) in medium vertebrae, and from 73.3% (basic fuchsin for 1 and 3 min) to 93.3% (Bismarck brown for 1 and 2 min, light green for 0.5 and 1 min) in small vertebrae (Table S4). Previously selected stains showed variable IAPE and CV values within and among vertebrae sizes; the lowest values were found for small vertebrae stained with Bismarck brown for 1 and 2 min and light green for 0.5 and 1 min, for medium vertebrae stained with Bismarck brown for 2 and 3 min, and for large vertebrae stained with light green for 7 min (Table S4). In general, vertebrae with no treatment showed higher IAPE and CV values than vertebrae that received staining. All vertebrae sections of this species were read (100% RV in all cases).

Considering all the results, the best treatment was light green for 7 min for large vertebrae of H. longus, basic fuchsin for 2 min for medium vertebrae (although Bismarck brown for 2 and 3 min were also good treatments), and Bismarck brown for 1 and 2 min and light green for 0.5 and 1 min for small vertebrae (Table S4).

Potamotrygon magdalenae (n=24 individuals)

Age bias analysis of Magdalena river stingray showed no systematic bias in readings or treatments (Table S5). The percentage of read vertebrae varied between 52.9% for light green for 40 min and 95% for methylene blue for 30 and 40 min, the latter being followed by alizarin red for 7 min, with 91.7%. The lowest IAPE and CV values and the highest PA (±0 bands) values between readers were found with crystal violet for 60 min and light green for 40 min (0 IAPE, 0 CV, 100% PA each), followed by alizarin red for 7 min (0.1 IAPE, 1.3 CV, 95.5% PA). The group analysis of the treatments showed that vertebrae treated with light green and crystal violet require too much time for staining (≥40 min), while alizarin red showed the second-best values, with only 7 min of staining (Tables 1, S5; Fig. 1J).

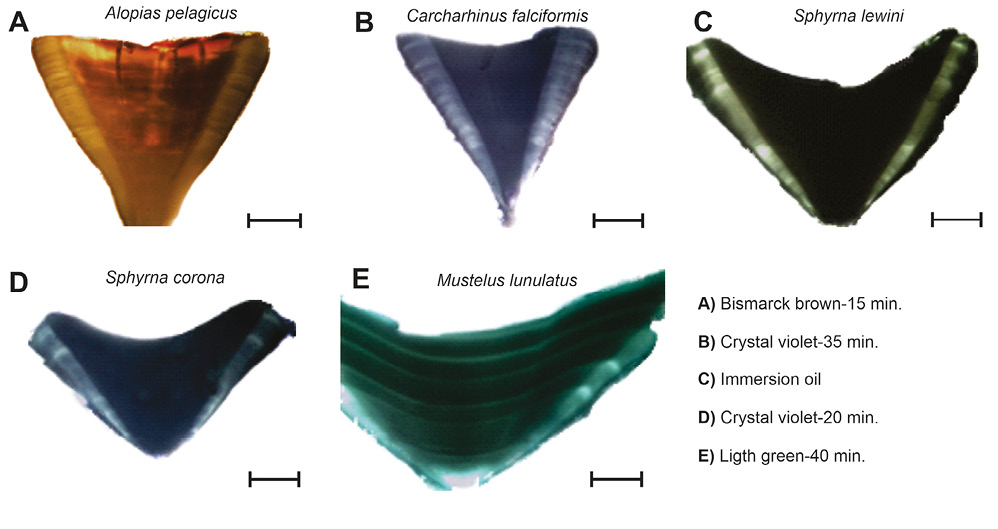

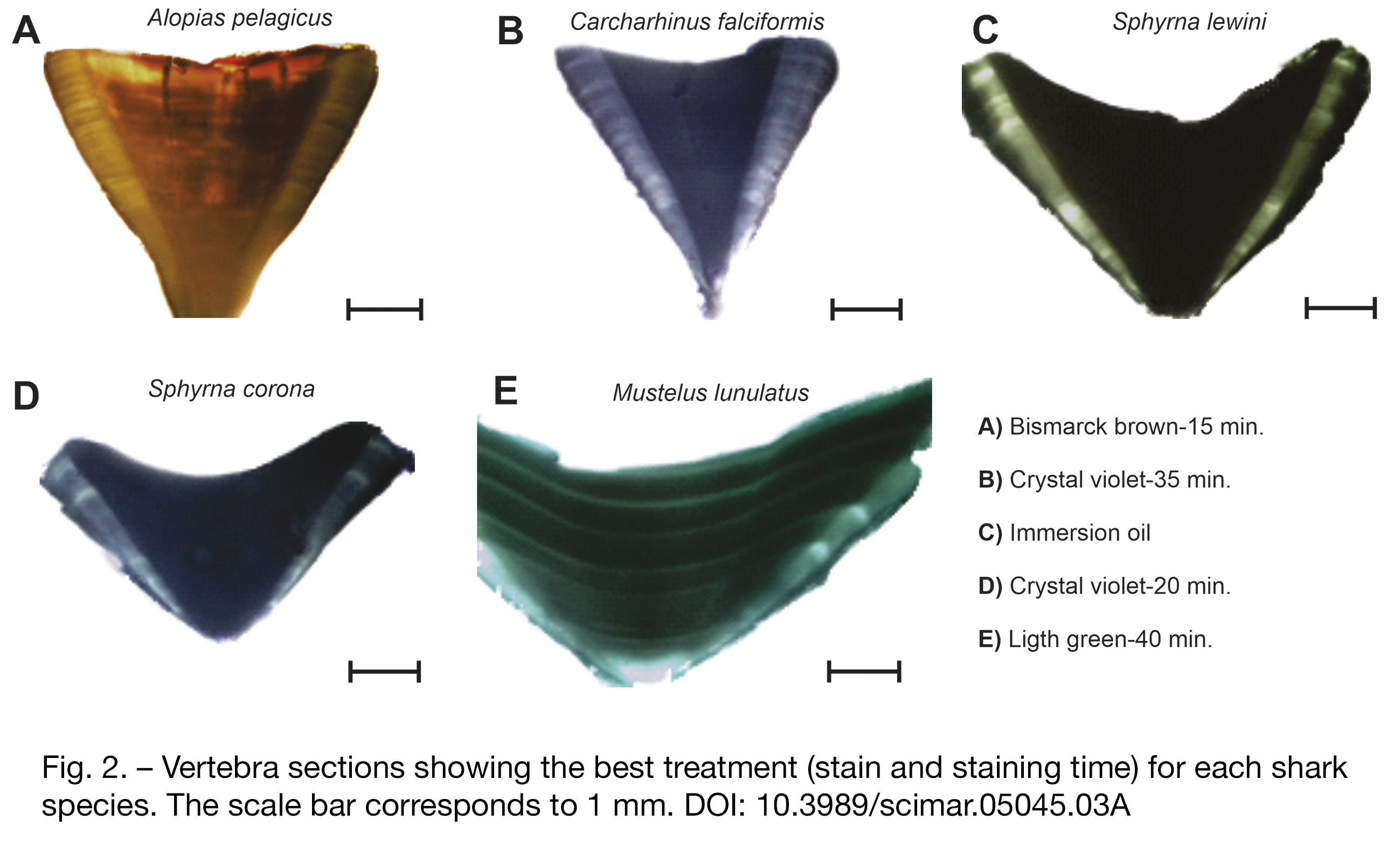

Sharks

Alopias pelagicus (n=27 individuals)

Vertebrae of the pelagic thresher shark involved high difficulty in observing and counting a growth band pattern, generating high variation in the precision tests and percentages of read vertebrae (Table S5). None of the treatments showed systematic bias in their readings (P>0.05 in all cases). Vertebrae stained with alizarin red for 5 and 7 min showed the best results in the precision analyses (IAPE, CV and PA), but the percentages of RV with these treatments were very low. Conversely, basic fuchsin for 45 min showed the highest RV (91.7%) but a low PA value (±0 bands=36.4%). Considering the values of all the tests, staining with Bismarck brown for 15 min showed a good performance, occupying the third place in IAPE, CV, and RV and the fourth place in PA values (Tables 1, S5; Fig. 2A).

Carcharhinus falciformis (n=21 individuals)

None of the treatments analysed for the silky shark showed systematic bias in the readings (P>0.05 for all cases). The highest PA (±0 bands) values between readers were found with silver nitrate for 2 and 3 min (100%) and crystal violet for 35 min (85.7%). Similarly, the lowest IAPE and CV values were obtained with silver nitrate for 2 and 3 min, crystal violet for 35 min and acid fuchsin for 50 min. However, the percentage of RV ranged from a very low value (16.7%) for silver nitrate for 2-3 min to 100% for light green for 35 min (Table S5). Vertebrae stained with crystal violet for 35 min showed the second-best values of IAPE (0.5), CV (0.7) and PA (85.7%), as well as an acceptable RV value (63.6%), being considered the most appropriate treatment for this species (Table 1, Fig. 2B). The vertebrae without staining showed the lowest performance in the precision tests, followed by methylene blue for 25 min and basic fuchsin for 40 min (Table S5).

Sphyrna lewini (n=52 individuals)

For the scalloped hammerhead none of the treatments analysed showed systematic bias in the readings (except using Bismarck’s brown for 25 min, P=0.02; Table S6), and all showed a high percentage of RV (>84%) but also relatively high IAPE and CV values. The best values of PA (±0 bands), IAPE and CV were found with immersion oil and methylene blue for 35 and 30 min, which was the best treatments for the species. Therefore, immersion oil was suggested as the reagent for treating the vertebrae of S. lewini (Table 1, Fig. 2C).

Sphyrna corona (n=18 individuals)

For the scalloped bonnethead none of the treatments analysed showed systematic bias in the readings (P>0.05 in all cases) and all had a percentage of RV higher than 50%, reaching a maximum of 77.8% (with immersion oil and light green for 35 min). The highest PA values (±0 bands) were found with crystal violet for 20 min (100%), methylene blue for 25 min (81.8%) and crystal violet for 25 min (80.0%; Table S6); similarly, IAPE and CV were lower with crystal violet for 20 and 25 min, as well as with methylene blue for 25 min. Vertebrae treated with crystal violet for 20 min showed the best combination of precision and bias values, establishing it as the best treatment for this species (Table 1, Fig. 2D).

Mustelus lunulatus (n=15 individuals)

For the smooth-hound shark, none of the treatments analysed showed systematic bias in the readings (P>0.05) and the percentage of RV was higher than 60% in all treatments, reaching a maximum of 100% with crystal violet for 30 and 40 min. The highest PA values (±0 bands) and lowest IAPE and CV values were found with light green for 40 min (100%; 0 and 0, respectively) and 30 min (91.7%; 1.2 and 1.7, respectively), followed by crystal violet for 20 min (71.4%; 3.2 and 4.5; Table S6). From the group analysis of the treatments assessed, light green for 40 min showed the best combination of values and is therefore the most appropriate treatment for the species (Table 1, Fig. 2E).

DISCUSSIONTop

There is sufficient evidence that the visualization of the growth bands in hard structures of elasmobranchs varies substantially among species (Duarte et al. 2001Duarte P.N., Silva A.A., Menezes G.M., et al. 2001. Staining techniques for ageing tope shark, Galeorhinus galeus (Linnaeus, 1758), from the Azores: a comparison based on precision analysis. Arquipélago Life Mar. Sci. 18A: 65-74., Goldman et al. 2012Goldman K.J., Cailliet G.M., Andrews A.H., et al. 2012. Age determination and validation in chondrichthyan fishes. In: Carrier J., Musick J.A., Heithaus M. (eds), Biology of sharks and their relatives, Second edition. CRC Press, Boca Raton, Florida, pp. 423-451., this study). Therefore, it is essential to identify and apply species-specific techniques that enhance this visualization and consequently increase the accuracy of age and growth estimations. In this study, the results support this statement for the marine species analysed, which come from a single geographical region, revealing that alizarin red works better for N. leoparda, light green for M. lunulatus, immersion oil for S. lewini, Bismarck brown for A. pelagicus, crystal violet for S. corona and C. falciformis, methylene blue and light green for U. aspidura and light green, basic fuchsin and Bismarck brown for H. longus, Furthermore, our research documents intraspecific variation according to the size of the vertebrae in U. aspidura and H. longus (see Supplementary material, Species comments section). Similarly, vertebrae staining with alizarin red works better for the freshwater stingray P. magdalenae.

Additionally, systematic development of sectioning and staining of the vertebrae and visualizing and counting the growth bands with different arrangements to establish the best combination is a great training exercise for the researchers, which will result in a higher precision in identifying and performing growth band counts and therefore a better estimation of the age of an individual.

Despite the evidence on the importance of developing this procedure by species to establish age and growth of elasmobranchs, many papers do not include detailed information on the procedures performed. This may be due to limited word constraints in publications (usually limiting them to one sentence) or to the fact that these procedures were not performed (and a thickness-stain-staining time combination already established in other studies was chosen; e.g. Kadri et al. 2013Kadri H., Marouani S., Bradai M.N., et al. 2013. Age, growth and reproductive biology of the rough skate, Raja radula (Chondrichthyes: Rajidae), off the Gulf of Gabes (southern Tunisia, central Mediterranean). Mar. Freshw. Res. 64: 540-548., O’Shea et al. 2013O’Shea O.R., Braccini M., McAuley R., et al. 2013. Growth of tropical Dasyatid rays estimated using a multi-analytical approach. PLoS ONE 8: e77194., Drew et al. 2015Drew M., White W.T., Harmadis D., et al. 2015. Age, growth and maturity of the pelagic thresher Alopias pelagicus and the scalloped hammerhead Sphyrna lewini. J. Fish. Biol. 86: 333-354.). A review of publications on elasmobranch age and growth (n=177) showed that only 39% used staining techniques; of these, 40 were carried out on rays and 29 on sharks (Table S1). Furthermore, the number of studies regarding precision and bias evaluations to compare treatments is even smaller.

Although the bias in the band reading was almost null, the greatest difficulty in the counts was related to the definition of the birthmark and the reading of the bands located towards the edges of the vertebrae. Consequently, the greatest differences between readers occurred in areas near the focus and on the edge of the vertebral sections. Other studies that used similar methods in sagittal vertebrae sections have experienced problems with sharpness in these same areas (e.g. Licandeo et al. 2006Licandeo R.R., Lamilla J.G., Rubilar P.G., et al. 2006. Age, growth, and sexual maturity of the yellownose skate Dipturus chilensis in the south-eastern Pacific. J. Fish Biol. 68: 488-506., McFarlane and King 2006McFarlane G.A., King J.R. 2006. Age and growth of big skate (Raja binoculata) and longnose skate (Raja rhina) in British Columbia waters. Fish. Res. 78: 169-178.). Similarly, Ainsley et al. (2011)Ainsley S.M., Ebert D.A., Cailliet G.M. 2011. Age, growth, and maturity of the whitebrow skate, Bathyraja minispinosa, from the eastern Bering Sea. ICES J. Mar. Sci. 68: 1426-1434. recorded difficulties for identifying band pairs close to the focus in about 20% of the individuals of Amblyraja radiata, Malacoraja senta and Bathyraja interrupta. Band reading problems in the distal region of the vertebrae, especially in older specimens, could be due to the proximity of the last and penultimate band, or to the fact that growth zone periodicity changes or ceases later in life, potentially after the onset of sexual maturity (Harry 2018Harry A.V. 2018. Evidence for systemic age underestimation in shark and ray ageing studies. Fish Fish. 19: 185-200., Natanson et al. 2018Natanson L.J., Skomal G.B., Hoffmann S.L., et al. 2018. Age and growth of sharks: do vertebral band pairs record age? Mar. Freshw. Res. 69: 1440-1452.). The cited authors proposed several effects generated by those underestimates and the techniques available to address them.

There are also contrasting results with those found in this study regarding cut thickness, since wider or thinner thicknesses have been proposed as the most suitable for counting growth bands in other species such as Mustelus canis, Mustelus asterias, Prionace glauca and Pristis pectinata (e.g. Conrath et al. 2002Conrath C.L., Gelsleichter J., Musick J.A. 2002. Age and growth of the smooth dogfish (Mustelus canis) in the northwest Atlantic. Fish. Bull. 100: 674-682., Farrell et al. 2010Farrell E.D., Mariani S., Clarke M.W. 2010. Age and growth estimates for the starry smoothhound (Mustelus asterias) in the Northeast Atlantic Ocean. ICES J. Mar. Sci. 67: 931-939.). This implies that the suitable visualization of bands with a certain section thickness is not a shared attribute in all elasmobranch species, even in species of the same genus, as was the case in Bathytoshia centroura (formerly Dasyatis centroura) and Dasyatis pastinaca (Yigin and Ismen 2012Yigin C.C., Ismen A. 2012. Age, growth and reproduction of the common stingray, Dasyatis pastinaca from the North Aegean Sea. Mar. Biol. Res. 8: 644-653.). In these species, the section thicknesses chosen by the authors were 0.6 mm and 0.5 mm, respectively, which differ from the optimum found for Hypanus longus (formerly Dasyatis longa) in this study (0.4 mm).

These procedures that require few logistical resources and significant investment of time, substantially improve the results obtained in terms of experience, learning and quality of the data. However, as seen in this study, this is not a general rule, and some shark and ray species have vertebral structures that can be easily visualized without staining procedures (e.g. large vertebrae of N. leoparda), while for others staining are good treatment (e.g. C. falciformis). As another example, Geraghty et al. (2013)Geraghty P.T., Macbeth W.G., Harry A.V., et al. 2013. Age and growth parameters for three heavily exploited shark species off temperate eastern Australia. ICES J. Mar. Sci. 71: 559-573. found no differences in the accuracy of the age estimate of Carcharhinus brevipinna, C. obscurus and C. plumbeus among unstained vertebrae and those stained with alizarin red and crystal violet. Whatever the case may be, it is suggested that the usefulness of the staining tests should be tested and evaluated through specific quantitative analyses, as shown in this study.

From the results obtained in this study we conclude that it is essential to consider several precision indexes (PA, IAPE, and CV) to define, with the best possible criteria, the combination of section thickness, stain and staining time that is most suitable for the species of interest (Supplementary material, Species comments section). It is a mistake to make this decision based on a single index and to assess the performance of a single technique without contrasting or comparing treatments. In this regard, most studies that used staining techniques have found better performance with stained vertebrae than without staining. Duarte et al. (2001)Duarte P.N., Silva A.A., Menezes G.M., et al. 2001. Staining techniques for ageing tope shark, Galeorhinus galeus (Linnaeus, 1758), from the Azores: a comparison based on precision analysis. Arquipélago Life Mar. Sci. 18A: 65-74. found better precision and bias values in age estimation of Galeorhinus galeus using cobalt nitrate; Girgin and Başusta (2016)Girgin H., Başusta N. 2016. Testing staining techniques to determine age and growth of Dasyatis pastinaca (Linnaeus, 1758) captured in Iskenderun Bay, northeastern Mediterranean. J. Appl. Ichthyol. 32: 595-601. found better results for Dasyatis pastinaca using safranin-O than using crystal violet, silver nitrate and alcian blue. Furthermore, these authors found differences in the sizes within the age groups estimated for the species from those found by Ismen (2003)Ismen A. 2003. Age, growth, reproduction and food of common stingray (Dasyatis pastinaca L., 1758) in Iskenderun Bay, the eastern Mediterranean. Fish. Res. 60: 169-176., assigning these differences to the staining technique used. Additionally, Başusta et al. (2017)Başusta N., Demirhan S.A., Çiçek E., et al. 2017. Comparison of staining techniques for age determination of some Chondrichthyan species. Turk. J. Fish. Aquat. Sci.17: 41-49. suggested the use of crystal violet to improve visualization in Raja clavata, safranin-O in Raja asterias, Gymnura altavela and Torpedo marmorata and alcian blue in Raja miraletus and Rhinobatos rhinobatos, also finding differences among genera.

All the examples mentioned above illustrate how the implementation of techniques to enhance the visualization of growth bands significantly influences the accuracy of the age estimation, thus supporting our results. Even the results obtained versus the bibliographic references reviewed show how studies carried out within a same species in different geographical locations (latitudinal differences) identified different techniques as the most appropriate. Furthermore, considering only tropical species, a great variation is identified in the techniques selected for the visualization of the growth bands. This reaffirms the importance of evaluating different combinations (thickness, stain, staining time) for each species to be studied (Table 2). The conditions that produce these intraspecific variations are unknown, but may involve environmental factors (temperature and/or productivity) or be related to physiological changes induced by the consumption of food and starvation periods, which cause variation in salt deposition and consequently in the formation of pairs of growth bands (Goldman 2005Goldman K.J. 2005. Age and growth of elasmobranch fishes. In: Musick J.A., Bonfil R. (eds), Management Techniques for Elasmobranch Fishes. FAO, Rome, pp. 76-102.).

This variation could determine the calcification of the vertebrae and the affinity of the stains to these structures (based on the carbonate and/or phosphate concentrations), influencing the nature of the dye (basophilic or acidophilic) on the quality of the dye and hence the visualization of the growth bands. However, it is recommended to further this analysis in order to establish whether there is any influence of the type of dye on its ability to improve the visibility of the growth bands. In this regard, it is necessary to carry out a study on the possible causes of the accumulation and type of compounds that make possible changes in birthmarks, e.g. ontogenetic changes in the diet, temperature or reabsorption of materials accumulated in the vertebrae (Licandeo et al. 2006Licandeo R.R., Lamilla J.G., Rubilar P.G., et al. 2006. Age, growth, and sexual maturity of the yellownose skate Dipturus chilensis in the south-eastern Pacific. J. Fish Biol. 68: 488-506.).

Parameter estimation from age and growth studies has profound implications in population assessments based on demography, directly affecting the estimation of demographic parameters and thus the potential management of the species based on their life history traits. Hence, an incorrect specification of the bands and their deposition frequency could lead to the under- or overestimation of the growth coefficient and the asymptotic lengths of the populations. Therefore, any effort made to reduce the bias in the visualization, counting and analysis of the growth bands is an indirect but essential contribution to the management and subsequent conservation of elasmobranch species.

ACKNOWLEDGEMENTSTop

This study was financed by the Departamento Administrativo de Ciencia, Tecnología e Innovación - Colciencias (Contract No: RC 156-2010), PADI Foundation, and Iniciativa de Especies Amenazadas (Scholarship IEA-2012-04-12-18-55-26).

REFERENCESTop

Ainsley S.M., Ebert D.A., Cailliet G.M. 2011. Age, growth, and maturity of the whitebrow skate, Bathyraja minispinosa, from the eastern Bering Sea. ICES J. Mar. Sci. 68: 1426-1434.
https://doi.org/10.1093/icesjms/fsr072

Anislado-Tolentino V., Robinson-Mendoza C. 2001. Age and growth for the scalloped hammerhead shark, Sphyrna lewini (Griffith and Smith, 1834) along the central Pacific coast of Mexico. Cien. Mar. 27: 501-520.
https://doi.org/10.7773/cm.v27i4.503

Aversa M., Dans S., García N.A., et al. 2011. Growth models fitted to Dipturus chilensis length at age data support a two-phase growth. Rev. Chil. Hist. Nat. 84: 33-49.
https://doi.org/10.4067/S0716-078X2011000100003

Ba A., Diouf K., Guilhaumon F., et al. 2015. Slow growth of the overexploited milk shark Rhizoprionodon acutus affects its sustainability in West Africa. J. Fish Biol. 87: 912-929.
https://doi.org/10.1111/jfb.12764

Barreto R.R., de Farias W.K.T., Andrade H., et al. 2016. Age, growth and spatial distribution of the life stages of the Shortfin Mako, Isurus oxyrinchus (Rafinesque, 1810) caught in the Western and Central Atlantic. PLoS ONE 11: e0153062.
https://doi.org/10.1371/journal.pone.0153062

Başusta N., Demirhan S.A., Çiçek E., et al. 2017. Comparison of staining techniques for age determination of some Chondrichthyan species. Turk. J. Fish. Aquat. Sci.17: 41-49.
https://doi.org/10.4194/1303-2712-v17_1_06

Beamish R.J., Fournier D.A. 1981. A method for comparing the precision of a set of age determinations. Can. J. Fish. Aquat. Sci. 38: 982-983.
https://doi.org/10.1139/f81-132

Blanco-Parra M.P., Galván-Magaña F., Márquez-Farías F. 2008. Age and growth of the blue shark, Prionace glauca Linnaeus, 1758, in the Northwest coast off Mexico. Rev. Biol. Mar. Oceanogr. 43: 513-520.
https://doi.org/10.4067/S0718-19572008000300010

Cailliet G.M., Goldman K.J. 2004. Age determination and validation in chondrichthyan fishes. In: Carrier J.C., Musick J.A., Heithaus M.R. (eds), Biology of Sharks and their relatives. CRC Press, Boca Raton, Florida, pp. 399-448.
https://doi.org/10.1007/s10641-006-9105-5

Campana S.E. 2001. Accuracy, precision and quality control in age determination, including a review of the use and abuse of age validation methods. J. Fish Biol. 59: 197-242.
https://doi.org/10.1111/j.1095-8649.2001.tb00127.x

Chen C.T., Leu T.C., Joung S.J., et al. 1990. Age and growth of the scalloped hammerhead, Sphyrna lewini, in northeastern Taiwan waters. Pac. Sci. 44: 156-170.

Chin A., Simpfendorfer C., Tobin A., et al. 2013. Validated age, growth and reproductive biology of Carcharhinus melanopte­rus, a widely distributed and exploited reef shark. Mar. Freshw. Res. 64: 965-975.
https://doi.org/10.1071/MF13017

Conrath C.L., Gelsleichter J., Musick J.A. 2002. Age and growth of the smooth dogfish (Mustelus canis) in the northwest Atlantic. Fish. Bull. 100: 674-682.

Cortés E., Brooks E., Gedamke T. 2012. Population dynamics, demography, and stock assessment. In: Carrier J., Musick J.A., Heithaus M. (eds.), Biology of Sharks and Their Relatives. CRC Press, Boca Raton, Florida, pp. 453-485.

Cruz-Martínez A., Chiappa-Carrara X., Arenas-Fuentes V. 2005. Age and growth of the bull shark, Carcharhinus leucas, from southern Gulf of Mexico. J. Northwest Atl. Fish. Sci. 35: 367-374.
https://doi.org/10.2960/J.v35.m481

Dale J.J., Holland K.N. 2012. Age, growth and maturity of the brown stingray (Dasyatis lata) around Oahu, Hawai’i. Mar. Freshw. Res. 63: 475-484.
https://doi.org/10.1071/MF11231

Davenport S., Stevens J.D. 1988. Age and growth of two commercially imported sharks (Carcharhinus tilstoni and C. sorrah) from Northern Australia. Mar. Freshw. Res. 39: 417-433.
https://doi.org/10.1071/MF9880417

Drew M., White W.T., Harmadis D., et al. 2015. Age, growth and maturity of the pelagic thresher Alopias pelagicus and the scalloped hammerhead Sphyrna lewini. J. Fish. Biol. 86: 333-354.
https://doi.org/10.1111/jfb.12586

Duarte P.N., Silva A.A., Menezes G.M., et al. 2001. Staining techniques for ageing tope shark, Galeorhinus galeus (Linnaeus, 1758), from the Azores: a comparison based on precision analysis. Arquipélago Life Mar. Sci. 18A: 65-74.

Dulvy N.K., Fowler S.L., Musick J.A., et al. 2014. Extinction risk and conservation of the world’s sharks and rays. eLife 3: e00590.
https://doi.org/10.7554/eLife.00590.001

Duman O.V., Başusta N. 2013. Age and growth characteristics of marbled electric ray Torpedo marmorata (Risso, 1810) Inhabiting Iskenderun Bay, North-eastern Mediterranean Sea. Turk. J. Fish. Aquat. Sci. 13: 541-549.
https://doi.org/10.4194/1303-2712-v13_3_19

Farrell E.D., Mariani S., Clarke M.W. 2010. Age and growth estimates for the starry smoothhound (Mustelus asterias) in the Northeast Atlantic Ocean. ICES J. Mar. Sci. 67: 931-939.
https://doi.org/10.1093/icesjms/fsp295

Fernández-Carvalho J., Coelho R., Erzini K., et al. 2011. Age and growth of the bigeye thresher shark, Alopias superciliosus, from the pelagic longline fisheries in the tropical northeastern Atlantic Ocean, determined by vertebral band counts. Aquat. Living Resour. 24: 359-368.
https://doi.org/10.1051/alr/2011046

Fernández-Carvalho J., Coelho R., Erzini K., et al. 2015. Modeling age and growth of the bigeye thresher (Alopias superciliosus) in the Atlantic Ocean. Fish. Bull. 113: 468-481.

Geraghty P.T., Macbeth W.G., Harry A.V., et al. 2013. Age and growth parameters for three heavily exploited shark species off temperate eastern Australia. ICES J. Mar. Sci. 71: 559-573.
https://doi.org/10.1093/icesjms/fst164

Gianeti M.D., Santana F.M., Yokota L., et al. 2019. Age structure and multi-model growth estimation of longnose stingray Hypanus guttatus (Dasyatidae: Myliobatoidei) from north-east Brazil. J. Fish Biol. 94: 481-488.
https://doi.org/10.1111/jfb.13918

Girgin H., Başusta N. 2016. Testing staining techniques to determine age and growth of Dasyatis pastinaca (Linnaeus, 1758) captured in Iskenderun Bay, northeastern Mediterranean. J. Appl. Ichthyol. 32: 595-601.
https://doi.org/10.1111/jai.13077

Goldman K.J. 2002. Aspects of age, growth, demographics and thermal biology of two Lamniform shark species. Ph.D. thesis. College of William and Mary, School of Marine Science, Virginia Institute of Marine Science.

Goldman K.J. 2005. Age and growth of elasmobranch fishes. In: Musick J.A., Bonfil R. (eds), Management Techniques for Elasmobranch Fishes. FAO, Rome, pp. 76-102.

Goldman K.J., Cailliet G.M., Andrews A.H., et al. 2012. Age determination and validation in chondrichthyan fishes. In: Carrier J., Musick J.A., Heithaus M. (eds), Biology of sharks and their relatives, Second edition. CRC Press, Boca Raton, Florida, pp. 423-451.

Guzmán-Castellanos A.B. 2015. Historia de vida de la raya chilena Urotrygon chilensis (Günther, 1872) en el sureste del Pacífico mexicano. Ph.D. thesis. Cent. Invest. Biol. Noroeste, La Paz, Mexico. 133 pp.

Hamady L.L., Natanson L.J., Skomal G.B., et al. 2014. Vertebral bomb radio-carbon suggests extreme longevity in white sharks. PLoS ONE 9: e84006.
https://doi.org/10.1371/journal.pone.0084006

Harry A.V. 2018. Evidence for systemic age underestimation in shark and ray ageing studies. Fish Fish. 19: 185-200.
https://doi.org/10.1111/faf.12243

Harry A.V., Simpfendorfer C., Tobin A.J. 2010. Improving age, growth, and maturity estimates for aseasonally reproducing chondrichthyans. Fish. Res. 106: 393-403.
https://doi.org/10.1016/j.fishres.2010.09.010

Hoenig J.M., Morgan M.J., Brown C.A. 1995. Analyzing differences between two age determination methods by tests of symmetry. Can. J. Fish. Aquat. Sci. 52: 364-368.
https://doi.org/10.1139/f95-038

Holmes B.J., Peddemors V.M., Gutteridge A.N., et al. 2015. Age and growth of the tiger shark Galeocerdo cuvier off the east coast of Australia. J. Fish. Biol. 87: 422-448.
https://doi.org/10.1111/jfb.12732

Hsu H.H., Joung S.J., Hueter R.E., et al. 2014. Age and growth of the whale shark (Rhincodon typus) in the north-western Pacific. Mar. Freshw. Res. 65: 1145-1154.
https://doi.org/10.1071/MF13330

Huveneers C., Stead J., Bennett M.B., et al. 2013. Age and growth determination of three sympatric wobbegong sharks: how reliable is growth band periodicity in Orectolobidae? Fish. Res. 147: 413-425.
https://doi.org/10.1016/j.fishres.2013.03.014

Ismen A. 2003. Age, growth, reproduction and food of common stingray (Dasyatis pastinaca L., 1758) in Iskenderun Bay, the eastern Mediterranean. Fish. Res. 60: 169-176.
https://doi.org/10.1016/S0165-7836(02)00058-9

Jacobsen I.P., Bennett M.B. 2010. Age and growth of Neotrygon picta, Neotrygon annotata and Neotrygon kuhlii from north-east Australia, with notes on their reproductive biology. J. Fish Biol. 77: 2405-2422.
https://doi.org/10.1111/j.1095-8649.2010.02829.x

James K.C., Ebert D.A., Natanson L.J., et al. 2014. Age and growth characteristics of the Starry Skate, Raja stellulata, with a description of life history and habitat trends of the central California, U.S.A., skate assemblage. Environ. Biol. Fish. 97: 435-448.
https://doi.org/10.1007/s10641-013-0164-0

Joung S.J., Liao Y.Y., Chen C.T. 2004. Age and growth of sandbar shark, Carcharhinus plumbeus, in northeastern Taiwan waters. Fish. Res. 70: 83-96.
https://doi.org/10.1016/j.fishres.2004.06.018

Joung S.J., Lyu G.T., Hsu H.H., et al. 2018. Age and growth estimates of the blue shark Prionace glauca in the central South Pacific Ocean. Mar. Freshw. Res. 69: 1346-1354.
https://doi.org/10.1071/MF17098

Kadri H., Marouani S., Bradai M.N., et al. 2013. Age, growth and reproductive biology of the rough skate, Raja radula (Chondrichthyes: Rajidae), off the Gulf of Gabes (southern Tunisia, central Mediterranean). Mar. Freshw. Res. 64: 540-548.
https://doi.org/10.1071/MF12218

Lessa R., Santana F.M. 1998. Age determination and growth of the smalltail shark, Carcharhinus porosus, from northern Brazil. Mar. Freshw. Res. 49: 705-711.
https://doi.org/10.1071/MF98019

Lessa R., Santana F.M., Batista V., et al. 2000. Age and growth of the daggernose shark, Isogomphodon oxyrhynchus, from northern Brazil. Mar. Freshw. Res. 51: 339-347.
https://doi.org/10.1071/MF99125

Lessa R., Santana F.M., Hazin F.H. 2004. Age and growth of the blue shark Prionace glauca (Linnaeus, 1758) off northeastern Brazil. Fish. Res. 66: 19-30.
https://doi.org/10.1016/S0165-7836(03)00193-0

Lessa R., Santana F.M., Almeida Z.S. 2009. Age and growth of the Brazilian sharpnose shark, Rhizoprionodon lalandii and Caribbean sharpnose shark, R. porosus (Elasmobranchii, Carcharhinidae) on the northern coast of Brazil (Maranhão). Pan-Am. J. Aquat. Sci. 4: 532-544.

Licandeo R.R., Lamilla J.G., Rubilar P.G., et al. 2006. Age, growth, and sexual maturity of the yellownose skate Dipturus chilensis in the south-eastern Pacific. J. Fish Biol. 68: 488-506.
https://doi.org/10.1111/j.0022-1112.2006.00936.x

Liu K.M., Chiang P.J., Chen C.T. 1998. Age and growth estimates of the bigeye thresher shark, Alopias superciliosus. Fish. Bull. 96: 482-491.

Liu K.M., Sibagariang R.D., Joung S., et al. 2018. Age and growth of the shortfin mako shark in the Southern Indian Ocean. Mar. Coast. Fish. 10: 577-589.
https://doi.org/10.1002/mcf2.10054

McFarlane G.A., King J.R. 2006. Age and growth of big skate (Raja binoculata) and longnose skate (Raja rhina) in British Columbia waters. Fish. Res. 78: 169-178.
https://doi.org/10.1016/j.fishres.2006.01.009

Mejía-Falla P.A., Cortés E., Navia A.F., et al. 2014. Age and growth of the Round Stingray Urotrygon rogersi, a particularly fast-growing and short-lived elasmobranch. PLoS ONE 9: e96077.
https://doi.org/10.1371/journal.pone.0096077

Natanson L.J., Cailliet G.M. 1990. Vertebral growth zone deposition in Pacific angel sharks. Copeia 1990: 1133-1145.
https://doi.org/10.2307/1446499

Natanson L.J., Sulikowski J.A., Kneebone J.R., et al. 2007. Age and growth estimates for the smooth skate, Malacoraja senta, in the Gulf of Maine. Environ. Biol. Fish. 80: 293-308.
https://doi.org/10.1007/s10641-007-9220-y

Natanson L.J., Skomal G.B., Hoffmann S.L., et al. 2018. Age and growth of sharks: do vertebral band pairs record age? Mar. Freshw. Res. 69: 1440-1452.
https://doi.org/10.1071/MF17279

Neer J.A., Cailliet G.M. 2001. Aspects of the Life history of the Pacific electric ray, Torpedo californica (Ayres). Copeia 2001: 842-847.
https://doi.org/10.1643/0045-8511(2001)001[0842:AOTLHO]2.0.CO;2

Ong J.J., Meekan M.G., Hsu H.H., et al. 2020. Annual bands in vertebrae validated by bomb radiocarbon assays provide estimates of age and growth of whale sharks. Front. Mar. Sci. 7: 188.
https://doi.org/10.3389/fmars.2020.00188

O’Shea O.R., Braccini M., McAuley R., et al. 2013. Growth of tropical Dasyatid rays estimated using a multi-analytical approach. PLoS ONE 8: e77194.
https://doi.org/10.1371/journal.pone.0077194

Sánchez de Ita J.A., Quiñonez-Velázquez C., Galván-Magaña F., et al. 2011. Age and growth of the silky shark Carcharhinus falciformis from the west coast of Baja California Sur, Mexico. J. Appl. Ichthyol. 27: 20-24.
https://doi.org/10.1111/j.1439-0426.2010.01569.x

Santander-Neto J. 2015. Dinâmica populacional da raia Urotrygon microphthalmum Delsman, 1941 no nordeste do Brasil. Ph.D. thesis., Univ. Fed. Pernambuco, Recife, Brazil, 135 pp.

Semba Y., Nakano H., Aoki I. 2009. Age and growth analysis of the shortfin mako, Isurus oxyrinchus, in the western and central North Pacific Ocean. Environ. Biol. Fish. 84: 377-391.
https://doi.org/10.1007/s10641-009-9447-x

Simpfendorfer C.A. 1993. Age and growth of the Australian sharpnose shark, Rhizoprionodon taylori, from north Queensland, Australia. Environ. Biol. Fish. 36: 233-241.
https://doi.org/10.1007/BF00001718

Smart J.J., Harry A.V., Tobin A.J., et al. 2012. Overcoming the constraints of low sample sizes to produce age and growth data for rare or threatened sharks. Aquat. Conserv. 23: 124-134.
https://doi.org/10.1002/aqc.2274

Smart J.J., Chin A., Tobin A., et al. 2015. Age and growth of the common blacktip shark Carcharhinus limbatus from Indonesia, incorporating an improved approach to comparing regional population growth rates. Afr. J. Mar. Sci. 37: 177-188.
https://doi.org/10.2989/1814232X.2015.1025428

Stevens J.D, Bonfil R., Dulvy N.K., et al. 2000. The effect of fishing on sharks, rays and chimaeras (chondrichthyans), and the implications for marine ecosystems. ICES J. Mar. Sci. 57: 476-494.
https://doi.org/10.1006/jmsc.2000.0724

Torres-Palacios K., Mejía-Falla P.A., Navia A.F., et al. 2019. Age and growth parameters of the Panamic stingray (Urotrygon aspidura). Fish. Bull. 117: 45-55.
https://doi.org/10.7755/FB.117.3.4

Wells D.R.J., Smith S.E. Kohn S. et al. 2013. Age validation of juvenile shortfin mako (Isurus oxyrinchus) tagged and marked with oxytetracycline off southern California. Fish. Bull. 111: 147-160.
https://doi.org/10.7755/FB.111.2.3

White J., Simpfendorfer C.A., Tobin A.J., et al. 2014. Age and growth parameters of shark-like batoids. J. Fish Biol. 84: 1340-1353.
https://doi.org/10.1111/jfb.12359

Yigin C.C., Ismen A. 2012. Age, growth and reproduction of the common stingray, Dasyatis pastinaca from the North Aegean Sea. Mar. Biol. Res. 8: 644-653.
https://doi.org/10.1080/17451000.2012.659667

SUPPLEMENTARY MATERIAL

The following supplementary material is available through the online version of this article and at the following link:
http://scimar.icm.csic.es/scimar/supplm/sm05045esm.pdf

Table S1. – Age and growth publications in tropical elasmobranchs (Spreadsheet in MS Excel format available at: http://scimar.icm.csic.es/scimar/supplm/sm05045TableS1.xlsx).

Table S2. – Results of precision and bias tests between readers, for each of the treatments applied to the small, medium and large vertebrae of Narcine leoparda. IAPE, index of average error percentage; CV, coefficient of variation; PA (±0 bands), percentage of total agreement; RV, percentage of read vertebrae; P, p-values of the Bowker symmetry test. Best results of each test for each vertebrae size are highlighted in bold and the selected treatments are shaded in gray.

Table S3. – Results of precision and bias tests between readers, for each of the treatments applied to the small, medium and large vertebrae of Urotrygon aspidura. IAPE, index of average error percentage; CV, coefficient of variation; PA (±0 bands), percentage of total agreement; RV, percentage of read vertebrae; P, p-values of the Bowker symmetry test. Best results of each test for each vertebrae size are highlighted in bold and the selected treatments are shaded in gray.

Table S4. – Results of precision and bias tests between readers, for each of the treatments applied to the small, medium and large vertebrae of Hypanus longus. IAPE, index of average error percentage; CV, coefficient of variation; PA (±0 bands), percentage of total agreement; RV, percentage of read vertebrae; P, p-values of the Bowker symmetry test. Best results of each test for each vertebrae size are highlighted in bold and the selected treatments are shaded in gray.

Table S5. – Results of precision and bias tests between readers for each of the treatments applied to Potamotrygon magdalenae, Alopias pelagicus and Carcharhinus falciformis vertebrae. IAPE, index of average error percentage; CV, coefficient of variation; PA (±0 bands), percentage of total agreement; RV, percentage of read vertebrae; P, p-values of the Bowker symmetry test. Best results of each test are highlighted in bold and the selected treatment for each species.is shaded in gray.

Table S6. – Results of precision and bias tests between readers for each of the treatments applied to Sphyrna lewini, Sphyrna corona and Mustelus lunulatus vertebrae. IAPE, index of average error percentage; CV, coefficient of variation; PA (±0 bands), percentage of total agreement; RV, percentage of read vertebrae; P, p-values of the Bowker symmetry test. Best results of each test are highlighted in bold and the selected treatment for each species.is shaded in gray.

Species comments.
