INTRODUCTIONTop

Cryptobenthic fishes most likely play an important role in coastal marine ecosystems, but large gaps of knowledge about their functionality remain (Goatley and Brandl 2017Goatley C.H.R., Brandl S.J. 2017. Crypthobenthic reef fishes. Curr. Biol. 27: R431-R435.). A cryptobenthic fish is a species (or a life history stage of a fish species) whose individuals exclusively or predominantly spend their lifetime in cryptobenthic microhabitats, i.e. in the restricted living spaces underneath the bottom surface of the substrate or biocover, with a physical barrier to open spaces (according to the habitat or ecological definition of Kovačić et al. 2012Kovačić M., Patzner R.A., Schliewen U.K. 2012. A first quantitative assessment of the ecology of cryptobenthic fishes in the Mediterranean Sea. Mar. Biol. 159: 2731-2742.). Standard methods for collecting and studying benthic fishes mostly fail to collect or record cryptobenthic fishes (Ackermann and Bellwood 2000Ackerman J.L., Bellwood D.R. 2000. Reef fish assemblages: a re-evaluation using enclosed rotenone stations. Mar. Ecol. Prog. Ser. 206: 227-237., Willis 2001Willis T.J. 2001. Visual census methods underestimate density and diversity of cryptic reef fishes. J. Fish Biol. 59: 1408-1411. , Smith-Vaniz et al. 2006Smith-Vaniz W.F., Jelks H.L., Rocha L.A. 2006. Relevance of cryptic fishes in the biodiversity assessments: A case study at Buck Island Reef National Monument, St. Croix. Bull. Mar. Sci. 79: 17-48.). According to the comparative study of Smith-Vaniz et al. (2006)Smith-Vaniz W.F., Jelks H.L., Rocha L.A. 2006. Relevance of cryptic fishes in the biodiversity assessments: A case study at Buck Island Reef National Monument, St. Croix. Bull. Mar. Sci. 79: 17-48., the unrecorded biodiversity of the fish assemblage estimated by visual census was very high, as they visually recorded only 36% of 228 fish species they sampled with rotenone. It was estimated that cryptobenthic fishes (known and still undescribed species) could represent more than half of the total coral reef fish biodiversity (Brandl et al. 2018Brandl S.J., Goatley C.H.R., Bellwood D.R., et al. 2018. The hidden half: ecology and evolution of cryptobenthic fishes on coral reefs. Biol. Rev. 93: 1846-1873.). These fishes by definition have an intimate association with the benthos and provide important food web links between the benthos and nekton communities of coral reefs, with their quantitative significance resulting from their exceptional growth rates and mortality (Goatley et al. 2016Goatley C.H.R., González-Cabello A., Bellwood D.R. 2016. Reef-scale partitioning of cryptobenthic fish assemblages across the Great Barrier Reef, Australia. Mar. Ecol. Prog. Ser. 544: 271-280.). Most quantitative ecological studies that differentially have targeted microhabitats of cryptobenthic fishes have been performed in coral reef and seagrass meadow ecosystems (Depczynski and Bellwood 2003Depczynski M., Bellwood D.R. 2003. The role of cryptobenthic reef fishes in coral reef trophodynamics. Mar. Ecol. Prog. Ser. 256: 183-191. , Ahmadia et al. 2012Ahmadia G.N., Pezold F.L., Smith D.J. 2012. Cryptobenthic fish biodiversity and microhabitat use in healthy and degraded coral reefs in SE Sulawesi, Indonesia. Mar. Biodiversity 42: 433-442., Tornabene et al. 2013Tornabene L., Ahmadia G.N., Berumen M.L., et al. 2013. Evolution of microhabitat association and morphology in a diverse group of cryptobenthic coral reef fishes (Teleostei: Gobiidae: Eviota). Mol. Phylogenet. Evol. 66: 391-400.), a few in south temperate reefs (Prochazka 1998Prochazka K. 1998. Spatial and trophic partitioning in cryptic fish communities of shallow subtidal reefs in False Bay, South Africa. Environ. Biol. Fish. 51: 201-220., Willis and Anderson 2003Willis T.J., Anderson M.J. 2003. Structure of cryptic reef fish assemblages: relationships with habitat characteristics and predator density. Mar. Ecol. Prog. Ser. 257: 209-221.), and only a few in northeastern Atlantic (Beldade and Goncalves 2007Beldade R., Gonçavles E.J. 2007. An interference visual census technique applied to cryptobenthic fish assemblages. Vie Milieu 57: 61-65.) and Mediterranean warm temperate reefs (Kovačić et al. 2012Kovačić M., Patzner R.A., Schliewen U.K. 2012. A first quantitative assessment of the ecology of cryptobenthic fishes in the Mediterranean Sea. Mar. Biol. 159: 2731-2742., Glavičić et al. 2016Glavičić I., Paliska D., Soldo A., et al. 2016. A quantitative assessment of the cryptobenthic fish assemblage at deep littoral cliffs in the Mediterranean. Sci. Mar. 80: 329-337., Thiriet et al. 2016Thiriet P.D., Di Franco A., Chemineée A., et al. 2016. Abundance and Diversity of Crypto- and Necto-Benthic Coastal Fish Are Higher in Marine Forests than in Structurally Less Complex Macroalgal Assemblages. PLoS ONE 11: e0164121.). Mainly on the basis of these studies, cryptobenthic reef fishes are now considered to play a globally significant role in temperate and tropical reefs: they are numerically dominant across different cryptic microhabitats, they may serve as a key trophodynamic component between open water and seafloor habitats, and ecologically highly differentiated species assemblages evolve rapidly in different microhabitats and regions and hence may serve as sensitive environmental indicators (Goatley and Brandl 2017Goatley C.H.R., Brandl S.J. 2017. Crypthobenthic reef fishes. Curr. Biol. 27: R431-R435.).

Interestingly, all aforementioned studies were based on samples taken during daytime, and virtually nothing is known about diel changes of the cryptobenthic fish assemblage. Except for highly specialized coral or sponge dwelling species, very little is known also about the autecology of most cryptobenthic fish species (Goatley and Brandl 2017Goatley C.H.R., Brandl S.J. 2017. Crypthobenthic reef fishes. Curr. Biol. 27: R431-R435.).

The studies of diurnal-nocturnal activity of inshore benthic fishes started half a century ago (Hobson 1965Hobson E.S. 1965. Diurnal-nocturnal activity of some inshore fishes in the Gulf of California. Copeia 1965: 291-302.), but crepuscular and nocturnal fish assemblages of open benthic habitats remain largely unresearched in shallow coastal environments (Azzurro et al. 2007Azzurro E., Pais A., Consoli P., et al. 2007. Evaluating day-night changes in shallow Mediterranean rocky reef fish assemblages by visual census. Mar. Biol. 151: 2245-2253.). In the Mediterranean Sea, only a few published studies on diel variations of littoral assemblage of epibenthic and hyperbenthic fish have been performed on soft sediments down to a few metres depth by beach seine (Dulčić et al. 2004Dulčić J., Fencil M., Matić-Skoko S., et al. 2004. Diel catch variations in a shallow-water fish assemblage at Duće-Glava, eastern Adriatic Croatian coast. J. Mar. Biol. Ass. UK 84: 659-664., 2005Dulčić J., Matić-Skoko S., Kraljević M., et al. 2005. Seasonality of a fish assemblage in shallow waters of Duće-Glava, eastern middle Adriatic. Cybium 29: 57-63.) or on rocky bottoms by visual census performed by SCUBA dives down to 3 m (Azzurro et al. 2007Azzurro E., Pais A., Consoli P., et al. 2007. Evaluating day-night changes in shallow Mediterranean rocky reef fish assemblages by visual census. Mar. Biol. 151: 2245-2253., 2013Azzurro E., Aguzzi J., Maynou F., et al. 2013. Diel rhythms in shallow Mediterranean rocky-reef fishes: a chronobiological approach with the help of trained volunteers. J. Mar. Biol. Ass. UK 932: 461-470.). Published studies clearly show diel variations of the littoral assemblage of epibenthic and hyperbenthic fish. Dulčić et al. (2004)Dulčić J., Fencil M., Matić-Skoko S., et al. 2004. Diel catch variations in a shallow-water fish assemblage at Duće-Glava, eastern Adriatic Croatian coast. J. Mar. Biol. Ass. UK 84: 659-664. found exclusively nocturnal and exclusively diurnal fish species and major diel differences in total fish abundance and biomass. Azzurro et al. (2007)Azzurro E., Pais A., Consoli P., et al. 2007. Evaluating day-night changes in shallow Mediterranean rocky reef fish assemblages by visual census. Mar. Biol. 151: 2245-2253. revealed a clear-cut separation between day and night fish assemblages, with significant differences in species composition, species richness and fish abundance.

Considering the lack of any data on diel variations in cryptobenthic fish assemblages and the rarity of studies on diel shifts of other littoral benthic fishes in general, the general goal of the present study was to fill this knowledge gap, which might hide important aspects of the dynamics and relationships of coastal inshore fish assemblages. The quantitative assessment of littoral cryptobenthic fish assemblages of the shallow infralittoral (0.5-3 m depth) also complements earlier studies of littoral cryptobenthic fish assemblages performed deeper by Kovačić et al. (2012)Kovačić M., Patzner R.A., Schliewen U.K. 2012. A first quantitative assessment of the ecology of cryptobenthic fishes in the Mediterranean Sea. Mar. Biol. 159: 2731-2742. and Glavičić et al. (2016)Glavičić I., Paliska D., Soldo A., et al. 2016. A quantitative assessment of the cryptobenthic fish assemblage at deep littoral cliffs in the Mediterranean. Sci. Mar. 80: 329-337.. The present research used the cryptobenthic fish definition of Kovačić et al. (2012)Kovačić M., Patzner R.A., Schliewen U.K. 2012. A first quantitative assessment of the ecology of cryptobenthic fishes in the Mediterranean Sea. Mar. Biol. 159: 2731-2742. based on the fish position at the bottom, so the aim was to study the fish assemblage in the hidden physical space, “inside bottom” (cryptobenthic in this work), and to compare it with the fish assemblage laying on the open bottom (epibenthic in this work). Therefore, the specimens could be cryptobenthic or epibenthic, according to the place of collection, while the species status as the sum of positions of all specimens could be exclusively or predominantly cryptobenthic, exclusively or predominantly epibenthic or ambivalent (termed epicryptobenthic by Kovačić et al. (2012)Kovačić M., Patzner R.A., Schliewen U.K. 2012. A first quantitative assessment of the ecology of cryptobenthic fishes in the Mediterranean Sea. Mar. Biol. 159: 2731-2742.) if specimens were considerably recorded in both bottom spaces. In particular, the study was designed (1) to test whether epibenthic and cryptobenthic fish compositions differ; (2) to investigate differences in composition, species richness and abundance of cryptobenthic fish assemblages at day/night/sunset, which could be interpreted as time of day–dependent changes; (3) to test for diel shifts of infralittoral fish species between hidden and open spaces, by testing whether ambivalent species present in both hidden and open spaces exhibit significantly different epibenthic and cryptobenthic frequencies of occurrence at daylight, night and sunset; and (4) to identify environmental variables contributing significantly to the variation of the cryptobenthic fish assemblage in the shallow infralittoral zone (0.5-3 m depth), including also the time of day as an explanatory variable.

MATERIALS AND METHODSTop

Sampling location

The study was performed in the eastern Adriatic, on the south side of Brač island, about 1.5 km east of the city of Bol, in a small bay (43°15.543′N, 16°38.607′E) located in front of a tourist resort. The sea bottom at the study depths consisted of sand and various mixed rocky bottom types (bedrock, boulders, cobbles and pebbles) covered with sessile biota, including a variety of algae, sponges, sea urchins and sea cucumbers. Areas deeper than 3 m are mostly covered by Posidonia meadows. There are no strong currents at the location, underwater visibility is typically 20-25 m at water depths of less than 5 m, the position is daily exposed to the afternoon waves by the maestral wind, and the strongest wave action on this position is produced by an occasional sirocco wind.

Data collection

Data and specimens were collected by two SCUBA divers (IG and MK) during three surveys performed on 9-11 June 2015, 10-14 May 2016 and 10-13 October 2016. The number of squares performed in one dive varied from three to five depending on the time of day and other conditions, with two dives on average per day.

Dives were performed during daylight, sunset or night: 26 daylight, 25 sunset and 27 night bottom squares were sampled, giving the total of 78 sampled bottom squares of 1 m². The protocol for selecting squares was adopted and modified from Kovačić et al. (2012)Kovačić M., Patzner R.A., Schliewen U.K. 2012. A first quantitative assessment of the ecology of cryptobenthic fishes in the Mediterranean Sea. Mar. Biol. 159: 2731-2742.: about an equal number of squares were sampled during daylight, sunset and night and about an equal number of squares were studied at each depth in shallow water: 0.5, 1, 2 and 3 m. Underrepresented day time, depth and dominant substrate type categories at a particular moment of the fieldwork were established from the already collected data and targeted for the next dive. Therefore, in addition to daytime and depth, squares were further selected to achieve as equal as possible a representation of each dominant substrate type on each of the isobaths. To achieve this, each isobath was followed until the next not yet sufficiently sampled dominant substrate type was found, at least 10 m from the previous square (Kovačić et al. 2012Kovačić M., Patzner R.A., Schliewen U.K. 2012. A first quantitative assessment of the ecology of cryptobenthic fishes in the Mediterranean Sea. Mar. Biol. 159: 2731-2742.). The protocol for sampling in squares was also adopted and modified from Kovačić et al. (2012)Kovačić M., Patzner R.A., Schliewen U.K. 2012. A first quantitative assessment of the ecology of cryptobenthic fishes in the Mediterranean Sea. Mar. Biol. 159: 2731-2742.: (1) visual census of the epibenthic fishes, (2) fixing of a reference frame (1×1 m) onto the bottom, (3) photography of the 1 m² square taken and stored as a reference for in situ estimations of percentages of habitat parameters “bottom substrate” and “biocover”, and number by size of the habitat parameter “number of semi-caves, caves and cavities”, all previously estimated in situ, (4) recording of habitat characteristics in 1 m² and temperature, (5) spraying of the anaesthetic into the square, catching escaping fishes with a handnet and waiting for about 2 min, and (6) removal of biocover and movable parts of the bottom structure and collection of anesthetised fishes. The anaesthetic used was Quinaldine, diluted 1:15 with 96% ethanol and then mixed 1:5 in 750 mL bottles with sea water (modified from Kovačić et al. 2012Kovačić M., Patzner R.A., Schliewen U.K. 2012. A first quantitative assessment of the ecology of cryptobenthic fishes in the Mediterranean Sea. Mar. Biol. 159: 2731-2742.). Two bottles were usually used for one square with the total volume of deployed quinaldine-ethanol solution per square of about 300 mL/m². The habitat variables “bottom substrate”, “number of bottom layers”, “biocover” with categories match Kovačić et al. (2012)Kovačić M., Patzner R.A., Schliewen U.K. 2012. A first quantitative assessment of the ecology of cryptobenthic fishes in the Mediterranean Sea. Mar. Biol. 159: 2731-2742. as follows: “bottom substrate” as five types of different estimated particle size (sand <2 mm, gravel <60 mm, cobbles <200 mm, boulders >200 mm, bedrock) expressed as estimated percentages (10%, 20%... 100%) of the total surface in each frame (1×1 m); “number of bottom layers”, i.e. no layers, single layer, multiple layers; and “biocover” as six types (no biocover, phanerogams, long thallus algae, short thallus algae, calcareous algae, zoocover). Other variables were modified: “depth” (0.5, 1, 2 and 3 m); “inclination”, as five estimated classes (gentle 0-19°=1, medium 20-59°=2, steep 60-74°=3, very steep to vertical 75-90°=4, overhanging=5); and “number of semi-caves, caves and cavities”, if present, as number of each of four estimated size classes of hidden spaces in each square by entrance size (25-99 cm², 100-499 cm², 500-1999 cm², >2000 cm²). All collected specimens were killed after SCUBA dives by over-anesthetization with quinaldine and stored in 65% ethanol solution. Standard length of each fish was measured thereafter. Preliminary field species identifications of cryptobenthic specimens were later rechecked in the lab on preserved specimens.

Data analysis

Difference between epibenthic and cryptobenthic samples in species composition in total and at different times of day. Significant differences between epibenthic and cryptobenthic species compositions were tested using analysis of similarities (ANOSIM) with a Bray-Curtis dissimilarity index for the dissimilarity matrix and 999 as the number of permutations.

Differences in cryptobenthic fish assemblage species composition, total fish abundance and species richness between daylight, night and sunset samples. Similarity of species composition among studied squares was graphically represented by two-dimensional non-metric multi-dimensional scaling using the Bray-Curtis similarity matrices (Clarke 1993Clarke K.R. 1993. Non-parametric multivariate analyses of changes in community structure. Aust. J. Ecol. 18: 117-143.). Species abundance data were square-root transformed to reduce weighting given to abundant species (Clarke 1993Clarke K.R. 1993. Non-parametric multivariate analyses of changes in community structure. Aust. J. Ecol. 18: 117-143.). Significant differences between daylight, night and sunset cryptobenthic species compositions were tested with ANOSIM with a Bray-Curtis dissimilarity index for the dissimilarity matrix and 999 as the number of permutations. One-way analysis of variance (ANOVA) was used to test for significant differences in total fish abundance and species richness between daylight, night and sunset squares. Total abundance and species richness data were square-root transformed for counts per unit data (Underwood 1997Underwood A.J. 1997. Experiments in ecology: their logical design and interpretation using analysis of variance. Cambridge University Press, Cambridge.). The homogeneity of variance was tested using Cochran’s test on transformed data.

Difference in epibenthic and cryptobenthic frequencies of occurrence of ambivalent species between daylight, night and sunset. Significance of differences in epibenthic and cryptobenthic frequencies of occurrence of the ambivalent species between daylight, night and sunset was tested by the Fisher exact test, considering the small size of samples (McDonald 2014McDonald J.H. 2014. Handbook of Biological Statistics. Sparky House Publishing, Baltimore, Maryland, 296 pp.). The size of the tested contingency table was limited to 2x2 to fit the Fisher exact test, so three pairs of times of day were compared separately. Since row and column totals are unconditioned, the Fisher exact test is not, strictly speaking, exact. Instead, it is somewhat conservative, having a little less statistical power (McDonald 2014McDonald J.H. 2014. Handbook of Biological Statistics. Sparky House Publishing, Baltimore, Maryland, 296 pp.). Since in ambivalent species the total sum of frequencies of two categories of both groups was less than or equal to six, the data from all ambivalent species were pooled together by category and by group, and significance was tested on frequencies summed from all species. Millerigobius macrocephalus (Kolombatović, 1891) and Zebrus zebrus (Risso, 1827) had numerous specimens found in hidden spaces and single and two specimens, respectively, found on the open bottom (Table 1). Strictly speaking, they are not ambivalent species but they were also included in the test, separately from ambivalent species (Table 1).

Influence of environmental explanatory variables and time of day as an explanatory variable on cryptobenthic fish species as response variables. Community composition of cryptobenthic fishes was analysed in order to detect explanatory variables (including both the habitat variables and the times of day) that best explain species distribution and abundance patterns. Only cryptobenthic specimens from species with four or more cryptobenthic specimens were included in the analyses (modified from Glavičić et al. 2016Glavičić I., Paliska D., Soldo A., et al. 2016. A quantitative assessment of the cryptobenthic fish assemblage at deep littoral cliffs in the Mediterranean. Sci. Mar. 80: 329-337.). Therefore, only the 13 most common species were used for analysis (Table 1). Following the semantic-based approach for transformation (Šmilauer and Lepš 2014Šmilauer P., Lepš J. 2014. Multivariate analysis of ecological data using CANOCO 5. Cambridge Univ. Press, Cambridge, 362 pp.), the data were log(x+1)-transformed because we asked for the amount of change of species abundance by unit change of environmental variables. Among the 20 possible environmental variables included in the field recording sheet, 18 variables were actually recorded during fieldwork, of which one (phanerogams) with presence in just two cases was discarded; hence 17 variables were finally included in the analysis (Table 2). To reveal patterns of species response curves in relation to environmental gradients, data sets were first analysed with detrended correspondence analysis. The first axis gradient length measured in turnover (or SD units) was 4.46, indicating strong nonlinear or unimodal responses, so a canonical correspondence analysis was chosen as a constrained ordination method. Because unimodal methods cannot treat empty cases (in the present study squares with none of the 13 dominant species present), only 62 out of 78 cases were analysed. Season and year of fieldwork were introduced into the model as covariables to partial out possible confounding effects varying between fieldwork date using partial constrained analysis. The option “down-weight rare species” was not selected (Glavičić et al. 2016Glavičić I., Paliska D., Soldo A., et al. 2016. A quantitative assessment of the cryptobenthic fish assemblage at deep littoral cliffs in the Mediterranean. Sci. Mar. 80: 329-337.). The first canonical correspondence analysis was performed with all 17 environmental variables, and after forward selection 14 variables were incorporated in the final model. In order to avoid inflated significance values, three redundant predictor variables showing high multicollinearity (VIF>10) were removed from the model (temperature, bedrock and no cover) (Table 2). Significance of canonical axes and of the environmental variables was determined using Monte Carlo permutation tests (999 permutations). Significance of canonical axes was tested on the first axis and also on all axes. Significance of the environmental variables is the significance of the conditional (partial) effect of each variable after the forward selection procedure.

The Fisher exact test, ANOSIM and ANOVA were performed in R software version 3.3.3 using the RStudio 1.0.143 integrated development environment (IDE) for R and packages Vegan version 2.4-4., Outliers version 0.14 and Stats version 3.4.1. For the non-metric multi-dimensional scaling, detrended correspondence analysis and canonical correspondence analysis, the Canoco 5 computer package was used (Ter Braak and Šmilauer 2012Ter Braak C.J.F., Šmilauer P. 2012. Canoco reference manual and user’s guide: software for ordination, version 5.0. Microcomputer Power, Ithaca, USA, 496 pp.).

RESULTSTop

Diversity, abundance and frequency of cryptobenthic and epibenthic fish

The total number of recorded cryptobenthic and epibenthic fish species in the bottom squares was 27 (Table 1). Epibenthic specimens belonged to 13 species and cryptobenthic specimens to 22 species, with eight shared species occurring in both space layers. Among those eight species, M. macrocephalus and Z. zebrus had predominantly cryptobenthic specimens (98% and 95.1%). The family Gobiidae dominated fish diversity with 14 species, which is more than a half of all recorded species, followed by the family Blenniidae with six species, while the remaining six families were restricted to one or two species (Table 1). Cryptobenthic fish, with 231 individuals collected, highly outnumbered the 31 recorded epibenthic individuals. The average total abundance of cryptobenthic specimens in the bottom squares was 2.92±0.33 individuals/m² (mean±SE), with a maximum of 13 individuals/m². The average total abundance of epibenthic specimens in the bottom squares was 0.38±0.8 individuals/m² (mean±SE), with a maximum of 3 individuals/m². The 13 most abundant cryptobenthic species (species with four or more cryptobenthic individuals collected) represented 92.6% of all cryptobenthic individuals and the 5 most abundant species collectively made up 74.0% of all cryptobenthic individuals. The only species with numerous epibenthic individuals recorded was Scorpaena porcus Linnaeus, 1758, with all 11 individuals recorded on open bottoms, and it is also the only species with just epibenthic specimens recorded. Other species with epibenthic specimens had, in addition to collected cryptobenthic individuals, one to three epibenthic specimens recorded per species. Species of the family Gobiidae contributed to fish abundance with 78.4% of all cryptobenthic individuals sampled and the second most abundant family, Blennidae, with 7.8%. The five most numerous species with cryptobenthic individuals were also the most frequent species in squares, ranked in presence from about 1/8 to about 2/5 of all squares (Table 1).

Comparison of cryptobenthic and epibenthic fish assemblages

Cryptobenthic and epibenthic fish assemblages showed a significantly different species composition for all data (ANOSIM R=0.2949; p=0.001) and also for each time of day: at daylight (ANOSIM R=0.22; p=0.006), at sunset (ANOSIM R=0.3978; p=0.003) and at night (ANOSIM R=0.3221; p=0.001). Even the qualitative data alone showed the clear difference between the two assemblages, with a limited number of shared or ambivalent species (Table 1). Among species recorded in the cryptobenthic space, 63.6% were exclusively cryptobenthic, and among species recorded in the epibenthic space, 38.5% were exclusively epibenthic.

Diel influence on the cryptobenthic fish assemblage

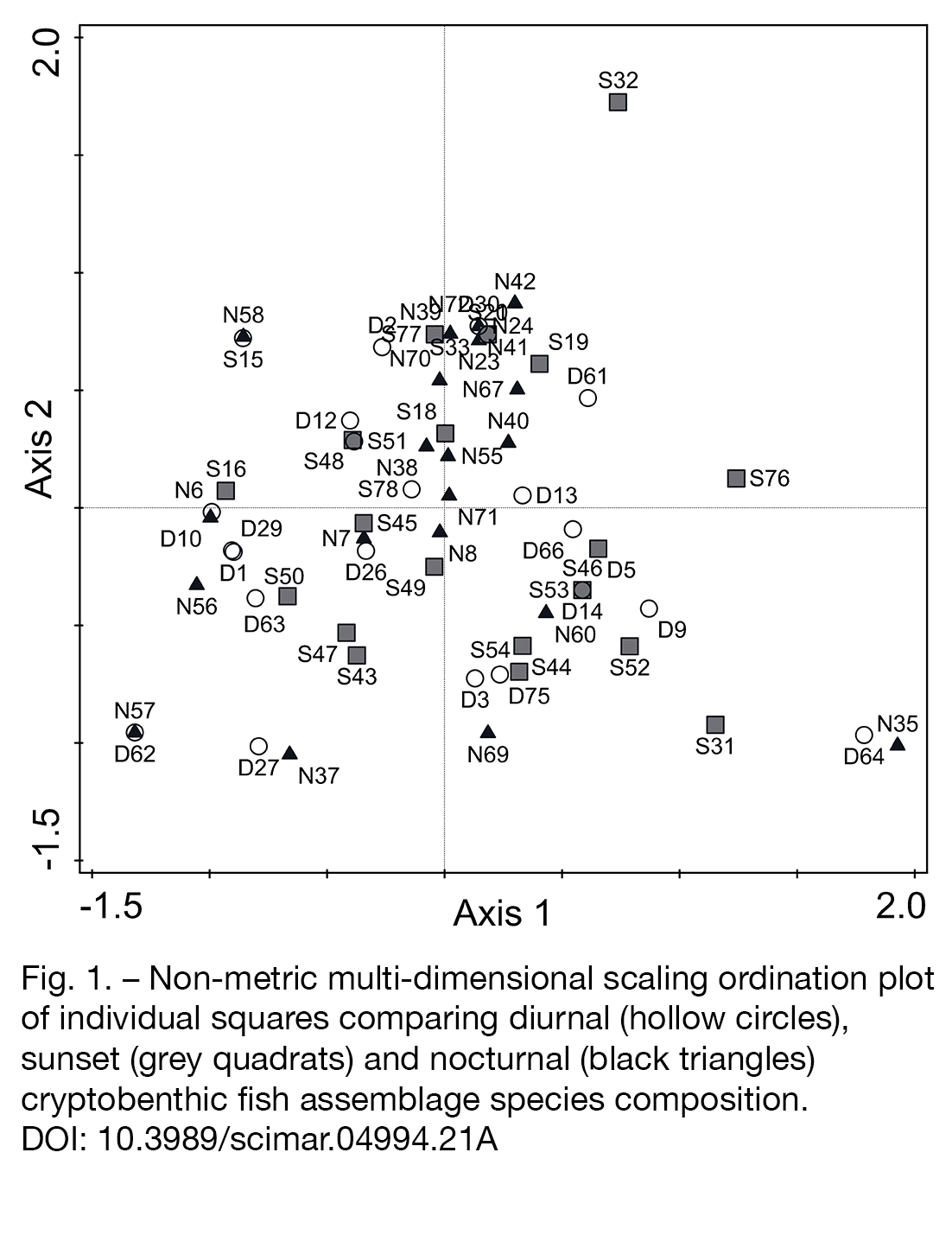

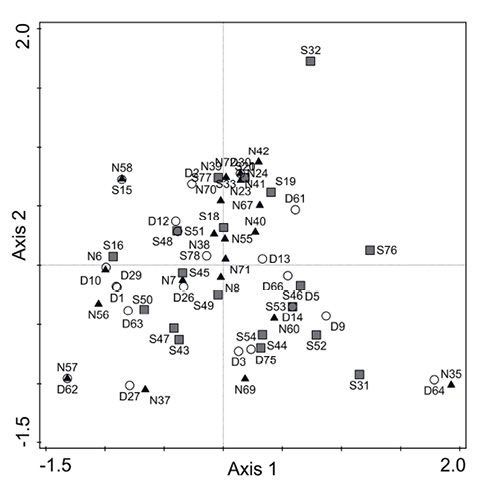

There was no separation on the non-metric multi-dimensional scaling ordination plot between the diurnal, sunset and nocturnal cryptobenthic fish assemblage species composition (stress=0.063) (Fig. 1). The cryptobenthic fish assemblage showed no significantly different species composition between daylight, night and sunset samples in total (ANOSIM R=0.01; p=0.274) and in pairwise comparison of daylight vs. night (ANOSIM R=0.04432; p=0.114), daylight vs. sunset (ANOSIM R=–0.01622; p=0.674) and night vs. sunset (ANOSIM R=0.00715; p=0.334). In addition, R values were close to 0, meaning that there was no separation between levels of the time of the day, so this factor had not just no significance but also no detectable effect at all on cryptobenthic fish assemblage species composition.

Further, one-way ANOVA did not detect differences between different times of day either for species richness of cryptobenthic fish assemblage (d.f.=2, MS=0.3323, F=1.568, p=0.215) or for total fish abundance of the cryptobenthic fish assemblage (d.f.=2, MS=0.7072, F=1.507, p=0.228).

Diel variation of ambivalent species presence in open and hidden spaces

The data for all ambivalent species were combined, and significance was tested on combined frequencies with the Fisher exact test. No significantly different epibenthic and cryptobenthic frequencies of occurrence were found in any data subset between daylight and night, between night and sunset or between daylight and sunset (Table 3), meaning that with the available data it was not possible to identify any significant switch from open to hidden places or vice versa for ambivalent species between times of day. M. macrocephalus and Z. zebrus, two species with very few epibenthic records, had sufficiently large frequencies at different time of day to be tested separately with the Fisher exact test and also showed no significance difference, i.e. no evidence of utilization of hidden and open spaces at different times of day was established (Table 3).

Important habitat variables structuring the cryptobenthic fish assemblage

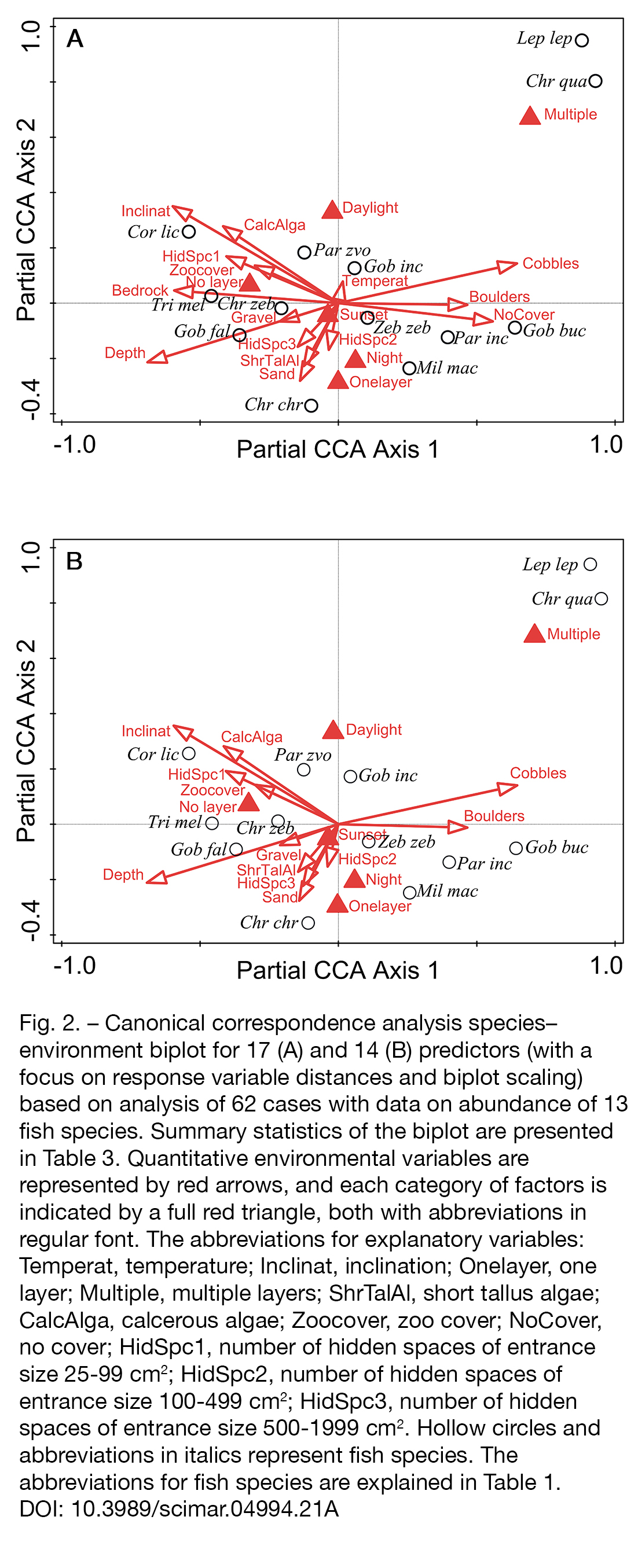

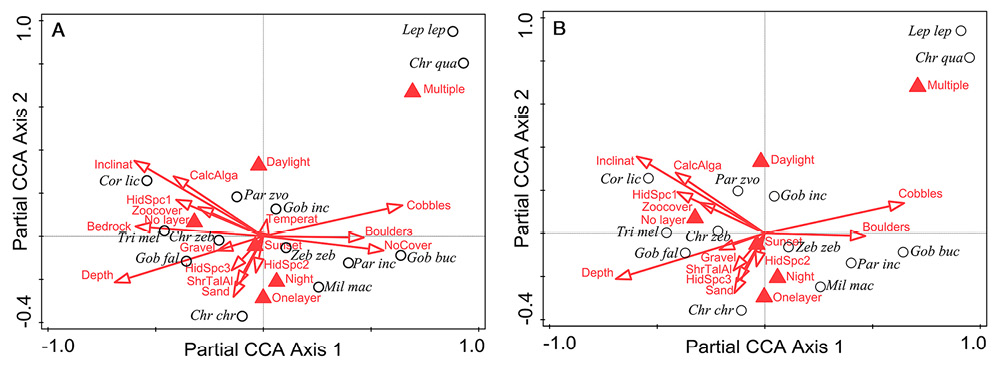

The first partial canonical correspondence analysis was performed with 17 environmental variables on 13 species as response variables (Fig. 2A). The Monte Carlo permutation test was statistically significant on the first axis and all other axes (Table 4A). The cumulative percentage of variance in the response data explained by the first four constrained axes was 25.12%, and the first four axes explained 72.83% of variation in the response data explained by explanatory variables, i.e. of the variation of fitted response values (Table 4A). Total variation and partial variation of all eigenvalues are presented in Table 4. The model with 14 variables (after the forward selection procedure excluded redundant variables of temperature, bedrock and no cover) showed slightly lower cumulative explained variation and slightly higher cumulative fitted explained variation than the model with 17 environmental variables (Fig. 2B, Table 4B). Canonical eigenvalues were also slightly lower from the forward selection procedure (Table 4), resulting in explanatory variables accounting for 34.0% of partial variation vs. 34.5% in the model with 17 environmental variables. The conditional effect of daylight, night and sunset in the forward selection procedure was not significant in explaining species response variables (Table 2). Even simple effects of each time of day were not significant (daylight P=0.229, night P=0.257 and sunset P=0.77). Therefore, the time of day did not reveal a significant correlation with cryptobenthic fish composition and abundance. The forward selection identified three highly significant variables: multiple layers, inclination and cobbles (Table 2), all others being non-significant. After forward selection, the three highly significant variables explained 14.8% of total variation excluding the effects of the covariates, contributing 42.6% to the variation explained by the complete set of explanatory variables. Among highly significant variables, the first axis was positively correlated with inclination and negatively correlated with cobbles, while a further positive correlation was detectable with another quantitative predictor of a large but not significant effect, depth (Fig. 2, Table 2). The projection of the significant explanatory factor variable multiple layers onto the arrow lines of cobbles and boulders shows high average value of these quantitative explanatory variables in cases of the multiple layers class (Fig. 2). The most notable small distance between species point and the centroid of the explanatory factor variable predicting high relative species abundance in the class is that of Lepadogaster lepadogaster (Bonnaterre, 1788) and Chromogobius quadrivittatus (Steindachner, 1863) to multiple layers. The projections of species points of Corcyrogobius liechtensteini (Kolombatović, 1891) to inclination and of Gobius bucchichi Steindachner, 1870 to boulders show species optima at high values of these quantitative explanatory variables. On the other hand, L. lepadogaster and C. quadrivittatus species optima are at very small values of depth. The species optima estimated by the calibration variable arrow tool was inclination between steep and very steep to vertical for C. liechtensteini, more than 30% of boulders cover for G. bucchichi and less than 1 m depth for L. lepadogaster and C. quadrivittatus.

DISCUSSIONTop

Overall species composition of cryptobenthic and epibenthic fish assemblages differed significantly. This overall differentiation remained stable over the course of the day. In the explicit testing for diel changes in species composition, abundance and richness of the cryptobenthic fish assemblage and for diel changes in habitat choice of ambivalent species, in our study we detected no significant differences. These results suggest that the cryptobenthic fish assemblage has diel stability and that it is mostly composed of permanent inhabitants of hidden spaces with a numerical dominance of miniature gobies. We can hypothesize that, having temporal stability, in the bottom hidden spaces there is a permanent resident cryptobenthic fish community distinct from the epibenthic fish community, i.e. that which is on the bottom surface above them. If species composition in cryptobenthic habitats had drastically changed over different times of day, that would indicate that hidden spaces are mostly daytime shelters inhabited in circadian rhythm mostly by non-strictly cryptobenthic and specialized fishes. This cryptobenthic fish community inhabits various hidden bottom microhabitats and is shaped, according to the results of the present study, mainly by the number of layers present in their respective habitats (multiple layers), bottom inclination, type of layer particles (cobbles) and depth.

Cryptobenthic and epibenthic fish communities in the present study were dominated by gobiid species (14 species) and blennies (Blenniidae, six species), while other families were represented each by only one or two species (Table 1). Cryptobenthic and epibenthic fish communities exhibited a significantly different species compositions across all samples. About two thirds of the species recorded in cryptobenthic position were exclusively cryptobenthic, and more than one third of the species recorded in epibenthic position were exclusively epibenthic. The four most frequent gobiid species, i.e. C. liechtensteini, M. macrocephalus, Z. zebrus and C. zebratus, had exclusively or predominantly cryptobenthic specimens, with no evidence for regular or significant habitat switches between cryptobenthic and epibenthic layers (Table 1). Similar to the findings of comparable studies, more than half the specimens sampled in our study belonged to the three most frequent species, all three gobies (Gobiidae) of minute size (Kovačić et al. 2012Kovačić M., Patzner R.A., Schliewen U.K. 2012. A first quantitative assessment of the ecology of cryptobenthic fishes in the Mediterranean Sea. Mar. Biol. 159: 2731-2742., Glavičić et al. 2016Glavičić I., Paliska D., Soldo A., et al. 2016. A quantitative assessment of the cryptobenthic fish assemblage at deep littoral cliffs in the Mediterranean. Sci. Mar. 80: 329-337., Goatley et al. 2016Goatley C.H.R., González-Cabello A., Bellwood D.R. 2016. Reef-scale partitioning of cryptobenthic fish assemblages across the Great Barrier Reef, Australia. Mar. Ecol. Prog. Ser. 544: 271-280.). Among those five most frequent species, C. liechtensteini, Z. zebrus and Chromogobius zebratus were confirmed to be cryptobenthic and abundant, as found by Kovačić et al. (2012)Kovačić M., Patzner R.A., Schliewen U.K. 2012. A first quantitative assessment of the ecology of cryptobenthic fishes in the Mediterranean Sea. Mar. Biol. 159: 2731-2742. and Glavičić et al. (2016)Glavičić I., Paliska D., Soldo A., et al. 2016. A quantitative assessment of the cryptobenthic fish assemblage at deep littoral cliffs in the Mediterranean. Sci. Mar. 80: 329-337., whereas M. macrocephalus was absent or poorly represented in earlier studies due to the deeper depth ranges targeted by Kovačić et al. (2012)Kovačić M., Patzner R.A., Schliewen U.K. 2012. A first quantitative assessment of the ecology of cryptobenthic fishes in the Mediterranean Sea. Mar. Biol. 159: 2731-2742. and Glavičić et al. (2016)Glavičić I., Paliska D., Soldo A., et al. 2016. A quantitative assessment of the cryptobenthic fish assemblage at deep littoral cliffs in the Mediterranean. Sci. Mar. 80: 329-337.. The fourth most frequent species, C. chromis, was a damselfish (Pomacentridae), whose adults are known to be hyperbenthic to benthopelagic (Abel 1961Abel E.F. 1961. Freiwasserstudien über das Fortpflanzungsverhalten des Mönchfisches Chromis chromis Linne, einem Vertreter der Pomacentriden im Mittelmeer. Z. Tierpsychol. 18: 441-449.). The exclusively cryptic sample of C. chromis in the present study confirms previous findings on use of cryptic spaces of this species, which is otherwise present in the water column. The use of cryptic spaces of this species was first found for juvenile fish at night-time (Harmelin 1987Harmelin J.-G. 1987. Structure et variabilité de l’ichtyofaune d’une zone rocheuse protégé en Méditerraneé (Pare national de Port- Cros, France). PSZN I: Mar. Ecol. 8: 263-284.), and it was recently also reported in cryptic spaces in daylight (Kovačić et al. 2012Kovačić M., Patzner R.A., Schliewen U.K. 2012. A first quantitative assessment of the ecology of cryptobenthic fishes in the Mediterranean Sea. Mar. Biol. 159: 2731-2742., Glavičić et al. 2016Glavičić I., Paliska D., Soldo A., et al. 2016. A quantitative assessment of the cryptobenthic fish assemblage at deep littoral cliffs in the Mediterranean. Sci. Mar. 80: 329-337.). The species is obviously a switcher between hidden spaces and the water column. Since the present method did not sample the water column, the study revealed the exclusively cryptic sample of C. chromis. Specimens of all five dominant fish species accounted for approximately 75% of all sampled individuals, whereas the remaining approximately 25% of specimens belonged to 22 species. Their low frequency precluded statistical testing for positive species-specific assignations to hidden or open bottom spaces, with the notable exception of S. porcus (Scorpaenidae), whose 11 specimens were exclusively found in epibenthic positions. Cryptobenthic individuals highly outnumbered epibenthic individuals, with a ratio of 7.5, matching results of earlier studies in the Mediterranean Sea (Kovačić et al. 2012Kovačić M., Patzner R.A., Schliewen U.K. 2012. A first quantitative assessment of the ecology of cryptobenthic fishes in the Mediterranean Sea. Mar. Biol. 159: 2731-2742.: 7.8, Glavičić et al. 2016Glavičić I., Paliska D., Soldo A., et al. 2016. A quantitative assessment of the cryptobenthic fish assemblage at deep littoral cliffs in the Mediterranean. Sci. Mar. 80: 329-337.: 3.6). This further supports the significance of cryptobenthic fishes for the benthos in particular and for the complete ecosystem of infralittoral and circalittoral bottoms if they are rich in cryptic spaces.

Our results highlight the overall importance of diel day/night analyses in fish community studies. To confirm the general temporal stability of the cryptobenthic fish assemblage and complement present day/night analyses, we suggest additional studies on the seasonal changes in cryptobenthic fish assemblages. Future researches should also have alternative approaches to study the cryptobenthic fish community and the trophodynamic functionality of small hidden spaces on sea bottoms. There are virtually not data on the ecological significance of small cryptic spaces on Mediterranean bottoms. The composition, abundance and functioning of sessile and mobile cryptobenthic invertebrates and fishes in these habitats are unknown. Though tropical studies of cryptic spaces are very rare and hard to perform, Scheffers et al. (2003)Scheffers S.R., de Goeij J., van Duyl F.C., et al. 2003. The cave-profiler: a simple tool to describe the 3-D structure of inaccessible coral reef cavities. Coral Reefs 22: 49-53. estimated that the cryptic space volume could account for 30%-75% of the total coral reef volume; and coelobites, i.e. cryptobenthic organisms living in these spaces, have been calculated to be responsible for phytoplankton removal equivalent to 22% of the gross community metabolism of the entire reef (Richter et al. 2001Richter C., Wunsch M., Rasheed M., et al. 2001. Endoscopic exploration of Red Sea coral reefs reveals dense populations of cavity-dwelling sponges. Nature 413: 725-730.). To shed light on the ecology of small benthic cryptic spaces on Mediterranean bottoms and the role of cryptobenthic fishes inhabiting them, a comparative stable nitrogen and carbon isotopic study within and across open and hidden bottom spaces in the Adriatic Sea is now being undertaken by a team of researchers, including one of the present authors (M.K.). The stomach content analysis of night and day in situ samples of dominant cryptobenthic fish species is also one of the possible directions of research into the problem of where and how these species are included in the trophic web. Targeted in situ or aquarium observations of these species would further help to understand their autecology and foraging behaviour, and thus help to confirm indirect observations such as those presented here. Our quantitative day/night analyses of cryptobenthic fish community composition patterns is just the first step in research aimed at understanding the processes occurring in the small hidden spaces of Mediterranean littoral bottoms and the role of cryptobenthic fish species in these processes.

ACKNOWLEDGEMENTSTop

This work was supported in part by the grant of the Croatian Science Foundation under the project IP-2016-06-9884 and in part by the grant of the Croatian Science Foundation under the project IP-2016-06-5251. Work on the ms by I.G. was supported by the HEP - Hrvatska Elektroprivreda d.d. Zagreb and UKS was supported by Sea SEA LIFE Deutschland GmbH.

REFERENCESTop

Abel E.F. 1961. Freiwasserstudien über das Fortpflanzungsverhalten des Mönchfisches Chromis chromis Linne, einem Vertreter der Pomacentriden im Mittelmeer. Z. Tierpsychol. 18: 441-449.
https://doi.org/10.1111/j.1439-0310.1961.tb00235.x

Ackerman J.L., Bellwood D.R. 2000. Reef fish assemblages: a re-evaluation using enclosed rotenone stations. Mar. Ecol. Prog. Ser. 206: 227-237.
https://doi.org/10.3354/meps206227

Ahmadia G.N., Pezold F.L., Smith D.J. 2012. Cryptobenthic fish biodiversity and microhabitat use in healthy and degraded coral reefs in SE Sulawesi, Indonesia. Mar. Biodivers. 42: 433-442.
https://doi.org/10.1007/s12526-012-0118-3

Azzurro E., Pais A., Consoli P., et al. 2007. Evaluating day-night changes in shallow Mediterranean rocky reef fish assemblages by visual census. Mar. Biol. 151: 2245-2253.
https://doi.org/10.1007/s00227-007-0661-9

Azzurro E., Aguzzi J., Maynou F., et al. 2013. Diel rhythms in shallow Mediterranean rocky-reef fishes: a chronobiological approach with the help of trained volunteers. J. Mar. Biol. Ass. UK 932: 461-470.
https://doi.org/10.1017/S0025315412001166

Beldade R., Gonçavles E.J. 2007. An interference visual census technique applied to cryptobenthic fish assemblages. Vie Milieu 57: 61-65.

Brandl S.J., Goatley C.H.R., Bellwood D.R., et al. 2018. The hidden half: ecology and evolution of cryptobenthic fishes on coral reefs. Biol. Rev. 93: 1846-1873.
https://doi.org/10.1111/brv.12423

Clarke K.R. 1993. Non-parametric multivariate analyses of changes in community structure. Aust. J. Ecol. 18: 117-143.
https://doi.org/10.1111/j.1442-9993.1993.tb00438.x

Depczynski M., Bellwood D.R. 2003. The role of cryptobenthic reef fishes in coral reef trophodynamics. Mar. Ecol. Prog. Ser. 256: 183-191.
https://doi.org/10.3354/meps256183

Dulčić J., Fencil M., Matić-Skoko S., et al. 2004. Diel catch variations in a shallow-water fish assemblage at Duće-Glava, eastern Adriatic Croatian coast. J. Mar. Biol. Ass. UK 84: 659-664.
https://doi.org/10.1017/S0025315404009701h

Dulčić J., Matić-Skoko S., Kraljević M., et al. 2005. Seasonality of a fish assemblage in shallow waters of Duće-Glava, eastern middle Adriatic. Cybium 29: 57-63.

Glavičić I., Paliska D., Soldo A., et al. 2016. A quantitative assessment of the cryptobenthic fish assemblage at deep littoral cliffs in the Mediterranean. Sci. Mar. 80: 329-337.
https://doi.org/10.3989/scimar.04307.23A

Goatley C.H.R., González-Cabello A., Bellwood D.R. 2016. Reef-scale partitioning of cryptobenthic fish assemblages across the Great Barrier Reef, Australia. Mar. Ecol. Prog. Ser. 544: 271-280.
https://doi.org/10.3354/meps11614

Goatley C.H.R., Brandl S.J. 2017. Crypthobenthic reef fishes. Curr. Biol. 27: R431-R435.
https://doi.org/10.1016/j.cub.2017.03.051

Harmelin J.-G. 1987. Structure et variabilité de l’ichtyofaune d’une zone rocheuse protégé en Méditerraneé (Pare national de Port- Cros, France). PSZN I: Mar. Ecol. 8: 263-284.
https://doi.org/10.1111/j.1439-0485.1987.tb00188.x

Hobson E.S. 1965. Diurnal-nocturnal activity of some inshore fishes in the Gulf of California. Copeia 1965: 291-302.
https://doi.org/10.2307/1440790

Kovačić M., Patzner R.A., Schliewen U.K. 2012. A first quantitative assessment of the ecology of cryptobenthic fishes in the Mediterranean Sea. Mar. Biol. 159: 2731-2742.
https://doi.org/10.1007/s00227-012-2030-6

McDonald J.H. 2014. Handbook of Biological Statistics. Sparky House Publishing, Baltimore, Maryland, 296 pp.

Prochazka K. 1998. Spatial and trophic partitioning in cryptic fish communities of shallow subtidal reefs in False Bay, South Africa. Environ. Biol. Fish. 51: 201-220.
https://doi.org/10.1023/A:1007407200708

Richter C., Wunsch M., Rasheed M., et al. 2001. Endoscopic exploration of Red Sea coral reefs reveals dense populations of cavity-dwelling sponges. Nature 413: 725-730.
https://doi.org/10.1038/35099547

Scheffers S.R., de Goeij J., van Duyl F.C., et al. 2003. The cave-profiler: a simple tool to describe the 3-D structure of inaccessible coral reef cavities. Coral Reefs 22: 49-53.

Smith-Vaniz W.F., Jelks H.L., Rocha L.A. 2006. Relevance of cryptic fishes in the biodiversity assessments: A case study at Buck Island Reef National Monument, St. Croix. Bull. Mar. Sci. 79: 17-48.

Šmilauer P., Lepš J. 2014. Multivariate analysis of ecological data using CANOCO 5. Cambridge Univ. Press, Cambridge, 362 pp.
https://doi.org/10.1017/CBO9781139627061

Ter Braak C.J.F., Šmilauer P. 2012. Canoco reference manual and user’s guide: software for ordination, version 5.0. Microcomputer Power, Ithaca, USA, 496 pp.

Thiriet P.D., Di Franco A., Chemineée A., et al. 2016. Abundance and Diversity of Crypto- and Necto-Benthic Coastal Fish Are Higher in Marine Forests than in Structurally Less Complex Macroalgal Assemblages. PLoS ONE 11: e0164121.
https://doi.org/10.1371/journal.pone.0164121

Tornabene L., Ahmadia G.N., Berumen M.L., et al. 2013. Evolution of microhabitat association and morphology in a diverse group of cryptobenthic coral reef fishes (Teleostei: Gobiidae: Eviota). Mol. Phylogenet. Evol. 66: 391-400.
https://doi.org/10.1016/j.ympev.2012.10.014

Underwood A.J. 1997. Experiments in ecology: their logical design and interpretation using analysis of variance. Cambridge University Press, Cambridge.
https://doi.org/10.1017/CBO9780511806407

Willis T.J. 2001. Visual census methods underestimate density and diversity of cryptic reef fishes. J. Fish Biol. 59: 1408-1411.
https://doi.org/10.1111/j.1095-8649.2001.tb00202.x

Willis T.J., Anderson M.J. 2003. Structure of cryptic reef fish assemblages: relationships with habitat characteristics and predator density. Mar. Ecol. Prog. Ser. 257: 209-221.
https://doi.org/10.3354/meps257209
