Mediterranean demersal resources and ecosystems:
25 years of MEDITS trawl surveys
M.T. Spedicato, G. Tserpes, B. Mérigot and E. Massutí (eds)

INTRODUCTIONTop

Chondrichthyes are one of the oldest and most ecologically diverse vertebrate lineages. They appeared about 420 million years ago occupying the upper levels of aquatic food webs (Compagno 1990Compagno L.J.V. 1990. Alternative life-history styles of cartilaginous fishes in time and space. Env. Biol. Fish. 28: 33-75., Kriwet et al. 2008Kriwet J., Witzmann F., Klug S., et al. 2008. First direct evidence of a vertebrate three-level trophic chain in the fossil record. Proc. R. Soc. Lond, B. Biol. Sci. 275: 181-186.). Today, they have a conspicuous number of predators playing an important role within the marine ecosystem (Stevens et al. 2000Stevens J.D., Bonfil R., Dulvy N., et al. 2000. The effects of fishing on sharks, rays, and chimaeras (chondrichthyans), and the implications for marine ecosystems. ICES J. Mar. Sci. 57: 476-494., Ferretti et al. 2010Ferretti F., Worm B., Britten G.L., et al. 2010. Patterns and ecosystem consequences of shark declines in the ocean. Ecol. Lett. 13: 1055-1071., Heithaus et al. 2012Heithaus M.R., Wirsing A.J., Dill L.M. 2012. The ecological importance of intact top-predator populations: a synthesis of 15 years of research in a seagrass ecosystem. Mar. Freshw. Res. 63: 1039-1050.), so if these species disappear, the balance within the aquatic food webs would be compromised. It is well known that overfishing and habitat degradation have altered marine animal populations (Polidoro et al. 2012Polidoro B.A., Brooks T., Carpenter K.E., et al. 2012. Patterns of extinction risk and threat for marine vertebrates and habitat-forming species in the Tropical Eastern Pacific. Mar. Ecol. Progr. Ser. 448: 93-104.), especially those of sharks and rays (Ferretti et al. 2010Ferretti F., Worm B., Britten G.L., et al. 2010. Patterns and ecosystem consequences of shark declines in the ocean. Ecol. Lett. 13: 1055-1071., Dulvy et al. 2014Dulvy N.K., Fowler S.L., Musick J.A., et al. 2014. Extinction risk and conservation of the world’s sharks and rays. eLife 3: e00590.). Cartilaginous fish are intrinsically sensitive to high fishing mortality because of their K-selected strategy (e.g. slow growth, late attainment of sexual maturity, long life spans and low fecundity; Stevens et al. 2000Stevens J.D., Bonfil R., Dulvy N., et al. 2000. The effects of fishing on sharks, rays, and chimaeras (chondrichthyans), and the implications for marine ecosystems. ICES J. Mar. Sci. 57: 476-494.). They are frequently captured incidentally, but are often retained as valuable by-catch of fisheries that focus on more productive teleost fish species (Stevens et al. 2005Stevens J.D., Walker T.I., Cook S.F., et al. 2005. Threats Faced by Chondrichthyan Fish. In: Fowler S.L., Cavanagh R., et al. (eds). Sharks, Rays and Chimaeras: The Status of the Chondrichthyan Fishes. IUCN/SSC Shark Specialist Group, Gland, Switzerland and Cambridge, UK, pp. 48-57.). At present, fishing pressure on chondrichthyan species is increasing because of the high, and in some cases rising, value of their meat, fins, livers, and/or gill rakers (Fowler et al. 2002Fowler S.L., Reed T.M., Dipper F.A. 2002. Elasmobranch Biodiversity, Conservation and Management. Proceedings of the International Seminar and Workshop, Sabah, Malaysia, July 1997. IUCN SSC Shark Specialist Group, Gland, Switzerland and Cambridge, UK. 258 pp., Clarke et al. 2006Clarke S.C., McAllister M.K., Milner-Gulland E.J., et al. 2006. Global estimates of shark catches using trade records from commercial markets. Ecol. Lett. 9: 1115-1126., Lack and Sant 2009Lack M., Sant G. 2009. Trends in global shark catch and recent developments in management. TRAFFIC International. Cambridge, 33 pp.). The landings of sharks and rays reported to the Food and Agriculture Organization of the United Nations increased to a peak in 2003 and declined by 20% afterwards (FAO 2010FAO. 2010. The state of world fisheries and Aquaculture 2010. Food and Agriculture organization of the United Nations. Rome, 197 pp., Frodella et al. 2016Frodella N., Cannas R., Velonà A., et al. 2016. Population connectivity and phylogeography of the Mediterranean endemic skate Raja polystigma and evidence of its hybridization with the parapatric sibling R. montagui. Mar. Ecol. Prog. Ser. 554: 99-113.). However, recent global data show an increase of 42% of the trade in shark meat (Dent and Clarke 2015Dent F., Clarke S. 2015. State of the global market for shark products. FAO Fisheries and Aquaculture Technical Paper No. 590. Rome, FAO. 187 pp.) and the true total catch is considered to be about 3/4 times greater than reported (Clarke et al. 2006Clarke S.C., McAllister M.K., Milner-Gulland E.J., et al. 2006. Global estimates of shark catches using trade records from commercial markets. Ecol. Lett. 9: 1115-1126., Worm et al. 2013Worm B., Davis B., Kettemer L., et al. 2013. Global catches, exploitation rates, and rebuilding options for sharks. Mar. Policy 40: 194-204.). Most chondrichthyan catches are unregulated and often misidentified, unrecorded, aggregated or discarded at sea, resulting in a lack of species-specific landings information (Iglésias et al. 2010Iglésias S.P., Toulhout L., Sellos D.P. 2010. Taxonomic confusion and market mislabelling of threatened skates: Important consequences for their conservation status. Aquat. Conserv. 20: 319-333., Bornatowski et al. 2013Bornatowski H., Braga R.R., Vitule J.R.S. 2013. Shark mislabeling threatens biodiversity. Science 340: 923., Cariani et al. 2017Cariani A., Messinetti S., Ferrari A., et al. 2017. Improving the Conservation of Mediterranean Chondrichthyans: The ELASMOMED DNA Barcode Reference Library. PLoS ONE 12: e0170244.).

Humans have been exploiting marine resources, including sharks, along the Mediterranean coasts since ancient times (Farrugio et al. 1993Farrugio H., Oliver P., Biagi F. 1993. An overview of the history, knowledge, recent and future research trends in Mediterranean fisheries. Sci. Mar. 57: 105-119.). An analysis of threat levels across all chondrichthyan species has revealed the Mediterranean as a key hotspot of extinction risk (Dulvy et al. 2014Dulvy N.K., Fowler S.L., Musick J.A., et al. 2014. Extinction risk and conservation of the world’s sharks and rays. eLife 3: e00590.). According to the recent assessment of the International Union for the Conservation of the Nature (IUCN), 50% of rays (16 of 32 species) and 54% of sharks (22 of 41 species) in the Mediterranean are facing a high risk of extinction, whereas the only chimaera species (Chimaera monstrosa) is considered as least concern (Dulvy et al. 2016Dulvy N.K., Allen D.J., Ralph G.M., et al. 2016. The conservation status of Sharks, Rays and Chimaeras in the Mediterranean Sea. IUCN, Malaga, Spain.). As highlighted above, the principal driver of decline and local extinction is overfishing. Most species are taken as retained valuable by-catch in the bottom trawl and the small-scale multispecies fisheries. However, by-catch volumes and species composition of chondrichthyans are poorly documented in the Mediterranean and data are rarely incorporated into national and international statistics. Therefore, sharks and rays caught as by-catch can be only delivered as an approximation (Camhi et al. 1998Camhi M.D., Fowler S.L., Musick J.A., et al. 1998. Sharks and their relatives: ecology and conservation. IUCN/SSC Shark Specialist Group, Gland, Switzerland and Cambridge, UK. iv + 39 pp., GFCM 2014General Fisheries Commission for the Mediterranean (GFCM). 2014. Report of the Workshop on elasmobranch conservation in the Mediterranean and Black Sea. Scientific Advisory Committee (SAC) of the General Fisheries Commission for the Mediterranean (GFCM). Sète, France, 10-12 December 2014. 26 pp.). Moreover, despite being banned in 2002, illegal driftnetting is widespread throughout the basin: fleets from Algeria, Italy, Morocco, Turkey, among others, continue to fish illegally with pelagic driftnets (Notarbartolo Di Sciara 2014Notarbartolo Di Sciara G. 2014. Sperm whales, Physeter macrocephalus, in the Mediterranean Sea: a summary of status, threats, and conservation recommendations. Aquat. Conserv. Mar. Freshw. Ecosyst. 24: 4-10.), and this represents an important and largely hidden source of mortality for pelagic sharks. More recently, a significant decline in chondrichthyan species richness has been reported throughout the Mediterranean, due to increasing threats and local extinctions (Nieto et al. 2015Nieto A., Ralph G.M., Comeros-Raynal M.T., et al. 2015. European Red List of marine fishes. Publ. Off. Eur. Union, Luxembourg, 84 pp., Davidson et al. 2016Davidson L.N.K., Krawchuk M.A., Dulvy N.K. 2016. Why have global shark and ray landings declined: Improved management or overfishing? Fish Fish. 17: 438-458., Dulvy et al. 2016Dulvy N.K., Allen D.J., Ralph G.M., et al. 2016. The conservation status of Sharks, Rays and Chimaeras in the Mediterranean Sea. IUCN, Malaga, Spain.). Starting from 2010, the General Fisheries Commission for the Mediterranean (GFCM) has adopted measures to reduce the by-catch of pelagic sharks, has banned finning practices and has also prohibited the capture and sale of the sharks and rays species listed in Annex II of the Protocol of the Barcelona Convention (FAO 2016FAO. 2016. The State of Mediterranean and Black Sea Fisheries. General Fisheries Commission for the Mediterranean. Rome, 134 pp.). However, no effective management measures against the overexploitation of many commercial species have been successfully implemented or enforced (Vasilakopoulos et al. 2014Vasilakopoulos P., Maravelias C.D., Tserpes G. 2014. The Alarming Decline of Mediterranean Fish Stocks. Curr. Biol. 24: 1643-1648., Osio et al. 2015Osio G.C., Orio A., Millar C.P. 2015. Assessing the vulnerability of Mediterranean demersal stocks and predicting exploitation status of un-assessed stocks. Fish. Res. 171: 110-121.). In addition, data on the stock status of sharks and rays remain poor or non-existent (Polidoro et al. 2008Polidoro B.A, Livingstone S.R., Carpenter K.E., et al. 2008. Status of the world’s marine species. In: Vié J.C., Hilton-Taylor C., Stuart S.N. (eds). Wildlife in a changing world: an analysis of the 2008 IUCN Red List of threatened species. Int. Union Conserv. Nat., Gland, Switzerland, pp. 55-65., Worm et al. 2013Worm B., Davis B., Kettemer L., et al. 2013. Global catches, exploitation rates, and rebuilding options for sharks. Mar. Policy 40: 194-204., Colloca et al. 2017Colloca F., Enea M., Ragonese S., et al. 2017. A century fishery data documenting the collapse of smooth-hounds (Mustelus spp.) in Mediterranean Sea. Aquat. Conserv. 27: 1145-1155.).

Numerous studies on chondrichthyan species were made during the first decade of the 21^st century in the western (e.g. Carbonell et al. 2003Carbonell A., Alemany F., Merella P., et al. 2003. The by-catch of sharks in the western Mediterranean (Balearic Islands) trawl fishery. Fish. Res. 61: 7-18., Moranta et al. 2008aMoranta J., Massutí E., Stefanescu C., et al. 2008a. Short-term temporal variability in fish community structure at two western Mediterranean slope locations. Deep-Sea Res. Pt. I. 55: 866-880., bMoranta J., Quetglas A., Massutí E., et al. 2008b. Spatio-temporal variations in deep-sea demersal communities off the Balearic Islands (western Mediterranean). J. Mar. Syst. 71: 346-366.), central (e.g. Sion et al. 2004Sion L., Bozzano A., D’Onghia G., et al. 2004. Chondrichthyes species in deep waters of the Mediterranean Sea. Sci. Mar. 68: 153-162., Abella and Serena 2005Abella A.J., Serena F. 2005. Comparison of Elasmobranch Catches from Research Trawl Surveys and Commercial Landings at Port of Viareggio, Italy, in the Last Decade. J. Northw. Atl. Fish. Sci. 35: 345-356., Ferretti et al. 2005Ferretti F., Myers R.A., Serena F., et al. 2005. Long term dynamics of chondrichthyan fish community in the upper Tyrrhenian Sea. ICES CM Documents 25: 1-34.) and eastern Mediterranean (e.g. Megalofonou et al. 2005Megalofonou P., Damalas D., Yannopoulos C. 2005. Composition and abundance of pelagic shark by-catch in the eastern Mediterranean Sea. Cybium 29: 135-140., Tserpes et al. 2006Tserpes G., Tatamanidis G., Peristeraki P. 2006. Oilfish and shark by-catches of the Greek swordfish fishery in the E. Mediterranean; a preliminary analysis applied to “presence-absence” data. Col. Vol. Sci. Pap. ICCAT 59: 987-991., Peristeraki et al. 2008Peristeraki P., Kypraios N., Lazarakis G., et al. 2008. By-catches and discards of the Greek swordfish fishery. Col. Vol. Sci. Pap. ICCAT 62: 1070-1073.). However, only a few of them have been updated, mainly those related to Spanish (Guijarro et al. 2012Guijarro B., Quetglas A., Moranta J., et al. 2012. Inter- and intra-annual trends and status indicators of nektobenthic elasmobranchs off the Balearic Islands (northwestern Mediterranean). Sci. Mar. 76: 87-96., Barría et al. 2015Barría C., Navarro J., Coll M., et al. 2015. Morphological parameters of abundant and threatened chondrichthyans of the northwestern Mediterranean Sea. J. Appl. Ichthyol. 31: 114-119., Ramírez-Amaro et al. 2015Ramírez-Amaro S., Ordines F., Terrasa B., et al. 2015. Demersal chondrichthyans in the western Mediterranean: assemblages and biological parameters of their main species. Mar. Freshw. Res. 67: 636-652.), Italian (Follesa et al. 2011Follesa M.C., Porcu C., Cabiddu S., et al. 2011. Deep-water fish assemblages in the central-western Mediterranean (south Sardinian deep-waters). J. Appl. Ichthyol. 27: 129-135., Ligas et al. 2013Ligas A., Osio G.C., Sartor P., et al. 2013. Long-term trajectory of some elasmobranch species off the Tuscany coasts (NW Mediterranean) from 50 years of catch data. Sci. Mar. 77: 119-127., Marongiu et al. 2017Marongiu M.F., Porcu C., Bellodi A., et al. 2017. Temporal dynamics of demersal chondrichthyan species in the central western Mediterranean Sea: The case study in Sardinia Island. Fish. Res. 193: 81-94.) and Greek waters (Maravelias et al. 2012Maravelias C.D., Tserpes G., Pantazi M., et al. 2012. Habitat Selection and Temporal Abundance Fluctuations of Demersal Cartilaginous Species in the Aegean Sea (Eastern Mediterranean). PLoS ONE 7: e35474., Tserpes et al. 2013Tserpes G., Maravelias C.D., Pantazi M., et al. 2013. Distribution of relatively rare demersal elasmobranchs in the eastern Mediterranean. Estuar. Coast. Shelf. Sci. 117: 48-53.). These studies have been carried out on the northern Mediterranean coast and very few have been carried out on the southern coast off Africa (e.g. Ordines et al. 2011Ordines F., Massutí E., Moranta J. et al. 2011. Balearic Islands vs Algeria: two nearby western Mediterranean elasmobranch assemblages with different oceanographic scenarios and fishing histories. Sci. Mar. 75: 707-717.).

The aim of this work is to give updated information on the distribution and abundance of demersal chondrichthyans on a wide Mediterranean scale and to compare findings among different areas in relation to environmental factors. Abundance indices and frequency of occurrence of the species were estimated from data obtained from the International Mediterranean Trawl Survey (MEDITS), which aims to produce information on population distribution and demographic structure of demersal species inhabiting the continental shelf and the upper slope (Bertrand et al. 2002Bertrand J.A., Gil De Sola L., Papaconstantinou C., et al. 2002. The general specifications of the Medits surveys. Sci. Mar. 66: 9-17.). Thanks to the adoption of a common standardized sampling protocol, this scientific survey provides comparable species-specific data in several parts of the Mediterranean.

MATERIALS AND METHODSTop

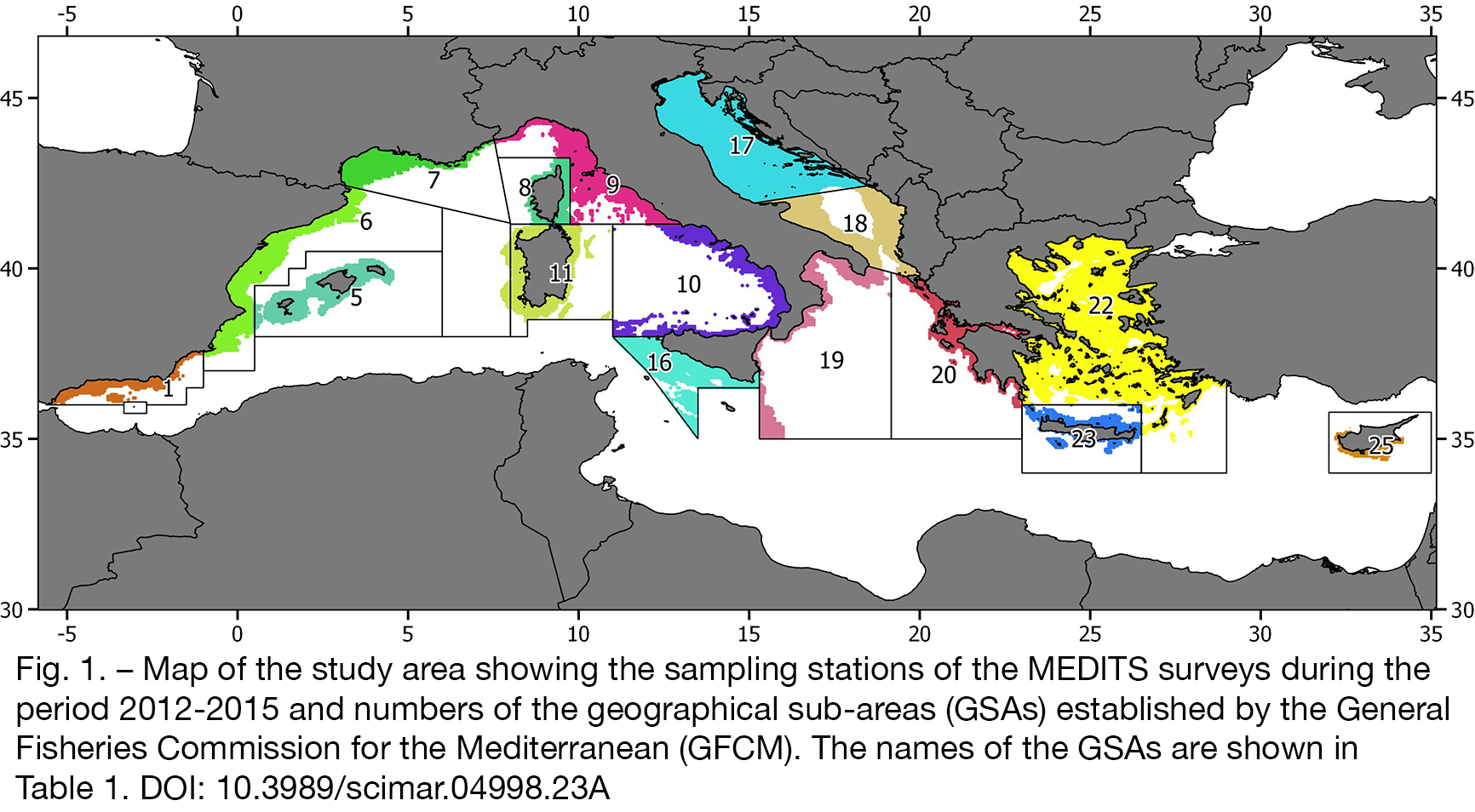

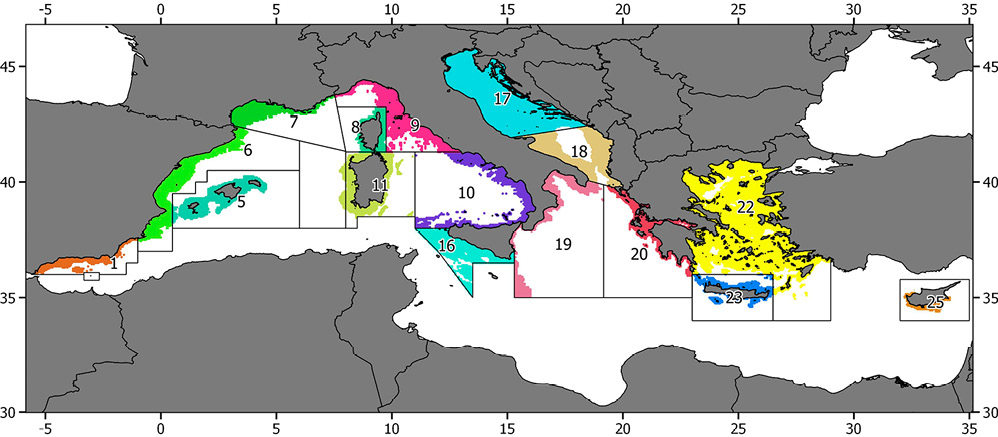

The data were collected during the bottom trawl MEDITS surveys, which have been performed annually in spring-summer since 1994. This research programme involves several institutes and teams across different geographical sub-areas (GSAs) established by the GFCM. More specifically, data of chondrichthyans at species level were provided by 16 GSAs from 9 different countries (Spain, France, Italy, Slovenia, Croatia, Albania, Montenegro, Greece and Cyprus), covering wide areas of the western, central and eastern Mediterranean (Table 1; Fig. 1). Considering that not all chondrichthyan species were included in the list of MEDITS target species until 2008, there were no complete data time series available for all study areas. For this reason, only data of four recent years (from 2012 to 2015) were analysed. For the Greek GSAs (20, 22 and 23), data were available only for the year 2014, as the MEDITS survey was performed only in this year.

As described in the MEDITS Handbook (Anonymous 2017Anonymous. 2017. MEDITS Handbook. Version n. 8, MEDITS Working Group, 177 pp.), these surveys were carried out from May to July, with the exception of 2015 when some Italian GSAs postponed the survey to early autumn due to bureaucratic problems. Samples were taken during daylight using the experimental bottom trawl GOC-73, with 10 mm cod-end mesh size, which corresponds to a mesh opening of about 20 mm. This gear was specially designed to be highly selective in all sampled areas and depths, allowing a representative sampling of demersal megafauna species. Sampling station selection was based on a stratified sampling scheme including five bathymetric strata: 10-50 m, 51-100 m, 101-200 m, 201-500 m and 501-800 m, except for GSA 17 in which the deepest stratum was not present. The duration of hauls was 30’ at stations at less than 200 m depth and 60’ at deeper stations. The number and weight of all specimens captured were recorded. For each species, the frequency of occurrence within their preferential depth range was calculated by GSAs as percentage of hauls where it was present in respect to the total hauls of the stratum during the four-year study period (Table 2). Abundance indexes (biomass index as B in kg km^–2 and density index as D in ind. km^–2) were calculated for each species by GSAs for the following depth ranges: overall range (10-800 m), continental shelf (10-200 m) and slope (201-800 m).

GAM analysis

For each haul, biomass (kg km^–2) and density (ind. km^–2) indexes were calculated for two species groups (sharks and batoids) and then modelled separately by generalized additive models (GAMs). The variables to be included in the GAM analysis were checked first for the variance inflation factor (VIF) and then for the correlations with the other variables from the Pearson correlation coefficient. The variables were then selected considering whether the contribute of each variable was significant for the improvement of the model’s fit and also whether the estimation of the variables’ smoothing term was significant.

In each GAM model, the following explanatory variables were used: geographical coordinates (latitude and longitude), depth, sea surface temperature (SST) and sea bottom temperature (BotTemp). Depth derived from the EMODnet Bathymetry portal (http://www.emodnet.eu) was post-processed with GIS software (QGIS Development Team 2017QGIS Development Team. 2017. Geographic Information System. Open Source Geospatial Foundation Project. ) to obtain the bottom slope layer. SST and BotTemp data were obtained from Copernicus portal (http://marine.copernicus.eu) and used as a mean value in spring-summer (the MEDITS survey period) in the four years considered (2012-2015). Covariates data were associated with sampling station by mean of QGIS software.

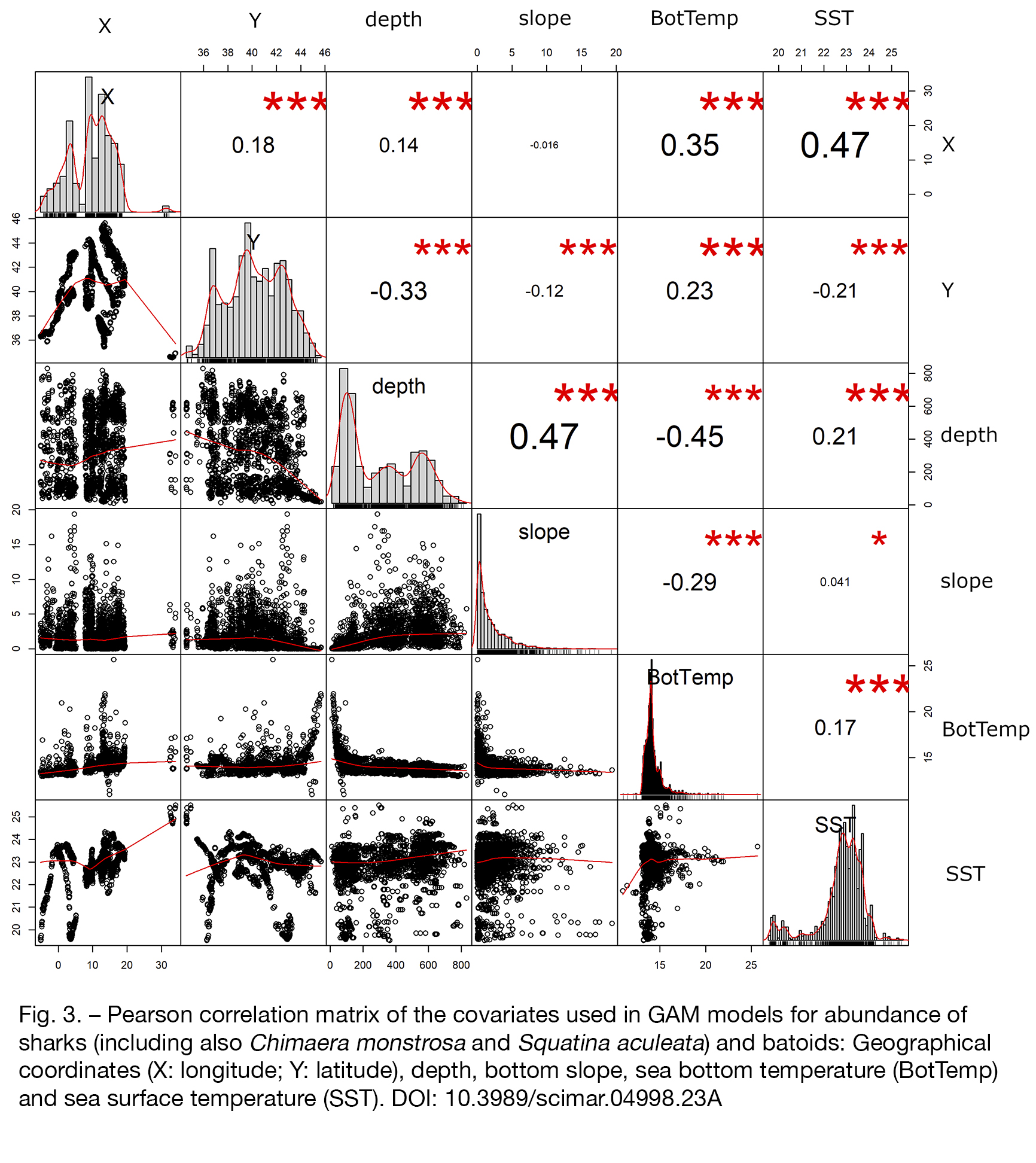

To assess collinearity, the VIF was used, and covariates showing VIF values greater than 3 and high Pearson’s correlation coefficient (r) (>0.5; absolute value) were rejected (Zuur et al. 2010Zuur A.F., Ieno E.N., Elphick C.S. 2010. A protocol for data exploration to avoid common statistical problems. Methods Ecol. Evol. 1: 3-14.). The covariates were rejected from the analysis following three criteria: (i) if the estimated degrees of freedom of the variable was close to 1; (ii) if the interval of confidence was zero; and (iii) if the generalized cross-validation (GCV) score (Gu and Wahba 1991Gu C., Wahba G. 1991. Minimizing GCV/GML Scores with Multiple Smoothing Parameters via the Newton Method. SIAM J. Sci. Stat. Comput. 12: 383-398.) decreased when the covariate was eliminated from the model.

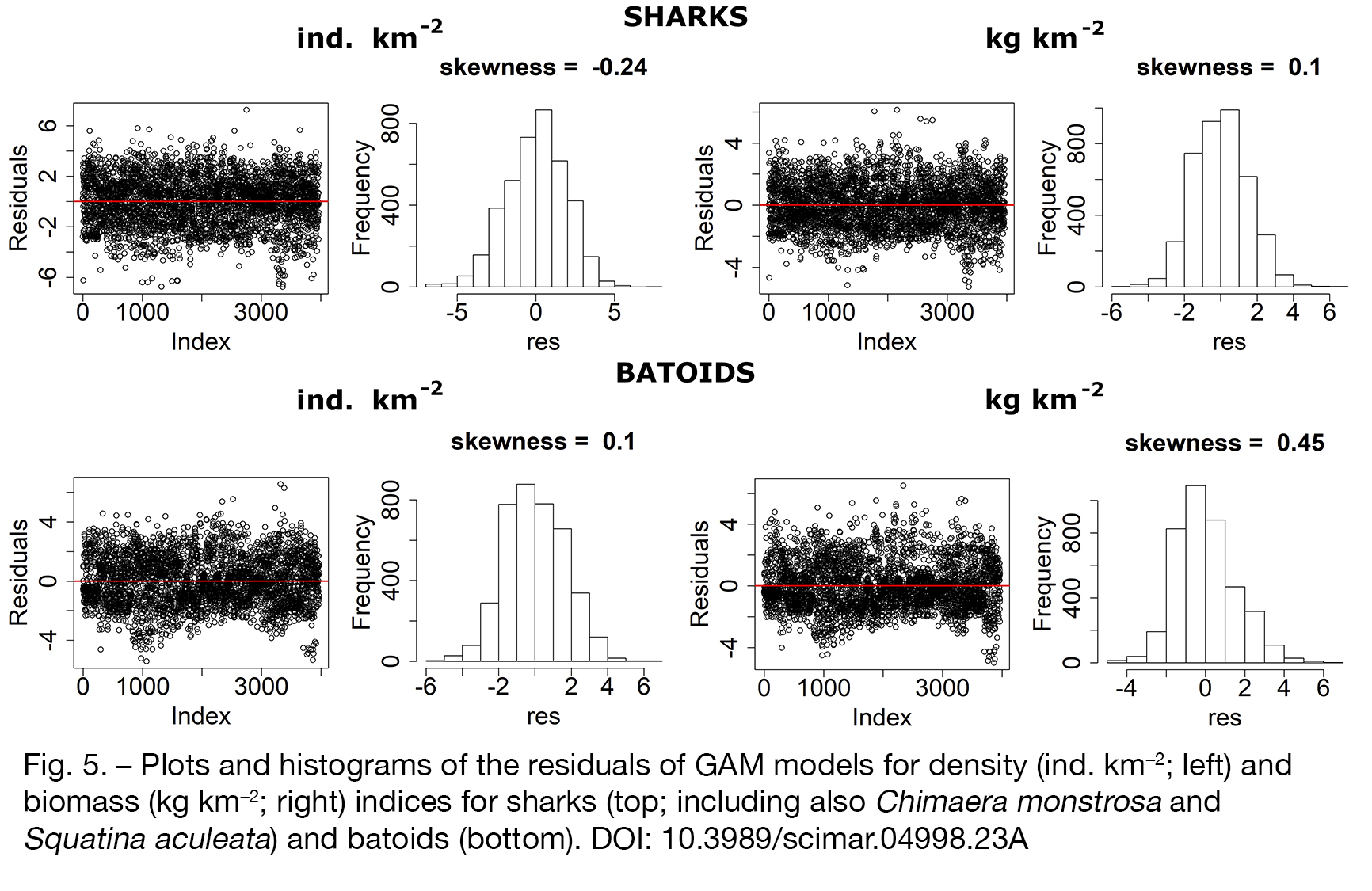

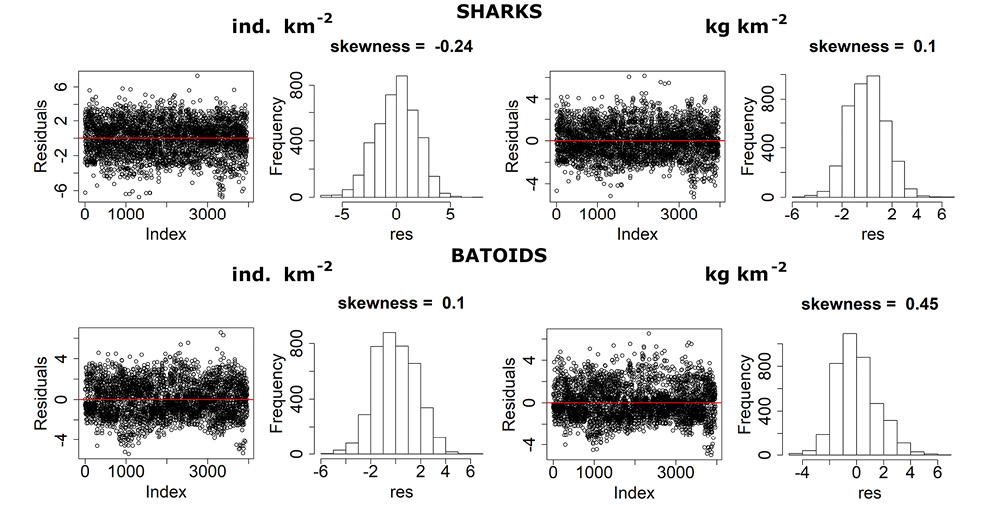

Non-normally distributed data were log-transformed. The models were estimated with the mgcv library from R software (R Development Core Team 2018R Development Core Team. 2018. R: A language and environment for statistical computing. R Foundation for Statistical Computing, Vienna, Austria. https://www.r-project.org/, Wood 2006Wood S.N. 2006. Generalized additive models: an introduction with R. Chapman and Hall/CRC Press. Boca Raton, Florida. 392 pp.) using the Gaussian distribution from the exponential family. The spatial analysis prediction was performed using a 0.03° resolution grid and the resulting maps were produced with QGIS software (QGIS Development Team 2017QGIS Development Team. 2017. Geographic Information System. Open Source Geospatial Foundation Project.).

RESULTSTop

Following the last taxonomic structure suggested by Eschmeyer et al. (2018), 41 species of chondrichthyans were detected from all the GSAs. They included 18 sharks (5 orders and 11 families), 22 batoids (3 orders and 4 families) and 1 chimaera (Table 2).

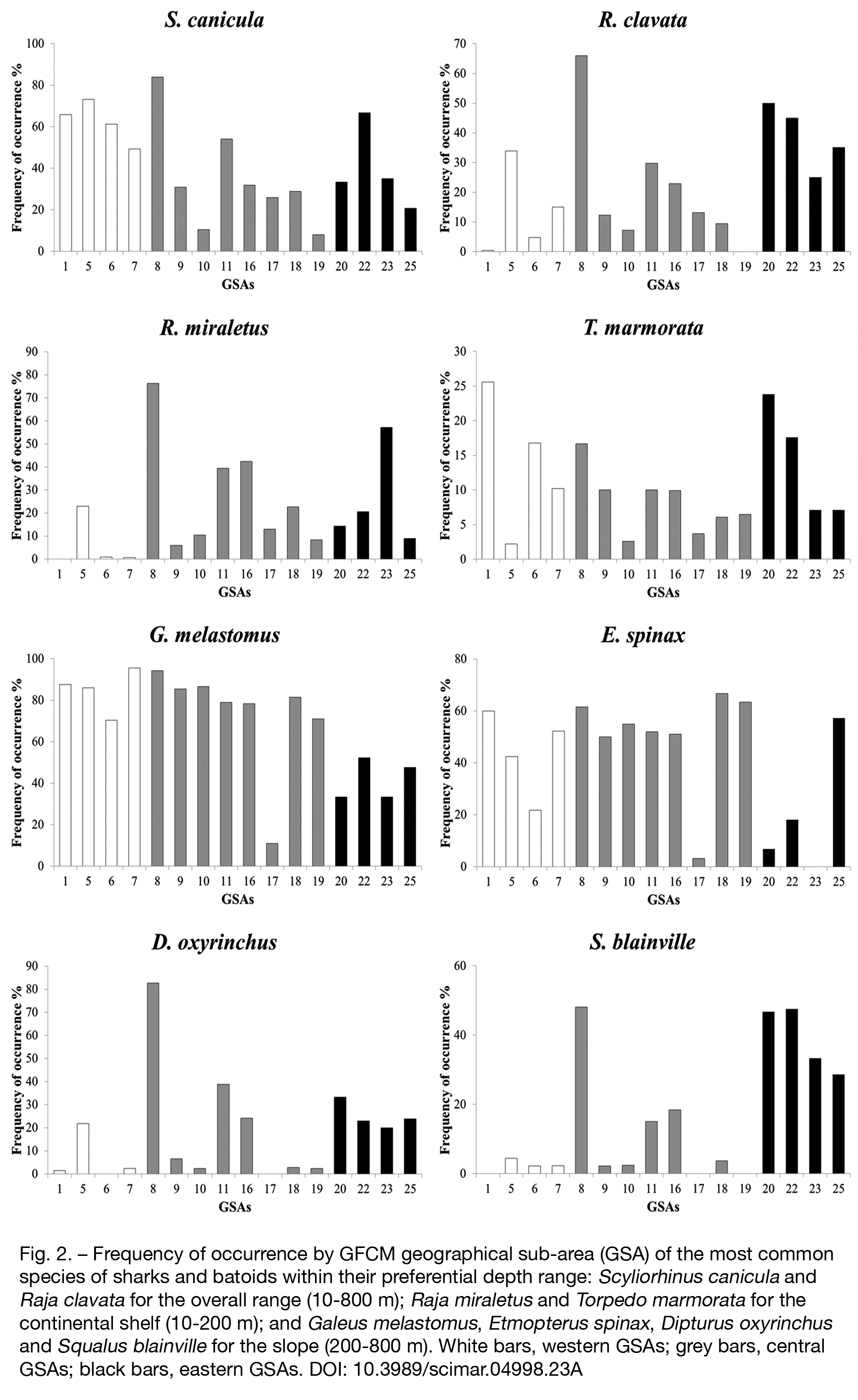

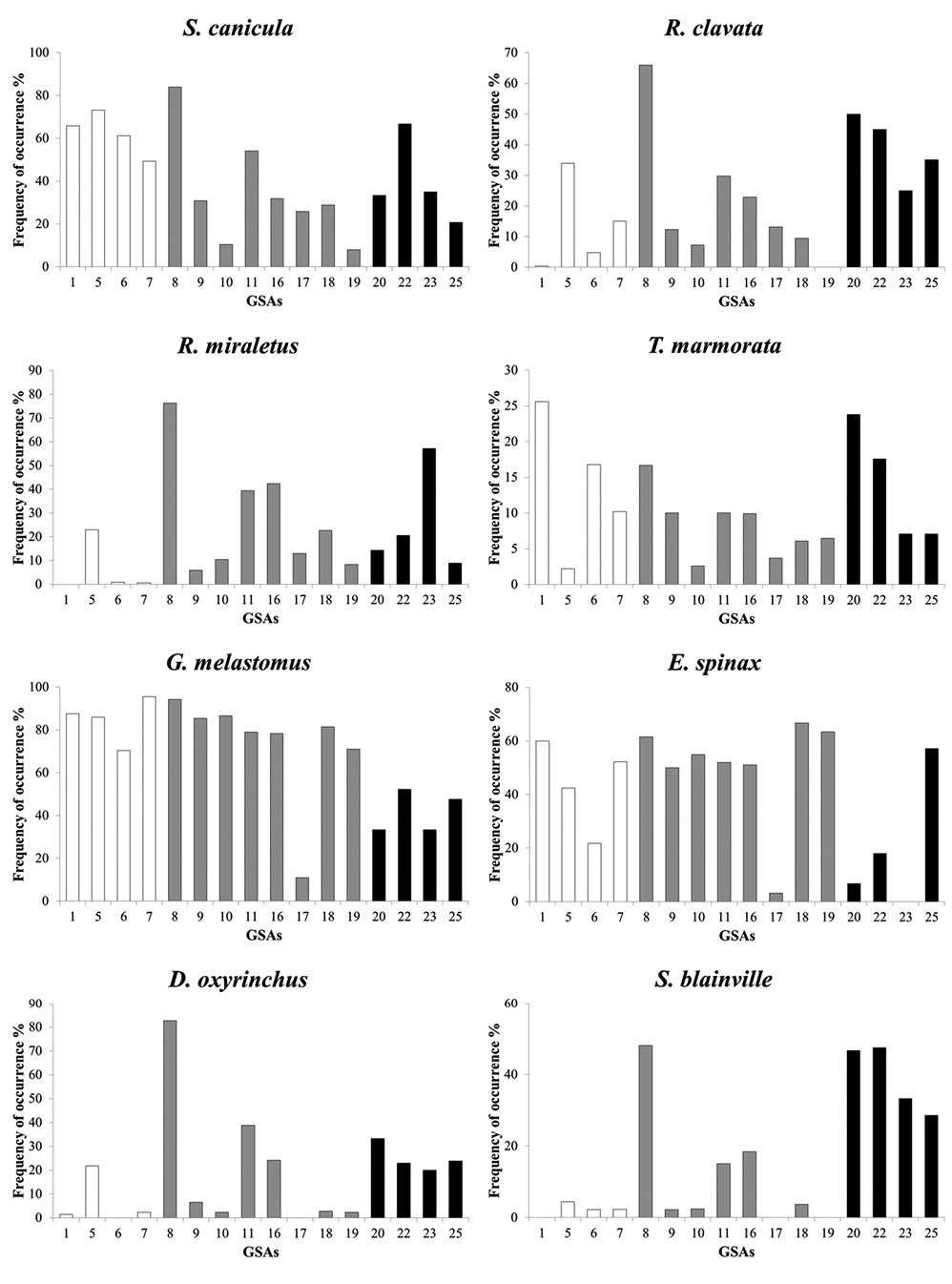

Occurrence

Except in some cases, batoids had a preferential distribution on the continental shelf (10-200 m depth), while sharks were more frequent on the slope (Table 2). Few species showed a wide distribution in all GSAs (Fig. 2): the sharks Galeus melastomus, with a frequency of occurrence between 201 and 800 m depth close to 90% in GSAs 1, 5, 9 and 10 and greater than 90% in GSAs 7 and 8, and Scyliorhinus canicula, with a frequency of occurrence in the whole depth range (10-800 m) of 73% in GSA 5 and 84% in GSA 8; and the batoid T. marmorata, with the highest frequency of occurrence (26%) in GSA 1 and the lowest (2%) in GSA 5 (Table 2). Also in the eastern basin, the two sharks were the most present species, but with frequencies of occurrence lower than those recorded in the western basin: 52%, 33% and 48% in GSAs 22, 23 and 25, respectively, for G. melastomus and 67%, 35% and 21% in GSAs 22, 23 and 25, respectively, for S. canicula. T. marmorata showed a frequency of occurrence of 24% in GSA 20, similar to that obtained in GSA 1, but in the other GSAs of the eastern basin these values did not exceed 15% (Table 2).

Among Rajiformes, Raja clavata was present in all GSAs, except in GSA 19, showing the highest frequency of occurrence (66%) in GSA 8 for the western basin and in GSAs 20 and 22 (50% and 45%, respectively) for the eastern basin, while the lowest one (0.4%) was recorded in GSA 1 (Table 2, Fig. 2). Raja miraletus was representative of the central eastern Mediterranean, while Raja asterias showed higher values of occurrence in the western than in the eastern basin. By contrast, Raja undulata was rarely encountered in the central and eastern part of the Mediterranean, similarly to the Carcharhiniformes Mustelus asterias, Mustelus punctulatus and Scyliorhinus stellaris and the Myliobatiformes Bathytoshia centroura and Aetomylaeus bovinus (Table 2).

On the continental shelf, the most present species were T. marmorata and R. miraletus. On the slope, apart from the already mentioned G. melastomus, the Squaliformes Etmopteurs spinax was the second most sampled species, especially in the western and central basins, followed by Dipturus oxyrinchus and Squalus blainville, which showed a peak in GSA 8, with values of 83% and 48%, respectively (Table 2, Fig. 2). A wide distribution was also shown for the deep water Dalatias licha and Chimaera monstrosa, while other species were more sparsely scattered throughout the Mediterranean. In particular, Galeus atlanticus was detected in a very restricted area of the western basin (GSA 1), but with an occurrence of 32%, while Galeorhinus galeus was only found in GSA 16, with low occurrence (0.5%). In the eastern basin, Leucoraja fullonica and Squatina aculeata were rare species (Table 2).

Abundance

Considering the overall depth range surveyed (10-800 m), density (D) and biomass (B) values of sharks, batoids and the only chimaera were more variable between the GSAs (Tables 3 and 4). Two species mainly contributed to shark abundance in the basin (Table 3): G. melastomus, with the highest abundances in GSA8 (1607±35 ind. km^–2 and 71.6±9.2 kg km^–2) and the lowest ones in GSA 17 (4±2 ind. km^–2 and 0.3±0.1 kg km^–2), and S. canicula, with the highest density (589±260 ind. km^–2) and biomass (86.9±42.1 kg km^–2) in GSA8 and the lowest ones in GSA 10 (4.8±1.7 ind. km^–2 and 0.8±0.3 kg km^–2). The third most abundant shark was E. spinax (Table 3), with the highest values in GSA 25 (5337±140 ind. km^–2 and 12±1.5 kg km^–2) and the lowest ones in GSA 17 (0.4±0.7 ind. km^–2 and 0.02±0.03 kg km^–2). Among batoids, R. clavata was the most abundant species, followed by R. miraletus (Table 4). Although T. marmorata was frequently encountered in all GSAs, its density and biomass were very low (≤12 ind. km^–2 and ≤6.3 kg km^–2, respectively; Table 4).

Focusing on the continental shelf, apart from S. canicula, which was the most abundant chondrichthyan species caught in all GSAs (Tables 5 and 6), except for GSAs 10 and 19, this macro-stratum was characterized by the prevalence of batoids. Among these, the Rajidae family was the most abundant, being represented in primis by R. clavata and then by R. miraletus, R. polystigma and R. asterias (Table 6). T. marmorata reached lower values than the above species, as did Dasyatis pastinaca, which showed high values only in GSAs 5 and 11.

The slope, with a high abundance of sharks, is characterized by the abundance of G. melastomus in all GSAs (Tables 7 and 8), followed by S. canicula, E. spinax and S. blainville. Among batoids, the Rajidae family was mostly represented by R. clavata and D. oxyrinchus. Myliobatidae was the only family not present on the slope, while Dasyatidae and Torpedinidae were scanty (Table 8). The highest abundance of C. monstrosa was registered in GSA 7 (80±32 ind. km^–2 and 29.4±13 kg km^–2). This species was not widespread throughout the Mediterranean (Table 7).

GAM results

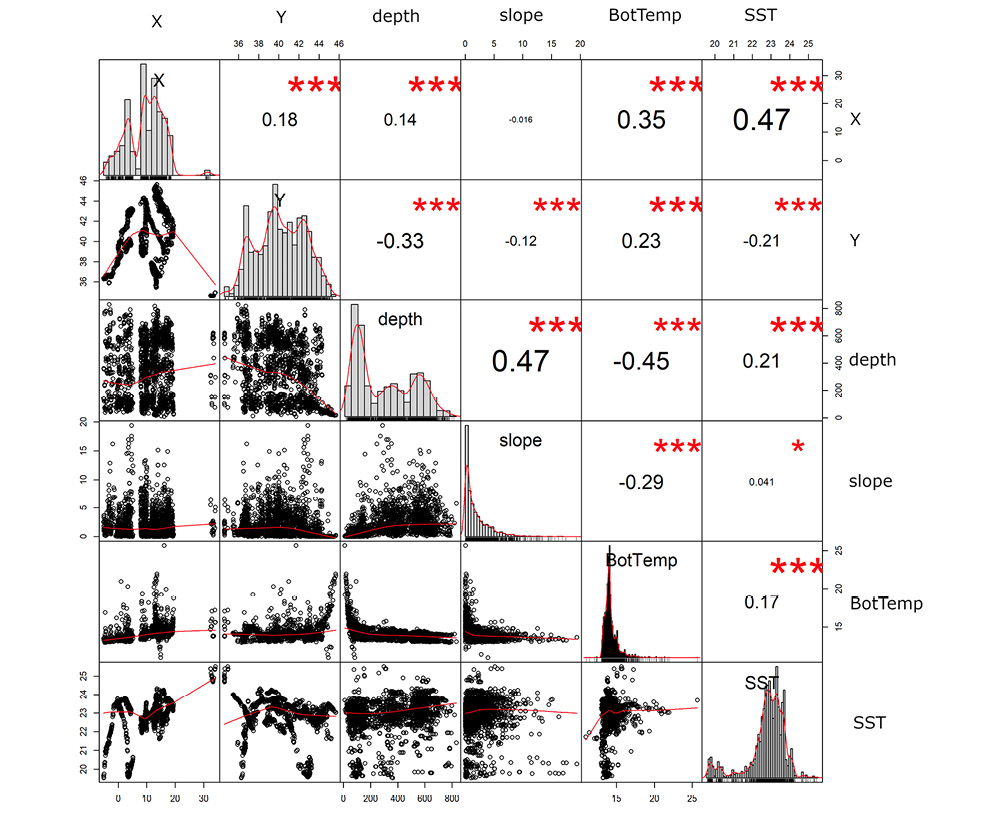

The covariates tested for collinearity showed no VIF values greater than 3 and none of the Pearson correlation coefficients was greater than 0.5 (Fig. 3). As no collinearity was detected, none of the covariates was rejected from the model analysis. The bottom slope was not used in the models for sharks, as the estimated degrees of freedom values were close to one, giving no contribution to the improvement of the GCV and Aikake information criterion values of the models. The estimated degrees of freedom of the estimated smoothers used in each model were significantly different from zero (p-value<0.05).

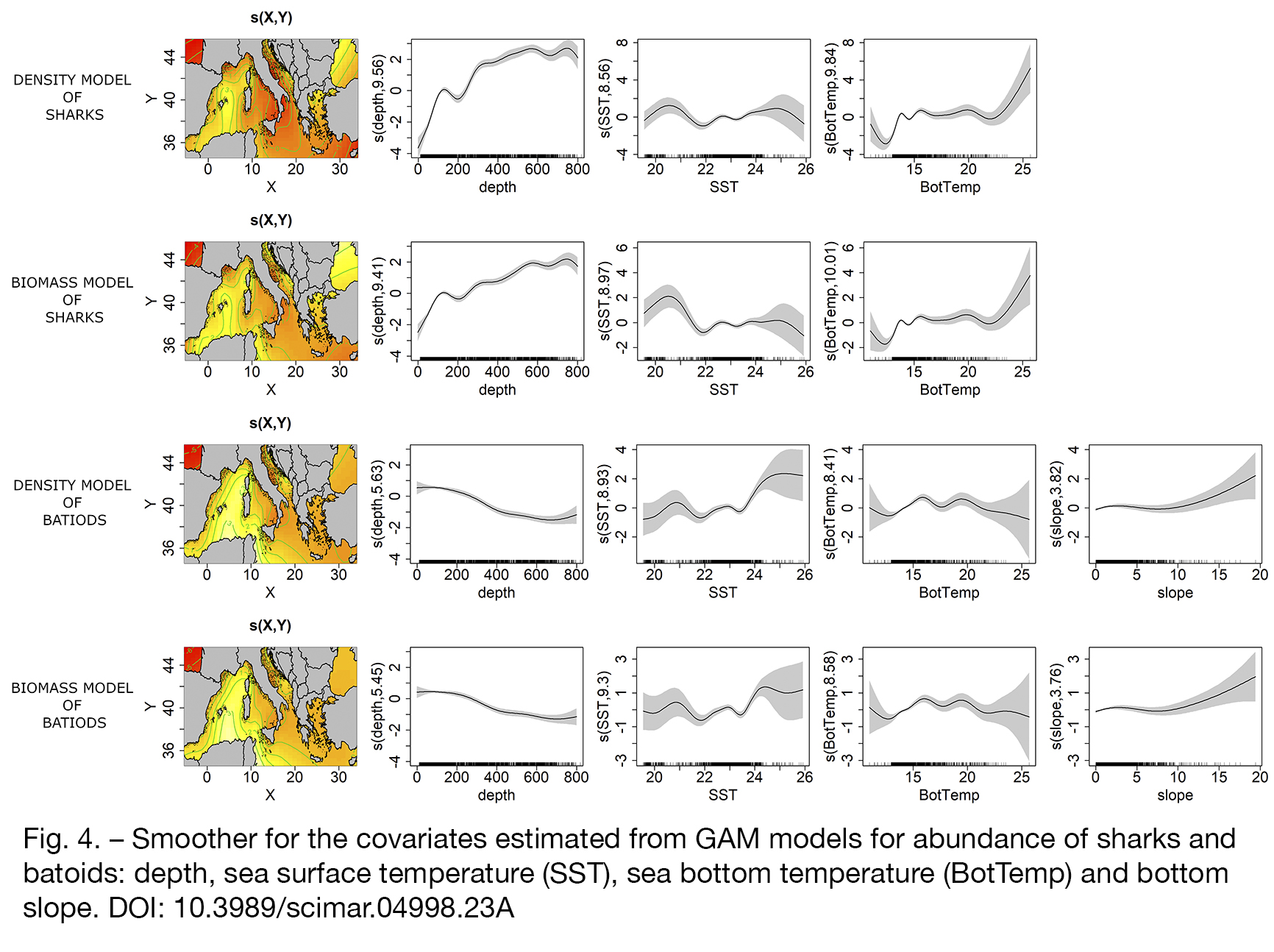

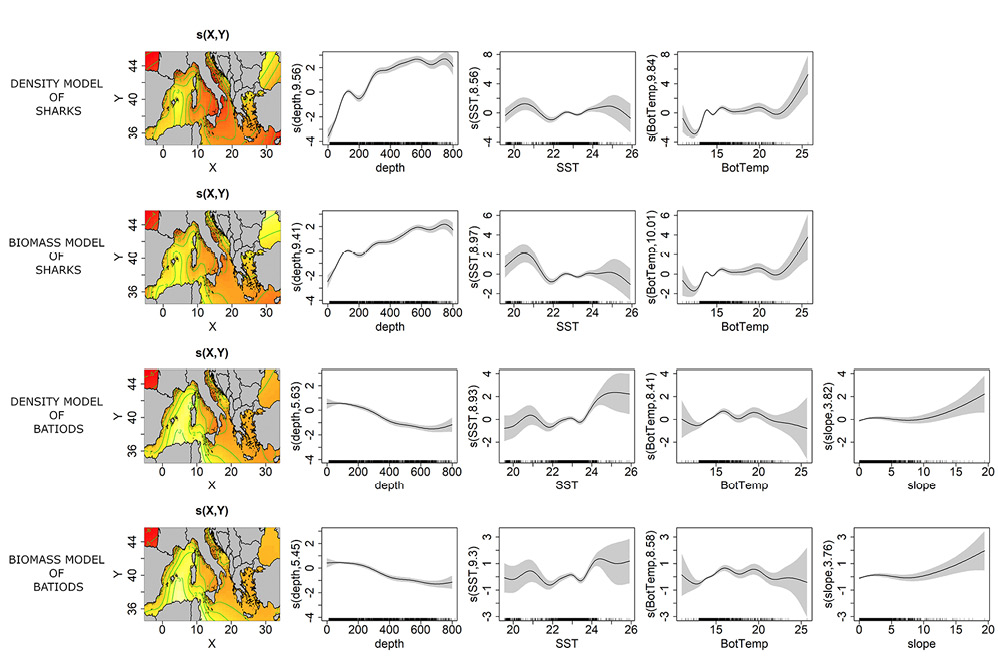

The best models for abundance of both sharks and batoids are shown in Table 9 and Figure 4. The residuals of the models were tested with the Shapiro-Wilk normality test (p<0.05). Although the residuals of all the models were not normally distributed (Fig. 5), they could be considered symmetric enough as their skewness index was in the ±1 range (Hair et al. 2010Hair J.F., Black W.C., Babin B.J., et al. 2010. Multivariate Data Analysis. Vectors. Pearson Ed. Ltd, Edinburgh.). The predictive maps resulting from the models are shown in Figure 6.

In each group of species, the effect of the covariates is quite the same between density and biomass (Fig. 4). Depth was the most important driver influencing the distribution of both sharks and batoids, but the models described a different pattern for each group. Density and biomass of sharks increased with depth, the highest values of the response variables being estimated around the Balearic Islands (GSA 5), off the northeastern Iberian Peninsula (GSA 6), the eastern coast of Corsica (GSA 8), the northeastern coast of Sardinia (GSA 11), the northern part of GSA 16, the southern part of GSA 19, around the pit of Bari in GSA 18 and the northern part of GSA 22. The models for batoids showed a very similar distribution pattern to that of sharks, but with hotspots at lower depth. The highest values of the response variables were estimated close to the Balearic Islands (GSA 5), off eastern Corsica (GSA 8), off northern Sardinia (GSA 11) and in the Strait of Sicily (GSA 16). Temperature had a significant influence in the species distribution, but with an opposite pattern in the two groups. The SST was lower in the areas of highest biomass of sharks than in the areas of highest biomass of batoids.

DISCUSSIONTop

This work provides standardized and updated information regarding the distribution, occurrence and abundance of chondrichthyans along the whole northern Mediterranean, from west to east. Historically, their diversity has been considered greatest in the western basin, particularly in the coastal waters of Morocco, Algeria, and Tunisia (between 57 and 69 species), and slightly lower in the northwestern countries, Spain (including the Balearic Islands), France and Italy, and in Greece. Intermediate levels of diversity have been reported for the central Mediterranean along the coasts of Libya, Malta and Sicily and in the coastal waters of the countries bordering the Adriatic and Aegean seas. This longitudinal gradient in the species richness of chondrichthyans has been suggested by several authors (Dulvy et al. 2016Dulvy N.K., Allen D.J., Ralph G.M., et al. 2016. The conservation status of Sharks, Rays and Chimaeras in the Mediterranean Sea. IUCN, Malaga, Spain., Melendez et al. 2017Melendez M.J., Baez J.C., Serna-Quintero J.M., et al. 2017. Historical and ecological drivers of the spatial pattern of Chondrichthyes species richness in the Mediterranean Sea. PLoS ONE 12: e0175699., Bradai et al. 2018Bradai N.M, Saidi B., Enajjar S. 2018. Overview on Mediterranean Shark’s Fisheries: Impact on the Biodiversity. In: Türkoğlu M., Önal U., Ismen A. (eds). Marine Ecology - Biotic and Abiotic Interactions. pp. 211-230.). However, the results of the present work seemed not to confirm this pattern (the Strait of Sicily and the Aegean showed the largest number of species), probably because North Africa is not involved in the MEDITS programme, so diversity in this area could not be considered.

Comparing our results with the literature, an abrupt decrease in the number of chondrichthyan species has been detected in the northern Adriatic (GSA 17): from 33 demersal, meso-predatory elasmobranchs in 1948 (Jukić-Peladić et al. 2001Jukić-Peladić S., Vrgoč N., Krstulović-Šifner S., et al. 2001. Long-term changes in demersal resources of the Adriatic Sea. Comparison between trawl surveys carried out in 1948 and 1998. Fish. Res. 53: 95-104., Coll et al. 2009Coll M., Santojanni A., Palomera I., et al. 2009. Food-web changes in the Adriatic Sea over the last three decades. Mar. Ecol. Progr. Ser. 381: 17-37., Ferretti et al. 2013Ferretti F., Osio G.C., Jenkins C.J., et al. 2013. Long-term change in a meso-predator community in response to prolonged and heterogeneous human impact. Sci. Rep. 3: 1057.) to 20 species found in this study during recent years (2012-2015). This confirms the known structural depletion of the demersal community in terms of diversity during the last few decades.

A previous study conducted by Bertrand et al. (2000)Bertrand J.A., Gil de Sola L., Papaconstantinou C., et al. 2000. An international bottom trawl survey in the Mediterranean: the Medits programme. In Bertrand J.A., Relini G. (eds). Demersal resources in the Mediterranean. Proceedings of the symposium held in Pisa, 18-21 March 1998. Actes de Colloques 26: 76- 93. Ifremer, Plouzané. involving almost the same GSAs sa those analysed in this work pointed out that the most widespread species in the basin were Scyliorhinus canicula, Galeus melastomus and Etmopterus spinax among sharks, Raja clavata, Raja miraletus, Raja asterias and Torpedo marmorata among batoids, and Chimaera monstrosa. From our results, the most frequent and abundant species all around the basin are S. canicula, G. melastomus and E. spinax among sharks and R. clavata and R. miraletus among batoids, partly confirming the findings of Bertrand et al. (2000)Bertrand J.A., Gil de Sola L., Papaconstantinou C., et al. 2000. An international bottom trawl survey in the Mediterranean: the Medits programme. In Bertrand J.A., Relini G. (eds). Demersal resources in the Mediterranean. Proceedings of the symposium held in Pisa, 18-21 March 1998. Actes de Colloques 26: 76- 93. Ifremer, Plouzané. and other previous data present in literature for the western (Barría et al. 2015Barría C., Navarro J., Coll M., et al. 2015. Morphological parameters of abundant and threatened chondrichthyans of the northwestern Mediterranean Sea. J. Appl. Ichthyol. 31: 114-119., Ramírez-Amaro et al. 2015Ramírez-Amaro S., Ordines F., Terrasa B., et al. 2015. Demersal chondrichthyans in the western Mediterranean: assemblages and biological parameters of their main species. Mar. Freshw. Res. 67: 636-652., Marongiu et al. 2017Marongiu M.F., Porcu C., Bellodi A., et al. 2017. Temporal dynamics of demersal chondrichthyan species in the central western Mediterranean Sea: The case study in Sardinia Island. Fish. Res. 193: 81-94.), central (e.g. Jukić-Peladić et al. 2001Jukić-Peladić S., Vrgoč N., Krstulović-Šifner S., et al. 2001. Long-term changes in demersal resources of the Adriatic Sea. Comparison between trawl surveys carried out in 1948 and 1998. Fish. Res. 53: 95-104., Bottari et al. 2014Bottari T., Busalacchi B., Profeta A., et al. 2014. Elasmobranch Distribution and Assemblages in the Southern Tyrrhenian Sea (Central Mediterranean). J. Aquac. Res. Develop. 5: 216.) and eastern (Tserpes et al. 2013Tserpes G., Maravelias C.D., Pantazi M., et al. 2013. Distribution of relatively rare demersal elasmobranchs in the eastern Mediterranean. Estuar. Coast. Shelf. Sci. 117: 48-53.) Mediterranean. The overlapping of observations should probably be attributed to the higher fishing pressure resilience of these species (Cavanagh and Gibson 2007Cavanagh R.D., Gibson C. 2007. Overview of the conservation status of cartilaginous fishes (Chondrichthyans) in the Mediterranean Sea. IUCN, 42 pp.). Usually, in spite of this resilience, fishing pressure should be considered as one of the main variables affecting the abundance of chondrichthyans, but not the only one (Frodella et al. 2016Frodella N., Cannas R., Velonà A., et al. 2016. Population connectivity and phylogeography of the Mediterranean endemic skate Raja polystigma and evidence of its hybridization with the parapatric sibling R. montagui. Mar. Ecol. Prog. Ser. 554: 99-113.).

To parameterize fishing pressure is a big issue, particularly in terms of spatial distribution and at a large scale (Russo et al. 2017Russo T., Bitetto I., Carbonara P., et al. 2017. A holistic approach to fishery management: evidence and insights from a Central Mediterranean Case Study (Western Ionian Sea). Front. Mar. Sci. 4: 193.). In fact, although a spatial index of fishing pressure was recently developed at a regional scale in the Mediterranean (Kavadas et al. 2015Kavadas S., Maina I., Damalas D., et al. 2015. Multi-Criteria Decision Analysis as a tool to extract fishing footprints and estimate fishing pressure: application to small scale coastal fisheries and implications for management in the context of the Maritime Spatial Planning Directive. Mediterr. Mar. Sci. 16: 294-304.), the only maps of the geographical distribution of trawling fishing pressure along the whole basin were drawn up by Sbrana et al. (2013)Sbrana M., Mannini A., Sartor P. et al. 2013. D11 - Report geo-Referred information on the spatial and temporal distribution of fishing effort/grounds for the case studies. DG Mare MAREA Mediterranean Halieutic Resources Evaluation and Advice Specific Contract no 7 --STOCKMED: “Stock units: Identification of distinct biological units (stock units) for different fish and shellfish species and among different GFCM-GSAs. 157 pp.. The comparison between these maps and our results shows that the areas under higher fishing pressure, such as the Adriatic and the Spanish coast (with the exception of the Balearic Islands) show low abundance of chondrichthyans, but other areas with a high level of fishing pressure, such as southwestern Sicily, show a high abundance of these species. This finding suggests that other environmental drivers work together with fishing pressure to shape their distribution.

Some differences must be noted between our results and those of Bertrand et al. (2000)Bertrand J.A., Gil de Sola L., Papaconstantinou C., et al. 2000. An international bottom trawl survey in the Mediterranean: the Medits programme. In Bertrand J.A., Relini G. (eds). Demersal resources in the Mediterranean. Proceedings of the symposium held in Pisa, 18-21 March 1998. Actes de Colloques 26: 76- 93. Ifremer, Plouzané., especially regarding the decline of C. montrosa. This species seemed not so widespread as in the past years. A possible explanation for this decline, besides its rarity, could be found in the fact that this bathyal species has a lower degree of survival after discarding than other chondrichthyans (Ferretti et al. 2005Ferretti F., Myers R.A., Serena F., et al. 2005. Long term dynamics of chondrichthyan fish community in the upper Tyrrhenian Sea. ICES CM Documents 25: 1-34.). Among the rare or non-common species found in our analysis, the order Squatiniformes deserves particular attention. In the last century, angelsharks (Squatina spp.) were common in Mediterranean waters (Ferretti et al. 2005Ferretti F., Myers R.A., Serena F., et al. 2005. Long term dynamics of chondrichthyan fish community in the upper Tyrrhenian Sea. ICES CM Documents 25: 1-34.). Fortibuoni et al. (2016)Fortibuoni T., Borme D., Franceschini G., et al. 2016. Common, rare or extirpated? Shifting baselines for common angelshark, Squatina squatina (Elasmobranchii: Squatinidae), in the Northern Adriatic Sea (Mediterranean Sea). Hydrobiologia 772: 247-259. reported that Squatina squatina was commonly sold in the main fish markets until the collapse of this species during the 1960s led to its disappearance in the northern Adriatic. Furthermore, Damalas and Vassilopoulou (2011)Damalas D., Vassilopoulou V. 2011. Chondrichthyan by-catch and discards in the demersal trawl fishery of the central Aegean Sea (Eastern Mediterranean). Fish. Res. 108: 142-152. underlined the absence of the two other species of angelsharks, Squatina aculeata and Squatina oculata in the Aegean Sea, reporting that they had not been present in the catches for a couple of years. Our study shows that the only species of angelsharks caught during recent years is S. aculeata, whose presence has been detected in the same area. This fact could be a clear sign of decline or indicate a possible risk of extinction of this and the other two congeners in the Mediterranean, although, fortunately, interviews with fishermen reveal that this species seems not to have been extirpated yet, as was also observed in the Tyrrhenian (Ligas et al. 2013Ligas A., Osio G.C., Sartor P., et al. 2013. Long-term trajectory of some elasmobranch species off the Tuscany coasts (NW Mediterranean) from 50 years of catch data. Sci. Mar. 77: 119-127.).

Some authors have reported the spiny dogfish (Squalus acanthias) to be one of the most frequent shark species captured in the Mediterranean (Baino et al. 2001Baino R., Serena F., Ragonese S., et al. 2001. Catch composition and abundance of elasmobranchs based on the MEDITS program. Rapp. Comm. Int. Mer Médit. 36: 234., Serena et al. 2009Serena F., Papacostantinou C., Relini G., et al. 2009. Distribution and abundance of spiny dogfish in the Mediterranean sea based on the Mediterranean International Trawl Surveys Program. In: Gallucci V.F., McFarlane G.A., Bargmann G.C. (eds). Biology and management of dogfish sharks. Am. Fish. Soc., Bethesda, Maryland, pp. 139-149., Damalas and Vassilopoulou 2011Damalas D., Vassilopoulou V. 2011. Chondrichthyan by-catch and discards in the demersal trawl fishery of the central Aegean Sea (Eastern Mediterranean). Fish. Res. 108: 142-152.). Our results show its congener S. blainville to be the most abundant Squaliformes species throughout the basin, particularly in its central-western part (eastern Corsica and southern Sicily) and in the eastern Ionian and Aegean seas. Tsagarakis et al. (2013)Tsagarakis K., Mytilineou C., Haralabous J., et al. 2013. Mesoscale spatio-temporal dynamics of demersal assemblages of the Eastern Ionian Sea in relationship with natural and fisheries factors. Aquat. Living Resour. 26: 381-397. also reported S. blainville to be one of the most important species of the demersal assemblages in the eastern Ionian Sea. The reason for this replacement between these two sharks could be related to taxonomic problems afflicting the Squalus genus and currently solved in different areas of the Mediterranean (Bonello et al. 2016Bonello J., Bonnici L., Ferrari A., et al. 2016. Not all that clear cut: Intraspecific morphological variability in Squalus blainville (Risso, 1827) and implications for identification of the species. J. Mar. Biol. Assoc. U.K. 96: 1585-1596., Bellodi et al. 2018Bellodi A., Porcu C., Cau A., et al. 2018. Investigation on the genus Squalus in the Sardinian waters (Central-Western Mediterranean) with implications on its management. Medit. Mar. Sci. 19: 256-272.). Indeed, recent studies (e.g. Anastasopoulou et al. 2018Anastasopoulou I., Mytilineou C., Makantasi P., et al. 2018. Life history aspects of two species of the Squalus genus in the Eastern Ionian Sea. J. Mar. Biol. Ass. U.K. 98: 937-948.) highlight that S. acanthias showed a limited geographic distribution in the past, suggesting an inaccurate classification of these two species.

Focusing on macro-areas, previous findings regarding the distribution and abundance of chondrichthyan species conducted in Spanish and French seas (Massutí and Moranta 2003Massutí E., Moranta J. 2003. Demersal assemblages and depth distribution of elasmobranchs from the continental shelf and slope off the Balearic Islands (western Mediterranean). ICES J. Mar. Sci. 60: 753-766., Gouraguine et al. 2011Gouraguine A., Hidalgo M., Moranta J., et al. 2011. Elasmobranch spatial segregation in the western. Mediterr. Sci. Mar. 75: 653-664., Ramírez-Amaro et al. 2015Ramírez-Amaro S., Ordines F., Terrasa B., et al. 2015. Demersal chondrichthyans in the western Mediterranean: assemblages and biological parameters of their main species. Mar. Freshw. Res. 67: 636-652.) are, in general, confirmed in the present work, with the highest number of species and abundance around the Balearic Islands. Regarding Italian seas, our data, as in a study conducted by Relini et al. (2000)Relini G., Biagi F., Serena F., et al. 2000. I Selaci pescati con lo strascico nei mari italiani. Biol. Mar. Mediterr. 7: 347- 384., confirmed the highest diversity of demersal chondrichthyans in the Strait of Sicily. Furthermore, G. melastomus and S. canicula were shown to be the most frequent and abundant shark species in Spanish and Italian waters, and R. clavata and R. miraletus were the most frequent and abundant batoids. In particular, R. clavata, with a large depth range, seemed to be more abundant off the Balearic Islands (GSA 5) and western Italy (GSAs 9, 10 and 11), where the slope is wide. R. miraletus, which is mostly widespread on sandy bottoms of the shelf, is also abundant around the Balearic Islands and off the central part of Italy (GSAs 16, 17, 18, 19), particularly in the northern Adriatic (GSA 17), where it is the most abundant skate. The low depth of this area, where the slope represents only 7% of its surface, explains the scant presence or the absence of the deep species E. spinax and G. melastomus, which are common in other GSAs, as also reported by Ferretti et al. (2013)Ferretti F., Osio G.C., Jenkins C.J., et al. 2013. Long-term change in a meso-predator community in response to prolonged and heterogeneous human impact. Sci. Rep. 3: 1057.. The presence of the two Hexanchiformes Heptranchias perlo and Hexanchus griseus in Greek waters is probably due to the fact that they inhabit restricted and deep areas in favourable biological environments that are not exposed to a high fishing pressure, such as the Greek seas (Sion et al. 2004Sion L., Bozzano A., D’Onghia G., et al. 2004. Chondrichthyes species in deep waters of the Mediterranean Sea. Sci. Mar. 68: 153-162., El Kamel-Moutalibi et al. 2014El Kamel-Moutalibi O., Mnasri-Sioudi N., Rafrafi-Nouira S., et al. 2014. Additional records of a rare elasmobranch species, sharpnose seven-gill shark Heptranchias perlo (Hexanchidae) off the northern Tunisian coast (Central Mediterranean). Ann. Ser. Hist. Nat. 2: 99-106., Rodríguez-Cabello 2018Rodríguez-Cabello C., González-Pola C., Rodríguez A., et al. 2018. Insights about depth distribution, occurrence and swimming behavior of Hexanchus griseus in the Cantabrian Sea (NE Atlantic). Reg. Stud. Mar. Sci. 23: 60-72.).

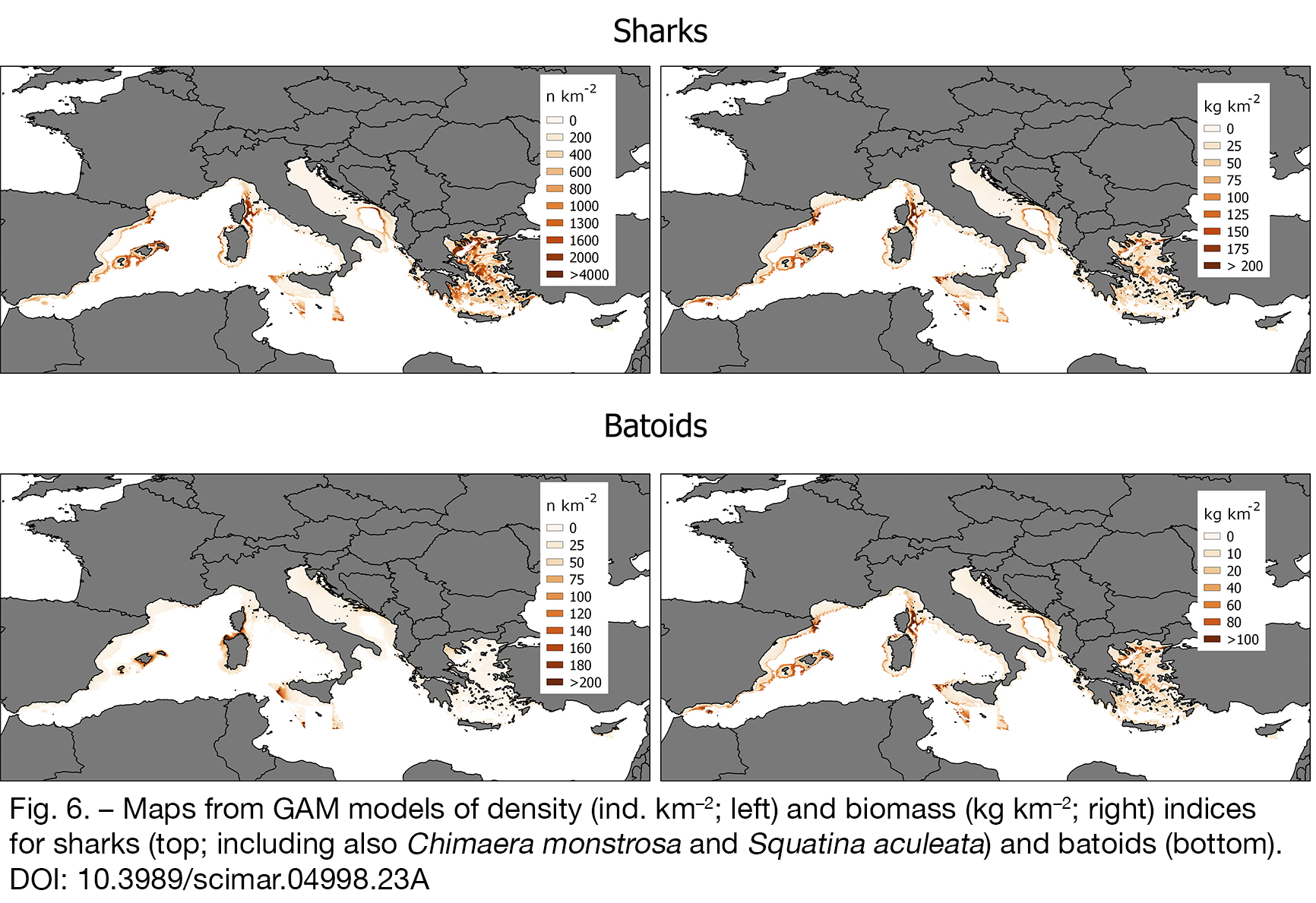

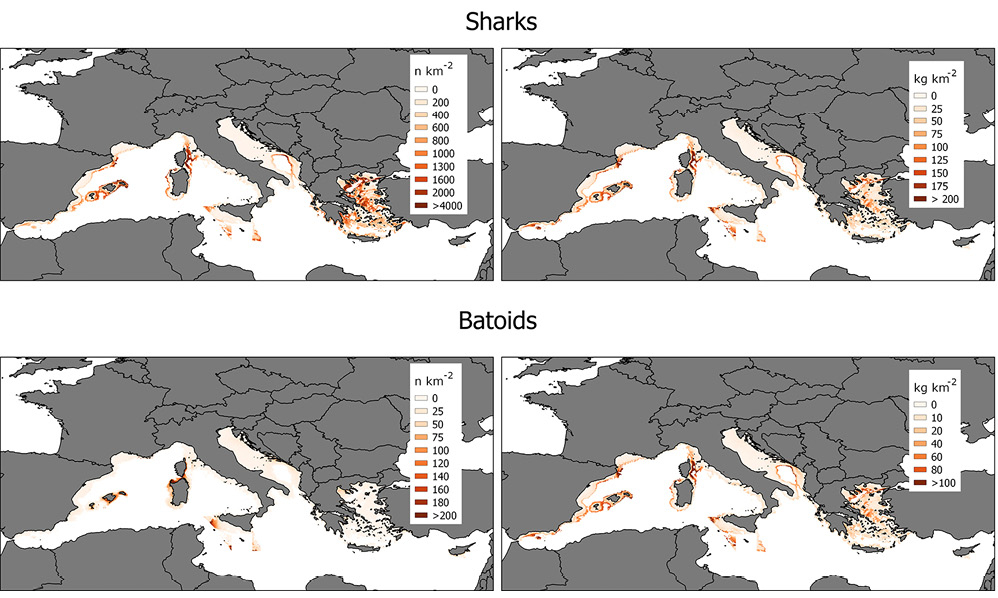

The modelling approach explored in this work has allowed us to produce useful maps to describe the distribution of demersal chondrichthyans in the Mediterranean following environmental drivers and mostly in terms of depth and temperature ranges. Within the current context of global warming, these environmental factors can play a pivotal role in the management and conservation of these species. However, taken into account their vulnerability to fishing exploitation, other factors such as fishing pressure should be incorporated in the future to obtain an exhaustive picture of the distribution, occurrence and abundance of chondrichthyan species inhabiting the Mediterranean. Considering their great number of species and abundance along northern African coasts, and the lack of time series of data available from these waters (Dulvy et al. 2016Dulvy N.K., Allen D.J., Ralph G.M., et al. 2016. The conservation status of Sharks, Rays and Chimaeras in the Mediterranean Sea. IUCN, Malaga, Spain.), the research surveys and investigations should be extended to the southern Mediterranean.

ACKNOWLEDGEMENTSTop

The MEDITS surveys have been carried out within the Data Collection Framework. The European Commission and Member States of the Mediterranean countries are thankfully acknowledged.
