INTRODUCTIONTop
The Triglidae (or gurnards) is a large family of fish of the order Scorpaeniformes, which comprises 8 genera and 125 species dwelling in tropical and temperate marine areas (Richards and Jones 2002Richards W.J., Jones D.L. 2002. Preliminary classification of the gurnards (Triglidae: Scorpaeniformes). N. Z. J. Mar. Freshw. Res. 53: 274-282.). In the Mediterranean Sea, the family is represented by 4 genera (Eutrigla, Trigla, Chelidonichthys and Lepidotrigla) and 8 species (E. gurnardus, T. lyra, C. lucerna, C. cuculus, C. obscurus, C. lastoviza, L. cavillone and L. dieuzeidei). These fish are an important component of demersal assemblages in terms of biomass in both the eastern and western Mediterranean basins (Jukic-Peladic et al. 2001Jukic-Peladic S., Vrgoc N., Krstulovic-Sifner S., et al. 2001. Long-term changes in demersal resources of the Adriatic Sea: comparison between trawl surveys carried out in 1948 and 1998. Fish. Res. 53: 95-104., Labropoulou and Papaconstantinou 2004Labropoulou M., Papaconstantinou C. 2004. Community structure and diversity of demersal fish assemblages: the role of fishery. Sci. Mar. 68S1: 215-226., Massuti and Reñones 2005Massuti E., Reñones O. 2005. Demersal resource assemblages in the trawl fishing grounds off the Balearic Islands (Western Mediterranean). Sci. Mar. 69: 167-181.). Several studies have focused on the life-history traits of these species, such as growth (Papaconstantinou 1981Papaconstantinou C. 1981. Age and growth of piper, Trigla lyra, in Saronikos Gulf (Greece). Cybium 5: 73-87., 1984Papaconstantinou C. 1984. Age and growth of the yellow gurnard (Trigla lucerna L. 1758) from the Thermaikos Gulf (Greece) with some comments on its biology. Fish. Res. 2: 243-255., Colloca et al. 2003)Colloca F., Cardinale M., Marcello A., et al. 2003. Tracing the life history of red gurnard (Aspitrigla cuculus) using validated otolith annual rings. J. Appl. Ichthyol. 19: 1-9. and spawning (Papaconstantinou 1983Papaconstantinou C. 1983. Observations on the ecology of gurnards (Pisces: Triglidae) in the Greek Seas. Cybium 7: 71-88., Vallisneri et al. 2011Vallisneri M., Stagioni M., Montanini S., et al. 2011. Body size, sexual maturity and diet in Chelidonichthys lucerna (Osteichthyes: Triglidae) from the Adriatic Sea, north eastern Mediterranean. Acta Adriat. 51: 141-148., 2012Vallisneri M., Montanini S., Stagioni M. 2012. Size at maturity of triglid fishes in the Adriatic Sea, northeastern Mediterranean. J. Appl. Ichthyol. 28: 123-125.), feeding (Colloca et al. 1994Colloca F., Ardizzone G.D., Gravina M.F. 1994. Trophic ecology of gurnards (Pisces: Triglidae) in the central Mediterranean Sea. Marine Life 4: 45-57., Morte et al. 1997Morte M.S., Redon M.J., Sanz-Brau A. 1997. Trophic relationships between two gurnards Trigla lucerna and Aspitrigla obscura from the western Mediterranean. J. Mar. Biol. Ass. U.K. 77: 527-537., Terrats et al. 2000Terrats A., Petrakis G., Papaconstantinou C. 2000. Feeding habits of Aspitrigla cuculus (L., 1758) (red gurnard), Lepidotrigla cavillone (Lac., 1802) (large scale gurnard) and Trigloporus lastoviza (Brunn., 1768) (rock gurnard) around Cyclades and Dodecanese Islands (E. Mediterranean). Medit. Mar. Sci. 1: 91-104.), as well as on other aspects related to the trophic and habitat partitioning among species (Serena et al. 1990Serena F., Baino R., Voliani A. 1990. Distribuzione dei Triglidi (Osteichthyes, Scorpaeniformes) nell’Alto Tirreno. Oebalia Suppl. XVI: 269-278., Tsimenides et al. 1992Tsimenides N., Machias A., Kallioniotis A. 1992. Distribution patterns of Triglids (Pisces: Triglidae) on the Cretan shelf (Greece), and their interspecific associations. Fish. Res. 15: 83-103., Colloca et al. 2010Colloca F., Carpentieri P., Balestri E., et al. 2010. Food resource partitioning in a Mediterranean demersal fish assemblage: the effect of body size and niche width. Mar. Biol. 157: 565-574.). From an ecological perspective, the 8 gurnard species, along with the closely related African armoured searobin, Peristedion cataphractum, play similar roles in the trophic web, feeding mainly on epibenthic crustaceans (Colloca et al. 1994Colloca F., Ardizzone G.D., Gravina M.F. 1994. Trophic ecology of gurnards (Pisces: Triglidae) in the central Mediterranean Sea. Marine Life 4: 45-57.). Interspecific competition for food is reduced by species segregation across gradients of prey size and habitat type (Morte et al. 1997Morte M.S., Redon M.J., Sanz-Brau A. 1997. Trophic relationships between two gurnards Trigla lucerna and Aspitrigla obscura from the western Mediterranean. J. Mar. Biol. Ass. U.K. 77: 527-537., Colloca et al. 2010Colloca F., Carpentieri P., Balestri E., et al. 2010. Food resource partitioning in a Mediterranean demersal fish assemblage: the effect of body size and niche width. Mar. Biol. 157: 565-574., Montanini et al. 2017Montanini S., Stagioni M., Benni E., et al. 2017. Feeding strategy and ontogenetic changes in diet of gurnards (Teleostea: Scorpaeniformes: Triglidae) from the Adriatic Sea. Eur. Zool. J. 84: 356-367.).
The commercial importance of the Mediterranean gurnards is not negligible. Indeed, the largest-sized species such as C. lucerna, T. lyra, E. gurnardus, C. cuculus and C. lastoviza are a valuable by-catch of demersal fisheries of many Mediterranean sectors (Ordines et al. 2014Ordines F., Farriols M.T., Lleonart J., et al. 2014. Biology and population dynamics of by-catch fish species of the bottom trawl fishery in the western Mediterranean. Medit. Mar. Sci. 15: 613-625.). Although the impact of fishing on the gurnard populations has rarely been examined, Ordines et al. (2014)Ordines F., Farriols M.T., Lleonart J., et al. 2014. Biology and population dynamics of by-catch fish species of the bottom trawl fishery in the western Mediterranean. Medit. Mar. Sci. 15: 613-625. pointed out that some commercially important gurnards, such as C. lastoviza and C. cuculus, have also been affected by the overall overexploitation of commercial stocks in the Mediterranean (Colloca et al. 2013Colloca F., Cardinale M., Maynou F. et al. 2013. Rebuilding Mediterranean fisheries: a new paradigm for ecological sustainability. Fish. Fish. 14: 89-109., Cardinale et al. 2017Cardinale M., Osio G.C., Scarcella G. 2017. Mediterranean Sea: a failure of the European fisheries management system. Front. Mar. Sci. 4: 72.). As a result, their levels of overexploitation are similar to, or even higher than, those detected for some of the most important target species such as hake and red mullet (Ordines et al. 2014Ordines F., Farriols M.T., Lleonart J., et al. 2014. Biology and population dynamics of by-catch fish species of the bottom trawl fishery in the western Mediterranean. Medit. Mar. Sci. 15: 613-625.). As has been demonstrated for the North Atlantic, the trends in the by-catch species (including gurnards), are quite similar to those of the principal target species, showing high exploitation rates and declining stock biomasses during the late 20th century (Cook and Heath 2018Cook R.M., Heath M.R. 2018. Population trends of bycatch species reflect improving status of target species. Fish. Fish. 19: 455-470.).
In the present study we investigated the abundance and distribution of 9 gurnard species over a large spatial scale covering the northern Mediterranean Sea that corresponds to EU waters. The main objective of the study was to elucidate the temporal and spatial variations in species abundances across the northern Mediterranean and to discuss the possible role of fisheries in the observed pattern.
MATERIALS AND METHODSTop
Survey data

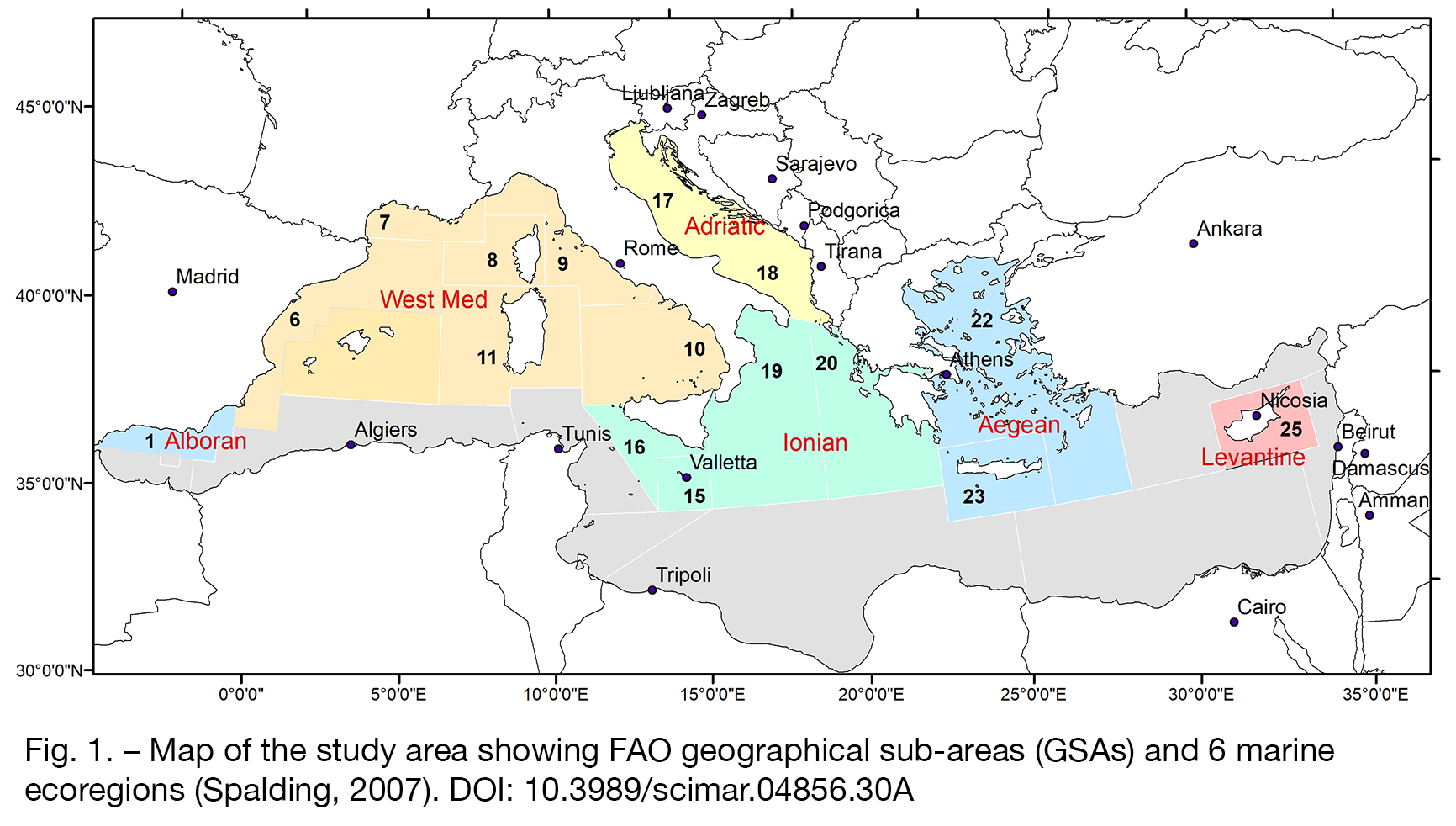

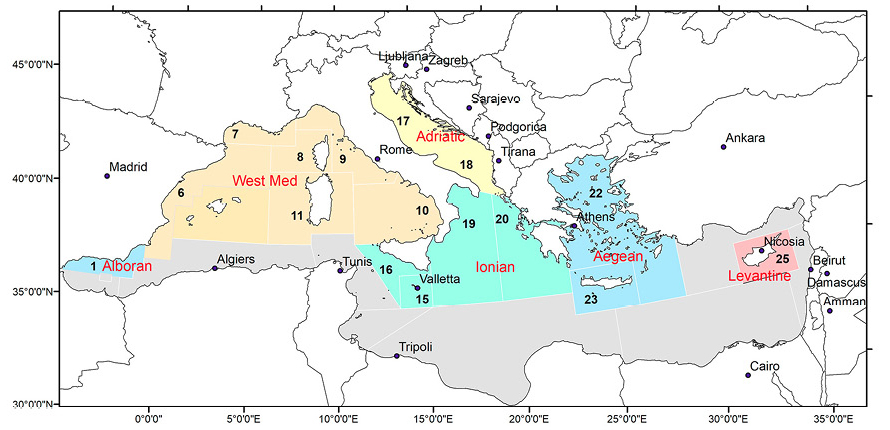

The study was carried out in the framework of the international Mediterranean bottom trawl survey (MEDITS) in the northern Mediterranean using data from 1994 to 2015. The survey incorporated 17 out of the 27 geographical subareas (GSAs) into which the entire Mediterranean has been subdivided and 6 ecoregions (Spalding et al. 2007Spalding M.D., Fox H.E., Allen G.R., et al. 2007. Marine Ecoregions of the World: a bioregionalization of coast and shelf areas. BioScience 57: 573-583 .) from the northern Alboran Sea to Cyprus (Fig. 1). The gurnard data come from 23941 hauls carried out during daytime, mainly from spring to early summer (May-July) at depths of 10 to 800 m. In GSAs 5, 15 and 25, time series were shorter or incomplete, and in GSAs 20, 22, 23 and 25 some years were missing. The sampling procedure was standardized according to a common protocol (Bertrand et al. 2002Bertrand J.A., Gil De Sola L., Papaconstantinou C., et al. 2002. The general specifications of the Medits survey. Sci. Mar. 66: 9-17., Anonymous 2017Anonymous. 2017. MEDITS-Handbook. Version n. 9, MEDITS Working Group, 106 pp. ). For each of the nine species considered, a relative biomass index by haul (BIh) was calculated as the total biomass of the specimens caught per square kilometre (kg km–2). A matrix of 9×23941 BIh values was therefore obtained.
|
||
|
Temporal and spatial trends in relative biomass
BIh values were averaged by year, GSA and ecoregion (Spalding et al. 2007Spalding M.D., Fox H.E., Allen G.R., et al. 2007. Marine Ecoregions of the World: a bioregionalization of coast and shelf areas. BioScience 57: 573-583.) to get annual mean species biomass (BIy) values. The temporal trend in BIy was first calculated for the whole assemblage (i.e. the nine gurnard species pooled together), separately for the continental shelf (0-200 m) and the slope (200-800 m). A more detailed analysis was carried out for each single species at the ecoregion and GSA level to investigate temporal and geographical differences in species abundance. BIy values of a given species in each GSA and ecoregion were calculated for the depth range where 90% of the positive hauls for that species was found (Fig. 2). This was also done in order to eliminate the outliers in the depth distributions and possible errors linked to species misidentification.
|
||
|
The data from the northern Adriatic (GSA 17) were analysed separately for the west (GSA 17a) and east (GSA 17b) side to account for differences due to fishing pressure and/or differences in the environmental characteristics between these two areas.
The proportional rate of change in BIy was calculated between the first and the last 3 years (i.e. 1994-96 and 2013-15) in GSAs 1, 6, 7, 8, 9, 10, 11, 16, 17a, 17b, 18, 19, 20, 22 and 23. In the case of GSAs 5 15 and 25, where the MEDITS time series is shorter, the change in BIy was estimated between 2007-09 and 2013-15 (GSA 5), and 2005-07 and 2013-15 (GSAs 15 and 25).
The non-parametric LOESS smoother was used to find a curve of best fit of species BIy in each GSA and ecoregion over time without assuming that the data must fit to a specific distribution shape (Cleveland et al. 1992Cleveland W.S, Grosse E., Shyu WM. 1992. Local regression models. Chapter 8 of Statistical Models, In: Chambers J.M., Hastie T.J. (eds), Wadsworth & Brooks/Cole Springer-Verlag.). When a significant linear trend in species relative biomass occurred over time, this was indicated either in the GSAs or in the ecoregions. Results were finally summarized using the “traffic light” representation.

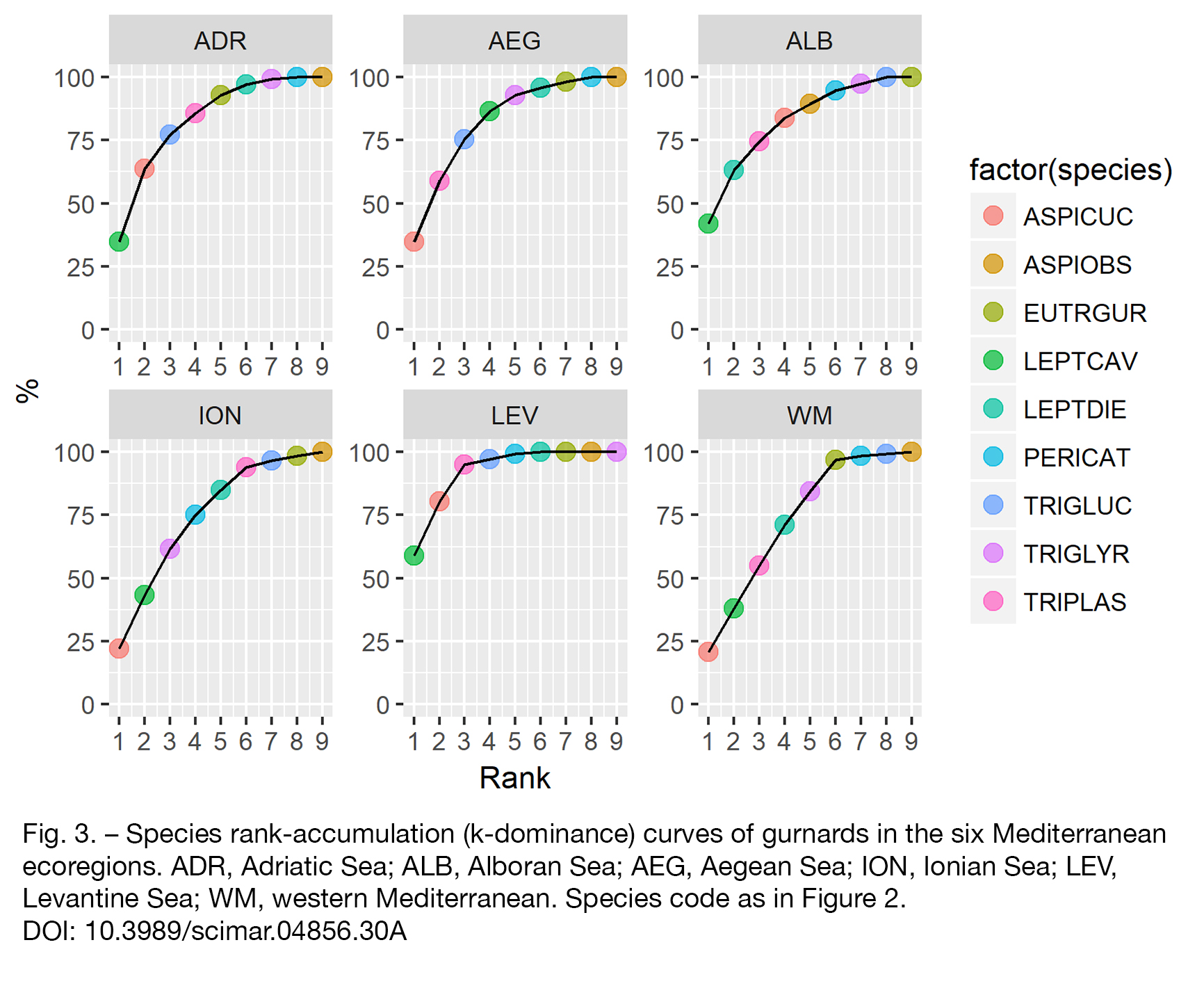

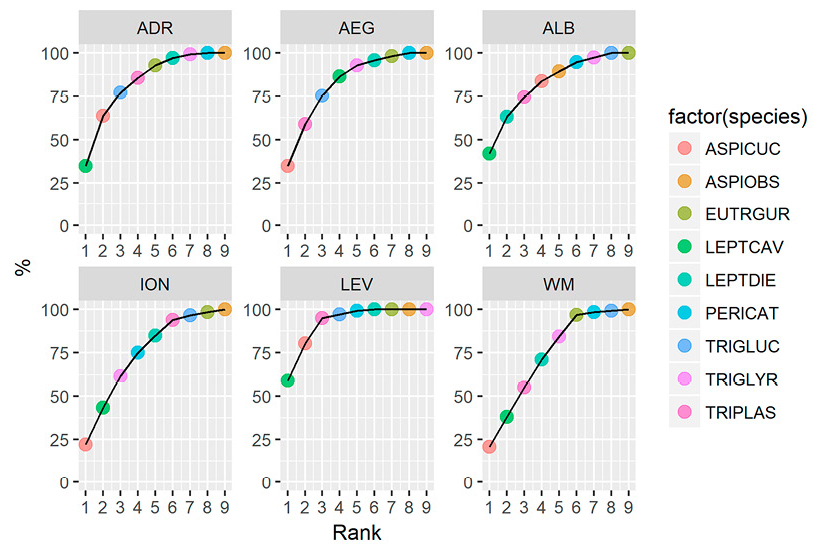

Species dominance was explored in each ecoregion by means of k-dominance curves produced using the R package BiodiversityR (Kindt and Coe 2005Kindt R., Coe R. 2005. Tree diversity analysis. A manual and software for common statistical methods for ecological and biodiversity studies. World Agroforestry Centre (ICRAF), Nairobi.).
RESULTSTop
Geographical pattern in gurnard composition
There were clear differences in gurnard composition among Mediterranean ecoregions (Fig. 3). The species guilds appeared similar in the Ionian Sea (ION) and the western Mediterranean, where the most abundant species was C. cuculus, accounting for about 25% of the observed relative biomass, also accounting for more than 80% combined with four other species (L. cavillone, L. dieuzeidei, C. lastoviza, T. lyra). In the Adriatic Sea (ADR), the guild was dominated by L. cavillone and C. cuculus, accounting together for more than 60% of the species biomass, while in the Alboran Sea the dominant species were the two Lepidotrigla. A very different pattern arose in the Levantine (Cyprus, GSA 25), where three species (L. cavillone, C. cuculus and C. lastoviza) accounted for more than 90% of the relative biomass. Finally, in the Aegean region, C. cuculus, C. lastoviza and C. lucerna accounted for about 75% of the total biomass.
|
||
|
Trends in the overall gurnard abundance

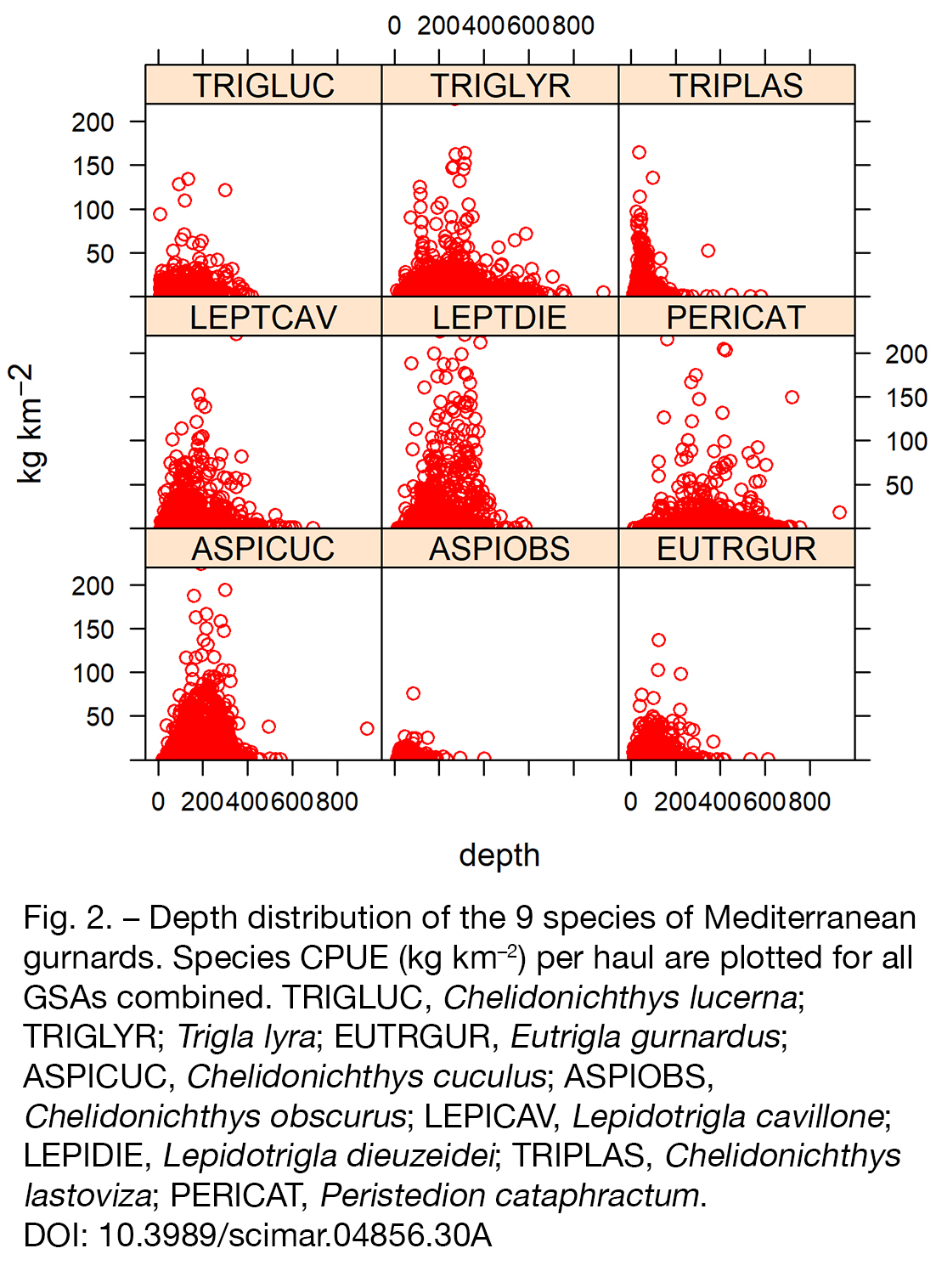

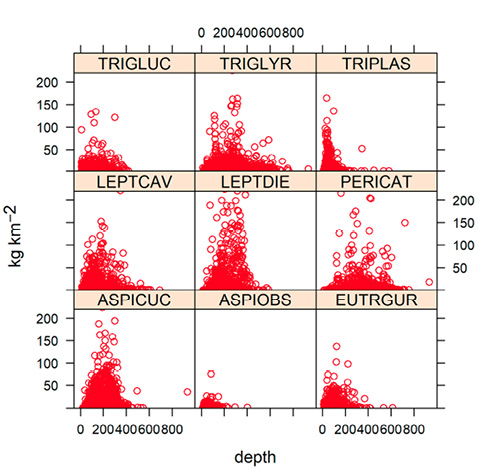

Gurnards were generally more abundant on the continental shelf (0-200 m, Table 1) than on the slope (200-800 m, Table 2). The highest gurnard biomass index (BIy) was found on the shelves of Malta (GSA 15, 112.2 kg km–2) and the Balearic Islands (GSA 5, 86.4 kg km–2) during the period 2013-2015 and on the shelves of the eastern Ionian Sea (GSA 20, 71.3 kg km–2) during the period 2004-2008. The lowest values appeared on the Italian side of the northern Adriatic (GSA 17a, 3.9 kg km–2), the Alboran Sea (GSA 1, 6.2 kg km–2) and the west coasts of Italy (GSA 9, 9.5 kg km–2 and GSA 10, 5.1 kg km–2) (Table 1).
Table 1. – Mean MEDITS biomass index (BIy: kg km–2) of gurnards (all species pooled) on the continental shelf (0-200 m) per GSA and year from 1994 to 2015. The proportional rate of change (% change) in BIy was calculated between the first and the last three years of the time series in the GSAs where a significant linear trend in BIy was found.
| GSA | 94 | 95 | 96 | 97 | 98 | 99 | 00 | 01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | 11 | 12 | 13 | 14 | 15 | % change |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 2.1 | 4.5 | 2.8 | 2.3 | 7.9 | 8.9 | 3.9 | 5.1 | 3.3 | 1.6 | 8.1 | 5.8 | 28.7 | 21.7 | 6.3 | 7.7 | 0.4 | 10.9 | 2.4 | 2.6 | 10.9 | 5.2 | |
| 5 | 129.7 | 54.3 | 69.8 | 116.7 | 134.8 | 120.9 | 62.8 | 141.0 | 55.6 | ||||||||||||||
| 6 | 9.2 | 17.0 | 6.2 | 7.8 | 16.1 | 9.2 | 13.4 | 13.1 | 4.1 | 5.1 | 8.9 | 10.4 | 15.8 | 18.5 | 4.9 | 12.8 | 14.4 | 23.0 | 9.4 | 18.5 | 17.7 | 18.0 | 66.8 |
| 7 | 79.6 | 146.0 | 101.9 | 42.1 | 43.9 | 80.2 | 59.5 | 69.0 | 70.3 | 54.7 | 41.8 | 39.1 | 54.4 | 55.3 | 72.4 | 65.0 | 49.7 | 40.6 | 53.9 | 77.3 | 28.0 | 27.0 | –59.6 |
| 8 | 26.1 | 39.9 | 46.6 | 62.1 | 23.8 | 50.6 | 25.4 | 29.5 | 25.6 | 20.4 | 32.2 | 38.1 | 39.2 | 54.5 | 52.2 | 29.9 | 42.6 | 56.2 | 58.3 | 41.1 | 38.9 | ||
| 9 | 12.9 | 15.3 | 17.7 | 17.0 | 18.3 | 16.0 | 15.1 | 10.7 | 12.3 | 35.6 | 17.1 | 10.0 | 6.3 | 11.8 | 13.1 | 14.0 | 18.6 | 12.4 | 8.6 | 9.5 | 9.8 | 9.2 | |
| 10 | 11.4 | 16.7 | 15.5 | 8.5 | 17.1 | 11.9 | 14.3 | 14.6 | 12.1 | 15.5 | 4.3 | 9.6 | 9.9 | 13.8 | 4.9 | 13.4 | 11.1 | 12.5 | 12.1 | 6.0 | 7.0 | 2.2 | –65.1 |
| 11 | 39.7 | 28.5 | 35.9 | 34.5 | 39.4 | 65.4 | 26.6 | 85.6 | 38.0 | 60.1 | 33.7 | 57.4 | 45.0 | 86.4 | 24.6 | 43.5 | 40.0 | 43.8 | 47.0 | 17.1 | 15.8 | 29.7 | |
| 15 | 45.7 | 88.8 | 83.8 | 127.4 | 95.9 | 51.7 | 97.8 | 75.0 | 75.3 | 166.4 | 94.8 | ||||||||||||
| 16 | 7.9 | 41.2 | 20.4 | 32.6 | 19.0 | 13.3 | 26.7 | 16.8 | 33.7 | 36.4 | 40.6 | 47.1 | 47.5 | 46.0 | 59.3 | 60.1 | 67.3 | 32.1 | 31.3 | 41.6 | 46.9 | 32.5 | 74.0 |
| 17a | 3.3 | 3.2 | 6.1 | 3.7 | 2.2 | 18.3 | 10.1 | 5.4 | 13.9 | 6.1 | 6.2 | 8.0 | 7.1 | 3.8 | 4.3 | 2.1 | 3.3 | 3.4 | 2.9 | 2.6 | 4.9 | 4.2 | |
| 17b | 26.2 | 14.0 | 11.7 | 27.6 | 13.7 | 40.7 | 24.0 | 33.3 | 27.4 | 20.7 | 23.0 | 29.8 | 28.3 | 20.9 | 8.7 | 18.0 | 12.7 | 10.1 | 20.5 | ||||
| 18 | 2.7 | 3.4 | 2.8 | 2.8 | 3.4 | 19.9 | 8.3 | 19.9 | 26.4 | 8.2 | 10.2 | 26.4 | 10.7 | 10.3 | 13.9 | 17.0 | 21.7 | 15.0 | 22.4 | 9.0 | 8.6 | 1.6 | |
| 19 | 8.5 | 5.0 | 2.5 | 0.6 | 4.4 | 3.0 | 3.7 | 2.9 | 31.0 | 11.9 | 29.8 | 13.4 | 8.7 | 5.8 | 10.9 | 4.5 | 5.3 | 6.6 | 20.4 | 16.4 | 14.1 | 7.2 | |
| 20 | 8.7 | 13.2 | 69.9 | 33.9 | 39.4 | 27.1 | 30.0 | 40.7 | 45.1 | 48.4 | 114.9 | 65.9 | 56.0 | 21.8 | |||||||||
| 22 | 41.7 | 29.4 | 31.9 | 27.3 | 27.4 | 30.1 | 44.8 | 29.1 | 60.7 | 43.7 | 51.3 | 30.4 | 43.6 | 30.2 | |||||||||
| 23 | 20.6 | 29.6 | 28.4 | 19.6 | 42.7 | 41.0 | 14.7 | 21.2 | 54.7 | 22.2 | 23.2 | 15.1 | 41.1 | 15.1 | |||||||||
| 25 | 12.3 | 14.4 | 22.0 | 10.7 | 12.0 | 6.5 | 10.4 | 15.7 | 43.3 | 26.2 |
Table 2. – Mean MEDITS biomass index (BIy: kg km–2) of gurnards (all species pooled) on the continental slope (200-800 m) per GSA and year from 1994 to 2015. The proportional rate of change (% change) in BIy was calculated between the first and the last three years of the time series in the GSAs where a significant linear trend in BIy was found.
| GSA | 94 | 95 | 96 | 97 | 98 | 99 | 00 | 01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | 11 | 12 | 13 | 14 | 15 | % change |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 0.0 | 0.3 | 0.0 | 0.1 | 0.0 | 0.0 | 0.0 | 0.1 | 0.3 | 0.1 | 0.0 | 0.0 | 0.2 | 0.2 | 0.0 | 0.0 | 0.0 | 0.4 | 0.2 | 0.0 | 0.1 | 0.3 | |
| 5 | 25.9 | 33.3 | 35.4 | 25.5 | 27.6 | 23.9 | 29.7 | 16.3 | 15.4 | –35.1 | |||||||||||||
| 6 | 0.2 | 0.5 | 1.1 | 0.5 | 0.2 | 0.0 | 6.9 | 3.5 | 1.0 | 0.3 | 0.7 | 1.4 | 4.8 | 2.9 | 1.7 | 3.4 | 0.6 | 5.1 | 1.8 | 1.4 | 1.9 | 5.0 | |
| 7 | 8.0 | 58.5 | 44.8 | 30.8 | 27.5 | 62.8 | 63.4 | 44.3 | 26.4 | 51.8 | 39.3 | 44.4 | 27.0 | 31.4 | 32.0 | 67.1 | 46.8 | 57.3 | 50.1 | 19.6 | 55.4 | 62.3 | |
| 8 | 38.1 | 41.9 | 37.7 | 26.9 | 37.1 | 32.6 | 10.7 | 37.1 | 20.3 | 32.4 | 28.3 | 48.6 | 47.3 | 26.0 | 19.2 | 23.9 | 23.5 | 13.5 | 16.5 | 25.6 | 21.2 | –46.3 | |
| 9 | 0.9 | 2.0 | 1.4 | 1.1 | 0.9 | 0.3 | 1.1 | 0.6 | 1.0 | 1.1 | 1.8 | 1.1 | 1.2 | 0.7 | 0.8 | 6.3 | 1.8 | 1.2 | 4.2 | 4.2 | 2.3 | 1.8 | 88.0 |
| 10 | 0.7 | 1.2 | 1.8 | 1.7 | 4.8 | 1.5 | 3.5 | 0.8 | 1.5 | 3.1 | 3.0 | 6.0 | 4.4 | 2.0 | 4.4 | 4.9 | 5.4 | 3.2 | 3.7 | 5.1 | 2.1 | 1.5 | 136.0 |
| 11 | 12.2 | 9.5 | 33.0 | 14.8 | 19.6 | 10.5 | 10.2 | 22.8 | 28.4 | 10.3 | 4.5 | 14.3 | 2.3 | 12.5 | 3.2 | 7.3 | 4.6 | 6.2 | 8.9 | 4.4 | 1.8 | 9.7 | –63.9 |
| 15 | 58.6 | 27.3 | 1.3 | 40.3 | 36.8 | 36.5 | 65.7 | 49.9 | 24.3 | 23.9 | 36.7 | ||||||||||||
| 16 | 6.0 | 1.3 | 4.8 | 0.4 | 1.3 | 0.7 | 0.4 | 2.1 | 4.0 | 9.8 | 2.1 | 6.9 | 6.1 | 10.7 | 16.8 | 24.5 | 4.7 | 5.8 | 5.9 | 4.1 | 1.1 | 4.7 | |
| 17a | 0.0 | 0.1 | 2.4 | 2.0 | 3.7 | 13.3 | 3.9 | 0.4 | 21.1 | 13.0 | 5.8 | 0.9 | 1.2 | 2.5 | 3.9 | 1.1 | 4.4 | 0.4 | 0.1 | 1.1 | 8.6 | 2.0 | |
| 17b | 2.2 | 11.3 | 1.1 | 112.4 | 20.8 | 1.7 | 1.4 | 0.6 | 1.6 | 5.7 | 3.2 | 0.0 | 0.4 | 15.1 | 0.3 | 5.9 | 1.4 | 6.1 | 4.7 | ||||
| 18 | 5.7 | 6.6 | 9.5 | 1.2 | 0.9 | 29.5 | 4.8 | 4.1 | 14.6 | 3.4 | 14.1 | 7.3 | 2.6 | 15.7 | 8.5 | 12.3 | 2.7 | 2.1 | 5.1 | 2.7 | 4.2 | 2.9 | |
| 19 | 0.0 | 0.1 | 0.2 | 0.3 | 0.0 | 0.1 | 0.3 | 0.9 | 0.2 | 0.5 | 0.7 | 0.2 | 0.9 | 0.7 | 0.2 | 0.3 | 0.4 | 2.2 | 0.4 | 1.8 | 0.4 | 0.9 | 875.6 |
| 20 | 12.6 | 0.0 | 8.1 | 1.1 | 7.8 | 25.0 | 14.7 | 24.4 | 52.1 | 39.6 | 39.0 | 34.0 | 41.8 | 15.2 | 448.3 | ||||||||
| 22 | 6.7 | 8.5 | 10.2 | 8.1 | 14.3 | 21.9 | 17.9 | 9.7 | 28.9 | 25.8 | 19.8 | 16.0 | 29.9 | 8.1 | |||||||||
| 23 | 8.9 | 0.4 | 14.0 | 13.8 | 24.7 | 28.8 | 16.9 | 28.7 | 40.5 | 31.0 | 27.5 | 18.1 | 14.8 | 9.2 | |||||||||
| 25 | 17.0 | 33.9 | 19.0 | 11.3 | 21.5 | 14.7 | 9.7 | 14.3 | 8.7 | 30.1 |

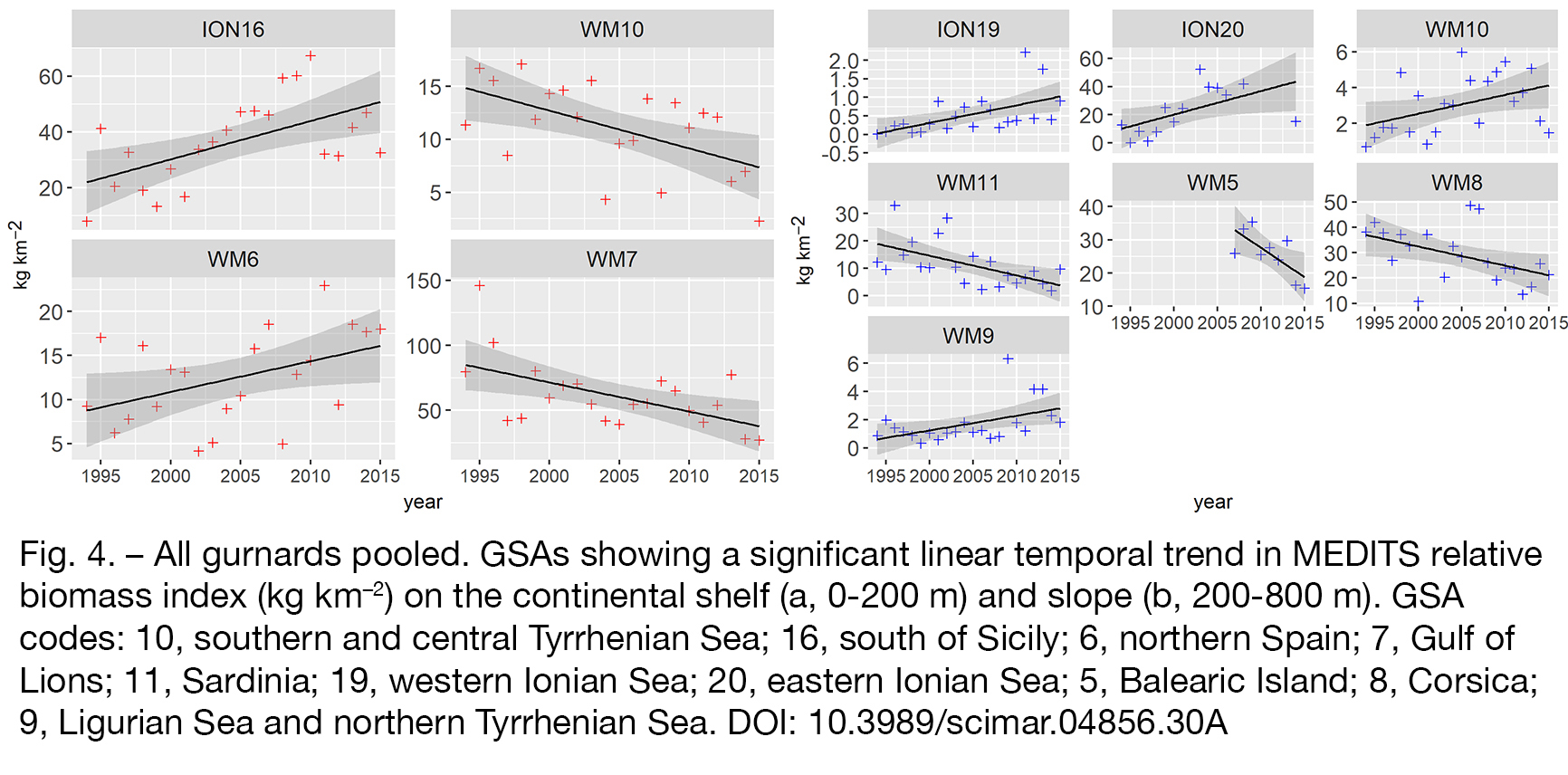

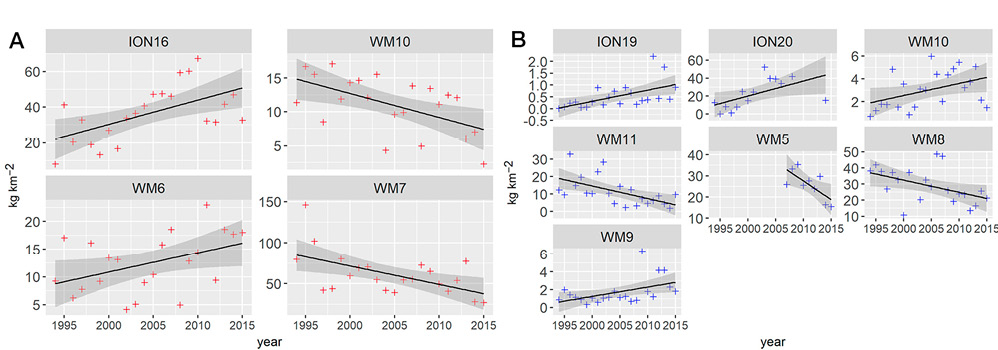

The shelf areas where a significant negative linear trend in BIy was found were the Gulf of Lions (GSAs 7, r2=0.27, p<0.01) and the southern Tyrrhenian Sea (r2=0.28, p<0.01) while the trend was positive in northern Spain (GSAs 6, r2=0.30, p<0.05) and south of Sicily (GSA 16, r2=0.30, p<0.01) (Fig. 4A).
|
||
|
The highest mean BIy values of gurnards on the continental slope in the last three years of the time series were found in the Gulf of Lions (45.8 kg km–2), Maltese waters (28.3 kg km–2) and the eastern Ionian Sea (38.6 kg km–2 in 2004-2008). For the same period, the lowest relative biomass (BIy <3.0 kg km–2) occurred in the Alboran, western Ionian, northern Tyrrhenian and Ligurian seas, as well as on the Italian side of GSA 17. Gurnard BIy increased linearly over time in the Tyrrhenian and Ligurian seas [GSA 9 (r2=0.19, p<0.05) and GSA 10 (r2=0.14, p<0.05] and in the Ionian Sea [GSA 19 (r2=0.27, p<0.01) and GSA 20 (r2=0.26, p<0.05]. A linear decrease occurred in the Balearic Islands (r2=0.44, p<0.05), eastern Corsica (r2=0.18, p<0.05) and Sardinia (r2=0.29, p<0.05) (Fig. 4B).
Temporal trends in species abundance

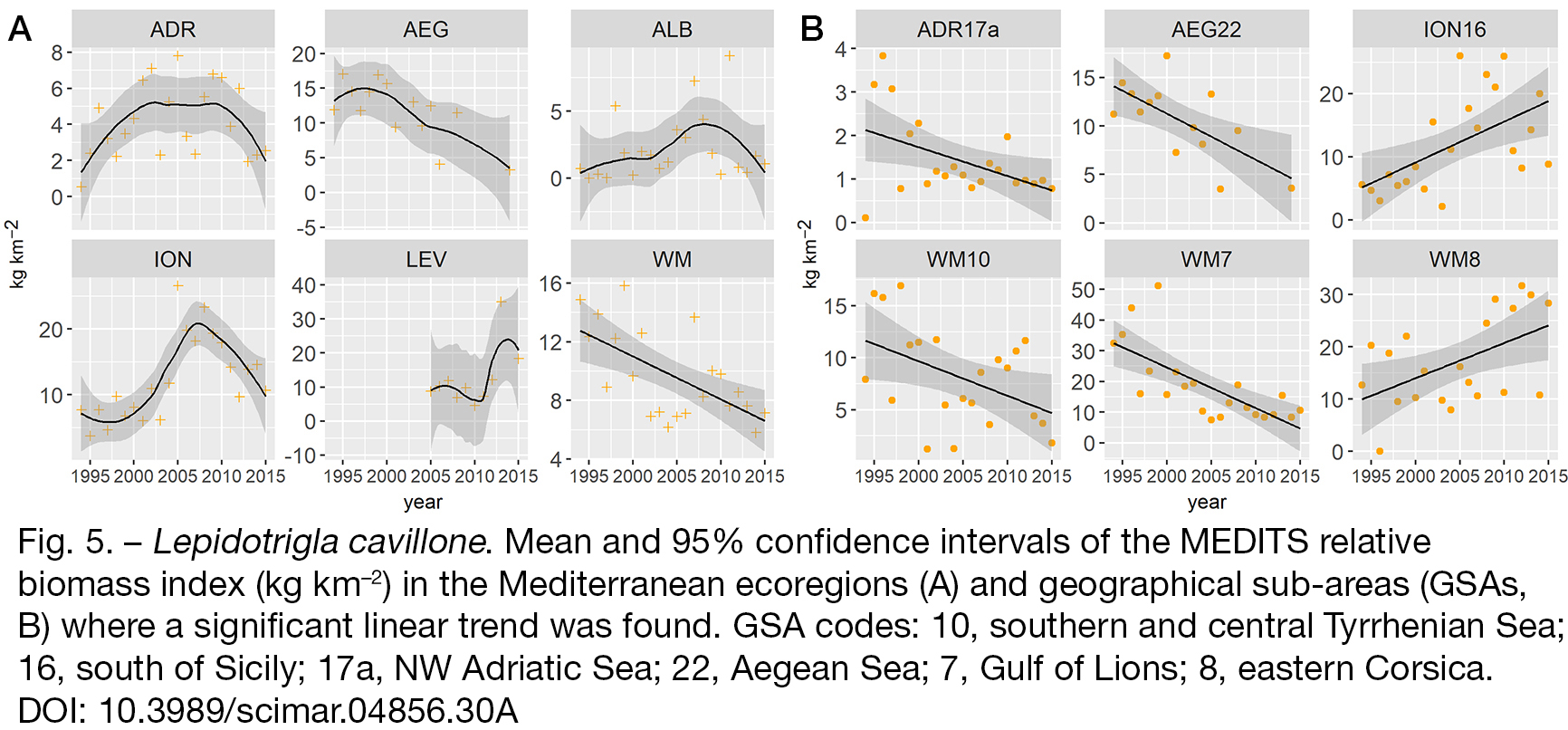

Lepidotrigla cavillone
The large-scaled gurnard was mostly distributed on the outer shelf between 36 and 187 m depth. It displayed an almost linear decrease in relative biomass in the western Mediterranean (r2=0.38, p<0.01) and in the Aegean ecoregion (r2=0.49, p<0.01), while it increased in the Ionian ecoregion (r2=0.27, p<0.01) (Fig. 5).
|
||
|
At the GSA level a positive linear trend was found in the south of Sicily (r2=0.27, p<0.01), where there was a 224% increase in BIy in 2013-2015 compared with the beginning of MEDITS, and in eastern Corsica (GSA 8, +109%: r2=0.22, p<0.05). The trend was significantly decreasing in the Gulf of Lions (–69%: r2=0.48, p<0.01), in the southern Tyrrhenian (–75%; r2=0.17, p<0.05) and northwestern Adriatic seas (–63%: r2=0.18, p<0.05) (Fig. 5B; Appendix 1). During the period 2013-2015 the highest relative species abundances occurred in Cyprus (26.7 kg km–2), Maltese waters (26.2 kg km–2) and eastern Corsica (GSA 8: 23.0 kg km–2). High BIy was also found in the eastern Ionian Sea (36 kg km–2) during the period 2004-2008 (Appendix 1). By contrast, very low abundances (BIy<1.5 kg km–2) were found in the western sector of the Adriatic Sea and in the western Ionian and Alboran seas.

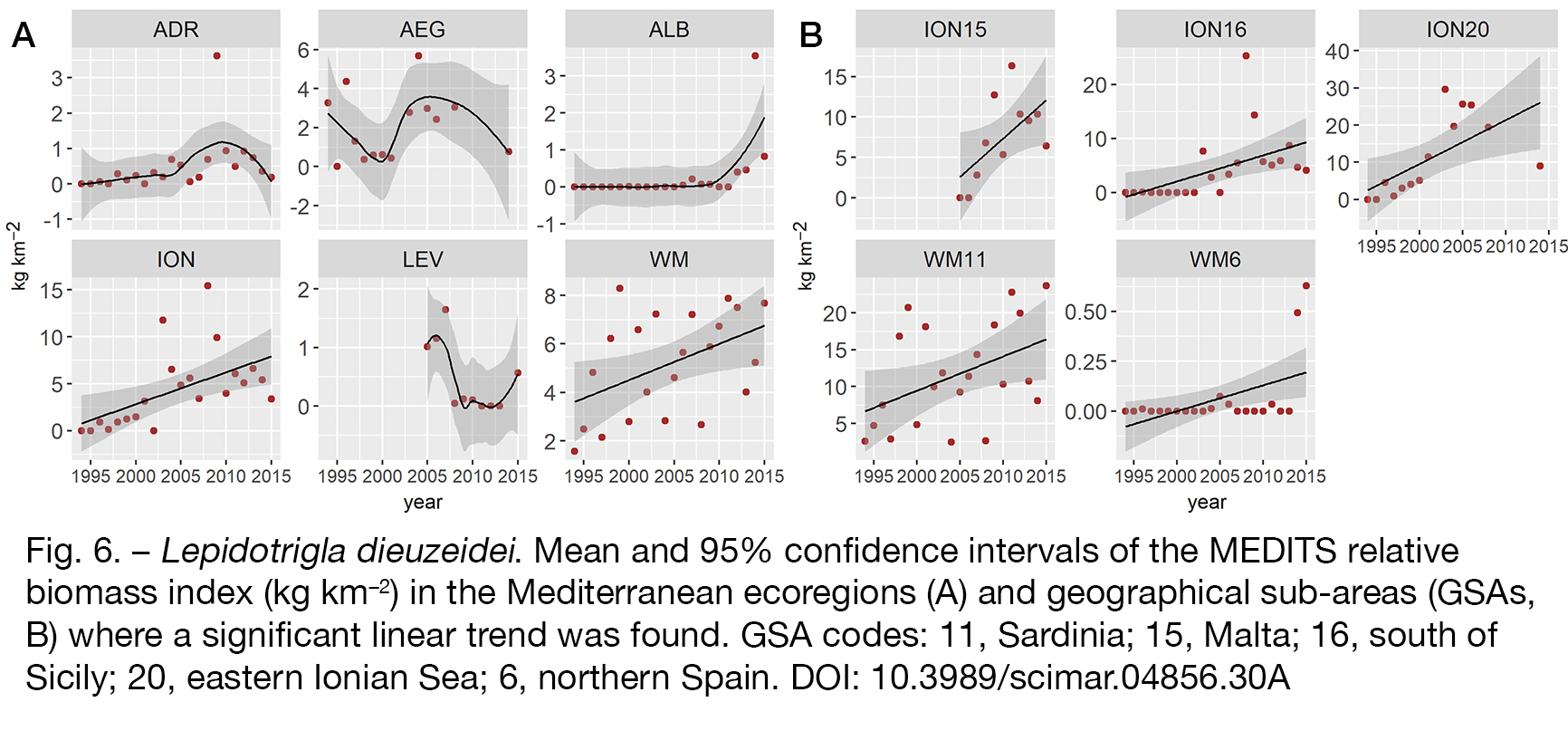

Lepidotrigla dieuzeidei
The bulk of the MEDITS catch of spiny gurnard was obtained at depths ranging from 70 to 360 m, with the highest abundances in 2013-2015 found in eastern Corsica (25.7 kg km–2), Sardinia (14.2 kg km–2), the Balearic Islands (10.0 kg km–2), the eastern Ionian Sea (9.0 kg km–2) and Malta (8.8 kg km–2, Appendix 2). The species showed a significant increasing trend in the western Mediterranean (r2=0.21, p<0.05) and Ionian ecoregions (r2=0.25, p<0.05) during the study period (Fig. 6A). A significant linear trend was found in Sardinia (r2=0.15, p<0.05), the Ionian GSAs 15 (r2=0.30, p<0.05), 16 (r2=0.23, p<0.05) and 20 (r2=0.34, p<0.05) and northernern Spain (r2=0.22, p<0.05) (Fig. 6B). The species was absent from GSAs 19 and 23, with records also lacking in several other GSAs, especially during the first MEDITS period (1994-2000, Appendix 2), possibly due to misidentifications and confusion with the congeneric L. cavillone.
|
||
|
Lepidotrigla spp.
Appendix 3 shows the abundances and trends in the relative biomass of the two Lepidotrigla species combined for the 26-360 m depth range, where more than 90% of the positive hauls for the two species were found. The resulting pattern is not very different from the one observed for the large-scaled gurnard, which was more abundant than the spiny gurnard in most of the GSAs. The main differences were a significant increase in the Alboran Sea (+918% in BIy), mostly due to the occurrence of the spiny gurnard in the catch of the last three years, and a decrease in the Aegean Sea (–55.1% in BIy).

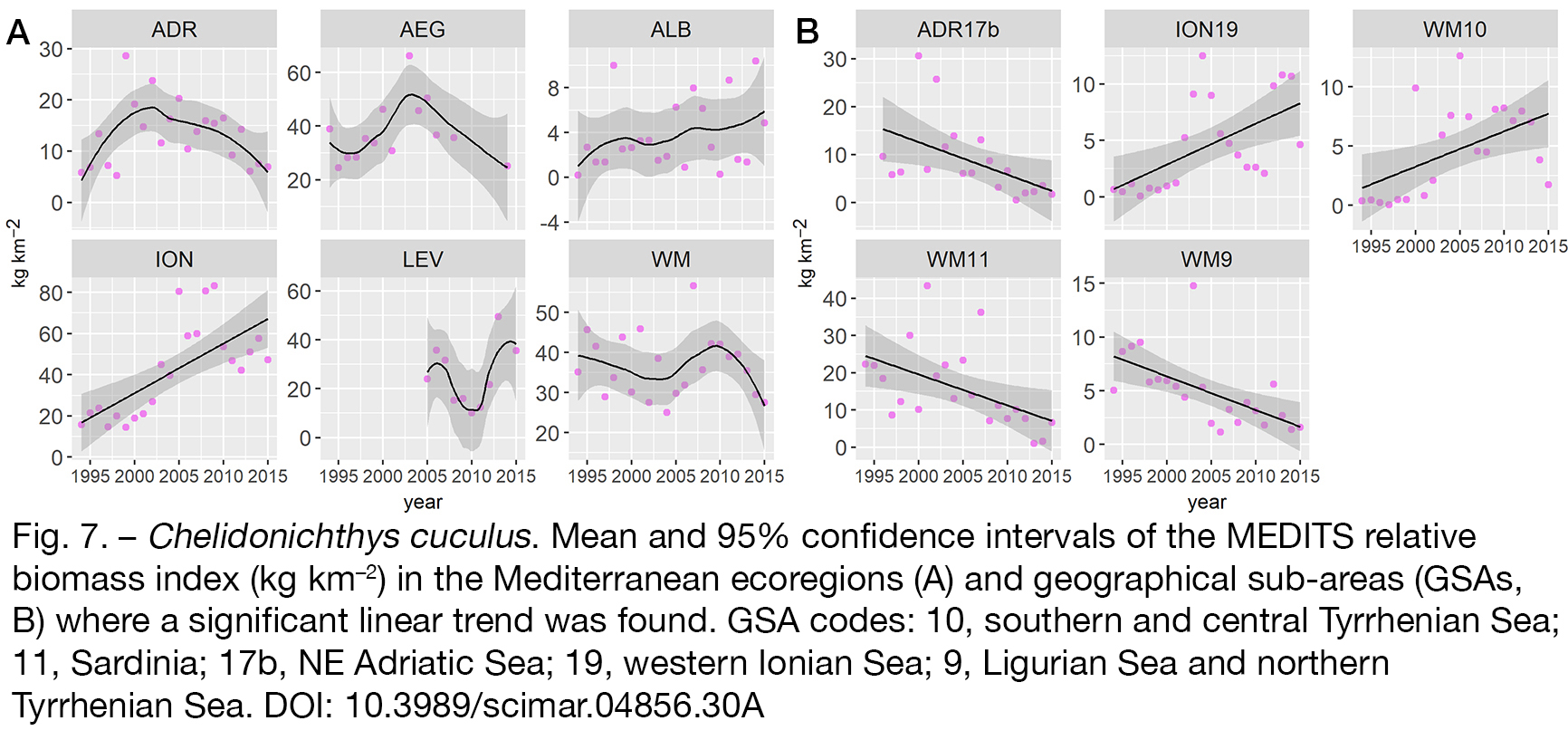

Chelidonichtys cuculus
Red gurnard was mostly distributed between 60 and 270 m, where it achieved the highest relative abundance in the period 2013-2015 in the Balearic Islands (43.8 kg km–2), south of Sicily (19.8 kg km–2), Malta (13.2 kg km–2) and the Aegean Sea (GSA 22: 11.5 kg km–2, Appendix 4). A positive trend (r2=0.46, p<0.01) was found in the Ionian ecoregion, with a strong increasing trend in the western Ionian Seas (+1039%, r2=0.34, p<0.01) (Fig. 7A and Appendix 4). In the western Mediterranean, the BIy fluctuated from 1994 with a contrasted spatial pattern: a sharply increasing trend in the southern Tyrrhenian (+1102%, r2=0.22, p<0.05) and a decreasing trend in the northern Tyrrhenian and Ligurian Seas (–75.0%, r2=0.34, p<0.01) and in Sardinia (–85%, r2=0.21, p<0.05) (Fig. 7). In the Adriatic Sea the species was much more abundant on the east side, where, however, it declined significantly from the 1990s (–73.7%, r2=0.21, p<0.05) (Fig. 7B, Appendix 4).
|
||
|

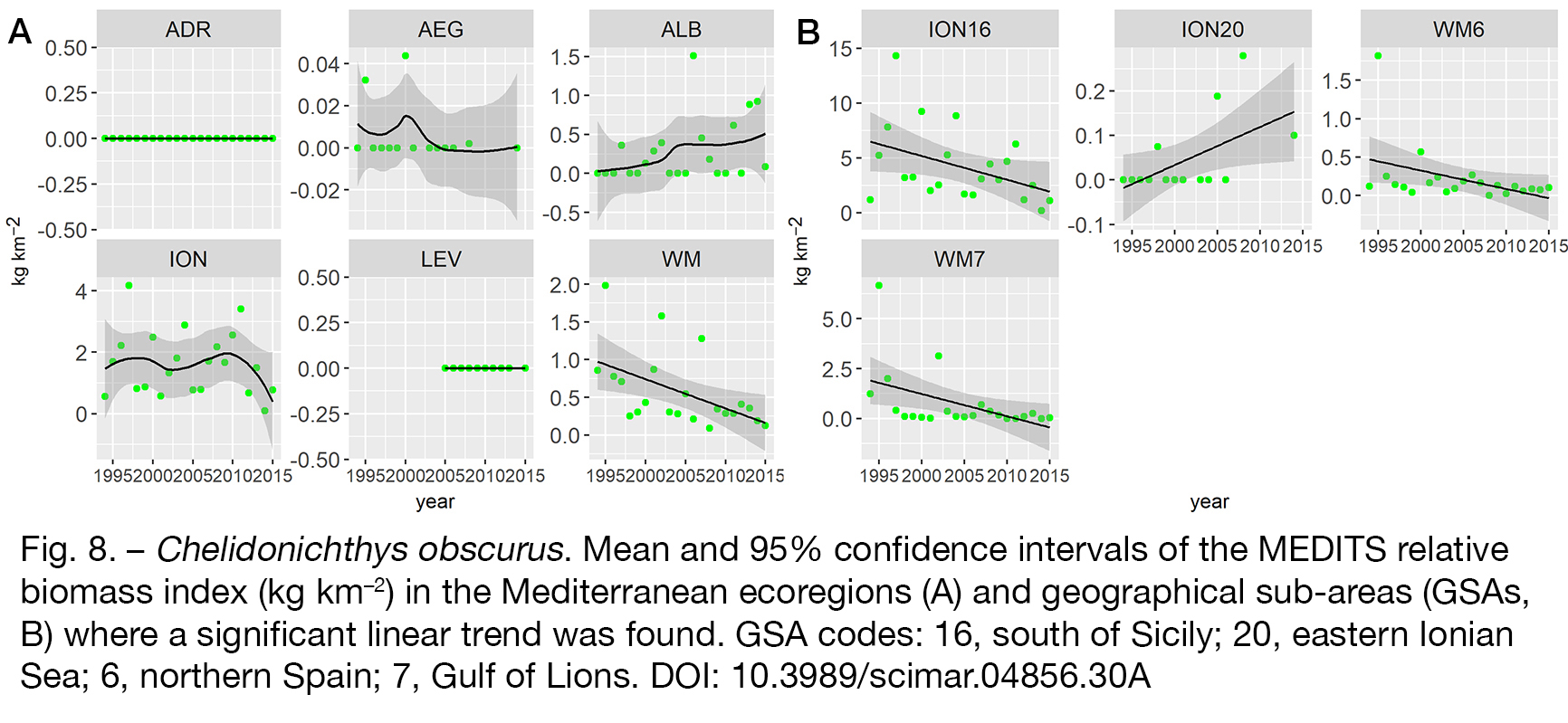

Chelidonichthys obscurus
The longfin gurnard is a shelf species, mostly occurring between 20 and 120 m depth. It was absent in the Adriatic and Levantine ecoregions, occurring sporadically at a very low relative biomass in the Aegean Sea (Fig. 8A). The temporal trend showed a significant decrease in the western Mediterranean (r2=0.21, p<0.05, Fig. 8A) where a linear reduction appeared in GSAs 6 (–88%: r2=0.13, p<0.05) and 7 (–96%, r2=0.21, p<0.05, Fig. 8B). The highest recent (2013-2015) BIy was found in southern Sicily (1.3 kg km–2), where, however, the species abundance decreased linearly (r2=0.14, p<0.05), and in Sardinia (0.9 kg km–2) (Fig. 8B, Appendix 5). The only area where the species increased linearly through time was the eastern Ionian Sea (r2=0.23, p<0.05, Fig. 8B).
|
||
|

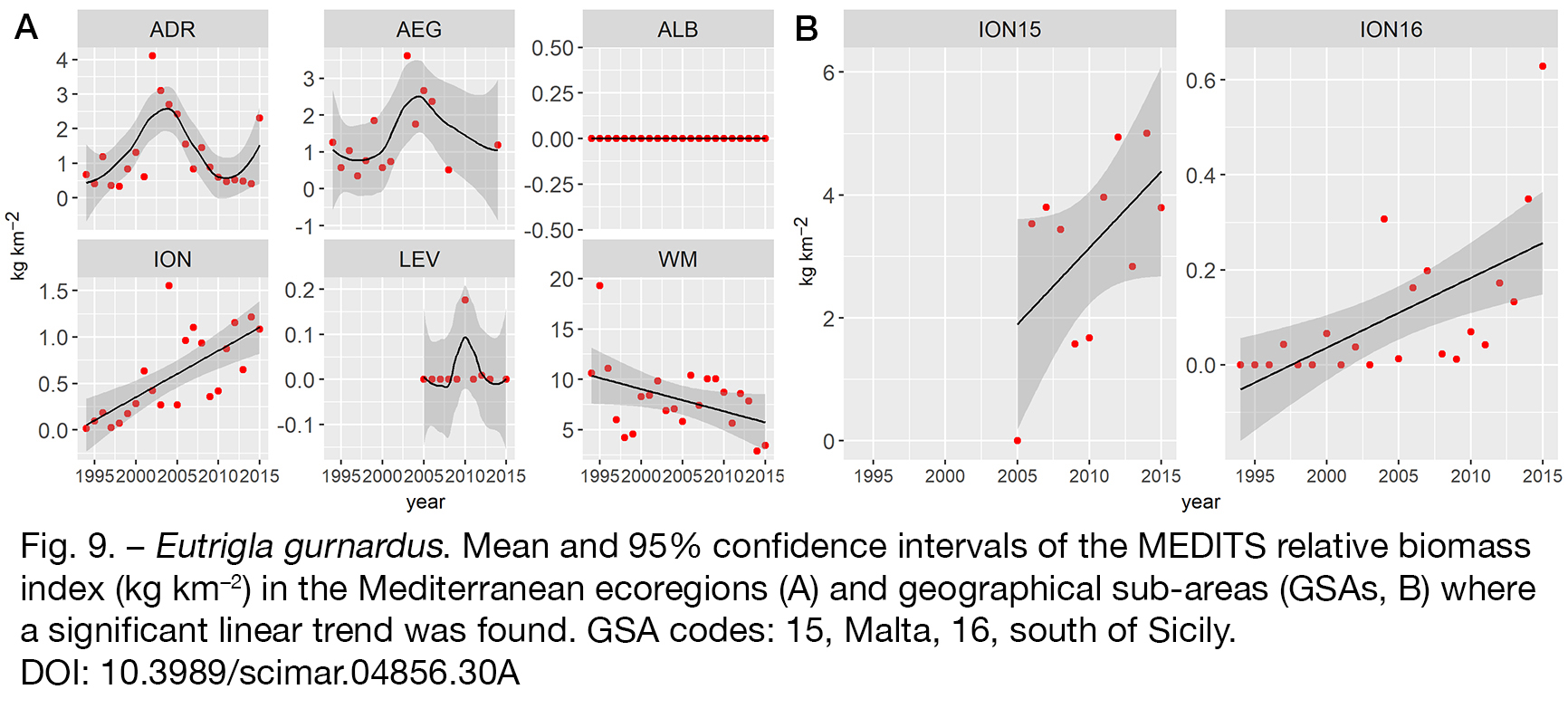

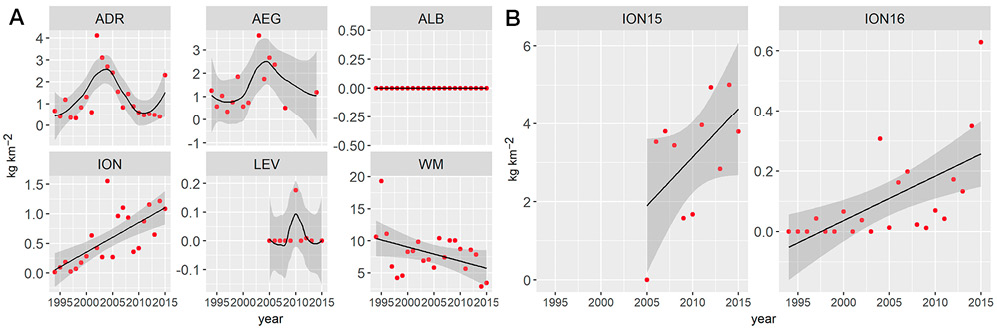

Eutrigla gurnardus
The grey gurnard was more abundant on the continental shelf (30-165 m) of the western Mediterranean region and particularly in the Gulf of Lions. In this area the species was several times more abundant (19.4 kg km–2) than elsewhere. In the other ecoregions (Fig. 9A), it was found at a very low relative abundance and it was absent from the Alboran and southern Tyrrhenian seas, Crete and Cyprus (Fig. 9B and Appendix 6). A significant and positive linear trend in BIy was found in the Ionian region (r2=0.48, p<0.01) and specifically in Malta (+58.8%, r2=0.21, p<0.05) and south of Sicily (+11000%, r2=0.34, p<0.01, Fig. 9B).
|
||
|

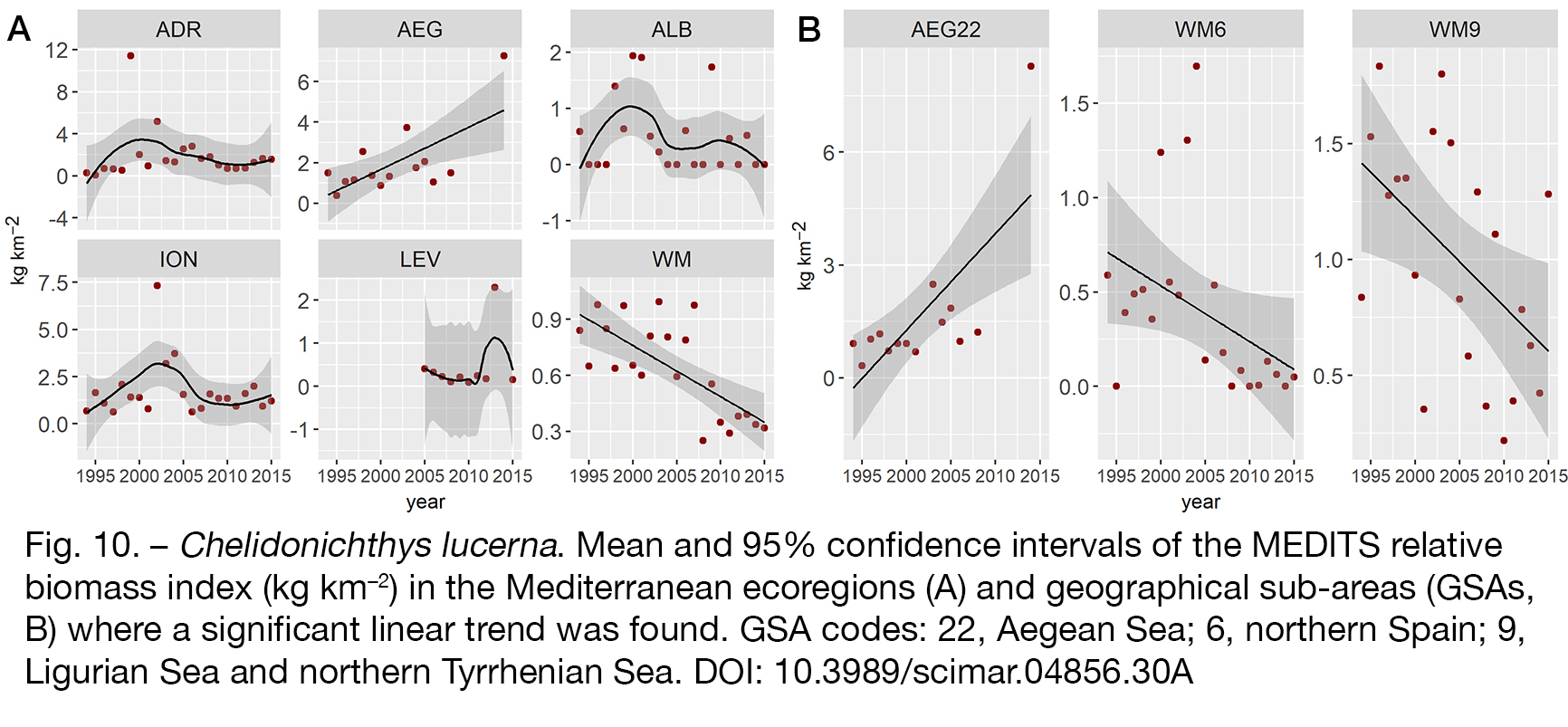

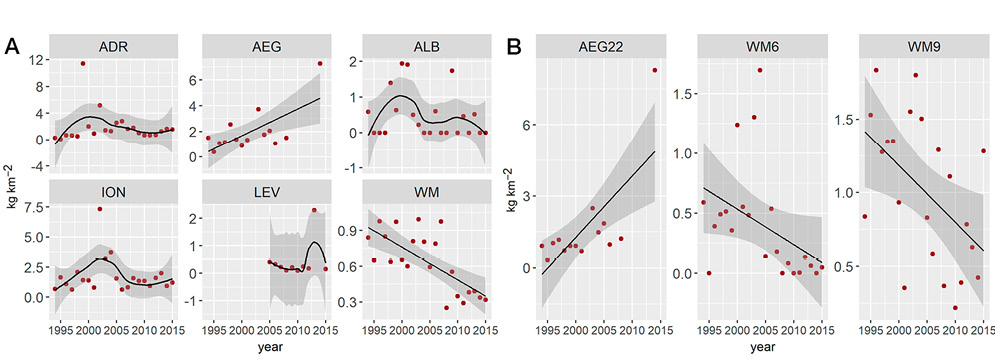

Chelidonichthys lucerna
The tub gurnard is also a shelf species, mainly distributed between 15 and 175 m depth. It was significantly decreasing on the continental shelf of the western Mediterranean (r2=0.48, p<0.01) and specifically in the GSAs 6 (r2=0.13, p<0.05) and 9 (r2=0.22, p<0.05), while an increasing trend was observed in the GSA 22, in the Aegean Sea (r2=0.41, p<0.01) (Fig. 10). In the other regions the species fluctuated at low abundance levels without any clear temporal trend (Appendix 7). In 2013-2015 the highest BIy was obtained on the continental shelf of the Aegean Sea (8.3 kg km–2 in 2014) and the western Ionian Sea (GSA 19: 2.8 kg km–2, Appendix 7).
|
||
|

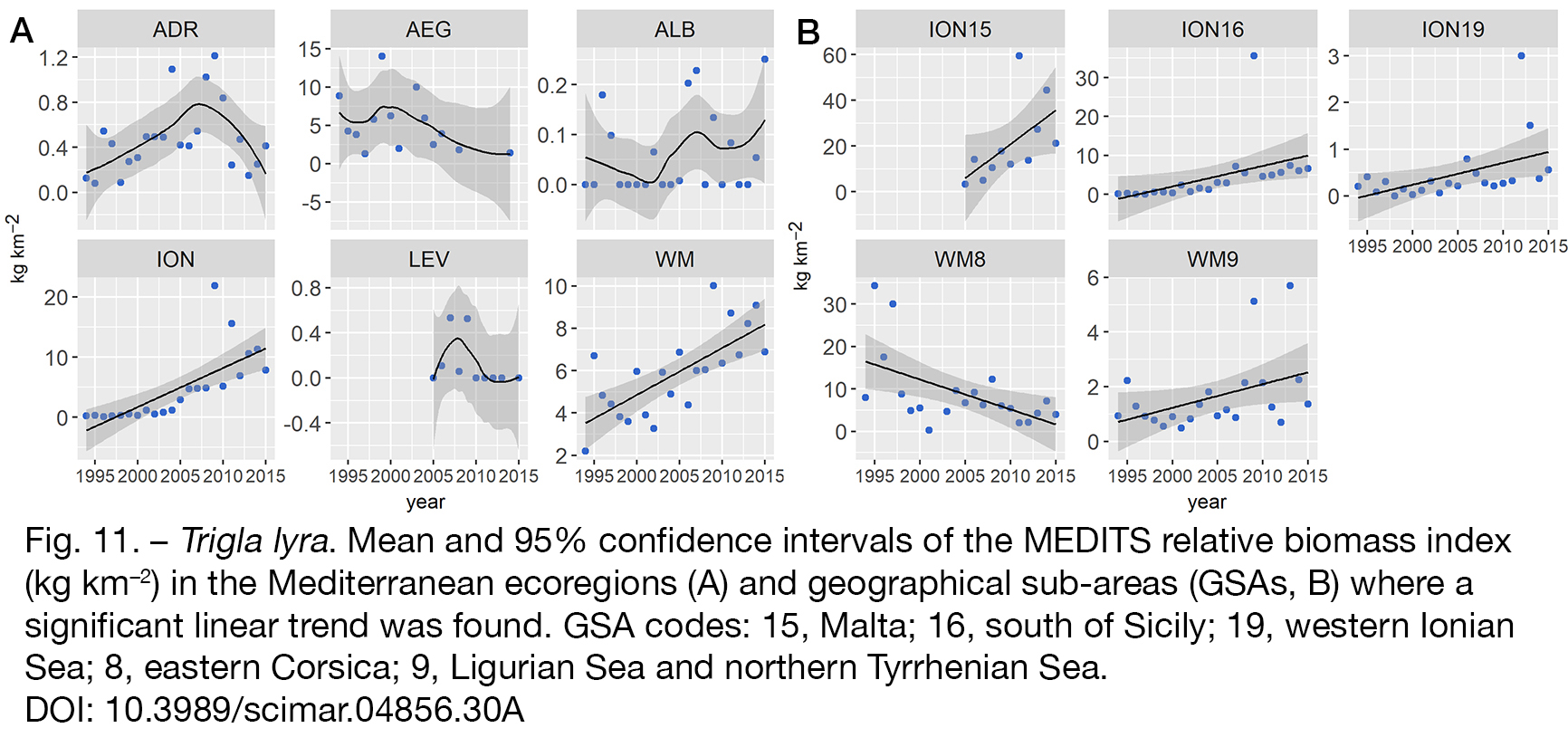

Trigla lyra
The piper gurnard is typically distributed on the continental slope, with the highest BIy values found in the Gulf of Lions (33.6 kg km–2), Malta (31.1 km–2) and Balearic waters (23.3 kg km–2) during the period 2013-2015 (Appendix 8). The species showed an increasing trend in the western Mediterranean (r2=0.49, p<0.01) and Ionian (r2=0.50, p<0.01) ecoregions (Fig. 11A). In the first area, BIy values increased in the northern Tyrrhenian and Ligurian seas (r2=0.13, p<0.05), while they decreased in eastern Corsica (r2=0.26, p<0.01). In the Ionian area the species increased in the Strait of Sicily in GSAs 15 (r2=0.25, p<0.05) and 16 (r2=0.17, p<0.05), and in the western Ionian Sea (r2=0.17, p<0.05, Fig. 11B).
|
||
|

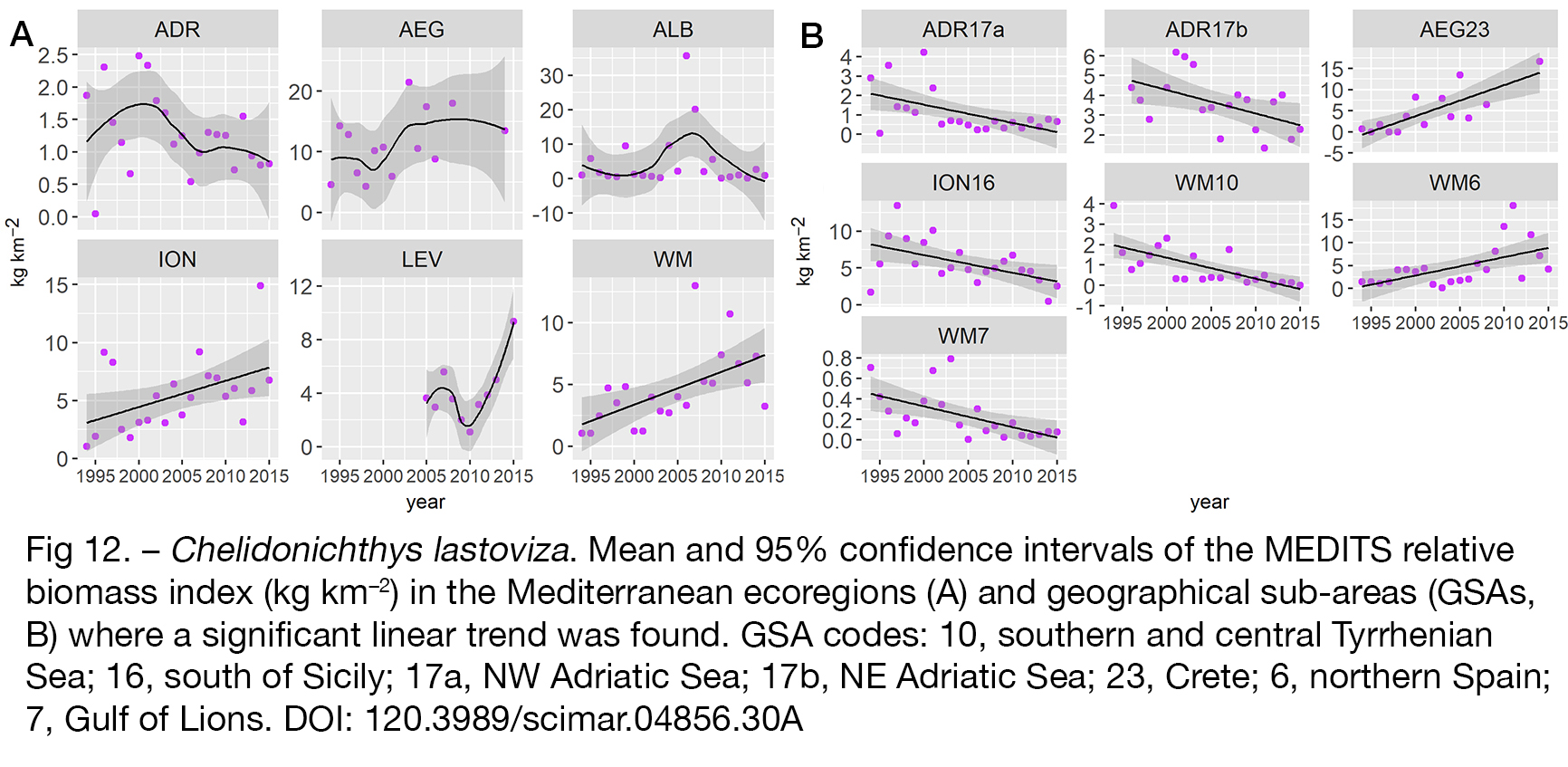

Chelidonichthys lastoviza
The streaked gurnard was mostly caught between 25 and 120 m depth, with the highest BIy found in Malta (59.3 kg km–2) and the Balearic Island (34.5 kg km–2) in 2013-2015. The species was also abundant in the Aegean Sea in GSA 22 (Appendix 9). It showed an increasing trend in the western Mediterranean (r2=0.29, p<0.05) and the Ionian ecoregions (r2=0.18, p<0.05, Fig. 12A). The species showed wide temporal fluctuations in BIy, with significant positive linear trends in GSAs 6 (r2=0.29, p<0.01) and 23 (r2=0.60, p<0.01). A negative trend was found in GSAs 7 (r2=0.29, p<0.01), 10 (r2=0.45, p<0.01) and 16 (r2=0.23, p<0.05), and on both the west (r2=0.25, p<0.01) and east side (r2=0.21, p<0.01) of the northern Adriatic Sea (Fig. 12B).
|
||
|

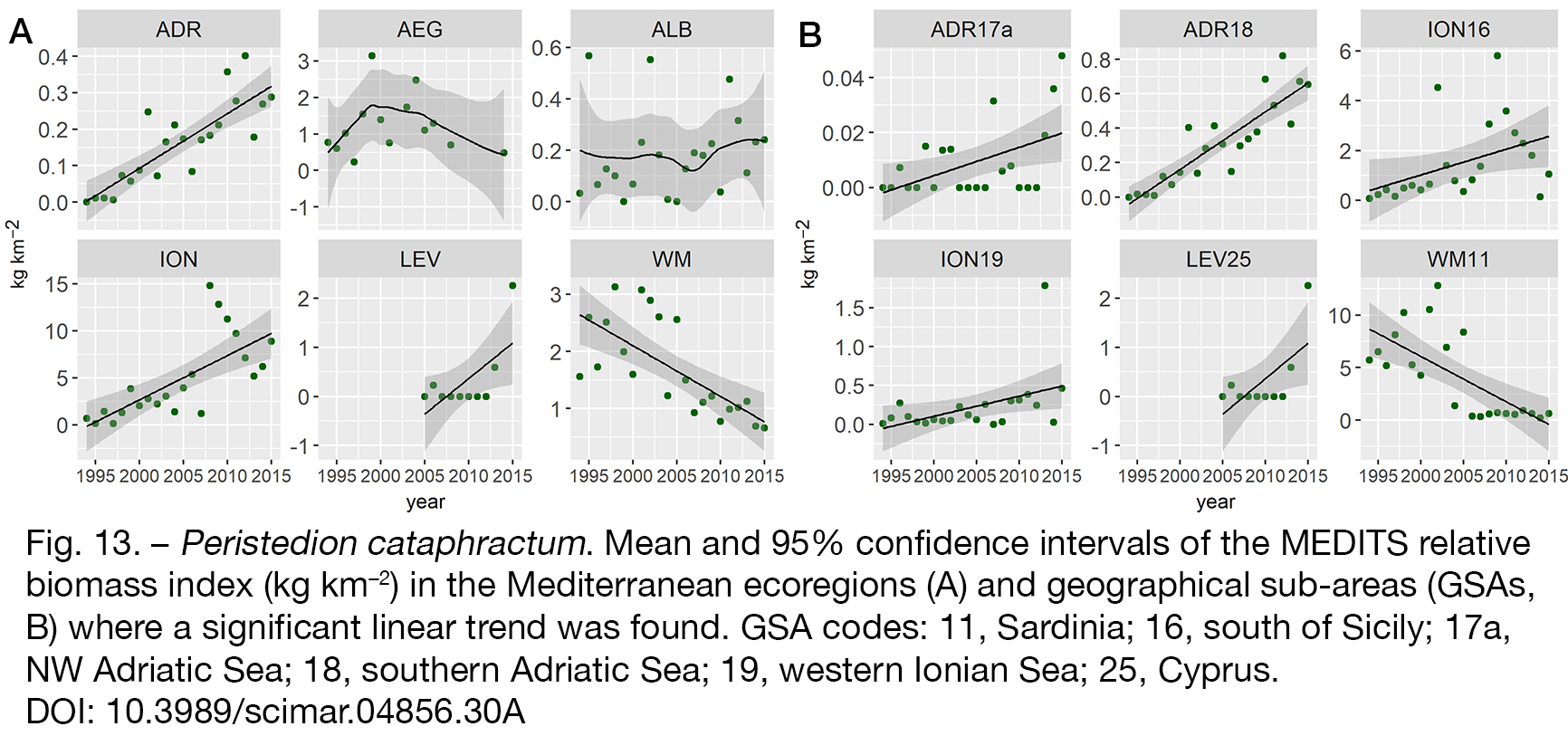

Peristedion cataphractum
The African armoured searobin was mostly present on the continental slope below 200 m, with 90% of the positive hauls being found between 115 and 550 m depth. It reached by far the highest BIy in Maltese waters (27.3 kg km–2 in 2013-2015), being generally more than ten times less abundant in all the other GSAs except GSA 20 in 1994-98 (12.2 kg km–2, Appendix 10). The species showed a linear increasing trend in the Adriatic (r2=0.69, p<0.01), Ionian (r2=0.48, p<0.01) and Levantine (r2=0.35, p<0.05) ecoregions and a decreasing trend in the western Mediterranean (r2=0.47, p<0.01, Fig. 13A). A positive trend was found in the Adriatic (GSA 17a: r2=0.20, p<0.05 and 18: r2=0.77, p<0.01), south of Sicily (r2=0.16, p<0.05) and the western Ionian Sea (r2=0.16, p<0.05), while a significant linear decrease was observed in Sardinia (r2=0.46, p<0.01, Fig. 13B).
|
||
|
DISCUSSIONTop

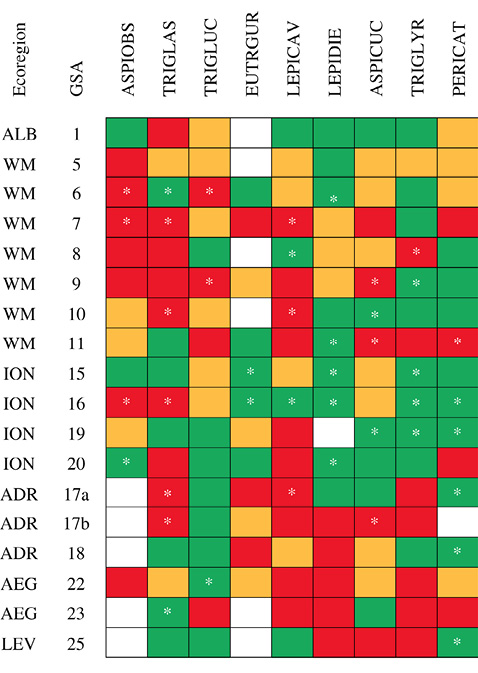

This study provides an overview of the status of gurnards in the northern Mediterranean Sea using 22 years of MEDITS bottom trawl survey data. Gurnards are an important component of demersal assemblages in Mediterranean ecoregions, inhabiting soft and detrital bottoms from the shallower portion of the continental shelf to the upper slope. Some of them, such as C. lucerna, T. lyra, C. cuculus, C. lastoviza and E. gurnardus, can be important commercial species for the demersal fisheries. The other species mainly constitute commercial or non-commercial trawling by-catch. Results of our study highlighted important differences among Mediterranean ecoregions and sub-areas (GSAs) in terms of species composition and dominance, which are probably related to the different biogeographic affinity of the species. The majority of the Mediterranean gurnards have a sub-tropical affinity, with only C. cuculus, C. obscurus and E. gurnardus being temperate species (http://www.fishbase.org). In particular, the Ionian and western Mediterranean ecoregions appeared very similar in the structure of the gurnard species guild, with C. cuculus being the most abundant species, followed by five others (L. cavillone, L. dieuzeidei, T. lyra, C. lastoviza, P. cataphractum or E. gurnardus) with a similar level of abundance, together accounting for more than 90% of the relative biomass for the examined period. An opposite pattern was observed in the Levantine Sea, where only data for Cyprus are available. Here the k-dominance curve is steep with three species, L. cavillone, C. cuculus and C. lastoviza dominating the species guild.
The Alboran Sea is featured by the lowest relative biomass of gurnards; the two Lepidotrigla species are the most common gurnards and the grey gurnard is absent. This peculiarity can be related to the influence of Atlantic inputs and the semi-permanent Almería–Oran hydrographic front, which plays a key role in defining the Alboran Sea as a specific fish fauna area within the northern Mediterranean Sea (Gaertner et al. 2005Gaertner J.C., Bertrand J.A., De Sola L.G., et al. 2005. Large spatial scale variation of demersal fish assemblage structure on the continental shelf of the NW Mediterranean Sea. Mar. Ecol. Prog. Ser. 297: 245-257.).
In the Adriatic region, the guild is dominated by L. cavillone, A. cuculus and C. lucerna. Here gurnards were found to be more abundant on the east than on the west side of the basin, probably also due to the eastward ontogenetic migration of the juveniles towards the Croatian coasts, as observed for C. cuculus (Vallisneri et al. 2014Vallisneri M., Tommasini S., Stagioni M., et al. 2014. Distribution and some biological parameters of the red gurnard Chelidonichthys cuculus (Actinopterygii, Scorpaeniformes, Triglidae) in the north-central Adriatic sea. Acta Ichthyol. Piscat. 44: 173-180.). Interesting is the absence in this region of the longfin gurnard (C. obscurus), which was also absent in Crete (GSA 23), as reported also by Tsimenides et al. (1992)Tsimenides N., Machias A., Kallioniotis A. 1992. Distribution patterns of Triglids (Pisces: Triglidae) on the Cretan shelf (Greece), and their interspecific associations. Fish. Res. 15: 83-103., and in Cyprus (GSA 25). The longfin gurnard also appears rare in the Aegean Sea, where it was not found in a study carried out in the 1970s (Papaconstantinou 1983Papaconstantinou C. 1983. Observations on the ecology of gurnards (Pisces: Triglidae) in the Greek Seas. Cybium 7: 71-88.). In this region, the four most abundant gurnards, in order of importance, were found to be C. cuculus, C. lastoviza, C. lucerna and L. cavillone.
The species displaying the highest geographical differences are E. gurnardus and P. cataphractum. The first is abundant only in the Gulf of Lions, rare in most of the GSAs and absent in the southern Tyrrhenian (GSA 10), Crete and Cyprus. The dominance of E. gurnardus on the continental shelf of the Gulf of Lions was already reported by Campillo et al. (1992)Campillo A. 1992. Les pêcheries françaises de Méditerranée. Synthèse des connaissances. Rapports Internes de la Direction des Ressources Vivantes de l’Ifremer, RIDRV 92/019 RH Sète: 206 pp.. P. cataphractum is consistently more abundant in the Maltese waters than in all the other GSAs.
In terms of overall abundance, the Balearic Islands (GSA 5), Maltese waters (GSA 15), the Gulf of Lions (GSA 7), eastern Corsica (GSA 8) and the eastern Ionian Sea (GSA 20) are the areas with the highest relative biomass of gurnards, while the lowest biomasses are observed in the Alboran and Tyrrhenian seas (GSAs 9 and 10), on the Italian side of the Adriatic (GSA 17a) and in the western Ionian Sea (GSA 19). At first glance this pattern in gurnard abundance could likely be the result of the current distribution of trawl fleets and fishing effort in the Mediterranean (see Colloca et al. 2017Colloca F., Scarcella G., Libralato S. 2017. Recent trends and impacts of fisheries exploitation on Mediterranean stocks and ecosystems. Front. Mar. Sci. 4: 244., Ferrà et al. 2018Ferrà C., Tassetti A.N., Grati F., et al. 2018. Mapping change in bottom trawling activity in the Mediterranean Sea through AIS data. Mar. Pol. 94: 275-281.). The areas with the highest gurnard relative biomass are those that have the lowest trawl pressure on the continental shelf, while the opposite is observed in areas that have a high effort. Trawl catchability of gurnards is probably high since they live close to the sea bottom, mostly on soft and detrital sediments that are easily exploitable by trawlers. Some local studies support this hypothesis. For example, gurnards were the species showing the highest rate of abundance increase (about 500 fold) on the outer shelf (50-100 m) of northwest Sicily after some years of trawling ban (Pipitone et al. 2000Pipitone C., Badalamenti F., D’Anna G., et al. 2000. Fish biomass increase after a four-year trawl ban in the Gulf of Castellammare (NW Sicily, Mediterranean Sea). Fish. Res. 48: 23-30.). In the Ionian Sea species like T. lyra, L. dieuzeidei and P. cataphractum were several times more abundant on the poorly exploited continental slope of Greece than on the intensively exploited Italian fishing grounds (D’Onghia et al. 2003D’Onghia G., Mastrototaro F., Matarrese A., et al. 2003. Biodiversity of the upper slope demersal community in the eastern Mediterranean: preliminary comparison between two areas with and without trawl fishing. J. Northwest. Atl. Fish. Soc. 31: 263.). Similarly, in the northern sector of the Strait of Sicily the abundance of gurnards on poorly exploited fishing grounds on the continental slope was several time higher than in the traditionally exploited areas (Gristina et al. 2006Gristina M., Bahri T., Fiorentino F., et al. 2006. Comparison of demersal fish assemblages in three areas of the Strait of Sicily under different trawling pressure. Fish. Res. 81: 60-71.). In the same region, Dimech et al. (2008)Dimech M., Camilleri M., Hiddink J.G., et al. 2008. Differences in demersal community structure and biomass size spectra within and outside the Maltese Fishery Management Zone (FMZ). Sci. Mar. 72: 669-682. found higher relative biomass of C. cuculus and L. cavillone inside the less exploited Fisheries Management Zone (FMZ) of Malta than in the areas outside the FMZ. This evidence supports the hypothesis that the observed geographical differences in gurnard abundance may result from the different levels of fishing pressure, with areas less impacted by fishing hosting a higher gurnard biomass. Although more investigation is required on the subject, the results of our study point to a possible future use of gurnards as indicators of the fishing pressure exerted on the ecosystem and, as such, a useful tool for monitoring the fishing impact on the demersal fish communities. A summary of the trend observed since the mid-1990s by species and areas is provided in Figure 14 using a traffic light approach. In the western Mediterranean, a general decrease was found for the shallowest species (C. obscurus, C. lastoviza and C. lucerna), while a “green” status was more common for the upper slope species (T. lyra and P. cataphractum). A better situation was observed in the Ionian ecoregion (GSAs 15, 16, 19 and 20), where the “green” status was common for the deep-shelf (e.g. Lepidotrigla spp., C. cuculus) and upper-slope species. The only significant linear decrease in this region was found for C. obscurus and C. lastoviza in the south of Sicily.
|
||
|
The opposite was observed in the Aegean Sea (GSAs 22-23) and in Cyprus, where the trend was generally positive or stable for the shelf species, with most of the red lights found for deep-shelf and slope gurnard (Fig. 14). A shifting of fishing activities of Greek vessels towards slope resources has recently been postulated as an effect of the implementation of EC regulation 1967/2006, which bans bottom trawl activities within 1.5 nautical miles off the coast (Tserpes et al. 2016Tserpes G., Nikolioudakis N., Maravelias C., et al. 2016. Viability and management targets of Mediterranean demersal fisheries: the case of the Aegean Sea. PloS ONE, 11: e0168694.).
Similarly, deep-water gurnards in Sardinian waters showed the lowest relative biomasses in recent years, with the exception of L. dieuzeidei. P. cataphractum in particular showed a significant linear decrease in abundance across years, in strong contrast with all other ecoregions and GSAs. This temporal pattern may, besides ecological factors, reflect the modernization of the trawling fishing fleet that took place in the Sardinian fisheries (Marongiu et al. 2017Marongiu M.F., Porcu C., Bellodi A., et al. 2017. Temporal dynamics of demersal chondrichthyan species in the central western Mediterranean Sea: The case study in Sardinia Island. Fish. Res. 193: 81-94.), allowing fishing pressure to shift towards deeper habitats such as those inhabited by P. cataphractum.
While there is clear evidence that the excess fishing pressure is reducing the sizes of the gurnard populations in many Mediterranean sectors, there are still important aspects related to the ecology of this guild of species that would be worth exploring in order to understand the factors driving species abundance and distribution. One key feature is related to the habitat preferences of the species. Gurnards seem to prefer detrital sediments on both the continental shelf and slope. L. cavillone and C. cuculus off the western coasts of Italy appear more abundant on the detrital bottoms over the continental shelf break (Serena et al. 1990Serena F., Baino R., Voliani A. 1990. Distribuzione dei Triglidi (Osteichthyes, Scorpaeniformes) nell’Alto Tirreno. Oebalia Suppl. XVI: 269-278., Colloca et al. 1997Colloca F., Cardinale M., Ardizzone G.D. 1997. Biology, spatial distribution and population dynamics of Lepidotrigla cavillone (Pisces, Triglidae) in the central Tyrrhenian Sea. Fish. Res. 32: 21-32., Damalas et al. 2010Damalas D., Maravelias C.D., Katsanevakis S., et al. 2010. Seasonal abundance of non-commercial demersal fish in the eastern Mediterranean Sea in relation to hydrographic and sediment characteristics. Est. Coast. Shelf. Sci. 89: 107-118.). L. diuzeidei was found to be more common on the detrital and muddy bottoms of the shallow part of the upper slope (Voliani et al. 2000Voliani A., Mannini P., Auteri R. 2000. Distribuzione e biologia di Lepidotrigla cavillone (Lacepedè) e L. dieuzeidei (Auduin in Blanc e Hureau) nell’Arcipelago Toscano. Biol. Mar. Medit. 7: 844-849.), while on the coastal shelf, C. lucerna was concentrated on the coastal and detrital sandy bottoms and C. lastoviza on the coastal detrital sediments (Serena et al. 1990Serena F., Baino R., Voliani A. 1990. Distribuzione dei Triglidi (Osteichthyes, Scorpaeniformes) nell’Alto Tirreno. Oebalia Suppl. XVI: 269-278., Ordines et al. 2014Ordines F., Farriols M.T., Lleonart J., et al. 2014. Biology and population dynamics of by-catch fish species of the bottom trawl fishery in the western Mediterranean. Medit. Mar. Sci. 15: 613-625.). In this study, we found that the areas showing the highest gurnard abundances are those characterized by the prevalence or the wide extension of detrital bottoms, such as Malta, the Balearic Islands, the Greek GSAs and the south of Sicily, the latter characterized by wide offshore banks (Di Lorenzo et al. 2018Di Lorenzo M., Sinerchia M., Colloca F. 2018. The North sector of the Strait of Sicily: a priority area for conservation in the Mediterranean Sea. Hydrobiologia 821: 235-253.). Another important aspect is connected with the occurrence of “refugia”, where large spawners of species like C. lucerna can find protection from trawling, as was observed in the western Ionian Sea (D’Onghia et al. 2017D’Onghia G., Calculli C., Capezzuto F., et al. 2017. Anthropogenic impact in the Santa Maria di Leuca cold-water coral province (Mediterranean Sea): Observations and conservation straits. Deep-Sea Res. II 145: 87-101.).
The rapid ongoing warming of the Mediterranean is another key factor that, in combination with fishing pressure, might explain the species temporal trends observed. The increase in water temperature can be potentially beneficial for sub-tropical species such as the harmoured searobin but have a negative effect on the temperate ones such as E. gurnardus). The overall effect may be a progressive shift in gurnard distribution and abundance as effects of climate forcing. The NAO index, for example, was found to have an indirect effect on triglids by shaping their prey’s availability (López-López et al. 2011López-López L., Preciado I., Velasco F., et al. 2011. Resource partitioning amongst five coexisting species of gurnards (Scorpaeniforme: Triglidae): Role of trophic and habitat segregation. J. Sea Res. 66: 58-68.). In Portuguese waters the landings of the large-scaled gurnard, a species with a sub-tropical affinity, decreased unexpectedly during the warm years (Teixeira et al. 2014Teixeira C.M., Gamito R., Leitão F., et al. 2014. Trends in landings of fish species potentially affected by climate change in Portuguese fisheries. Reg. Environ. Change, 14: 657-669.). On the other hand, the congeneric sub-tropical L. dieuzeidei has expanded its distribution range in the Atlantic as an effect of the water temperature increase (Punzón et al. 2016Punzón A., Serrano A., Sánchez F., et al. 2016. Response of a temperate demersal fish community to global warming. J. Mar. Sys. 161: 1-10.).
Future studies on Mediterranean gurnards should focus on the above aspects, in order to understand specifically how fishing pressure, climate forcing and habitat suitability interact to determine the trends observed in the present study. Other important aspects that would be worth exploring are related to the compensatory effects that may occur within the gurnards guild. The nine species of gurnards inhabiting the Mediterranean basin exploit similar trophic niches, preying on the same groups of crustaceans. Therefore, a decrease in the abundance of one or more of these species could be compensated by the increase and the expansion of the more tolerant species, thus avoiding a functional diversity loss in the ecosystem.
