sm83n1-4847

INTRODUCTIONTop During the last few decades, the effects of suspended particulate matter (SPM) in estuarine and coastal systems have been intensively studied worldwide (). These effects are associated with the environmental isolation of fishes, which is advantageous for the survival and growth of juveniles since SPM provides protection against avian predation, reduces intra-specific predation () and sometimes increases feeding success due to the particles suspended in the water (). Other less favourable aspects are related to an increase in water temperature, which reduces the concentration of dissolved oxygen (). In addition, SPM determines the depth that light penetrates into the water column, thus influencing primary production (). Negative effects on the density of many invertebrates () have also been reported. Finally, SPM can carry metals () that are directly related to toxicity in the food web (). SPM is quantified as the mass per unit volume or concentration of organic and inorganic matter present in the body of water (). SPM is typically composed of fine particles with diameters of less than 63 µm (). Turbidity, as defined by the International Standards Organization ISO 7027 (), is an optical property which is highly correlated and can be used as a proxy to SPM concentration (). Remote sensing provides a comprehensive and synoptic view of the oceans (), which has shown to be useful for mapping surface SPM concentrations. A number of studies have used satellite-derived reflectance to analyse the spatial extent and temporal changes of SPM in estuaries, lakes, rivers and coastal waters by determining the relationship between this parameter and reflectance (e.g. , ). In addition, many authors have found linear relationships between SPM and turbidity in coastal environments (e.g. , ). The Río de la Plata (RdlP) carries high amounts of nutrients and organic and inorganic SPM to the adjacent shelf waters () and is considered among the most turbid systems in the world (). The RdlP estuarine turbidity maximum zone plays an important role in the life history of estuarine fish species (, ), zooplankton () and benthos (). Variations in the RdlP discharge have a strong effect on the upstream/downstream displacement of the estuarine turbidity maximum zone () that ultimately affects different aspects of the RdlP’s ecosystem (sediment transport, life cycle, fishing, boating, dredging and pollution control), with major economic consequences. Therefore, the knowledge of the surface concentration of SPM and its spatial and temporal variability would provide valuable data for operational planning in the RdlP estuarine region. In a previous study the SPM distribution in the RdlP derived from MODIS-Aqua images using the OC5 empiric algorithm was analysed (). The OC5 algorithm developed by IFREMER for the Bay of Biscay (, ) showed a poor performance in the turbid waters of the RdlP estuarine region (). The poor efficiency is mainly associated with the use of NASA standard atmospheric correction and with the semi-empirical nature of the proposed algorithm, which could be sensitive to changes in water composition and would therefore only have regional validity (, ). It has been previously shown that the standard atmospheric correction completely fails to retrieve water reflectance in most of the RdlP’s turbid waters, mainly due to sensor saturation in the bands 667, 748 and 869 nm used for the atmospheric correction and to incorrect estimation of the marine contribution in the near infrared in these extremely turbid waters (). For this reason, the aim of the present study was to obtain an empirical relationship between field SPM and turbidity data in the RdlP estuarine region that would allow SPM maps to be obtained from remote sensing data. MATERIALS AND METHODS Top Study area The RdlP, located at approximately 35°S on the eastern coast of southern South America (Fig. 1), carries high amount of nutrients and suspended particulate and dissolved organic matter to the adjacent shelf waters (). The RdlP has an average discharge of 22000 m³s^–1, and peaks as high as 90000 m³s^–1 and as low as 7800m³s^–1have been observed in association with the cycles of El Niño-Southern Oscillation (). The sediments that reach the estuary come mainly from the Paraná river and the drainage of a number of minor tributaries along the Argentinean coast (). The amount of sediments transported by the RdlP has been estimated to range between 80 and 160 million t y^–1 (). With mean concentrations of total suspended matter ranging from 100 to 300 mg l^–1 and up to 400 mg l^–1 (), like the Amazonas (200 mg l^–1), Mississippi (362 mg l^–1) and Guadalquivir (600 mg l^–1) (), this estuary is one of the most turbid in the world.

Full size image

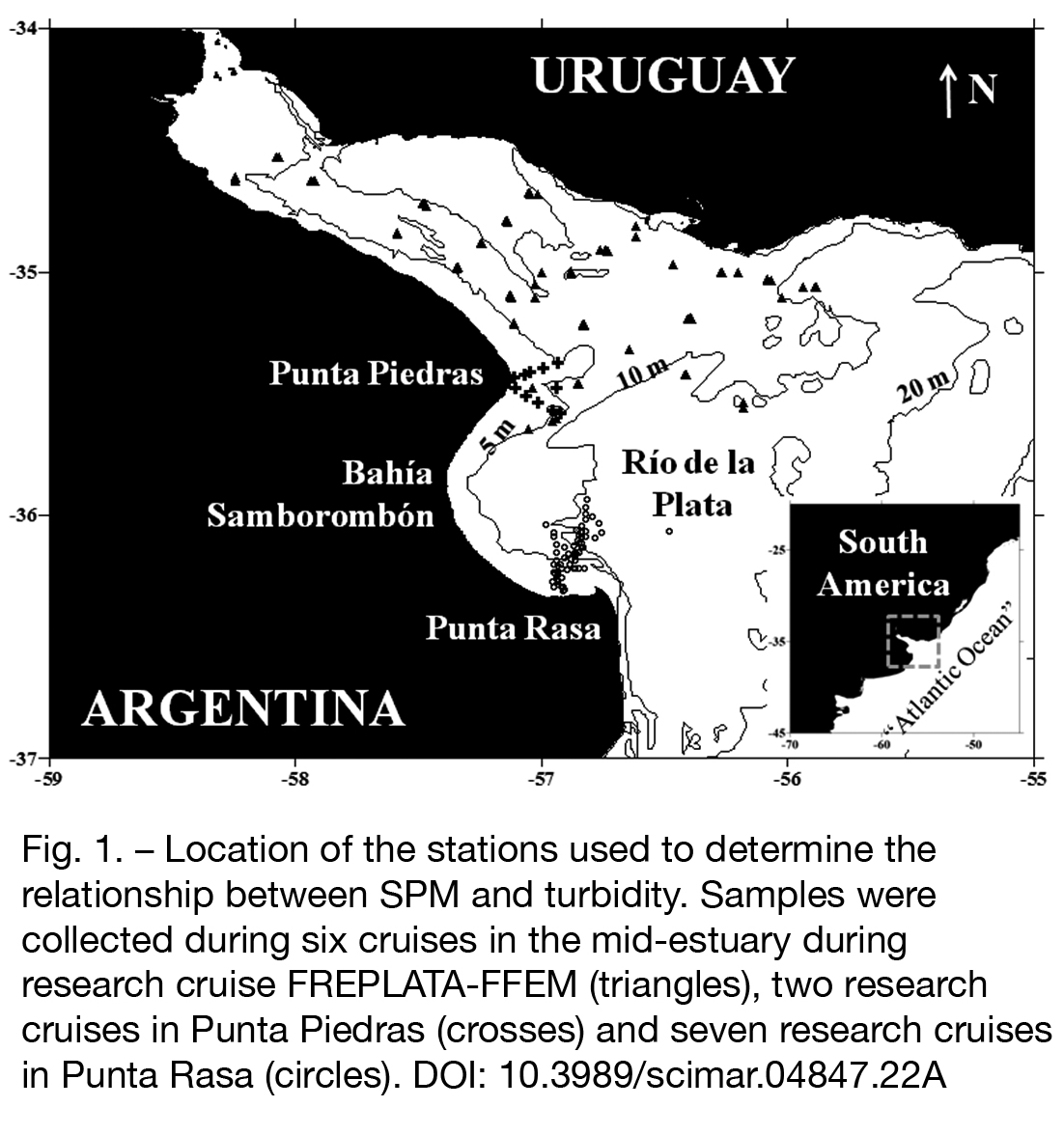

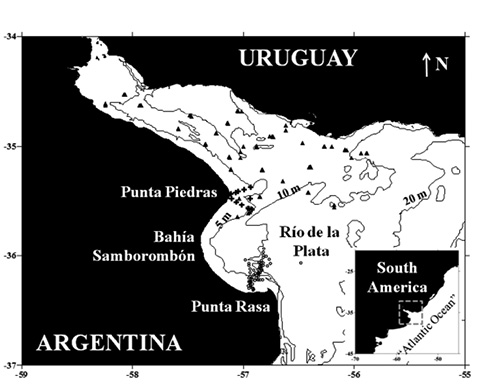

Fig. 1. – Location of the stations used to determine the relationship between SPM and turbidity. Samples were collected during six cruises in the mid-estuary during research cruise FREPLATA-FFEM (triangles), two research cruises in Punta Piedras (crosses) and seven research cruises in Punta Rasa (circles).

In situ data The calibration of the empirical algorithm for the RdlP region was carried out using field data of SPM concentration (mg l^–1) and turbidity (formazin nephelometric units, FNU). Data were collected simultaneously at the surface at 218 stations during a) six cruises in the mid-estuary performed in the research cruise FREPLATA-FFEM (2009-2010, 151 stations, triangles); b) two research cruises (2013, 16 stations, crosses) in the Punta Piedras; and c) seven research cruises (2010-2012 and 2014, 51 stations, circles) in the Punta Rasa (Fig. 1, Table 1). In every case, SPM was determined by the gravimetric method. Glass fibre filters (APFF04700, Millipore) which had been previously burned (550°C, 30 min) were weighed. The water samples were filtered, and the filters were dried at 100°C for 24 h () and weighed again. Water samples gathered during the Punta Piedras and Punta Rasa cruises were analysed at the Laboratorio de Biología Molecular y Microbiología of the Instituto Nacional de Investigación y Desarrollo Pesquero (INIDEP). Water samples collected during the FREPLATA-FFEM research cruise were processed in the Laboratorio de Química Marina of the Servicio de Hidrografía Naval Argentina. Water samples for turbidity determination were analysed on board. In the FREPLATA-FFEM research cruise and the Punta Piedras cruises 01 and 02 a portable HACH 2100P ISO turbidimeter was used, whereas in the Punta Rasa cruises 01 to 06 a portable HORIBA U-22XD turbidimeter was used instead. A comparison between measurements collected simultaneously using HACH 2100P ISO and HORIBA U-22XD sensors during two cruises performed in Punta Rasa (07/08) is shown in Figure 2. A high correlation was found between the estimates [squared correlation coefficient (R²) =0.99]. A linear relationship was then fitted to the data and used to obtain HACH 2100P ISO-like measurements from the HORIBA U-22XD data.

Table 1. – Number of samples collected between 2010 and 2014, used to find the relation between a) in situ SPM and in situ turbidity, and b) in situ vs satellite-derived (sat) SPM. (x) Only turbidity data were measured. (*) HORIBA U-22XD turbidimeter. (+) HACH 2100P ISO turbidimeter. RdlP: Río de la Plata.

Cruise	Date	SPM in situ vs turbidity in situ	SPM in situ vs SPM sat.	Total
PR01(*)	24/11/2010	11		11
PR02(*)	24/12/2010	4	8	12
PR03(*)	24/2/2011	8		8
PR04(*)	22/3/2011	9		9
PR05(*)	24/4/2011	11		11
PR06(+)	15/5/2012	5	8	13
PP01(+)	27/2/2013	7	4	11
PP02(*)	30/4/2013	9	2	11
PR07(*,+)	22/11/2014	3	5	8
PR08(*, +)	17/12/2014			9(x)
FREPLATA-FFEM-1(+)	23 to 28/11/2009	21	5	26
FREPLATA-FFEM-2(+)	17 to 19/3/2010	26		26
FREPLATA-FFEM-3(+)	23 to 25/6/2010	26		26
FREPLATA-FFEM-4(+)	23 to 27/8/2010	26		26
FREPLATA-FFEM-5(+)	25 to 28/10/2010	26		26
FREPLATA-FFEM-6(+)	15 to 17/12/2010	26		26
PWC 2012	20 to 25/6/2012		9	9
PWC 2013	17 to 18/5/2013		7	7
PWC 2014	19 to 23/6/2014		9	9

Full size image

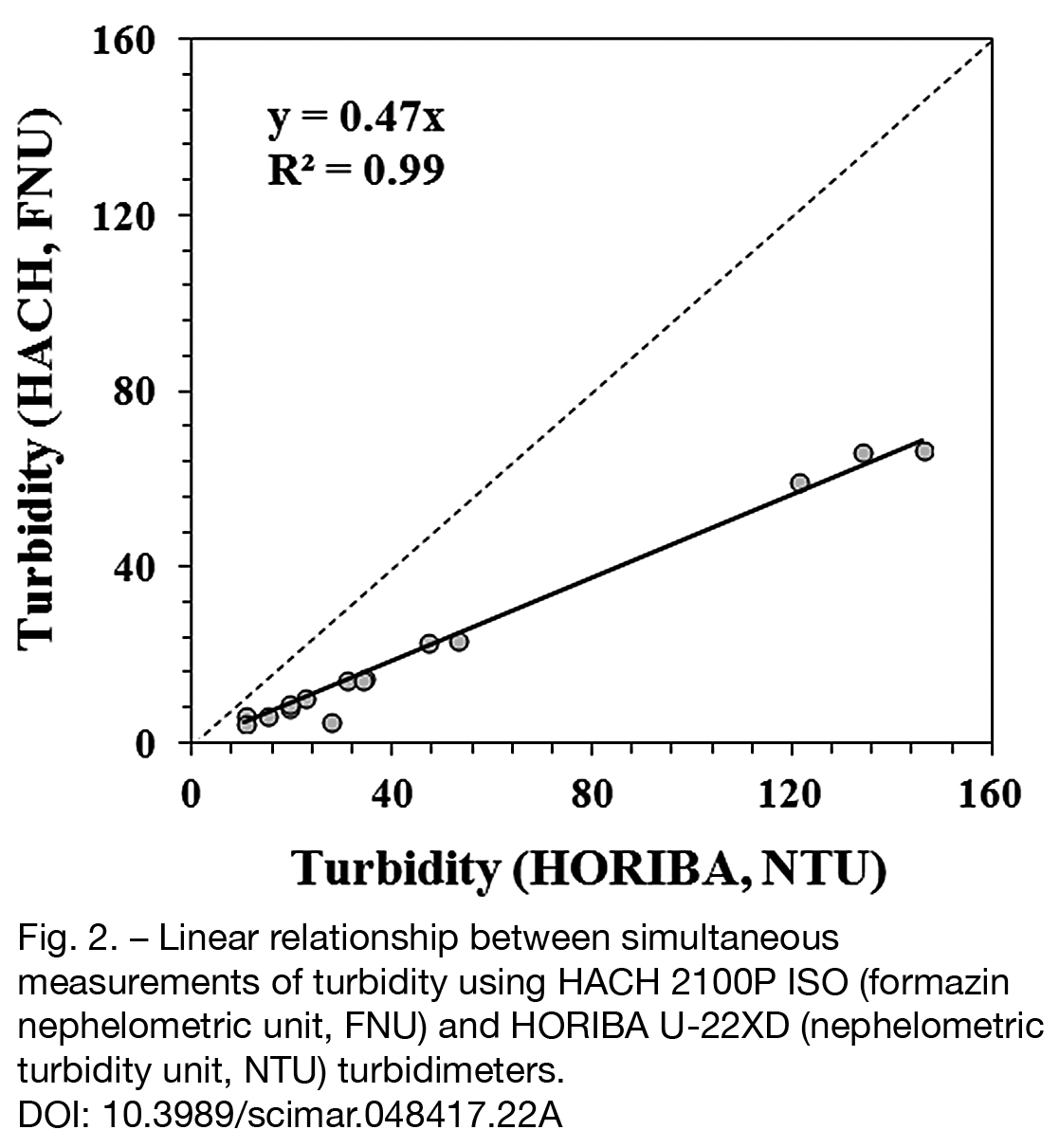

Fig. 2. – Linear relationship between simultaneous measurements of turbidity using HACH 2100P ISO (formazin nephelometric unit, FNU) and HORIBA U-22XD (nephelometric turbidity unit, NTU) turbidimeters.

For the statistical analysis of the in situ SPM vs in situ turbidity data, the Pearson correlation coefficient (PCC) (Eq. 1) was used, according to the formula:

PCC = \frac{cov. variable in situ and variable in situ data}{sd. variable in situ \times variable in situ data}

(1)

where cov. is the covariance, sd. is the standard deviation and the variable is in situ turbidity, in situ SPM or satellite SPM. Before pooling of the data from all the cruises, an ANCOVA analysis was used to compare the regression equations from the three sets of regression data (research cruises FREPLATA-FFEM, Punta Piedras and Punta Rasa, Fig. 1).

Validation of satellite SPM estimates

The empirical method for SPM was validated following the methodology of matching satellite and field data suggested by Bailey and Werdell (2006)Bailey S., Werdell P. 2006. A multi-sensor approach for the on orbit validation of ocean color satellite data products. Remote Sens. Environ. 102: 12-23.. A ±5-h temporal window between the satellite overpass and the in situ measurements (due to the presence of clouds it could not be shortened) and a spatial box of 3×3 pixels were used. As a test of homogeneity, and to minimize the impact of the variability of the geophysical variable in the satellite pixel box, the coefficient of variation (CV), defined as the ratio between the standard deviation and the average, was used. A limit of CV=0.2 was chosen, thus excluding all satellite boxes showing CV values larger than 0.2. Level 1A MODIS-Aqua images (1.1 km spatial resolution) were downloaded from the NASA ocean colour website (https://oceancolor.gsfc.nasa.gov/). Images were processed using the freely available SeaDAS 7.02 software to obtain remotely sensed reflectance (Rrs) using the NIR-SWIR switching atmospheric correction algorithm (Wang 2007Wang M., Shi W. 2007. The NIR-SWIR combined atmospheric correction approach for MODIS ocean color data processing. Opt. Express 15: 15722-15733., Wang and Shi 2007Wang M., Shi W. 2007. The NIR-SWIR combined atmospheric correction approach for MODIS ocean color data processing. Opt. Express 15: 15722-15733.) and masking clouds using the 2130 nm band and a threshold of 0.018. The SPM images were obtained by applying the regional calibration algorithm for the RdlP to MODIS-Aqua turbidity images previously obtained by applying the semi-analytic algorithm developed by Dogliotti et al (2015)Dogliotti A.I., Ruddick K.G., Nechad B., et al. 2015. A single algorithm be used to retrieve turbidity from remotely-sensed data in all coastal and estuarine waters. Remote Sens. Environ. 156: 157-168., according to Equation (2):

$turbidity = \frac{{AT}^{λ} ρ_{w} (λ)}{(1 - \frac{ρ_{w} (λ)}{C^{λ}})} (FNU)$

(2)

where the AT y C calibration coefficients are dependent on the wavelength, λ (Table 2) and ρw is the water reflectance that was calculated from the remote sensing reflectance (Rrs) as ρw=Rrsπ. The wavelength used depended on the ρw (645) (for more details see Dogliotti et al. 2015Dogliotti A.I., Ruddick K.G., Nechad B., et al. 2015. A single algorithm be used to retrieve turbidity from remotely-sensed data in all coastal and estuarine waters. Remote Sens. Environ. 156: 157-168.).

Table 2. – T and C (FNU) coefficient calibration for the bands 645 and 859 nm MODIS-Aqua. Dogliotti et al. (2011)Dogliotti A.I., Ruddick K., Nechad B., et al. 2011. Improving water reflectance retrieval from MODIS imagery in the highly turbid waters of La Plata River. Proceed. VI Int. Conf. Current problems in optics of natural water, ONW’2011, St. Petersburg, Russia, 8 pp..

λ (nm)	AT	C
645	228.1	0.1641
859	3078.9	0.2112

To perform the match-up analysis, data from 57 stations with SPM measurements collected during 11 cruises between 2010 and 2014 for which cloud-free MODIS-Aqua images were available were used (Fig. 3, Table 1). Previous to the analysis, both satellite and field data were log-transformed to improve the distribution of errors and because bio-optical data have a log-normal distribution (Campbell 1995Campbell J.W. 1995. The lognormal distribution as a model for bio-optical variability in the sea. J. Geophys. Res. 100: 13237-13254.). For the statistical analysis of the relationship between in situ SPM vs satellite SPM data, the PCC (Eq. 1), the mean absolute error (Eq. 3) (MAE) and the bias (Eq. 4) were used, according to the following formulae:

$MAE = \frac{\sum [log satellite data – log in situ data]}{n} 100$

(3)

$bias = \frac{\sum [log satellite data – log in situ data]}{n} 100$

(4)

where n is the number of comparisons made.

Full size image

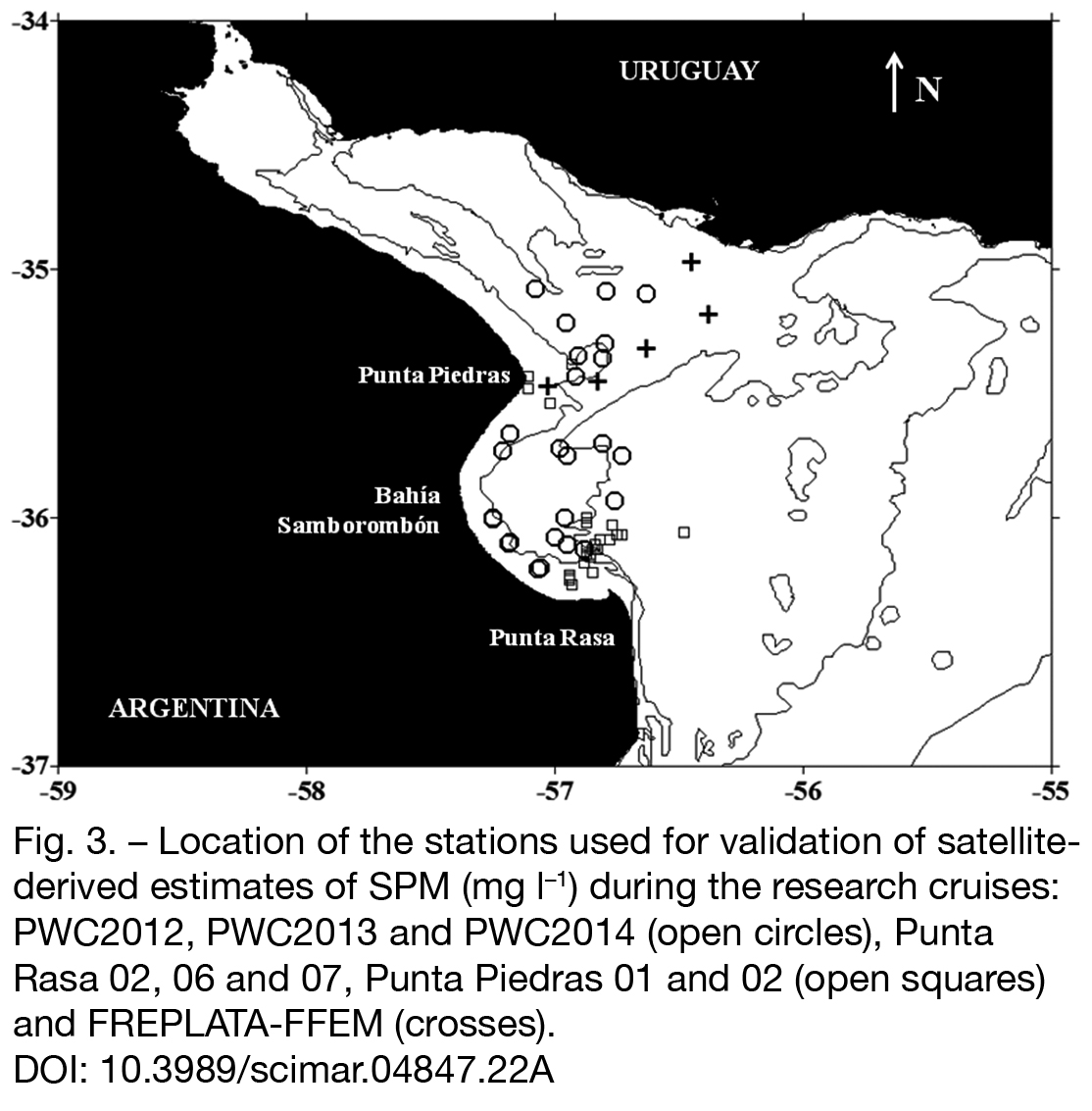

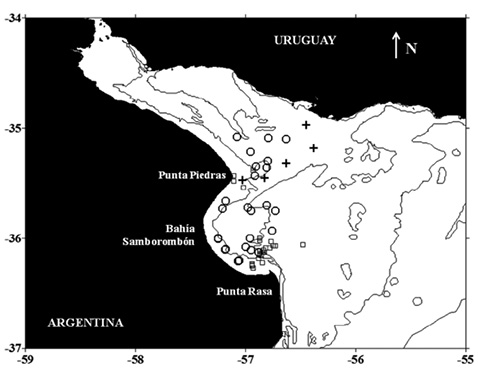

Fig. 3. – Location of the stations used for validation of satellite-derived estimates of SPM (mg l^–1) during the research cruises: PWC2012, PWC2013 and PWC2014 (open circles), Punta Rasa 02, 06 and 07, Punta Piedras 01 and 02 (open squares) and FREPLATA-FFEM (crosses).

RESULTSTop

Calibration of SPM vs turbidity relationship

The ANCOVA analysis showed that the three in situ data sets (FREPLATA-FFEM, Punta Piedras and Punta Rasa) had no significant statistical differences in the slope (F=1.3846, p=0.2531) and the intercepts only showed no significant differences between Punta Rasa and FREPLATA-FFEM (F=11.17, p<0.0001). Considering that the slopes for all the sites were not significantly different, and that for most of the places the intercepts were not significantly different, only one slope (0.76) and intercepts (12.78) were calculated for all data. The relationship between in situ SPM and in situ turbidity observations showed a good linear correlation with an R² of 0.83 (Fig. 4). The equation of the correlation line (solid line) represents the regional empirical algorithm. The PCC was 0.91, indicating a good relationship between the two variables.

Full size image

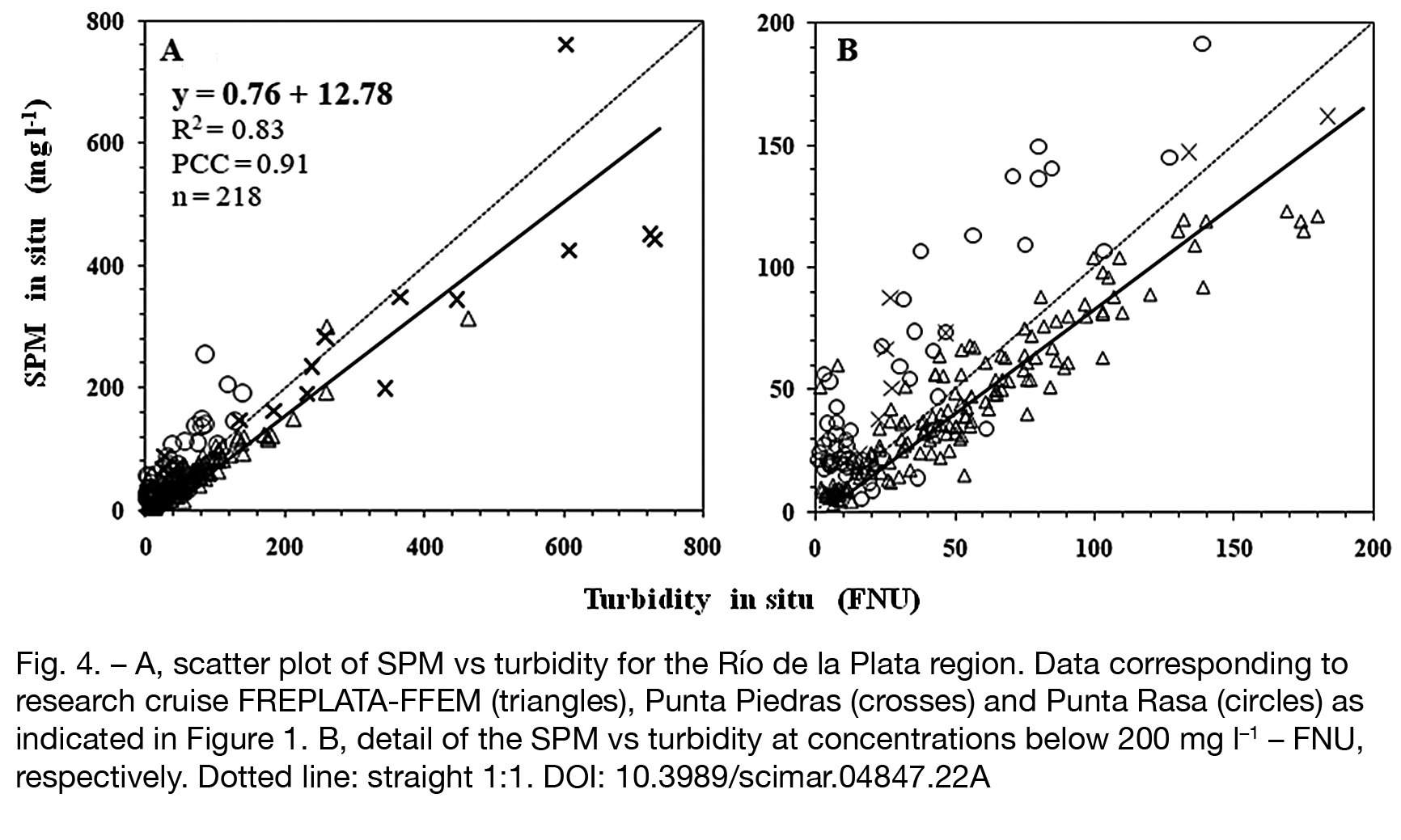

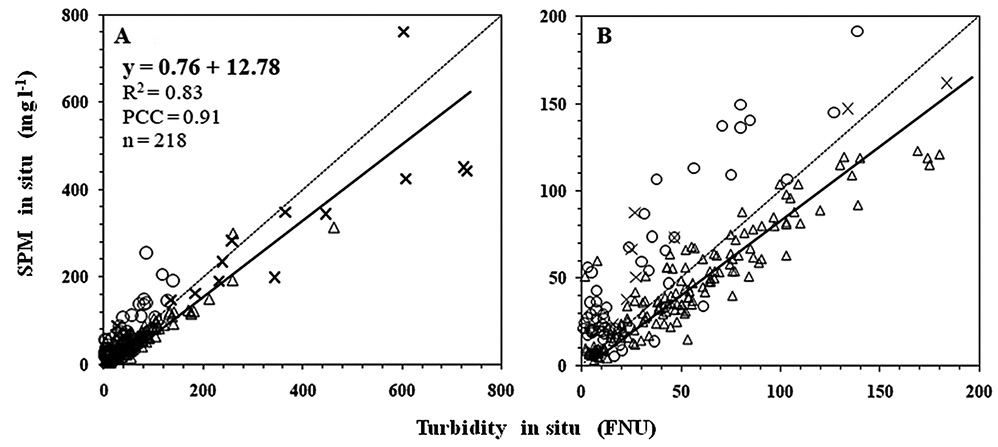

Fig. 4. – A, scatter plot of SPM vs turbidity for the Río de la Plata region. Data corresponding to research cruise FREPLATA-FFEM (triangles), Punta Piedras (crosses) and Punta Rasa (circles) as indicated in Figure 1. B, detail of the SPM vs turbidity at concentrations below 200 mg l^-1 – FNU, respectively. Dotted line: straight 1:1.

Validation of satellite-derived SPM values

Of the 57 stations used for the validation (Fig. 3), only 22 remained valid after the spatial and temporal criteria for the match-up analysis had been applied (Fig. 5). Figure 6 displays a scatter plot of the satellite-derived SPM estimated using the combined semi-analytic algorithm to retrieve turbidity and the regional empirical relationship found in this study vs in situ observations. The results show a good linear correlation, with a PCC of 0.78 and an R² of 0.70. The MAE (14.60%) indicated a relatively low average error in the predicted SPM (Eplee et al. 2001Eplee R.E., Robinson W.D., Bailey S.W., et al. 2001. Calibration of SeaWiFS. II. Vicarious Techniques. Appl Opt. 40: 6701-6718.). The bias was small and positive (3.04%), not exceeding 10%, indicating that the algorithm tends to slightly overestimate the observed SPM values. The satellite images processed using the combined algorithm for 28 January and 15 February 2006 are shown in Figure 7.

Full size image

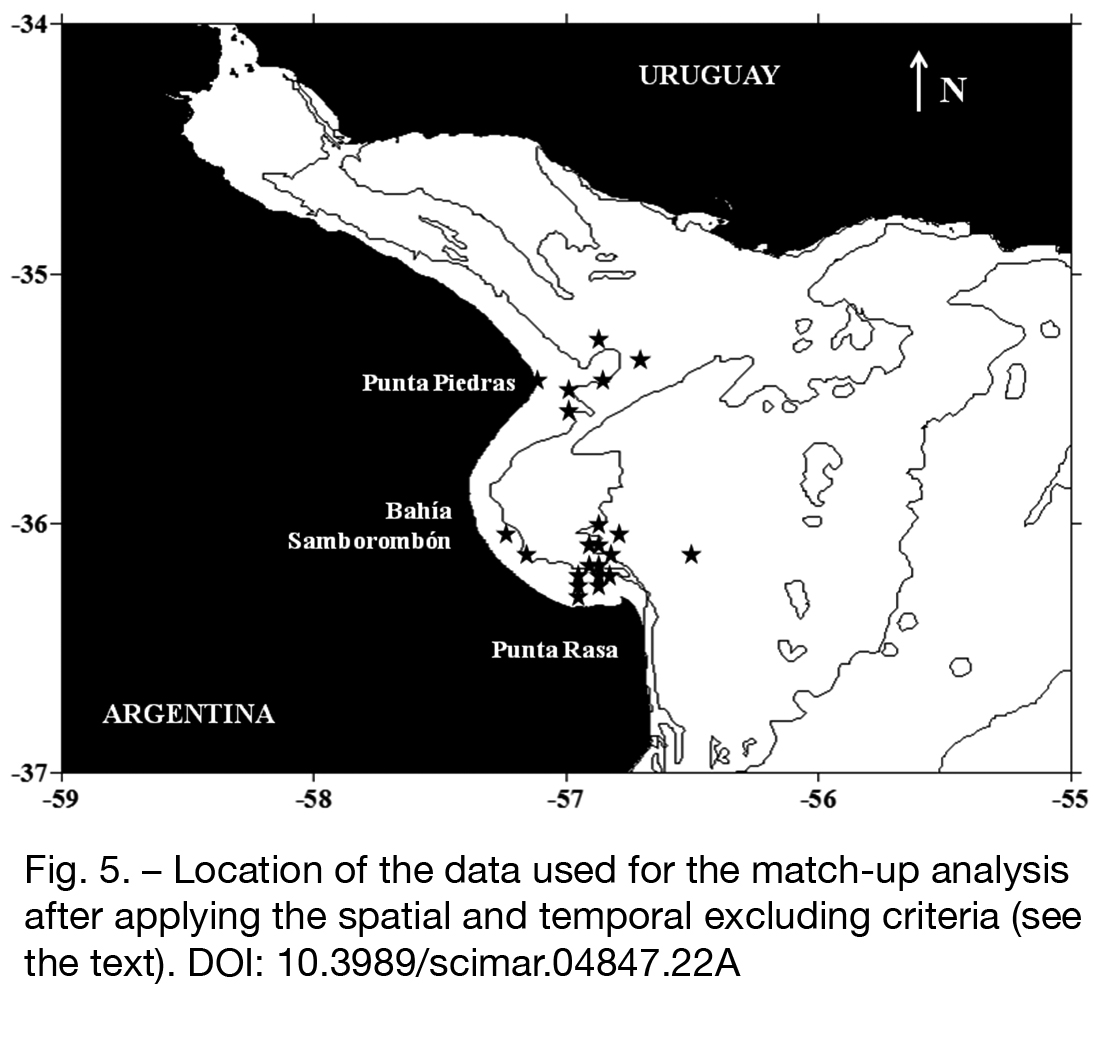

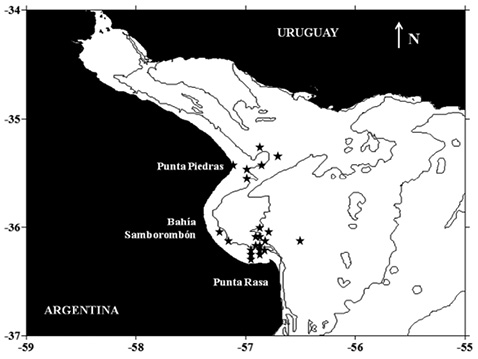

Fig. 5. – Location of the data used for the match-up analysis after applying the spatial and temporal excluding criteria (see the text).

Full size image

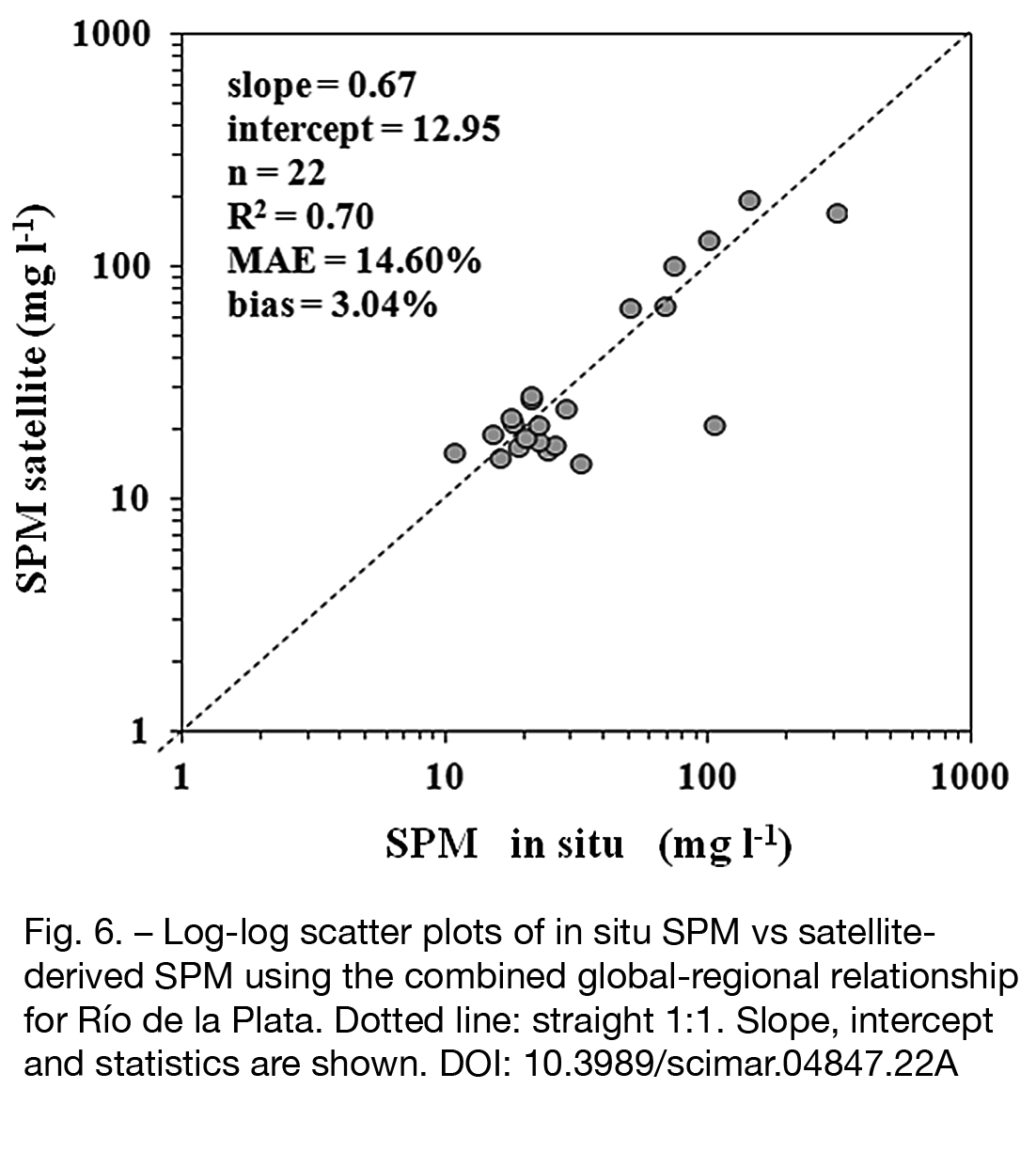

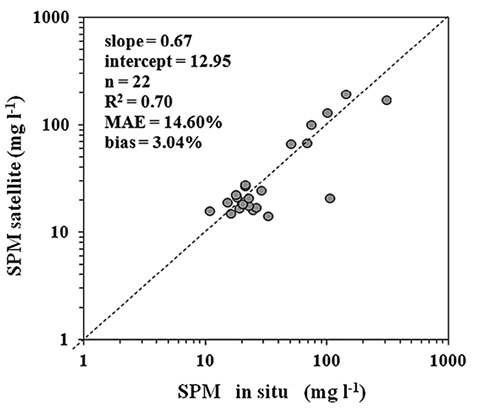

Fig. 6. – Log-log scatter plots of in situ SPM vs satellite-derived SPM using the combined global-regional relationship for Río de la Plata. Dotted line: straight 1:1. Slope, intercept and statistics are shown.

Full size image

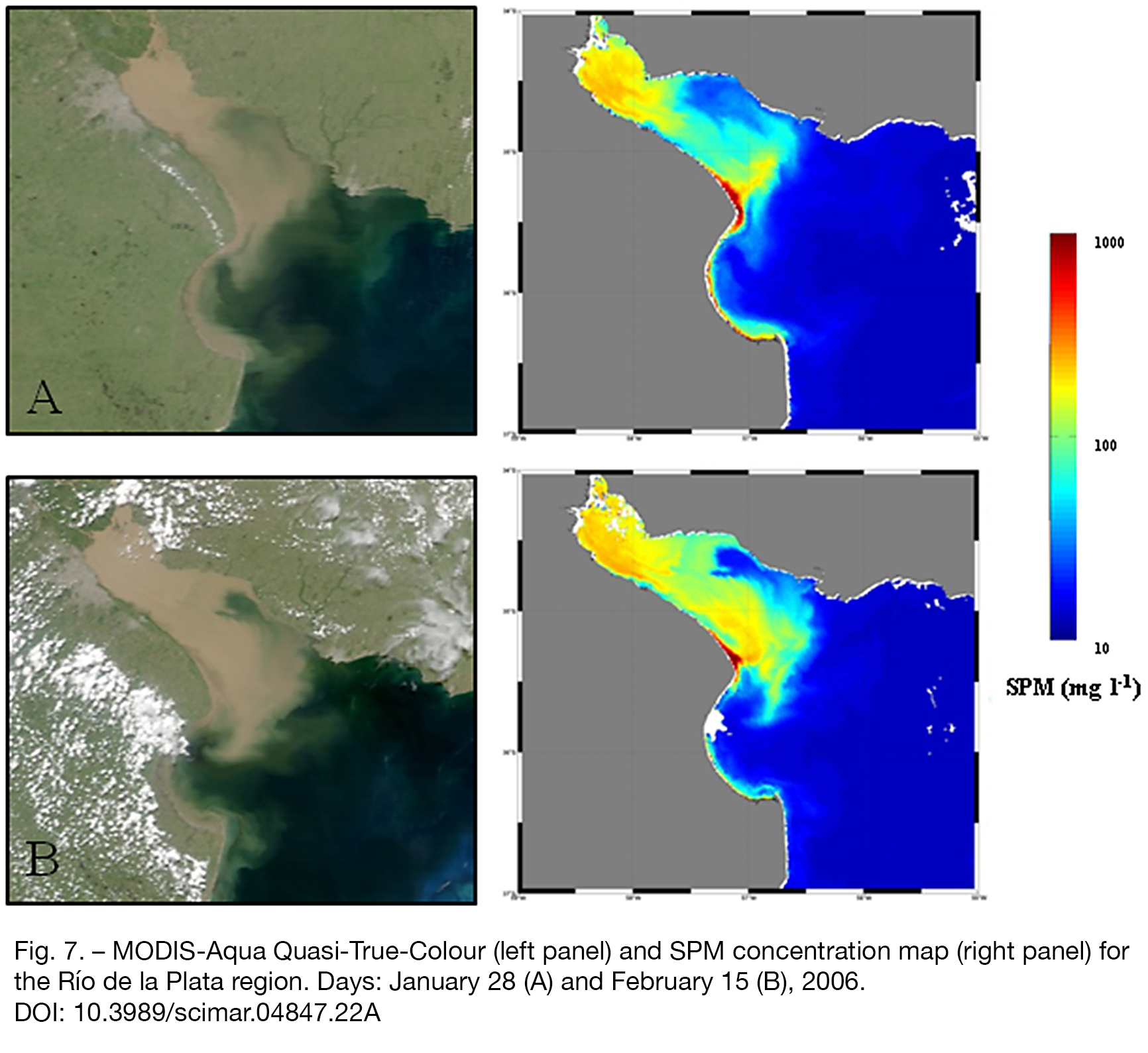

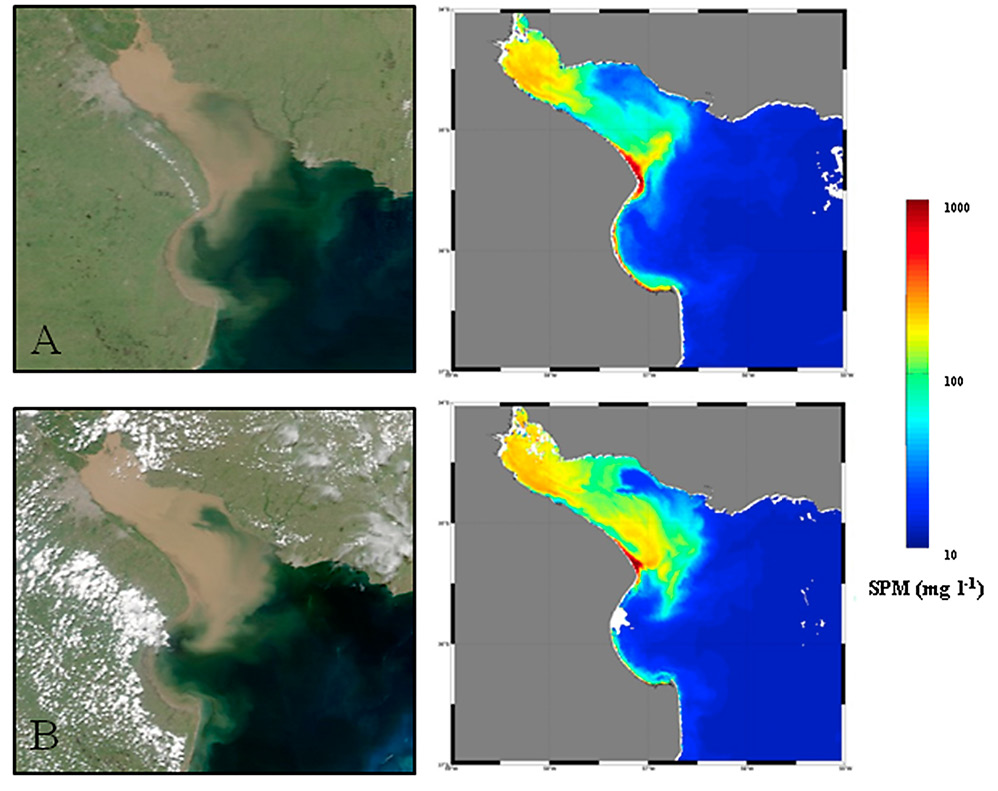

Fig. 7. – MODIS-Aqua Quasi-True-Colour (left panel) and SPM concentration map (right panel) for the Río de la Plata region. Days: January 28 (A) and February 15 (B), 2006.

DISCUSSIONTop

In the present study, a good correlation between in situ SPM and turbidity in the estuarine region of RdlP (R²=0.83) was found and, when this empirical relation was applied to satellite-derived turbidity images, good estimates of SPM were obtained (R²=0.70, PCC=0.78). The relationship between SPM and turbidity showed a low dispersion (MAE=14.6%) and the small and positive bias (3.04%) indicated that the estimated SPM values tend to overestimate the field values. The performance of the regional calibration of an empirical algorithm for SPM showed good efficiency, indicating the practical advantage of using relatively inexpensive and portable nephelometers and SPM analysis to retrieve satellite-derived SPM maps, as suggested in Dogliotti et al. (2015)Dogliotti A.I., Ruddick K.G., Nechad B., et al. 2015. A single algorithm be used to retrieve turbidity from remotely-sensed data in all coastal and estuarine waters. Remote Sens. Environ. 156: 157-168., in regions with high spatial and temporal variability such as the RdlP estuarine region.

The relationship between SPM and turbidity showed differences around the world (e.g. Packman et al. 1999Packman J.J., Comings K.J., Booth D.B. 1999. Using turbidity to determine total suspended solids in urbanizing streams in the Puget Lowlands. Confronting Uncertainty: Managing Change in Water Resources and the Environment. Canad. Water Res. Assoc. Ann. Meet. Vancouver, BC 27-29: 158-165., Marquis 2005Marquis P. 2005. Turbidity and Suspended Sediment as Measures of Water Quality. Watershed Manag. Bull. 9: 21-23.), mainly caused by differences in the particle type (size and composition). In the estuarine region of the RdlP, the surface particle size distribution is heterogeneous, with mainly silt and clay in the upper and middle area (research cruise FREPLATA-FFEM) (Simionato et al. 2011bSimionato C.G., Moreira D., Piedra Cueva I., et al. 2011b. Proyecto FREPLATA-FFEM Modelado numérico y mediciones in-situ y remotas de las transferencias de sedimentos finos a través del Río de la Plata. Parte A: Adquisición de Datos. Frente Marítimo 1015-323322: 109-136.), and silt and sand in the outer region (Punta Rasa, research cruises 01, 02, 03, 04, 05, 06 and 07), where silt is mainly associated with nearshore areas, while the sand can be found in deeper water influenced by the coastal drift (Ottmann and Urien 1965Ottmann F., Urien C. 1965. Observaciones preliminares sobre la distribución de los sedimentos finos en la zona externa del Río de la Plata. Acad. Bras. Cienc. 37: 279-289., Lorenzo et al. 2006Lorenzo E., Fossati M., Bellón D., et al. 2006. Proyecto PDT-Modelación hidrosedimentológica del Río de la Plata, 233 pp) (Fig. 4B). Despite the particle size differences in these two regions, the empirical relationship between in situ SPM and turbidity in the sampled regions of the RdlP (FREPLATA-FFEM, Punta Piedras and Punta Rasa) showed no significant differences in the slope and in most of the intercepts. There is therefore no reason to believe that the study area has to be treated by regions by applying an empirical method for SPM vs turbidity. The lack of differences within this large, shallow and microtidal estuarine region (32000 km²) could be associated with its high sensitivity to wind variability on a synoptic timescale. The estuary rapidly responds to wind variability (around 4 days) in both, currents and salinity fields, and the mean seasonal conditions are characterized by a very large dispersion (Simionato et al. 2007Simionato C.G., Meccia V.L., Guerrero R., et al. 2007. Río de la Plata estuary response to wind variability in synoptic to intraseasonal scales: 2. Currents’ vertical structure and its implications for the salt wedge structure. J. Geophys. Res. 112: C07005., Meccia et al. 2013Meccia V.L., Simionato C.G., Guerrero R. 2013. The Río de la Plata estuary response to wind variability in synoptic time scale: Salinity ﬁelds and breakdown and reconstruction of the salt wedge structure. J. Coas. Res. 29: 61-77.). Given the great wind variability (Simionato et al. 2005Simionato C.G., Vera C.S., Siegismund F. 2005. Surface wind variability on seasonal and interannual scales over Río de la Plata area. J. Coast. Res. 21: 770-783.) and the sharp changes in the freshwater discharge observed in the RdlP, which cause large upstream or downstream movement in the location of the surface fronts (Jaureguizar et al. 2016Jaureguizar A.J., Solari A., Cortés F., et al. 2016. Fish diversity in the Río de la Plata and adjacent waters: an overview of environmental influences on its spatial and temporal structure. J. Fish Biol. 89: 569-600.), the SPM distribution will vary greatly, explaining the lack of significant differences along the entire estuarine region. Similarly, the differences in the intercept observed between FREPLATA-FFEM and Punta Rasa could be associated more with the composition of sediments than with the instruments used, since Punta Piedras and Punta Rasa had no significant differences but the synoptic timescale of variability in the distribution of surface sediment prevented their differentiation.

Part of the observed differences between satellite-derived and field SPM measurements might be caused by the atmospheric signal, which might not have been completely removed when the turbidity images were processed (Dogliotti et al. 2011Dogliotti A.I., Ruddick K., Nechad B., et al. 2011. Improving water reflectance retrieval from MODIS imagery in the highly turbid waters of La Plata River. Proceed. VI Int. Conf. Current problems in optics of natural water, ONW’2011, St. Petersburg, Russia, 8 pp., 2015Dogliotti A.I., Ruddick K.G., Nechad B., et al. 2015. A single algorithm be used to retrieve turbidity from remotely-sensed data in all coastal and estuarine waters. Remote Sens. Environ. 156: 157-168.). A match-up analysis using in situ water reflectance measurements is needed to evaluate the performance of existing atmospheric correction algorithms in these highly turbid waters. One of the main challenges in using ocean colour imagery is to determine the degree of correlation between the in situ measurements and the satellite-derived data. In this type of match-up analysis, a correlation of 85% (or 15% error) is considered a very good fit (Gregg and Casey 2004Gregg W.W., Casey N.W. 2004. Global and regional evaluation of the SeaWiFS chlorophyll data set. Remote Sens. Environ. 93: 463-479., Djavidnia et al. 2006Djavidnia S., Mélin F., Hoepffner N. 2006. Analysis of Multi-Sensor Global and Regional Ocean Colour Products. MERSEA-IP Marine Environment and Security for the European Area-Integrated Project Report on Deliverable D.2.3.5 European Commission-Joint Research Centre Ref: MERSEA-WP02-JRC-STR-0001-01A, 228 pp.), so the result obtained based on 40% of the available data was very good (Fig. 3). The reduced number of samples used in the match-up analysis (n=22 of n=57 available) was caused by the strict protocol used and the amount of cloud-covered satellite images present for those dates.

The present results demonstrate the advantage of using a general algorithm to retrieve turbidity from remotely sensed data and then to apply a regional relationship (turbidity vs SPM) to finally obtain SPM maps in a relatively easy and cheap way, i.e. without in situ reflectance measurements, as suggested in Dogliotti et al. (2015)Dogliotti A.I., Ruddick K.G., Nechad B., et al. 2015. A single algorithm be used to retrieve turbidity from remotely-sensed data in all coastal and estuarine waters. Remote Sens. Environ. 156: 157-168.. Nevertheless, some differences between satellite-derived and in situ SPM data still remain, partly due to differences in sediment type (particle size and composition) in different parts of the study area as is suggested by the spread of the data in the field SPM vs turbidity relationship found in this study. The analysis of local differences of these relationships, through the analysis of the sediment type (size and composition), and how this might influence satellite-derived SPM values, deserve further analysis and will be the topic of a future study.

ACKNOWLEDGEMENTSTop

This study is a contribution to the ANPCyT project PICT 2010-1831. Martina Camiolo’s participation was possible thanks to an ANPCyT doctoral fellowship in the framework of this project. María Constanza Hozbor is thanked for her help in processing the water samples. This study is INIDEP contribution number 2152.
