Discards regulation vs Mediterranean fisheries
sustainability
M. Demestre and F. Maynou (eds)

INTRODUCTIONTop

Despite its impact on marine ecosystems through the modification of sea-bottom morphology and resuspension of sediments, bottom trawling is one of the most common fishing practices around the world (Pusceddu et al. 2014Pusceddu A., Bianchelli S., Martín J., et al. 2014. Chronic and intensive bottom trawling impairs deep-sea biodiversity and ecosystem functioning. PNAS 111: 8861-8866., Clark et al. 2015Clark M.R., Althaus F., Schlacher T.A., et al. 2015. The impacts of deep-sea fisheries on benthic communities: a review. ICES J. Mar. Sci. 73: 51-69.). Demersal trawl nets collect an extensive range of species and sizes and thus have high discard rates. By-catch is defined as any organism caught unintentionally. Unwanted catch is the proportion of the catch that has no value to the fisher and is frequently discarded, which may include undersized or damaged commercially important species (i.e. target species); commercially important species for which the fisher has no quota; and species with no commercial value. “The discard problem” raises several issues, including policy and ethical implications, fisheries management, and ecological, economic and technical concerns (Kelleher 2005Kelleher K. 2005. Discards in the world’s marine fisheries. An update. FAO Fish. Tech. Pap. 470, Rome, 131 pp.). One of the key changes during the recent reform of the Common Fisheries Policy was the intention to “gradually eliminate the wasteful practice of discarding” (EU 2013European Union (EU). 2013. Regulation (EU) No 1380/2013 of the European Parliament and of the Council of 11 December 2013 on the Common Fisheries Policy, amending Council Regulations (EC) No 1954/2004 and (EC) No 1224/2009 and repealing Council Regulations (EC) No 2371/2002 and (EC) No 639/2004 and Council Decision 2004/585/EC. Off. J. Europ. Union L 354/22.). As a result, a discard ban (the “Landing Obligation”) now obliges fishermen to keep and land all regulated species caught: i.e., species with quotas (total allowable catches) or minimum conservation reference sizes in the Mediterranean. However, if scientific evidence demonstrates that a species has an acceptably high survival when released from a particular fishery, then discarding of that species may be permitted (EU 2013European Union (EU). 2013. Regulation (EU) No 1380/2013 of the European Parliament and of the Council of 11 December 2013 on the Common Fisheries Policy, amending Council Regulations (EC) No 1954/2004 and (EC) No 1224/2009 and repealing Council Regulations (EC) No 2371/2002 and (EC) No 639/2004 and Council Decision 2004/585/EC. Off. J. Europ. Union L 354/22.).

Research estimating discard survival has been conducted in commercial fisheries and research vessels around the world (e.g. Davis 2002Davis M.W. 2002. Key principles for understanding fish bycatch discard mortality. Can. J. Fish. Aquat. Sci. 59: 1834-1843., Broadhurst et al. 2006Broadhurst M.K., Suuronen P., Hulme A. 2006. Estimating collateral mortality from towed fishing gear. Fish Fish. 7: 180-218., Uhlmann and Broadhurst 2015Uhlmann S.S., Broadhurst M.K. 2015. Mitigating unaccounted fishing mortality from gillnets and traps. Fish Fish. 16: 183-229.). Reliable information on survival of discarded specimens is essential for several reasons. First, regarding the Landing Obligation, the survival of unwanted animals following capture and discarding needs to be evaluated to determine whether by-catch should be landed or may be discarded. For example, a “high survivability” exemption was granted in 2016 for the Norway lobster (Nephrops norvegicus) because scientific evidence indicated high discard survival rates (EU 2015European Union (EU). 2015. Commission Delegated Regulation (EU) 2015/2439 of 12 October 2015 establishing a discard plan for certain demersal fisheries in south-western waters. Off. J. Europ. Union L 336/36.). With respect to stock assessment, the inclusion of estimates of discard mortality reduces uncertainty in estimates of total fishing mortality (e.g. Breen and Cook 2002Breen M., Cook R. 2002. Inclusion of discard and escape mortality estimates in stock assessment models and its likely impact on fisheries management. ICES CM 2002/V: 27, 15 pp.), and therefore provides more reliable estimates of maximum sustainable yield and other biological reference points. In biological terms, investigating the probable fate of discards is important for understanding the extent to which fishing activities alter the trophic webs in the marine environment (Castro et al. 2005Castro M., Araújo A., Monteiro P. 2005. Fate of discards from deep water crustacean trawl fishery off the south coast of Portugal. N. Z. J. Mar. Fresh. Res. 39: 437-446.). Moreover, determining influential factors on survival of a species allows a better understanding of the stressors associated with capture, handling and discarding, and thus enables strategies to improve survival to be developed.

The Algarve deep-water trawl fishery targets three main crustacean species (Parapenaeus longirostris, Nephrops norvegicus and Aristeus antennatus) at fishing depths of between 200 and 700 m. The crustacean trawlers have licences for two separate mesh size categories: a 55 to 59 mm mesh size when they are targeting red and rose shrimp species, which must compose 30% of total catch; and a 70 mm mesh size when they are targeting Norway lobster, without by-catch limitations. Blue whiting (Micromesistius poutassou) is the most discarded species by weight, but it is not included in the 70% maximum limit for by-catch species (Diário da República 2000Diário da República. 2000. Portaria nº 1102-E/2000 de 22 de Novembro., Monteiro et al. 2001Monteiro P., Araújo A., Erzini K., et al. 2001. Discards of the Algarve (southern Portugal) crustacean trawl fishery. Hydrobiologia 449: 267-277.). Previous work has shown discard rates of approximately 70% in crustacean trawlers, meaning the weight of by-catch is substantially larger than the weight of target species (Costa et al. 2008Costa M.E., Erzini K., Borges T.C. 2008. Bycatch of crustacean and fish bottom trawl fisheries from southern Portugal (Algarve). Sci. Mar. 72: 801-814., Monteiro et al. 2001Monteiro P., Araújo A., Erzini K., et al. 2001. Discards of the Algarve (southern Portugal) crustacean trawl fishery. Hydrobiologia 449: 267-277.). The main discarded fish species are blue whiting (Micromesistius poutassou), European hake (Merluccius merluccius), Atlantic horse mackerel (Trachurus trachurus), blue jack mackerel (Trachurus picturatus), conger eel (Conger conger) and shark species (Scyliorhinus canicula, Galeus melastomus, Etmopterus spp.) (Borges et al. 2001Borges T.C., Erzini K., Bentes L., et al. 2001. By-catch and discarding practices in five Algarve (southern Portugal) métiers. J. Appl. Ichtyol. 17: 104-114., Erzini et al. 2002Erzini K., Costa M.E., Bentes L., et al. 2002. A comparative study of the species composition of discards from five fisheries from the Algarve (southern Portugal). Fish. Manage. Ecol. 9: 31-40.). For the Portuguese fisheries, several studies of post-release survival of discarded fish and invertebrate species have been conducted recently. Survival of N. norvegicus caught with trawlers and placed into cages ranged between 12.5% and 60% (Castro et al. 2003Castro M., Araújo A., Monteiro P., et al. 2003. The efficacy of releasing caught Nephrops as a management measure. Fish. Res. 65: 475-484.). By contrast, for individuals initially caught by traps, the mean survival rate was 86% (Campos et al. 2015Campos A., Fonseca P., Pilar-Fonseca T., et al. 2015. Survival of trawl-caught Norway lobster (Nephrops norvegicus L.) after capture and release – Potential effect of codend mesh type on survival. Fish. Res. 172: 415-422.). Survival experiments of by-catch fish (Trachinus vipera, Dicologlossa cuneata) and crab (Polybius henslowii) from bivalve dredges showed that 54% to 81% of the individuals died after 48 hours in captivity (Leitão et al. 2014Leitão F., Range P., Gaspar M.B. 2014. Survival estimates of bycatch individuals discarded from bivalve dredges. Braz. J. Oceanogr. 62: 257-263.). No studies have yet been done on the survival of by-catch fish species in demersal trawlers in Portuguese waters.

Discard survival assessments can be conducted using three different methods: vitality assessment, which gives estimates of immediate mortality; captive observation; and tagging/biotelemetry (ICES 2014ICES. 2014. Report of the Workshop on Methods for Estimating Discard Survival (WKMEDS), 17-21 February 2014, ICES HQ, Copenhagen, Denmark. ICES CM 2014/ACOM:51, 114 pp., Breen and Catchpole in pressBreen M., Catchpole. T. (eds) In press. ICES WKMEDS Guidance on Method for Estimating Discard Survival. ICES Coop. Res. Rep.). Detailed and prolonged assessments of discard mortality obtained by captive observation and tagging are costly, technically difficult to acquire, and only available for a limited number of species and fisheries (e.g. Laptikhovsky 2004Laptikhovsky V.V. 2004. Survival rates for rays discarded by the bottom trawl squid fishery off the Falkland Islands. Fish. Bull. 102: 757-759., Huse and Vold 2010Huse I., Vold A. 2010. Mortality of mackerel (Scomber scombrus L.) after pursing and slipping from a purse seine. Fish. Res. 106: 54-59., Campos et al. 2015Campos A., Fonseca P., Pilar-Fonseca T., et al. 2015. Survival of trawl-caught Norway lobster (Nephrops norvegicus L.) after capture and release – Potential effect of codend mesh type on survival. Fish. Res. 172: 415-422.). Vitality assessments, in the form of semi-quantitative indicators and time-to-mortality (TTM, a coarse mortality indicator) estimates, can give cost-effective preliminary assessments, allowing prioritization of in-depth assessments on the most resilient species (ICES 2014ICES. 2014. Report of the Workshop on Methods for Estimating Discard Survival (WKMEDS), 17-21 February 2014, ICES HQ, Copenhagen, Denmark. ICES CM 2014/ACOM:51, 114 pp., Breen and Catchpole in pressBreen M., Catchpole. T. (eds) In press. ICES WKMEDS Guidance on Method for Estimating Discard Survival. ICES Coop. Res. Rep.). Captive observation consists of transferring wild-caught animals (before being discarded) into tanks or other holding facilities (e.g. underwater cages) and monitoring them until the mortality rate stabilizes, which might take days to weeks. This approach should be representative of real fishing conditions and, when combined with vitality assessments, can give reliable estimates of survival rate (excluding predation) that are illustrative of the particular fishery and species of interest (ICES 2014ICES. 2014. Report of the Workshop on Methods for Estimating Discard Survival (WKMEDS), 17-21 February 2014, ICES HQ, Copenhagen, Denmark. ICES CM 2014/ACOM:51, 114 pp.).

This study had three main goals. The first was to estimate immediate mortality and prioritise species that may survive the discarding process, using vitality assessments and TTM. The second was to analyse the effect of biological traits (e.g. size, presence and type of gas bladder, scales, injuries and metabolic rate) on TTM, since these largely determine the susceptibility of a species to dying after being caught and discarded. The third was to make a captive observation survival assessment, in which individual conger eels (Conger conger) were held in tanks to estimate the mortality rate. This included a description of the types and frequencies of injuries and how these related to the observed mortality.

MATERIALS AND METHODSTop

By-catch mortality after air exposure

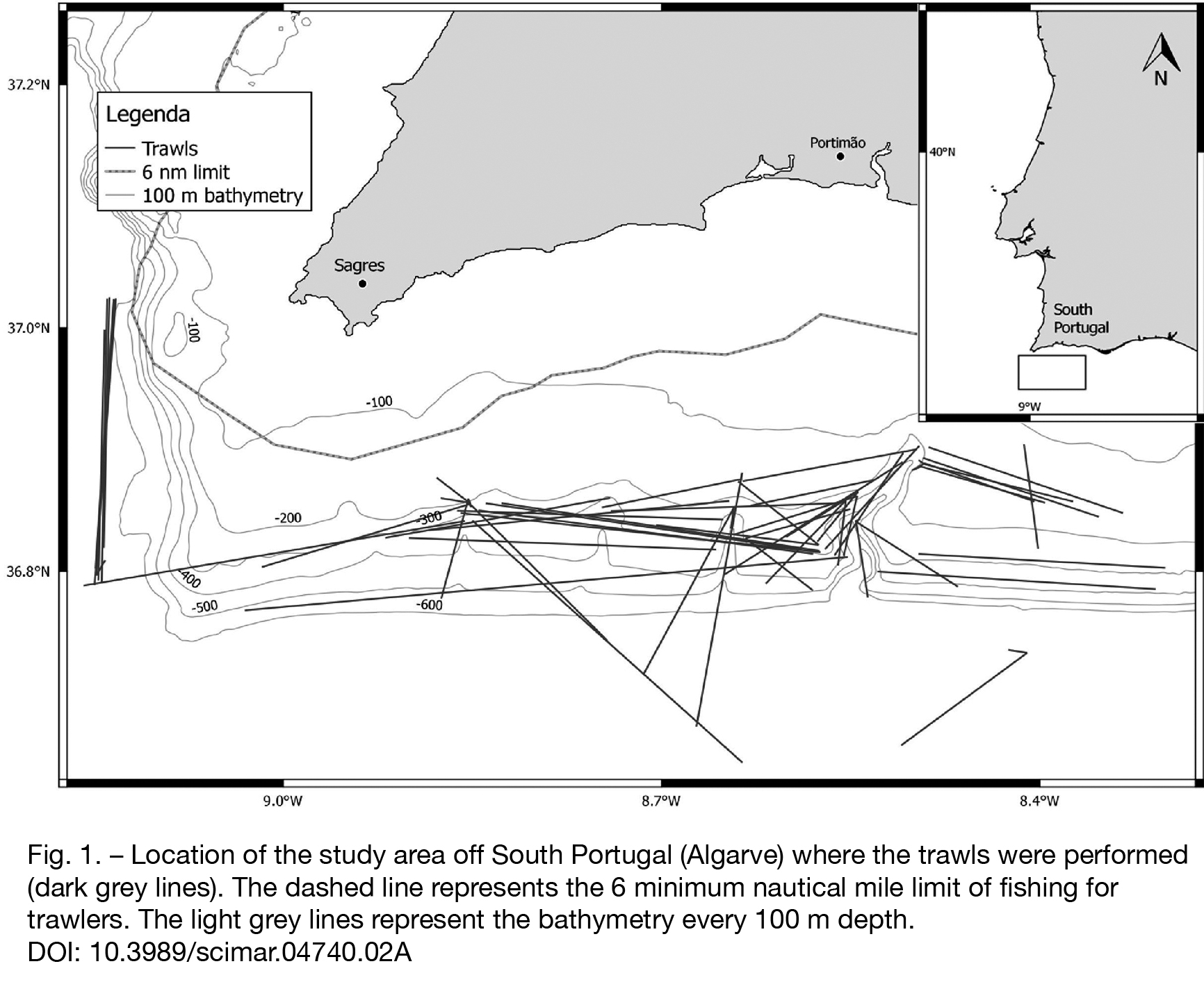

Sampling was conducted in December 2016 (during six days) and February 2017 (five days’ duration) in a commercial trawler along the south coast of Portugal (Fig. 1). Positional data (latitude and longitude), depth and fishing operation details were recorded. The trawl gear was towed for 4 h (95% CI: 3.6 to 5.2 h), at depths of between 123 and 841 m. Speed of individual tows was 2.9 to 3 knots (given by the skipper), and mean hauling time was 20 min (95% CI: 16.4 to 23 min). The cod end was emptied into a holding container below deck and, in most hauls, immediately set again (prior to catch sorting); this time between re-deploying the net and starting to sort the catch lasted around seven min. The sorting process took on average 18 min (95% CI: 15.6 to 20 min). Time 0 was defined as when the catch was dropped into the holding container. The crew sorted the catch by hand and samples were taken immediately after the sorting process started.

For TTM monitoring, samples of 10 to 15 individuals of each species were collected randomly, depending on the by-catch composition of the haul. After the initial injury evaluation, individual animals were monitored for out-of-water vitality assessment (Table 1) at regular intervals for 2-3 s, until there were no signs of life. Injuries were classified into four types (scale loss, bruises, wounding and deep wounding; Catchpole et al. 2015Catchpole T., Randall P., Forster R., et al. 2015. Estimating the discard survival rates of selected commercial fish species (plaice - Pleuronectes platessa) in four English fisheries (MF1234), Cefas Rep., London, 108 pp.) and recorded only if there was clear damage. Immobile individuals were manipulated and tested for reflex responses to determine whether they were dead (if at least one of the reflexes was present, the individual was considered to be alive; Table 2). Total body length was measured in centimetres.

Biological traits

This work considered the biological characteristics of each species: body size, deciduous scales, injuries, presence and type of gas bladder and metabolic rates. This information was compiled from general literature and field observations; when detailed information was not available, species were given the same trait category as other species within their family or order (Jacobsen et al. 2002Jacobsen J.A., Jákupsstovu S.H., Poulsen M., et al. 2002. Does the seasonal variation in fat content of blue whiting affect the acoustic conversion factor (TS)? ICES CM 2002/O:15, Theme session O, 8 pp., Revill et al. 2005Revill A.S., Dulvy N.K., Holst R. 2005. The survival of discarded lesser-spotted dogfish (Scyliorhinus canicula) in the Western English Channel beam trawl fishery. Short communication. Fish. Res. 71: 121-124.). The justification for the inclusion of these biological covariates is presented in the following.

Body length

Fish of smaller size are likely to be more susceptible to hypoxia due to their increased mass-specific metabolic rates and consequently higher energy expenditures in breathing activities (Benoît et al. 2013Benoît H.P., Plante S., Kroiz M., et al. 2013. A comparative analysis of marine fish susceptibilities to discard mortality: effects of environmental factors, individual traits, and phylogeny. ICES J. Mar. Sci. 70: 99-113.).

Gas bladder

Physoclistous species that possess a gas bladder, with no connection between bladder and gut, suffer significantly increased mortality due to depressurization when fish are brought to surface, resulting in extrusion of internal organs and the rupture of the gas bladder (Benoît et al. 2013Benoît H.P., Plante S., Kroiz M., et al. 2013. A comparative analysis of marine fish susceptibilities to discard mortality: effects of environmental factors, individual traits, and phylogeny. ICES J. Mar. Sci. 70: 99-113.). Other species with physostomous bladders (i.e. open bladders, where there is a connection to the gut) can better regulate gas pressure and therefore depressurization may not have such severe effects. For individuals without a swim bladder, it is assumed that depressurization effects would be less damaging (Broadhurst et al. 2006Broadhurst M.K., Suuronen P., Hulme A. 2006. Estimating collateral mortality from towed fishing gear. Fish Fish. 7: 180-218.).

Deciduous scales

Deciduous scales that are easily lost are a biological trait that could increase susceptibility to injury and desiccation when fish are exposed to the stressors during capture, as well as when they are exposed to air after capture and handling (Broadhurst et al. 2006Broadhurst M.K., Suuronen P., Hulme A. 2006. Estimating collateral mortality from towed fishing gear. Fish Fish. 7: 180-218., Benoît et al. 2013Benoît H.P., Plante S., Kroiz M., et al. 2013. A comparative analysis of marine fish susceptibilities to discard mortality: effects of environmental factors, individual traits, and phylogeny. ICES J. Mar. Sci. 70: 99-113.).

Metabolic rate

Low metabolic rates of sedentary species, as a strategy to conserve energy, are associated with increased resistance to stress (Carlson et al. 2004Carlson J.K., Goldman K.J., Lowe C.G. 2004. Metabolism, energetic demand and endothermy. In: Carrier J.C., Musick J.A., Heithaus M.R. (eds), Biology of sharks and their relatives. CRC Press, New York, pp. 203-219., Helfman et al. 2009Helfman G.S., Collete B.B., Facey D.E., et al. 2009. The diversity of fishes – Biology, evolution and ecology. Second edition. Wiley-Blackwell, West Sussex.). Where species specific metabolic rate values were not available, data from related taxa were used as an alternative (Yang et al. 1992Yang T.–H, Lai N.C., Graham J.B., et al. 1992. Respiratory, blood and heart enzymatic adaptations of Sebastolobus alascanus (Scorpaenidae; Teleostei) to the oxygen minimum zone: a comparative study. Biol. Bull. 183: 490-499., Cowles and Childress 1995Cowles D.L., Childress J.J. 1995. Aerobic metabolism of the anglerfish Melanocetus johnsoni, a deep-pelagic marine sit-and-wait predator. Deep-Sea Res. 42: 1631-1638., Clarke and Johnston 1999Clarke A., Johnston N.M. 1999. Scaling of metabolic rate with body mass and temperature in teleost fish. J. Anim. Ecol. 68: 893-905.).

Survival assessment

A survival assessment of conger eel (Conger conger) was conducted from 23 to 27 July 2017 on a commercial bottom trawler targeting deep-water crustaceans. Once the net was emptied to the holding container below deck and sorting of the catch started, 20 to 30 individuals were collected from each haul and placed in observation tanks (first haul – tank 1; second haul – tank 2). Tank 1 was made of steel, had approximately 650-L capacity and included a cooling system. Tank 2 was made of plastic and had approximately 500-L capacity. It was not possible to have a continuous water flow, but the water in the tanks was completely renewed every 3 h, using a seawater inlet and a small water pump to transfer cooled water from tank 1 to tank 2. Water temperature in the tanks ranged between 13°C and 18°C. The fish were held in the tanks for 65 h and monitored every 4 to 6 h; when dead, fish were removed and recorded. Swimming behaviour was monitored at the start and during the assessment. Major injuries were noted at the end of the assessment: scratches, deep cuts, wounds or bruises (scored as presence/absence, 1/0). In-water reflexes were tested to confirm the vitality/survival status at the start and at the end of the assessment (scored as 1, present if a response was clearly present or 0, absent if the response was not present or weak; Table 3).

Data analysis

Vitality and TTM data were analysed using the survival package in R to model survival probability as a function of time, as a measure of fish tolerance to stress and air exposure (Therneau 2016Therneau T. 2016. A Package for Survival Analysis in S. version 2.39-5, https://CRAN.R-project.org/package=survival.). Non-parametric Kaplan-Meier models were fitted to the TTM data to estimate time to 50% mortality after data censoring. Data censoring occurs when the exact time of an event (t), in this case time of mortality after capture and handling, is not known (Benoît et al. 2013Benoît H.P., Plante S., Kroiz M., et al. 2013. A comparative analysis of marine fish susceptibilities to discard mortality: effects of environmental factors, individual traits, and phylogeny. ICES J. Mar. Sci. 70: 99-113.). Fish that were dead (score four on vitality assessment) when first observed at time 0 (before the monitoring period started) were treated as left-censored observations in that their actual time of mortality occurred before the observation time (T). Fish that were still alive when monitoring ceased were considered right-censored observations (t>T); the remaining individuals (i.e. those that died during TTM monitoring) were considered uncensored observations (t≈T).

In addition, interval censoring was applied when mortality was known to occur between two times (Ti<t<Tj) but the exact time of mortality was not observed. This type of censoring was used specifically to combine TTM data for the 12 taxa, for analysis of biological traits. With regard to classifying biological traits, the gas bladder had three categories: absence of gas bladder, open gas bladder and closed gas bladder. Deciduous scales and injuries were defined as present or absent. Metabolic rate had three classes, according to the range of values found for the group of taxa: low (<3 mg O₂ h^–1 per 50 g body mass), medium (3-6 mg O₂ h^–1 per 50 g body mass) and high metabolic rate (>6 mg O₂ h^–1 per 50 g body mass). Information on metabolic rate from different sources was standardized as milligrams of oxygen consumed per hour per 50 grams of body mass, assuming oxygen solubility 7.9 mg L^–1 or 5.9 mL L^–1 at salinity of 35, pressure of 1 bar and water temperature of 15°C.

Parametric Weibull models were used to correlate survival probability (from TTM estimates) with vitality at first observation, individual size and respective biological traits. The number of injuries to each individual animal was included as a possible explanatory variable of the mortality results in a Weibull model. Regarding the survival assessment, a log-rank test compared the survival estimates between the two tanks. The Akaike information criterion (AIC) was calculated to give the goodness-of-fit of each model and log-likelihood ratio tests performed to test whether there were significant differences when different models were compared.

RESULTSTop

By-catch mortality after air exposure

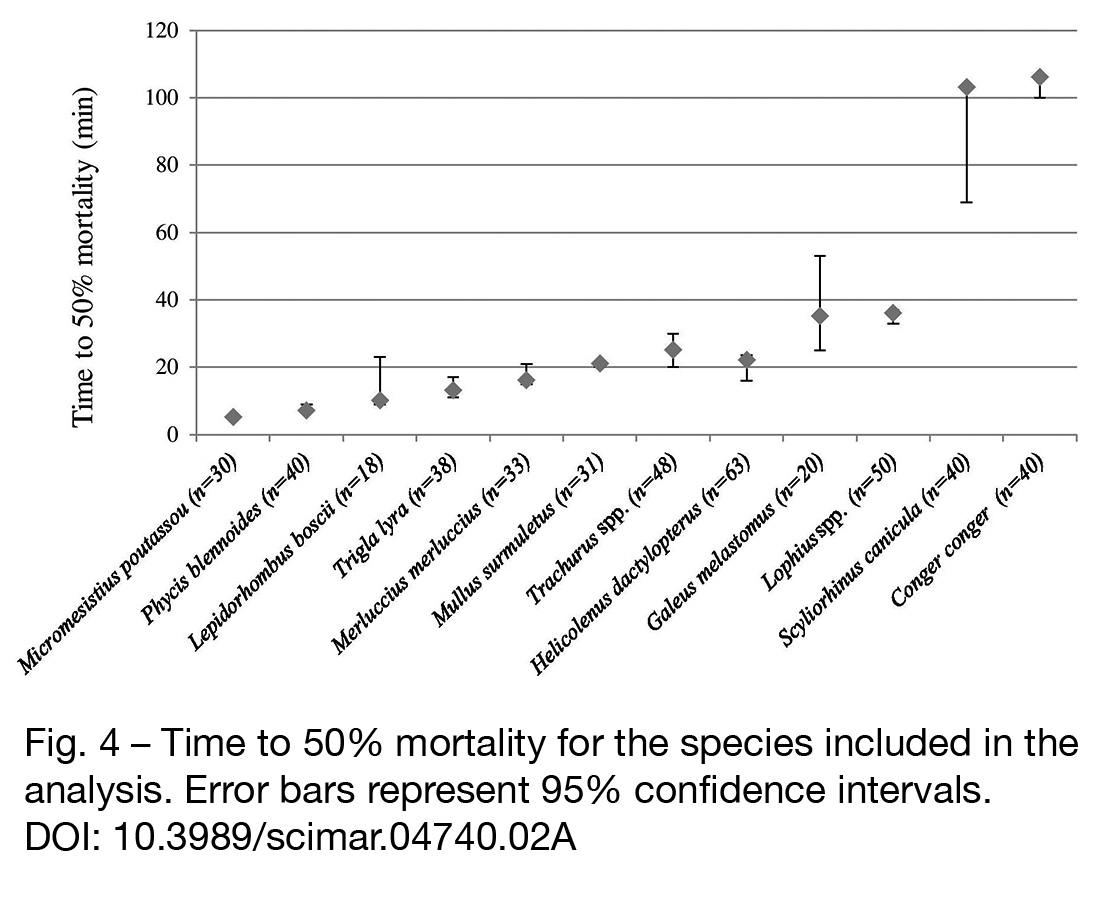

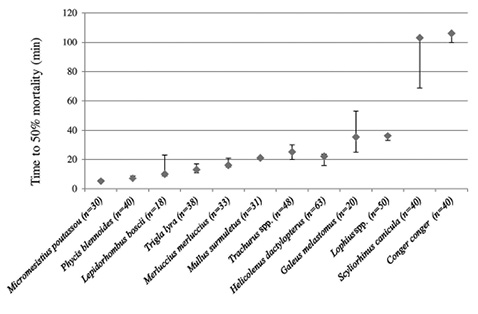

Data on TTM were collected for a total of 451 individuals belonging to 14 species from 40 hauls. Trachurus trachurus, T. picturatus, Lophius piscatorius and L. budegassa were grouped by genera, i.e. mackerel species and monkfish species, respectively. In the examination of injuries, more than 80% of the individuals in each taxon showed some form of injury, except mackerel species (Trachurus spp.), lesser-spotted dogfish (Scyliorhinus canicula) and piper gurnard (Trigla lyra; Fig. 2). European hake (Merluccius merluccius), greater forkbeard (Phycis blennoides) and piper gurnard often exhibited severe forms of damage: i.e. inflated gas bladder and eversion of stomach (personal observations). The blackmouth catshark (Galeus melastomus) and spotted dogfish often had bruises on the skin. Most fish with scales (surmullet, Mullus surmuletus; four-spot megrim, Lepidorhombus boscii; greater forkbeard; European hake; blue whiting, Micromesistius poutassou; and blackbelly rosefish, Helicolenus dactylopterus) had scale loss during the capturing and handling process; mackerel species and piper gurnard were the exceptions and conserved their scales. Mackerel species and conger eel frequently had bruises on the pectoral fins, and the latter also appeared scratched.

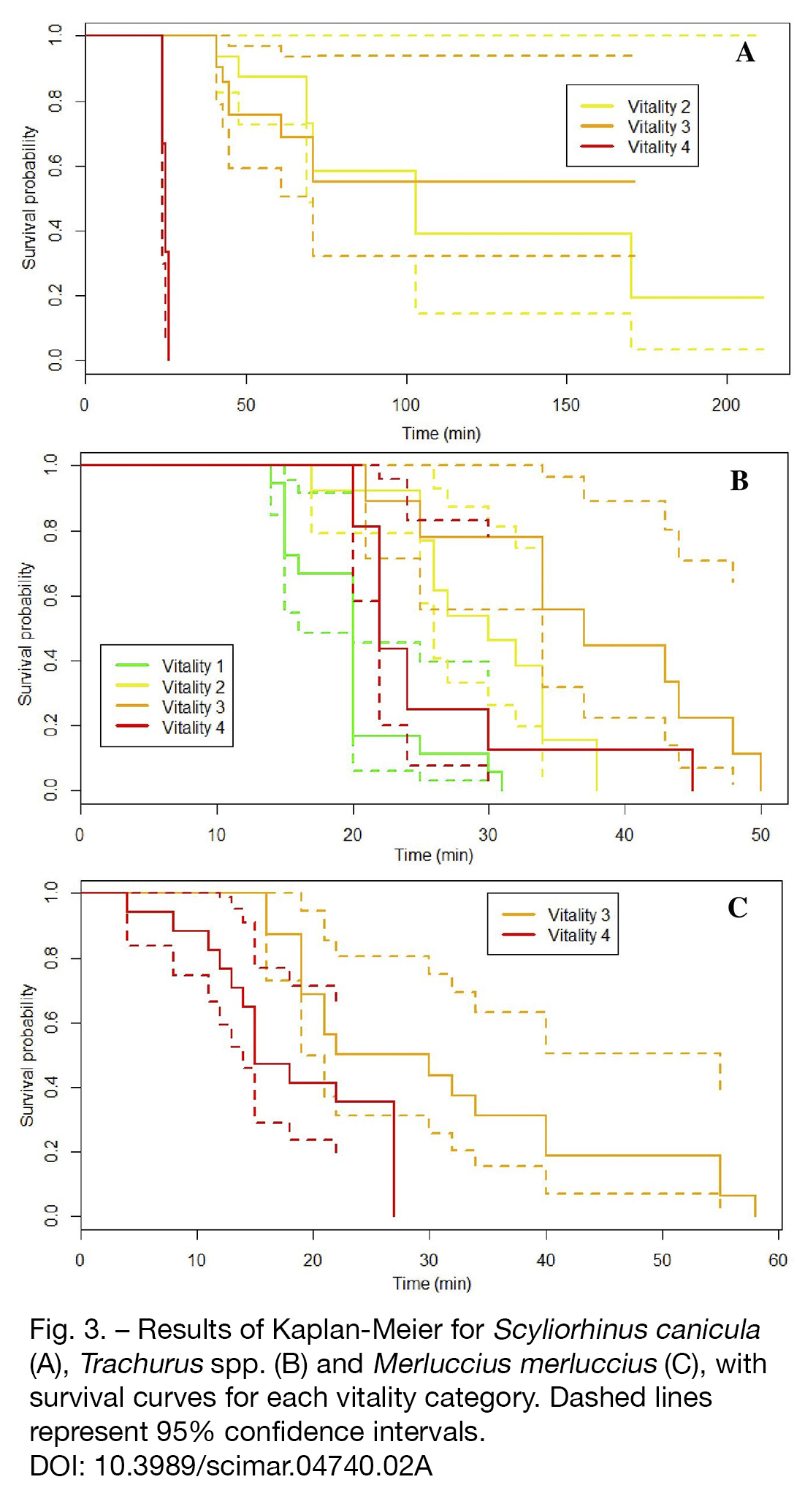

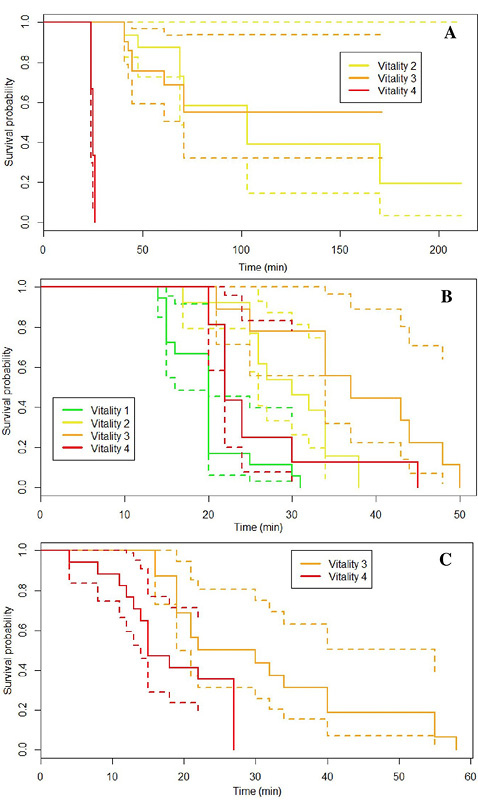

Kaplan-Meier models were applied individually for the 12 taxa (blue whiting, greater forkbeard, four-spot megrim, piper gurnard, European hake, surmullet, mackerel species, blackbelly rosefish, blackmouth catshark, lesser-spotted dogfish, monkfish species and conger eel) to calculate time to 50% mortality (examples of hake, spotted dogfish and mackerel in Fig. 3). There were two highly resistant species, spotted dogfish and conger eel, with mean times to 50% mortality of over 100 min (Fig. 4). In fact, these two species, together with blackbelly rosefish, were the only ones that had right-censored observations.

Not all vitality categories were observed in every species. For instance, vitality 1 was not recorded for spotted dogfish, and neither vitality 1 nor 2 was observed for monkfish species, blackmouth catshark, European hake, piper gurnard, blue whiting and greater forkbeard. Regarding the Weibull model results for blackbelly rosefish, conger eel and mackerel species, low vitality categories (3 and 4, Table 4) have a positive or less negative effect on TTM when compared with vitality 1 and 2, although this effect was only significant for mackerel species. Individual animal size had a significant effect on TTM for spotted dogfish and conger eel, in which smaller individuals died at a faster rate than larger ones.

Biological trait analysis

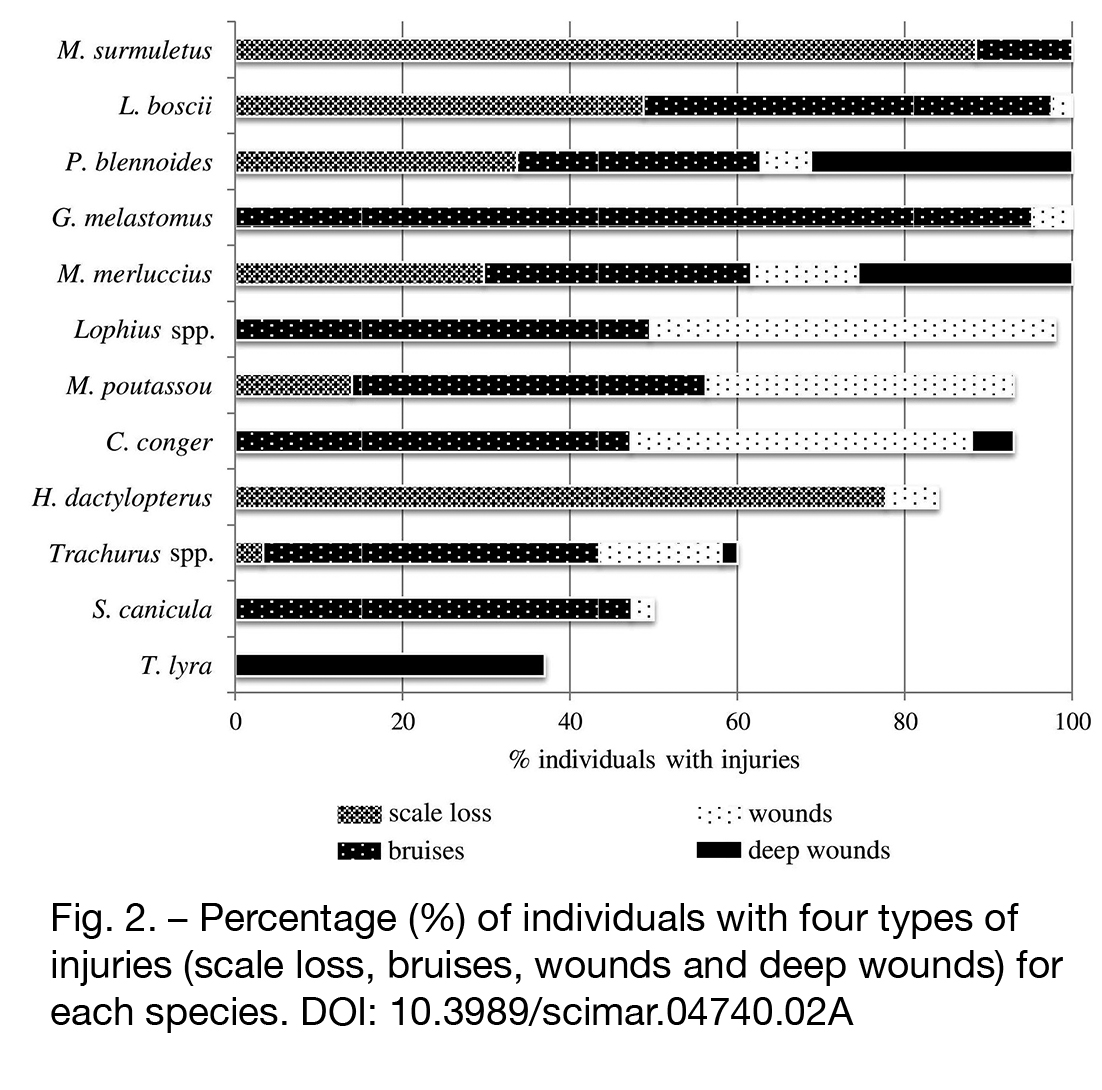

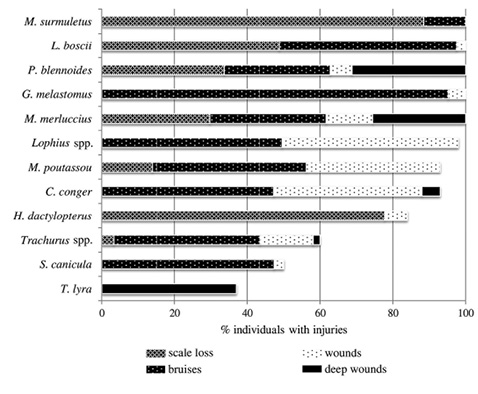

Not all the biological traits had relevant effects: injuries appeared to have no influence on TTM for these species, despite improving the fit of the base model (Table 5). By contrast, deciduous scales and closed gas bladder significantly reduced TTM results (p-values<0.0001). Low metabolic rates and open gas bladder significantly increased TTM.

Survival assessment

Overall, 64 fish from 2 tows, maintained in different tanks, were used in the survival analysis. In tank 1, 4 out of 36 fish died during the monitoring period, giving a survival rate of 88.9% (95% CI: 78.6% to 99.2%). In the second tank, 6 fish died (from a total of 28 fish), giving a survival rate of 78.6% (95% CI: 63.4% to 93.8%) at the end of the observation period. Most mortality occurred in the first 14 h: 8.3% in tank 1 (95% CI: 0.7% to 17.4%) and 17.9% in tank II (95% CI: 3.7% to 32.0%). However, the mortality rate did not stabilize at the end of the 65-h observation period.

A comparison of survival results between the two tanks showed no significant differences, so the data were grouped into one survival curve corresponding to an overall survival probability of 84.4% (95% CI: 75.5% to 93.3%). All fish started to swim immediately after being placed in water and 98% responded positively to the tested in-water reflexes.

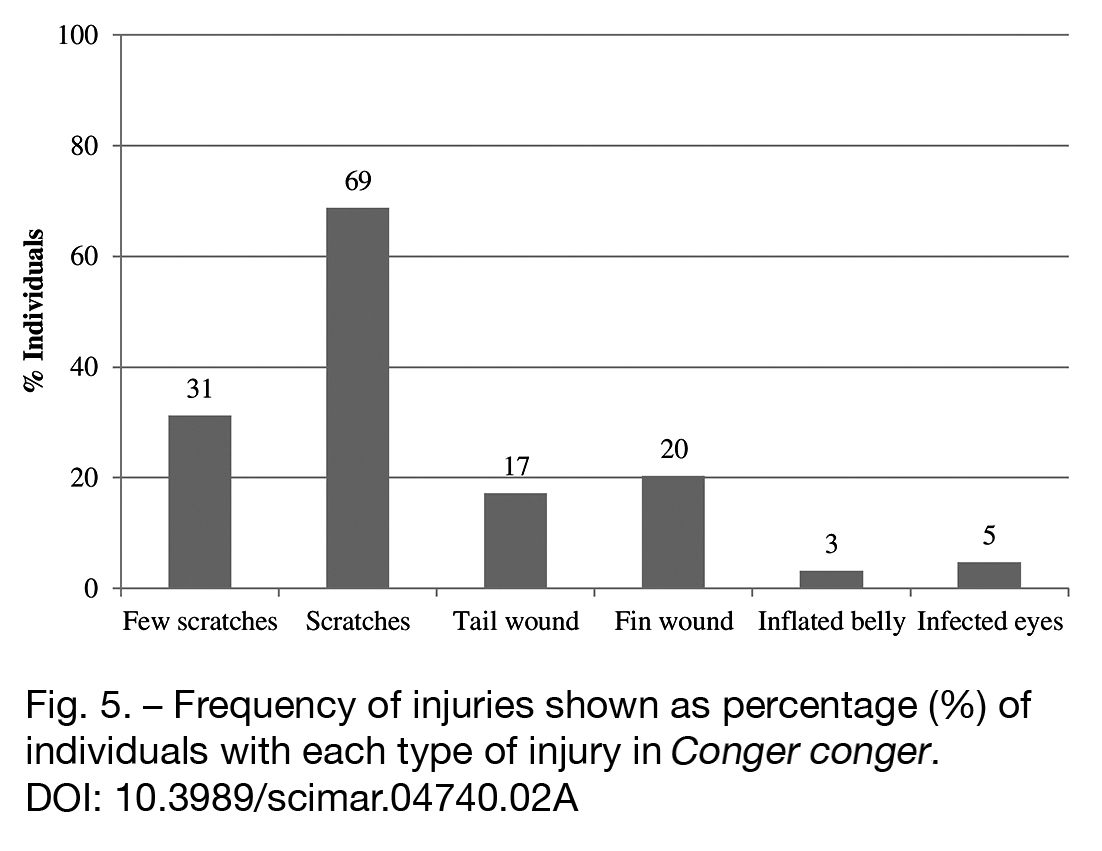

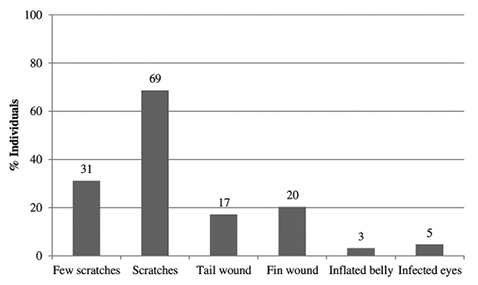

Every individual had some form of injury, from shallow scratches on the surface of the skin to more severe ones, e.g. deep wounds in tail and fins. The frequency of injuries is shown in Figure 5, with almost 70% of conger eel exhibiting scratched skin, likely due to physical contact and crowding inside the trawl. Around 40% of the fish had bruises on the tail and pectoral fins; 5% had eye injuries; and 3% showed inflated abdomens, a probable sign of barotrauma.

The number of injuries to each individual was included as a covariable in a Weibull model to test whether the presence of injuries influenced the observed mortality. Only the simultaneous presence of at least three types of injuries significantly increased mortality (coefficient=–0.32; p-value=0.01; Table 6).

DISCUSSIONTop

This study provides four main contributions for a better understanding of discard mortality, including an improved methodological approach to assessing vitality.

First, a preliminary evaluation of the by-catch vulnerability can be attained through TTM and KM results. These identify blue whiting (Micromesistius poutassou), greater forkbeard (Phycis blennoides), four-spot megrim (Lepidorhombus boscii), piper gurnard (Trigla lyra), European hake (Merluccius merluccius), surmullet (Mullus surmuletus), mackerel (Trachurus spp.) and blackbelly rosefish (Helicolenus dactylopterus) as highly susceptible to air exposure; with 50% TTMs of less than 30 min, and in most cases less than 20 min. Blackmouth catshark (Galeus melastomus) and monkfish species (Lophius piscatorius and L. budegassa) were more resilient, with 50% TTMs close to 40 min. However, considering the types and extent of injuries observed, the majority of by-catch fish species are fragile and do not cope well with the stressors associated with capture, handling and discarding. Only crustacean, bivalve, echinoderm and elasmobranch species are likely to survive, but these also account for a low percentage of discarded weight (Hill and Wassenberg 2000Hill B.J., Wassenberg T.J. 2000. The probable fate of discards from prawn trawlers fishing near coral reefs – A study in the northern Great Barrier Reef, Australia. Fish. Res. 48: 277-286., Monteiro et al. 2001Monteiro P., Araújo A., Erzini K., et al. 2001. Discards of the Algarve (southern Portugal) crustacean trawl fishery. Hydrobiologia 449: 267-277., Depestele et al. 2014Depestele J., Desender M., Benoît H.P., et al. 2014. Short-term survival of discarded target fish and non-target invertebrate species in the “eurocutter” beam trawl fishery of the southern North Sea. Fish. Res. 154: 82-92.). The only species that demonstrated strong resilience were spotted dogfish (Scyliohinus canicula) and conger eel (Conger conger), with 50% TTMs in excess of 100 min. These vitality assessments were conducted only during winter months (December and January) when air and water temperatures are lower than in summer. Therefore, if these experiments were replicated in warmer months, mortality rates would probably be higher due to increased thermal stress, increased air temperatures and faster desiccation (Benoît et al. 2013Benoît H.P., Plante S., Kroiz M., et al. 2013. A comparative analysis of marine fish susceptibilities to discard mortality: effects of environmental factors, individual traits, and phylogeny. ICES J. Mar. Sci. 70: 99-113., ICES 2014ICES. 2014. Report of the Workshop on Methods for Estimating Discard Survival (WKMEDS), 17-21 February 2014, ICES HQ, Copenhagen, Denmark. ICES CM 2014/ACOM:51, 114 pp.). However, water to air temperature differences were not included in this study as an influential variable because priority was given to the assessment of short-term survival of conger eel during summer months.

The second finding of this study was the confirmation that there were particular biological traits that affected TTM and thus the susceptibility of a species to capture and handling related stressors. Body size was a significant explanatory variable for spotted dogfish and conger eel which endured long periods of air exposure. Physoclistous fish (with a closed gas bladder) died at a faster rate than physostomous fish (with a gas bladder connected to the digestive tract). Physoclistous fish cannot resist depressurization effects when brought to surface quickly. Hauling occurred at sufficiently high speeds (~20 m per min) to cause over-inflation or rupturing of the swim bladder, and consequently release of gas into the body cavity and eversion of stomach and gut (Rummer and Bennett 2005Rummer J.L., Bennet W.A. 2005. Physiological effects of swim bladder overexpansion and catastrophic decompression on red snapper. Trans. Am. Fish. Soc. 134: 1457-1470., Nichol and Chilton 2006Nichol D.G., Chilton E.A. 2006. Recuperation and behaviour of Pacific cod after barotrauma. ICES J. Mar. Sci. 63: 83-94.). Furthermore, presence of deciduous scales and high metabolic rates significantly decreased TTM. Fish with deciduous scales are more vulnerable to water losses due to scale loss and consequential impairment of the osmoregulatory functions of the skin, resulting in increased sensitivity to hypoxia (Breen 2004Breen M. 2004. Investigating the mortality of fish escaping from towed fishing gears – a critical analysis. PhD thesis, Univ. Aberdeen, 332 pp., ICES 2014ICES. 2014. Report of the Workshop on Methods for Estimating Discard Survival (WKMEDS), 17-21 February 2014, ICES HQ, Copenhagen, Denmark. ICES CM 2014/ACOM:51, 114 pp.). These observations are in line with those of Benoît et al. (2013)Benoît H.P., Plante S., Kroiz M., et al. 2013. A comparative analysis of marine fish susceptibilities to discard mortality: effects of environmental factors, individual traits, and phylogeny. ICES J. Mar. Sci. 70: 99-113., in which mass-specific respiration demand, physoclistous bladders and deciduous scales all had significant and negative effects on survival. These authors also found that sedentariness was the most influential trait on TTM. In the present work, metabolic-rate-class can be considered comparable to sedentariness, and has a pronounced effect on how different fish species cope with the stressors related to hypoxia. Energy-conserving behaviour of low metabolic rates, characteristic of species such as monkfish and spotted dogfish, is translated into greater TTM results when compared with species with fast metabolism and high susceptibility to air exposure (e.g. surmullet, blue whiting). Injuries were not a significant factor for predicting mortality (p-value>0.05), possibly because too few non-injured individuals were sampled (40 uninjured versus 367 with injuries).

The third result of this work was a short-term (65 h) survival estimate for conger eel, one of the two species identified in the preliminary vitality assessment with a high likelihood of survival, the other being spotted dogfish. Since spotted dogfish has been proved to have high survival (88%; Revill et al. 2005Revill A.S., Dulvy N.K., Holst R. 2005. The survival of discarded lesser-spotted dogfish (Scyliorhinus canicula) in the Western English Channel beam trawl fishery. Short communication. Fish. Res. 71: 121-124., Rodríguez-Cabello et al. 2005Rodríguez-Cabello C., Fernández A., Olaso I., et al. 2005. Survival of small-spotted catshark (Scyliorhinus canicula) discarded by trawlers in the Cantabrian Sea. J. Mar. Biol. Ass. U.K. 85: 1145-1150.), it was decided to conduct the survival assessment on conger eel. At the end of the 65-h assessment, 84% of the conger eels survived (95% CI: 75.5% to 93.3%). This value is likely to be overestimated for two reasons: the mortality rate did not stabilize at the end of the experiment, and severe injuries were present in almost 70% of the individuals. Impaired fish have reduced ability to avoid predation and are more susceptible to physiological disturbances or disease (Davis 2002Davis M.W. 2002. Key principles for understanding fish bycatch discard mortality. Can. J. Fish. Aquat. Sci. 59: 1834-1843., Davis and Ottmar 2006Davis M.W., Ottmar M.L. 2006. Wounding and reflex impairment may be predictors for mortality in discarded or escaped fish. Fish. Res. 82: 1-6., Davis 2010Davis M.W. 2010. Fish stress and mortality can be predicted using reflex impairment. Fish Fish. 11: 1-11.). In fact, individuals that showed more types of injuries had higher mortality. Besides, the assessment was conducted only in July, when temperature differences between fishing depth and surface waters were higher. However, seasonality was not considered in this study because the focus was on producing preliminary estimates of survival with novel approaches. For additional investigation of survival potential, inland tank trials are recommended in order to conduct a longer study, preferably using control fish. Analysis of cortisol, glucose and ions (Na⁺, Cl^– and K⁺) from blood sampling can provide a method to study stress levels of fish in captivity (Marçalo et al. 2008Marçalo A., Pousão-Ferreira P., Mateus L., et al. 2008. Sardine early survival, physical condition and stress after introduction to captivity. J. Fish Biol. 72: 103-120.).

The fourth outcome is related to changing the methods used to evaluate vitality for this fishery. Based on the Kaplan-Meier and Weibull models, vitality at first observation is a poor predictor of TTM. Two major inconsistencies were identified: in some species states 1 and 2 are not present; in other species, high vitality scores (1 and 2) are associated with low TTM. Monkfish species, conger eel, spotted dogfish and blackmouth catshark are sedentary species; when subjected to extreme stressors, such as air exposure, these species reduce activity to a minimum in order to conserve energy. Consequently, vitality states 1 and 2 were never observed. The same was the case of four-spot megrim, European hake, piper gurnard and greater forkbeard. These species suffered decompression effects (i.e. barotrauma) and/or injuries which resulted in most individuals dying or arriving dead on deck (vitality state 3 and 4). In contrast, mackerel and surmullet displayed signs of intense activity and occasionally shivering movements when brought on deck; in accordance with the vitality scale, this response is “positive” and classified with high vitality scores for these species. But these signs seem to be an extreme stress-response. When placed in water, these individuals were unable to maintain orientation in the water (suffering a loss of equilibrium) and/or unable to swim (personal observations). These observations agreed with the substantially reduced TTM. Behavioural disturbances such as loss of equilibrium have been related to several stressors, one being air exposure (Davis 2005Davis M.W. 2005. Behaviour impairment in captured and released sablefish: ecological consequences and possible substitute measures for delayed discard mortality. J. Fish Biol. 66: 254-265., Gingerich et al. 2007Gingerich A.J., Cooke S.J., Hanson K.C., et al. 2007. Evaluation of the interactive effects of air exposure duration and water temperature on the condition and survival of angled and released fish. Fish. Res. 86: 169-178.). Therefore, two separate vitality scales are proposed to adapt vitality assessment to the behaviour of benthic/sedentary species and bathypelagic/fast swimming fish. For sedentary species, a combined methodology of vitality together with testing reflex actions (e.g. reflex action mortality predictors, RAMP; Davis 2007Davis M.W. 2007. Simulated fishing experiments for predicting delayed mortality rates using reflex impairment in restrained fish. ICES J. Mar. Sci. 64: 1535-1542.) better evaluates the overall state of the animal. In particular, the absence of a clear transition from alive to dead requires adaptions in the visual assessments. The solution is to use innate or reflex responses to precisely defined stimuli, such as the gag response or opening the operculum. As an example, Table 1 might be modified to include just three vitality states, complemented with response to reflex actions from Table 2 (vitality 1, responds to all reflex actions; vitality 2, responds to at least one reflex action; vitality 3, no response to reflex actions). The vitality scale for bathypelagic and pelagic species should be supplemented, where possible, with testing reflex actions in water, recorded as presence (1) or absence (0) of the reflex response (Table 3).

In summary, this work provides cost-effective estimates of mortality for a wide range of species. It has also enabled the preliminary identification of species that might have a higher likelihood of surviving the discarding process. For this fishery, only two of the studied species seem to be resistant: spotted dogfish and conger eel. Further investigations should consider the survival of other phyla (e.g. molluscs or tunicates) and applicable solutions to improve survival (e.g. handling the catch with urgency and care, minimizing injuries and exposure to air). Finally, specific biological characteristics influenced not only mortality results but also the methodology used to reliably assess vitality. For future projects, the proposed modifications on vitality assessments should provide a cohesive methodology that takes into account species-specific traits.
