Discards regulation vs Mediterranean fisheries sustainability
M. Demestre and F. Maynou (eds)

INTRODUCTIONTop

Small-scale fisheries (SSFs) are strongly represented in all European Union (EU) member states (Guyader et al. 2013Guyader O., Berthou P., Koutsikopoulos C., et al. 2013. Small scale fisheries in Europe: A comparative analysis based on a selection of case studies. Fish. Res. 140: 1-13.), so many coastal communities rely on fisheries and fishing-related activities as a means of subsistence, income and employment (Oliveira 2014Oliveira M.C.C. 2014. Application of Bio-Economic Models in the Management of the Dredge Fleet in Portugal. Ph. D. thesis, Faculdade de Engenharia da Universidade do Porto, 145 pp. ) that has created an ancient cultural heritage and socio-economic dependence. In Portugal, the bivalve dredging fleet is of great importance among the SSFs, accounting for a large number of vessels and many fishermen, a high volume of catches and high value of the products (Oliveira 2014Oliveira M.C.C. 2014. Application of Bio-Economic Models in the Management of the Dredge Fleet in Portugal. Ph. D. thesis, Faculdade de Engenharia da Universidade do Porto, 145 pp.). The vast majority of the Portuguese fishing fleet is composed of artisanal vessels (Oliveira et al. 2007Oliveira M.C.C., Gaspar M.B., Paixão J.M.P. 2007. Medição e Análise da Produtividade da Frota da Ganchorra na Costa Algarvia. In: del Hoyo J., Pereira J. (eds), Observatorio científico de las pesquerías artesanales - SocioEconomía, Universidad de Huelva, pp. 267-289.), and the largest bivalve dredging fleet is based on the Algarve coast (southern Portugal), with 53 vessels operating an average of 177 days year^–1 (DGRM 2015Direção Geral de Recursos Naturais (DGRM). 2015. Fisheries databases. Segurança e Serviços Marítimos. Lisboa, Portugal.).

In Portugal, bivalve dredge fisheries have been performed since 1969 (Chícharo et al. 2002aChícharo L., Chícharo A., Gaspar M., et al. 2002a. Ecological characterization of dredged and non-dredged bivalve fishing areas off south Portugal. J. Mar. Biol. Assoc. U.K. 82: 41-50.). On the Algarve coast, the dredging fleet targets mainly three commercially valuable bivalve species: Spisula solida, Chamelea gallina and Donax trunculus (Gaspar et al. 2015Gaspar M.B., Moura P., Pereira F., et al. 2015. Ponto de situação dos bancos de bivalves na Zona Sul. Relatório de Campanha de Pesca do IPMA, 21 pp.). The surf clam (S. solida) occurs mainly between 3 and 14 m depth; it is the most abundant bivalve species in this area and has shown increasing densities over the last decade. The striped venus (C. gallina) has a similar depth distribution, being found mainly from 3 to 10 m depth (Gaspar et al. 2015Gaspar M.B., Moura P., Pereira F., et al. 2015. Ponto de situação dos bancos de bivalves na Zona Sul. Relatório de Campanha de Pesca do IPMA, 21 pp.). The donax clam (D. trunculus) occurs within a narrower bathymetric range (0-5 m depth, with higher densities at 3 m depth) (Gaspar et al. 2015Gaspar M.B., Moura P., Pereira F., et al. 2015. Ponto de situação dos bancos de bivalves na Zona Sul. Relatório de Campanha de Pesca do IPMA, 21 pp.), but it is among the most important molluscan species commercially exploited in the southern Iberian Peninsula and western Mediterranean Sea (Gaspar et al. 1999Gaspar M.B., Castro M., Monteiro C.C. 1999. Effect of tooth spacing and mesh size on the catch of the Portuguese clam and razor clam dredge. ICES J. Mar. Sci. 56: 103-110., Tirado et al. 2011Tirado C., Rueda J.L., Salas C. 2011. Reproduction of Donax trunculus in the littoral of Huelva (southern Atlantic Spain): is there any difference with the Mediterranean population from the Andalusian coast? Iberus 29: 47-57.).

The mode of operation and technical design of mechanized dredges have undergone gradual developments thanks to studies aimed at improving dredge selectivity (Gaspar 1996Gaspar M.B. 1996. Bivalves do litoral oceânico algarvio. Aspectos da biologia, ecologia e das pescarias dos mananciais de interesse económico: aplicação à gestão dos recursos. Ph. D. thesis, Universidade do Algarve, Faro, 282 pp., Gaspar et al. 1999Gaspar M.B., Castro M., Monteiro C.C. 1999. Effect of tooth spacing and mesh size on the catch of the Portuguese clam and razor clam dredge. ICES J. Mar. Sci. 56: 103-110., 2002aGaspar M.B., Leitão F., Santos M.N, et al. 2002a. Influence of mesh size and tooth spacing on the proportion of damaged organisms in the catches of the Portuguese clam dredge fishery. ICES J. Mar. Sci. 51: 1228-1236.) and reducing catch mortality (Gaspar and Monteiro 1999Gaspar M.B., Monteiro C.C. 1999. Indirect mortality caused to juveniles of Spisula solida due to deck exposure. J. Mar. Biol. Assoc. U.K. 79: 567-568., Gaspar et al. 2003aGaspar M.B., Leitão F., Santos M.N., et al. 2003a. A comparison of direct macrofaunal mortality using three types of Portuguese clam dredge. ICES J. Mar. Sci. 60: 733-742., Leitão et al. 2009Leitão F., Gaspar M.B., Santos M.N., et al. 2009. A comparison of bycatch and discard mortality in three types of dredge used in the Portuguese Spisula solida (solid surf clam) fishery. Aquat. Living Resour. 22: 1-10.). The most recent modification to the dredge design included the adoption of a metallic grid box to retain the catches above the target species minimum landing size (MLS), by filtering out smaller individuals of both target and non-target species. Though it is more efficient and selective than previous dredge designs (Gaspar et al. 2001Gaspar M.B., Dias M.D., Campos A., et al. 2001. The influence of dredge design on the catch of Callista chione (L. 1758). Hydrobiologia 465: 153-167., 2003aGaspar M.B., Leitão F., Santos M.N., et al. 2003a. A comparison of direct macrofaunal mortality using three types of Portuguese clam dredge. ICES J. Mar. Sci. 60: 733-742., Leitão et al. 2009Leitão F., Gaspar M.B., Santos M.N., et al. 2009. A comparison of bycatch and discard mortality in three types of dredge used in the Portuguese Spisula solida (solid surf clam) fishery. Aquat. Living Resour. 22: 1-10.), in some periods of the year the amount of bycatch collected by this gear can exceed the catch of the target species, especially in late spring and early summer (Gaspar and Chícharo 2007Gaspar M.B., Chícharo L.M. 2007. Modifying dredges to reduce by-catch and impacts on the benthos. In: Kennely S.J. (ed.), By-catch Reduction in the World’s Fisheries. Springer, Dordrecht Netherlands, pp. 95-140.).

The bycatch (capture of non-target organisms) includes incidental catches, non-target catches retained by fishermen, and discards, i.e. catches returned to the sea (McCaughran 1992McCaughran D.A. 1992. Standardized nomenclature and methods of defining bycatch levels and implications. In: Schoning R.W., Jacobson R.W., Alverson D.L., et al. (eds), Proceedings of the National Industry Bycatch Workshop, 4-6 February 1992, Newport, Oregon, pp. 200-201., Alverson et al. 1996Alverson D.L., Freeberg M.H., Murawski S.A., et al. 1996. A global assessment of fisheries bycatch and discards. FAO Fish. Tech. Pap. 339: 1-233.) because they are unmarketable species, highly damaged specimens or individuals below the MLS (Kelleher 2005Kelleher K. 2005. Discards in the world’s marine fisheries: an update. FAO Fish. Tech. Pap. 470: 1-131 pp.). By changing the species relative abundance, together with the population structure of prey and/or predators, bycatch may lead to structural and functional disturbances in the ecosystem (Pauly et al. 2002Pauly D., Christensen V., Guénette S., et al. 2002. Towards sustainability in world fisheries. Nature 418: 689-695., Thrush and Dayton 2002Thrush S.F., Dayton P.K. 2002. Disturbance to marine benthic habitats by trawling and dredging - implications for marine biodiversity. Annu. Rev. Ecol. Syst. 33: 449-473.). For instance, bycatch can modify the diversity, biomass and productivity of the associated biota (Jennings and Kaiser 1998Jennings S., Kaiser M.J. 1998. The effect of fishing on marine ecosystems. Adv. Mar. Biol. 34: 201-252.); disrupt trophic interactions (e.g. removal of prey and/or predators) (Crowder and Murawski 1998Crowder L.B., Murawski S.A. 1998. Fisheries bycatch: implications for management. Fisheries 23: 8-17., Pauly et al. 1998Pauly D., Christensen V., Dalsgaard J., et al. 1998. Fishing down marine food webs. Science 279: 860-863.) with subsequent modifications to food webs (Gaspar et al. 2001Gaspar M.B., Dias M.D., Campos A., et al. 2001. The influence of dredge design on the catch of Callista chione (L. 1758). Hydrobiologia 465: 153-167.); change the structure of benthic communities in the short and long term (Jenkins et al. 2001Jenkins S.R., Beukers-Stewart B.D., Brand A.R. 2001. Impact of scallop dredging on benthic megafauna: a comparison of damage levels in captured and non-captured organisms. Mar. Ecol. Prog. Ser. 215: 297-301.); alter species foraging behaviour (FAO 2003FAO 2003. The ecosystem approach to fisheries. FAO Technical guidelines for responsible fisheries: 4, Rome, FAO Fish. Tech. Pap. 112 pp.); reduce the ratio of large- to small-bodied species (Bianchi et al. 2000Bianchi G., Gislason H., Graham K., et al. 2000. Impact of fishing on size composition and diversity of demersal fish communities. ICES J. Mar. Sci. 57: 558-571.); and affect fishing yield in other fisheries (Clark and Hare 1998Clark W.G., Hare S.R. 1998. Accounting for bycatch in management of the Pacific halibut fishery. N. Am. J. Fish. Manag. 18: 809-821.).

Discarding by bivalve dredging vessels would not constitute a major problem if the discarded individuals survive after returning to the sea (Gaspar and Chícharo 2007Gaspar M.B., Chícharo L.M. 2007. Modifying dredges to reduce by-catch and impacts on the benthos. In: Kennely S.J. (ed.), By-catch Reduction in the World’s Fisheries. Springer, Dordrecht Netherlands, pp. 95-140.). However, it is crucial to analyse the composition of discards in order to propose new strategies to minimize their impact (Urra et al. 2017Urra J., García T., Gallardo-Roldán H., et al. 2017. Discard analysis and damage assessment in the wedge clam mechanized dredging fisheries of the northern Alboran Sea (W Mediterranean Sea). Fish. Res. 187: 58-67.). Indeed, fisheries management policies recommend a reduction in the discards (Catchpole et al. 2005Catchpole T.L., Frid C.L.J., Gray T.S. 2005. Discards in North Sea fisheries: causes, consequences and solutions. Mar. Pol. 29: 421-430.) and the adoption of market-based approaches to promote added value for bycatch species (Leitão and Baptista 2017Leitão F., Baptista V. 2017. The discard ban policy, economic trends and opportunities for the Portuguese fisheries sector. Mar. Pol. 75: 75-83.). The reformed Common Fisheries Policy of the EU (EC 2014European Comission (EC). 2014. Facts and Figures on the Common Fisheries Policy, 2014 Edition. European Union, 44 pp.) imposes a discard ban for all species subject either to quotas or MLS, resulting in a mandatory landing obligation for all catches (Vogel et al. 2017Vogel C., Kopp D., Méhault S. 2017. From discard ban to exemption: How can gear technology help reduce catches of undersized Nephrops and hake in the Bay of Biscay trawling fleet? J. Environ. Manage. 186: 96-107.). However, in certain circumstances, this regulation allows some discarding when scientific evidence demonstrates high probabilities of survival of the discards (Morfin et al. 2017Morfin M., Méhault S., Benoît H.P., et al. 2017. Narrowing down the number of species requiring detailed study as candidates for the EU Common Fisheries Policy discard ban. Mar. Pol. 77: 23-29.).

In order to further assess fishing impacts, the survival of bycatch is often estimated through damage scales and survival experiments (ICES 2014ICES. 2014. Report of the Workshop on Methods for Estimating Discard Survival (WKMEDS), 17–21 February 2014, Copenhagen, Denmark. ICES CM 2014/ACOM:51, 114 pp.). Because damaged individuals are more vulnerable to predation and disease, it is crucial to accurately evaluate their level of damage upon discard (Pranovi et al. 2001Pranovi F., Raicevich S., Franceschini G., et al. 2001. Discard analysis and damage to non-target species in the “rapido” trawl fishery. Mar. Biol. 139: 863-875.). Many studies on this topic have focused on bycatch and mortality resulting from fish and shrimp trawling (for a review, see Broadhurst et al. 2007Broadhurst M.K., Kennelly S.J., Gray C. 2007. Strategies for improving the selectivity of fishing gears. In: Kennelly S.J. (ed.), By-catch Reduction in the World’s Fisheries. Springer, Dordrecht Netherlands, pp. 1-21.), but few have dealt with discard mortality in bivalve dredge fisheries (e.g. Hauton et al. 2003Hauton C., Atkinson R.J.A., Moore P.G. 2003. The impact of hydraulic blade dredging on a benthic megafaunal community in the Clyde Sea area, Scotland. J. Sea Res. 50: 45-56., Leitão et al. 2009Leitão F., Gaspar M.B., Santos M.N., et al. 2009. A comparison of bycatch and discard mortality in three types of dredge used in the Portuguese Spisula solida (solid surf clam) fishery. Aquat. Living Resour. 22: 1-10., Urra et al. 2017Urra J., García T., Gallardo-Roldán H., et al. 2017. Discard analysis and damage assessment in the wedge clam mechanized dredging fisheries of the northern Alboran Sea (W Mediterranean Sea). Fish. Res. 187: 58-67.).

In the bivalve dredging fishery, the optimal situation would be one in which maximum efficiency, low bycatch of non-target species, retention of very few undersized individuals and a low proportion of damaged individuals prevailed as prerequisites to mitigate the effects of the discard ban or similar policies. In order to achieve these goals, management measures should be implemented and fishing gear modified according to the local environmental conditions, the population status of the target species and current discard rates. The present study aimed to 1) characterize and quantify the bycatch of the metallic grid dredge used in the fishery targeting S. solida, C. gallina and D. trunculus along the Algarve coast; 2) evaluate seasonal variations; 3) estimate damage and mortality by using damage scales and performing survival experiments; and 4) propose management measures to minimize both discards and mortality.

MATERIALS AND METHODSTop

Fishing surveys and biological sampling

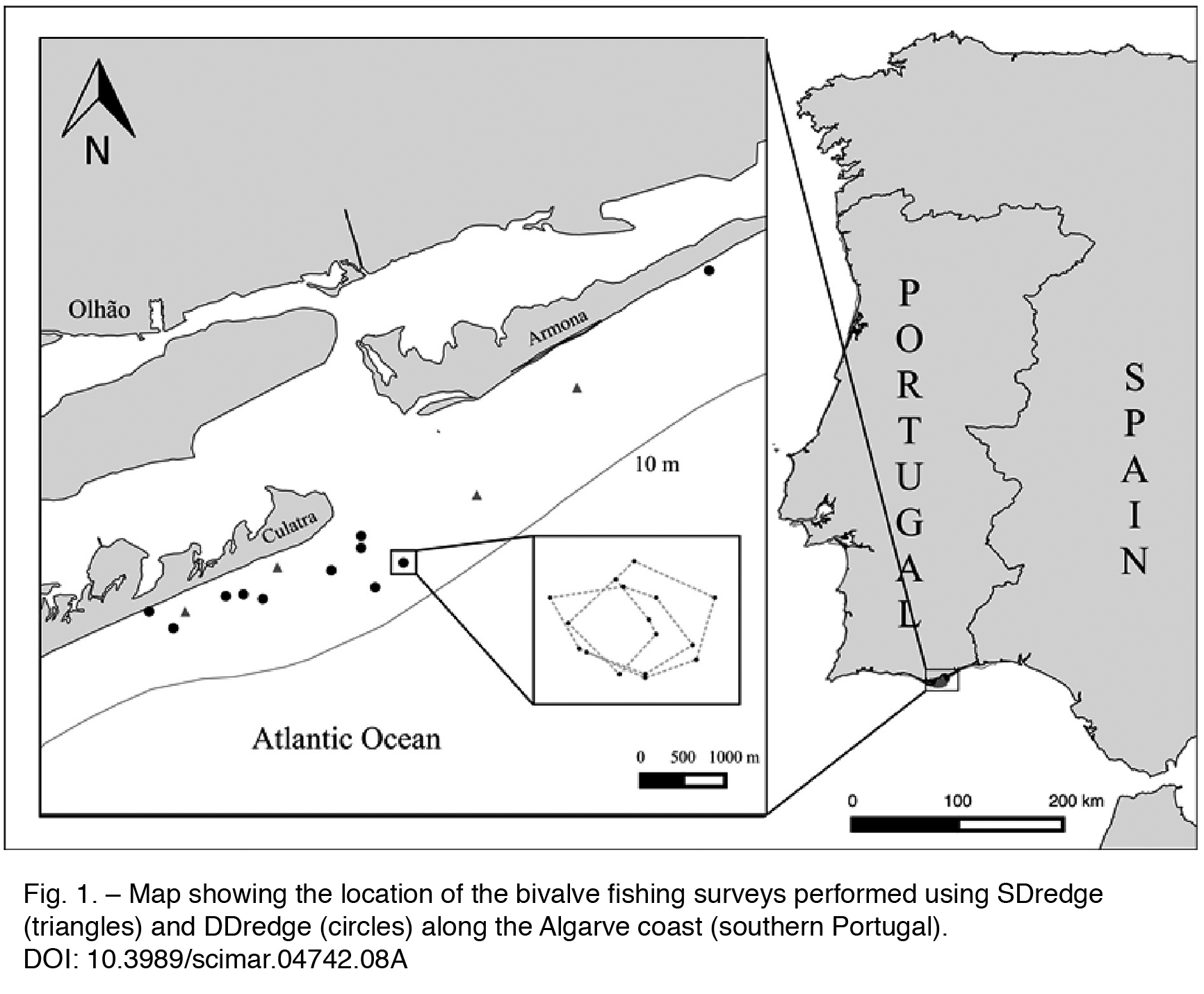

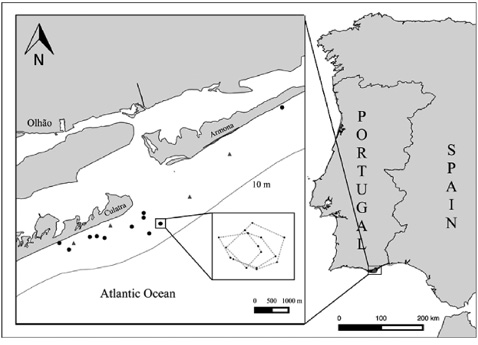

Fishing surveys were performed on board two commercial bivalve dredging vessels, Cláudia Marina (F-1106-L) and Renovadora (O-1949-C), operating in the same areas near Olhão on the Algarve coast (Fig. 1). Sampling was made bimonthly from February to July, except during the mandatory seasonal closure in the fishery (1 May to 15 June) to protect the spawning and larval settlement of the target bivalve species.

Considering the dissimilar depth distribution of the target species, two bathymetric intervals were sampled, 5-10 m depth for the sympatric S. solida and C. gallina using the “Spisula dredge” (SDredge) and 2-4 m depth for D. trunculus using the “Donax dredge” (DDredge). The main technical specifications of SDredge and DDredge are identical, except for the spacing between bars of the metallic grid box (SDredge=12 mm and DDredge=8 mm). In each fishing survey, 5-minute tows were performed using two identical dredges operated simultaneously and side by side (leeward and windward dredges) at a towing speed of 2 to 4 knots.

All catches from each tow and dredge were analysed separately in the laboratory in order to characterize the catch composition and assess the discard rate. For this purpose, all specimens caught were identified to the lowest possible taxonomic level, counted, measured using a digital calliper and weighed on a top-loading digital balance. Individuals of the three target bivalve species below the legally established MLS (25 mm shell length) and non-target species were considered bycatch.

In order to avoid unnecessary disturbance during handling and sampling procedures, additional fishing surveys (three fishing days in April, October and November 2016) were performed with the specific purpose of survival experiments. Individuals were also identified, counted and separated by taxonomic groups (whenever necessary). Onboard procedures were representative of normal fishing practices and the organisms were handled quickly and carefully in order to minimize any injuries.

The damage rate and the mortality rate of the discards were estimated using a damage scale (Table 1) applied to all individuals caught during dredging. According to this methodology proposed by Gaspar et al. (2001)Gaspar M.B., Dias M.D., Campos A., et al. 2001. The influence of dredge design on the catch of Callista chione (L. 1758). Hydrobiologia 465: 153-167., the damage rate corresponds to the proportion of damaged individuals (i.e. assigned with damage scores D₁ to D₃), whereas the mortality rate corresponds to the proportion of individuals with high likelihood of death (damage score D₂) and dead specimens (damage score D₃).

Survival experiments

Three fishing surveys were carried out specifically to perform the survival experiments, aiming to avoid excessive handling of the catches during regular sampling. In order to estimate discard survival (excluding predation) under captive observation, both undersized individuals of the target species and bycatch species were previously subjected to a visual semi-quantitative assessment based on the damage score (Table 1). Whenever possible, this assessment was based on four quickly assessed ordinal vitality classes graduated from individuals that were intact, very lively and responsive (D₀) to individuals that were severely injured externally and moribund (D₃). Only organisms with scores D₀ and D₁ were used in the subsequent survival experiments, in which excessive handling procedures that might bias the survival rates were always avoided.

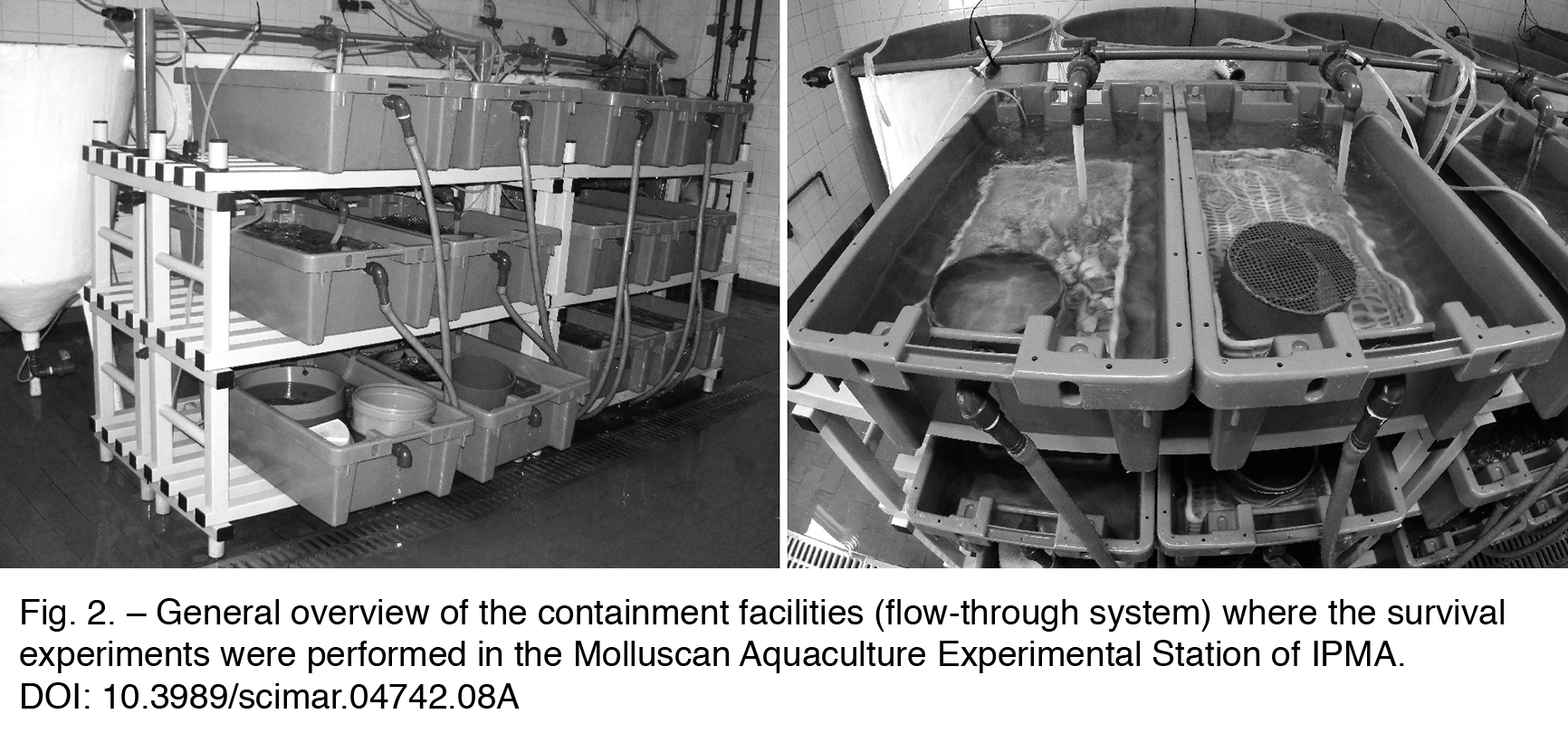

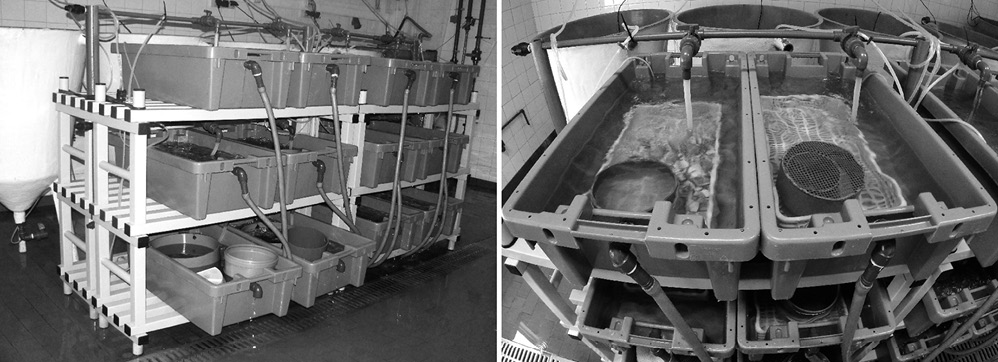

The survival experiments were conducted in the Molluscan Aquaculture Experimental Station of IPMA in Tavira, using a flow-through system to minimize the interference from metabolic waste products of the organisms and to maintain suitable levels of dissolved oxygen. This flow-through circuit (Fig. 2) is powered by pumping natural seawater from the adjacent Ria Formosa lagoon, which is filtered at 1 µm and stored in a 200000-L tank connected to 25-L plastic tanks with seawater flow regulated to 48 L h^–1. The survival experiments were conducted under controlled conditions in terms of seawater temperature (21±1°C), salinity (35), photoperiod (12 h daylight) and pH. Predator species were fed with bivalves, while suspension-feeding bivalves were fed ad libitum with a bispecific microalgae culture, Isochrysis aff. galbana (T-ISO) and Chaetoceros calcitrans (C. cal) in a proportion of 1:1, supplied to the water circuit through a variable-flow peristaltic pump (for further details see Barros et al. 2013Barros P., Sobral P., Range P., et al. 2013. Effects of sea-water acidification on fertilization and larval development of the oyster Crassostrea gigas. J. Exp. Mar. Biol. Ecol. 440: 200-206.).

In order to avoid degradation of the water quality, the containment facilities provided suitable accommodation space according to the number of specimens. Incompatible species were isolated, although shelter was not provided to the organisms due to logistics constraints. Captive observations to assess animal status were made at regular intervals after transfer (5 h; 1 d; 2 d; 3 d; 4 d; 5 d and 7 d) during a daily-based acute monitoring period of 7 days. Following the recommendations issued in the Workshop on Methods for Estimating Discard Survival – WKMEDS (ICES 2014ICES. 2014. Report of the Workshop on Methods for Estimating Discard Survival (WKMEDS), 17–21 February 2014, Copenhagen, Denmark. ICES CM 2014/ACOM:51, 114 pp.), a higher observation frequency was conducted during the first few hours, after which the organisms were monitored at longer intervals. Dead organisms were removed as soon as possible from the tanks to minimize water degradation and the risk of contamination. Whenever possible, additional information, such as internal damage (e.g. cut siphons in bivalves) and sexual maturation were recorded to provide further insights on the organisms’ susceptibility to mortality.

Data treatment and statistical analysis

Data on both abundance and biomass caught by the two types of dredges (SDredge and DDredge) during the sampling period were analysed to assess any differences in the catch, bycatch composition, damage and mortality rates between gears.

Relationships between samples were examined through non-metric multidimensional ordination plots (MDS) based on the Bray-Curtis similarity coefficient after square root transformation (Clarke and Warwick 2001Clarke K.R., Warwick R.M. 2001. Change in Marine Communities: An Approach to Statistical Analysis and Interpretation, 2nd ed. PRIMER-E Ltd, Plymouth, 175 pp.). SIMPER analysis (similarity percentage-species contribution) was performed to highlight the taxa that most contributed to the dissimilarity between the two types of dredge. Analysis of similarities (ANOSIM) (Clarke and Warwick 2001Clarke K.R., Warwick R.M. 2001. Change in Marine Communities: An Approach to Statistical Analysis and Interpretation, 2nd ed. PRIMER-E Ltd, Plymouth, 175 pp.) was used to detect any great differences in bycatch and mortality composition. These analyses were performed using the software package PRIMER 6.0 (Clarke and Gorley 2006Clarke K.R., Gorley R.N. 2006. PRIMER v6: User Manual/Tutorial. Primer-E Ltd, Plymouth, 190 pp.).

Analyses of variance (ANOVA) were employed to assess differences in the proportion of bycatch (abundance and biomass) and mortality rate between types of dredge, with data expressed as percentage being previously transformed to arcsine square-root values. Whenever ANOVA assumptions (normality of data and homogeneity of variances) were not achieved, the non-parametric Kruskal-Wallis test (ANOVA on ranks) was performed. In addition, the Spearman rank correlation was employed to assess any correlations between the weight of debris collected by the dredges and the organisms’ damage rate. ANOVAs and the Spearman rank test were performed using the SigmaStat^® software package (version 12.3). In all analyses, statistical significance was set at p<0.05.

RESULTSTop

Catch and bycatch composition

In the 60 tows performed during 15 fishing surveys using the two types of dredge, 85257 individuals belonging to 52 taxa distributed through six phyla were caught. Of these individuals, 73.4% belonged to target species, 22.1% to commercially undersized target species (i.e. <MLS) and 4.5% to bycatch species (Table 2). The vast majority of the catches of the target species belonged to S. solida (89.3%) followed at some distance by D. trunculus (9.8%) and C. gallina (0.9%). The overall catches weighed 392.4 kg, of which 84.8% was accounted for by target species, 12.1% by undersized target species and 3.1% by the remaining bycatch species. Among the target species, the largest fraction of total weight corresponded to S. solida (91.8%), which clearly prevailed over D. trunculus (6.7%) and C. gallina (1.5%) (Table 2). Molluscs were clearly the predominant phyla (50.0% of all taxa, 96.1% of total abundance and 97.8% of total biomass), followed by arthropods (21.2%, 3.4% and 1.5%, respectively), whereas echinoderms, annelids, chordates and nemerteans were almost residual (together accounting for 28.8% of taxa but representing only 0.5% of abundance and 0.6% of biomass) (Table 2). Detailed information on the abundance and biomass of all the taxa caught using the two types of dredge (Tables 3 and 4) show that Bivalvia was the most represented class (20 species) followed by Malacostraca (11 species) and Gastropoda (6 species).

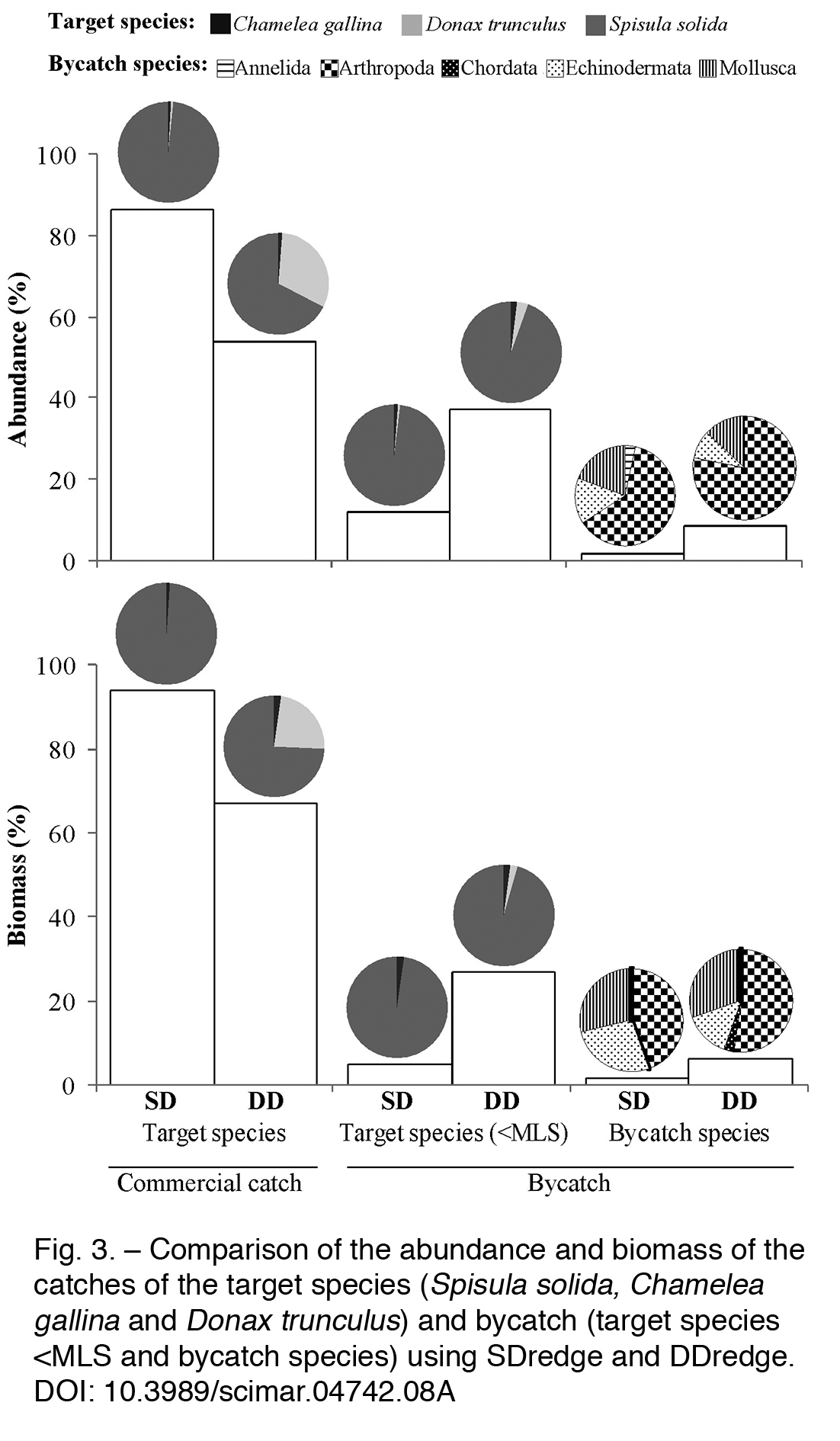

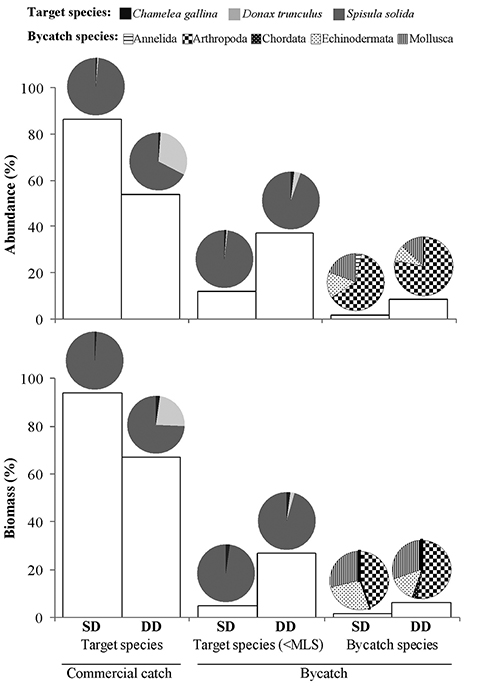

The comparison of the catches of the target species (C. gallina, D. trunculus and S. solida) above and below the MLS (25 mm shell length) and bycatch species is presented in Figure 3. As expected, the abundances of commercial catches of both dredge types (SDredge=86.5%; DDredge=54.0%) and biomass (SDredge=93.7%; DDredge=67.1%) were clearly higher than those of the bycatch (target species <MLS + bycatch species). Among the target species, S. solida was predominant in both abundance (SDredge=98.6%; DDredge=67.5%) and biomass (SDredge=98.2%; DDredge=74.3%), followed at a distance by D. trunculus and by C. gallina. Also, as was predictable, catches of D. trunculus by the targeted gear (DDredge, 31.6% of abundance and 23.9% of biomass) were clearly higher than those using the other dredge type (SDredge, 0.7% abundance and 0.7% biomass) (Fig. 3). Regarding the bycatch, DDredge invariably caught more target species <MLS (37.2% of abundance and 26.8% of biomass) and bycatch species (8.7% of abundance and 6.2% of biomass) than SDredge. Once again, S. solida clearly predominated among the target species <MLS in both abundance (SDredge=98.8%; DDredge=94.7%) and biomass (SDredge=97.8%; DDredge=95.6%). Among the bycatch species, arthropods were predominant in both dredge types in both abundance (SDredge=62.7%; DDredge=78.2%) and biomass (SDredge=44.4%; DDredge=52.1%), followed by molluscs and echinoderms, which displayed lower proportions in abundance than in biomass (Fig. 3).

The number of taxa collected in the four fishing surveys (16 tows) performed using SDredge (43 taxa) accounted for 59.6% of the individuals and 66.5% of the total weight caught using both types of dredge during all the surveys, whereas the 11 surveys (44 tows) using DDredge (37 taxa) corresponded to the remaining 40.4% of the individuals and 33.5% of the total weight (Tables 3 and 4). Overall, bivalves, malacostracans and echinoids were the most abundant classes, and the three target bivalve species (mostly S. solida, followed at a distance by C. gallina and D. trunculus) and the small hermit crab (Diogenes pugilator) were the most frequent species caught by SDredge in terms of both abundance and biomass. Similarly, the commercial bivalve species (mostly S. solida and D. trunculus, followed at a distance by C. gallina) and D. pugilator clearly predominated in both the abundance and biomass caught by SDredge (Tables 3 and 4).

On average, the bycatch rate using SDredge (13.5% in number and 6.3% in weight) was much lower than that using DDredge (46.0% in number and 32.9% in weight) (Tables 3 and 4), with debris also representing a smaller proportion of the total weight in the hauls of SDredge (26.6%) than in those of DDredge (51.6%) (Table 4). In both types of dredge, commercially undersized S. solida (<MLS) and D. pugilator were clearly the most frequent bycatch species in both number and weight (Tables 3 and 4). In addition to these species, the bycatch of SDredge also comprised considerable abundances of undersized C. gallina, Echinocardium sp. and Echinocardium mediterraneum, as well as substantial biomasses of E. mediterraneum, Atelecyclus undecimdentatus and undersized C. gallina. In addition, the bycatch of DDredge also included abundant undersized D. trunculus and C. gallina, Ensis siliqua and Ophiura ophiura, together with substantial biomasses of Echinocardium cordatum, Mactra glauca, undersized D. trunculus and C. gallina (Tables 3 and 4).

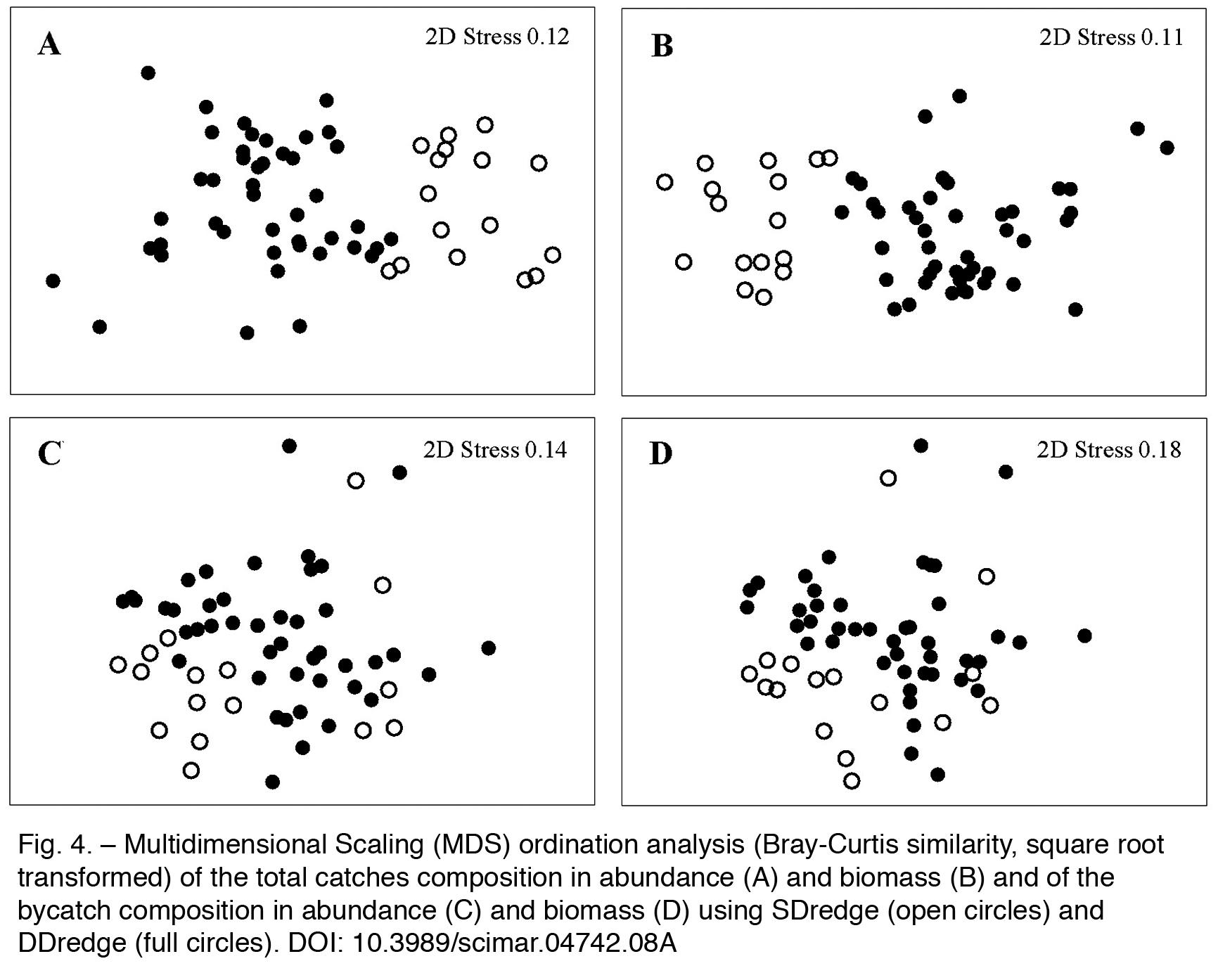

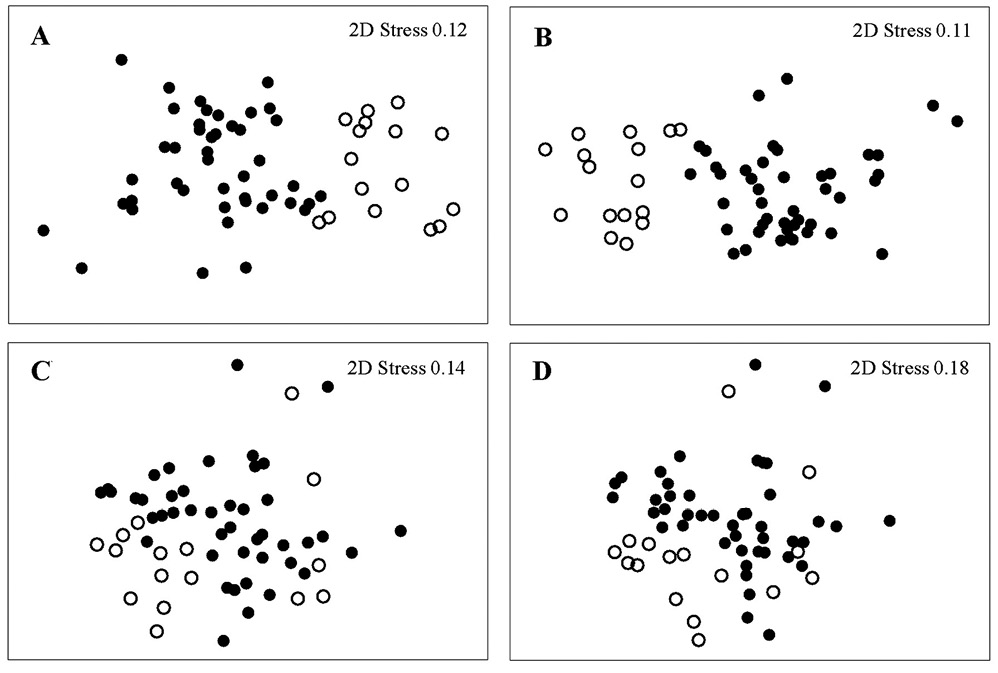

The multidimensional scaling (MDS) analysis of the total catch composition in abundance and biomass clearly identified two separate groups corresponding to each type of dredge and almost without overlapping (Fig. 4A, B). The ANOSIM test corroborated this trend by detecting significant differences in both the abundance (R=0.647, p<0.01) and biomass (R=0.734, p<0.01) caught by each type of dredge. SIMPER analysis estimated average dissimilarities between dredges of 51.9% for abundance and 56.2% for biomass, with S. solida (57.4% of abundance; 65.3% of biomass), D. trunculus (12.0% of abundance; 7.7% of biomass) and D. pugilator (6.2% of abundance; 3.0% of biomass) being the main contributors to these differences. On the other hand, the MDS analysis applied to the bycatch composition in abundance and biomass displayed a lower capacity to discriminate samples from the two types of dredge (Fig. 4C, D), revealing a more similar abundance and biomass in the bycatch of SDredge and DDredge, as confirmed by the significant but lower statistical significance levels obtained in the ANOSIM test in terms of both abundance (R=0.284, p=0.025) and biomass (R=0.250, p=0.045) of the bycatch of each type of dredge. Additionally, the ANOVAs performed to compare the bycatch proportion between types of dredge detected highly significant differences in both the abundance (K-W: H=19.181, p<0.001) and biomass (K-W: H=30.063, p<0.001) of the individuals caught as bycatch using SDredge and DDredge.

Damage and mortality

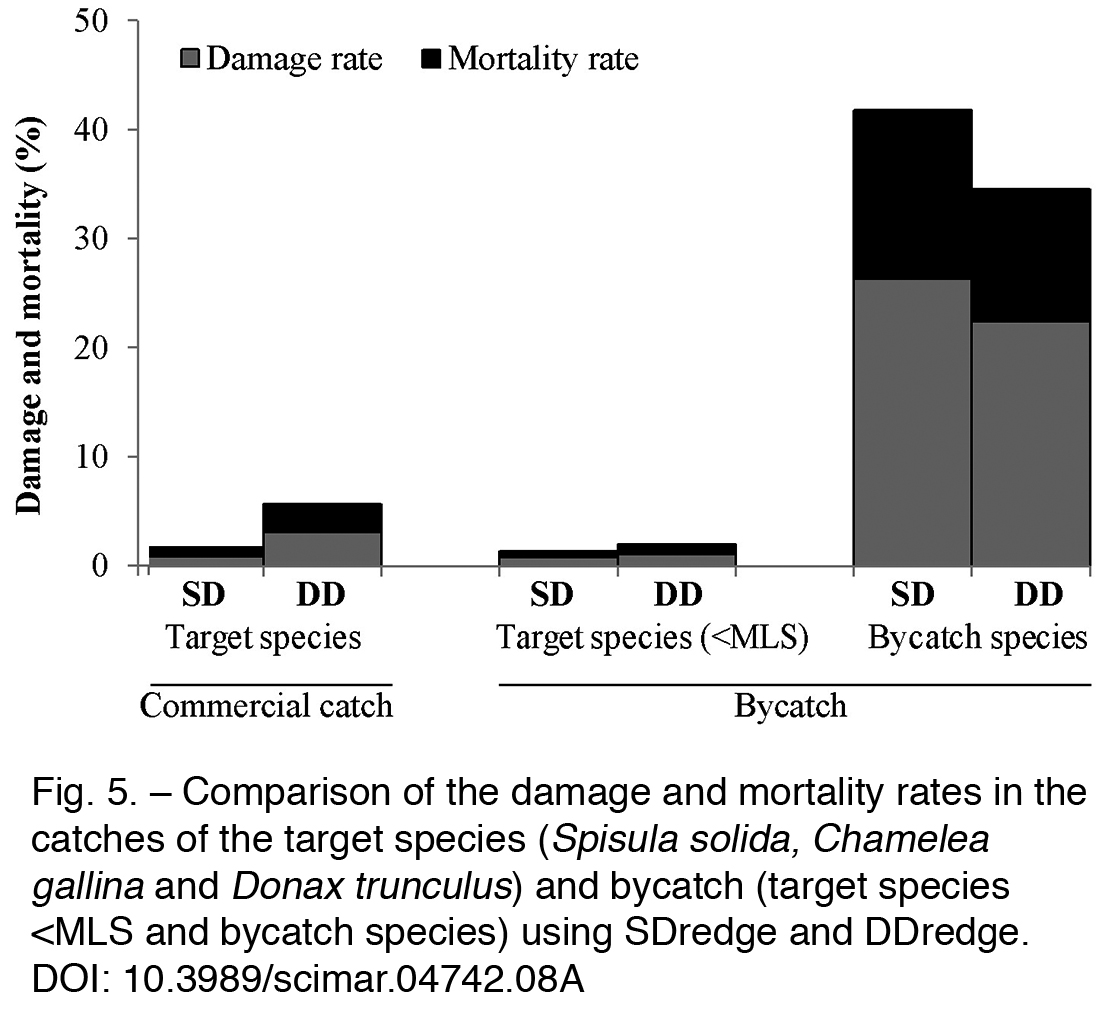

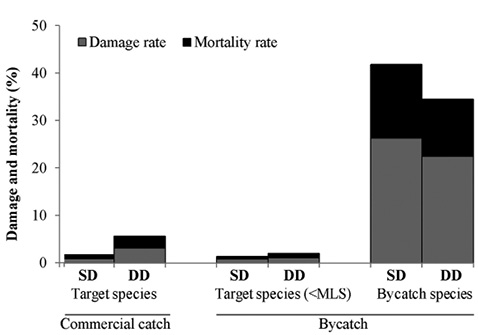

The comparison of the damage and mortality rates inflicted by the two types of dredges in the commercial catches (S. solida, C. gallina and D. trunculus) and bycatch (target species<MLS and bycatch species) is presented in Figure 5. The damage and mortality rates of both SDredge and DDredge were considerably higher in the bycatch species than in the target bivalve species (S. solida, C. gallina and D. trunculus), including both commercial catches and undersized individuals (<MLS). In general, the damage rates induced by SDredge (target species=0.9%; target species <MLS=0.8%) were lower than those induced by DDredge (target species=3.1%; target species <MLS=1.1%), except for the remaining bycatch species, which were more frequently damaged by SDredge (26.3%) than by DDredge (22.4%). Accordingly, the mortality rates caused by SDredge (target species=0.8%; target species <MLS=0.6%) were also lower than those caused by DDredge (target species=2.6%; target species <MLS=0.9%), while the mortality inflicted in the remaining bycatch species was higher for SDredge (15.5%) than for DDredge (12.2%) (Fig. 5). There was no significant correlation between the weight of debris collected by the dredges and the damage rate inflicted on the catches (r=–0.078, p>0.05), whereas highly significant differences were detected in the mortality rate between SDredge and DDredge (K-W: H=10.845, p<0.001).

Detailed information on the damage and mortality of all the taxa caught using the two types of dredges (Table 5) further confirms that the overall damage and mortality rates were lower for SDredge (1.3% and 1.0% of total catches, respectively) than for DDredge (4.0% and 2.8% of total catches, respectively). Among the commercial bivalves caught by SDredge, S. solida displayed the lowest rates of damage (0.78%) and mortality (0.73%), whereas D. trunculus displayed the highest rates of damage (11.4%) and mortality (9.7%). In the commercial catches using DDredge, C. gallina was the most affected and injured (5.4% and 5.0%, respectively), followed by D. trunculus (4.7% and 3.7%, respectively). Regarding the undersized target species (<MLS), SDredge and DDredge displayed roughly the same trend in both damage and mortality rates (D. trunculus>C. gallina>S. solida), although for D. trunculus the rates were clearly higher using SDredge than using DDredge. In general, target species <MLS were less affected by dredging operations than commercial catches, and independently of the type of dredge, S. solida was invariably the least susceptible target species (including <MLS and commercial catches) to damage and mortality inflicted during dredging. Moreover, SDredge inflicted lower damage and mortality on its target species (S. solida), whereas DDredge caused more similar damage and mortality to both its target species (D. trunculus) and other commercial catches (C. gallina and S. solida) (Table 5).

Among all bivalve species caught as bycatch, Ensis siliqua was clearly the most sensitive species to dredging impacts, showing 100% mortality in both SDredge and DDredge. In addition, Callista chione, Laevicardium crassum and Macomangulus tenuis displayed 100% mortality only for SDredge, whereas D. variegatus displayed 100% mortality only for DDredge. The genus Mactra invariably showed high damage and mortality rates independently of the type of dredge, with over 75% damage and 60% mortality in both SDredge and DDredge. The five gastropod species caught by SDredge suffered very low damage (Tritia reticulata=10.5%) and no mortality, whereas the four gastropod species caught by DDredge displayed highly variable mortality rates (T. reticulata=0%; Columbella rustica=100%) (Table 5).

The most abundant bycatch species caught during dredging surveys (D. pugilator) exhibited low damage and mortality rates in both SDredge (6.7% and 0%, respectively) and DDredge (4.8% and 0.14%, respectively). The serpent star (Ophiura ophiura) showed very high damage in both types of dredges (82.1% and 92.9%) but remarkably low mortality (0% and 11.5%). In both SDredge and DDredge, Liocarcinus sp. showed low damage (25.0% and 38.8%, respectively) and even less mortality (0% and 5.8%, respectively). Most echinoids were highly sensitive to dredging, with damage and mortality rates over 50% (e.g. Echinocardium sp.=56.5% damage and mortality in SDredge; Echinocardium cordatum=59.8% damage and 51.7% mortality in DDredge). Among the lower abundant bycatch taxa, polychaetes generally exhibited damage and mortality rates below 50% (Table 5).

Survival experiments

Among the diverse taxa caught consistently during the bivalve dredging surveys, a total of 1146 macrobenthic organisms (D₀=1019; D₁=127) were subjected to survival experiments, comprising 362 (D₀=291; D₁=71) individuals of the target species (C. gallina, D. trunculus and S. solida), 393 (D₀=367; D₁=26) undersized individuals (<MLS) of the target species and 391 (D₀=361; D₁=30) individuals of the remaining bycatch species (Table 6). Overall, 12.5% of the individuals showed damage, with the target species displaying higher proportions of injured specimens (D₁=24.4%) than undersized target species (D₁=7.1%) and other bycatch species (D₁=8.3%). Among the target species, all C. gallina were apparently intact (D₀=100%), whereas D. trunculus were much more damaged (D₁=39.3%) than S. solida (D₁=4.9%). In addition, among the undersized individuals of the target species, all S. solida were apparently intact (D₀=100%), while the proportion of slightly damaged D. trunculus was 15.5%. In both D. trunculus and S. solida, most damage was due to partially or totally cut feet. The four most represented taxa among the bycatch species showed highly variable damage rates, namely the small hermit crab D. pugilator (D₁=1.4%), the swimming crab Liocarcinus sp. (D₁=77.8%), the heart-urchin E. cordatum (D₁=12.5%) and the Pennant’s swimming crab P. latipes (D₁=28.6%) (Table 6).

The mean survival rates of the target species were noticeably higher for undamaged individuals (D₀=91.8%), ranging from 86.4% in S. solida to 100% in C. gallina, than for slightly damaged specimens (D₁=26.8%), ranging from 24.2% in D. trunculus to 60.0% in S. solida (Table 6). On the other hand, undersized specimens of the target species (<MLS) showed higher survival rates for both intact individuals (D₀: D. trunculus=98.2%; S. solida=98.0%) and slightly injured individuals (D₁: D. trunculus=50.0%). Regarding the remaining taxa caught as bycatch, most species displayed highly variable survival rates depending on the respective damage score (D₀=89.8%; D₁=30.0%), including the numerically most representative bycatch taxa, namely D. pugilator (D₀=96.8%; D₁=0%), E. cordatum (D₀=0%; D₁=0%), Liocarcinus sp. (D₀=72.2%; D₁=57.1%) and P. latipes (D₀=78.6%; D₁=25.0%). Undamaged individuals (D₀) of several taxa showed 100% survival rate (A. undecimdentatus, D. semistriatus, E. catena, L. crassum, O. ophiura, O. edulis, S. elegans, T. scutellata and T. reticulata), whereas slightly damaged individuals (D₁) of other taxa suffered 100% mortality rate (Amphiura sp., D. pugilator, E. cordatum, E. siliqua, Glycera sp., P. kerathurus and S. elegans). In the particular case of the heart urchin (E. cordatum), the fact that all individuals died within 2-3 days in captivity might be due to starvation, because no specific food was provided for this type of feeding guild (grazers/deposit feeders). Overall, for all the taxa subjected to the survival experiments, survival rates were 93.3% in undamaged individuals (D₀) and 32.3% in slightly damaged individuals (D₁) (Table 6).

DISCUSSIONTop

The assessment of bycatch issues is critical for assessing the sustainability of any fishery. In addition to determining the catch composition, the quantification of bycatch and discard rates allows the efficiency and operational performance of the fishing gear to be measured. The fact that previous studies recorded considerable amounts of bycatch in the bivalve dredge fisheries along the Algarve coast, even exceeding the catch of the target species in late spring and early summer (Gaspar and Chícharo 2007Gaspar M.B., Chícharo L.M. 2007. Modifying dredges to reduce by-catch and impacts on the benthos. In: Kennely S.J. (ed.), By-catch Reduction in the World’s Fisheries. Springer, Dordrecht Netherlands, pp. 95-140.), reinforces the importance of the present study and the need for further investigation on this important subject. Other studies have reported seasonal trends in the bycatch collected by mechanical bivalve dredges: namely an increase in flatfish discards in autumn on the Algarve coast (Palma et al. 2003Palma J., Reis C., Andrade J.P. 2003. Flatfish discarding practices in bivalve dredge fishing off the south coast of Portugal (Algarve). J. Sea Res. 50: 129-137.), possibly associated with greater abundances in benthic communities in this area during this season (Alves et al. 2003Alves F., Chícharo L., Nogueira A., et al. 2003. Changes in benthic community structure due to clam dredging on the Algarve coast and the importance of seasonal analysis. J. Mar. Biol. Assoc. U.K. 83: 719-729.), and also higher discards of D. trunculus in spring and summer in the northern Alboran Sea (Urra et al. 2017Urra J., García T., Gallardo-Roldán H., et al. 2017. Discard analysis and damage assessment in the wedge clam mechanized dredging fisheries of the northern Alboran Sea (W Mediterranean Sea). Fish. Res. 187: 58-67.).

In the present study, the quantification of bycatch using two grid dredges with different technical specifications revealed highly significant differences in the composition of the total catches between types of dredge that were mainly due to the abundance and biomass of the target species (S. solida, C. gallina and D. trunculus) and also of the hermit crab (D. pugilator). These clear differences confirm that each type of dredge was developed and is well adjusted to maximize the catch of its target species. Although significant, less evident differences were detected in the composition of the bycatch collected by the two dredges, probably because of the overall similarity of the benthic communities at closely located sampling sites and bathymetries. The bycatch composition was dominated by the presence of commercially undersized individuals of the target species and by benthic species with dimensions and morphological features that prevented their passage through the parallel bars of the grid dredge, such as larger bivalve species, hermit crabs and heart urchins. This is a common issue in fishing gears designed to mechanically preclude the catch according to specimen size. For instance, because smaller individuals escape through the interconnecting steel rings of the dredge, the bycatch composition of the king scallop dredge fishery in the English Channel is dominated by large benthic and demersal fish species (Szostek et al. 2017Szostek C.L., Murray L.G., Bell E., et al. 2017. Regional variation in bycatches associated with king scallop (Pecten maximus L.) dredge fisheries. Mar. Environ. Res. 123: 1-13.).

The bycatch rates represented 46.0% of total catches in abundance and 32.9% in biomass using DDredge. In the dredge fishery targeting C. chione performed in the Setúbal region (western coast of Portugal) a high proportion of bycatch (31% in number) was also recorded (Gaspar et al. 2001Gaspar M.B., Dias M.D., Campos A., et al. 2001. The influence of dredge design on the catch of Callista chione (L. 1758). Hydrobiologia 465: 153-167.). Significantly lower bycatch rates (13.5% of total catches in abundance and 6.3% in biomass) were recorded for SDredge, due to high densities of its target species (S. solida) in the bivalve beds along the Algarve coast. Another study also using a grid dredge to target S. solida in the same sampling area reported a mean bycatch rate of 9% in biomass (Leitão et al. 2009Leitão F., Gaspar M.B., Santos M.N., et al. 2009. A comparison of bycatch and discard mortality in three types of dredge used in the Portuguese Spisula solida (solid surf clam) fishery. Aquat. Living Resour. 22: 1-10.). In addition, previous fishing surveys performed in the same area recorded much higher fishing yields of S. solida (957 g/5 min. tow) than of D. trunculus (248 g/5 min. tow), reflecting clear differences in species abundance and density over time (Gaspar et al. 2015Gaspar M.B., Moura P., Pereira F., et al. 2015. Ponto de situação dos bancos de bivalves na Zona Sul. Relatório de Campanha de Pesca do IPMA, 21 pp.). For the same reason but with an opposite trend, low densities of target species were responsible for very high bycatch and discard rates (≈90%) in the “rapido” trawl scallop (Pecten jacobaeus) fishery in the Adriatic Sea (Pranovi et al. 2001Pranovi F., Raicevich S., Franceschini G., et al. 2001. Discard analysis and damage to non-target species in the “rapido” trawl fishery. Mar. Biol. 139: 863-875.).

In the present study, damage and mortality, which reflect the direct impact of the dredging operations, were predominantly low despite the presence of some sensitive species in the catches. The three bivalve target species (S. solida, C. gallina and D. trunculus) exhibited low damage and mortality rates, S. solida being the least affected and D. trunculus the most affected by dredging impacts. Likewise, except for D. trunculus, which showed slightly higher mortality, the undersized individuals of the remaining target species also displayed fairly low damage and mortality rates. Overall, damage and mortality depend on the operational and technical characteristics of the fishing gears and on some biological and ecological features of the taxa collected as either target catch or bycatch. In particular, bivalve species susceptibility to damage are markedly influenced by their shell morphology and resistance to breakage (the force required to break the shell) (Bergmann et al. 2001Bergmann M., Taylor A.C., Moore P.G. 2001. Physiological stress in decapod crustaceans (Munida rugosa and Liocarcinus depurator) discarded in the Clyde Nephrops fishery. J. Exp. Mar. Biol. Ecol. 259: 215-229., Vasconcelos et al. 2011Vasconcelos P., Morgado-André A., Morgado-André C., et al. 2011. Shell strength and fishing damage to the smooth clam (Callista chione): simulating impacts caused by bivalve dredging. ICES J. Mar. Sci. 68: 32-42.). Accordingly, bigger damage rates and significantly higher mortality rates in DDredge than in SDredge are probably due to the lower proportions of thick-shelled and more resistant bivalves, such as S. solida and C. gallina, in the catches using DDredge.

In contrast, the pod razor shell (E. siliqua), a thin-shelled bivalve that usually burrows shallowly close to the sediment surface but can burrow down to 60 cm deep when disturbed (Gaspar et al. 1998Gaspar M.B., Castro M., Monteiro C.C. 1998. Influence of tow duration and tooth length on the number of damaged razor clams Ensis siliqua. Mar. Ecol. Prog. Ser. 169: 303-305.), showed very high mortality rates independently of the type of dredge. Such high mortalities are explained by the difference between the dredge teeth length (20 cm) and the maximum burrowing depth of E. siliqua (60 cm), because the perturbation caused by dredging induces deeper burrowing as a self-protective behaviour. Most individuals are hit by the dredge teeth in the upper and middle portions of the shell, suffering severe damage and subsequent mortality (Gaspar et al. 1998Gaspar M.B., Castro M., Monteiro C.C. 1998. Influence of tow duration and tooth length on the number of damaged razor clams Ensis siliqua. Mar. Ecol. Prog. Ser. 169: 303-305.). Though it is the third most abundant species caught by both types of dredge, the hermit crab (D. pugilator) showed high resilience to dredging impacts in terms of both damage rate (<10%) and mortality rate (<1%, mainly individuals that abandoned their protective shells). This low sensitivity, coupled with recruitment every four months on the Portuguese coast (Dolbeth et al. 2006Dolbeth M., Viegas I., Martinho F., et al. 2006. Population structure and species dynamics of Spisula solida, Diogenes pugilator and Branchiostoma lanceolatum along a temporal-spatial gradient in the south coast of Portugal. Estuar. Coast. Shelf Sci. 66: 168-176.), makes this species almost invulnerable to bivalve dredging impacts on the Algarve coast. Swimming crabs (Liocarcinus sp.) also occurred in high abundances but displayed low damage and mortality rates, corroborating previous data gathered using the metallic grid dredge (Gaspar et al. 2003bGaspar M.B., Santos M.N., Leitão F., et al. 2003b. Recovery of substrates and macro-benthos after fishing trials with a new Portuguese clam dredge. J. Mar. Biol. Assoc. U.K. 83: 713-717.). However, physiological responses of Liocarcinus depurator to aerial exposure reveal that, although it is not directly lethal, the stress induced by emersion might lead to metabolic disruptions that increase the susceptibility to predation (Bergmann et al. 2001Bergmann M., Taylor A.C., Moore P.G. 2001. Physiological stress in decapod crustaceans (Munida rugosa and Liocarcinus depurator) discarded in the Clyde Nephrops fishery. J. Exp. Mar. Biol. Ecol. 259: 215-229.).

Damage and mortality rates of echinoderms confirmed their fragility when subjected to impacts and stress, with the four species of sea urchins (Echinocardium spp.) being highly susceptible to lethal injuries caused by both types of dredge. This previously reported high susceptibility to damage (e.g. Kaiser and Spencer 1995Kaiser M.J., Spencer B.E. 1995. Survival of by-catch from a beam trawl. Mar. Ecol. Prog. Ser. 126: 31-38., Gaspar et al. 2003bGaspar M.B., Santos M.N., Leitão F., et al. 2003b. Recovery of substrates and macro-benthos after fishing trials with a new Portuguese clam dredge. J. Mar. Biol. Assoc. U.K. 83: 713-717., Leitão et al. 2009Leitão F., Gaspar M.B., Santos M.N., et al. 2009. A comparison of bycatch and discard mortality in three types of dredge used in the Portuguese Spisula solida (solid surf clam) fishery. Aquat. Living Resour. 22: 1-10.) was attributed to the fact that the fused plates of sea urchins imply low flexibility and high sensitivity to mechanical damage during bivalve dredging (Kaiser and Spencer 1995Kaiser M.J., Spencer B.E. 1995. Survival of by-catch from a beam trawl. Mar. Ecol. Prog. Ser. 126: 31-38.). By contrast, brittle stars (class Ophiuroidea) exhibited very high damage rates but very low mortality rates. Several studies have confirmed the high resilience of the serpent star (Ophiura ophiura) to bottom fishing, considering that arm damage and breakage induce low mortality due to the high regeneration capacity of this species (e.g. Kaiser and Spencer 1995Kaiser M.J., Spencer B.E. 1995. Survival of by-catch from a beam trawl. Mar. Ecol. Prog. Ser. 126: 31-38., Hill et al. 1996Hill A.S., Brand A.R., Wilson U.A.W., et al. 1996. Information of by-catch composition and the numbers of by-catch animals killed annually on Manx scallop fishing grounds. In: Greenstreet S.P.R., Tasker M.L. (eds), Aquatic Predators and their Prey. Blackwell Science, Oxford, pp. 111-115., Ramsay et al. 1998Ramsay K., Kaiser M.J., Hughes R.N. 1998. Responses of benthic scavengers to fishing disturbance by towed gears in different habitats. J. Exp. Mar. Biol. Ecol. 224: 73-89.), which also relies on its high reproductive resilience to cope with severe damage and consequent mortality (Pranovi et al. 2001Pranovi F., Raicevich S., Franceschini G., et al. 2001. Discard analysis and damage to non-target species in the “rapido” trawl fishery. Mar. Biol. 139: 863-875.). However, Bergmann and Moore (2001)Bergmann M., Moore P.G. 2001. Mortality of Asterias rubens and Ophiura ophiura discarded in the Nephrops fishery of the Clyde Sea area, Scotland. ICES J. Mar. Sci. 58: 531-542. highlighted that fishing-related stress and damage could induce higher susceptibility to bacterial infection and subsequent death in this species.

There is lack of information regarding the survival of bycatch species after discarding (Leitão et al. 2014Leitão F., Range P., Gaspar M.B. 2014. Survival estimates of bycatch individuals discarded from bivalve dredges. Braz. J. Oceanogr. 62: 257-263.). In the Portuguese dredge fishery, most discards are invertebrate species (bivalves, gastropods, crustaceans and echinoderms). Depending on the volume of the catches, the specimens caught are sometimes only sorted at the end of the fishing day, which may decrease the survival of discarded individuals (Gaspar and Chícharo 2007Gaspar M.B., Chícharo L.M. 2007. Modifying dredges to reduce by-catch and impacts on the benthos. In: Kennely S.J. (ed.), By-catch Reduction in the World’s Fisheries. Springer, Dordrecht Netherlands, pp. 95-140.). Despite the overall low mortality recorded in this study, dredging-induced stress might cause a slow recovery of the activity of discarded individuals, which thus become more vulnerable to predation (Robinson and Richardson 1998Robinson R.F., Richardson C.A. 1998. The direct and indirect effects of suction dredging on a razor clam (Ensis arcuatus) population. ICES J. Mar. Sci. 55: 970-977., Chícharo et al. 2002bChícharo L., Chícharo M., Gaspar M., et al. 2002b. Reburial time and indirect mortality of Spisula solida clams caused by dredging. Fish. Res. 59: 247-257.). However, several authors have reported low rates of indirect mortality in molluscs and crustaceans (Gruffydd 1972Gruffydd L.D. 1972. Mortality of scallops on a Manx scallop bed due to fishing. J. Mar. Biol. Assoc. U.K. 52: 449-455., Caddy 1973Caddy J.F. 1973. Underwater observations on tracks of dredges and trawls and some effects of dredging on a scallop ground. J. Fish. Res. Board Can. 30: 173-180., Kaiser and Spencer 1995Kaiser M.J., Spencer B.E. 1995. Survival of by-catch from a beam trawl. Mar. Ecol. Prog. Ser. 126: 31-38.), the two most abundant taxa collected in the present study. Larger individuals in particular are typically more resistant to damage and mortality (Birkett 1959Birkett L. 1959. Production in benthic populations. ICES: Near-Northern Seas Committee, 42: 1-12., Medcof and MacPhail 1964Medcof J.C., MacPhail J.S. 1964. A new hydraulic rake for soft-shell clams. Proc. Natl. Shellfish. Ass. 53: 11-31., Trewin and Welsh 1972Trewin N.H., Welsh W. 1972. Transport, breakage and sorting of the bivalve Mactra corallina on Aberdeen beach, Scotland. Paleogeogr. Paleoclimatol. Paleoecol. 12: 193-204.).

In order to estimate survival rates more accurately, captivity experiments were performed in aquaculture facilities during the present study. However, it is assumed that the effect of captivity upon the experimental individuals might lead to an underestimation of survival rates, whereas the exclusion of predation effects might lead to an overestimation (ICES 2014ICES. 2014. Report of the Workshop on Methods for Estimating Discard Survival (WKMEDS), 17–21 February 2014, Copenhagen, Denmark. ICES CM 2014/ACOM:51, 114 pp.). Based on the arbitrary damage scores used in this study, the high survival rate of undamaged (D₀) and slightly damaged (D₁) individuals allowed us to infer that in this bivalve dredge fishery discarding can lead to considerable survival rates when catches are sorted immediately after each tow and discarded near the natural beds of the harvested species. One interesting finding of the captivity experiments was the fact that, when subjected to the perturbation and stress during dredging, D. trunculus appears to be faster closing the valves than retracting the foot, so apparently undamaged individuals were actually injured internally, which might jeopardize their likelihood of survival.

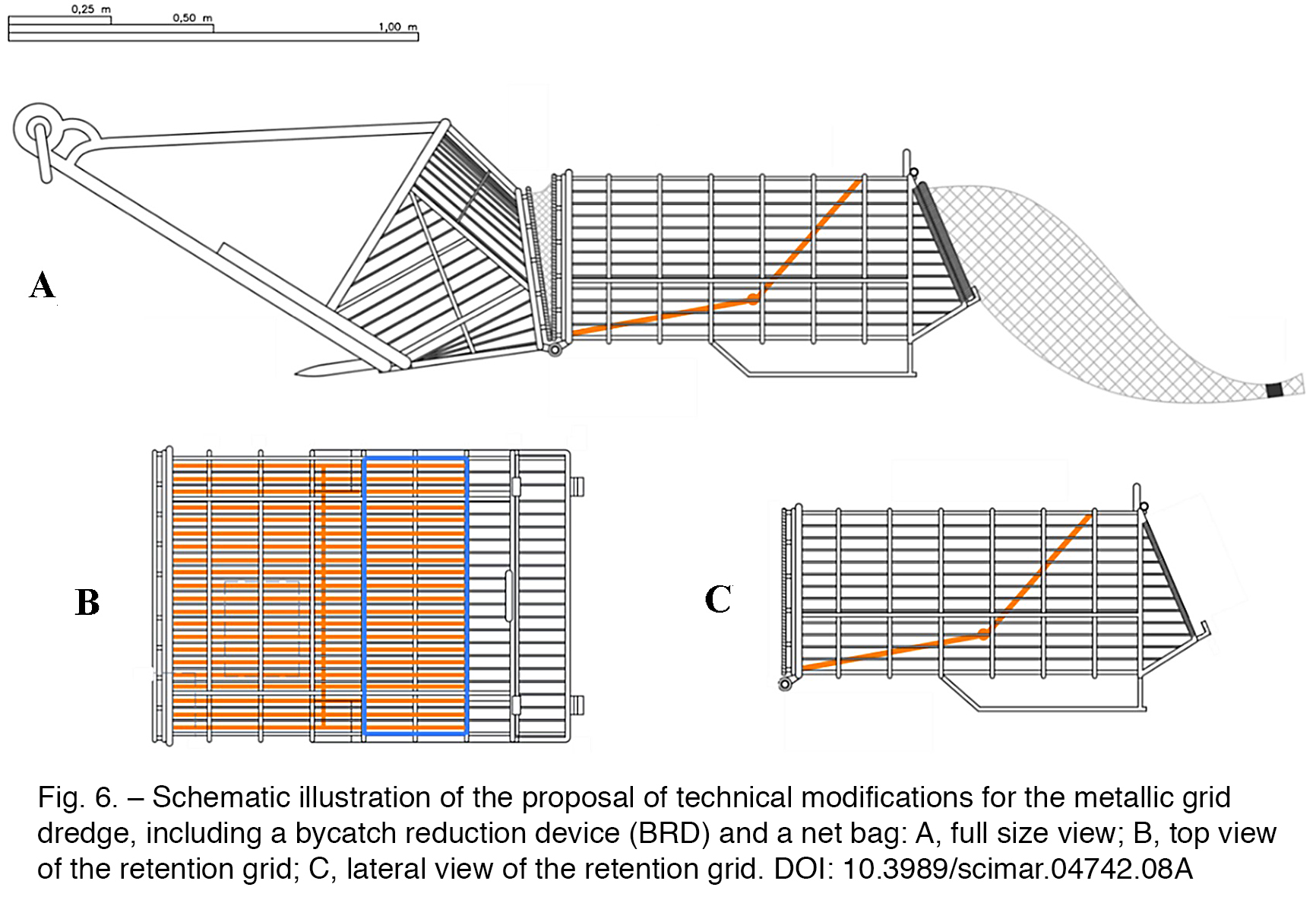

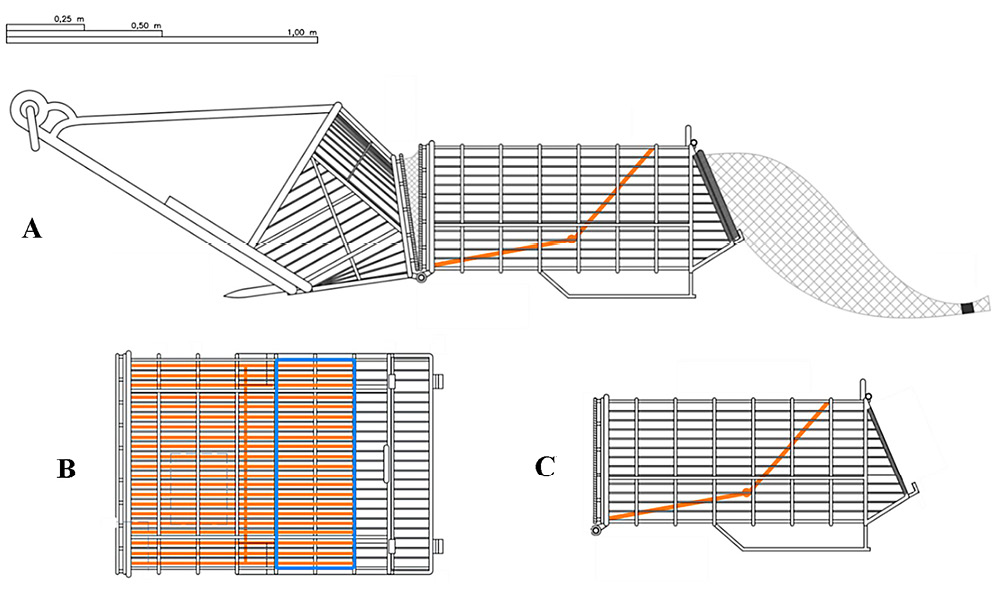

The design of the currently used grid dredge allows smaller individuals of both target and bycatch species to escape through the spacing between bars of the grid. However, although the dredges are adapted to the bivalve target species, they retain larger specimens of the bycatch species, which are later hauled, sorted on board and discarded. However, this gear proved much better than the traditional and northern dredges, because it collected a significantly lower amount of unwanted accessory species (Gaspar et al. 2001Gaspar M.B., Dias M.D., Campos A., et al. 2001. The influence of dredge design on the catch of Callista chione (L. 1758). Hydrobiologia 465: 153-167., 2003bGaspar M.B., Santos M.N., Leitão F., et al. 2003b. Recovery of substrates and macro-benthos after fishing trials with a new Portuguese clam dredge. J. Mar. Biol. Assoc. U.K. 83: 713-717., Leitão et al. 2009Leitão F., Gaspar M.B., Santos M.N., et al. 2009. A comparison of bycatch and discard mortality in three types of dredge used in the Portuguese Spisula solida (solid surf clam) fishery. Aquat. Living Resour. 22: 1-10.). In a strictly scientific approach to the problem of bycatch, high bycatch rates should not be a major problem if most discarded individuals survive (Gaspar and Chícharo 2007Gaspar M.B., Chícharo L.M. 2007. Modifying dredges to reduce by-catch and impacts on the benthos. In: Kennely S.J. (ed.), By-catch Reduction in the World’s Fisheries. Springer, Dordrecht Netherlands, pp. 95-140.), but bycatch is also an ethical, technical, political and economic issue (Hall et al. 2000Hall M.A., Alverson D.L., Metuzals K.I. 2000. By-catch: problems and solutions. Mar. Pollut. Bull. 41: 204-219.).

The morphological diversity of the bycatch taxa caught by bivalve dredging requires a dredge design that is efficient, selective and causes low damage to all collected organisms. The current technical design of the metallic grid dredge should be basically maintained and only slight modifications should be introduced, namely by introducing a bycatch reduction device (BRD) in order to allow most bycatch specimens to escape. Despite extensive research confirming significant bycatch reductions due to the adoption of BRDs (e.g. Brewer et al. 1998Brewer D., Rawlinson N., Eayrs S., et al. 1998. An assessment of bycatch reduction devices in a tropical Australian prawn trawl fishery. Fish. Res. 36: 195-215., Fonseca et al. 2005Fonseca P., Campos A., Larsen R.B., et al. 2005. Using a modified Nordmøre grid for by-catch reduction in the Portuguese crustacean-trawl fishery. Fish. Res. 71: 223-239.), little information of this type is available for bivalve fisheries, since most studies have focused on prawn and shrimp trawl fisheries. In the present case, the grid dredge should include, in the middle of the collecting system, an oblique metallic grid ending at an escape exit at the top of the cage (Fig. 6). By installing this BRD, it is expected that individuals larger than the openings will be guided upwards to the escape exit, while smaller individuals will pass through the openings of the BRD. Since the selection of the individuals that pass through the BRD will occur inside the grid cage, the spacing between the bars must be large enough to enable target individuals to pass through and thus avoid negative affects on the fishing yield. This type of BRD (i.e. a simple metallic grid that mechanically excludes unwanted catches according to their size) has been extensively reported as efficient for allowing bycatch to escape while maintaining the target catch. For instance, a significant decrease in the proportion of bycatch fish in trawl fisheries targeting the ocean shrimp (Pandalus jordani) was recorded following the implementation of a rigid-grid BRD (Hannah and Jones 2007Hannah R.W., Jones S.A. 2007. Effectiveness of bycatch reduction devices (BRDs) in the ocean shrimp (Pandalus jordani) trawl fishery. Fish. Res. 85: 217-225.). Likewise, significant bycatch reductions were achieved thanks to the use of the Nordmøre grid in the Brazilian artisanal shrimp fishery, with an extremely high decrease (97%) in the weight of the abundant brachyurids present in the catches (Silva et al. 2012Silva C.N., Broadhurst M.K., Dias J.H., et al. 2012. The effects of Nordmøre-grid bar spacings on catches in a Brazilian artisanal shrimp fishery. Fish. Res. 127: 188-193.).

The survival of escaped organisms should also be considered, since the adoption of BRDs assumes that excluded individuals suffer negligible mortality (Crowder and Murawski 1998Crowder L.B., Murawski S.A. 1998. Fisheries bycatch: implications for management. Fisheries 23: 8-17.). Considering that previous underwater observations by Gaspar et al. (2001)Gaspar M.B., Dias M.D., Campos A., et al. 2001. The influence of dredge design on the catch of Callista chione (L. 1758). Hydrobiologia 465: 153-167. revealed that undamaged individuals that pass through the parallel rods of the metallic grid dredge rebury immediately or recover activity, the likelihood of survival of the escaped individuals is presumably high. Therefore, this BRD is expected to reduce both direct and indirect mortality, since it will allow the immediate escape of larger individuals from the fishing gear during the tow. They will be subject to less stress, recover their activity faster and be less exposed to predation. However, the modification proposed might also decrease the fishing yield, since during hauling there is a high likelihood of losing the target catch through the opening at the top of the dredge. To overcome this problem, an additional modification is required in the fishing gear: removing the rear part of the grid cage and attaching a net bag to the rear of the dredge in order to retain the catches during hauling (Fig. 6).

Gear-based solutions for reducing bycatch require an optimal combination of characteristics that decreases the amount of bycatch while maintaining or increasing the catches of target species. The likelihood of fishermen accepting a new or modified fishing gear can be expected to be low if the fishing yield decreases in comparison with the previous design of the fishing gear. For instance, the decreasing fishing yield following the adoption of the Nordmøre grid in the crustacean trawl fishery in Portugal raised concerns about whether fishermen would accept this gear modification (Fonseca et al. 2005Fonseca P., Campos A., Larsen R.B., et al. 2005. Using a modified Nordmøre grid for by-catch reduction in the Portuguese crustacean-trawl fishery. Fish. Res. 71: 223-239.). The overall results gathered in the present study recommend technical modifications to the current technical design of bivalve dredges, in order to adopt a BRD and include a retention net bag. For this reason, further experimental fishing surveys (performed throughout the year, using dredges with and without BRD towed simultaneously and side by side) are required to compare the fishing yield and profitability, catch composition, proportion of bycatch and discards, damage and mortality rates.

ACKNOWLEDGEMENTSTop

The authors would like to thank the colleagues André Carvalho, Rúben Lechuga, David Piló and Daniela Rosa (IPMA - Centre of Olhão) and Margarete Matias, Cláudia Roque and João Teixeira (IPMA - Molluscan Aquaculture Experimental Station of Tavira) for their helpful assistance in the biological sampling and survival experiments, respectively. The technical design of the fishing gear was kindly provided by Miguel Carneiro (IPMA - Headquarters in Lisbon). This study was performed within the framework of the research project “Science Technology and Society Initiative to Minimize Unwanted Catches in European Fisheries (MINOUW)” funded by the Research and Innovation Action (RIA) of the EU Horizon 2020 programme. This study received national funds through the Foundation for Science and Technology - FCT (project UID/Multi/04326/2013). Paulo Vasconcelos was funded by a post-doctoral grant awarded by FCT (SFRH/BPD/26348/2006). Thanks are also due to Dr Montserrat Demestre (Scientific Editor of Scientia Marina) and two anonymous reviewers for providing helpful suggestions to improve the manuscript.
