INTRODUCTIONTop

The number of species in the perciform family Kyphosidae is controversial, mainly depending on the number of genera included. According to Nelson (2016)Nelson J.S., Grande T.C., Wilson M.V.H. 2016. Fishes of the world. John Wiley and Sons, Hoboken, New Jersey., this family contains 53 species divided into 14 genera, and Froese and Pauly (2017)Froese R., Pauly D. 2017. FishBase. World Wide Web electronic publication, version (02/2017). recognize the same number of genera but 54 species. On the other hand, Knudsen and Clements (2013) reduce this number to 12 species in 2 genera. The sea chubs Kyphosus species typically inhabits shallow waters over sandy, rocky or grassy bottoms around coral reefs, mainly in the Atlantic, Indian and Pacific Oceans, and juveniles are commonly found among floating algae or below flotsam (Tortonese 1986Tortonese E. 1986. Kyphosidae. In Whitehead P.J.P. Bauchot M.L., et al. (eds), Fishes of the northeastern Atlantic and the Mediterranean. Vol. 2, UNESCO, Paris. pp. 883-907.).

Only two species of Kyphosus have been reported so far in the northeastern Atlantic and the Mediterranean: the Bermuda sea chub Kyphosus sectatrix (L., 1758) and the yellow sea chub Kyphosus incisor (Cuvier, 1831) (Tortonese 1986Tortonese E. 1986. Kyphosidae. In Whitehead P.J.P. Bauchot M.L., et al. (eds), Fishes of the northeastern Atlantic and the Mediterranean. Vol. 2, UNESCO, Paris. pp. 883-907.). Over the last few decades kyphosid catch records for the Atlantic and Mediterranean have experienced an increased number of observations. For the Mediterranean Sea, new records of K. sectatrix (Ligas et al. 2011Ligas A., Sartor P., Sbrana M., et al. 2011. A new record of Kyphosus saltatrix (Pisces: Kyphosidae) along the Italian coasts (north-western Mediterranean). Mar. Biodivers. Rec. 4: e6., Kiparissis et al. 2012Kiparissis S., Loukovitis D., Batargias C. 2012. First record of the Bermuda sea chub Kyphosus saltatrix (Pisces: Kyphosidae) in Greek waters. Mar. Biodivers. Rec. 5: e11.) and K. incisor (Azzurro et al. 2013Azzurro E., Peñas-Rivas L., Lloris D., et al. 2013. First documented occurrence of Kyphosus incisor in the Mediterranean Sea. Mar. Biodivers. Rec. 6: e98. ) have been reported successively. For the European Atlantic waters, specimens of K. sectatrix have been reported sporadically in the Macaronesian islands, south of Portugal, northwest of Spain and in the Bay of Biscay (Bañón et al. 2010Bañón R., Villegas-Ríos D., Serrano A., et al. 2010. Marine fishes from Galicia (NW Spain): an updated checklist. Zootaxa 2667: 1-27., Canas et al. 2005Canas A., Vasconcelos P., Lino P.G., et al. 2005. Northernmost record of Kyphosus sectator (Osteichthyes: Perciformes: Kyphosidae) in the north-eastern Atlantic. J. Mar. Biol. Assoc. U.K. 85: 1535-1537., Quéro et al. 2009Quéro J.-C., Jerome S., Vayne J.-J., et al. 2009. Observations ichtyologiques effectuées en 2008. Ann. Soc. Sci. Nat. Charente-Marit. 9: 932-940.).

Two taxonomic views on Kyphosus with different perspectives have recently been published. Knudsen and Clements (2013)Knudsen S.W., Clements K.D. 2013. Revision of the fish family Kyphosidae (Teleostei: Perciformes). Zootaxa 3751: 1-101. re-examine this genus within a world revision of the family based on both morphological and molecular characteristics, recognizing 12 valid species. According to these authors, four species are present in the Atlantic Ocean and the Mediterranean Sea: the brown chub Kyphosus bigibbus Lacepède, 1801, the brassy chub Kyphosus vaigiensis (Quoy and Gaimard, 1825), the blue sea chub Kyphosus cinerascens (Forsskål, 1775) and K. sectatrix. These authors consider K. incisor a junior synonym of K. vaigiensis.

A different taxonomic view of Kyphosus in the Atlantic and eastern Pacific Oceans, and using only morphologic characteristics, was provided by Sakai and Nakabo (2014)Sakai K., Nakabo T. 2014. Taxonomic review of Kyphosus (Pisces: Kyphosidae) in the Atlantic and Eastern Pacific Oceans. Ichthyol. Res. 61: 265-292., who only recognize 11 species, and share only 6 species with the revision presented by Knudsen and Clements (2013)Knudsen S.W., Clements K.D. 2013. Revision of the fish family Kyphosidae (Teleostei: Perciformes). Zootaxa 3751: 1-101., stating that only three of them are present in the Atlantic Ocean and the Mediterranean Sea: Kyphosus atlanticus Sakai and Nakabo, 2014, Kyphosus bosquii (Lacepède, 1802) and K. incisor. According to Sakai and Nakabo (2014)Sakai K., Nakabo T. 2014. Taxonomic review of Kyphosus (Pisces: Kyphosidae) in the Atlantic and Eastern Pacific Oceans. Ichthyol. Res. 61: 265-292., K. sectatrix in the Atlantic Ocean is found to represent two species, K. bosquii and a new species, K. atlanticus.

Many of the morphological discrepancies between the two mentioned revisions have been recently reported by Gilbert (2015)Gilbert C.R. 2015. Designation of a neotype for the kyphosid fish Kyphosus sectatrix (Linnaeus, 1758). Zootaxa 3999: 295-297., who considers K. atlanticus a junior synonym of K. sectatrix, following Knudsen and Clements (2013)Knudsen S.W., Clements K.D. 2013. Revision of the fish family Kyphosidae (Teleostei: Perciformes). Zootaxa 3751: 1-101..

The practice of an integrative taxonomy approach (Dayrat 2005Dayrat B. 2005. Towards integrative taxonomy. Biol. J. Linn. Soc. 85: 407-415.) that gathers information from different sources is advisable when identifications based on morphology alone are inadequate for distinguishing between species. DNA barcoding has been considered an efficient aid to traditional taxonomy and is designed to facilitate fast and accurate species identification from a short, standardized DNA sequence (Hebert et al. 2003Hebert P.D.N., Cywinska A., Ball S.L., et al. 2003. Biological identifications through DNA barcodes. Proc. R. Soc. Lond. B 270: 313-321. ). In its strictest sense, DNA barcoding addresses only a limited aspect of the taxonomic process, by matching DNA sequences to “known” species, the latter being delimited with traditional (e.g. morphological) methodologies. In this context, the role of barcodes is to provide a methodology for assigning unidentified specimens to already characterized species (Hebert et al. 2003Hebert P.D.N., Cywinska A., Ball S.L., et al. 2003. Biological identifications through DNA barcodes. Proc. R. Soc. Lond. B 270: 313-321. ). This is of great help to the end users of taxonomy, and is helping to make more rapid progress in species identification and delimitation of species groups (Ratnasingham and Hebert 2007Ratnasingham S., Hebert P.D.N. 2007. BOLD: The Barcode of Life Data System. Mol. Ecol. Notes 7: 355-364.). Where species are simply unknown or no attempts have been made to delimit them, the barcode approach as originally intended is inadequate in its applicability and should be applied with precaution. It is generally assumed for the majority of vertebrate species that DNA markers such as mtDNA-COI can be used to distinguish between species, and therefore the barcoding approach is based on the assumption that the variation within species of vertebrates is smaller than between species (Ratnasingham and Hebert 2007Ratnasingham S., Hebert P.D.N. 2007. BOLD: The Barcode of Life Data System. Mol. Ecol. Notes 7: 355-364.). As a consequence, DNA barcoding has the potential to aid taxonomic studies and help to clarify cases of potential synonymy and delimitation of cryptic species (Grant et al. 2011Grant R.A., Griffiths H.J., Steinke D., et al. 2011. Antarctic DNA barcoding; a drop in the ocean? Polar Biol. 34: 775-780.). Limitations of using mtDNA to infer species boundaries include: retention of ancestral polymorphism, male-biased gene flow, selection on any mtDNA nucleotide, introgression following hybridization, and paralogy resulting from transfer of mtDNA gene copies to the nucleus (Moritz and Cicero 2004Moritz C., Cicero C. 2004. DNA Barcoding: Promise and Pitfalls. PLoS Biol. 2: e354.). Despite their benefits and pitfalls, mtDNA-COI barcode sequences and their ever increasing taxonomic coverage have been considered an unprecedented resource for taxonomy and systematics studies and also function as a diagnostic tool.

DNA barcoding is recognized as an important new tool that can be usefully applied to help resolve taxonomic issues in fishes (Ward et al. 2009Ward R.D., Hanner R., Hebert P.D.N. 2009. The campaign to DNA barcode all fishes, FISH-BOL. J. Fish Biol. 74: 329-356.), based on the development of a reference library of barcode sequences from vouchered specimens. The analysis of validated DNA barcodes for cluster recognition provides an efficient approach for recognizing putative species (operational taxonomic units, OTU). The Barcode Index Number (BIN) system is a persistent registry for animal OTUs recognized through sequence variation in the mtDNA-COI barcode region (Ratnasingham and Hebert 2013Ratnasingham S., Hebert P.D.N. 2013. A DNA-based registry for all animal species: the Barcode Index Number (BIN) System. PLoS ONE 8: e66213.).

Molecular data including DNA sequences of Kyphosus species are scarce in the scientific literature. Markers like mitochondrial cytochrome b, 12S and 16S rDNAs have been used to identify K. sectatrix in Greek waters (Kiparissis et al. 2012Kiparissis S., Loukovitis D., Batargias C. 2012. First record of the Bermuda sea chub Kyphosus saltatrix (Pisces: Kyphosidae) in Greek waters. Mar. Biodivers. Rec. 5: e11.). Currently 45 records of mtDNA-COI from Kyphosus are available from the BOLD reference database (April 2016). Of these, 42 are assigned to species level and represent 5 species. Some barcodes from K. vaigiensis were obtained during the barcoding identification of marine fishes from Japan (Zhang and Hanner 2011Zhang J.-B., Hanner R. 2011. DNA barcoding is a useful tool for the identification of marine fishes from Japan. Biochem. Syst. Ecol. 39: 31-42.) and in the identification of K. vaigiensis from the Mediterranean Sea (Mannino et al. 2015Mannino A.M., Balistreri P., Iaciofano D., et al. 2015. An additional record of Kyphosus vaigiensis (Quoy and Gaimard, 1825) (Osteichthyes, Kyphosidae) from Sicily clarifies the confused situation of the Mediterranean kyphosids. Zootaxa 3963: 45-54.). Sequences of mtDNA-COI from K. cinerascens and K. vaigiensis have been obtained in relation studies aimed at resolving cryptic diversity in Indo-Pacific coral-reef fishes (Hubert et al. 2012Hubert N., Meyer C.P., Bruggemann H.J., et al. 2012. Cryptic diversity in Indo-Pacific coral-reef fishes revealed by DNA-barcoding provides new support to the centre-of-overlap hypothesis. PLoS ONE 7: e28987.). Barcodes of K. sectatrix and K. incisor have been used to identify marine fishes of Sao Paulo State in Brazil (Ribeiro et al. 2012Ribeiro A.O., Caires R.A., Mariguela T.C., et al. 2012. DNA barcodes identify marine fishes of Sao Paulo State, Brazil. Mol. Ecol. Resour. 12: 1012-1020.).

The aim here is to identify specimens of Kyphosus caught in European Atlantic Galician waters by combining morphological identifications in relation to their mtDNA-COI sequences. Since OTUs often tend to show high concordance with vertebrate species delimitations, this approach can be used to support species identifications based on morphological characters (Ratnasingham and Hebert 2013Ratnasingham S., Hebert P.D.N. 2013. A DNA-based registry for all animal species: the Barcode Index Number (BIN) System. PLoS ONE 8: e66213.).

MATERIAL AND METHODSTop

Sample collection and specimen assignation

Three specimens belonging to the genus Kyphosus were recorded on the Galician coasts (NW Spain) in 2013 and 2014 by recreational spear fishermen and professional artisanal fishers. Specimens were first preserved frozen and later thawed and measured to the nearest mm, and meristic characters were determined according to Knudsen and Clements (2013)Knudsen S.W., Clements K.D. 2013. Revision of the fish family Kyphosidae (Teleostei: Perciformes). Zootaxa 3751: 1-101.. Morphology-based identifications, taxonomical nomenclature and classification were carried out following Knudsen and Clements (2013)Knudsen S.W., Clements K.D. 2013. Revision of the fish family Kyphosidae (Teleostei: Perciformes). Zootaxa 3751: 1-101.. Afterwards, the fish were fixed in 10% formalin, transferred to 70% ethanol and finally deposited in the fish collection of the Museum Luis Iglesias de Ciencias Naturais (MHNUSC) in Santiago de Compostela (Galicia, Spain).

DNA extraction, polymerized chain reaction (PCR) amplification and nucleotide sequencing

Total DNA was purified from 25 mg of muscle tissue taken from each specimen using the spin-column protocol of the Tissue DNA Extraction Kit (Omega-Biotek). The standard 5´ barcoding region of the COI gene (ca. 650 bp) was amplified by PCR using the primers set C_FishF1t1-C_FishR1t1 (Ivanova et al. 2007Ivanova N.V., Zemlak T.S., Hanner R.H., et al. 2007. Universal primer cocktails for fish DNA barcoding. Mol. Ecol. Notes 7: 544-548.). Polymerase chain reaction was carried out using Phire Green Hot Start II DNA Polymerase (Thermo Scientific, Waltham, MA, USA); mixtures contained a final volume of 50 µL and included 19 reaction buffer, 200 µM of each dNTP, 0.1 µM of each primer and 1 µL of polymerase enzyme; between 50 and 100 ng of template DNA was added. PCR reaction products were visualized on 1.2% agarose gels (Seakem LE Agarose) stained with ethidium bromide and, due to the specificity of the results, purified directly with ExoSAP-IT (USB) following the manufacturer's instructions. DNA sequencing reactions were carried out in the forward and reverse senses using the M13F (-21) and M13R (-27) primers and the Big Dye Terminator v3.1 Cycle Sequencing Kit (Applied Biosystems). The resulting products were resolved on an ABI 3130 Genetic Analyser (Applied Biosystems, Foster City, CA, USA) and the consensus sequences were obtained after removing the primer-bind regions and assembling the direct and reverse traces with SeqScape v2.5 (Applied Biosystems, Foster City, CA,USA).

Sequence alignment and molecular analysis

Forty-three mtDNA-COI sequences assigned to Kyphosus of at least 600 bp were retrieved from BOLD and GenBank, including the sequence FOAJ442-09 from Zhang and Hanner (2011)Zhang J.-B., Hanner R. 2011. DNA barcoding is a useful tool for the identification of marine fishes from Japan. Biochem. Syst. Ecol. 39: 31-42.. The final dataset, including the three Galician specimens, comprised 46 sequences with a total length of 651 nucleotides. The nucleotide and their deduced amino acid alignments were built with the MUSCLE algorithm (Edgar 2004Edgar R.C. 2004. MUSCLE: multiple sequence alignment with high accuracy and high throughput. Nucleic Acids Res. 32: 1792-1797.) with pairwise deletion. The specimens employed in the analysis are listed in Table 1.

The molecular analysis was conducted using the neighbour-joining (NJ) (Saitou and Nei 1987Saitou N., Nei M. 1987. The neighbor-joining method: A new method for reconstructing phylogenetic trees. Mol. Biol. Evol. 4: 406-425.) method in MEGA 6.0 (Tamura et al. 2013Tamura K., Stecher G., Peterson D., et al. 2013. MEGA6: Molecular Evolutionary Genetics Analysis Version 6.0. Mol. Biol. Evol. 30: 2725-2729.). The nucleotide substitution model employed was p-distance and the confidence limits were tested though a bootstrap procedure (Felsenstein 1985Felsenstein J. 1985. Confidence limits on phylogenies: An approach using the bootstrap. Evolution 39: 783-791.) with 2000 replicates. The resulting tree was edited using TreeGraph (Stöver and Müller 2010Stöver B.C., Müller K.F. 2010. TreeGraph 2: Combining and visualizing evidence from different phylogenetic analyses. BMC Bioinformatics 11: 7.).

RESULTSTop

Morphological aspects

Kyphosus sectatrix (L., 1758)
(Fig. 1A)

Material examined. MHNUSC 25018-1, 450 mm L_T, total length, 16 August 2013, Malpica, 43.325°N 8.810°W, 2-3 m depth.

Description. Body oval and moderately compressed; head short, 4.9 times in TL; mouth small and terminal; snout slightly greater than eye diameter; pelvic fin short, 1.8 times in head length; caudal fin not deeply emarginated. Colour dusky grey in body and fins, lighter ventrally, without yellow lines patents. The main morphometric and meristic characteristics are presented in Table 2.

Habitat and distribution. Adults are found on rocky reefs or reef flats down to 25 m depth. Juveniles are pelagic, associated with flotsam, and can be encountered in the open ocean. Widely distributed in the west Pacific, to at least the Revillagigedo Islands, the east Pacific, the Indian Ocean, the Red Sea, the Atlantic and the Mediterranean (Knudsen and Clements 2013Knudsen S.W., Clements K.D. 2013. Revision of the fish family Kyphosidae (Teleostei: Perciformes). Zootaxa 3751: 1-101.).

Kyphosus vaigiensis (Quoy and Gaimard, 1825)
(Fig. 1B, C)

Material examined. MHNUSC 25017-1, 482 mm L_T, 21 January 2014, between Cape Finisterre and Punta Cabanas; 42.887°N 9.264°W, 4-6 m depth; MHNUSC 25017-2, 280 mm TL, 27 April 2014, “Pedras Negras”, O Grove (Ría de Arousa), 42.887°N 9.264°W, 8 m depth, in a rock crevice.

Description. Body oval and moderately compressed; head short, 5.1 and 5.3 times in TL; mouth small and terminal; snout slightly greater than eye diameter; pelvic fin a little shorter than pectoral fin, 1.6 and 1.4 times in head length; caudal fin not deeply emarginated. Colour dusky grey in body and fins, lighter ventrally; golden yellow horizontal scale rows along body from operculum to caudal fin and head with two gold stripes, one below eye and the other behind eye. The main morphometric and meristic characteristics are presented in Table 3.

Habitat and distribution. Adults are usually found close to the shore and the coastline, while juveniles are associated with flotsam and can be encountered in the open ocean close to the surface. Widely distributed in the Pacific, Indian and Atlantic Oceans, and also in the Mediterranean Sea (Knudsen and Clements 2013Knudsen S.W., Clements K.D. 2013. Revision of the fish family Kyphosidae (Teleostei: Perciformes). Zootaxa 3751: 1-101.).

Molecular analysis

Three COI DNA sequences were obtained from specimens of Kyphosus caught in Galician waters. An alignment of 651 nucleotide positions was built that, when translated, gave in all cases an amino acid sequence of 217 residues. When nucleotide positions were compared in all 46 sequences, a total of 598 conserved and 53 variable positions were found, from which 49 were parsimony-informative.

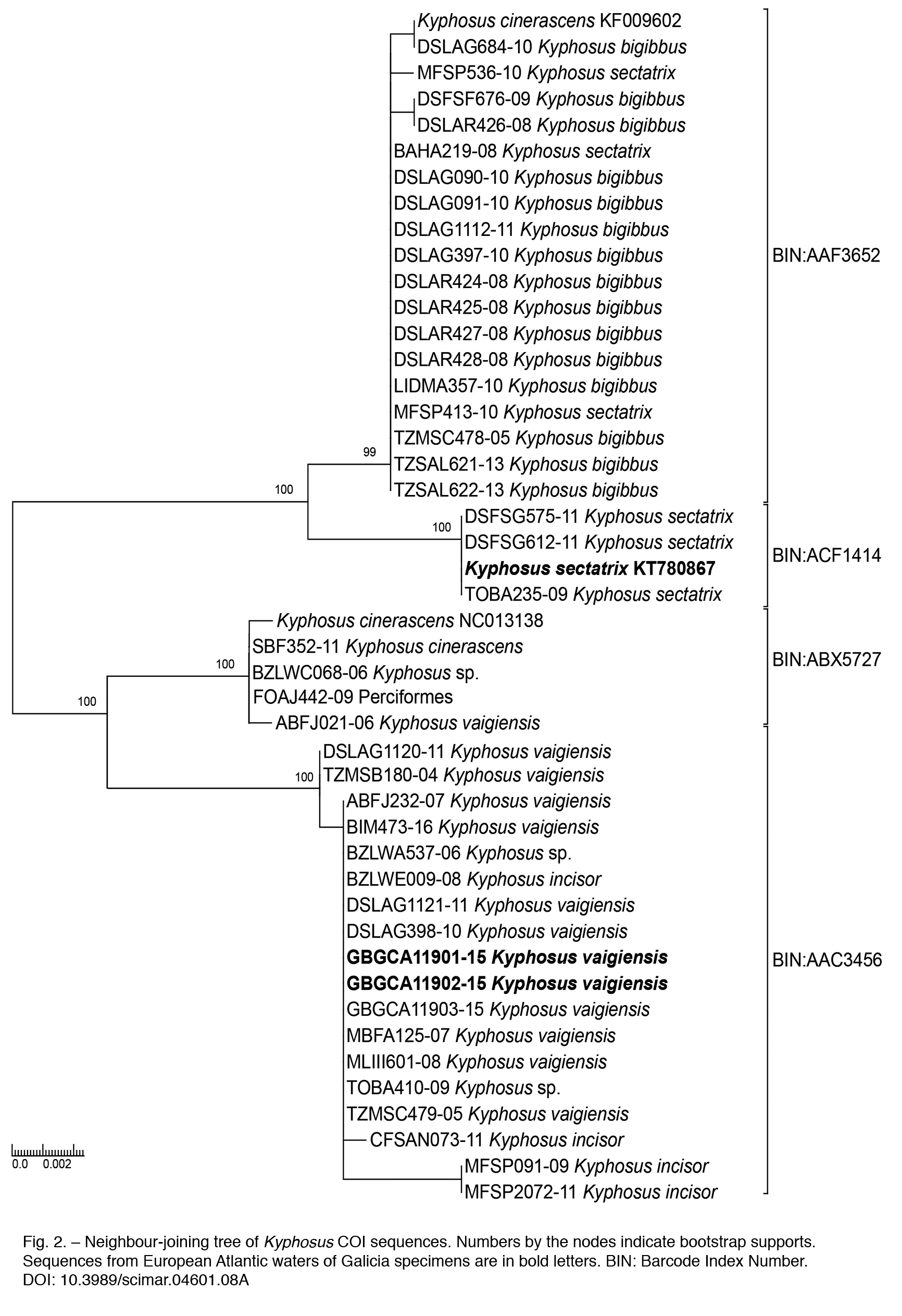

A graphic representation of divergences among specimens was created in the form of a consensus tree (Fig. 2) that grouped the sequences according to BIN and showed in its general topology all the Kyphosus sequences divided into two highly supported clades. One clade included all the sequences previously assigned to K. sectatrix and K. bigibbus, which clustered in two different, well-supported groups. The first group consisted of 19 sequences, 15 of them identified as K. bigibbus, three as K. sectatrix and one as K. cinerascens. The average genetic distance among them was 0.01% (Table 4), constituting BIN:AAF3652. The second group comprised four voucher specimens that yield a single haplotype identified as K. sectatrix, including KT780867 obtained in this study, corresponding to BIN:ACF1414. The genetic distance between these two BINs varied between 1.50% and 1.70% (Table 4).

In the second clade, the first node delimited two well-supported groups. The first contained five sequences, two of them previously associated with K. cinerascens, one as Kyphosus sp., and the last one labelled “Perciformes”, with an average genetic distance among them of 0.20% (Table 4), constituting BIN:ABX5727. The second group comprised a total number of 18 sequences that together constitute BIN:AAC3456, from which 12 were identified as K. vaigiensis, including the two Galician specimens (GBGCA11901-15 and GBGCA11902-15). In addition, four sequences were named as K. incisor and two as Kyphosus sp. The average genetic distance among them was 0.20% (Table 4).

The barcoding results thereby support the identification of the specimens made by morphological examination.

DISCUSSIONTop

Morphologically, the examined K. sectatrix and K. vaigiensis specimens could be differentiated mainly by dorsal and anal soft ray counts (14 dorsal fin and 13 anal fin soft rays in K. vaigiensis compared with 12 dorsal fin and 11 anal fin soft rays in K. sectatrix) and the number of gill rakers (32 in K. vaigiensis and 24 in K. sectatrix), which agree with previous taxonomical reports (Knudsen and Clements 2013Knudsen S.W., Clements K.D. 2013. Revision of the fish family Kyphosidae (Teleostei: Perciformes). Zootaxa 3751: 1-101., Mannino et al. 2015Mannino A.M., Balistreri P., Iaciofano D., et al. 2015. An additional record of Kyphosus vaigiensis (Quoy and Gaimard, 1825) (Osteichthyes, Kyphosidae) from Sicily clarifies the confused situation of the Mediterranean kyphosids. Zootaxa 3963: 45-54.).

In the NJ tree constructed from COI DNA sequences from Kyphosus, each of the three Galician specimens was placed within well-defined clades together with individuals from other geographical areas. The Galician sequences of K. vaigiensis grouped with sequences previously obtained from specimens of K. incisor and K. vaigiensis of Atlantic, Mediterranean and Indo-Pacific areas, including BIN:ACC3456, thereby supportive of considering K. incisor a synonym of K. vaigiensis (Knudsen and Clements 2013Knudsen S.W., Clements K.D. 2013. Revision of the fish family Kyphosidae (Teleostei: Perciformes). Zootaxa 3751: 1-101., Mannino et al. 2015Mannino A.M., Balistreri P., Iaciofano D., et al. 2015. An additional record of Kyphosus vaigiensis (Quoy and Gaimard, 1825) (Osteichthyes, Kyphosidae) from Sicily clarifies the confused situation of the Mediterranean kyphosids. Zootaxa 3963: 45-54.). The K. sectatrix sequence obtained formed a robust clade with another three sequences from South Africa and the western Atlantic assigned to the same species under the designation BIN:ACF1414, producing all together a single haplotype.

The NJ tree obtained showed a number of probably wrongly assigned individuals, in agreement with the complexity described for Kyphosus (Knudsen and Clements 2013Knudsen S.W., Clements K.D. 2013. Revision of the fish family Kyphosidae (Teleostei: Perciformes). Zootaxa 3751: 1-101.). As an example, Zhang and Hanner (2011)Zhang J.-B., Hanner R. 2011. DNA barcoding is a useful tool for the identification of marine fishes from Japan. Biochem. Syst. Ecol. 39: 31-42. obtained two barcodes of K. vaigiensis during the identification of marine fishes from Japan. They remarked that the K2P genetic distance between the specimens ABFJ021-06 (identified as K. vaigiensis) and the BOLD specimen FOAJ442-09 (identified as K. cinerascens) was 0.2%, which is in stark contrast with the 2.7% intraspecific genetic value found in their K. vaigiensis group. However, their specimen ABFJ021-06 (K. vaigiensis) grouped with K. cinerascens individuals in BIN:ABX5727, while ABFJ232-07 (K. vaigiensis) grouped with K. vaigiensis/K. incisor individuals (BIN:AAC3456). The short genetic distances between ABFJ021-06 and FOAJ442-09 can be explained by misidentification of the former, or by a hybridization phenomenon. Therefore, the high intraspecific distance reported for K. vaigiensis (2.7%) could be due to misidentification or a case involving cryptic species.

Mannino et al. (2015)Mannino A.M., Balistreri P., Iaciofano D., et al. 2015. An additional record of Kyphosus vaigiensis (Quoy and Gaimard, 1825) (Osteichthyes, Kyphosidae) from Sicily clarifies the confused situation of the Mediterranean kyphosids. Zootaxa 3963: 45-54. published an NJ tree of Kyphosus COI sequences constructed with a K2P model using data from GenBank to form a 627 bp alignment, which included sequence DSFFSG612-15, assigned to K. bigibbus. In the present work, the latter grouped with three K. sectatrix specimens (BIN:ACF1414), sharing the same haplotype. In fact, this sequence is now reassigned as K. sectatrix in the BOLD database. Two K. sectatrix sequences (BAHA219-08 and MFSP413-10) mentioned in the study by Mannino et al. (2015)Mannino A.M., Balistreri P., Iaciofano D., et al. 2015. An additional record of Kyphosus vaigiensis (Quoy and Gaimard, 1825) (Osteichthyes, Kyphosidae) from Sicily clarifies the confused situation of the Mediterranean kyphosids. Zootaxa 3963: 45-54. shared the same haplotype found in the present study with another 12 sequences identified as K. bigibbus (BIN:AAF3652).

The barcoding technique has been successfully integrated with the traditional morphological analysis in the systematic study of fishes in the context of an integrative taxonomy (Dayrat 2005Dayrat B. 2005. Towards integrative taxonomy. Biol. J. Linn. Soc. 85: 407-415.). Application of a combination of both morphological and molecular barcoding identification of species is recommendable in all taxonomic studies of fishes, and especially for problematic groups like Kyphosus, with a rather uniform morphology and only subtle variations among species. The result of barcoding allowed the species assignation of these north Atlantic specimens and supported the hypothesized assignment based on their morphological identification, from an integrative taxonomy point of view.

Both Kyphosus described here are warm-water species found northwards of their usual distribution ranges, with K. vaigiensis being the northernmost confirmed occurrence in the eastern Atlantic. The presence of Kyphosus species in the Mediterranean and the European Atlantic has been related to the warming of waters (Bañón 2004Bañón R. 2004. New records of two southern fish in Galician waters (NW Spain). Cybium 28: 367-368., Canas et al. 2005Canas A., Vasconcelos P., Lino P.G., et al. 2005. Northernmost record of Kyphosus sectator (Osteichthyes: Perciformes: Kyphosidae) in the north-eastern Atlantic. J. Mar. Biol. Assoc. U.K. 85: 1535-1537.). A rise of 0.24°C per decade has been observed in the Galician sea waters since 1974 (Gómez-Gesteira et al. 2011Gómez-Gesteira M., Gimeno L., de Castro M., et al. 2011. The state of climate in NW Iberia. Climate Res. 48: 109-144.), with a decrease in the extension and intensity of the upwelling seasons, responsible for the presence of colder coastal surface waters in summer, and an increase in the extension and intensity of the downwelling seasons, which favour the poleward current (Álvarez-Salgado et al. 2008Álvarez-Salgado X.A., Labarta U., Fernández-Reiriz M.J., et al. 2008. Renewal time and the impact of harmful algal blooms on the extensive mussel raft culture of the Iberian coastal upwelling system (SW Europe). Harmful Algae 7: 849-855.).

Relationships between water temperature and Kyphosus abundance and distribution have also been found at other latitudes, supporting the presence and abundance of these species as indicators of global warming at temperate latitudes. In western Japan, where this genus is more common, it has been observed that the number of caught specimens decreases as the water temperature decreases (Yamaguchi et al. 2010Yamaguchi A., Furumitsu K., Yagishita N., et al. 2010. Biology of herbivorous fish in the coastal areas of Western Japan. In: Ishimatsu A., Lie H.J., (eds), Coastal environmental and ecosystem issues of the east China Sea. Nagasaki University: TERRAPUB. pp. 181-190.). In southeastern Australia, the silver drummer Kyphosus sydneyanus (Günther, 1886) has expanded its distribution range and abundance in response to climate change (Last et al. 2011Last P.R. White W.T., Gledhill D.C., et al. 2011. Long-term shifts in abundance and distribution of a temperate fish fauna: a response to climate change and fishing practices. Glob. Ecol. Biogeogr. 20: 58-72.).

As occurred with other warm-water affinity fishes found in Galician waters, K. vaigiensis was previously recorded in the Mediterranean Sea, where it was reported under the synonym, K. incisor (Azzurro et al. 2013Azzurro E., Peñas-Rivas L., Lloris D., et al. 2013. First documented occurrence of Kyphosus incisor in the Mediterranean Sea. Mar. Biodivers. Rec. 6: e98. ), a misidentification of K. sectatrix (Ligas et al. 2011Ligas A., Sartor P., Sbrana M., et al. 2011. A new record of Kyphosus saltatrix (Pisces: Kyphosidae) along the Italian coasts (north-western Mediterranean). Mar. Biodivers. Rec. 4: e6.) finally clarified by Knudsen and Clements (2013)Knudsen S.W., Clements K.D. 2013. Revision of the fish family Kyphosidae (Teleostei: Perciformes). Zootaxa 3751: 1-101., or with its current name (Mannino et al. 2015Mannino A.M., Balistreri P., Iaciofano D., et al. 2015. An additional record of Kyphosus vaigiensis (Quoy and Gaimard, 1825) (Osteichthyes, Kyphosidae) from Sicily clarifies the confused situation of the Mediterranean kyphosids. Zootaxa 3963: 45-54.). This seems to confirm a general and gradual northward displacement of these species in the eastern Atlantic, using the Gibraltar Strait as an escape valve in this migration to the north. This is a general trend also noted in other tropical and subtropical species such as Pisodonophis semicinctus (Richardson, 1848) and the lesser amberjack Seriola fasciata (Bloch, 1793) (Bañón et al. 2010Bañón R., Villegas-Ríos D., Serrano A., et al. 2010. Marine fishes from Galicia (NW Spain): an updated checklist. Zootaxa 2667: 1-27.), which have also been recently found in Galician waters. K. vaigiensis is one of the most widely distributed species of sea chubs, being present across the Pacific, Indian and Atlantic oceans, and also the Mediterranean Sea (Knudsen and Clements 2013Knudsen S.W., Clements K.D. 2013. Revision of the fish family Kyphosidae (Teleostei: Perciformes). Zootaxa 3751: 1-101.), which is in agreement with the present results.

An environmental tropicalization could increase the Kyphosus population in Galician waters, which would adversely affect the seaweed abundance (Vergés et al. 2016Vergés A., Doropoulos C., Malcolm H.A., et al. 2016. Long-term empirical evidence of ocean warming leading to tropicalization of fish communities, increased herbivory, and loss of kelp. PNAS 113: 13791-13796.). The family Kyphosidae sensu Knudsen and Clements (2013)Knudsen S.W., Clements K.D. 2013. Revision of the fish family Kyphosidae (Teleostei: Perciformes). Zootaxa 3751: 1-101. is a strictly herbivorous family, with morphological and physiological traits suited for consumption of algae, such as the ability to perform microbial fermentation in their guts. Herbivorous fishes have a significant effect on macroalgal vegetation, not only in tropical but also in warm temperate waters, and Kyphosus species are very important for understanding the feeding damage inflicted on seaweed beds by herbivorous fishes (Yamaguchi et al. 2010Yamaguchi A., Furumitsu K., Yagishita N., et al. 2010. Biology of herbivorous fish in the coastal areas of Western Japan. In: Ishimatsu A., Lie H.J., (eds), Coastal environmental and ecosystem issues of the east China Sea. Nagasaki University: TERRAPUB. pp. 181-190.).

The poleward-flowing boundary currents are creating ocean warming hotspots around the globe, enabling the range expansion of tropical species and increasing their grazing rates in temperate areas (Vergés et al. 2014Vergés A, Steinberg P.D., Hay M.E., et al. 2014. The tropicalization of temperate marine ecosystems: climate-mediated changes in herbivory and community phase shifts. Proc. R. Soc. Lond., B, Biol. Sci. 281: 8-46.). For example, Franco et al. (2015)Franco J.N., Wernberg T., Bertocci I., et al. 2015. Herbivory drives kelp recruits into ‘hiding’ in a warm ocean climate. Mar. Ecol. Prog. Ser. 536: 1-9. found 45 times more herbivorous fishes in a “warm” than in a “cool” region in the neighbouring Portuguese coast. Further research effort is needed in order to reveal the ecological consequences of Kyphosus species as “natural invaders” of new temperate habitats.

ACKNOWLEDGEMENTSTop

We thank the spear fisherman Antonio Barreiro and the secretary of A.D.C. Raspa, V. Pérez Quintela, for their kind donation of the specimens. Thanks also to Dr S. Knudsen and K. Clements (School of Biological Sciences, University of Auckland, New Zealand) for their useful comments in the identification of specimens. This study was financed by the agreement between the CSIC and the Xunta de Galicia to analyse fisheries-dependent data from the monitoring programme of small-scale fisheries in Galicia (ref 20164040). These results will partially fulfil the PhD requirements of DBG at the University of Vigo.

REFERENCESTop

Álvarez-Salgado X.A., Labarta U., Fernández-Reiriz M.J., et al. 2008. Renewal time and the impact of harmful algal blooms on the extensive mussel raft culture of the Iberian coastal upwelling system (SW Europe). Harmful Algae 7: 849-855.
https://doi.org/10.1016/j.hal.2008.04.007

Azzurro E., Peñas-Rivas L., Lloris D., et al. 2013. First documented occurrence of Kyphosus incisor in the Mediterranean Sea. Mar. Biodivers. Rec. 6: e98.
https://doi.org/10.1017/S1755267213000717

Bañón R. 2004. New records of two southern fish in Galician waters (NW Spain). Cybium 28: 367-368.

Bañón R., Villegas-Ríos D., Serrano A., et al. 2010. Marine fishes from Galicia (NW Spain): an updated checklist. Zootaxa 2667: 1-27.

Canas A., Vasconcelos P., Lino P.G., et al. 2005. Northernmost record of Kyphosus sectator (Osteichthyes: Perciformes: Kyphosidae) in the north-eastern Atlantic. J. Mar. Biol. Assoc. U.K. 85: 1535-1537.
https://doi.org/10.1017/S0025315405012750

Dayrat B. 2005. Towards integrative taxonomy. Biol. J. Linn. Soc. 85: 407-415.
https://doi.org/10.1111/j.1095-8312.2005.00503.x

Edgar R.C. 2004. MUSCLE: multiple sequence alignment with high accuracy and high throughput. Nucleic Acids Res. 32: 1792-1797.
https://doi.org/10.1093/nar/gkh340

Felsenstein J. 1985. Confidence limits on phylogenies: An approach using the bootstrap. Evolution 39: 783-791.
https://doi.org/10.2307/2408678

Franco J.N., Wernberg T., Bertocci I., et al. 2015. Herbivory drives kelp recruits into ‘hiding’ in a warm ocean climate. Mar. Ecol. Prog. Ser. 536: 1-9.
https://doi.org/10.3354/meps11445

Froese R., Pauly D. 2017. FishBase. World Wide Web electronic publication, version (02/2017).
www.fishbase.org

Gilbert C.R. 2015. Designation of a neotype for the kyphosid fish Kyphosus sectatrix (Linnaeus, 1758). Zootaxa 3999: 295-297.
https://doi.org/10.11646/zootaxa.3999.2.9

Gómez-Gesteira M., Gimeno L., de Castro M., et al. 2011. The state of climate in NW Iberia. Climate Res. 48: 109-144.
https://doi.org/10.3354/cr00967

Grant R.A., Griffiths H.J., Steinke D., et al. 2011. Antarctic DNA barcoding; a drop in the ocean? Polar Biol. 34: 775-780.
https://doi.org/10.1007/s00300-010-0932-7

Hebert P.D.N., Cywinska A., Ball S.L., et al. 2003. Biological identifications through DNA barcodes. Proc. R. Soc. Lond. B 270: 313-321.
https://doi.org/10.1098/rspb.2002.2218

Hubert N., Meyer C.P., Bruggemann H.J., et al. 2012. Cryptic diversity in Indo-Pacific coral-reef fishes revealed by DNA-barcoding provides new support to the centre-of-overlap hypothesis. PLoS ONE 7: e28987.
https://doi.org/10.1371/journal.pone.0028987

Ivanova N.V., Zemlak T.S., Hanner R.H., et al. 2007. Universal primer cocktails for fish DNA barcoding. Mol. Ecol. Notes 7: 544-548.
https://doi.org/10.1111/j.1471-8286.2007.01748.x

Kiparissis S., Loukovitis D., Batargias C. 2012. First record of the Bermuda sea chub Kyphosus saltatrix (Pisces: Kyphosidae) in Greek waters. Mar. Biodivers. Rec. 5: e11.
https://doi.org/10.1017/S1755267211001199

Knudsen S.W., Clements K.D. 2013. Revision of the fish family Kyphosidae (Teleostei: Perciformes). Zootaxa 3751: 1-101.
https://doi.org/10.11646/zootaxa.3751.1.1

Last P.R. White W.T., Gledhill D.C., et al. 2011. Long-term shifts in abundance and distribution of a temperate fish fauna: a response to climate change and fishing practices. Glob. Ecol. Biogeogr. 20: 58-72.
https://doi.org/10.1111/j.1466-8238.2010.00575.x

Ligas A., Sartor P., Sbrana M., et al. 2011. A new record of Kyphosus saltatrix (Pisces: Kyphosidae) along the Italian coasts (north-western Mediterranean). Mar. Biodivers. Rec. 4: e6.
https://doi.org/10.1017/S1755267210001211

Mannino A.M., Balistreri P., Iaciofano D., et al. 2015. An additional record of Kyphosus vaigiensis (Quoy and Gaimard, 1825) (Osteichthyes, Kyphosidae) from Sicily clarifies the confused situation of the Mediterranean kyphosids. Zootaxa 3963: 45-54.
https://doi.org/10.11646/zootaxa.3963.1.3

Moritz C., Cicero C. 2004. DNA Barcoding: Promise and Pitfalls. PLoS Biol. 2: e354.
https://doi.org/10.1371/journal.pbio.0020354

Nelson J.S., Grande T.C., Wilson M.V.H. 2016. Fishes of the world. John Wiley and Sons, Hoboken, New Jersey.
https://doi.org/10.1002/9781119174844

Quéro J.-C., Jerome S., Vayne J.-J., et al. 2009. Observations ichtyologiques effectuées en 2008. Ann. Soc. Sci. Nat. Charente-Marit. 9: 932-940.

Ratnasingham S., Hebert P.D.N. 2007. BOLD: The Barcode of Life Data System. Mol. Ecol. Notes 7: 355-364.
www.barcodinglife.org

Ratnasingham S., Hebert P.D.N. 2013. A DNA-based registry for all animal species: the Barcode Index Number (BIN) System. PLoS ONE 8: e66213.
https://doi.org/10.1371/journal.pone.0066213

Ribeiro A.O., Caires R.A., Mariguela T.C., et al. 2012. DNA barcodes identify marine fishes of Sao Paulo State, Brazil. Mol. Ecol. Resour. 12: 1012-1020.
https://doi.org/10.1111/1755-0998.12007

Sakai K., Nakabo T. 2014. Taxonomic review of Kyphosus (Pisces: Kyphosidae) in the Atlantic and Eastern Pacific Oceans. Ichthyol. Res. 61: 265-292.
https://doi.org/10.1007/s10228-014-0395-x

Saitou N., Nei M. 1987. The neighbor-joining method: A new method for reconstructing phylogenetic trees. Mol. Biol. Evol. 4: 406-425.

Stöver B.C., Müller K.F. 2010. TreeGraph 2: Combining and visualizing evidence from different phylogenetic analyses. BMC Bioinformatics 11: 7.
https://doi.org/10.1186/1471-2105-11-7

Tamura K., Stecher G., Peterson D., et al. 2013. MEGA6: Molecular Evolutionary Genetics Analysis Version 6.0. Mol. Biol. Evol. 30: 2725-2729.
https://doi.org/10.1093/molbev/mst197

Tortonese E. 1986. Kyphosidae. In Whitehead P.J.P. Bauchot M.L., et al. (eds), Fishes of the northeastern Atlantic and the Mediterranean. Vol. 2, UNESCO, Paris. pp. 883-907.

Vergés A, Steinberg P.D., Hay M.E., et al. 2014. The tropicalization of temperate marine ecosystems: climate-mediated changes in herbivory and community phase shifts. Proc. R. Soc. Lond. B Biol. Sci. 281: 8-46.
https://doi.org/10.1098/rspb.2014.0846

Vergés A., Doropoulos C., Malcolm H.A., et al. 2016. Long-term empirical evidence of ocean warming leading to tropicalization of fish communities, increased herbivory, and loss of kelp. PNAS 113: 13791-13796.
https://doi.org/10.1073/pnas.1610725113

Ward R.D., Hanner R., Hebert P.D.N. 2009. The campaign to DNA barcode all fishes, FISH-BOL. J. Fish Biol. 74: 329-356.
https://doi.org/10.1111/j.1095-8649.2008.02080.x

Yamaguchi A., Furumitsu K., Yagishita N., et al. 2010. Biology of herbivorous fish in the coastal areas of Western Japan. In: Ishimatsu A., Lie H.J., (eds), Coastal environmental and ecosystem issues of the east China Sea. Nagasaki University: TERRAPUB. pp. 181-190.

Zhang J.-B., Hanner R. 2011. DNA barcoding is a useful tool for the identification of marine fishes from Japan. Biochem. Syst. Ecol. 39: 31-42.
https://doi.org/10.1016/j.bse.2010.12.017
