INTRODUCTIONTop

Coastal lagoons are among the most productive ecosystems supporting habitats for wildlife and commercially explored species (Costanza et al. 1997Costanza R., D’Arge R., Groot R. de, et al. 1997. The value of the world’s ecosystem services and natural capital. Nature 387: 253-260.). These services are often at risk due to the increasing stress caused by contaminants from activities related to urbanization, industrialization, intensive agriculture in the watershed, massive tourism, and intensive aquaculture (e.g. Amiard et al. 2006Amiard J.C., Amiard-Triquet C., Barka S., et al. 2006. Metallothioneins in aquatic invertebrates: Their role in metal detoxification and their use as biomarkers. Aquat. Toxicol. 76: 160-202., Cooper et al. 2013Cooper S., Bonneris E., Michaud A., et al. 2013. Influence of a step-change in metal exposure (Cd, Cu, Zn) on metal accumulation and subcellular partitioning in a freshwater bivalve, Pyganodon grandis. A long-term transplantation experiment between lakes with contrasting ambient metal levels. Aquat. Toxicol. 132-133: 73-83. ). Among numerous contaminants released to the environment, metals and metalloids are a worldwide concern due to their persistence and toxicity (ATSDR 2015ATSDR 2015.The priority list of hazardous substances that will be the candidates for Toxicological profiles [WWW Document]. Accessed 20/06/2016 at http://www.atsdr.cdc.gov/SPL/index.html). Organisms exposed to trace elements may accumulate them in tissues leading to various inductive responses, such as production of metallothioneins to sequestrate toxic metals (Bebianno and Langston 1993Bebianno M.J., Langston W.J. 1993. Turnover rate of metallothionein and cadmium in Mytilus edulis. Biometals 6: 239-244.), and triggering antioxidant defence systems to prevent the formation of reactive oxygen species and their deleterious effects (Ivanina et al. 2013Ivanina A.V, Beniash E., Etzkorn M., et al. 2013. Short-term acute hypercapnia affects cellular responses to trace metals in the hard clams Mercenaria mercenaria. Aquat. Toxicol. 140-141: 123-133. , Lushchak 2011Lushchak V.I. 2011. Environmentally induced oxidative stress in aquatic animals. Aquat. Toxicol. 101: 13-30.). Trace elements may interfere with the variation of physiological parameters related to the organism’s wellbeing (Yatoo et al. 2013Yatoo M.I., Saxena A., Deepa P.M., et al. 2013. Role of trace elements in animals: a review. Vet. World 6: 963-967. ). In the case of bivalves, several works have reported high consumption of glycogen, lipids and proteins in response to environmental contamination (Hamza-Chaffai 2014Hamza-Chaffai A. 2014. Usefulness of bioindicators and biomarkers in pollution biomonitoring. Int. J. Biotechnol. Wellness Ind. 3: 19-26., Luna-Acosta et al. 2015Luna-Acosta A., Bustamante P., Budzinski H., et al. 2015. Persistent organic pollutants in a marine bivalve on the Marennes-Oléron Bay and the Gironde Estuary (French Atlantic Coast) - part 2: potential biological effects. Sci. Total Environ. 514: 511-522. ), leading to changes in the condition index (Cravo et al. 2012Cravo A., Pereira C., Gomes T., et al. 2012. A multibiomarker approach in the clam Ruditapes decussatus. to assess the impact of pollution in the Ria Formosa lagoon, South Coast of Portugal. Mar. Environ. Res. 75: 23-34. ) and eventually in the gametogenesis cycle (Breitwieser et al. 2016Breitwieser M., Viricel A., Graber M., et al. 2016. Short-term and long-term biological effects of chronic chemical contamination on natural populations of a marine bivalve. PLoS One 11: e0150184., Gauthier-Clerc et al. 2002Gauthier-Clerc S., Pellerin J., Blaise C., et al. 2002. Delayed gametogenesis of Mya arenaria in the Saguenay fjord (Canada): a consequence of endocrine disruptors? Comp. Biochem. Physiol. Part C Toxicol. Pharmacol. 131: 457-467. ). According to Mantel and Farmer (1983)Mantel L.H., Farmer L.L. 1983. Internal Anatomy and Physiological Regulation. In: Mantel L.H. (ed.), The Biology of Crustacea, vol. 5. Academic Press, New York, pp. 54-161., metal exposure may alter the fluid ion level in clams, causing the decrease of Na⁺, Cl^– and K⁺ contents as a compensatory process in the internal osmolarity regulation.

In biomonitoring studies, an important step is to evaluate whether trace element distribution in key organisms is determined by inherent processes, such as those associated with the sexual cycle, as expected at low impacted environments, or is highly influenced by human activities. The objective of this work was to examine whether human activities in Ria Formosa and the surrounding region have a major influence on the trace element partitioning in the clam Ruditapes decussatus produced on inter-tidal flats, superimposed on changes related to metabolic processes. This hypothesis was tested by transplanting clams from a natural bank to three sites: one under the influence of urban activities, one of fish aquaculture earthen ponds, and one near the lagoon inlet, which was used as a reference site. Concentrations of Zn, As, Cu, Mn, Ni, V, Cr, Pb and Cd were determined in digestive glands, gills, mantle plus siphons and remaining tissues of the transplanted clams over an annual period. This was accomplished by the survey of gametogenic stages, condition index, proteins, glycogen, total lipids, hemolymph pH and hemolymph osmolarity. Concentrations of most of these trace elements are reported in previous studies of the area, such as Cortesão et al. (1986)Cortesão C., Mendes R., Vale C. 1986. Metais pesados em bivalves e sedimentos na Ria Formosa, Algarve. Bol. Inst. Nac. Investig. das pescas 14: 3-28., Bebianno and Serafim (2003)Bebianno M.J., Serafim M.A. 2003. Variation of metal and metallothionein concentrations in a natural population of Ruditapes decussatus. Arch. Environ. Contam. Toxicol. 44: 53-66., and Caetano et al. (2007)Caetano M., Madureira M.J., Vale C. 2007. Exchange of Cu and Cd across the sediment-water interface in intertidal mud flats from Ria Formosa (Portugal). Hydrobiologia 587: 147-155. . Major characteristics of clam ground subtract, including major and trace element contents, were also determined in his study.

MATERIALS AND METHODSTop

Study area and sampling design

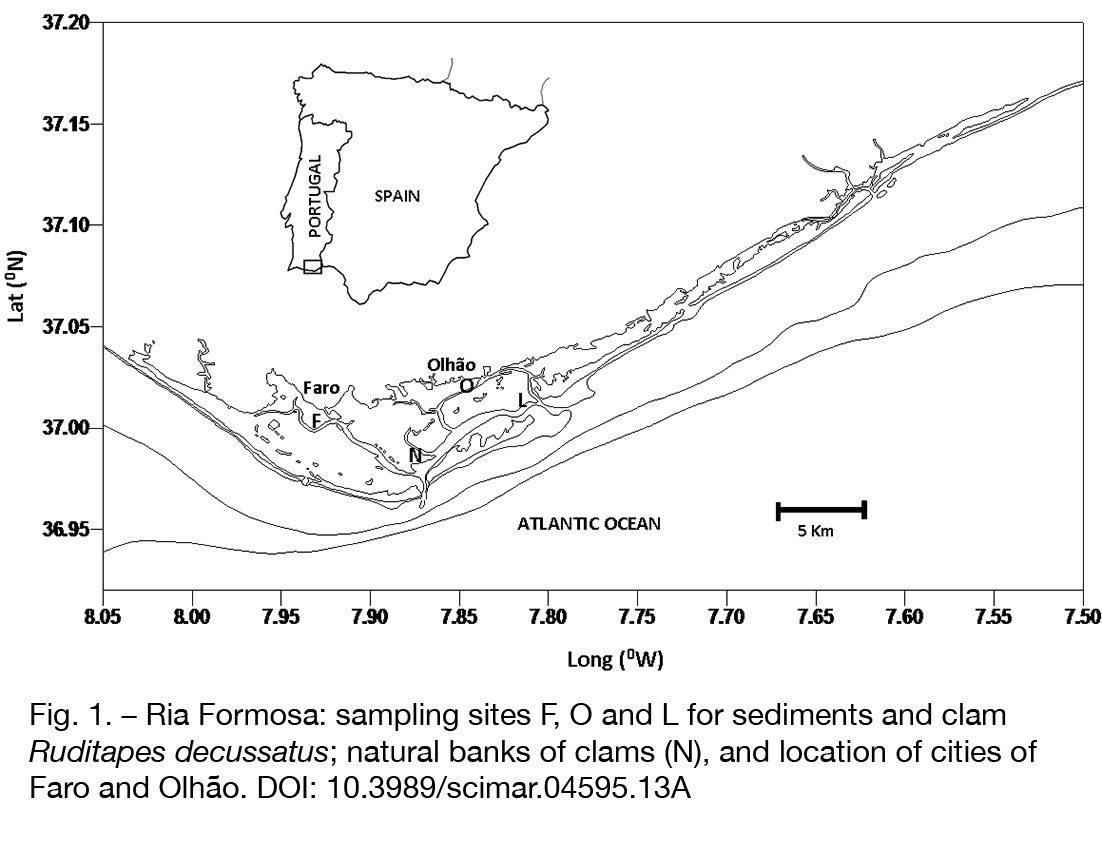

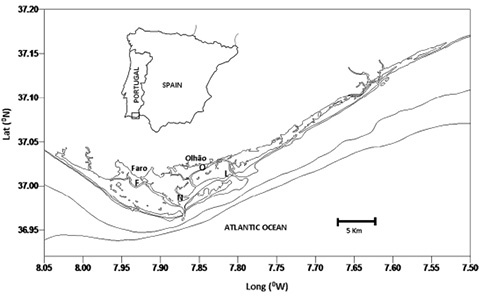

Ria Formosa is a shallow, meso-tidal coastal lagoon located on the south coast of Portugal (Fig. 1). This lagoon is a paradigmatic example of an ecosystem with ecological and economic importance although it is under stress from human activities and displays alterations of its morphology reflecting its fragility to extreme natural conditions, such as sea storms (Cunha et al. 2005Cunha A.H., Santos R.P., Gaspar A.P., et al. 2005. Seagrass landscape-scale changes in response to disturbance created by the dynamics of barrier-islands: A case study from Ria Formosa (Southern Portugal). Estuar. Coast. Shelf Sci. 64: 636-644. , Guimarães et al. 2012Guimarães M.H.M.E., Cunha A.H., Nzinga R.L., et al. 2012. The distribution of seagrass (Zostera noltii) in the Ria Formosa lagoon system and the implications of clam farming on its conservation. J. Nat. Conserv. 20: 30-40. , Vila-Concejo et al. 2002Vila-Concejo A., Matias A., Ferreira Ó., et al. 2002. Recent evolution of the natural inlets of a barrier island system in southern Portugal. J. Coast. Res. 752: 741-752.). The lagoon has several channels and a large inter-tidal area covered by sand, muddy sand-flats, and salt marshes (Falcão and Vale 1990Falcão M., Vale C. 1990. Study of the Ria Formosa ecosystem: benthic nutrient remineralization and tidal variability of nutrients in the water. Hydrobiologia 207: 137-146. ). It extends for 55 km along the coastline and has a maximum width of 6 km (Newton and Mudge 2003Newton A., Mudge S.M. 2003. Temperature and salinity regimes in a shallow, mesotidal lagoon, the Ria Formosa, Portugal. Estuar.Coast. Shelf Sci. 57: 73-85. ). The hydrodynamics is forced mainly by the semidiurnal tidal regime exchanging water to the sea through several inlets (Nobre et al. 2005Nobre A.M., Ferreira J.G., Newton A., et al. 2005. Management of coastal eutrophication: Integration of field data, ecosystem-scale simulations and screening models. J. Mar. Syst. 56: 375-390. ). Except in periods of heavy rains, the freshwater input to the lagoon is negligible, salinity remaining approximately 36 all year long (Águas 1985Águas M.P.N. 1985. Simulação da circulação hidrodinâmica na Ria Formosa. Sist. lagunares do Algarve. Semin. Comemorativo do Dia Mund. do Ambiente., Falcão and Vale 1990Falcão M., Vale C. 1990. Study of the Ria Formosa ecosystem: benthic nutrient remineralization and tidal variability of nutrients in the water. Hydrobiologia 207: 137-146. ). Spatial distribution of nutrients and chlorophyll a is highly influenced by internal processes, such as sediment-water interactions, and exchanges with the sea (Cravo et al., 2014Cravo A., Cardeira S., Pereira C., et al. 2014. Exchanges of nutrients and chlorophyll a through two inlets of Ria Formosa, South of Portugal, during coastal upwelling events. J. Sea Res. 93: 63-74., Falcão and Vale 1990Falcão M., Vale C. 1990. Study of the Ria Formosa ecosystem: benthic nutrient remineralization and tidal variability of nutrients in the water. Hydrobiologia 207: 137-146. , Newton et al. 2003Newton A., Icely J.D., Falcão M., et al. 2003. Evaluation of eutrophication in the Ria Formosa coastal lagoon, Portugal. Cont. Shelf Res. 23: 1945-1961.). In addition to diffuse sources in the watershed, discharges of domestic effluents and boat traffic increase drastically in summer with tourism (Cravo et al. 2012Cravo A., Pereira C., Gomes T., et al. 2012. A multibiomarker approach in the clam Ruditapes decussatus. to assess the impact of pollution in the Ria Formosa lagoon, South Coast of Portugal. Mar. Environ. Res. 75: 23-34. , Mudge and Bebianno 1997Mudge S.M., Bebianno M.J. 1997. Sewage contamination following an accidental spillage in the Ria Formosa, Portugal. Mar. Pollut. Bull. 34: 163-170.). Several studies have documented the trace element contamination in sediments (Bebianno 1995Bebianno M.J. 1995. Effects of pollutants in the Ria Formosa Lagoon, Portugal. Sci. Total Environ. 171: 107-115. , Caetano et al. 2002Caetano M., Vale C., Bebianno M. 2002. Distribution of Fe, Mn, Cu and Cd in upper sediments and sediments-trap material of Ria Formosa (Portugal). J. Coast. Res. 36: 118-123., Cortesão et al. 1986Cortesão C., Mendes R., Vale C. 1986. Metais pesados em bivalves e sedimentos na Ria Formosa, Algarve. Bol. Inst. Nac. Investig. das pescas 14: 3-28.), in water (Caetano et al. 2007Caetano M., Madureira M.J., Vale C. 2007. Exchange of Cu and Cd across the sediment-water interface in intertidal mud flats from Ria Formosa (Portugal). Hydrobiologia 587: 147-155. , Falcão and Vale 1990Falcão M., Vale C. 1990. Study of the Ria Formosa ecosystem: benthic nutrient remineralization and tidal variability of nutrients in the water. Hydrobiologia 207: 137-146. ) and in bivalves, namely clams (Bebianno and Serafim 2003Bebianno M.J., Serafim M.A. 2003. Variation of metal and metallothionein concentrations in a natural population of Ruditapes decussatus. Arch. Environ. Contam. Toxicol. 44: 53-66., Cravo et al. 2012Cravo A., Pereira C., Gomes T., et al. 2012. A multibiomarker approach in the clam Ruditapes decussatus. to assess the impact of pollution in the Ria Formosa lagoon, South Coast of Portugal. Mar. Environ. Res. 75: 23-34. , Serafim and Bebianno 2001Serafim M.A., Bebianno M.J. 2001. Variation of metallothionein and metal concentrations in the digestive gland of the clam Ruditapes decussatus: sex and seasonal effects. Environ. Toxicol. Chem. 20: 544-552.). Ria Formosa is traditionally used for the production of the clam R. decussatus, which represents 90% of the national production of bivalves. The production of R. decussatus is 47% of total aquaculture production in Portugal (DGRM 2013DGRM 2013. Recursos da Pesca. Direcção Geral das Pescas e Aquicultura. Série estatística 2011 22 A-B, 181 pp.). The decline of clam production in the last two decades has been attributed to a combination of factors, such as clam mortalities probably related to pathologies and less favourable environmental conditions (Matias et al. 2011Matias D., Joaquim S., Ramos M., et al. 2011. Biochemical compounds’ dynamics during larval development of the carpet-shell clam Ruditapes decussatus (Linnaeus, 1758): Effects of mono-specific diets and starvation. Helgol. Mar. Res. 65: 369-379. ).

A field experiment was performed with the clam R. decussatus in inter-tidal ground plots. Clams were collected from a natural recruitment area (N) and transplanted to sand squares of 25 m² with a clam density of 1 kg m^–2 at the three sites (Fig. 1). Site F is located in a clam growth ground near Faro city and is consequently influenced by urban activities. Site O is in a clam ground that receives the wastewater of the Aquaculture Research Station (7 ha) through a small tributary that increases its flow in winter in response to precipitation. In contrast to the locations of these inner sites, site L is positioned in an inter-tidal clam ground of the inlet channel Lavajo that connects the lagoon to the adjacent coastal waters. Transplantation of clams started on 23 November 2010 and sampling ended on 25 October 2011.

Sample preparation

The upper layer of the clam ground substrate (0-2 cm) was collected from sites F, O and L (Fig. 1) in November 2010 and March, August and October 2011. Samples were homogenized and separated into three sub-samples kept at 4°C for the determination of loss in ignition, grain size, and the following elements: aluminium (Al), chromium (Cr), zinc (Zn), copper (Cu), nickel (Ni), lead (Pb), arsenic (As), cobalt (Co) and cadmium (Cd). Elements were quantified in sediment samples that had been previously freeze-dried. Transplanted clams with a mean length of 2.8±0.4 cm were collected in February, May and August 2011 from the sites F, O and L and carefully dissected to remove digestive glands, gills, mantle plus siphons, and remaining tissues. Three pools of composite samples (n=10 specimens) were prepared, weighed and frozen at –20°C. Samples were freeze-dried, ground and homogenized for determination of Al and trace elements. Forty clams were collected monthly from each transplanted site and placed in filtered seawater (0.45 μm) at 20°C in the laboratory for 24 h to purge their stomachs. Twenty clams were stored at –20°C to determine condition index and gross biochemical composition (proteins, glycogen and total lipids). In another set of 20 individuals, the visceral mass was separated from siphons and gills and fixed in the Davidson solution for 48 h, and then transferred to 70% ethyl alcohol for storage until histological analysis to evaluate the gametogenic stages. Osmolarity and pH were determined in the hemolymph collected immediately after sampling from the foot and adductor muscle of ten clams with a 21G needle and 1-mL syringes. Then, it was centrifuged for 10 min (4500 g, 4°C), snap-frozen in liquid nitrogen and stored at –80°C until analysis (Gustafson et al. 2005Gustafson L.L., Stoskopf M.K., Bogan A.E., et al. 2005. Evaluation of a nonlethal technique for hemolymph collection in Elliptio complanata, a freshwater bivalve (Mollusca: Unionidae). Dis. Aquat. Organ. 65: 159-165.).

Analytical procedures

Histology

Each group of 20 individuals was examined histologically to determine the gametogenic stages in specimens of both sexes. Samples were dehydrated with serial dilutions of ethyl alcohol and embedded in paraffin. Thick sections (6-8 μm) were cut on a microtome and stained with haematoxylin and eosin. The slides prepared for the histology were examined using a microscope at 40× magnification and each specimen was assigned to a phase which represented the gonadal state. Clam reproductive maturity was categorized into six phases using a scale development proposed by Delgado and Pérez-Camacho (2005)Delgado M., Pérez-Camacho A. 2005. Histological study of the gonadal development of Ruditapes decussatus (L.) (Mollusca: Bivalvia) and its relationship with available food. Sci. Mar. 69: 87-97. modified by Matias et al. (2013)Matias D., Joaquim S., Matias A.M., et al. 2013. The reproductive cycle of the European clam Ruditapes decussatus. (L., 1758) in two Portuguese populations: Implications for management and aquaculture programs. Aquaculture 406-407: 52-61.: phase I, sexual rest; phase II, beginning of gametogenesis; phase III, advanced gametogenesis; phase IV, ripe; phase V, partially spawned; and phase VI, spent. When more than one developmental stage occurred simultaneously within a single individual, the assignment of a phase criteria decision was based upon the condition of the majority of the section.

Condition index

Condition index (CI) of each clam was calculated by the expression CI = [dry weight of whole soft tissues (g)/dry shell weight (g)] × 100 (Walne 1976Walne P.R. 1976. Experiments on the culture in the sea of the butterfish Venerupis decussata L. Aquaculture 8: 371-381. ). Dry weight of whole soft tissues and of shell was determined by the weight difference after oven drying at 80°C for 24 h. CI of each sample was expressed by the mean CI calculated for ten individuals.

Biochemical parameters

Protein, glycogen and total lipid contents were determined in whole soft tissues. Protein was determined using the modified Lowry method (Shakir et al. 1994Shakir F.K., Audilet D., Drake A.J., et al. 1994. A rapid protein determination by modification of the Lowry procedure. Anal. Biochem. 216: 232-233. ), glycogen using the anthrone reagent (Viles and Silverman 1949Viles F.J., Silverman L. 1949. Determination of starch and cellulose with Anthrone. Anal. Chem. 21: 950-953. ), and total lipids were extracted from fresh homogenized material in chloroform/methanol (Folch et al. 1957Folch J., Lees M., Sloane-Stanley G. 1957. A simple method for the isolation and purification of total lipids from animal tissues. J. Biol. Chem. 226: 497-509.) and estimated spectrophotometrically after charring with concentrated sulphuric acid (Marsh and Weinstein 1966Marsh J.B., Weinstein D.B. 1966. Simple charring method for determination of lipids. J. Lipid Res. 7: 574-576.). All values are expressed as µg mg^–1 of dry weight (dw).

Osmolarity and pH

Plasma osmolarity (Gustafson et al. 2005Gustafson L.L., Stoskopf M.K., Bogan A.E., et al. 2005. Evaluation of a nonlethal technique for hemolymph collection in Elliptio complanata, a freshwater bivalve (Mollusca: Unionidae). Dis. Aquat. Organ. 65: 159-165.) and pH were analysed directly with a cryo-osmometer and a portable pH meter, respectively.

Chemical elements

Approximately 200 mg of clam soft tissues were mineralized according to the method described in Raimundo and Vale (2008)Raimundo J., Vale C. 2008. Partitioning of Fe, Cu, Zn, Cd, and Pb concentrations among eleven tissues of Octopus vulgaris from the Portuguese coast. Cien. Mar. 34: 297-305.: digestion with HNO₃ (sp, 65% v/v) at 60°C for 12 hours and 100°C for 1 hour; pursuing the digestion with H₂O₂ (sp, 30% v/v) at 80°C for 1 hour; and dilution of solutions to 45 mL with ultra-pure water. The mineralization procedure used to determine Al and trace elements (Cr, Zn, Cu, Ni, Pb, As, Co and Cd) in sediment samples is described in Mil-Homens et al. (2014)Mil-Homens M., Vale C., Raimundo J., et al. 2014. Major factors influencing the elemental composition of surface estuarine sediments: The case of 15 estuaries in Portugal. Mar. Pollut. Bull. 84: 135-146., and involves the following steps: approximately 0.1 g of sediment were totally dissolved with a mixture of Aqua Regia (HCl-36%:HNO₃-65%; 3:1) and HF at 100°C for 1 h; sample solutions were evaporated to near dryness and eluted with HNO₃ (double-distilled) and ultra-pure water; and sample solutions were diluted to 50 mL with ultra-pure water.

Chemical elements in sediment and clam samples were quantified in a quadrupole ICP-MS (Thermo Elemental, X-series) equipped with a Peltier Impact bead spray chamber and a concentric Meinhard nebulizer (Caetano et al. 2013Caetano M., Vale C., Anes B., et al. 2013. The Condor seamount at Mid-Atlantic Ridge as a supplementary source of trace and rare earth elements to the sediments. Deep Sea Res. Part II Top. Stud. Oceanogr. 98(PA): 24-37. , Raimundo et al. 2013Raimundo J., Vale C., Caetano M., et al. 2013. Natural trace element enrichment in fishes from a volcanic and tectonically active region (Azores archipelago). Deep Sea Res. Part II Top. Stud. Oceanogr. 98: 137-147.). Three procedural blanks were prepared using the same analytical procedure and reagents, and included within each batch of samples. Procedural blanks accounted for less than 1% of the total element in the samples. Detection limits were 0.20% for Al, 0.0009 μg g⁻¹ for Cd, 0.0010 μg g⁻¹ for Ni, 0.0015 μg g⁻¹ for Cu, 0.0016 μg g⁻¹ for Mn, 0.0019 μg g⁻¹ for Cr, 0.0020 μg g⁻¹ for Co, 0.0030 μg g−1 for V, 0.0032 μg g⁻¹ for Zn, 0.0088 μg g⁻¹ for Pb and 0.74 μg g⁻¹ for As. Quality control of the results was obtained through the use of the certified reference materials CRM PACS-2 and MESS-3 (marine sediment) for sediment samples, and the CRM TORT-2 (lobster hepatopancreas) and DORM-3 (fish protein) for biological samples. The accuracy was checked by analysing three replicate samples of each CRM. In general, the results indicate good agreement between certified and obtained values (Table 1). Repeatability values in terms of relative standard deviation for CRM measurements (n=3) ranged from 1% to 14%.

Loss on ignition and grain size

Loss on ignition of sediments was calculated from weight loss after ignition at 450°C for 3 hours (Falcão and Vale 1998Falcão M., Vale C. 1998. Sediment-water exchanges of ammonium and phosphate in intertidal and subtidal areas of a mesotidal coastal lagoon (Ria Formosa). Hydrobiologia 374: 193-201. ). Sediment grain size analysis was undertaken by the standard sieving method. Grain size parameters were computed by the Folk and Ward (Folk and Ward 1957Folk R.L., Ward W.C. 1957. Brazos River Bar: A study in the significance of grain size parameters. J. Sediment. Petrol. 27: 3-26.) method using the Grangraf program.

Statistical analyses

Statistical analyses were performed using SigmaPlot13.0 (Systat Software Inc.®) for Windows with a p-value of 0.05. Whenever the pre-requisites of normality and homogeneity of variances were fulfilled, an ANOVA test was performed to determine the significance of the differences found between sites or sampling dates for the sediment characteristics, biological parameters and trace elements in clam tissues. Principal component analyses (PCAs) were performed using Statistica 8.0 (StatSoft®). Conventional descriptive multivariate analyses were used to summarize high-dimensionality data in a simpler two-dimensional space (Abdi and Williams 2010Abdi H., Williams L.J. 2010. Principal component analysis. Wiley Interdiscip. Rev. Comput. Stat. 2: 433-459.). The aim was to interpret major trends of similarities between sites, clam tissues and sampling dates, using correlation-based element variables. Sample matrix of the whole dataset was composed of 45 tissue samples and 9 descriptors (As, Cd, Cr, Cu, Mn, Ni, Pb, V and Zn). PCA was also applied to digestive samples and remaining tissue samples.

RESULTSTop

Sediment characteristics

The major characteristics of the sediment samples collected in the inter-tidal ground plots F, O and L are presented in Table 2. The sediments consisted of sand (>63 µm) with a small fraction of fine particles. The proportion of coarser particles (mean±SD) ranged from 87%±3.8% (site F) to 100%±0.07% (site L). Accordingly, Al content was low in sediments from the three sites, although it was significantly (p<0.05) higher at sites F and O than at site L. Loss on ignition varied from 0.50% to 2.0% and was significantly (p<0.05) higher at site O than at site L.

Due to the narrow variation of Al content and its low values, trace element concentrations in sediments from the three sampling sites were compared without normalization with Al commonly used recurrently to minimize differences related to grain size (Windom et al. 1989Windom H.L., Schropp S.J., Calder F.D., et al. 1989. Natural trace metal concentrations in estuarine and coastal marine sediments of the southeastern United States. Environ. Sci. Technol. 23: 314-320. ). Significant differences of trace element concentrations among sites are presented in Table 2. Copper concentration (µg g^–1) was significantly (p<0.05) higher at site O (6.6±0.78) than at sites F (4.2±0.61) and L (1.1±0.24). A different distribution was encountered for Cd and was significantly (p<0.05) higher at site F (0.035±0.0045) than at sites O (0.015±0.0042) and L (0.0091±0.0017). Chromium in sands from site L (30±1.5) displayed significantly (p<0.05) higher values than in sands from sites F (19±1.8) and O (13±1.6).

Biological parameters

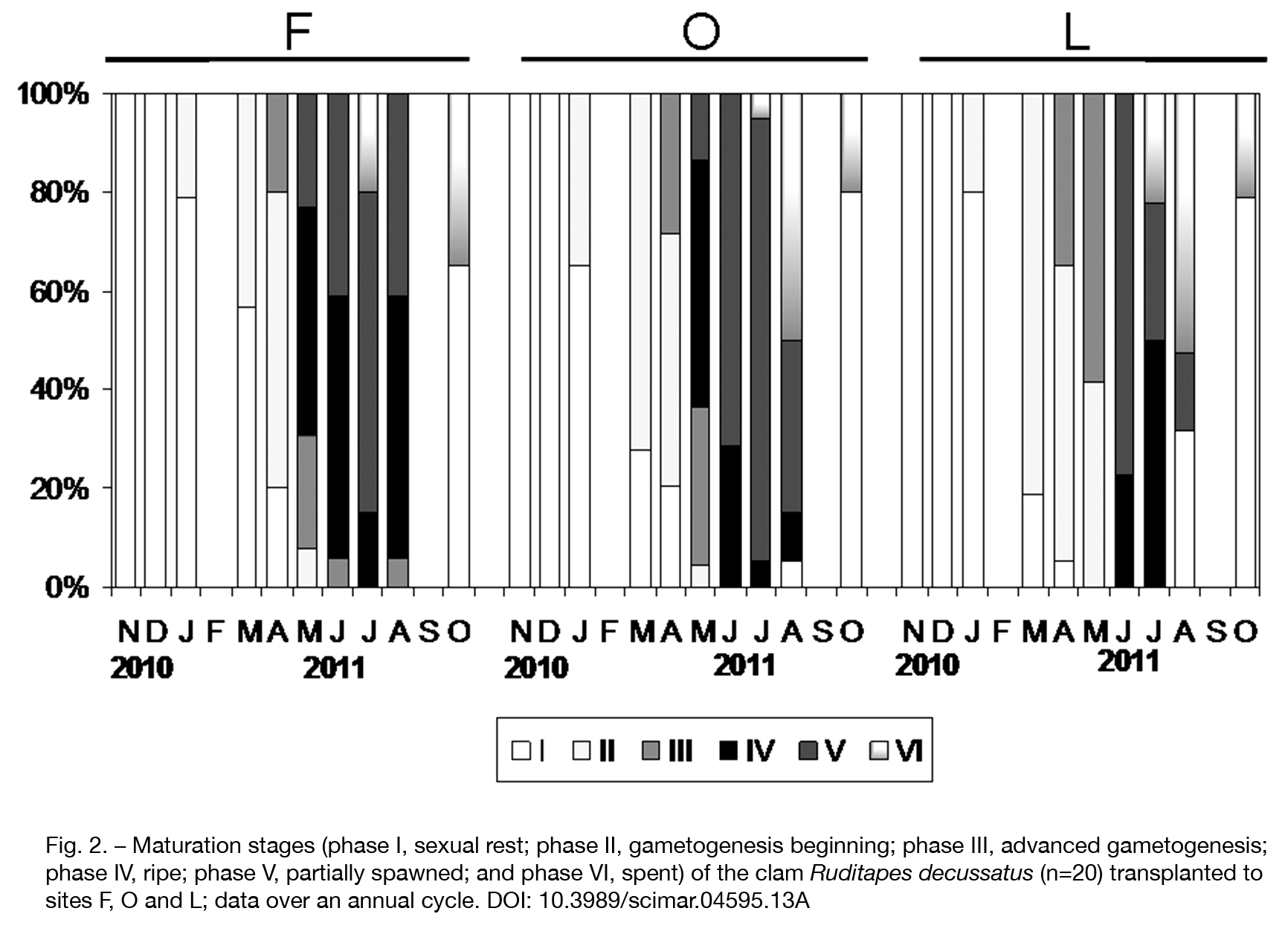

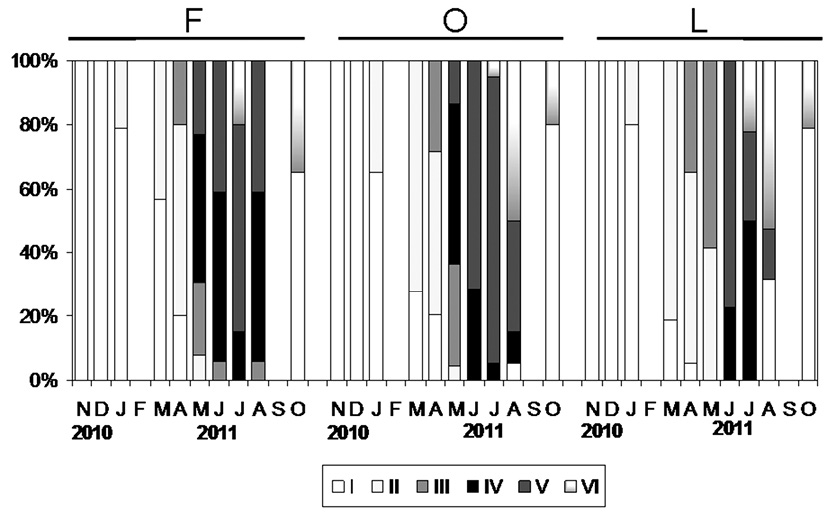

Maturation stages over an annual cycle of R. decussatus transplanted to sites F, O and L are presented in Figure 2. The histological phase II, indicating the beginning of the gametogenesis, was first observed in January at the three sites. The histological phase V, indicating partially spawned development, started in May (sites F and O) and June (site L), and was highly marked in July and August at the three sites. During the spawning season (May to August), microscopic observation of gonads revealed simultaneous spawning (phase IV) and partial spawning (phase V). This observation was clearer in clams from the inner sites F and O. Most of the clams had already spawned in October and remained inactive thereafter.

Table 3 gives the monthly mean values and SD of the condition index, proteins, glycogen and total lipids of clams from each transplanted site over the annual survey cycle. From January to July (site F) or to August (sites O and L), which corresponds to the reproductive period, CI varied between 6 and 11, and then remained within the interval 4-7 until October (sites F and L). Considering all sampling dates, no significant (p<0.05) differences were found among the three sites. Clams transplanted to sites F, O and L in November showed lower protein content (102±26 μg mg⁻¹) than those transplanted in subsequent months, reaching a maximum ranging from 378±50 μg mg⁻¹ (site F) to 436±73 μg mg⁻¹ (site L). Clams from site O showed significantly (p<0.05) higher protein contents than those from sites F and L. Mean glycogen varied between 9.0±5.0 and 19±7.1 μg mg⁻¹ (site F), 5.9±1.1 and 16±7.6 μg mg⁻¹ (site O), and 6.5±1.4 and 25±11 μg mg⁻¹ (site L), differing (p<0.05) significantly among the sites. Mean total lipids were statistically (p<0.05) higher atsite L (27±9.7 to 104±47 μg mg⁻¹) than at sites F (17±7.1 to 84±20 μg mg⁻¹) and O (31±10 and 72±30 μg mg⁻¹).

Hemolymph osmolarity of clams from the three sites varied within a narrow interval (mean values of between 1.0 and 1.2 mOs m kg^–1) over the annual surveyed period. Mean pH values of clam hemolymph ranged from 7.6 to 8.2, and no significant (p>0.05) differences were observed among the three sites. Clams from sites F and L exhibited significantly (p<0.05) lower pH from January to September and from May to July, respectively. A less clear variation was found at site O, and pH was only significantly higher (p<0.05) in November.

Partitioning of trace elements in clam tissues

Table 4 gives the mean concentrations (±SD) of Zn, As, Cu, Mn, Ni, V, Cr, Pb and Cd in digestive gland, gills, mantle plus siphons, and remaining tissues of the clams from the recruitment area (N) collected in November and of the transplanted clams collected in February, May and August 2011 from sites F, O and L. Significant differences among sites in trace elements of each clam tissue are marked in Table 4. Remaining tissues displayed differences in more elements (Zn, Cu, Cr, Pb and Cd) than digestive glands (Cu, Ni, Cr). Gills and mantle plus siphons showed differences only for Zn and Cu, respectively. In those ten statistical differences, eight enhanced concentrations were observed at site O, while only five were observed at sites F and L.

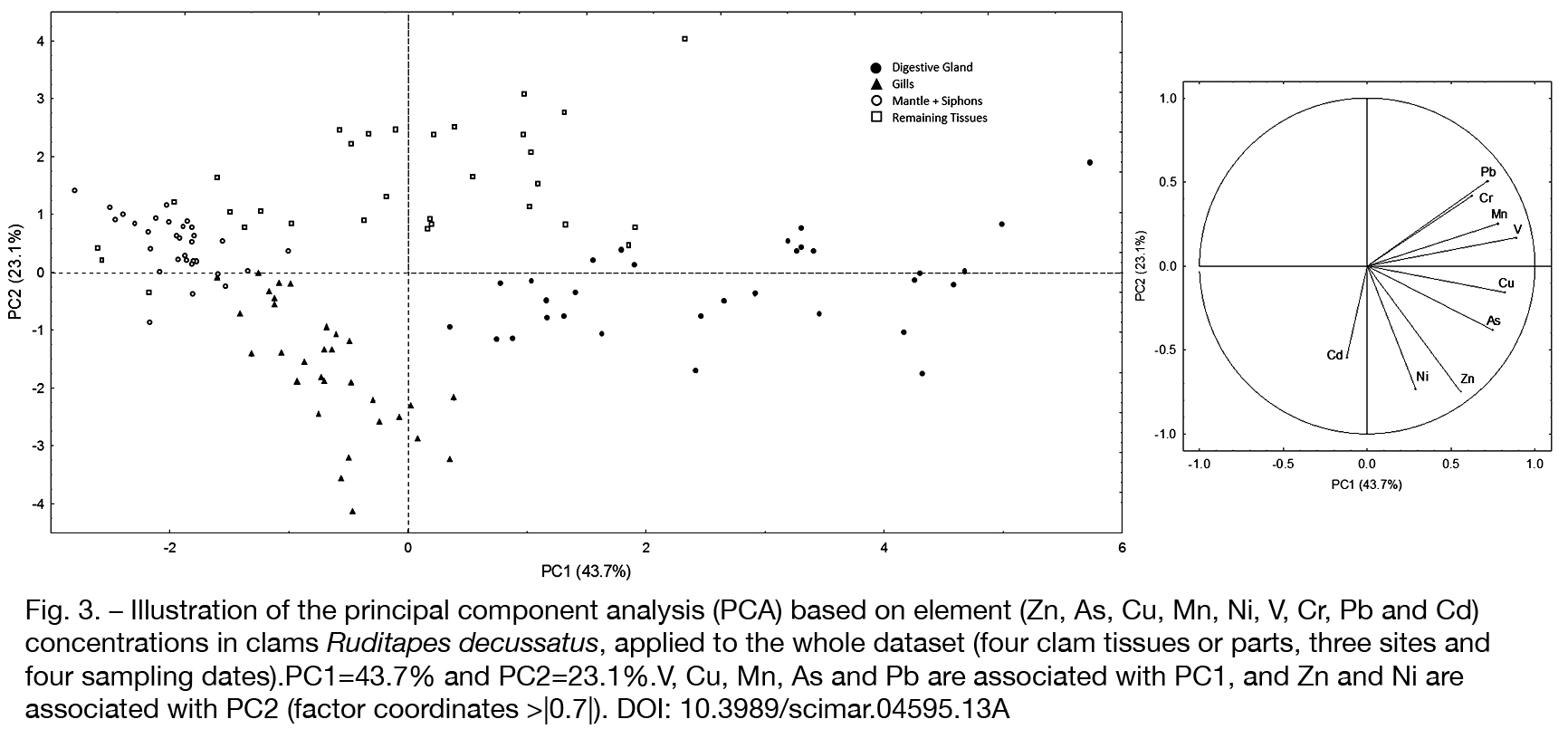

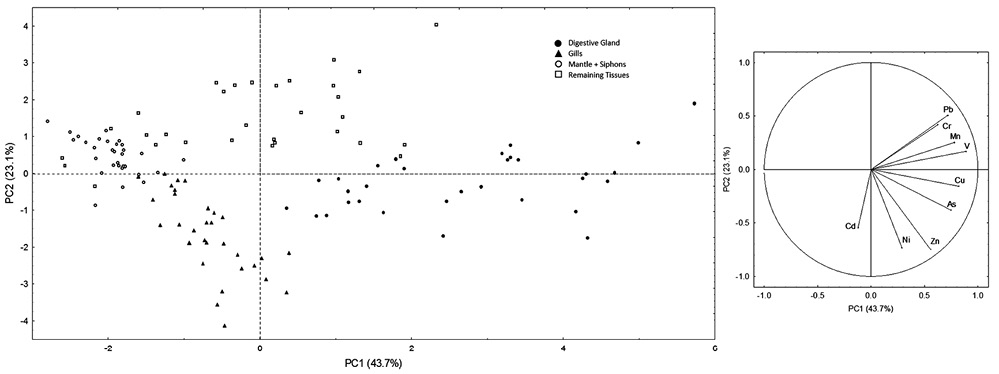

In order to have a better integration of trace element partitioning among the four clam parts/tissues, a PCA was applied to the whole dataset (Fig. 3, PC1=43.7% and PC2=23.1%). Samples of the four analysed tissues were generally projected in different quadrants of the plan PC1-PC2; the digestive gland was projected closer to the trace elements and the mantle plus siphons far from these descriptors. Arsenic, Cu, Mn, V, Cr and Pb were significantly (p<0.05) higher in digestive gland than in gills. Cadmium was the exception, being more abundant in gills. Zinc, As, Cu, Mn, Ni and V were significantly (p<0.05) higher in the digestive gland than in the remaining tissues. Another two PCAs were applied separately to digestive gland (Fig. 4A, PC1=34.5% and PC2=20.0%) and to remaining tissues (Fig. 4B, PC1=48.0% and PC2=26.5%). The analysis of gills and mantle plus siphon data are not presented due to the lower variance obtained (PC1+PC2 <50%). The digestive gland plot shows a clear difference between February and May/August, because all February samples are closer to the trace element projections, while May and August samples are represented in quadrants II and III. This dichotomy between winter and late spring/summer was not observed at site O, because May samples are represented near the winter samples. The remaining tissues plot also shows a similar separation between winter and late spring/summer. In addition to this temporal variation, samples collected in May and August at site O are projected separated from samples of the other sites and associated with Ni, Cu, As and Zn.

DISCUSSIONTop

Trace element inputs as recorded by sediment composition

The elemental composition of estuarine and coastal sediments has long been used to identify possible sources of contamination because of the high affinity of trace elements to particles, namely those with a large specific area and covered by organic matter films (Libes 1992Libes S.M. 1992. An Introduction to Marine Biogeochemistry. New York, John Wiley and Sons, 734 pp.). Despite the sandy nature of the substrates (87-100% sand) the almost negligible proportion of fine particles at site L appears to explain the lower concentrations of Zn, Cu, Ni, Pb and Cd in comparison with sites F and O. Conversely, the enhancement of Cr in sands of site L was most likely due to natural variation related to the lithology, as observed in sandy beach nourishment in other areas of Portugal (Vale, unpublished data). Other factors might account for the slight differences observed at sites O and F (Table 2). The significantly (p<0.05) higher Cu concentrations in the substrate of site O in comparison with sites F and L may be interpreted as the influence of localized sources of contamination. Most likely, wastes of food artificially enriched with Cu that is supplied daily to fish produced in the Aquaculture Station located near site O is partially retained in the lagoon sediments localized nearby. In addition to the regular supply of food, copper sulphate is added occasionally to the aquaculture tanks to eliminate fish parasites that develop mainly in spring, which involves a pulse release of Cu to the ecosystem. The possible influence of a small tributary draining agriculture fields that ends in the area should also be considered. Due to the torrential precipitation regime, discharges may occur during short periods in winter (Falcão and Vale 1990Falcão M., Vale C. 1990. Study of the Ria Formosa ecosystem: benthic nutrient remineralization and tidal variability of nutrients in the water. Hydrobiologia 207: 137-146. ). However, freshwater discharge into the lagoon should not have been dramatic in the year studied because osmolarity in clams, which is a parameter sensitive to salinity, did not differ among individuals from the three transplanted sites. The enhanced Cu values found in the present study is in agreement with previous studies in Ria Formosa showing higher Cu/Al ratios in sediments near the site O (Caetano et al. 2002Caetano M., Vale C., Bebianno M. 2002. Distribution of Fe, Mn, Cu and Cd in upper sediments and sediments-trap material of Ria Formosa (Portugal). J. Coast. Res. 36: 118-123., Cortesão et al. 1986Cortesão C., Mendes R., Vale C. 1986. Metais pesados em bivalves e sedimentos na Ria Formosa, Algarve. Bol. Inst. Nac. Investig. das pescas 14: 3-28.). Enhanced concentrations of Cd and Ni at site F in comparison with sites O and L probably result from human activities related to Faro city, whose population increases pronouncedly in summer due to tourism (Cravo et al. 2012Cravo A., Pereira C., Gomes T., et al. 2012. A multibiomarker approach in the clam Ruditapes decussatus. to assess the impact of pollution in the Ria Formosa lagoon, South Coast of Portugal. Mar. Environ. Res. 75: 23-34. ).

Comparison of trace element concentrations in clams with past studies

Copper, Zn and Cd concentrations measured in gills and digestive gland of R. decussates in the present work were lower than the values reported by Serafim and Bebianno (2001)Serafim M.A., Bebianno M.J. 2001. Variation of metallothionein and metal concentrations in the digestive gland of the clam Ruditapes decussatus: sex and seasonal effects. Environ. Toxicol. Chem. 20: 544-552. and Bebianno and Serafim (2003)Bebianno M.J., Serafim M.A. 2003. Variation of metal and metallothionein concentrations in a natural population of Ruditapes decussatus. Arch. Environ. Contam. Toxicol. 44: 53-66. Cu, and Zn was followed in different tissues (gills, digestive gland, and remaining tissues for the same species from Ria Formosa. Cadmium concentrations in this current work (0.10-0.56 µg g^–1) were one order of magnitude lower than the values reported by Serafim and Bebianno (2001)Serafim M.A., Bebianno M.J. 2001. Variation of metallothionein and metal concentrations in the digestive gland of the clam Ruditapes decussatus: sex and seasonal effects. Environ. Toxicol. Chem. 20: 544-552. (1.4±0.19 µg g^–1) and far below the limit recommended for human consumption, 5 µg g^–1 dry weight (obtained by the conversion of 1 µg g^–1 wet weight, assuming 80% as the mean percentage of water in clam flesh) (EC 2001EC 2001. Commission regulation (EC) no. 466/2001 of 8 March 2001 setting maximum levels for certain contaminants in foodstuffs, Official Journal of the European Communities. Brussels, L77.). This decrease suggests a lower availability of this element in food or water over a period that exceeds one decade. Most likely, the reduction of anthropogenic inputs to Ria Formosa contributed to that difference (Cravo et al. 2012Cravo A., Pereira C., Gomes T., et al. 2012. A multibiomarker approach in the clam Ruditapes decussatus. to assess the impact of pollution in the Ria Formosa lagoon, South Coast of Portugal. Mar. Environ. Res. 75: 23-34. ). Copper concentrations showed a less marked decrease in comparison with previous studies, and large variations were encountered among the sampling periods and sites (Table 4). Values of Zn observed in the present work (81-99 µg g^–1) are comparable to those reported by Serafim and Bebianno (2001)Serafim M.A., Bebianno M.J. 2001. Variation of metallothionein and metal concentrations in the digestive gland of the clam Ruditapes decussatus: sex and seasonal effects. Environ. Toxicol. Chem. 20: 544-552. (98±8.6 µg g^–1), possibly reflecting the metabolic regulation of Zn concentrations in bivalves (e.g. Bryan et al. 1979Bryan G.W., Waldichuk M., Pentreath R.J., et al. 1979. Bioaccumulation of marine pollutants [and Discussion]. Philos. Trans. R. Soc. B Biol. Sci. 286: 483-505.).

Temporal and spatial variations of trace elements in clam tissues

The similar size and condition index of clams at the three transplanted sites are in favour of comparable filtration rates and hence trace element concentrations (Reinfelder et al. 1998Reinfelder J.R., Fisher N.S., Luoma S.N., et al. 1998. Trace element trophic transfer in aquatic organisms: A critique of the kinetic model approach. Sci. Total Environ. 219: 117-135. ). Nevertheless, trace elements in clam tissues, particularly Cu and Cr, displayed statistical differences (p<0.05) among the three sites (Table 4). Spatial differences were observed more recurrently in remaining tissues and digestive gland. Spatial availability of trace elements in water and food is a plausible cause for the observed variation in digestive gland concentrations. For example, enhanced values of Cu in site O may result from aquaculture practices, which is in line with the sediment composition. Concordance between substrate and clam was less clear for other elements, such as Cr and Cd.

Filtration rate may also have changed in clams of the three sites due to its sensitivity to contaminant exposure. Bioturbation in clam production grounds contributes to the release of trace elements and nutrients from sediments (Falcão et al. 2006Falcão M., Caetano M., Serpa D., et al. 2006. Effects of infauna harvesting on tidal flats of a coastal lagoon (Ria Formosa, Portugal): Implications on phosphorus dynamics. Mar. Environ. Res. 61: 136-148. ). However, bioturbation is not expected to differ considerably among the transplanted sites because clam density and mortality along the experiments were similar. Despite the renewal of large water volume during spring tides, which promotes a vigorous mixing of water and particles inside the lagoon (Falcão et al. 2006Falcão M., Caetano M., Serpa D., et al. 2006. Effects of infauna harvesting on tidal flats of a coastal lagoon (Ria Formosa, Portugal): Implications on phosphorus dynamics. Mar. Environ. Res. 61: 136-148. ), the PCA of the digestive gland data suggests higher concentrations of most elements in February, particularly at site F. Enhanced values were also observed for remaining tissues in February, which emphasizes the importance of diffusive sources in winter for the accumulation of trace elements by clams. Indeed, the precipitation regime in the region was marked by episodic periods of heavy precipitation (Lima et al. 2013Lima M.I.P. de, Santo F.E., Ramos A.M., et al. 2013. Recent changes in daily precipitation and surface air temperature extremes in mainland Portugal, in the period 1941-2007. Atmos. Res. 127: 195-209. , Soares et al. 2015Soares P.M.M., Cardoso R.M., Ferreira J.J., et al. 2015. Climate change and the Portuguese precipitation: ENSEMBLES regional climate models results. Clim. Dyn. 45: 1771-1787.) and consequent runoff from the city and agriculture fields. The increase inhuman population and leisure activities in summer may have led to higher availability of trace elements in Ria Formosa (Cravo et al. 2012Cravo A., Pereira C., Gomes T., et al. 2012. A multibiomarker approach in the clam Ruditapes decussatus. to assess the impact of pollution in the Ria Formosa lagoon, South Coast of Portugal. Mar. Environ. Res. 75: 23-34. ). It may also be hypothesized that internal fluxes of trace elements contribute to the increase in their availability in warmer periods. However, the results obtained suggest the predominance of the rain effect in winter. Previous works have shown that nutrient fluxes from sediments increase with temperature, as well as phytoplankton biomass (Falcão and Vale 1998Falcão M., Vale C. 1998. Sediment-water exchanges of ammonium and phosphate in intertidal and subtidal areas of a mesotidal coastal lagoon (Ria Formosa). Hydrobiologia 374: 193-201. ). In confined areas of the lagoon, dissolved oxygen in the water column tends to be consumed during the night, decreasing to under saturated values. The seasonal decrease of pH in clam hemolymph, which may be attributed to less oxygenation of the water (McFarland et al. 2011McFarland K., Divine J., Volety A. 2011. Influence of acute change salinity on osmolarity of hemolymph in the green mussel, Perna viridis, and the eastern oyster, Crassostrea virginica. J. Shellfish Res. 30: 532.), is in line with the reduction of dissolved oxygen during the night (Falcão and Vale 1998Falcão M., Vale C. 1998. Sediment-water exchanges of ammonium and phosphate in intertidal and subtidal areas of a mesotidal coastal lagoon (Ria Formosa). Hydrobiologia 374: 193-201. ) and consequently the internal input of trace metals to the water column.

Despite the presence of trace elements in the ingested food, the affinity of most determined elements with the digestive gland may be followed by mechanisms that facilitate their retention in this tissue. The sequestration of the elements may be enhanced by the induction of metallothioneins if they are present above a threshold value (Bebianno and Serafim 2003Bebianno M.J., Serafim M.A. 2003. Variation of metal and metallothionein concentrations in a natural population of Ruditapes decussatus. Arch. Environ. Contam. Toxicol. 44: 53-66.). Cadmium appears to be linked with gills and at a lower level with digestive gland (Fig. 3), which may be influenced by the higher stability of Cd chloro-complexes in seawater (Simões et al. 1981Simões M.de L.S., Vaz M.C.T.A., Silva J.J.R.F. da 1981. Stability constants of chloro-complexes of cadmium(ii) in sea-water medium. Talanta 28: 237-240.). In addition to the passage of dissolved Cd through gills during filtration, the presence of metallothioneins in that organ (Bebianno et al. 1994Bebianno M.J., Serafim M.A.P., Rita M.F. 1994. Involvement of metallothionein in cadmium accumulation and elimination in the clam Ruditapes decussata. Bull. Environ. Contam. Toxicol. 53: 726-732. ) may also contribute to the retention of Cd.

Reproductive cycle of R. decussatus

The reproductive cycle of R. decussatus observed in the present work is in agreement with previous studies on this species at Ria Formosa (Matias et al. 2013Matias D., Joaquim S., Matias A.M., et al. 2013. The reproductive cycle of the European clam Ruditapes decussatus (L., 1758) in two Portuguese populations: Implications for management and aquaculture programs. Aquaculture 406-407: 52-61., Pacheco et al. 1989Pacheco L., Vieira A., Ravasco J. 1989. Crescimento e reprodução de Ruditapes decussatus na Ria Formosa (Sul de Portugal). Bentos 6: 129-136.). The cycle was characterized by the onset of gametogenesis in January followed by the rapid development of gametes (Fig. 2). Clams reached the highest sexual maturity in May-June (sites F and O) and in June-July (site L). In late spring/summer, condition index and total lipid content remained high, decreasing sharply as rest stage was observed. This change was better observed in clams transplanted to sites F and O. The spawning was expanded throughout summer until early autumn, clams ensuring a consistent supply of gametes. Indeed, histological analyses showed simultaneously gonias, maturing gametocytes and variable proportions of fully matured gametes in some individuals. The co-occurrence of spawning and gonad recovery (phase V) during a long period of the year, concomitantly with nutrient storage and consumption, pointed to high reproductive effort of clams with a high capacity for gonadal regeneration. The continuous supply of gametes mirrors an advantageous strategy of this bivalve species (Matias et al. 2013Matias D., Joaquim S., Matias A.M., et al. 2013. The reproductive cycle of the European clam Ruditapes decussatus (L., 1758) in two Portuguese populations: Implications for management and aquaculture programs. Aquaculture 406-407: 52-61.).

Interaction of accumulated trace elements with the reproductive cycle

Variations in reproductive output of bivalve molluscs are highly sensitive to environmental perturbations (Weinberg et al. 1997Weinberg J.R., Leavitt D.F., Lancaster B.A, et al. 1997. Experimental field studies with Mya arenaria (Bivalvia) on the induction and effect of hematopoietic neoplasia. J. Invertebr. Pathol. 69: 183-194. ). In particular, accumulated contaminants in bivalves could deplete energy reserves that were initially intended for growth and reproduction (Capuzzo et al. 1988Capuzzo J.M., Moore M.N., Widdows J. 1988. Effects of toxic chemicals in the marine environment: predictions of impacts from laboratory studies. Aquat. Toxicol. 11: 303-311. ). Under stressful circumstances, energy reserves are allocated to defence mechanisms, so animals living in contaminated areas often show poor tissue condition and retarded growth (Nicholson and Lam 2005Nicholson S., Lam P.K.S. 2005. Pollution monitoring in Southeast Asia using biomarkers in the mytilid mussel Perna viridis (Mytilidae: Bivalvia). Environ. Int. 31: 121-132. ). The period of spawning and gonad recovery found in clams transplanted to the inner sites F and O (May-October) was longer than in clams of site L (July-October) located in the inlet channel. Probably, the accumulated trace elements have negligible effects on the gametogenesis of R. decussatus, even in inner areas of the lagoon that may be affected by localized or diffuse sources of contamination. The successive production of gametes and spawning seems to obscure a trace element pattern during the sexual maturity period. In fact, the PCA indicate dissimilarities between samples of May and August and trace element projections (Figs 3 and 4). However, condition index and total lipids of clams after spawning were better at site L than at sites F and O.

These results indicate that trace element partitioning in R. decussatus produced in extended inter-tidal flats of Ria Formosa are influenced by environmental changes in winter, most likely associated with rain and diffuse sources. Despite the massive tourism in spring and summer, and the consequent increase of domestic effluent discharges, trace element concentrations in clam tissues are low, presumably influenced by the long period of production of gametes and spawning.

ACKNOWLEDGEMENTSTop

This work was part of the project QUASUS - Environmental quality and sustainability of biologic resources in Ria Formosa - financed by Sociedade Polis Litoral Ria Formosa. We are grateful to three anonymous reviewers for helping to improve the manuscript. We also thank the colleagues J. Raimundo, P. Brito, A. C. Almeida, F. Catarina and A.M. Matias for their cooperation.

REFERENCESTop

Abdi H., Williams L.J. 2010. Principal component analysis. Wiley Interdiscip. Rev. Comput. Stat. 2: 433-459.
https://doi.org/10.1002/wics.101

Águas M.P.N. 1985. Simulação da circulação hidrodinâmica na Ria Formosa. Sist. lagunares do Algarve. Semin. Comemorativo do Dia Mund. do Ambiente.

Amiard J.C., Amiard-Triquet C., Barka S., et al. 2006. Metallothioneins in aquatic invertebrates: Their role in metal detoxification and their use as biomarkers. Aquat. Toxicol. 76: 160-202.
https://doi.org/10.1016/j.aquatox.2005.08.015

ATSDR 2015.The priority list of hazardous substances that will be the candidates for Toxicological profiles [WWW Document]. Accessed 20/06/2016 at
http://www.atsdr.cdc.gov/SPL/index.html

Bebianno M.J. 1995. Effects of pollutants in the Ria Formosa Lagoon, Portugal. Sci. Total Environ. 171: 107-115.
https://doi.org/10.1016/0048-9697(95)04672-9

Bebianno M.J., Langston W.J. 1993. Turnover rate of metallothionein and cadmium in Mytilus edulis. Biometals 6: 239-244.
https://doi.org/10.1007/BF00187762

Bebianno M.J., Serafim M.A. 2003. Variation of metal and metallothionein concentrations in a natural population of Ruditapes decussatus. Arch. Environ. Contam. Toxicol. 44: 53-66.
https://doi.org/10.1007/s00244-002-2004-7

Bebianno M.J., Serafim M.A.P., Rita M.F. 1994. Involvement of metallothionein in cadmium accumulation and elimination in the clam Ruditapes decussata. Bull. Environ. Contam. Toxicol. 53: 726-732.
https://doi.org/10.1007/BF00196946

Breitwieser M., Viricel A., Graber M., et al. 2016. Short-term and long-term biological effects of chronic chemical contamination on natural populations of a marine bivalve. PLoS One 11: e0150184.
https://doi.org/10.1371/journal.pone.0150184

Bryan G.W., Waldichuk M., Pentreath R.J., et al. 1979. Bioaccumulation of marine pollutants [and Discussion]. Philos. Trans. R. Soc. B Biol. Sci. 286: 483-505.

Caetano M., Vale C., Bebianno M. 2002. Distribution of Fe, Mn, Cu and Cd in upper sediments and sediments-trap material of Ria Formosa (Portugal). J. Coast. Res. 36: 118-123.

Caetano M., Madureira M.J., Vale C. 2007. Exchange of Cu and Cd across the sediment-water interface in intertidal mud flats from Ria Formosa (Portugal). Hydrobiologia 587: 147-155.
https://doi.org/10.1007/s10750-007-0673-y

Caetano M., Vale C., Anes B., et al. 2013. The Condor seamount at Mid-Atlantic Ridge as a supplementary source of trace and rare earth elements to the sediments. Deep Sea Res. Part II Top. Stud. Oceanogr. 98: 24-37.
https://doi.org/10.1016/j.dsr2.2013.01.009

Capuzzo J.M., Moore M.N., Widdows J. 1988. Effects of toxic chemicals in the marine environment: predictions of impacts from laboratory studies. Aquat. Toxicol. 11: 303-311.
https://doi.org/10.1016/0166-445X(88)90080-X

Cooper S., Bonneris E., Michaud A., et al. 2013. Influence of a step-change in metal exposure (Cd, Cu, Zn) on metal accumulation and subcellular partitioning in a freshwater bivalve, Pyganodon grandis. A long-term transplantation experiment between lakes with contrasting ambient metal levels. Aquat. Toxicol. 132-133: 73-83.
https://doi.org/10.1016/j.aquatox.2013.01.021

Cortesão C., Mendes R., Vale C. 1986. Metais pesados em bivalves e sedimentos na Ria Formosa, Algarve. Bol. Inst. Nac. Investig. das pescas 14: 3-28.

Costanza R., D’Arge R., Groot R. de, et al. 1997. The value of the world’s ecosystem services and natural capital. Nature 387: 253-260.
https://doi.org/10.1038/387253a0

Cravo A., Pereira C., Gomes T., et al. 2012. A multibiomarker approach in the clam Ruditapes decussatus. to assess the impact of pollution in the Ria Formosa lagoon, South Coast of Portugal. Mar. Environ. Res. 75: 23-34.
https://doi.org/10.1016/j.marenvres.2011.09.012

Cravo A., Cardeira S., Pereira C., et al. 2014. Exchanges of nutrients and chlorophyll a through two inlets of Ria Formosa, South of Portugal, during coastal upwelling events. J. Sea Res. 93: 63-74.
https://doi.org/10.1016/j.seares.2014.04.004

Cunha A.H., Santos R.P., Gaspar A.P., et al. 2005. Seagrass landscape-scale changes in response to disturbance created by the dynamics of barrier-islands: A case study from Ria Formosa (Southern Portugal). Estuar. Coast. Shelf Sci. 64: 636-644.
https://doi.org/10.1016/j.ecss.2005.03.018

Delgado M., Pérez-Camacho A. 2005. Histological study of the gonadal development of Ruditapes decussatus (L.) (Mollusca: Bivalvia) and its relationship with available food. Sci. Mar. 69: 87-97.
https://doi.org/10.3989/scimar.2005.69n187

DGRM 2013. Recursos da Pesca. Direcção Geral das Pescas e Aquicultura. Série estatística 2011 22 A-B, 181 pp.

EC 2001. Commission regulation (EC) no. 466/2001 of 8 March 2001 setting maximum levels for certain contaminants in foodstuffs, Official Journal of the European Communities. Brussels, L77.

Falcão M., Vale C. 1990. Study of the Ria Formosa ecosystem: benthic nutrient remineralization and tidal variability of nutrients in the water. Hydrobiologia 207: 137-146.
https://doi.org/10.1007/BF00041450

Falcão M., Vale C. 1998. Sediment-water exchanges of ammonium and phosphate in intertidal and subtidal areas of a mesotidal coastal lagoon (Ria Formosa). Hydrobiologia 374: 193-201.
https://doi.org/10.1023/A:1017083724636

Falcão M., Caetano M., Serpa D., et al. 2006. Effects of infauna harvesting on tidal flats of a coastal lagoon (Ria Formosa, Portugal): Implications on phosphorus dynamics. Mar. Environ. Res. 61: 136-148.
https://doi.org/10.1016/j.marenvres.2005.08.002

Folch J., Lees M., Sloane-Stanley G. 1957. A simple method for the isolation and purification of total lipids from animal tissues. J. Biol. Chem. 226: 497-509.

Folk R.L., Ward W.C. 1957. Brazos River Bar: A study in the significance of grain size parameters. J. Sediment. Petrol. 27: 3-26.
https://doi.org/10.1306/74D70646-2B21-11D7-8648000102C1865D

Gauthier-Clerc S., Pellerin J., Blaise C., et al. 2002. Delayed gametogenesis of Mya arenaria in the Saguenay fjord (Canada): a consequence of endocrine disruptors? Comp. Biochem. Physiol. Part C Toxicol. Pharmacol. 131: 457-467.
https://doi.org/10.1016/S1532-0456(02)00041-8

Guimarães M.H.M.E., Cunha A.H., Nzinga R.L., et al. 2012. The distribution of seagrass (Zostera noltii) in the Ria Formosa lagoon system and the implications of clam farming on its conservation. J. Nat. Conserv. 20: 30-40.
https://doi.org/10.1016/j.jnc.2011.07.005

Gustafson L.L., Stoskopf M.K., Bogan A.E., et al. 2005. Evaluation of a nonlethal technique for hemolymph collection in Elliptio complanata, a freshwater bivalve (Mollusca: Unionidae). Dis. Aquat. Organ. 65: 159-165.
https://doi.org/10.3354/dao065159

Hamza-Chaffai A. 2014. Usefulness of bioindicators and biomarkers in pollution biomonitoring. Int. J. Biotechnol. Wellness Ind. 3: 19-26.
https://doi.org/10.6000/1927-3037.2014.03.01.4

Ivanina A.V, Beniash E., Etzkorn M., et al. 2013. Short-term acute hypercapnia affects cellular responses to trace metals in the hard clams Mercenaria mercenaria. Aquat. Toxicol. 140-141: 123-133.
https://doi.org/10.1016/j.aquatox.2013.05.019

Libes S.M. 1992. An Introduction to Marine Biogeochemistry. New York, John Wiley and Sons, 734 pp.

Lima M.I.P. de, Santo F.E., Ramos A.M., et al. 2013. Recent changes in daily precipitation and surface air temperature extremes in mainland Portugal, in the period 1941-2007. Atmos. Res. 127: 195-209.
https://doi.org/10.1016/j.atmosres.2012.10.001

Luna-Acosta A., Bustamante P., Budzinski H., et al. 2015. Persistent organic pollutants in a marine bivalve on the Marennes-Oléron Bay and the Gironde Estuary (French Atlantic Coast) - part 2: potential biological effects. Sci. Total Environ. 514: 511-522.
https://doi.org/10.1016/j.scitotenv.2014.10.050

Lushchak V.I. 2011. Environmentally induced oxidative stress in aquatic animals. Aquat. Toxicol. 101: 13-30.
https://doi.org/10.1016/j.aquatox.2010.10.006

Mantel L.H., Farmer L.L. 1983. Internal Anatomy and Physiological Regulation. In: Mantel L.H. (ed.), The Biology of Crustacea, vol. 5. Academic Press, New York, pp. 54-161.

Marsh J.B., Weinstein D.B. 1966. Simple charring method for determination of lipids. J. Lipid Res. 7: 574-576.

Matias D., Joaquim S., Ramos M., et al. 2011. Biochemical compounds’ dynamics during larval development of the carpet-shell clam Ruditapes decussatus (Linnaeus, 1758): Effects of mono-specific diets and starvation. Helgol. Mar. Res. 65: 369-379.
https://doi.org/10.1007/s10152-010-0230-3

Matias D., Joaquim S., Matias A.M., et al. 2013. The reproductive cycle of the European clam Ruditapes decussatus (L., 1758) in two Portuguese populations: Implications for management and aquaculture programs. Aquaculture 406-407: 52-61.
https://doi.org/10.1016/j.aquaculture.2013.04.030

McFarland K., Divine J., Volety A. 2011. Influence of acute change salinity on osmolarity of hemolymph in the green mussel, Perna viridis, and the eastern oyster, Crassostrea virginica. J. Shellfish Res. 30: 532.

Mil-Homens M., Vale C., Raimundo J., et al. 2014. Major factors influencing the elemental composition of surface estuarine sediments: The case of 15 estuaries in Portugal. Mar. Pollut. Bull. 84: 135-146.
https://doi.org/10.1016/j.marpolbul.2014.05.026

Mudge S.M., Bebianno M.J. 1997. Sewage contamination following an accidental spillage in the Ria Formosa, Portugal. Mar. Pollut. Bull. 34: 163-170.
https://doi.org/10.1016/S0025-326X(96)00082-3

Newton A., Mudge S.M. 2003. Temperature and salinity regimes in a shallow, mesotidal lagoon, the Ria Formosa, Portugal. Estuar.Coast. Shelf Sci. 57: 73-85.

Newton A., Icely J.D., Falcão M., et al. 2003. Evaluation of eutrophication in the Ria Formosa coastal lagoon, Portugal. Cont. Shelf Res. 23: 1945-1961.
https://doi.org/10.1016/j.csr.2003.06.008

Nicholson S., Lam P.K.S. 2005. Pollution monitoring in Southeast Asia using biomarkers in the mytilid mussel Perna viridis (Mytilidae: Bivalvia). Environ. Int. 31: 121-132.
https://doi.org/10.1016/j.envint.2004.05.007

Nobre A.M., Ferreira J.G., Newton A., et al. 2005. Management of coastal eutrophication: Integration of field data, ecosystem-scale simulations and screening models. J. Mar. Syst. 56: 375-390.
https://doi.org/10.1016/j.jmarsys.2005.03.003

Pacheco L., Vieira A., Ravasco J. 1989. Crescimento e reprodução de Ruditapes decussatus na Ria Formosa (Sul de Portugal). Bentos 6: 129-136.

Raimundo J., Vale C. 2008. Partitioning of Fe, Cu, Zn, Cd, and Pb concentrations among eleven tissues of Octopus vulgaris from the Portuguese coast. Cien. Mar. 34: 297-305.

Raimundo J., Vale C., Caetano M., et al. 2013. Natural trace element enrichment in fishes from a volcanic and tectonically active region (Azores archipelago). Deep Sea Res. Part II Top. Stud. Oceanogr. 98: 137-147.
https://doi.org/10.1016/j.dsr2.2013.02.009

Reinfelder J.R., Fisher N.S., Luoma S.N., et al. 1998. Trace element trophic transfer in aquatic organisms: A critique of the kinetic model approach. Sci. Total Environ. 219: 117-135.
https://doi.org/10.1016/S0048-9697(98)00225-3

Serafim M.A., Bebianno M.J. 2001. Variation of metallothionein and metal concentrations in the digestive gland of the clam Ruditapes decussatus: sex and seasonal effects. Environ. Toxicol. Chem. 20: 544-552.
https://doi.org/10.1002/etc.5620200313

Shakir F.K., Audilet D., Drake A.J., et al. 1994. A rapid protein determination by modification of the Lowry procedure. Anal. Biochem. 216: 232-233.
https://doi.org/10.1006/abio.1994.1031

Simões M.de L.S., Vaz M.C.T.A., Silva J.J.R.F. da 1981. Stability constants of chloro-complexes of cadmium(ii) in sea-water medium. Talanta 28: 237-240.
https://doi.org/10.1016/0039-9140(81)80047-1

Soares P.M.M., Cardoso R.M., Ferreira J.J., et al. 2015. Climate change and the Portuguese precipitation: ENSEMBLES regional climate models results. Clim. Dyn. 45: 1771-1787.
https://doi.org/10.1007/s00382-014-2432-x

Vila-Concejo A., Matias A., Ferreira Ó., et al. 2002. Recent evolution of the natural inlets of a barrier island system in southern Portugal. J. Coast. Res. 752: 741-752.

Viles F.J., Silverman L. 1949. Determination of starch and cellulose with Anthrone. Anal. Chem. 21: 950-953.
https://doi.org/10.1021/ac60032a019

Walne P.R. 1976. Experiments on the culture in the sea of the butterfish Venerupis decussata L. Aquaculture 8: 371-381.
https://doi.org/10.1016/0044-8486(76)90119-8

Weinberg J.R., Leavitt D.F., Lancaster B.A, et al. 1997. Experimental field studies with Mya arenaria (Bivalvia) on the induction and effect of hematopoietic neoplasia. J. Invertebr. Pathol. 69: 183-194.
https://doi.org/10.1006/jipa.1996.4641

Windom H.L., Schropp S.J., Calder F.D., et al. 1989. Natural trace metal concentrations in estuarine and coastal marine sediments of the southeastern United States. Environ. Sci. Technol. 23: 314-320.
https://doi.org/10.1021/es00180a008

Yatoo M.I., Saxena A., Deepa P.M., et al. 2013. Role of trace elements in animals: a review. Vet. World 6: 963-967.
https://doi.org/10.14202/vetworld.2013.963-967
