INTRODUCTIONTop

Cephalopods are considered to be one of the three major marine fishery resources that are not fully exploited (Chen 1996Chen X.J. 1996. The exploitation and resources of cephalopods in the world. J. Shanghai Fish. Univ. 5: 193-200.). Global annual catches of cephalopods have risensteadily over the last fewdecades, with the highest catch being 4.3 million tonnes in 2007 and 4.77 million tonnesin 2014. The annual catches of cephalopods accounted for 3.04-4.75% of the global capture fishery yields (animals) from 1991 to 2012 (FAO 2016FAO (Food and agriculture organization of the United Nations). 2016. http://www.fao.org/fishery).Commercially targeted cephalopods include species of the families Sepiidae, Loliginidae, Ommastrephidae and Octopodidae, with Ommastrephidaehaving the largest proportion (Chen et al. 2012Chen X.J., Lu H.J., Liu B.L., et al. 2012. Current exploitation and some scientific issues in the sustainable utilization of Ommastrephidae. J. Shanghai Ocean Univ. 21: 831-840.). The Ommastrephidae squid species such as Todarodes pacificus, Ommastrephes bartramii, Nototodarus sloani, Illex argentinus and Dosidicus gigas are commercially important species. O. bartramii, I. argentinus and D. gigas are traditionally targeted by the Chinese squid-jigging fleets, and their annual production reached 400000 to 700000 tonnes in 2013 and 2014.

The neon flying squid O. bartramii is widely distributed in the northwest Pacific Ocean (Murata 1990Murata M. 1990. Oceanic resources of squids. Mar. Behav. Physiol. 18: 19-71.). The Japanese squid-jigging fleet has commercially exploited this species since 1974, and it was later exploited by South Korea, China and Chinese Taipei (Wang and Chen 2005Wang Y.G., Chen X.J. 2005. The resource and biology of economic oceanic Squid in the world. Ocean Press, Beijing, pp. 79-295.). The O. bartramii population is composed of four stocks: the central stock of the autumn cohort, the eastern stock of the autumn cohort, the western stock of the winter-spring cohort and the central-eastern stock of the winter-spring cohort (Yatsu 1992Yatsu A. 1992. Distribution of flying squid, Ommastrephes bartramii, in the North Pacific based on a jigging survey, 1976-1983. Bull. Res. Inst. Far Seas Fish. 29: 13-37., Yatsu et al. 1997Yatsu A., Midorikawa S., Shimada T., et al. 1997. Age and growth of the neon flying squid, Ommastrephes bartramii, in the North Pacific Ocean. Fish. Res. 29: 257-270.). Of these stocks, the western winter-spring cohort has become an important target in the regions of 150-165°E (Chen et al. 2008bChen X.J., Liu B.L., Chen Y. 2008b. A review of the development of Chinese distant-water squid jigging fisheries. Fish. Res. 89: 211-221.). Since 2000, this stock has mainly been captured by China and Chinese Taipei. The western winter-spring cohort migrates from subtropical waters to the subarctic boundary during the first half of the summer and then moves northward into the sub-Arctic domain in August-November. This species matures gradually in autumn and it seems thatit starts the spawning migration in October and November (Murata and Hayase 1993Murata M., Hayase S. 1993. Life history and biological information on flying squid (Ommastrephes bartramii) in the North Pacific Ocean. Int. North Pacific Fish. Comm. Bull. 53: 147-182.).

The spawning and feeding grounds for the western winter-spring cohort of O. bartramii are located at 20-30°N, 130-170°E and 38-46°N, 150-165°E (Bower 1997Bower J.R. 1997. Estimated paralarval drift and inferred hatching sites for Ommastrephes bartramii (Cephalopoda: Ommastrephidae) near the Hawaiian Archipelago. Oceanogr. Lit. Rev. 44: 51, Bower and Ichii 2005Bower J.R, Ichii T. 2005. The red flying squid (Ommastrephes bartramii): A review of recent research and the fishery in Japan. Fish. Res. 76: 39-55.). The suitable sea surface temperature (SST) for the spawners ranges from 21 to 25°C during the spawning season (January-April) (Bower 1997Bower J.R. 1997. Estimated paralarval drift and inferred hatching sites for Ommastrephes bartramii (Cephalopoda: Ommastrephidae) near the Hawaiian Archipelago. Oceanogr. Lit. Rev. 44: 51, Bower and Ichii 2005Bower J.R, Ichii T. 2005. The red flying squid (Ommastrephes bartramii): A review of recent research and the fishery in Japan. Fish. Res. 76: 39-55.) and favourable SSTs for the feeding ground vary between August and November: 15 to 19°C in August, 14 to 18°C in September, 10 to 13°C in October and 12 to 15°C in November (Chen and Tian 2005Chen X.J., Tian S.Q. 2005. Study on the catch distribution and relationship between fishing grounds and surface temperature for Ommastrephes bartramii in the Northwestern Pacific Ocean. Period. Ocean Univ. China. 35: 101-107.).

Illex argentinus, the Argentinian shortfin squid, is a major component of commercial squid fisheries in the southwest Atlantic Ocean. I. argentinus is widely distributed across the Patagonian Shelf and adjacent oceanic waters between 22 and 54°S (Wang and Chen 2005Wang Y.G., Chen X.J. 2005. The resource and biology of economic oceanic Squid in the world. Ocean Press, Beijing, pp. 79-295., Chen et al 2008bChen X.J., Liu B.L., Chen Y. 2008b. A review of the development of Chinese distant-water squid jigging fisheries. Fish. Res. 89: 211-221.).The population structure of I. argentinus is complex and based on length at maturity, area and timing of spawning, and the distribution of early juveniles and adult life stages, divided into four stocks: the South Patagonia Stock (SPS), the Bonaerensis-Northpatagonia Stock, the Summer Spawning Stock and the Southern Brazil Stock (Hatanaka 1986Hatanaka H. 1986. Growth and Life Span of Short-finned Squid Illex argentinus in the Waters off Argentina. Nippon Suisan Gakkaishi. 52: 11-17.). The Falkland Islands fishery consists almost exclusively of winter spawners and fishery managers assume that it target a single stock (SPS) south of 45°S (Brunetti and Ivanovic 1992Brunetti N.E., Ivanovic M.L. 1992. Distribution and abundance of early life stages of squid (Illex argentinus) in the south-west Atlantic. ICES J. Mar. Sci. J. du Cons. 49: 175-183.). China (Lu and Chen 2013Lu H.J., Chen X.J. 2013. Age, growth and population structure of Illex argentinus based on statolith microstructure in the Southwest Atlantic Ocean. J. Fish. China, 36: 1049-1056.), Chinese Taipei (Chen and Chiu 2009Chen C.S., Chiu T.S. 2009. Standardising the CPUE for the Illex argentinus fishery in the Southwest Atlantic. Fish. Sci. 75: 265-272.) and the Falkland Islandshave exploited the SPS cohort of I. argentinus since 2000 (Waluda et al. 1999Waluda C.M., Trathan P.N., Rodhouse P.G. 1999. Influence of oceanographic variability on recruitment in the Illex argentinus (Cephalopoda: Ommastrephidae) fishery in the South Atlantic. Mar. Ecol. Prog. Ser. 183: 159-167.).

Previous studies from this region suggest that the inferred hatching area (the region where winter-hatched I. argentinus paralarvae are most commonly found) of SPS is found between 32 and 39°S and 49 and 61°W from June to July (a peak hatching season). Waluda et al. (2001a)Waluda C.M., Rodhouse P., Podestá G., et al. 2001a. Surface oceanography of the inferred hatching grounds of Illex argentinus (Cephalopoda: Ommastrephidae) and influences on recruitment variability. Mar. Biol. 139: 671-679. found that suitable SST for hatching ranges from 16 to 18°C. The species feeds in the waters from 42 to 54°S and 54 to 62°W from January to June, and the preferred SST for feeding is 7 to 14°C (Lu et al. 2013aLu H.J., Chen X.J., Fang Z. 2013a. The spatial and temporal changes of fishing grounds of Illex argentinus and its relationship with sea surface temperature (SST) in the Southwest Atlantic. Mar. Fish. 11: 382-389.).

Dosidicus gigas, the jumbo flying squid, supports a major fishery in the eastern Pacific Ocean and its range of distributed extends from 37-40°N to 45-47°S, between California and southern Chile, extending westward from the coast to a maximum of 125-140°W at the equator (Nigmatullin et al. 2001Nigmatullin C.M., Nesis K.N., Arkhipkin A.I. 2001. A review of the biology of the jumbo squid Dosidicus gigas (Cephalopoda: Ommastrephidae). Fish. Res. 54: 9-19.). D. gigas fisheries occur off the coast of Peru (Taipe et al. 2001Taipe A., Yamashiro C., Mariategui L., et al. 2001. Distribution and concentrations of jumbo flying squid (Dosidicus gigas) off the Peruvian coast between 1991 and 1999. Fish. Res. 54: 21–32.), and Central America (Ichii et al. 2002Ichii T., Mahapatra K., Watanabe T., et al. 2002. Occurrence of jumbo flying squid Dosidicus gigas aggregations associated with the countercurrent ridge off the Costa Rica Dome during 1997 El Niño and 1999 La Niña. Mar. Ecol. Prog. Ser. 231: 151-166.) and in the Gulf of California, Mexico (Nevárez-Martínez et al. 2000Nevárez-Martínez M.O., Hernández-Herrera A., Morales-Bojórquez E., et al. 2000. Biomass and distribution of the jumbo squid (Dosidicus gigas; d’Orbigny, 1835) in the Gulf of California, Mexico. Fish. Res. 49: 129-140.). D. gigas’s population structure is not well defined, but based on individual mantle lengths it may include three stocks: large, medium and small sizes (Argüelles et al. 2001Argüelles J., Rodhouse P.G., Villegas P., et al. 2001. Age, growth and population structure of the jumbo flying squid Dosidicus gigas in Peruvian waters. Fish. Res. 54: 51-61.). Small-scale fisheries, particularly off Peru, Chile and Mexico, traditionally exploited these stocks (Nevárez-Martínez et al. 2000Nevárez-Martínez M.O., Hernández-Herrera A., Morales-Bojórquez E., et al. 2000. Biomass and distribution of the jumbo squid (Dosidicus gigas; d’Orbigny, 1835) in the Gulf of California, Mexico. Fish. Res. 49: 129-140., Rocha and Vega 2003Rocha F., Vega M.A. 2003. Overview of cephalopod fisheries in Chilean waters. Fish. Res. 60: 151-159.). However, since the early 1990s there has been an increase in industrial vessels, largely from East Asia (Japan, Korea and China), fishing off Peru and Central America, with a resulting increase in squid catches from the eastern Pacific Ocean (Ichii et al. 2002Ichii T., Mahapatra K., Watanabe T., et al. 2002. Occurrence of jumbo flying squid Dosidicus gigas aggregations associated with the countercurrent ridge off the Costa Rica Dome during 1997 El Niño and 1999 La Niña. Mar. Ecol. Prog. Ser. 231: 151-166.). The spawning ground of D. gigas is defined in the region from 5 to 14°N and 85 to 95°W and the favourable SST for spawning is from 24 to 28°C in September. The feeding ground of D. gigas is found from 20°N to 20°S and from 70 to 110°W, based on the distribution of fishing fleets, and the favourable SST is from 17 to 22°C in July (Ichii et al. 2002Ichii T., Mahapatra K., Watanabe T., et al. 2002. Occurrence of jumbo flying squid Dosidicus gigas aggregations associated with the countercurrent ridge off the Costa Rica Dome during 1997 El Niño and 1999 La Niña. Mar. Ecol. Prog. Ser. 231: 151-166., Waluda and Rodhouse 2006Waluda C.M., Rodhouse P.G. 2006. Remotely sensed mesoscale oceanography of the Central Eastern Pacific and recruitment variability in Dosidicus gigas. Mar. Ecol. Prog. Ser. 310: 25-32.).

Recent studies suggest that variations in the oceanographic environmental variables, such as SST, sea surface height (SSH), and chlorophyll a (Chl a), play an important role in regulating the distribution and abundance of squid populations (Waluda et al. 2001bWaluda C.M., Rodhouse P.G., Trathan P.N., et al. 2001b. Remotely sensed mesoscale oceanography and the distribution of Illex argentinus in the South Atlantic. Fish. Oceanogr. 10: 207-216., 2006Waluda C.M., Yamashiro C., Rodhouse P.G. 2006. Influence of the ENSO cycle on the light-fishery for Dosidicus gigas in the Peru Current: An analysis of remotely sensed data. Fish. Res. 79: 56-63., Chen et al. 2007Chen X.J., Zhao X.H., Chen Y. 2007. Influence of El Niño/La Niña on the western winter–spring cohort of neon flying squid (Ommastrephes bartramii) in the northwestern Pacific Ocean. ICES J. Mar. Sci. 64: 1152-1160.). Here we focus on SST influencing abundances of ommastrephid squid. For example, Chen et al. (2007)Chen X.J., Zhao X.H., Chen Y. 2007. Influence of El Niño/La Niña on the western winter–spring cohort of neon flying squid (Ommastrephes bartramii) in the northwestern Pacific Ocean. ICES J. Mar. Sci. 64: 1152-1160. found that the SST rose by 1°C in a La Niña year compared with the normal level, and a higher SST resulted in unfavourable recruitment conditions for O. bartramii. In an El Niño year, however, the SST was almost the same as in a normal year; thereby leading to favourable conditions for recruitment. SST data analyses for I. argentinus showed that variations in the availability of optimum sea temperature for larval development during the spawning season explained about 55% of the recruitment variability (Waluda et al. 2001aWaluda C.M., Rodhouse P., Podestá G., et al. 2001a. Surface oceanography of the inferred hatching grounds of Illex argentinus (Cephalopoda: Ommastrephidae) and influences on recruitment variability. Mar. Biol. 139: 671-679.). Moreover, D. gigas abundance was strongly influenced by the mesoscale variability linked to the ENSO, with low levels of upwelling during the very strong El Niño leading to low catches of D. gigas off Peru (Waluda et al. 2006Waluda C.M., Yamashiro C., Rodhouse P.G. 2006. Influence of the ENSO cycle on the light-fishery for Dosidicus gigas in the Peru Current: An analysis of remotely sensed data. Fish. Res. 79: 56-63.).

The majority of ommastrephid squid, such as O. bartramii, I. argentinus and D. gigas, are short-lived species with about aone-year life span, and the biomass of these species in the subsequent year is largely composed of new recruits. As the annual recruitment variability of ommastrephid squid is largely driven by the environment, there is a growing need to incorporate environmental variability in the assessment of ommastrephid stocks. However, to date few studies of ommastrephid stock assessment have included environmental factors.

In this study, we modified a surplus production model by incorporating known environmental factors of spawning and feeding grounds, and then used this model to evaluate the environmental influence on the populations of O. bartramii, I. argentinus and D. gigas. This study shows the importance of including environmental variables in the assessment of squid populationdynamics.

MATERIALS AND METHODSTop

Fishery data

Daily catch (tonnes, t), effort (days fished, d), fishing dates and fishing locations (longitude and latitude) were obtained from the Chinese commercial jigging fleets operating in the northwest Pacific Ocean, the southeast Pacific Ocean and the southwest Atlantic Ocean. Table 1 lists the spatial and temporal ranges ofommastrephid squid-jigging fishery. The spatial scale used for aggregating the fishery data is 0.5° latitude by 0.5° longitude.

There is virtually no by-catch in the squid-jigging fishery (Wang and Chen 2005Wang Y.G., Chen X.J. 2005. The resource and biology of economic oceanic Squid in the world. Ocean Press, Beijing, pp. 79-295.). All the Chinese jigging vessels in a given fishing area areequipped with the same type of jiggers, and had identical fishing power and operational behaviour. Meanwhile, Chinese jigging vessels operated the same number of jigging machines; the fishing effort extracted from different vessels is consistent (Wang and Chen 2005Wang Y.G., Chen X.J. 2005. The resource and biology of economic oceanic Squid in the world. Ocean Press, Beijing, pp. 79-295.). Therefore, we consider catch per unit effort (CPUE, t/d) of the squid-jigging vessels as a reliable indicator of stock abundance on the fishing grounds (Chen et al. 2008aChen X.J., Chen Y., Tian S.Q., et al. 2008a. An assessment of the west winter-spring cohort of neon flying squid (Ommastrephes bartramii) in the Northwest Pacific Ocean. Fish. Res. 92: 221-230.). The formula for calculating monthly nominal CPUE in one fishing unit of 0.5×0.5° was

$${\text{CPUE}}_{y,m,i}=\frac{{\text{C}}_{y,m,i}}{{\text{E}}_{y,m,i}}$$

(1)

where CPUE_y,m,i is the monthly CPUE at i fishing unit in month m and year y; C_y,m,i is the monthly catch (t) at i fishing unit in month m and year y; and E_y,m,I is the number of fishing days at i fishing unit in month m and year y.

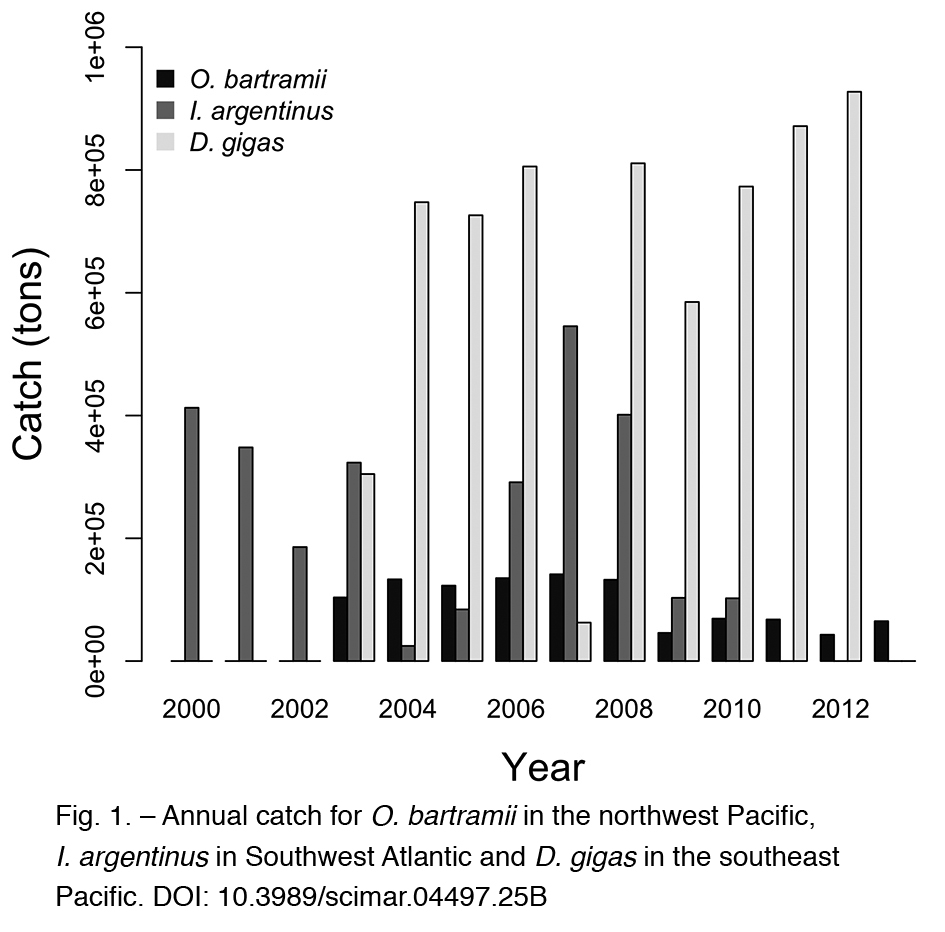

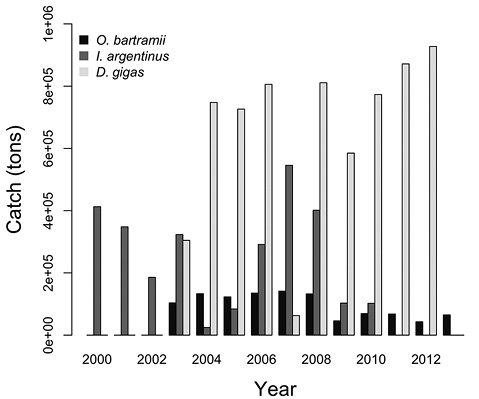

Annual O. bartramii catches by China accounted for approximately 80% of the total catches of this species (Wang and Chen 2005Wang Y.G., Chen X.J. 2005. The resource and biology of economic oceanic Squid in the world. Ocean Press, Beijing, pp. 79-295.). Therefore, we extrapolated Chinese catch (divided by 80%) to estimate the total annual catch of O. bartramii from 2003 to 2013 in the northwest Pacific. The annual catch of I. argentinus was obtained from mainland China and Chinese Taipei, which landed almost all the catch from the SPS cohort in the Falkland Island Interim Conservation Zone, and from the Falkland Islands, which landed almost all the catch in the Exclusive Economic Zone. The Food and Agriculture Organization (FAO) provided annual catches of D. gigas (Fig. 1).

Environmental data

The favourable SSTs on the spawning and feeding grounds for three species are shown in Table 2. Monthly global SST, SSH, and Chl a concentration data from 2000 to 2013 were downloaded from the Live Access Server of the National Oceanic and Atmospheric Administration OceanWatch (http://Oceanwatch.pifsc.noaa.gov/las/servlets/data). The spatial resolution of SST, SSH and Chl a concentration data were 0.1×0.1°, 0.25×0.25° and 0.05×0.05°, respectively. All the environmental data were then converted to a 0.5×0.5° grid for each month in order to correspond to the spatial grid of CPUE.

Standardizing yearly CPUE by the generalized additive model

Many environmental factors such as SST, SSH and Chl a determine the distribution of squid populations (Tian et al. 2009aTian S.Q., Chen X.J., Chen Y., et al. 2009a. Evaluating habitat suitability indices derived from CPUE and fishing effort data for Ommatrephes bratramii in the northwestern Pacific Ocean. Fish. Res. 95: 181-188.), and those factors are used to forecast the fishing grounds for squids. To remove possible effects of environmental factors in fishing processes, we standardized nominal CPUE. In a similar approach, a generalized additive model (GAM)was used to standardize yearly CPUE of ommastrephid squids by Wang et al. (2015)Wang J.T., Yu W., Chen X.J., et al. 2015. Stock assessment for the western winter-spring cohort of neon flying squid (Ommastrephes bartramii) using environmental dependent surplus production models. Sci. Mar. 80: 69-78. and discussed in Tian et al. (2009b)Tian S.Q., Chen X.J., Chen Y., et al. 2009b. Standardizing CPUE of Ommastrephes bartramii for Chinese squid-jigging fishery in Northwest Pacific Ocean. Chinese J. Oceanol. Limnol. 27: 729-739. based on the data of Chinese commercial jigging fleets. The GAM used for CPUE standardization was

Ln(CPUE+c) = factor(year)+factor(month)+s(longitude)+s(latitude)+s(SST)+s(SSH)+s(Chl-a)+ ε

(2)

where s is a spline smoother function; and constant c is fixed 10% of mean CPUE (Campbell 2004Campbell R.A. 2004. CPUE standardization and the construction of indices of stock abundance in a spatially varying fishery using general linear models. Fish. Res. 70: 209-227.); Var ε=σ² and E(ε)=0.

Stock assessment for ommastrephid squid

Development of environmentally dependent surplus production models

Bakun and Csirke (1998)Bakun A., Csirke J. 1998. Environmental process and recruitment variability. In: Rodhouse P., Dawe E., O’Dor R. (eds). Squid recruitment dynamics. FAO Fish. Tech. Pap. 376: 105-124. suggested that environmental factors tended to be more important than factors such as predators and diseasein influencing the dynamics of squid recruitment. Therefore, we assumed that suitable SSTs in the presumed spawning grounds during the spawning seasons (referred to as Ps) and presumed feeding grounds during the feeding seasons (referred to as Pf) have effects on parameters K and r in surplus production models, respectively.

The following four surplus production models were proposed:

$$\begin{array}{c}\log \left(B_{t=1}\right)|K,{\sigma }^2=\log (K)+u_t\\ \log (B_t)|B_{t-1},K,r,{\sigma }^2=\log \left\{B_{t-1}+r{B}_{t-1}\left(1-\frac{B_{t-1}}{K}\right)-C_{t-1}\right\}+u_t\end{array}$$

(3)

$$\begin{array}{c}\log \left(B_{t=1}\right)|K,{\sigma }^2=\log (K)+u_t\\ \log (B_t)|B_{t-1},K,r,{\sigma }^2=\log \left\{B_{t-1}+r{B}_{t-1}\left(1-\frac{B_{t-1}}{P{s}_{t-1}K}\right)-C_{t-1}\right\}+u_t\end{array}$$

(4)

$$\begin{array}{c}\log \left(B_{t=1}\right)|K,{\sigma }^2=\log (K)+u_t\\ \log (B_t)|B_{t-1},K,r,{\sigma }^2=\log \left\{B_{t-1}+P{f}_{t-1}r{B}_{t-1}\left(1-\frac{B_{t-1}}{K}\right)-C_{t-1}\right\}+u_t\end{array}$$

(5)

$$\begin{array}{c}\log \left(B_{t=1}\right)|K,{\sigma }^2=\log (K)+u_t\\ \log (B_t)|B_{t-1},K,r,{\sigma }^2=\log \left\{B_{t-1}+P{f}_{t-1}r{B}_{t-1}\left(1-\frac{B_{t-1}}{P{s}_{t-1}K}\right)-C_{t-1}\right\}+u_t\end{array}$$

(6)

where B_t is the biomass in t year; K is the carrying capacity; r is the intrinsic rate of stock growth; u_t is independent and identically distributed IID N(0, τ²); and Ps_t and Pf_t, are annual environmental indices for K and r, which are the averages of monthly Ps and Pf in year t, calculated as the number of fishing spatial grids with optimal SST divided by the total number of the fishing grids on the spawning and feeding grounds. Equation (3) is the original Schaefer surplus production model (referred to as SP). Equation (4) is the surplus production model with added Ps effect (referred to as Ps-EDSP). Equation (5) is the surplus production model with added Pf effect (referred to as Pf-EDSP). Finally, Equation (6) is the surplus production model with the consideration of Ps and Pf effects (referred to as Ps-Pf-EDSP). The standardized CPUE, I_t, is assumed to be proportional to B_t. This assumption can be written as

$$\log (I_t)|B_t,q,{\tau }^2=\log (q)+\log (B_t)-v_t$$

(7)

where q is the catchability coefficient and v_t is independent and identically distributed IID N(0, τ²).

Parameter estimation

To fit the models to observed data for estimating model parameters, we used the maximum likelihood (ML) method. A likelihood function was used to calculate the goodness of fit between the observed data and the predicted values. We assumed that the observational errors followed the log-normal distribution, and the likelihood function was written as

$$\begin{array}{c}L\left(q,{\tau }^2,{\sigma }^2,r,K|I_t\right)=\\ ={\displaystyle \prod \frac{1}{\sqrt{2\pi {\tau }^2{I}_t}}}\exp \left\{\frac{-{\left[\log (I_t)-\log (q{B}_t)\right]}^2}{2}\right\}\end{array}$$

(8)

To estimate uncertainties for model parameters, we developed an algorithm that incorporates a bootstrap approach into the ML. The following steps describe this bootstrap-based ML method:

- estimate the model parameters using the ML method;
- calculate the predicted CPUEs using the ML-estimated parameters;
- calculate the residuals between observed and predicted log CPUEs;
- randomly sample the residuals with replacement to add to the predicted logarithm CPUEs to yield pseudo-observed CPUEs;
- apply the ML method to the pseudo-observed CPUEs to estimate bootstrapped estimates;
- repeat steps 4 to 5 1500 times to simulate 1500 sets of pseudo-CPUE data and to subsequently estimate the corresponding 1500 sets of bootstrapped parameters; and
- calculate the mean value and 95% confidence intervals for each parameter using the 1500 bootstrapped estimates.

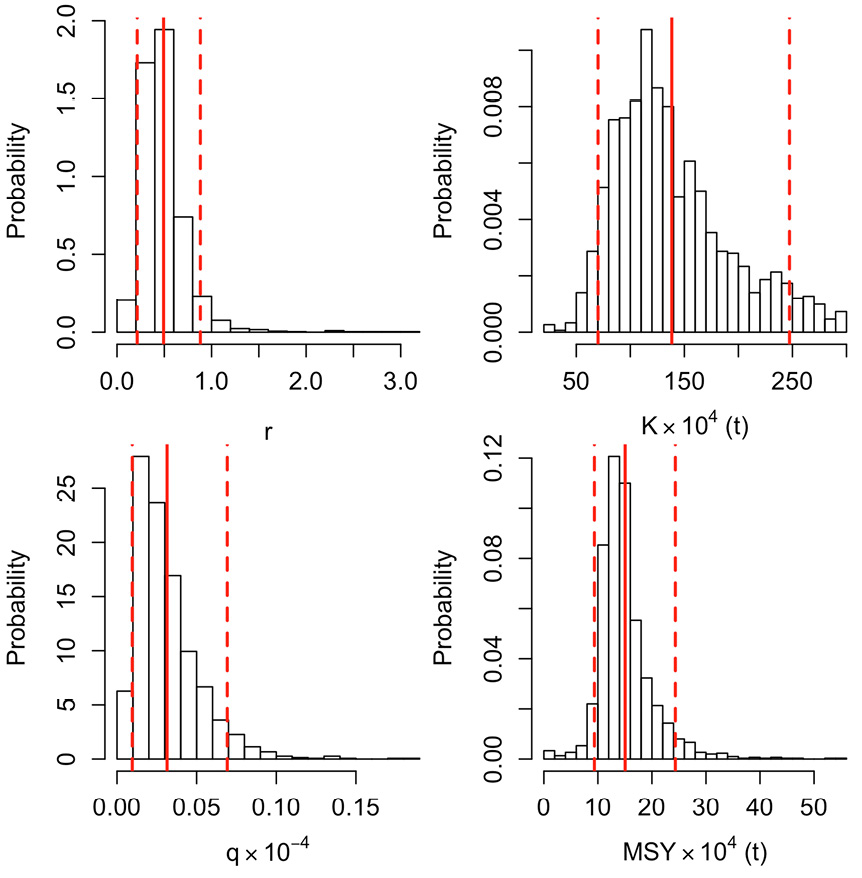

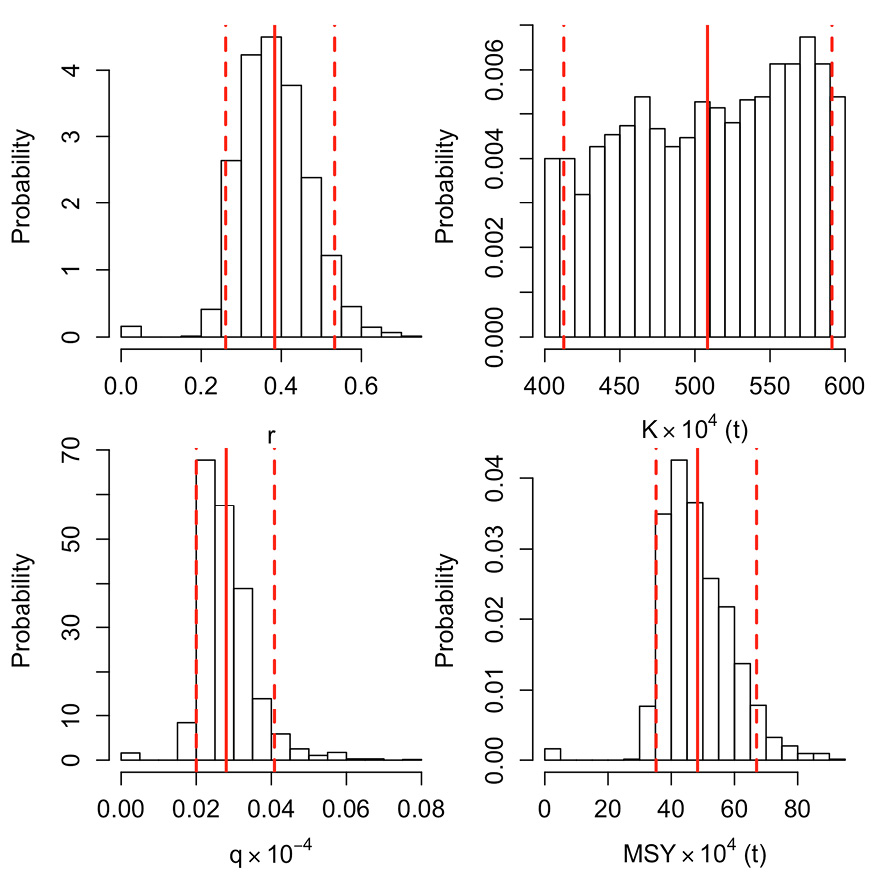

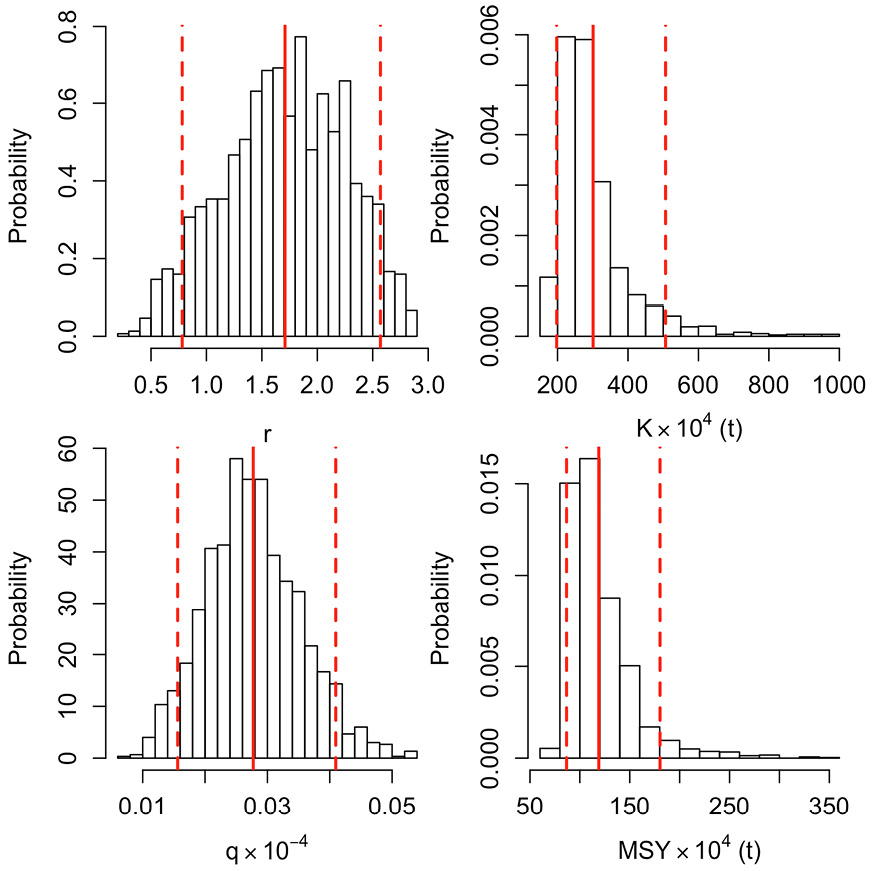

The meanvalues and 95% confidence intervals derived from the 1500 sets of bootstrapped parameters were used as parameter estimates and their associated uncertainties. The choice of 1500 bootstrap runs was made because stable estimates of uncertainly could be achieved when it reached 1500 runs. The best model for each species was selected based on the Akaike information criterion (AIC) of models and the CVs of the estimated parameters.

Biological reference points

Biological reference pointswere estimated, including maximum sustainable yield (MSY), fishing mortality at MSY level (F_MSY), and biomass at MSY level (B_MSY). F_0.1 and B_MSY were used as the target reference points, and F_MSY and 25% of B_MSY were used as limit reference points (i.e. F_lim and B_lim) in our proposed management system (Wang et al. 2015Wang J.T., Yu W., Chen X.J., et al. 2015. Stock assessment for the western winter-spring cohort of neon flying squid (Ommastrephes bartramii) using environmental dependent surplus production models. Sci. Mar. 80: 69-78.).

RESULTSTop

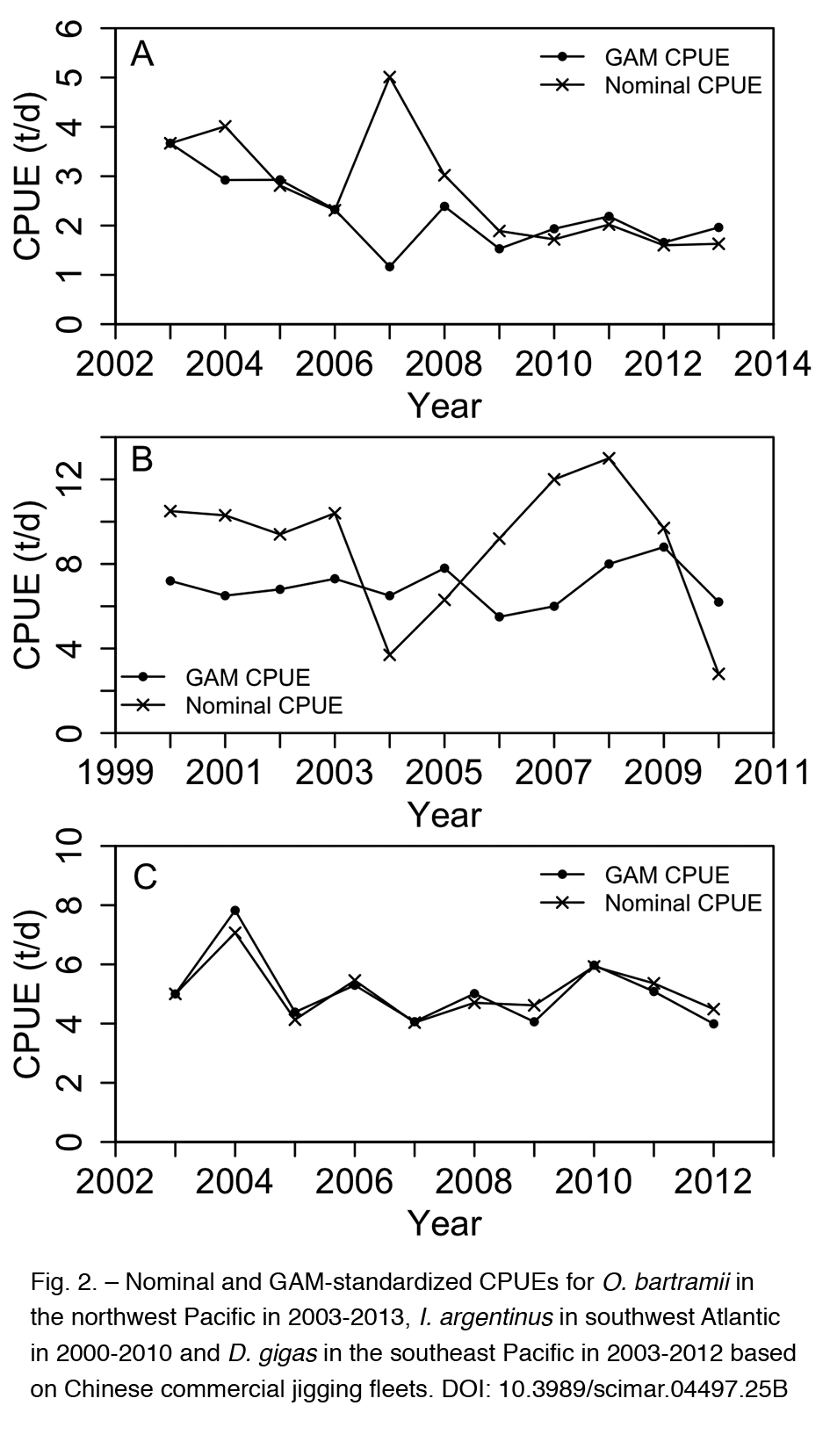

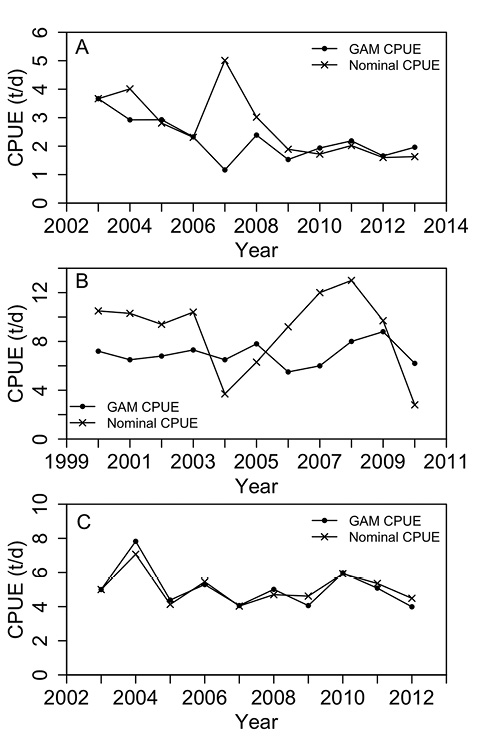

GAM-standardized CPUEs for ommastrephid squids

All the covariates (year, month, longitude, latitude, SST, SSH and Chl a) were statistically significant in a preliminary analysis, with no interaction terms being considered. The comparison of GAM-standardized CPUEs and nominal CPUEs showed temporal fluctuation in the species abundance (Fig. 2). For O. bartramii, the major difference was observed in 2007, with the highest nominal CPUE and lowest GAM-standardized CPUEs. For I. argentinus, the trend of GAM-standardized CPUEs was more stable than the trend of nominal CPUEs. The lowest and highest GAM-standardized CPUEs were observed in 2006 and 2009, respectively. A similar trend between nominal CPUEs and GAM-standardized CPUEs was observed for D. gigas. The highest CPUE was observed in 2004 and the lowest CPUE was observed in 2007.

Comparison of surplus production models for ommastrephid squid

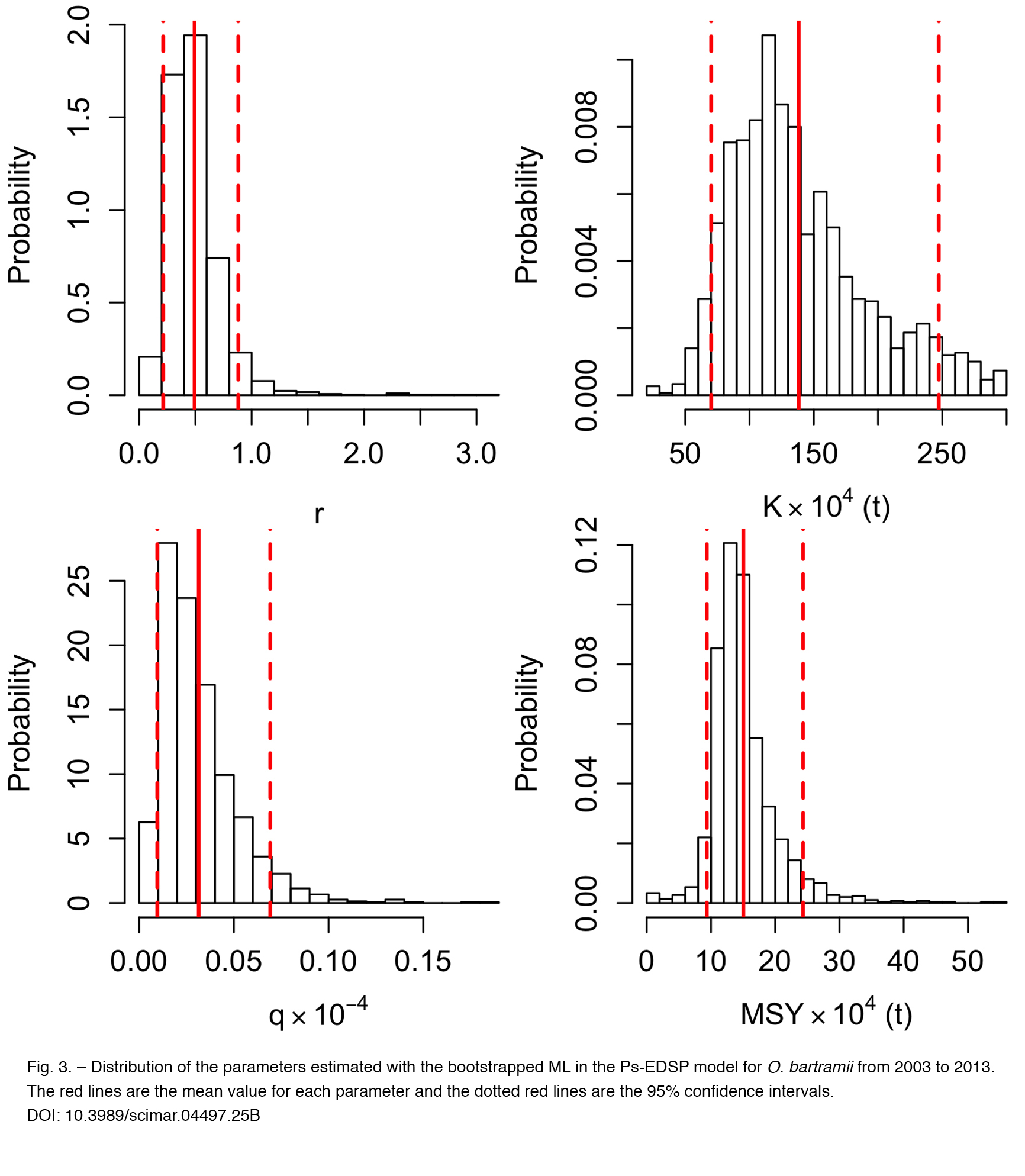

Table 3 shows Ps and Pf values for ommastrephid squid. The model incorporating environmental factors was the best one (Tables 4, 5, 6). For O. bartramii, the smallest mean square error (MSE), CV and AIC were 0.43, 29% and 27.47 respectively for the Ps-EDSP model, and therefore the Ps-EDSP was chosen as the best model for O. bartramii (Table 4). Means of r, K and q estimated with the bootstrapped ML method were 0.443, 125×10⁴ t and 0.027×10^–4, respectively (Table 4). The distributions of all three parameters were positively skewed (Fig. 3). The estimated MSY ranged from 10×10⁴ to 45×10⁴, with a mean value of 14×10⁴ t (Fig. 3).

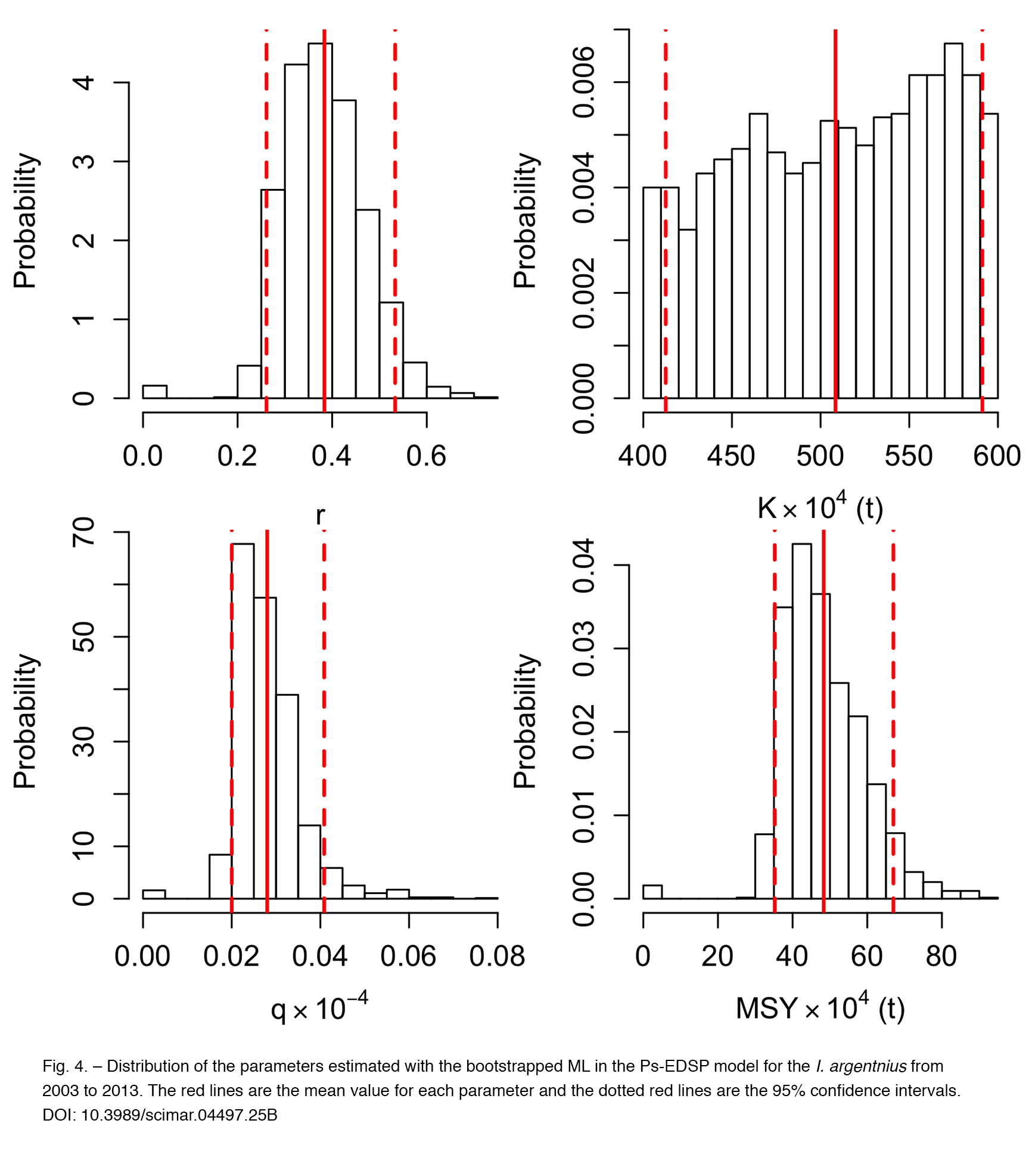

For I. argentinus, the smallest MSE, CV and AIC were 1.08, 6% and 35.61, respectively, for the Ps-EDSP model, and Ps-EDSP was selected as the best model for I. argentinus (Table 5). Means of r, K and q estimated with the bootstrapped ML method were 0.374, 512×10⁴ and 0.026×10^–4, respectively (Table 5). The distribution of all three parameters were positively skewed (Fig. 4). The estimated MSY ranged from 30×10⁴ to 80×10⁴, with a mean value of 44×10⁴ t (Fig. 4).

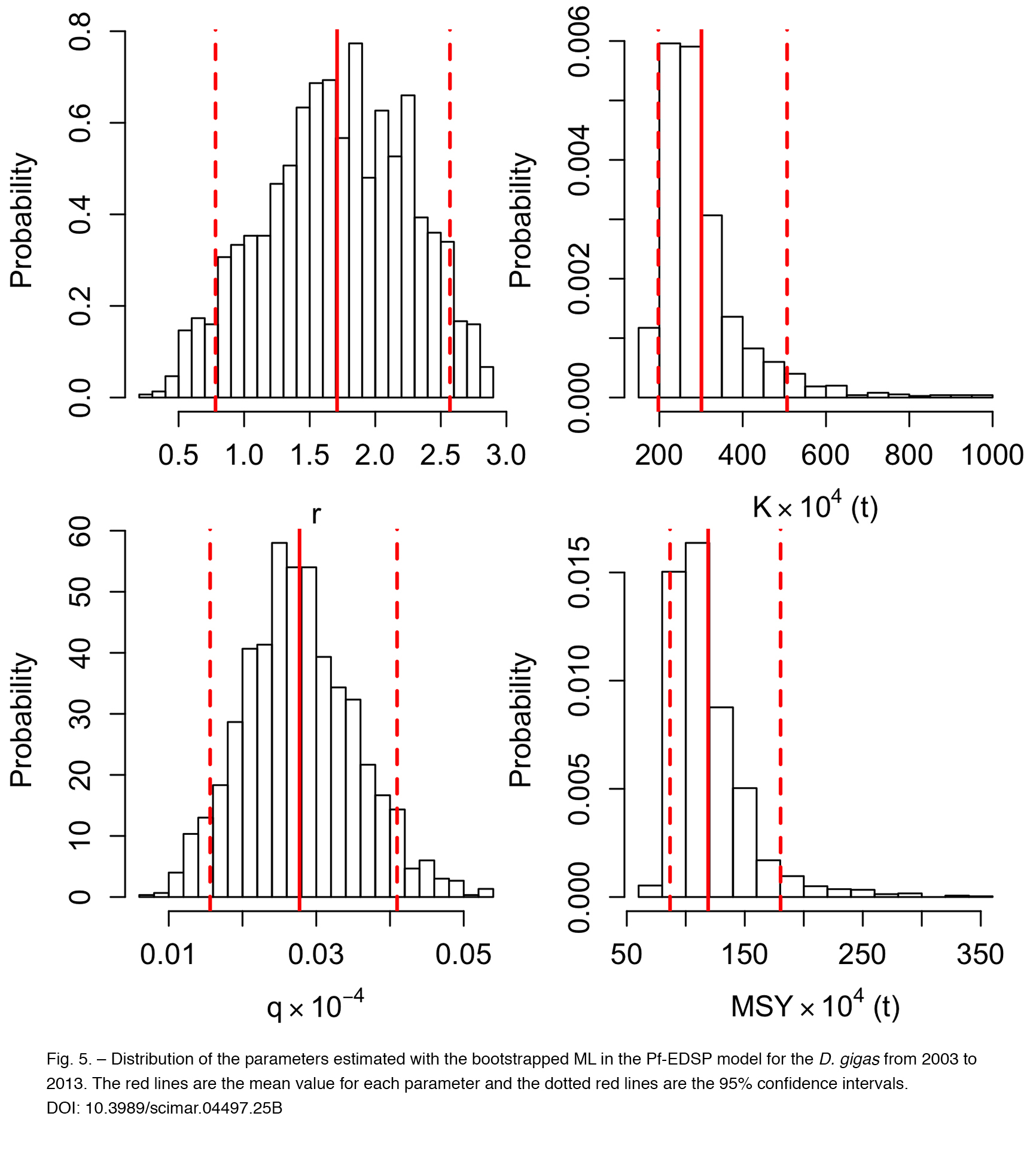

For D. gigas, the smallest MSE, CV and AIC were 0.82, 11% and 33.17, respectively, for the Pf-EDSP model and the Pf-EDSP was identified as the best model for D. gigas (Table 6). Means r, K and q estimated with the bootstrapped ML method were 1.72, 270×10⁴ t and 0.027×10^–4, respectively. The estimated MSY ranged from 100×10⁴ to 340×10⁴, with a mean value of 119×10⁴ t (Fig. 5).

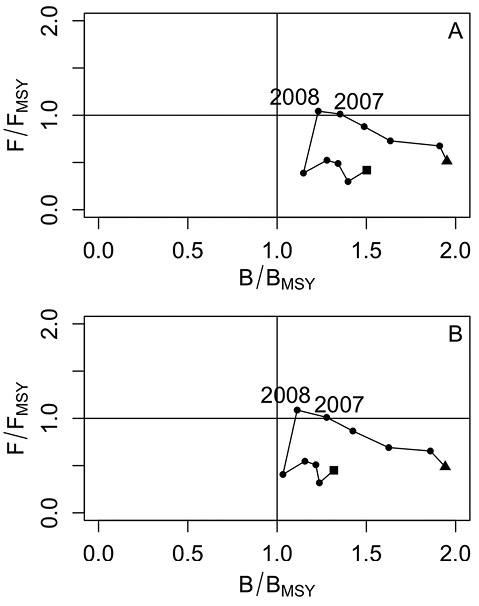

The management reference points for ommastrephid squids using the original surplus production model and its optimal EDSP model were plotted in Figures 6, 7 and 8. For O. bartramii, the peak annual catch, (14×10⁴ t in 2007) was near MSY, and all other annual catches were less than MSY. The fishing mortality rates from 2003 to 2013 were less than F_0.1 (=0.22) except in 2007 and 2008. The biomasses from 2003 to 2013 were higher than B_MSY (Fig. 6).

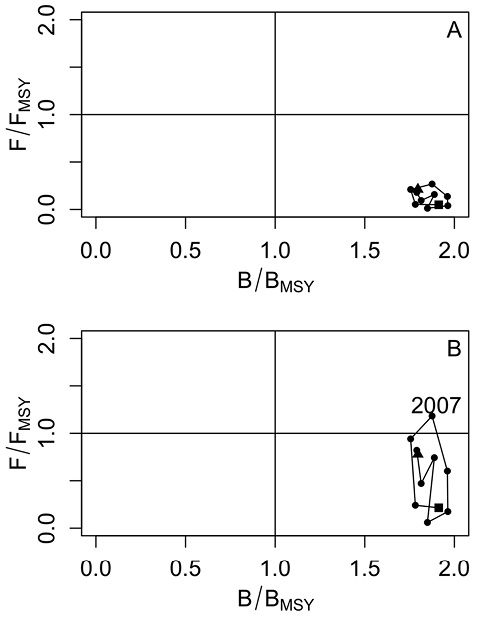

For I. argentinus, the peak annual catch (54×10⁴ t in 2007) was more than MSY, and other annual catches were all less than MSY. The fishing mortality rates from 2000 to 2010 were less than F_0.1 (=0.17) except in 2007 for the Ps-EDSP model. The biomasses during these years was higher than B_MSY (Fig. 7).

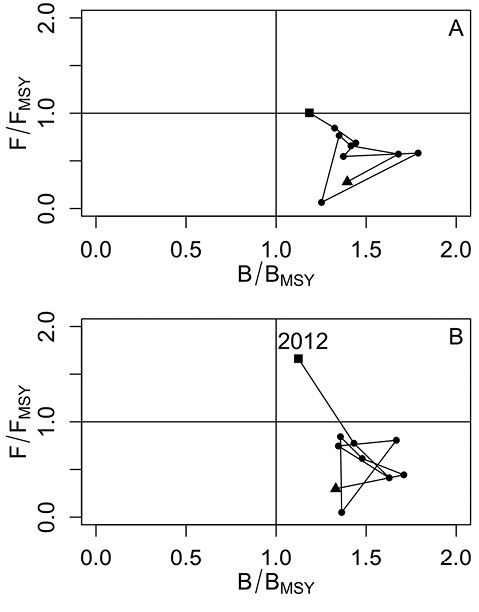

For D. gigas, the peak annual catch (92×10⁴ t in 2012) was less than MSY. The fishing mortality rates from 2003 to 2012 were less than F_0.1 (=0.77), except in 2012 for the Pf-EDSP model. The biomasses during the modelled period were higher than B_MSY (Fig. 8).

Overall, the assessment results for each species based on the original and its optimal surplus production models show that the fisheries of ommastrephid squid (O. bartramii, I. argentinus and D. gigas) are currently in good condition as their biomasses are all above their corresponding B_MSY values.

DISCUSSIONTop

Many studies indicated that variability in marine ecosystems, especially SST, causes inter-annual variability in the ommastrephid squid stocks (Waluda et al. 1999Waluda C.M., Trathan P.N., Rodhouse P.G. 1999. Influence of oceanographic variability on recruitment in the Illex argentinus (Cephalopoda: Ommastrephidae) fishery in the South Atlantic. Mar. Ecol. Prog. Ser. 183: 159-167., 2006Waluda C.M., Yamashiro C., Rodhouse P.G. 2006. Influence of the ENSO cycle on the light-fishery for Dosidicus gigas in the Peru Current: An analysis of remotely sensed data. Fish. Res. 79: 56-63., Chen et al. 2007Chen X.J., Zhao X.H., Chen Y. 2007. Influence of El Niño/La Niña on the western winter–spring cohort of neon flying squid (Ommastrephes bartramii) in the northwestern Pacific Ocean. ICES J. Mar. Sci. 64: 1152-1160.), but the inter-annual variability cannot be controlled and predicted effectively. Thus, assessment of ommastrephid squid stocks by incorporating environmental factors is difficult to implement. To our knowledge, there is only one study about assessing the western winter-spring cohort of neon flying squid with Bayesian inferences using SST on spawning ground and feeding ground based on surplus production model, and the model with spawning ground SST was the optimal model (Wang et al. 2015Wang J.T., Yu W., Chen X.J., et al. 2015. Stock assessment for the western winter-spring cohort of neon flying squid (Ommastrephes bartramii) using environmental dependent surplus production models. Sci. Mar. 80: 69-78.).

The longevity of ommastrephid squids is roughly one year, so the stock of a given year is comprised almost entirely of new recruits (Rosenberg et al. 1990Rosenberg A.A., Kirkwood G.P., Crombie J.A., et al. 1990. The assessment of stocks of annual squid species. Fish. Res. 8: 335-350., Pierce and Guerra 1994Pierce G.J., Guerra A. 1994. Stock assessment methods used for cephalopod fisheries. Fish. Res. 21: 255-285.). It is therefore essential to allow the suitable spawning habitat (for spawners to spawn and the larvae to survive) to ensure a high probability of successful recruitment in the following year. Furthermore, ommastrephid squids are fast-growing species (Boyle and Rodhouse 2005Boyle P., Rodhouse P.G. 2005. Cephalopods: ecology and fisheries. John Wiley & Sons.) and a suitable feeding habitat is vital for their growth in stock biomass. Thus, how to measure the habitat of the spawning and feeding grounds when assessing ommastrephid stocks is very important.

This study incorporates the environmental indices (Ps and Pf) to reflect inter-annual variability in environmental conditions of spawning grounds and feeding grounds. On spawning grounds, climate changes and some large-scale or mesoscale oceanographic processes may drive the inter-annual variability of Ps, which can influence the recruitment of ommastrephid squids. For example, ENSO events and the strength of the North Equatorial Current and the Kuroshio Current change Ps to influence O. bartramii recruitment in the northwest Pacific (Chen et al. 2007Chen X.J., Zhao X.H., Chen Y. 2007. Influence of El Niño/La Niña on the western winter–spring cohort of neon flying squid (Ommastrephes bartramii) in the northwestern Pacific Ocean. ICES J. Mar. Sci. 64: 1152-1160.). The relative strength of the Brazil current and the Falkland current may influence the Ps to affect the recruitment of I. argentinus in the southwest Atlantic (Waluda et al. 1999Waluda C.M., Trathan P.N., Rodhouse P.G. 1999. Influence of oceanographic variability on recruitment in the Illex argentinus (Cephalopoda: Ommastrephidae) fishery in the South Atlantic. Mar. Ecol. Prog. Ser. 183: 159-167.). ENSO events also strongly influence D. gigas recruitment, as weak upwelling during strong El Niño years lead to very low catches in the southeast Pacific (Waluda and Rodhouse 2006Waluda C.M., Rodhouse P.G. 2006. Remotely sensed mesoscale oceanography of the Central Eastern Pacific and recruitment variability in Dosidicus gigas. Mar. Ecol. Prog. Ser. 310: 25-32.). On feeding grounds, ommastrephid squids are mainly distributed in waters with a suitable SST (Chen et al. 2007Chen X.J., Zhao X.H., Chen Y. 2007. Influence of El Niño/La Niña on the western winter–spring cohort of neon flying squid (Ommastrephes bartramii) in the northwestern Pacific Ocean. ICES J. Mar. Sci. 64: 1152-1160.), which are mainly located in transition areas, including meandering eddies, frontal zones and so on, yielding highly productive habitats that serve as feeding grounds for ommastrephid squids (Zainuddin et al. 2006Zainuddin M., Kiyofuji H., Saitoh K., et al. 2006. Using multi-sensor satellite remote sensing and catch data to detect ocean hot spots for albacore (Thunnus alalunga) in the northwestern North Pacific. Deep Sea Res. Part II Top. Stud. Oceanogr. 53: 419-431.). The best surplus production models for the three-ommastrephid stocks (the surplus production model with Ps for O. bartramii and I. argentinus, the surplus production model with Pf for D. gigas) are all models incorporating environmental factors. This is consistent with our hypothesis that considering environmental variability can improve the assessment of ommastrephid squids.

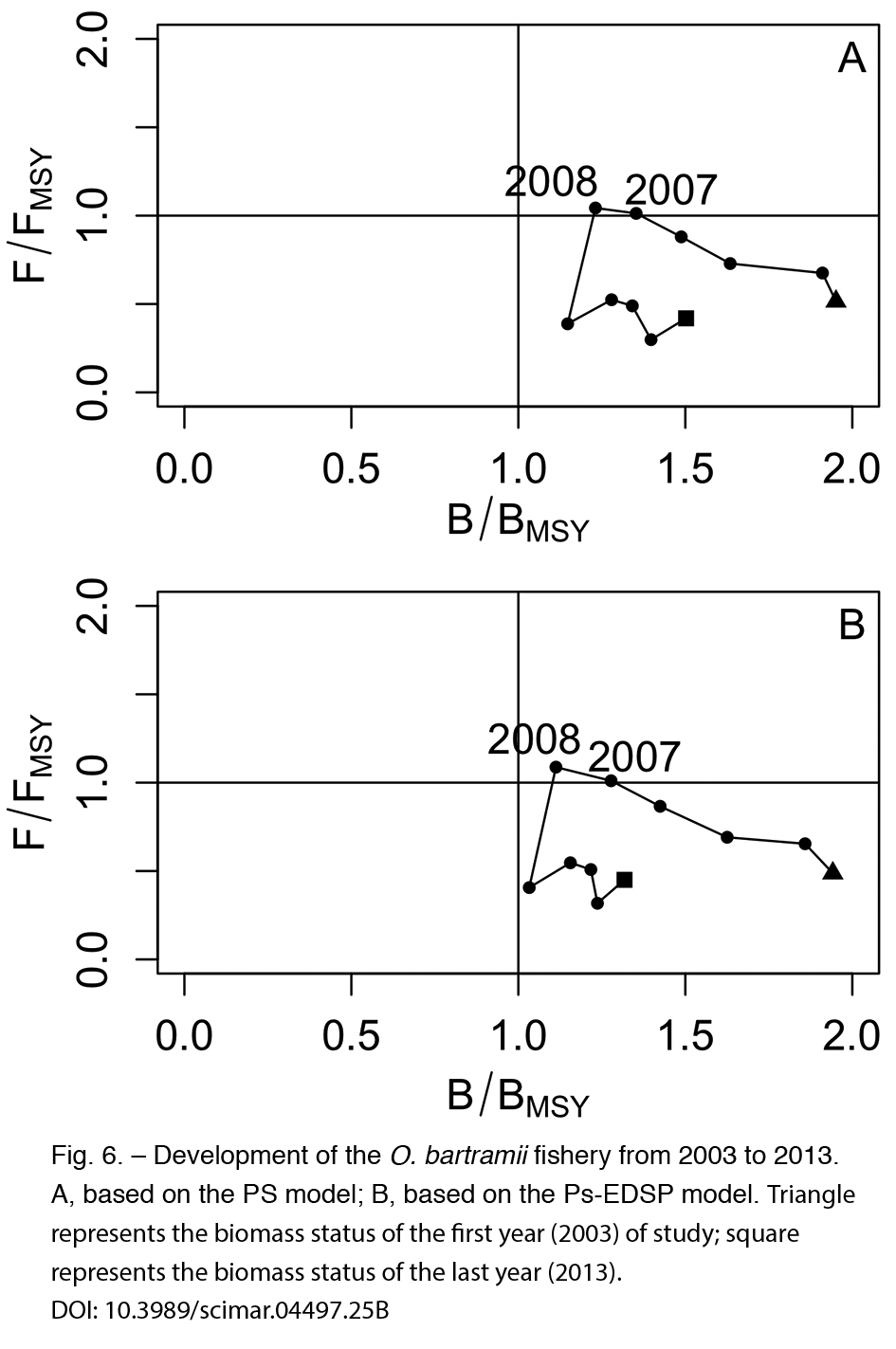

For each modelled ommastrephid stock, the original surplus production model and corresponding best model showed differences in the exploitation status. The O. bartramii fisheries arenot overfished, which was consistent with previous results (Chen et al. 2008aChen X.J., Chen Y., Tian S.Q., et al. 2008a. An assessment of the west winter-spring cohort of neon flying squid (Ommastrephes bartramii) in the Northwest Pacific Ocean. Fish. Res. 92: 221-230., Wang et al. 2015Wang J.T., Yu W., Chen X.J., et al. 2015. Stock assessment for the western winter-spring cohort of neon flying squid (Ommastrephes bartramii) using environmental dependent surplus production models. Sci. Mar. 80: 69-78.). Parameters r, K and q based on SP and Ps-EDSP showed little difference, but K in SP model was about 10% less than that in Ps-EDSP model (Table 4). The status for each year based on Ps-EDSP model was closer to the limit (F/F_MSY) than any other based on the SP model (Fig. 6). This finding was similar to the results obtained by different methods modelled by Bayesian inferences (Wang et al. 2015Wang J.T., Yu W., Chen X.J., et al. 2015. Stock assessment for the western winter-spring cohort of neon flying squid (Ommastrephes bartramii) using environmental dependent surplus production models. Sci. Mar. 80: 69-78.).

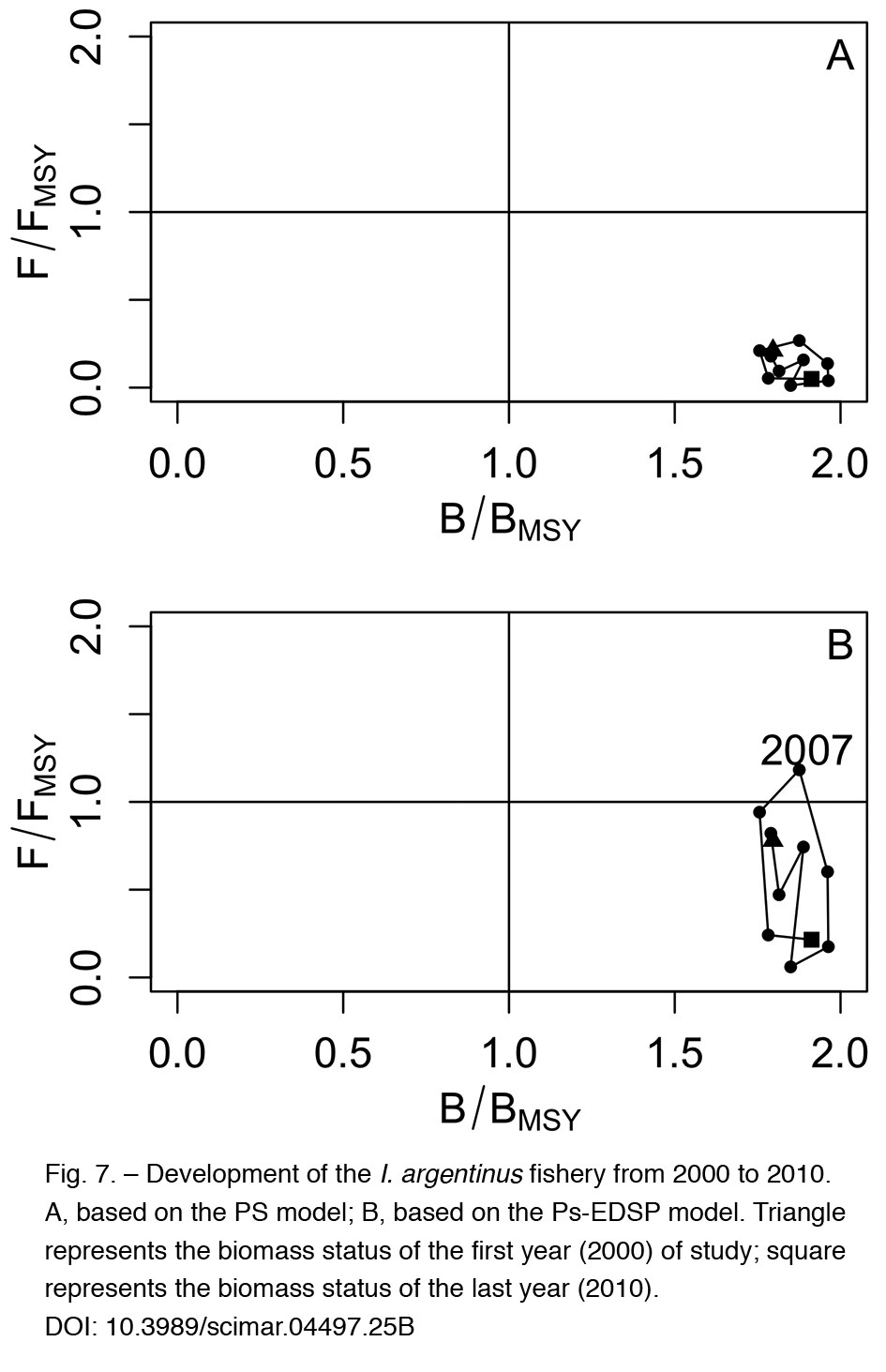

For the I. argentinus fishery, status for almost the whole year in the target zone was in a good state. The MSY was about 44×10⁴ t and the results were consistent with Lu et al. (2013b)Lu H.J., Chen X.J., Li G., et al. 2013b. Stock assessment and management for Illex argentinus in Southwest Atlantic Ocean based on Bayesian Schaefer model. Chinese J. Appl. Ecol. 24: 2007-2014.. However, the status of all years based on the SP model was much tight and no differences were found between them relative to the status of all years based on the Ps-EDSP model (Fig. 7). Parameter r in the SP model was about four times that in the Ps-EDSP model, and K in the SP model was about 12% less than that in Ps-EDSP model (Table 5).

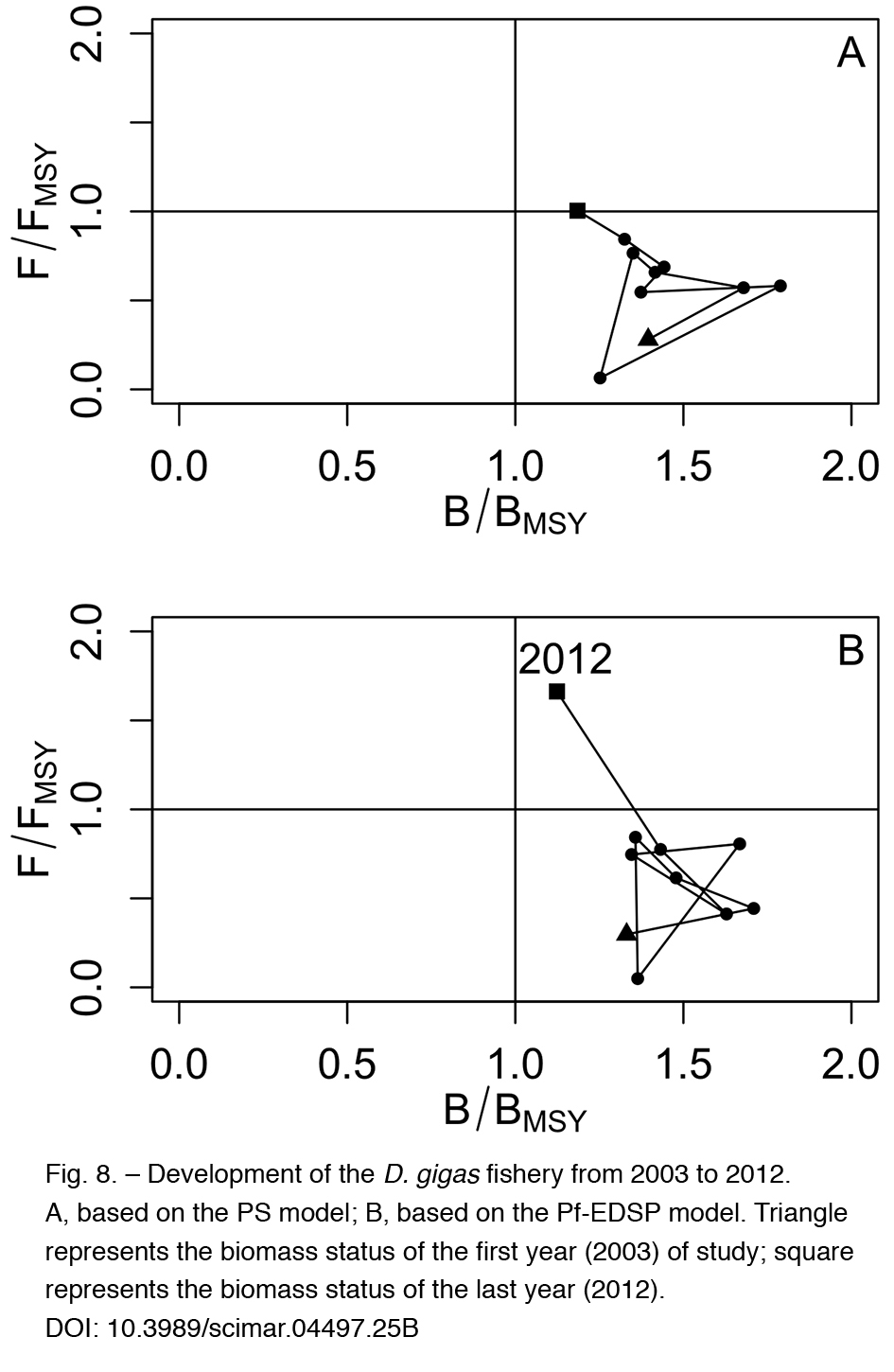

For the D. gigas fishery, the development status in the SP and the Pf-EDSP model was similar (Fig. 8), but parameters r and K were about 19 and 26% less than any other one in the Pf-EDSP model, respectively (Table 6).

The improvements in the results through incorporation of environmental factors benefit the assessment and management of ommastrephid squid stocks. For example, one benefit is another method of assessing ommastrephid squid stocks. Because assessment of fished cephalopod stocks is a relatively undeveloped field, only a few methods are currently used, such as fishing and acoustic surveys, egg and larval production estimates, mark-recapture, the Leslie-Delury method and the surplus production model (Boyle and Rodhouse 2005Boyle P., Rodhouse P.G. 2005. Cephalopods: ecology and fisheries. John Wiley & Sons., Wang et al. 2015Wang J.T., Yu W., Chen X.J., et al. 2015. Stock assessment for the western winter-spring cohort of neon flying squid (Ommastrephes bartramii) using environmental dependent surplus production models. Sci. Mar. 80: 69-78.); even fewer of those methods incorporate environmental variables. The other benefit of incorporating environmental factors into management procedures could be the potential increase in fishing effort when future recruitment is expected to be stable or increasing, and the reduction in fishing effort when future recruitment is expected to be poor (Basson 1999Basson M. 1999. The importance of environmental factors in the design of management procedures. ICES J. Mar. Sci. 56: 933-942.). With the effective forecasting of environmental conditions, the surplus production models developed will allow precautionary approaches for the management of ommastrephid squid fisheries.

The dynamic life history of ommastrephid squids poses challenges for the assessment of stocks. This study shows that considering environmental factors can improve their assessment. Because of the importance of thermal habitat in regulating the dynamics of ommastrephid squids, we suggest that environmental factors such as SST should be considered in the assessment of ommastrephid squid stocks.
