INTRODUCTIONTop
Caloria elegans (Alder and Hancock, 1845) is a nudibranch belonging to the family Facelinidae Bergh, 1889. The genus Caloria was erected by Trinchese (1888)Trinchese S. 1888. Descrizione del nuovo genere Caloria. Mem. Reale Accademia Sci. Istituto di Bologna 9: 291-295. with the description of Caloria maculata that is currently accepted (Gofas 2015Gofas S. 2015. Caloria maculata Trinchese, 1888. In: MolluscaBase (2015). Accessed through: World Register of Marine Species at http://www.marinespecies.org/aphia.php?p=taxdetails&id=747956 on 2016-04-06.) as a synonym of Caloria elegans Alder and Hancock, 1845 (Sartori and Gofas 2014Sartori A.F., Gofas S. 2014. Caloria Trinchese, 1888. In: MolluscaBase (2016). Accessed through: World Register of Marine Species at http://www.marinespecies.org/aphia.php?p=taxdetails&id=137996 on 2016-05-05.). The original description of C. maculata by Trinchese (1888)Trinchese S. 1888. Descrizione del nuovo genere Caloria. Mem. Reale Accademia Sci. Istituto di Bologna 9: 291-295. is very detailed but it lacks the figure of the entire animal. The rhinophores are described in the text in two sections: “I rinofori a sezione trasversa circolare, sparsi di lievi ripiegature, ma non perfoliati.” (The rhinophores have a circular transverse section and scattered slight folds, but they are not perfoliate) (p. 291); and “I rinofori sottili, bianco-trasparenti, presentano delle rughe irregolari. Una striscia bianco-opaca si estende sulla faccia anteriore dei loro due terzi superiori.” (The thin rhinophores, white-transparent, show some irregular wrinkles. A white-matt strip on their anterior side extends to the upper two-third) (p. 292). These descriptions fit rhinophores possessing wrinkles or slight folds, but not lamellae, and they can be considered equivalent to the ones described for Eolis elegans by Alder and Hancock (1845Alder J., Hancock A. 1845. Notice of a new genus and several new species of nudibranchiate Mollusca. Ann. Mag. Nat. His. 16: 311-316., 1851)Alder J., Hancock A. 1851. A monograph of the British Nudibranchiate Mollusca: with figures of all the species. Ray Society, London. Part V.. The latter authors, while redescribing the species (1851) clearly depicted the rhinophores (i.e. dorsal tentacles) as “of moderate length, stoutish, erect, tapering at the top and wrinkled transversely, of a pale fawn colour or buff, with a streak of white in front near the apex.” In this case, “wrinkled transversely” clearly indicates that they are not lamellate rhinophores, and in the depicted animal (1851: pl. 17, figs 2, 3) these wrinkles are very evident (Fig. 1A). Picton (1979)Picton B.E. 1979. Caloria elegans (Alder and Hancock) comb. nov. Gastropoda, Opisthobranchia, an interesting rediscovery from S. W. England. J. Molluscan Stud. 45: 125-130. traced back the systematic history of C. elegans, redescribing this taxon with specimens from the Bristol Channel (UK) and considering C. maculata as its junior synonym. In the redescription, the rhinophores are not reported as lamellate (“Posterior surfaces of rhinophores covered with small irregularly distributed papillae”) and this character is clearly depicted in his figures (Picton 1979Picton B.E. 1979. Caloria elegans (Alder and Hancock) comb. nov. Gastropoda, Opisthobranchia, an interesting rediscovery from S. W. England. J. Molluscan Stud. 45: 125-130.: figs 1A, B) (Fig. 1B). Later, Schmekel and Portmann (1982)Schmekel L., Portmann A. 1982. Opisthobranchia des Mittelmeeres. Monografia 40 della Stazione Zoologica di Napoli. Springer-Verlag, Berlin, 410 pp. described C. elegans, referring to its rinophores as “cylindrical and smooth”. This diversity in C. elegans rhinophores surface (smooth, wrinkled or papillate) was related by Thompson (1988)Thompson T.E. 1988. Molluscs: benthic opisthobranchs (Mollusca: Gastropoda). Synopses of the British fauna (new series) no. 8, 2nd edition, 322-323. Linnean Society of London. to the particular ontogenetic stage of the specimens and not to a typical diagnostic feature of the species. In fact, he wrote “The fawn coloured rhinophores... the rear surfaces... are in the adult specimens covered with small, irregularly distributed papillae (hard to detect or absent in the juveniles)”. This issue has been also briefly noticed by Cattaneo-Vietti et al. (1990)Cattaneo-Vietti R. 1990. Colore e mimetismo negli opistobranchi. Atti Congresso Sorrento 29-31 maggio 1987. Lavori S.I.M., Napoli, 23: 217-228.: “rinofori che possono essere lisci o finemente papillati” (rhinofores can be smooth or finely papillated).
Another taxon synonymized with C. elegans is Acanthopsole quatrefagesi Vayssière, 1888, described based on specimens from the Mediterranean Sea, Villefranche-Sur-Mer (France), which was included in the genus Facelina Alder and Hancock, 1855 by Pruvot-Fol (1951)Pruvot-Fol A. 1951. Etude des Nudibranches de la Mediterranée. Archives de zoologie expérimentale et générale LXXXVIII (I), p. 1-79, pi. I-IV, fig. 1-42.. In 1888 Vayssière described A. quatrefagesi with recently preserved samples but no figures of the whole animal or the rhinophores. The original description (Vayssière 1888Vayssière, A.J.B.M. 1888. Recherches zoologiques et anatomiques sur les mollusques Opisthobranches du Golfe de Marseille. Deuximem Partie, Nudibranches (Cirrobranches) et Ascoglosses. Annales du Musee d'Histoire Naturelle de Marseille 3 Mem. 4:1-160, pls. 1-17 (? 1-8).: plate VII, figs 137-143) includes cerata, penis, jaws and radular teeth. Facelina quatrefagesi was described as showing lamellate rhinophores: “Les rhinophores, moins longs que les tentacules labiaux, possédaient del lamelles olfactives transversales perpendiculaires, sortes d’anneaux sur les deux tiers supérieurs de leur longueur.” (The rhinophores, shorter than the labial tentacles, possessed perpendicular transverse olfactory lamellae, kinds of rings on the upper two-thirds of their length). The shape of the rhinophores is routinely used as a diagnostic character in almost all other nudibranchs. Based on this feature, F. quatrefagesi should not be considered as a synonym of C. elegans, as proposed by Picton (1979)Picton B.E. 1979. Caloria elegans (Alder and Hancock) comb. nov. Gastropoda, Opisthobranchia, an interesting rediscovery from S. W. England. J. Molluscan Stud. 45: 125-130. and accepted in successive papers (Cattaneo and Barletta 1984Cattaneo R., Barletta G. 1984. Elenco preliminare dei molluschi opisthobranchi viventi nel Mediterraneo (Sacoglossa, Pleurobranchomorpha, Acochlidiacea, Aplysiomorpha, Nudibranchia). Boll. Malacol. 20: 195-218., Sabelli et al. 1990Sabelli B., Giannuzzi-Savelli R., Bedulli D. 1990. Catalogo annotato dei molluschi marini del Mediterraneo. Vol. 1. Edizioni Libreria Naturalistica Bolognese.). Recently, Trainito and Doneddu (2014)Trainito E., Doneddu M. 2014. Nudibranchi del Mediterraneo. Edizione Il Castello, Milano, Italy, 192 pp. proposed F. quatrefagesi and C. elegans as separate species, mostly considering the morphology of their rhinophores. According to these authors, these two species often show very similar chromatic patterns (Fig. 2), and although some pigmentation differences can be observed (Trainito and Doneddu 2014Trainito E., Doneddu M. 2014. Nudibranchi del Mediterraneo. Edizione Il Castello, Milano, Italy, 192 pp.: 106), their separation is mainly based on the rhinophore morphology, lamellate in F. quatrefagesi and smooth or papillated in C. elegans (Fig. 2). These authors also specified that F. quatrefagesi is very constant in colour, while C. elegans displays a certain degree of variability (Fig. 2A, B).
In order to definitively assess the taxonomy of these two nominal species, individuals from different Tyrrhenian localities (western Mediterranean Sea) were sampled and investigated with an integrative taxonomy approach—using both anatomical and molecular methods—aimed at increasing the robustness of species delimitation (Modica et al. 2014Modica M.V., Puillandre N., Castelin M., et al. 2014. A good compromise: rapid and robust species proxies for inventorying biodiversity hotspots using the Terebridae (Gastropoda: Conoidea). PLoS ONE 9: e102160.).
The mitochondrial cytochrome oxidase subunit I (COI) marker is routinely used for species delimitation analyses and is now considered a very useful barcoding marker for molluscs in general (Furfaro et al. 2016bFurfaro G., Modica M.V., Oliverio M., et al. 2016a. A DNA-barcoding approach to the phenotypic diversity of Mediterranean species of Felimare Ev. Marcus and Er. Marcus, 1967 (Mollusca: Gastropoda), with a preliminary phylogenetic analysis. Ital. J. Zool. 83: 1-13.), due to its fast-evolving rate of mutation. The partial 16S marker is a non-coding mitochondrial gene that shows the capability to fold in a 2D secondary structure that could be diagnostic for species delimitation (Lydeard et al. 2000Lydeard C., Holznagel W.E., Schnare M.N., et al. 2000. Phylogenetic analysis of molluscan mitochondrial LSU rDNA sequences and secondary structures. Mol. Phylogenet. Evol. 15: 83-102., Salvi et al. 2010Salvi D., Bellavia G., Cervelli M., et al. 2010. The analysis of rRNA Sequence-Structure in phylogenetics: an application to the family Pectinidae (Mollusca, Bivalvia). Mol. Phyl. Evol. 56: 1059-1067., Salvi et al. 2014Salvi D., Macali A., Mariottini P. 2014. Molecular phylogenetics and systematics of the bivalve family Ostreidae based on rRNA sequence-structure models and multilocus species tree. PLoS ONE 9(9): e108696.) and as an additional tool for phylogenetic analyses. The H3 is a nuclear gene characterized by a slow evolving rate (Padula et al. 2016Padula V., Bahia J., Stöger I., et al. 2016. A test of color-based taxonomy in nudibranchs: Molecular phylogeny and species delimitation of the Felimida clenchi (Mollusca: Chromodorididae) species complex. Mol. Phyl. Evol. 103: 215-229.) and it is commonly used to explore the relationships occurring within higher taxonomic levels.
We used partial sequences of two mitochondrial (COI and 16S rDNA) and one nuclear marker (histone H3), newly produced and retrieved from GenBank to clarify species boundaries between the two taxa under study.
MATERIALS AND METHODSTop
Samples were collected by SCUBA diving at Mediterranean and Atlantic localities. Specimen data, including collection localities, accession numbers and references, are reported in Table 1. Vouchers are stored at the Department of Biology and Biotechnologies, ‘La Sapienza’ University (Rome, Italy) (Table 1). Hundreds of individuals were observed in situ or indirectly by photographs. Sequences from 13 individuals (ascribed to the family Facelinidae and the outgroup) were used for the molecular analyses.
Species | Voucher | Locality | H3 | 16S | COI | References |
---|---|---|---|---|---|---|
Caloria elegans | BAU2699 | Tor Paterno, Latium, Italy | — | LT596546 | LT596554 | Present study |
Caloria elegans | BAU2672 | Lavezzi, Corse, France | LT596567 | LT596547 | LT596557 | Present study |
Caloria elegans | MNCN15_05/53689 | Menorca, Spain | HQ616780 | HQ616714 | HQ616751 | Carmona et al. 2011 Carmona L., Gosliner T.M., Pola M., et al. 2011. A molecular approach to the phylogenetic status of the aeolid genus Babakina Roller, 1973 (Nudibranchia). J. Molluscan Stud. 77: 417-422. |
Caloria indica | — | JQ699389 | — | — | Churchill et al. 2013Churchill C.K.C., Alejandrino A., Valdes A., et al. 2013. Parallel changes in genital morphology delineate cryptic diversification of planktonic nudibranchs. Proc. Biol. Sci. 280: 20131224. | |
Caloria indica | — | — | DQ417273 | DQ417325 | Faucci et al. 2007 Faucci A., Toonen R.J., Hadfield M.G. 2007. Host shift and speciation in a coral-feeding nudibranch. Proc. Biol. Sci. 274: 111-119. | |
Caloria sp. | CASIZ186241 | Philippines | JQ996966 | JQ996865 | JQ997064 | Carmona et al. 2013Carmona L., Pola M., Gosliner T.M., et al. 2013. A tale that morphology fails to tell: a molecular phylogeny of Aeolidiidae (Aeolidida, Nudibranchia, Gastropoda). PLoS ONE 8: e63000. |
Caloria sp. | CASIZ186240 | Philippines | JQ996965 | JQ996864 | JQ997063 | Carmona et al. 2013Carmona L., Pola M., Gosliner T.M., et al. 2013. A tale that morphology fails to tell: a molecular phylogeny of Aeolidiidae (Aeolidida, Nudibranchia, Gastropoda). PLoS ONE 8: e63000. |
Cratena peregrina | BAU2708 | Lago di Paola, Sabaudia, Italy | — | LT596548 | LT596559 | Present study |
Dicata odhneri | MNCN15.05/53692 | Spain, eastern Atlantic | — | HQ616739 | HQ616773 | Carmona et al. 2011Carmona L., Gosliner T.M., Pola M., et al. 2011. A molecular approach to the phylogenetic status of the aeolid genus Babakina Roller, 1973 (Nudibranchia). J. Molluscan Stud. 77: 417-422. |
Dicata odhneri | BAU2674 | Ballanera, Algesiras, Spain | LT596569 | LT596549 | LT596560 | Present study |
Dondice banjulensis | Db.60 | — | — | GQ403751 | GQ403773 | Unpublished |
Facelina annulicornis | CASIZ186793 | Azores Is., Portugal | JQ996986 | JQ996881 | JQ997076 | Carmona et al. 2013Carmona L., Pola M., Gosliner T.M., et al. 2013. A tale that morphology fails to tell: a molecular phylogeny of Aeolidiidae (Aeolidida, Nudibranchia, Gastropoda). PLoS ONE 8: e63000. |
Facelina quatrefagesi | BAU2697 | Tor Paterno, Latium, Italy | LT596563 | LT596544 | LT596552 | Present study |
Facelina quatrefagesi | BAU2698 | Tor Paterno, Latium, Italy | LT596564 | LT596545 | LT596553 | Present study |
Facelina quatrefagesi | BAU2670 | Punta Saline, Olbia, Italy | LT596565 | — | LT596555 | Present study |
Facelina quatrefagesi | BAU2671 | Punta Saline, Olbia, Italy | LT596566 | — | LT596556 | Present study |
Facelina quatrefagesi | BAU2673 | Punta Pecoraro, Latium, Italy | LT596568 | — | LT596558 | Present study |
Facelina rubrovittata | BAU2675 | Scoglio del corallo, Tuscany, Italy | — | LT596550 | LT596561 | Present study |
Favorinus branchialis | MNCN15.05/53695 | Spain, eastern Atlantic | HQ616790 | HQ616761 | HQ616724 | Carmona et al. 2011 Carmona L., Gosliner T.M., Pola M., et al. 2011. A molecular approach to the phylogenetic status of the aeolid genus Babakina Roller, 1973 (Nudibranchia). J. Molluscan Stud. 77: 417-422. |
Favorinus branchialis | BAU2676 | Lago di Paola, Sabaudia, Italy | — | LT596551 | LT596562 | Present study |
Tritonia striata | BAU2695 | Giannutri Is., Tuscany, Italy | LT615407 | LT596542 | LT596540 | Present study |
Tritonia striata | BAU2696 | Le Formiche Is., Grosseto, Italy | LT615408 | LT596543 | LT596541 | Present study |
Morphological analyses
Samples were observed and photographed with both optical and scanning electronical microscope (SEM) techniques. External morphological features were observed and recorded for both ‘lamellated’ and ‘smooth-papillate’ samples. The buccal apparatus (radulae and jaws) was observed in both species (Fig. 3A-D). Buccal masses were placed in a 10% NaOH solution to isolate the radulae and the jaws, which were then dehydrated to 100% ethanol, critical point-dried, gold-coated in an Emitech K550 unit, and examined by a Dualbeam SEM Helios Nanolab (FEI Company, Eindhoven, the Netherlands) at the LIME (Electron Microscopy Interdepartmental Laboratory, Roma Tre University, Rome, Italy), with secondary electrons and an operating voltage of 5 kV (for a more detailed description see Furfaro et al. 2016aFurfaro G., Modica M.V., Oliverio M., et al. 2016a. A DNA-barcoding approach to the phenotypic diversity of Mediterranean species of Felimare Ev. Marcus and Er. Marcus, 1967 (Mollusca: Gastropoda), with a preliminary phylogenetic analysis. Ital. J. Zool. 83: 1-13.).
The reproductive system of both species (at least two samples per taxon) was examined using standard dissecting procedure and synthetically drawn in semi-schematic depictions (Fig. 3E, F).
Molecular analyses
A piece of tissue was dissected from the foot of 13 specimens for DNA extraction. Total genomic DNA was extracted using a standard proteinase K phenol/chloroform method with ethanol precipitation, as reported in Oliverio and Mariottini (2001)Oliverio M., Mariottini P. 2001. A molecular framework for the phylogeny of Coralliophila and related muricoids. J. Molluscan Stud. 67: 215-224.. Partial sequences of three different molecular markers, the nuclear Histon 3 (H3) and the mitochondrial 16S rDNA (16S) and COI were amplified by polymerase chain reaction (PCR) [H3 primers (Colgan et al. 1998Colgan D., Mclauchlan A., Wilson G.D.F., et al. 1998. Histone H3 and U2 snRNA DNA sequences and arthropod molecular evolution. Aust. J. Zool. 46: 419-437.), 16S primers (Palumbi et al. 1991Palumbi S.R., Martin A., Romano S., et al. 1991. The simple fool’s guide to PCR. Department of Zoology, University of Hawaii, Honolulu.) and COI primers (Folmer et al. 1994Folmer O., Black M., Hoeh W., et al. 1994. DNA primers for amplification of mitochondrial cytochrome c oxidase subunit I from diverse metazoan invertebrates. Mol. Mar. Biol. Biotech. 3: 294-299.)] and PCR conditions as described in Prkić et al. (2014)Prkić J., Furfaro G., Mariottini P., et al. 2014. First record of Calma gobioophaga Calado and Urgorri, 2002 (Gastropoda: Nudibranchia) in the Mediterranean Sea. Med. Mar. Sci. 15: 423-428.. Amplicons were sequenced by European Division of Macrogen Inc. (Amsterdam, The Netherlands), using both primers used in the amplification reaction. Sequences obtained were edited with Staden Package 2.0.0b9 (Staden et al. 2000Staden R., Beal K.F., Bonfield J.K. 2000. The Staden package, 1998. Methods Mol. Biol. 132: 115-130.). A BLASTN (Altschul et al. 1990Altschul S.F., Gish W., Miller W., et al. 1990. Basic local alignment search tool. J. Mol. Biol. 215: 403-410.) search was conducted in the GenBank database to confirm the identity of the sequenced fragment and to exclude contamination. Uncorrected genetic distances (p-distance) and genetic distance estimated under a Kimura-2-parameter nucleotide substitution model (K2p) were calculated with MEGA V 6.0 (Tamura et al. 2013Tamura K., Stecher G., Peterson D., et al. 2013. MEGA6: Molecular Evolutionary Genetics Analysis Version 6.0. Mol. Biol. Evol. 30: 2725-2729.).
Tritonia striata Haefelfinger, 1963 was used as the outgroup because of its basal placement within Cladobranchia following Pola and Gosliner (2010)Pola M., Gosliner T.M. 2010. The first molecular phylogeny of cladobranchian opisthobranchs (Mollusca, Gastropoda, Nudibranchia). Mol. Phylogenet. Evol. 56: 931-941.. For COI, the Automatic Barcode Gap Discovery (ABGD, available at http://wwwabi.snv.jussieu.fr/public/abgd/) was employed to detect the so called “barcode gap” in the distribution of pairwise distances calculated for a sequence alignment (Puillandre et al. 2012aPuillandre N., Lambert A., Brouillet S., et al. 2012a. ABGD, Automatic Barcode Gap Discovery for primary species delimitation. Mol. Ecol. 21: 1864-1877., bPuillandre N., Modica M.V., Zhang Y., et al. 2012b. Large-scale species delimitation method for hyperdiverse groups. Mol. Ecol. 21: 2671-2691.). Alignments from the supposedly fast-evolving COI (excluding the outgroup) were analysed in ABGD using either p-distance or the K2p nucleotide substitution model and the following settings: a prior for the maximum value of intraspecific divergence between 0.001 and 0.1, 30 recursive steps within the primary partitions defined by the first estimated gap, and a gap width of 0.1.
Sequences obtained for each individual were aligned by Muscle, MEGA V 6.0 (Tamura et al. 2013Tamura K., Stecher G., Peterson D., et al. 2013. MEGA6: Molecular Evolutionary Genetics Analysis Version 6.0. Mol. Biol. Evol. 30: 2725-2729.), resulting in three alignments for H3, 16S rDNA and COI, respectively 294, 420 and 588 bp long. The best-fitting substitution model was selected for each alignment by the Bayesian information criterion implemented in JModel Test 0.1 package (Posada 2008Posada D. 2008. jModelTest: Phylogenetic Model Averaging. Mol. Biol. Evol. 25: 1253-1256.). Two different concatenated and partitioned datasets were built with DnaSP ver.5.10.01 (Librado and Rozas 2009Librado P., Rozas J. 2009. Dna SP V 5: A software for comprehensive analysis of DNA polymorphism data. Bioinf. 25: 1451-1452.): the first included all nuclear and mitochondrial markers, while the second was reduced to the mitochondrial 16S and COI markers only. The variable sites of the resulting mitochondrial and nuclear concatenated alignment were individuated using DnaSP ver. 5.10.01 (Librado and Rozas 2009Librado P., Rozas J. 2009. Dna SP V 5: A software for comprehensive analysis of DNA polymorphism data. Bioinf. 25: 1451-1452.).
Maximum likelihood (ML) analysis (bootstrapped over 1000 replicates) and Bayesian inference (BI) (with 5×106 generations, and 25% burnin) were performed for both single genes and a concatenated dataset using RAxML V. 8 (Stamatakis 2014Stamatakis A. 2014. RAxML Version 8: A tool for Phylogenetic Analysis and Post-Analysis of Large Phylogenies. Bioinformatics ) run on the Cypres platform (Miller et al. 2010Miller M.A., Pfeiffer W., Schwartz T. 2010. Creating the CIPRES Science Gateway for inference of large phylogenetic trees. In: Proceedings of the Gateway Computing Environments Workshop (GCE), New Orleans, LA pp 1-8.) and MrBayes 3.2.2 (Ronquist et al. 2011Ronquist F., Teslenko M., Van der Mark P., et al. 2011. MrBayes 3.2: Efficient Bayesian phylogenetic inference and model choice across a large model space. Syst. Biol. 61: 539-542.) to infer the phylogenetic relationships among the aligned sequences. Nodes in the resulting phylogenetic trees with Bayesian posterior probabilities (Bpp) ≥0.96% and bootstrap values (Bs) ≥90% were considered ‘highly’ supported; nodes with Bpp of 0.90-0.95% and Bs of 80-89% were considered ‘moderately’ supported (lower support values were considered not significant) as in Furfaro et al. (2014Furfaro G., Modica M.V., Oliverio O., et al. 2014. Phenotypic diversity of Thuridilla hopei (Vérany, 1853) (Gastropoda Heterobranchia Sacoglossa). A DNA-barcoding approach. Biodiversity J. 5: 117-130., 2016aFurfaro G., Modica M.V., Oliverio M., et al. 2016a. A DNA-barcoding approach to the phenotypic diversity of Mediterranean species of Felimare Ev. Marcus and Er. Marcus, 1967 (Mollusca: Gastropoda), with a preliminary phylogenetic analysis. Ital. J. Zool. 83: 1-13., b)Furfaro G., Oliverio M., Mariottini P. 2016b. The southernmost record of Felimida elegantula (Philippi, 1844) (Gastropoda: Nudibranchia). Mar. Biodiversity. 1-6.. The 16S RNA secondary structures were obtained contrasting several candidate low free-energy folding models calculated using the mfold Web Server [http://unafold.rna.albany.edu/?q=mfold/RNA-Folding-Form (Zuker 2003Zuker M. 2003. Mfold web server for nucleic acid folding and hybridization prediction. Nucleic Acids Res. 31: 3406-3415.)] and 4SALE 1.7 (Seibel et al. 2006Seibel P.N., Müller T., Dandekar T., et al. 2006. 4SALE–a tool for synchronous RNA sequence and secondary structure alignment and editing BMC. Bioinformatics. 7: 11., 2008Seibel P.N., Müller T., Dandekar T., et al. 2008. Synchronous visual analysis and editing of RNA sequence and secondary structure alignments using 4SALE. BMC Research Notes. 1: 91.).
RESULTSTop

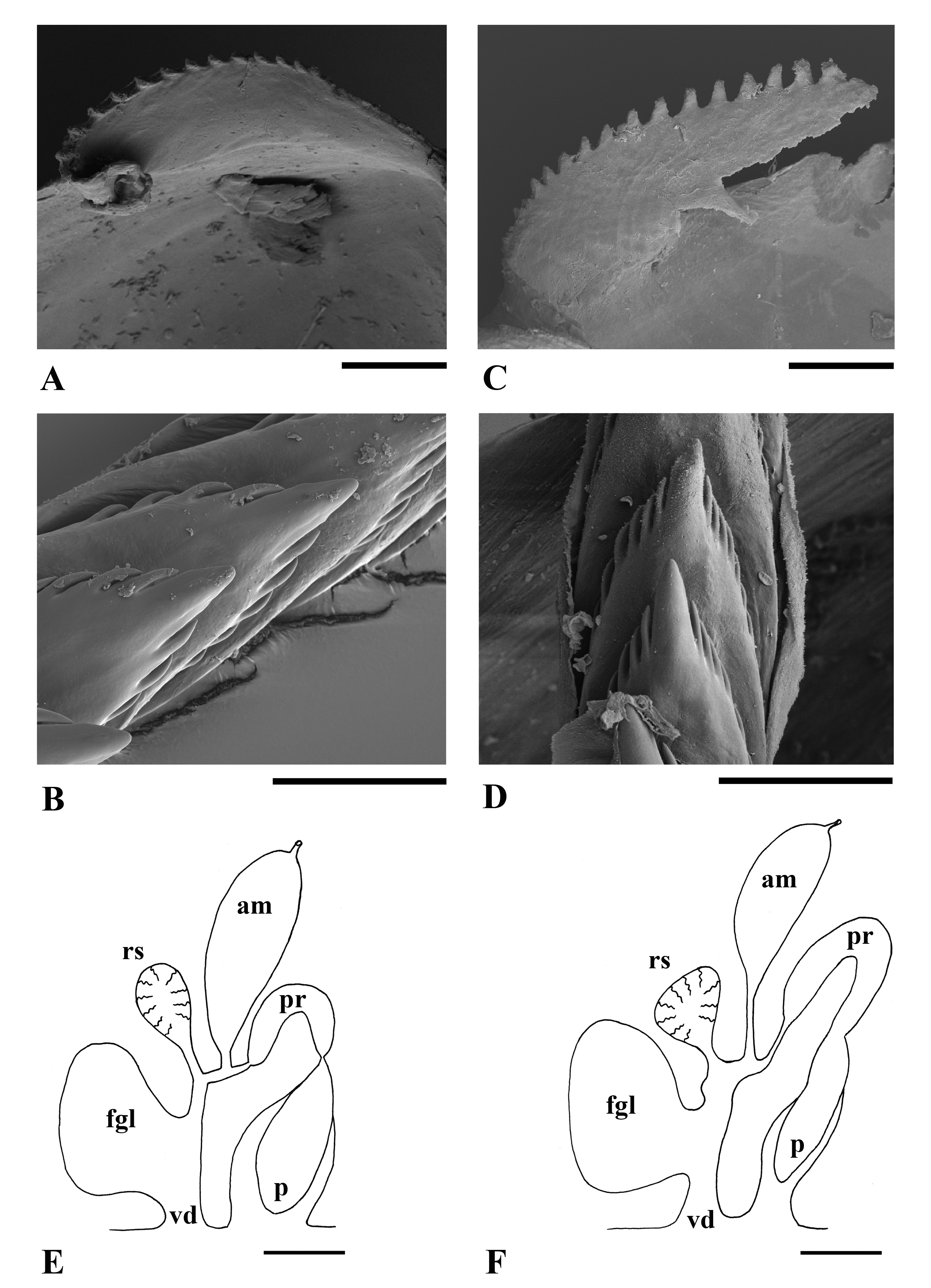

Microscopical observations of the radulae and jaws (Fig. 3A, D) from specimens of C. elegans and F. quatrefagesi revealed no noteworthy differences. All the radulae observed had formula (0.1.0.)×20 and were very similar to each other in the rachidian tooth (Fig. 3B-D) and also in the denticulated jaws (Fig. 3A, C).
The reproductive systems showed differences in the length of the ampulla duct and in the shape of the terminal portions of the prostate. In particular, the ampulla of C. elegans specimens was connected through a duct shorter than that of F. quatrefagesi. Furthermore, the prostatic portion of the C. elegans reproductive system had a constriction before the deferent duct, while it expanded gradually into the vas deferens in F. quatrefagesi (Fig. 3E, F). No other major differences were observed.
Cerata of both species possess an apical portion, right behind the typical black spot, which is contractile and may lead to specimens showing cerata with different lengths. This characteristic is visible in Picton’s drawing (1979) and was also recognized in specimens observed in vivo during this study.

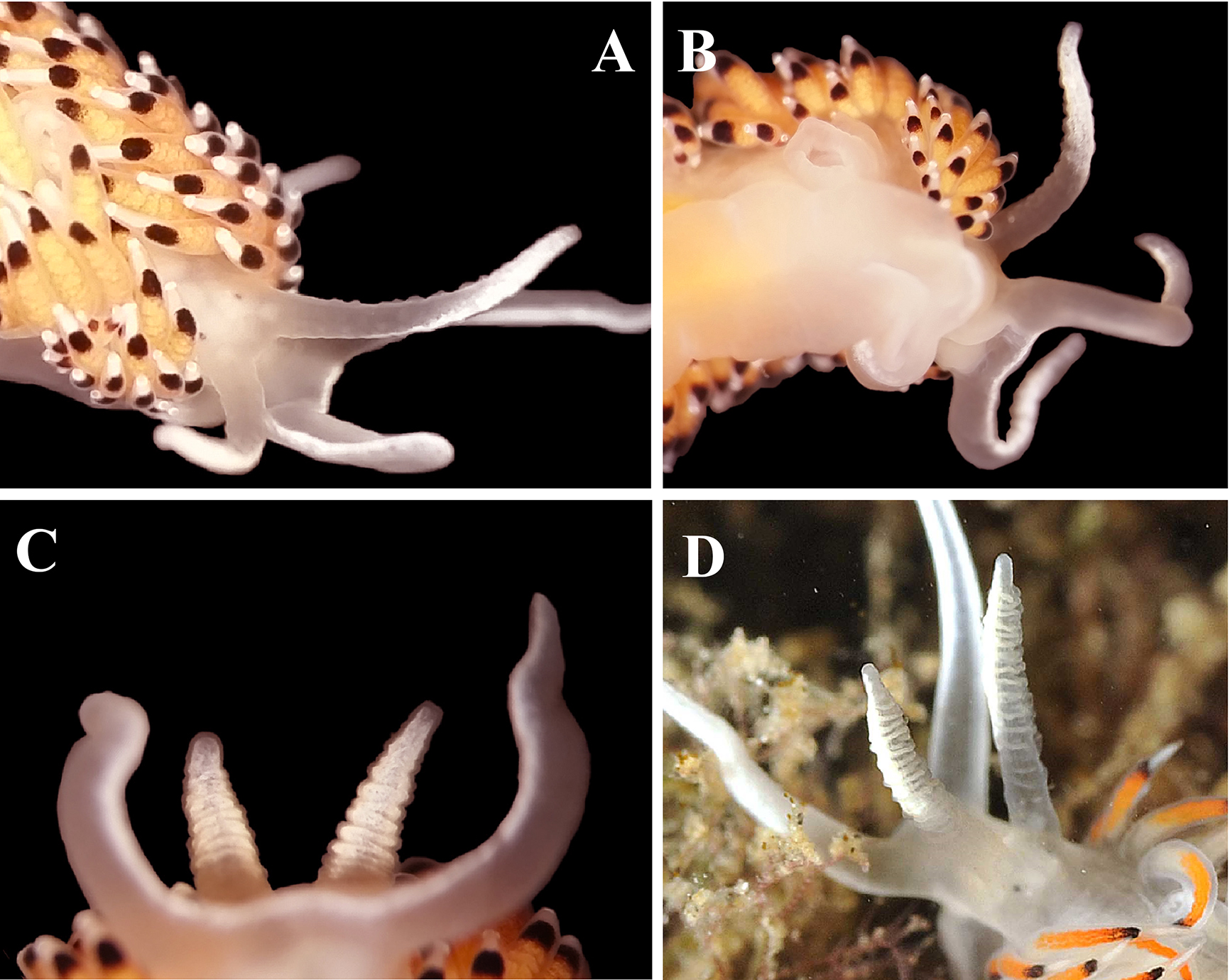

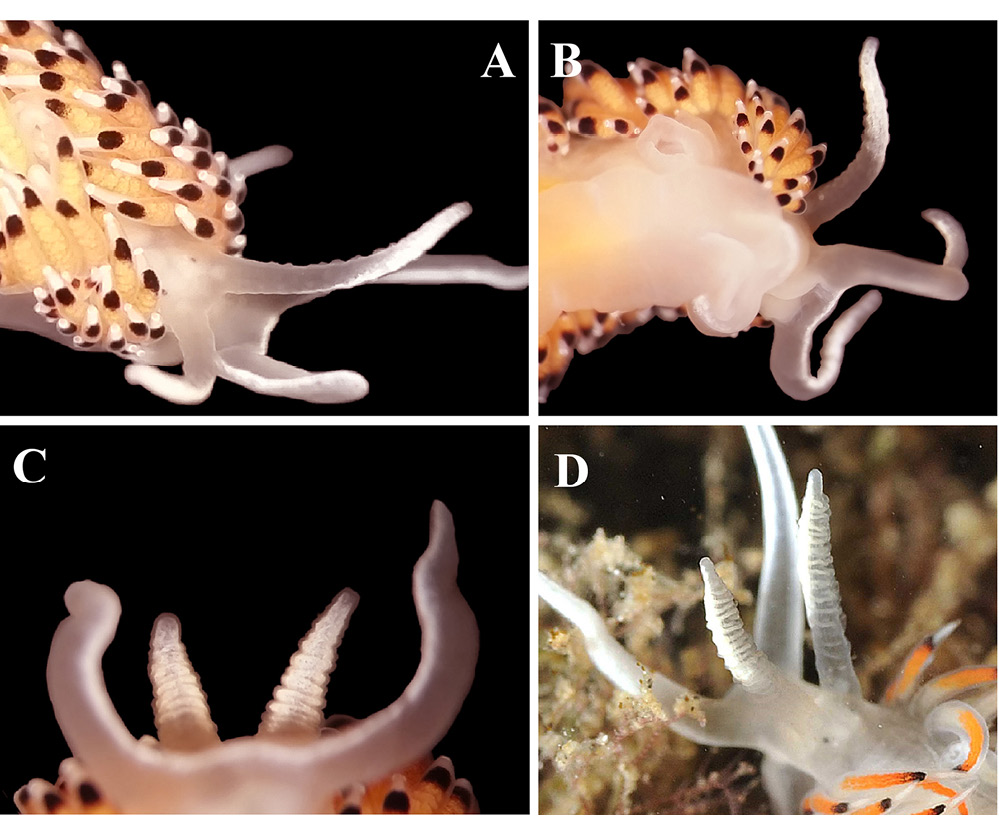

Stereomicroscope observations on the rhinophores of C. elegans specimens revealed that, according to their stretching, they can appear i) smooth when elongated to their maximum length (Fig. 4A); ii) with clearly visible papillae when slightly contracted (compare Fig. 4B with Fig. 1B); or iii) markedly wrinkled when considerably contracted (compare Fig. 4C with Fig. 1B).
Molecular analyses yielded 32 new sequences, which were added to the 34 sequences retrieved from GenBank (Table 1). The complete dataset consisted of 66 sequences (15 for the nuclear H3, 18 for the mitochondrial 16S and 21 for the COI barcode marker) obtained from 22 specimens (including the outgroup). The H3 (=294 bp), 16S (=420 bp) and COI (=588 bp) concatenated alignment consisted of 1302 positions and a total number of 244 variable sites.
The best-fitting substitution models for H3, 16S and COI were K80+I, HKY+G and TPM1uf+I+G, respectively.
All recursive steps (30 with p-distance, 22 with K2P) in the ABGD analyses of the COI alignment resulted in the same sequence repartitions with the two groups, C. elegans and F. quatrefagesi, representing two distinct Preliminary Species Hypothesis (Fig. 5) with 14.5% of COI genetic distance (Table 2).
Caloria elegans | Facelina quatrefagesi | Caloria indica | Caloria sp. | |
---|---|---|---|---|
Caloria elegans | - | |||
Facelina quatrefagesi | 0.145 | - | ||
Caloria indica | 0.197 | 0.201 | - | |
Caloria sp. | 0.197 | 0.192 | 0.221 | - |

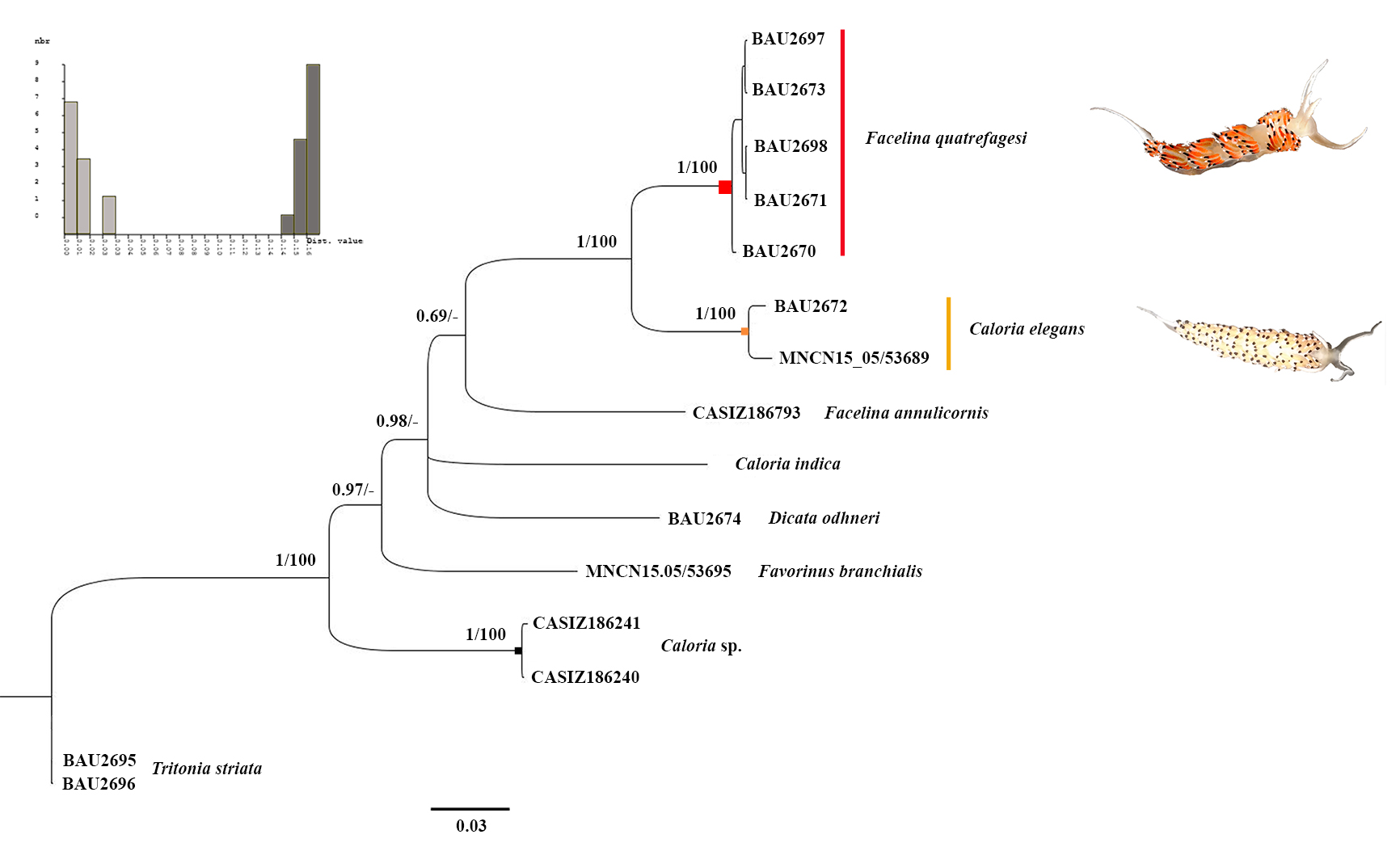

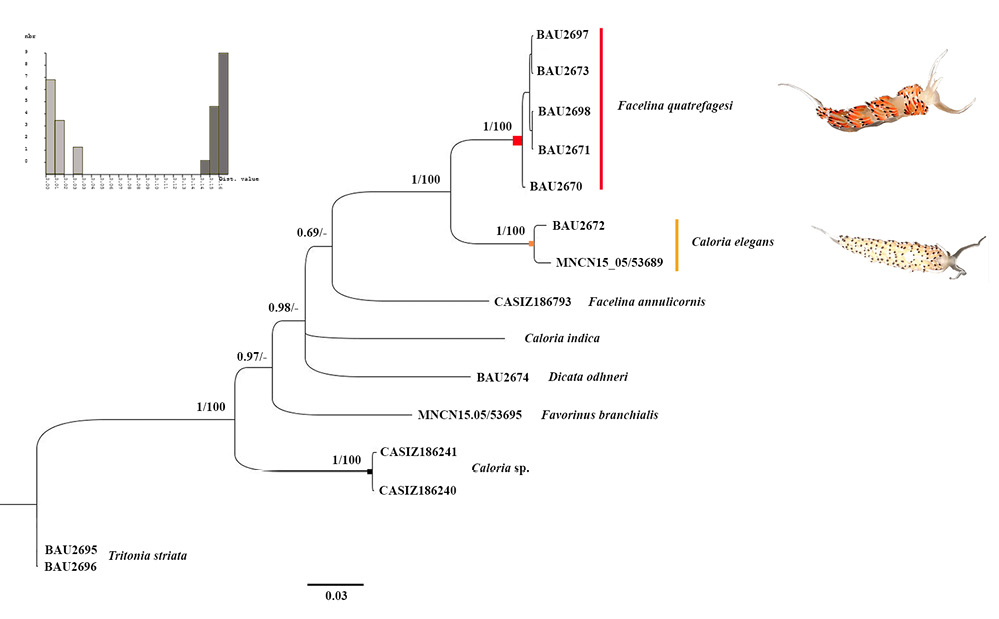

The BI and ML analyses of single genes and partitioned concatenated datasets (H3+16S+COI; Fig. 5) (16S+COI; Supplementary Material Fig. S1) produced largely congruent tree topologies. The molecular analyses of the concatenated nuclear and mitochondrial dataset (Fig. 5) clearly demonstrated the presence of two monophyletic clades, one comprising C. elegans (Bpp=1, Bs=100) and the other F. quatrefagesi (Bpp=1, Bs=100). The sister group relationship of C. elegans and F. quatrefagesi was always highly supported (Bpp=1 ad Bs=100).

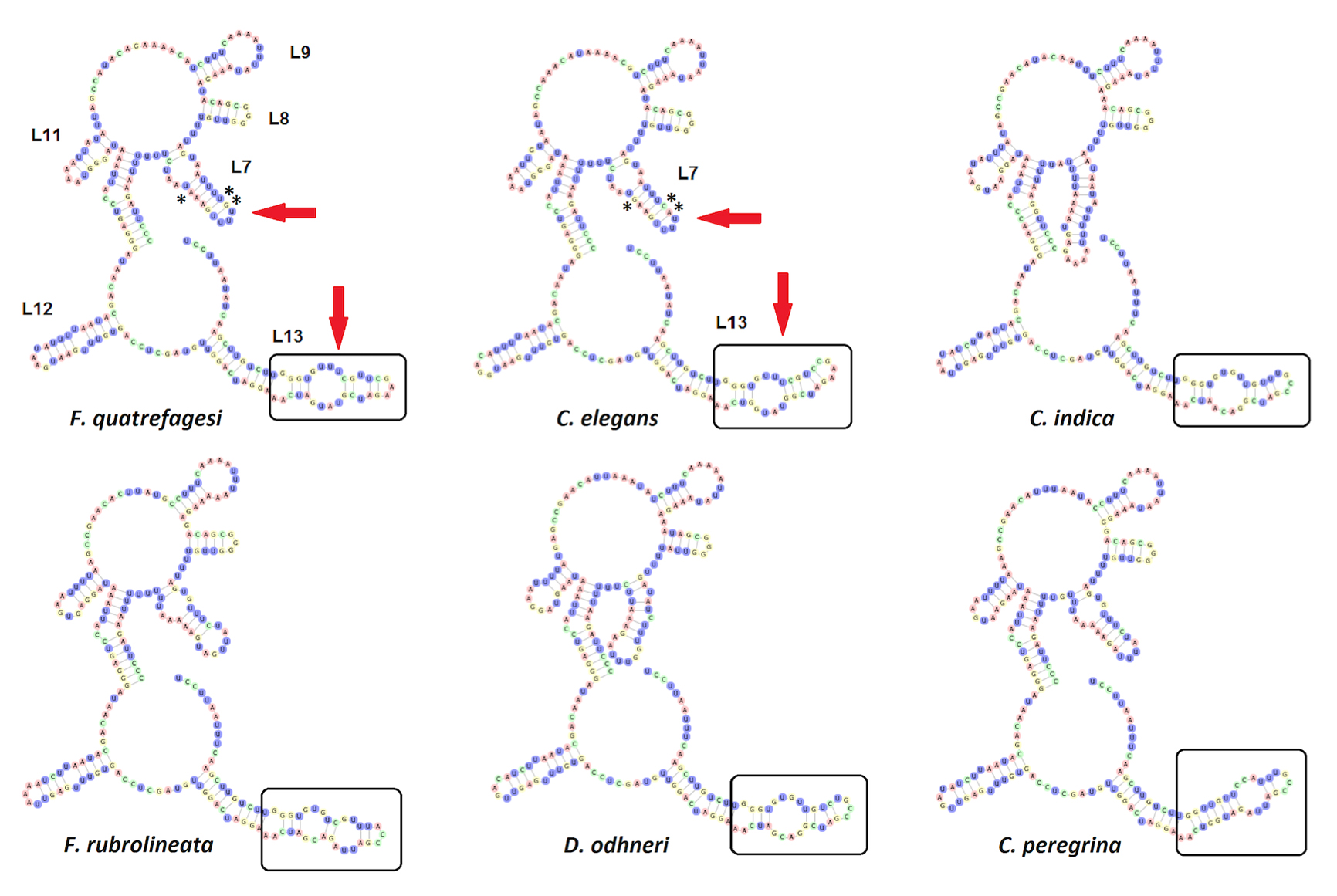

The mitochondrial 16S rRNA primary sequence examined is the 3’ half portion of the gene corresponding to domains IV and V (Gutell and Fox 1988Gutell R.R., Fox G.E. 1988. A compilation of large subunit RNA sequences presented in a structural format. Nucleic Acids Res. 16: 175-313., Gutell et al. 1993Gutell R.R., Gray M.W., Schnare M.N. 1993. Compilation of large subunit (23S and 23S-like) ribosomal RNA structures. Nucleic Acids Res. 21: 3055-3074.). Its derived secondary structure conforms to the canonical architecture also proved in molluscs (Lydeard et al. 2000Lydeard C., Holznagel W.E., Schnare M.N., et al. 2000. Phylogenetic analysis of molluscan mitochondrial LSU rDNA sequences and secondary structures. Mol. Phylogenet. Evol. 15: 83-102., Salvi et al. 2010Salvi D., Bellavia G., Cervelli M., et al. 2010. The analysis of rRNA Sequence-Structure in phylogenetics: an application to the family Pectinidae (Mollusca, Bivalvia). Mol. Phyl. Evol. 56: 1059-1067., 2014Salvi D., Macali A., Mariottini P. 2014. Molecular phylogenetics and systematics of the bivalve family Ostreidae based on rRNA sequence-structure models and multilocus species tree. PLoS ONE 9(9): e108696.). Both domains IV and V show a high conservation in folding when compared among the species of Facelinidae analysed, with the exception of the variable L7 and L13 loops of domain V (Horovitz and Meyer 1995Horovitz I., Meyer A. 1995. Systematics of New World monkeys (Platyrrhini, Primates) based on 16S mitochondrial DNA sequences: a comparative analysis of different weighting methods in cladistic analysis. Mol. Phyl. Evol. 4: 448-456.), which might prove to be diagnostic RNA barcoding regions (Fig. 6). The primary and secondary structures of 16S rRNA were compared between C. elegans and F. quatrefagesi. Three diagnostic nucleotide positions in the L7 stem are labelled by asterisks in Figure 6, and a more evident structural diversity in the apical part of the L13 stem (boxed in Fig. 6) was observed.
DISCUSSIONTop
C. elegans and F. quatrefagesi are two ‘aeolid’ nudibranchs showing a very similar morphology. For this reason, in the past their taxonomic status was the subject of controversy and they were considered as synonyms. The population of F. quatrefagesi in the Marine Protected Area “Tavolara Punta Coda Cavallo” (Trainito and Doneddu 2015Trainito E., Doneddu M. 2015. Contribution to the knowledge of the molluscan fauna in the Marine Protected Area Tavolara-Punta Coda Cavallo: Ordo Nudibranchia. Boll. Malacol. 51: 54-70.) prompted the reinstatement of this taxon based on rhinophore morphology (Trainito and Doneddu 2014Trainito E., Doneddu M. 2014. Nudibranchi del Mediterraneo. Edizione Il Castello, Milano, Italy, 192 pp., 2015Trainito E., Doneddu M. 2015. Contribution to the knowledge of the molluscan fauna in the Marine Protected Area Tavolara-Punta Coda Cavallo: Ordo Nudibranchia. Boll. Malacol. 51: 54-70.). Slight differences in the morphology of rhinophores (shape of papilles) has proven to be useful to separate genera, as in the case of Baeolidia Bergh, 1888 and Limenandra Haefelfinger and Stamm, 1958 (Carmona et al. 2014Carmona L., Pola M., Gosliner T.M., et al. 2014. The end of a long controversy: systematics of the genus Limenandra (Mollusca: Nudibranchia: Aeolidiidae). Helgol. Mar. Res. 68: 37-48.). As outlined in the Introduction section, rhinophores of C. elegans have been described as smooth and papillate, but also as wrinkled. Actually, in C. elegans only, rhinophores can vary from smooth to papillate or wrinkled, according to their degree of contraction. Nevertheless, the shape of rhinophores (i.e. smooth/papillate/wrinkled in C. elegans and lamellated in F. quatrefagesi) holds as the only diagnostic phenotypical character to separate these two taxa, which indeed show very similar chromatic patterns (Trainito and Doneddu 2014Trainito E., Doneddu M. 2014. Nudibranchi del Mediterraneo. Edizione Il Castello, Milano, Italy, 192 pp.).
In the present work, we applied a molecular approach, utilizing three genetic markers, to define species limits and infer a preliminary phylogenetic framework of these facelinids. All the molecular analyses returned the same congruent results with C. elegans and F. quatrefagesi as two different and well-separated species. Furthermore, the 16S RNA L7 and L13 domains proved to be highly diagnostic regions due to the presence of some nucleotide substitutions with a 2D structural diversity in this group of nudibranchs, which should be further investigated as an additional tool for species delimitation analyses.

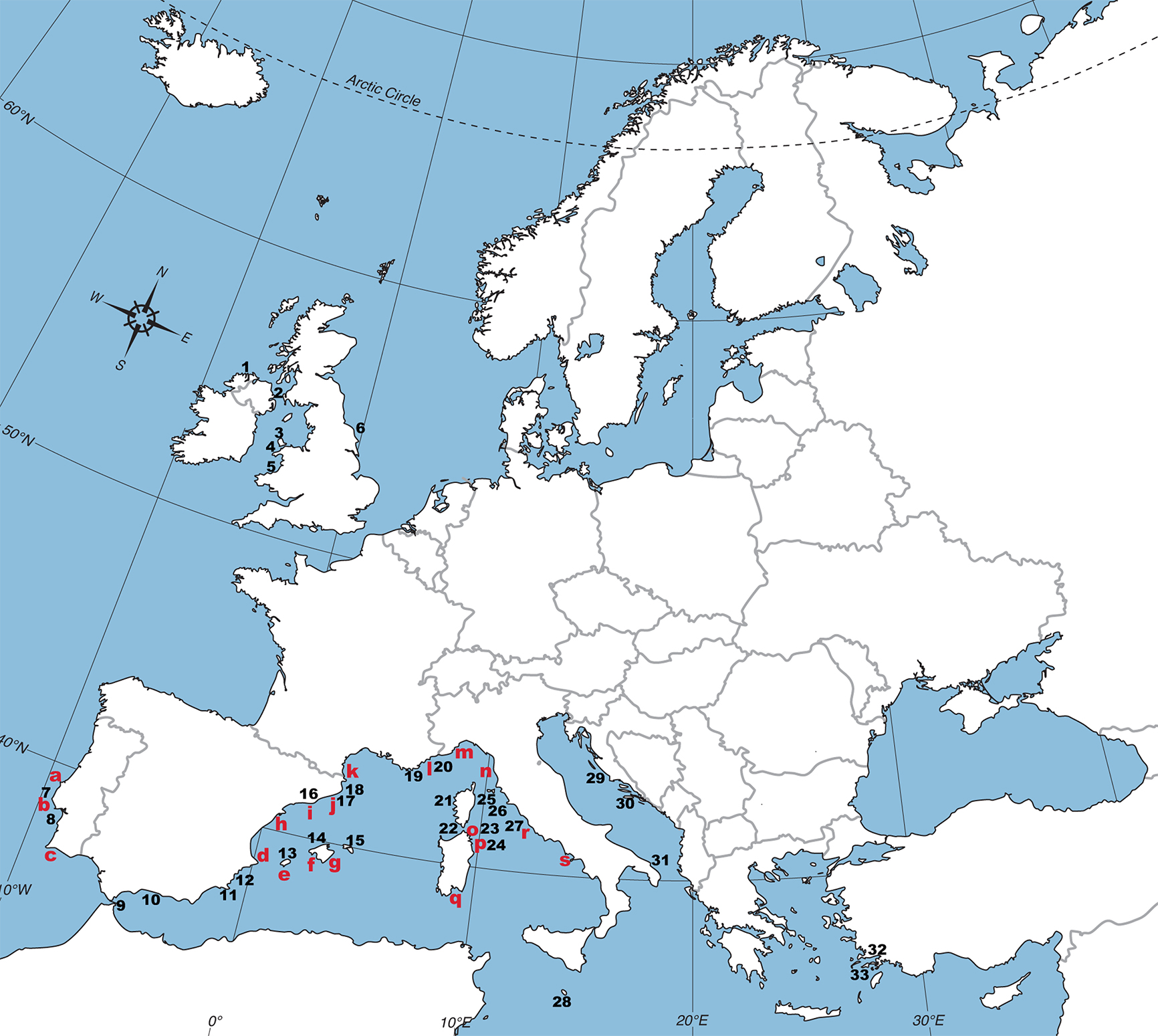

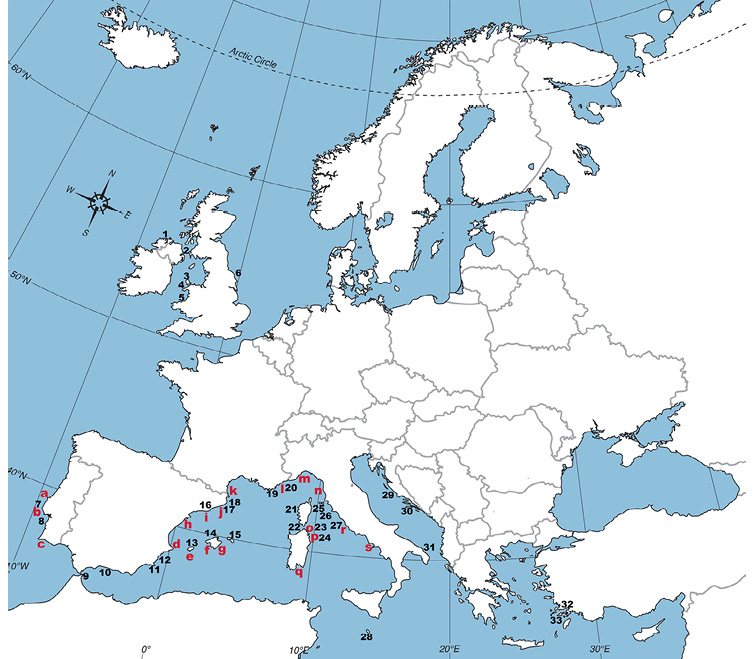

C. elegans and F. quatrefagesi also share a largely overlapping distribution, both inhabiting the whole Mediterranean basin and the neighbouring eastern Atlantic Ocean. However, only C. elegans ranges up to the northeastern Atlantic Ocean (Fig. 7).
The case of these largely sympatric sibling species is a clear example of the power of the integrative taxonomy approach for studying cryptic diversity within marine invertebrates (Gosliner and Fahey 2011Gosliner T.M., Fahey S.J. 2011. Previously undocumented diversity and abundance of cryptic species: a phylogenetic analysis of Indo-Pacific Arminidae Rafinesque, 1814 (Mollusca: Nudibranchia) with descriptions of 20 new species of Dermatobranchus. Zool. J. Linnean Soc. 161: 245-356., Furfaro et al. 2016aFurfaro G., Modica M.V., Oliverio M., et al. 2016a. A DNA-barcoding approach to the phenotypic diversity of Mediterranean species of Felimare Ev. Marcus and Er. Marcus, 1967 (Mollusca: Gastropoda), with a preliminary phylogenetic analysis. Ital. J. Zool. 83: 1-13.), with molecular analyses that helped to frame morphological and anatomical observations.
The very preliminary molecular phylogenetic pattern retrieved in the present study revealed that the genera Facelina and Caloria are not monophyletic. This is an additional indication of the need for a thorough revision of the Facelinidae, with the redefinition of the genera of the family.
ACKNOWLEDGEMENTSTop
The authors gratefully thank Bernard Picton (Holywood, Northern Ireland, UK) for providing underwater pictures and nudibranch material. We are indebted to the Ente Regionale Roma Natura, which manages the Marine Protected Area “Secche di Tor Paterno” and particularly to Cinzia Forniz for collaborative support and permission to collect nudibranch samples. We thank the Marine Protected Area “Tavolara Punta Coda Cavallo” for permission to collect samples. Sincere thanks are due to Andrea Di Giulio and Maurizio Muzzi (Department of Science, University of Roma Tre, Rome) for the SEM photographs carried out at the Interdepartmental Laboratory of Electron Microscopy, University of Roma Tre (Rome, Italy). We thank the people from “Gruppo Malacologico Mediterraneo” (GMM, Rome, Italy) for their collaboration during samplings. Financial funding by the University of Roma Tre to PM and GF is acknowledged.
REFERENCESTop
Alder J., Hancock A. 1845. Notice of a new genus and several new species of nudibranchiate Mollusca. Ann. Mag. Nat. His. 16: 311-316.
http://dx.doi.org/10.1080/037454809496526
Alder J., Hancock A. 1851. A monograph of the British Nudibranchiate Mollusca: with figures of all the species. Ray Society, London. Part V.
Altschul S.F., Gish W., Miller W., et al. 1990. Basic local alignment search tool. J. Mol. Biol. 215: 403-410.
http://dx.doi.org/10.1016/S0022-2836(05)80360-2
Carmona L., Gosliner T.M., Pola M., et al. 2011. A molecular approach to the phylogenetic status of the aeolid genus Babakina Roller, 1973 (Nudibranchia). J. Molluscan Stud. 77: 417-422.
http://dx.doi.org/10.1093/mollus/eyr029
Carmona L., Pola M., Gosliner T.M., et al. 2013. A tale that morphology fails to tell: a molecular phylogeny of Aeolidiidae (Aeolidida, Nudibranchia, Gastropoda). PLoS ONE 8: e63000.
http://dx.doi.org/10.1371/journal.pone.0063000
Carmona L., Pola M., Gosliner T.M., et al. 2014. The end of a long controversy: systematics of the genus Limenandra (Mollusca: Nudibranchia: Aeolidiidae). Helgol. Mar. Res. 68: 37-48.
http://dx.doi.org/10.1007/s10152-013-0367-y
Cattaneo R., Barletta G. 1984. Elenco preliminare dei molluschi opisthobranchi viventi nel Mediterraneo (Sacoglossa, Pleurobranchomorpha, Acochlidiacea, Aplysiomorpha, Nudibranchia). Boll. Malacol. 20: 195-218.
Cattaneo-Vietti R. 1990. Colore e mimetismo negli opistobranchi. Atti Congresso Sorrento 29-31 maggio 1987. Lavori S.I.M., Napoli, 23: 217-228.
Churchill C.K.C., Alejandrino A., Valdes A., et al. 2013. Parallel changes in genital morphology delineate cryptic diversification of planktonic nudibranchs. Proc. Biol. Sci. 280: 20131224.
http://dx.doi.org/10.1098/rspb.2013.1224
Colgan D., Mclauchlan A., Wilson G.D.F., et al. 1998. Histone H3 and U2 snRNA DNA sequences and arthropod molecular evolution. Aust. J. Zool. 46: 419-437.
http://dx.doi.org/10.1071/ZO98048
Faucci A., Toonen R.J., Hadfield M.G. 2007. Host shift and speciation in a coral-feeding nudibranch. Proc. Biol. Sci. 274: 111-119.
http://dx.doi.org/10.1098/rspb.2006.3685
Folmer O., Black M., Hoeh W., et al. 1994. DNA primers for amplification of mitochondrial cytochrome c oxidase subunit I from diverse metazoan invertebrates. Mol. Mar. Biol. Biotech. 3: 294-299.
Furfaro G., Modica M.V., Oliverio O., et al. 2014. Phenotypic diversity of Thuridilla hopei (Vérany, 1853) (Gastropoda Heterobranchia Sacoglossa). A DNA-barcoding approach. Biodiversity J. 5: 117-130.
Furfaro G., Modica M.V., Oliverio M., et al. 2016a. A DNA-barcoding approach to the phenotypic diversity of Mediterranean species of Felimare Ev. Marcus and Er. Marcus, 1967 (Mollusca: Gastropoda), with a preliminary phylogenetic analysis. Ital. J. Zool. 83: 1-13.
http://dx.doi.org/10.1080/11250003.2016.1150525
Furfaro G., Oliverio M., Mariottini P. 2016b. The southernmost record of Felimida elegantula (Philippi, 1844) (Gastropoda: Nudibranchia). Mar. Biodiversity. 1-6.
Gofas S. 2015. Caloria maculata Trinchese, 1888. In: MolluscaBase (2015). Accessed through: World Register of Marine Species at
http://www.marinespecies.org/aphia.php?p=taxdetails&id=747956 on 2016-04-06.
Gosliner T.M., Fahey S.J. 2011. Previously undocumented diversity and abundance of cryptic species: a phylogenetic analysis of Indo-Pacific Arminidae Rafinesque, 1814 (Mollusca: Nudibranchia) with descriptions of 20 new species of Dermatobranchus. Zool. J. Linnean Soc. 161: 245-356.
http://dx.doi.org/10.1111/j.1096-3642.2010.00649.x
Gutell R.R., Fox G.E. 1988. A compilation of large subunit RNA sequences presented in a structural format. Nucleic Acids Res. 16: 175-313.
http://dx.doi.org/10.1093/nar/16.suppl.r175
Gutell R.R., Gray M.W., Schnare M.N. 1993. Compilation of large subunit (23S and 23S-like) ribosomal RNA structures. Nucleic Acids Res. 21: 3055-3074.
http://dx.doi.org/10.1093/nar/21.13.3055
Horovitz I., Meyer A. 1995. Systematics of New World monkeys (Platyrrhini, Primates) based on 16S mitochondrial DNA sequences: a comparative analysis of different weighting methods in cladistic analysis. Mol. Phyl. Evol. 4: 448-456.
http://dx.doi.org/10.1006/mpev.1995.1041
Librado P., Rozas J. 2009. Dna SP V 5: A software for comprehensive analysis of DNA polymorphism data. Bioinf. 25: 1451-1452.
http://dx.doi.org/10.1093/bioinformatics/btp187
Lydeard C., Holznagel W.E., Schnare M.N., et al. 2000. Phylogenetic analysis of molluscan mitochondrial LSU rDNA sequences and secondary structures. Mol. Phylogenet. Evol. 15: 83-102.
http://dx.doi.org/10.1006/mpev.1999.0719
Miller M.A., Pfeiffer W., Schwartz T. 2010. Creating the CIPRES Science Gateway for inference of large phylogenetic trees. In: Proceedings of the Gateway Computing Environments Workshop (GCE), New Orleans, LA pp 1-8.
http://dx.doi.org/10.1109/GCE.2010.5676129
Modica M.V., Puillandre N., Castelin M., et al. 2014. A good compromise: rapid and robust species proxies for inventorying biodiversity hotspots using the Terebridae (Gastropoda: Conoidea). PLoS ONE 9: e102160.
http://dx.doi.org/10.1371/journal.pone.0102160
Oliverio M., Mariottini P. 2001. A molecular framework for the phylogeny of Coralliophila and related muricoids. J. Molluscan Stud. 67: 215-224.
http://dx.doi.org/10.1093/mollus/67.2.215
Padula V., Bahia J., Stöger I., et al. 2016. A test of color-based taxonomy in nudibranchs: Molecular phylogeny and species delimitation of the Felimida clenchi (Mollusca: Chromodorididae) species complex. Mol. Phyl. Evol. 103: 215-229.
http://dx.doi.org/10.1016/j.ympev.2016.07.019
Palumbi S.R., Martin A., Romano S., et al. 1991. The simple fool’s guide to PCR. Department of Zoology, University of Hawaii, Honolulu.
Picton B.E. 1979. Caloria elegans (Alder and Hancock) comb. nov. Gastropoda, Opisthobranchia, an interesting rediscovery from S. W. England. J. Molluscan Stud. 45: 125-130.
Pola M., Gosliner T.M. 2010. The first molecular phylogeny of cladobranchian opisthobranchs (Mollusca, Gastropoda, Nudibranchia). Mol. Phylogenet. Evol. 56: 931-941.
http://dx.doi.org/10.1016/j.ympev.2010.05.003
Posada D. 2008. jModelTest: Phylogenetic Model Averaging. Mol. Biol. Evol. 25: 1253-1256.
http://dx.doi.org/10.1093/molbev/msn083
Prkić J., Furfaro G., Mariottini P., et al. 2014. First record of Calma gobioophaga Calado and Urgorri, 2002 (Gastropoda: Nudibranchia) in the Mediterranean Sea. Med. Mar. Sci. 15: 423-428.
http://dx.doi.org/10.12681/mms.709
Pruvot-Fol A. 1951. Etude des Nudibranches de la Mediterranée. Archives de zoologie expérimentale et générale LXXXVIII (I), p. 1-79, pi. I-IV, fig. 1-42.
Puillandre N., Lambert A., Brouillet S., et al. 2012a. ABGD, Automatic Barcode Gap Discovery for primary species delimitation. Mol. Ecol. 21: 1864-1877.
http://dx.doi.org/10.1111/j.1365-294X.2011.05239.x
Puillandre N., Modica M.V., Zhang Y., et al. 2012b. Large-scale species delimitation method for hyperdiverse groups. Mol. Ecol. 21: 2671-2691.
http://dx.doi.org/10.1111/j.1365-294X.2012.05559.x
Ronquist F., Teslenko M., Van der Mark P., et al. 2011. MrBayes 3.2: Efficient Bayesian phylogenetic inference and model choice across a large model space. Syst. Biol. 61: 539-542.
http://dx.doi.org/10.1093/sysbio/sys029
Sabelli B., Giannuzzi-Savelli R., Bedulli D. 1990. Catalogo annotato dei molluschi marini del Mediterraneo. Vol. 1. Edizioni Libreria Naturalistica Bolognese.
Salvi D., Bellavia G., Cervelli M., et al. 2010. The analysis of rRNA Sequence-Structure in phylogenetics: an application to the family Pectinidae (Mollusca, Bivalvia). Mol. Phyl. Evol. 56: 1059-1067.
http://dx.doi.org/10.1016/j.ympev.2010.04.025
Salvi D., Macali A., Mariottini P. 2014. Molecular phylogenetics and systematics of the bivalve family Ostreidae based on rRNA sequence-structure models and multilocus species tree. PLoS ONE 9(9): e108696.
http://dx.doi.org/10.1371/journal.pone.0108696
Sartori A.F., Gofas S. 2014. Caloria Trinchese, 1888. In: MolluscaBase (2016). Accessed through: World Register of Marine Species at
http://www.marinespecies.org/aphia.php?p=taxdetails&id=137996 on 2016-05-05.
Seibel P.N., Müller T., Dandekar T., et al. 2006. 4SALE–a tool for synchronous RNA sequence and secondary structure alignment and editing BMC. Bioinformatics. 7: 11.
http://dx.doi.org/10.1186/1471-2105-7-498
Seibel P.N., Müller T., Dandekar T., et al. 2008. Synchronous visual analysis and editing of RNA sequence and secondary structure alignments using 4SALE. BMC Research Notes. 1: 91.
http://dx.doi.org/10.1186/1756-0500-1-91
Schmekel L., Portmann A. 1982. Opisthobranchia des Mittelmeeres. Monografia 40 della Stazione Zoologica di Napoli. Springer-Verlag, Berlin, 410 pp.
Staden R., Beal K.F., Bonfield J.K. 2000. The Staden package, 1998. Methods Mol. Biol. 132: 115-130.
Stamatakis A. 2014. RAxML Version 8: A tool for Phylogenetic Analysis and Post-Analysis of Large Phylogenies. Bioinformatics
http://dx.doi.org/10.1093/bioinformatics/
Tamura K., Stecher G., Peterson D., et al. 2013. MEGA6: Molecular Evolutionary Genetics Analysis Version 6.0. Mol. Biol. Evol. 30: 2725-2729.
http://dx.doi.org/10.1093/molbev/mst197
Thompson T.E. 1988. Molluscs: benthic opisthobranchs (Mollusca: Gastropoda). Synopses of the British fauna (new series) no. 8, 2nd edition, 322-323. Linnean Society of London.
Trainito E., Doneddu M. 2014. Nudibranchi del Mediterraneo. Edizione Il Castello, Milano, Italy, 192 pp.
Trainito E., Doneddu M. 2015. Contribution to the knowledge of the molluscan fauna in the Marine Protected Area Tavolara-Punta Coda Cavallo: Ordo Nudibranchia. Boll. Malacol. 51: 54-70.
Trinchese S. 1888. Descrizione del nuovo genere Caloria. Mem. Reale Accademia Sci. Istituto di Bologna 9: 291-295.
Vayssière, A.J.B.M. 1888. Recherches zoologiques et anatomiques sur les mollusques Opisthobranches du Golfe de Marseille. Deuximem Partie, Nudibranches (Cirrobranches) et Ascoglosses. Annales du Musee d'Histoire Naturelle de Marseille 3 Mem. 4:1-160, pls. 1-17 (? 1-8).
Zuker M. 2003. Mfold web server for nucleic acid folding and hybridization prediction. Nucleic Acids Res. 31: 3406-3415.
http://dx.doi.org/10.1093/nar/gkg595
SUPPLEMENTARY MATERIAL
The following material is available through the online version of this article and at the following link:
http://scimar.icm.csic.es/scimar/supplm/sm04479esm.pdf
Table S1. – Distribution of C. elegans and F. quatrefagesi with the map site code.
Fig. S1. – Phylogenetic relationships among facelinid species based on the Bayesian analysis of partitioned (16S+COI) mitochondrial dataset. Numbers at nodes are Bayesian posterior probability and ML bootstrap support, respectively.
Fig. S2. – Phylogenetic relationships among facelinid species based on the Bayesian analysis of single nuclear gene dataset (H3). Numbers at nodes are Bayesian posterior probability and ML bootstrap support, respectively.
