INTRODUCTIONTop

Planktonic diatoms vary in diameter by over three orders of magnitude, from Ethmodiscus cells that can be over 2 mm in diameter (Round et al. 1990Round F.E., Crawford R.M., Mann D.G. 1990. The Diatoms. Cambridge Univ. Press, Cambridge, 747 pp.) down to species with cells that have diameters of 2 μm (e.g. Vaulot et al. 2008Vaulot D., Eikrem W., Viprey M., et al. 2008. The diversity of small eukaryotic phytoplankton (≤3μm) in marine ecosystems. FEMS Microbiol. Rev. 32: 795-820.). Size is important in planktonic environments for a variety of reasons, including trade-offs in terms of nutrient uptake, light interception, growth rate, grazing, and suspension (e.g. Geider et al. 1986Geider R.J., Platt T., Raven J.A. 1986. Size dependence of growth and photosynthesis in diatoms: a synthesis. Mar. Ecol. Progr. Ser. 30: 93-104., Vaulot et al. 2008Vaulot D., Eikrem W., Viprey M., et al. 2008. The diversity of small eukaryotic phytoplankton (≤3μm) in marine ecosystems. FEMS Microbiol. Rev. 32: 795-820., Winder et al. 2009Winder M., Reuter J.E., Schladow S.G. 2009. Lake warming favors small-sized planktonic diatom species. Proc. R. Soc. London, Ser. B, 276: 427-435., Litchman et al. 2009Litchman E., Klausmeier C.A., Yoshiyama K. 2009. Contrasting size evolution in marine and freshwater diatoms. PNAS. 106: 2665-2670., Barton et al. 2013Barton A.D., Finkel Z.V., Ward B.A., et al. 2013. On the roles of cell size and trophic strategy in North Atlantic diatom and dinoflagellate communities. Limnol. Oceanogr. 58: 254-266., Reavie and Barbiero 2013Reavie E.D., Barbiero R.P. 2013. Recent changes in abundance and cell size of pelagic diatoms in the North American Great Lakes. Phytotaxa 127: 150-162., Clark et al. 2013Clark J.R., Lenton T.M., Williams H.T.P., et al. 2013. Environmental selection and resource allocation determine spatial patterns in picophytoplankton cell size. Limnol. Oceanogr. 58: 1008-1022., Narkov et al. 2014Narkov T., Theriot E.C., Alverson A.J. 2014. Using phylogeny to model cell size evolution in marine and freshwater diatoms. Limnol. Oceanogr. 59: 79-86., Jewson et al. 2015Jewson D.H., Granin N.G., Gnatovsky R.Y., et al. 2015. Coexistence of two diatom Cyclotella species in the plankton of Lake Baikal. Freshwat. Biol. 60: 2113-2126). However, for most diatoms, an additional factor is that cell diameters in a population usually decrease with time. This was first observed by Macdonald (1869)Macdonald J.D. 1869. On the structure of the diatomaceous frustule, and its genetic cycle. Ann. Mag. Nat. Hist. 4: 1–8. and Pfitzer (1869)Pfitzer E. 1869. Über den Bau und die Zellteilung der Diatomeen. Bot. Zeitung 27: 774-776. and was thought to be an inevitable consequence of their having a rigid silica cell wall structure. However, we now know that this decline can be avoided (see Chepurnov et al. 2004Chepurnov V.A., Mann D.G., Sabbe K., et al. 2004. Experimental studies on sexual reproduction in diatoms. Int. Rev. Cytol. 237: 91-154.), but that it is retained in most species as an elegant solution to timing the length of their life cycles (Lewis 1983Lewis W.M. 1983. Interruption of synthesis as a cost of sex in small organisms. Am. Nat. 121: 825-833., 1984Lewis W.M. 1984. The diatom sex clock and its evolutionary importance. Am. Nat. 123: 73-80., Jewson 1992aJewson D.H. 1992a. Size reduction, reproductive strategy and the life cycle of a centric diatom. Phil. Trans. R. Soc. Lond. B, 336: 191-213., bJewson D.H. 1992b. Life cycle of a Stephanodiscus sp. (Bacillariophyta). J. Phycol. 28: 856-866., D’Alelio et al. 2010D’Alelio D., d’Alcala M.R., Dubroca L., et al. 2010. The time for sex: A biennial life cycle in a marine planktonic diatom. Limnol. Oceanogr. 55: 106-114., Mann 2011Mann D.G. 2011. Size and sex. In: Seckbach J., Kociolek J.P. (eds), Cellular Origin, Life in Extreme Habitats and Astrobiology. Springer, pp. 145-165., Jewson and Granin 2015Jewson D.H., Granin N.G. 2015. Cyclical size change and population dynamics of a planktonic diatom, Aulacoseira baicalensis, in Lake Baikal. Eur J. Phycol. 50: 1-19.). What we do not know is whether the cycle of size decline and subsequent size restoration still operates in a similar way in species at the lower size limit, when cell volume approaches the theoretical minimum for eukaryote cells of just under one micron in diameter (e.g. Raven 1998Raven J.A. 1998. The twelfth Tansley Lecture. Small is beautiful: the picophytoplankton. Functional Ecol. 12: 503-513.).

Minidiscus comicus Takano, order Thalassiosirales, is one of the smallest marine diatom species. It is widespread along the Pacific and Atlantic coasts, as well as in the Adriatic and Mediterranean Seas (Takano 1981Takano H. 1981. New and rare diatoms from Japanese marine waters. VI. Three new species in Thalassiosiraceae. Bull. Tokai Reg. Fish. Res. Lab. 105: 31-41., Lange 1985Lange K.B. 1985. Spatial and seasonal variations of diatom assemblages off the Argentinian coast (south-western Atlantic). Oceanol. Acta 8: 361-369., Hasle and Syvertsen 1997Hasle G.R., Syvertsen E.E. 1997. Marine diatoms. In: Tomas C.R. (ed) Identifying marine phytoplankton. Academic Press, San Diego. pp. 5-385., Tomas 1997Tomas C.R. 1997. Identifying Marine Phytoplankton. San Diego, Academic Press., Bérard-Therriault et al. 1999Bérard-Therriault L., Poulin M., Bosse L. 1999. Guide d’identification du phytoplankton marin de l’estuaire et du Golfe du Saint Laurent incluant également certains protozoaires. Publ. Spéc. Can. Sci. Halieut. Aquat. 128: 1-387, Shevchenko and Orlova 2002Shevchenko O.G., Orlova T.Y. 2002. New data on morphology and distribution of Minidiscus comicus (Bacillariophyta). Bot. Zhurnal (St-Petersb.) 87: 17-119 (in Russian)., Kaczmarska et al. 2009Kaczmarska I., Lovejoy C., Potvin M., et al. 2009. Morphological and molecular characteristics of selected species of Minidiscus (Bacillariophyta, Thalassiosiraceae). Eur. J. Phycol. 44: 461-475., Percopo et al. 2011Percopo I., Siano R., Cerino F., et al. 2011. Phytoplankton diversity during the spring bloom in the northwestern Mediterranean Sea. Bot. Mar. 54: 243-267., Lee et al. 2012Lee S.D., Park J.S., Lee J.H. 2012. New Record of Diatom Species in Korean Coastal Waters. Korean J. Environ. Biol. 30: 245-271.). Miniduscus comicus belongs to a small marine genus of seven species (Aké-Castillo et al. 2001Aké-Castillo J.A., Hernández-Becerril D.U., Meave del Castillo M.E., et al. 2001. Species of Minidiscus (Bacillariophyceae) in the Mexican Pacific Ocean. Cryptogam. Algol. 22: 101-107., Kang et al. 2003Kang J.S., Kang S.H., Kim D., et al. 2003. Planktonic centric diatom Minidiscus chilensis dominated sediment trap material in eastern Bransfield Strait, Antarctica. Mar. Ecol. Prog. Ser. 255: 93-99., Quiroga and Chrétiennot-Dinet 2004Quiroga I., Chrétiennot-Dinet M.J. 2004. A new species of Minidiscus (Diatomophyceae, Thalassiosiraceae) from the eastern English Channel, France. Bot. Mar. 47: 341-348., Kaczmarska et al. 2009Kaczmarska I., Lovejoy C., Potvin M., et al. 2009. Morphological and molecular characteristics of selected species of Minidiscus (Bacillariophyta, Thalassiosiraceae). Eur. J. Phycol. 44: 461-475.). The first report of M. comicus was in large aggregated flocks in Tokyo Harbour (Takano 1981Takano H. 1981. New and rare diatoms from Japanese marine waters. VI. Three new species in Thalassiosiraceae. Bull. Tokai Reg. Fish. Res. Lab. 105: 31-41.), but since then it has usually been found as solitary cells or in short chains of 2 to 3 cells (Kaczmarska et al. 2009Kaczmarska I., Lovejoy C., Potvin M., et al. 2009. Morphological and molecular characteristics of selected species of Minidiscus (Bacillariophyta, Thalassiosiraceae). Eur. J. Phycol. 44: 461-475.). Kaczmarska et al. (2009)Kaczmarska I., Lovejoy C., Potvin M., et al. 2009. Morphological and molecular characteristics of selected species of Minidiscus (Bacillariophyta, Thalassiosiraceae). Eur. J. Phycol. 44: 461-475. reported cells of M. comicus with diameters of 2.1 to 3.2 μm and Percopo et al. (2011)Percopo I., Siano R., Cerino F., et al. 2011. Phytoplankton diversity during the spring bloom in the northwestern Mediterranean Sea. Bot. Mar. 54: 243-267. found cells of 2.7 to 4.3 μm, but Quiroga and Chrétiennot-Dinet (2004)Quiroga I., Chrétiennot-Dinet M.J. 2004. A new species of Minidiscus (Diatomophyceae, Thalassiosiraceae) from the eastern English Channel, France. Bot. Mar. 47: 341-348. found broader diameter ranges of 1.9 to 7.0 μm and Takano (1981)Takano H. 1981. New and rare diatoms from Japanese marine waters. VI. Three new species in Thalassiosiraceae. Bull. Tokai Reg. Fish. Res. Lab. 105: 31-41. 2.0 to 7.0 μm. In this study, we used samples of M. comicus collected from the western Mediterranean (see Estrada et al. 2014Estrada M., Latasa M., Emelianov M., et al. 2014. Seasonal and mesoscale variability of primary production in the deep winter-mixing region of the NW Mediterranean. Deep-Sea Res. I. 94: 45-61.), to investigate how a change from discoid to spherical cell shape in small cells can help offset loss of volume when diameter decreases as part of the life cycle.

MATERIALS AND METHODSTop

Detailed site and sampling information are reported in Estrada et al. (2014)Estrada M., Latasa M., Emelianov M., et al. 2014. Seasonal and mesoscale variability of primary production in the deep winter-mixing region of the NW Mediterranean. Deep-Sea Res. I. 94: 45-61., so only a brief summary is given here. The samples were collected during three cruises of the FAMOSO project carried out in mid-March, late April-May and September 2009, on board the R.V. Sarmiento de Gamboa in the central zone of the NW Mediterranean. The region was delimited approximately by coordinates 41°30’ to 42°N and 4° to 5°E. Water samples were obtained with 12-L Niskin bottles mounted on a rosette. The samples in this study were collected from 20 m depth on 21 March 2009, from 25 m on 22 March 2009, from 80 m on 11 May 2009, and from 80 m on 19 September 2009. For each sample, either 150 or 250 mL of water was filtered onto 0.8- or 2-μm polycarbonate Nucleopore filters. These were stored dry in Petri dishes, which were kept in the dark and under partial vacuum. The filters were attached to stubs using a colloidal silver gel and then sputter coated (Polaron SC-500) with a gold-palladium layer less than 10 nm thick. The scanning electron microscope (SEM) was a Hitachi S-3500N operated at 5 Kv. Cells were orientated and photographed in both girdle and mantle views to enable measurements of cell shape. All estimates of cell volume were based on non-dividing cells. In the largest cells, with diameters above 5 μm, their shape approximated to a cylinder, with the girdle band region having a height of 0.8 μm. In cells with smaller diameters (below 4 μm), the valves of non-dividing cells abutted (see below), so no allowance was needed for the girdle region. Most small cells below 3 μm approximated to the shape of a sphere and their cell volume was then estimated using the standard formula. However, for cells with valves that were domed but not completely hemispherical, their volume was calculated using the formula for a ‘spherical cap’ of a sphere, V=0.33h²(3r-h), where h is the height of the domed valve and r is the radius of the sphere that would be formed if the curvature of the valve was extended to form a full sphere. This could be estimated from the SEM photographs, because the curvature of the doming was consistent in all but a few cells, enabling simple geometry to reconstruct the appropriate circle size for each individual valve in a cell.

Site details

On 21-22 March 2009, the water column was well mixed, with temperatures of 13.1°C to 13.2°C in the upper 200 m. On 11 May 2009, the water column consisted of a shallow mixed layer (12 m) and a gradient of increasing density down to about 100 m; water temperature was 16.0°C at the surface and 13.1°C at 80 m depth. In September 2009, the water column was strongly stratified, with a marked pycnocline at about 50 m depth and temperatures of 22.7°C at the surface and 13.3°C at 80 m depth.

The March sampling took place during a well-developed winter-spring phytoplankton bloom, which is a typical feature of the study region. On 21 and 22 March 2009, chlorophyll a (Chl a) concentrations in the upper 25 m ranged between 2.4 and 2.5 mg m^–3. The larger (nano and micro size classes) phytoplankton was dominated by dinoflagellates and prymnesiophytes, including both healthy and senescent colonies of Phaeocystis sp. and coccolithophores (Emiliana huxleyi, Calcidiscus leptoporus, Helicosphaera carteri, among others), but later, in waters with higher salinities and Chl a concentrations, diatoms such as Chaetoceros and Pseudo-nitzschia were more prevalent, in addition to Lauderia annulata and Dytilum brightwellii (Estrada et al. 2014Estrada M., Latasa M., Emelianov M., et al. 2014. Seasonal and mesoscale variability of primary production in the deep winter-mixing region of the NW Mediterranean. Deep-Sea Res. I. 94: 45-61.). By 11 May, Chl a had decreased to 0.6 mg m^–3 at the surface and 0.15 mg m^–3 at 80 m depth. Diatoms were scarce and dinoflagellates and Phaeocystis sp. dominated. On 19 September 2009 there was a marked Chl a maximum of 0.68 mg m^–3 at 60 m depth, but a decrease to 0.24 mg m^–3 at 80 m depth. The most abundant phytoplankton groups were dinoflagellates and diatoms (especially small Chaetoceros species). The picoplankton in March was dominated by Synechococcus and picoeukaryotes (Mouriño-Carballido et al. 2016Mouriño-Carballido B., Hojas E., Cermeño P., et al. 2016. Nutrient supply controls picoplankton community structure during three contrasting seasons in the northwestern Mediterranean Sea. Mar. Ecol. Progr. Ser. 543: 1-19.). Prochlorococcus was not found in May, but was present in March and September, where it was more abundant than Synechococcus below 25 m. Parmales sp. of similar size to Minidiscus were also recorded, especially in March and September.

RESULTSTop

Morphology

Minidiscus comicus cell diameters varied in size from 1.9 to 6.0 μm (Figs 1-4). In the larger diameter cells of 5 μm or above, the mantle face was flat or slightly domed (Fig. 2B, D), but as cell diameters declined, doming of the valve face became more pronounced (Fig. 3), until the smallest cells (with diameters of 2-3 μm) became spherical (Fig. 4B, C) or even oblong (Fig. 4A, D).

In the cell wall of fully silicified valves, the external foramina of the loculate and/or pseudoloculate areolae became small (Fig. 1A). These valves retained their shape during preservation and observation on the SEM. However, on 11 May 2009, many valves (over 50%) just had the basal layer and/or the partially formed hexagonal sidewalls of the areolae. When dried out for SEM study, the valve faces of these cells often became concave, showing the flexibility of the cell wall at this stage (Fig. 1D).

Most valves had relatively large external processes, consisting of a central rimoportula surrounded by three fultoportulae (Figs 1A, C, 2D, 3A, C). However, some of the broadest cells had four fultoportulae (Fig. 2C) and the smallest cells only two (Fig. 1B). The outer, fluted exterior tube-structure of the fultoportula was very well developed, rising to over 0.5 μm in height above the mantle. The final shape was apparent before the main silicification of the cell wall (Fig. 2A). To accommodate their formation and the doming of valves during cell division, daughter valves separated by up to 5 μm while still surrounded by copulae. The central rimoportula could reach up to 2.4 μm in height in wide-diameter cells (Figs 2B, D, 3B, D). The copulae that protect the dividing cells were characteristically very thin and collapsed around the valves during preservation and preparation of the samples (Fig. 3).

Size restoration

On 11 May 2009, size restoration was taking place (Fig. 2). The valves of the parent cells stayed attached to the initial cells (Fig. 2), which made it possible to estimate in five cases the size of diameter change and the upper limit for inducing size restoration. The parent cells had diameters of 2.1, 3.0, 3.0, 3.1 and 3.1 μm, and the initial cells of 5.8, 5.7, 6.0, 5.7 and 5.8 μm, respectively. Therefore, the increase in diameter ranged from 1.8 to 2.8 times and the threshold diameter below which size restoration could be induced was 3.1 μm.

Diameter distribution

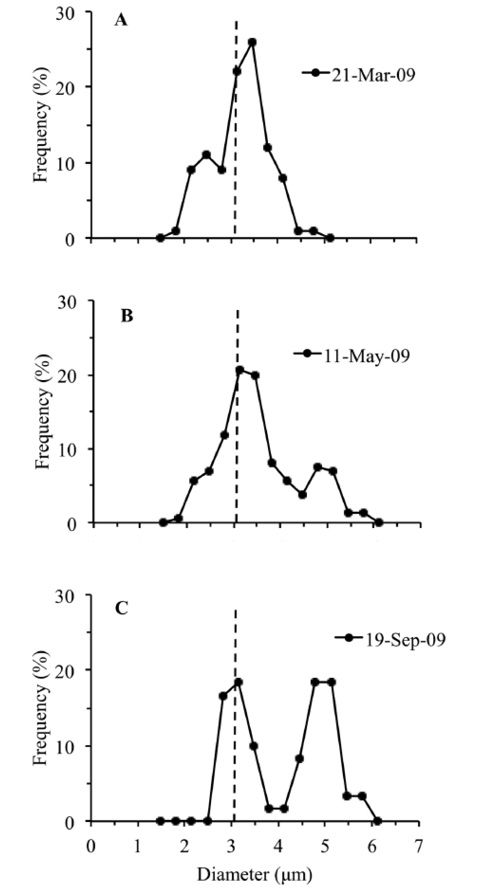

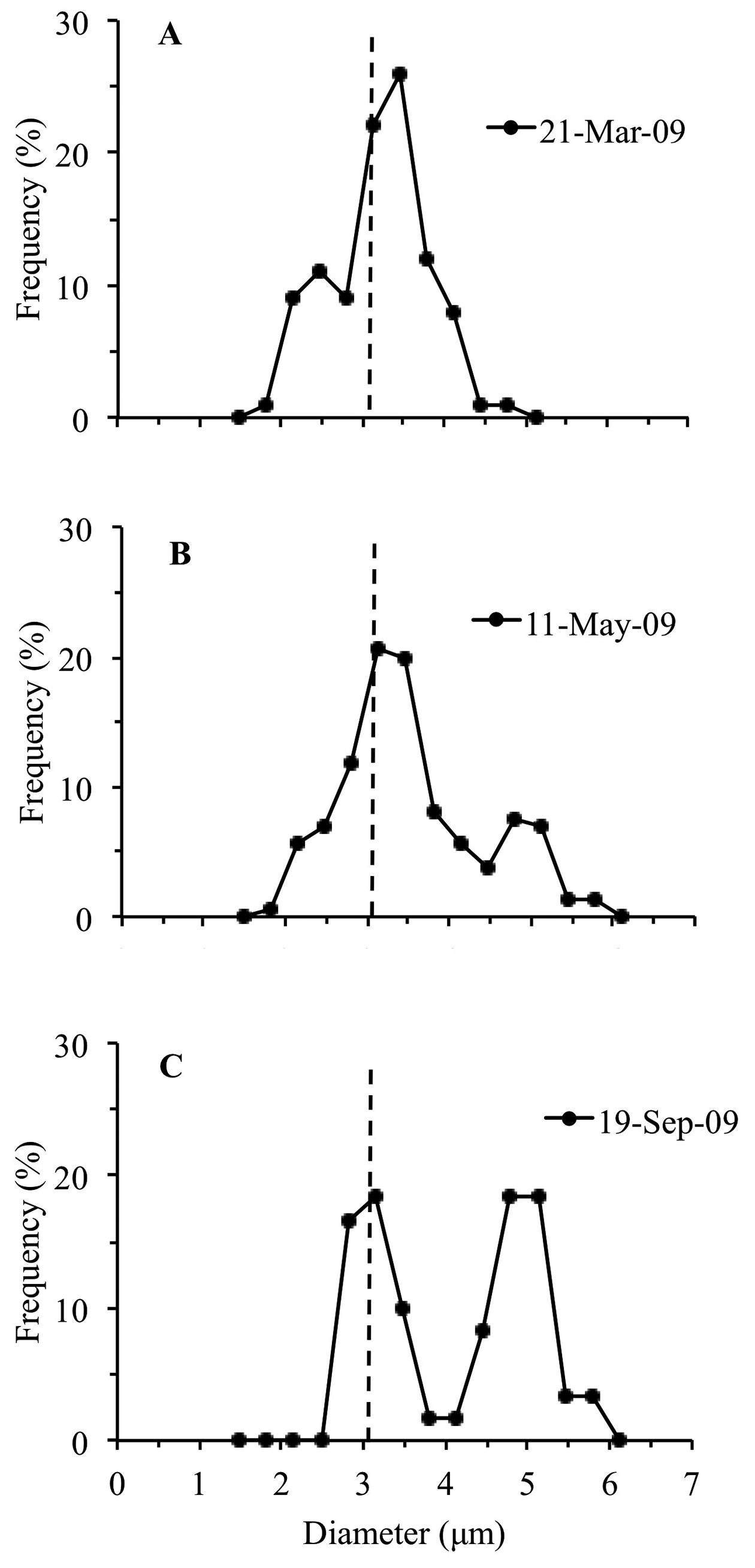

The size distributions of M. comicus cell diameters were measured on 21-22 March, 11 May, and 19 September 2009 (Fig. 5). On 21-22 March 2009, there was one main peak at 3.47 μm and a second smaller peak at 2.48 μm (Fig. 5A). These were above and below the size threshold for size restoration that was estimated above. However, there was no evidence of size regeneration until 11 May, at which time there was a relative decrease in the number of the small diameter cells at 2.48 μm and an increase in cells above 5 μm diameter (Fig. 5B). Also, the diameter of the majority of cells in the population, which were dividing asexually, decreased to around the threshold (3.1 μm) for inducing size restoration. By 19 September, most of the small cells below the threshold were gone, leaving a large peak of newly size-restored cells at 5 μm and the remainder of the population at 3 μm.

Shape change with size decline

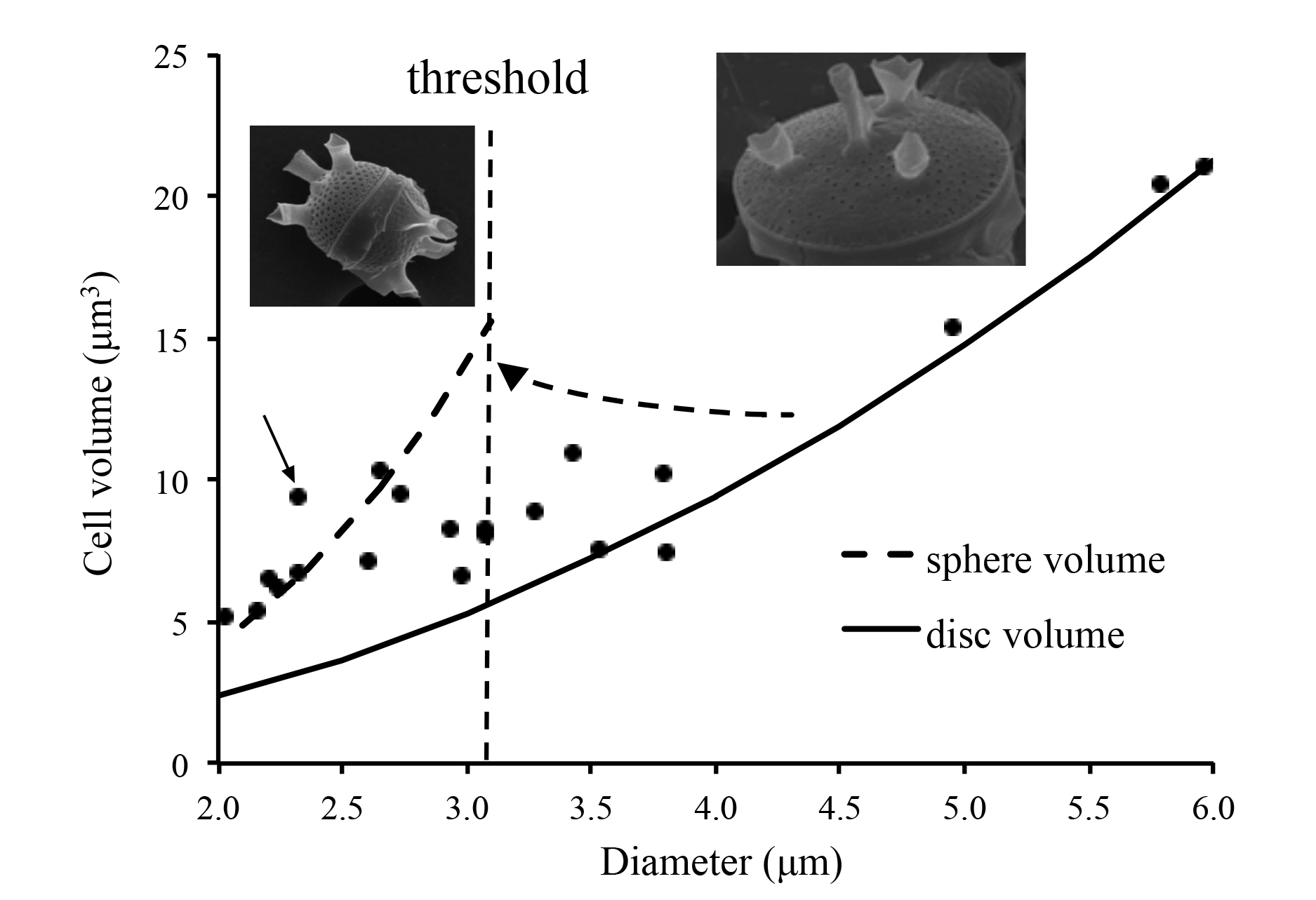

The cell shape of M. comicus changed as diameter declined. In the largest-diameter cells the shape was discoid but it became spherical in the smallest cells (see Figs 1-4). Such alterations to cell shape were only possible at the time of cell division, when new daughter valves were being formed. Cell volumes were calculated for the different diameters and their different degrees of valve doming (Fig. 6). Generally, cells with diameters above 4 μm were discoid with slightly curved mantle faces, but as the diameter decreased and approached the size restoration threshold (3.1 μm), then both valves became domed, making the cell shape spherical (Fig. 4). The change in shape of the valves was due partially to an increase in valve height from 0.7 to 1.3 μm, but also to an added curvature of the valve as the diameter decreased. In some of the very smallest cells with diameters below 2.5 μm, some valves reached a mantle height of 1.8 μm, which meant that the cell shape became oblong (Fig. 4D).

The overall effect of the change in shape is that a spherical cell at the size restoration threshold, with a diameter of 3.1 μm, had three times the cell volume (15.6 μm³) as a cell of the same diameter if it had remained discoid (5.7 μm³). The volume was also nearly the same (14.7 μm³) as a larger discoid cell of 5 μm diameter. Once cells took on the spherical shape, their volume then declined with diameter along the upper curve shown in Figure 5. They were still more than twice the cell volume of an equivalent flat-mantle cell at the minimum diameter size of 2 μm. However, because some cells of this size became oblong (Fig. 4), they increased their cell volume. For example, the volume of a spherical cell of 2.3 μm was 6.7 μm³, but an oblong cell of the same diameter was 9.4 μm³ (e.g. see arrowed point above the spherical curve in Fig. 6).

DISCUSSIONTop

Size is a key factor in planktonic life and many studies have looked at its functional implications (e.g., Geider et al. 1986Geider R.J., Platt T., Raven J.A. 1986. Size dependence of growth and photosynthesis in diatoms: a synthesis. Mar. Ecol. Progr. Ser. 30: 93-104., Vaulot et al. 2008Vaulot D., Eikrem W., Viprey M., et al. 2008. The diversity of small eukaryotic phytoplankton (≤3μm) in marine ecosystems. FEMS Microbiol. Rev. 32: 795-820., Winder et al. 2009Winder M., Reuter J.E., Schladow S.G. 2009. Lake warming favors small-sized planktonic diatom species. Proc. R. Soc. London, Ser. B, 276: 427-435., Litchman et al. 2009Litchman E., Klausmeier C.A., Yoshiyama K. 2009. Contrasting size evolution in marine and freshwater diatoms. PNAS. 106: 2665-2670., Barton et al. 2013Barton A.D., Finkel Z.V., Ward B.A., et al. 2013. On the roles of cell size and trophic strategy in North Atlantic diatom and dinoflagellate communities. Limnol. Oceanogr. 58: 254-266., Reavie and Barbiero 2013Reavie E.D., Barbiero R.P. 2013. Recent changes in abundance and cell size of pelagic diatoms in the North American Great Lakes. Phytotaxa 127: 150-162., Clark et al. 2013Clark J.R., Lenton T.M., Williams H.T.P., et al. 2013. Environmental selection and resource allocation determine spatial patterns in picophytoplankton cell size. Limnol. Oceanogr. 58: 1008-1022., Jewson et al. 2015Jewson D.H., Granin N.G., Gnatovsky R.Y., et al. 2015. Coexistence of two diatom Cyclotella species in the plankton of Lake Baikal. Freshwat. Biol. 60: 2113-2126.). Among diatoms there is the added complication of having to cope with the cycle of size decline and size restoration used to time the length of their life cycle over periods longer than one year (Lewis 1983Lewis W.M. 1983. Interruption of synthesis as a cost of sex in small organisms. Am. Nat. 121: 825-833., 1984Lewis W.M. 1984. The diatom sex clock and its evolutionary importance. Am. Nat. 123: 73-80., Jewson 1992aJewson D.H. 1992a. Size reduction, reproductive strategy and the life cycle of a centric diatom. Phil. Trans. R. Soc. Lond. B, 336: 191-213., bJewson D.H. 1992b. Life cycle of a Stephanodiscus sp. (Bacillariophyta). J. Phycol. 28: 856-866., Jewson and Granin 2015Jewson D.H., Granin N.G. 2015. Cyclical size change and population dynamics of a planktonic diatom, Aulacoseira baicalensis, in Lake Baikal. Eur J. Phycol. 50: 1-19.). The interest in M. comicus was to see whether this cyclic clocking mechanism could still operate in very small cells, where the rigid cell wall structure might be expected to constrain the volume necessary for cell organelles, such as nuclei, mitochondria and chloroplasts, and for gamete production. The solution used by M. comicus, which avoids interfering with diameter decline, is to become spherical or even oblong to maintain cell volume as diameter declines. Essentially, it is a change in cell length, which is an adaptation used by some other centric diatoms, such as Aulacoseira baicalensis, to make room for storage products during dormancy (e.g. Jewson et al. 2010Jewson D.H., Granin N.G., Zhdarnov A.A., et al. 2010. Vertical mixing, size change and resting stage formation of the planktonic diatom Aulacoseira baicalensis. Eur. J. Phycol. 45: 354-364., Jewson and Granin 2015Jewson D.H., Granin N.G. 2015. Cyclical size change and population dynamics of a planktonic diatom, Aulacoseira baicalensis, in Lake Baikal. Eur J. Phycol. 50: 1-19.).

A longer sequence of sampling would be needed to accurately determine the length of the life cycle of M. comicus, but from the rate of size decline observed during 2009, it is probable that some cells could reach the 3.1 μm threshold after size restoration in two years. For example, in September 2009 there were predominately two age classes (Fig. 5C). The size-restored cohort in September had a modal diameter of around 5 μm, while the second peak at 3 μm was probably mainly made up of cells that had regenerated their size in the previous year (2008). The diameter of these cells would then have declined further to be below the threshold for inducing size restoration by March 2010, and thus be ready to begin completing the cycle of size restoration by May, with cell diameter distributions similar to those found, respectively, for March 2009 (Fig. 5A) and May 2009 (Fig. 5B). This is just the ‘average’ situation, because the population would contain cells from other age classes, as the rate of size decline depends very much on conditions for growth and division experienced by individual cells, with some declining at slower rates and some at higher rates, which ensures an overlapping of age classes (see Jewson 1992aJewson D.H. 1992a. Size reduction, reproductive strategy and the life cycle of a centric diatom. Phil. Trans. R. Soc. Lond. B, 336: 191-213.). The likely length of the life cycle of M. comicus is therefore probably two or three years. The timing of size restoration in M. comicus is also interesting because it occurred in summer when larger diatoms were scarce and it was likely to have been a nutrient-poor period, especially for silica, which suggests that M. comicus can survive and reproduce at times when other, larger diatoms have ceased growth. Although it seems likely, we do not know yet whether size restoration in M. comicus is linked to sexual reproduction.

In addition to the large changes in cell shape, another striking feature of the M. comicus cell wall was the relatively large size of its exterior processes (Figs 1-4). There were two types. One was the exterior fluted tube-structures of the fultoportulae. Kaczmarska et al. 2009Kaczmarska I., Lovejoy C., Potvin M., et al. 2009. Morphological and molecular characteristics of selected species of Minidiscus (Bacillariophyta, Thalassiosiraceae). Eur. J. Phycol. 44: 461-475. showed that these structures produce chitin filaments. Similar chitin filaments are found in other small Thalassiosira (Martin-Cereceda and Cox 2011Martin-Cereceda M., Cox E.J. 2011. Morphological variation in a small Thalassiosira species (Bacillariophyta) under different culture regimes. Bot. Mar. 54: 563-574.) and Cyclotella (Jewson et al. 2015Jewson D.H., Granin N.G., Gnatovsky R.Y., et al. 2015. Coexistence of two diatom Cyclotella species in the plankton of Lake Baikal. Freshwat. Biol. 60: 2113-2126.), and they have been linked to reducing sinking rate (e.g. Walsby and Xypolyta 1977Walsby A.E, Xypolyta A. 1977. The form resistance of chitan fibres attached to the cells of Thalassiosira fluviatilis Hustedt. Br. Phycol. J. 12: 215-223., Walsby and Reynolds 1980Walsby A.E., Reynolds C.S. 1980. Sinking and floating. In: Ignatiades l. (ed.), The physiological ecology of phytoplankton. Blackwell Scientific. ). However, in M. comicus it is unlikely that this is their sole purpose, because in such small cells, sinking is minimal. An alternative possibility is that the chitin filaments could interfere with grazing by flagellates and ciliates, because M. comicus lives in a nanno-habitat along with other small species, such as Parmales. Other possible functions might come from an observation by Kaczmarska et al. (2009)Kaczmarska I., Lovejoy C., Potvin M., et al. 2009. Morphological and molecular characteristics of selected species of Minidiscus (Bacillariophyta, Thalassiosiraceae). Eur. J. Phycol. 44: 461-475. that cells of a close relative, Minidiscus chilensis, which were collected from surface sediments, had projecting chitin filaments. It is possible that the filaments, which can be over 30 μm long, could help in the resuspension of cells back into the water column by bridging across the boundary layer at the sediment surface. One property of the external tubes is that they restrict and support the angle at which the chitin filaments are deployed. However, the reason for this and their function is yet to be determined.

One consequence of the doming and production of the large external fultoportulae tubes during division is that they create a problem for keeping cells together. They require a relatively large distance of up to 5 μm, which is the same as or bigger than the cell diameter. In this study, the cingula protecting the lengthening cell during division offered little rigid support. Therefore, holding the two daughter valves together is probably the role of the other prominent structure, the central rimoportula. One reason for this adaptation may be that M. comicus grows after the main spring diatom bloom, when there is a lack of sufficient silica to build rigid cingula, so an alternative solution is required to keep daughter cells together during division. However, in nutrient sufficient conditions, such as in culture, M. comicus does appear to form cingula with a rigid structure (Percopo et al. 2011Percopo I., Siano R., Cerino F., et al. 2011. Phytoplankton diversity during the spring bloom in the northwestern Mediterranean Sea. Bot. Mar. 54: 243-267.).

In conclusion, the main result from this study is that M. comicus demonstrates the versatility of diatoms and shows how their apparently rigid cell wall is not restrictive, with changes in shape possible over their life cycle. In the case of M. comicus, this is done by changing from discoid to spherical shape to maintain cell volume during diameter decline, thereby making it possible to avoid interference with the life cycle clocking mechanism in a very small species.

ACKNOWLEDGEMENTSTop

This work was supported by the projects FAMOSO (CTM2008-06261-C03), JSPS Grants-in-Aid for Scientific Research 26291085 and 15K14784 and Open Partnership Joint Projects of JSPS Bilateral Joint Research Projects. We thank the captain and crew of the R.V. Sarmiento de Gamboa for their help during sampling.
