INTRODUCTIONTop The study of the effects of physical singularities (i.e., mesoscale features and density stratification) on the characterisitics of plankton distribution, structure and function in the Catalan Sea started about four decades ago, in the framework of a series of research projects led by Dr Marta Estrada (see Marta Estrada bibliography in this volume). The projects merged different research groups of the former Instituto de Investigaciones Pesqueras (Institute of Fishery Research of Barcelona, now the Marine Sciences Institute) and the University of Barcelona, and received the invaluable advice and participation of Prof. Ramon Margalef. The area has thus been the object of successive studies almost unenterrumptedly, and this paper is a late consequence of one of them. A better understanding of the role of zooplankton in food web dynamics and carbon balance in pelagic systems requires not only simultaneous estimates of the structural parameters and metabolic rates, but also to characterize their reliability in relation to the spatial and temporal scales considered. While rate processes seem to exhibit fast responses to physical or biological external forcing (, ), extensive properties such as biomass and taxonomic composition are considered to follow more gradual changes through cumulative processes (i.e. growth and reproduction, ). However, their rate of change depends not only on demographic parameters. Behavioural characteristics of zooplankton and advection processes strongly determine their patchy nature and therefore the limits of what can be accepted as synoptic in terms of data representativeness and ecosystem dynamics (). In Stommel’s classic diagram about the time-space-intensity scales of variability in plankton, and of the factors contributing to them (, , ), frequency and intensity of changes are inversely related. However, at the highest frequencies (small-scale variability) the magnitude of the changes is by no means negligible. Physical, chemical and social patterns (), coupled with the effects of size and nature of patch formation and diffusion, among other parameters, impose severe limits on the acquisition of synoptic information of plankton structures (, ). As a matter of fact, the problem is reduced to assessing how far in time and space a particular zooplankton sample can be considered representative (). In most cases, part of the variability derived from predictable sources such as tidal currents and light-induced activity rhythms can be avoided or at least significantly reduced by adopting suitable sampling strategies. However, as pointed out by : “…if the trade-off is between economics, impatience and ecological convenience, usually impatience and economics win”. In the NW Mediterranean, organismal behaviour and physical heterogeneity are important as variability sources, specifically for zooplankton (). A sub-surface maximum of phytoplankton productivity and biomass occurs most of the year () and is especially strong during the summer stratification period. This deep phytoplankton biomass and production layer is usually accompanied by a zooplankton biomass maximum (, , ). Although the zooplankton biomass contributes a significant proportion of the short-term temporal and spatial variability due to the daily vertical migration of the organisms (, , ), highly dynamic hydrographic structures such as density fronts could be further sources of daily and seasonal zooplankton changes (, , ). The main objective of the Spanish research project VARIMED (AMB94-1019) was to improve our understanding of the matter and energy flux and carbon balance in the pelagic domain in the Catalan Sea (NW Mediterranean). To this end, we studied the short-term changes in the structural properties and rate processes for the different plankton components, from bacteria and phytoplankton (, , ) to zoooplankton and seabirds (, ). In this paper the variability in time and space scales ranging from hours to weeks and from metres to tens of kilometres of the structural properties of zooplankton is analysed in relation to phytoplankton (chlorophyll a, hereafter Chl a) and the physical characteristics of coastal-frontal-offshore conditions in a transect in the Catalan Sea. Accordingly, the two main objectives were: 1) to determine the variability pattern of biomass and size (individual mass) of zooplankton at the beginning of the summer stratification period, and 2) to estimate the possible interaction between the physical and biological (Chl a) and the space and time variability patterns observed. METHODOLOGYTop The study took place in the Catalan Sea (NW Mediterranean) during the oceanographic cruise VARIMED-95 (2-14 June 1995) on board the R/V Hespérides. The study was done in a 120-km transect approximately perpendicular to the coastline (Fig. 1), running from Barcelona to the middle of the Majorca–Menorca channel. This transect had been systematically sampled in previous oceanographic cruises (for a complete list, see ).

Full size image

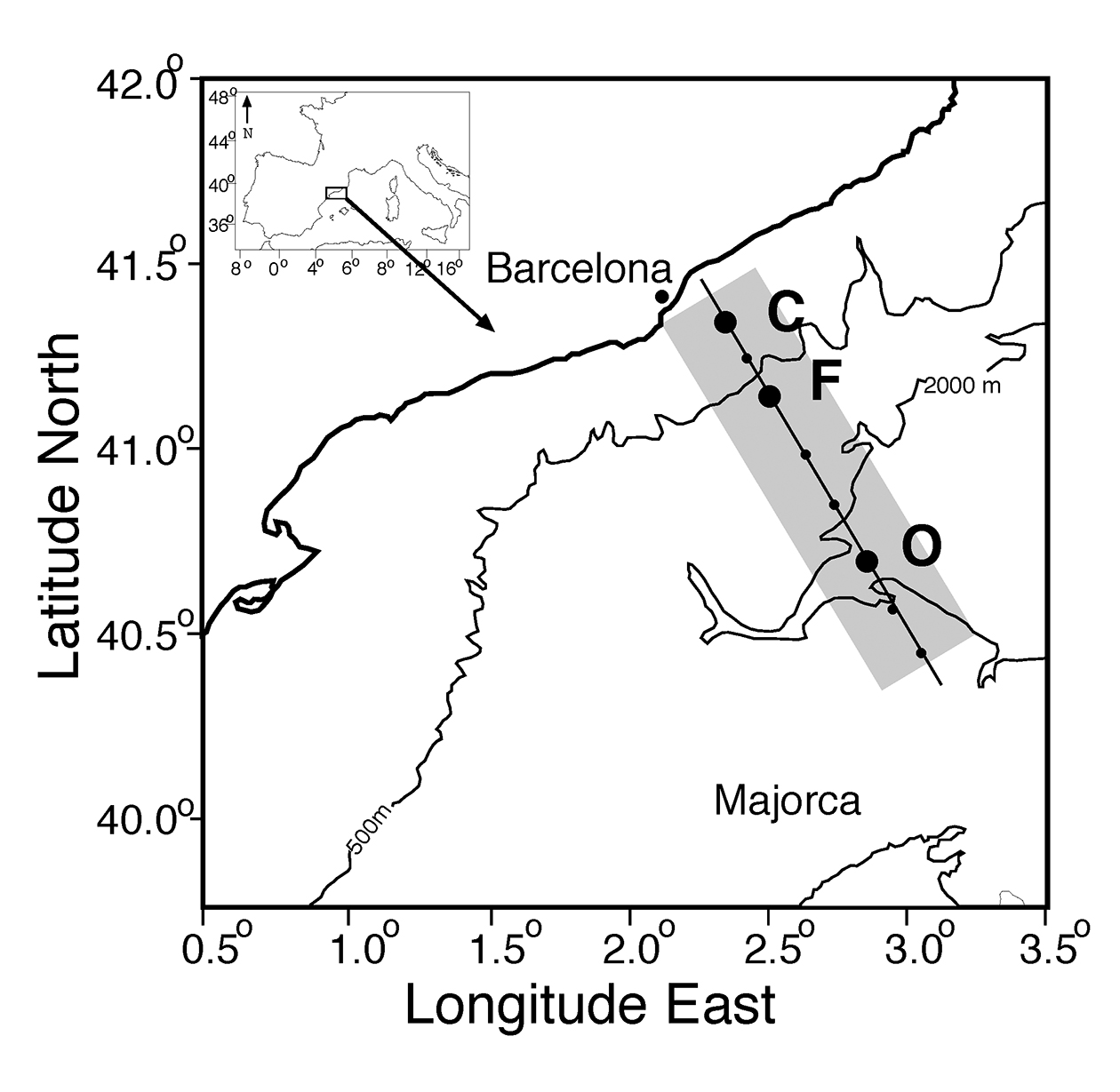

Fig. 1. – Map of the study area with the position of the hydrographic stations in the 120 km transect between Barcelona and the Majorca-Menorca channel (dots). Large black dots: coastal (C), frontal (F) and offshore (O) stations. Shaded rectangle: area occupied by the grid of CTD casts made to characterize the area hydrographically.

Three structures of different characteristics define the hydrography and ecological peculiarities of the Catalan Sea (, , ): the coastal zone, influenced by waters of continental origin, with an outer current running NE-SW parallel to the coast, the Liguro-Provençal-Catalan Current; the Catalan density front at the outer margin of the current, usually occluded during the summer stratification period but clearly marked below the thermocline; and a dome-like structure in the central part of the Catalan-Balearic Sea (, ). These structures are corresponding analogues of those described for the Nice-Calvi transect by . Sampling strategy Previous to the biological study, we obtained quasi-synoptic information on the hydrography of the area (temperature, salinity and fluorescence profiles) with a Neil-Brown MARK-V CTD provided with a fluorometer, in a grid of stations (shaded rectangle in Fig. 1) including the study stations. According to the physical characteristics and Chl a distribution pattern, three biological stations were chosen as representative of the above-mentioned coastal, frontal and offshore conditions (hereafter C (41°20’N, 2°17’E), F (41°07’N, 2°27’E) and O (40°40’N, 2°53’E), located at 10, 35.9 and 89.4 km from the shore and above 80, 900 and 2000 m depth, respectively (big dots in Fig. 1). The sampling schedule consisted of three visits (legs) to the three stations at regular intervals during a 12-day period (Table 1). Every 4 days, each station was sampled for 24 h at 4- to 8-h intervals, resulting from 3 to 5 zooplankton hauls per day, usually 1 to 2 during dusk or dawn hours, one at noon and 1 to 2 during the night. For Station O we had only partial samples on the first day due to a failure of the net. In total, we made 29 hauls (10 at Station C, 11 at Station F, 8 at Station O), completing 198 depth-strata samples. Between successive legs and on the way back to the first sampled station (Station O), we spent 24 h doing fast CTD casts along the transect in order to detect changes in the physical structure that would make it necessary to re-consider the geographic position of the stations.

Table 1. – Sampling schedule during the VARIMED-95 cruise. The grey shadowed columns correspond to days dedicated to obtaining quick hydrographic surveys along the transect shown in Figure 1. The black zones correspond to biological sampling, generally repeated four times per day: 1) early morning, from 6 to 8.30 h; 2) midday, from 11.30 to 13.30 h; 3) evening, from 17 to 19 h; 4) night, around 22 h.

	Julian day
	153	154				155				156				157	158				159				160				161	162				163				164
Repet		1	2	3	4	1	2	3	4	1	2	3	4		1	2	3	4	1	2	3	4	1	2	3	4		1	2	3	4	1	2	3	4	1	2	3	4
C
F
O

Chlorophyll concentration The vertical profiles of Chl a concentration were obtained by relating the fluorescence at selected depths obtained with the fluorometer installed in the CTD to the Chl a concentration analysed in water samples taken simultaneously at the depths of the corresponding fluorescence readings. Chl a was analysed on board fluorimetrically in acetone extracts according to . The equation relating Chl a to fluorescence was µg Chl a L^–1=0.132+14.26 Fl, r=0.88, n=77. Mesozooplankton After an initial CTD cast, according to the vertical structure of density and fluorescence, 6 to 8 depths intervals between 0 and either 60 m (St. C) or 100 m depth (Stations F and O) were chosen depending on the station depth. The mesozooplankton samples were obtained by descending oblique net tows made with a Longhurst-Hardy Plankton Recorder^® net (hereafter LHPR) fitted with 200 µm-mesh netting and equipped with a flowmeter and a Seabird^® CTD. These tows provided data on temperature, salinity and in vivo fluorescence, as well as average, minimum and maximum depth interval, and filtered water volume (m³) for each sampled depth interval. The water volume filtered for each depth interval ranged from 11.94 to 68.97 m³ (average=34.86 m³, standard deviation=15.67 m³). The zooplankton samples were preserved in formalin buffered with hexamethylene-tetramine to a final concentration of 4%. Mesozooplankton biomass as organic carbon (hereafter C_ZOO) was estimated after biovolume determinations by applying the corresponding conversion factor between mesozooplankton biovolume (V_Z) and organic C contents for mixed zooplankton communities of the NW Mediterranean (). Sample V_Z was estimated by integrating the volumes of individual organisms corresponding to sample aliquots after excluding macroplankton (a few jellyfish, salps and siphonophores) by screening the sample through a 1-cm-mesh plastic grid. Images of the fixed samples were obtained with an EDI CCD video camera installed in a stereomicroscope connected to a computer. The images were analysed with a semi-automatic free image analysis software (NIH-Image^®, National Institute of Health, Bethesda, Md., USA) that counted the individuals in the sample and measured the area contained by their silhouette, transforming it into an ellipse of the same area (). The volume of the organism was assimilated to that of the ellipsoid resulting from the rotation of the ellipse about its major axis. We used the Z_V–C_ZOO transform factor given by for formalin-preserved mixed zooplankton (gelatinous components excluded) of the western Mediterranean: 1 mm³ Z_V=0.078 mg C_ZOO. Aliquots of the samples corresponding to the different depth intervals of each haul were analysed, the biomass being calculated according to the fraction of the sample analysed and the water volume filtered by the net along the depth stratum:

C_ZOO-i = C_ZOO-a (F V_i)^–1

(1)

where C_ZOO-i is the averge biomass (µgC_ZOO m^–3) in the depth interval I, C_ZOO-a is the biomass of the aliquot analysed, F is the fraction of the total sample corresponding to the analysed aliquot, and V_i is the water volume filtered by the net along the depth interval. For graphic and statistical purposes, the sampling depth of each interval was considered to be the average interval depth. The abundance of mesozooplankton in individuals m^–3 (IND) was calculated similarly, as

IND_-i = IND_-a (F V_i)^–1

(2)

where IND_-i is the number of individuals corresponding to the depth interval I, IND_-a is the number of individuals in the aliquot analysed, and F and V_i are as in Equation 1. The average zooplankton biomass for each haul was calculated as the integrated biomass for the whole haul divided by the haul depth,

C_{ZOO-h} = (\sum_{i=1}^{n} (C_{ZOO-i} (Z_{i+1} {-Z}_{i}))) Z_{t}^{-1}

(3)

where C_ZOO-h is the average haul mesozooplankton biomass, C_ZOO-i is the average biomass in the layer I, Z_i+1and Z_i are the lower and upper depths of the considered water layers, Z_t is the total depth of the haul and n is the total number of depth intervals sampled.

Average individual zooplankton biomass (I_M) was calculated from the quotient between the average biomass and the average IND. C_ZOO, I_M and IND are expressed in µgC_ZOO L^–1, µgC ind^–1 and individuals m^–3, respectively. The variability was calculated as the coefficient of variation CV=100 (σ/μ). Statistical analyses were made using the JMP^® software for Macintosh, the graphs about average depth distribution of mesozooplankton biomass (C_ZOO) using Systat^® statistical and graphical software, and the mapping of the variables with the Surfer^® software for PC.

RESULTSTop

Hydrography and chlorophyll a

The hydrographic structure along the transect corresponded to the typical thermal stratification situation of late spring-early summer in the NW Mediterranean (Estrada 1985Estrada M. 1985. Deep phytoplankton and chlorophyll maxima in the Western Mediterranean. In: Moraitou-Apostoulou M., Kiortsis V. (eds), Mediterranean marine ecosystems. Plenum Press, New York, pp. 247-277., Estrada and Margalef 1988Estrada M., Margalef R. 1988. Supply of nutrients to the Mediterranean photic zone along a persistent front. In: Minas H.J., Nival P. (eds), Océanographie pélagique méditerranéenne, Oceanol. Acta Nº SP 9: 133-142., Saiz and Alcaraz 1990Saiz E., Alcaraz M. 1990. Pigment gut contents of copepods and deep phytoplankton maximum in the Western Mediterranean. J Plankton Res. 12: 665-672.), with the signature of the front occluded at surface by the mixing layer above the thermocline. However, the position of the front was identifiable at depth by the salinity and density gradients (Fig. 2). The deep chlorophyll layer (DCL) was well developed below the thermocline at around 60 m depth, except at the coast (station C), where in addition to the deep layer a surface maximum was visible (Fig. 2). The DCL was a persistent structure, the maximum concentration of Chl a increasing with the distance from the coast from 0.8 to 1.8 µg Chl a L^–1 (Fig. 2). During the 12 study days, according to the three fast hydrographic surveys made along the transect (the initial one on Julian day [JD] 153 plus two between legs, JD 157 and 161, respectively), there were no significant changes in the physical structure of the study area (i.e. temperature or salinity profiles), in the position of the front, or in the depth of the DCL.

Full size image

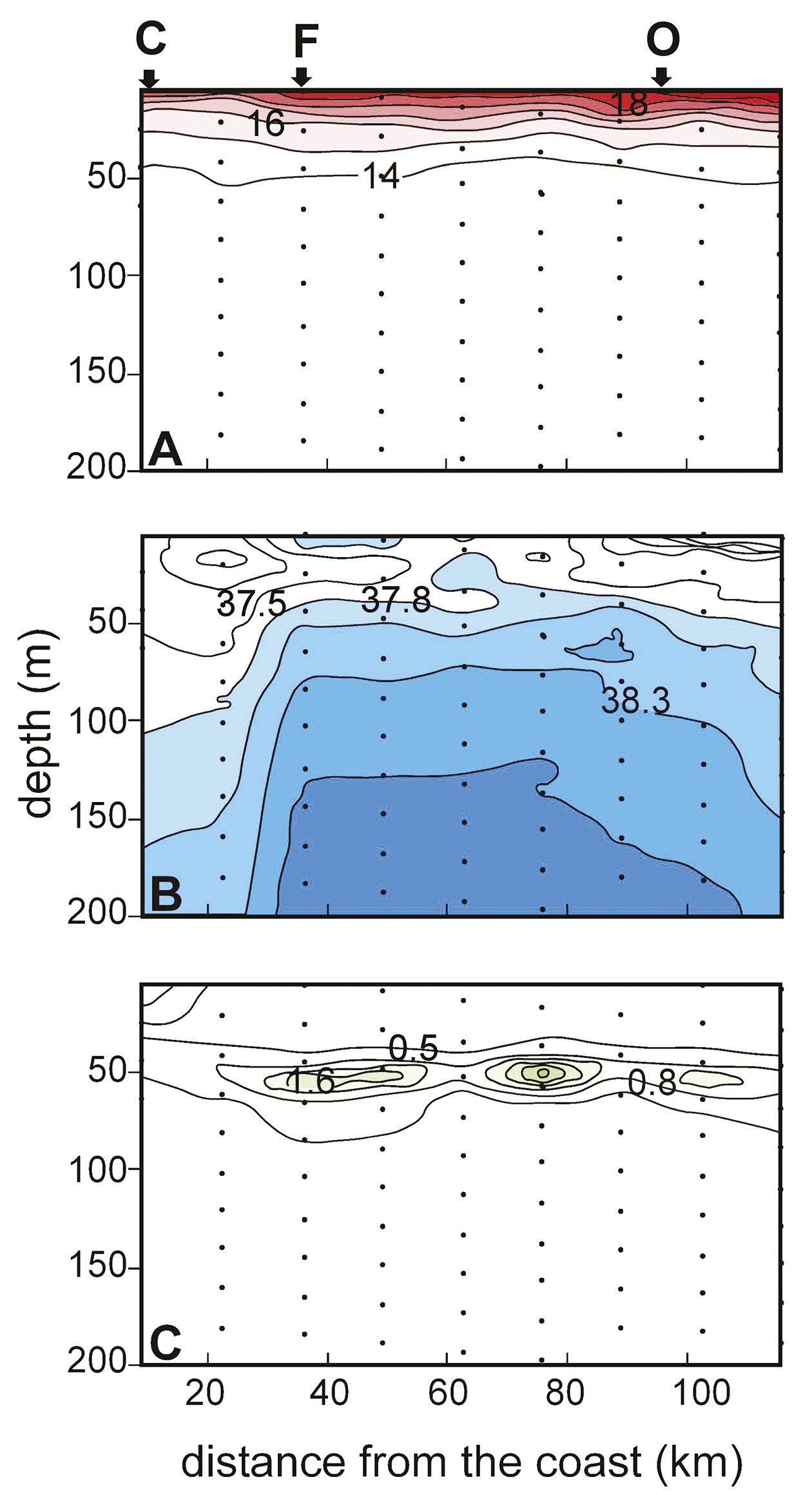

Fig. 2. – Distribution of temperature (A), salinity (B) and chlorophyll a (C) from 0 to 100 m depth along the transect between Barcelona and the Majorca-Menorca channel during the first study day (JD 153). In the horizontal axis, the distance to the coast refers to Barcelona.

C_ZOO, I_M and IND

The vertical distribution of C_ZOO showed a maximum around 60 m depth (noon samples) in association with the DCL at the base of the thermocline. This pattern was clear at Stations F and O, whereas at Station C the zooplankton maximum occurred at 20 m depth, with a minimum at 40 m and a new secondary maximum at 60 m depth (Fig. 3). Overall, the depth-integrated average C_ZOO and IND for the three stations indicated a positive coast-offshore gradient, with the highest values offshore (Table 2). At time and space resolutions ranging from 4 to 6 h and from 10 to 20 m depth, respectively (Fig. 4), the relative maximum of C_ZOO was at around 60 m depth for noon samples, coinciding with the DCL (stations F and O), while at Station C it was less conspicuous. I_M appeared to be inversely related to C_ZOO at Stations C and F. At Station O the loss of part of the data made it impossible to confirm this observation.

Full size image

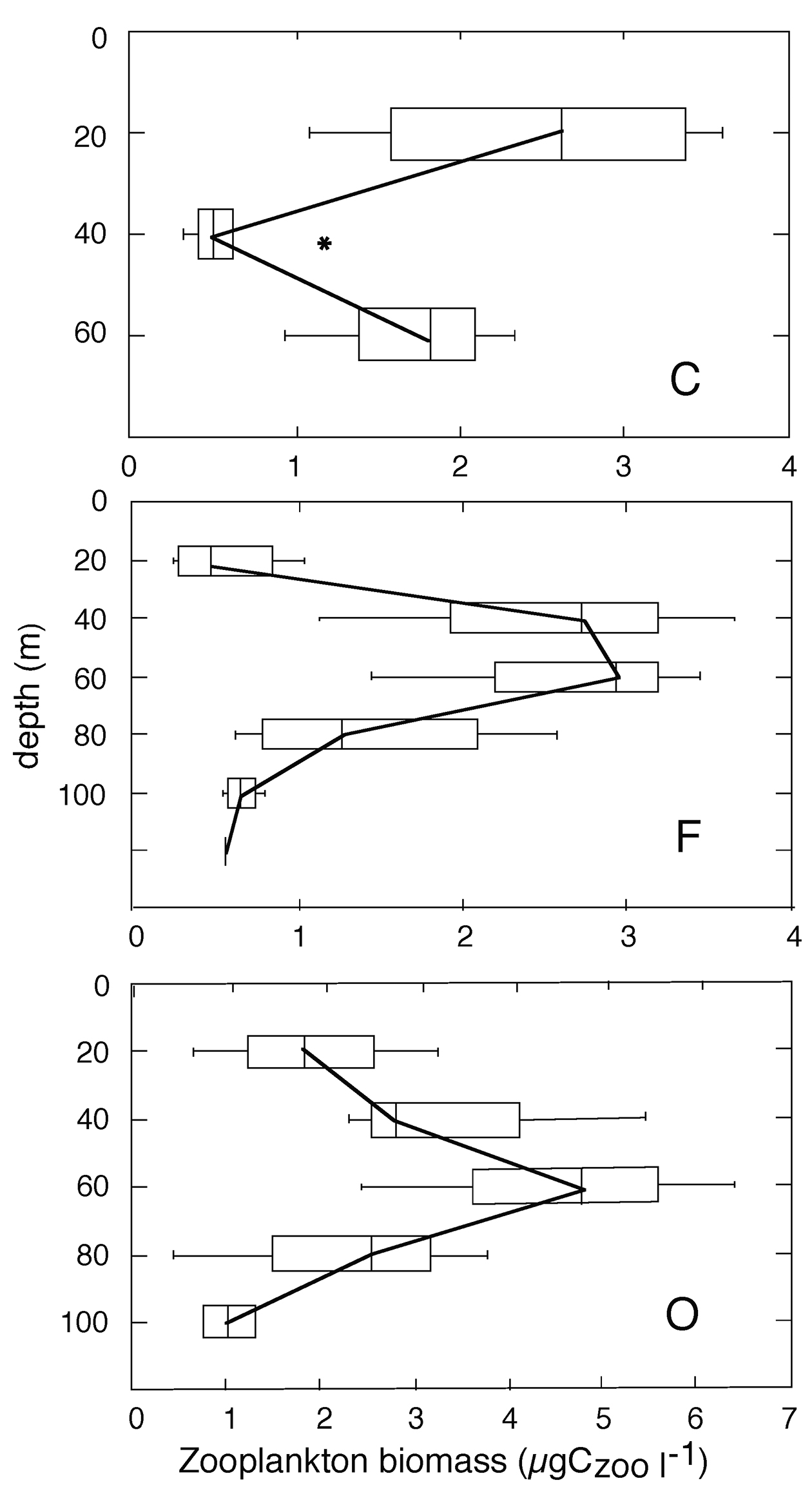

Fig. 3. – Box-plot of the average depth distribution of C_ZOO (µgC L^–1). C, F and O as in Figure 1. At Station C the maximum depth stratum sampled was 60 m, as the station depth was only 80 m. *: Outlier.

Table 2. – Average values and variability (CV, in parentheses) of C_ZOO (µg C L^–1), I_M (µg C ind.^–1) and IND (individuals m^–3) at coastal (C), frontal (F) and offshore (O) stations. The time- and space scales are 10² h and 10² m (every 4 days, 100 m water column integrations). Station C, 10 hauls, 63 depth strata; Station F, 11 hauls, 75 depth strata; Station O, 8 hauls, 60 depth strata.

Variable	C	F	O
CZOO	1.34 (39)	1.81 (61)	2.19 (31)
IM	7.29 (43)	11.06 (62)	8.46 (32)
IND	370 (74)	533 (97)	696 (65)

Full size image

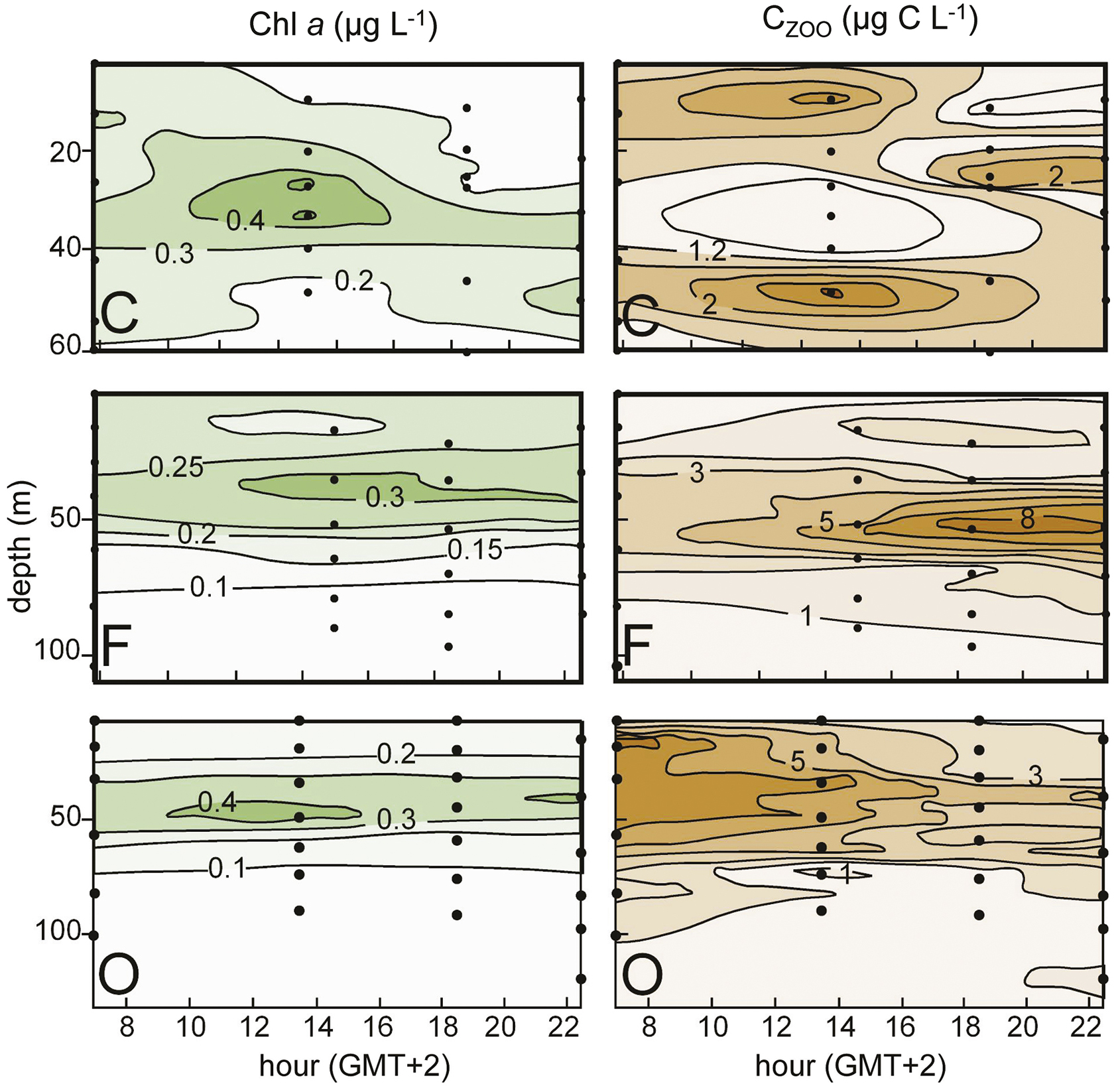

Fig. 4. – Chl a and CZOO depth distribution at noon along a 24 h series for one of the legs (JD 162-164). The trends were similar for legs JD 154-156 and JD158-160. Horizontal axis, GMT+2; vertical axis, depth in m. C, F and O as in Figure 1.

In a space-time-C_ZOO diagram (time-space scales: 10⁴ m and 10² h, respectively), the daily average C_ZOO followed the above-mentioned coast-offshore positive gradient, which was more visible in the final part of the cruise (Fig. 5). At the same time, for Stations C and F there was a decrease in C_ZOO over time, while at Station O the tendency seemed to be the opposite. No significant changes were observed between day and night samples. The I_M (Fig. 6) showed a tendency to decrease during the study in day samples, while the opposite pattern was observed in night samples, especially at Station F.

Full size image

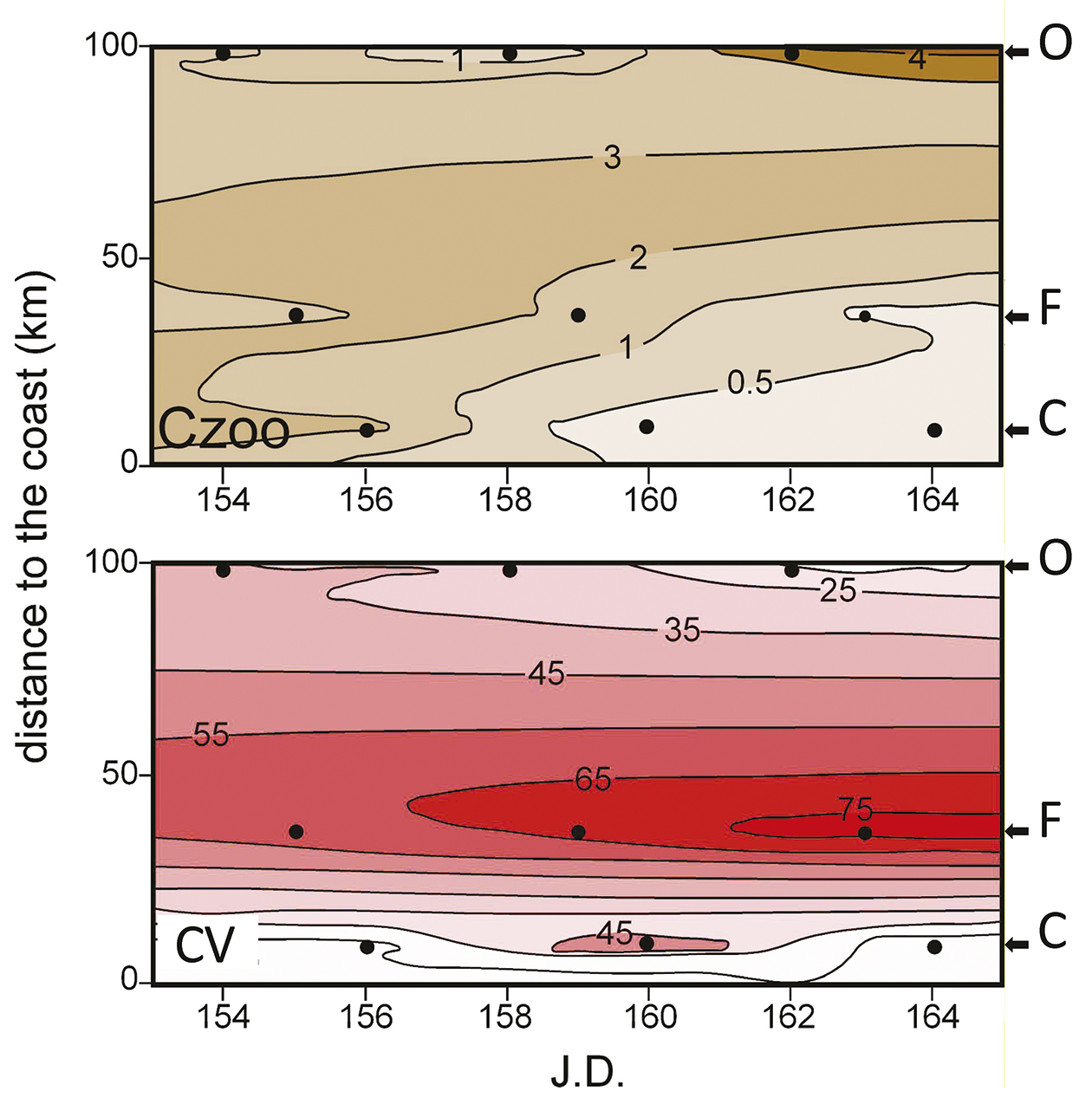

Fig. 5. – Depth-integrated average values of mixed day and night samples of mesozooplankton biomass (C_ZOO, ) and its variability (CV) along the studied transect during the period analysed. Horizontal axis, sampling day (JD); vertical axis, distance from the coast (km). The integrated depth was 60 m for Station C and 100 m for Stations F and O.

Full size image

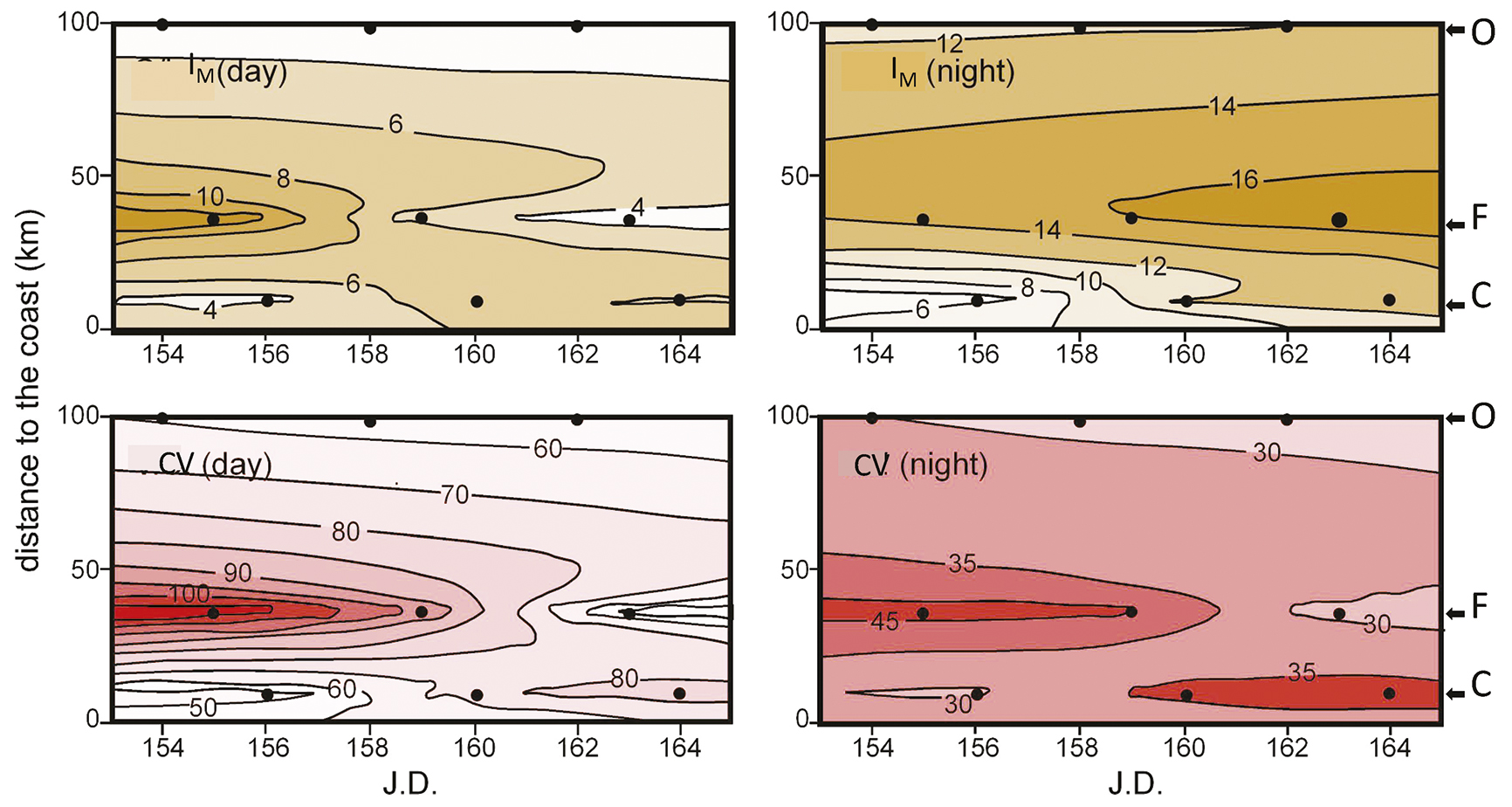

Fig. 6. – Average values of biomass (C_ZOO) and individual size (I_M) and their variability (CV) for day and night samples. Horizontal and vertical axes as in Figure 5.

Variability

At the time and space scales of 10² h and 10² m (successive legs for a given station and for the whole 0-100 m water column, respectively), the average values and variability of C_ZOO, I_M and IND at Stations C, F and O are indicated in Table 2. The highest variability corresponded to Station F and the lowest to Station O).

Table 3 shows the variability of C_ZOO, I_M and Chl a for all the time and space scales considered. The variability of C_ZOO was inversely related to the time and space scales, with CVs ranging from 59 (4-6 h, 10 m) to 18 (10² h, 10⁴ m). IM showed a similar trend, but there was a significant increase in the CV to 81 at time scales coinciding with the day-night cycle (about 10 h, 10² m), and similar results were found for Chl a (CV = 47).

Table 3. – Variability (CV, %) of zooplankton biomass, C_ZOO (µg C L^–1), individual mass, I_M (µg C ind.^–1), and Chl a, (µg chlorophyll a L^–1) at the time- and space scales explored during the survey.

Scales		Parameters
Time	Space	C_ZOO	I_M	Chl a
(h)	(m)	(µg C L^–1)	(µg C ind^–1)	(µg Chl a L^–1)
4-6	10	59	70	36
4-6	10²	41	67	30
10	10²	38	81	47
10²	10²	24	58	12
10²	10⁴	18	35	16

In Figure 5, the time-space-variability diagram of zooplankton biomass indicates the higher variability associated with Station F (CV>60) and a tendency to increase towards the end of the cruise. The highest variability of I_M was directly associated with the average individual size in daylight samples (Fig. 6), while during the night the tendency was the opposite.

The variability associated with the combined time and space scales included in the study for C_ZOO, I_Mand Chl a is represented in Figure 7. According to this diagram, the highest variability of C_ZOO was associated with the smallest time scales (<10 h, and ≈10 m; repeated samples and depth interval, CV≈60), decreasing monotonically according as the time and space scales increased. The maximum variability of IM took place at time scales of ≈10 h and 10² m, equivalent to day-night changes along the whole water column (vertical migration). For Chl a the highest variability (CV≈50) was associated with similar time and space scales to those of I_M. The lowest variability for mesozooplankton and chlorophyll occurred at scales of 10² h (about 4 days, between successive legs) and 10⁴ m, a scale determined by the distance between stations. The variability for IND has not been represented, as it was very similar to that of C_ZOO.

Full size image

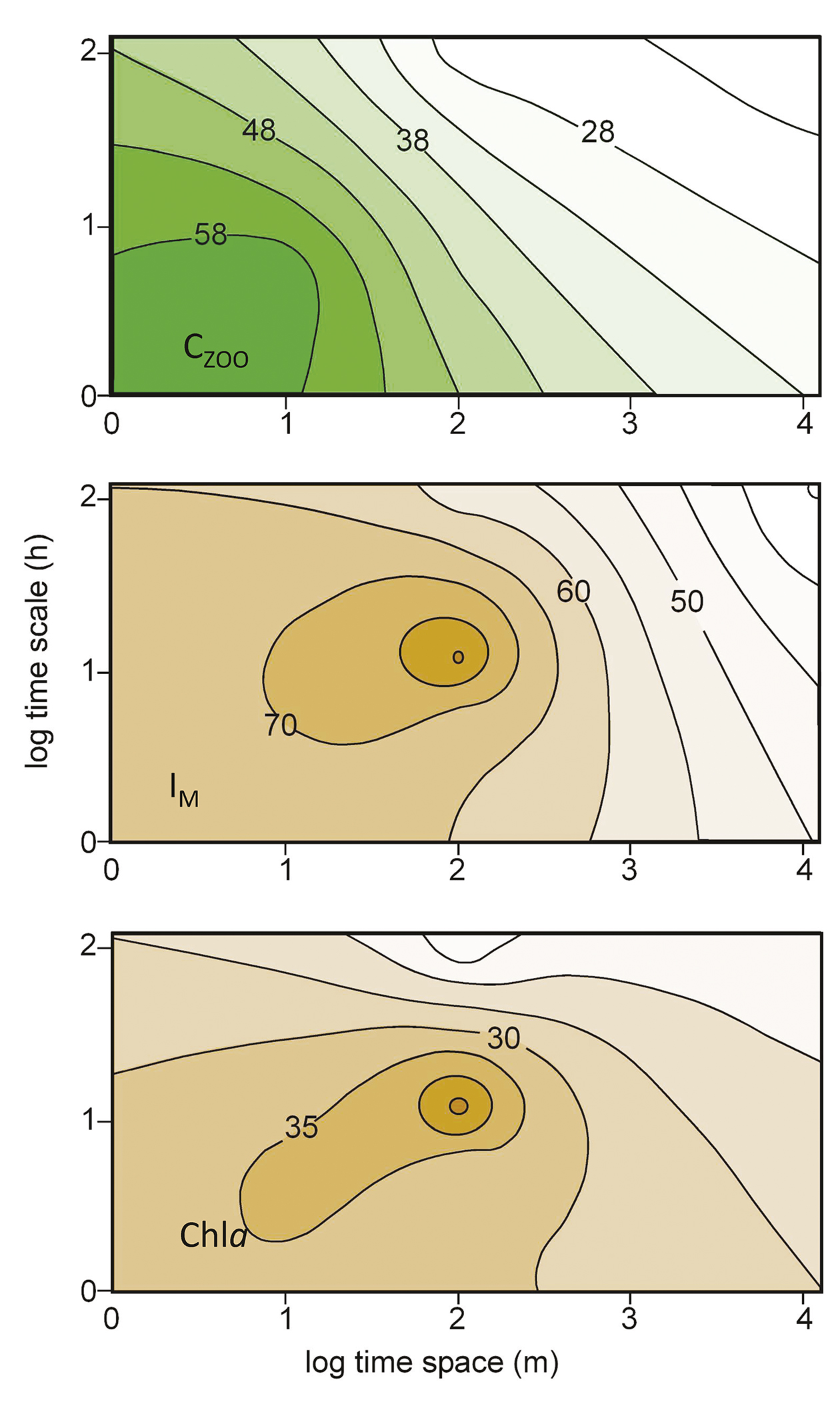

Fig. 7. – Contours of the variability (CV) of C_Z, I_M, and Chl a at the spatial and temporal scales considered in the study, from <10 (depths strata) to 10⁴ m (between stations), and from <10 h (between successive daily hauls) to 10² h (between successive legs). Horizontal axis, log space scale (m); vertical axis, log time scale (h).

DISCUSSIONTop

Most of the problems when studying variability in plankton systems arise from difficulties in obtaining synoptic or quasi-synoptic samples in physically unstable environments at the suitable spatial resolution. In the case of zooplankton, the problem is increased by the capacity of most of its components to conduct relatively important movements in the vertical plane which, combined with horizontal shear, can lead to major advection (Steele and Henderson 1992Steele J.H., Henderson E.W. 1992. A simple model for plankton patchiness. J. Plankton Res. 14: 1397-1403.).

Although the resolution of most of the existing sampling techniques for zooplankton is not absolutely satisfactory, it is possible to obtain quantitative zooplankton samples separated into spatial (horizontal or vertical) strata fast enough to be compatible with the rate of change of the community (Donaghay et al. 1992Donaghay P.L., Rines H.M., Sieburt J.McN.. et al. 1992. Simultaneous sampling of fine scale biological, chemical and physical structure in stratifed waters. Arch. Hydrobiol. Beih. 36: 97-108.). The displacement velocity of the gravity centre of zooplankton populations ranges from less than 1 m h^–1 to 7 m h^–1 (Krause and Radach 1989Krause M., Radach G. 1989. On the relations of vertical distribution, diurnal migration and nutritional state of herbivorous zooplankton in the northern North Sea during FLEX 1976. Int. Revue ges. Hydrobiol. 74: 371-417.), although for large, fast swimming organisms it can be significantly higher (Enright 1977Enright J.T. 1977. Copepods in a hurry: sustained high-speed upward migration. Limnol. Oceanogr. 22: 118-125., Smith at al 1989Smith P.E., Ohman M.D., Eber L.E. 1989. Analysis of the patterns of distribution of zooplankton aggregations from an accoustic doppler current profiler. CalCOFI Rep. 30: 88-103.).

Although Fasham et al (1974)Fasham M.J.R., Angel M.V., Roe S.J. 1974. An investigation of the spatial pattern of zooplankton using the Longhurst-Hardy plankton recorder. J. Exp. Mar. Biol. Ecol. 16: 93-112. and Fasham (1978)Fasham M.J.R. 1978. The statistical and mathematical analysis of plankton patchiness. Oceanogr. Mar. Biol. Ann. Rev. 16: 43-79. concluded that the spatial variability (patchiness) of plankton cannot be completely apprehended through LHPR hauls, according to Haury (1976a)Haury L.R. 1976a. Small-scale pattern of a California current zooplankton assemblage. Mar. Biol. 37: 137-155. the samples thus obtained should provide reasonable snapshots of the vertical structure of zooplankton biomass. In our case, the 0-100 m depth layer was sampled in less than 30 min, so the sampling of the different depth strata can be considered as quasi-synoptic.

Regarding the estimates of mesozooplankton biomass through the volume-carbon relationships and volume estimations by semi-automatic image analysis, the method has proven to be reliable. The overall variability (CV), including sub-sampling plus individual volume and C analytical errors, ranges from 9% to 20% (Alcaraz et al. 2003Alcaraz M., Saiz E., Calbet A., et al. 2003. Estimating zooplankton biomass through image analysis. Mar. Biol. 143: 307-315., Alcaraz et al. 2010Alcaraz M., Almeda R., Calbet A., et al. 2010. The role of arctic zooplankton in biogeochemical cycles: respiration and excretion of ammonia and phosphate during summer. Polar Biol. 33: 1719-1731.). The obtained values of mesozooplankton carbon (C_ZOO) were significantly lower (from 50% to 75%) than previous values obtained by low-pressure reverse-flow water filtration of discrete water volumes in the same area and time of the year (Alcaraz 1980Alcaraz M. 1980. Evolución y distribución vertical de la biomasa de zooplancton expresada en carbono y nitrógeno orgánicos, relación C/N y carbono detrítico, en una zona marina afectada por aguas residuales de la ciudad de Barcelona. Inv. Pesq., 44: 265-274., Alcaraz et al. 1985Alcaraz M. 1985. Vertical distribution of zooplankton biomass during summer stratification in the Western Mediterranean. In: Gibbs P.E. (ed.), Proceedings of the 19th EMBS. Cambridge Univ. Press, Cambridge, pp. 135-143., Calbet et al. 1996Calbet A., Alcaraz M., Saiz E., et al. 1996. Planktonic herbivorous food webs in the Catalan Sea (NW Mediterranean): temporal variability and comparison of indices of phyto-zooplankton coupling based in state variables and rate processes. J Plankton Res. 18: 2329-2347.). This is due to the higher retention efficiency of zooplankton organisms by low-pressure filtration methods in comparison with hauling plankton nets with the same mesh-size (Alcaraz 1977Alcaraz M. 1977. Muestreo cuantitativo de zooplancton: análisis comparativo de la eficacia de mangas y botellas en un sistema estuárico. Inv. Pesq., 41: 258-294.). Calbet et al. (2001)Calbet A., Garrido S., Saiz E., et al. 2001. Annual zooplankton succession in coastal NW Mediterranean waters: the importance of the smaller size fractions. J. Plankton Res. 23: 319-331. obtained similar results when comparing samples taken with a 200-µm mesh Juday-Bogorov net with simultaneously obtained microplankton samples that were low-pressure filtered through a 200-µm gauze. Further discussions on the problem can be found in Turner (2004)Turner J.T. 2004. The importance of small planktonic copepods and their roles in pelagic marine food webs. Zool. Stud. 43: 255-266., and comments on the sampling bias of the LHPR net in Haury (1973)Haury L.R. 1973. Sampling biass of a Longhurst-Hardy Plankton Recorder. Limnol. Oceanogr. 18: 500-506.. However, the quantitative underestimation of biomass by oblique plankton hauls should not affect the relative spatial pattern and temporal variability of the extensive properties of zooplankton.

According to the physical structure observed, the three stations corresponded to the typical coastal, frontal and offshore conditions described in Font et al. (1988)Font J., Salat J., Tintoré J. 1988. Permanent features of the circulation in the Catalan sea. In: Minas H.J., Nival P. (eds), Pelagic Mediterranean oceanography. Oceanol. Acta, 9: 51-57., Saiz et al. (1992)Saiz E., Rodriguez V., Alcaraz M. 1992. Spatial distribution and feeding rates of Centropages typicus in relation to frontal structures in the Catalan Sea (Western Mediterranean). Mar. Biol. 112: 49-56. and Calbet et al. (1996Calbet A., Alcaraz M., Saiz E., et al. 1996. Planktonic herbivorous food webs in the Catalan Sea (NW Mediterranean): temporal variability and comparison of indices of phyto-zooplankton coupling based in state variables and rate processes. J Plankton Res. 18: 2329-2347., 2002)Calbet A., Saiz E., Alcaraz M. 2002. Copepod eggproduction in the NW Mediterranean: effects of winter environmental conditions. Mar. Ecol. Prog. Ser. 273: 173.184. for the same area and time of the year. While the coast-offshore gradient in zooplankton biomass was opposed to previous observations (Alcaraz et al. 1994Alcaraz M., Saiz E., Estrada M. 1994. Excretion of ammonia by zooplankton and its potential contribution to nitrogen requirements for primary production in the Catalan Sea (NW Mediterranean). Mar. Biol. 119: 69-76., Calbet et al. 2002Calbet A., Saiz E., Alcaraz M. 2002. Copepod eggproduction in the NW Mediterranean: effects of winter environmental conditions. Mar. Ecol. Prog. Ser. 273: 173.184.), the pattern of vertical distribution at noon repeated the typical deep zooplankton biomass maximum (DZM) associated with the phyto- and chlorophyll deep maximum (Alcaraz 1985Alcaraz M. 1985. Vertical distribution of zooplankton biomass during summer stratification in the Western Mediterranean. In: Gibbs P.E. (ed.), Proceedings of the 19th EMBS. Cambridge Univ. Press, Cambridge, pp. 135-143., Saiz and Alcaraz 1990Saiz E., Alcaraz M. 1990. Pigment gut contents of copepods and deep phytoplankton maximum in the Western Mediterranean. J Plankton Res. 12: 665-672.). No previous data on organism size allow us to generalize the average larger I_M of zooplankton organisms associated with the density front, although it agrees with its nature as a nursery area for copepods (Boucher et al. 1987Boucher J., Ibanez F., Prieur L. 1987. Daily and seasonal variations in the spatial distribution of zooplankton populations in relation to the physical structure in the Ligurian sea front. J. Mar Res. 45: 133-173.), where euphausiids accumulate and fish larvae are retained (Sabatés and Olivar 1996Sabatés A., Olivar P. 1996. Variation of larval fish distributions associated with variability in the location of a shelf-slope front. Mar. Ecol. Prog. Ser. 135: 11-20.), thus enlarging the size-range of zooplankton organisms gathered in the area.

The higher variability of zooplankton biomass at small time- and space scales could probably result, as pointed out by Haury (1976a)Haury L.R. 1976a. Small-scale pattern of a California current zooplankton assemblage. Mar. Biol. 37: 137-155., from the combination of the scale size of zooplankton microstructure with the constant vertical water motion due to internal wave activity. For depth-integrated (10² m) and day-night (≈10 h) scales the variability is lower, or of the same order as the values found in single LHPR hauls by Haury (1976b)Haury L.R. 1976b. A comparison of zooplankton patterns in the California current and North Pacific Central Gyre. Mar. Biol. 37: 159-167. for organism numbers in the Pacific Central Gyre and the California current, and the average I_M shows the highest variability at the same time and space scales. This finding could be explained by the high number of samplings coinciding with the time of maximum ascension speed at dusk of large, deep zooplankton components, and their descent at dawn. The higher backscatter strength recorded by moored ADCP in the same area and time of the year during the morning and evening migrations of pelagic organisms (Pinot and Jansá 2001Pinot J.M., Jansá J. 2001. Time variability of acoustic backscatter from zooplankton in the Ibiza channel (western Mediterranean). Deep Sea Res. 48: 1651-1670.), and off Southern California (Smith et al 1989Smith P.E., Ohman M.D., Eber L.E. 1989. Analysis of the patterns of distribution of zooplankton aggregations from an accoustic doppler current profiler. CalCOFI Rep. 30: 88-103.), seem to confirm this hypothesis. In general, the higher variability of C_ZOO and IND as compared with Chl a is the consequence of the non-motile nature of most of the phytoplankton components, and of the variability imposed by vertical migration on zooplankton.

Although the spatial-temporal diagram of haul-integrated zooplankton biomass and its variability indicate a persistence of the coast-offshore positive gradient, it also indicates a considerable degree of variability, especially at the front. All the data identify it as a hotspot of zooplankton biomass of larger size, during both day and night. The front is thus an ecotone between hydrographically distinct systems: the Liguro-Provençal-Catalan Current on the coast side, the dome waters offshore and, occluding everything during the summer stratification period, an almost uniform mixing layer, each system having different zooplankton assemblages (Boucher 1984Boucher J. 1984. Localization of zooplankton populations in the Ligurian marine front: role of ontogenic migration. Deep Sea Res. 31: 469-484., Calbet et al. 1996Calbet A., Alcaraz M., Saiz E., et al. 1996. Planktonic herbivorous food webs in the Catalan Sea (NW Mediterranean): temporal variability and comparison of indices of phyto-zooplankton coupling based in state variables and rate processes. J Plankton Res. 18: 2329-2347.).

Further studies in contrasting hydrographic situations (i.e. the winter mixing period or the spring outbreak and autumn collapse of the thermocline) would help to identify the relevant variability scales for extensive properties of the different plankton components and improve the parameterization in plankton production models.
