INTRODUCTIONTop

The octocorals are found in marine habitats ranging from intertidal to abyssal waters and are distributed from the Arctic to the Antarctic (Bayer 1961Bayer F.M. 1961. The shallow water Octocorallia of the West Indian Region. A manual for marine biologists. Martinus Nijhoff, The Hague, 400 pp.). The gorgonian octocorals are one of the best-represented taxonomic groups in sublittoral marine ecosystems, are ecologically important and are the dominant macrofaunal group on many tropical reefs (Sánchez et al. 2003Sánchez J.A., Mcfadden C.S., France S.C., et al. 2003. Molecular Phylogenetic analyses of shallow-water Caribbean octocorals. Mar. Biol. 142: 975-987., Williams and Breedy 2004Williams G., Breedy O. 2004. The Panamic Genus Pacifigorgia (Octocorallia: Gorgoniidae) in the Galápagos Archipelago. Proc. Calif. Acad. Sci. 55: 54-87.). The study of the eastern Pacific gorgonian octocorals, specifically in Ecuador, has not matched the intensity and number of publications dedicated to Caribbean species (see Bayer 1981Bayer F.M. 1981. Status of knowledge of octocorals of world seas. Seminários de Biologia Marinha. Academia Brasileira de Ciências, Rio de Janeiro, pp 1-17.). Despite important contributions by authors such as Breedy and Guzmán (2002Breedy O., Guzmán H.M. 2002. A revision of the genus Pacifigorgia (Coelenterata: Octocorallia: Gorgoniidae). Proc. Biol. Soc. Wash. 115: 787-844, 2007)Breedy O., Guzmán H.M. 2007. A revision of the genus Leptogorgia Milne-Edwards and Haime, 1857 (Coelenterata: Octocorallia: Gorgoniidae) in the Eastern Pacific. Zootaxa 1419: 1-90., Williams and Breedy (2004)Williams G., Breedy O. 2004. The Panamic Genus Pacifigorgia (Octocorallia: Gorgoniidae) in the Galápagos Archipelago. Proc. Calif. Acad. Sci. 55: 54-87. and Breedy et al. (2009)Breedy O., Guzmán H.M., Vargas S. 2009. A revision of the genus Eugorgia Verrill 1868 (Coelenterata: Octocorallia: Gorgoniidae). Zootaxa 2151: 1-46. in the eastern Pacific, the knowledge on the gorgonian fauna of Ecuador is far from complete (but see Bielschowsky 1929Bielschowsky E. 1929. Die Gorgonarien Westindiens. 6. Die Familie Gorgoniidae, zugleich eine Revision. Zool. Jahrb. Supplement 16: 63-234. and Soler-Hurtado and López-González 2012Soler-Hurtado M.M., López-González P.J. 2012. Two new gorgonian species (Anthozoa: Octocorallia: Gorgoniidae) from Ecuador (Eastern Pacific). Mar. Biol. Res. 8: 380-387.). Four gorgoniid genera (Gorgoniidae) were previously reported in the eastern Pacific, Phycogorgia Milne-Edwards and Haime, 1850Milne-Edwards H., Haime J. 1850. A monograph of the British fossil corals. Part 1. Introduction; corals from the Tertiary and Cretaceous formations, London, pp 1-71., Leptogorgia Milne-Edwards and Haime, 1857Milne-Edwards H., Haime J. 1857. Histoire naturelle des coralliaires ou polypes proprement dits, Vol. 1 pp. I–xxxiv + 1–326, 8 plates, numbered A1–6, B1–2. Paris, à la Libraire Encyclopédique de Roret., Eugorgia Verrill, 1868Verrill A.E. 1868. Notes on Radiata in the Museum of Yale College, Number 6: Review of the corals and polyps of the West Coast of America. Trans. Conn. Acad. Arts Sci. (Second Edition), pp. 377-422. and Pacifigorgia Bayer, 1951Bayer F.M. 1951. A revision of the nomenclature of the Gorgoniidae (Coelenterata: Octocorallia) with an illustrated key to the genera. J. Wash. Acad. Sci. 41: 91-102.. The genus Leptogorgia, with about 60 valid species (27 species in the eastern Pacific) is one of the most frequent genera in the shallow water communities of the eastern Pacific (Breedy and Guzmán 2007Breedy O., Guzmán H.M. 2007. A revision of the genus Leptogorgia Milne-Edwards and Haime, 1857 (Coelenterata: Octocorallia: Gorgoniidae) in the Eastern Pacific. Zootaxa 1419: 1-90.), with a wide distribution from southern California to Chile. This genus is also present in the Caribbean, western and eastern South African coasts, the eastern Atlantic and the Mediterranean Sea, and one species is known from the sub-Antarctic (Williams and Lindo 1997Williams G.C., Lindo K.G. 1997. A review of the octocorallian genus Leptogorgia (Anthozoa: Gorgoniidae) in the Indian Ocean and Subantarctic, with description of a new species and comparisons with related taxa. Proc. Calif. Acad. Sci. 49: 499-521.). The genus Pacifigorgia is geographically confined to the Pacific coast of tropical America, with the exception of Pacifigorgia elegans (Milne-Edwards and Haime, 1857Milne-Edwards H., Haime J. 1857. Histoire naturelle des coralliaires ou polypes proprement dits, Vol. 1 pp. I–xxxiv + 1–326, 8 plates, numbered A1–6, B1–2. Paris, à la Libraire Encyclopédique de Roret.) from the tropical western Atlantic. Pacifigorgia includes about 36 recognized species distributed throughout the eastern tropical Pacific region (Breedy and Guzmán 2002Breedy O., Guzmán H.M. 2002. A revision of the genus Pacifigorgia (Coelenterata: Octocorallia: Gorgoniidae). Proc. Biol. Soc. Wash. 115: 787-844, 2003Breedy O., Guzmán H.M. 2003. Octocorals from Costa Rica. The genus Pacifigorgia (Coelenterata: Octocorallia: Gorgoniidae). Zootaxa 281: 1-60., 2004Breedy O., Guzmán H.M. 2004. New species of the gorgoniian genus Pacifigorgia (Coelenterata: Octocorallia: Gorgoniidae) from the Pacific of Panama. Zootaxa 15: 1-15., Williams and Breedy 2004Williams G., Breedy O. 2004. The Panamic Genus Pacifigorgia (Octocorallia: Gorgoniidae) in the Galápagos Archipelago. Proc. Calif. Acad. Sci. 55: 54-87., Guzmán and Breedy 2011Guzmán H.M., Breedy O. 2011. Pacifigorgia marviva (Anthozoa: Octocorallia) a new species from Coiba National Park, Pacific Panama. J. Mar. Biol. Assoc. UK 92: 693-698.). The genus Eugorgia, which includes 16 species, is considered exclusive to the eastern Pacific (from southern California to Peru) (Breedy and Guzmán 2013Breedy O., Guzmán H.M. 2013. A new species of the genus Eugorgia (Cnidaria: Octocorallia: Gorgoniidae) from Mesophotic reefs in the Eastern Pacific. Bull. Mar. Sci. 3: 735-743.). Finally, the genus Phycogorgia, with only one species, Phycogorgia fucata (Valenciennes, 1846Valenciennes A. 1846. Zoophytes. In: Dupetit-Thouars A. (ed) Voyage autour du monde sur la frégate la Vénus, pendant les années 1836-1839. Atlas de Zoologie. Publié par ordre Du Roi, Paris, pp 1-15.), is distributed along the west coast of Central and South America (Bayer 1953Bayer F.M. 1953. Zoogeography and evolution in the octocorallian family Gorgoniidae. Bull. Mar. Sci. Gulf Caribb. 2: 100-119.).

The aim of this report is to present new information derived from material of the genera Eugorgia, Leptogorgia and Pacifigorgia collected in Ecuador. We expand the known distribution of some species in the eastern Pacific and describe new morphological variability for several taxa. Finally, using morphological and genetic data, we describe one new species of Pacifigorgia, emphasizing the set of morphological characters considered to be of taxonomic importance for this genus (Breedy and Guzmán 2002Breedy O., Guzmán H.M. 2002. A revision of the genus Pacifigorgia (Coelenterata: Octocorallia: Gorgoniidae). Proc. Biol. Soc. Wash. 115: 787-844, 2003Breedy O., Guzmán H.M. 2003. Octocorals from Costa Rica. The genus Pacifigorgia (Coelenterata: Octocorallia: Gorgoniidae). Zootaxa 281: 1-60., 2004Breedy O., Guzmán H.M. 2004. New species of the gorgoniian genus Pacifigorgia (Coelenterata: Octocorallia: Gorgoniidae) from the Pacific of Panama. Zootaxa 15: 1-15., Williams and Breedy 2004Williams G., Breedy O. 2004. The Panamic Genus Pacifigorgia (Octocorallia: Gorgoniidae) in the Galápagos Archipelago. Proc. Calif. Acad. Sci. 55: 54-87., Guzmán and Breedy 2011Guzmán H.M., Breedy O. 2011. Pacifigorgia marviva (Anthozoa: Octocorallia) a new species from Coiba National Park, Pacific Panama. J. Mar. Biol. Assoc. UK 92: 693-698.). We include the sequence analysis of the barcode of mtMutS plus COI with a short, adjacent intergenic region (Igr1) proposed by McFadden et al. (2011)McFadden C.S., Benayahu Y., Pante E., et al. 2011. Limitations of Mitochondrial Gene Barcoding in Octocorallia. Mol. Ecol. Res. 11: 19-31., with its closest congeners and available sequences in GenBank.

MATERIALS AND METHODSTop

Study area and sampling methodology

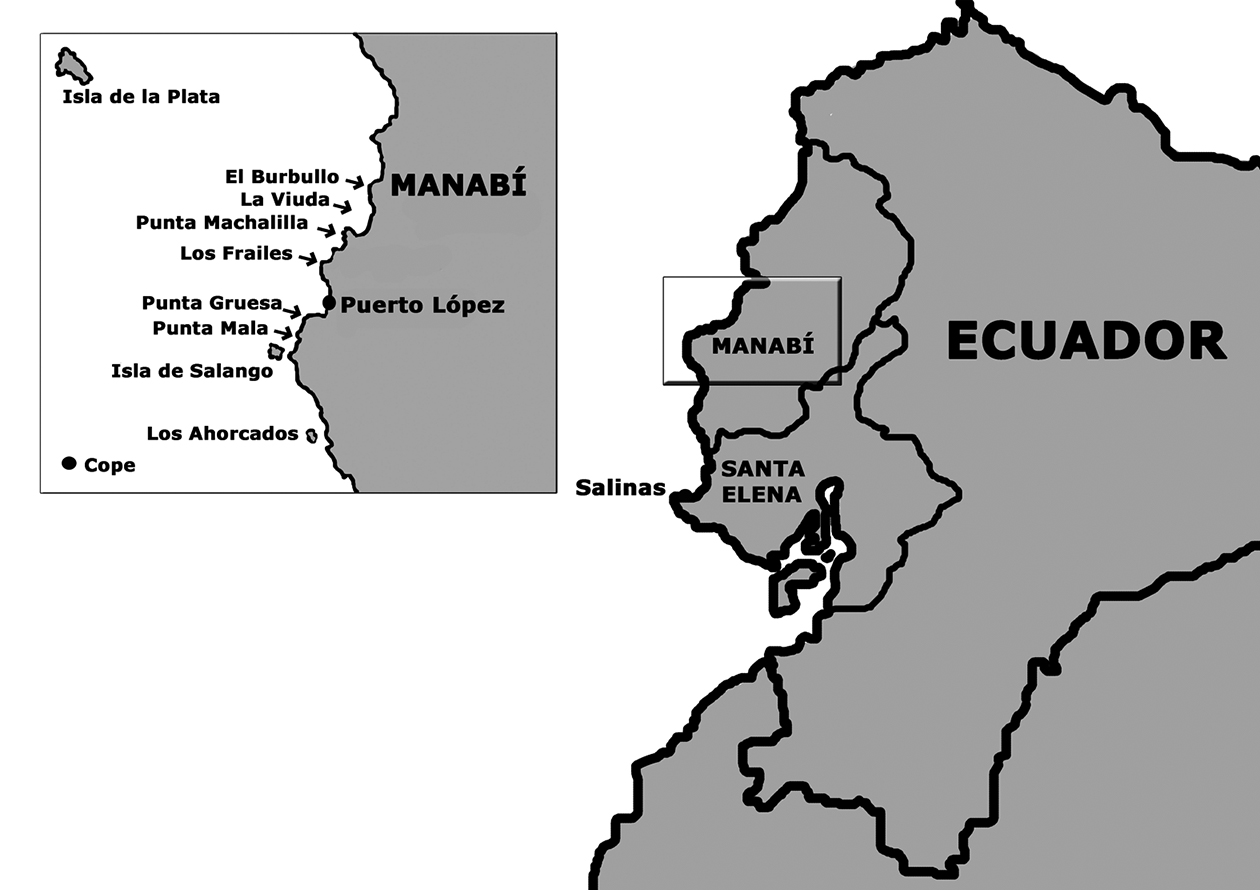

Eleven stations in Ecuadorian waters were sampled from February 2010 to June 2014 (Fig. 1). Gorgonians were collected by SCUBA diving in a depth range of between 5 and 30 m. Substrata in these habitats mainly include sand and rocky bottoms. During sampling, we took colour photographs of the living specimens in their environment; specimens were also photographed outside the water, just after collection to ensure the accuracy of our colour descriptions. Subsamples were fixed in either absolute ethanol for further molecular analyses, or in 4% buffered formalin (after previous relaxation with menthol crystals for a few hours) for the morphological study; the rest of the colonies were allowed to air dry. Buffered formalin-fixed subsamples were subsequently transferred to 70% ethanol (Soler-Hurtado and López-González 2012Soler-Hurtado M.M., López-González P.J. 2012. Two new gorgonian species (Anthozoa: Octocorallia: Gorgoniidae) from Ecuador (Eastern Pacific). Mar. Biol. Res. 8: 380-387.).

External morphology and SEM study

Fragments from different parts of the colony were prepared for study by SEM according to standard methods (Bayer and Stefani 1989Bayer F.M., Stefani J. 1989. Primnoidae (Gorgonacea) de Nouvelle-Calédonie. Bull. Mus. Nat. His. Nat. Paris. 4, 10(A) 3: 449-476., Alderslade 1998Alderslade P. 1998. Revisionary systematics in the gorgonian family Isididae, with description of numerous new taxa (Coelenterata, Octocorallia). Rec. West. Aust. Mus. 55: 1-359.). Additionally, permanent mounts were made for light microscopy observation. The colonies are described and illustrated according to standard terminology (Bayer et al. 1983Bayer F.M., Grasshoff M., Verseveldt J. 1983. Illustrated trilingual glossary of morphological terms applied to Octocorallia. E.J. Brill, Leiden, 74 pp., Breedy and Guzmán 2003Breedy O., Guzmán H.M. 2003. Octocorals from Costa Rica. The genus Pacifigorgia (Coelenterata: Octocorallia: Gorgoniidae). Zootaxa 281: 1-60., 2007Breedy O., Guzmán H.M. 2007. A revision of the genus Leptogorgia Milne-Edwards and Haime, 1857 (Coelenterata: Octocorallia: Gorgoniidae) in the Eastern Pacific. Zootaxa 1419: 1-90.).

For either morphological and molecular comparisons, we studied types and additional materials deposited in the Museum of Comparative Zoology, Harvard University (MCZ); Muséum National d’Histoire Naturelle, Paris (MNHN); the Natural History Museum, London (NHM); the Yale Peabody Museum of Natural History, New Haven (YPM); and the National Museum of Natural History, Smithsonian, Washington (MNH).

Museum specimens were revised for morphological comparative purposes and, in some cases, for molecular analysis. These samples are listed in the text after the newly collected material of each species. Additional museum specimens of species revised but not found in Ecuador were the following:

Eugorgia ampla (Verrill, 1864Verrill A.E. 1864. List of the polyps and corals sent by the Museum of Comparative Zoology to other institutions in exchange, with annotations. Bull. Mus. Comp. Zool. at Harvard College, 1: 29-60.): NHM 69.4.15.53, Baja California (Mexico), no further data. YPM 399, Baja California, 11-15 m depth, 1865. MCZ 65167, Mexico, no depth given, date unknown.

Eugorgia aurantica (Horn, 1860Horn G.H. 1860. Descriptions of three new species of Gorgoniidae, in the collection of the Academy. J. Acad. Nat. Sci. Phila. 12: 233.): YPM (4051), Baja California (Mexico), no depth given, 1867-1870. NHM 40.8.22.8, Baja California (Mexico), no depth given, date unknown. MCZ 36185, Baja California (Mexico), no depth given, date unknown.

Eugorgia nobilis Verrill, 1868Verrill A.E. 1868. Notes on Radiata in the Museum of Yale College, Number 6: Review of the corals and polyps of the West Coast of America. Trans. Conn. Acad. Arts Sci. (Second Edition), pp. 377-422.: YPM 1552a-e, type material, Las Perlas (Panama), 11-15 m depth, 1866.YPM 401, type material, Baja California (Mexico), no further data. MCZ 36316, Baja California (Mexico), no further data. USNM 49371, Gulf of Nicoya (Costa Rica), no depth given, 15 Jan. 1930. USNM 49372, Baja California (Mexico), no depth given, 16 Mar. 1911.

Eugorgia multifida Verrill, 1870Verrill A.E. 1870. Notes on Radiata in the Museum of Yale College, Number 6: Review of the corals and polyps of the West Coast of America. Trans. Conn. Acad. Arts Sci. (Second Edition), 1: 519-558.: YPM 4605, type material, Mazatlan (Mexico), no depth given, date unknown. USNM 49368, Baja California (Mexico), 11-15 m depth, date unknown.

Pacifigorgia adamsii (Verrill, 1868Verrill A.E. 1868. Notes on Radiata in the Museum of Yale College, Number 6: Review of the corals and polyps of the West Coast of America. Trans. Conn. Acad. Arts Sci. (Second Edition), pp. 377-422.): MCZ 391, type material, Panama, no depth given, 1863. MCZ 36079, type material, Panama, no depth given, 1866-1867. NHM 1930.6.173.9, South Pacific, no depth given, date unknown. YPM 1173g, type material, Panama, no depth given, 1866-1867. USNM 49688, Las Perlas (Panama), 33 m depth, 5 Mar 1888. USNM 49586, Mexico, no depth given, date unknown.

Pacifigorgia agassizii (Verrill, 1864Verrill A.E. 1864. List of the polyps and corals sent by the Museum of Comparative Zoology to other institutions in exchange, with annotations. Bull. Mus. Comp. Zool. at Harvard College, 1: 29-60.): MCZ 374, type material, Panama, no depth given, 1863. MCZ 4035, Acapulco (Mexico), no depth given, 1859-1860. MCZ 36266, Baja California (Mexico), no depth given, date unknown. NHM 1885.5.18.2, type material, Mexico, no depth given, 1859-1860. YPM 956, type material, Baja California (Mexico), no depth given, 1860. MNHN-IK 1589, no depth given, date unknown. USNM 49369, Baja California (Mexico), no depth given, date unknown.

Pacifigorgia arenata (Valenciennes, 1846Valenciennes A. 1846. Zoophytes. In: Dupetit-Thouars A. (ed) Voyage autour du monde sur la frégate la Vénus, pendant les années 1836-1839. Atlas de Zoologie. Publié par ordre Du Roi, Paris, pp 1-15.): MNHN-IK 1411, type material, New Zealand, no depth given, 1839.

Pacifigorgia firma Breedy and Guzmán, 2003Breedy O., Guzmán H.M. 2003. Octocorals from Costa Rica. The genus Pacifigorgia (Coelenterata: Octocorallia: Gorgoniidae). Zootaxa 281: 1-60.: MCZ 51918, type material, Culebra Bay (Costa Rica), 20 m depth, 21 Sept. 1997.

Pacifigorgia pulchra var. exilis (Verrill, 1870Verrill A.E. 1870. Notes on Radiata in the Museum of Yale College, Number 6: Review of the corals and polyps of the West Coast of America. Trans. Conn. Acad. Arts Sci. (Second Edition), 1: 519-558.): YPM 4059, type material, Baja California (Mexico), no depth given, 1867-1870. USNM 75076, Baja California (Mexico), no depth given, date unknown.

Pacifigorgia rutila (Verrill, 1868Verrill A.E. 1868. Notes on Radiata in the Museum of Yale College, Number 6: Review of the corals and polyps of the West Coast of America. Trans. Conn. Acad. Arts Sci. (Second Edition), pp. 377-422.): MCZ 184, type material, Acapulco (Mexico), no depth given, date unknown. YPM 2266, type material, Acapulco (Mexico), no depth given, 1869-1870.

The newly collected specimens are deposited in the Museo Ecuatoriano de Ciencias Naturales (MECN), the octocoral reference collection of the research group “Biodiversidad y Ecología de Invertebrados Marinos” at the University of Seville (BEIM), the Museo Nacional de Ciencias Naturales in Madrid (MNCN-CSIC), the Museo de Zoología de la Universidad Tecnológica Indoamérica in Quito (UTI), and the Museu de Ciénces Naturals in Barcelona (BCN).

DNA extraction, PCR amplification and sequencing

DNA was extracted from 20-30 mg of tissue using the DNeasy extraction kit (Qiagen, Inc.) according to the manufacturer’s protocol. Partial COII-COI (including Igr1 region) and MutS sequences were amplified by PCR using the following primers: COII8068F (McFadden et al. 2004McFadden C.S., Tullis I.D., Hutchinson M.B., et al. 2004. Variation in coding (NADH dehydrogenase subunits 2, 3, and 6) and noncoding intergenic spacer regions of the mitochondrial genome in Octocorallia (Cnidaria: Anthozoa). Mar. Biotechnol. 6: 516-526.), COIOCTR (France and Hoover 2002France S.C., Hoover L.L. 2002. DNA sequences of the mitochondrial COI gene have low levels of divergence among deep-sea octocorales (Cnidaria: Anthozoa). Hydrobiologia 471: 149-155.), the newly developed COI-Gorg1-R3 (5′-AGAGAAGGTGGTAATAACCAGAAA-3′) and COI-Gorg2-F2 (5′-GATTCGGAAATTGGTTTGTG-3´) for COI + Igr1; ND42599F (France and Hoover 2002France S.C., Hoover L.L. 2002. DNA sequences of the mitochondrial COI gene have low levels of divergence among deep-sea octocorales (Cnidaria: Anthozoa). Hydrobiologia 471: 149-155.) and MUT3458R (Sánchez et al. 2003Sánchez J.A., Mcfadden C.S., France S.C., et al. 2003. Molecular Phylogenetic analyses of shallow-water Caribbean octocorals. Mar. Biol. 142: 975-987.) for MutS. Amplifications were carried out in a final volume of 50 µL containing 5 µL of 10x buffer (containing 10×2 mM MgCl₂), 1 µL dNTPs mix (10 mM), 0.8 µL of each primer (10 µM), 0.5 µL of Taq DNA polymerase (5U/µL) (Biotools) and 2 µL of genomic DNA. Thermocycling for the COI fragment included an initial 4-min denaturation step at 94°C, followed by 40 cycles of 45 s at 94°C, 1 min at 58°C and 1 min at 72°C. The cycle ended with 10 min of sequence extension at 72°C. For MutS, we used an initial 4-min denaturation step at 94°C, followed by 35 cycles of 90 s at 94°C, 90 s at 58°C and 1 min at 72°C. The cycle ended with 5 min of sequence extension at 72°C. The amplification products were purified by ethanol precipitation. The amplicons were sequenced for both strands using BigDye Terminator in an ABI 3730 genetic analyser (Applied Biosystems). The sequences obtained were edited using the Sequencher v.4.6 program (Gene Code Corporation, Ann Arbor, MI, USA). The resulting alignments were inspected by eye and manually checked and adjusted with Se-Al v2.0a11 (Rambaut 2002Rambaut A. 2002. Se-Al. alignment editor. Version 2.0 all, University of Oxford, Oxford, UK. Available: http://tree.bio.ed.ac.uk/software/seal/). The distance matrix was obtained using PAUP*v4.0b10 (Swofford 2001Swofford D.L. 2001. PAUP*. Phylogenetic Analysis Using Parsimony (* and Other Methods), version 4. Sinauer Associates, Sunderland, Massachusetts.) with a neighbour joining clustering algorithm (Saitou and Nei 1987Saitou N., Nei M. 1987. The neighbor-joining method: A new method for reconstructing phylogenetic trees. Molec. Bio. Evol. 4: 406-425.). A molecular data matrix was created with the morphologically closest species, together with other published sequences for Gorgoniidae in GenBank (see Table 1).

RESULTSTop

Order Alcyonacea Verrill, 1866Verrill A.E. 1866. On the polyps and corals from Panamá with descriptions of new species. Proc. Boston Soc. Nat. Hist. 10: 323-357.
Suborder Holaxonia Studer, 1887Studer T. 1887. Versuch eines Systemes der Alcyonaria. Arch.Naturgesch. 53: 1-74.
Family Gorgoniidae Lamouroux, 1812Lamouroux J.V.F. 1812. Extrait d’une mémoire sur la classification des Polypiers coralligènes non entièrement pierreux. Nou. Bull. Sci. Soc. Philom. Paris 63: 181-188.

Genus Leptogorgia Milne-Edwards and Haime, 1857Milne-Edwards H., Haime J. 1857. Histoire naturelle des coralliaires ou polypes proprement dits, Vol. 1 pp. I–xxxiv + 1–326, 8 plates, numbered A1–6, B1–2. Paris, à la Libraire Encyclopédique de Roret.

Leptogorgia alba (Duchassaing and Michelotti, 1864Duchassaing P., Michelotti J. 1864. Supplément au mémoire sur les coralliaires des Antilles. Extrait des mémoires de l’Académie des Sciences de Turin, 23: 1-112.)

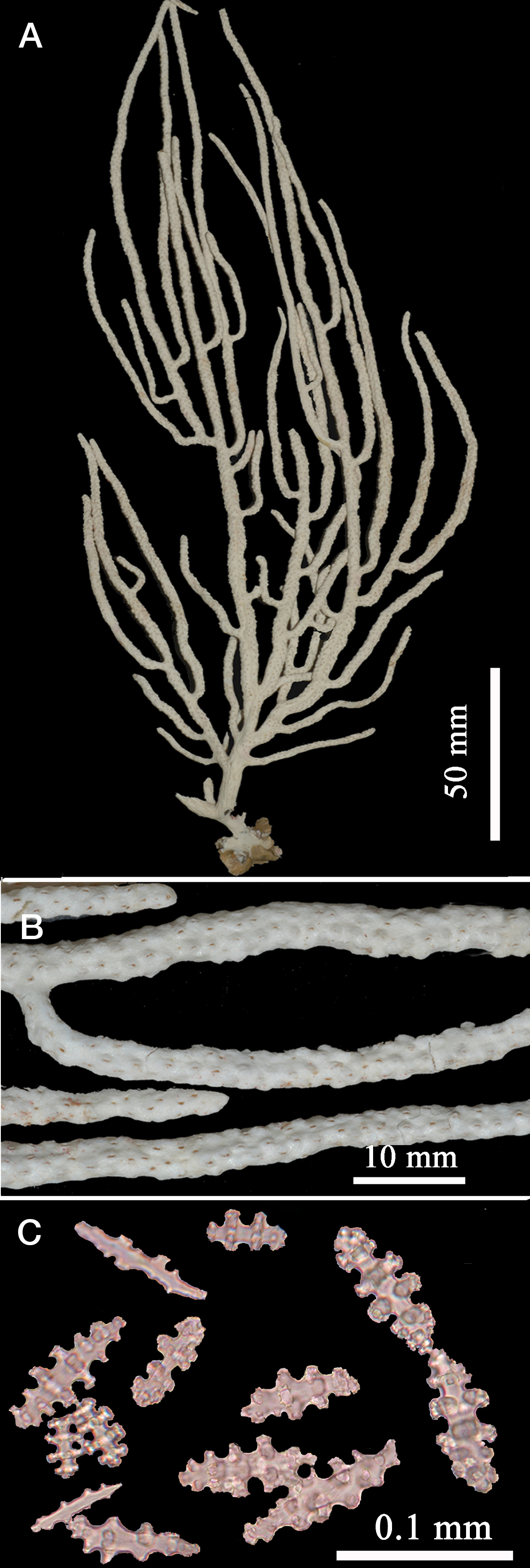

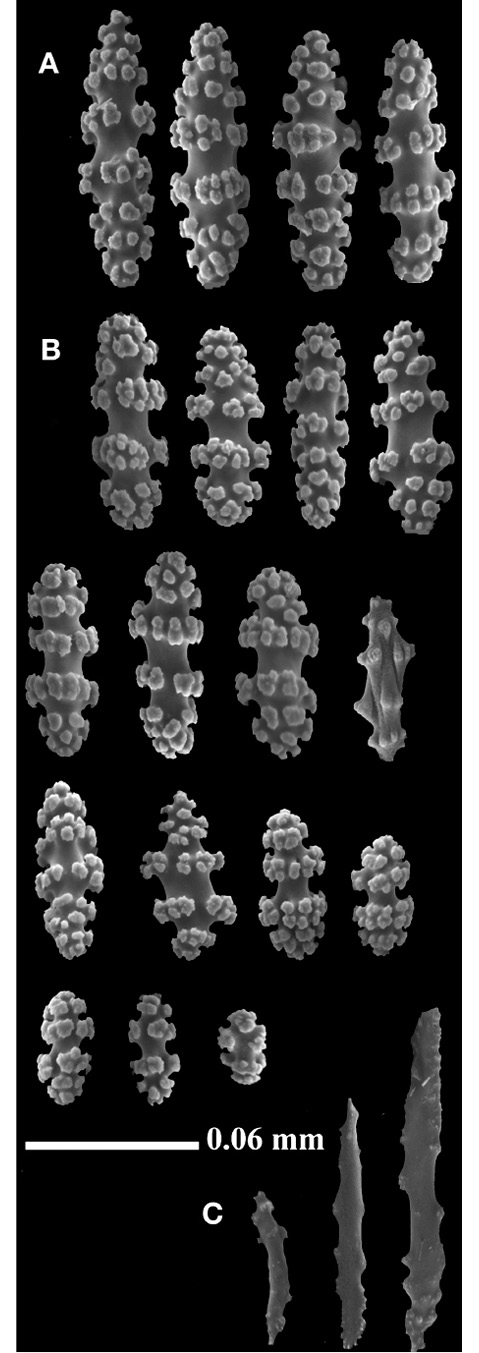

(Figs 2, 3)

Synonymy. See Breedy and Guzmán (2007: 12)Breedy O., Guzmán H.M. 2007. A revision of the genus Leptogorgia Milne-Edwards and Haime, 1857 (Coelenterata: Octocorallia: Gorgoniidae) in the Eastern Pacific. Zootaxa 1419: 1-90..

Newly collected examined material: MECN (Ant0001), Los Ahorcados, Manabí (Ecuador), 1°40’44”S 80°50’08”W, 15 m depth, 27 Feb. 2010, three whole colonies. MECN (Ant0019), Isla de Salango, Manabí (Ecuador), 1°35’55.13”S 80°52’0.01”W, 7 m depth, 20 Nov. 2011, two whole colonies. MECN (Ant0020), Salinas, Santa Elena (Ecuador), 2°12’50.01”S 80°56’5.93”W, 15 m depth, 18 Dec. 2011, one whole colony. MECN (Ant0027), Los Frailes, Manabí (Ecuador), 1°30’14”S 80°48’33”W, 10 m depth, Dec. 2011, three whole colonies. MECN (Ant0030), Los Frailes, Manabí (Ecuador), 1°30’14”S 80°48’33”W, 15 m depth, 19 March. 2012. BEIM (0071), Los Ahorcados, Manabí (Ecuador), 1°40’44”S 80°50’08”W, 15 m depth, 27 Feb. 2010, one whole colony. BEIM (0074), Los Ahorcados, Manabí (Ecuador), 1°40’44”S 80°50’08”W, 5 m depth, 27 Feb. 2010, one whole colony. MNCN (2.04/482), Los Ahorcados, Manabí (Ecuador), 1°40’44”S 80°50’08”W, 10 m depth, Feb. 2010, one whole colony. MNCN (2.04/483), Los Ahorcados, Manabí (Ecuador), 1°40’44”S 80°50’08”W, 15 m depth, 28 Feb. 2010, one whole colony. MZB (2016-2989), Los Ahorcados, Manabí (Ecuador), 1°40’44”S 80°50’08”W, 15 m depth, 27 Feb. 2010, one whole colony. UTI (MZUTI-Inv02), Los Ahorcados, Manabí (Ecuador), 1°40’44”S 80°50’08”W, 15 m depth, 28 Feb. 2010, one whole colony. MECN (Ant0040), Punta Mala, Manabí (Ecuador), 1°33’41.37”S 80°50’8.79”W, 16 m depth, 02 Feb. 2013, one whole colony. MECN (Ant0041), Islote La Viuda, Manabí (Ecuador), 1°26’5.95”S 80°46’7.30”W, 15 m depth, 23 Nov. 2013, one whole colony. MECN (Ant0050) Punta Machalilla, Manabí (Ecuador), 1°28’33.53”S 80°47’38.04”W, 13 m depth, 24 Nov. 2013, one whole colony.

Additional examined materials: Litigorgia laevis, MCZ 5416, type material, Las Perlas (Panama), no depth given, date unknown; MCZ 7008, type material, Golfo de Nicoya, (Costa Rica), no depth given, May 1868. Leptogorgia laevis, YPM IZ 001639, type material, Las Perlas, (Panama), no depth given, 1868. Leptogorgia alba, NHM 1946.1.14.52, Toboga (Panama), no depth given, date unknown; NHM 30.6.17.13, Toboga (Panama), no depth given, date unknown. Leptogorgia alba, USNM 59078, Ecuador, 8-9 m depth, 8 May 1966; USNM 1016223, Ecuador, no depth given, Dec. 1937.

Description. The colonies measure up to 350 mm in length and 105 mm wide, irregularly pinnate; branches slender, mostly in a plane (Fig. 2A). Unbranched distal twigs up to 100 mm in length and 20 mm in diameter, compressed proximally, more cylindrical and slightly tapered distally (Fig. 2A ,B). The holdfast circular, up to 5 mm in diameter. Slightly marked longitudinal grooves along the thick basal branches and near the base. The polyps retract within slightly raised polyp-mounds, sparsely distributed all around the branches with oblong apertures (Fig. 2B). The colour of the colony is white. The coenenchymal sclerites hyaline (Fig. 2C). The dominant sclerite type spindles up to 0.14 mm in length and 0.03 mm wide, with 4-6 whorls of tubercles; straight or bent, some with a marked waist (Figs 2C, 3A). The capstans up to 0.07 mm in length and 0.03 mm wide (Fig. 3B). Crosses not found. The anthocodial sclerites hyaline rods up to 0.08 mm in length and 0.02 mm wide, with some marginal projections (Figs 2C, 3C).

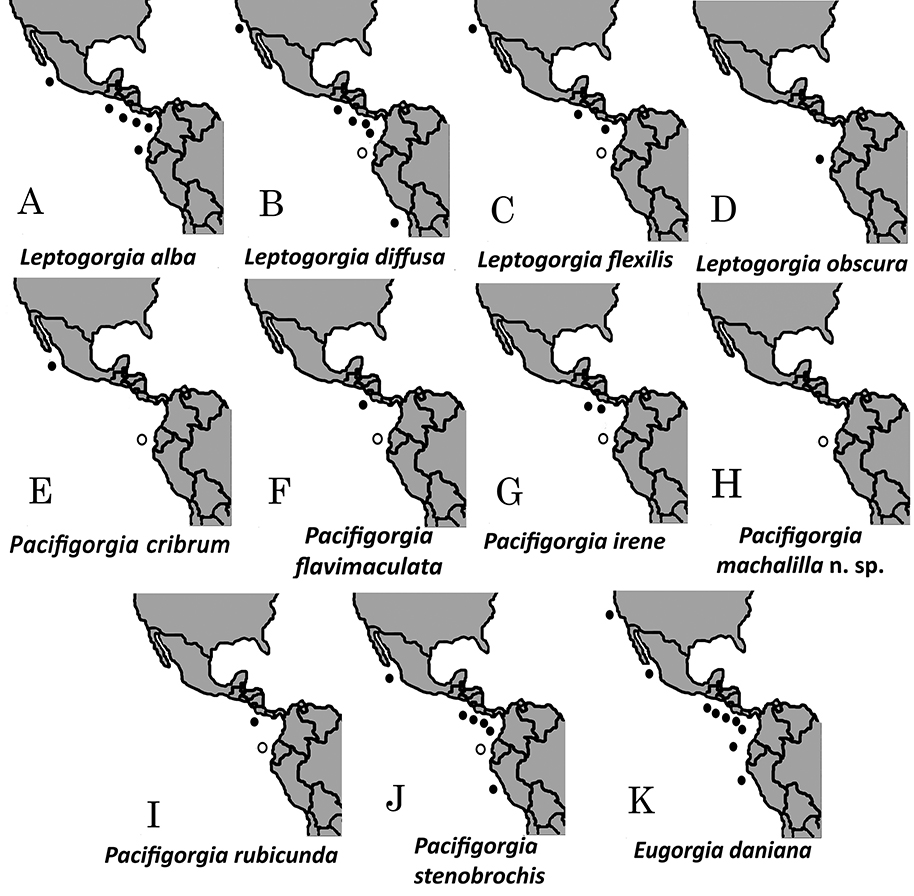

Geographic and bathymetric distribution. Leptogorgia alba has been reported in Mexico, El Salvador, Costa Rica, Panama, Colombia, and the Galápagos Islands (Ecuador) (Duchassaing and Michelotti 1864Duchassaing P., Michelotti J. 1864. Supplément au mémoire sur les coralliaires des Antilles. Extrait des mémoires de l’Académie des Sciences de Turin, 23: 1-112., Bielschowsky 1929Bielschowsky E. 1929. Die Gorgonarien Westindiens. 6. Die Familie Gorgoniidae, zugleich eine Revision. Zool. Jahrb. Supplement 16: 63-234., Breedy and Guzmán 2007Breedy O., Guzmán H.M. 2007. A revision of the genus Leptogorgia Milne-Edwards and Haime, 1857 (Coelenterata: Octocorallia: Gorgoniidae) in the Eastern Pacific. Zootaxa 1419: 1-90.), at 3-30 m depth (Fig. 25A).

Although Leptogorgia alba has already been collected in Ecuador (Galápagos Islands) (Breedy and Guzmán 2007Breedy O., Guzmán H.M. 2007. A revision of the genus Leptogorgia Milne-Edwards and Haime, 1857 (Coelenterata: Octocorallia: Gorgoniidae) in the Eastern Pacific. Zootaxa 1419: 1-90.); this is the first time that it has been found on the continental coast since the paper of Bielschowsky (1929)Bielschowsky E. 1929. Die Gorgonarien Westindiens. 6. Die Familie Gorgoniidae, zugleich eine Revision. Zool. Jahrb. Supplement 16: 63-234..

Remarks. Our material is in agreement with the original description (Duchassaing and Michelotti 1864:19Duchassaing P., Michelotti J. 1864. Supplément au mémoire sur les coralliaires des Antilles. Extrait des mémoires de l’Académie des Sciences de Turin, 23: 1-112.) and its later re-description (Breedy and Guzmán 2007:12-19Breedy O., Guzmán H.M. 2007. A revision of the genus Leptogorgia Milne-Edwards and Haime, 1857 (Coelenterata: Octocorallia: Gorgoniidae) in the Eastern Pacific. Zootaxa 1419: 1-90.). Due to its white colour, it is easily recognizable underwater. Breedy and Guzmán (2007)Breedy O., Guzmán H.M. 2007. A revision of the genus Leptogorgia Milne-Edwards and Haime, 1857 (Coelenterata: Octocorallia: Gorgoniidae) in the Eastern Pacific. Zootaxa 1419: 1-90. considered that its morphological variability, especially the type of branching, could perhaps be a response to several environmental factors. In our samples we observe a more pinnate pattern, although there is a tendency towards a dichotomous branching in some specimens. In the type material, the spindles are long, up to 0.17-0.18 mm in length and 0.04-0.06 mm in width, with marked and complex tubercles. However, our material shows smaller spindles (up to 0.14×0.03 mm, Table 2) with a less marked ornamentation. In the same way, the anthocodial rods are considered very consistent in size and shape (long and conspicuous) in this species (up to 0.15 mm in length) (Breedy and Guzmán 2007Breedy O., Guzmán H.M. 2007. A revision of the genus Leptogorgia Milne-Edwards and Haime, 1857 (Coelenterata: Octocorallia: Gorgoniidae) in the Eastern Pacific. Zootaxa 1419: 1-90.). However, the examined Ecuadorian material shows a smaller maximum length (up to 0.08 mm).

Leptogorgia diffusa (Verrill, 1868Verrill A.E. 1868. Notes on Radiata in the Museum of Yale College, Number 6: Review of the corals and polyps of the West Coast of America. Trans. Conn. Acad. Arts Sci. (Second Edition), pp. 377-422.)

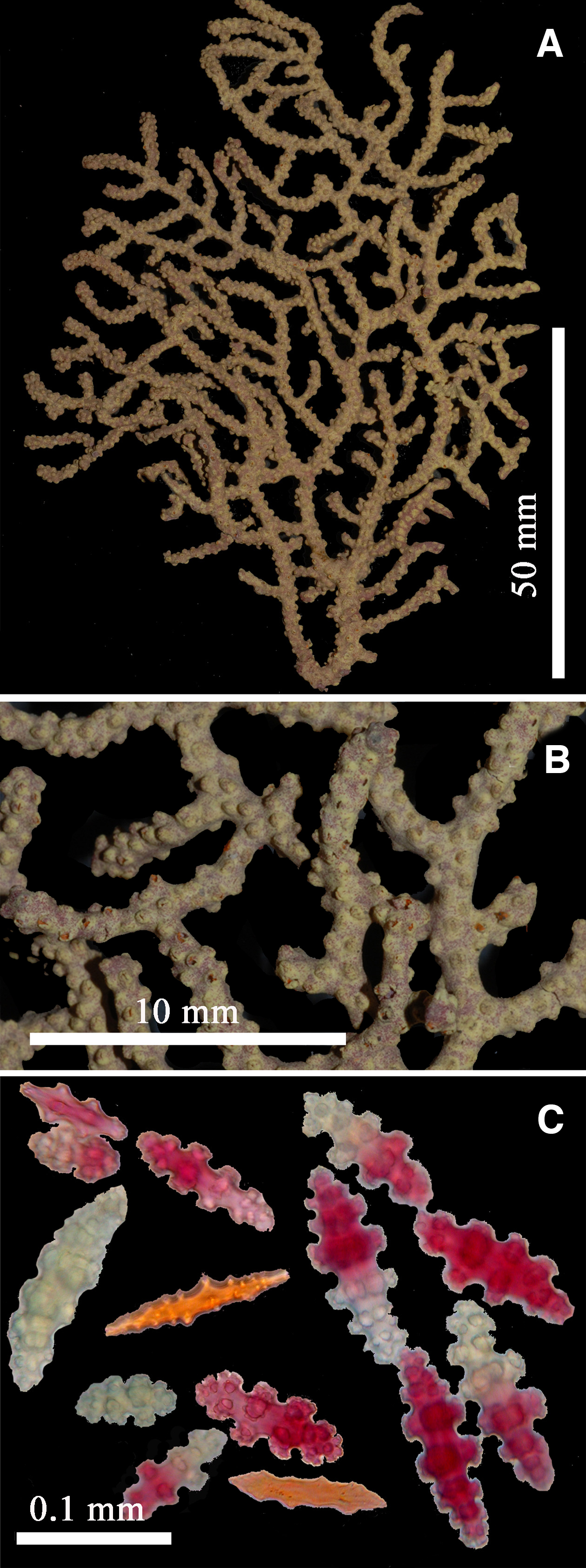

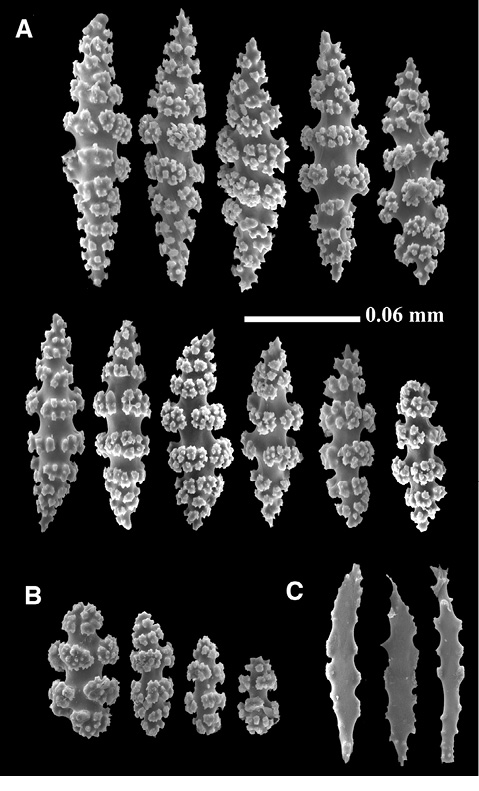

(Figs 4, 5)

Synonymy. See Breedy and Guzmán (2007: 32)Breedy O., Guzmán H.M. 2007. A revision of the genus Leptogorgia Milne-Edwards and Haime, 1857 (Coelenterata: Octocorallia: Gorgoniidae) in the Eastern Pacific. Zootaxa 1419: 1-90..

Newly collected examined material: MECN (Ant0032), Punta Mala, Manabí (Ecuador), 1°33’41.37”S 80°50’8.79”W, 13 m depth, 3 Abr. 2012, one whole colony. MECN (Ant0005), Los Ahorcados, Manabí (Ecuador), 1°40’44”S 80°50’08”W, 30 m depth, 28 Feb. 2010, two whole colonies. BEIM (0080), Los Ahorcados, Manabí (Ecuador), 1°40’44”S 80°50’08”W, 10 m depth, Feb. 2010, one whole colony. BEIM (0078), Los Ahorcados, Manabí (Ecuador), 1°40’44”S 80°50’08”W, 20 m depth, 28 Feb. 2010, one whole colony. MNCN (2.04/484), Los Ahorcados, Manabí (Ecuador), 1°40’44”S 80°50’08”W, 15 m depth, 27 March 2012, one whole colony. MNCN (2.04/485), Los Ahorcados, Manabí (Ecuador), 1°40’44”S 80°50’08”W, 30 m depth, 27 Feb. 2010, one whole colony. MZB (2016-2990), Los Ahorcados, Manabí (Ecuador), 1°40’44”S 80°50’08”W, 30 m depth, 27 Feb. 2010, one whole colony. MZB (2016-2991), Los Ahorcados, Manabí (Ecuador), 1°40’44”S 80°50’08”W, 25 m depth, 27 Feb. 2010, one whole colony. UTI (MZUTI-Inv09), Los Ahorcados, Manabí (Ecuador), 1°40’44”S 80°50’08”W, 30 m depth, 28 Feb. 2010, one whole colony. UTI (MZUTI-Inv01), Los Ahorcados, Manabí (Ecuador), 1°40’44”S 80°50’08”W, 10 m depth, 27 Feb. 2010, one whole colony. MECN (Ant0042), El Burbullón, Manabí (Ecuador), 1°28’23.59”S 80°51’23.04”W, 25 m depth, 23 Nov. 2013, one whole colony.

Additional examined materials: Leptogorgia diffusa MCZ 7081, type material, Golfo de Nicoya (Costa Rica), no depth given, May 1868. Litigorgia diffusa YPM 1659A, type material, Las Perlas (Panama), no depth given, 1866-1867. Leptogorgia diffusa MCZ 4972, Mexico, no depth given, date unknown. MNHN-IK 2233, no further data.

Description. The colonies are up to 670 mm in length by 950 mm in width. The branching pattern is irregularly pinnate; branches are flat, lax, pinnate, slender and on a plane (Fig. 4A). The unbranched distal twigs can reach up to 22 mm in length and 17 mm in diameter (Fig. 4A, B). The holdfast is slightly flat, up to 15 mm in diameter. The polyps retract within prominent polyp-mounds, sparsely distributed all around the branches with slit-like apertures (Fig. 4B). The colour of the colony and of the coenenchymal sclerites is red (Fig. 4A-C). The spindles are the dominant sclerite type, up to 0.11 mm in length and 0.03 mm in width, with 4-6 whorls of tubercles, they are straight or bent, some with a marked waist (Figs 4C, 5A). The capstans reach up to 0.07 mm in length and 0.04 mm in width (Figs 4C, 5B). Some small, scattered crosses are found (0.04×0.05 mm) (Fig. 4C). The anthocodial sclerites are orange flattened rods, up to 0.13 mm in length and 0.02 mm in width, with lobe-like marginal projections (Figs 4C, 5C).

Geographic and bathymetric distribution. Leptogorgia diffusa has been previously reported in California, El Salvador, Costa Rica, Panama, Colombia, and Chile at 5-30 m depth (see Verrill 1868Verrill A.E. 1868. Notes on Radiata in the Museum of Yale College, Number 6: Review of the corals and polyps of the West Coast of America. Trans. Conn. Acad. Arts Sci. (Second Edition), pp. 377-422., Bielschowsky 1929Bielschowsky E. 1929. Die Gorgonarien Westindiens. 6. Die Familie Gorgoniidae, zugleich eine Revision. Zool. Jahrb. Supplement 16: 63-234., Prahl et al. 1986Prahl H., Escobar D., Molina G. 1986. Octocorales (Octocorallia: Gorgoniidae y Plexauridae) de aguas someras del Pacífico Colombiano. Rev. Biol. Trop. 34: 13-33., Breedy and Guzmán, 2007Breedy O., Guzmán H.M. 2007. A revision of the genus Leptogorgia Milne-Edwards and Haime, 1857 (Coelenterata: Octocorallia: Gorgoniidae) in the Eastern Pacific. Zootaxa 1419: 1-90.) (Fig. 25B). This new record fills the gap between the northern and southern records of the species. Leptogorgia diffusa probably has a wider distribution, especially in offshore areas of Mexico and Peru, but it may have been previously overlooked. Although this species is quite frequent in Ecuador, it is usually observed isolated within multispecies assemblages and does not form large gorgonian gardens.

Remarks. The morphology of this species is very constant in all examined samples. It is easily differentiable from other Leptogorgia species by the lax, pinnate style of branching, with prominent polyp-mounds. Breedy and Guzmán (2007: 34-35)Breedy O., Guzmán H.M. 2007. A revision of the genus Leptogorgia Milne-Edwards and Haime, 1857 (Coelenterata: Octocorallia: Gorgoniidae) in the Eastern Pacific. Zootaxa 1419: 1-90. noted anthocodial sclerites that were light orange, dark pink, or both; however, our materials are only orange. The coenenchymal sclerites are a bit smaller (up to 0.11×0.03 mm; Table 2) than previously described (up to 0.14-0.15×0.05 mm) (Verrill 1868: 398Verrill A.E. 1868. Notes on Radiata in the Museum of Yale College, Number 6: Review of the corals and polyps of the West Coast of America. Trans. Conn. Acad. Arts Sci. (Second Edition), pp. 377-422., Breedy and Guzmán 2007: 34Breedy O., Guzmán H.M. 2007. A revision of the genus Leptogorgia Milne-Edwards and Haime, 1857 (Coelenterata: Octocorallia: Gorgoniidae) in the Eastern Pacific. Zootaxa 1419: 1-90.). In addition, the Ecuadorian material has scattered small crosses not reported in this species before.

Leptogorgia flexilis (Verrill, 1868Verrill A.E. 1868. Notes on Radiata in the Museum of Yale College, Number 6: Review of the corals and polyps of the West Coast of America. Trans. Conn. Acad. Arts Sci. (Second Edition), pp. 377-422.)

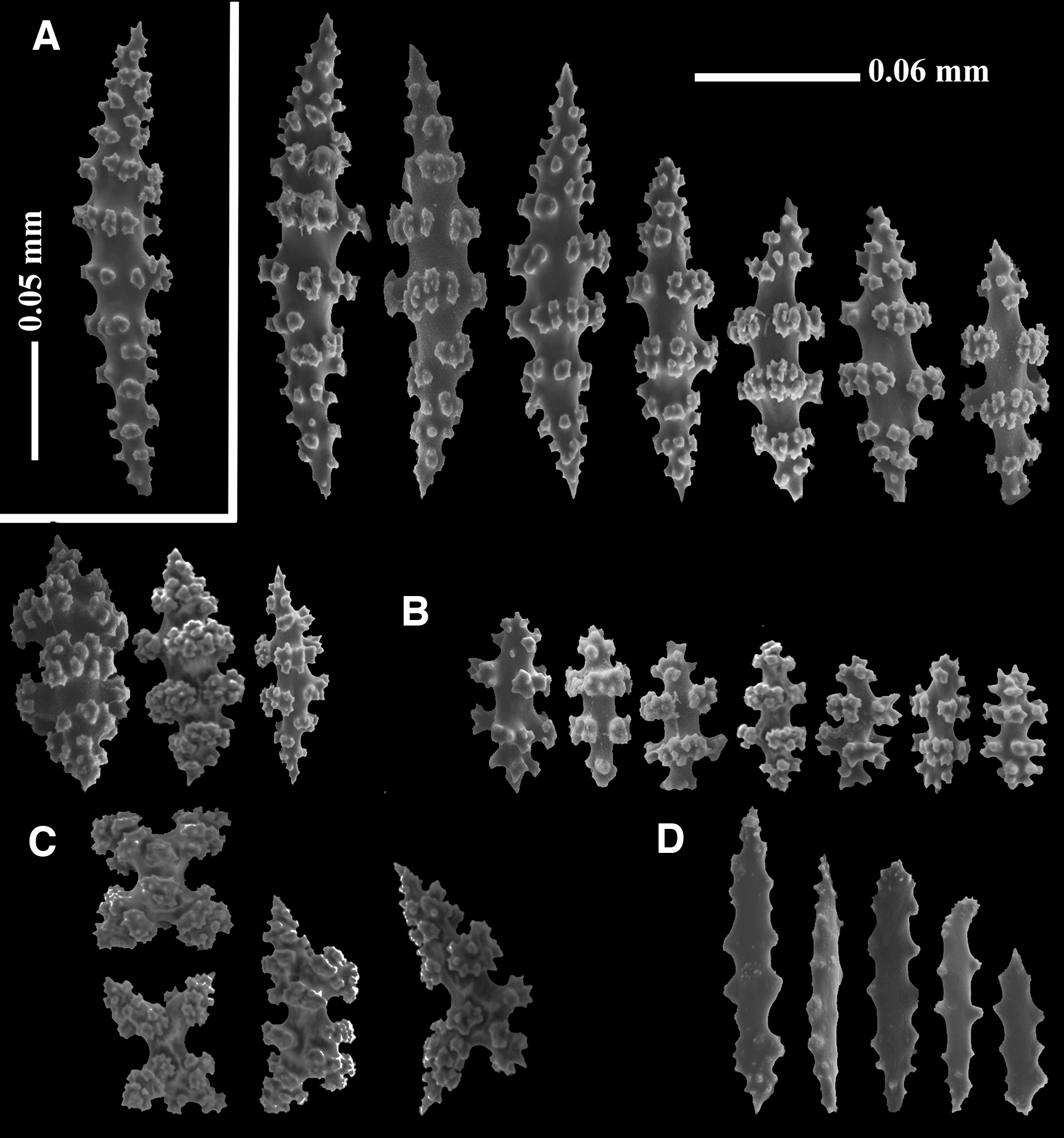

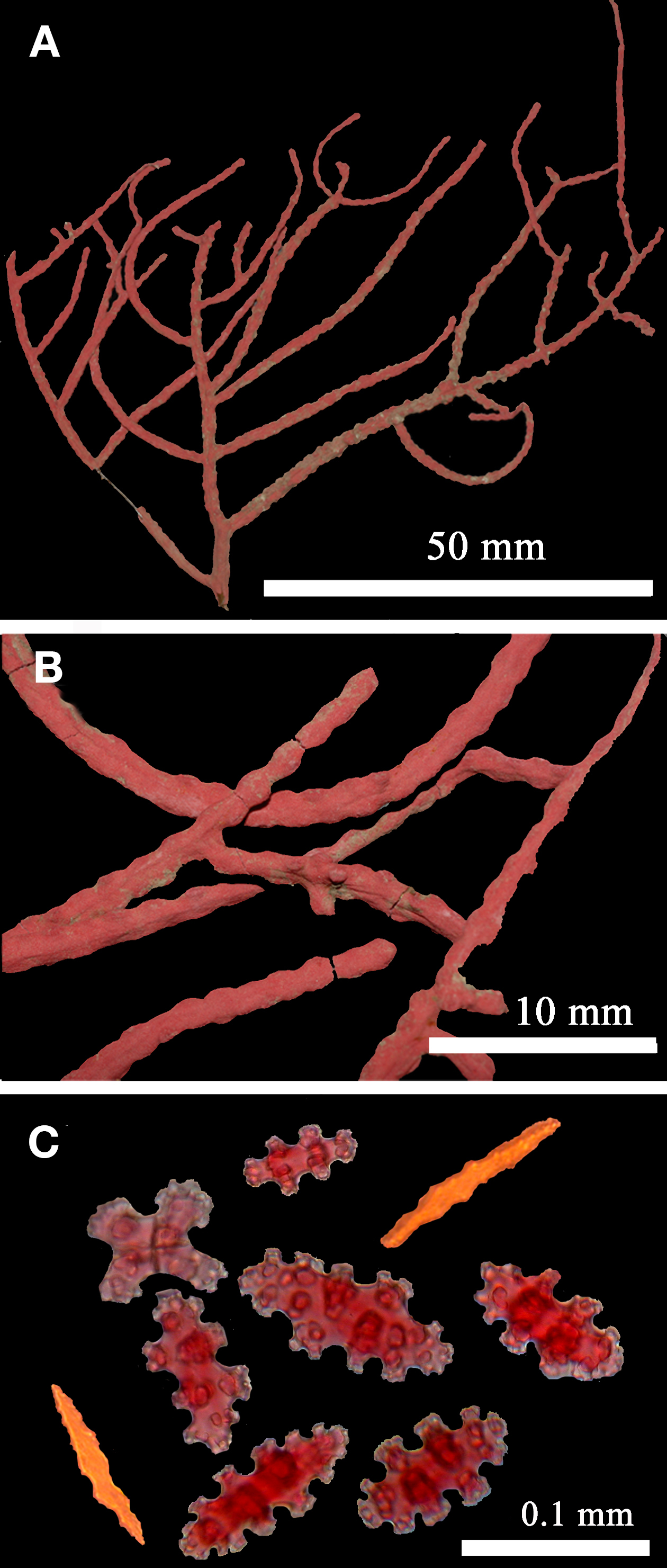

(Figs 6, 7)

Synonymy. See Breedy and Guzmán (2007: 40)Breedy O., Guzmán H.M. 2007. A revision of the genus Leptogorgia Milne-Edwards and Haime, 1857 (Coelenterata: Octocorallia: Gorgoniidae) in the Eastern Pacific. Zootaxa 1419: 1-90..

Newly collected examined material: MECN (Ant0034), Los Ahorcados, Manabí (Ecuador), 1°40’44”S 80°50’08”W, 10 m depth, 27 Feb. 2010, one whole colony. BEIM (0085), Los Ahorcados, Manabí (Ecuador), 1°40’44”S 80°50’08”W, 10 m depth, 27 Feb. 2010, one whole colony. MNCN (2.04/1171), Los Ahorcados, Manabí (Ecuador), 1°40’44”S 80°50’08”W, 5 m depth, 27 Feb. 2010, one whole colony.

Additional examined materials: Litigorgia flexilis (Eugorgia flexilis) MCZ 722 (4123), type material, Las Perlas (Panama), 6 to 8 m depth, 1860’s. Litigorgia flexilis NHM 69.4.15.15 (1946.1.14.74), type material, Toboguilla (Panama), 5 m depth, 1915. Leptogorgia flexilis YPM 569, Panama, no depth given, 1867-1868.

Description. The colonies measure up to 200 mm in length by 40 mm in width. The branching pattern is irregularly pinnate, mostly on a plane; branches are lank and bushy with long, slender, and flexible branches, drooping slightly at the ends (Fig. 6A). The unbranched distal twigs can reach up to 50 mm in length and 18 mm in diameter (Fig. 6A, B). The holdfast is circular, up to 10 mm in diameter. The polyps retract within nearly flat polyp-mounds, closely distributed all around the branches, with oblong apertures (Fig. 6B). The colour of the colony is brown (Fig. 6A, B). The coenenchymal sclerites are red, pink and yellow; some of them are bicoloured (Fig. 6C). The capstans are the dominant sclerite type, up to 0.07 mm in length and 0.03 mm in width (Figs 6C, 7B). The spindles reach up to 0.1 mm in length and 0.03 mm in width, with 4-6 whorls of tubercles; they are straight or bent, some with a marked waist (Fig. 7A). Some crosses or four-radiates (up to 0.03×0.03 mm) (Fig. 7D) and six-radiates (up to 0.03×0.02 mm) are also found. The anthocodial sclerites are pink flattened rods up to 0.16 mm in length and 0.08 mm in width, with short lobe-like marginal projections (Fig. 6D).

Geographic and bathymetric distribution. This species has been previously reported in California, El Salvador and Panama at 5-30 m depth (Verrill 1868Verrill A.E. 1868. Notes on Radiata in the Museum of Yale College, Number 6: Review of the corals and polyps of the West Coast of America. Trans. Conn. Acad. Arts Sci. (Second Edition), pp. 377-422., Breedy and Guzmán 2007Breedy O., Guzmán H.M. 2007. A revision of the genus Leptogorgia Milne-Edwards and Haime, 1857 (Coelenterata: Octocorallia: Gorgoniidae) in the Eastern Pacific. Zootaxa 1419: 1-90.) (Fig. 25C), and thus our specimens represent a sizeable expansion to the south.

Remarks. Under water, the species is characterized by its decumbent or drooping branching pattern and its brown colonies. However, in small colonies the drooping habit is not as evident, and sometimes the holdfast and basal branches are an intense yellow. Crosses or four-radiate sclerites were not mentioned by Breedy and Guzmán (2007)Breedy O., Guzmán H.M. 2007. A revision of the genus Leptogorgia Milne-Edwards and Haime, 1857 (Coelenterata: Octocorallia: Gorgoniidae) in the Eastern Pacific. Zootaxa 1419: 1-90. in their revision of different type materials (e.g. deposited at MZC and YPM). However, they are evident in our collections and in the type specimens at NHM. This type of sclerite had been noted by Verrill (1868)Verrill A.E. 1868. Notes on Radiata in the Museum of Yale College, Number 6: Review of the corals and polyps of the West Coast of America. Trans. Conn. Acad. Arts Sci. (Second Edition), pp. 377-422. as well, and it should be considered diagnostic for the species.

Leptogorgia obscura Bielschowsky, 1929Bielschowsky E. 1929. Die Gorgonarien Westindiens. 6. Die Familie Gorgoniidae, zugleich eine Revision. Zool. Jahrb. Supplement 16: 63-234.

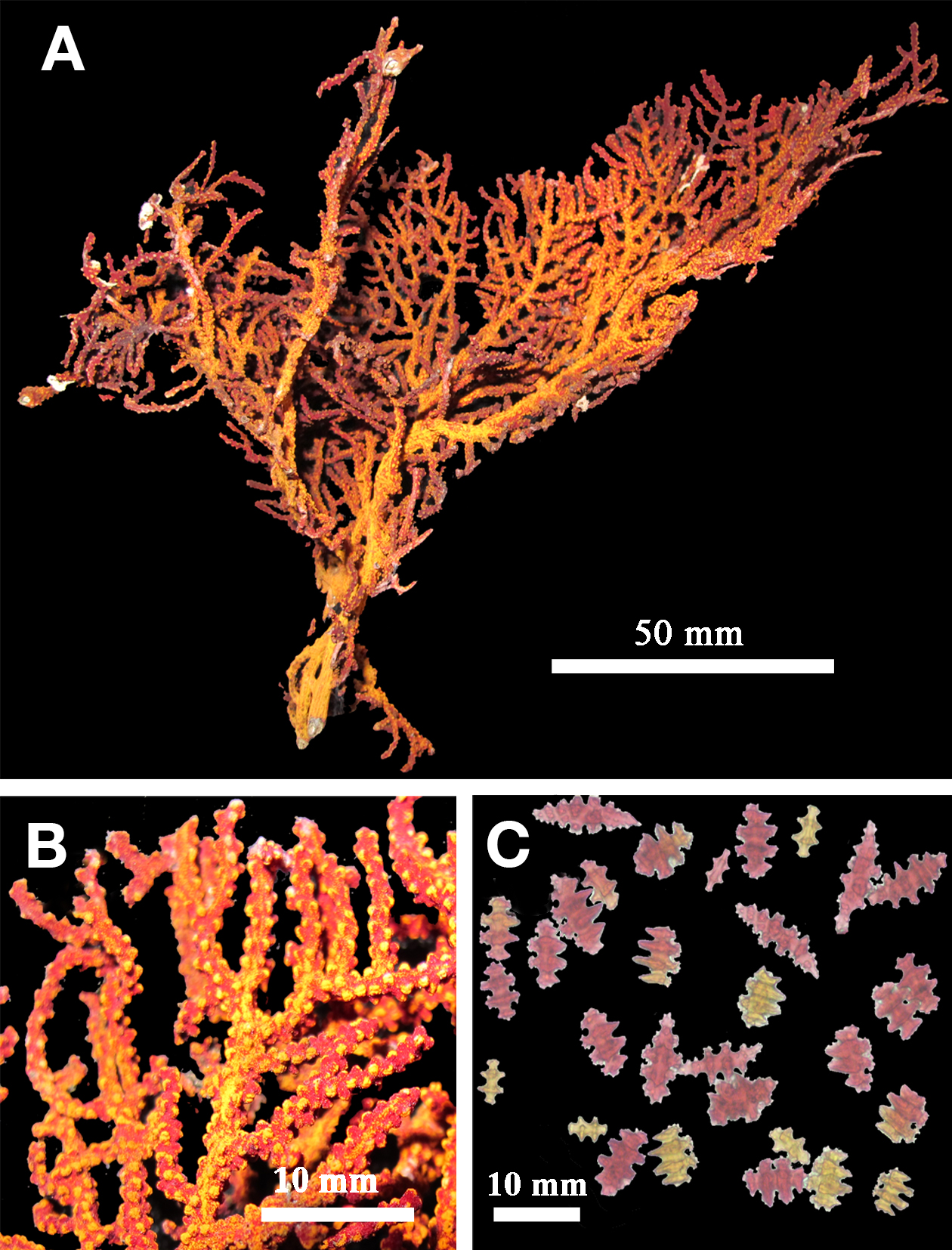

(Figs 8, 9)

Synonymy. See Breedy and Guzmán (2007: 57)Breedy O., Guzmán H.M. 2007. A revision of the genus Leptogorgia Milne-Edwards and Haime, 1857 (Coelenterata: Octocorallia: Gorgoniidae) in the Eastern Pacific. Zootaxa 1419: 1-90..

Newly collected examined material: MECN (Ant0011), Los Ahorcados, Manabí (Ecuador), 1°40’44”S 80°50’08”W, 10 m depth, 27 Feb. 2010, three whole colonies. MECN (Ant0028), Los Frailes, Manabí (Ecuador), 1°30’14”S 80°48’33”W, 10 m depth, 17 Feb. 2012, one whole colony. BEIM (CRO-0068), Los Ahorcados, Manabí (Ecuador), 1°40’44”S 80°50’08”W, 10 m depth, 27 Feb. 2010, one whole colony. BEIM (CRO-0069), Isla de Salango, Manabí (Ecuador), 1°35’55.13”S 80°52’0.01”W, 7 m depth, 19 Nov. 2011, one whole colony. MNCN (2.04/486), Isla de Salango, Manabí (Ecuador), 1°35’55.13”S 80°52’0.01”W, 7 m depth, 19 Nov. 2011, one whole colony. MNCN (2.04/487), Los Frailes, Manabí (Ecuador), 1°30’14”S 80°48’33”W, 10 m depth, 17 Feb. 2012, one whole colony. UTI (MZUTI-Inv03), Isla de Salango, Manabí (Ecuador), 1°35’55.13”S 80°52’0.01”W, 7 m depth, 19 Nov. 2011, one whole colony. UTI (MZUTI-Inv05), Isla de Salango, Manabí (Ecuador), 1°35’55.13”S 80°52’0.01”W, 13 m depth, 17 Feb. 2012, one whole colony. MZB (2016-2992), Isla de Salango, Manabí (Ecuador), 1°35’55.13”S 80°52’0.01”W, 13 m depth, 19 Feb. 2012, one whole colony. MZB (2016-2993), Los Ahorcados, Manabí (Ecuador), 1°40’44”S 80°50’08”W, 10 m depth, 27 Feb. 2010, one whole colony. MECN (Ant0043), Los Frailes, Manabí (Ecuador), 1°30’14”S 80°48’33”W, 15 m depth, 23 May. 2013, one whole colony. MECN (Ant0044), Islote La Viuda, Manabí (Ecuador), 1°26’5.95”S 80°46’7.30”W, 15 m depth, 23 Nov. 2013, one whole colony. MECN (Ant0049), Punta Machalilla, Manabí (Ecuador), 1°28’33.53”S 80°47’38.04”W, 13 m depth, 24 Nov. 2013, one whole colony.

Description. The colonies are up to 164 mm in length by 75 mm in width. The branching pattern is irregularly dichotomous; branches are bushy, closely ramified and rigid (Fig. 8A). The unbranched distal twigs can reach up to 5 mm in length and 2.3 mm in diameter, are compressed proximally, being more cylindrical and slightly tapered at the ends (Fig. 8A, B). The holdfast is circular, up to 14 mm in diameter. The polyps retract within prominent polyp-mounds leaving oblong apertures, and are closely distributed all around the branches (Fig. 8B). The colour of the colony is purple (Fig. 8A, B). The coenenchymal sclerites are red (Fig. 8C, D). The spindles are the dominant sclerite type, up to 0.13 mm in length and 0.04 mm in width, with 4-5 whorls of tubercles; they are straight or bent, some with a marked waist (Figs 8C, 9A). The capstans reach up to 0.08 mm in length and 0.04 mm in width (Figs 8C, 9B). Some crosses up to 0.06 by 0.04 mm are found (Fig. 9C). The anthocodial sclerites are orange flattened rods, up to 0.07 mm in length and 0.02 mm in width, with lobe-like marginal projections (Figs 8D, 9D).

Geographic and bathymetric distribution. Leptogorgia obscura was known previously only from the type locality (Bahía de Caráquez, Ecuador) (Bielschowsky 1929Bielschowsky E. 1929. Die Gorgonarien Westindiens. 6. Die Familie Gorgoniidae, zugleich eine Revision. Zool. Jahrb. Supplement 16: 63-234.; Fig. 25D). There is an unpublished record from Baja California (Harden 1979), although Breedy and Guzmán (2007)Breedy O., Guzmán H.M. 2007. A revision of the genus Leptogorgia Milne-Edwards and Haime, 1857 (Coelenterata: Octocorallia: Gorgoniidae) in the Eastern Pacific. Zootaxa 1419: 1-90. note that this record should be verified. The only reliable previously known depth range for the species was 4-5 m (Bielschowsky 1929Bielschowsky E. 1929. Die Gorgonarien Westindiens. 6. Die Familie Gorgoniidae, zugleich eine Revision. Zool. Jahrb. Supplement 16: 63-234.), which we now expand to 15 m.

This species is quite abundant in the study area on rocky bottom areas and usually grows along with Leptogorgia alba.

Remarks. According to Bielschowsky (1929)Bielschowsky E. 1929. Die Gorgonarien Westindiens. 6. Die Familie Gorgoniidae, zugleich eine Revision. Zool. Jahrb. Supplement 16: 63-234. and Breedy and Guzmán (2007:57)Breedy O., Guzmán H.M. 2007. A revision of the genus Leptogorgia Milne-Edwards and Haime, 1857 (Coelenterata: Octocorallia: Gorgoniidae) in the Eastern Pacific. Zootaxa 1419: 1-90., capstans are the dominant sclerites in the type material. However, spindles are the most common sclerites in our specimens. Crosses or four-radiates also occur, a type of sclerite not reported in this species before.

Genus Pacifigorgia Bayer, 1951Bayer F.M. 1951. A revision of the nomenclature of the Gorgoniidae (Coelenterata: Octocorallia) with an illustrated key to the genera. J. Wash. Acad. Sci. 41: 91-10

Synonymy. See Breedy and Guzmán (2002: 791)Breedy O., Guzmán H.M. 2002. A revision of the genus Pacifigorgia (Coelenterata: Octocorallia: Gorgoniidae). Proc. Biol. Soc. Wash. 115: 787-844..

Pacifigorgia cribrum (Valenciennes, 1846Valenciennes A. 1846. Zoophytes. In: Dupetit-Thouars A. (ed) Voyage autour du monde sur la frégate la Vénus, pendant les années 1836-1839. Atlas de Zoologie. Publié par ordre Du Roi, Paris, pp 1-15)
(Figs 10, 11)

Synonymy. See Breedy and Guzmán (2002: 804)Breedy O., Guzmán H.M. 2002. A revision of the genus Pacifigorgia (Coelenterata: Octocorallia: Gorgoniidae). Proc. Biol. Soc. Wash. 115: 787-844..

Newly collected examined material: MECN (Ant0035), Los Ahorcados, Manabí (Ecuador), 1°40’44”S 80°50’08”W, 15 m depth, 27 Feb. 2010, one whole colony. MECN (Ant0036), Los Ahorcados, Manabí (Ecuador), 1°40’44”S 80°50’08”W, 20 m depth, 28 Feb 2010, one whole colony. MECN (Ant0037), Los Ahorcados, Manabí (Ecuador), 1°40’44”S 80°50’08”W, 15 m depth, 27 Feb. 2010, one whole colony. BEIM (0088), Los Ahorcados, Manabí (Ecuador), 1°40’44”S 80°50’08”W, 25 m depth, 28 Feb. 2010, one whole colony. BEIM (0089), Los Ahorcados, Manabí (Ecuador), 1°40’44”S 80°50’08”W, 20 m depth, 28 Feb. 2010, one whole colony. MECN (Ant0046), El Burbullón, Manabí (Ecuador), 1°28’23.59”S 80°51’23.04”W, 25 m depth, 23 Nov. 2013, one whole colony.

Additional examined materials: Rhipidigorgia cribrum MNHN-IK 1661, type material, (New Zealand), no depth given, 1839. Pacifigorgia cribrum MZC 261 (4014), Cape St. Lucas, Baja California, (Mexico), no depth given, 1859-1861. MCZ 36264, Marcial Point (Mexico), no depth given, data unknown. Pacifigorgia cribrum USNM 49382 (Costa Rica), no depth given, Mar. 1927, F.M. Bayer (Id.). Gorgonia cribrum NMH 58.5.15.237 (Australia), no depth given, data unknown.

Description. The colonies are up to 50 mm in length by 73 mm in width, and are formed by two fans: the first fan is the largest and the second one radiates from the holdfast and extends in parallel together with the first fan, until a certain point where both may fused (Fig. 10A). The holdfast is very small, up to 4 mm in diameter. The branches are squarish, ranging from 0.6 to 0.8 mm in diameter (25 meshes cm^–2), and the end-branchlets are short, up to 2 mm long. The network is fine and regular; it is formed mostly by square meshes (2×2.8 mm by 2.5×3 mm) (Fig. 10B). There are no midribs; nevertheless, adult specimens have large, slightly compressed principal branches, which arise from near the base, and diverge through the fan, but often for no more than a quarter of the height. The polyps retract within slightly raised polyp-mounds with asterisk-like apertures, placed in multiple rows all around the branches. The colour of the colony is reddish intermingled with yellow. The coenenchymal sclerites are red, light yellow, and bicoloured (Fig. 10C). They are spindles (0.13×0.04 mm) having acute ends and 4-6 whorls of tubercles; blunt spindles (0.08×0.03 mm) with 4 whorls of tubercles (Figs 10C, 11A); and capstans (0.07×0.04 mm) with tuberculate ends (Figs 10C, 11B). The dominant sclerite types are acute, straight or bent spindles, some with a marked waist. The anthocodial sclerites are light yellow flattened rods, up to 0.10 mm in length and 0.02 mm in width, with smooth or slightly lobed borders (Figs 10C, 11C).

Geographic and bathymetric distribution. Pacifigorgia cribrum has been previously reported in Mexico (Breedy and Guzmán 2002Breedy O., Guzmán H.M. 2002. A revision of the genus Pacifigorgia (Coelenterata: Octocorallia: Gorgoniidae). Proc. Biol. Soc. Wash. 115: 787-844.) (Fig. 25E), with additional questionable records from New Zealand (MNHN-IK 1661), Australia (NMH 58.5.15.237), and Costa Rica (e.g. USNM 49382, collected in 1927 and identified by M.F. Bayer). In this study we observed this species at 15-30 m depth. A depth range was lacking for it in the literature.

Remarks. According to Bayer and Macintyre (2001)Bayer F.M., Macintyre I.G. 2001. The mineral component of the axis and holdfast of some gorgonacean octocorals (Coelenterata: Anthozoa), with special reference to the family Gorgoniidae. Proc. Biol. Soc. Wash. 1: 309-345. and Breedy and Guzmán (2002)Breedy O., Guzmán H.M. 2002. A revision of the genus Pacifigorgia (Coelenterata: Octocorallia: Gorgoniidae). Proc. Biol. Soc. Wash. 115: 787-844., Pacifigorgia cribrum, P. adamsii, P. agassizii and P. rutila may represent a group sharing a set of morphological features, consisting of fine, regular and closely anastomosed networks.

In addition, Pacifigorgia cribrum is morphologically close to P. arenata, both species having a similar colony colour and sclerome characteristics (red, yellow, bicoloured coenenchymal sclerites, and yellow anthocodial sclerites up to 0.10-0.13 mm in length; Table 3). However, the two species differ in mesh features (presence of midrib and higher meshes in P. arenata, see Breedy and Guzmán 2002Breedy O., Guzmán H.M. 2002. A revision of the genus Pacifigorgia (Coelenterata: Octocorallia: Gorgoniidae). Proc. Biol. Soc. Wash. 115: 787-844.). In fact, one of the principal problems in recording the possible morphological and chromatic variability of P. arenata is that the only known specimen is the holotype, which is deposited in Paris (MNHN), and there are some fragments in the Smithsonian (USNM 49567).

Pacifigorgia flavimaculata Breedy and Guzmán, 2003Breedy O., Guzmán H.M. 2003. Octocorals from Costa Rica. The genus Pacifigorgia (Coelenterata: Octocorallia: Gorgoniidae). Zootaxa 281: 1-60
(Figs 12, 13)

Newly collected examined material: MECN (Ant0021), Salinas, Santa Elena (Ecuador), 2°12’50.01”S 80°56’5.93”W, 15 m depth, 10 Dec. 2011, one whole colony. MECN (Ant0022), Salinas, Santa Elena (Ecuador), 2°12’50.01”S 80°56’5.93”W, 18 m depth, 11 Dec. 2011, one whole colony. BEIM (0075), Salinas, Santa Elena (Ecuador), 2°12’50.01”S 80°56’5.93”W, 17 m depth, 10 Dec. 2011, one whole colony. BEIM (0070), Los Ahorcados, Manabí (Ecuador), 1°40’44”S 80°50’08”W, 10 m depth, 27 Feb. 2010, one whole colony. MNCN (2.04/490), Los Frailes, Manabí (Ecuador), 1°30’14”S 80°48’33”W, 10 m depth, 13 March 2012, one whole colony. MNCN (2.04/491), Salinas, Santa Elena (Ecuador), 2°12’50.01”S 80°56’5.93”W, 17 m depth, 10 Dec. 2011, one whole colony. MZB (2016-2994), Los Frailes, Manabí (Ecuador), 1°30’14”S 80°48’33”W, 10 m depth, 20 Feb. 2012, one whole colony. UTI (MZUTI-Inv07), Los Frailes, Manabí (Ecuador), 1°30’14”S 80°48’33”W, 10 m depth, 20 Feb. 2012, one whole colony. UTI (MZUTI-Inv08), Los Frailes, Manabí (Ecuador), 1°30’14”S 80°48’33”W, 15 m depth, 10 March 2012, one whole colony. MECN (Ant0047), El Chichó, Manabí (Ecuador), 1°31’15.39”S 80°49’21.37”W, 20 m depth, 24 Nov. 2013, one whole colony. MECN (Ant0048), Punta Machalilla, Manabí (Ecuador), 1°28’33.53”S 80°47’38.04”W, 13 m depth, 24 Nov. 2013, one whole colony.

Additional examined materials: Pacifigorgia flavimaculata MCZ 51922, type material, Punta Salsipuedes (Costa Rica), 3 m depth, 22 Jan 1994.

Description. The colonies reach up to 105 mm in length by 70 mm in width and are formed by two parallel fans. The holdfast was not observed (Fig. 12A). The branches are cylindrical, ranging from 1.5-2.2 mm in diameter (1-3 meshes cm^–2). The branches arise directly from the base and have incomplete anastomoses that form a loose, open and irregular network. The meshes are rounded-square, oblong or triangular (19×5 mm, 9×4 mm) (Fig. 12B). There are no distinct midribs. There are long end-branchlets (up to 11 mm). The polyps retract within prominent polyp-mounds having rounded apertures, placed all around the branches in multiple rows. The colour of the colony is light brown when alive and yellow intermingled with light brown and light purple when dry. The coenenchymal sclerites are pink and light yellow, some of them bicoloured (Fig. 12C). They are spindles (0.14×0.04 mm) having acute ends and 4-5 whorls of tubercles; blunt spindles (0.11×0.04 mm) with 4 whorls of tubercles (Figs 12C, 13A, B), and capstans (0.09×0.04 mm) with tuberculate ends, warty or smooth (Figs 12C, 13A). The dominant sclerite types are straight or bent spindles, some of them with a marked waist. The anthocodial sclerites are orange flattened rods, up to 0.13-0.14 mm in length and 0.02 mm in width, with pointed projections, and acute and warty ends (Figs 12C, 13C).

Geographic and bathymetric distribution. Pacifigorgia flavimaculata has only been reported from the type locality in Costa Rica at 3 m depth (Breedy and Guzmán 2003Breedy O., Guzmán H.M. 2003. Octocorals from Costa Rica. The genus Pacifigorgia (Coelenterata: Octocorallia: Gorgoniidae). Zootaxa 281: 1-60) (Fig. 25F). In the present study, it was observed at a 3-20 m depth.

Breedy and Guzmán (2003)Breedy O., Guzmán H.M. 2003. Octocorals from Costa Rica. The genus Pacifigorgia (Coelenterata: Octocorallia: Gorgoniidae). Zootaxa 281: 1-60 pointed out that this species was only observed in the type locality (Punta Salsipuedes, Costa Rica), despite a significant sampling effort in the neighbouring areas. Therefore, our record from Ecuador is important in defining the geographic (and bathymetric) distribution of this species.

Remarks. Colonies of this species mainly form loose and irregular networks, sometimes almost pseudoanastomosed, yellow or brown in colour but with purplish or yellowish spots around a prominent polyp-mound, making the species easily recognizable.

The Ecuadorian specimens have a quite constant set of features in comparison with the type specimens examined (Breedy and Guzmán 2003Breedy O., Guzmán H.M. 2003. Octocorals from Costa Rica. The genus Pacifigorgia (Coelenterata: Octocorallia: Gorgoniidae). Zootaxa 281: 1-60, pers. observ.), except for the size of the anthocodial sclerites, which are longer (up to 0.13-0.14 mm, instead of up to 0.08-0.09 mm) (see Breedy and Guzmán 2003: 23Breedy O., Guzmán H.M. 2003. Octocorals from Costa Rica. The genus Pacifigorgia (Coelenterata: Octocorallia: Gorgoniidae). Zootaxa 281: 1-60, Table 3).

Pacifigorgia irene Bayer, 1951Bayer F.M. 1951. A revision of the nomenclature of the Gorgoniidae (Coelenterata: Octocorallia) with an illustrated key to the genera. J. Wash. Acad. Sci. 41: 91-102.
(Figs 14, 15)

Synonymy. See Breedy and Guzmán (2002: 825)Breedy O., Guzmán H.M. 2002. A revision of the genus Pacifigorgia (Coelenterata: Octocorallia: Gorgoniidae). Proc. Biol. Soc. Wash. 115: 787-844..

Newly collected examined material: BEIM (0091), Los Ahorcados, Manabí (Ecuador), 1°40’44”S 80°50’08”W, 10 m depth, 8 Dic. 2011, one whole colony. MNCN (2.04/1174), Punta Mala, Manabí (Ecuador), 1°33’41.37”S 80°50’8.79”W, 12 m depth, 16 Feb. 2012, one whole colony. MZB (2016-2995), Los Ahorcados, Manabí (Ecuador), 1°40’44”S 80°50’08”W, 15 m depth, 15 April 2012, one whole colony. MECN (Ant0062), Los Frailes, Manabí (Ecuador), 1°30’14”S 80°48’33”W, 15 m depth, 10 March 2012, one whole colony. MECN (Ant0054), El Chichó, Manabí (Ecuador), 1°31’15.39”S 80°49’21.37”W, 20 m depth, 24 Nov. 2013, one whole colony. MECN (Ant0055), Islote La Viuda, Manabí (Ecuador), 1°26’5.95”S 80°46’7.30”W, 15 m depth, 23 Nov. 2013, one whole colony.

Additional examined materials: Pacifigorgia irene USNM 49379, type material, Nicoya (Costa Rica), no depth given, Mar 1927; USNM 33611, type material, Costa Rica, no depth given, data unknown. Pacifigorgia irene MZC 36232, Gulf of Fonseca (Costa Rica), no depth given, data unknown.

Description. The colonies reach up to 600 mm in length by 500 mm in width, and are formed by one to several fans (Fig. 14A). The holdfast was not observed. The branches are slender, ranging from 0.3 to 0.7 mm in diameter (about 35 meshes cm^–2). The branches form a fine and regular network. The network consists of small and squarish meshes (usually up to 1.2 by 0.9 mm) (Fig. 14B). The fans have several stout, rounded midribs. There are short end-branchlets (<1 mm long). The polyps retract within slightly raised and crowded polyp-mounds, placed all around the branches. The colour of the colony is reddish intermingled with yellow both when alive and dry, with a slight discoloration at the edges of the colony. The coenenchymal sclerites are red, lemon yellow and orange, some of them bicoloured (Fig. 14C). They consist of long spindles (0.17×0.05 mm) having acute ends and 5-6 whorls of tubercles (Figs 14A, 15A), and capstans (0.08×0.04 mm) with tuberculated ends (Fig. 15B). In our specimens the dominant sclerite type are acute straight or bent spindles, some with a marked waist. Some crosses up to 0.06 by 0.05 mm occur as well (Fig. 15C). The anthocodial sclerites are light yellow and light pink flattened rods, up to 0.11 mm in length and 0.02 mm in width, with smooth or slightly lobed borders (Fig. 14C).

Geographic and bathymetric distribution. Pacifi­gorgia irene has been previously reported in Panama and Costa Rica at 12-33 m depth (Bayer 1951Bayer F.M. 1951. A revision of the nomenclature of the Gorgoniidae (Coelenterata: Octocorallia) with an illustrated key to the genera. J. Wash. Acad. Sci. 41: 91-102., Breedy and Guzmán 2002Breedy O., Guzmán H.M. 2002. A revision of the genus Pacifigorgia (Coelenterata: Octocorallia: Gorgoniidae). Proc. Biol. Soc. Wash. 115: 787-844., 2003Breedy O., Guzmán H.M. 2003. Octocorals from Costa Rica. The genus Pacifigorgia (Coelenterata: Octocorallia: Gorgoniidae). Zootaxa 281: 1-60) (Fig. 25G). Our finding represents a considerable southerly extension of its known distribution.

Remarks. This species is easily recognized by its characteristic morphology, showing a wide fan or fans, marked and thick midribs and small meshes. Some coenenchymal sclerites have been considered here as elongated capstans instead of blunt spindles, as commonly described. The morphology of some sclerites are not always easy to define in this taxon, and they can also be considered transitional forms of blunt spindles, depending on the development of the two opposite distal processes on the longitudinal axis with respect to the two central whorls with alternate tubercles (Vargas et al. 2010aVargas S., Breedy O., Siles F., et al. 2010a. How many kinds of sclerite? Towards a morphometric classification of gorgoniid microskeletal components. Micron 41: 158-164.). In any case, if these sclerites are considered blunt spindles, they would have equivalent forms with respect to the original description of this species. In situ specimens seen during this study show a more intense reddish and yellow colour than Costa Rican specimens. Bayer (1951)Bayer F.M. 1951. A revision of the nomenclature of the Gorgoniidae (Coelenterata: Octocorallia) with an illustrated key to the genera. J. Wash. Acad. Sci. 41: 91-102. described the colour of the colony as dark purple with greenish borders, but this is not the case in the Ecuadorian material, where colour only fades slightly at the edges of the fans.

Pacifigorgia machalilla n. sp.
(Figs 16, 17, 18)

Examined material: Holotype: MECN (Ant0061), Cope, Manabí (Ecuador), 1°43’34”S 80°59’85”W, 23 m depth, 8 Dic. 2012, one whole colony without holdfast. Paratypes: MBZ (2016-2996), Los Ahorcados, Manabí (Ecuador), 1°40’44”N 80°50’08”W, 10 m depth, 1 Dic. 2011, one whole colony. MNCN (2.04/1181), Cope, Manabí (Ecuador), 1°43’34”S 80°59’85”W, 23 m depth, 8 Dic. 2012, a fragment of the colony. Other material: UTI (Inv262), Cope, Manabí (Ecuador), 1°43’34”S 80°59’85”W, 23 m depth, 8 Dic. 2012, one whole colony. BEIM (0095), Isla de la Plata, Manabí (Ecuador), 1°16’25.84”S 81° 4’11.70”W, 22 m depth, 22 Feb. 2012, two whole colonies. MECN (Ant0058), Los Ahorcados, Manabí (Ecuador), 1°40’44”N 80°50’08”W, 10 m depth, 27 Feb. 2010, one whole colony. MECN (Ant0059), Los Ahorcados, Manabí (Ecuador), 1°40’44”N 80°50’08”W, 10 m depth, 1 Dic. 2011, one whole colony.

Description of the holotype. The colony is formed by a single fan 250 mm in length by 290 mm in width (Fig. 16A). The holdfast is circular, up to 15 mm in diameter. The branches are cylindrical, ranging from 1.5-2 mm in diameter (7-9 meshes cm^–2) and the end-branchlets reach up to 9 mm in length, and have blunt tips. The network is regular and complete, and is formed of mostly square and rectangular meshes (4×5 mm, 10×3 mm); in some cases, meshes are oblong (Fig. 16B). There are five or six prominent, long and strong midribs, which divide into others that progressively fuse among the anastomosed structure of the mesh (Fig. 16A). The polyps retract within slightly raised or flat polyp-mounds with slit-like apertures, placed in multiple rows all around the branches. The colour of the colony is intense red-brown when dry and bluish-grey when alive. The coenenchymal sclerites are pink, light yellow and orange, some of them bicoloured (Fig. 16C). They are spindles (up to 0.20×0.04 mm) having acute ends and 5-6 whorls of tubercles (Figs 16A, 17A); blunt spindles are absent, and there are capstans (up to 0.7×0.03 mm) with tuberculate ends (Figs 16C, 17B). The dominant sclerites are spindles, straight or bent, some of them with a distinct waist. There are irregular crosses with different branch lengths (up to 0.11×0.05 mm) (Fig. 17C). The anthocodial sclerites are pink, light orange and light yellow in colour, most of them bicoloured; flattened rods (0.11×0.02 mm) with short pointed or lobe-like marginal projections and acute or rounded ends also occur. There are also platelets (0.06×0.02 mm) (Figs 16C, 17D).

Variability. This new species is fairly constant with regard to colonial and sclerome characters. However, in some specimens there are small secondary fans growing parallel to the primary fan. In addition, in some small colonies (about 100 mm in length) the midrib is not very obvious or even absent, or is only formed by two short basal branches.

Geographic and bathymetric distribution. Pacifigorgia machalilla is only known from the type locality in Cope, Los Ahorcados, and Isla de la Plata (continental coast of Ecuador), living on rocky bottoms in shallow waters at a depth of 10-23 m.

Etymology. The new species is dedicated to the National Park of Machalilla (Ecuador) and its staff for their constant support and help during field work. Name considered as a noun in apposition.

Comparison with other Pacifigorgia species. Pacifigorgia machalilla is morphologically close to P. exilis and P. firma, having similar networks with the presence of a midrib, and similar mesh size (9-11.5 meshes cm^–2) and anastomosis. The network in P. machalilla is formed by almost square or rectangular meshes, 10×3 mm, 4×5 mm, and 12×3 mm, 6×2 mm in P. firma (Table 4). Pacifigorgia exilis also has a similar type of network (open or closed and regular); however, it has smaller square or oblong meshes (0.5×3 mm). Additionally, P. machalilla has blunt spindles while they are absent in both P. exilis and P. firma, and the acute spindles are larger in P. machalilla (up to 0.20×0.04 mm) than in P. exilis (up to 0.11×0.05 mm) and P. firma (up to 0.11×0.05 mm). Finally, P. machalilla has crosses or radiate forms, which are lacking in the other two species.

The molecular distance matrix (COII + Igr + COI + MutS) shows that, within the genus Pacifigorgia, the genetic divergence among species was close to 1% or lower in most cases. The new species showed no intraspecific variation (Table 5). Despite the fact that P. machalilla is closely related morphologically to P. firma and P. exilis, as stated previously, the three species are clearly separated molecularly. The maximum genetic divergence is 0.3% between P. machalilla and P. firma, and is 1% between P. machalilla and P. exilis (Table 5). However, Pacifigorgia machalilla is closely related molecularly to P. irene and P. smithsoniana (Breedy and Guzmán, 2004Breedy O., Guzmán H.M. 2004. New species of the gorgoniian genus Pacifigorgia (Coelenterata: Octocorallia: Gorgoniidae) from the Pacific of Panama. Zootaxa 15: 1-15.). The maximum genetic divergence between P. machalilla and P. smithsoniana or P. irene is 0.06%. However, in a thorough analysis of the sequences for these three species, we observed the following differences: 1) there is a silent mutation in COI for P. machalilla and P. smithsoniana; and 2) there is a mutation in the first base of one triplet which changes Lys to Val, in COII for P. machalilla and P. irene. It may be interesting to extend the sequencing based on COII in the search of additional variable segments in the mtDNA of this group of species.

Despite its molecular similarities, there are clear morphological differences among these three species. Pacifigorgia machalilla differs from P. smithsoniana in having a midrib, and larger acute spindles (0.20×0.04 vs 0.14×0.05 mm). Pacifigorgia machalilla differs from P. irene in that its anastomosis forms a network of almost square or rectangular meshes 10×3 mm, 4×5 mm (only 2×0.9 mm in P. irene), its branches are larger, ranging from 1.5-2 mm in diameter (7-9 meshes cm^–2), while the branches in P. irene are 0.5-0.7 mm in diameter (35 meshes cm^–2), with longer end-branchlets (up to 9 mm long), while these are very short in P. irene, less than 1 mm (Fig. 18). Finally, bicolour anthocodial sclerites are a unique feature for P. machalilla.

Pacifigorgia rubicunda Breedy and Guzmán, 2003Breedy O., Guzmán H.M. 2003. Octocorals from Costa Rica. The genus Pacifigorgia (Coelenterata: Octocorallia: Gorgoniidae). Zootaxa 281: 1-60.
(Figs 19, 20)

Newly collected examined material: MECN (Ant0023), Los Ahorcados, Manabí (Ecuador), 1°40’44”S 80°50’08”W, 10 m depth, 27 Feb. 2010, two whole colonies. MECN (Ant0025), Punta Mala, Manabí (Ecuador), 1°33’41.37”S 80°50’8.79”W, 15 m depth, 15 Feb. 2012, three whole colonies. BEIM (0083), Isla de la Plata, Manabí (Ecuador), 1°16’25.84”S 81° 4’11.70”W, 22 m depth, 19 Feb. 2012, one whole colony. BEIM (0082), Los Frailes, Manabí (Ecuador), 1°30’14”S 80°48’33”W, 10 m depth, 10 March 2012, one whole colony. BEIM (0081), Los Ahorcados, Manabí (Ecuador), 1°40’44”S 80°50’08”W, 5 m depth, 27 Feb. 2010, one whole colony. MNCN (2.04/488), Isla de la Plata, Manabí (Ecuador), 1°16’25.84”S 81° 4’11.70”W, 20 m depth, 19 Feb. 2012, one whole colony. MNCN (2.04/489), Punta Mala, Manabí (Ecuador), 1°33’41.37”S 80°50’8.79”W, 12 m depth, 27 Feb. 2012, one whole colony. UTI (MZUTI-Inv04) Los Ahorcados, Manabí (Ecuador), 1°40’44”S 80°50’08”W, 10 m depth, 27 Feb. 2010, one whole colony. MZB (2016-2997), Los Ahorcados, Manabí (Ecuador), 1°40’44”S 80°50’08”W, 5 m depth, 27 Feb. 2010, one whole colony. MZB (2016-2998) Isla de la Plata, Manabí (Ecuador), 1°16’25.84”S 81° 4’11.70”W, 20 m depth, 19 Feb. 2012, one whole colony.

Additional examined materials: Pacifigorgia rubicunda MCZ 51917, type material, Gulf of Chiriquí (Panama), 14 m, Dec. 2001.

Description. The colonies reach up to 40 mm in length by 160 mm in width, and are formed by several fans. The secondary fans sprout from the main fan at a right angle and spread perpendicularly to form new fans. Several fans may reunite, adhering together and producing square arrangements like beehives. A short stem divides close to the holdfast (Fig. 19A), which is up to 12 mm in diameter. The branches are cylindrical, ranging from 0.8-1 mm in diameter (9-11 meshes cm^–2). The end-branchlets are short. The network is closed and regular; it is formed of mostly square or oblong meshes (10×3 mm, 5.5×3 mm) (Fig. 19B). The polyps retract within slightly raised polyp-mounds with slit-like apertures, placed in multiple rows all around branches. The colour of the colony is brownish-orange when alive or preserved and a conspicuous burnt sienna colour speckled with yellow when dry. The coenenchymal sclerites are pink, orange and lemon yellow, bicoloured and multicoloured (Fig. 19C). They are spindles (0.1×0.03 mm) having acute ends and 10-12 whorls of tubercles (Figs 19C, 20A); blunt spindles (0.1×0.04 mm) with 4-5 whorls of tubercles (Figs 19C, 20B); and capstans (0.07×0.03 mm) with tuberculate ends (Figs 19C, 20C). The dominant sclerite types are blunt spindles straight or bent, some with a marked waist. Crosses are lacking. The anthocodial sclerites are yellow flattened rods up to 0.12 mm in length and 0.02 mm in width, with short lobe-like marginal projections, and acute and warty or smooth ends (Figs 19C, 20C).

Geographic and bathymetric distribution. Pacifigorgia rubicunda was originally described by Breedy and Guzmán (2003)Breedy O., Guzmán H.M. 2003. Octocorals from Costa Rica. The genus Pacifigorgia (Coelenterata: Octocorallia: Gorgoniidae). Zootaxa 281: 1-60. from Costa Rica (Fig. 25I). The geographic range of the species is here extended to Ecuador (Manabí). Its bathymetric distribution ranges from 5 to 30 m depth (Breedy and Guzmán 2003Breedy O., Guzmán H.M. 2003. Octocorals from Costa Rica. The genus Pacifigorgia (Coelenterata: Octocorallia: Gorgoniidae). Zootaxa 281: 1-60.).

Remarks. There are some morphological differences between the specimens of P. rubicunda found in Ecuador and the original description of this species by Breedy and Guzmán (2003)Breedy O., Guzmán H.M. 2003. Octocorals from Costa Rica. The genus Pacifigorgia (Coelenterata: Octocorallia: Gorgoniidae). Zootaxa 281: 1-60.. The colour of sclerites is very similar (orange and yellow); however, in Ecuadorian material most of the sclerites are pink (bicoloured or multicoloured) and colourless sclerites are lacking. If compared with the type material (6-9 meshes cm^–2, 5-1.2×2.5-0.9 mm) (Breedy and Guzmán 2003Breedy O., Guzmán H.M. 2003. Octocorals from Costa Rica. The genus Pacifigorgia (Coelenterata: Octocorallia: Gorgoniidae). Zootaxa 281: 1-60.), in our colonies the network is less compact, usually more elongate and larger, and there are no crosses.

Finally, the size of sclerites and anthocodial rods seem to be somewhat larger in the type material (spindles 0.09-0.12×0.03-0.04 mm, capstans 0.04-0.09×0.02-0.04 mm; anthocodial rods 0.14×0.05 mm) than in the Ecuadorian material (spindles 0.1×0.03 mm, capstans 0.07×0.03 mm; anthocodial rods 0.12×0.02 mm). In most cases, P. rubicunda was found forming colonies similar to beehives, irregularly stretching across the rocks. The midrib extends from the holdfast in parallel to the substrate, but the unique point of union is the holdfast, which is diagnostic for this species (Breedy and Guzmán 2003: 43Breedy O., Guzmán H.M. 2003. Octocorals from Costa Rica. The genus Pacifigorgia (Coelenterata: Octocorallia: Gorgoniidae). Zootaxa 281: 1-60.).

Newly collected material of P. rubicunda from Ecuador permits the description of variability of some characters. The species is reported herein for the first time since its original description in Costa Rica.

Pacifigorgia stenobrochis (Valenciennes, 1846Valenciennes A. 1846. Zoophytes. In: Dupetit-Thouars A. (ed) Voyage autour du monde sur la frégate la Vénus, pendant les années 1836-1839. Atlas de Zoologie. Publié par ordre Du Roi, Paris, pp 1-15.)
(Figs 21, 22)

Synonymy. See Breedy and Guzmán (2002: 833)Breedy O., Guzmán H.M. 2002. A revision of the genus Pacifigorgia (Coelenterata: Octocorallia: Gorgoniidae). Proc. Biol. Soc. Wash. 115: 787-844..

Newly collected examined material: BEIM (0090), Salinas, Santa Elena (Ecuador), 2°12’50.01”S 80°56’5.93”W, 15m depth, 9 Dic. 2011, a fragment of colony. MNCN (2.04/1176), Los Ahorcados, Manabí (Ecuador), 1°40’44”S 80°50’08”W, 10 m depth, 12 Dic. 2011, a fragment of colony. MNCN (2.04/1177), Los Ahorcados, Manabí (Ecuador), 1°40’44”S 80°50’08”W, 13 m depth, 7 Dic. 2012, a fragment of colony. MZB (2016-2999), Punta Mala, Manabí (Ecuador), 1°33’41.37”S 80°50’8.79”W, 15 m depth, 12 Dic. 2012, a fragment of colony. MNCN (2.04/1175), Salinas, Santa Elena (Ecuador), 2°12’50.01”S 80°56’5.93”W, 15m depth, 11 Dic. 2011, a fragment of colony. MECN (Ant0065), Los Ahorcados, Manabí (Ecuador), 1°40’44”S 80°50’08”W, 10 m depth, 15 Mar. 2012, a fragment of colony. MECN (Ant0064), Punta Mala, Manabí (Ecuador), 1°33’41.37”S 80°50’8.79”W, 15 m depth, 15 Dic. 2011, a fragment of colony. MECN (Ant0063), Punta Mala, Manabí (Ecuador), 1°33’41.37”S 80°50’8.79”W, 13 m depth, 6 April 2012, a fragment of colony. MECN (Ant0051), El Chichó, Manabí (Ecuador), 1°31’15.39”S 80°49’21.37”W, 20 m depth, 24 Nov. 2013, a fragment of colony. MECN (Ant0052), El Burbullón, Manabí (Ecuador), 1°28’23.59”S 80°51’23.04”W, 25 m depth, 23 Nov. 2013, a fragment of colony. MECN (Ant0053), Islote La Viuda, Manabí (Ecuador), 1°26’5.95”S 80°46’7.30”W, 15 m depth, 23 Nov. 2013, a fragment of colony.

Additional examined materials: Rhipidigorgia stenobrochis MNHN-IK 1719, type material, New Zealand, no depth given, 1839. Pacifigorgia stenobrochis var. engelmanni (Horn 1860) MCZ 4042, Acapulco (Mexico), no depth given, 1856-1860; Pacifigorgia stenobrochis MCZ 28753, Mexico, no depth given, data unknown; Gorgonia stenobrochis NHM 1930.6.17.12 St. George (Mexico), no depth given, data unknown. Pacifigorgia stenobrochis USNM 49378, Gulf of Nicoya (Costa Rica), no depth given, March 1927. Pacifigorgia stenobrochis USNM 8847, Baja California (Mexico), no depth given, 1911.

Description. The colonies are up to 280 mm in length by 270 mm in width and are formed by a single fan that may divide into smaller fans. The holdfast was not observed (Fig. 21A). The branches are rounded, ranging from 1.1-2.3 mm in diameter (2 meshes cm^–2). The branches arise directly from the base and have an open and irregular network. The meshes are rectangular or oblong (55×6 mm, 10×5 mm) (Fig. 21B). There are no distinct midribs. There are long end-branchlets (up to 26 mm). The polyps retract within flat polyp-mounds, placed throughout the branches, on both sides. The colour of the colony is light brown or dark yellow when alive and yellow intermingled with brown. The coenenchymal sclerites are light yellow (Fig. 21C). There are long acute spindles (0.16×0.04 mm), straight or bent, some with a marked waist, having 8 whorls of tubercles, and they are the dominant sclerite types. In addition, there are blunt spindles (0.12×0.04 mm) with 6 whorls of tubercles (Figs 21C, 22A), and capstans (0.09×0.04 mm) with tuberculate ends (Figs 21A, 22B). Some crosses up to 0.08 by 0.06 mm are also found (Fig. 22C). The anthocodial sclerites are light orange in colour, with flattened rods up to 0.09 mm in length and 0.02 mm in width, with smooth or slightly lobed borders (Figs 21A, 22D).

Geographic and bathymetric distribution. Pacifigorgia stenobrochis has been reported in Mexico, El Salvador, Nicaragua, Costa Rica, Panama, Peru (Verrill 1868Verrill A.E. 1868. Notes on Radiata in the Museum of Yale College, Number 6: Review of the corals and polyps of the West Coast of America. Trans. Conn. Acad. Arts Sci. (Second Edition), pp. 377-422., Breedy and Guzmán 2003Breedy O., Guzmán H.M. 2003. Octocorals from Costa Rica. The genus Pacifigorgia (Coelenterata: Octocorallia: Gorgoniidae). Zootaxa 281: 1-60.) and Ecuador (current study) at 3-30 m depth. In the original description, New Zealand is indicated as the type locality, which appears to be an error (see Valenciennes 1846Valenciennes A. 1846. Zoophytes. In: Dupetit-Thouars A. (ed) Voyage autour du monde sur la frégate la Vénus, pendant les années 1836-1839. Atlas de Zoologie. Publié par ordre Du Roi, Paris, pp 1-15., Breedy and Guzmán 2002Breedy O., Guzmán H.M. 2002. A revision of the genus Pacifigorgia (Coelenterata: Octocorallia: Gorgoniidae). Proc. Biol. Soc. Wash. 115: 787-844., 2003Breedy O., Guzmán H.M. 2003. Octocorals from Costa Rica. The genus Pacifigorgia (Coelenterata: Octocorallia: Gorgoniidae). Zootaxa 281: 1-60.) (Fig. 25J).

Generally, colonies of this species occur both solitary and mixed with other species in the same environment. The Ecuador records nicely connect the previously known localities from Mexico and Peru.

Remarks. The chromatic variability of the colonies and sclerites of this species has been known for a long time (Hickson 1928Hickson S.J. 1928. The Gorgonacea of Panama Bay together with a description of one species from the Galapágos Islands and one of Trinidad. Vidensk. Medd. naturhistoriske Foren. Kovenhavn 85: 325-422., Breedy and Guzmán 2002Breedy O., Guzmán H.M. 2002. A revision of the genus Pacifigorgia (Coelenterata: Octocorallia: Gorgoniidae). Proc. Biol. Soc. Wash. 115: 787-844., 2003Breedy O., Guzmán H.M. 2003. Octocorals from Costa Rica. The genus Pacifigorgia (Coelenterata: Octocorallia: Gorgoniidae). Zootaxa 281: 1-60.). In the Ecuadorian material studied here, all the coenenchymal sclerites are yellow. Pink and grey sclerites noted by other authors are lacking. The colour of Ecuadorian colonies varies between yellow and orange hues, while it is said to be reddish purple and brown in previous descriptions.

The presence of thick and robust branches, shape of the mesh and absence of the midrib are diagnostic for P. stenobrochis, and readily separate it from similar species, such as P. firma.

Genus Eugorgia Verrill, 1868Verrill A.E. 1868. Notes on Radiata in the Museum of Yale College, Number 6: Review of the corals and polyps of the West Coast of America. Trans. Conn. Acad. Arts Sci. (Second Edition), pp. 377-422.

Synonymy. See Breedy et al. (2009: 8)Breedy O., Guzmán H.M., Vargas S. 2009. A revision of the genus Eugorgia Verrill 1868 (Coelenterata: Octocorallia: Gorgoniidae). Zootaxa 2151: 1-46..

Eugorgia daniana Verrill, 1868Verrill A.E. 1868. Notes on Radiata in the Museum of Yale College, Number 6: Review of the corals and polyps of the West Coast of America. Trans. Conn. Acad. Arts Sci. (Second Edition), pp. 377-422.
(Figs 23, 24)

Synonymy. See Breedy et al. (2009: 17)Breedy O., Guzmán H.M., Vargas S. 2009. A revision of the genus Eugorgia Verrill 1868 (Coelenterata: Octocorallia: Gorgoniidae). Zootaxa 2151: 1-46..

Newly collected examined material: MECN (Ant0033), Salinas, Santa Elena (Ecuador), 2°12’50.01”S 80°56’5.93”W, 15 m depth, 9 Dic. 2011, one whole colony. MNCN (2.04/1173), Salinas, Santa Elena (Ecuador), 2°12’50.01”S 80°56’5.93”W, 15 m depth, 10 Dic. 2011, one whole colony. MECN (Ant0060), Punta Gruesa, Manabí (Ecuador), 1°33’38.15”S 80°50’5.28”W, 18 m depth, 20 Feb. 2013, one whole colony. MECN (Ant0056), El Chichó, Manabí (Ecuador), 1°31’15.39”S 80°49’21.37”W, 20 m depth, 24 Nov. 2013, one whole colony. MNCN (2.04/1179), El Burbullón, Manabí (Ecuador), 1°28’23.59”S 80°51’23.04”W, 25 m depth, 23 Nov. 2013, one whole colony.

Additional examined materials: Eugorgia daniana MCZ 7080, type material, Gulf of Nicoya (Costa Rica), no depth given, May 1868; MCZ 723, type material, Las Perlas (Panama), no depth given, 1866-1867; NHM 69.4.15.55, type material, Panama, no depth given, data unknown. Eugorgia daniana MCZ 02138, Cali (Colombia), 3 m depth, Dec. 1979; USNM 59084 Gulf of Guayaquil (Ecuador), 20 m depth, Sept. 1966.

Description. The colonies are up to 110 mm in length by 190 mm in width and arise from a circular holdfast, 0.5 mm in diameter. They are profusely and pinnately branched in multiple planes. Main stems are 3-5 mm in diameter, compressed, and very short (up to 10 mm long) or absent (Fig. 23A). The branches arise directly from the base, and are cylindrical, ranging from 0.8 to 1.2 mm in diameter. Some of the branches are pseudoanastomosed (anastomosis to the coenenchyme level, but not including the axes). The unbranched distal twigs can reach up to 15 mm in length and are blunt at the ends (Fig. 23A, B). In some branches, there are numerous and evident yellow, longitudinal grooves. The polyps retract within prominent polyp-mounds, leaving a small bilabiate aperture; they occur in multiple rows on all sides of the branches, sometimes having yellow spots. Colonies are dark orange or bright red streaked with bright yellow on the branches or on the polyp-mounds (Fig. 23B). The coenenchymal sclerites are red, yellow or bicoloured (Fig. 23C). They are double discs reaching up to 0.07 mm in length, 0.06 mm in width (Figs 23C, 24B). The capstans reach up to 0.08 mm in length, 0.05 mm in width (Fig. 23C). The dominant sclerite types are spindles (up to 0.15 mm in length, 0.05 mm in width); disc-spindles (up to 0.14 mm in length, 0.05 mm in width) are also abundant, with 4-6 whorls of warty tubercles; they are straight or bent, some with a marked waist (Fig. 24A, D). The crosses are up to 0.14 mm in length, 0.06 mm in width (Figs 23C, 24C). No anthocodial sclerites were obtained.

Geographic and bathymetric distribution. This species has a wide distribution along the eastern Pacific. It has been recorded in USA, Mexico, El Salvador, Nicaragua, Costa Rica, Panama, Colombia, Ecuador (Galapagos and the Gulf of Guayaquil) and Peru (Fig. 25K), at 3-30 m depth (Verrill 1868Verrill A.E. 1868. Notes on Radiata in the Museum of Yale College, Number 6: Review of the corals and polyps of the West Coast of America. Trans. Conn. Acad. Arts Sci. (Second Edition), pp. 377-422., Breedy et al. 2009Breedy O., Guzmán H.M., Vargas S. 2009. A revision of the genus Eugorgia Verrill 1868 (Coelenterata: Octocorallia: Gorgoniidae). Zootaxa 2151: 1-46., present record).

The only specimen of Eugorgia daniana previously found in continental Ecuadorian waters was collected in the Gulf of Guayaquil (identified by Bayer in 1966, and published by Breedy et al. 2009Breedy O., Guzmán H.M., Vargas S. 2009. A revision of the genus Eugorgia Verrill 1868 (Coelenterata: Octocorallia: Gorgoniidae). Zootaxa 2151: 1-46.). Our record from Manabí and Santa Elena is the second finding of this species in continental Ecuador, providing information about the possible existence of widespread populations of this species in this area. Currently, Eugorgia daniana and E. ahorcadensis Soler-Hurtado and López-González, 2012 are the only species of this genus found in Ecuadorian waters.

Remarks. Differentiation between E. daniana and E. aurantica is difficult at first sight due to a similar branching pattern and colour of their colonies.

However, E. aurantica has polyp-mounds with characteristic yellow rings and lacks disc-spindles. Eugorgia daniana, E. aurantica and E. multifida Verrill, 1870 form the “daniana-group” (Breedy et al. 2009Breedy O., Guzmán H.M., Vargas S. 2009. A revision of the genus Eugorgia Verrill 1868 (Coelenterata: Octocorallia: Gorgoniidae). Zootaxa 2151: 1-46., 2013Breedy O., Williams G.C., Guzman H.M. 2013. Two new species of gorgonian octocorals from the Tropical Eastern Pacific Biogeographic Region (Cnidaria, Anthozoa, Gorgoniidae). Zookeys 350: 75-90.), which includes species with irregular pinnate branching, prominent polyp-mounds and a similar colour of colonies and sclerites.

DISCUSSIONTop

Seven of the species identified are new records for the octocoral fauna of Ecuador (Table 1, 2): Leptogorgia diffusa, L. flexilis, Pacifigorgia cribrum, P. flavimaculata, P. irene, P. rubicunda and P. stenobrochis. Another three species, Leptogorgia alba, L. obscura and Eugorgia daniana, had already been reported in Ecuador by other authors (Bielschowsky 1929Bielschowsky E. 1929. Die Gorgonarien Westindiens. 6. Die Familie Gorgoniidae, zugleich eine Revision. Zool. Jahrb. Supplement 16: 63-234., Breedy and Guzmán 2007Breedy O., Guzmán H.M. 2007. A revision of the genus Leptogorgia Milne-Edwards and Haime, 1857 (Coelenterata: Octocorallia: Gorgoniidae) in the Eastern Pacific. Zootaxa 1419: 1-90.). The new species described here, Pacifigorgia machalilla, requires additional records to better establish its geographical and bathymetric distribution.

These species, together with Leptogorgia mariarosae Soler-Hurtado and López-González, 2012Soler-Hurtado M.M., López-González P.J. 2012. Two new gorgonian species (Anthozoa: Octocorallia: Gorgoniidae) from Ecuador (Eastern Pacific). Mar. Biol. Res. 8: 380-387., Eugorgia ahorcadensis and L. aequatorialis (Bielschowsky, 1929Bielschowsky E. 1929. Die Gorgonarien Westindiens. 6. Die Familie Gorgoniidae, zugleich eine Revision. Zool. Jahrb. Supplement 16: 63-234.), constitute the current list of gorgoniid species from the continental coast of Ecuador. Despite the recent contribution of Breedy et al. (2013)Breedy O., Williams G.C., Guzman H.M. 2013. Two new species of gorgonian octocorals from the Tropical Eastern Pacific Biogeographic Region (Cnidaria, Anthozoa, Gorgoniidae). Zookeys 350: 75-90. suggesting the synonymization of E. ahorcadensis with E. nobilis based on the consideration of an enlargement of morphology and chromatic variability of the latter, recent molecular analyses based on the study of both type materials demonstrated that they should be considered separate taxa (Soler-Hurtado et al. unpublished). In addition, to complete the species list for Ecuadorian waters, the species described above for the Galapagos Islands, Pacifigorgia darwinii (Hickson, 1928Hickson S.J. 1928. The Gorgonacea of Panama Bay together with a description of one species from the Galapágos Islands and one of Trinidad. Vidensk. Medd. naturhistoriske Foren. Kovenhavn 85: 325-422.), P. dampieri Williams and Breedy, 2004Williams G., Breedy O. 2004. The Panamic Genus Pacifigorgia (Octocorallia: Gorgoniidae) in the Galápagos Archipelago. Proc. Calif. Acad. Sci. 55: 54-87., P. symbiotica Williams and Breedy, 2004Williams G., Breedy O. 2004. The Panamic Genus Pacifigorgia (Octocorallia: Gorgoniidae) in the Galápagos Archipelago. Proc. Calif. Acad. Sci. 55: 54-87. and P. rubripunctata Williams and Breedy, 2004Williams G., Breedy O. 2004. The Panamic Genus Pacifigorgia (Octocorallia: Gorgoniidae) in the Galápagos Archipelago. Proc. Calif. Acad. Sci. 55: 54-87., should be added.

According to Bayer (1961)Bayer F.M. 1961. The shallow water Octocorallia of the West Indian Region. A manual for marine biologists. Martinus Nijhoff, The Hague, 400 pp., gorgonian corals systematics relies on a combination of characters such as axial skeleton (if any), colonial form, polyp arrangement and sclerite morphology. However, the often unwieldy older literature with no or neglected illustrations and lost or badly preserved type material have played a major role in the taxonomic confusion around octocoral systematics (Sánchez 2004Sánchez J.A. 2004. Evolution and dynamics of branching colonial form in marine modular cnidarians: gorgonian octocorals. Hydrobiologia 1: 283-290., Soler-Hurtado and López-González 2012Soler-Hurtado M.M., López-González P.J. 2012. Two new gorgonian species (Anthozoa: Octocorallia: Gorgoniidae) from Ecuador (Eastern Pacific). Mar. Biol. Res. 8: 380-387.). Currently, variation in sclerite size, sculpture, and coloration and the relative proportion of the different sclerite types are the main criteria for species delimitation in Gorgoniidae (Williams and Lindo 1997Williams G.C., Lindo K.G. 1997. A review of the octocorallian genus Leptogorgia (Anthozoa: Gorgoniidae) in the Indian Ocean and Subantarctic, with description of a new species and comparisons with related taxa. Proc. Calif. Acad. Sci. 49: 499-521., Breedy 2001Breedy O. 2001. A new species of Pacifigorgia from the eastern Pacific (Coelenterata: Octocorallia: Gorgoniidae). Proc. Biol. Soc. Wash. 10: 181-187., Sánchez et al. 2007Sánchez J.A., Aguilar C, Dorado D., et al. 2007. Phenotypic plasticity and morphological integration in a marine modular invertebrate. BMC Evol. Biol. 1: 12., Vargas et al. 2010aVargas S., Breedy O., Siles F., et al. 2010a. How many kinds of sclerite? Towards a morphometric classification of gorgoniid microskeletal components. Micron 41: 158-164.). These characters vary widely and the ranges of variation have not been established for all gorgoniid taxa, hindering a robust taxonomy for the group.

The description of sclerite type can sometimes be difficult, because of continuous variation in size and ornamentation within and between species (Williams and Lindo 1997Williams G.C., Lindo K.G. 1997. A review of the octocorallian genus Leptogorgia (Anthozoa: Gorgoniidae) in the Indian Ocean and Subantarctic, with description of a new species and comparisons with related taxa. Proc. Calif. Acad. Sci. 49: 499-521., Sánchez et al. 2003Sánchez J.A., Mcfadden C.S., France S.C., et al. 2003. Molecular Phylogenetic analyses of shallow-water Caribbean octocorals. Mar. Biol. 142: 975-987., Vargas et al. 2010aVargas S., Breedy O., Siles F., et al. 2010a. How many kinds of sclerite? Towards a morphometric classification of gorgoniid microskeletal components. Micron 41: 158-164.). This continuum represents a major obstacle to the assignment of size intervals or ranges that could be used to define and separate possible species. Vargas et al. (2010b)Vargas S., Breedy O., Guzmán H.M. 2010b. The phylogeny of Pacifigorgia: a case study of the use of continuous characters in the systematic of the Octocorallia. Zoosystema 1: 5-18. proposed for Pacifigorgia the combined use of continuous and discrete morphological characters, in order to define the relationships between species at different resolution level, in an integrative approach with molecular data.

Despite the rebirth of invertebrate systematics due to the ever-increasing availability of DNA sequence characters (Mallet and Willmott 2003Mallet J., Willmott K. 2003. Taxonomy: renaissance or Tower of Babel? Trends Ecol. Evol. 18: 57-59., Sánchez 2004Sánchez J.A. 2004. Evolution and dynamics of branching colonial form in marine modular cnidarians: gorgonian octocorals. Hydrobiologia 1: 283-290., Dueñas and Sánchez 2009Dueñas L., Sánchez J.A. 2009. Character lability in deep-sea bamboo corals (Octocorallia, Isididae, Keratoisidinae). Mar. Ecol. Prog. Ser. 397: 11-27.), evaluation of the effectiveness of molecular barcodes in octocorals is largely hindered by lack of knowledge regarding species boundaries in these organisms. One reason for this is that the rate of octocoral mitochondrial gene evolution is very slow. It is estimated to be 10-100x slower than in other metazoans (Chen et al. 2009Chen I.P., Tang, C.Y., Chiou C.Y., et al. 2009. Comparative analyses of coding and non-coding DNA regions indicate that Acropora (Anthozoa: Scleractinia) possesses a similar evolutionary tempo of nuclear vs. mitochondrial genomes as in plants. Mar. Biotech. 11: 141-152., Brockman and McFadden 2012Brockman S.A., McFadden C.S. 2012. The mitochondrial genome of Paraminabea aldersladei (Cnidaria: Anthozoa: Octocorallia) supports intramolecular recombination as the primary mechanism of gene rearrangement in octocoral mitochondrial genomes. Genome Biol. Evol. 4: 994-1006.), resulting in insufficient resolution to discriminate species within many genera (Sánchez et al. 2003Sánchez J.A., Mcfadden C.S., France S.C., et al. 2003. Molecular Phylogenetic analyses of shallow-water Caribbean octocorals. Mar. Biol. 142: 975-987., Lepard 2003Lepard A. 2003. Analysis of variation in the mitochondrial encoded msh1 in the genus Leptogorgia (Cnidaria: Octocorallia) and implications for population and systematics studies. MS thesis, College of Charleston. in Cairns and Bayer 2005Cairns S.D., Bayer F.M. 2005. A review of the genus Primnoa (Octocorallia: Gorgonacea: Primnoidae), with the description of two new species. Bull. Mar. Sci. 77: 225-256.). Specimens identified as different morphospecies can share the same barcode, which should motivate additional taxonomic work to test species boundaries and quantify intraspecific morphological and molecular variation (McFadden et al. 2010McFadden C.S., Sánchez J.A., France S.C. 2010. Molecular Phylogenetic Insights into the Evolution of Octocorallia: A Review. Integr. Comp. Biol. 3: 389-410.). For instance, Sánchez et al. (2003)Sánchez J.A., Mcfadden C.S., France S.C., et al. 2003. Molecular Phylogenetic analyses of shallow-water Caribbean octocorals. Mar. Biol. 142: 975-987., exploring mitochondrial genes ND2, ND6 and MutS, observed that in Eunicea spp. and Plexaura spp. the number of substitutions supporting nodes was low (less than 0.005 substitutions/site), and the clade formed by these two genera could be considered unresolved from a molecular point of view. In addition, McFadden et al. (2011)McFadden C.S., Benayahu Y., Pante E., et al. 2011. Limitations of Mitochondrial Gene Barcoding in Octocorallia. Mol. Ecol. Res. 11: 19-31. showed that congeners of the genera Isidella, Keratoisis and Lepidisis were identical at COI and Igr1 sequences, and only varied 0%-2% for MutS.

In this study, we found that pairs of morphologically different species, Pacifigorgia exilis and P. media (Verrill, 1864Verrill A.E. 1864. List of the polyps and corals sent by the Museum of Comparative Zoology to other institutions in exchange, with annotations. Bull. Mus. Comp. Zool. at Harvard College, 1: 29-60.), and P. bayeri Breedy, 2001Breedy O. 2001. A new species of Pacifigorgia from the eastern Pacific (Coelenterata: Octocorallia: Gorgoniidae). Proc. Biol. Soc. Wash. 10: 181-187. and P. catedralensis Breedy and Guzmán, 2004Breedy O., Guzmán H.M. 2004. New species of the gorgoniian genus Pacifigorgia (Coelenterata: Octocorallia: Gorgoniidae) from the Pacific of Panama. Zootaxa 15: 1-15., showed no interspecific variation (0%, in COII+Igr+COI+MutS, cf. Table 4); while others, P. firma and P. catedralensis, P. rubicunda and P. exilis, and P. rubicunda and P. media, showed a very low genetic divergence (0.006%). In fact, the maximum genetic divergence observed in this study is 1.3%, between P. media and P. firma, and between P. exilis and P. firma, confirming the reduced variability in the genetic regions examined.

The analysis combining MutS and Igr1-COI for DNA barcoding indicates that these markers are not always suitable and conclusive for species-level identification of eastern Pacific octocorals (Vargas et al. 2014Vargas S., Guzmán H.M., Breedy O., et al. 2014. Molecular phylogeny and DNA barcoding of tropical Eastern Pacific shallow water gorgonian octocorals. Mar. Biol. 161: 1027-1038.). However, we can say that these regions can at least define different species groups. This may serve as a supporting tool for morphological findings among species within and between groups.

According to our results, based on strong morphological data and molecular tests with sufficient resolution for this set of octocoral species, we propose Pacifigorgia machalilla as a new species.

In conclusion, we recommend the use of molecular tools as a necessary complement to morphological identification for future descriptions of new species. Although mitochondrial markers are known to evolve at much lower rates than in other zoological groups, they still provide information that should not be neglected. These mitochondrial markers can be complemented with nuclear regions (e.g. 28S, ITS and SRP54, among others) that have been demonstrated to be especially useful for some octocoral families and genera (Sánchez et al. 2007Sánchez J.A., Aguilar C, Dorado D., et al. 2007. Phenotypic plasticity and morphological integration in a marine modular invertebrate. BMC Evol. Biol. 1: 12., McFadden et al. 2014McFadden C.S., Brown A.S., Brayton C., et al. 2014. Application of DNA barcoding in biodiversity studies of shallow-water octocorals: Molecular proxies agree with morphological estimates of species richness in Palau. Coral Reefs 33: 275-286., Wirshing and Baker 2015Wirshing H.H., Baker A.C. 2015. Molecular and Morphological Species Boundaries in the Gorgonian Octocoral Genus Pterogorgia (Octocorallia: Gorgoniidae). PLoS One 10.).

Although much more work is needed to fully understand the morphological diversification of octocorals, a combination of molecular and morphological data is a very promising approach to disentangling phylogenetic relationships among species (Breedy et al. 2013Breedy O., Williams G.C., Guzman H.M. 2013. Two new species of gorgonian octocorals from the Tropical Eastern Pacific Biogeographic Region (Cnidaria, Anthozoa, Gorgoniidae). Zookeys 350: 75-90., McFadden and Van Ofwegen 2013McFadden C.S., Van Ofwegen L.P. 2013. A second, cryptic species of the soft coral genus Incrustatus (Anthozoa: Octocorallia: Clavulariidae) from Tierra del Fuego, Argentina, revealed by DNA barcoding. Helgol. Mar. Res. 67: 137-147., López-González et al. 2015López-González P.J., Grinyó J., Gili J.M. 2015. Chironephthya mediterranea n. sp. (Octocorallia, Alcyonacea, Nidaliidae), the first species of the genus discovered in the Mediterranean Sea. Mar. Biodiv. 45: 667-688.) and intraspecific population ecology (Calderón et al. 2006Calderón I., Garrabou J., Aurelle D. 2006. Evaluation of the utility of COI and ITS markers as tools for population genetic studies of temperate gorgonians. J. Exp. Mar. Biol. Ecol. 336: 184-197., Prada et al. 2008Prada C., Schizas N.V., Yoshioka P.M. 2008. Phenotypic plasticity or speciation? A case from a clonal marine organism. BMC. Evol. Biol. 8: 47., Prada and Hellber 2013Prada C., Hellberg M.E. 2013. Long pre-reproductive selection and divergence by depth in a Caribbean candelabrum coral. Proc. Natl. Acad. Sci. USA 119: 53-60.). Molecular and morphological analytic tools will be essential to quantify the variety of evolutionary pathways within these groups (Sánchez et al. 2003Sánchez J.A., Mcfadden C.S., France S.C., et al. 2003. Molecular Phylogenetic analyses of shallow-water Caribbean octocorals. Mar. Biol. 142: 975-987., McFadden et al. 2006Mcfadden C.S., France S.C., Sánchez J.S., et al. 2006. A molecular phylogenetic analysis of the Octocorallia (Cnidaria: Anthozoa) based on mitochondrial protein-coding sequences. Mol. Phylogenet. Evol. 41: 513-527., Concepción et al. 2010Concepción G.T., Kahng S.E., Crepeau M.W., et al. 2010. Resolving natural ranges and marine invasions in a globally distributed octocoral (genus Carijoa). Mar. Ecol. Prog. Ser. 401: 113-127.).

However, even when combined, the two approaches do not seem to fully solve the taxonomic problems in this group, and more informative characters in both disciplines must be identified to distinguish closely related morphological species (e.g. McFadden and Van Ofwegen 2013McFadden C.S., Van Ofwegen L.P. 2013. A second, cryptic species of the soft coral genus Incrustatus (Anthozoa: Octocorallia: Clavulariidae) from Tierra del Fuego, Argentina, revealed by DNA barcoding. Helgol. Mar. Res. 67: 137-147. on stoloniferous octocorals), as well as to obtain more natural classifications, reducing the number of taxonomic synonyms (e.g. Grajales and Rodríguez 2016Grajales A., Rodríguez E. 2016. Elucidating the evolutionary relationships of the Aiptasiidae, a widespread cnidarian-dinoflagellate model system (Cnidaria: Anthozoa: Actiniaria: Metridioidea). Mol. Phyl. Evol. 94: 252-263., on sea anemones). This will help to clarify the evolution of a zoological group that is very important in the structural functioning of benthic marine communities (Conell 1978Conell J.H. 1978. Diversity in tropical rain forests and coral reefs. Science 4335: 1302-1310., Fabricius and Alderslade 2001Fabricius K., Alderslade P. 2001. Soft Corals and Sea Fans: a Comprehensive Guide to the Tropical Shallow-water Genera of the Central-West Pacific, the Indian Ocean and the Red Sea. Aust. Inst. Mar. Sci., Townsville 264 pp., Fabricius 2005Fabricius K. 2005. Effects of terrestrial runoff on the ecology of corals and coral reefs: review and synthesis. Mar. Poll. Bull. 2: 125-146.).

Finally, the presence and abundance of these and other species of octocorals in shallow waters could be used as an environmental indicator, suggesting potential areas for protection. Intensive sampling on the coast of Ecuador in biotopes such as submarine ridges and coralligenous bottoms, rich in gorgonian species, could reveal unrecorded gorgonian species in this area. Therefore, much work remains to elucidate Gorgoniidae taxonomy on the coast of Ecuador. The octocorals are an important structural component of the rocky reef fauna of these waters. The present survey contributes towards resolving issues concerning the distribution and taxonomy of this fauna in this region.

ACKNOWLEDGEMENTSTop

This research was funded by the grant “Biología de la conservación de las comunidades de gorgonias tropicales en el Pacífico oriental (Ecuador)” of the Universidad Tecnológica Indoamérica to JM. This research received support from the SYNTHESYS Project (http://www.synthesys.info/), financed by the European Community Research Infrastructure Action under the FP7 Capacities Programme, and “Ernst Mayr Travel Grants In Animal Systematics” for visiting MCZ at Harvard University. This research was partially supported by a grant from the Spanish Ministry of Economy and Competitiveness (CTM2014-57949-R). Our special thanks to Gonzalo Giribet and Adam J. Baldinger (MCZ) and Aude Andouche (MNHN), Andrew Cabrinovic and Miranda Lowe (NHM), Eric Lazo-Wasem and Lourdes Rojas (YPM), and Stephen Cairns and Herman H. Wirshing (Smithsonian, MNH) for helping in our museum work. We thank Santiago Villamarín (MECN), Machalilla National Park and Ministerio del Ambiente of Ecuador (Manabí) for collection permits; and Michel Guerrero and his team (Exploramar Diving) for his special interest and collaboration since we began our research. Special thanks to Micaela Peña for her unconditional help, and to Alicia Maraver, Valeria García and Damián Ramírez for their help on the collection expeditions, their friendship and their hard work. Thanks also to Eva Andrés Marruedo and Mónica Flores for their help during the subsequent fieldwork. Finally, we thank one anonymous referee for his/her suggestions for improving our manuscript.

REFERENCESTop

Alderslade P. 1998. Revisionary systematics in the gorgonian family Isididae, with description of numerous new taxa (Coelenterata, Octocorallia). Rec. West. Aust. Mus. 55: 1-359.

Bayer F.M. 1951. A revision of the nomenclature of the Gorgoniidae (Coelenterata: Octocorallia) with an illustrated key to the genera. J. Wash. Acad. Sci. 41: 91-102.

Bayer F.M. 1953. Zoogeography and evolution in the octocorallian family Gorgoniidae. Bull. Mar. Sci. Gulf Caribb. 2: 100-119.

Bayer F.M. 1961. The shallow water Octocorallia of the West Indian Region. A manual for marine biologists. Martinus Nijhoff, The Hague, 400 pp.

Bayer F.M. 1981. Status of knowledge of octocorals of world seas. Seminários de Biologia Marinha. Academia Brasileira de Ciências, Rio de Janeiro, pp 1-17.

Bayer F.M., Stefani J. 1989. Primnoidae (Gorgonacea) de Nouvelle-Calédonie. Bull. Mus. Nat. His. Nat. Paris. 4, 10(A) 3: 449-476.

Bayer F.M., Grasshoff M., Verseveldt J. 1983. Illustrated trilingual glossary of morphological terms applied to Octocorallia. E.J. Brill, Leiden, 74 pp.

Bayer F.M., Macintyre I.G. 2001. The mineral component of the axis and holdfast of some gorgonacean octocorals (Coelenterata: Anthozoa), with special reference to the family Gorgoniidae. Proc. Biol. Soc. Wash. 1: 309-345.

Bielschowsky E. 1929. Die Gorgonarien Westindiens. 6. Die Familie Gorgoniidae, zugleich eine Revision. Zool. Jahrb. Supplement 16: 63-234.

Breedy O. 2001. A new species of Pacifigorgia from the eastern Pacific (Coelenterata: Octocorallia: Gorgoniidae). Proc. Biol. Soc. Wash. 10: 181-187.

Breedy O., Guzmán H.M. 2002. A revision of the genus Pacifigorgia (Coelenterata: Octocorallia: Gorgoniidae). Proc. Biol. Soc. Wash. 115: 787-844.

Breedy O., Guzmán H.M. 2003. Octocorals from Costa Rica. The genus Pacifigorgia (Coelenterata: Octocorallia: Gorgoniidae). Zootaxa 281: 1-60.

Breedy O., Guzmán H.M. 2004. New species of the gorgoniian genus Pacifigorgia (Coelenterata: Octocorallia: Gorgoniidae) from the Pacific of Panama. Zootaxa 15: 1-15.

Breedy O., Guzmán H.M. 2007. A revision of the genus Leptogorgia Milne-Edwards and Haime, 1857 (Coelenterata: Octocorallia: Gorgoniidae) in the Eastern Pacific. Zootaxa 1419: 1-90.

Breedy O., Guzmán H.M. 2013. A new species of the genus Eugorgia (Cnidaria: Octocorallia: Gorgoniidae) from Mesophotic reefs in the Eastern Pacific. Bull. Mar. Sci. 3: 735-743.
http://dx.doi.org/10.5343/bms.2013.1014

Breedy O., Guzmán H.M., Vargas S. 2009. A revision of the genus Eugorgia Verrill 1868 (Coelenterata: Octocorallia: Gorgoniidae). Zootaxa 2151: 1-46.

Breedy O., Williams G.C., Guzman H.M. 2013. Two new species of gorgonian octocorals from the Tropical Eastern Pacific Biogeographic Region (Cnidaria, Anthozoa, Gorgoniidae). Zookeys 350: 75-90.
http://dx.doi.org/10.3897/zookeys.350.6117

Brockman S.A., McFadden C.S. 2012. The mitochondrial genome of Paraminabea aldersladei (Cnidaria: Anthozoa: Octocorallia) supports intramolecular recombination as the primary mechanism of gene rearrangement in octocoral mitochondrial genomes. Genome Biol. Evol. 4: 994-1006.
http://dx.doi.org/10.1093/gbe/evs074

Cairns S.D., Bayer F.M. 2005. A review of the genus Primnoa (Octocorallia: Gorgonacea: Primnoidae), with the description of two new species. Bull. Mar. Sci. 77: 225-256.

Calderón I., Garrabou J., Aurelle D. 2006. Evaluation of the utility of COI and ITS markers as tools for population genetic studies of temperate gorgonians. J. Exp. Mar. Biol. Ecol. 336: 184-197.
http://dx.doi.org/10.1016/j.jembe.2006.05.006

Chen I.P., Tang, C.Y., Chiou C.Y., et al. 2009. Comparative analyses of coding and non-coding DNA regions indicate that Acropora (Anthozoa: Scleractinia) possesses a similar evolutionary tempo of nuclear vs. mitochondrial genomes as in plants. Mar. Biotech. 11: 141-152.
http://dx.doi.org/10.1007/s10126-008-9129-2

Concepción G.T., Kahng S.E., Crepeau M.W., et al. 2010. Resolving natural ranges and marine invasions in a globally distributed octocoral (genus Carijoa). Mar. Ecol. Prog. Ser. 401: 113-127.
http://dx.doi.org/10.3354/meps08364

Conell J.H. 1978. Diversity in tropical rain forests and coral reefs. Science 4335: 1302-1310.
http://dx.doi.org/10.1126/science.199.4335.1302

Duchassaing P., Michelotti J. 1864. Supplément au mémoire sur les coralliaires des Antilles. Extrait des mémoires de l’Académie des Sciences de Turin, 23: 1-112.

Dueñas L., Sánchez J.A. 2009. Character lability in deep-sea bamboo corals (Octocorallia, Isididae, Keratoisidinae). Mar. Ecol. Prog. Ser. 397: 11-27.
http://dx.doi.org/10.3354/meps08307

Fabricius K. 2005. Effects of terrestrial runoff on the ecology of corals and coral reefs: review and synthesis. Mar. Poll. Bull. 2: 125-146.
http://dx.doi.org/10.1016/j.marpolbul.2004.11.028

Fabricius K., Alderslade P. 2001. Soft Corals and Sea Fans: a Comprehensive Guide to the Tropical Shallow-water Genera of the Central-West Pacific, the Indian Ocean and the Red Sea. Aust. Inst. Mar. Sci., Townsville 264 pp.

France S.C., Hoover L.L. 2002. DNA sequences of the mitochondrial COI gene have low levels of divergence among deep-sea octocorales (Cnidaria: Anthozoa). Hydrobiologia 471: 149-155.
http://dx.doi.org/10.1023/A:1016517724749

Grajales A., Rodríguez E. 2016. Elucidating the evolutionary relationships of the Aiptasiidae, a widespread cnidarian-dinoflagellate model system (Cnidaria: Anthozoa: Actiniaria: Metridioidea). Mol. Phyl. Evol. 94: 252-263.
http://dx.doi.org/10.1016/j.ympev.2015.09.004

Guzmán H.M., Breedy O. 2011. Pacifigorgia marviva (Anthozoa: Octocorallia) a new species from Coiba National Park, Pacific Panama. J. Mar. Biol. Assoc. UK 92: 693-698.
http://dx.doi.org/10.1017/S0025315411000373

Hickson S.J. 1928. The Gorgonacea of Panama Bay together with a description of one species from the Galapágos Islands and one of Trinidad. Vidensk. Medd. naturhistoriske Foren. Kovenhavn 85: 325-422.

Horn G.H. 1860. Descriptions of three new species of Gorgoniidae, in the collection of the Academy. J. Acad. Nat. Sci. Phila. 12: 233.

Lamouroux J.V.F. 1812. Extrait d’une mémoire sur la classification des Polypiers coralligènes non entièrement pierreux. Nou. Bull. Sci. Soc. Philom. Paris 63: 181-188.

Lepard A. 2003. Analysis of variation in the mitochondrial encoded msh1 in the genus Leptogorgia (Cnidaria: Octocorallia) and implications for population and systematics studies. MS thesis, College of Charleston.

López-González P.J., Grinyó J., Gili J.M. 2015. Chironephthya mediterranea n. sp. (Octocorallia, Alcyonacea, Nidaliidae), the first species of the genus discovered in the Mediterranean Sea. Mar. Biodiv. 45: 667-688.
http://dx.doi.org/10.1007/s12526-014-0269-5

Mallet J., Willmott K. 2003. Taxonomy: renaissance or Tower of Babel? Trends Ecol. Evol. 18: 57-59.
http://dx.doi.org/10.1016/S0169-5347(02)00061-7

McFadden C.S., Van Ofwegen L.P. 2013. A second, cryptic species of the soft coral genus Incrustatus (Anthozoa: Octocorallia: Clavulariidae) from Tierra del Fuego, Argentina, revealed by DNA barcoding. Helgol. Mar. Res. 67: 137-147.
http://dx.doi.org/10.1007/s10152-012-0310-7

McFadden C.S., Tullis I.D., Hutchinson M.B., et al. 2004. Variation in coding (NADH dehydrogenase subunits 2, 3, and 6) and noncoding intergenic spacer regions of the mitochondrial genome in Octocorallia (Cnidaria: Anthozoa). Mar. Biotechnol. 6: 516-526.
http://dx.doi.org/10.1007/s10126-002-0102-1

Mcfadden C.S., France S.C., Sánchez J.S., et al. 2006. A molecular phylogenetic analysis of the Octocorallia (Cnidaria: Anthozoa) based on mitochondrial protein-coding sequences. Mol. Phylogenet. Evol. 41: 513-527.
http://dx.doi.org/10.1016/j.ympev.2006.06.010

McFadden C.S., Sánchez J.A., France S.C. 2010. Molecular Phylogenetic Insights into the Evolution of Octocorallia: A Review. Integr. Comp. Biol. 3: 389-410.
http://dx.doi.org/10.1093/icb/icq056

McFadden C.S., Benayahu Y., Pante E., et al. 2011. Limitations of Mitochondrial Gene Barcoding in Octocorallia. Mol. Ecol. Res. 11: 19-31.
http://dx.doi.org/10.1111/j.1755-0998.2010.02875.x

McFadden C.S., Brown A.S., Brayton C., et al. 2014. Application of DNA barcoding in biodiversity studies of shallow-water octocorals: Molecular proxies agree with morphological estimates of species richness in Palau. Coral Reefs 33: 275-286.
http://dx.doi.org/10.1007/s00338-013-1123-0

Milne-Edwards H., Haime J. 1850. A monograph of the British fossil corals. Part 1. Introduction; corals from the Tertiary and Cretaceous formations, London, pp 1-71.

Milne-Edwards H., Haime J. 1857. Histoire naturelle des coralliaires ou polypes proprement dits, Vol. 1 pp. I–xxxiv + 1–326, 8 plates, numbered A1–6, B1–2. Paris, à la Libraire Encyclopédique de Roret.

Prada C., Hellberg M.E. 2013. Long pre-reproductive selection and divergence by depth in a Caribbean candelabrum coral. Proc. Natl. Acad. Sci. USA 119: 53-60.

Prada C., Schizas N.V., Yoshioka P.M. 2008. Phenotypic plasticity or speciation? A case from a clonal marine organism. BMC. Evol. Biol. 8: 47.
http://dx.doi.org/10.1186/1471-2148-8-47

Prahl H., Escobar D., Molina G. 1986. Octocorales (Octocorallia: Gorgoniidae y Plexauridae) de aguas someras del Pacífico Colombiano. Rev. Biol. Trop. 34: 13-33.

Rambaut A. 2002. Se-Al. alignment editor. Version 2.0 all, University of Oxford, Oxford, UK. Available:
http://tree.bio.ed.ac.uk/software/seal/

Saitou N., Nei M. 1987. The neighbor-joining method: A new method for reconstructing phylogenetic trees. Molec. Bio. Evol. 4: 406-425.

Sánchez J.A. 2004. Evolution and dynamics of branching colonial form in marine modular cnidarians: gorgonian octocorals. Hydrobiologia 1: 283-290.
http://dx.doi.org/10.1007/s10750-004-2684-2

Sánchez J.A., Mcfadden C.S., France S.C., et al. 2003. Molecular Phylogenetic analyses of shallow-water Caribbean octocorals. Mar. Biol. 142: 975-987.

Sánchez J.A., Aguilar C, Dorado D., et al. 2007. Phenotypic plasticity and morphological integration in a marine modular invertebrate. BMC Evol. Biol. 1: 12.
http://dx.doi.org/10.1186/1471-2148-7-122

Soler-Hurtado M.M., López-González P.J. 2012. Two new gorgonian species (Anthozoa: Octocorallia: Gorgoniidae) from Ecuador (Eastern Pacific). Mar. Biol. Res. 8: 380-387.
http://dx.doi.org/10.1080/17451000.2011.634814

Studer T. 1887. Versuch eines Systemes der Alcyonaria. Arch.Naturgesch. 53: 1-74.

Swofford D.L. 2001. PAUP*. Phylogenetic Analysis Using Parsimony (* and Other Methods), version 4. Sinauer Associates, Sunderland, Massachusetts.

Valenciennes A. 1846. Zoophytes. In: Dupetit-Thouars A. (ed) Voyage autour du monde sur la frégate la Vénus, pendant les années 1836-1839. Atlas de Zoologie. Publié par ordre Du Roi, Paris, pp 1-15.

Vargas S., Breedy O., Siles F., et al. 2010a. How many kinds of sclerite? Towards a morphometric classification of gorgoniid microskeletal components. Micron 41: 158-164.
http://dx.doi.org/10.1016/j.micron.2009.08.009

Vargas S., Breedy O., Guzmán H.M. 2010b. The phylogeny of Pacifigorgia: a case study of the use of continuous characters in the systematic of the Octocorallia. Zoosystema 1: 5-18.
http://dx.doi.org/10.5252/z2010n1a1

Vargas S., Guzmán H.M., Breedy O., et al. 2014. Molecular phylogeny and DNA barcoding of tropical Eastern Pacific shallow water gorgonian octocorals. Mar. Biol. 161: 1027-1038.
http://dx.doi.org/10.1007/s00227-014-2396-8

Verrill A.E. 1864. List of the polyps and corals sent by the Museum of Comparative Zoology to other institutions in exchange, with annotations. Bull. Mus. Comp. Zool. at Harvard College, 1: 29-60.

Verrill A.E. 1866. On the polyps and corals from Panamá with descriptions of new species. Proc. Boston Soc. Nat. Hist. 10: 323-357.

Verrill A.E. 1868. Notes on Radiata in the Museum of Yale College, Number 6: Review of the corals and polyps of the West Coast of America. Trans. Conn. Acad. Arts Sci. (Second Edition), pp. 377-422.

Verrill A.E. 1870. Notes on Radiata in the Museum of Yale College, Number 6: Review of the corals and polyps of the West Coast of America. Trans. Conn. Acad. Arts Sci. (Second Edition), 1: 519-558.

Williams G.C., Lindo K.G. 1997. A review of the octocorallian genus Leptogorgia (Anthozoa: Gorgoniidae) in the Indian Ocean and Subantarctic, with description of a new species and comparisons with related taxa. Proc. Calif. Acad. Sci. 49: 499-521.

Williams G., Breedy O. 2004. The Panamic Genus Pacifigorgia (Octocorallia: Gorgoniidae) in the Galápagos Archipelago. Proc. Calif. Acad. Sci. 55: 54-87.

Wirshing H.H., Baker A.C. 2015. Molecular and Morphological Species Boundaries in the Gorgonian Octocoral Genus Pterogorgia (Octocorallia: Gorgoniidae). PLoS One 10.
http://dx.doi.org/10.1371/journal.pone.0133517
