INTRODUCTIONTop

Phytoplankton primary production (PP) is one of the main sources of organic carbon sustaining the pelagic food webs in coastal ecosystems such as estuaries (Lalli and Parsons 1997Lalli C.M., Parsons T.R. 1997. Biological oceanography: an introduction. 2nd ed. Butterworth-Heinemann, Oxford, 324 pp., Chen and Borges 2009Chen C.T.A., Borges A.V. 2009. Reconciling opposing views on carbon cycling in the coastal ocean: Continental shelves as sinks and near-shore ecosystems as sources of atmospheric CO2. Deep-Sea Res. part II. 56: 578-590.). Located at the interface between the continental and oceanic environments, estuaries are influenced by both and are dynamic ecosystems with high complexity and marked variability in their physicochemical characteristics, which directly affect the rates of primary productivity and the composition and abundance of phytoplankton. This variability is determined by seasonal cycles of solar irradiance, rainfall, winds and tides, which act together in different temporal and spatial scales (Jouenne et al. 2005Jouenne F., Lefebvre S., Véron B., et al. 2005. Biological and physicochemical factors controlling short-term variability in phytoplankton primary production and photosynthetic parameters in a macrotidal ecosystem (eastern English Channel). Est. Coast. Shelf Sci. 65: 421-439., Abreu et al. 2010Abreu P.A., Bergesch A., Proença L.A., et al. 2010. Short- and long-term chlorophyll-a variability in the shallow microtidal Patos Lagoon estuary, southern Brazil. Estuar. Coast. 33: 554-569., Kimmerer et al. 2012Kimmerer W.J., Parker A.E., Lidstrom U.E., et al. 2012. Short-term and interannual variability in primary production in the low-salinity zone of the San Francisco Estuary. Estuar. Coast. 35: 913-929.).

The determination of the different scales of variability in environmental parameters and biological associations is an essential component in ecological studies, especially in highly dynamic and complex environments such as estuaries. Although they represent a small portion of the water masses compared with the oceans, estuaries exhibit high rates of primary production and remineralization of organic matter, and therefore play an important role in biogeochemical cycles (Chen and Borges 2009Chen C.T.A., Borges A.V. 2009. Reconciling opposing views on carbon cycling in the coastal ocean: Continental shelves as sinks and near-shore ecosystems as sources of atmospheric CO₂. Deep-Sea Res. part II. 56: 578-590.). Although many studies have focused on productivity, biodiversity and abundance of phytoplankton in estuaries, their variability and the main mechanisms operating at different temporal and spatial scales are not fully elucidated yet. Furthermore, the studies are usually restricted to monthly, bimonthly or even seasonal sampling campaigns, and few have employed approaches focusing on the variability at smaller time scales. More refined investigations have revealed a greater complexity in the temporal variation in primary productivity, composition and biomass of phytoplankton in estuaries (Fujita and Odebrecht 2007Fujita C.C., Odebrecht C. 2007. Short term variability of chlorophyll-a and phytoplankton composition in a shallow area of the Patos Lagoon estuary (southern Brazil). Atlântica, Rio Grande 29: 93-106., Cloern and Jassby 2010Cloern J.E., Jassby A.D. 2010. Patterns and scales of phytoplankton variability in estuarine-coastal ecosystems. Estuar. Coast. 33: 230-241., Kimmerer et al. 2012Kimmerer W.J., Parker A.E., Lidstrom U.E., et al. 2012. Short-term and interannual variability in primary production in the low-salinity zone of the San Francisco Estuary. Estuar. Coast. 35: 913-929.) than was evident in early studies. Small-scale variability may be related to weather events, such as fronts and episodes of heavy rainfall, as well as variations in the tidal level, local currents, concentration of dissolved nutrients and the rates of grazing and competition.

The identification of temporal patterns, however, is especially difficult in dynamic environments such as estuaries. This is the case of Babitonga Bay, located on the north coast of Santa Catarina State, southern Brazil. The area surrounding the estuary has high ecological, economic and social importance, already showing signs of environmental impacts generated by the strong anthropic pressure resulting from the presence of 515,000 inhabitants (IBGE 2010IBGE - Instituto Brasileiro de Geografia e Estatística. Censo Demográfico de 2010. Available at: http://censo2010.ibge.gov.br. Accessed on March 3rd 2015.) and the largest industrial park of the State. The environmental issues at Babitonga Bay are mainly related to the contamination of its waters by industrial and domestic sewage from the surrounding municipalities, deforestation, overfishing, illegal occupation of mangrove and other coastal areas, and accelerated sedimentation and accumulation of pollutants due to the closure of a former connection to the sea, the Linguado Channel (IBAMA 1998IBAMA - Instituto Brasileiro do Meio Ambiente e Recursos Renováveis. 1998. Proteção e Controle de Ecossistemas Brasileiros: Manguezal da Baía da Babitonga. Coleção Meio Ambiente, Brasília, Brazil, 145 pp (in Portuguese).). In addition, the city of San Francisco do Sul maintains an intense port activity, which requires a regular environmental monitoring of the region.

Phytoplankton biomass and composition can vary considerably throughout the year in subtropical areas such as Babitonga Bay. Notably, seasonal phytoplankton blooms and the presence of harmful species—mainly the mixotrophic dinoflagellates belonging to the Dinophysis acuminata complex—are frequently observed in Babitonga Bay and the surrounding areas (Mafra et al. 2014Mafra L.L.Jr., Tavares C.P.S., Schramm M.A. 2014. Diarrheic toxins in field-sampled and cultivated Dinophysis spp. cells from southern Brazil. J. Appl. Phycol. 26: 1727-1739.). Dinophysis spp. produce lipophilic toxin that, upon accumulation in bivalve mollusks, can cause diarrhetic shellfish poisoning in human consumers (Reguera et al. 2014Reguera B., Riobó P., Rodríguez F., et al. 2014. Dinophysis Toxins: Causative organisms, distribution and fate in shellfish. Mar. Drugs 12: 394-461.), and they have been recently reported in various shellfish farms of the Santa Catarina coast (Proença et al. 2007Proença L.A.O., Schramm M.A., Tamanaha M.S., et al. 2007. Diarrhoetic shellfish poisoning (DSP) outbreak in subtropical southwest Atlantic. Harmful Algae News 33: 19-20., 2011Proença L.A.O., Fonseca R.S., Pinto T.O. 2011. Microalgas em área de cultivo do litoral de Santa Catarina. Ed. Rima, São Carlos, Brazil, 90 pp. (in Portuguese).).

The main objective of this work was to investigate the variability, on different timescales (days, weeks, months and seasons), of the physicochemical parameters, the rates of respiration and PP, and the composition and abundance of the phytoplankton in Babitonga Bay, Santa Catarina State during the spring of 2012 and the summer of 2013. The approach used herein not only allowed us to assess and better distinguish the variability that occurs on a larger timescale (monthly and seasonal) from that occurring on a smaller scale (weeks and days), but also helps determine the physicochemical parameters that explain most of the variability in primary production and phytoplankton abundance on different timescales. Additionally, this multi-scale approach can be useful for defining appropriate sampling designs and strategies in order to achieve specific objectives in the study of estuarine ecosystems.

MATERIALS AND METHODSTop

Study area

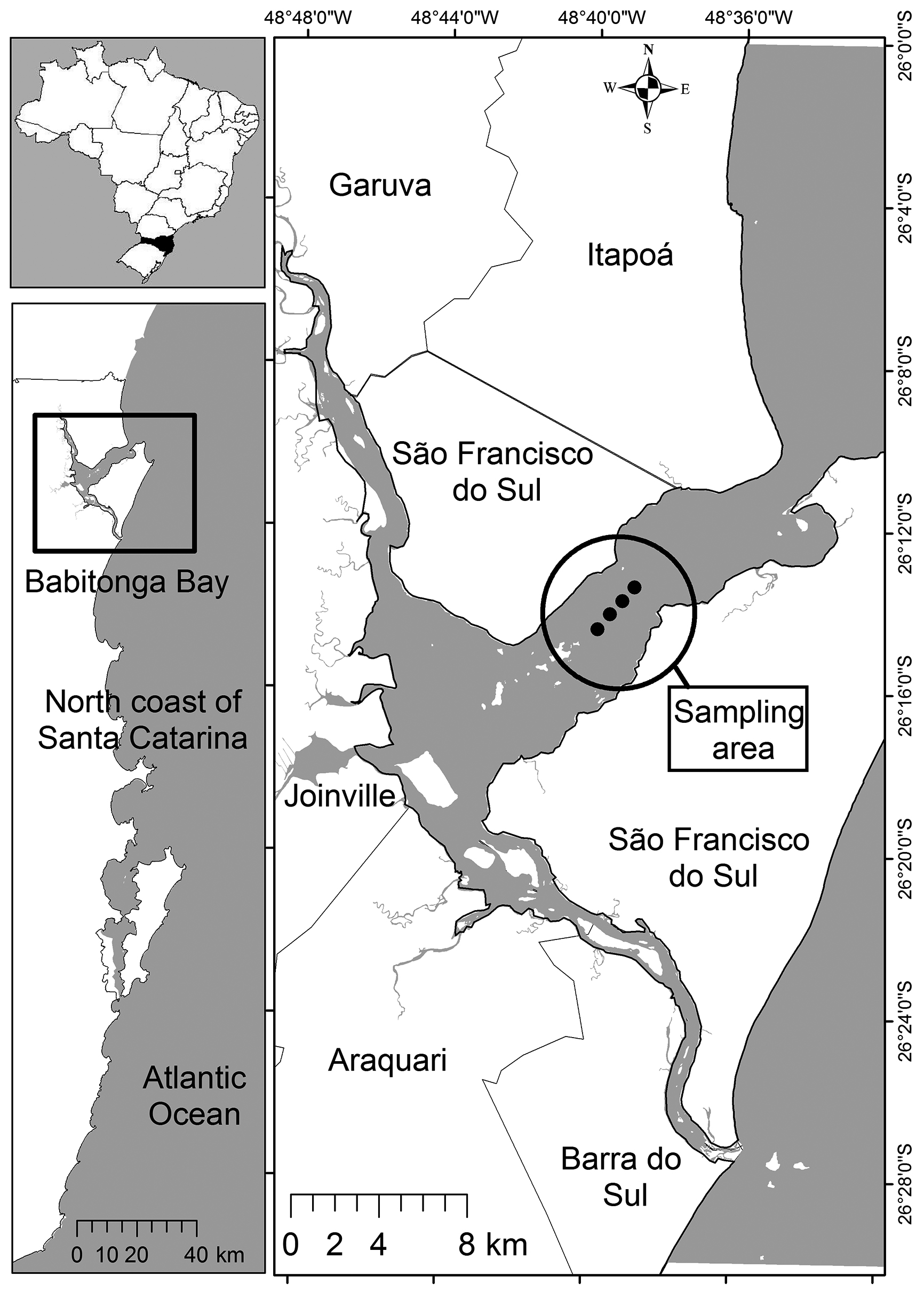

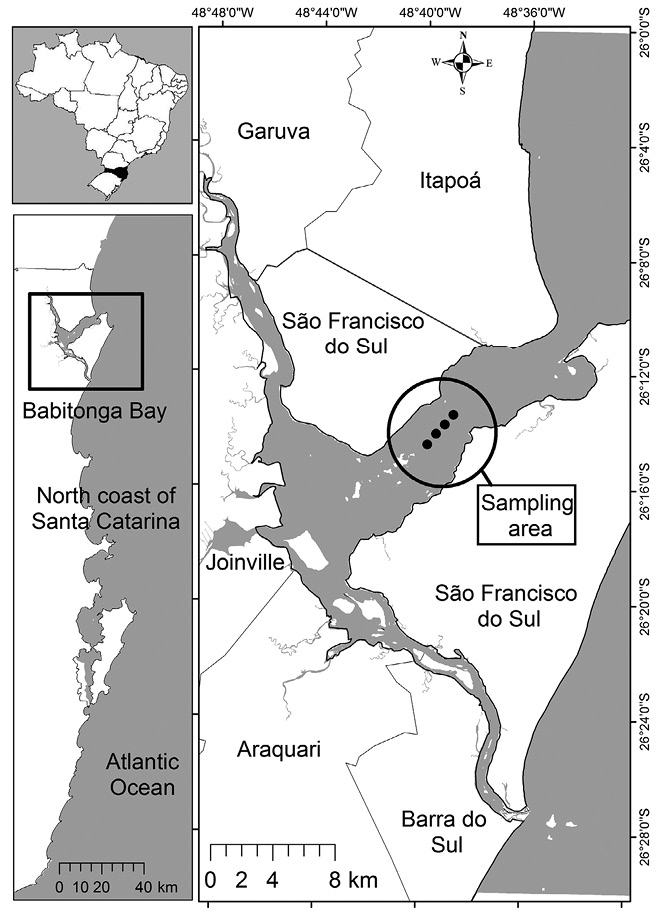

Located on the northern coast of Santa Catarina State (26°02′-26°28′S, 48°28′-48°50′W), Babitonga Bay (Fig. 1) is one of the main estuarine complexes of southern Brazil. It shelters the southernmost of the large mangrove formations of South America, covering nearly 6200 ha (Cremer et al. 2006Cremer M.J., Morales R.D.P., Oliveira M.N. 2006. Diagnóstico ambiental da Baía da Babitonga. UNIVILLE, Joinville, Brazil, 256 pp (in Portuguese)., IBAMA 1998IBAMA - Instituto Brasileiro do Meio Ambiente e Recursos Renováveis. 1998. Proteção e Controle de Ecossistemas Brasileiros: Manguezal da Baía da Babitonga. Coleção Meio Ambiente, Brasília, Brazil, 145 pp (in Portuguese).). Considered a homogeneous water body, the bay has a water surface of 134 km², a storage volume of about 780 million m³ and a drainage basin of 1400 km² (Denit/IME 2004DENIT/IME. 2004. Estudos Ambientais da Baía da Babitonga - Canal do Linguado. Relatório Final dos Estudos da Baía da Babitonga/Canal do Linguado. Convênio DENIT/IME, Joinville, Brazil, 159 pp (in Portuguese).). In the eastern sector it is connected to the Atlantic Ocean through a 1850-m-wide mouth.

The average depth of Babitonga Bay is around 6 m, with a maximum of 28 m in the channel leading to the Port of São Francisco do Sul. The SW-NE axis of the bay (Fig. 1), called Palmital Channel, differs from other areas in that it receives the largest hydrologic contributions and is characterized as a sediment exporter (Schettini and Carvalho 1999Schettini C.A.F., Carvalho J.L.B. 1999. Caracterização hidrodinâmica do estuário do Rio Cubatão, Joinville. Notas Téc. Facimar. 3: 87–97.). In contrast, the NW-SE axis, known as Linguado Channel, was blocked in 1935 during the construction of a road leading to the island of São Francisco do Sul. This intervention has permanently changed its original hydrological circulation and has induced intense sedimentation within the channel since then.

In southern Brazil, the wave regime is controlled by the Subtropical Atlantic High pressure system and the passage of synoptic cold fronts. The most energetic waves are from the south and are generated by strong winds associated with the passage of cold fronts (Pianca et al. 2010Pianca C., Mazzini P.L.F., Siegle E. 2010. Brazilian offshore wave climate based on NWW3 reanalysis. Braz. J. Oceanogr. 58: 53-70.). Prevailing winds are from the east and northeast quadrants. Tides are characterized by a system of micro-tides of mixed type with semidiurnal dominance. Unequal heights occur for consecutive high and low tides, and the maximum height is less than 2 m. In front of the Port of São Francisco do Sul, for instance, the average tidal range is 85 cm, with maximum values of 128 cm (Truccolo and Schettini 1999Truccolo E.C., Schettini C.A.F. 1999. Marés astronômicas na baía da Babitonga, SC. Braz. J. Aquat. Sci. Tech. 3: 57-66.).

The climate is characterized as humid, with a well-defined winter and summer, and the absence of a dry season. Though the area lacks a truly dry season, rainfall varies considerably throughout the year, reaching higher values in spring-summer and lower ones in autumn-winter. The local climate is driven by the dominance of Equatorial Continental, Tropical Atlantic and occasionally Tropical Continental air masses during the summer. The Equatorial Continental air mass leads to high temperatures and humidity, with heavy rainfall events; the Tropical Atlantic air mass is also associated with the occurrence of strong convective rainfall, but of lower intensity than that associated with the Equatorial Continental mass. The summer weather only becomes drier, with little or no rainfall, when the Tropical Continental air mass prevails (FATMA 2002FATMA - Fundação do Meio Ambiente de Santa Catarina. 2002. Atlas ambiental da região de Joinville: complexo hídrico da Baía da Babitonga. FATMA/GTZ, Florianópolis, Brazil, 139 pp (in Portuguese).). In winter, the passage of the Atlantic Polar Front precedes the arrival of the Atlantic Polar Mass, which brings rainfall with thunderstorms followed by cold, dry air (FATMA 2002FATMA - Fundação do Meio Ambiente de Santa Catarina. 2002. Atlas ambiental da região de Joinville: complexo hídrico da Baía da Babitonga. FATMA/GTZ, Florianópolis, Brazil, 139 pp (in Portuguese).). At this point, tropical air masses are displaced to the centre and north of the country.

Sampling design and data analysis

Sampling and in situ experiments were performed on different temporal scales during the spring of 2012 and the summer of 2013, always at neap tide to minimize possible interferences. Sampling/experiment campaigns were performed in two months of each selected season (October and November; February and March), two weeks of each selected month and, finally, two days of each selected week. This class of experimental design is known as “fully nested”. It is effective in assessing the variability of environmental data at several temporal scales (Morrisey et al. 1994Morrisey D.J., Underwood A.J., Stark J.S., et al. 1994. Temporal variation in concentrations of heavy-metals in marine sediments. Estuar. Coast. Shelf Sci. 38: 271-282., Bell et al. 1997Bell R.G., Hume T.M., Dolphin T.J., et al. 1997. Characterization of physical environmental factors on an intertidal sandflat, Manukau Harbour, New Zealand. J. Exp. Mar. Biol. Ecol. 216: 11-31.) and can be properly analysed by hierarchical ANOVA (Underwood 1997Underwood A.J. 1997. Experiments in ecology: their logical design and interpretation using analysis of variance. Cambridge University Press, Cambridge, 504 pp.). All four temporal scales (seasons, months, weeks and days), with two levels each, were considered as random factors, and the sampling was repeated at four adjacent sites (A-D) located approximately 300 m apart from each other, in the central part of the estuary, where depth ranged from 6 to 7 m. Measurements obtained from each sampling site were true replicates, representing a source of variation to estimate changes in time.

Values (n=72) of physicochemical parameters, nutrient concentrations and primary production and respiration rates were compared by ANOVA on different timescales (day, week, month and season), using the R software package version 2.13.1 (R Development Core Team 2012R Development Core Team. 2012. R: A language and environment for statistical computing. R Foundation for Statistical Computing, Austria. Available at: http://www.R-project.org/) and the GAD (Sandrini-Neto and Camargo 2010Sandrini-Neto L., Camargo M.G. 2010. The R Development Core Team. General ANOVA Design (GAD): Analysis of variance from general principles. R package version 1.0.). The coefficient of variation was also estimated in order to determine the timescale in which the greatest variability occurred. Normality and homoscedasticity of data were tested by Shapiro-Wilk and Cochran analyses, respectively, and data were transformed by log(x) or square root when these assumptions were not met.

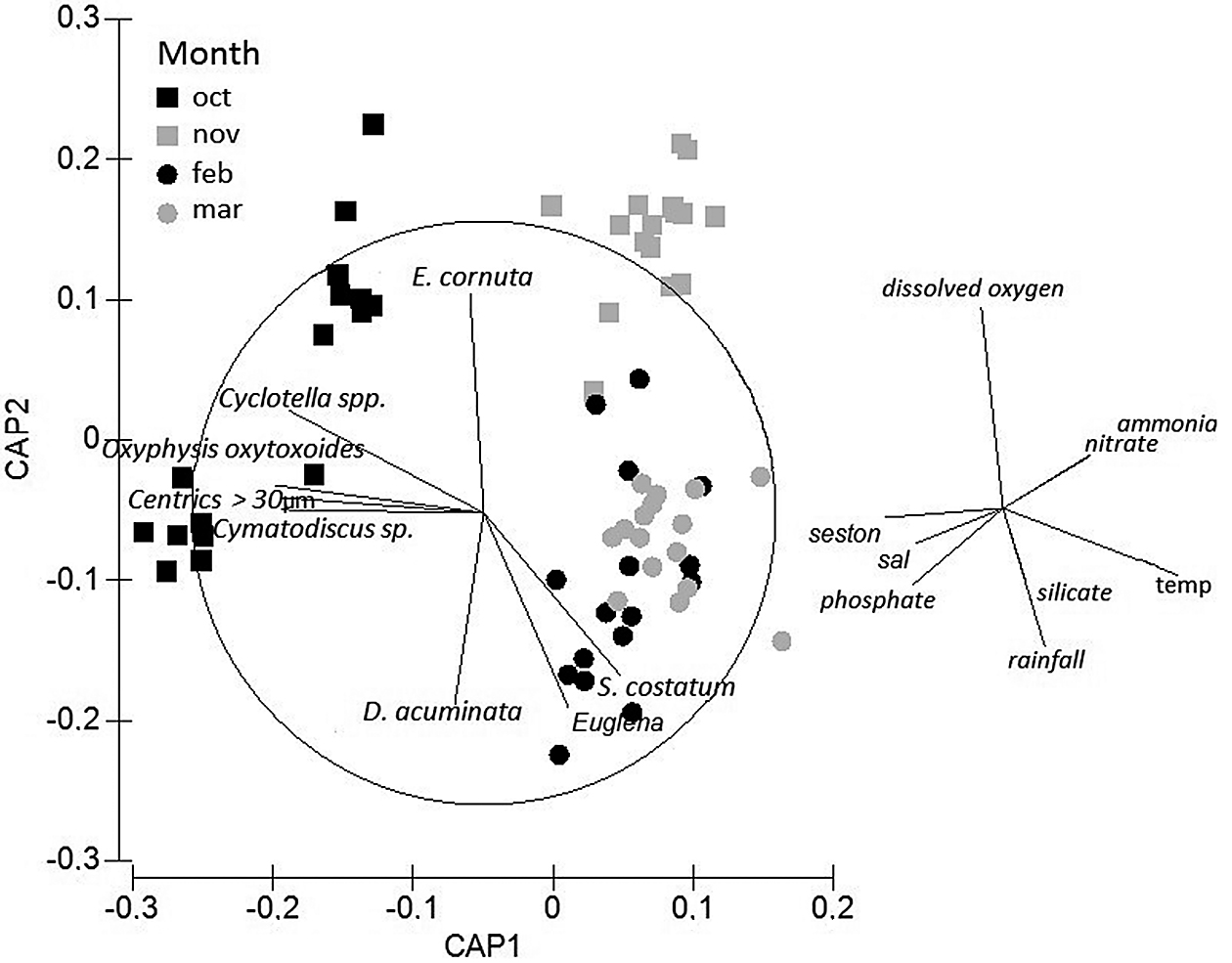

In order to verify the relationship between the environmental variables and phytoplankton taxa, a canonical analysis of principal coordinates (CAP) was conducted. Environmental variables were standardized and the values of phytoplankton abundance were transformed by log(x+1). The CAP analyses were performed from a matrix of Bray-Curtis similarity in the statistical package PRIMER and PERMANOVA 6.1.13+ version 1.0.3.

Physicochemical and meteorological parameters

Temperature, salinity and pH were recorded in the field using a standard Hg thermometer, a refractometer (ATAGO S1000) and a pH-meter (DENVER UP-25). The latter was calibrated before each sampling using standard buffers (Sinth). Water transparency was measured with a Secchi disc. In addition, 1-L subsurface water samples were collected with a van Dorn bottle, stored in vials and kept refrigerated in the dark. In the laboratory, approximately 5 hours after sample collection, samples (250 ml) were filtered through Whatman GF/C filters (φ=47 mm). The filtered liquid was used to determine dissolved inorganic nutrients (ammonium, nitrate, nitrite, phosphate and silicate) following the colorimetric method described by Grasshoff et al. (1983)Grasshoff K., Ehrhardt M., Kremling K. 1983. Methods of Seawater Analysis. 2nd ed. Verlag Chemie, Weinheim, 419 pp. in a spectrophotometer (SHIMADZU UV/V-1601), and the suspended particulate matter (seston) was determined by the gravimetric technique (Strickland and Parsons 1972Strickland J.D.H., Parsons T.R. 1972. A practical handbook of seawater analysis. 2nd ed. Fisheries Research Board of Canada, Ottawa, pp. 167-311.) from the material retained on the filters. To do this, the filters were maintained at 65°C for approximately 2 h, cooled for 2 h, and weighed on an analytical balance (Mettler H51AR). Additionally, ~120-ml sample aliquots were immediately fixed after collection, preventing the formation of bubbles and the exposure to light and temperature variation until the determination of the dissolved oxygen (DO) concentration in the laboratory, approximately 5 hours after sample collection, following the titration method described in Grasshoff et al. (1983)Grasshoff K., Ehrhardt M., Kremling K. 1983. Methods of Seawater Analysis. 2nd ed. Verlag Chemie, Weinheim, 419 pp.. During the field campaigns, hourly values of irradiance, rainfall, intensity and direction of the winds were obtained from an automatic meteorological station run by the National Institute of Meteorology (INMET) located in Itapoá, Santa Catarina State, approximately 10 km from the bay, and subsequently reported as daily averages. Wind data were not recorded in early October and irradiance measurements could not be computed on 26 October due to a technical failure in the anemometer and the pyranometer of the meteorological station, respectively. The pyranometer (Kipp & Zonen^®, model CM6B) used has a spectral range of 310 to 2800 nm and is fully compliant with ISO 9060 specifications for a First Class pyranometer.

Primary production and respiration rates in the water column (O₂ method)

For the in situ incubation experiments with natural phytoplankton populations, at each of the four sampling sites seawater was collected from the entire water column using a transparent hose (3 cm in diameter) containing a closing valve at one end and a weight at the other. The hose was gently deployed into the water, maintaining the valve kept on board open until the opposite tip of the stretched hose had touched the bottom. At that time, the valve was closed and the hose containing a full sample of the entire water column was brought to the boat deck, where the valve was opened and the sample was transferred to a van Dorn bottle. The sampled material was then distributed to BOD (biochemical oxygen demand) bottles with calibrated volumes for the incubation experiments. The samples were transferred to the bottles gently in order to avoid the formation of bubbles. The BOD bottles were then placed in acrylic tubes coated with layers of semi-transparent plastic film of varying thickness, representing decreasing irradiance levels, and incubated on two independent floating frames for a period of 3 h, always from 10:00 am to 1:00 pm. The two sets of tubes simulating decreasing irradiance levels yielded slightly different attenuation ratios: (i) 0, 5.7, 16.4, 20.2, 38, 42.9, 67.9 and 100% (dark tube); and (ii) 0, 7.0, 20.2, 23.5, 40.4, 46.5, 68.1 and 100%. Zero and 100% attenuation were attained by tubes that were either uncovered or wrapped with several layers of black plastic film, respectively. The remaining attenuation levels were previously calculated in the laboratory by comparing the light intensity measured with a radiometer (Li-Cor LI-1400) inside and outside each tube. At each sampling/experimental site, one sample was immediately fixed to give the initial DO concentration at time zero. Thus, the rates of gross PP were simultaneously estimated at 7 levels of luminosity, plus the rate of respiration of the community (dark flasks), and represented as the average value obtained from the duplicate series of BOD bottles. For the conversion of PP and respiration rates from DO to carbon units, a photosynthetic coefficient of 1.2 and a respiratory quotient of 1.0 were used, according to the literature (Asmus 1982Asmus R. 1982. Field measurements on seasonal variation of the activity of primary producers on a sandy tidal flat in the Northern Wadden Sea. J. Sea Res. 16: 389-402., Biddanda et al. 1994Biddanda B., Ogdahl S., Benner R. 1994. Plankton respiration and carbon flux through bacterioplankton on the Louisiana shelf. Limnol. Oceanogr. 39: 1259-1275., Almeida et al. 2005Almeida M.A., Cunha M.A., Alcântara F. 2005. Relationship of bacterioplankton production with primary production and respiration in a shallow estuarine system (Ria de Aveiro, NW Portugal). Microb. Res. 160: 315-328.)

Based on the irradiance values (in W m^–2), the amount of photosynthetic active radiation (PAR, in E m^–2 d^–1) was estimated using a conversion factor of 0.1944, considering that the PAR spectral segment contribution to the global solar radiation ranges from 48.87 to 49.26% (mean=49%) in southern Brazil (Escobedo et al. 2011Escobedo J.F., Gomes E.N., Oliveira A.R., et al. 2011. Ratios of UV, PAR and NIR components to global solar radiation measured at Botucatu site in Brazil. Renewable Energy 36: 169-178.), and assuming a below-water-surface total quanta : total energy (Q:W) ratio of 2.5×10¹⁸ quanta s^–1 W^–1 (Morel and Smith 1974Morel A., Smith R.C. 1974. Relation between total quanta and total energy for aquatic photosynthesis. Limnol. Oceanogr. 19: 591-600.).

From the converted PAR values, we calculated the depths corresponding to the simulated irradiance levels on each experiment day, using the model Z=([ln E₀)-(ln E_z)]/K, where Z is the depth corresponding to a given level of irradiance; K is the attenuation coefficient of light, calculated from the water transparency (Secchi) and a conversion factor of 1.44 (Holmes 1970); E₀ is the amount of PAR at the surface; and E_z is the PAR at a given simulated light level. Next, the rates of productivity were calculated for each depth and extrapolated for the entire photic zone through trapezoidal integration. Finally, PP measured during the incubation period was extrapolated to the entire light period of the day using the daily curve of PAR, as estimated from the data of the meteorological station. In addition, in order to investigate the variation in light availability during the study period, irradiance values were daily-averaged and expressed as standard PAR unit (µE m^–2 s^–1).

Qualitative and quantitative analysis of phytoplankton

Aliquots (200 mL) of the water sampled with a transparent hose along the entire water column, as described above, were placed in dark flasks containing Lugol’s solution to a final concentration of 2% and stored for latter phytoplankton analysis. Phytoplankton enumeration and identification were performed on an inverted microscope (Zeiss Axiovert) using Utermöhl counting chambers after sedimentation of 10- or 25-mL samples, depending on the cell density and seston concentration. The microphytoplankton (>20 μm) was identified to the lowest possible taxon according to specific references such as Tomas et al. (1997)Tomas R.C. 1997. Identifying marine diatoms and dinoflagellates. Academic Press. Florida, 584 pp., Steidinger and Jangen (1997)Steidinger K.A., Jangen K. 1997. Dinoflagellates. In: Tomas C.R. (eds), Identifying marine diatoms and dinoflagellates. Academic Press, Florida, pp. 387-570. and Hoppenrath et al. (2009)Hoppenrath M., Elbrachter M., Drebes G. 2009. Marine Phytoplankton. Senckenberg Gesellschaft fur Naturforschung, Frankfurt am Main, Germany, 264 pp.. A minimum of 500 cells of this size fraction was counted per sample in the entire counting chamber at 200x magnification, although the most abundant species were counted separately in transects. Less abundant species, such as the mixotrophic, toxic dinoflagellates belonging to the Dinophysis acuminata complex and their prey, the ciliate Mesodinium rubrum, were counted in parallel after settling an additional 50-mL sample aliquot, as described above. Finally, the abundance of nanoplankton cells (<20 µm) was determined by analysing multiple transects at a higher magnification (400×) until ~300 cells were reached. In general, the counting accuracy remained at ≥90% confidence limit (Edler and Elbrachter 2010Edler L., Elbrachter M. 2010. The Utermohl method for quantitative phytoplankton analysis. In: Karlson B., Cusack C., Bresnan E. (eds), Microscopic and molecular methods for quantitative phytoplankton analysis. Intergovernmental Oceanographic Commission of UNESCO, Paris, pp. 13-20.).

RESULTSTop

Environmental and meteorological factors

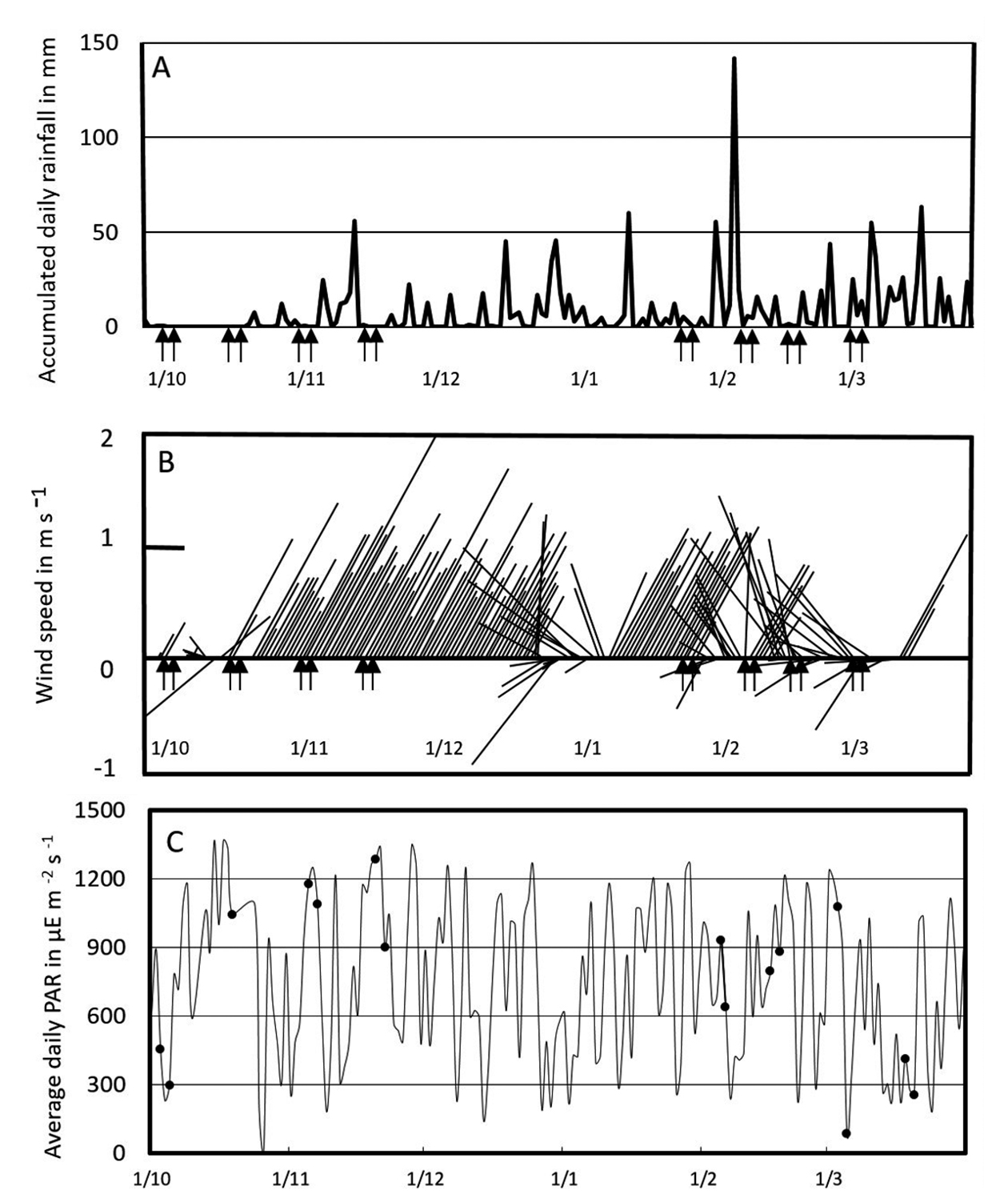

Over the spring of 2012 and the summer of 2013, October was the driest month, with a cumulative monthly rainfall of only 28.6 mm (Fig. 2A). Rainfall increased in November, December and January (177.2, 244.4 and 170.8 mm, respectively), reaching a maximum in February and March (405.4 and 377.8 mm). From late October to December, the predominant wind direction was SW, with daily-averaged intensity ranging from 0.5 to 2 m s^–1 (Fig. 2B). In February, the same pattern was observed, although there was a shift in wind direction to E in the second week. In March, unlike other months, winds were predominantly from the E quadrant, with a maximum daily-averaged intensity of 1.5 m s^–1 (Fig. 2B). The average PAR for the entire sampling period was 740.7 µE m^–2 s^–1, with the highest values being recorded in November. During the sampling dates, daily-averaged values ranged from only 83.4 µE m^–2 s^–1 on 5 March, a fairly cloudy day, to 1281.7 µE m^–2 s^–1 on 20 November (Fig. 2C).

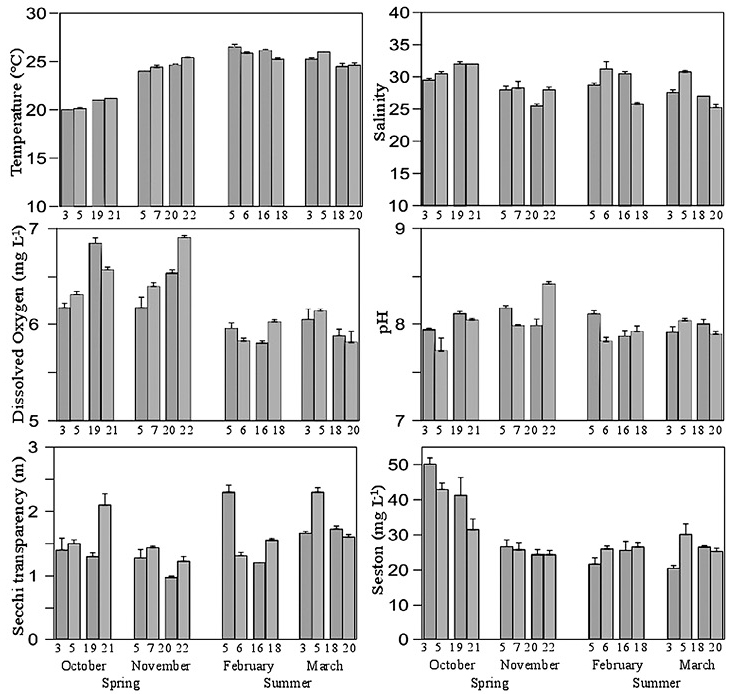

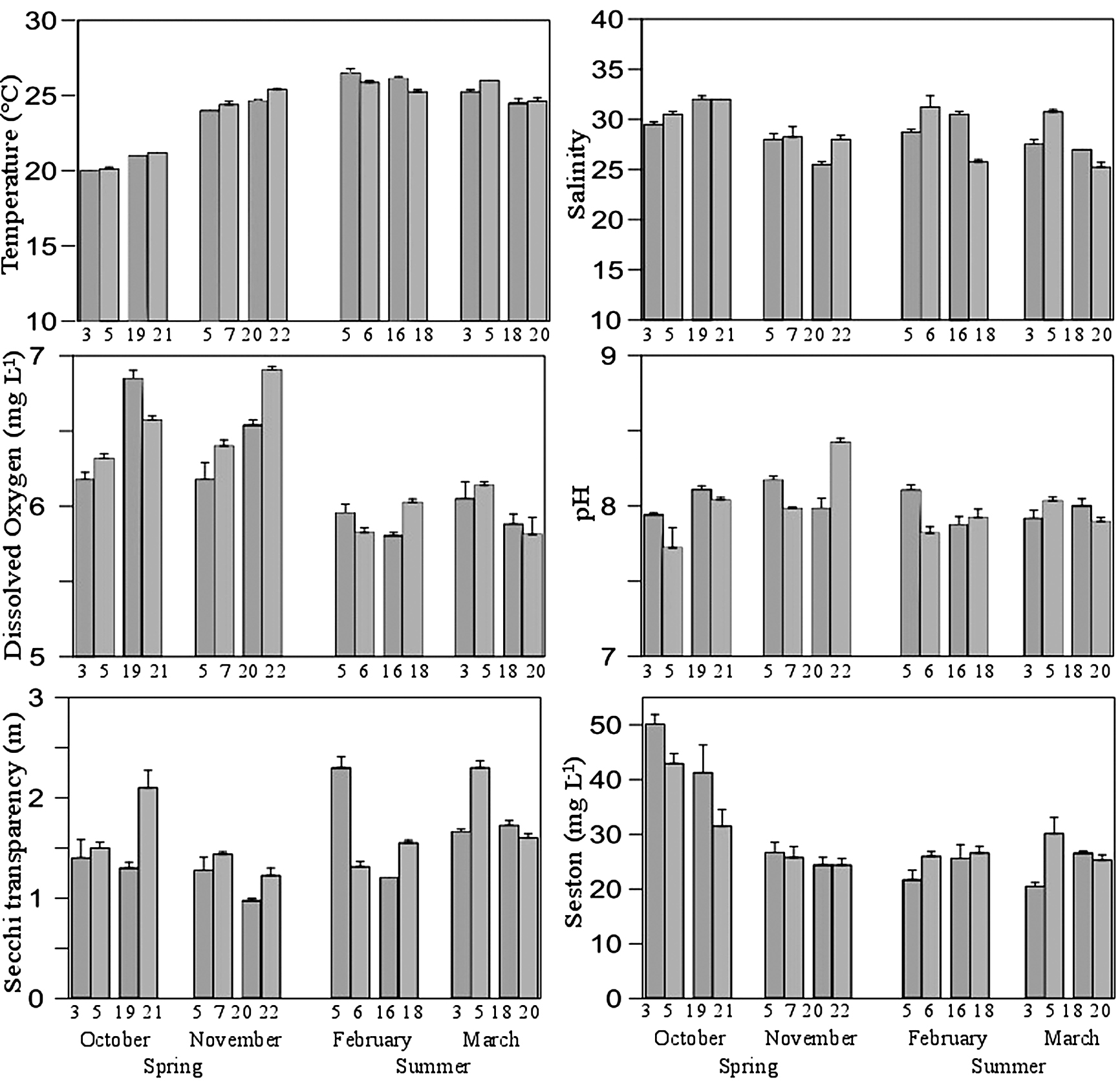

Generally, dissolved inorganic nutrients and other physicochemical parameters exhibited similar values among the sampling points for each collection day. Water temperature (daily-averaged values) increased from spring (20°C) to summer (27°C) (Fig. 3), as expected. The analysis of variance components stressed that most of the variability was on the scale of months within seasons (42.6%), followed by the seasons (31.1%, Table 1). The concentration of DO was higher in October and November (6.24 and 6.71 mg L^–1, on average) than in the remaining months. In the summer, DO levels were similar between months and significantly lower than those measured in spring (P=0.004, CV=45.1%, Table 1). On a few occasions, Secchi transparency was greater than 2 m, as occurred on 5 February (2.6 m), although no significant differences between seasons, months within seasons or weeks within months were found. The variability was only significant (P<0.001) on the shortest timescale, between days within weeks (CV=44.2%, Table 1).

Overall, there was a low variability in seston concentrations (monthly-averaged values of 25.2, 24.9 and 26.6 mg L^–1 in November, February and March, respectively), with the exception of October, when the average concentration (41.4 mg L^–1, Fig. 3) was significantly higher (P=0.03, Table 1). Though most of the variability was due to the differences between months of a same season (CV=43%), a significant variation also occurred on the scale of days (P=0.002, Table 1). Salinity and pH exhibited a slight tendency to increase from the innermost to the outermost region of the bay, although the difference was not statistically significant. Salinity values varied widely between months within seasons (CV=31%, Table 1), although there was little variation between seasons. The highest daily-averaged salinity value (32) was recorded on 19 and 21 October and the lowest (25) on 20 March. Finally, the highest monthly-averaged pH value (8.14) occurred in November, with similarly lower values (around 7.9) registered during all other months. For both the pH and salinity, the temporal variability was significant only on the shortest scale, among days, as indicated by the ANOVA analysis (Table 1).

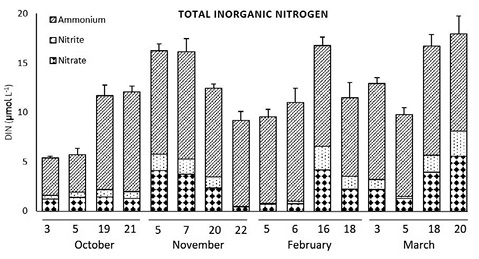

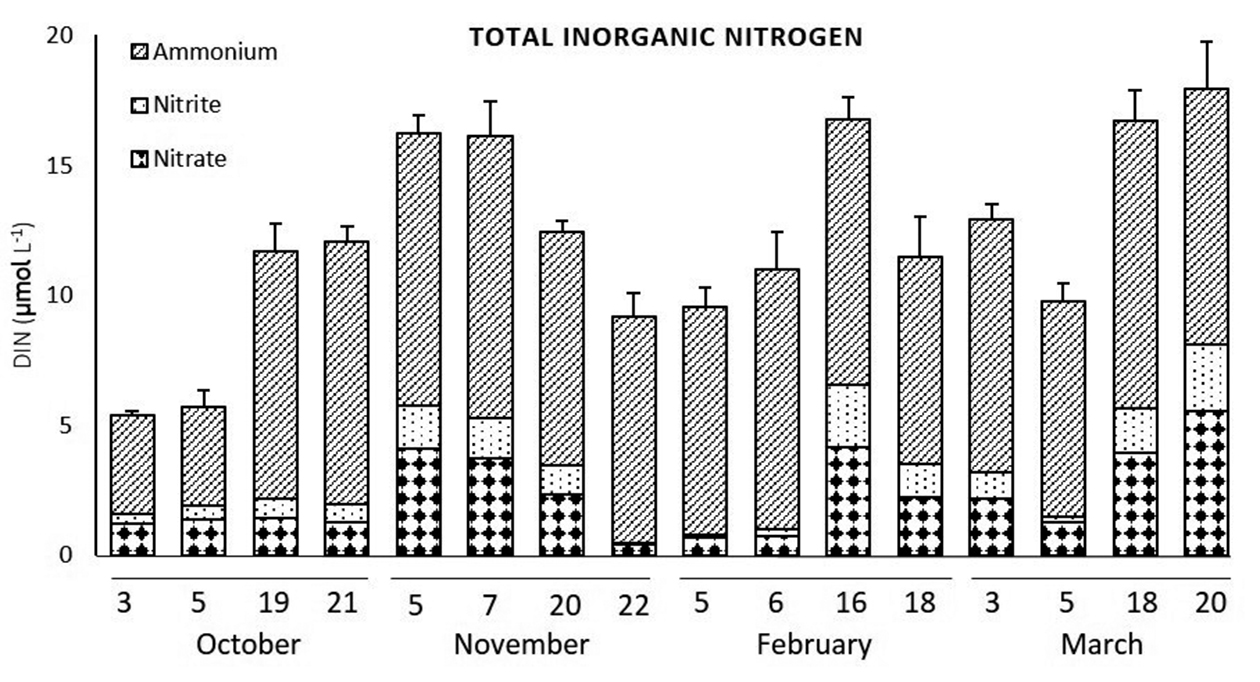

Ammonium concentrations were relatively low in the first week of October (mean of 3.78 µmol L^–1), increasing considerably thereafter and remaining higher until the end of summer (Fig. 4). Nitrate and nitrite concentrations exhibited a similar pattern of variation over the sampling period (Fig. 4), with the lowest values recorded in October (mean of 1.33 and 0.58 µmol L^–1, respectively) and the highest ones in March (mean of 5.54 and 2.56 µmol L^–1, respectively). The variation pattern in total dissolved inorganic nitrogen (DIN) was similar to that of ammonium, the most abundant and representative nitrogen compound throughout the period of study. Overall, little variation was observed in the mean concentrations of nitrogen compounds either between spring and summer or between months within seasons. Marked differences were mainly noticed on the scale of weeks, representing more than 50% of the CV (Table 2) for nitrate, nitrite, ammonium and DIN. The variation was also high between days of a same week, but to a lesser extent (29.5%, 30.5%, 18.5% and 27% for nitrate, nitrite, ammonium and DIN). Phosphate varied significantly on the scale of days (P<0.001), but mostly between months within seasons (44.1% of the variability; Table 2). The highest concentration of phosphate in October, with average of 1 µmol L^–1 (Fig. 5) resulted in the lowest N:P ratio calculated over the entire study period (average of 8.7). In all other months, N:P ratios were generally >16, with the maximum value being recorded on 7 November (33.2). Silicate concentrations were significantly lower (P=0.005, CV=33.4%) in the spring (8.94 and 7.91 µmol L^–1) than in the summer (15.65 and 16.06 µmol L^–1). Large variations were also observed on the scale of weeks within months (CV=31.1%).

Primary production rates, composition and abundance of phytoplankton

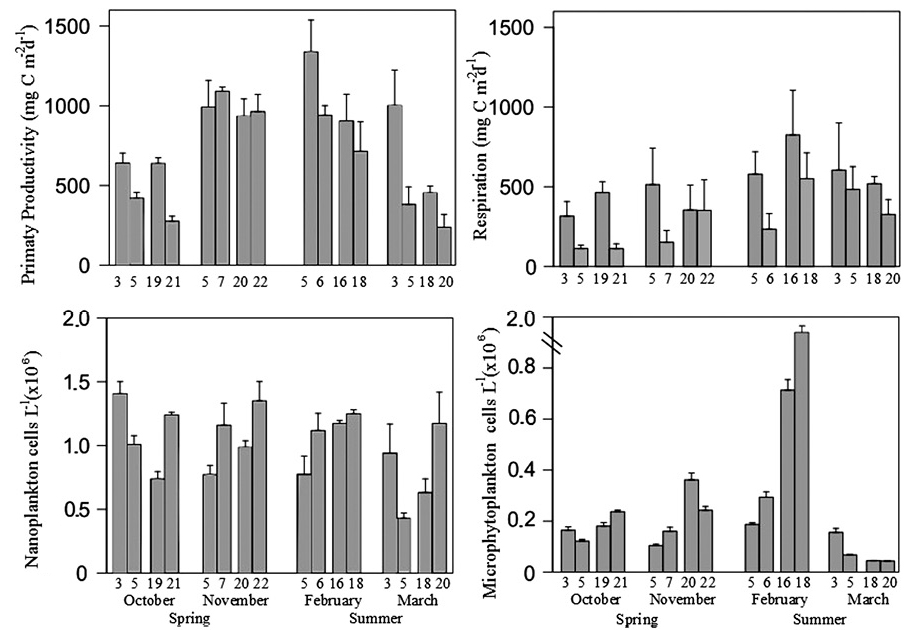

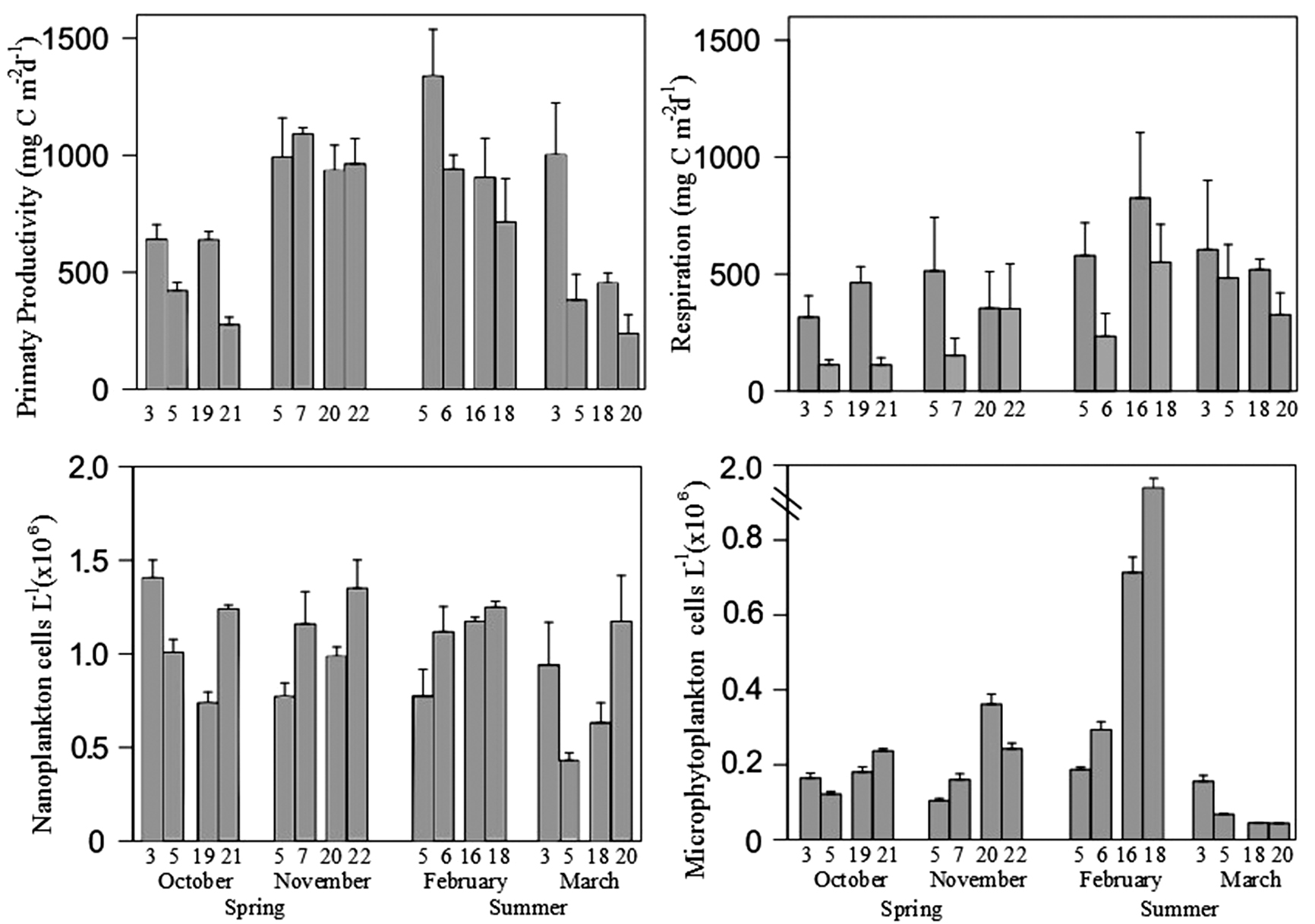

The daily-averaged values of primary production (PP) rate, integrated to the entire water column, varied mostly on the scales of months within seasons (P=0.043) and days within weeks (P=0.003, Table 3). These significant differences between the monthly averages were observed both in spring and in summer. The highest PP rates occurred in November and February, when the monthly-averaged values were 994.9 and 974.7 mg C m^–2 d^–1, respectively (Fig. 6). The greatest variation in PP rates within a single month was recorded in March, ranging from 237.9 mg C m^–2 d^–1 on 3 March to 1001.3 mg C m^–2 d^–1 on 20 March (Fig. 6). Respiration rates in the water column were higher in summer than in spring (P=0.003, Table 3), reaching the highest monthly-averaged value of 547.8 mg C m^–2 d^–1 in February, and the highest daily-averaged value of 825.6 mg C m^–2 d^–1 on 16 February (Fig. 6). In March, respiration rates decreased slightly, although they remained higher than in October (251.5 mg C m^–2 d^–1) and November (343.3 mg C m^–2 d^–1).

Large variability in the total abundance of phytoplankton cells was only observed on smaller timescales, between days for nanophytoplankton and between days and weeks for microphytoplankton. Monthly-averaged values of nanophytoplankton abundance were similarly high (~1.1×10⁶ cells L^–1) throughout the study, with the exception of March (0.8×10⁶ cells L^–1). Daily-averaged values ranged from 0.4 to 1.4×10⁶ cells L^–1. Microphytoplankton abundance was generally lower (<0.3×10⁶ cells L^–1) than nanophytoplankton abundance, with the exception of the second weeks of November and February, when expressive differences between the daily averages were observed and high cell abundances were recorded (0.7-1.8 and 0.7-1.7×10⁶ cells L^–1, respectively, Fig. 6).

In total, 53 different microphytoplankton taxa were identified in this study, including 41 diatoms (Bacillariophyceae), 10 dinoflagellates (Dinophyceae), one euglenophyte and one silicoflagellate. Some taxa were frequent and relatively abundant throughout the study period, such as the benthic diatoms Cylindrotheca closterium, Paralia sulcata, Psamodictyon panduriformis, Diploneis spp., Navicula spp., the planktonic Thalassionema frauendeldii, Thalassionema nitszchioides, Thalassiosira spp., and the dinoflagellates of the genera Gymnodinium, Gyrodinium, Prorocentrum and Protoperidinium.

Other taxa were more frequent and abundant during specific periods. For instance, T. frauenfeldii, the benthic diatoms Cyclotella spp. and Cymatodiscus planetophorus, and other larger (>30 µm) centric diatoms, as well as the dinoflagellate Oxyphysis oxytoxoides, were abundant in spring but rare or absent in summer. These taxa formed a well-defined spring phytoplankton assemblage associated with higher salinity, phosphate and seston concentrations and lower DIN values (Fig. 7). In addition, another diatom, Eucampia cornuta, was rarely detected in summer but was recorded at high cell densities during an intermittent bloom episode (0.2×10⁶ cells L^–1) in the second week of November (spring), when DO concentrations were higher (Fig. 7). Conversely, Skeletonema costatum was rarely observed in spring, but attained very high cell densities in summer (up to 1.3×10⁶ cells L^–1 in the first week of February). In addition to S. costatum, Corethron criophilum, Leptocylindrus minimus and other small-sized centric diatoms, as well as an unidentified euglenophyte species, formed a characteristic summer phytoplankton assemblage associated with lower DO values and higher temperature, rainfall and silicate concentration (Fig. 7).

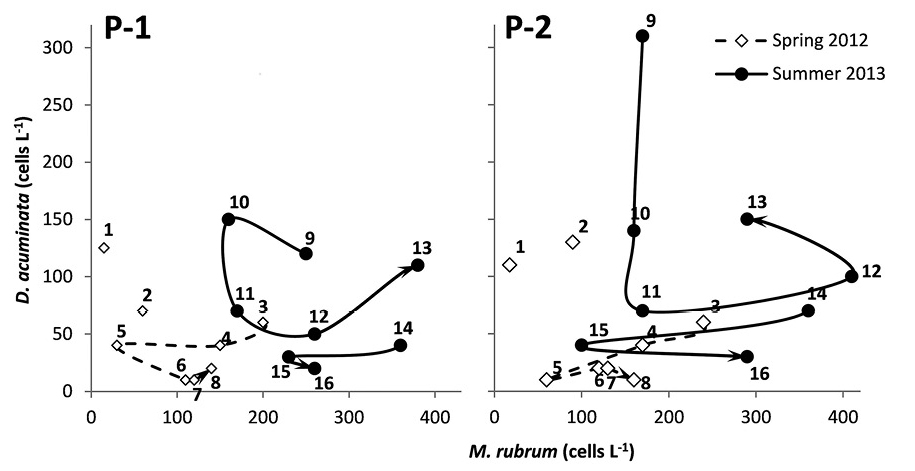

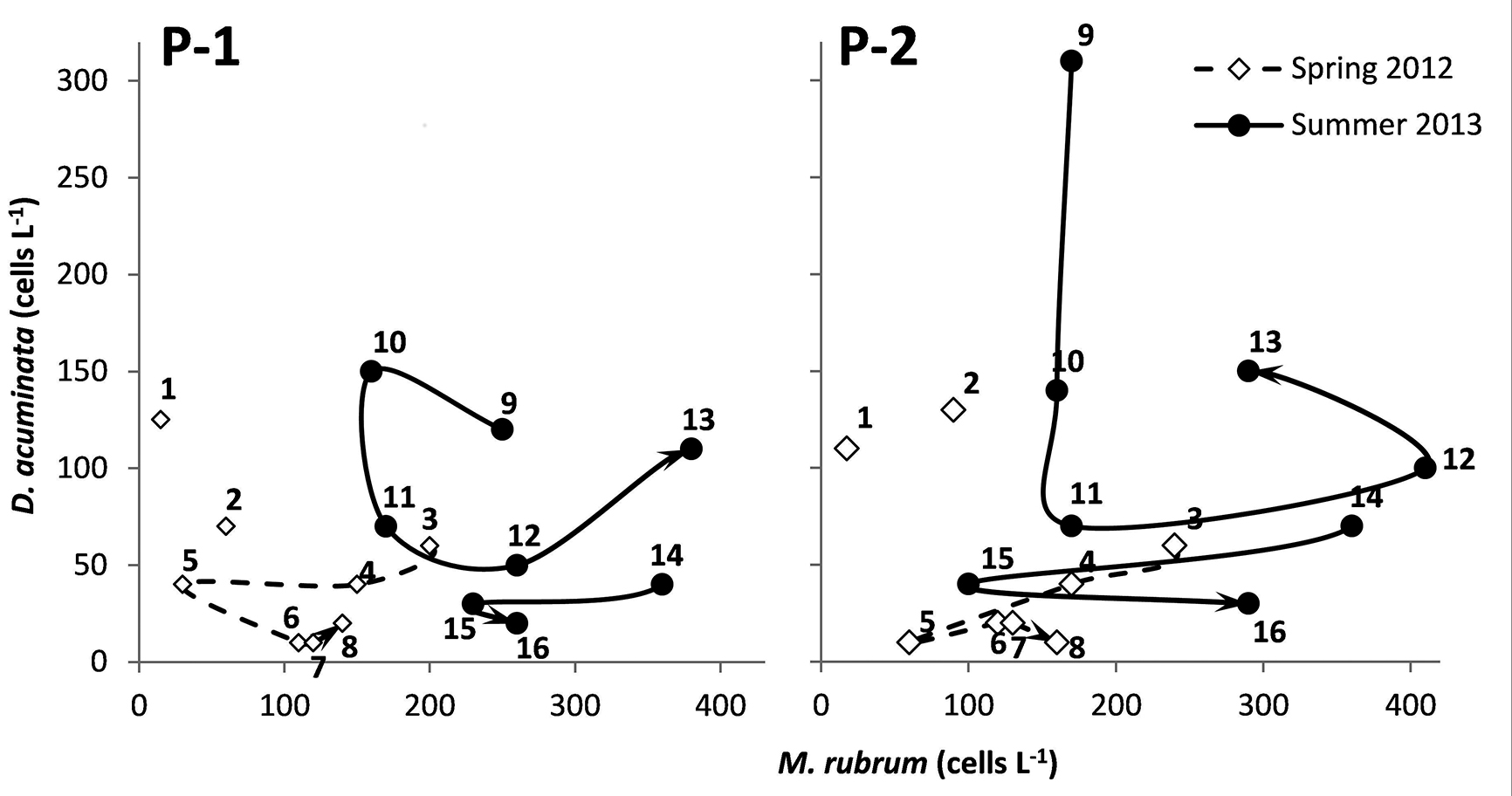

Finally, toxic dinoflagellates belonging to the Dinophysis acuminata complex were frequently recorded at low cell densities (10 to 310 cells L^–1) and their abundance was not clearly related to any of the physicochemical parameters investigated (Fig. 7). Instead, the abundance of this mixotrophic organism was somehow dependent on the availability of its prey, the ciliate Mesodinium rubrum, as suggested by the temporal anti-clockwise orbits partially formed when the cell abundances of both taxa were compared (Ishikawa et al. 2014Ishikawa A., Nishitani G., Kim Y.O., et al. 2014. Relationship between occurrence of the toxic dinoflagellate Dinophysis acuminata and ciliate Mesodinium rubrum in the coastal water of Japan. Abstract Book of the 16th International Conference on Harmful Algae. ISSHA, Wellington, New Zealand, 195 pp.) in Figure 8. At least in summer months, an increase in D. acuminata abundance led to a decrease in M. rubrum cell density and vice-versa (Fig. 8). M. rubrum was present in all samples over the period of study, at cell densities ranging from 10 to 440 cells L^–1.

DISCUSSIONTop

We have demonstrated herein that the main physicochemical characteristics of the water column vary on different timescales in a subtropical estuary, Babitonga Bay, which explains the high variability in phytoplankton production, abundance and composition commonly reported in this type of environment.

The variability of water column characteristics in estuaries is mainly determined by local hydrology, which in turn is a result of the processes and interactions occurring at the interface between oceanic and continental environments. In this dynamic zone, tides, atmospheric fronts, wind action, and fluctuations in rainfall and river flow promote a constant exchange between contrasting water bodies (Cloern and Jassby 2010Cloern J.E., Jassby A.D. 2010. Patterns and scales of phytoplankton variability in estuarine-coastal ecosystems. Estuar. Coast. 33: 230-241., Abreu et al. 2010Abreu P.A., Bergesch A., Proença L.A., et al. 2010. Short- and long-term chlorophyll-a variability in the shallow microtidal Patos Lagoon estuary, southern Brazil. Estuar. Coast. 33: 554-569., Maier et al. 2012Maier G., Glegg G.A., Tappin A.D., et al. 2012. A high resolution temporal study of phytoplankton bloom dynamics in the eutrophic Taw Estuary (SW England). Sci. Total Environ. 434: 228-239.). In the present study, large differences were observed on short timescales (days to weeks) for parameters such as salinity, pH, water transparency and DIN concentration and on a longer scale (months to seasons) for temperature, DO, seston, silicate and phosphate concentrations, reflecting complex shifts in the dominant hydrodynamic conditions that ultimately affect phytoplankton abundance and composition. Salinity, pH and concentrations of dissolved nutrients were comparable to the range of values reported by previous studies in Babitonga Bay (Cremer et al. 2006Cremer M.J., Morales R.D.P., Oliveira M.N. 2006. Diagnóstico ambiental da Baía da Babitonga. UNIVILLE, Joinville, Brazil, 256 pp (in Portuguese)., Camacho and Souza-Conception 2007Camacho F.P., Souza-Conceição J.M. 2007. Distribuição espaço-temporal da clorofila-a e variáveis ambientais em praias estuarinas da ilha de São Francisco do Sul, Santa Catarina (Baía da Babitonga, Sul do Brasil). Bol. Tec. Cient. CEPENE. 15: 9-19 (in Portuguese)., Villar et al. 2011Villar C.C., Spach H.L., Santos L.O. 2011. Fish fauna of Baía da Babitonga (southern Brazil), with remarks on species abundance, ontogenic stage and conservation status. Zootaxa 2734: 40-52.), but this is the first attempt to determine the temporal scale on which they vary, allowing a more proper indication of cause-effect relationships.

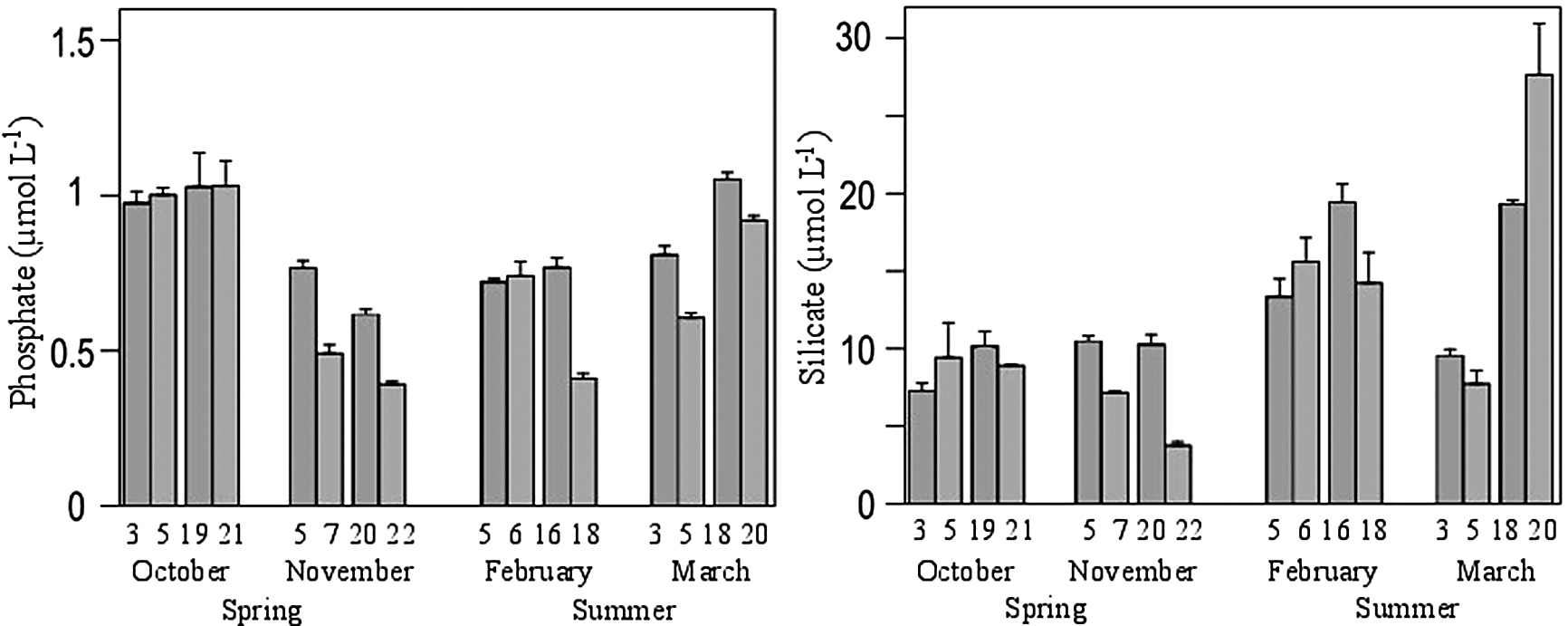

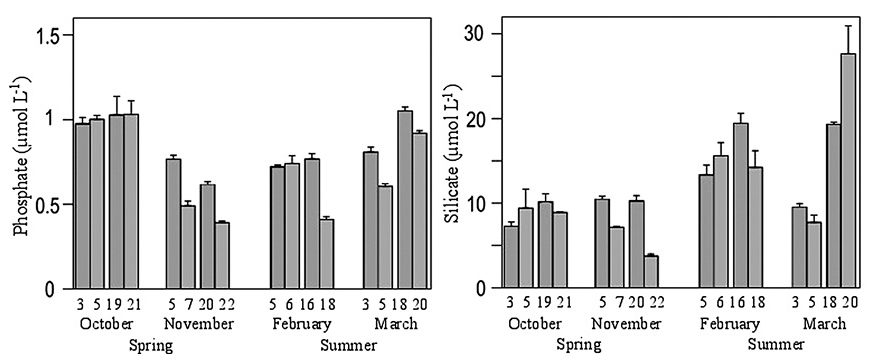

The marked differences in silicate and phosphate concentrations on a large temporal scale, for instance, can be explained by the great variation in rainfall and wind-driven turbulence observed over the course of this study. The highest concentrations of silicate recorded in February and March were the result of increased continental drainage due to the heavier rainfall observed in summer than in spring. In contrast, re-suspension of recycled forms from the bottom by wind-driven water turbulence may be a more important source for less abundant nutrients such as phosphate. This finding may explain the higher concentrations of phosphate observed in October, when higher seston loads and relatively low transparency values (as assessed by Secchi disc) suggest a period of more intense water turbulence, although there are no wind data available for that specific period to confirm this.

Phytoplankton dynamics may also influence the biogeochemical cycles in estuaries, in addition to regional weather events and tide fluctuations. According to Cloern and Jassby (2010)Cloern J.E., Jassby A.D. 2010. Patterns and scales of phytoplankton variability in estuarine-coastal ecosystems. Estuar. Coast. 33: 230-241., nutrient concentrations and other environmental variables such as pH and DO may experience greater fluctuations when phytoplankton blooms are frequent. In the present study, the diatom species Skeletonema costatum, Guinardia sp., Eucampia cornuta and Corethron criophilum attained high cell abundances over a relatively short period of time, suggesting that phytoplankton blooms may play a key role in biogeochemical cycles in Babitonga Bay. Accordingly, the concentrations of ammonia and nitrate, nitrogen forms preferentially used by primary producers, varied on a small temporal scale (days to weeks) and were negatively related to phytoplankton abundance in the present study. In addition, lower DO concentrations measured in February and March coincided with greater respiration rates relative to spring months, probably linked to the decay of S. costatum and Guinardia sp. blooms and the associated bacterial decomposition of excessive organic matter generated at the end of those events. Higher influx of organic matter to the estuarine system, as well as the higher water temperature—and consequently the lower gas-solubilization capacity—typical of the austral summer in southern Brazil, may also contribute to the lower DO concentrations during that period. A similar decrease in DO concentration during summer has been previously reported in Chesapeake Bay, USA (Kemp et al. 1992Kemp W.M., Sampou P.A., Garber J., et al. 1992. Seasonal depletion of oxygen from bottom waters of Chesapeake Bay, roles of benthic and planktonic respiration and physical exchange processes. Mar. Ecol. Prog. Ser. 85: 137-l52.) and Daya Bay, China (Song et al. 2004Song X., Huang L., Zhang J., et al. 2004. Variation of phytoplankton biomass and primary production in Daya Bay during spring and summer. Mar. Pollut. Bull. 49: 1036-1044.).

The rates of PP varied enormously in this study, ranging from 10.5 to 1793 mg C m^–2 d^–1, which is within the range reported for other subtropical and temperate estuaries (Table 4), where PP is highly variable on a temporal and/or spatial scale. In contrast, Song et al. (2004)Song X., Huang L., Zhang J., et al. 2004. Variation of phytoplankton biomass and primary production in Daya Bay during spring and summer. Mar. Pollut. Bull. 49: 1036-1044. reported higher PP rates (239.7 to 2721.9 mg C m^–2 d^–1) during spring and summer in Daya Bay, China, where the size structure and the biomass of the phytoplankton assemblage are reasonably constant overtime.

In the present study, PP varied on different timescales (days and months), with higher values observed in November, when more intense PAR and clear-sky conditions coincided with the period of sampling/experiments. In October, February and March, conversely, PAR values were mostly low and the weather predominantly cloudy with some sunny spells during the field campaigns, with the exception of 3 March, when sunny conditions and high PP were simultaneously observed again. Likewise, a change in meteorological conditions with the reduction of light availability two days later, on 5 March (Fig. 2C), was followed by a dramatic decrease in PP (Fig. 6). In addition to local meteorological conditions affecting light availability to the water surface, high seston loads can greatly reduce light penetration over the water column in estuaries, potentially limiting phytoplankton production by narrowing the photic zone (Cloern 1987Cloern J.E. 1987. Turbidity as a control on phytoplankton biomass and productivity in estuaries. Cont. Shelf Res. 7: 1367-1381.). In fact, periods of higher seston concentration coincided with low PP rates in the present study, and this finding was particularly noticeable in early October (Figs 3 and 6). Therefore, light availability, which is mainly controlled by local weather and secondarily by suspended matter loads, can be regarded as the main factor regulating phytoplankton production in Babitonga Bay, as has also been observed in the Bay of San Francisco, USA (Kimmerer et al. 2012Kimmerer W.J., Parker A.E., Lidstrom U.E., et al. 2012. Short-term and interannual variability in primary production in the low-salinity zone of the San Francisco Estuary. Estuar. Coast. 35: 913-929.) and other estuarine areas (Domingues et al. 2011Domingues R.B., Anselmo T.P., Barbosa A.B., et al. 2011. Light as a driver of phytoplankton growth and production in the freshwater tidal zone of a turbid estuary. Est. Coast. Shelf Sci. 91: 526-535., Cloern et al. 2014Cloern J.E., Foster S.Q., Kleckner A.E. 2014. Phytoplankton primary production in the world’s estuarine-coastal ecosystems. Biogeosciences 1: 2477-2501.).

The expected relationship between PAR and PP, however, can be affected by shifts in the phytoplankton assemblage, which may contribute to short-timescale variability in PP. In the present study, the highest PP rates coincided with the period (early November) when the phytoplankton assemblage was dominated by multiple species of relatively larger cell size, such as Cyclotella spp., Cymatodiscus spp. and other centric diatoms >30 µm. Similarly, high photosynthetic rates were associated with higher species diversity and larger mean cell volume over a tidal cycle in Baie des Vies, northwestern France (Jouenne et al. 2005Jouenne F., Lefebvre S., Véron B., et al. 2005. Biological and physicochemical factors controlling short-term variability in phytoplankton primary production and photosynthetic parameters in a macrotidal ecosystem (eastern English Channel). Est. Coast. Shelf Sci. 65: 421-439.). In Babitonga Bay, relatively high PP rates were also reported during periods when small-celled diatoms were dominant, such as E. cornuta in the second half of November and S. costatum in February, but only when they attained bloom cell densities. In this case, high PP and respiration rates could be recorded in spite of lower PAR values, as recorded during the development of a summer S. costatum bloom in the present study, and previously reported by Almeida et al. (2005)Almeida M.A., Cunha M.A., Alcântara F. 2005. Relationship of bacterioplankton production with primary production and respiration in a shallow estuarine system (Ria de Aveiro, NW Portugal). Microb. Res. 160: 315-328. during and after bloom episodes in Ria de Aveiro, Portugal. Thus, high PP rates in Babitonga Bay can be produced either by moderate abundances of relatively large-celled producers (spring) or during blooms dominated by one or a few small-celled species (summer), especially when solar radiation is high and seston load low.

Blooms of S. costatum are common during summer months in southern Brazilian estuaries, including the nearby estuarine complex of Paranaguá Bay (Brandini 1985Brandini F.P. 1985. Seasonal succession of the phytoplankton in the bay of Paranaguá (Paraná State - Brazil). Braz. J. Biol. 45: 687-694., Mafra Jr. et al. 2006Mafra L.L.Jr., Fernandes L.F., Proença L.A.O. 2006. Harmful algae and toxins in Paranaguá Bay, Brazil: Bases for monitoring. Braz. J. Oceanogr. 54: 107-121.) and the inner sector of Babitonga Bay (Parizzi et al. 2013Parizzi R.A., Souza-Conceição J.M., Lorenzi L., et al. 2013. Variação sazonal do fitoplâncton e parâmetros ambientais no canal do rio Palmital, Baía da Babitonga, sul do Brasil. Ciência & Natura. 35: 41-53.). S. costatum blooms are triggered when the irradiance becomes high enough to reach the bottom (Shikata et al. 2008Shikata T., Nagasoe S., Matsubara T., et al. 2008. Factors influencing the initiation of blooms of the raphidophyte Heterosigma akashiwo and the diatom Skeletonema costatum in a port in Japan. Limnol. Oceanogr. 53: 2503-2518.), promoting the germination of resting cells present on the sediment, followed by rapid growth of the vegetative cells under high temperature. Such conditions of high luminosity and temperature were present in February when the bloom of S. costatum was recorded in the present study. The detection of this bloom in the intermediate sector of Babitonga Bay, contrary to previous reports in which the bloom was restricted to the inner sector of the estuary (Parizzi et al. 2013Parizzi R.A., Souza-Conceição J.M., Lorenzi L., et al. 2013. Variação sazonal do fitoplâncton e parâmetros ambientais no canal do rio Palmital, Baía da Babitonga, sul do Brasil. Ciência & Natura. 35: 41-53.), can probably be explained by the fact that all sampling campaigns were performed during neap tide in the present study, but spring tide in the latter. The lower tidal range may have favoured the transport of cells to the outer region of the estuary (Maier et al. 2012Maier G., Glegg G.A., Tappin A.D., et al. 2012. A high resolution temporal study of phytoplankton bloom dynamics in the eutrophic Taw Estuary (SW England). Sci. Total Environ. 434: 228-239.) in our study.

While the variability in the abundance of nano- and microphytoplankton was noticeable only on the shorter timescales, their specific abundance and species composition were quite dynamic and differed on various timescales. Similarly, studies carried out by Fujita and Odebrecht (2007)Fujita C.C., Odebrecht C. 2007. Short term variability of chlorophyll-a and phytoplankton composition in a shallow area of the Patos Lagoon estuary (southern Brazil). Atlântica, Rio Grande 29: 93-106. and Abreu et al. (2010)Abreu P.A., Bergesch A., Proença L.A., et al. 2010. Short- and long-term chlorophyll-a variability in the shallow microtidal Patos Lagoon estuary, southern Brazil. Estuar. Coast. 33: 554-569. in the estuarine system of Patos Lagoon, on the southernmost portion of the Brazilian coast, also reported marked variability on short timescales for the phytoplankton taxonomic composition, chlorophyll a concentration and various environmental parameters. According to those authors, the dominant hydrodynamic conditions determined by the wind direction were related to variability on short timescales (hours to weeks), while the rainfall regime was more important on a longer scale (months to years). In addition to the wind action and precipitation cycles, which are more important in estuaries with little water exchange and a restricted connection with the adjacent ocean, such as Patos Lagoon (Fujita and Odebrecht 2007Fujita C.C., Odebrecht C. 2007. Short term variability of chlorophyll-a and phytoplankton composition in a shallow area of the Patos Lagoon estuary (southern Brazil). Atlântica, Rio Grande 29: 93-106., Abreu et al. 2010Abreu P.A., Bergesch A., Proença L.A., et al. 2010. Short- and long-term chlorophyll-a variability in the shallow microtidal Patos Lagoon estuary, southern Brazil. Estuar. Coast. 33: 554-569.), tidal fluctuations may be another important source of variability on a short timescale, especially in more open and dynamic estuaries like Babitonga Bay. As a result, physicochemical parameters vary on different timescales and ultimately affect phytoplankton abundance and succession. In fact, during the present study, spring mixed assemblages dominated by large diatoms were associated with higher salinity, phosphate and seston concentrations and lower DIN values, while euglenophytes and small-sized bloom-forming diatoms formed a characteristic summer assemblage associated with higher temperature, rainfall and silicate concentration.

Some other phytoplankton taxa, such as the toxic dinoflagellates belonging to the Dinophysis acuminata complex, were frequent throughout the study, as recorded in the nearby Guaratuba Bay (Tibiriçá et al. 2015Tibiriçá C.E.J.A., Fernandes L.F., Mafra L.L.Jr. 2015. Seasonal and spatial patterns of toxigenic species of Dinophysis and Pseudo-nitzschia in a subtropical Brazilian estuary. Braz. J. Oceanogr. 63: 17-32.), but their abundances were not clearly related to any of the physicochemical parameters evaluated in the present study. Instead, the abundance of this mixotrophic alga was partially related to that of its prey, the kleptoplastidic ciliate Mesodinium rubrum, as suggested by the temporal anti-clockwise orbits formed when the cell abundances of both taxa were plotted against each other. This relationship, originally used to describe the prey-predator interactions between heterotrophic nanoflagellates and bacteria (Tanaka et al. 1997Tanaka T., Fujita N., Taniguchi A. 1997. Predator-prey eddy in heterotrophic nanoflagellate-bactéria relationships in a coastal marine environment: a new scheme for predator-prey associations. Aquat. Microb. Ecol. 13: 249-256.), was recently described for D. acuminata and M. rubrum in Japan (Ishikawa et al. 2014Ishikawa A., Nishitani G., Kim Y.O., et al. 2014. Relationship between occurrence of the toxic dinoflagellate Dinophysis acuminata and ciliate Mesodinium rubrum in the coastal water of Japan. Abstract Book of the 16th International Conference on Harmful Algae. ISSHA, Wellington, New Zealand, 195 pp.). Although the abundance of D. acuminata complex cells was relatively low in the present study (maximum 310 cells L^–1), they may produce large levels of toxin, so cell densities as low as 100-200 cells L^–1 may be sufficient to cause hazardous outbreaks in human consumers of contaminated bivalves (Yasumoto et al. 1985Yasumoto T., Murata M., Oshima Y., Sano M., Matsumoto G.K., Clardy J. 1985. Diarrhetic shellfish toxins. Tetrahedron. 41: 1019-1025. ). In addition, diarrheic shellfish toxins may also cause immunotoxicity, genotoxicity and cytotoxicity to many cell types (reviewed in Valdiglesias et al. 2013Valdiglesias V., Prego-Faraldo M.V., Pásaro E., et al. 2013. Okadaic Acid: More than a Diarrheic Toxin. Mar. Drugs 11: 4328-4349.), and even tumour formation upon chronic exposure (Fujiki and Suganuma 2009Fujiki H., Suganuma M. 2009. Carcinogenic aspects of protein phosphatase 1 and 2A inhibitors. Prog. Mol. Subcell. Biol. 46: 221-254.).

CONCLUSIONSTop

The present results reveal a marked variability in PP, composition and abundance of phytoplankton, and in environmental factors on different timescales in Babitonga Bay. Marked short-scale variability in the physicochemical parameters was accompanied by quick changes in PP and phytoplankton abundance and composition. In addition to the presumed influence of winds and precipitation cycles, tidal periodicity was a chief mechanism regulating this variability on the scales of days and weeks. Changes in PP rates resulted mainly from shifts in light availability due to monthly PAR oscillations and water turbidity, but also from variations in the specific composition and abundance of phytoplankton. High PP rates were associated with either moderate abundances of larger centric diatoms or bloom concentrations of small cells. Although variations in the total abundance of nano- and microphytoplankton occurred mostly on the scale of days and weeks, their taxonomic composition and specific abundances were fairly dynamic, varying markedly on various timescales. Future studies in estuarine ecosystems should consider such short-timescale variability in order to obtain truly representative and ecologically relevant measurements.
