INTRODUCTIONTop

Harvesting Pollicipes pollicipes is an economically important activity in Portugal and Spain, where this species is subject to an intensive fishery (Molares and Freire 2003Molares J., Freire J. 2003. Development and perspectives for community-based management of the goose barnacle (Pollicipes pollicipes) fisheries in Galicia (NW Spain). Fish. Res. 65: 485-492., Borja et al. 2006Borja A., Muxika I., Bald J. 2006. Protection of the goose barnacle Pollicipes pollicipes, Gmelin, 1790 population: the Gaztelugatxe Marine Reserve (Basque Country, northern Spain). Sci. Mar. 70: 235-242., Sousa et al. 2013Sousa A., Jacinto D., Penteado N., et al. 2013. Patterns of distribution and abundance of the stalked barnacle (Pollicipes pollicipes) in the central and southwest coast of continental Portugal. J. Sea Res. 83: 187-194.). Due to its high market value, conservation interest and stock management concerns, there has been continued interest in the reproductive cycle and recruitment patterns of this species.

P. pollicipes is a pedunculate barnacle, abundant in the very exposed mid- and low-intertidal rocky shore (Barnes 1996Barnes M.G. 1996. Pedunculate cirripedes of the genus Pollicipes. Oceanogr. Mar. Biol. 34: 303-394., Cruz et al. 2010Cruz T., Castro J.J., Hawkins S.J. 2010. Recruitment, growth and population size structure of Pollicipes pollicipes in SW Portugal. J. Exp. Biol. 392: 200-209.), normally found in clusters of sessile adults and juveniles attached to each other and to the primary rock substratum. These simultaneous hermaphrodites and obligate cross-fertilizers require gregariousness in order to mate with conspecifics (Molares et al. 1994Molares J., Tilves F., Pascual C. 1994. Larval development of the pedunculate barnacle Pollicipes cornucopia (Cirripedia: Scalpellomorpha) reared in the laboratory. Mar. Biol. 120: 261-264., Pavón 2003Pavón C. 2003. Biologia y variables poblacionales del percebe, Pollicipes pollicipes (Gmelin, 1790) en Asturias. Oviedo, Spain: Universidad de Oviedo, 151 pp. ). After mating, embryonic development occurs and hatched larvae are released into the water column, where they moult successively until the non-feeding cypris stage, which is responsible for surface selection and settlement (Molares et al. 2002Molares J., Otero E.V., Rivero G.M. 2002. Ecologia larvaria del percebe Pollicipes pollicipes: patrones estacionales, mecanismos de control y comportamiento, desde la eclosion hasta la fijación. Informe Final del Proyecto de Investigación. Conselleria de Pesca e Asuntos Maritimos (Centro de Investigacions Marinas), Pontevedra, Spain, 41 pp. ). In the wild, the ability of barnacle cyprids to find a place to attach permanently depends on larval survival and transport, as well as larval selectivity (Shanks 1986Shanks A.L. 1986. Tidal periodicity in the daily settlement of intertidal barnacle larvae and hypothesized mechanism for the cross-shelf transport of cyprids. Biol. Bull. 170: 429-440., Bertness et al. 1996Bertness M.D., Gaines S.D., Wahle R.A. 1996. Wind-driven settlement patterns in the acorn barnacle Semibalanus balanoides. Mar. Ecol. Progr. Ser. 137: 103-110.).

The cyprid of P. pollicipes settles (in this paper, settlement comprises both attachment and metamorphosis) intensively on adults of the same species or on substrata that have been in contact with conspecific adults (e.g. Kugele and Yule 1996Kugele M., Yule A.B. 1996. The larval morphology of Pollicipes pollicipes (Gmelin 1970) (Cirripedia: Lepadomorpha) with notes on cyprid settlement. Sci. Mar. 60: 469-480., Cruz et al. 2010Cruz T., Castro J.J., Hawkins S.J. 2010. Recruitment, growth and population size structure of Pollicipes pollicipes in SW Portugal. J. Exp. Biol. 392: 200-209.). The cyprid explores surfaces prior to settlement using a mechanism of temporary adhesion, which allows it to probe a surface’s physical and chemical characteristics before attaching permanently (Aldred and Clare 2009Aldred N., Clare A.S. 2009. Mechanisms and principles underlying temporary adhesion, surface exploration and settlement site selection by barnacle cyprids: A short review. In: Gorb S.N. (ed.) Functional surfaces in biology. Springer. Netherlands, pp. 43-65.). Cyprids can postpone their settlement (Krug 2006Krug P.J. 2006. Defense of benthic invertebrates against surface colonization by larvae: a chemical arms race. Prog. Mol. Subcell Biol. 42: 1-53.) in order to select a substratum that is suitable, possibly exploring surfaces and returning to the water column repeatedly before committing to permanent attachment. Once the attachment site has been selected, the cyprid secretes a second adhesive that permanently fixes it to the substratum (e.g. Nott and Foster 1969Nott J.A., Foster B.A. 1969. On the structure of the antennular attachment organ of the cypris larva of Balanus balanoides (L.). Philos. T. Roy. Soc. B 256: 115-134., Walker 1971Walker G. 1971. A study of the cement apparatus of the cypris larva of the barnacle Balanus balanoides. Mar. Biol. 9: 205-212., Aldred et al. 2013Aldred N., Gohad N.V., Petrone L., et al. 2013. Confocal microscopy-based goniometry of barnacle cyprid permanent adhesive. J. Exp. Biol. 216: 1969-1972.). Immediately after attachment, the cyprid begins metamorphosis into the juvenile barnacle.

Settlement is difficult to estimate in the wild and studies often report recruitment, referring to the product of successful settlement followed by a period of post-settlement survival. Consequently, although previous field studies have allowed for a better understanding of recruitment of this species (e.g. Cruz et al. 2010Cruz T., Castro J.J., Hawkins S.J. 2010. Recruitment, growth and population size structure of Pollicipes pollicipes in SW Portugal. J. Exp. Biol. 392: 200-209.), little is known about the environmental and cyprid-related factors that affect settlement, including the process of substratum selection.

Unlike P. pollicipes, a few barnacle species such as Balanus amphitrite (=Amphibalanus amphitrite) have been the target of extensive research stemming in part from their importance as fouling organisms. Barnacle settlement is known to be influenced by surface physical characteristics (e.g. Crisp and Barnes 1954Crisp D.J., Barnes H. 1954. The orientation and distribution of barnacles at settlement with particular reference to surface contour. J. Anim. Ecol. 23: 142-162., Le Tourneux and Bourget 1988Le Tourneux F., Bourget E. 1988. Importance of physical and biological settlement cues used at different spatial scales by the larvae of Semibalanus balanoides. Mar. Biol. 97: 57-66.), available space (e.g. Minchinton and Scheibling 1993Minchinton T.E., Scheibling R.E. 1993. Free space availability and larval substratum selection as determinants of barnacle population structure in a developing rocky intertidal community. Mar Ecol. Prog. Ser. 95: 233-244.), chemical signals and cues (e.g. Clare et al. 1995Clare A.S., Thomas R.F., Rittschof D. 1995. Evidence of the involvement of cyclic AMP in the pheromonal modulation of barnacle settlement. J. Exp. Mar. Biol. 198: 655-664., Holm et al. 2000Holm E.R., McClary M., Rittschof D. 2000. Variation in attachment of the barnacle Balanus amphitrite: sensation or something else? Mar. Ecol. Progr. Ser. 202: 153-162.) and allospecific interactions (e.g. presence and characteristics of biofilms; Maki et al. 1988Maki J.S., Rittschof D., Costlow J.D., et al. 1988. Inhibition of attachment of larval barnacles, Balanus amphitrite, by bacterial surface films. Mar. Biol. 97: 199-206., Keough and Raimondi 1996Keough M.J., Raimondi P.T. 1996. Responses of settling invertebrate larvae to bio-organic films: effects of large-scale variation in films. J. Exp. Mar. Biol. Ecol. 207: 59-78., Wieczorek and Todd 1998Wieczorek S.K., Todd C.D. 1998. Inhibition and facilitation of settlement of epifaunal marine invertebrate larvae by microbial cues. Biofouling 12: 81-118.). Natural cuticle-bound chemical signals produced by adult barnacles in the form of the settlement-inducing protein complex, or left on surfaces by conspecific cyprids as footprints (e.g. Matsumura et al. 1998Matsumura K., Nagano M., Kato-Yoshinaga Y., et al. 1998. Immunological studies on the settlement-inducing protein complex (SIPC) of the barnacle Balanus amphitrite and its possible involvement in larva-larva interactions. Proc. Roy. Soc. B 265: 1825-1830., 2000Matsumura K., Hills J.M., Thomason P.O., et al. 2000. Discrimination at settlement in barnacles: Laboratory and field experiments on settlement behaviour in response to settlement-inducing protein complexes. Biofouling 16: 181-190., Dreanno et al. 2006Dreanno C., Kirby R.R., Clare A.S. 2006. Smelly feet are not always a bad thing: The relationship between cyprid footprint protein and the barnacle settlement pheromone. Biol. Lett. 2: 423-425.), also act as attractants to exploring barnacle cyprids.

Studies with other barnacle species have further highlighted the importance of environmental factors, such as hydrodynamics, temperature, salinity and light in settlement modulation. Evidence from laboratory studies with Balanus amphitrite, Elminius modestus (=Austrominius modestus) and Semibalanus balanoides (=Balanus balanoides) suggest that settlement behaviour and surface rejection can vary according to flow and water speed (Crisp 1955Crisp D.J. 1955. The behaviour of barnacle cyprids in relation to water movement over a surface. J. Exp. Mar. Biol. 32: 569-590., Mullineaux and Butman 1991Mullineaux L.S., Butman C.A. 1991. Initial contact, exploration and attachment of barnacle (Balanus amphitrite) cyprids settling in flow. Mar. Biol. 110: 93-103., Rittschof et al. 1984Rittschof D., Branscomb E.S., Costlow J.D. 1984. Settlement and behavior in relation to flow and surface in larval barnacles, Balanus amphitrite Darwin. J. Exp. Mar. Biol. Ecol. 82: 131-146.). Both temperature and salinity influence settlement, with effects varying according to species (e.g. Dineen and Hines 1992Dineen J.F., Hines A.H. 1992. Interactive effects of salinity and adult extract upon settlement of the estuarine barnacle Balanus improvisus (Darwin, 1854). J. Exp. Mar. Biol. Ecol. 156: 239-252., Marechal et al. 2004Marechal J.P., Hellio C., Sebire M., et al. 2004. Settlement behaviour of marine invertebrate larvae measured by EthoVision 3.0. Biofouling 20: 211-217.) and often within wide ranges (e.g. B. amphitrite settles from 15 to 37°C, with a maximum at 25 to 28°C, and 14-52 psu, with a peak settlement at 28-35 psu; Kon-Ya and Miki 1994Kon-Ya K., Miki W. 1994. Effects of environmental-factors on larval settlement of the barnacle Balanus amphitrite reared in the laboratory. Fish. Sci. 60: 563-565.). Similarly, barnacle settlement is affected by different light conditions (Crisp and Ritz 1973Crisp D.J., Ritz D.A. 1973. Responses of cirripede larvae to light. I. Experiments with white light. Mar. Biol. 23: 327-335., Pawlik 1992Pawlik J.R. 1992. Chemical ecology of the settlement of benthic marine invertebrates. Oceanogr Mar. Biol. Ann. Rev. 30: 273-335., Kon-Ya and Miki 1994Kon-Ya K., Miki W. 1994. Effects of environmental-factors on larval settlement of the barnacle Balanus amphitrite reared in the laboratory. Fish. Sci. 60: 563-565.).

Cyprid-related factors, such as larval origin, genetic background, parental effects (Holm et al. 2000Holm E.R., McClary M., Rittschof D. 2000. Variation in attachment of the barnacle Balanus amphitrite: sensation or something else? Mar. Ecol. Progr. Ser. 202: 153-162., Holm 2012Holm E.R. 2012. Barnacles and biofouling. Int. Comp. Biol. 52: 348-355.), cyprid condition (Thiyagarajan et al. 2002Thiyagarajan V., Harder T., Qian P. 2002. Effect of the physiological condition of cyprids and laboratory-mimicked seasonal conditions on the metamorphic successes of Balanus amphitrite Darwin (Cirripedia; Thoracica). J. Exp. Mar. Biol. Ecol. 272: 65-74.) and age (Holm et al. 2000Holm E.R., McClary M., Rittschof D. 2000. Variation in attachment of the barnacle Balanus amphitrite: sensation or something else? Mar. Ecol. Progr. Ser. 202: 153-162., Marechal et al. 2012Marechal J.P., Matsumura K., Conlan S., et al. 2012. Competence and discrimination during cyprid settlement in Amphibalanus amphitrite. Int. Biodeter. Biodegrad. 72: 59-66.) have also been shown to impact settlement. The effects of age, in particular, have been reported for various species (e.g. B. amphitrite, B. improvisus, B. subalbidus, B. eburneus), with cyprid selectivity decreasing with increasing age and cyprids losing the ability to metamorphose after a certain age (Dineen and Hines 1992Dineen J.F., Hines A.H. 1992. Interactive effects of salinity and adult extract upon settlement of the estuarine barnacle Balanus improvisus (Darwin, 1854). J. Exp. Mar. Biol. Ecol. 156: 239-252., Thiyagarajan et al. 2002Thiyagarajan V., Harder T., Qian P. 2002. Effect of the physiological condition of cyprids and laboratory-mimicked seasonal conditions on the metamorphic successes of Balanus amphitrite Darwin (Cirripedia; Thoracica). J. Exp. Mar. Biol. Ecol. 272: 65-74., Marechal et al. 2004Marechal J.P., Hellio C., Sebire M., et al. 2004. Settlement behaviour of marine invertebrate larvae measured by EthoVision 3.0. Biofouling 20: 211-217.).

Studies on the settlement of P. pollicipes in culture are extremely limited (e.g. Coelho 1991Coelho M.R. 1991. A field study on Pollicipes pollicipes settlement. Wales, UK: University of Wales, pp. 29., Kugele and Yule 1996Kugele M., Yule A.B. 1996. The larval morphology of Pollicipes pollicipes (Gmelin 1970) (Cirripedia: Lepadomorpha) with notes on cyprid settlement. Sci. Mar. 60: 469-480.), due to both the reportedly high cyprid selectivity when settling on artificial substrata and the difficulty of rearing viable larvae in the laboratory (e.g. Coelho 1990Coelho M.R. 1990. Descrição dos estados larvares do perceve (Pollicipes cornucopia). Faro, Portugal: Universidade do Algarve, pp. 39., Molares et al. 1994Molares J., Tilves F., Pascual C. 1994. Larval development of the pedunculate barnacle Pollicipes cornucopia (Cirripedia: Scalpellomorpha) reared in the laboratory. Mar. Biol. 120: 261-264.). This constitutes a considerable research gap in understanding the relative importance of the aforementioned factors in modulating recruitment in nature and in developing the culture of this species. The few laboratory studies with P. pollicipes habitually used artificial substrata under static conditions and standard temperature and salinity, with no reference to other culture factors (e.g. light, cyprid age) and with reports of either null or negligible settlement (Coelho 1991Coelho M.R. 1991. A field study on Pollicipes pollicipes settlement. Wales, UK: University of Wales, pp. 29., Molares 1994Molares J. 1994. Estudio del ciclo biologico del percebe (Pollicipes cornucopia Leach) de las costas de Galicia. Xunta de Galicia, Santiago, Spain, 62 pp., Kugele and Yule 1996Kugele M., Yule A.B. 1996. The larval morphology of Pollicipes pollicipes (Gmelin 1970) (Cirripedia: Lepadomorpha) with notes on cyprid settlement. Sci. Mar. 60: 469-480.). The best results, with <1% of settlement, were attained by Kugele and Yule (1996)Kugele M., Yule A.B. 1996. The larval morphology of Pollicipes pollicipes (Gmelin 1970) (Cirripedia: Lepadomorpha) with notes on cyprid settlement. Sci. Mar. 60: 469-480., who reported that the limited settlement occurred mostly on the adults (≈93% of the 115 settled larvae) rather than on artificial substrata. Nevertheless, though the lack of settlement on artificial substrata in culture prevents the use of standard laboratory assays, the strong preference for settlement on conspecific adults presents an opportunity to understand the key environmental and larval-related factors that modulate settlement of the species.

To this end, the present study investigated the effects of environmental conditions (hydrodynamics, temperature, salinity and light) and cyprid-related factors (cyprid age and batch) on the settlement of P. pollicipes on conspecifics, in order to better understand the effects of these factors on laboratory settlement and, by extension, on natural recruitment. It was hypothesized that attachment would be higher under conditions observed during the breeding season (e.g. higher temperature and a long-day photoperiod), decreasing with unnatural salinities (e.g. 20 psu), with hydrodynamic conditions (e.g static) and in older cyprids, and varying with batch. It was further hypothesized that metamorphosis would vary with environmental factors, age and batch due, respectively, to the possible impact of these factors on metabolism, energy reserves and parental/genetic effects. Furthermore, temporal patterns of settlement were investigated to determine the attachment and metamorphosis rate, as well as the survival of cyprids in culture.

MATERIALS AND METHODSTop

Barnacle collection and larval culture

Clusters of barnacles were collected from the SW coast of Portugal (Cabo Sardão, Portugal, 37°36′24.70″N, 8°49′2.00″W) during the reproductive season and transported within 36 h to the School of Marine Science of Technology (Newcastle University, UK), where the barnacles were dissected (n≥60 individuals) to extract egg lamellae. Lamellae were separated according to developmental stage and mature lamellae were cut to assist naupliar release. Nauplii were selected by positive phototaxic behaviour and transferred into culture. Cultures were semistatic, with minimal bottom aeration, in plastic carboys containing 10 L of 0.2 µm natural filtered seawater (FSW) at 20±1°C, 16:8 L/D (dim light, 200-1500 lux), 33±1 psu and antibiotics (0.0232 g l^–1 penicillin and 0.0369 g l^–1 streptomycin), with 1 larva ml^–1. Cultures were fed after water changes every two days with a 1:1 mixed diet of Tetraselmis chuii and Isochrysis galbana (10⁴ cells ml^–1). Larval cultures were monitored daily in order to determine when the majority had reached the cyprid stage, whereupon cultures were filtered through a 60-µm mesh.

Experimental design and data collection

A series of six experiments (Exp. 1 to 6) were conducted to test the factors that mediate cyprid settlement on adults and to investigate the effects of abiotic and biotic factors on attachment and metamorphosis. These included testing various environmental conditions, specifically hydrodynamics (Exp. 1; August 2012), temperature (Exp. 2; June 2012), salinity (Exp. 3; June 2013) and light (Exp. 4; August 2013), as well as cyprid age (Exp. 5; August 2011) and batch (Exp. 6; June 2011, 2012, 2013). Two additional experiments (Exp. 7 and 8; respectively done in August 2011 and 2012) were conducted to follow cyprid settlement (attachment and metamorphosis) and survival over time. Identical assays were conducted for all experiments with the setup adjusted for the factor under investigation, as detailed below. Cyprid settlement assays were no-choice assays (except Exp. 4) in 500-ml conical flasks, 0.2 µm natural FSW, kept at 20±1°C, 16:8L/D (dim light, 500-1000 lux), 33±1 psu, antibiotics (as previously) and low bottom aeration. To exclude the possibility of cannibalism, adults were placed in 50-mL Falcon tubes^® (whose lid had been cut to allow the stalk through and sealed with Parafilm), with the stalk towards the inside of the tube and the capitulum on the outside. The tubes were filled with FSW and 50 cyprids were added to each replicate tube (1 larva ml^–1). The tubes were then sealed and placed inside conical flasks, to allow the adult to be submerged and extend its cirri. The larvae could swim inside the tube, with the adult stalk and the inner surface of the polypropylene tube as alternative settlement substrata (Fig. 1). Each treatment comprised 9 adults, one per tube assembly, with 50 cyprids from the same batch (except for Exp. 6, in which cyprids were from different batches). Prior to the experiments, all adults were checked for recruits and the stalks were gently cleaned, to ensure comparable experimental conditions and no previous settlement. Except for data collection, the setup was left undisturbed, with no further water changes or feeds.

Exp. 1 Hydrodynamic conditions

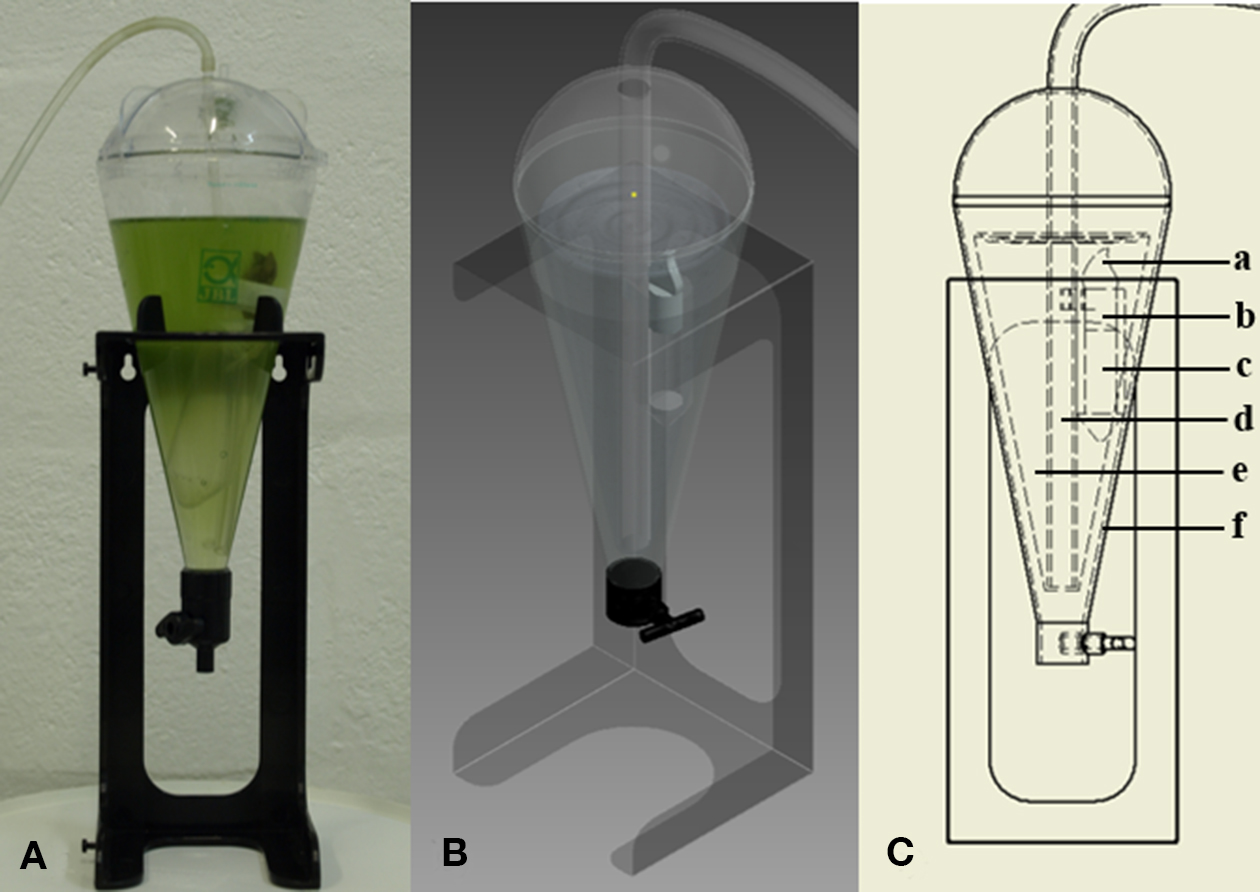

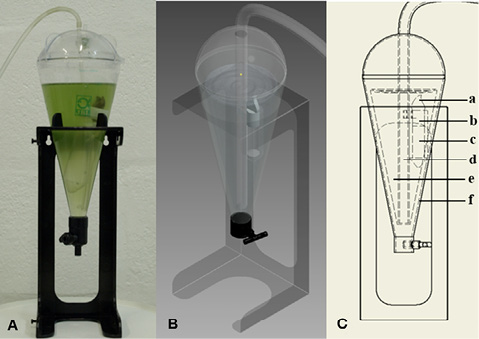

Treatments were selected to facilitate comparison between static conditions (no interference with larval movement) and moving water, either from circular currents or turbulence induced by bottom aeration. The static treatment (static) was achieved by leaving the systems (flask and tube) fixed and undisturbed. For moving water (moving), all replicate systems were placed on an orbital shaker (SSL1 Stuart®) set for constant 30 rpm. The aerated treatment (aerated) was achieved by placing weak point aeration inside the adult tube, facilitating larval movement by force of air bubbling inside and allowing the air to escape by means of a secondary tube. A treatment with an air-water interface (interface), identical to the moving treatment, was also established to allow comparison with treatments in which settlement was tested excluding air, as cyprids often become trapped at the air-water interface (Di Fino et al. 2014Di Fino A., Petrone L., Aldred N., et al. 2014. Correlation between surface chemistry and settlement behaviour in barnacle cyprids (Balanus improvisus). Biofouling 30: 143-152.). This had the tubes containing the adults fully filled with FSW to 0.5 cm from the top, which allowed a liquid meniscus and air-water interface within each tube. The adults were removed from the conical flasks after 48 h and the number of larvae permanently attached to the stalk was counted and expressed as a percentage of the initial number of larvae. The adults were then placed back into culture and the water was changed, with unattached cyprids excluded. After 1 week, the adults were observed again for number of metamorphosed larvae, expressed as a percentage of the total number attached at 48 h.

Exp. 2 Temperature

Each treatment was kept in a separate temperature-controlled incubator (LabHeat^© and LabCold^© RLCH0400 Incubator Units), set respectively at 14, 17 or 20°C. These temperatures are within the range normally experienced by this species in the wild (14-20°C, Sines, Portugal; Instituto Hidrográfico 2015), during the breeding season that occurs from May to October (Cruz and Araújo 1999Cruz T., Araújo J. 1999. Reproductive patterns of Pollicipes pollicipes (Cirripedia: Scalpellomorpha) on the Southwestern coast of Portugal. J. Crust. Biol. 19: 260-267.). The water temperatures were checked daily (Juwel^® Digital Aquarium Thermometer) to ensure that they were maintained within ±1°C. Settlement (portion attached and portion that subsequently metamorphosed) was recorded and expressed as in Exp. 1.

Exp. 3 Salinity

Larval culture of this species has commonly been done at 33-37 psu (Coelho 1990Coelho M.R. 1990. Descrição dos estados larvares do perceve (Pollicipes cornucopia). Faro, Portugal: Universidade do Algarve, pp. 39., Molares 1994Molares J. 1994. Estudio del ciclo biologico del percebe (Pollicipes cornucopia Leach) de las costas de Galicia. Xunta de Galicia, Santiago, Spain, 62 pp., Molares et al. 1994Molares J., Tilves F., Pascual C. 1994. Larval development of the pedunculate barnacle Pollicipes cornucopia (Cirripedia: Scalpellomorpha) reared in the laboratory. Mar. Biol. 120: 261-264.), with natural salinity on the Portuguese coast varying between 35.8 and 36.0 psu, depending on up/down welling dominance (Bischof et al. 2003Bischof B., Mariano A.J., Ryan E.H. 2003. The Portugal current system. Surface Currents in the Atlantic Ocean.) and further sea surface variations due to precipitation, river efflux and evaporation (Talley 2002Talley L.D. 2002. Salinity patterns in the ocean. In: MacCracken M.C., Perry J.S. (eds) The Earth system: physical and chemical dimensions of global environmental change. John Wiley and Sons Ltd., Chichester, pp. 629-640.). However, results of previous laboratory trials showed no differences in attachment and metamorphosis of larvae reared at 32-40 psu (umpub. results). Therefore, three salinity treatments, 20, 30 and 40 psu, were used in order to assess tolerance in a wider range. The salinity of each treatment was checked daily (Hand-Held Refractometer B+S^©) and adjusted as necessary so that variations were <1 psu. Settlement was recorded and expressed as in Exp. 1.

Exp. 4 Light

This experiment comprised two assays. The effect of light and dark conditions, and shade were examined in choice (lighted side versus shaded side of adult stalk) and no-choice assays (illumination versus dark), respectively. All treatments were kept in photoperiod-controlled incubators (LabHeat^© RLCH0400 Incubator Unit). Where lighting was used, the light intensity was 1233±145 lux (Osram Fluora^®, L 36W/77). A total of 27 adults were used in the experiment: 9 in the dark (0:24 L/D); 9 in full light (0:24 L/D); and the remaining 9 subjected to incident light on one side so that they were shaded on the other. Tubes in the light versus shade assay were fixed inside each conical flask and marked according to which side was in full light and which was in relative shade. The larvae were then able to swim freely and settle on the selected area (light or shade). For the no-choice assays, the numbers of permanently attached and metamorphosed individuals were counted and expressed as in Exp. 1. For the choice assay, attached and metamorphosed individuals on the lighted and shaded sides of each adult stalk were recorded and expressed as a percentage of the number of initial larvae added.

Exp. 5 Cyprid age

Newly metamorphosed cyprids were filtered from culture, separated into replicate groups and then aged at the culture temperature for 0, 3 or 6 days. Replicate groups were kept in 0.2 µm natural FSW, at 20±1°C, 0:24 L/D, 33±1 psu until assayed. Settlement was recorded and expressed as in Exp. 1.

Exp. 6 Larval batch

This experiment examined whether larvae from different batches (termed A, B and C) cultured under identical conditions but collected from distinct groups of adults (collected from the same location) over three consecutive years (in June 2011, 2012 and 2013) had comparable rates of settlement. Egg lamellae were extracted from different wild-collected adults (n=30) and after hatching the nauplii were cultured to the cyprid stage as described previously. Settlement was recorded and expressed as in Exp. 1.

Exp. 7 Rate of settlement

Percentage permanent attachment on adults (n=9) was determined at 24, 48, 72 and 96 hours as in Exp. 1. No water changes were made to any of the replicates to avoid associated mortality. Metamorphosis of attached larvae on adults (n=9) was monitored from 48 h post-attachment at 3-day intervals, up to and including day 12. For the latter assay, the water was changed at 48 h to exclude unattached cyprids, so that time to metamorphosis of attached cyprids could be accurately determined.

Exp. 8 Cyprid survival over time

This experiment examined survival of the cyprids in culture in the absence of settlement substrata (conspecific adults), using nine replicate sets of larvae from the same batch. Survival was monitored every 48 h over a period of 20 days. The seawater from replicate tubes was sieved through a 60-µm mesh every 48 h. The number of live cyprids was counted under a stereomicroscope and expressed as a percentage of the total number of cyprids retained on the sieve.

Statistical analyses

Results were analysed using Statistica^®, with a significance level of 0.05. Data analysis was carried out on the basis of homogeneity of variances (Levene’s test) and normality (Kolmogorov-Smirnov test), while significant differences were detected by using one-way ANOVA, followed by a post-hoc Tukey HSD test when relevant. Data as percentages were arcsine transformed pre-analysis. When only two treatments were being compared (e.g. light-shade choice assay) a Student t-test was used for dependent or independent samples, as appropriate. Regressions were used to analyse effects over time on permanent attachment, metamorphosis and survival of the larvae. The curves presented were selected by significance (F and p-values) and best fit (R2) within the measured range and are not a basis for extrapolation outside of this context. All results are presented as the mean ±SD, unless stated otherwise.

RESULTSTop

Hydrodynamic conditions, temperature, salinity and light

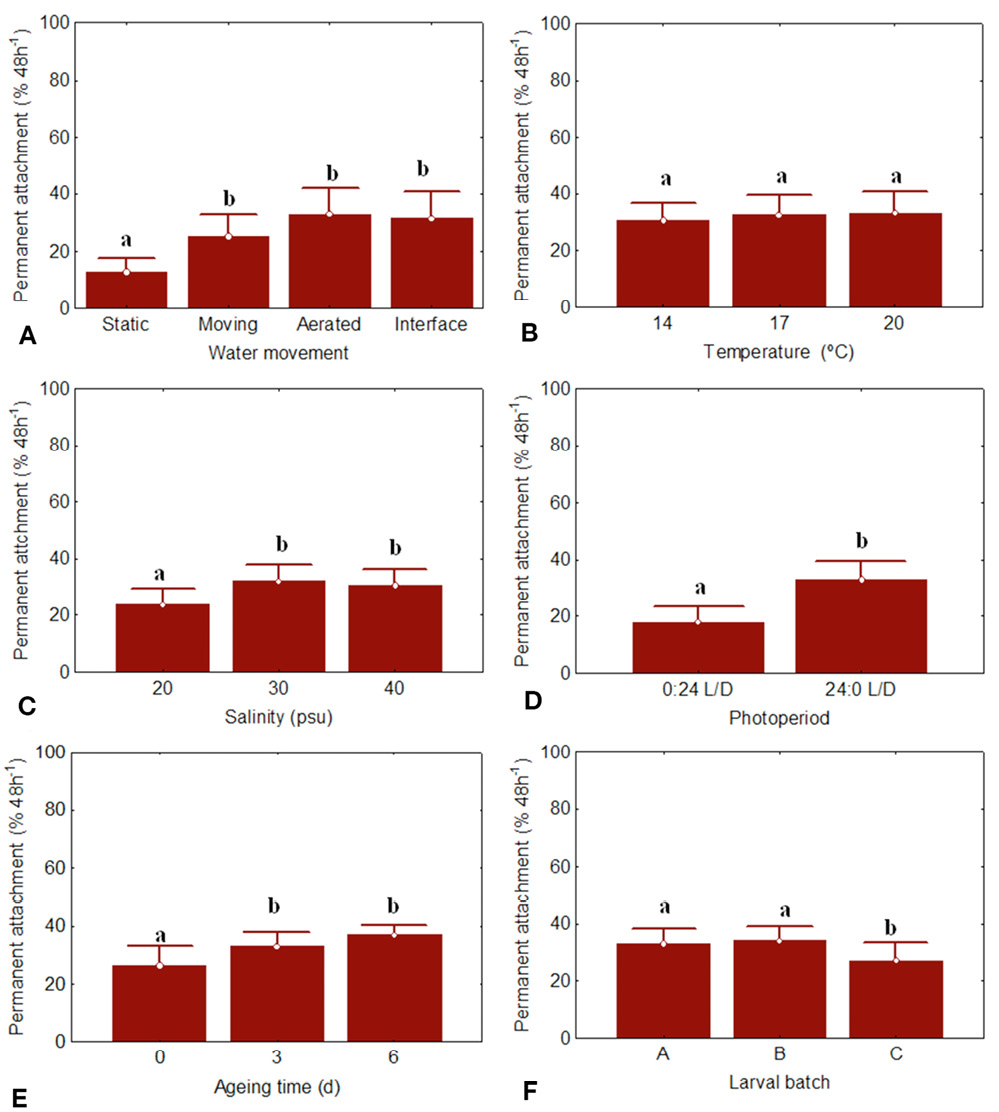

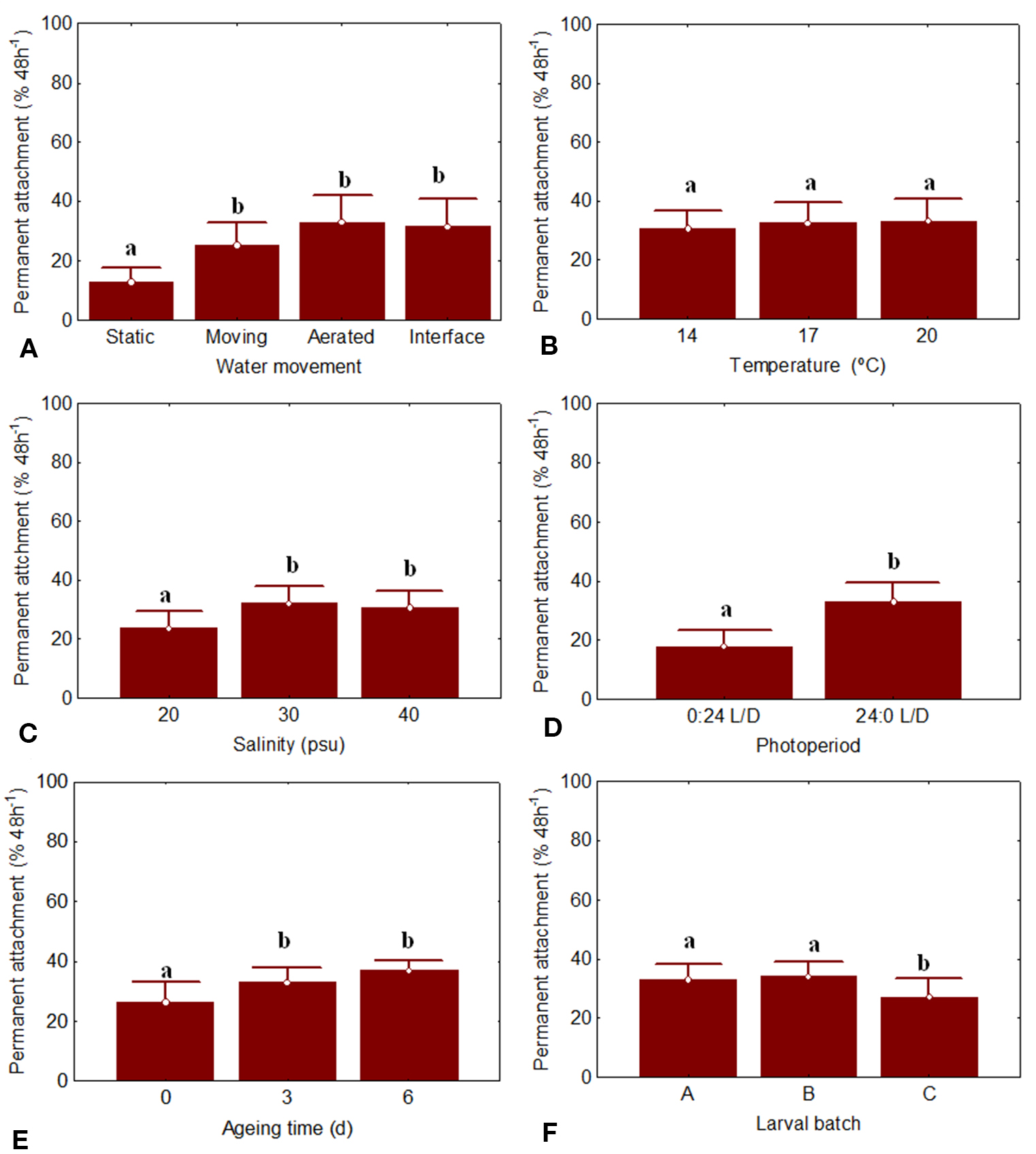

Permanent attachment and metamorphosis (settlement) of larvae on adults, according to the different environmental conditions of hydrodynamics, temperature, salinity, light and the cyprid-related factors of age and batch, are shown in Figures 2 and 3 (A to F). Permanent attachment varied significantly with hydrodynamic conditions (ANOVA; F=14.26, p<0.01; Fig. 2A), being lower in the static condition (12.67 ± 4.87%) than in the other treatments (29.93±9.13%; Tukey’s test; p≤0.01), which were not significantly different from each other (Tukey’s test; p≥0.17). Larvae maintained in static conditions were less active than those kept in hydrodynamic conditions. Larvae in the interface treatment tended to swim close to the water surface and settled on the adult stalk just beneath the meniscus. The percentage of larvae metamorphosing within one week of adding cyprids was not affected by hydrodynamic conditions (ANOVA, F=0.29, p=0.83; Fig. 3A), averaging 73.81±10.02%.

Though cyprids kept at higher temperatures were considerably more active than those kept at lower temperatures, no significant differences were observed for permanent attachment (ANOVA, F=0.30, p=0.75; Fig. 2B), which averaged 32.30±12.36% across treatments. However, total metamorphosis over the first week varied significantly according to treatment (ANOVA, F=9.01, p<0.01; Fig. 3B), increasing in line with temperature from 59.78±11.43% at 14°C to 79.22±7.33% at 20°C (significantly different from each other; Tukey Test, p<0.01).

Salinity affected both permanent attachment (ANOVA, F= 5.68, p<0.01) and metamorphosis (ANOVA, F=13.36, p<0.01) (Figs 2C and 3C). Permanent attachment was significantly lower at 20 psu (23.78±5.93%; Tukey’s test, p≤0.04) than at 30 and 40 psu (on average 31.56±5.52%). The same pattern was observed for metamorphosis: 52.11±8.51% at 20 psu and an average of 69.11±8.37% at higher salinities (30 and 40 psu; Tukey’s test, p<0.01).

Cyprid permanent attachment in the light was approximately double that in the dark (Table 1: light vs. dark–no choice; t-test-independent samples, df=16, p<0.01). This preference for attachment in light conditions was confirmed in the choice assay (Table 1: light or shade choice; t-test-dependent samples, df=8, p<0.01), where of the 33.11±6.51% of cyprids that attached, 26.11±6.13% did so on the illuminated side and 7.00±1.93% on the shaded side. No differences were observed in metamorphosis within the first week between different light conditions (Table 1; no-choice, t-test-independent samples, df=16, p=0.67; choice, t-test-dependent samples, df=8, p=0.48), which averaged 72.82±6.92%.

Cyprid age and batch

The age of cyprids (Figs 2E and 3E) significantly affected permanent attachment (ANOVA, F=8.60, p<0.01) and metamorphosis (ANOVA, F=5.47, p=0.01). Larvae in all groups appeared healthy, with visible numbers of lipid droplets. Permanent attachment was higher for aged larvae (32.89±5.09% for 3-day-old and 36.89±3.59% for 6-day-old larvae; not significantly different; Tukey’s test; p=0.30) than un-aged larvae (26.44±6.84%; Tukey’s test, p≤0.04). Successful metamorphosis within the first week decreased with ageing and was significantly lower for cyprids aged for 6 days than for those aged for 3 days (60.89±7.83%; Tukey’s test, p=0.01).

Permanent attachment (ANOVA, F= 4.12, p=0.03) and metamorphosis rate (ANOVA, F=7.36, p<0.01) varied with larval batch (Figs 2F and 3F). These differences were significant between batches A or B and C for permanent attachment (Tukey’s test, p=0.04) as well as between B and A or C for metamorphosis (Tukey’s test, p≤0.01); all other comparisons were not significantly different (Tukey’s test; p≥0.08). Permanent attachment varied between 27.00±6.48 and 34.11±5.06%, while metamorphosis ranged between 55.22±7.83 and 69.33±9.28%. It is important to note that the measure of metamorphosed larvae is always expressed as a percentage of the total larvae attached at 48 h and not as the percentage of larvae added initially. Batch differences accounted for variations of the order of 7% and 15% for permanent attachment and metamorphosis, respectively, for groups of larvae reared under similar conditions but collected in consecutive years.

Rate of settlement and cyprid survival over time

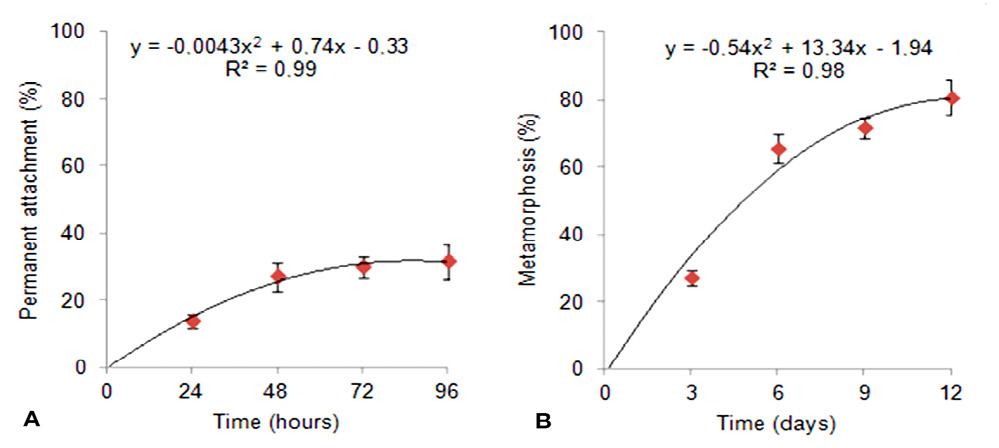

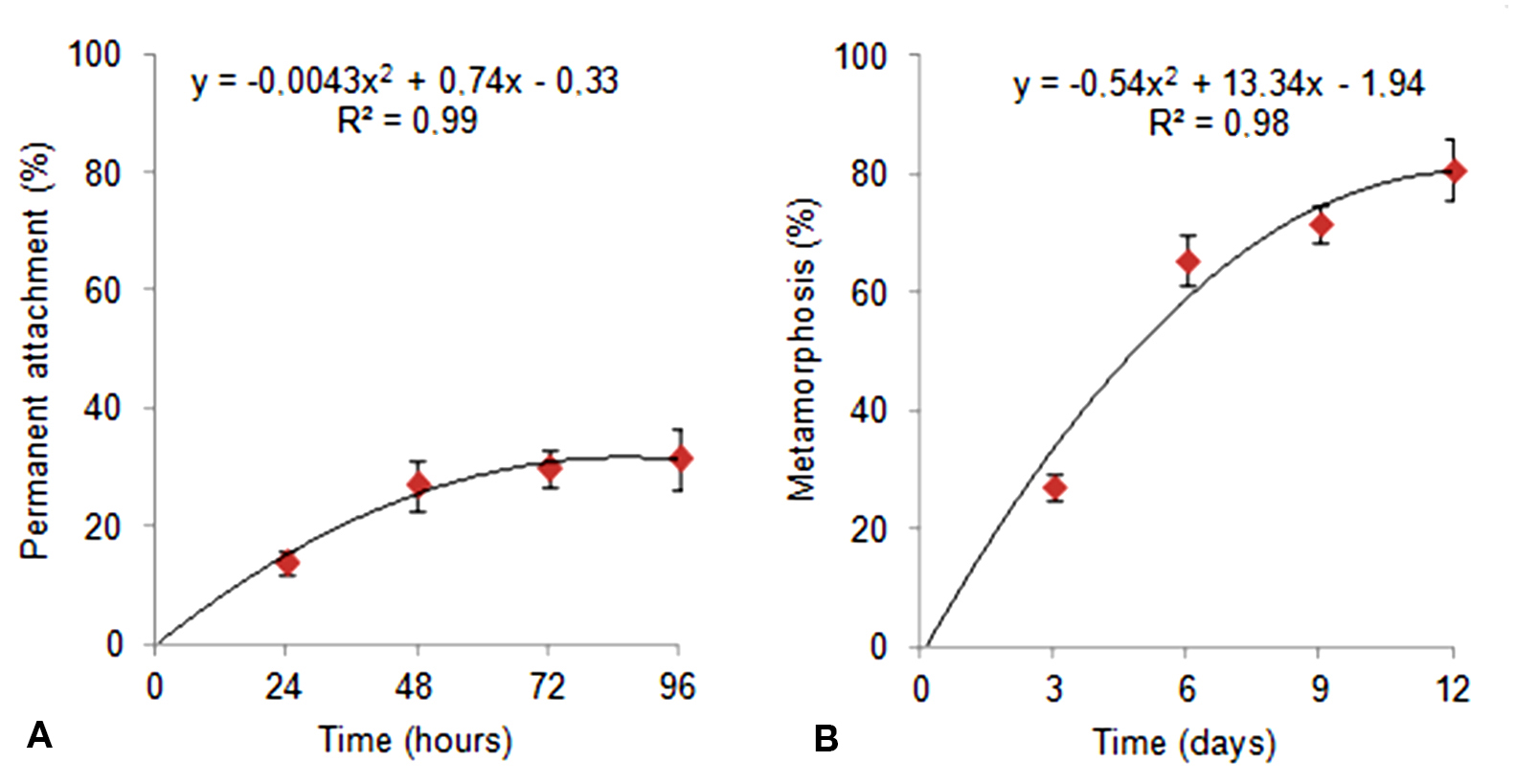

Significant differences were recorded for permanent attachment with time (Fig. 4A; polynomial regression: y=–0.0043x²+0.74x–0.33, xϵ[0,96]; R²=0.99, F=133.67, p<0.01). Attachment increased over the first 48 h, after which it stabilized at around 30%. Similarly, the rate of metamorphosis also changed with time (Fig. 4B; polynomial regression: y=–0.54x²+13.34x–1.94, xϵ[0,12]; R²=0.98, F=48.76, p=0.02), increasing to 80.67±4.97% by day 12. About 10% of cyprids failed to metamorphose even after 18 days.

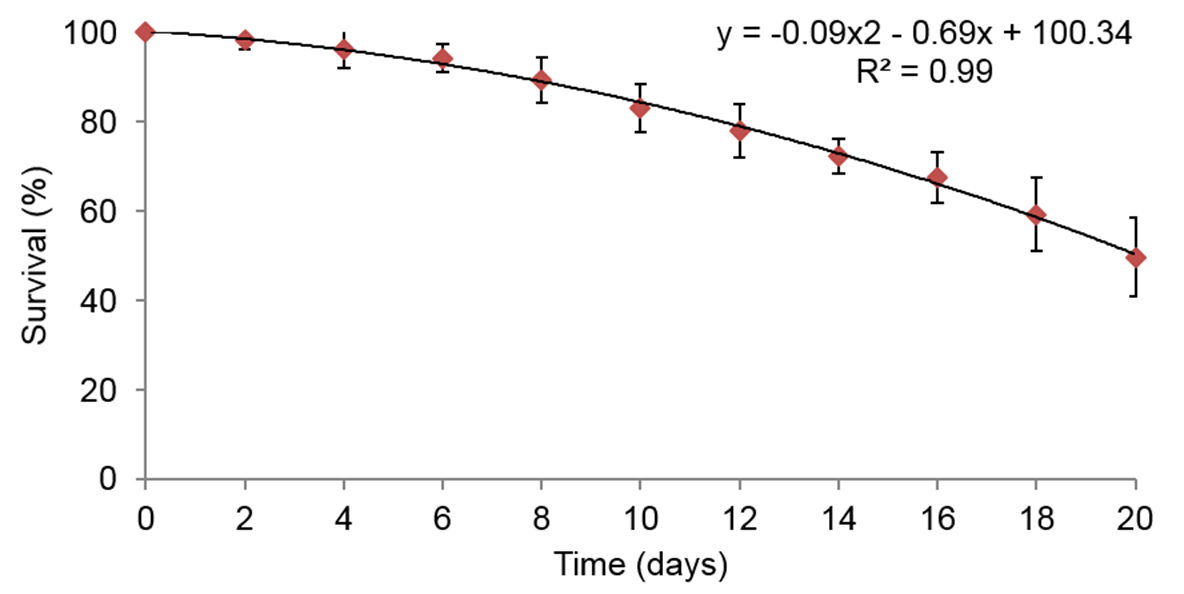

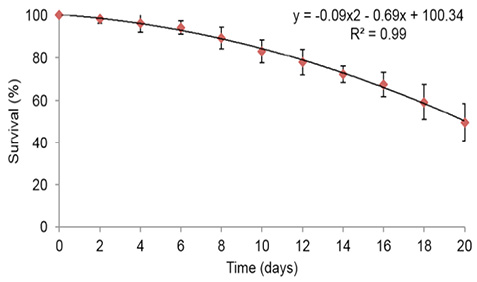

When larval survival in culture was evaluated in the absence of settlement substrata, cyprids lived for extended periods, with mortality after 20 days at around 50%. Survival decreased significantly with time (Fig. 5; polynomial regression: y=–0.09x²+0.69x+100.34, xϵ[0,20]; R²=0.99, F=1479.23, p<0.01). Survival for the first 6 days post-metamorphosis to the cyprid was over 95%, thereafter declining gradually until day 16 (to ≈70%), at which point a steeper decline commenced (Fig. 5). Cyprid activity also declined with time, as did visible lipid reserves (oil droplets). Living cyprids were observed even after 30 days in culture, although the amount of available lipid was virtually non-existent and cyprid activity was minimal.

DISCUSSIONTop

Effects of environmental conditions on settlement

Environmental conditions (hydrodynamics, light, salinity and temperature) and their effects on settlement were investigated. The effects of water movement on barnacle settlement have been widely studied (e.g. Crisp 1955Crisp D.J. 1955. The behaviour of barnacle cyprids in relation to water movement over a surface. J. Exp. Mar. Biol. 32: 569-590., Mullineaux and Butman 1991Mullineaux L.S., Butman C.A. 1991. Initial contact, exploration and attachment of barnacle (Balanus amphitrite) cyprids settling in flow. Mar. Biol. 110: 93-103.). In the present study, permanent attachment was lower in static conditions, suggesting that dynamic conditions favour settlement. This is in agreement with the conditions experienced by larvae in the natural environment, where flow is highly turbulent. Though the method of water agitation used in this study either facilitated (e.g. aeration) or hindered (e.g. orbital shaker) the circulation of cyprids, no significant differences in attachment or metamorphosis were found according to the type of hydrodynamism, supporting the notion that transport of cyprids to a suitable surface is more important than the flow characteristics. The lack of a difference in the rate of metamorphosis according to hydrodynamic conditions further implied that there was no significant difference in energy expenditure in each treatment. Interestingly, in the air-water interface condition, cyprids were observed at the water meniscus and out of water stuck to the surface. When observed under the stereomicroscope, P. pollicipes cyprids that had settled out of the water appeared to be covered by a thin layer of water, protecting them from desiccation. The same was observed for the cyprids attached to adult stalks, which were mostly found settled in between the scales. It is unclear whether this attachment pattern at the meniscus is an adaptive characteristic, which in nature may serve to target upper water column levels, or an artefact of laboratory rearing (see Di Fino et al. 2014Di Fino A., Petrone L., Aldred N., et al. 2014. Correlation between surface chemistry and settlement behaviour in barnacle cyprids (Balanus improvisus). Biofouling 30: 143-152.).

The effects of salinity on settlement have been investigated for several barnacle species (e.g. B. improvisus, B. eburneus, B. subalbidus; Dineen and Hines 1992Dineen J.F., Hines A.H. 1992. Interactive effects of salinity and adult extract upon settlement of the estuarine barnacle Balanus improvisus (Darwin, 1854). J. Exp. Mar. Biol. Ecol. 156: 239-252., 1994aDineen J.F., Hines A.H. 1994a. Larval settlement of the polyhaline barnacle Balanus eburneus (Gould): cue interactions and comparisons with two estuarine congeners. J. Exp. Mar. Biol. Ecol. 179: 223-234., bDineen J.F., Hines A.H. 1994b. Effects of salinity and adult extract on settlement of the oligohaline barnacle Balanus subalbidus. Mar. Biol. 119: 423-430.). For P. pollicipes, cyprid exploration and attachment decreased (≈10% at 20 psu) at salinities below natural (30-40 psu), in a similar way to metamorphosis rate (≈20%). P. pollicipes inhabit coastal environments where salinity ranges between 33 and 37 psu and it is therefore not surprising that larvae are better adapted to survive and develop within this range. Regulatory mechanisms needed to cope with sub-natural salinities, or the recognition of sub-optimal conditions, might lead to a decrease in surface exploration, but also a reduced capacity to metamorphose. Nevertheless, the tolerance to lower salinities (e.g. 20 psu) is indicative of physiological plasticity, as seen in other barnacle species (e.g. B. amphitrite, Kon-Ya and Miki 1994Kon-Ya K., Miki W. 1994. Effects of environmental-factors on larval settlement of the barnacle Balanus amphitrite reared in the laboratory. Fish. Sci. 60: 563-565.). This increased tolerance to a range of salinities might relate to their adaptation to the highly-exposed intertidal, where larvae can be subjected to situations of higher salinity (e.g. after water evaporation on rock pools during low tide) or lower salinity on the surface water layer (e.g. after precipitation). Other authors (e.g. Dineen and Hines 1994aDineen J.F., Hines A.H. 1994a. Larval settlement of the polyhaline barnacle Balanus eburneus (Gould): cue interactions and comparisons with two estuarine congeners. J. Exp. Mar. Biol. Ecol. 179: 223-234, bDineen J.F., Hines A.H. 1994b. Effects of salinity and adult extract on settlement of the oligohaline barnacle Balanus subalbidus. Mar. Biol. 119: 423-430.) have observed that the response to salinity varies significantly with species selectivity, correlating with their distribution range, but can also be heavily influenced by other factors such as age and the use of barnacle extracts, which contain settlement pheromone (Clare 2011Clare A.S. 2011. Towards the characterization of the chemical cue to barnacle gregariousness. Chemical communications in crustaceans. Springer, New York, pp. 431-455.).

The mostly positive phototactic behaviour of P. pollicipes nauplii (Molares et al. 2002Molares J., Otero E.V., Rivero G.M. 2002. Ecologia larvaria del percebe Pollicipes pollicipes: patrones estacionales, mecanismos de control y comportamiento, desde la eclosion hasta la fijación. Informe Final del Proyecto de Investigación. Conselleria de Pesca e Asuntos Maritimos (Centro de Investigacions Marinas), Pontevedra, Spain, 41 pp. ) also has ecological advantages by placing larvae higher in the water column, thus facilitating their feeding on phytoplankton. In nature, larvae are also subjected to long-day photoperiods during the breeding season. In this study, the overall preference was for permanent attachment in illuminated areas, with rates almost four times higher than those in the shaded areas. Results from other studies indicate that settlement can vary with light, with many species showing positive phototaxis and with species-specific preferences for settlement under direct or diffuse light (e.g. Daniel 1957Daniel A. 1957. Illumination and its effect on the settlement of barnacle cyprids. Proc. Zool. Soc. Lon. 129: 305-313., Crisp and Ritz 1973Crisp D.J., Ritz D.A. 1973. Responses of cirripede larvae to light. I. Experiments with white light. Mar. Biol. 23: 327-335., Pawlik 1992Pawlik J.R. 1992. Chemical ecology of the settlement of benthic marine invertebrates. Oceanogr Mar. Biol. Ann. Rev. 30: 273-335.), which have been suggested to be adaptive responses. The lack of difference in metamorphosis rate suggests that this process is independent of light.

Temperature has well-documented effects on barnacle larval development and survival (Satuito et al. 1996Satuito C.G., Shimizu K., Natoyama K., et al. 1996. Age-related settlement success by cyprids of the barnacle Balanus amphitrite, with special reference to consumption of cyprid storage protein. Mar. Biol. 127: 125-130., Marechal et al. 2004Marechal J.P., Hellio C., Sebire M., et al. 2004. Settlement behaviour of marine invertebrate larvae measured by EthoVision 3.0. Biofouling 20: 211-217.). Results from Coelho (1990)Coelho M.R. 1990. Descrição dos estados larvares do perceve (Pollicipes cornucopia). Faro, Portugal: Universidade do Algarve, pp. 39. indicate that the use of higher temperatures significantly decreases larval development time in P. pollicipes, as well as survival. This also applies to barnacle cyprids, as higher temperatures increase metabolic rate and oxygen consumption, with effects on the depletion of energy reserves and a reduction in competence to settle (Satuito et al. 1996Satuito C.G., Shimizu K., Natoyama K., et al. 1996. Age-related settlement success by cyprids of the barnacle Balanus amphitrite, with special reference to consumption of cyprid storage protein. Mar. Biol. 127: 125-130.). Studies on other species (e.g. Thiyagarajan et al. 2003Thiyagarajan V., Harder T., Qian P. 2003. Combined effects of temperature and salinity on larval development and attachment of the subtidal barnacle Balanus trigonus Darwin. J. Exp. Mar. Biol. Ecol. 287: 223-236.) have shown that settlement can vary according to temperature. Although permanent attachment was not influenced by temperature, metamorphosis rate was higher (≥20%) at higher temperatures (17 and 20°C). This can be related to temperature accelerating development in the first week and not necessarily implying a higher rate of metamorphosis at these temperatures. For example, B. amphitrite larvae reared at 20°C could successfully metamorphose over a shorter period than those reared at 30°C (Anil et al. 2001Anil A.C., Desai D., Khandeparker L., 2001. Larval development and metamorphosis in Balanus amphitrite Darwin (Cirripedia, Thoracica): significance of food concentration, temperature and nucleic acids. J. Exp. Mar. Biol. Ecol. 263: 125-141.). Moreover, Pechenik et al. (1993)Pechenik J.A., Rittschof D., Schmidt A.R. 1993. Influence of delayed metamorphosis on survival and growth of juvenile barnacles Balanus amphitrite. Mar. Biol. 115: 287-294. reported that cyprids that were forced to delay metamorphosis showed slow post-settlement growth, in spite of the lack of effects on completion of metamorphosis and post-settlement survival, highlighting the need for further investigation in P. pollicipes. In nature, temperatures over the breeding season vary between 14 and 20°C from May to October, tending to the upper range from July to September. Faster metamorphosis at higher temperatures might therefore confer a competitive advantage during this period.

Larval condition, origin and settlement over time

Of the cyprid-related factors that might affect settlement on conspecifics in culture, only ageing and larval batch were investigated. Cyprids of Balanus amphitrite become less selective for substrata as they age (Rittschof et al. 1984Rittschof D., Branscomb E.S., Costlow J.D. 1984. Settlement and behavior in relation to flow and surface in larval barnacles, Balanus amphitrite Darwin. J. Exp. Mar. Biol. Ecol. 82: 131-146.), consistent with the ‘desperate larva hypothesis’ (Toonen and Pawlik 1994Toonen R.J., Pawlik J.R. 1994. Foundations of gregariousness. Nature 370: 511-512.). In the present experiments with P. pollicipes, attachment also increased as larvae aged. Rittschof et al. (1984)Rittschof D., Branscomb E.S., Costlow J.D. 1984. Settlement and behavior in relation to flow and surface in larval barnacles, Balanus amphitrite Darwin. J. Exp. Mar. Biol. Ecol. 82: 131-146. also reported that age-dependent responses of cyprids decrease in the presence of settlement inducers, which suggests that if settlement was being tested on substrata other than the adult, these settlement differences could be higher. The temperature at which cyprids are aged is also crucial to this effect. Satuito et al. (1996)Satuito C.G., Shimizu K., Natoyama K., et al. 1996. Age-related settlement success by cyprids of the barnacle Balanus amphitrite, with special reference to consumption of cyprid storage protein. Mar. Biol. 127: 125-130. found that storage protein (cyprid major protein) in B. amphitrite decreases with time when ageing is carried out at 15, 20 and 25°C, but not at 5°C. However, longer ageing implies decreased storage reserves, which signify reduced competence, or ability to metamorphose, in aged cyprids (Holland and Walker 1975Holland D.L., Walker G. 1975. The biochemical composition of the cypris larva of the barnacle Balanus balanoides L. J. Conseil 36: 162-165., Lucas et al. 1979Lucas M.I., Walker G., Holland D.L., et al. 1979. An energy budget for the free-swimming and metamorphosing larvae of Balanus balanoides (Crustacea: Cirripedia). Mar. Biol. 55: 221-229., Satuito et al. 1996Satuito C.G., Shimizu K., Natoyama K., et al. 1996. Age-related settlement success by cyprids of the barnacle Balanus amphitrite, with special reference to consumption of cyprid storage protein. Mar. Biol. 127: 125-130.). This seems to be the case for P. pollicipes in which, after a week, fewer metamorphosed cyprids were observed in stocks aged for 6 days. However, this does not necessarily imply an absolute decrease in metamorphosis, but rather a possible decrease in rate. A settled cyprid will always attempt to moult to a juvenile barnacle (West and Costlow 2005West T.L., Costlow J.D. 2005. Determinants of the larval molting pattern of the crustacean Balanus eburneus Gould (Cirripedia: Thoracica). J. Exp. Zool. 248: 33-44.) although a minimum oil cell volume is required to ensure successful metamorphosis. As cyprids age, therefore, the number of cyprids incapable of completing metamorphosis will increase. Furthermore, it should be noted that post-settlement growth can decrease in aged barnacle cyprids, even if metamorphosis rate is not affected (Pechenik et al. 1993Pechenik J.A., Rittschof D., Schmidt A.R. 1993. Influence of delayed metamorphosis on survival and growth of juvenile barnacles Balanus amphitrite. Mar. Biol. 115: 287-294.). There are also interesting implications with regard to what might be happening in the wild. Barnacle cyprids are known to postpone their settlement for varying periods that differ between species (Knight-Jones 1953Knight-Jones E.W. 1953. Laboratory experiments on gregariousness during setting in Balanus balanoides and other barnacles. J. Exp. Biol. 30: 584-598., Krug 2006Krug P.J. 2006. Defense of benthic invertebrates against surface colonization by larvae: a chemical arms race. Prog. Mol. Subcell Biol. 42: 1-53.). However, although cyprids of P. pollicipes might be able to survive in the wild for long periods, the ability to successfully attach and metamorphose will likely decrease steadily with time, selecting only the fittest individuals. In the laboratory, S. balanoides lasted 28 days (10°C) on energy reserves, after which the capacity to metamorphose was compromised due to a drop in reserves below the critical minimum for moulting (Lucas et al. 1979Lucas M.I., Walker G., Holland D.L., et al. 1979. An energy budget for the free-swimming and metamorphosing larvae of Balanus balanoides (Crustacea: Cirripedia). Mar. Biol. 55: 221-229.). As the quantity of the storage reserves will determine how long settlement can be delayed until a settlement site is identified, the timing of larval release and development rate is of paramount importance.

Batch differences also affected permanent attachment and metamorphosis and could impact the variability of recruitment in the wild. Although in the present study the maximum attachment differences were about 10%, Holm et al. (2000)Holm E.R., McClary M., Rittschof D. 2000. Variation in attachment of the barnacle Balanus amphitrite: sensation or something else? Mar. Ecol. Progr. Ser. 202: 153-162. reported differences of 10% to 40% in settlement for different batches of B. amphitrite larvae, most likely due to parental as well as environmental effects.

The present study presents the first reference values for P. pollicipes larval permanent attachment over time, which follow patterns previously reported for other species (e.g. Rittschof et al. 1984Rittschof D., Branscomb E.S., Costlow J.D. 1984. Settlement and behavior in relation to flow and surface in larval barnacles, Balanus amphitrite Darwin. J. Exp. Mar. Biol. Ecol. 82: 131-146.). Metamorphosis was no exception, with approximately 80% of larvae moulting within 12 days and about 10% of larvae failing to metamorphose. Kugele and Yule (1996)Kugele M., Yule A.B. 1996. The larval morphology of Pollicipes pollicipes (Gmelin 1970) (Cirripedia: Lepadomorpha) with notes on cyprid settlement. Sci. Mar. 60: 469-480. reported a similar pattern, with 64% of cyprids metamorphosing in 6 days, 18% failing to metamorphose, and negligible settlement on non-conspecific substrata. The percentage of cyprids failing to metamorphose in the laboratory suggests that the health of laboratory-reared larvae is certainly an issue to consider.

Cyprid survival in the absence of conspecific substrata showed a steady rate of decline to ≈50% after 20 days in culture, reflecting the larval capacity to survive over long periods in the water column. It is further hypothesized that, during summer, the long survival could be prolonged by periods of colder water temperatures associated with upwelling events (Fiuza et al. 1982Fiuza A.F., Macedo M.E., Guerreiro M.R. 1982. Climatological space and time variation of the Portuguese coastal upwelling. Oceanologica Acta. 5: 31-40.). Increasing lethargy of larvae over this period might represent an energy-saving strategy to survive for long periods in the wild, when settlement is not possible and larvae are dependent on currents for suitable on-shore transport. However, results for other species indicate particularly long cyprid phases for larvae reared in culture (Batham 1946Batham E. 1946. Pollicipes spinosus Quoy and Gamard, II: embryonic and larval development. Trans. Roy. Soc. New Zeal. 75: 405-418.) and it cannot be excluded that these may be overestimations of survival in the wild.

The results of this study constitute the first laboratory investigation into some of the factors modulating gregarious settlement of this species. Gregariousness occurred over a range of conditions, but attachment and metamorphosis were influenced independently by the various experimental treatments. Larval-related factors affected both attachment and metamorphosis, with cyprid age decreasing both rates. Larvae were nevertheless capable of surviving for extended periods. All abiotic factors tested (except temperature) affected permanent attachment, which was optimal under conditions of light, salinity and hydrodynamics similar to those experienced in nature. On the other hand, metamorphosis was affected by neither light nor hydrodynamism, but was higher at natural salinities and higher temperatures, conditions consistent with the breeding season (Cruz and Araújo 1999Cruz T., Araújo J. 1999. Reproductive patterns of Pollicipes pollicipes (Cirripedia: Scalpellomorpha) on the Southwestern coast of Portugal. J. Crust. Biol. 19: 260-267.) and downwelling periods (Fiuza et al. 1982Fiuza A.F., Macedo M.E., Guerreiro M.R. 1982. Climatological space and time variation of the Portuguese coastal upwelling. Oceanologica Acta. 5: 31-40.). Although these observations might suggest that P. pollicipes cyprids could cope well with predicted temperature and salinity fluctuations in the North Atlantic Ocean, further studies should investigate the interaction of these factors, particularly within the context of climate change. Furthermore, although larvae settled heavily on conspecific adults, habitat selection in nature is likely to be mediated by a variety of factors beyond those addressed here, such as transport to the coast, larval choice and post-settlement survival. Further research on the importance of substrata-related factors, both abiotic (e.g. surface topography, desiccation) and biotic (e.g. presence of incumbents, including biofilm, predation, competition and chemical signals/cues), is essential to understand how the interaction of these factors modulates recruitment and constitutes an essential tool for stock management programmes.
