Natural mortality of three commercial penaeid shrimps (Litopenaeus vannamei, L. stylirostris and Farfantepenaeus californiensis) of the Gulf of California using gnomonic time divisions

Fernando Aranceta-Garza 1, Francisco Arreguín-Sánchez 1, Germán Ponce-Díaz 1,
Juan Carlos Seijo 2

1 Instituto Politécnico Nacional, Centro Interdisciplinario de Ciencias Marinas, Apartado Postal 592, La Paz, 23000, Baja California Sur, Mexico. E-mail: farregui@ipn.mx
2 Universidad Marista de Mérida, Periférico Norte Tablaje 13941 Carretera Mérida-Progreso, Mérida 97300, Yucatán, Mexico.

Summary: The estimation of natural mortality (M) is critical for stock assessment and fisheries management. The shrimp fishery is the most valuable one in Mexico and along the Pacific Coast of Mexico, and exploitation primarily targets three species: white (Litopenaeus vannamei), blue (L. stylirostris), and brown (Farfantepenaeus californiensis). It is a sequential fishery, so an appropriate estimate of M for different life stages is required for management purposes. Typically, M is estimated from the exploited stock, which is usually composed of adults, assuming a constant value for M, and this estimate is used for studies of population dynamics, stock assessments and determinations of the status of a fishery. In this study, we estimate M-at-age (i.e. life stage) for each species using the gnomonic time division model. The gnomonic intervals correspond to the actual life stages reported in the literature, whose duration was used for model fitting. The gnomonic model showed that M declines sharply in early life stages but declines to an asymptotic value after reaching maturity, and the model provided biologically consistent estimates of M at each life stage for the three shrimp species. Such estimates may be used with confidence to model the dynamics of sequential shrimp fisheries.

Keywords: Gulf of California; natural mortality; sequential fishery; penaeid shrimps; gnomonic intervals.

Mortalidad natural de tres camarones peneidos comerciales (Lithopenaeus vannamei, L. stylirostris y Farfantepenaeus californiensis) del Golfo de California usando intervalos de tiempo gnomónicos

Resumen: La estimación de mortalidad natural (M) es crítica para la evaluación de stocks y el manejo de las pesquerías. La pesquería de camarón es la de mayor valor en México y a lo largo de la costa del Pacífico de México, y la explotación tiene primariamente a tres especies como objetivo: blanco (Litopenaeus vannamei), azul (L. stylirostris) y café (Farfantepenaeus californiensis). Se trata de una pesquería secuencial, de tal suerte que para su manejo se requiere de una apropiada estimación de M para los diferentes estadios de vida. Típicamente M es estimada de stocks explotados, los cuales están usualmente compuestos de organismos adultos, se supone un valor de M constante y esta estimación es usada para estudios de dinámica de poblaciones, evaluación de stocks y determinación del estado de las pesquerías. En este estudio estimamos M-a-edad (p.ej. estadios de vida) para cada especie usando el modelo de intervalos de tiempo gnomónicos. La duración de los intervalos gnomónicos corresponde a los estadios de vida reportados en literatura, cuya duración fue usada para ajustar el modelo. El modelo de intervalos gnomónicos mostró que M declina rápidamente en estadios tempranos de vida, cambiando hacia un valor asintótico después de alcanzar la madurez. El modelo provée estimaciones de M biológicamente consistentes para cada estadio de vida para las tres especies. Estas estimaciones pueden ser usadas con confianza para modelar la dinámica de pesquerías secuenciales del camarón.

Palabras clave: Golfo de California; mortalidad natural; pesquería secuencial; camarones peneidos; intervalos gnomónicos.

Citation/Como citar este artículo: Aranceta-Garza F., Arreguín-Sánchez F., Ponce-Díaz G., Seijo J.C. 2016. Natural mortality of three commercial penaeid shrimps (Litopenaeus vannamei, L. stylirostris and Farfantepenaeus californiensis) of the Gulf of California using gnomonic time divisions. Sci. Mar. 80(2): 199-206. doi: http://dx.doi.org/10.3989/scimar.04326.29A

Editor: P. Sartor.

Received: July 30, 2015. Accepted: December 16, 2015. Published: April 18, 2016.

Copyright: © 2016 CSIC. This is an open-access article distributed under the Creative Commons Attribution-Non Commercial Lisence (by-nc) Spain 3.0.

Contents

Summary
Resumen
Introduction
Materials and methods
Results
Discussion
Acknowledgements
References

INTRODUCTIONTop

Natural mortality, M, is a critical parameter in studies of population dynamics and in the modelling of the fish stocks for the development and implementation of management programmes. Biased estimates of M affect the assessment analysis of resources, which can have severe consequences (Caddy 1991Caddy J.F. 1991. Death rates and time intervals: is there an alternative to the constant natural mortality axiom? Rev. Fish Biol. Fisheries 1: 109-138., Ramírez-Rodríguez and Arreguín-Sánchez 2003Ramírez-Rodríguez M., Arreguín-Sánchez F. 2003. Life history stage duration and natural mortality for the pink shrimp Farfantepenaeus duorarum (Burkenroad, 1939) in the southern Gulf of Mexico, using the gnomonic model for time division. Fish. Res. 60: 45-51.).

There is biological evidence showing a typical M-at-age trajectory in penaeid shrimps; there is an early, steep drop over a short time period, which includes the early life stages (eggs and larvae), rapidly converging on an M-value asymptote for ages approaching maturity (Caddy 1991Caddy J.F. 1991. Death rates and time intervals: is there an alternative to the constant natural mortality axiom? Rev. Fish Biol. Fisheries 1: 109-138., 1996Caddy J.F. 1996. Modelling natural mortality with age in short-lived invertebrate populations: definition of a strategy of gnomonic time division. Aquat. Living Resour. 9: 197-207., Ramírez-Rodríguez and Arreguín-Sánchez 2003Ramírez-Rodríguez M., Arreguín-Sánchez F. 2003. Life history stage duration and natural mortality for the pink shrimp Farfantepenaeus duorarum (Burkenroad, 1939) in the southern Gulf of Mexico, using the gnomonic model for time division. Fish. Res. 60: 45-51.). The existence of an asymptote gives rise to the conventional assumption of a constant M for stock assessment purposes. This happens for two main reasons: many fisheries target adult individuals and it is difficult to estimate variable mortality based on field data from harvested stocks. Although this assumption would reasonably apply to individuals of the same age and area (Caddy 1996Caddy J.F. 1996. Modelling natural mortality with age in short-lived invertebrate populations: definition of a strategy of gnomonic time division. Aquat. Living Resour. 9: 197-207.), other conditions may lead to errors. Such critical cases are the sequential fisheries, particularly those of penaeid shrimps in tropical waters, in which the harvesting may occur throughout most of the life history of the species.

The Mexican Pacific shrimp fishery is the most important fishery in Mexico. It is primarily based on three shrimp species: white (Litopenaeus vannamei Boone, 1931), blue (L. stylirostris Stimpson, 1874), and brown (Farfantepenaeus californiensis Holmes, 1900). The last two species comprise 80% of the landings (INP 2012INP. 2012. Análisis del esfuerzo pesquero – Programa de observadores a bordo de la flota camaronera de altamar en el Océano Pacífico mexicano (temporadas 2004-2005 a 2009-2010). Instituto Nacional de Pesca. Ediciones de la Noche. Guadalajara, 196 pp.). Three fleets typically exploit these shrimps: the estuarine or inshore fleet, which targets mainly juveniles, comprises fishermen who built barriers across the estuarine channels called tapos to prevent juvenile shrimps from escaping to offshore ground. They catch them using atarrayas or throwing nets from land or in small boats or canoes (typically 5 m long) with no engine, or outboard engines typically of 15-45 hp. The coastal fleet, which targets late-stage juveniles and pre-adults, uses a boat or panga (typically 7 m long) equipped with one trawling net. Finally, the offshore or industrial fleet targets adults and uses vessels (typically 18 to 23 m long) equipped with two trawling nets with a 30- to 40-day autonomy at sea. The sequential nature of this fishery imposes the need for proper M-at-age estimations to assess stocks and inform management.

Estimates of M for Mexican Pacific penaeid shrimps are mainly based on the exploited component of the offshore stock, which is mainly comprised of adults, so there are few estimates for the juveniles, and almost no estimates for very young stages (Table 1). The extreme variations in the M interval values reported in the literature for the three species range from Mpostlarvae = 46.8 year–1 to Madults = 0.78 year–1 in white shrimp, Mpreadults = 6.34 year–1 to Madults = 0.48 year–1 in blue shrimp, and Mpreadults = 8.5 year–1 to Madults = 0.24 in brown shrimp. With the exception of the estimate by García-Borbón (2009)García-Borbón J.A. 2009. Construcción de un modelo estructurado por edades para la determinación del inicio de temporada de captura de camarón café (Farfantepenaeus californiesis, Holmes) en Bahía Magdalena-Almejas, Baja California Sur, México. M.Sc. thesis, Instituto Politécnico Nacional, Centro Interdisciplinario de Ciencias Marinas, La Paz, B.C.S., 194 pp. (which was not included in the above ranges), who used the gnomonic model, these estimates were obtained through empirical methods assuming a constant M with age and time (Table 1).

Table 1. – Natural mortality estimates for the white (L. vannamei), blue (L. stylirostris) and brown (F. californiensis) shrimps in the Mexican Pacific.

Life history stage interval Natural mortality
M (year–1)
Method Locality
L. vannamei
Egg
Nauplius
Protozoea
Mysis
Post-larvae 46.8 a Subtraction between incoming inshore post-larvae and the commercial capture a Huizache Caimanero lagoon, Sinaloa a
Juvenile 21.32 a
3.24-25.32 b
Juvenile tagging a
Ricker (1975)Ricker W.E. 1975. Computation and interpretation of biological statistics of fish populations. Bull. Fish. Res. Board Can. 191: 382. b
Huizache-Caimanero lagoon, Sinaloa a,b
Pre-adult 6.6-8.4 c Ricker (1975)Ricker W.E. 1975. Computation and interpretation of biological statistics of fish populations. Bull. Fish. Res. Board Can. 191: 382. c Topolobampo, Sinaloa c
Adult 1.92-4.98 d
1.92 e
0.78-2.52 f
Pauly (1980)Pauly D. 1980. On the interrelationships between natural mortality, growth parameters, and mean environmental temperature in 175 fish stocks. ICES J. Mar. Sci. 39: 175-192. d
Ricker (1958)Ricker W.E. 1958. Handbook of computations for biological statistics of fish populations. Bull. Fish. Res. Bd. Can. 119: 1-300. f
Golfo de Tehuantepec d,e
Mazatlán, Sinaloa f
L. stylirostris
Egg
Nauplius
Protozoea
Mysis
Post-larvae
Juvenile
Pre-adult 6.34 c
0.96-10.08 c
Ricker (1975)Ricker W.E. 1975. Computation and interpretation of biological statistics of fish populations. Bull. Fish. Res. Board Can. 191: 382. c North of Sonora c
Bahía Magdalena c
Adult 2.4 c1, 0.48-6.72 c2
0.75-1.98 f
1.56 g
3.3 h
0.96 i,j
0.72 k
0.99-1.45 l
Ricker (1975)Ricker W.E. 1975. Computation and interpretation of biological statistics of fish populations. Bull. Fish. Res. Board Can. 191: 382. c1,c2
Beverton and Holt (1959)Beverton R.J.H., Holt S.J. 1959. A Review of the Lifespans and Mortality Rates of Fish in Nature, and Their Relation to Growth and Other Physiological Characteristics. In: Wolstenholme G.E.W. and O’Conner M. (eds), The Lifespan of Animals (Colloquia on Ageing). John Wiley & Sons, Ltd, pp 142-180. g,h,j,l
Silliman (1943) Silliman R.P. 1943. Studies on the Pacific Pilchard or Sardine (Sardinops caerulea): A Method of Computing Mortalities and Replacements. U.S. Fish and Wildl. Serv., Spec. Sci. Rept. 24: 10.i
Ricker (1958)Ricker W.E. 1958. Handbook of computations for biological statistics of fish populations. Bull. Fish. Res. Bd. Can. 119: 1-300. k
Topolobampo, Sinaloa c2
South of Sonora g
North of Sonora c1,h,k,l
Mazatlán, Sinaloa f,i,j
F. californiensis
Egg 1559.5 m Gnomonic model m Bahía Magdalena m
Nauplius 553 m Gnomonic model m Bahía Magdalena m
Protozoea 106.8 m Gnomonic model m Bahía Magdalena m
Mysis
Post-larvae 47.6 m Gnomonic model m Bahía Magdalena m
Juvenile 13.6 m Gnomonic model m Bahía Magdalena m
Pre-adult 7.8-8.5 c
8.1 m
Ricker (1975)Ricker W.E. 1975. Computation and interpretation of biological statistics of fish populations. Bull. Fish. Res. Board Can. 191: 382. c
Gnomonic model m
Topolobampo, Sinaloa c
Bahía Magdalena m
Adult 2.38 c1, 3.72 c2
2.28-3.6 d
2.28 e
0.24-1.93 f
1.2 g
1.32 i
1.08-3 k
2.23-2.36 l
2.7 m
2.11 n1, 2.72 n2, 2.82 n3
1.22 o1, 2.13 o2
Pauly (1980)Pauly D. 1980. On the interrelationships between natural mortality, growth parameters, and mean environmental temperature in 175 fish stocks. ICES J. Mar. Sci. 39: 175-192. d,o1
Ricker (1958)Ricker W.E. 1958. Handbook of computations for biological statistics of fish populations. Bull. Fish. Res. Bd. Can. 119: 1-300. f,k
Silliman (1943)Silliman R.P. 1943. Studies on the Pacific Pilchard or Sardine (Sardinops caerulea): A Method of Computing Mortalities and Replacements. U.S. Fish and Wildl. Serv., Spec. Sci. Rept. 24: 10. i
Ricker (1975)Ricker W.E. 1975. Computation and interpretation of biological statistics of fish populations. Bull. Fish. Res. Board Can. 191: 382. c1,c2,l
Gnomonic model m
Rikhter and Efanov (1976)Rikhter V.A., Efanov V.N. 1976. On one of the approaches to estimation of natural mortality of fish populations. ICNAF Res. Doc. 76/VI/8: 1-12. n1,o2
Pauly (1980)Pauly D. 1980. On the interrelationships between natural mortality, growth parameters, and mean environmental temperature in 175 fish stocks. ICES J. Mar. Sci. 39: 175-192. n2
Jensen (1996)Jensen A.L. 1996. Beverton and Holt life history invariants result from optimal trade-off of reproduction and survival. Can. J. Fish. Aquat. Sci. 53: 820-822. n3
Golfo de Tehuantepec d,e
Mazatlán, Sinaloa f,i
North of Sonora c1,k,l
Topolobampo, Sinaloa c2
Coastline of Sonora n1,n2,n3
Bahía Magdalena m,o1,o2

a Edwards (1977)Edwards R.C. 1977. Field experiments on growth and mortality of Litopenaeus stylirostris in a Mexican coastal lagoon complex. Estuar. Coast. Mar. Sci. 5: 107-121.; b Sepúlveda-Medina (1981)Sepúlveda-Medina A. 1981. Estimación de la mortalidad natural y por pesca del camarón blanco Litopenaeus stylirostris en el sistema lagunar Huizache–Caimanero, Sin. Durante la temporada 76-77. Cienc. Pesq. 1: 71-90.; c1,2 Sepúlveda-Medina (1999)Sepúlveda-Medina A. 1999. Dinámica poblacional de los peneidos comerciales en el alto, centro golfo de California, Topolobampo y costa occidental de la Baja California en el litoral del pacífico mexicano. Ph.D. thesis, Instituto Politécnico Nacional, Centro Interdisciplinario de Ciencias Marinas, La Paz, B.C.S., 147 pp.; d Ramos-Cruz et al. (2006)Ramos-Cruz S., Sánchez-Meraz B., Carrasco-Ayuso F., et al. 2006. Estimación de la tasa de mortalidad natural de Farfantepenaeus californiensis (Holmes, 1900) y Litopenaeus stylirostris (Boone, 1931) en la zona costera del Golfo de Tehuantepec, México. Rev. Biol. Mar. Oceanogr. 41: 221-229.; e Rodríguez de la Cruz and Chávez (1994)Rodríguez de la Cruz C., Chávez E.A. 1994. La pesquería de camarón en alta mar. Pacífico de México. In: Secretaria de Pesca (ed). XXX Aniversario del INP, Pesquerías Relevantes de México. SEMARNAT, México. pp. 11-37.; f Jacquemin (1976)Jaquemin P.P. 1976. Estimación de algunos parámetros poblacionales de tres especies de camarón del Pacífico mexicano. In: Castro-Aguirre J.L. (ed), Memorias del Simposio sobre Biología y Dinámica Poblacional de Camarones. Instituto Nacional de Pesca, 2: 169-189.; g Rodríguez de la Cruz (1976)Rodríguez de la Cruz M.C. 1976. Sinopsis biológica de las especies del género Penaeus del Pacífico Mexicano. In: Castro-Aguirre J.L. (ed), Memorias del Simposio sobre Biología y Dinámica Poblacional de Camarones. Instituto Nacional de Pesca, 2: 280-314.; h García de Quevedo (1990)García de Quevedo R. 1990. Determinación de algunos parámetros poblacionales y producción máxima sostenible del camarón azul (Litopenaeus stylirostris Stimpson, 1881) en el Alto Golfo de California. B.S. thesis, Universidad Autónoma de Baja California. Ensenada, B.C., 59 pp.; i Lluch (1974)Lluch D. 1974. La pesquería de camarón de Altamar en el noroeste. Un análisis biológico pesquero. Serie Informativa INP/S1: 116 pp.; j Sáenz-Martínez and Lluch-Belda (1990)Sáenz-Martínez P.G., Lluch-Belda D. 1990. Análisis de una temporada de pesca de camarón azul en alta mar. Serie documentos de trabajo año II, No. 28, Instituto Nacional de la Pesca. 19 pp.; k García-Gómez (1976)García-Gómez M. 1976. Breve análisis de cuatro temporadas de pesca camaronera en Puerto Peñasco. In: Castro-Aguirre J.L. (ed), Memorias del Simposio sobre Biología y Dinámica Poblacional de Camarones. Instituto Nacional de Pesca, 2: 255-277.; l Ross-Terrazas (1988)Ross-Terrazas M.A. 1988. Evaluación poblacional de dos especies de camarón que sostienen la pesquería de altamar en el norte y centro del Golfo de California. B.S. thesis, Universidad Autónoma de Baja California Sur, Marine Biology Department, La Paz, B.C.S., 70 pp.; m García-Borbón (2009)García-Borbón J.A. 2009. Construcción de un modelo estructurado por edades para la determinación del inicio de temporada de captura de camarón café (Farfantepenaeus californiesis, Holmes) en Bahía Magdalena-Almejas, Baja California Sur, México. M.Sc. thesis, Instituto Politécnico Nacional, Centro Interdisciplinario de Ciencias Marinas, La Paz, B.C.S., 194 pp.; n1,2,3 López-Martínez (2000)López-Martínez J. 2000. Dinámica de la pesquería de camarón café (Penaeus californiensis) en el litoral sonorense y su relación con algunos parámetros océano-atmosféricos. Ph.D. thesis, Instituto Politécnico Nacional, Centro Interdisciplinario de Ciencias Marinas, La Paz, B.C.S., 160 pp.; o1,2 García-Borbón (2007)García-Borbón J.A. 2007. Análisis de población virtual en la pesquería de camarón café (Farfantepenaeus californiesis, Holmes) en el complejo lagunar Bahía Magdalena-Almejas, Baja California Sur, México. B.S. thesis, Univ. Autónoma México, D.F., México, 78 pp..

The assumption of a constant M-value can be addressed by applying the gnomonic interval model proposed by Caddy (1991Caddy J.F. 1991. Death rates and time intervals: is there an alternative to the constant natural mortality axiom? Rev. Fish Biol. Fisheries 1: 109-138., 1996)Caddy J.F. 1996. Modelling natural mortality with age in short-lived invertebrate populations: definition of a strategy of gnomonic time division. Aquat. Living Resour. 9: 197-207. and later expanded and improved by Martínez-Aguilar et al. (2005)Martínez-Aguilar S., Arreguín-Sánchez F., Morales-Bojórquez E. 2005. Natural mortality and life history stage duration of Pacific sardine (Sardinops caeruleus) based on gnomonic time divisions. Fish. Res. 71: 103-114.. The gnomonic model has been applied to short-lived species such as squids, Loligo forbesi and L. vulgaris of the English Channel (Royer et al. 2002Royer J., Périès P., Robin J.P. 2002. Stock assessments of English Channel loliginid squids: updated depletion methods and new analytical methods. J. Cons. 59: 445-457.) and Dosidicus gigas of the Gulf of California (Martínez-Aguilar et al. 2010Martínez-Aguilar S., Díaz-Uribe J.G., de Anda-Montañez J.A., et al. 2010. Natural mortality and life history stage duration for the jumbo squid (Dosidicus gigas) in the Gulf of California, Mexico, using the gnomonic time division. Cienc. Pesq. 18: 31-42.), and to penaeid shrimps, Farfantepenaeus duorarum and F. californiensis of the Gulf of Mexico and the Gulf of California, respectively (Ramírez-Rodríguez and Arreguín-Sánchez 2003Ramírez-Rodríguez M., Arreguín-Sánchez F. 2003. Life history stage duration and natural mortality for the pink shrimp Farfantepenaeus duorarum (Burkenroad, 1939) in the southern Gulf of Mexico, using the gnomonic model for time division. Fish. Res. 60: 45-51., García-Borbón 2009García-Borbón J.A. 2009. Construcción de un modelo estructurado por edades para la determinación del inicio de temporada de captura de camarón café (Farfantepenaeus californiesis, Holmes) en Bahía Magdalena-Almejas, Baja California Sur, México. M.Sc. thesis, Instituto Politécnico Nacional, Centro Interdisciplinario de Ciencias Marinas, La Paz, B.C.S., 194 pp.). Additionally, the model has been applied to some fish species, including the pacific sardine Sardinops caeruleus (Martínez-Aguilar et al. 2005Martínez-Aguilar S., Arreguín-Sánchez F., Morales-Bojórquez E. 2005. Natural mortality and life history stage duration of Pacific sardine (Sardinops caeruleus) based on gnomonic time divisions. Fish. Res. 71: 103-114.) and the red grouper Epinephelus morio, of the Gulf of Mexico (Giménez-Hurtado et al. 2009Giménez-Hurtado E., Arreguín-Sánchez F., Lluch-Cota S.E. 2009. Natural Mortality Rates during Life History Stages of the Red Grouper on Campeche Bank, Mexico. North Am. J. Fish. Mana. 29: 216-222.).

Given the importance of the Mexican Pacific shrimp fishery and the sequential exploitation of the stocks, the objective of this study was to estimate the variation in natural mortality by life history stage in the three most important commercial penaeid shrimp species: white (L. vannamei), blue (L. stylirostris), and brown (F. californiensis).

MATERIALS AND METHODSTop

Determination of the gnomonic intervals

In this study, the gnomonic interval model (Caddy 1996Caddy J.F. 1996. Modelling natural mortality with age in short-lived invertebrate populations: definition of a strategy of gnomonic time division. Aquat. Living Resour. 9: 197-207., Martínez-Aguilar et al. 2005Martínez-Aguilar S., Arreguín-Sánchez F., Morales-Bojórquez E. 2005. Natural mortality and life history stage duration of Pacific sardine (Sardinops caeruleus) based on gnomonic time divisions. Fish. Res. 71: 103-114.) was used to calculate the natural mortality values, M, for each life history stage in three penaeid shrimp species of the southern Gulf of California. The estimation of M for each gnomonic time interval requires the definition of the number of developmental stages during the life span of a species (Table 1); the duration of the first stage, which corresponds to the first gnomonic time interval, in this case the egg stage (Table 3); the mean lifetime fecundity (MLF) of each species (Table 2); and the individual durations of the life stages, which are used to calibrate the estimates (Table 4). The gnomonic model is based on the following assumptions (Caddy 1991Caddy J.F. 1991. Death rates and time intervals: is there an alternative to the constant natural mortality axiom? Rev. Fish Biol. Fisheries 1: 109-138., 1996Caddy J.F. 1996. Modelling natural mortality with age in short-lived invertebrate populations: definition of a strategy of gnomonic time division. Aquat. Living Resour. 9: 197-207.): 1) stable population conditions; 2) 1:1 sex ratio and equal male and female mortality rates; 3) steady-state population replacement, i.e. that beginning with one female of MLF, a realistic mortality vector should result in an average survival of at least one female and since sex ratios are not considered, one survivor also from the males in the cohort (Caddy 1991Caddy J.F. 1991. Death rates and time intervals: is there an alternative to the constant natural mortality axiom? Rev. Fish Biol. Fisheries 1: 109-138.); 4) the life history of a species can be subdivided into gnomonic time intervals in which the total deaths due to natural mortality in each are assumed constant, and the durations of the intervals increase proportionally with age; and 5) the estimated M values initially decline steeply from the egg stage to early maturity but then remain nearly constant.

Table 2. – Fecundity (average number of eggs per female) estimations reported in the literature for the white (L. vannamei), blue (L. stylirostris), and brown (F. californiensis) shrimps in the Mexican Pacific.

Species

Fecundity

Total length (mm)

L. vannamei Minimum = 80000 a
Average = 265000 a
Maximum = 450000 a
TL50= 140 b
TLMAX = 210 a,c
L. stylirostris Minimum = 60000 d
Average = 350000 d
Maximum = 650000 d
TL50= 170 e
TLMAX= 240 f
F. californiensis Minimum = 100000 e
Average = 550000 e
Maximum = 1000000 e
TL50= 117 e
TLMAX= 240 g

a Hernández-Covarrubias et al. (2012)Hernández-Covarrubias V., Muñoz-Rubí H.A., Madrid-Vera J. et al. 2012. Fecundidad del camarón blanco Litopenaeus stylirostris de la plataforma continental de Sinaloa, México. Cienc. Pesq. 20: 17-21.; b Sepúlveda-Medina (1991)Sepúlveda-Medina A. 1991. Análisis biológico pesquero de los camarones peneidos comerciales en el Pacifico mexicano durante el periodo de veda 1974-1983. M.Sc. thesis, Universidad Nacional Autónoma de México, México, 154 pp.; c Chávez (1973)Chávez E.A. 1973. Estudio sobre la tasa de crecimiento del camarón blanco (Litopenaeus stylirostris Boone) de la región Sur del Golfo de California. Cienc. Mex. XXVIII 2: 79-85.; d Hernández-Covarrubias et al. (2003)Hernández-Covarrubias V., Estrada-Navarrete F.D., Madrid-Vera J., et al. 2003. Fecundidad del camarón azul (Litopenaeus stylirostris) de la ribera adyacente a la boca de Baradito de la Bahía Santa María La Reforma, Sinaloa México. In: Instituto Nacional de Pesca (ed), 2° Foro de Investigación de Camarón del Pacífico: Evaluación y manejo, Huatulco, Oax. 12-13 Jun 2003. Instituto Nacional de la Pesca, pp. 25.; e García-Gómez (1976)García-Gómez M. 1976. Breve análisis de cuatro temporadas de pesca camaronera en Puerto Peñasco. In: Castro-Aguirre J.L. (ed), Memorias del Simposio sobre Biología y Dinámica Poblacional de Camarones. Instituto Nacional de Pesca, 2: 255-277.; f Castro-Ortiz and Sánchez-Rojas (1976)Castro-Ortiz J., Sánchez-Rojas M. 1976. Notas Preliminares del comportamiento y dinámica poblacional de Litopenaeus stylirostris (Stimpson 1871), en los sistemas lagunarios del centro de Sinaloa. In: Castro-Aguirre J.L. (ed), Memorias del Simposio sobre Biología y Dinámica Poblacional de Camarones. Instituto Nacional de Pesca, 2: 213-253.; g Chávez and Rodríguez de la Cruz (1971)Chávez E.A., Rodríguez de la Cruz M.C. 1971. Estudios sobre el crecimiento del camarón café (Litopenaeus californiensis Holmes) del Golfo de California. Rev. Soc. Mex. Hist. Nat. 32: 111-127..

Table 3. – Duration of the egg stage reported for the white (L. vannamei), blue (L. stylirostris), and brown (F. californiensis) shrimps in the Mexican Pacific.

Species Egg stage duration
(hours) (hours/24hrs)
L. vannamei a,b,c 10 0.4167
13 0.5417
16 0.6667
L. stylirostris d,e 13 0.5417
14 0.5833
15 0.6250
F. californiensis f,g,h 13 0.5417
14 0.5833
15 0.6250


a Andrade-Vizcaíno (2010)Andrade-Vizcaíno K. 2010. Descripción del desarrollo larval del camarón blanco Litopenaeus stylirostris (Boone, 1931), y evaluación del índice de desarrollo en función del régimen de alimentación. B.S. thesis, Universidad Autónoma de Baja California Sur, Marine Biology Department, La Paz, B.C.S., 58 pp.; b Torres-Acuña (2008)Torres-Acuña I. 2008. Bioenergética de larvas zoea de camarón blanco Litopenaeus stylirostris alimentadas con diferentes raciones de microalga Phaeodactylum tricornutum. B.S. thesis, Universidad Michoacana de San Nicolas de Hidalgo, Michoacán, 54 pp.; c Kitani (1986a)Kitani H. 1986a. Larval Development of the White Shrimp Litopenaeus stylirostris Boone reared in the Laboratory and the Statistical Observation of its Naupliar Stages. Bull. Jpn. Soc. Sci. Fish. 52(7): 1131-1139.; d Kitani (1986b)Kitani H. 1986b. Larval development of the blue shrimp Litopenaeus stylirostris Stimpson reared in the laboratory. Nippon Suisan Gakk. 52(7): 1121-1130.; e Prahl and Gardeazábal (1977)Prahl H.V., Gardeazabal M. 1977. Commercial culture of the blue shrimp, Litopenaeus stylirostris Stimpson in Colombia. In: 8th Annual World Mariculture Society Meeting, San Jose, Costa Rica, 9-13 January 1977. San Jose, Costa Rica. pp. 9-13.; f Kitani and Alvarado (1982)Kitani H., Alvarado J.N. 1982. The larval development of the Pacific brown shrimp Penaeus californiensis Holmes reared in the laboratory. Bull. Jpn. Soc. Sci. Fish. 48: 375-389.; g Schafer (1971)Schafer H. 1971. Advances in Pacific shrimp culture, G.C.F.I. Proc. 23: 133-138.; h Rodríguez de la Cruz (1976)Rodríguez de la Cruz M.C. 1976. Sinopsis biológica de las especies del género Penaeus del Pacífico Mexicano. In: Castro-Aguirre J.L. (ed), Memorias del Simposio sobre Biología y Dinámica Poblacional de Camarones. Instituto Nacional de Pesca, 2: 280-314..

Table 4. – Gnomonic division of the life history for the white (L. vannamei), blue (L. stylirostris), and brown (F. californiensis) shrimps, showing correspondence with the observed information.

#Interval Stage Time (days) Length (mm) Reference
Initial Final Duration
L. stylirostris
1 Egg 0 0.58 0.58 0.36 Kitani (1986b)Kitani H. 1986b. Larval development of the blue shrimp Litopenaeus stylirostris Stimpson reared in the laboratory. Nippon Suisan Gakk. 52(7): 1121-1130.
2 Nauplius 0.58 1.5 0.92 0.48 Kitani (1986b)Kitani H. 1986b. Larval development of the blue shrimp Litopenaeus stylirostris Stimpson reared in the laboratory. Nippon Suisan Gakk. 52(7): 1121-1130.
3 Protozoea + Mysis 8.5 22 13.5 1-4 Kitani (1986b)Kitani H. 1986b. Larval development of the blue shrimp Litopenaeus stylirostris Stimpson reared in the laboratory. Nippon Suisan Gakk. 52(7): 1121-1130.
4 Post-larvae 15 36 21 5-25 Kitani (1986b)Kitani H. 1986b. Larval development of the blue shrimp Litopenaeus stylirostris Stimpson reared in the laboratory. Nippon Suisan Gakk. 52(7): 1121-1130., Renfro (1964)Renfro W.C. 1964. Life history stages of Gulf of Mexico brown shrimp. U.S. Fish and Wildl. Serv. Cir. 183: 94-98.
5 Juvenile 36 82.08 46.08 25-90 Castro-Ortiz and Sánchez-Rojas (1976) Castro-Ortiz J., Sánchez-Rojas M. 1976. Notas Preliminares del comportamiento y dinámica poblacional de Litopenaeus stylirostris (Stimpson 1871), en los sistemas lagunarios del centro de Sinaloa. In: Castro-Aguirre J.L. (ed), Memorias del Simposio sobre Biología y Dinámica Poblacional de Camarones. Instituto Nacional de Pesca, 2: 213-253.
6 Pre-adult 82.08 161.65 79.57 90-160 Renfro (1964)Renfro W.C. 1964. Life history stages of Gulf of Mexico brown shrimp. U.S. Fish and Wildl. Serv. Cir. 183: 94-98.
7 Adult 161.65 411 249.35 160-244 García-Gómez (1976)García-Gómez M. 1976. Breve análisis de cuatro temporadas de pesca camaronera en Puerto Peñasco. In: Castro-Aguirre J.L. (ed), Memorias del Simposio sobre Biología y Dinámica Poblacional de Camarones. Instituto Nacional de Pesca, 2: 255-277., Alcántara-Razo (2005) Alcántara-Razo E. 2005. Índice de producción de huevos, reclutamiento reproductor y distribución de la biomasa de camarón azul Litopenaeus stylirostris en el frente costero de Agiabampo, Sonora-Sinaloa, México. M.Sc. thesis, Instituto Politécnico Nacional, Centro Interdisciplinario de Ciencias Marinas, La Paz, B.C.S., 75 pp.
F. californiensis
1 Egg 0 0.58 0.58 0 Kitani and Alvarado (1982)Kitani H., Alvarado J.N. 1982. The larval development of the Pacific brown shrimp Penaeus californiensis Holmes reared in the laboratory. Bull. Jpn. Soc. Sci. Fish. 48: 375-389.
2 Nauplius 0.58 2.4 1.82 0.6 Kitani and Alvarado (1982)Kitani H., Alvarado J.N. 1982. The larval development of the Pacific brown shrimp Penaeus californiensis Holmes reared in the laboratory. Bull. Jpn. Soc. Sci. Fish. 48: 375-389.
3 Protozoea + Mysis 9.4 19 9.6 2.7-5 Kitani and Alvarado (1982)Kitani H., Alvarado J.N. 1982. The larval development of the Pacific brown shrimp Penaeus californiensis Holmes reared in the laboratory. Bull. Jpn. Soc. Sci. Fish. 48: 375-389.
4 Post-larvae 12 32 20 5-25 Kitani and Alvarado (1982)Kitani H., Alvarado J.N. 1982. The larval development of the Pacific brown shrimp Penaeus californiensis Holmes reared in the laboratory. Bull. Jpn. Soc. Sci. Fish. 48: 375-389., Garduño-Argueta (1976)Garduño-Argueta H. 1976. Primeras repoblaciones de camarón en aguas protegidas del litoral del pacífico mexicano. Resultados preliminares. In: Castro-Aguirre J.L. (ed.), Memorias del Simposio sobre Biología y Dinámica Poblacional de Camarones. Instituto Nacional de Pesca, 2: 140-152.
5 Juvenile 32 90 58 20-80 Chávez and Rodríguez de la Cruz (1971)Chávez E.A., Rodríguez de la Cruz M.C. 1971. Estudios sobre el crecimiento del camarón café (Litopenaeus californiensis Holmes) del Golfo de California. Rev. Soc. Mex. Hist. Nat. 32: 111-127.
6 Pre-adult 90 165 75 80-130 Chávez and Rodríguez de la Cruz (1971)Chávez E.A., Rodríguez de la Cruz M.C. 1971. Estudios sobre el crecimiento del camarón café (Litopenaeus californiensis Holmes) del Golfo de California. Rev. Soc. Mex. Hist. Nat. 32: 111-127.
7 Adult 165 565 400 130-242 Chávez and Rodríguez (1971)Chávez E.A., Rodríguez de la Cruz M.C. 1971. Estudios sobre el crecimiento del camarón café (Litopenaeus californiensis Holmes) del Golfo de California. Rev. Soc. Mex. Hist. Nat. 32: 111-127., Olguín-Palacios (1967)Olguín-Palacios M. 1967. Estudio de la biología del camarón café Farfantepenaeus californiensis Holmes. FAO Fish. Rep. 57(2): 331-356., Rodríguez de la Cruz (1981)Rodríguez de la Cruz M.C. 1981. Aspectos pesqueros del camarón de alta mar en el Pacífico Mexicano. Cien. Pesq. 1: 1-20., Sepúlveda-Medina (1991)Sepúlveda-Medina A. 1991. Análisis biológico pesquero de los camarones peneidos comerciales en el Pacifico mexicano durante el periodo de veda 1974-1983. M.Sc. thesis, Universidad Nacional Autónoma de México, México, 154 pp.
L. vannamei
1 Egg 0 0.54 0.54 0.28 Andrade-Vizcaíno (2010)Andrade-Vizcaíno K. 2010. Descripción del desarrollo larval del camarón blanco Litopenaeus stylirostris (Boone, 1931), y evaluación del índice de desarrollo en función del régimen de alimentación. B.S. thesis, Universidad Autónoma de Baja California Sur, Marine Biology Department, La Paz, B.C.S., 58 pp.
2 Nauplius 0.54 2.75 2.21 0.6 Andrade-Vizcaíno (2010)Andrade-Vizcaíno K. 2010. Descripción del desarrollo larval del camarón blanco Litopenaeus stylirostris (Boone, 1931), y evaluación del índice de desarrollo en función del régimen de alimentación. B.S. thesis, Universidad Autónoma de Baja California Sur, Marine Biology Department, La Paz, B.C.S., 58 pp.
3 Protozoea + Mysis 10.75 20 9.25 2.7-4.5 Andrade-Vizcaíno (2010)Andrade-Vizcaíno K. 2010. Descripción del desarrollo larval del camarón blanco Litopenaeus stylirostris (Boone, 1931), y evaluación del índice de desarrollo en función del régimen de alimentación. B.S. thesis, Universidad Autónoma de Baja California Sur, Marine Biology Department, La Paz, B.C.S., 58 pp.
4 Post-larvae 12 25 13 6-25 Garduño-Argueta (1976)Garduño-Argueta H. 1976. Primeras repoblaciones de camarón en aguas protegidas del litoral del pacífico mexicano. Resultados preliminares. In: Castro-Aguirre J.L. (ed.), Memorias del Simposio sobre Biología y Dinámica Poblacional de Camarones. Instituto Nacional de Pesca, 2: 140-152.
5 Juvenile 25 79.04 54.04 25-90 Gutiérrez (1980)Gutiérrez J.L. 1980. Ecología y crecimiento de Litopenaeus stylirostris (Boone) en lagunas “Las Cabras” del sistema Chametla Teacapan, Sinaloa. B.S. thesis, Instituto Politécnico Nacional, Centro Interdisciplinario de Ciencias Marinas, La Paz, B.C.S., 95 pp.
6 Pre-adult 79.04 152 72.96 90-140 Lluch (1974)Lluch D. 1974. La pesquería de camarón de Altamar en el noroeste. Un análisis biológico pesquero. Serie Informativa INP/S1: 116 pp., Gutiérrez (1980)Gutiérrez J.L. 1980. Ecología y crecimiento de Litopenaeus stylirostris (Boone) en lagunas “Las Cabras” del sistema Chametla Teacapan, Sinaloa. B.S. thesis, Instituto Politécnico Nacional, Centro Interdisciplinario de Ciencias Marinas, La Paz, B.C.S., 95 pp.
7 Adult 152 365 213 140-200 Lluch (1974)Lluch D. 1974. La pesquería de camarón de Altamar en el noroeste. Un análisis biológico pesquero. Serie Informativa INP/S1: 116 pp., Gutiérrez (1980)Gutiérrez J.L. 1980. Ecología y crecimiento de Litopenaeus stylirostris (Boone) en lagunas “Las Cabras” del sistema Chametla Teacapan, Sinaloa. B.S. thesis, Instituto Politécnico Nacional, Centro Interdisciplinario de Ciencias Marinas, La Paz, B.C.S., 95 pp.

The first data input is the time duration of the first gnomonic interval, Δ1=t1–0, which represents the egg stage after the moment of hatching (t0). The duration of the second gnomonic stage is Δ2=α*t2–1, where is the proportionality constant, and t2–1 is the duration of the interval. Successive gnomonic intervals are calculated as Δi=(α*ti–1)+ ti–1, where i≥3 until the ith gnomonic interval. The typical lifespan of the penaeid shrimp is a year, so tn=∑ni=1i =365 days. Martínez-Aguilar et al. (2005)Martínez-Aguilar S., Arreguín-Sánchez F., Morales-Bojórquez E. 2005. Natural mortality and life history stage duration of Pacific sardine (Sardinops caeruleus) based on gnomonic time divisions. Fish. Res. 71: 103-114. also proposed the inclusion of the durations of the observed life stages as auxiliary information to fit estimates of M-at-age or Mi to real data. This information is grouped to gradually obtain the best fit for the number and duration of the life stages estimated in the model, and the groupings are based on the biological characteristics of the life history stages, such as the respective habitats and predators. Therefore, the individuals that are grouped inside a gnomonic interval are assumed to be subject to the same biological and ecological conditions, which results in the same natural death rate. In our case, the duration of each life stage for each shrimp species is based on information reported in the literature (Tables 2 and 3).

According to Caddy (1996)Caddy J.F. 1996. Modelling natural mortality with age in short-lived invertebrate populations: definition of a strategy of gnomonic time division. Aquat. Living Resour. 9: 197-207., each gnomonic interval has a constant proportion of the overall natural death rate (this could alternatively be expressed as a consequence of assuming that there is an equal risk of natural selection occurring in each life history stage), so the product of Mi and Δi is a constant for all of the intervals, G=(Mi * Δi), where G is the constant proportion of the mortality for each interval. The natural mortality rate is estimated as Mi=G/ θiθi–1, where θ = Δi/tn and represents the duration of the gnomonic interval on an annual basis.

The number of individuals (Ni) at the beginning of each gnomonic interval is the number of survivors from the previous interval according to the relationship

N i+1 = N i e ( M i * θ i )



where i≥2. This is the case, except for the first interval, in which the number of hatching eggs is assumed to be similar to the MLF, such that

N 1 =MLF e ( M i * θ i ) .

Thus, the parameters α and G are calculated using Newton’s algorithm (Martínez-Aguilar et al. 2005Martínez-Aguilar S., Arreguín-Sánchez F., Morales-Bojórquez E. 2005. Natural mortality and life history stage duration of Pacific sardine (Sardinops caeruleus) based on gnomonic time divisions. Fish. Res. 71: 103-114.), in which the values are selected when the sum of the life stage durations is equal (tn*G). Under the assumption of “stable population replacement”, Ni in the last gnomonic interval is equal to two (i.e. a 50% sex ratio is assumed, with identical mortalities at stage for males and females).

Variability in the estimation of Mi

The estimation of Mi in the gnomonic model assumes initial stability, at least for the cohort for which M is estimated. However, natural variability implies changes in both fecundity and the duration of the first life stage, which are the model input parameters, so the variability in the estimation of Mi is explored using changes in fecundity and the duration of the first life stage. The ranges of variation in fecundity and life stage duration are shown in Tables 2 and 3, respectively.

RESULTSTop

Estimation of the natural mortality by gnomonic intervals, Mi

Fitting the gnomonic model to the observed data resulted in seven intervals for the three penaeid shrimp species; each interval has its own characteristics related to development and habitat. The first three intervals are planktonic, but they are differentiated by the intrinsic characteristics of the larval development. The remaining four gnomonic intervals are benthic. The first two of these intervals, the post-larvae and juvenile stages, are differentiated by their characteristics and behaviour, according to the life history stage and habitat; both are present in estuarine and coastal waters. The next two intervals, the pre-adult and adult life stages, inhabit the continental shelf and are differentiated by their behaviour and distribution, as adults commonly inhabit deeper waters and zones further from the continental shelf than pre-adults. The differences in the estimates of Mi can be explained by differences in the stages of development, such as behaviour, habitat use, vulnerability to predation and specific predators.

The longest-lived and most fecund species was the brown shrimp (565 days, MLF=550000 eggs) followed by the blue shrimp (411 days, MLF=350000 eggs) and the white shrimp (365 days, MLF=265000). The estimates of for the different developmental stages and species are shown in Table 5; they fit most of the M values reported in the literature (Fig. 1A, B, C). In some cases, however, the reported value for adult brown shrimp is M=8.9 (Fig. 1A), which is a clear overestimation.

Table 5. – Estimation of the natural mortality for the gnomonic intervals (Mi) using the mean duration of the first life stage (egg stage) for the species of white (L. vannamei), blue (L. stylirostris), and brown (F. californiensis) shrimps, using the gnomonic model; MLF, mean lifetime fecundity ; G, constant probability of death for each interval; α, is a proportionality constant.

Longevity, (days) Intervals* Stage Gnomonic intervals (days) Mortality at age
(Mi)
Number of individuals (Ni)
P. vannamei (MLF = 265000; G = 1.684)
α = 4.027
365
1 Egg 0.54 1138.87 49147
2 Nauplius 2.21 278.28 9115
3 Protozoea + Mysis 9.25 66.49 1690
4 Post-larvae 13.00 47.31 314
5 Juvenile 54.04 11.38 58
6 Pre-adult 72.96 8.43 11
7 Adult 213.00 2.89 2
P. stylirostris (MLF = 350000; G = 1.724)
α = 4.027
411
1 Egg 0.58 1085.34 62382
2 Nauplius 0.92 684.24 11119
3 Protozoea + Mysis 13.50 46.63 1982
4 Post-larvae 21.00 29.98 353
5 Juvenile 46.08 13.66 63
6 Pre-adult 79.57 7.91 11
7 Adult 249.35 2.52 2
F. californiensis (MFL = 550000; G = 1.789)
α = 4.027
565
1 Egg 0.58 1125.97 91900
2 Nauplius 1.82 358.83 15356
3 Protozoea + Mysis 9.60 68.03 2566
4 Post-larvae 20.00 32.65 429
5 Juvenile 58.00 11.26 72
6 Pre-adult 75.00 8.71 12
7 Adult 400.00 1.63 2


Full size image

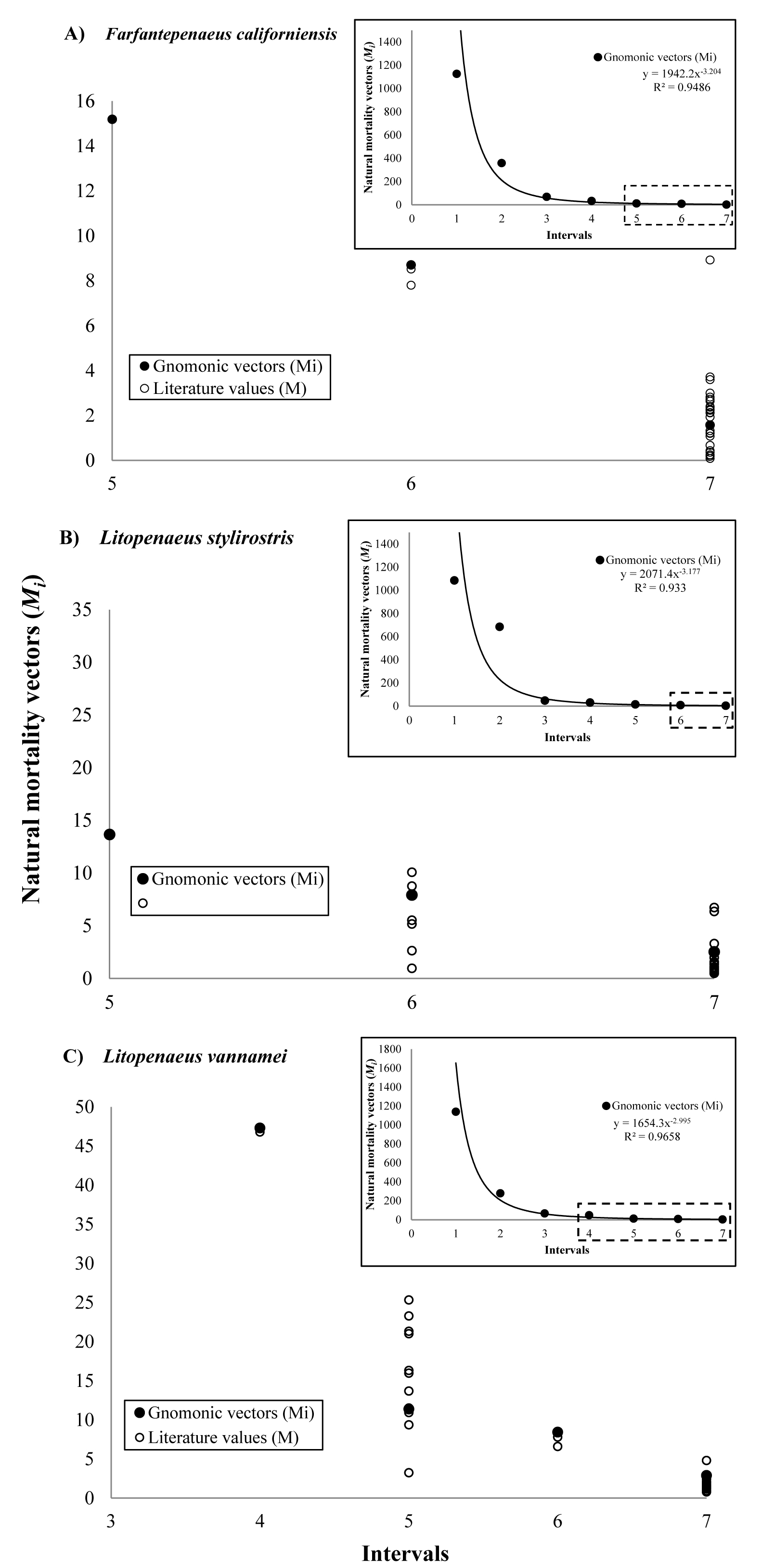

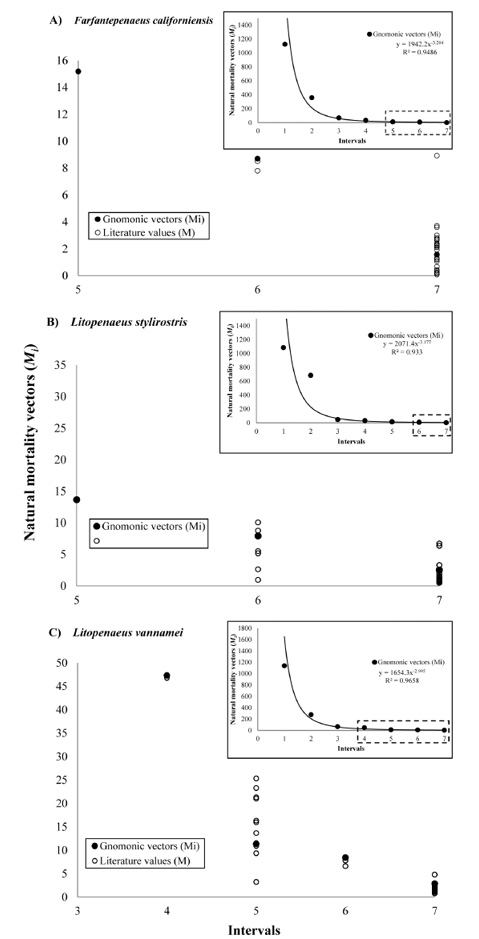

Fig. 1. – Natural mortality vectors estimated for brown (F. californiensis) (A), blue (L. stylirostris) (B), and white (L. vannamei) shrimps (C) with the gnomonic model are shown in solid black circles. Independent estimations from the literature are shown in solid white circles.

Variability in Mi

Based on the data reported in the literature, the variability in Mi associated with the variation in the duration of the egg stage was analysed (Table 3). Because the duration of the first gnomonic interval, the egg stage, is measured in hours, we considered steps of 0.5 hours within the range observed in the literature and fit these with the durations of the other stages, resulting in estimations of a mean value, standard deviation and coefficient of determination for Mi (Table 6).

Table 6. – Variation due to different egg duration stages for the white (L. vannamei), blue (L. stylirostris), and brown (F. californiensis) shrimps using the gnomonic model; n, number of different egg duration stages used in the estimation; SD, standard deviation; CV, coefficient of variation.

Gnomonic intervals F. californiensis (n=5) L. stylirostris (n=5) L. vannamei (n=13)
Mean SD CV Mean SD CV Mean SD CV
1 Egg 1724.35 103.65 0.06 1212.71 62.71 0.051 884.25 520.64 0.589
2 Nauplius 550.59 10.29 0.018 761.37 25.29 0.033 240.46 95.85 0.399
3 Protozoea + Mysis 104.24 0.1 0.001 51.89 0.062 0.001 57.35 22.77 0.397
4 Post-larvae 50.03 0.05 0.001 33.36 0.04 0.001 40.81 16.2 0.397
5 Juvenile 23.27 0.02 0.001 15.2 0.018 0.001 9.82 3.89 0.396
6 Pre-adult 13.34 0.01 0.001 8.8 0.011 0.001 7.27 2.88 0.396
7 Adult 2.41 0 0.001 2.81 0.003 0.001 2.49 0.98 0.394

DISCUSSIONTop

Obtaining realistic estimates of the natural mortality of species with short lifespans, such as penaeid shrimp, represents a challenge for the fishery biologist. The white (L. vannamei), blue (L. stylirostris), and brown (F. californiensis) shrimps considered in this study are no exception. Though they have been intensively studied because of their commercial importance, there are still many aspects of their biology that are unknown, especially the early life stages, including their instantaneous rates of natural mortality. Independent estimates of M have been calculated in previous studies, but the majority of the literature is concentrated on the pre-adult and adult stages. The empirical equations used to estimate natural mortality were developed for adult stages and assume a constant M, and even when some authors have calculated M for juveniles, these estimates have usually been consistent with the biology of the species.

The gnomonic model obtains Mi estimates that better represent the biological reality than other models because it differentiates realistic life stages that correspond to different behaviours and habitats used by species throughout their life histories. Furthermore, Martínez-Aguilar et al. (2005)Martínez-Aguilar S., Arreguín-Sánchez F., Morales-Bojórquez E. 2005. Natural mortality and life history stage duration of Pacific sardine (Sardinops caeruleus) based on gnomonic time divisions. Fish. Res. 71: 103-114. also proposed an algorithm that allows for calibration of the life stages.

The Mi values estimated for the three penaeid species were different, and this may be the result of their different life histories. The blue shrimp showed the lowest Mi values in four of the seven intervals (Table 5), and the least variation among the interspecific stages was observed in the egg and pre-adult stages (coefficient of variation [CV] = 2.5% and 4.86%, respectively; for others, CV ranged from 11% to 48.8%). The low variation in the egg stage is probably associated with its short stage duration (hours), and the pre-adult stage shrimp inhabit the continental shelf, so that stage is probably associated with relative low densities and, consequently, relative low vulnerability to predation as individuals are widely dispersed prior to their subsequent reproductive aggregation. From the nauplius to the adult stages, the CV of each Mi between species diminishes and continues to decrease with the duration of the stage until the pre-adult stage (Fig. 2). We hypothesize that this tendency suggests a similar pattern of behaviour between species in relation to their habitats, in which they share similar life conditions as they age. The pattern probably only changes for the adult and egg stages because reproductive processes and conditions are different between species, an aspect that is known in the literature (Magallón and Jaquemin 1976Magallón F., Jaquemin P. 1976. Observaciones biológicas sobre tres especies comerciales de camarón en las costas de Sinaloa, Mex. In: Castro-Aguirre J.L. (ed), Memorias del Simposio sobre Biología y Dinámica Poblacional de Camarones. Instituto Nacional de Pesca, 2: 1-26.).


Full size image

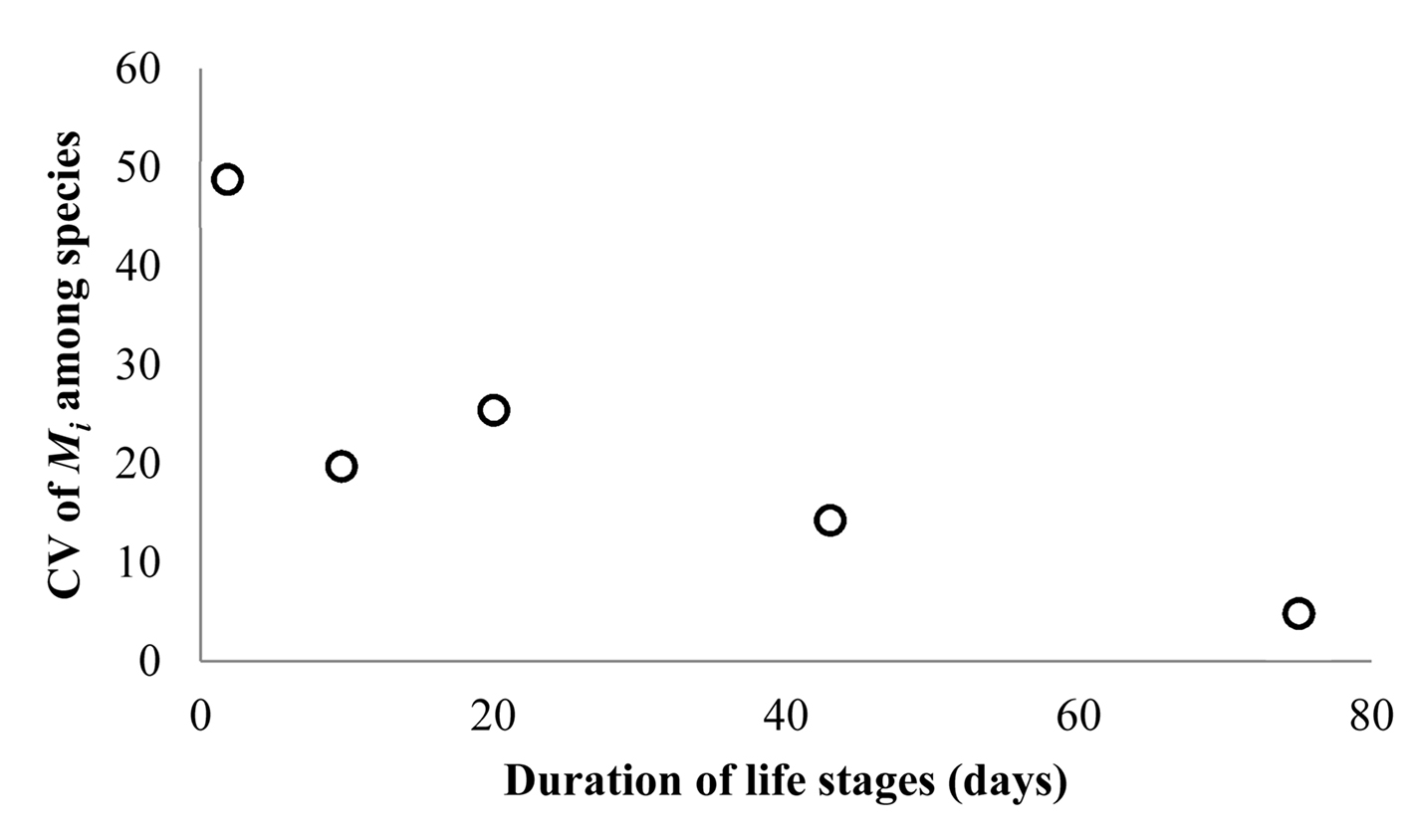

Fig. 2. – Decrement in the coefficient variation (CV) of the natural mortality at age (Mi) among the brown (F. californiensis), blue (L. stylirostris) and white (L. vannamei) shrimps in relation to the duration of their life stages (not including egg and pre-adult stage).

White shrimp showed the lowest Mi values of the larval mean range values ( M ¯ 1-4 =382.73 year–1) as this species is probably less vulnerable to predation as a result of its rapid larval development in inshore habitats in contrast with the other two species. On the other hand, the brown shrimp lives in the offshore habitat throughout its lifecycle and showed a medium mean larval mean range value ( M ¯ 1-4 =396.37 year–1), which is probably associated with its life history as most of its metamorphosis occurs in the water column, where it is exposed to higher predation. Blue shrimp showed the highest Mi values for the mean larval stage ( M ¯ 1-4=461.54 year–1); this is due to the second interval, or nauplius stage, which had an estimated value of Mi=684 year–1, almost double the values of the other species (white shrimp, M4=278 year–1 and brown shrimp, M4=358 year–1). Blue shrimp showed a shorter duration and smaller size at this stage than the other two species (Table 4).

The blue shrimp is the dominant species in captures from the coastal zones, including the mouths of bays and estuaries (Rodríguez de la Cruz 1976Rodríguez de la Cruz M.C. 1976. Sinopsis biológica de las especies del género Penaeus del Pacífico Mexicano. In: Castro-Aguirre J.L. (ed), Memorias del Simposio sobre Biología y Dinámica Poblacional de Camarones. Instituto Nacional de Pesca, 2: 280-314., INP 2013INP. 2013. Análisis de las capturas de camarón en la temporada 2012-2013 del litoral Pacífico. SAGARPA. CRIP Mazatlán. México, 93 pp.). These zones are mostly exposed to environmental factors that contribute to higher larval mortality, including wave action and coastal currents that move larvae away from more favourable zones (Dahlberg 1979Dahlberg M.D. 1979. A review of survival rates of fish eggs and larvae in relation to impact assessments. MFR. 41: 1-12., Rumrill 1990Rumrill S.S. 1990. Natural mortality of marine invertebrate larvae. Ophelia. 32: 163-198.). Furthermore, these zones serve as transit areas for the predators of penaeids. Local studies have reported predator species such as swimming crabs of the genus Callinectes and fishes, such as the snooks Centropomus robalito and C. nigrescens; the flounder Cyclopsetta panamensi; the catfish Ariopsis seemani; the snappers Lutjanus argentiventris and L. novemfasciatus; and the milkfish Chanos chanos (Sepúlveda-Medina 1981Sepúlveda-Medina A. 1981. Estimación de la mortalidad natural y por pesca del camarón blanco Litopenaeus stylirostris en el sistema lagunar Huizache–Caimanero, Sin. Durante la temporada 76-77. Cienc. Pesq. 1: 71-90., Amezcua and Portillo 2010Amezcua F., Portillo A. 2010. Hábitos alimenticios del lenguado panámico Cyclopsetta panamensis (Paralichthyidae) en el Sureste del Golfo de California. Rev. Biol. Mar. Oceanogr. 45: 335-340.).

Previous shrimp stock assessment studies have primarily focused on the intervals most vulnerable to the offshore trawling fishery: pre-adults and adults. The gnomonic estimated values for both stages showed low variability among the shrimp species, possibly due to the convergence of all the species in the same zone during their migration to deeper marine waters (García and Le Reste 1986Garcia S., Le Reste L. 1986. Ciclos vitales, dinámica, explotación y ordenación de las poblaciones de camarones peneidos costeros. FAO Doc. Téc. Pesca, (203): 180 pp.).

Globally, the M values reported for the adult penaeid stock varied between M=1.2 and 5.4 year–1 (García and Le Reste 1986Garcia S., Le Reste L. 1986. Ciclos vitales, dinámica, explotación y ordenación de las poblaciones de camarones peneidos costeros. FAO Doc. Téc. Pesca, (203): 180 pp.), encompassing the estimated values from the gnomonic model. The M values reported in the literature for adult Mexican Pacific shrimps ranged from 0.09 to 8.92 year–1. Caddy (1996)Caddy J.F. 1996. Modelling natural mortality with age in short-lived invertebrate populations: definition of a strategy of gnomonic time division. Aquat. Living Resour. 9: 197-207. observed that low adult values, such as Mi=0.2-0.5 year–1, are possible but imply extremely high mortality in the egg and larval phases. Similarly, in accordance with Gracia (1997)Gracia A. 1997. Simulated and actual effects of the brown shrimp, Penaeus aztecus, closure in Mexico. MFR. 59: 18-24., the author found that adult M values higher than 5 are excessive and incompatible with an annual species. Thus, the magnitudes of the Mi values estimated with the gnomonic model in this study appear to be reasonable and compatible with the life histories of the three shrimp species.

The gnomonic model as proposed by Caddy (1996)Caddy J.F. 1996. Modelling natural mortality with age in short-lived invertebrate populations: definition of a strategy of gnomonic time division. Aquat. Living Resour. 9: 197-207. and improved by Martínez-Aguilar et al. (2005)Martínez-Aguilar S., Arreguín-Sánchez F., Morales-Bojórquez E. 2005. Natural mortality and life history stage duration of Pacific sardine (Sardinops caeruleus) based on gnomonic time divisions. Fish. Res. 71: 103-114. appears to provide biologically reasonable estimates of natural mortality during all life history stages. Fitting the estimates with independent data allowed for the identification of key life stages. Additionally, though some of the independent estimates of M for some life stages appear to be biologically inconsistent, they do not greatly affect the final estimation (even when included in the fitting process) because the pattern of the duration of time between life stages is governed by the properties of the gnomonic model, where parameter maintains the proportionality between the duration of the different life stages. The duration of the first life stage is most critical as an input for the gnomonic model because it affects parameter α.

ACKNOWLEDGEMENTSTop

F. Aranceta-Garza thanks CONACyT, IPN-BEIFI and COFAA for grants received. F. Arreguín-Sánchez thanks CONACyT for the support received through project CB-221705 and the National Polytechnic Institute for the support through project SIP-20150470 and the EDI and COFAA programmes.

REFERENCESTop

Alcántara-Razo E. 2005. Índice de producción de huevos, reclutamiento reproductor y distribución de la biomasa de camarón azul Litopenaeus stylirostris en el frente costero de Agiabampo, Sonora-Sinaloa, México. M.Sc. thesis, Instituto Politécnico Nacional, Centro Interdisciplinario de Ciencias Marinas, La Paz, B.C.S., 75 pp.

Amezcua F., Portillo A. 2010. Hábitos alimenticios del lenguado panámico Cyclopsetta panamensis (Paralichthyidae) en el Sureste del Golfo de California. Rev. Biol. Mar. Oceanogr. 45: 335-340.
http://dx.doi.org/10.4067/S0718-19572010000200016

Andrade-Vizcaíno K. 2010. Descripción del desarrollo larval del camarón blanco Litopenaeus stylirostris (Boone, 1931), y evaluación del índice de desarrollo en función del régimen de alimentación. B.S. thesis, Universidad Autónoma de Baja California Sur, Marine Biology Department, La Paz, B.C.S., 58 pp.

Beverton R.J.H., Holt S.J. 1959. A Review of the Lifespans and Mortality Rates of Fish in Nature, and Their Relation to Growth and Other Physiological Characteristics. In: Wolstenholme G.E.W. and O’Conner M. (eds), The Lifespan of Animals (Colloquia on Ageing). John Wiley & Sons, Ltd, pp 142-180.
http://dx.doi.org/10.1002/9780470715253.ch10

Caddy J.F. 1991. Death rates and time intervals: is there an alternative to the constant natural mortality axiom? Rev. Fish Biol. Fisheries. 1: 109-138.
http://dx.doi.org/10.1007/BF00157581

Caddy J.F. 1996. Modelling natural mortality with age in short-lived invertebrate populations: definition of a strategy of gnomonic time division. Aquat. Living Resour. 9: 197-207.
http://dx.doi.org/10.1051/alr:1996023

Castro-Ortiz J., Sánchez-Rojas M. 1976. Notas Preliminares del comportamiento y dinámica poblacional de Litopenaeus stylirostris (Stimpson 1871), en los sistemas lagunarios del centro de Sinaloa. In: Castro-Aguirre J.L. (ed), Memorias del Simposio sobre Biología y Dinámica Poblacional de Camarones. Instituto Nacional de Pesca, 2: 213-253.

Chávez E.A. 1973. Estudio sobre la tasa de crecimiento del camarón blanco (Litopenaeus stylirostris Boone) de la región Sur del Golfo de California. Cienc. Mex. XXVIII 2: 79-85.

Chávez E.A., Rodríguez de la Cruz M.C. 1971. Estudios sobre el crecimiento del camarón café (Litopenaeus californiensis Holmes) del Golfo de California. Rev. Soc. Mex. Hist. Nat. 32: 111-127.

Dahlberg M.D. 1979. A review of survival rates of fish eggs and larvae in relation to impact assessments. MFR. 41: 1-12.

Edwards R.C. 1977. Field experiments on growth and mortality of Litopenaeus stylirostris in a Mexican coastal lagoon complex. Estuar. Coast. Mar. Sci. 5: 107-121.
http://dx.doi.org/10.1016/0302-3524(77)90076-7

Garcia S., Le Reste L. 1986. Ciclos vitales, dinámica, explotación y ordenación de las poblaciones de camarones peneidos costeros. FAO Doc. Téc. Pesca, (203): 180 pp.

García-Borbón J.A. 2007. Análisis de población virtual en la pesquería de camarón café (Farfantepenaeus californiesis, Holmes) en el complejo lagunar Bahía Magdalena-Almejas, Baja California Sur, México. B.S. thesis, Univ. Autónoma México, D.F., México, 78 pp.

García-Borbón J.A. 2009. Construcción de un modelo estructurado por edades para la determinación del inicio de temporada de captura de camarón café (Farfantepenaeus californiesis, Holmes) en Bahía Magdalena-Almejas, Baja California Sur, México. M.Sc. thesis, Instituto Politécnico Nacional, Centro Interdisciplinario de Ciencias Marinas, La Paz, B.C.S., 194 pp.

García-Gómez M. 1976. Breve análisis de cuatro temporadas de pesca camaronera en Puerto Peñasco. In: Castro-Aguirre J.L. (ed), Memorias del Simposio sobre Biología y Dinámica Poblacional de Camarones. Instituto Nacional de Pesca, 2: 255-277.

García de Quevedo R. 1990. Determinación de algunos parámetros poblacionales y producción máxima sostenible del camarón azul (Litopenaeus stylirostris Stimpson, 1881) en el Alto Golfo de California. B.S. thesis, Universidad Autónoma de Baja California. Ensenada, B.C., 59 pp.

Gracia A. 1997. Simulated and actual effects of the brown shrimp, Penaeus aztecus, closure in Mexico. MFR. 59: 18-24.

Garduño-Argueta H. 1976. Primeras repoblaciones de camarón en aguas protegidas del litoral del pacífico mexicano. Resultados preliminares. In: Castro-Aguirre J.L. (ed.), Memorias del Simposio sobre Biología y Dinámica Poblacional de Camarones. Instituto Nacional de Pesca, 2: 140-152.

Giménez-Hurtado E., Arreguín-Sánchez F., Lluch-Cota S.E. 2009. Natural Mortality Rates during Life History Stages of the Red Grouper on Campeche Bank, Mexico. North Am. J. Fish. Mana. 29: 216-222.
http://dx.doi.org/10.1577/M06-041.1

Gutiérrez J.L. 1980. Ecología y crecimiento de Litopenaeus stylirostris (Boone) en lagunas “Las Cabras” del sistema Chametla Teacapan, Sinaloa. B.S. thesis, Instituto Politécnico Nacional, Centro Interdisciplinario de Ciencias Marinas, La Paz, B.C.S., 95 pp.

Hernández-Covarrubias V., Estrada-Navarrete F.D., Madrid-Vera J., et al. 2003. Fecundidad del camarón azul (Litopenaeus stylirostris) de la ribera adyacente a la boca de Baradito de la Bahía Santa María La Reforma, Sinaloa México. In: Instituto Nacional de Pesca (ed), 2° Foro de Investigación de Camarón del Pacífico: Evaluación y manejo, Huatulco, Oax. 12-13 Jun 2003. Instituto Nacional de la Pesca, pp. 25.

Hernández-Covarrubias V., Muñoz-Rubí H.A., Madrid-Vera J. et al. 2012. Fecundidad del camarón blanco Litopenaeus stylirostris de la plataforma continental de Sinaloa, México. Cienc. Pesq. 20: 17-21.

INP. 2012. Análisis del esfuerzo pesquero – Programa de observadores a bordo de la flota camaronera de altamar en el Océano Pacífico mexicano (temporadas 2004-2005 a 2009-2010). Instituto Nacional de Pesca. Ediciones de la Noche. Guadalajara, 196 pp.

INP. 2013. Análisis de las capturas de camarón en la temporada 2012-2013 del litoral Pacífico. SAGARPA. CRIP Mazatlán. México, 93 pp.

Jacquemin P.P. 1976. Estimación de algunos parámetros poblacionales de tres especies de camarón del Pacífico mexicano. In: Castro-Aguirre J.L. (ed), Memorias del Simposio sobre Biología y Dinámica Poblacional de Camarones. Instituto Nacional de Pesca, 2: 169-189.

Jensen A.L. 1996. Beverton and Holt life history invariants result from optimal trade-off of reproduction and survival. Can. J. Fish. Aquat. Sci. 53: 820-822.
http://dx.doi.org/10.1139/f95-233

Kitani H. 1986a. Larval Development of the White Shrimp Litopenaeus stylirostris Boone reared in the Laboratory and the Statistical Observation of its Naupliar Stages. Bull. Jpn. Soc. Sci. Fish. 52(7): 1131-1139.
http://dx.doi.org/10.2331/suisan.52.1131

Kitani H. 1986b. Larval development of the blue shrimp Litopenaeus stylirostris Stimpson reared in the laboratory. Nippon Suisan Gakk. 52(7): 1121-1130.
http://dx.doi.org/10.2331/suisan.52.1121

Kitani H., Alvarado J.N. 1982. The larval development of the Pacific brown shrimp Penaeus californiensis Holmes reared in the laboratory. Bull. Jpn. Soc. Sci. Fish. 48: 375-389.
http://dx.doi.org/10.2331/suisan.48.375

Lluch D. 1974. La pesquería de camarón de Altamar en el noroeste. Un análisis biológico pesquero. Serie Informativa INP/S1: 116 pp.

López-Martínez J. 2000. Dinámica de la pesquería de camarón café (Penaeus californiensis) en el litoral sonorense y su relación con algunos parámetros océano-atmosféricos. Ph.D. thesis, Instituto Politécnico Nacional, Centro Interdisciplinario de Ciencias Marinas, La Paz, B.C.S., 160 pp.

Magallón F., Jaquemin P. 1976. Observaciones biológicas sobre tres especies comerciales de camarón en las costas de Sinaloa, Mex. In: Castro-Aguirre J.L. (ed), Memorias del Simposio sobre Biología y Dinámica Poblacional de Camarones. Instituto Nacional de Pesca, 2: 1-26.

Martínez-Aguilar S., Arreguín-Sánchez F., Morales-Bojórquez E. 2005. Natural mortality and life history stage duration of Pacific sardine (Sardinops caeruleus) based on gnomonic time divisions. Fish. Res. 71: 103-114.
http://dx.doi.org/10.1016/j.fishres.2004.04.008

Martínez-Aguilar S., Díaz-Uribe J.G., de Anda-Montañez J.A., et al. 2010. Natural mortality and life history stage duration for the jumbo squid (Dosidicus gigas) in the Gulf of California, Mexico, using the gnomonic time division. Cienc. Pesq. 18: 31-42.

Olguín-Palacios M. 1967. Estudio de la biología del camarón café Farfantepenaeus californiensis Holmes. FAO Fish. Rep. 57(2): 331-356.

Pauly D. 1980. On the interrelationships between natural mortality, growth parameters, and mean environmental temperature in 175 fish stocks. ICES J. Mar. Sci. 39: 175-192.
http://dx.doi.org/10.1093/icesjms/39.2.175

Prahl H.V., Gardeazabal M. 1977. Commercial culture of the blue shrimp, Litopenaeus stylirostris Stimpson in Colombia. In: 8th Annual World Mariculture Society Meeting, San Jose, Costa Rica, 9-13 January 1977. San Jose, Costa Rica. pp. 9-13.

Ramírez-Rodríguez M., Arreguín-Sánchez F. 2003. Life history stage duration and natural mortality for the pink shrimp Farfantepenaeus duorarum (Burkenroad, 1939) in the southern Gulf of Mexico, using the gnomonic model for time division. Fish. Res. 60: 45-51.
http://dx.doi.org/10.1016/S0165-7836(02)00064-4

Ramos-Cruz S., Sánchez-Meraz B., Carrasco-Ayuso F., et al. 2006. Estimación de la tasa de mortalidad natural de Farfantepenaeus californiensis (Holmes, 1900) y Litopenaeus stylirostris (Boone, 1931) en la zona costera del Golfo de Tehuantepec, México. Rev. Biol. Mar. Oceanogr. 41: 221-229.
http://dx.doi.org/10.4067/S0718-19572006000200010

Renfro W.C. 1964. Life history stages of Gulf of Mexico brown shrimp. U.S. Fish and Wildl. Serv. Cir. 183: 94-98.

Ricker W.E. 1958. Handbook of computations for biological statistics of fish populations. Bull. Fish. Res. Bd. Can. 119: 1-300.

Ricker W.E. 1975. Computation and interpretation of biological statistics of fish populations. Bull. Fish. Res. Board Can. 191: 382.

Rikhter V.A., Efanov V.N. 1976. On one of the approaches to estimation of natural mortality of fish populations. ICNAF Res. Doc. 76/VI/8: 1-12.

Rodríguez de la Cruz M.C. 1976. Sinopsis biológica de las especies del género Penaeus del Pacífico Mexicano. In: Castro-Aguirre J.L. (ed), Memorias del Simposio sobre Biología y Dinámica Poblacional de Camarones. Instituto Nacional de Pesca, 2: 280-314.

Rodríguez de la Cruz M.C. 1981. Aspectos pesqueros del camarón de alta mar en el Pacífico Mexicano. Cien. Pesq. 1: 1-20.

Rodríguez de la Cruz C., Chávez E.A. 1994. La pesquería de camarón en alta mar. Pacífico de México. In: Secretaria de Pesca (ed). XXX Aniversario del INP, Pesquerías Relevantes de México. SEMARNAT, México. pp. 11-37.

Ross-Terrazas M.A. 1988. Evaluación poblacional de dos especies de camarón que sostienen la pesquería de altamar en el norte y centro del Golfo de California. B.S. thesis, Universidad Autónoma de Baja California Sur, Marine Biology Department, La Paz, B.C.S., 70 pp.

Royer J., Périès P., Robin J.P. 2002. Stock assessments of English Channel loliginid squids: updated depletion methods and new analytical methods. J. Cons. 59: 445-457.
http://dx.doi.org/10.1006/jmsc.2002.1203

Rumrill S.S. 1990. Natural mortality of marine invertebrate larvae. Ophelia. 32: 163-198.
http://dx.doi.org/10.1080/00785236.1990.10422030

Sáenz-Martínez P.G., Lluch-Belda D. 1990. Análisis de una temporada de pesca de camarón azul en alta mar. Serie documentos de trabajo año II, No. 28, Instituto Nacional de la Pesca. 19 pp.

Schafer H. 1971. Advances in Pacific shrimp culture, G.C.F.I. Proc. 23: 133-138.

Sepúlveda-Medina A. 1981. Estimación de la mortalidad natural y por pesca del camarón blanco Litopenaeus stylirostris en el sistema lagunar Huizache–Caimanero, Sin. Durante la temporada 76-77. Cienc. Pesq. 1: 71-90.

Sepúlveda-Medina A. 1991. Análisis biológico pesquero de los camarones peneidos comerciales en el Pacifico mexicano durante el periodo de veda 1974-1983. M.Sc. thesis, Universidad Nacional Autónoma de México, México, 154 pp.

Sepúlveda-Medina A. 1999. Dinámica poblacional de los peneidos comerciales en el alto, centro golfo de California, Topolobampo y costa occidental de la Baja California en el litoral del pacífico mexicano. Ph.D. thesis, Instituto Politécnico Nacional, Centro Interdisciplinario de Ciencias Marinas, La Paz, B.C.S., 147 pp.

Silliman R.P. 1943. Studies on the Pacific Pilchard or Sardine (Sardinops caerulea): A Method of Computing Mortalities and Replacements. U.S. Fish and Wildl. Serv., Spec. Sci. Rept. 24: 10.

Torres-Acuña I. 2008. Bioenergética de larvas zoea de camarón blanco Litopenaeus stylirostris alimentadas con diferentes raciones de microalga Phaeodactylum tricornutum. B.S. thesis, Universidad Michoacana de San Nicolas de Hidalgo, Michoacán, 54 pp.
