INTRODUCTIONTop

This study focuses on the mixed species small-scale trawl fishery of the northern Mediterranean capturing immature demersal fishes using the European hake Merluccius merluccius as an example, but has obvious relevance wherever juvenile fish are the focus of a fishery. The study discusses the importance of achieving a balance between the high natural mortality of juveniles, and the high fecundity of a species, which itself must be an evolutionary response to high larval and juvenile predation mortalities.

The predominant gear by tonnage captured, among a wide variety of harvesting methods used, is the fine-mesh bottom trawl, which has a different catchability-at-size than large mesh gears. A commonly-used 40- to 50-mm stretched mesh cod end captures a variety of small, high-value organisms including juvenile hake, while sexually mature adult hake are rarely taken. Early observations on distribution patterns and seasonality in the Mediterranean identified life history and seasonal migrations for fish species such as European hake (e.g. Doumenge 1966Doumenge F. 1966. Hydrologie, biologie et pêche en Mediterranee occidentale. Bull. Soc. Languedocienne Géogr. (3° Serie), 2(4) Oct-Dec: 1-34. – Fig 1A), showing that mature female hake migrate to deeper waters on maturity. Until the mid-1990s, the small-mesh trawl fishery operated sustainably without quotas or strict effort control (Ragonese 2009Ragonese S. 2009. Avoidance within a changing assessment paradigm for Mediterranean hake stocks. Medit. Mar. Sci. 10(1): 125-130.), and in a retrospective view of the fishery in the mid-1990s, Fiorentini et al. (1997)Fiorentini L., Caddy J.F., de Leiva J.I. 1997. Long- and short-term trends of Mediterranean fishery resources. GFCM Stud. Rev. 69: 1-72. noted a steady increase in landings of hake and many other species, suggesting that this reflected an increase in recruitment due to the increased productivity of formerly oligotrophic fishing grounds. This environmental phenomenon may explain the anomaly that while landings were increasing, (Fiorentini et al. 1997Fiorentini L., Caddy J.F., de Leiva J.I. 1997. Long- and short-term trends of Mediterranean fishery resources. GFCM Stud. Rev. 69: 1-72.), assessments of European hake at earlier meetings of the General Fisheries Commission for the Mediterranean (GFCM) documented full to overfished status for Adriatic and Gulf of Lions stocks (see review by Caddy 2012Caddy J.F. 2012. The Role of the GFCM in Regional Fisheries Management. Report of the Directorate General for Internal Policies: Policy department B. The European Parliament Committee on Fisheries, 66 pp., 2014aCaddy J.F. 2014a. Why do assessments of demersal stocks largely ignore habitat? ICES J. Mar. Sci. 71: 2114-2126.). At the 33^rd session in 2009, a binding resolution was adopted to reduce fishing effort by demersal trawls by 10%. In recent years, consistently low landings of European hake and other species were documented by Vasilakopoulos et al. (2014)Vasilakopoulos P., Maravillas C.D., Tserpes G. 2014. The alarming decline of Mediterranean fish stocks. Current Biol. 24(1-6): 1643-1648., supposedly due to over-exploitation of juvenile fish.

Developing a rational approach to managing fisheries taking juvenile demersal fish is a priority on the global scene. An uncontrolled rise in fishing pressure for many resources has also led to the mean sizes at capture falling significantly (see e.g. Pauly et al. 1998Pauly D., Christensen V, Dalsgaard J, et al. 1998. Fishing down marine food webs. Science 279: 860-863.). Up to 20% or more of juveniles are killed incidentally and/or discarded in global demersal fisheries for adult fishes with no economic benefits resulting (Suuronen 2005Suuronen P. 2005. Mortality of fish escaping trawl gears. FAO Fish. Tech. Pap. 478: 72 pp., Caddy and Seijo 2011Caddy J.F., Seijo J.-C. 2011. Destructive fishing practices by bottom trawls: a broad review of research and practice. Cienc. Pesq. special issue 19: 1-58.). Discarding small fish is an inevitable consequence of fisheries for mature fish in areas where they mix with juveniles, but the serious impacts of discarding recruits is often discounted. For example, Section 14.3.2 of the 2014 report of the Working Group on the Assessment of Demersal Stocks in the North Sea and Skagerrak (WGNSSK) for cod, noted that “The variation recorded in year class strength at age 1 is substantially higher than recorded subsequently at ages 2 and 3, indicating that the high rates of discarding (90%) and high mortality rates at this age are resulting in reduced contributions from one year old fish to the stock and catches”. Discarding of small juveniles in Mediterranean fisheries also occurs, but here the age groups discarded are potentially marketable. The results of a forthcoming EU regulation requiring landing of discards will be revealing in all geographical areas. This paper suggests a new approach justifying the harvest of juvenile fishes under conditions in which the mature stock is conserved. It illustrates that the vector of fishing mortality at age in a fishery for juveniles resembles the natural mortality vector in an unfished stock, where the very few fish surviving to spawn have a low natural mortality rate but a high fecundity.

The Mediterranean fleets of small trawlers exploiting juvenile fish resources have been criticized for their low mean age of capture of many species. But, as noted by Ragonese (2009)Ragonese S. 2009. Avoidance within a changing assessment paradigm for Mediterranean hake stocks. Medit. Mar. Sci. 10(1): 125-130., the “Mediterranean demersal fisheries paradox” of fisheries for juveniles in the past has reflected a relatively stable production regime despite growth overfishing, no quotas, and a generally lax control of fishing effort. Farrugio (2010)Farrugio H. 2010. New information concerning fish stocks in the Mediterranean. A seminar held in Brussels, 14 September 2010. (General Fisheries Commission for the Mediterranean). (ec.europa.eu/.../events/140910/henri_farrugio_en.pdf). reported on 23 stocks of Mediterranean species assessed to date, in which 79% were overexploited, 18% fully exploited, and 14% moderately exploited. For most overfished resources, the current fishing mortalities were from 30% to over 80% higher than the optimum effort level, F_0.1, assumed by STECF to be equivalent to F_MSY. Catches of these species were mostly juveniles, and had been taken for decades by small-mesh trawls. More recently, 15 Mediterranean demersal and small pelagic fish stocks assessed by the STECF Working Group (STECF 2014STECF. 2014. (Scientific, Technical and Economic Committee for Fisheries of the EU). Assessment of Mediterranean Sea stocks, part1 (STECF-14-17).) were found to be still overexploited using this criterion. Recent recruitment had declined to one third of that in earlier assessments, the European hake being the most intensively overfished, with ratios of F_now/F_MSY estimated as high as 9.87 and a current F of 1.48.

From 1990 to 2000, annual yields for immature hake in the NW Mediterranean did not show strong oscillations (data from STECF 2014STECF. 2014. (Scientific, Technical and Economic Committee for Fisheries of the EU). Assessment of Mediterranean Sea stocks, part1 (STECF-14-17).) although, given the high exploitation rates, criteria from Atlantic assessments of adult fish suggest that these fisheries should have collapsed under a high fishing pressure. On this point however, it may be debated whether the MSY estimates for exclusively juvenile fisheries are comparable with those for fisheries on mature age groups? Although fishing mortalities for ages 2 and 3 are high, so is the age-specific natural mortality rate (e.g. STECF 2014STECF. 2014. (Scientific, Technical and Economic Committee for Fisheries of the EU). Assessment of Mediterranean Sea stocks, part1 (STECF-14-17).), and for a fishing mortality rate of F=0.85 on age 3 fish, the exploitation ratio is only 0.5, and it drops further for older fishes. One explanation is that the trawl fishery is concentrated on juvenile age classes for a few years only, and then a pronounced decline in catchability occurs as maturity approaches. This may be partly due to the inefficiency of small-mesh, low-headline trawls for capturing larger fish, as well as the migration of maturing escapees to “spawning refugia” (Fig. 1). Recently Farrugio (2010)Farrugio H. 2010. New information concerning fish stocks in the Mediterranean. A seminar held in Brussels, 14 September 2010. (General Fisheries Commission for the Mediterranean). (ec.europa.eu/.../events/140910/henri_farrugio_en.pdf). described a proposal to exclude demersal and pelagic trawlers, gillnetters and longliners from an offshore “refugium” or Marine Protected Area in the Gulf of Lions.

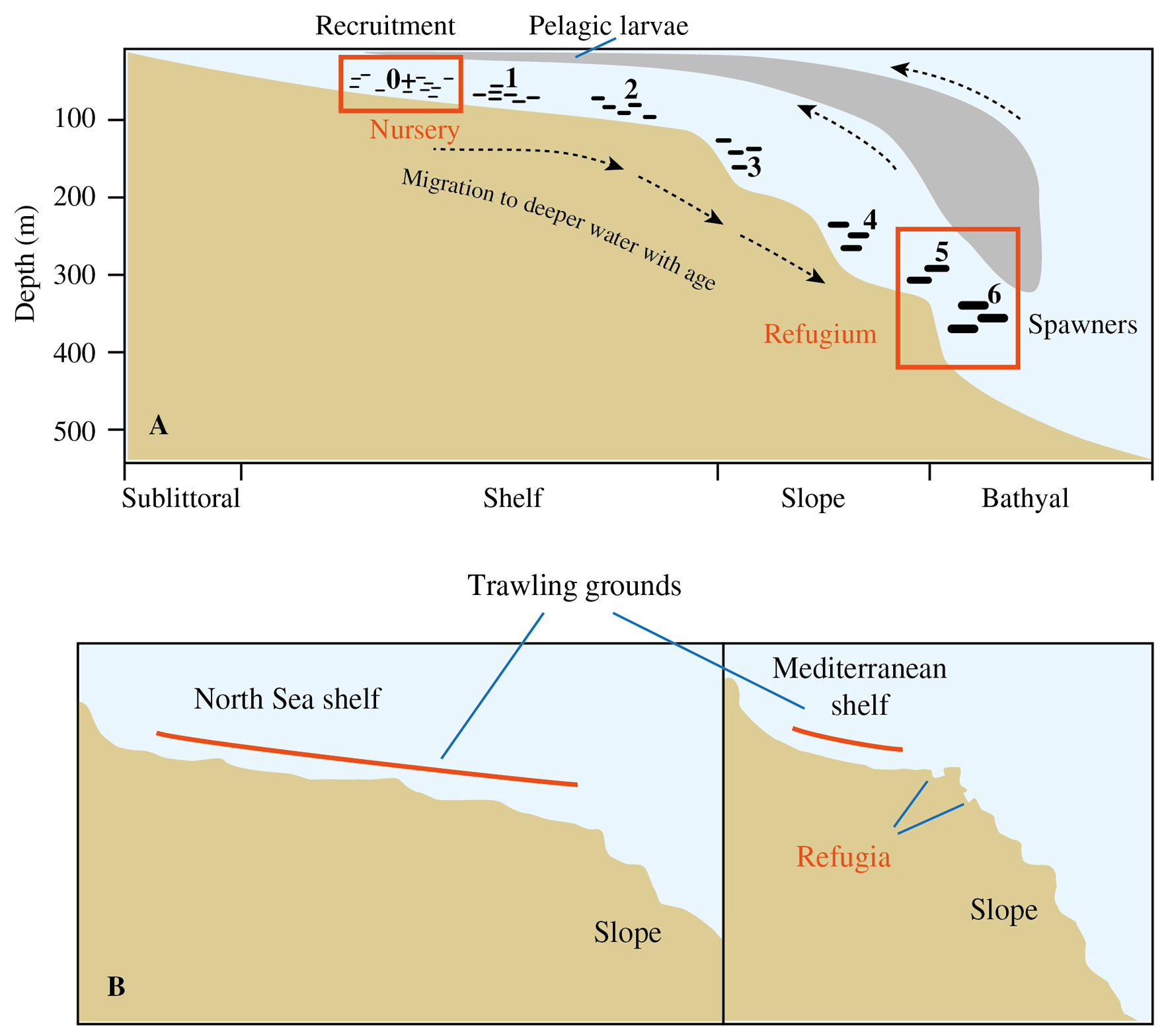

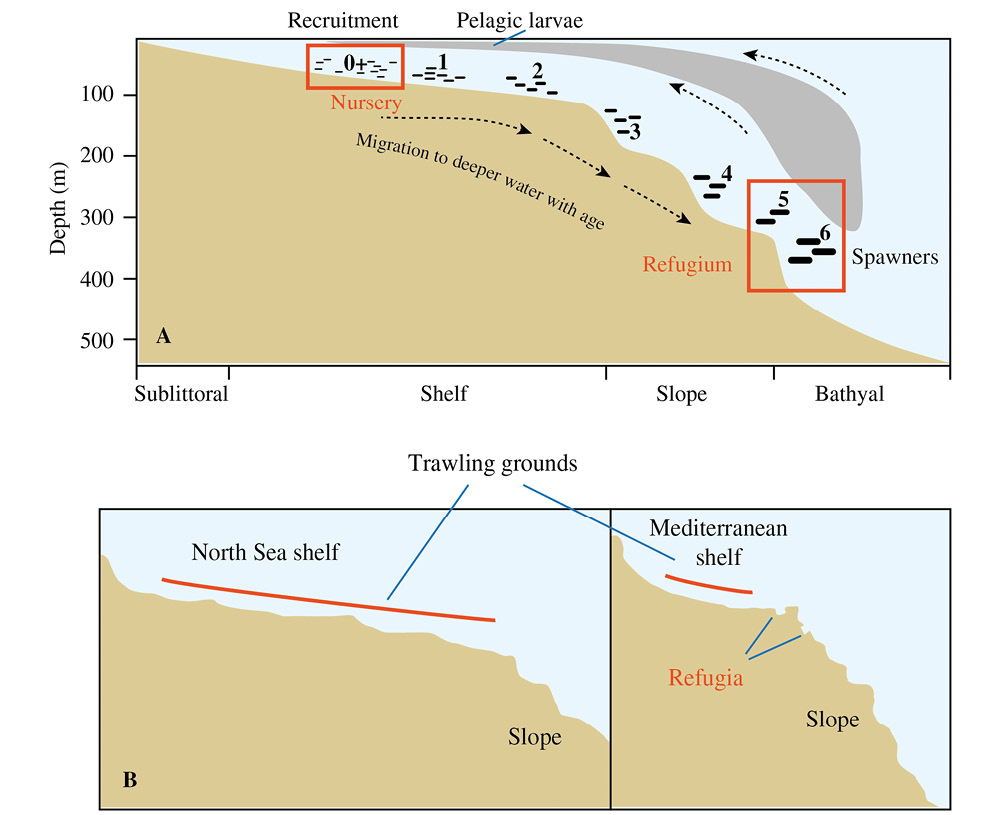

The configuration of a fishing ground affects the probability of over-exploitation of the spawning stock. In the Mediterranean (see Fig. 1B, and bathymetric charts), untrawlable areas with frequent outcrops occur along the edge of the Mediterranean shelf to a greater extent than in the North Sea. Rising over-exploitation of mature hake stocks may have been the cause of current declines in recruitment, although in the past extensive natural refugia offshore may have provided a “safety valve” for spawners against stock collapse. Further debate is now required on what the predominant future fishing method should be, and how stock recovery can be achieved? It seems obvious that seeking a maximum yield both from a fine-mesh fishery for juveniles and at the same time from gillnets, offshore trawling and longline fisheries for adults offshore is a recipe for stock collapse. An essential component of self-regulation of the fishery may have recently been removed by allowing fishing on the shelf edge, thus causing a decline in recruitment to inshore trawl landings. Urgent management action now seems to be called for. The first question is, however, how can a fishery for juveniles be assessed?

The bathymetric distribution of hake: is there a migration to a fishery refugium offshore?

Fisheries investigations in the northern Mediterranean in the early 20th century focused on ontogeny, life history distributions and seasonal migrations. Maturing hake (Fig 1A) apparently migrate offshore to spawn (Doumenge 1966Doumenge F. 1966. Hydrologie, biologie et pêche en Mediterranee occidentale. Bull. Soc. Languedocienne Géogr. (3° Serie), 2(4) Oct-Dec: 1-34.). For the fishery off Viareggio, Italy (Geographical Sub-Area GSA 9), Abella et al. (2005)Abella A.J, Serena F., Ria M. 2005. Distributional response to variations in abundance over spatial and temporal scales for juveniles of European hake (Merluccius merluccius) in the Western Mediterranean Sea. Fish. Res. 71: 295-310. showed that the fleet fishing the shelf inside 200 m intensely exploits dense schools of juvenile hake, although recent controls aim to discourage local fishermen from harvesting schools of age 0+ juveniles. It has been questioned whether predator abundance over a heavily-fished ground would be adequate to inflict high juvenile mortalities, but a length-based VPA of local commercial catches using the reciprocal model for M_t was compared with research trawl surveys in the same time/locality (Caddy and Abella 1999Caddy J.F., Abella A.J. 1999. Reconstructing reciprocal M vectors from length cohort analysis (LCA) of commercial size frequencies of hake, and fine mesh trawl surveys over the same grounds. Fish. Res. 41: 169-175.). These two methods both gave similar results for biomass and age composition. Density-dependence could also occur if recruits are subject to trophic limitation, as when dense schools of young fish reduce food availability. Thinning out juvenile hake aggregations by moderate fishing effort might even improve the growth rate of survivors. On this point, Abella et al. (2005)Abella A.J, Serena F., Ria M. 2005. Distributional response to variations in abundance over spatial and temporal scales for juveniles of European hake (Merluccius merluccius) in the Western Mediterranean Sea. Fish. Res. 71: 295-310. noted the seasonal occurrence of dense aggregations from year to year of age 0+ hake at 100-250 m, and of age 1+ fish in shallower water. As suggested by Druon et al. (2012)Druon J.N., Spedicato M.T., Peristeraki P., et al. 2012. MPAs or EFH as a fishery management tool for protecting hake nurseries? Presented at the 2012 Forum of MPAs, Antalya, Turkey., this spatial/seasonal distribution also provides the basis for closures if a reduction of harvest rate for these first two age groups were agreed to.

Prior to the 1970s, trawling in the northern Mediterranean was mainly on the smooth shallow shelf, where damage to lightly-constructed trawls was low. The shelf edge is too deep, often irregular and unsuitable for small boats using unmodified trawls. More recently, chains and rollers have been added to trawls on larger vessels for use in deeper water on uneven bottom. This has effectively impacted areas postulated to be offshore spawning refugia. In the Spanish offshore areas of the northern Mediterranean, trawling with heavy “rock hopper” gear and other gears aimed at large fish and deep water shrimp have been observed to negatively affect these key habitats, reducing epifauna and displacing sediment down the continental slope (see e.g. Puig et al. 2012Puig R., Canals M., Company J.B., et al. 2012. Ploughing the deep sea floor. Nature 489: 286-289.). Bellman et al. (2005)Bellman M.A., Heppell S.A., Goldfinger C. 2005. Evaluation of a US west coast groundfish habitat conservation regulation via analysis of spatial and temporal patterns of trawl fishing effort. Can. J. Fish. Aquat. Sci. 62: 2886-2900. illustrated the dense overlay of trawl tracks on complex bottom areas prior to a ban on this type of gear. The subsequent tendency to avoid these areas when trawling with unmodified gear was documented.

The consumer’s requirements

Traditionally, small fish are used in Mediterranean cuisines, and this has suggested that a bioeconomic criterion be used for evaluation (e.g. Caddy and Seijo 2002Caddy J.F., Seijo J.-C. 2002. Reproductive contributions foregone with harvesting: a conceptual framework. Fish. Res. 59: 17-30.). Fisheries for juveniles support high-priced traditional dishes of whole young fish, supplied by restaurants in one of the world’s top tourist areas. Caddy and Seijo (2002)Caddy J.F., Seijo J.-C. 2002. Reproductive contributions foregone with harvesting: a conceptual framework. Fish. Res. 59: 17-30. noted the marked contrast between the reproductive value of different-sized female hake and their economic value. Thus, while a restriction of fishing pressure on age 1+ fish is strongly recommended, market demand and bioeconomic analysis seem to favour targeting juvenile hake and conserving spawners, since catches of juveniles, small fish and invertebrates caught incidentally all command high prices on local markets. This supports the conclusion that it might be possible to achieve an economic optimum (e.g. Caddy and Seijo 2002Caddy J.F., Seijo J.-C. 2002. Reproductive contributions foregone with harvesting: a conceptual framework. Fish. Res. 59: 17-30.) with properly-managed fisheries on juvenile European hake, even if this did not coincide with an MSY. High prices are asked for young hake retailed in Italy and in France (as an example, in January 2015, the retail price for age 1 and 2 fish (17-22 cm total length) in a supermarket near Rome was 17.50 €/kg, personal observation). Reproductive value increases with size, while the unit landed value generally decreases with size in northern Mediterranean ports. Until the 1970s-1980s, the trawl fishery was focused on juveniles prior to reproductive age (4-5 y), and the few fish escaping to maturity from the fine-mesh trawl fishery apparently migrated further offshore to spawn.

Are conventional assumptions on stock assessment compatible with a fishery for juveniles?

As a source of methodologies for analysing age-structured data, Beverton and Holt (1957)Beverton R.J.H., Holt S.J. 1957. On the Dynamics of Exploited Fish Populations. Her Majesty’s Stationery Office, London. 553 pp. influenced stock assessment approaches world-wide. Their work supports constant parameter yield/recruit calculations, and although their methodologies have been modified in a few areas and for a few species (e.g. where higher natural mortality rates for juveniles are now applied), the theoretical basis for the assessments they proposed is still widely accepted. Constant parameter-at-age models were used after WWII when North Sea fisheries in the late 1940s and 1950s took a dominant proportion of the adult fish accumulated on the grounds, following five years of low fishing effort during hostilities. For exploitation of mature fishes, a constant M assumption is of course tenable, but the constant M assumption continues to be used in assessing many fisheries taking juveniles offshore from developing as well as developed countries, and in mesh size calculations.

Returning to fisheries science in the 1990s, Beverton (1992)Beverton R.J.H. 1992. Voigtlander, C.W, ed. Session 4: The state of fisheries science. The State of the World’s Fisheries Resources: Proceedings of the World Fisheries Congress, Plenary Sessions. Athens. commented on the way fisheries science has misinterpreted his joint work with Sidney Holt. Recognizing that fisheries science must pay more attention to events in the early life history, he noted that “The proportion of the total amounts of fish consumed that is eaten by other fish… sea mammals and birds is as great or greater than it is by man”. In fact, it is rare for current assessments of demersal resources to collect and use information on fecundity and larval and pre-recruitment mortalities. Fitting a stock recruitment relationship (SRR) in which recruitment success is used as a function of the size of the spawning stock is the standard approach. As noted by a referee for this paper, when data are available, the SRR procedure often illustrates the unpredictability of recruitment success as a function of spawning stock size. However, precautionary concerns should come into play when the spawning stock is low, as in the case discussed here.

According to Kolding and van Zwieten (2011)Kolding J., van Zwieten P.A.M. 2011. The tragedy of our legacy: how do global management discourses affect small scale fisheries. Forum for Development Studies 38(3): 267-297., two reasons are given in the classical literature to concentrate on size and age in fisheries management:

Juvenile fishes should realize their “growth potential” (Petersen 1894Petersen C.G.J. 1894. On the biology of our flatfishes and on the decrease of our flatfish fisheries. Rep. Danish Biol. Stn. 4: 1-147.) before capture.

The “Propagation Theory” requires that all fish in a stock be given a chance to arrive at the size for reproduction before capture.

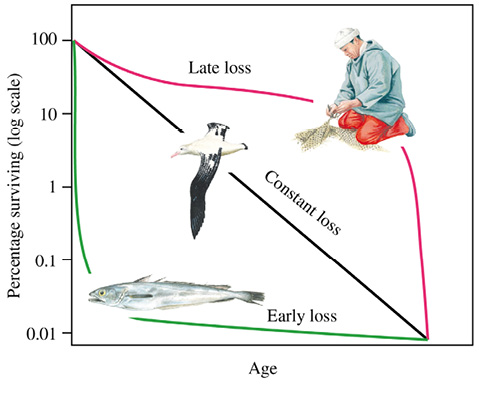

The Propagation Theory implicitly assumes that fish follow the same type of survivorship curve with age as mammals and birds. This is unlikely to be correct, as illustrated by Figure 2 in which the generalized survivorship curves for mammals, birds, and bony fish were contrasted by Larkin (1978)Larkin P.A. 1978. Fisheries management – an essay for ecologists. Annu. Rev. Ecol. Syst., 9: 57-73.. Bony fish are often highly fecund, so the vast majority of juveniles must die of natural mortality long before reaching sexual maturity. However, the life strategy of highly fecund organisms is often misunderstood within “The Theory of Fishing”. Quoting Kolding and van Zwieten (2011)Kolding J., van Zwieten P.A.M. 2011. The tragedy of our legacy: how do global management discourses affect small scale fisheries. Forum for Development Studies 38(3): 267-297.: “We are mammals, surrounded by mammals, and see the world through mammal eyes”; i.e. from our personal experience as mammalian parents with few offspring, we instinctively give priority to conservation of young stages. This neglects evidence for the high natural mortalities in young fish and invertebrates, and may result in overoptimistic estimates of increased yield with larger mesh sizes from given levels of recruitment. With respect to the impacts of trawls on escaping juveniles, careful studies on survival of juvenile fish after escapement through trawl cod ends (e.g. Sangster and Lehman 1993Sangster G.I., Lehmann K. 1993. Assessment of the survival of fish escaping from commercial fishing gears. ICES CM 1993/ B:2 Fish Capture Committee.) showed that indirect mortality from trawling may range from 14% to over 40% of the escaping or escaped juveniles. Experimental studies also showed that after passing through the cod end, juveniles are stressed and liable to physiological exhaustion (Chopin and Arimoto 1995Chopin F.S., Arimoto T. 1995. The condition of fish escaping from gears – a review. Fish. Res. 21: 315-327.) and to predation in a weakened state (e.g. Suuronen 2005Suuronen P. 2005. Mortality of fish escaping trawl gears. FAO Fish. Tech. Pap. 478: 72 pp.). Equally important are measures to conserve the older spawning stock, although these are rarely applied. Hixon et al (2014)Hixon M.A., Johnson D.W., Sogard S.M. 2014. BOFFFFs: on the importance of conserving old-growth age structure in fishery populations. ICES J. Mar. Sci. 71(8): 2171-2185. also demonstrated that older spawners make a higher contribution to future generations in terms of fecundity and egg viability than first spawners, and merit protection by closed areas or other measures.

The top priority given to conservation of juveniles as opposed to spawners in fisheries for adults is associated with an erroneous “constant M” assumption. On this point, McCoy and Gillooly (2008)McCoy M.W, Gilloo J.F. 2008. Predicting natural mortality rates of plants and animals. Ecol. Lett. 11(7): 710-716. showed that an increase in body size reduces the natural mortality rate for both plants and animals, and Lorenzen (1996)Lorenzen K. 1996. The relationship between body weight and natural mortality in juvenile and adult fish: a comparison of natural ecosystems and aquaculture. J. Fish Biol. 49: 627-642. recognized that this generalization also applies to fishes. Several authors have generated age-specific values, Mt, as in the Multi-Species Virtual Population Analysis (MSVPA) in the North Sea, and also in modelling by Powers (2014)Powers J.E. 2014. Age-specific natural mortality rates in stock assessment. ICES J. Mar. Sci. 71(7): 1629-1637.. Simple approaches to estimating juvenile Ms-at-age are infrequently used, but give similar results, and Ragonese et al. (2006)Ragonese S., Abella A., Fiorentino F., et al. 2006. Methods for estimating the instantaneous rate of natural mortality (M) in fisheries science, with particular reference to the Mediterranean. Biol. Mer. Medit. 13(3): 1-151. provided a comprehensive summary of such methodologies. The M-at-age vector should reflect the high levels of natural mortality for juveniles, and the reciprocal mortality function (Caddy 1991Caddy J.F. 1991. Death rates and time intervals: is there an alternative to the constant natural mortality axiom? Rev. Fish Biol. Fish. 1: 109-138., Abella et al. 1997Abella A.J., Caddy J.F., Serena F. 1997. Do natural mortality and availability decline with age? An alternative yield paradigm for juvenile fisheries, illustrated by the hake Merluccius merluccius fishery in the Mediterranean. Aquat. Living Resour. 10: 257-269.) achieves this result. This model has been described (Di Natale et al. 2009Di Natale A., Ratz H.-J., Cheilari A. 2009. Report of the STECF workshop on Mediterranean stock assessment standardization, workshop 09-01 (formerly labeled as SG-ECA/RST/MED 09-01), 2-6 March 2009, Murcia, Spain).) for assessments of Mediterranean groundfish juveniles, but has not been used for North Sea stocks. The model indirectly reflects density-dependent mortality on juveniles, since a high level of natural mortality may also be a response to limited food resources. If recruits are vulnerable to trophic limitation, high densities of young fishes will reduce food availability.

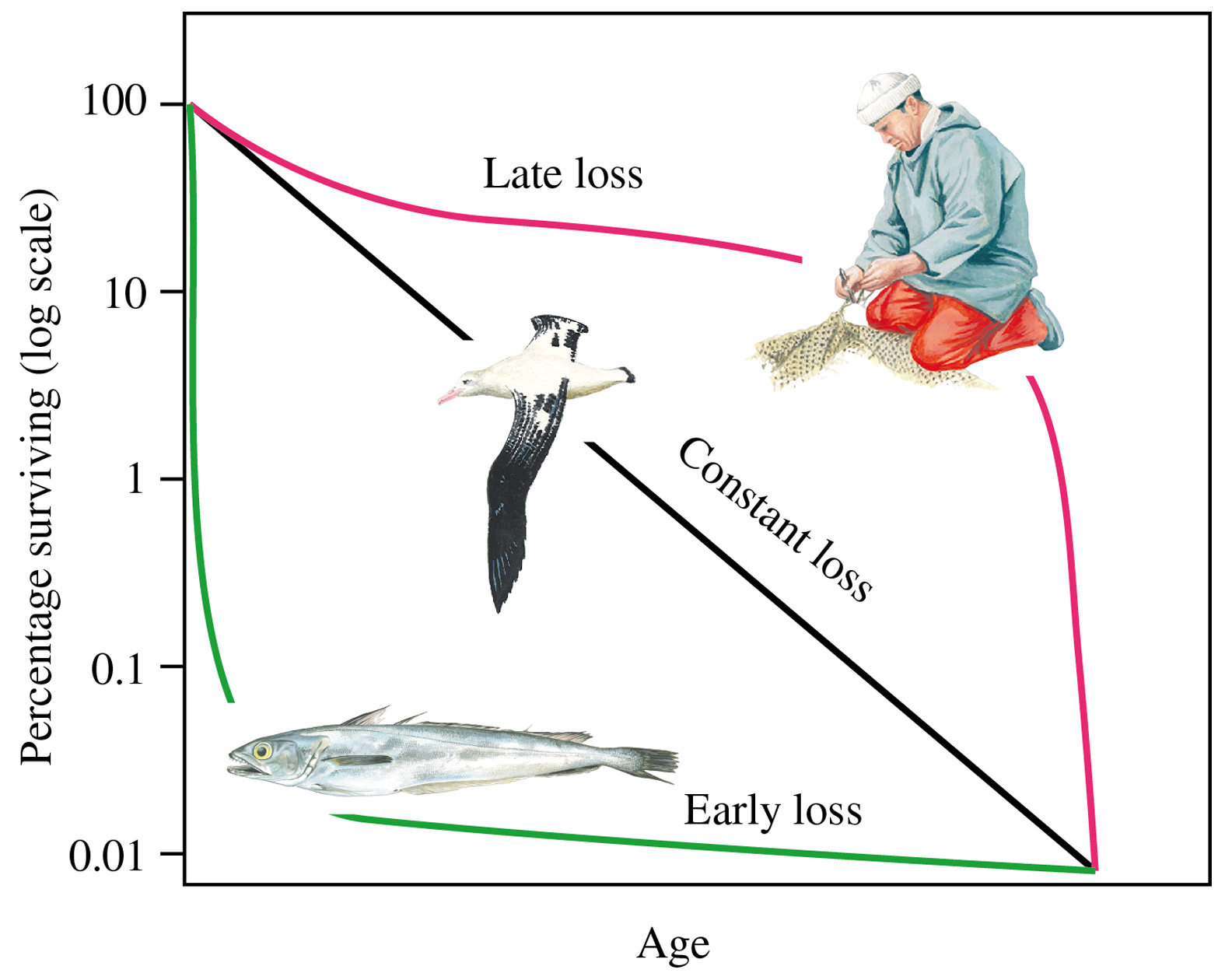

The lower predation rates for adult fish have long been recognized, but the fundamental question is, should juveniles really be harvested? Adjusting harvesting intensities in a mixed species fishery to reflect the range of natural mortality rates of the species harvested was considered ideal by Caddy and Sharp (1986)Caddy J.F., Sharp G.D. 1986. An ecological framework for marine fishery investigations. FAO Fish.Tech. Pap. 283, 152 pp., and this strategy has since been referred to as “balanced harvesting” (e.g. Norris 1991Norris J.C. 1991. Further perspectives on Yield per recruit Analysis and Biological reference Points. Can. J. Fish. Aquat. Sci. 48: 2533-2542., Quaas et al. 2013Quaas M.F. Requate T., Ruckes K., et al. 2013. Incentives for Optimal Management of Age-Structured Fish Populations, Res. Energy Econ. 35(2): 113-134.). Arguably, where age-specific fishing mortality rates track trends in M-at-age, and a virtual population analysis shows sharply declining Fs with age, a natural refugium may exist for larger individuals. In this case, an aimed fishery for juveniles may be more easily supported by the stock than if a fishery is aimed at the very few adults reaching maturity.

A more detailed description of predation risk in fisheries for juveniles

Ideally, the first question to address is whether the survival rate to sexual maturity will be adequate for population continuity? Egg production of highly fecund species is not usually seen as a constraint on recruitment, but when coupled with the reciprocal mortality model, the need for conservation of population fecundity becomes more evident. The majority of a new cohort is consumed by predators early in life, and discarding also reduces the abundance of pre-recruits.

Events in the period from spawning to recruitment in many adult fisheries (often with partial exploitation starting at ages 2 to 3+), are critical to proper management, but not easily investigated. Calculations of survival rates from egg to maturity are rare, and indirect approaches to estimation often bypass the egg, larval and post-larval stages by using an SRR (e.g. Mangel et al. 2013Mangel M., MacCall A.D., Brodziak J., et al. 2013. A perspective on steepness, reference points, and stock assessment. Can. J. Fish. Aquat. Sci. 70: 930-940.), in which direct information on the early life history from egg to recruitment is not needed. SRRs developed by Beverton and Holt, or the alternative by Ricker (1958)Ricker W.E. 1958. Handbook of computations for biological statistics of fish populations. JFRB Bulletin, Ottawa, 500 pp., are not currently available for most Mediterranean resources where long time series of age compositions are rare, and small adult catches of some species are made.

Studies carried out on hake biology (e.g. Bozzano et al. 1997Bozzano A., Recasens L., Sartor P. 1997. Diet of the European hake Merluccius merluccius (Pisces: Merluccidae) in the Western Mediterranean (Gulf of Lions). Sci. Mar. 61(1): 1-8., Carpentieri and Colloca 2005Carpentieri P., Colloca F. 2005. Feeding habits of European hake (Merluccius merluccius) in the central Mediterranean Sea. Fish. Bull. 103: 411-416.) showed that cannibalism is an important dietary source for large hake, but Payne et al. (1987)Payne A.I.L., Rose B., Leslie R.W. 1987. Feeding of hake and a first attempt at determining their trophic role in the South African west coast marine environment. S. Afr. J. Mar. Sci. 5: 471-501. noted that small hake are rarely found in the vicinity of adults, due to size segregation by depth. Nonetheless, the main ecological role of most offspring will be to contribute trophically to the local ecosystem. This is consistent with ecosystem theory: high juvenile mortality means that small organisms make up a large component of fish food, a feature not always represented in those ecosystem models which use adult values of M in their simulations.

METHODSTop

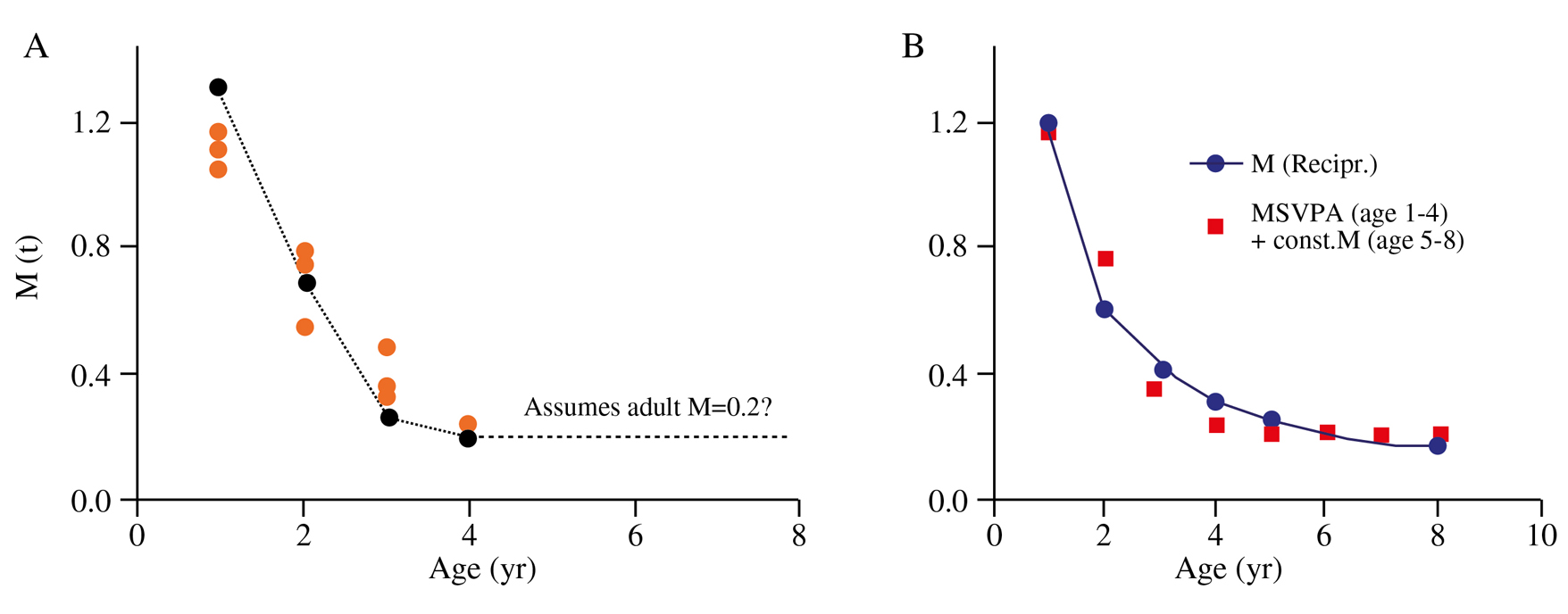

Choosing a useful approximation to M-at-age (M_t) for juveniles

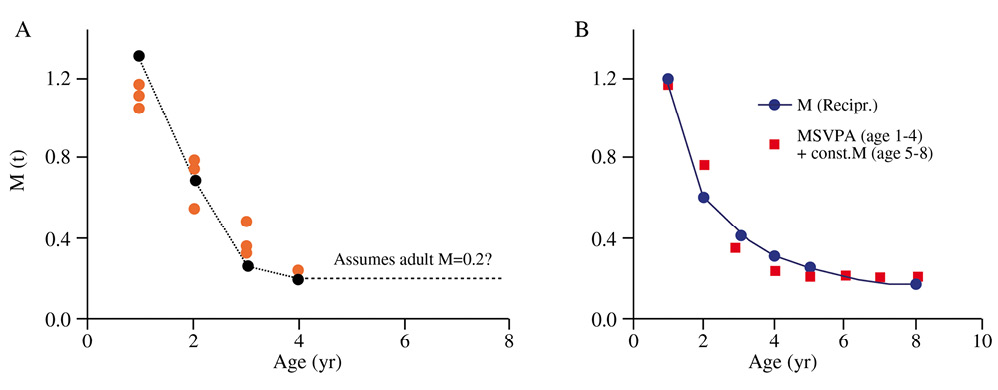

The MSVPA experiments in the North Sea estimated the age structure of small fish found in the stomachs of predators, and showed that predation rates on small fish are very high (Sparholt 1990Sparholt H. 1990. Improved estimates of the natural mortality rates of nine commercially important species included in the North Sea multispecies VPA model. J. Cons. Perm. Int. Explor. Mer 46: 211-223.). Stomach sampling of predators using the MSVPA procedure is apparently still used to obtain M-at-age for juvenile cod in the North Sea (see ICES 2014ICES. 2014. WGNSSK Report: (14 Cod – Subarea IV and Divisions IIIa and VIId – Natural mortality by age group. 820 pp. ) but rarely elsewhere, perhaps because of the substantial research effort needed to collect, identify and determine ages for prey species in stomachs. One of the few data sets allowing a comparison of the predictions of the reciprocal model was the natural mortality rate estimated from age compositions of the first four age classes of cod sampled from stomach contents of predators (ICES 2014ICES. 2014. WGNSSK Report: (14 Cod – Subarea IV and Divisions IIIa and VIId – Natural mortality by age group. 820 pp.). A portion of this data set was fitted using the PROBIOM procedure (Abella et al. 1997Abella A.J., Caddy J.F., Serena F. 1997. Do natural mortality and availability decline with age? An alternative yield paradigm for juvenile fisheries, illustrated by the hake Merluccius merluccius fishery in the Mediterranean. Aquat. Living Resour. 10: 257-269.), together with growth data for cod from Abella et al. (1995)Abella A., Auteri R., Serena F. 1995. Some aspects of growth and recruitment of hake in the Northern Tyrrhenian Sea. Cah. Options Méditer. 10: 27-28. and length-weight information from Arnason (2009)Arnason T, Björnsson B., Steinarsson A. 2009. Allometric growth and condition factor of Atlantic cod (Gadus morhua) fed to satiation: effects of temperature and body weight. J. Appl. Ichthyol. 25(4): 401-406.. Figure 3A compares juvenile M_t estimates for North Sea cod in ICES (2014)ICES. 2014. WGNSSK Report: (14 Cod – Subarea IV and Divisions IIIa and VIId – Natural mortality by age group. 820 pp. with their best fit using the reciprocal model. The procedure for obtaining an M_t vector with PROBIOM minimizes the difference for all age groups between collective age-specific values of overall biomass losses (OLB) and overall production, using the SOLVER routine of EXCEL. In Figure 3B, a comparison is made with MSVPA data for cod, including M values for adult fish, where constant M appears to have been assumed for older fishes in the MSVPA plot. Unlike the ICES (2014)ICES. 2014. WGNSSK Report: (14 Cod – Subarea IV and Divisions IIIa and VIId – Natural mortality by age group. 820 pp. data, the reciprocal model shows a slow decline in Mt for older, larger fishes, which is consistent with predation theory. Figure 4A and B shows the fitting of the MSVPA data for M-at-age of cod, using the reciprocal relationship (Caddy 1991Caddy J.F. 1991. Death rates and time intervals: is there an alternative to the constant natural mortality axiom? Rev. Fish Biol. Fish. 1: 109-138., Abella et al. 1997Abella A.J., Caddy J.F., Serena F. 1997. Do natural mortality and availability decline with age? An alternative yield paradigm for juvenile fisheries, illustrated by the hake Merluccius merluccius fishery in the Mediterranean. Aquat. Living Resour. 10: 257-269.), where

Mt = A+B/t > 0, t = age, and A, B are constants.

Yield/recruit and fecundity/recruit models for European hake

To assess Y/R, the reciprocal model for natural mortality was combined with different vectors of F in calculations of Thompson and Bell (1934)Thompson W.F., Bell F.H. 1934. Biological statistics of the Pacific halibut fishery. (2) Effects of changes in intensity upon total yield and yield per unit of gear. Int. Fish. Comm. Rep. 8., where the relative Fs-at-age correspond to the vector of fishing mortality at size found by Caddy and Abella (1999)Caddy J.F., Abella A.J. 1999. Reconstructing reciprocal M vectors from length cohort analysis (LCA) of commercial size frequencies of hake, and fine mesh trawl surveys over the same grounds. Fish. Res. 41: 169-175.. These results were compared with similar life history calculations using the same F vector and number of age 0+ recruits, but an assumed constant value of 0.2 for M-at-age (Fig. 4A). To test the effect of different levels of juvenile fishing mortality on yield and fecundity/recruit, the original F vector from Caddy and Abella (1999)Caddy J.F., Abella A.J. 1999. Reconstructing reciprocal M vectors from length cohort analysis (LCA) of commercial size frequencies of hake, and fine mesh trawl surveys over the same grounds. Fish. Res. 41: 169-175. was scaled to represent progressively intensifying fishing mortalities on the population (Fig. 5), with relative Fs-at-age peaking at 1-2+ y (see Fig. 6A). These F-vectors, with relative Fs-at-age, were used to calculate yield/recruit and fecundity/recruit for different levels of overall fishing intensity. Egg production/female for survivors of this second generation, once mature, was accumulated over all mature ages for each vector of F-at-age, and the mean size captured, the yield/recruit, and the ratios of juveniles surviving were compared with the previous generation.

Charnov’s diagnosis for a stable population

For stable populations, Charnov (1993)Charnov E.L. 1993. Life history invariants. Oxford Series in Ecology and Evolution. Oxford Univ. Press, 167 pp. proposed that a mature female must produce enough eggs so that at least one female in the next generation survives predation to reproduce. The reciprocal equation for Mt is equivalent to a high level of mortality on juveniles, so while a female may lay over 10⁵ eggs per year, very few adult female survivors will result (Table 1). Calculations of fecundity/recruit using a low and constant M make no sense here: too many recruits would survive, which would lead to a population explosion or a die-off in the absence of adequate food. If the fishing strategy respects the Charnov criterion, then equality between the fecundity of successive generations of mature females could be a useful theoretical limit reference point for a sustainable juvenile fishery (Caddy 2014bCaddy J.F. 2014b. The advantages offered by Mediterranean shelf habitats for the conservation of demersal resources using the refugium concept. Biol. Mar. Medit. (in press).). In other words, if a long-term ratio of 1:1 is exceeded between the abundance of the maternal generation and its progeny at the same life history stage, then under the assumptions followed here, this is predicted to result in a growing population (Table 1), and vice-versa. Given the typically high variance in intergenerational survival, this approach is not necessarily predictive annually, but (as in a Y/R calculation) is of broad explanatory value.

To test compliance with Charnov’s criterion for population stability, a fixed number of female age 0+ fish was simulated through to the maximum age (15 y assumed), using the parameters of the reciprocal mortality model (A=0.142: B=1.403) fitted for hake by Abella et al. (1997)Abella A.J., Caddy J.F., Serena F. 1997. Do natural mortality and availability decline with age? An alternative yield paradigm for juvenile fisheries, illustrated by the hake Merluccius merluccius fishery in the Mediterranean. Aquat. Living Resour. 10: 257-269.. The annual numbers of eggs spawned by a mature female at each mature age came from Cesarini (1994)Cesarini A. 1994. Biologia reproduttiva di Merluccius merluccius (Linee 1758) nel Mar Tirreno Settentrionale. PhD thesis, Univ. Pisa., and spawning was assumed to start at age 5. Individual egg production-at-age was multiplied by the survivors-at-age predicted by the reciprocal equation, before summing annual fecundities over the reproductive life span. From an independent estimate of planktonic survival for larvae of another hake species, the order of magnitude of female progeny reaching the next generation as 0+ recruits after the planktonic stage, was assumed to be 3-5% of the eggs spawned. These figures for larval survival came from the Cape hake (Garavelli et al. 2012Garavelli R., Gross A., Grote B., et al. 2012. Modeling the dispersal of Cape hake ichthyoplankton. J. Plankton Res. 34 (8): 655-669.), and were used in the absence of similar studies on M. merluccius larvae. The number of female 0+ progeny surviving planktonic life was compared with the initial number of 0+ female recruits from which survivors to maturity formed the maternal generation.

RESULTS AND DISCUSSIONTop

Yield per recruit and egg per recruit comparisons for small hake

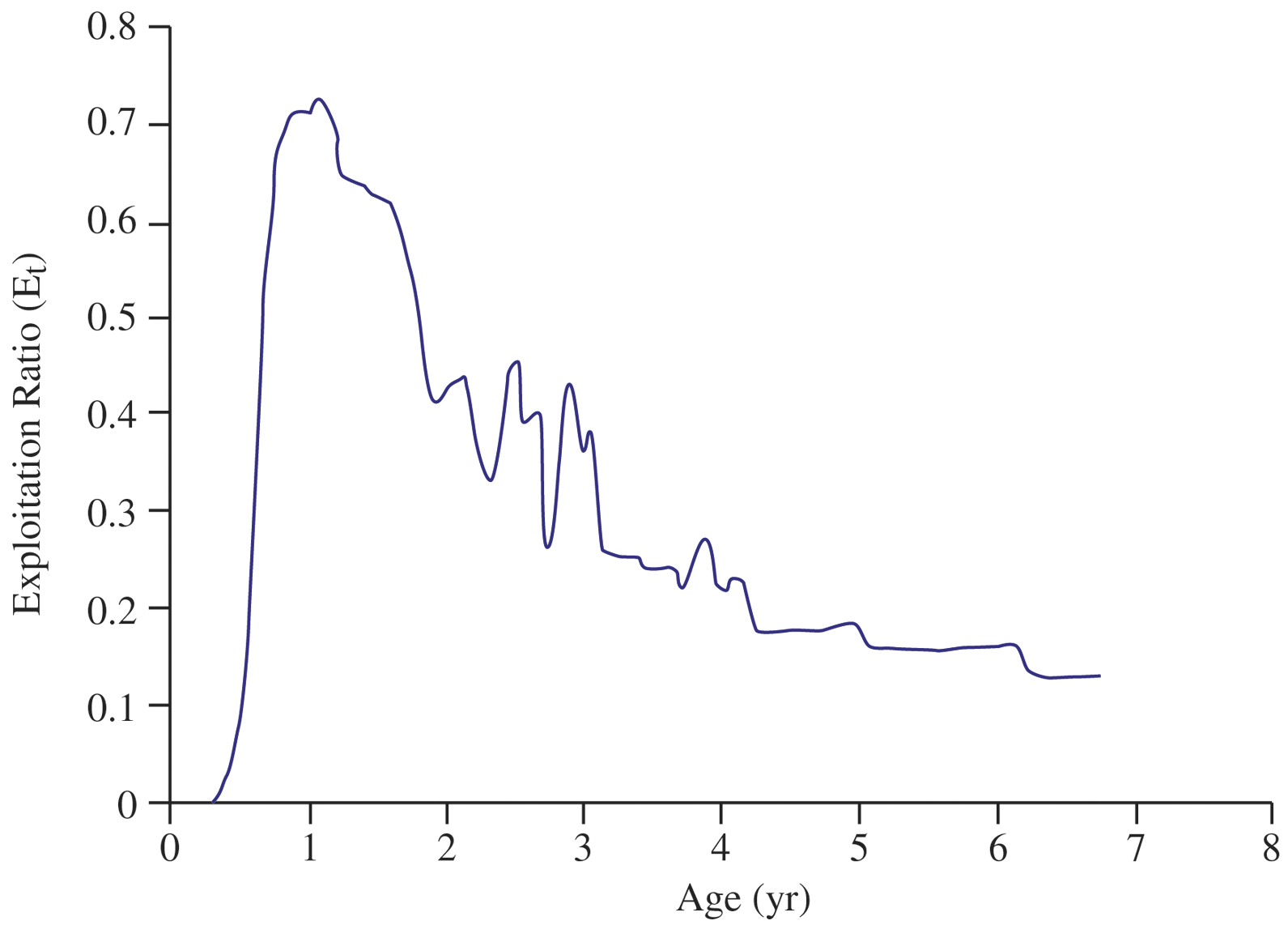

A characteristic of fine-mesh trawls is that they take few European hake over 2-3 years of age. Ragonese (2009)Ragonese S. 2009. Avoidance within a changing assessment paradigm for Mediterranean hake stocks. Medit. Mar. Sci. 10(1): 125-130. suggested that this may be a feature of fine-mesh trawls with a low headline, but a key question is whether larger fish are actually on the fishing grounds used by fine-mesh trawls?

Yield/recruit and calculations for European hake were implemented, assuming harvesting starts at age 0+. The reciprocal M(t) declines sharply from a high on age 0+ juveniles, to a value for older fish close to M (adult) = 0.2, similar to that used in “constant M” calculations. Under the reciprocal M assumption, a minor decline in Y/R will occur with moderate increases in fishing mortality.

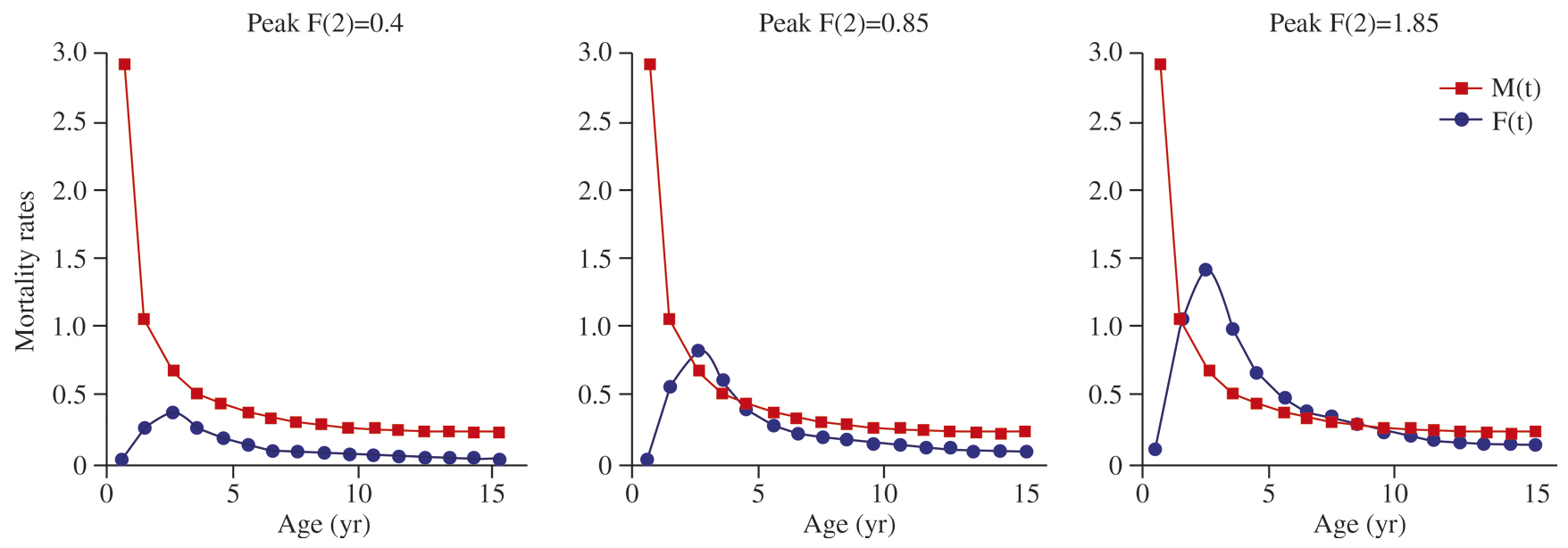

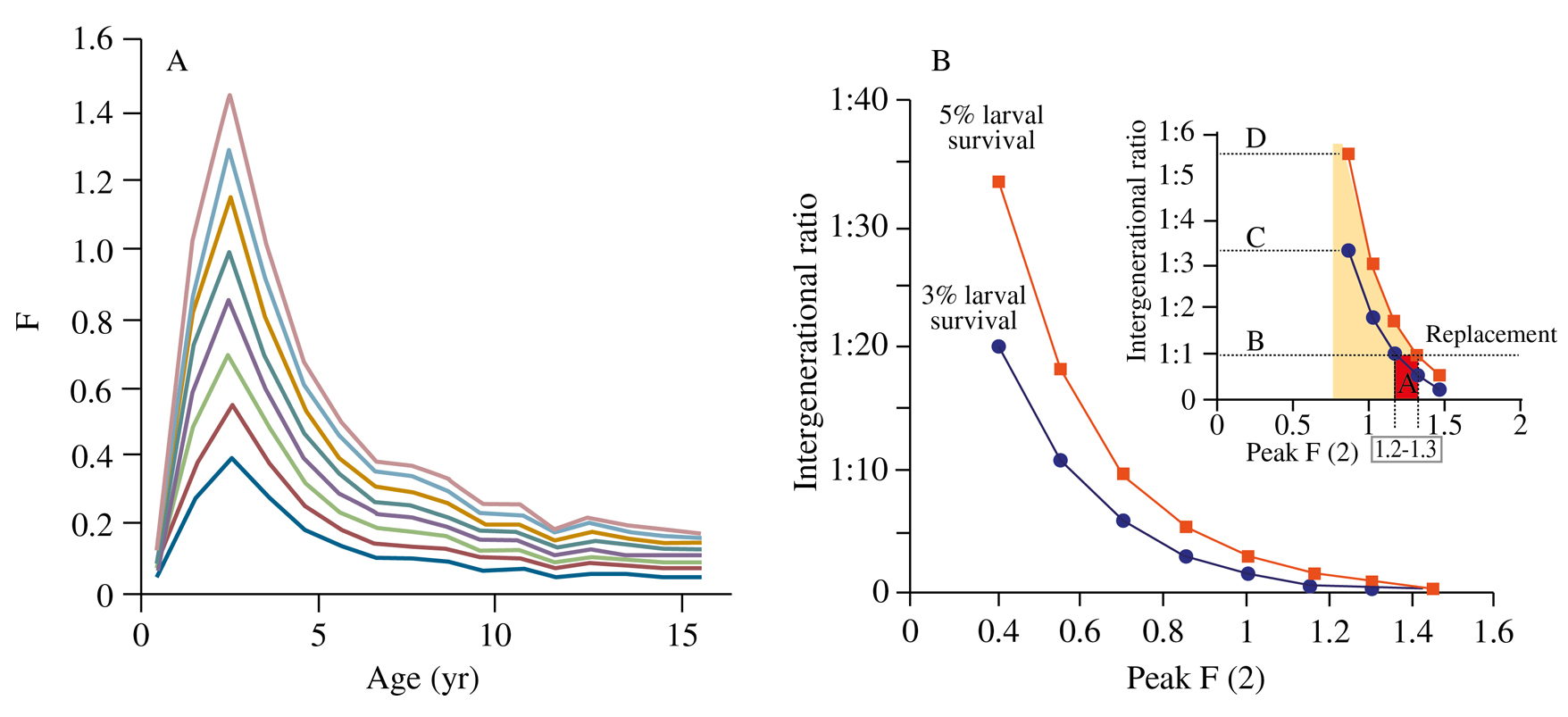

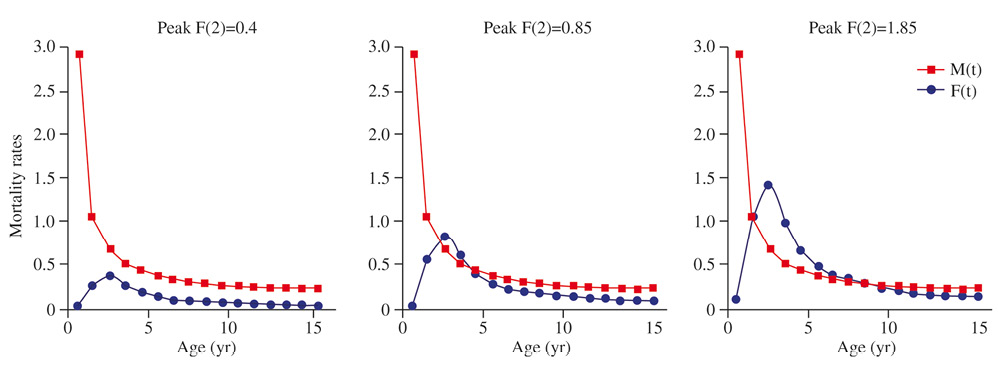

The results of calculations with a range of different fishing mortality rates at age are shown in Figure 6. At a peak of F=1.45, the juvenile fishing mortality rate Ft just exceeds Mt for age 2-4 fish, but for lower fishing intensities and other age groups this is not the case. Catches consist in part of those juveniles, which if unexploited, would soon have been predated. The fishing mortality on age 1+ is already relatively high (Fig. 6A) due to harvesting of dense schools of young hake, although this practice is being discouraged near Viareggio (Abella et al. 2005Abella A.J, Serena F., Ria M. 2005. Distributional response to variations in abundance over spatial and temporal scales for juveniles of European hake (Merluccius merluccius) in the Western Mediterranean Sea. Fish. Res. 71: 295-310.). For ages 3+ (Fig. 6A), the fishing mortality in this locality declines markedly with age, which as noted, may be characteristic of fisheries where a refugium is in place. The fishing mortality rate on immature fish is predicted to remain at or below the predation rate, as illustrated by the age-specific exploitation ratio: E_t = F_t/(F_t+M_t) in Figure 7.

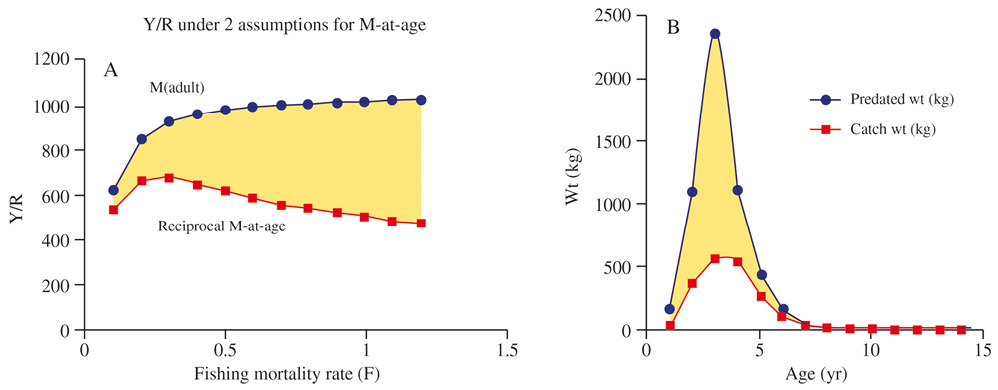

Given the high rate of predation, the predicted Y/R with a reciprocal M-at-age is substantially lower for the same number of 0+ recruits than if calculations assumed constant M (Fig. 4A). However, Y/R calculated with the reciprocal model declines slowly with fishing mortality, and peaks at around age 2. In contrast, a sharp decline in population fecundity is predicted to occur with rising fishing mortality, as shown by the insert in Figure 6B. Here, a 1:1 intergenerational ratio is predicted to occur for the two assumed levels of larval survival, at between F(2)=1.2 and 1.3 (i.e. below the current level of F=1.48 estimated by STECF 2014STECF. 2014. (Scientific, Technical and Economic Committee for Fisheries of the EU). Assessment of Mediterranean Sea stocks, part1 (STECF-14-17).). This suggests that at the current level of F, adequate stock replenishment is not occurring. The insert on Figure 6B also shows a precautionary (yellow) range for peak Fs, extending down to an arbitrary low at F(2)=0.7. The two descending lines plotted against peak F(2) in the fishing mortality vectors of Figure 6B correspond to predicted replacement ratios of the ratio (maternal abundance at age 0+) : (abundance of offspring at age 0+) of 1:3 and 1:6 for the 5% and 3% respectively, of the larval survival predicted in the plankton. The value to aim for in a recovery plan would be a sufficiently high replacement ratio, perhaps of an order of magnitude of about 1:3 to 1:6?

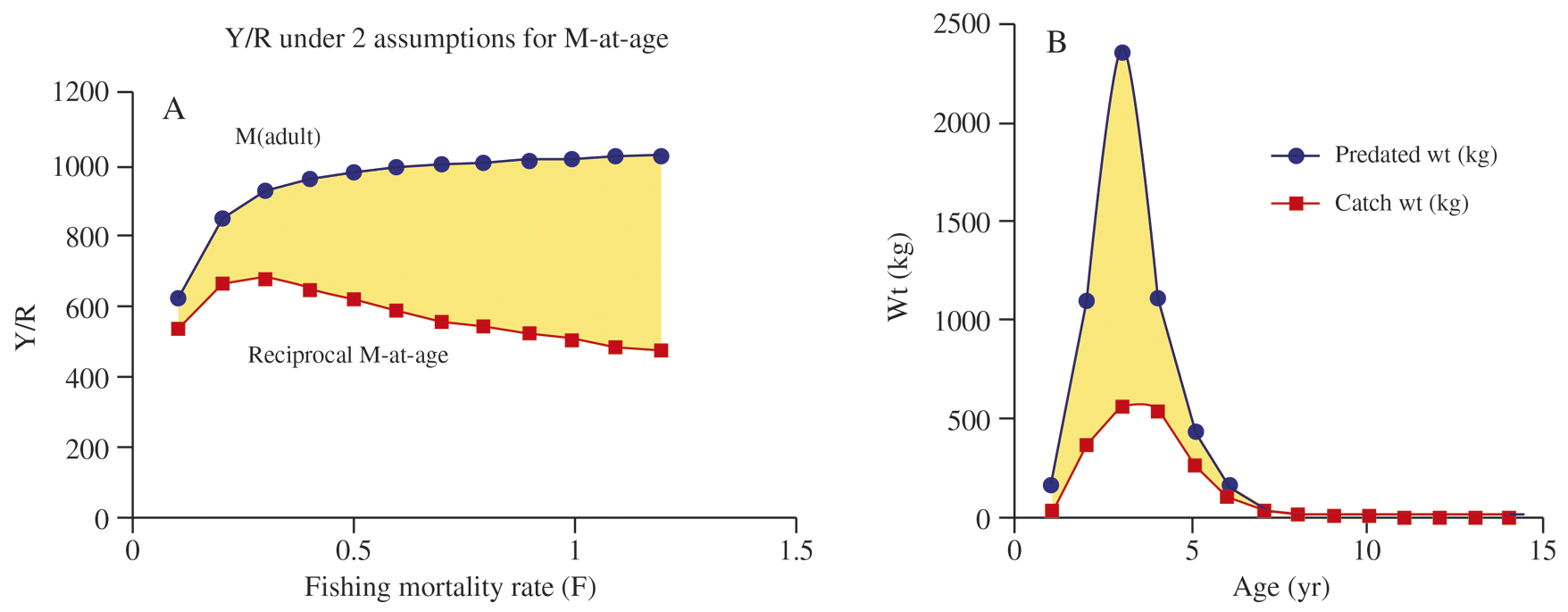

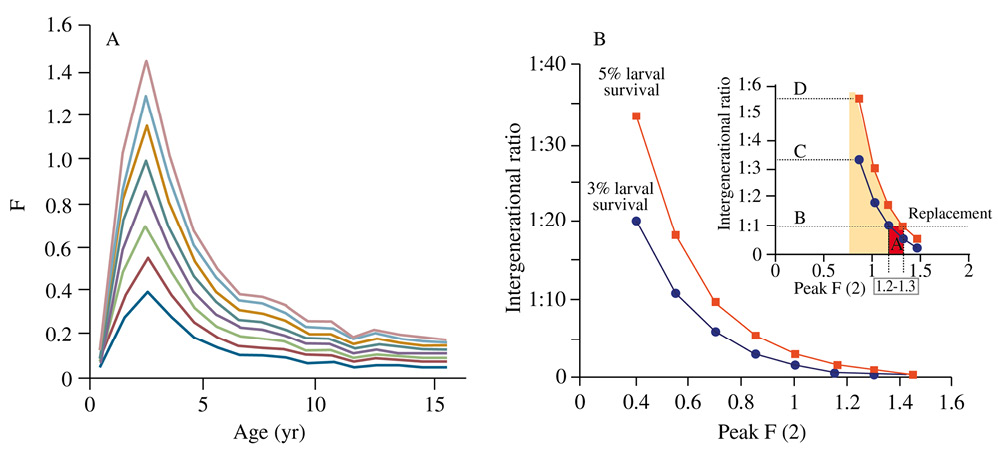

In conclusion, Figure 6B shows that the critical motive for controlling fishing pressure on juveniles would be to improve survival to recruitment, not primarily to maximize the yield extracted. In fact, the Y/R of juveniles is relatively impervious to modest changes in fishing pressure, given that fish sizes captured are predicted to decline when a higher fishing intensity catches them earlier in life with a higher mean Mt. Thus, there is no advantage gained from a high level of juvenile fishing mortality.

A retrospective view on Mediterranean demersal fisheries in the northwestern Mediterranean

A retrospective view of events in Mediterranean demersal fisheries seems useful, given that Vasilakopoulos et al. (2014)Vasilakopoulos P., Maravillas C.D., Tserpes G. 2014. The alarming decline of Mediterranean fish stocks. Current Biol. 24(1-6): 1643-1648. commented on the lack of effective action in managing Mediterranean demersal resources. Catches of many Mediterranean species reported by the GFCM peaked in the late 1980s and early 1990s, and have declined since then. Mediterranean hake landings were highest in 1990 at over 52000 tonnes, but had fallen by half by 2002. In 2009-2010, the GFCM again considered that hake stocks were overexploited, and in particular, the spawning stock. In consequence, conservation groups have called for restrictions on areas fished, and the elimination of gear modifications which allow trawling over biologically sensitive areas (positive effects of such a prohibition was documented in US waters by Bellman et al. 2005Bellman M.A., Heppell S.A., Goldfinger C. 2005. Evaluation of a US west coast groundfish habitat conservation regulation via analysis of spatial and temporal patterns of trawl fishing effort. Can. J. Fish. Aquat. Sci. 62: 2886-2900.). Targeting the foraging arenas surrounding untrawlable bottom may catch more fish, but lost netting added to outcrops continues to “ghost fish” (e.g., Link and Demarest 2003Link J.S., Demarest C. 2003. Trawl hangs, baby fish, and closed areas: a win-win scenario. ICES J. Mar. Sci. 60: 930-938.), further depleting stocks.

That a fishery for juveniles was accompanied by some protection of the spawning stock by refugia in deeper waters is a key explanatory element for the continuity of production by the inshore trawl fishery in the 1970s-1990s. During the 1980s-1990s, landings of Mediterranean demersal species were steadily rising (see Fiorentini et al. 1997Fiorentini L., Caddy J.F., de Leiva J.I. 1997. Long- and short-term trends of Mediterranean fishery resources. GFCM Stud. Rev. 69: 1-72.), while paradoxically, assessments presented at GFCM over the same period showed full to over-exploitation of hake stocks. In response to this conundrum, investigations by Caddy (1993Caddy J.F. 1993. Towards a comparative evaluation of human impacts on fishery ecosystems of enclosed and semi-enclosed seas. Rev. Fish. Sci. 1(1): 7-95., 2000)Caddy J.F. 2000. Marine catchment basin effects versus impacts of fisheries on semi-enclosed seas. ICES J. Mar. Sci. 57: 628-640., and De Leiva Moreno et al. (2000)De Leiva Moreno J.I., Agostini V.N., Caddy J.F. et al. 2000. Is the pelagic-demersal ratio from fisheries landings a useful proxy for nutrient availability? A preliminary data exploration for the semi-enclosed seas around Europe. ICES J. Mar. Sci. 57: 1091-1102. drew attention to an increase in productivity of the semi-enclosed Mediterranean Sea, accompanied by a transition from oligotrophic to mesotrophic conditions in the Gulf of Lions and Adriatic, which now receive high nutrient runoff from rivers. It seems reasonable to conclude that overall increases in recruitment over this period were responses to favourable trophic and environmental inputs: perhaps somewhat comparable to the gadoid outburst in the North Sea cod stocks in the 1970s caused by environmentally-driven changes in food abundance (Hislop 1996Hislop J.R.G. 1996. Changes in North Sea gadoid stocks. ICES J. Mar. Sci. 53(6): 1146-1156.). It would not be surprising therefore, if at the time, national management authorities saw implementation of strong corrective measures as less than urgent, despite assessments showing over-exploitation.

This paper is unable to answer the question as to whether environmental factors are also in part responsible for recent declines in recruitment, or is overfishing the sole cause? The exploitation rate at age described for the “Mediterranean paradigm” parallels the trend in natural mortality at age, in that both the exploitation rate and the natural mortality rate are high for juveniles, but drop to much lower levels for mature fish. In other words, fishing mortality at age parallels natural mortality at age: a strategy with a lower impact than the Beverton and Holt approach, where adult fish are targeted and juveniles supposedly conserved (if indirect fishing mortalities and deaths due to discarding can be ignored). Targeting of the spawning stock is contrary to the declining trend in predation mortality with age normally seen in nature, and places the few spawners surviving in a heavily exploited population at risk of reproductive overfishing if errors are made in assessment or management. As noted by Hixon et al. (2014)Hixon M.A., Johnson D.W., Sogard S.M. 2014. BOFFFFs: on the importance of conserving old-growth age structure in fishery populations. ICES J. Mar. Sci. 71(8): 2171-2185., “Fishing differentially typically resulting in severe truncation of the size and age structure of the population […] acting as a powerful selective agent. Age truncation is now known to destabilize fished populations, increasing their susceptibility to collapse”.

Seasonal bathymetric distribution of demersal fish: is there an offshore migration to a fishery refugium?

Evidence points to a characteristic of fine-mesh trawls in not taking many hake over 2-3 years of age, which Ragonese (2009)Ragonese S. 2009. Avoidance within a changing assessment paradigm for Mediterranean hake stocks. Medit. Mar. Sci. 10(1): 125-130. suggested to be a feature of fine-mesh trawls with a low headline height, but the key question is whether larger fish are on the trawling grounds? The hypothesis of gear inefficiency in not capturing large hake cannot be eliminated, but an offshore migration on maturity may be a major causative factor (see Figs 1 and 4). Also, the fishing mortality estimates obtained by virtual population analysis decrease markedly with age to low fishing mortalities (e.g. Caddy and Abella 1999Caddy J.F., Abella A.J. 1999. Reconstructing reciprocal M vectors from length cohort analysis (LCA) of commercial size frequencies of hake, and fine mesh trawl surveys over the same grounds. Fish. Res. 41: 169-175., Aldebert and Recasens 1996Aldebert Y., Recasens L. 1996. Comparison of methods for stock assessment of European hake, Merluccius merluccius in the Gulf of Lions (Northwestern Mediterranean). Aquat. Liv. Res. 9: 13-22.). As noted, these issues point to a spawning refugium in operation, which was defined by Anthony and Caddy (1980)Anthony V.C., Caddy J.F. (eds). 1980. Proceedings of the Canada–U.S. workshop on status of assessment science for N.W. Atlantic lobster (Homarus americanus) stocks (St. Andrews, N.B., 24-26 October 1978). Can. Tech. Rep. Fish. Aquat. Sci. No. 932. Biological Station, St. Andrews, New Brunswick. 186 pp. as a combination of locality and gear performance that protects critical life history stages. When discussing the effectiveness of refugia, I refer to the opinion of Carl Walters, quoted in Orensanz and Jamieson (1998)Orensanz J.M., Jamieson G.S. 1998. The assessment and management of spatially structured stocks: an overview of the North Pacific Symposium on Invertebrate Stock Assessment and Management. In: Jamieson G.S, Campbell A. (eds), Proceedings of the North Pacific Symposium on Invertebrate Stock Assessment and Management. Can. Spec. Publ. Fish Aquat. Sci. 125: 441-459.: “If we look at fisheries that have been successful over the long term, the reason for their success is not to be found in assessment [...] models, but in the existence of a spatial accident [...] that creates a large-scale refuge for a substantial segment of its spawning population.”

The “refugium paradigm” suggests that the few fish surviving to maturity after escaping the fine-mesh trawl fishery eventually migrate offshore to spawn. In fact, spatial data for the distribution of fishing gears (e.g. Aldebert and Recasens 1996Aldebert Y., Recasens L. 1996. Comparison of methods for stock assessment of European hake, Merluccius merluccius in the Gulf of Lions (Northwestern Mediterranean). Aquat. Liv. Res. 9: 13-22.) showed that areas close to the shelf edge are less vulnerable to fine-mesh trawls, but still vulnerable to set nets or longlines. A spawning stock should also receive some protection there from intensive trawling, as in Italian waters, where a ban on the use of extra chains and large rollers is in place. Without this modification, it would be hazardous to trawl near the shelf edge. However, in Italian waters, most large hake are taken with hooks and set nets down to 400 m, and if the hypothesis illustrated in this paper applies, fishing there with all gears aimed at mature fishes should be controlled.

Some key management issues

The conventional solution to improved demersal fish management in the Mediterranean has been to call for increases in the cod end mesh size and to close nursery areas to fishing. Such a strategy may risk diverting effort onto the depleted component of mature fish, and would lose catches of valuable small species of cephalopods and shrimp only captured by small-mesh gears. From Y/R calculations with the reciprocal model, any increase in yield as a result of a larger mesh size would be at best modest, and might increase the vulnerability of spawners to capture.

While the hake fishery in the Mediterranean seems particularly resistant to heavy exploitation, its current status appears to correspond to both an over-exploitation of juveniles and a likely depletion of the spawning stock. A management approach suggested here is to maintain spawning production at safe levels by significantly reducing fishing effort on certain offshore grounds described as “refugia” where spawners are regularly encountered, while also strongly limiting trawling effort inshore on juveniles. A suggestion would be to aim for a peak fishing mortality on juveniles not greatly exceeding F(2)≈0.7. Supplementary closures could also be used to protect nursery areas. This approach to management seeks to restore “the Mediterranean paradigm” described by Ragonese (2009)Ragonese S. 2009. Avoidance within a changing assessment paradigm for Mediterranean hake stocks. Medit. Mar. Sci. 10(1): 125-130.. It is potentially relevant for demersal fisheries elsewhere, especially if high exploitation rates have reduced the mean fish size so that juveniles predominate.

Vasilakopoulos et al. (2014)Vasilakopoulos P., Maravillas C.D., Tserpes G. 2014. The alarming decline of Mediterranean fish stocks. Current Biol. 24(1-6): 1643-1648. suggested that limiting juvenile exploitation, implementing management plans, and strengthening compliance, control and enforcement could promote fisheries sustainability in the Mediterranean. Colloca et al. (2013)Colloca F., Cardinale M., Maynou F., et al. 2013. Rebuilding Mediterranean fisheries: a new paradigm for ecological sustainability. Fish and Fisheries 14(1): 89-109. made similar recommendations, including mesh size increases. A reduction in fishing effort and fishing capacity in northwestern Mediterranean waters (GSAs 7 to 9) for juvenile hake is required, and a stock rebuilding plan seems a logical option. The question is, what type of fishery to rebuild? A considerable reduction in capacity and fishing effort for fine-mesh trawlers was called for by Vasilakopoulos et al. (2014)Vasilakopoulos P., Maravillas C.D., Tserpes G. 2014. The alarming decline of Mediterranean fish stocks. Current Biol. 24(1-6): 1643-1648., including the opinion (contrary to that expressed here) that a wholesale switch to a fishery on adult fish be made, with the elimination of a directed fishery on juveniles. Thus, a clash of objectives has been identified that needs resolving. Initially there is a common element between two points of view, namely agreement that a reduction in effort on juveniles is called for. However, a fishery aimed at harvesting adult hake, as recommended by Colloca et al. (2013)Colloca F., Cardinale M., Maynou F., et al. 2013. Rebuilding Mediterranean fisheries: a new paradigm for ecological sustainability. Fish and Fisheries 14(1): 89-109., is not suggested here; it would require mesh size increases, closure of the juvenile fishery, and fishing in offshore areas for stocks of mature hake. Given recent declines in demersal harvests, it is crucial to reduce fishing effort significantly, but this paper supports the idea that an increase in mesh size could be problematical if the calculations are performed with the reciprocal model, and would likely be ineffective if the indirect mortalities to escaping juveniles, and to discards on deck, are substantially higher than with the smaller mesh size. In this author’s opinion, further studies on survival rates, locations and ideal habitats of juveniles should be a priority, but protection of juveniles is better achieved by a control of capacity and by nursery closures, rather than by mesh size increases which increase the vulnerability of spawners (Caddy 2007Caddy J.F. 2007. Marine habitat and Cover. Oceanographic Methodology Series, UNESCO Publishing, 253 pp., 2014aCaddy J.F. 2014a. Why do assessments of demersal stocks largely ignore habitat? ICES J. Mar. Sci. 71: 2114-2126.). In both cases, an objective confirmation of the species and ecosystem impacts of changing mesh size is called for. Minimizing habitat damage inflicted by trawling in the Mediterranean by closing nursery areas (ages 0+ and 1) and establishing offshore refugia to exclude towed gear may also be desirable. The history of the fishery supports the idea that, as long as fishing effort remains at the levels in the 1970s-1980s and offshore refugia are protected, fisheries for juveniles of high fecundity species may be sustainable—and as recent events have demonstrated globally, for “adult” fisheries this is a rare phenomenon!

Bioeconomic analyses (e.g. Caddy and Seijo 2002Caddy J.F., Seijo J.-C. 2002. Reproductive contributions foregone with harvesting: a conceptual framework. Fish. Res. 59: 17-30.) reflected that a local demand exists for small fish at good market prices. Attempting to replace this harvesting focus on juveniles with a fishery for adult fish will not only be difficult but probably will not satisfy local demand. Unlike many fisheries for sexually mature fish where recruitment overfishing is always a risk, a sustainable inshore fishery for juveniles with minimal regulations on gear type could continue, as long as there is a firm limitation on fleet capacity, and on peak juvenile fishing mortalities, and protection is offered to spawning aggregations.

Druon et al. (2012)Druon J.N., Spedicato M.T., Peristeraki P., et al. 2012. MPAs or EFH as a fishery management tool for protecting hake nurseries? Presented at the 2012 Forum of MPAs, Antalya, Turkey. noted that European hake habitat occupies specific areas of the Mediterranean, and despite high year-to-year variability, closed areas and seasons are feasible measures to use for protecting “Essential Fish Habitat”. In their opinion, fisheries closures should be centred on the nursery grounds, and be large enough to include year-to-year variability of key habitats. In order to avoid the export of fishing effort to offshore grounds, Druon et al. (2012)Druon J.N., Spedicato M.T., Peristeraki P., et al. 2012. MPAs or EFH as a fishery management tool for protecting hake nurseries? Presented at the 2012 Forum of MPAs, Antalya, Turkey. suggested a seasonal open fishery, possibly with a quota of fishing days as a suitable recovery measure. The question remains how a decline in fishing pressure on the adult components of the stock and their habitat in deeper water can be achieved? Restricting the fishing locations of trawls and other gears taking adult hake would contribute to the protection of the few fish reaching maturity. An inshore season and inshore closures appear suitable measures, but the restoration of deep water habitats and the conservation of the brood stock would require extensive Marine Protected Areas or the restoration of deep water natural refugia at or below the shelf edge, including regulations restricting offshore gears designed for rough bottom, to help protect what remains of the spawning stock.

CONCLUSIONSTop

The following are the general conclusions of this paper:

For calculations on population stability, a high natural fecundity needs to be balanced by the higher natural mortality of juveniles. The reciprocal equation provides a reasonable approximation to this mortality vector, and fits the MSVPA results. This procedure is recommended for assessments of fisheries where juveniles are either taken incidentally, or are the principal catch component.

Despite a high fecundity, very few hake eggs survive to maturity after hatching if a reciprocal model is used. For population stability over time, the generation of 0+ recruits under exploitation must produce at least the same number of 0+ recruits in the next generation (Caddy 2014bCaddy J.F. 2014b. The advantages offered by Mediterranean shelf habitats for the conservation of demersal resources using the refugium concept. Biol. Mar. Medit. (in press).), as reflecting Charnov’s principle for a stable population.

A ratio close to unity in predicted age 0+ recruits between successive generations was shown to be possible at a peak level of exploitation of age 2+ juveniles, which corresponds roughly to F(2)≈1.2–1.3. This is below the current estimate of fishing mortality by STECF (2014)STECF. 2014. (Scientific, Technical and Economic Committee for Fisheries of the EU). Assessment of Mediterranean Sea stocks, part1 (STECF-14-17). at 1.48, and suggests that the intergenerational ratio already corresponds to a declining stock.

A peak F(2) of 1.2-1.3 is too high for stock recovery if we consider a new Charnov limit reference point based on the requirement for reproductive replacement. Applying this approach as a practical form of assessment requires data on age-specific fecundity, and a more intensive study of larval survival in the plankton.

If the high natural mortality rates of juvenile fishes were used in a trophic model, this would probably result in different conclusions than if predation rates are modelled using the natural mortality rates of adults.

It would be highly desirable to identify more directly, the probability of survival to maturity, the abundance and distribution pattern of adult hake, and to calibrate more directly survival of adult females. This would help point to areas where adult refugia should be located.
