INTRODUCTIONTop
The Gulf of Cadiz is located in the southwestern Iberian Peninsula, between Cape St Vincent (Portugal) and the Strait of Gibraltar (Spain), which connects the Atlantic Ocean and the Mediterranean Sea. The Spanish coastal area of this gulf stretches some 300 km, between Ayamonte (Huelva province) and Tarifa (Cadiz province). The area is influenced mainly by the mouths of the rivers Guadiana, Piedras, Tinto, Odiel, Guadalete and Guadalquivir and is dominated by estuarine zones and extensive sandy beaches, many of which are faced by discontinuous rocky-shore platforms (Benavente et al. 2002Benavente J., Del Río L., Anfuso G., et al. 2002. Utility of morphodynamic characterisation in the prediction of beach damage by storms. J. Coast. Res. 36: 56-64.), especially on the Cadiz coast.
The general air circulation in the Gulf of Cadiz is predominantly anticyclonic, with short-term variation influenced by winds. This region is characterized by a mean water-surface temperature ranging from 18°C to 22°C, a salinity range of 36.3‰ to 36.5‰, an average nitrate, phosphate and silicate concentration of about 0.33, 0.08 and 1.37 μM, respectively (Anfuso et al. 2010Anfuso E., Ponce R., González-Castro C., et al. 2010. Coupling between the thermohaline, chemical and biological fields during summer 2006 in the northeast continental shelf of the Gulf of Cadiz (SW Iberian Peninsula). Sci. Mar. 74S1: 47-56.), and a chlorophyll a concentration of around 10-40 mg m–2 (Prieto et al. 1999Prieto L., García C.M., Corzo A., et al. 1999. Phytoplankton, bacterioplankton and nitrate reductase activity distribution in relation to physical structure in the northern Alborán Sea and Gulf of Cadiz (southern Iberian Peninsula). Bol. Inst. Esp. Oceanogr. 15: 401-411.). These features provide a suitable habitat for the development of several species, which makes this system a very diverse and productive area (Sobrino et al. 1994Sobrino I., Jiménez M.P., Ramos F. et al. 1994. Descripción de las pesquerías demersales de la Región Suratlántica Española. Bol. Inst. Esp. Oceanogr. 151:3-79.). Many species inhabiting the Gulf of Cadiz have economic value, so it is considered an area with great socio-economic importance for fisheries and shellfish gathering (Torres et al. 2013Torres M.A., Coll M., Heymans J.J., et al. 2013. Food-web structure of and fishing impacts on the Gulf of Cadiz ecosystem (South-western Spain). Ecol. Model. 265: 26-44.). Frequently, these species use sandy shores as nursery areas for juveniles (Baldó and Drake 2002Baldó F., Drake P. 2002. A multivariate approach to the feeding habits of small fishes in the Guadalquivir Estuary. J. Fish Biol. 61: 21-32.), feeding on invertebrates (Speybroeck et al. 2007Speybroeck J., Alsteens L., Vincx M., et al. 2007. Understanding the life of a sandy beach polychaete of functional importance – Scolelepis squamata (Polychaeta: Spionidae) on Belgian sandy beaches (northeastern Atlantic, North Sea). Estuar. Coast. Shelf Sci. 74: 109-118.), and they can use biogenic structures (e.g. tubes, mounds and burrows) constructed by the invertebrates as a refuge from predation (Allen-Brooks et al. 2006Allen-Brooks R., Purdy C.N., Bell S.S. et al. 2006. The benthic community of the eastern US continental shelf: A literature synopsis of benthic faunal resources.Cont. Shelf Res. 26: 804-818.).
The sandy shores provide a large range of services, such as sediment and water storage, decomposition of organic matter and pollutants, wave dissipation, water filtration and purification, nutrient recycling, maintenance of biodiversity and a functional link between marine and terrestrial environments, where macroinfauna plays a key role (Defeo et al. 2009Defeo O., McLachlan A., Schoeman D.S., et al. 2009. Threats to sandy beach ecosystems: A review. Estuar. Coast. Shelf Sci. 81: 1-12.). Furthermore, the favourable climatic conditions in Spain make the coastal environments attractive to tourism for several months a year and beaches are a major economic resource (Anfuso et al. 2003Anfuso G., Martínez del Pozo J.A., Gracia F.J., et al. 2003. Long-shore distribution of morphodynamic beach states along an apparently homogeneous coast in SW Spain. J. Coast. Conservat. 9: 49-56.).
Despite the importance of sandy beaches and the scale of the coastline areas occupied in the study, data on biotic and abiotic characteristics are scant. Along the Spanish Gulf of Cadiz, past studies have focused on studying the morphodynamics of sandy beaches in restricted areas (Anfuso et al. 2003Anfuso G., Martínez del Pozo J.A., Gracia F.J., et al. 2003. Long-shore distribution of morphodynamic beach states along an apparently homogeneous coast in SW Spain. J. Coast. Conservat. 9: 49-56.) and the morphological changes associated with meteorological events (Buitrago and Anfuso 2011Buitrago N.R., Anfuso G. 2011. Morphological changes at Levante Beach (Cadiz, SW Spain) associated with storm events during the 2009-2010 winter seasons. J. Coast. Res. 64: 1886-1890.). The few studies that have described the fauna inhabiting the beaches have focused on macroinfauna from estuarine beaches (Mayoral et al. 1994Mayoral M.A., López-Serrano L, Viéitez J.M. 1994. Macroinfauna bentónica intermareal de 3 playas de la desembocadura del río Piedras (Huelva, España). Bol. R. Soc. Esp. Hist. Nat. 91: 231-240.) or on the supralittoral arthropods associated with wrack deposits (Ruiz-Delgado et al. 2014Ruiz-Delgado M.C., Vieira J.V., Veloso V.G., et al. 2014. The role of wrack deposits for supralittoral arthropods: An example using Atlantic sandy beaches of Brazil and Spain. Estuar. Coast. Shelf Sci. 136: 61-71.). There is therefore a considerable lack of information on macroinfauna communities in this region.
Increasing human interest in sandy beaches has exacerbated unsustainable practices that involve destruction of these natural environments (Defeo et al. 2009Defeo O., McLachlan A., Schoeman D.S., et al. 2009. Threats to sandy beach ecosystems: A review. Estuar. Coast. Shelf Sci. 81: 1-12.). Identifying and mapping the macroinfauna inhabiting sandy beaches is an essential step for establishing effective management and conservation tools for a better use of these marine environments (McLachlan et al. 2013McLachlan A., Defeo O., Jaramillo E., et al. 2013. Sandy beach conservation and recreation: Guidelines for optimising management strategies for multi-purpose use. Ocean Coast. Manage. 71: 256-268., Rolet et al. 2015Rolet C., Spilmont N., Dewarumez J.M. 2015. Linking macrobenthic communities structure and zonation patterns on sandy shores: Mapping tool toward management and conservation perspectives in Northern France. Cont. Shelf. Res. 99:12-25., Schlacher et al. 2014Schlacher T.A, Schoeman D.S., Jones A.R., et al. 2014. Metrics to assess ecological condition, change, and impacts in sandy beach ecosystems. J. Environ. Manage. 144: 322-335.) and for estimating the potential response of biota to future habitat changes.
The aim of this study is to provide the first description of macroinfauna communities inhabiting sandy beaches and their environmental characteristics. To this end, (1) the physical and morphodynamic characteristics of 12 sandy beaches along the Gulf of Cadiz coastline were defined; (2) the macroinfauna communities inhabiting sandy beaches were characterized; (3) the zonation pattern of macroinfauna was determined; and (4) the influence of environmental factors on the zonation patterns was explored.
Finally, all this information was employed to calculate two quantitative indicators following McLachan et al. (2013)McLachlan A., Defeo O., Jaramillo E., et al. 2013. Sandy beach conservation and recreation: Guidelines for optimising management strategies for multi-purpose use. Ocean Coast. Manage. 71: 256-268.. These indices are used to assess beach condition and suitability for different uses, from which guidelines for planning, management and monitoring can be derived.
MATERIALS AND METHODSTop
Study area

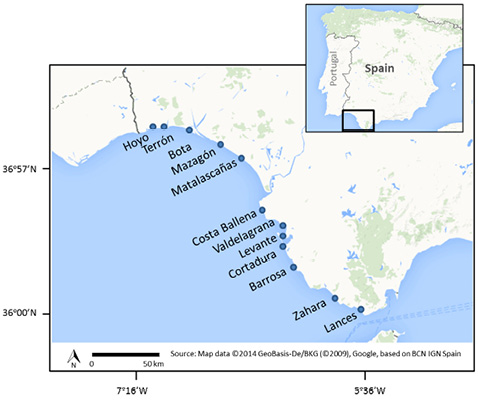

The study area comprised 12 sandy beaches along the Spanish coast of the Gulf of Cadiz, from Hoyo beach (37°11’55”N, 07°17’45”W) near the Portuguese border to Lances beach (36°02’31”N, 05°38’08.031”W) in the area near the Strait of Gibraltar (Fig. 1).
|
||
|
Sampling procedures
For all 12 beaches, macroinfauna sampling was carried out in six replicated transects haphazardly separated by a 100-m-long stretch in the central area of each beach during low tide between March and May 2011.
In each transect, macroinfauna samples were collected at 10 equally spaced shore levels extending from above the drift line (level 10) to the low swash zone (level 1) with a 25-cm-diameter plastic core of a depth of 20 cm. Transect length depended on each beach’s width. A total of 60 samples were collected within a total sampled area of 3.75 m2 per beach. On temperate beaches this area is considered sufficient to collect 90% of all the macroinfauna (Jaramillo et al. 1995Jaramillo E., McLachlan A., Dugan J. 1995. Total sample area and estimates of species richness in exposed sandy beaches. Mar. Ecol. Prog. Ser. 119: 311-314.). Samples were sieved on site through a 1-mm mesh sieve, collected in labelled plastic bags and preserved in 70% ethanol stained with Rose Bengal. Additionally, one sediment sample was taken at each sampling level with a plastic tube (3.5 cm diameter) buried 15 cm deep to analyse the mean grain size, sorting coefficient (Trask 1950Trask P.D. 1950. Applied sedimentation, Jon Wiley and Sons Inc, New York.), sand moisture and organic matter of the sediment.
In the laboratory, the macroinfauna was quantified and identified to the lowest taxonomic level possible. The mean grain size was determined following the method proposed by Guitián and Carballas (1976)Guitián F., Carballas J. 1976. Técnicas de análisis de suelos. Pico Sacro. Santiago de Compostela, España, 288 pp.. This method discriminates different granulometric fractions when the sediment composition is mainly sand and the pelitic fraction is low (less than 5%). Sand moisture was determined by measuring the weight loss after drying the samples at 90°C. The organic matter content of the sediment fraction <0.5 mm was estimated as the difference between dry sediment weight and sediment weight after calcination at 500°C.
To characterize the morphodynamic state, the relative tidal range (Masselink and Short 1993Masselink G., Short A.D. 1993. The effect of tide range on beach morphodynamics and morphology: a conceptual beach model. J. Coast. Res. 9: 785-800.), the beach index (McLachlan and Dorvlo 2005McLachlan A., Dorvlo A. 2005. Global patterns in sandy beach macrobenthic communities. J. Coast. Res. 21: 674-687.), the beach state index (McLachlan et al. 1993McLachlan A., Jaramillo E., Donn T.E., et al. 1993. Sandy beach macroinfauna communities and their control by the physical environment: a geographical comparison. J. Coast. Res. 15: 27-38.) and the dimensionless fall-velocity parameter (Dean’s parameter; Dean 1973Dean R.G. 1973. Heuristic models of sand transport in the surf zone. Proceedings of a Conference on Engineering Dynamics in the Surf Zone (Sydney): 208-214.) were used. The beach face slope was estimated by the height difference according to Emery (1961)Emery K.O. 1961. A simple method of measuring beach profiles. Limnol. Oceanogr. 6: 90-93.. The height and wave period, temperature and tidal range were taken from average annual data from the SIMAR oceanographic database of Puertos del Estado (Spanish Ministry of Public Works) (http://www.puertos.es/es-es/oceanografia/Paginas/portus.aspx).
Conservation and recreation potential indices
To characterize the main use of beaches, the conservation index (CI) and the recreation potential index (RI) were applied following McLachlan et al. (2013)McLachlan A., Defeo O., Jaramillo E., et al. 2013. Sandy beach conservation and recreation: Guidelines for optimising management strategies for multi-purpose use. Ocean Coast. Manage. 71: 256-268.. For each indicator a simple scoring system was developed based on three key drivers in order to evaluate the potential/suitability of a beach for conservation and/or recreation. CI takes into account 1) the extent, nature and condition of the dunes, their well-developed vegetation and their connection with the beach; 2) the presence of iconic and endangered species; and 3) the macrobenthic community abundance and species richness. In contrast, RI is based on 1) available infrastructures to support recreational activities (beach access, toilets, etc.); 2) beach safety and health status; and 3) physical carrying capacity. CI and RI values range from 0 to 10, in increasing order of conservation value or recreation potential.
Data analysis
Univariate analyses were used to characterize the fauna communities present on each beach studied, calculating the Margalef richness index (d), the Shannon-Wiener diversity index (H’) and the Pielou evenness index (J’), using the PRIMER software package.
The zonation pattern on each beach studied was identified using cluster analysis, based on the Bray-Curtis similarity matrix, followed by a similarity profile test (SIMPROF) (Clarke and Gorley 2006Clarke K.R., Gorley R.N. 2006. PRIMER v6: user manual/tutorial. PRIMER-E, Plymouth, UK, 192 pp.), to evaluate the significance of the classification (p<0.05). Previously, abundance data were fourth-root transformed to downweight the contribution of the major abundant species.
Once the zonation patterns had been defined on individual beaches, a modal pattern of zonation was established for the entire set of beaches. To this end, species from each sampling level were pooled based on zones identified by cluster analysis. Then, a single matrix of “species × zone” for each beach was generated and all of them were combined into a global matrix. This global biological matrix was fourth-root transformed and subjected to non-metric multi-dimensional scaling ordination (n-MDS). Furthermore, the similarity percentages analysis (SIMPER) was performed in order to find the typifying species in each identified zone for the entire set of beaches along the Gulf of Cadiz. Beaches that did not have a clear zonation pattern were excluded from these analyses. All multivariate analyses were performed with PRIMER-E v 6.1 (PRIMER-E Ltd) (Clarke and Warwick 2001Clarke K.R. Warwick R.M. 2001. Change in Marine Communities: An Approach to Statistical Analysis and Interpretation, second ed. PRIMER-E, Plymouth, UK, 172 pp.).
To determine associations of macroinfauna communities with environmental variables, a canonical correspondence analysis (CCA) was applied. First, a global biological matrix was submitted to detrended correspondence analysis (DCA) in order to measure the gradient lengths and to ensure an unimodal species response. Gradient length of the first axis was greater than 3.0 SD, and a CCA ordination method was used. For this analysis, only the most abundant species (>6% of total contribution in each biological zone identified) were taken into account after fourth-root transformation.
The environmental parameters matrix was transformed (Log(x+1)) and standardized prior to reducing extreme values and providing better canonical coefficient comparisons. Only variables significantly related to the fauna variation were included (p<0.05); to this end, each variable was analysed separately and its significance was tested using a Monte Carlo permutation test (999 permutations) (TerBraak 1995TerBraak C.J.F. 1995. Ordination. In: Jongman, R.H.G., terBraak, C.J.F., van Tongeren, O.F.R. (eds), Data Analysis in Community and Landscape Ecology. Cambridge University Press, Cambridge, United Kingdom, pp. 91-173.).
In CCA analysis, the statistical significance of canonical eigenvalues and the significance of the first two axes were tested by a Monte Carlo test (999 permutations). DCA and CCA were carried out with the statistical software package PC-ORD (McCune and Medford 1997McCune B., Medford M.J. 1997. PC-ORD. Multivariate analysis of ecological data, Version 3 for Windows. MjM Software Design, Gleneden Beach, Oregon.).
RESULTSTop
Beach characteristics
The physical and morphodynamic characteristics of the 12 beaches studied are shown in Table 1. According to the tidal range and relative tidal range, the beaches were categorized as mesotidal, dominated by waves. The beaches showed a wide range of morphodynamic types, classified by Dean’s parameter as intermediate (Terrón, Mazagón, Matalascañas, Barrosa and Zahara), dissipative (Bota, Costa Ballena, Valdelagrana, Levante, Cortadura, and Lances) and reflective (Hoyo). Beach state index values classified most beaches as intermediate to dissipative, with high energy levels, except for Hoyo and Zahara, which were intermediate beaches with low to medium energy levels.
Table 1. – Physical characterization of sampled beaches. L, beach length (m); Mgs, median grain size (mm); OM, organic matter content (%); RTR, Relative tide range; BI, beach index; BSI, beach state index.
| Beaches | L | Slope(1/m) | Mgs | Sand type | Sorting | Dean | RTR | BI | BSI | OM |
|---|---|---|---|---|---|---|---|---|---|---|
| Hoyo | 2800 | 10.99 | 0.65 | coarse sand | 1.54 | 1.6 | 2.27 | 1.36 | 0.92 | 0.62 |
| Terrón | 3500 | 29.52 | 0.42 | medium sand | 1.45 | 2.53 | 2.27 | 2.09 | 1.09 | 0.48 |
| Bota | 3800 | 46.59 | 0.22 | fine sand | 1.33 | 5.23 | 2.7 | 2.51 | 1.36 | 0.89 |
| Mazagón | 5500 | 15.84 | 0.49 | medium sand | 1.57 | 2.1 | 2.41 | 1.75 | 1.05 | 0.62 |
| Matalascañas | 4200 | 13.97 | 0.41 | medium sand | 1.34 | 2.59 | 2.34 | 1.77 | 1.1 | 0.31 |
| Costa Ballena | 4500 | 29.99 | 0.23 | fine sand | 1.35 | 5.91 | 2.27 | 2.31 | 1.43 | 0.68 |
| Valdelagrana | 1880 | 17.69 | 0.21 | fine sand | 1.6 | 6.8 | 2.28 | 2.11 | 1.48 | 1.19 |
| Levante | 4600 | 26.46 | 0.22 | fine sand | 1.43 | 6.32 | 2.49 | 2.25 | 1.42 | 0.75 |
| Cortadura | 2500 | 84.31 | 0.20 | fine sand | 1.25 | 7.73 | 2.02 | 2.81 | 1.55 | 0.81 |
| Barrosa | 4000 | 17.6 | 0.47 | medium sand | 1.55 | 2.42 | 2.05 | 1.76 | 1.03 | 2.92 |
| Zahara | 2900 | 11.5 | 0.51 | coarse sand | 1.75 | 2.26 | 1.58 | 1.43 | 0.93 | 0.83 |
| Lances | 4300 | 24.76 | 0.23 | fine sand | 1.35 | 6.41 | 1.07 | 1.94 | 1.19 | 0.57 |
Macroinfauna
A total of 63 macroinfauna taxa were recorded from the beaches of the Gulf of Cadiz (Appendix 1). Crustaceans were the most diverse taxa, with 23 species, followed by polychaetes (22 species), insects and molluscs (9 and 8 species, respectively). Appendix 1 shows the total abundance, total species, Margalef species richness, Shannon-Wiener diversity index and Pielou evenness index. Bota and Levante had the highest richness, with 33 and 24 species, respectively, while the lowest value was found at Matalascañas (4 species). Density was also highly variable, ranging from 23 to 249 individuals per m2. The lowest diversity value (H’) was observed at Matalascañas beach (0.40), while the highest was found at Levante (2.68). The evenness index ranged from 0.29 at Matalascañas to 0.86 at Lances beach.
Scolelepis spp., Pontocrates arenarius and Haustorius arenarius were the most frequent species. The polychaete was present on 100% of the total beaches sampled, while the amphipods were present on 90%. In terms of abundance, polychaetes of the genus Scolelepis were dominant, accounting for 28% of total abundance, followed by the amphipod Haustorius arenarius, which accounted for 15% of the total.
Zonation

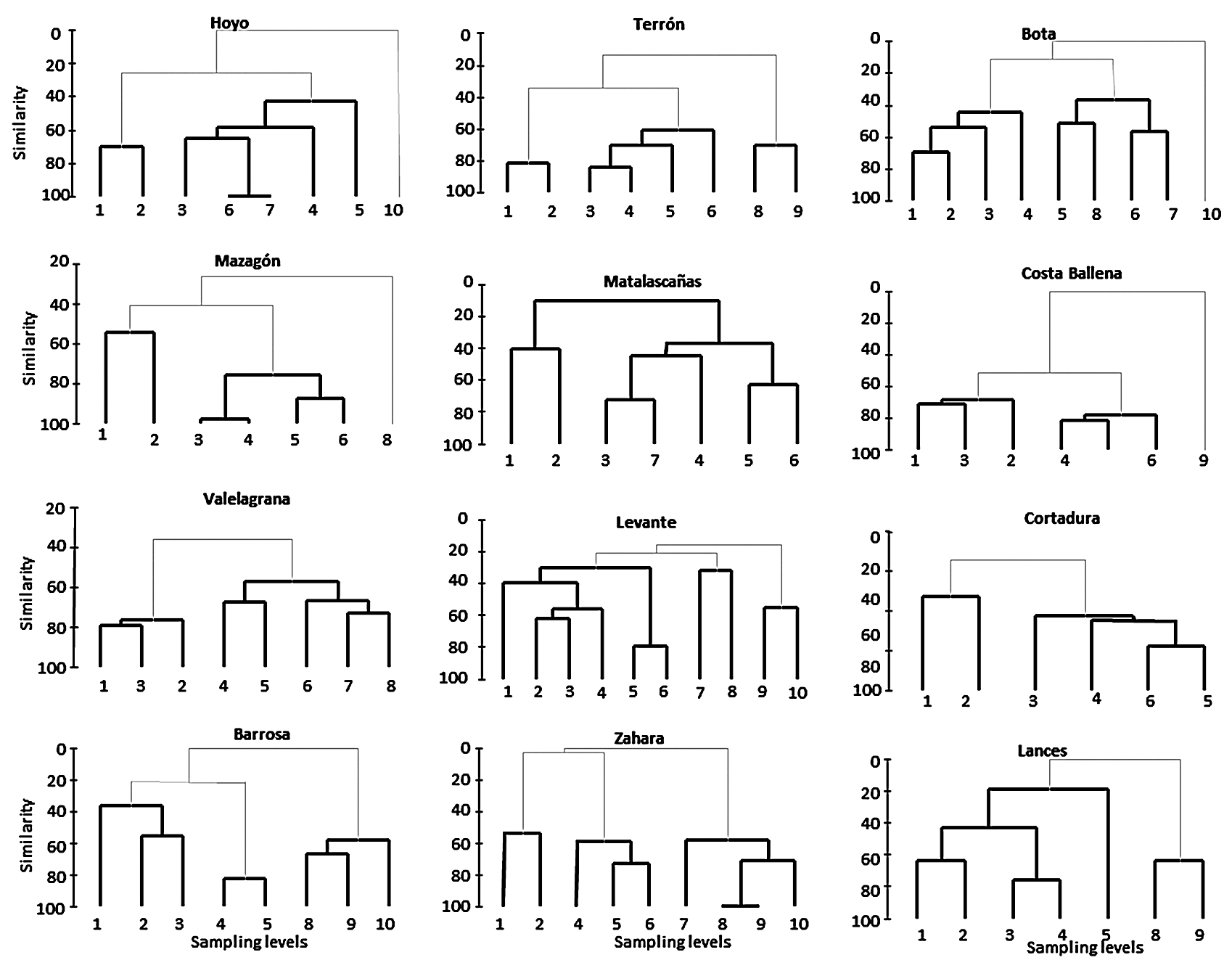

Across-shore species distribution on each beach studied is shown in Figure 2. Cluster ordination and the SIMPROF test identified two biological zones at Valdelagrana and Cortadura and Lances, and three biological zones at Hoyo, Terrón, Bota, Mazagón, Costa Ballena, Levante, Barrosa and Zahara. Exceptionally, Matalascañas did not show a clear zonation pattern. For this analysis, the sampling levels where no species were present were removed.
|
||
|

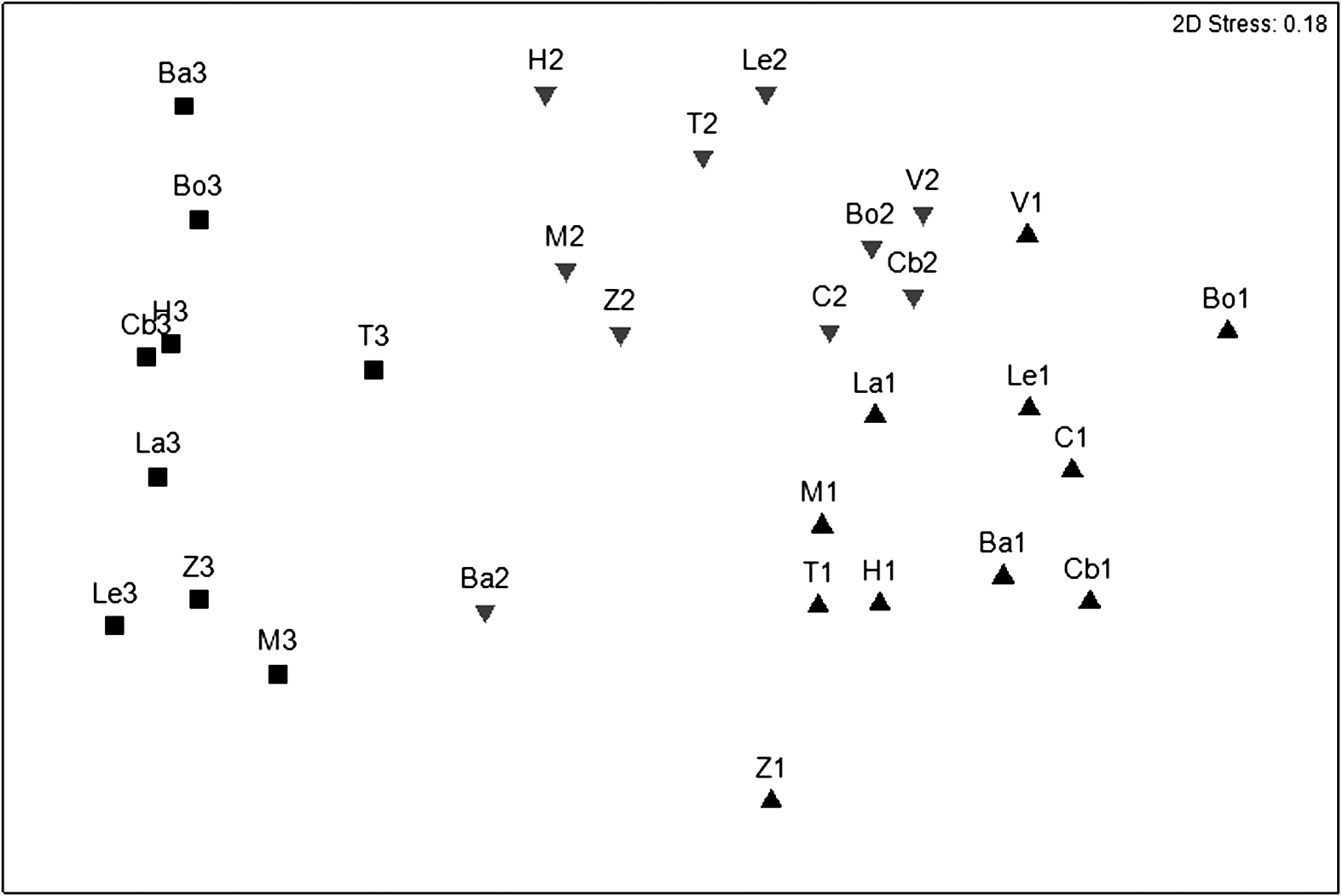

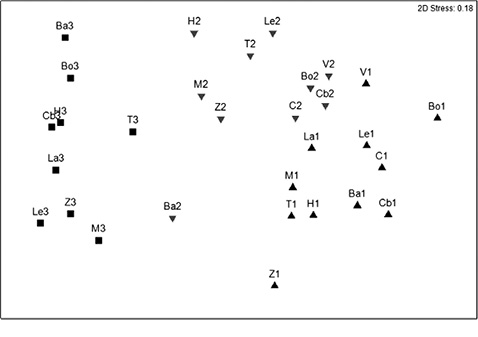

A global zonation pattern of the entire set of beaches from the Spanish Gulf of Cadiz coastline was derived from the individual across-shore species distribution; therefore, faunal zones identified at each beach were gathered for a global MDS ordination (Fig. 3). SIMPER analysis performed on this ordination showed a degree of similarity of 40% between all lower zones, where Pontocrates arenarius, Gastrosaccus sanctus and Scolelepis spp. showed the highest percentages of presences (17.8%, 17.2% and 11.0%, respectively). The middle zones showed a similarity of about 30%. Polychaetes of the genus Scolelepis (37.70%), the isopod Eurydice affinis (26.40%), the amphipod Haustorius arenarius (11.56%), and nemerteans (9.95%) highlighted the similarity in faunal composition between all middle zones. Finally, the upper zones showed a 20% similarity and the typifying species were the air-breathing amphipod Talitrus saltator (56.7%) and coleopterans (37%).
|
||
|

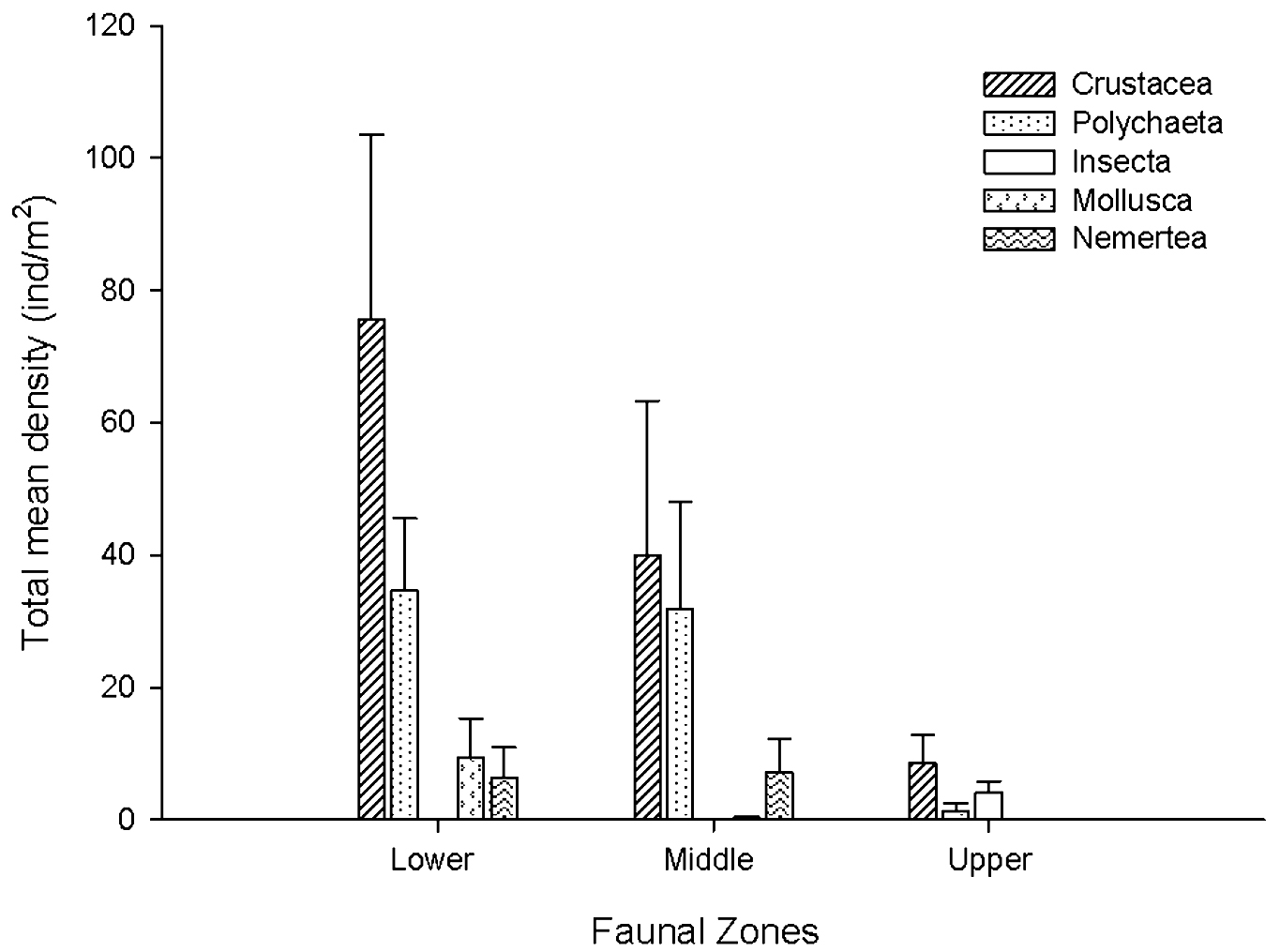

Biologically, density values decreased from the lower to the upper zone. In the lower and middle zones the most abundant taxa were crustaceans and polychaetes, while in the upper zones, besides crustaceans, insects were dominant (Fig. 4).
|
||
|
Relationship between environmental variables and macroinfauna
Environmental variables significantly related to fauna variations, tested by Monte Carlo permutation test, were elevation (p=0.002), sand moisture (p=0.001), organic matter content (p=0.015) and grain size (p=0.001). However, these predictor variables were not strongly correlated (r2<0.5). The Monte Carlo test for the set of environmental variables was significant for both axes (p=0.001) and for eigenvalues (p=0.001) showing a significant relationship between biological data and predictor environmental variables.
The CCA results show that the total variation of data was 2.49 (inertia), while the total variation explained was 0.802 (the sum of all canonical eigenvalues). Pearson species-environmental correlations were relatively high: 0.93 for Axis 1 and 0.82 for Axis 2. The first axis (accounting for 66% of the total explained variation) correlated positively with elevation (0.745) and negatively with sand moisture (–0.887) and organic matter content (–0.465). The second axis (accounting for 0% of the explained variation) correlated mainly with medium-sized grain (0.806).

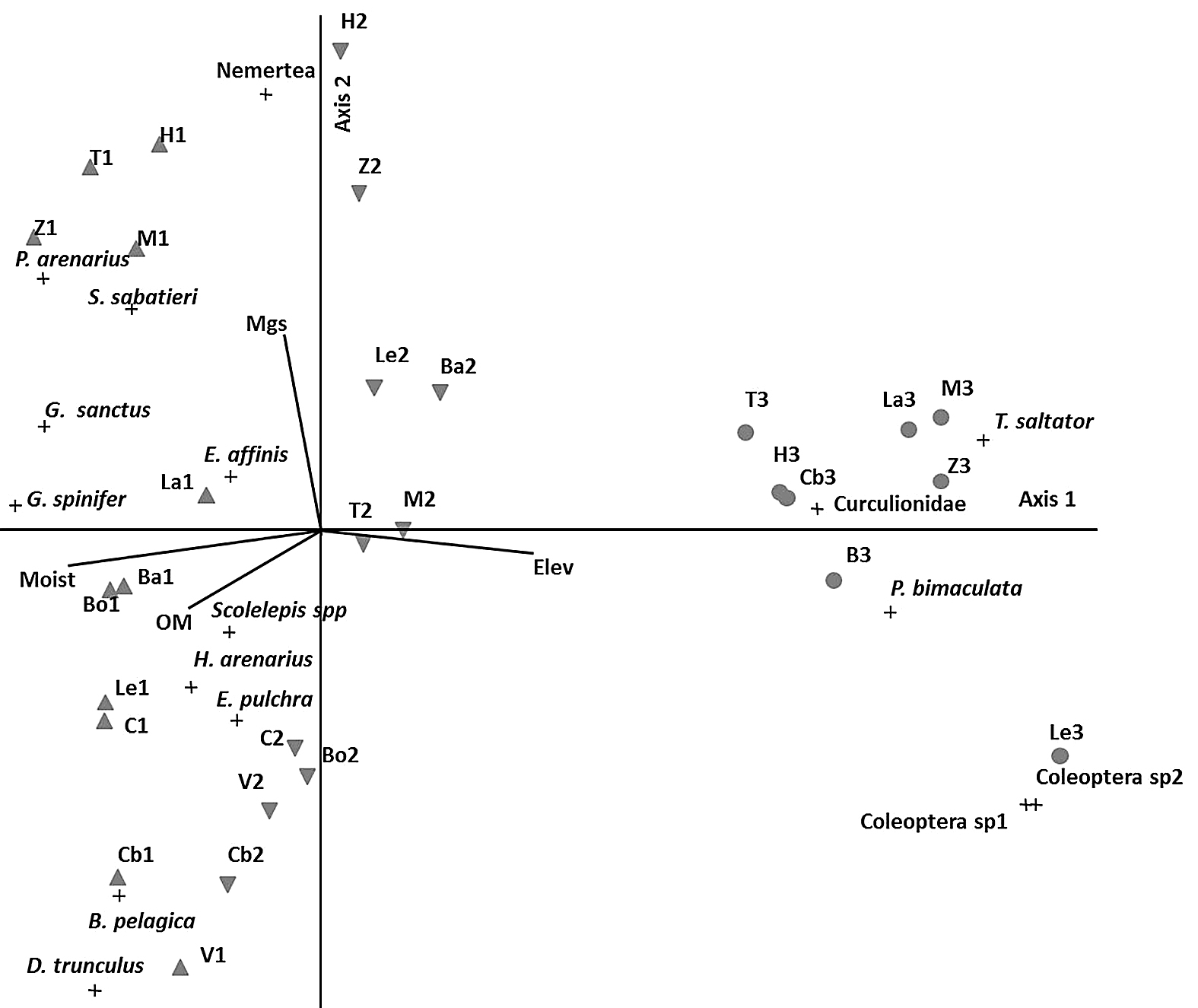

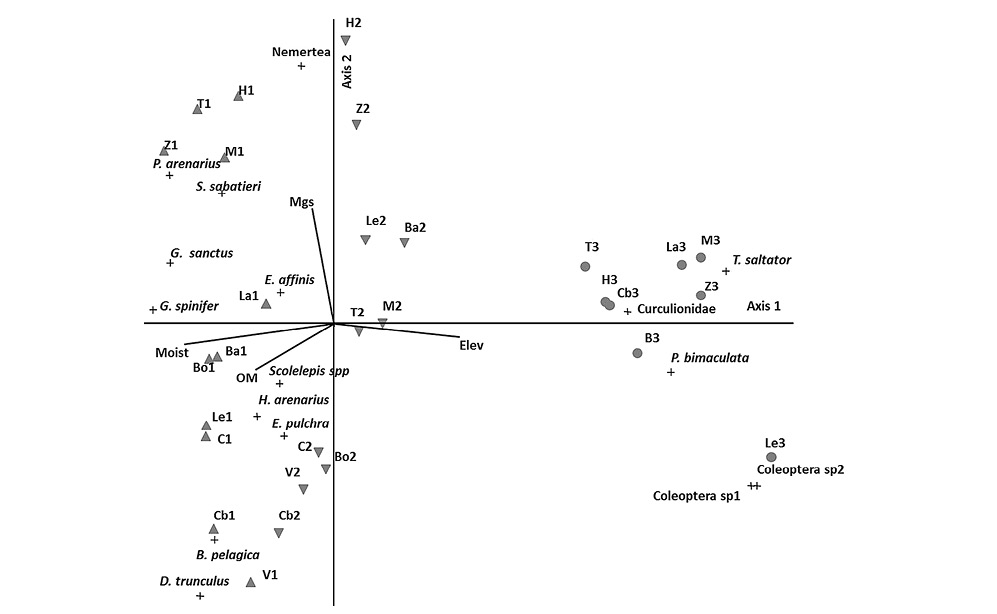

The ordination diagram of CCA (Fig. 5) showed a gradient of zones (lower, middle, and upper) marked mainly by the first axis and showed that crustaceans (Bathyporeia pelagica, Eurydice affinis, E. pulchra, Gastrosaccus sanctus, G. spinifer, Haustorius arenarius and Pontocrates arenarius) and Polychaeta (Scolelepis spp.) responded positively to sand moisture and organic matter content but negatively to elevation, increasing their density to the left along the first axis. Coleopterans and Talitrus saltator exhibited the opposite pattern. Density of nemerteans was the least explained by these environmental variables.
|
||
|
The nemerteans P. arenarius and G. sanctus also responded positively to medium-coarse grain size, while the density of Bathyporeia pelagica, Donax trunculus and Coleoptera sp1 was more influenced by fine grain size, due to their distribution along the second axis.
Conservation against recreational potential

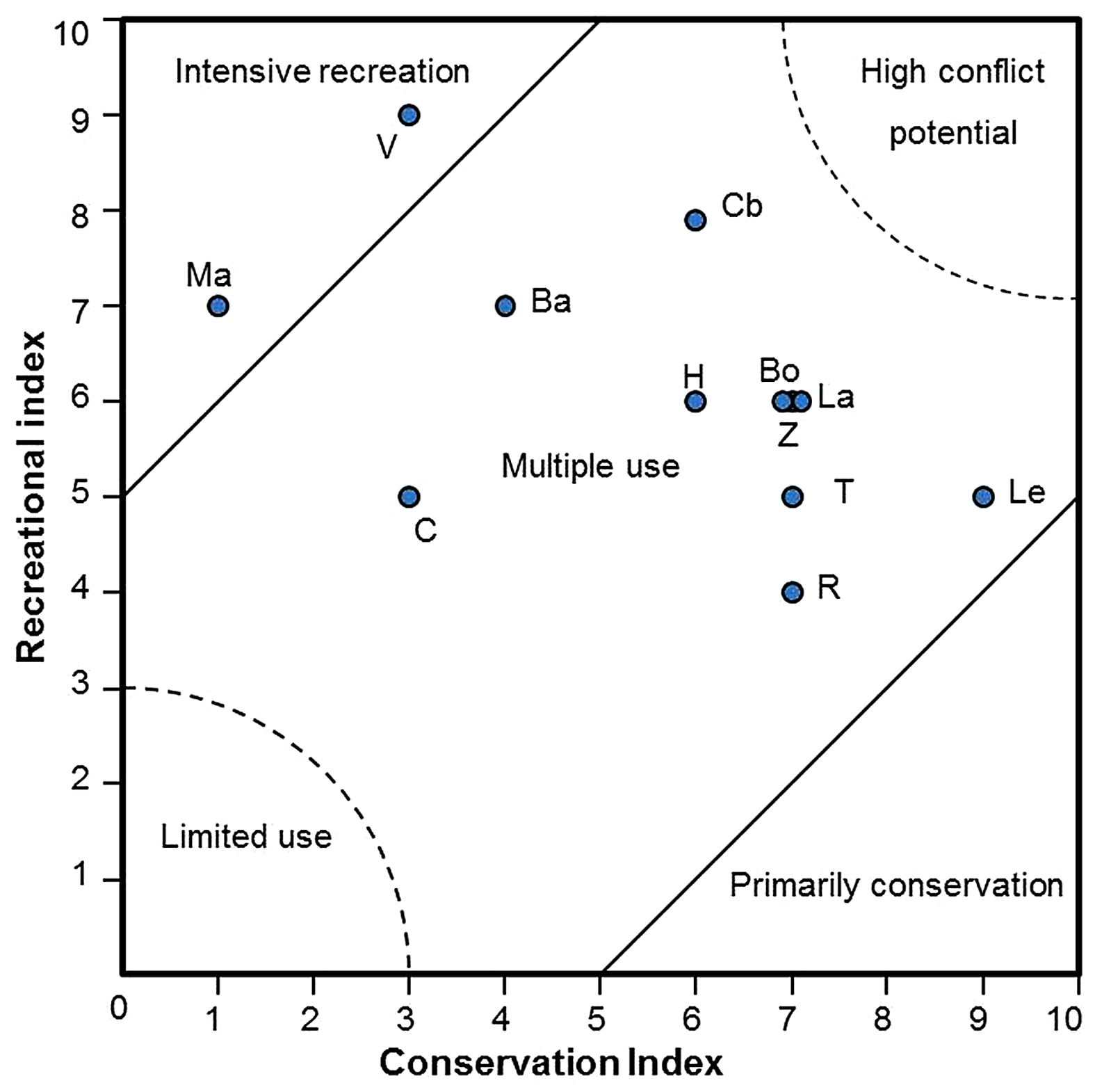

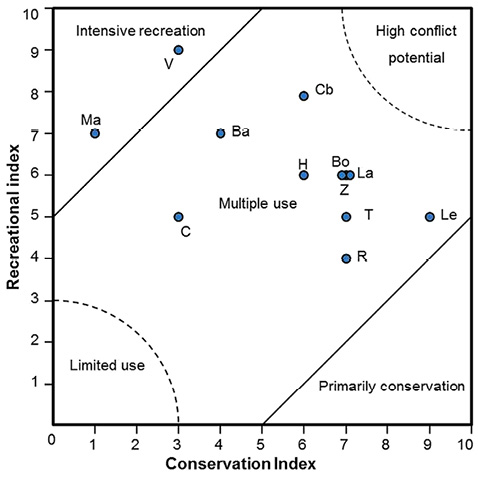

Table 2 provides a summary of 12 cases of beach usage by means of CI and RI scores and the ensuing management strategy is illustrated in Figure 6. Most beaches are in the multiple-use category, indicating that they have high conservation and recreation values. Only Matalascañas and Valdelagrana are in the intensive recreation category, with high RI values (7 and 9, respectively).
Table 2. – Conservation index (CI) and recreation potential index (RI) scores for beaches.
| Beach name | Dune status | Iconic species | Macro-benthos | CI | Infrastructure | Safety health | Carrying capacity | RI |
|---|---|---|---|---|---|---|---|---|
| Hoyo | 4 | 1 | 1 | 6 | 1 | 3 | 2 | 6 |
| Well developed, little disturbance | Low numbers, not nesting | Intermediate | No infrastructure, limited access | Low hazard, clean and pollution free | Extensive beach with wide backshore | |||
| Terrón | 4 | 2 | 1 | 7 | 1 | 3 | 1 | 5 |
| Well developed, little disturbance | Present in good numbers, may be nesting | Intermediate | No infrastructure, limited access | Low hazard, clean and pollution free | Intermediate | |||
| Bota | 4 | 1 | 2 | 7 | 1 | 3 | 2 | 6 |
| Well developed, little disturbance | Low numbers, not nesting | Species rich and abundant | No infrastructure, limited access | Low hazard, clean and pollution free | Extensive beach with wide backshore | |||
| Mazagón | 4 | 2 | 1 | 7 | 1 | 2 | 1 | 4 |
| Well developed, little disturbance | Present in good numbers, may be nesting | Intermediate | No infrastructure, limited access | Moderate hazard and clean | Intermediate | |||
| Matalascañas | 0 | 0 | 1 | 1 | 5 | 2 | 0 | 7 |
| Absent | Absent | Intermediate | Excellent access and amenities | Moderate hazard and clean | Limited, pocket beach, no backshore | |||
| Costa Ballena | 3 | 1 | 2 | 6 | 3 | 3 | 2 | 8 |
| Disturbed but largely intact | Low numbers, not nesting | Species rich and abundant | Good access, some amenities | Low hazard, clean and pollution free | Extensive beach with wide backshore | |||
| Valdelagrana | 0 | 1 | 2 | 3 | 5 | 3 | 1 | 9 |
| Absent | Low numbers, not nesting | Species rich and abundant | Excellent access and amenities | Low hazard, clean and pollution free | Intermediate | |||
| Levante | 4 | 3 | 2 | 9 | 1 | 3 | 1 | 5 |
| Well developed, little disturbance | Significant nesting area for marine birds | Species rich and abundant | No infrastructure and limited access | Low hazard, clean and pollution free | Intermediate | |||
| Cortadura | 1 | 0 | 2 | 3 | 2 | 2 | 1 | 5 |
| Severely disturbed | Absent | Species rich and abundant | Modest infrastructure, reasonable access | Moderate hazard and clean | Intermediate | |||
| Barrosa | 2 | 0 | 2 | 4 | 2 | 3 | 2 | 7 |
| Extensive disturbance | Absent | Species rich and abundant | Modest infrastructure, reasonable access | Low hazard, clean and pollution free | Extensive beach with wide backshore | |||
| Zahara | 4 | 2 | 1 | 7 | 2 | 2 | 2 | 6 |
| Well developed, little disturbance | Present in good numbers, may be nesting | Intermediate | Modest infrastructure, reasonable access | Moderate hazard and clean | Extensive beach with wide backshore | |||
| Lances | 4 | 2 | 1 | 7 | 2 | 2 | 2 | 6 |
| Well developed, little disturbance | Present in good numbers, may be nesting | Intermediate | Modest infrastructure, reasonable access | Moderate hazard and clean | Extensive beach with wide backshore |
|
||
|
DISCUSSIONTop
Macroinfauna
Sandy beaches are extremely dynamic ecosystems with hostile conditions for life, so the number of taxa adapted to living under these conditions is expected to be low compared with other coastal systems. However, the macroinfauna biodiversity found in sandy beaches of the Spanish coast of the Gulf of Cadiz were relatively high (from 4 to 33 species). This value is similar to those reported in nearby latitudes, such as the 9 to 31 species found in northern Spain (Rodil et al. 2006Rodil I.F., LastraM., Sánchez-Mata, A.G. 2006. Community structure and intertidal zonation of the macroinfauna in intermediate sandy beaches in temperate latitudes: North coast of Spain. Estuar. Coast. Shelf Sci. 67: 267-279.), the 27 to 30 species found on the western coast of Portugal (Gonçalves et al. 2009Gonçalves S.C., Anastácio P.M., Pardal A.M., et al. 2009. Sandy beach macroinfaunal communities on the western coast of Portugal–Is there a steady structure under similar exposed conditions? Estuar. Coast. Shelf Sci. 81: 555-568.), and the 4 to 24 species found on Moroccan sandy beaches (Bayed 2003Bayed A. 2003. Influence of morphodynamic and hydroclimatic factors on the macroinfauna of Moroccan sandy beaches. Estuar. Coast. Shelf Sci. 58S: 71-82.).
The beaches showed a wide range of morphodynamic types and a general increasing trend in species richness from reflective to dissipative beaches was observed, in agreement with McLachlan et al. (1993)McLachlan A., Jaramillo E., Donn T.E., et al. 1993. Sandy beach macroinfauna communities and their control by the physical environment: a geographical comparison. J. Coast. Res. 15: 27-38.. Bota beach showed the highest species richness and abundance. This beach, located near the mouth of the Piedras River, where the influence of wave action is lower, is one of the most sheltered of the entire set of beaches studied, as is also reflected in the relative tidal range, which showed high values on this sandy beach. The high richness and abundance values found on Bota beach supports the general trend of biotic variables to increase with exposure, as reported by other authors (Dexter 1983Dexter D.M. 1983. Community structure of intertidal sandy beaches in New South Wales, Australia. In: McLachlan, A. and T. Erasmus (eds), Sandy Beaches as Ecosystems. Springer Netherlands, pp. 461-472., Jaramillo and MacLachlan 1993Jaramillo E., McLachlan A. 1993. Community and population response of the macroinfauna to physical factors over a range of exposed sandy beaches in south-central Chile. Estuar. Coast. Shelf Sci., 37: 615-624., Rodil et al. 2007Rodil I.F., Lastra M., López J. 2007. Macroinfauna community structure and biochemical composition of sedimentary organic matter along a gradient of wave exposure in sandy beaches (NW Spain). Hidrobiología 579: 301-316.). Abundance and richness of macroinfauna are directly related to food supply (Rodil et al. 2012Rodil I.F., Compton T.J., Lastra M. 2012. Exploring macroinvertebrate species distributions at regional and local scales across a sandy beach geographic continuum. PloS One (7)6: e39609.), so it is also possible that Piedras river mouth increases food availability, enabling the establishment and development of more species.
Crustaceans, polychaetes and molluscs were usually dominant among the macroinfauna of sandy beaches (McLachlan and Brown 2006McLachlan A., Brown A.C. 2006. The ecology of sandy shores. Elsevier, Burlington.). In our study, amphipod and isopod crustaceans and spionid polychaetes were the most abundant and included diverse taxa. In fact, 74% of all individuals collected belong to six species of these groups: Bathyporeia pelagica, Haustorius arenarius, Pontocrates arenarius, Siphonoecetes sabatieri, Eurydice affinis and Scolelepis spp. The dominant and most frequent species occurring on every beach studied were polychaetes of the genus Scolelepis. This genus has a wide geographical distribution (Souza and Borzone 2000Souza J.R., Borzone C.A. 2000. Population dynamics and secondary production of Scolelepis squamata (Polychaeta: Spionidae) in an exposed sandy beach of southern Brazil. Bull. Mar. Sci. 67: 221-233.) and is also very abundant on many Atlantic beaches (Papageorgiou et al. 2006Papageorgiou N., Arvanitidis C., Eleftheriou A. 2006. Multicausal environmental severity: A flexible framework for microtidal sandy beaches and the role of polychaetes as an indicator taxon. Estuar. Coast. Shelf Sci. 70: 643-653., Degraer et al. 2003Degraer S., Volckaert A., Vincx M. 2003. Macrobenthic zonation patterns along a morphodynamical continuum of macrotidal, low tide bar/rip and ultra-dissipative sandy beaches. Estuar. Coast. Shelf S. 56: 459-468., Barros et al. 2001Barros F., Borzone C.A., Rosso S. 2001. Macroinfauna of six beaches near Guaratuba Bay, Southern Brazil. Braz. Arch. Biol. Techn. 44: 351-364.).
Little importance is given to nemerteans, which are normally not considered typical taxa on sandy beaches, due to residual contributions that they exhibit, although this taxon is considered a useful bio-indicator (Herrera-Bachiller et al. 2008Herrera-Bachiller A., García-Corrales P., Roldan C., et al. 2008. The ignored but common nemertine from the Galician beaches (Spain) Psammamphiporus elongatus, affected by the Prestige oil spill. Mar. Ecol. 29: 43-50.). For example, the nemerteans Lienus acutifrons and Psammamphiporus elongatus were affected by the “Prestige” oil spill on Galician sandy beaches, so they could be a good indicators of beach quality (Herrera-Bachiller et al. 2008Herrera-Bachiller A., García-Corrales P., Roldan C., et al. 2008. The ignored but common nemertine from the Galician beaches (Spain) Psammamphiporus elongatus, affected by the Prestige oil spill. Mar. Ecol. 29: 43-50., Puerta et al. 2010Puerta P., Andrade S.C.S., Junoy J. 2010. Redescription of Lineus acutifrons Southern, 1913 (Nemertea: Pilidiophora) and comments on its phylogenetic position. J. Nat. Hist. 44: 2363-2378.). On sandy beaches of southwestern Spain, Nemertean abundance was similar to that of molluscs, showing high occurrences (67% of the sampled beaches), highlighting the importance of nemerteans at these latitudes. Similarly, Talitrus saltator was frequently found on the beaches studied. This ‘sand-hopper’ is recognized as a good biomonitor of trace-metal pollution and the effect of human trampling (Ugolini et al. 2008Ugolini A., Ungherese G., Somigli S., et al. 2008.The amphipod Talitrus saltator as a bioindicator of human trampling on sandy beaches. Mar. Environ. Res. 65: 349-357.).
Macroinfauna zonation
The zonation of macroinfauna, defined as the distribution of species throughout the intertidal zone on sandy beaches, has been undertaken around the world (Defeo et al. 1992Defeo O., Jaramillo E., Lyonnet A. 1992. Community structure and intertidal zonation of the macroinfauna on the Atlantic coast of Uruguay. J. Coast. Res. 8: 830-839., Jaramillo et al. 2000Jaramillo E., Duarte C., Contreras H. 2000. Sandy beaches macroinfauna from the coast of Ancud, Isla Chiloé, southern Chile. Rev. Chil. Hist. Nat. 73: 771-786, Schlacher and Thompson 2013Schlacher T.A., Thompson L. 2013. Spatial structure on ocean-exposed sandy beaches: faunal zonation metrics and their variability. Mar. Ecol. Prog. Ser. 478: 43-55.). Macroinfauna across-shore distribution is highly variable, ranging from one to five biological zones, although three are most common (see Schlacher and Thompson 2013Schlacher T.A., Thompson L. 2013. Spatial structure on ocean-exposed sandy beaches: faunal zonation metrics and their variability. Mar. Ecol. Prog. Ser. 478: 43-55.). In the current study, 67% of total beaches showed three distinct zones and 25% showed two. This pattern was different to that found on beaches in northern Spain, where macroinfauna was divided into two main zones (Rodil et al. 2006Rodil I.F., LastraM., Sánchez-Mata, A.G. 2006. Community structure and intertidal zonation of the macroinfauna in intermediate sandy beaches in temperate latitudes: North coast of Spain. Estuar. Coast. Shelf Sci. 67: 267-279.), and on Moroccan sandy beaches, where four zones were identified according to Salvat’s scheme (Salvat 1964Salvat B. 1964. Les conditions hydrodynamiques interstitielles des sediment meubles intertidaux et la répartition verticale de la faune endogée. C.R. Acad. Sci., Paris 259: 1567-1579., Bayed 2003Bayed A. 2003. Influence of morphodynamic and hydroclimatic factors on the macroinfauna of Moroccan sandy beaches. Estuar. Coast. Shelf Sci. 58S: 71-82.).
Jaramillo et al. (1993)Jaramillo E., McLachlan A, Coetzee P. 1993. Intertidal zonation patterns of macroinfauna over a range of exposed sandy beaches in south-central Chile. Mar. Ecol. Prog. Ser., 101: 105-118. determined that intermediate and dissipative beaches include three faunal zones, whereas the reflective beaches had only two. Along the Spanish coast of the Gulf of Cadiz, this pattern was not found. In fact, the more dissipative beaches showed two biological zones, while beaches closest to the reflective state (Hoyo and Mazagón) had three zones. In general, the number of zones alternated, independently of Dean’s parameter. Thus, no clear evidence was found to support the contention that the number of zones is closely related to morphodynamics. These results corroborate the conclusion drawn by Schlacher and Thompson (2013)Schlacher T.A., Thompson L. 2013. Spatial structure on ocean-exposed sandy beaches: faunal zonation metrics and their variability. Mar. Ecol. Prog. Ser. 478: 43-55., who detected no significant correlation between habitat metric (habitat dimensions, sediment properties, and morphodynamic state) and the number of fauna zones.
Although the number of biological zones varied among beaches, a common zonation pattern was established for the entire set of beaches studied. This was done in order to characterize the most typical species inhabiting each zone. The general pattern showed three biological zones according to the zonation scheme of Dahl (1952)Dahl E. 1952. Some aspects of the ecology and zonation of the fauna on sandy beaches. Oikos 4: 1-27.. In general, the supralittoral zone was typified by air-breathing amphipods (Talitrus saltator) and coleopterans. The middle zone was dominated by true intertidal species, such as Haustoriidae amphipods (Haustorius arenarius), Cirolanidae isopods (Eurydice affinis), Spionidae polychaetes (Scolelepis spp.) and nemerteans. The lower or sublittoral zone was typified by amphipods belonging to the Pontoporeiidae family: mysids, and spionid polychaetes. The distribution of the species in each zone is in agreement with findings on other nearby temperate sandy beaches, such as those along the northern coasts of Spain, Tunisia, and Morocco (Rodil et al. 2006Rodil I.F., LastraM., Sánchez-Mata, A.G. 2006. Community structure and intertidal zonation of the macroinfauna in intermediate sandy beaches in temperate latitudes: North coast of Spain. Estuar. Coast. Shelf Sci. 67: 267-279., Pérez-Domingo et al. 2008Pérez-Domingo S., Castellanos C., Junoy J. 2008. The sandy beach macroinfauna of Gulf of Gabés (Tunisia). Mar. Ecol. 29: 51-59., Bayed 2003Bayed A. 2003. Influence of morphodynamic and hydroclimatic factors on the macroinfauna of Moroccan sandy beaches. Estuar. Coast. Shelf Sci. 58S: 71-82.).
Diversity and densities of individuals increase towards the lower zones. This is a general feature found in numerous studies of sandy beaches worldwide (Jaramillo et al. 1993Jaramillo E., McLachlan A, Coetzee P. 1993. Intertidal zonation patterns of macroinfauna over a range of exposed sandy beaches in south-central Chile. Mar. Ecol. Prog. Ser., 101: 105-118., Gonçalves et al. 2009Gonçalves S.C., Anastácio P.M., Pardal A.M., et al. 2009. Sandy beach macroinfaunal communities on the western coast of Portugal–Is there a steady structure under similar exposed conditions? Estuar. Coast. Shelf Sci. 81: 555-568., Rodil et al. 2006Rodil I.F., Lastra M., Sánchez-Mata, A.G. 2006. Community structure and intertidal zonation of the macroinfauna in intermediate sandy beaches in temperate latitudes: North coast of Spain. Estuar. Coast. Shelf Sci. 67: 267-279.). Some authors have determined that this pattern could be due to a reflection of the high sub-tidal diversity and short periods of air exposure, thus allowing more species to inhabit zones closest to the seawater (Degraer et al. 1999Degraer S., De Neve, L., Mouton, I. et al. 1999. Zonation and community structure of the macrobenthos of a macrotidal, ultra-dissipative sandy beach: Summer-Winter comparison. Estuaries, 22(3B):742-752., Aerts et al. 2004Aerts K., Vanagt T., Degraer S., et al. 2004. Macroinfaunal community structure and zonation of an Ecuadorian sandy beach (Bay of Valdivia). Belg. Zool. 134: 15-22.). The high abundance found in the lower areas of all the beaches studied evidences how important these environments are as potential sources of food for other predatory species (fish and birds).
Relationship between environmental variables and macroinfauna
Distribution of macroinfauna is related to the tolerance of these communities to environmental variables (McLachlan and Brown 2006McLachlan A., Brown A.C. 2006. The ecology of sandy shores. Elsevier, Burlington.). Although the relationship between species and the environment could change with the scale of study (Rodil et al. 2012Rodil I.F., Compton T.J., Lastra M. 2012. Exploring macroinvertebrate species distributions at regional and local scales across a sandy beach geographic continuum. PloS One (7)6: e39609.), abiotic predictor variables at the local scale were examined.
Beach slope and grain size have been identified as main factors controlling macroinfauna distribution throughout the intertidal zone (McLachlan et al. 1993McLachlan A., Jaramillo E., Donn T.E., et al. 1993. Sandy beach macroinfauna communities and their control by the physical environment: a geographical comparison. J. Coast. Res. 15: 27-38., Jaramillo and MacLachlan 1993Jaramillo E., McLachlan A. 1993. Community and population response of the macroinfauna to physical factors over a range of exposed sandy beaches in south-central Chile. Estuar. Coast. Shelf Sci., 37: 615-624. ). Results from CCA analysis showed that sand moisture and organic matter content, in addition to elevation and grain size, were the main environmental variables controlling the macroinfauna distribution across the shore on sandy beaches of the Gulf of Cadiz coast.
Lower and middle zones showed an internal gradient influenced mainly by average grain size. Species inhabiting these zones were Pontocrates arenarius, Siphonoecetes sabatieri and nemerteans, closely related to coarse grain size, while Donax trunculus and Bathyporeia pelagica were related to fine grain size.
The most abundant species in upper zones, the talitrid amphipod Talitrus saltator and coleopterans, were correlated positively with elevation but negatively with sand moisture and organic matter content. Grain size was not a good explanatory variable for these species. In fact, Ugolini et al. (2008)Ugolini A., Ungherese G., Somigli S., et al. 2008.The amphipod Talitrus saltator as a bioindicator of human trampling on sandy beaches. Mar. Environ. Res. 65: 349-357. found no relationship between sand-hopper abundance and sand-grain size. Although these species showed significant relationships with abiotic variables, other factors not taken into account could affect their distribution. For example, it has been reported that stranded material (e.g. macrophytes and macroalgae) provides a physical structure that can be used as a shelter or breeding site and as a food source by supralittoral arthropods (Olabarria et al. 2007Olabarria C., Lastra M., Garrido J. 2007. Succession of macroinfauna on macroalgal wrack of an exposed sandy beach: Effects of patch size and site. Mar. Environ. Res. 63: 19-40.) and the age of these deposits plays a significant role in the structure of upper-shore assemblages (Ruiz-Delgado et al. 2014Ruiz-Delgado M.C., Vieira J.V., Veloso V.G., et al. 2014. The role of wrack deposits for supralittoral arthropods: An example using Atlantic sandy beaches of Brazil and Spain. Estuar. Coast. Shelf Sci. 136: 61-71.).
Conservation and recreation potential indices
The conservation and recreation potential indices developed by McLachlan et al. (2013)McLachlan A., Defeo O., Jaramillo E., et al. 2013. Sandy beach conservation and recreation: Guidelines for optimising management strategies for multi-purpose use. Ocean Coast. Manage. 71: 256-268. are useful tools for determining the most suitable beach management approach, providing a set of management principles that can easily be followed, even with limited resources. In these cases, mapping plays a key role for the collection of information and has been identified as a principal step towards management and conservation policies (Rolet et al. 2015Rolet C., Spilmont N., Dewarumez J.M. 2015. Linking macrobenthic communities structure and zonation patterns on sandy shores: Mapping tool toward management and conservation perspectives in Northern France. Cont. Shelf. Res. 99:12-25.). In addition, the implementation of these indices provides the broadest characterization of sandy beaches, not only based on physical features, since sandy beaches are also social and ecological environments.
In this work, 12 case studies illustrate the application of the CI and RI indices. Although these indices include five categories, our beaches are grouped mainly into two: intensive recreation and multiple use. Most beaches have shown scores above 5 on the CI, so they have a reasonable potential for conservation. For example, Terrón, Mazagón and Levante beaches, categorized by these indices as of multiple use, have a high conservation potential. Coastal management policies should therefore be designed to promote measures for the conservation of these environments. On the other hand, only Matalascañas and Valdelagrana, have a high recreation potential, which can be exploited with appropriate management strategies or the possible re-evaluation of existing measures that reduce the CI value, for example.
In conclusion, the beaches on the Spanish coastline along the Gulf of Cadiz are characterized by high biodiversity, including major bio-indicator species, and by a clear zonation of macroinfauna. The overall distribution pattern involves three biological zones: the supralittoral zone, characterized by air-breathing amphipods and coleopterans; the middle zone, characterized by Haustoriidae amphipods, Cirolanidae isopods, Spionidae polychaetes and nemerteans; and the sublittoral zone, characterized by amphipods belonging to the Pontoporeiidae family, mysids and spionid polychaetes. The across-shore distribution of the macroinfauna is influenced primarily by sand moisture, organic matter content, elevation and grain size. Other factors such as wrack deposit and organic inputs from rivers and estuaries could influence the abundance and distribution of macroinfauna inhabiting sandy beaches. Therefore, future studies are needed to elucidate whether the presence of stranded material could affect the global zonation patterns on sandy beaches. The recreation and conservation indices showed that the studied beaches have multiple functionalities, given their social, physical, morphodynamic and biotic features, although many of them have a high potential for conservation that needs to be managed.
ACKNOWLEDGEMENTSTop
We would like to thank the “Los Toruños” Natural Park (Cadiz) and its staff for the facilities provided during sampling. This work was supported by the incentive programme for excellent research projects financed by the government of Andalucía (P09- HUM-4717). This project also supported a PhD Grant awarded to the first author. M.C. Ruiz-Delgado was supported by the Spanish Ministry of Education via a pre-doctoral grant (FPU) (AP-2009-3906).
