INTRODUCTIONTop

In recent years, many marine organisms have been introduced into new habitats by human-mediated transport, mostly by fouling of the hulls of ships or other submerged surfaces (e.g. anchors, buoys and nets; Carlton and Hodder 1995Carlton J.T., Hodder J. 1995. Biogeography and dispersal of coastal marine organisms: experimental studies on a replica of a 16th century sailing vessel. Mar. Biol. 121: 721-730., Gollasch 2002Gollasch S. 2002. The importance of ship hull fouling as a vector of species introductions into the North Sea. Biofouling 18(2): 105-121., Floerl et al. 2009Floerl O., Inglis G.J., Dey K., et al. 2009. The importance of transport hubs in stepping-stone invasions. J. Appl. Ecol. 46: 37-45.) and through transfer in ballast waters (Carlton 1985Carlton J.T. 1985. Transoceanic and interoceanic dispersal of coastal marine organisms: the biology of ballast water. Oceanogr. Mar. Biol. Annu. Rev. 23: 313-371., Carlton and Geller 1993Carlton J.T., Geller J.B. 1993. Ecological roulette: biological invasions and the global transport of non-indigenous marine organisms. Science 261: 78-82., Gollasch et al. 2000Gollasch S., Lenz J., Dammer M., et al. 2000. Survival of tropical ballast water organisms during a cruise from the Indian Ocean to the North Sea. J. Plankton Res. 22(5): 923-937.). To date, the maritime traffic across the oceans remains the most significant factor contributing to the current patterns of biogeographic distribution of many marine organisms worldwide (Carlton 1985Carlton J.T. 1985. Transoceanic and interoceanic dispersal of coastal marine organisms: the biology of ballast water. Oceanogr. Mar. Biol. Annu. Rev. 23: 313-371., 1987Carlton J.T. 1987. Patterns of transoceanic marine biological invasions in the Pacific Ocean. Bull. Mar. Sci. 41(2): 452-465.). Many different taxa, such as algae, sponges, molluscs, polychaetes, crustaceans, bryozoans, ascidians and fish, have spread as part of the fouling community or as passengers in ballast water tanks due to their ability to survive for several weeks during transoceanic journeys (Gollasch et al. 2000Gollasch S., Lenz J., Dammer M., et al. 2000. Survival of tropical ballast water organisms during a cruise from the Indian Ocean to the North Sea. J. Plankton Res. 22(5): 923-937.).

Bryozoans are species that are particularly likely to be transported by such means because of their tendency to grow on a great variety of substrates, which makes them a major component of marine benthic hard-bottom communities worldwide (Woollacott and Zimmer 1977Woollacott R.M., Zimmer R.L. (eds). 1977. Biology of bryozoans. Academic Press. 584 pp.). In particular, cheilostome bryozoans are known to be easily dispersed as fouling organisms to non-native regions (Watts et al. 1998Watts P.C., Thorpe J.P., Taylor P.D. 1998. Natural and anthropogenic dispersal mechanisms in the marine environment: a study using cheilostome Bryozoa. Philos. Trans. R. Soc. Lond. B. 353: 453-464.). Furthermore, some of them possess a planktotrophic larva that may have a potential planktonic life of up to several weeks, so their transport by ballast waters is also considered (Carlton 1985Carlton J.T. 1985. Transoceanic and interoceanic dispersal of coastal marine organisms: the biology of ballast water. Oceanogr. Mar. Biol. Annu. Rev. 23: 313-371., Carlton and Geller 1993Carlton J.T., Geller J.B. 1993. Ecological roulette: biological invasions and the global transport of non-indigenous marine organisms. Science 261: 78-82., Watts et al. 1998Watts P.C., Thorpe J.P., Taylor P.D. 1998. Natural and anthropogenic dispersal mechanisms in the marine environment: a study using cheilostome Bryozoa. Philos. Trans. R. Soc. Lond. B. 353: 453-464.).

Celleporaria brunnea (Hincks, 1884) is an ascophoran bryozoan of northeastern Pacific origin, first described by Hincks (1884, as Cellepora brunnea) in British Columbia (Canada). The species is widely distributed in the Pacific Ocean; in fact it was reported in the vicinity of the Panama Canal, in the Galapagos Islands (Hastings 1929Hastings A.B. 1929. Cheilostomatous Polyzoa from the vicinity of the Panama Canal collected by Dr. C. Crossland on the cruise of the S.Y. “St. George”. Proc. Zool. Soc. London 99(4): 697-740.) and Ecuador (Osburn 1952Osburn R.C. 1952. Bryozoa of the Pacific coast of America, Part II, Cheilostomata Ascophora. Allan Hancock Pac. Exped. 14(2): 271-611., Soule et al. 1995Soule D.F., Soule J.D., Chaney H.W. 1995. The Bryozoa. In: Blake J.A., Chaney W., Scott P.H., et al. (eds), Taxonomic atlas of the benthic fauna of the Santa Maria Basin and the western Santa Barbara Channel. Irene McCulloch Foundation Monograph Series No. 2. Hancock Institute of Marine Studies, Southern California Univ. Press, 344 pp.). Furthermore, C. brunnea is one of the most abundant species in the Gulf of California (Soule 1961Soule J.D. 1961. Results of the Puritan-American Museum of Natural History Expedition to western Mexico, 13. Ascophoran Cheilostomata (Bryozoans) of the Gulf of California. Am. Mus. Novit. 2053: 1-65., Soule and Soule 1964Soule D.F., Soule J.D. 1964. The Ectoprocta (Bryozoa) of Scammon’s Lagoon, Baja California, Mexico. Am. Mus. Novit. 2199: 1-56.). Recently, the species was also recorded in the Hawaiian Islands, where it may have arrived from the Californian coasts (Godwin 2003Godwin S.L. 2003. Hull fouling of maritime vessels as a pathway for marine species invasion to the Hawaiian Islands. Biofouling 19: 123-131.). In 2004, C. brunnea was discovered on aquaculture steel cages in southern Korea, where it was considered to have been introduced from the eastern Pacific Ocean (Seo and Min 2009Seo J.E., Min B.S. 2009. A faunistic study on Cheilostomatous Bryozoans from the shoreline of South Korea, with two new species. Korean J. Syst. Zool. 25(1): 19-40.). In the Mediterranean Sea, C. brunnea was recorded for the first time in 2004 near Alsancak harbour, in the inner part of Izmir Bay (Turkey, Aegean Sea), fouling on Mytilus galloprovincialis Lamarck, 1819 (Koçak 2007Koçak F. 2007. A new alien bryozoan Celleporaria brunnea (Hincks, 1884) in the Aegean Sea (eastern Mediterranean). Sci. Mar. 71(1): 191-195.). In addition, Harmelin et al. (2009)Harmelin J.G., Bitar G., Zibrowius H. 2009. Smittinidae (Bryozoa, Cheilostomata) from coastal habitats of Lebanon (Mediterranean Sea), including new and non-indigenous species. Zoosystema 31(1): 163-187. reported the presence of the species in the coastal waters of Lebanon, on the basis of preserved material collected between the late 1990s and the early 2000s. Recently, a recent revision of non-indigenous bryozoans in the eastern Mediterranean Sea (Harmelin 2014Harmelin J.G. 2014. Alien bryozoans in the eastern Mediterranean Sea - new records from the coast of Lebanon. Zootaxa 3893(3): 301-338.) assigned to Celleporaria sp. aff. brunnea the specimens collected in Beirut (Lebanon) in 2003. In 2012, C. brunnea was detected in Cascais marina, located west of Estoril in the greater Lisbon area, Portugal, representing the first record of the species in the eastern Atlantic region (Canning-Clode et al. 2013Canning-Clode J., Souto J., McCann L. 2013. First record of Celleporaria brunnea (Bryozoa: Lepraliellidae) in Portugal and in the East Atlantic. Mar. Biod. Rec. 6: 1-5.). Furthermore, Harmelin (2014)Harmelin J.G. 2014. Alien bryozoans in the eastern Mediterranean Sea - new records from the coast of Lebanon. Zootaxa 3893(3): 301-338. assigned to C. brunnea specimens of Celleporaria aperta (Hincks, 1882) recorded by André et al. (2014)André F., Corolla J.-P., Lanza B., Rochefort G. 2014. Bryozoaires d’Europe: Les Carnets du Plongeur. Éditions Neptune Plongée, Gargas, 256 pp. in the Arcachon Basin on the Atlantic coast of France.

Besides C. brunnea, six other species of Pacific origin belonging to the Celleporaria genus have been reported with scattered distribution in the Mediterranean Sea: Celleporaria aperta, Celleporaria fusca (Busk, 1854), Celleporaria labelligera Harmer, 1957, Celleporaria pilaefera (Canu and Bassler, 1929), Celleporaria sherryae Winston, 2005 and Celleporaria vermiformis (Waters, 1909). C. aperta was first recorded in the Mediterranean along the coasts of Israel, where it was considered to have been introduced through the Suez Canal (Powell 1969Powell N.A. 1969. Indo-Pacific bryozoans new to the Mediterranean coast of Israel. Isr. J. Zool. 18: 157-168., d’Hondt 1988 d’Hondt J.L. 1988. Bryozoa from the coast of Israel. Italian J. Zool. 55(1-4): 191-203.). In the mid-1970s, the species was reported, together with C. pilaefera, on fouling cages of an oyster farm on the island of Malta, where both species were most probably introduced via shipping (Agius et al. 1977Agius C., Schembri P.J., Jaccarini V. 1977. A preliminary report on organisms fouling oyster cultures in Malta (Central Mediterranean). Mem. Biol. Mar. Oceanogr. 7: 51-59.). Recently, these latter two records were considered “questionable” by Sciberras and Schembri (2007)Sciberras M., Schembri P.J. 2007. A critical review of records of alien marine species from the Maltese Islands and surrounding waters (Central Mediterranean). Medit. Mar. Sci. 8(1): 41-66. because there are no other records of these species from Malta in the literature and it is not known whether populations of both species still persist. C. fusca was reported for the first time in the Mediterranean at Haifa Bay (d’Hondt 1988 d’Hondt J.L. 1988. Bryozoa from the coast of Israel. Italian J. Zool. 55(1-4): 191-203.), on the basis of preserved material collected in 1974, but no recent records have been reported (Zenetos et al. 2012Zenetos A., Gofas S., Morri C., et al. 2012. Alien species in the Mediterranean Sea by 2012. A contribution to the application of European Union’s Marine Strategy Framework Directive (MSFD). Part 2. Introduction, trends and pathways. Medit. Mar. Sci. 13(2): 328-352.). C. labelligera, C. sherryae and C. vermiformis were recently reported along the Lebanese coasts by Harmelin (2014)Harmelin J.G. 2014. Alien bryozoans in the eastern Mediterranean Sea - new records from the coast of Lebanon. Zootaxa 3893(3): 301-338., the former species being very common in Beirut and Tripoli harbours.

The present study is part of a wider systematic survey aimed at studying non-indigenous species in Italian commercial harbours (Lodola 2013Lodola A. 2013. Xenodiversity in Marine Protected Areas: three case studies in Italy. PhD Thesis. Pavia Univ. Italy, 243 pp.). It documents the occurrence of C. brunnea in the Italian ports of La Spezia, Olbia and Lampedusa, located in the Ligurian Sea, western-central Tyrrhenian Sea, and Sicilian Channel, respectively. These findings represent the first records of this species in Italian waters and its western- and northernmost occurrence within the Mediterranean Sea. A taxonomic comparison with previous records of C. brunnea in the Mediterranean Sea and the Atlantic and Pacific Oceans is also provided. Furthermore, we discuss the most likely vectors of introduction of C. brunnea into the western Mediterranean basin.

MATERIALS AND METHODSTop

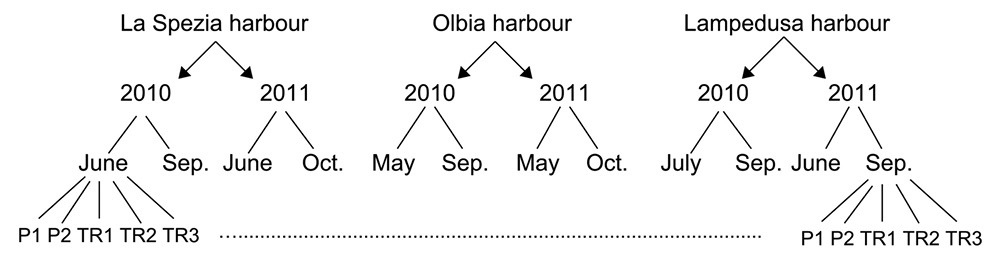

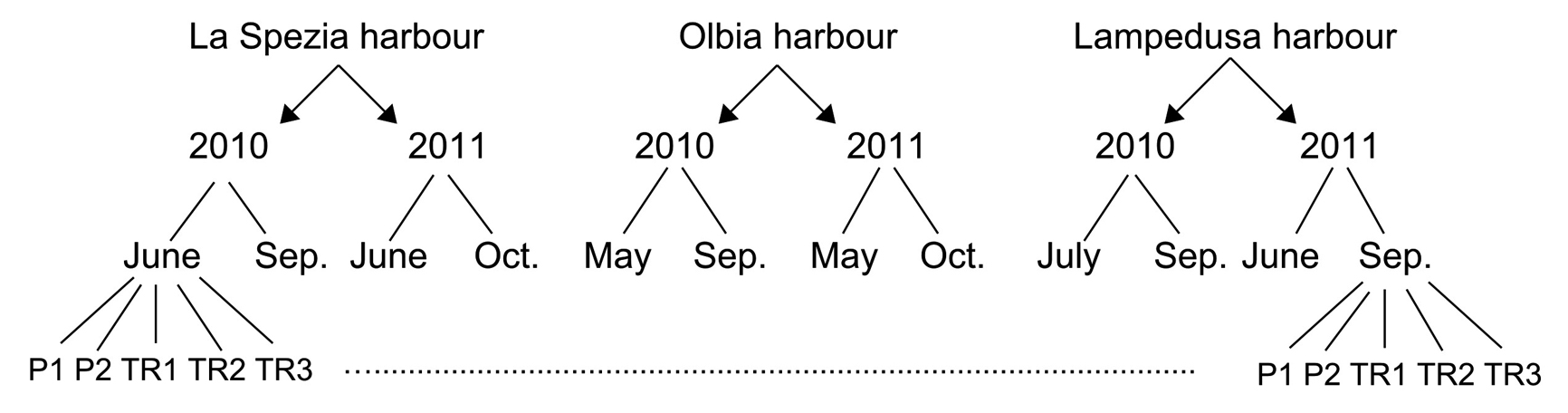

A systematic survey was carried out in two consecutive summers (2010 and 2011) in the Italian commercial harbours of La Spezia, Olbia and Lampedusa (Fig. 1, Table 1) to detect the presence of non-indigenous species in port environments. La Spezia and Olbia are two large harbours, both characterized by international trade shipping, recreational boating and aquaculture activities (mainly mariculture of the bivalves Mytilus galloprovincialis and Ruditapes philippinarum Adams and Reeve, 1850). La Spezia is located on the eastern coast of the Ligurian Sea, between Genoa and Leghorn, while Olbia is situated on the northeast coast of Sardinia and faces the western-central Tyrrhenian Sea. Lampedusa is a small island, belonging to the Pelagian Archipelago, located in the middle of the Sicilian Channel; its harbour hosts national trade ships, local fishermen and touristic boats, and military facilities. In each harbour (Fig. 2), five sampling sites were selected within a main dock: two sampling sites were identified for residential mooring (code “P”) and three for transit mooring (code “TR”). The biological sampling consisted of scraping the artificial hard substratum (the concrete dock walls) just under the low tide level, with a hand-held rigid net (1 mm of mesh size, surface 25×20 cm) using a semi-quantitative methodology, standardized for hard-bottom macrobenthos collections (Occhipinti-Ambrogi 2000Occhipinti-Ambrogi A. 2000. Biotic invasions in a Mediterranean Lagoon. Biol. Invasions 2: 165-176., Marchini et al. 2004Marchini A., Gauzer K., Occhipinti-Ambrogi A. 2004. Spatial and temporal variability of hard-bottom macrofauna in a disturbed coastal lagoon (Sacca di Goro, Po river delta, north-western Adriatic Sea). Mar. Pollut. Bull. 48(11-12): 1084-1095., Minchin 2007Minchin D. 2007. Rapid coastal survey for targeted alien species associated with floating pontoons in Ireland. Aquat. Invasions 2(1): 63-70.). For each sampling site, five replicates were collected in late spring/early summer, when Mediterranean benthic communities are known to exhibit their maximum development, and in late summer, just before the autumn crisis, when benthic communities decrease in biomass until the next recruitment season (Boero 1994Boero F. 1994. Fluctuations and variations in coastal marine environments. Mar. Ecol. 15(1): 3-25). Because of the colonial nature of most components of the benthic fauna, the fouling community was evaluated using a semi-quantitative methodology, with a four class abundance index (ab. index) depending on coverage: +, presence of isolated colonies; ++, a few colonies; +++, well-established colonies, and ++++, overwhelming abundance (Occhipinti-Ambrogi 1991Occhipinti-Ambrogi A. 1991. The spread of Tricellaria inopinata into the Lagoon of Venice: an ecological hypothesis. Bull. Soc. Sci. Nat. Ouest Sér. 1: 299-308.). This approach, already tested in other studies on the artificial hard-bottom communities (Marchini et al. 2004Marchini A., Gauzer K., Occhipinti-Ambrogi A. 2004. Spatial and temporal variability of hard-bottom macrofauna in a disturbed coastal lagoon (Sacca di Goro, Po river delta, north-western Adriatic Sea). Mar. Pollut. Bull. 48(11-12): 1084-1095., Savini et al. 2006Savini D., Marchini A., Forni G., et al. 2006. Touristic harbours and secondary spread of alien species. Biol. Mar. Mediterr. 13: 760-763., Lodola et al. 2012Lodola A., Savini D., Occhipinti-Ambrogi A. 2012. First record of Tricellaria inopinata (Bryozoa: Candidae) in the harbours of La Spezia and Olbia, Western Mediterranean Sea (Italy). Mar. Biod. Rec. 5: 1-7.) allowed us to compare the abundance of both vagile individual and colonial sessile components of the benthic fauna, whose quantitative estimation is not possible by enumeration of individuals.

Morphological measurements of some parts of zooids were made using both the microscope camera AxioCam ERc 5s of the AxioVision Carl Zeiss Software for image analysis (accuracy 0.01 μm), and the Tescan FESEM (Field Emission Scanning Electron Microscope) series Mira 3XMU for the SEM pictures, with increasing magnification, at 6-19 mm working distance, using an accelerating voltage of 10 kV, with graphite metallization and detection by secondary electrons. Specimens used for SEM pictures were previously bleached to remove all organic residues.

RESULTSTop

Systematics

Superfamily LEPRALIELLOIDEA Vigneaux, 1949

Family LEPRALIELLIDAE Vigneaux, 1949

Genus Celleporaria Lamouroux, 1821

Celleporaria brunnea (Hincks, 1884)

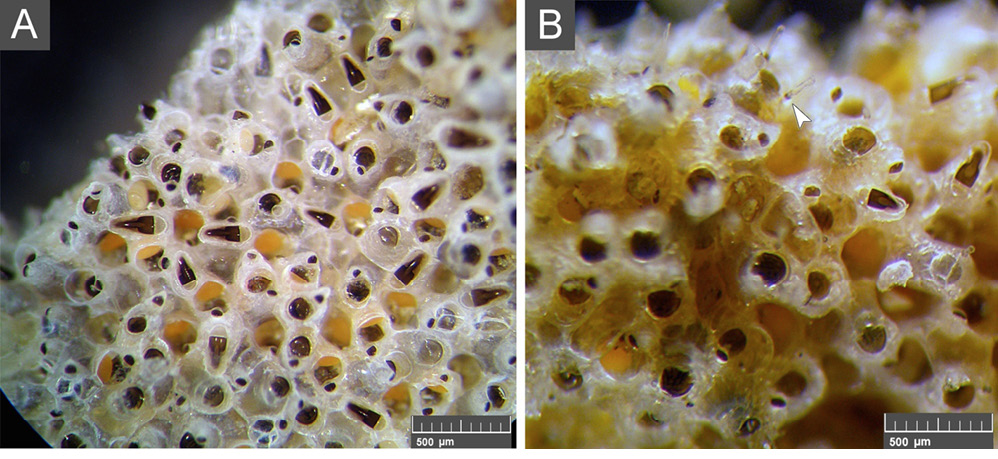

(Figs 3, 4 and 5)

Cellepora brunnea: Hincks (1884)Hincks T. 1884. Report on the Polyzoa of the Queen Charlotte Islands. Part 3. Ann. Mag. Natur. Hist. Ser. 5. 13: 49-58.: 56; O’Donoghue and O’Donoghue (1926)O’Donoghue C.H., O’Donoghue E. 1926. A second list of the Bryozoa (Polyzoa) from the Vancouver Island region. Contrib. Can. Biol. Fish. 3(1): 47-131.: 21

Holoporella brunnea: Hastings (1929)Hastings A.B. 1929. Cheilostomatous Polyzoa from the vicinity of the Panama Canal collected by Dr. C. Crossland on the cruise of the S.Y. “St. George”. Proc. Zool. Soc. London 99(4): 697-740.: 731, pl. 16, Figs 108-110; Osburn (1952)Osburn R.C. 1952. Bryozoa of the Pacific coast of America, Part II, Cheilostomata Ascophora. Allan Hancock Pac. Exped. 14(2): 271-611.: 496, pl. 62, figs 10-12; Soule (1961)Soule J.D. 1961. Results of the Puritan-American Museum of Natural History Expedition to western Mexico, 13. Ascophoran Cheilostomata (Bryozoans) of the Gulf of California. Am. Mus. Novit. 2053: 1-65.: 33; Soule and Soule (1964)Soule D.F., Soule J.D. 1964. The Ectoprocta (Bryozoa) of Scammon’s Lagoon, Baja California, Mexico. Am. Mus. Novit. 2199: 1-56.: 38, Figs. 13-14.

Celleporaria brunnea: Winston (1986)Winston J.E. 1986. An annotated checklist of coral-associated bryozoans. Am. Mus. Novit. 2859: 1-39.: 12, Figs 19-22; Soule et al. (1995)Soule D.F., Soule J.D., Chaney H.W. 1995. The Bryozoa. In: Blake J.A., Chaney W., Scott P.H., et al. (eds), Taxonomic atlas of the benthic fauna of the Santa Maria Basin and the western Santa Barbara Channel. Irene McCulloch Foundation Monograph Series No. 2. Hancock Institute of Marine Studies, Southern California Univ. Press, 344 pp.: 267, Fig. 101; Koçak (2007)Koçak F. 2007. A new alien bryozoan Celleporaria brunnea (Hincks, 1884) in the Aegean Sea (eastern Mediterranean). Sci. Mar. 71(1): 191-195.: 191, Fig. 2 A-D; Seo and Min (2009)Seo J.E., Min B.S. 2009. A faunistic study on Cheilostomatous Bryozoans from the shoreline of South Korea, with two new species. Korean J. Syst. Zool. 25(1): 19-40.: 29, Fig. 7; Canning-Clode et al. 2013Canning-Clode J., Souto J., McCann L. 2013. First record of Celleporaria brunnea (Bryozoa: Lepraliellidae) in Portugal and in the East Atlantic. Mar. Biod. Rec. 6: 1-5.: 2, Fig. 2 A-C.

Celleporaria aperta: André et al. (2014)André F., Corolla J.-P., Lanza B., Rochefort G. 2014. Bryozoaires d’Europe: Les Carnets du Plongeur. Éditions Neptune Plongée, Gargas, 256 pp.: 181.

Celleporaria sp. aff. brunnea: Harmelin (2014)Harmelin J.G. 2014. Alien bryozoans in the eastern Mediterranean Sea - new records from the coast of Lebanon. Zootaxa 3893(3): 301-338.: 316, Fig. 6 A-C.

Material examined. Encrusting colonies of Celleporaria brunnea were found in the samples collected in the 2010 and 2011 campaigns in the harbours of La Spezia, Olbia and Lampedusa (Fig. 1). They were present in 15 (La Spezia), 15 (Olbia) and 9 (Lampedusa) out of the 20 samples collected in each harbour in the two sampling years. Table 1 summarizes the details of sample collection, reporting dates, locations, sites replicates, and geographical coordinates of the sampling campaigns.

Diagnosis. Unilaminar or multilaminar colonies greyish-dark brown, but occasionally entirely white. Opercula, sclerites of avicularia mandibles, base of spines and lophophore tentacles dark brown (Fig. 3A, B). Zoarium usually forms rough nodules or massive bases erratically oriented. Zooecia are moderately large and irregular in shape (Fig. 4A), exhibiting erect structures oriented in every direction. Inflated interzooidal boundaries with more than ten areolar pores (Fig. 4B); smooth or granular surface, occasionally ribbed. Orifice proximal border, with a midline notch (‘pseudosinus’), bounded by small horizontal shelf-like condyles, never closing the ‘pseudosinus’ (Fig. 4B). The peristome, which is thin and moderately raised, usually bears a pair of spines (Fig. 4C), black jointed at the base, (Fig. 3B) positioned on opposite sides, with occasionally one to three smaller ones between them. Suboral avicularia (Fig. 4D) proximal to the orifice variable: small non-erected or cylindrical erected. The nearly semicircular mandible of suboral avicularia may vary in size and raise with dentate beak (6-9, Fig. 4E). Interzooidal avicularia large and scattered, subspatulate, sclerites of mandibles spade-shaped and dark brown in colour (Figs 3A and 5A, B); fully formed beak turns upward at the tip. Ovicell hood-shaped and imperforate (Fig. 5C). The irregular shape of C. brunnea zooids, vertically heaped and erratically oriented, making it difficult sometimes to get measurements of colony and zooids parameters. For this reason, only interzooidal avicularia and primary orifice dimensions (length and width) are reported here (Table 2).

Remarks (Tables 2 and 3). Morphological characters described for our specimens, such as the colour of the colony, the suboral and interzooecial avicularia, the ooecium and the oral spines, are in accordance with the original descriptions of Hincks (1884)Hincks T. 1884. Report on the Polyzoa of the Queen Charlotte Islands. Part 3. Ann. Mag. Natur. Hist. Ser. 5. 13: 49-58. and the later ones of Hastings (1929)Hastings A.B. 1929. Cheilostomatous Polyzoa from the vicinity of the Panama Canal collected by Dr. C. Crossland on the cruise of the S.Y. “St. George”. Proc. Zool. Soc. London 99(4): 697-740., Osburn (1952)Osburn R.C. 1952. Bryozoa of the Pacific coast of America, Part II, Cheilostomata Ascophora. Allan Hancock Pac. Exped. 14(2): 271-611., Soule (1961)Soule J.D. 1961. Results of the Puritan-American Museum of Natural History Expedition to western Mexico, 13. Ascophoran Cheilostomata (Bryozoans) of the Gulf of California. Am. Mus. Novit. 2053: 1-65., Soule and Soule (1964)Soule D.F., Soule J.D. 1964. The Ectoprocta (Bryozoa) of Scammon’s Lagoon, Baja California, Mexico. Am. Mus. Novit. 2199: 1-56., Soule et al. (1995)Soule D.F., Soule J.D., Chaney H.W. 1995. The Bryozoa. In: Blake J.A., Chaney W., Scott P.H., et al. (eds), Taxonomic atlas of the benthic fauna of the Santa Maria Basin and the western Santa Barbara Channel. Irene McCulloch Foundation Monograph Series No. 2. Hancock Institute of Marine Studies, Southern California Univ. Press, 344 pp., Koçak (2007)Koçak F. 2007. A new alien bryozoan Celleporaria brunnea (Hincks, 1884) in the Aegean Sea (eastern Mediterranean). Sci. Mar. 71(1): 191-195., Seo and Min (2009)Seo J.E., Min B.S. 2009. A faunistic study on Cheilostomatous Bryozoans from the shoreline of South Korea, with two new species. Korean J. Syst. Zool. 25(1): 19-40., Canning-Clode et al. (2013)Canning-Clode J., Souto J., McCann L. 2013. First record of Celleporaria brunnea (Bryozoa: Lepraliellidae) in Portugal and in the East Atlantic. Mar. Biod. Rec. 6: 1-5. and Harmelin (2014)Harmelin J.G. 2014. Alien bryozoans in the eastern Mediterranean Sea - new records from the coast of Lebanon. Zootaxa 3893(3): 301-338.. Despite these morphological similarities, a comparison between our morphometric measurements and literature data has highlighted some differences. Western Mediterranean specimens present an orifice that is variable in size, and clearly longer than broader on average. Orifice measurements are mostly in accordance with those previously reported for H. brunnea material from Ecuador (Osburn 1952Osburn R.C. 1952. Bryozoa of the Pacific coast of America, Part II, Cheilostomata Ascophora. Allan Hancock Pac. Exped. 14(2): 271-611.). On the other hand, orifice measurements of our specimens are different to those of Koçak (2007)Koçak F. 2007. A new alien bryozoan Celleporaria brunnea (Hincks, 1884) in the Aegean Sea (eastern Mediterranean). Sci. Mar. 71(1): 191-195., Canning-Clode et al. (2013)Canning-Clode J., Souto J., McCann L. 2013. First record of Celleporaria brunnea (Bryozoa: Lepraliellidae) in Portugal and in the East Atlantic. Mar. Biod. Rec. 6: 1-5. and Harmelin (2014)Harmelin J.G. 2014. Alien bryozoans in the eastern Mediterranean Sea - new records from the coast of Lebanon. Zootaxa 3893(3): 301-338.. Koçak (2007)Koçak F. 2007. A new alien bryozoan Celleporaria brunnea (Hincks, 1884) in the Aegean Sea (eastern Mediterranean). Sci. Mar. 71(1): 191-195. described the orifice as clearly broader than long, Canning-Clode et al. (2013)Canning-Clode J., Souto J., McCann L. 2013. First record of Celleporaria brunnea (Bryozoa: Lepraliellidae) in Portugal and in the East Atlantic. Mar. Biod. Rec. 6: 1-5. reported an orifice that is bigger in size in both length and width and Harmelin (2014)Harmelin J.G. 2014. Alien bryozoans in the eastern Mediterranean Sea - new records from the coast of Lebanon. Zootaxa 3893(3): 301-338. reported similar values for both length and width, with just a slightly longer orifice on average. In our specimens, the interzooidal avicularia are highly variable and show similarities to those measured by Osburn (1952)Osburn R.C. 1952. Bryozoa of the Pacific coast of America, Part II, Cheilostomata Ascophora. Allan Hancock Pac. Exped. 14(2): 271-611., Winston (1986)Winston J.E. 1986. An annotated checklist of coral-associated bryozoans. Am. Mus. Novit. 2859: 1-39. and Koçak (2007)Koçak F. 2007. A new alien bryozoan Celleporaria brunnea (Hincks, 1884) in the Aegean Sea (eastern Mediterranean). Sci. Mar. 71(1): 191-195., but are different from the smaller values described by Harmelin (2014)Harmelin J.G. 2014. Alien bryozoans in the eastern Mediterranean Sea - new records from the coast of Lebanon. Zootaxa 3893(3): 301-338.. Furthermore, in the Californian specimens described by Soule et al. (1995)Soule D.F., Soule J.D., Chaney H.W. 1995. The Bryozoa. In: Blake J.A., Chaney W., Scott P.H., et al. (eds), Taxonomic atlas of the benthic fauna of the Santa Maria Basin and the western Santa Barbara Channel. Irene McCulloch Foundation Monograph Series No. 2. Hancock Institute of Marine Studies, Southern California Univ. Press, 344 pp., the ‘pseudosinus’ tends to be closed by small condyles, a feature that was absent in both our specimens and Harmelin’s C. sp. aff. brunnea ones (2014Harmelin J.G. 2014. Alien bryozoans in the eastern Mediterranean Sea - new records from the coast of Lebanon. Zootaxa 3893(3): 301-338.).

Distribution.

Native origin. Northeastern Pacific Ocean.

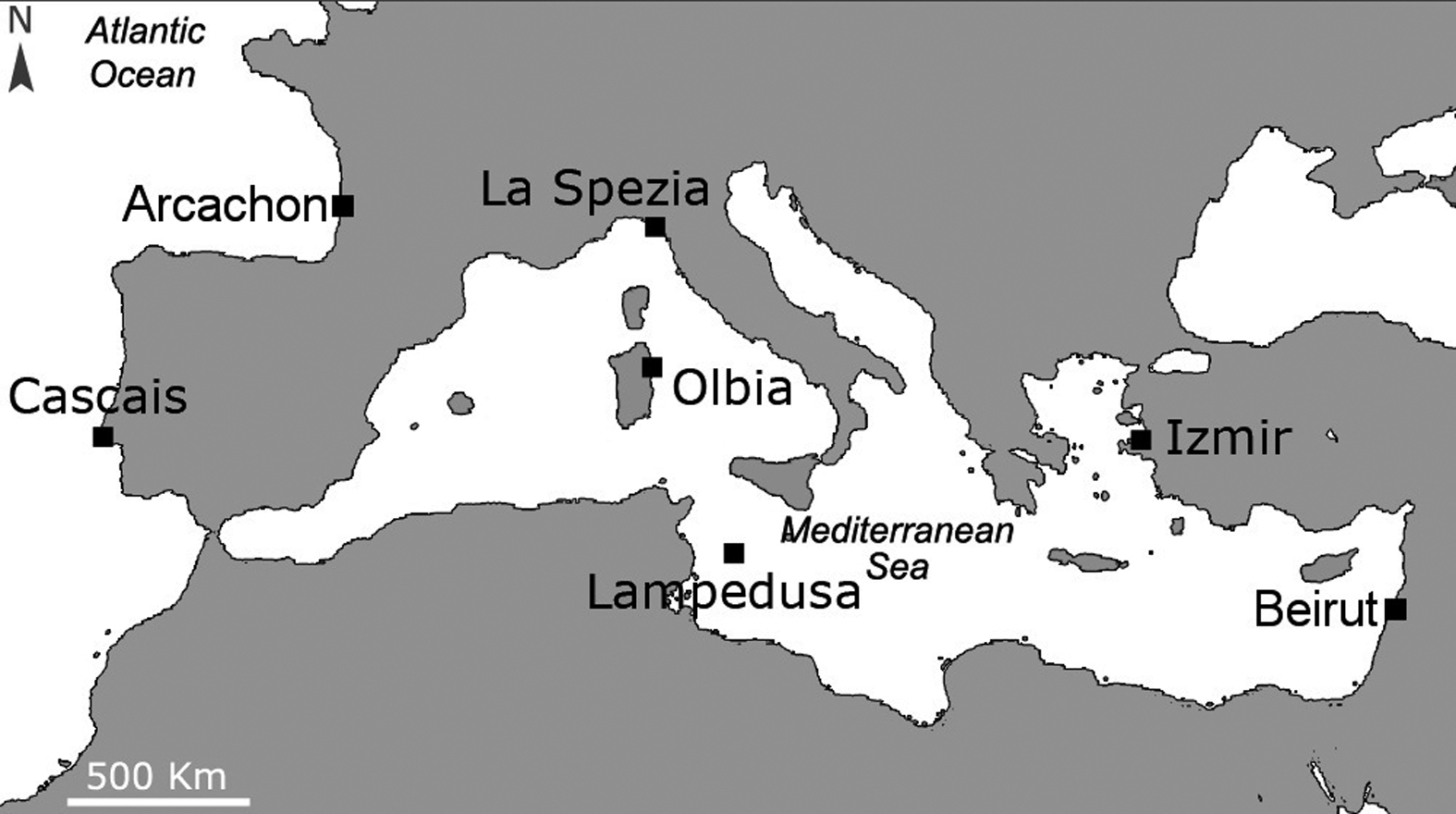

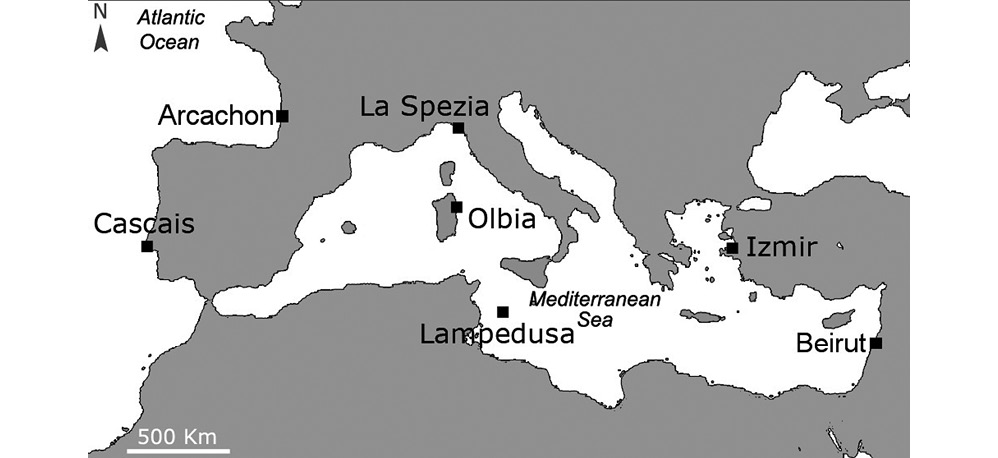

Present distribution. Pacific Ocean (British Columbia, Gulf of California, Panama Canal, Galapagos Islands, Ecuador, Hawaiian Islands, southern Korea), eastern Mediterranean Sea (Turkey and Lebanon coasts) and eastern Atlantic Ocean (Portugal and France coasts).

Occurrence in the western Mediterranean Sea harbours. C. brunnea was well-represented within the fouling community, colonizing both natural and artificial substrates within the three investigated sites. In the harbours of La Spezia and Olbia, it mainly grows on the bivalve Mytilus galloprovincialis, which was the dominant species of the fouling assemblages. Thriving colonies of C. brunnea were found on both shell surface and often on mussel byssal threads. Besides mussels, the species occurred on other biotic substrates, such as the polychaete dwelling-tubes of Sabella spallanzanii (Gmelin, 1791) and Hydroides spp. Gunnerus, 1768 and on the ascidian Styela plicata (Lesueur, 1823). In Lampedusa harbour, the species was mostly discovered growing directly on the concrete dock walls, as well as on the red algae Ellisolandia elongata (J. Ellis and Solander) K.R. Hind and G.W. Saunders, 2013, which dominated the benthic community. The abundance of C. brunnea and of the associated bryozoans communities in the three harbours investigated are shown in Table 4. In La Spezia harbour, 19 species of bryozoans were identified. C. brunnea was not particularly abundant (ab. index: +/++) but always present during the two sampling years (2010-2011), and did not display differences between seasons. In the harbour of Olbia, 15 species of bryozoans were identified, and an increasing abundance of C. brunnea was recorded during the two autumn months of sampling, especially in 2011 (September 2010: maximum ab. index ++, and October 2011: maximum ab. index ++++). In Lampedusa, 16 bryozoan species were identified; there was a higher abundance of C. brunnea in 2011 (especially in September, maximum ab. index: ++++) compared with the 2010 sampling (maximum ab. index: ++).

DISCUSSIONTop

Celleporaria brunnea colonies found in our samples were well-developed, forming large coarse incrustations and irregular masses, bearing ovicells, thus confirming that the species was well-acclimated and reproducing. The presence in three distant localities of the western Mediterranean Sea of established populations, whose abundance increased during the two years of observation, indicates the probability of further records in this area.

In the Mediterranean Sea and Atlantic Ocean, C. brunnea was reported from harbours and marinas, showing a preference for both natural (e.g. mussel beds and seaweeds; Koçak 2007Koçak F. 2007. A new alien bryozoan Celleporaria brunnea (Hincks, 1884) in the Aegean Sea (eastern Mediterranean). Sci. Mar. 71(1): 191-195.) and artificial hard substrates (e.g. docks and PVC plates; Canning-Clode et al. 2013Canning-Clode J., Souto J., McCann L. 2013. First record of Celleporaria brunnea (Bryozoa: Lepraliellidae) in Portugal and in the East Atlantic. Mar. Biod. Rec. 6: 1-5., present study). Port systems are known to be highly disturbed environments subject to high propagule pressure of non-indigenous species, due to the presence of a variety of anthropogenic pathways (Smith et al. 1999Smith L.D., Wonham M.J., McCann D.L., et al. 1999. Invasion pressure to a ballast-flooded estuary and an assessment of inoculant survival. Biol. Invasions 1: 67-87., Ruiz et al. 2000Ruiz G.M., Fofonoff P.W., Carlton J.T., et al. 2000. Invasion of coastal marine communities in North America: apparent patterns, processes, and biases. Annu. Rev. Ecol. Syst. 31: 481-531., Occhipinti-Ambrogi and Savini 2003Occhipinti-Ambrogi A., Savini D. 2003. Biological invasion as a component of global change in stressed marine ecosystems. Mar. Pollut. Bull. 46: 542-551.). Amongst these, shipping activity, for both commercial and tourism purposes, facilitates the introduction in new regions and the subsequent spread of non-indigenous organisms fouling on the hulls of ships or transported in ballast waters or sea chests (Carlton 1985Carlton J.T. 1985. Transoceanic and interoceanic dispersal of coastal marine organisms: the biology of ballast water. Oceanogr. Mar. Biol. Annu. Rev. 23: 313-371., 1987Carlton J.T. 1987. Patterns of transoceanic marine biological invasions in the Pacific Ocean. Bull. Mar. Sci. 41(2): 452-465., Carlton and Geller 1993Carlton J.T., Geller J.B. 1993. Ecological roulette: biological invasions and the global transport of non-indigenous marine organisms. Science 261: 78-82.). Like many marine sessile organisms, bryozoans are capable of using a variety of potential dispersal mechanisms, as they demonstrate great catholicity in their exploitation of substrates. Man-made installations located in major shipping ports and centres for pleasure craft can provide a wide and extensive range of hard surfaces for attachment that include breakwaters, pontoons and pilings, which constitute a suitable habitat for sessile organisms such as bryozoans (Glasby and Connell 1999Glasby T.M., Connell S.D. 1999. Urban structures as marine habitats. Ambio 28: 595-598., Connell 2000Connell S.D. 2000. Floating pontoons create novel habitats for subtidal epibiota. J. Exp. Mar. Biol. Ecol. 247: 183-194., 2001Connell S.D. 2001. Urban structures as marine habitats: an experimental comparison of the composition and abundance of subtidal epibiota among pilings, pontoon and rocky reefs. Mar. Environ. Res. 52: 115-125.). C. brunnea was found in the mooring area of the Italian harbour of La Spezia, Olbia and Lampedusa, in the Portuguese marina of Cascais (Canning-Clode et al. 2013Canning-Clode J., Souto J., McCann L. 2013. First record of Celleporaria brunnea (Bryozoa: Lepraliellidae) in Portugal and in the East Atlantic. Mar. Biod. Rec. 6: 1-5.) and on artificial substrates in Turkey (Koçak 2007Koçak F. 2007. A new alien bryozoan Celleporaria brunnea (Hincks, 1884) in the Aegean Sea (eastern Mediterranean). Sci. Mar. 71(1): 191-195.) and Lebanon (Harmelin 2014Harmelin J.G. 2014. Alien bryozoans in the eastern Mediterranean Sea - new records from the coast of Lebanon. Zootaxa 3893(3): 301-338.). Ship fouling, in particular, could provide a very rapid, reliable means of dispersal and is likely to be an effective vector for both local and global scales (Watts et al. 1998Watts P.C., Thorpe J.P., Taylor P.D. 1998. Natural and anthropogenic dispersal mechanisms in the marine environment: a study using cheilostome Bryozoa. Philos. Trans. R. Soc. Lond. B. 353: 453-464.). Thus, hull fouling is the most likely vector of introduction and spread of C. brunnea in the Mediterranean Sea and the Atlantic Ocean. Similarly, Godwin (2003)Godwin S.L. 2003. Hull fouling of maritime vessels as a pathway for marine species invasion to the Hawaiian Islands. Biofouling 19: 123-131. suggested that the species may have been secondarily dispersed to the Hawaiian Islands via hull fouling of ships travelling from the Gulf of California, where C. brunnea was already known to occur. Although such dispersal will mostly be restricted to ports, other transport mechanisms may also increase the geographic range of bryozoan species beyond these points of entry, including rafting on floating materials (e.g. marine debris of anthropogenic origin, such as floating plastics) and drifting seaweeds (Watts et al. 1998Watts P.C., Thorpe J.P., Taylor P.D. 1998. Natural and anthropogenic dispersal mechanisms in the marine environment: a study using cheilostome Bryozoa. Philos. Trans. R. Soc. Lond. B. 353: 453-464., Barnes 2002Barnes D.K.A. 2002. Invasions by marine life on plastic debris. Nature 416: 808-809.); in recent years, marine debris has increased significantly, and this floating material is used as a ‘hitchhiking’ substrate for mature individuals of different taxa, bryozoans included (Barnes 2002Barnes D.K.A. 2002. Invasions by marine life on plastic debris. Nature 416: 808-809., Aliani and Molcard 2003Aliani S., Molcard A. 2003. Hitch-hiking on floating marine debris: macrobenthic species in the Western Mediterranean Sea. Hydrobiologia 503: 59-67.).

In addition, transport by ballast water has to be considered as a potential dispersal mechanism, since bryozoans are able to foul the inside of ballast tanks (Carlton 1985Carlton J.T. 1985. Transoceanic and interoceanic dispersal of coastal marine organisms: the biology of ballast water. Oceanogr. Mar. Biol. Annu. Rev. 23: 313-371.). In fact, larval forms and development traits are crucial in contributing to dispersal and habitat exploitation of marine invertebrates (Scheltema 1986aScheltema R.S. 1986a. Long-distance dispersal by planktonic larvae of shoal-water benthic invertebrates among Central Pacific Islands. Bull. Mar. Sci. 39(2): 241-256.,bScheltema R.S. 1986b. On dispersal and planktonic larvae of benthic invertebrates: an eclectic overview and summary of problems. Bull. Mar. Sci. 39(2): 290-322., Roughgarden et al. 1988Roughgarden J., Gaines S., Possingham H. 1988. Recruitment dynamics in complex life cycles. Science 241: 1460-1465.). For instance, larvae of the cheilostome bryozoan Membranipora membranacea (Linnaeus, 1767) were found in ballast water (Carlton and Geller 1993Carlton J.T., Geller J.B. 1993. Ecological roulette: biological invasions and the global transport of non-indigenous marine organisms. Science 261: 78-82.), but the dispersal possibilities of this bryozoan is enhanced due to the long pelagic duration of its planktotrophic (cyphonautes) larva (Ryland 1964Ryland J.S. 1964. The identity of some cyphonautes larvae (Polyzoa). J. Mar. Biol. Ass. UK 44: 645-654., Yoshioka 1982Yoshioka P.M. 1982. Role of planktonic and benthic factors in the population dynamics of the bryozoan Membranipora membranacea. Ecology 63, 457-468., Stricker et al. 1988Stricker S.A., Reed C.G., Zimmer R.L. 1988. The cyphonautes larva of the marine bryozoan Membranipora membranacea. I. General morphology, body wall, and gut. Can. J. Zool. 66(2): 368-383.). Conversely, C. brunnea has a lecithotrophic (coronate) larva with a wide area of coronal cells for ciliary propulsion and a short pelagic duration (Santagata and Zimmer 2000Santagata S., Zimmer R.L. 2000. Comparing cell patterns of coronate bryozoan larvae with fluorescent probes. In: Herrera Cubilla A., Jackson J.B.C. (eds), Proceedings of the Eleventh International Bryozoology Association Conference, Smithsonian Tropical Research Institute, Balboa, Republic of Panama, 26-31 January 1998. Smithsonian Tropical Research Institute, pp. 365-375., Santagata 2008aSantagata S. 2008a. The morphology and evolutionary significance of the ciliary fields and musculature among marine bryozoan larvae. J. Morphol. 269: 349-364.,bSantagata S. 2008b. Evolutionary and structural diversification of the larval nervous system among marine bryozoans. Biol. Bull. 215: 3-23.). The low dispersal potential of C. brunnea larvae is thus not very effective in long-range transportation of the species, e.g. in ship ballast waters. The short pelagic duration of C. brunnea larvae, which can settle within a few hours of their release, means that they may not be able to disperse over long distances and their transfer in ballast waters can be considered effective just for short-range transportation. Furthermore, C. brunnea was also found on aquaculture steel cages in Korea (Seo and Min 2009Seo J.E., Min B.S. 2009. A faunistic study on Cheilostomatous Bryozoans from the shoreline of South Korea, with two new species. Korean J. Syst. Zool. 25(1): 19-40.); this vector has to be taken into account in the light of the records from Arcachon Basin (André et al. 2014André, F., Corolla, J.-P., Lanza, B. & Rochefort, G. 2014. Bryozoaires d’Europe: Les Carnets du Plongeur. Éditions Neptune Plongée, Gargas, 256 pp.), Olbia and La Spezia (present work), all of which are intense mariculture activity sites. The transfer as non-target species associated with mussels and clams for aquaculture purposes cannot be excluded as a potential vector of introduction, albeit a less effective one.

Current distribution and record dates of C. brunnea in the Mediterranean Sea might suggest a step-by-step anthropogenic route of invasion: firstly, long-distance introduction from the Pacific, most probably through shipping via the Suez Canal, to the Levantine basin, including the Lebanese and Turkish findings, followed by a stepping stone occurrence in the Sicilian Channel (Lampedusa harbour). This fact might have contributed to the further spread of the species northwards, up to the Tyrrhenian (Olbia harbour) and the Ligurian Sea (La Spezia harbour), as well as eastwards towards the Atlantic coast of Portugal (Cascais marina) and France (Arcachon Basin). The presence of C. brunnea in the polluted inner part of Izmir Bay near Alsancak harbour (Turkey) suggests that the most likely pathway of the species’ introduction in the eastern Mediterranean Sea is the hull fouling community of ships (Koçak 2007Koçak F. 2007. A new alien bryozoan Celleporaria brunnea (Hincks, 1884) in the Aegean Sea (eastern Mediterranean). Sci. Mar. 71(1): 191-195.) originating from the Pacific through the Suez Canal. This is also the most likely explanation for C. brunnea occurrence along the Lebanese coast (Harmelin et al. 2009Harmelin J.G., Bitar G., Zibrowius H. 2009. Smittinidae (Bryozoa, Cheilostomata) from coastal habitats of Lebanon (Mediterranean Sea), including new and non-indigenous species. Zoosystema 31(1): 163-187.), as the location of the Levantine Basin “downstream” of the opening of the Suez Canal facilitates Indo-Pacific biota in becoming established first along the eastern Mediterranean coasts (Galil 2009Galil B.S. 2009. Taking stock: inventory of alien species in the Mediterranean Sea. Biol. Invasions 11: 359-372.). From there, C. brunnea might have been subsequently transferred and spread throughout the Mediterranean by carriers of different types (e.g. vessels and cruise liners). These operate all over the basin as far east as the Aegean and Levantine Seas, as far north as the Tyrrhenian and the Ligurian Sea and eastwards up to the Alboran Sea towards the northern Atlantic Ocean (www.biodivalue.eu; Accessed October 2014).

However, the taxonomic comparison between our morphometric measurements and literature data allowed us to assert a greater similarity with the Pacific specimens of C. brunnea, rather than with the Mediterranean Sea or Atlantic Ocean ones. Given these circumstances, an alternative hypothesis for the introduction route of this bryozoan to the western Mediterranean Sea appears to be more likely than the first one. Firstly, C. brunnea might have reached La Spezia harbour by means of cargo ships which travel regularly from the Pacific to the Ligurian Sea and back (www.porto.laspezia.it; accessed October 2014). In this case, La Spezia harbour would represent the first event of introduction into the western Mediterranean basin and the primary source for further events of secondary spread within the whole basin. While big tankers and merchant ships originating from the Pacific could have introduced the first propagules of C. brunnea into La Spezia waters, coaster and pleasure boats could have contributed to the secondary spread of the species southwards to Olbia harbour in the western-central Tyrrhenian Sea and to Lampedusa Island in the Sicilian Channel. Indeed, these localities are situated in areas with extremely heavy tourist traffic and feature busy marinas and moorings for pleasure boats and fast ferries; recreational boating was recently accepted as an important secondary transmission vector of non-indigenous species worldwide (Johnson et al. 2001Johnson L., Ricciardi A., Carlton J.T. 2001. Overland dispersal of aquatic invasive species: a risk assessment of transient recreational boating. Ecol. Appl. 11(6): 1789-1799., Floerl and Inglis 2003Floerl O., Inglis G.J. 2003. Potential for the introduction and spread of marine pests by private yachts. Hull fouling as a mechanism for marine invasive species introductions. In: Godwin L.S. (ed) Proceedings of a workshop on current issues and potential management strategies. Honolulu, Hawaii, 12-13 February 2003, 22-28., Davidson et al. 2010Davidson I.C., Zabin C.J., Chang A.L., et al. 2010. Recreational boats as potential vectors of marine organisms at an invasion hotspot. Aquat. Biol. 11: 179-191., Clarke Murray et al. 2011Clarke Murray C.C., Pakhomov E.A., Therriault T.W. 2011. Recreational boating: a large unregulated vector transporting marine invasive species. Divers. Distrib. 17: 1161-1172.). Because of the morphometric differences of the eastern Mediterranean Sea and Atlantic Ocean specimens, the occurrence of C. brunnea there has to be considered the result of multiple introduction events, possibly unrelated to the events of primary and secondary introduction in the western Mediterranean basin.

In La Spezia harbour, C. brunnea is the most frequent and abundant bryozoan, along with other bryozoan species (Table 4): the cosmopolitan Bugula neritina (Linnaeus, 1758), Bowerbankia gracilis Leidy, 1855, Cryptosula pallasiana (Moll, 1803), Watersipora sp. Neviani, 1896, the pseudo-indigenous (sensu Carlton 2009Carlton J.T. 2009. Deep invasion ecology and the assembly of communities in historical time. In: Rilov G., Crooks J.A. (eds), Biological invasions in marine ecosystems. Springer-Verlag Berlin Heidelberg, Ecological Studies 204, pp. 13-56.) Zoobotryon verticillatum (Delle Chiaje, 1822) and the non-indigenous Tricellaria inopinata d’Hondt and Occhipinti-Ambrogi, 1985. Table 4 shows that, when there was a high abundance of C. brunnea in Olbia harbour, other encrusting bryozoans such as Conopeum seurati (Canu, 1928) and C. pallasiana were less abundant or absent, and vice versa. In Lampedusa harbour, the most common assemblage of bryozoans included B. neritina, Cradoscrupocellaria bertholletii (Audouin, 1826), Watersipora sp. and Z. verticillatum together with C. brunnea, which generally displayed higher abundances in the summer of 2011 than in the summer of 2010. Furthermore, C. brunnea prevailed in samples collected at the end of the summer season in the three sampling locations during both years, while it was less abundant and frequent in samples collected in spring (Table 4). Unfortunately, the lack of previous bryozoan collection in the three Italian harbours makes it difficult to precisely assess the invasion history of C. brunnea in the western Mediterranean Sea and to make inferences about its effects on the native bryozoan community. The time of introduction of C. brunnea to La Spezia, Olbia and Lampedusa is unknown and the species might have remained unnoticed for a long time. Notwithstanding this, C. brunnea has been found to be widespread and abundant in the three investigated harbours since 2010, therefore suggesting that its introduction and acclimation in these areas can be definitely backdated.

The differences in taxonomic characteristics of specimens found in different areas may indicate multiple introduction events, and not just a single event of primary introduction followed by secondary spread. However, only a taxonomic review of the Celleporaria genus and genetic and taxonomic analysis of C. brunnea specimens, together with a comparison with Hincks’s type (Hincks 1884Hincks T. 1884. Report on the Polyzoa of the Queen Charlotte Islands. Part 3. Ann. Mag. Natur. Hist. Ser. 5. 13: 49-58.), would allow us to reconstruct the historical introduction events of C. brunnea, and to determine whether the morphological differences between specimens are to be assigned to a complex of species or a variation within the C. brunnea species.

The species belonging to the Celleporaria genus are known to be highly opportunistic and invasive (Dunstan and Johnson 2004Dunstan P.K., Johnson C.R. 2004. Invasion rates increase with species richness in a marine epibenthic community by two mechanisms. Oecologia 138: 285-292.), and their occurrence in harbours or marinas may indicate a tolerance capacity to thrive in polluted water conditions (Harmelin 2014Harmelin J.G. 2014. Alien bryozoans in the eastern Mediterranean Sea - new records from the coast of Lebanon. Zootaxa 3893(3): 301-338.). Thus, C. brunnea and the other congeneric species may be expected to occur in other localities throughout the Mediterranean Sea in the years to come.

ACKNOWLEDGEMENTSTop

The authors thank Dr. Maria Pia Riccardi of the CISRiC-Arvedi Laboratory (University of Pavia) for her technical assistance in the elaboration of SEM pictures and the Association For-Mare for supporting this research.

REFERENCESTop

Agius C., Schembri P.J., Jaccarini V. 1977. A preliminary report on organisms fouling oyster cultures in Malta (Central Mediterranean). Mem. Biol. Mar. Oceanogr. 7: 51-59.

Aliani S., Molcard A. 2003. Hitch-hiking on floating marine debris: macrobenthic species in the Western Mediterranean Sea. Hydrobiologia 503: 59-67.
http://dx.doi.org/10.1023/B:HYDR.0000008480.95045.26

André F., Corolla J.-P., Lanza B., Rochefort G. 2014. Bryozoaires d’Europe: Les Carnets du Plongeur. Éditions Neptune Plongée, Gargas, 256 pp.

Barnes D.K.A. 2002. Invasions by marine life on plastic debris. Nature 416: 808-809.
http://dx.doi.org/10.1038/416808a

Boero F. 1994. Fluctuations and variations in coastal marine environments. Mar. Ecol. 15(1): 3-25.
http://dx.doi.org/10.1111/j.1439-0485.1994.tb00038.x

Canning-Clode J., Souto J., McCann L. 2013. First record of Celleporaria brunnea (Bryozoa: Lepraliellidae) in Portugal and in the East Atlantic. Mar. Biod. Rec. 6: 1-5.
http://dx.doi.org/10.1017/S1755267213000821

Carlton J.T. 1985. Transoceanic and interoceanic dispersal of coastal marine organisms: the biology of ballast water. Oceanogr. Mar. Biol. Annu. Rev. 23: 313-371.

Carlton J.T. 1987. Patterns of transoceanic marine biological invasions in the Pacific Ocean. Bull. Mar. Sci. 41(2): 452-465.

Carlton J.T. 2009. Deep invasion ecology and the assembly of communities in historical time. In: Rilov G., Crooks J.A. (eds), Biological invasions in marine ecosystems. Springer-Verlag Berlin Heidelberg, Ecological Studies 204, pp. 13-56.
http://dx.doi.org/10.1007/978-3-540-79236-9_2

Carlton J.T., Geller J.B. 1993. Ecological roulette: biological invasions and the global transport of non-indigenous marine organisms. Science 261: 78-82.
http://dx.doi.org/10.1126/science.261.5117.78

Carlton J.T., Hodder J. 1995. Biogeography and dispersal of coastal marine organisms: experimental studies on a replica of a 16th century sailing vessel. Mar. Biol. 121: 721-730.
http://dx.doi.org/10.1007/BF00349308

Clarke Murray C.C., Pakhomov E.A., Therriault T.W. 2011. Recreational boating: a large unregulated vector transporting marine invasive species. Divers. Distrib. 17: 1161-1172.
http://dx.doi.org/10.1111/j.1472-4642.2011.00798.x

Connell S.D. 2000. Floating pontoons create novel habitats for subtidal epibiota. J. Exp. Mar. Biol. Ecol. 247: 183-194.
http://dx.doi.org/10.1016/S0022-0981(00)00147-7

Connell S.D. 2001. Urban structures as marine habitats: an experimental comparison of the composition and abundance of subtidal epibiota among pilings, pontoon and rocky reefs. Mar. Environ. Res. 52: 115-125.
http://dx.doi.org/10.1016/S0141-1136(00)00266-X

Davidson I.C., Zabin C.J., Chang A.L., et al. 2010. Recreational boats as potential vectors of marine organisms at an invasion hotspot. Aquat. Biol. 11: 179-191.
http://dx.doi.org/10.3354/ab00302

d’Hondt J.L. 1988. Bryozoa from the coast of Israel. Italian J. Zool. 55(1-4): 191-203.
http://dx.doi.org/10.1080/11250008809386617

Dunstan P.K., Johnson C.R. 2004. Invasion rates increase with species richness in a marine epibenthic community by two mechanisms. Oecologia 138: 285-292.
http://dx.doi.org/10.1007/s00442-003-1400-7

Floerl O., Inglis G.J. 2003. Potential for the introduction and spread of marine pests by private yachts. Hull fouling as a mechanism for marine invasive species introductions. In: Godwin L.S. (ed) Proceedings of a workshop on current issues and potential management strategies. Honolulu, Hawaii, 12-13 February 2003, 22-28.

Floerl O., Inglis G.J., Dey K., et al. 2009. The importance of transport hubs in stepping-stone invasions. J. Appl. Ecol. 46: 37-45.
http://dx.doi.org/10.1111/j.1365-2664.2008.01540.x

Galil B.S. 2009. Taking stock: inventory of alien species in the Mediterranean Sea. Biol. Invasions 11: 359-372.
http://dx.doi.org/10.1007/s10530-008-9253-y

Glasby T.M., Connell S.D. 1999. Urban structures as marine habitats. Ambio 28: 595-598.

Godwin S.L. 2003. Hull fouling of maritime vessels as a pathway for marine species invasion to the Hawaiian Islands. Biofouling 19: 123-131.
http://dx.doi.org/10.1080/0892701031000061750

Gollasch S. 2002. The importance of ship hull fouling as a vector of species introductions into the North Sea. Biofouling 18(2): 105-121.
http://dx.doi.org/10.1080/08927010290011361

Gollasch S., Lenz J., Dammer M., et al. 2000. Survival of tropical ballast water organisms during a cruise from the Indian Ocean to the North Sea. J. Plankton Res. 22(5): 923-937.
http://dx.doi.org/10.1093/plankt/22.5.923

Harmelin J.G. 2014. Alien bryozoans in the eastern Mediterranean Sea - new records from the coast of Lebanon. Zootaxa 3893(3): 301-338.
http://dx.doi.org/10.11646/zootaxa.3893.3.1

Harmelin J.G., Bitar G., Zibrowius H. 2009. Smittinidae (Bryozoa, Cheilostomata) from coastal habitats of Lebanon (Mediterranean Sea), including new and non-indigenous species. Zoosystema 31(1): 163-187.
http://dx.doi.org/10.5252/z2009n1a9

Hastings A.B. 1929. Cheilostomatous Polyzoa from the vicinity of the Panama Canal collected by Dr. C. Crossland on the cruise of the S.Y. “St. George”. Proc. Zool. Soc. London 99(4): 697-740.
http://dx.doi.org/10.1111/j.1096-3642.1929.tb01453.x

Hincks T. 1884. Report on the Polyzoa of the Queen Charlotte Islands. Part 3. Ann. Mag. Natur. Hist. Ser. 5. 13: 49-58.

Johnson L., Ricciardi A., Carlton J.T. 2001. Overland dispersal of aquatic invasive species: a risk assessment of transient recreational boating. Ecol. Appl. 11(6): 1789-1799.
http://dx.doi.org/10.1890/1051-0761(2001)011[1789:ODOAIS]2.0.CO;2

Koçak F. 2007. A new alien bryozoan Celleporaria brunnea (Hincks, 1884) in the Aegean Sea (eastern Mediterranean). Sci. Mar. 71(1): 191-195.

Lodola A. 2013. Xenodiversity in Marine Protected Areas: three case studies in Italy. PhD Thesis. Pavia Univ. Italy, 243 pp.

Lodola A., Savini D., Occhipinti-Ambrogi A. 2012. First record of Tricellaria inopinata (Bryozoa: Candidae) in the harbours of La Spezia and Olbia, Western Mediterranean Sea (Italy). Mar. Biod. Rec. 5: 1-7.
http://dx.doi.org/10.1017/S1755267212000309

Marchini A., Gauzer K., Occhipinti-Ambrogi A. 2004. Spatial and temporal variability of hard-bottom macrofauna in a disturbed coastal lagoon (Sacca di Goro, Po river delta, north-western Adriatic Sea). Mar. Pollut. Bull. 48(11-12): 1084-1095.
http://dx.doi.org/10.1016/j.marpolbul.2003.12.015

Minchin D. 2007. Rapid coastal survey for targeted alien species associated with floating pontoons in Ireland. Aquat. Invasions 2(1): 63-70.
http://dx.doi.org/10.3391/ai.2007.2.1.8

Occhipinti-Ambrogi A. 1991. The spread of Tricellaria inopinata into the Lagoon of Venice: an ecological hypothesis. Bull. Soc. Sci. Nat. Ouest Sér. 1: 299-308.

Occhipinti-Ambrogi A. 2000. Biotic invasions in a Mediterranean Lagoon. Biol. Invasions 2: 165-176.
http://dx.doi.org/10.1023/A:1010004926405

Occhipinti-Ambrogi A., Savini D. 2003. Biological invasion as a component of global change in stressed marine ecosystems. Mar. Pollut. Bull. 46: 542-551.
http://dx.doi.org/10.1016/S0025-326X(02)00363-6

O’Donoghue C.H., O’Donoghue E. 1926. A second list of the Bryozoa (Polyzoa) from the Vancouver Island region. Contrib. Can. Biol. Fish. 3(1): 47-131.
http://dx.doi.org/10.1139/f26-003

Osburn R.C. 1952. Bryozoa of the Pacific coast of America, Part II, Cheilostomata Ascophora. Allan Hancock Pac. Exped. 14(2): 271-611.

Powell N.A. 1969. Indo-Pacific bryozoans new to the Mediterranean coast of Israel. Isr. J. Zool. 18: 157-168.

Roughgarden J., Gaines S., Possingham H. 1988. Recruitment dynamics in complex life cycles. Science 241: 1460-1465.
http://dx.doi.org/10.1126/science.11538249

Ruiz G.M., Fofonoff P.W., Carlton J.T., et al. 2000. Invasion of coastal marine communities in North America: apparent patterns, processes, and biases. Annu. Rev. Ecol. Syst. 31: 481-531.
http://dx.doi.org/10.1146/annurev.ecolsys.31.1.481

Ryland J.S. 1964. The identity of some cyphonautes larvae (Polyzoa). J. Mar. Biol. Ass. UK 44: 645-654.
http://dx.doi.org/10.1017/S002531540002782X

Santagata S. 2008a. The morphology and evolutionary significance of the ciliary fields and musculature among marine bryozoan larvae. J. Morphol. 269: 349-364.
http://dx.doi.org/10.1002/jmor.10592

Santagata S. 2008b. Evolutionary and structural diversification of the larval nervous system among marine bryozoans. Biol. Bull. 215: 3-23.
http://dx.doi.org/10.2307/25470679

Santagata S., Zimmer R.L. 2000. Comparing cell patterns of coronate bryozoan larvae with fluorescent probes. In: Herrera Cubilla A., Jackson J.B.C. (eds), Proceedings of the Eleventh International Bryozoology Association Conference, Smithsonian Tropical Research Institute, Balboa, Republic of Panama, 26-31 January 1998. Smithsonian Tropical Research Institute, pp. 365-375.

Savini D., Marchini A., Forni G., et al. 2006. Touristic harbours and secondary spread of alien species. Biol. Mar. Mediterr. 13: 760-763.

Scheltema R.S. 1986a. Long-distance dispersal by planktonic larvae of shoal-water benthic invertebrates among Central Pacific Islands. Bull. Mar. Sci. 39(2): 241-256.

Scheltema R.S. 1986b. On dispersal and planktonic larvae of benthic invertebrates: an eclectic overview and summary of problems. Bull. Mar. Sci. 39(2): 290-322.

Sciberras M., Schembri P.J. 2007. A critical review of records of alien marine species from the Maltese Islands and surrounding waters (Central Mediterranean). Medit. Mar. Sci. 8(1): 41-66.
http://dx.doi.org/10.12681/mms.162

Seo J.E., Min B.S. 2009. A faunistic study on Cheilostomatous Bryozoans from the shoreline of South Korea, with two new species. Korean J. Syst. Zool. 25(1): 19-40.
http://dx.doi.org/10.5635/KJSZ.2009.25.1.019

Smith L.D., Wonham M.J., McCann D.L., et al. 1999. Invasion pressure to a ballast-flooded estuary and an assessment of inoculant survival. Biol. Invasions 1: 67-87.
http://dx.doi.org/10.1023/A:1010094527218

Soule J.D. 1961. Results of the Puritan-American Museum of Natural History Expedition to western Mexico, 13. Ascophoran Cheilostomata (Bryozoans) of the Gulf of California. Am. Mus. Novit. 2053: 1-65.

Soule D.F., Soule J.D. 1964. The Ectoprocta (Bryozoa) of Scammon’s Lagoon, Baja California, Mexico. Am. Mus. Novit. 2199: 1-56.

Soule D.F., Soule J.D., Chaney H.W. 1995. The Bryozoa. In: Blake J.A., Chaney W., Scott P.H., et al. (eds), Taxonomic atlas of the benthic fauna of the Santa Maria Basin and the western Santa Barbara Channel. Irene McCulloch Foundation Monograph Series No. 2. Hancock Institute of Marine Studies, Southern California Univ. Press, 344 pp.

Stricker S.A., Reed C.G., Zimmer R.L. 1988. The cyphonautes larva of the marine bryozoan Membranipora membranacea. I. General morphology, body wall, and gut. Can. J. Zool. 66(2): 368-383.
http://dx.doi.org/10.1139/z88-054

Watts P.C., Thorpe J.P., Taylor P.D. 1998. Natural and anthropogenic dispersal mechanisms in the marine environment: a study using cheilostome Bryozoa. Philos. Trans. R. Soc. Lond. B. 353: 453-464.
http://dx.doi.org/10.1098/rstb.1998.0222

Winston J.E. 1986. An annotated checklist of coral-associated bryozoans. Am. Mus. Novit. 2859: 1-39.

Woollacott R.M., Zimmer R.L. (eds). 1977. Biology of bryozoans. Academic Press. 584 pp.

Yoshioka P.M. 1982. Role of planktonic and benthic factors in the population dynamics of the bryozoan Membranipora membranacea. Ecology 63, 457-468.
http://dx.doi.org/10.2307/1938963

Zenetos A., Gofas S., Morri C., et al. 2012. Alien species in the Mediterranean Sea by 2012. A contribution to the application of European Union’s Marine Strategy Framework Directive (MSFD). Part 2. Introduction, trends and pathways. Medit. Mar. Sci. 13(2): 328-352.
http://dx.doi.org/10.12681/mms.327
