INTRODUCTIONTop

Data on the birthdates of juvenile fish are important for investigating periods when environmental conditions are most favourable to recruit survival (Wilhelm et al. 2005Wilhelm M.R., Painting S.J., Field J.G., et al 2005. Impact of environmental factors on survival of larval and juvenile Cape anchovy Engraulis encrasicolus (G.) in the southern Benguela upwelling region, determined from hatchdate distributions: implications for recruitment. Mar. Freshwater Res. 56: 561-572., Baumann et al. 2008Baumann H., Voss R., Hinrichsen H.-H., et al. 2008. Investigating the selective survival of summer- over spring-born sprat, Sprattus sprattus, in the Baltic Sea. Fish. Res. 91: 1-14.). Such knowledge is particularly important in the case of small pelagic fish such as sardine (Sardina pilchardus) that have extended spawning seasons and extensive inter-annual fluctuations in recruitment (Stratoudakis et al. 2007Stratoudakis Y., Coombs S., Lago de Lanzós A., et al. 2007. Sardine (Sardina pilchardus) spawning seasonality in European waters of the northeast Atlantic. Mar. Biol. 152: 201-212., ICES 2014ICES 2014. Report of the Working Group on Southern Horse Mackerel, Anchovy, and Sardine (WGHANSA), 20-25 June 2014, Copenhagen, Denmark. ICES CN 2014/ACOM: 16, 532 pp.). The assignment of age to juvenile fish is commonly based on counts of otolith daily growth rings, a time-consuming task which requires long training and experience (Jones 1992Jones C.M. 1992. Development and application of the otolith increment technique. In: Stevenson D.K., Campana S.E. (eds). Otolith microstructure examination and analysis. Can. J. Fish. Aquat. Sci. 117: 1-11.). Otolith and fish morphometric characteristics have been shown to be good predictors of age in adult fish of several species (Fossen et al. 2003Fossen I., Albert O., Nilssen E. 2003. Improving the precision of ageing assessments for long rough dab by using digitalized pictures and otoliths measurements. Fish. Res. 60: 53-64., Lou et al. 2005Lou D.C., Mapstone B.D., Russ G.R., et al. 2005. Using otolith weight-age relationship to predict age-based metric of coral reef fish populations at different spatial scales. Fish. Res. 71: 279-294., 2007Lou D.C., Mapstone B.D., Russ G.R., et al. 2007. Using otolith weight-age relationships to predict age based metrics of coral reef fish populations across different temporal scales. Fish. Res. 83: 216-227., Steward et al. 2009Steward C.A., DeMaria Karen D., Shenker J.M. 2009. Using otolith morphometrics to quickly and inexpensively predict age in the gray angelfish (Pomacanthus arcuatus). Fish. Res. 99: 123-129., see review by Francis and Campana 2004Francis R.I.C., Campana S.E. 2004. Inferring age from otolith measurements: a review and a new approach. Can. J. Fish. Aquat. Sci. 91: 1269-1284.). The idea of extending the technique to overcome the particularly difficult task of determining age in juvenile fish has been put forward by Pawson (1990)Pawson M.G. 1990. Using otolith weight to age fish. J. Fish Biol. 36: 521-531.. However, the few published applications on juvenile fish age prediction from morphometric characteristics that we are aware of (Fey and Linkowski 2006Fey D.P., Linkowski T.B. 2006. Predicting juvenile Baltic cod (Gadus morhua) age from body and otolith size measurements. ICES J. Mar. Sci. 63:1045-1052., Megalofonou 2006Megalofonou P. 2006. Comparison of otolith growth and morphology with somatic growth and age in young-of-the-year bluefin tuna. J. Fish Biol. 68: 1867-1878.) indicate that the idea has received limited attention in the past two decades.

Sardine is an important fishing resource in Portugal, accounting for 40% of total fish landings in weight and 20% in first sales value (INE 2014INE 2014. Estatísticas da pesca 2013. Instituto Nacional de Estatística, I.P., Lisbon, Portugal, 135 pp.). It is the target species of the purse seine fishery which operates in the coastal waters of the continental shelf. The northwest Portuguese waters encompass the main nursery area of the Iberian Peninsula sardine stock (Silva et al. 2009Silva A., Skagen D.W., Uriate A., et al. 2009. Geographic variability of sardine dynamics in the Iberian Biscay region. ICES J. Mar. Sci. 63: 663-676., ICES 2014ICES 2014. Report of the Working Group on Southern Horse Mackerel, Anchovy, and Sardine (WGHANSA), 20-25 June 2014, Copenhagen, Denmark. ICES CN 2014/ACOM: 16, 532 pp.). The concentration of juvenile fish in the area appears to result from the combination of retention mechanisms and high productivity associated with upwelling and river runoff (Álvarez and Alemany 1997Álvarez F., Alemany F. 1997. Birthdate analysis and its application to the study of recruitment of the Atlanto-Iberian sardine, Sardina pilchardus. Fish. Bull. 95: 187-194., Santos et al. 2004Santos M.A., Peliz A., Dubert J., et al. 2004. Impact of a winter upwelling event on the distribution and transport of sardine, Sardina pilchardus eggs and larvae of western Iberia: a retention mechanism. Cont. Shelf Res. 24: 149-165., Bernal et al. 2007Bernal M., Stratoudakis Y., Coombs S., et al. 2007. Sardine spawning off the European Atlantic coast: Characterization of and spatio-temporal variability in spawning habitat. Prog. Oceanogr. 74: 210-227.). Like most small pelagic fishes, sardine recruitment fluctuates extensively between years, partly driven by environmental conditions (Santos et al. 2012Santos M.B., Gonzalez-Quiros R., Riveiro I., et al. 2012. Cycles, trends, and residual variation in the Iberian sardine (Sardina pilchardus) recruitment series and their relationship with the environment. ICES J. Mar. Sci. 69: 739-750. and references therein). These fluctuations create great challenges to fisheries management (ICES 2014ICES 2014. Report of the Working Group on Southern Horse Mackerel, Anchovy, and Sardine (WGHANSA), 20-25 June 2014, Copenhagen, Denmark. ICES CN 2014/ACOM: 16, 532 pp.). Moreover, sardine is a key forage species for small cetaceans, seabirds and fishes (Preciado et al. 2008Preciado I., Velasco F., Olaso I. 2008. The role of pelagic fish as forage for demersal fish community in the southern Bay of Biscay. J. Mar. Syst. 72: 407-417., Paiva et al. 2013Paiva V.H., Werner A., Geraldes P., et al. 2013. Overcoming difficult times: The behavioural resilience of a marine predator when facing environmental stochasticity. Mar. Ecol. Prog. Ser. 486: 277-288.) and shifts in its abundance may trigger cascading effects in the pelagic ecosystem.

Off Portugal, sardine has a protracted spawning season that can span half of the year from autumn to spring (Coombs et al. 2006Coombs S.H., Smyth T.J., Conway D.V.P., et al. 2006. Spawning season and temperature relationships for sardine (Sardina pilchardus) in the eastern North Atlantic. J. Mar. Biol. Assoc. U. K. 86: 1245-1252., Stratoudakis et al. 2007Stratoudakis Y., Coombs S., Lago de Lanzós A., et al. 2007. Sardine (Sardina pilchardus) spawning seasonality in European waters of the northeast Atlantic. Mar. Biol. 152: 201-212.). The identification of periods within the spawning season that produce successful recruitment will assist a targeted search of recruitment-environment relationships and help to raise hypotheses on the mechanisms that drive survival of early life stages and recruitment variability. The determination of age and birthdates of surviving recruits is a fundamental step towards achieving this aim. Age determination in juvenile sardine (Ré 1984Ré P. 1984. Evidence of daily and hourly growth in pilchard larvae based on otolith growth increments, Sardina pilchardus (Walbaum, 1792). Cybium 8: 33-38., Alemany and Álvarez 1994Alemany F., Álvarez F. 1994. Formation of initial daily increments in sagittal otoliths of reared and wild Sardina pilchardus yolk-sac larvae. Mar. Biol. 121: 35-39., Alemany et al. 2006Alemany F., Álvarez I., García A., et al. 2006. Post larvae and juvenile daily growth patterns of the Alboran Sea sardine (Sardina pilchardus, Walbaum): influence of wind. Sci. Mar. 70S2: 93-104.) has been hampered by the labour and cost associated with the processing of otoliths (Meneses 2003Meneses I. 2003. Estimação de factores que Condicionam a Variabilidade do Recrutamento de Peixes na Costa Atlântica da Península Ibérica. PhD Thesis, Portuguese Institute for Fisheries and Sea Research (IPIMAR), Lisbon, Portugal., Alemany et al. 2006RAlemany F., Álvarez I., García A., et al. 2006. Post larvae and juvenile daily growth patterns of the Alboran Sea sardine (Sardina pilchardus, Walbaum): influence of wind. Sci. Mar. 70S2: 93-104.Meneses I. 2003. Estimação de factores que Condicionam a Variabilidade do Recrutamento de Peixes na Costa Atlântica da Península Ibérica. PhD Thesis, Portuguese Institute for Fisheries and Sea Research (IPIMAR), Lisbon, Portugal.EF).

This study aimed to identify the best model for predicting the age, in days, of sardine juveniles from otolith (diameter and weight) and fish (total length and weight) morphometric characteristics.

MATERIALS AND METHODSTop

An age prediction model was developed using samples of sardine juveniles collected off the northwest coast of Portugal during the 2004-2005 recruitment season (training sample) and was applied to predict the age of individuals in another sample collected in the same period and area (test sample). In both samples fish ages were determined by counting daily of rings on otoliths. The performance of the model was evaluated by comparing individual ages, age frequency distributions and growth derived from model-predicted ages and ages determined by daily ring counts on otoliths of the same individuals from the test sample. The model was applied to a larger sample of juveniles to describe the birthdate distribution of the survivors of the 2004 year-class.

Sampling

Juvenile sardines were collected from purse seine landings once or twice a month between May 2004 and January 2005 off the northwest coast of Portugal. Each time, 55-135 individuals were taken randomly from the catch of a single vessel and sorted into 0.5 cm total length classes. For the analysis of age and morphometric characteristics, 5-7 individuals were selected from the modal class and the tails of the length distribution of each of the samples (Table 1). In the samples collected on 27 May and 4 June all individuals were measured. Total length (T_L, nearest 0.1 cm), total weight (W_T, nearest 0.01 g), otolith weight (O_W, nearest 0.0001 g) and otolith diameter (O_D, nearest 0.1 μm) were recorded in a total of 240 individuals (Table 1). Annual growth rings were counted following the age reading protocol of the species (ICES 2011ICES 2011. Report of the Workshop on Age Reading of European Atlantic Sardine (WKARAS), 14-18 February 2011, Lisbon, Portugal. ICES CM 2011/ACOM: 42, 91 pp.); all individuals were classified into the 2004 year-class, i.e. they belonged to age groups 0 or 1.

Otolith daily growth rings were counted on a sub-set of 114 individuals spanning the study period as evenly as possible. This sub-set was divided into a training sample (TrS) of 58 individuals used to develop the age prediction model and a test sample (TsS) of 56 individuals used to evaluate the predictive ability of the model (Table 1).

Otolith preparation and age reading

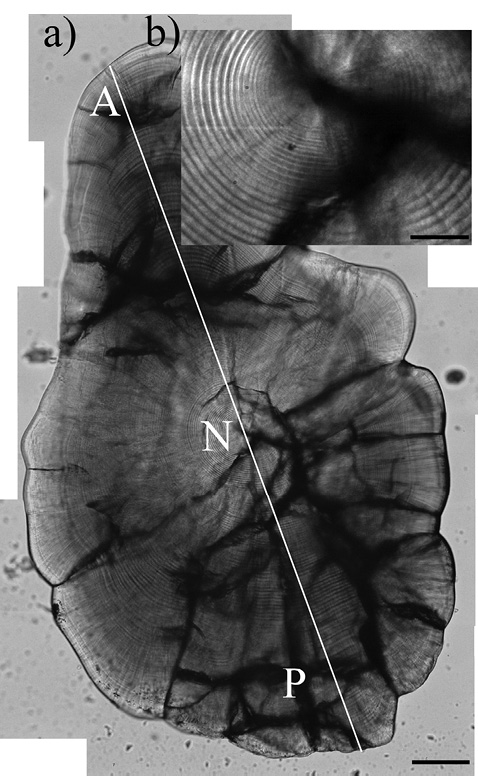

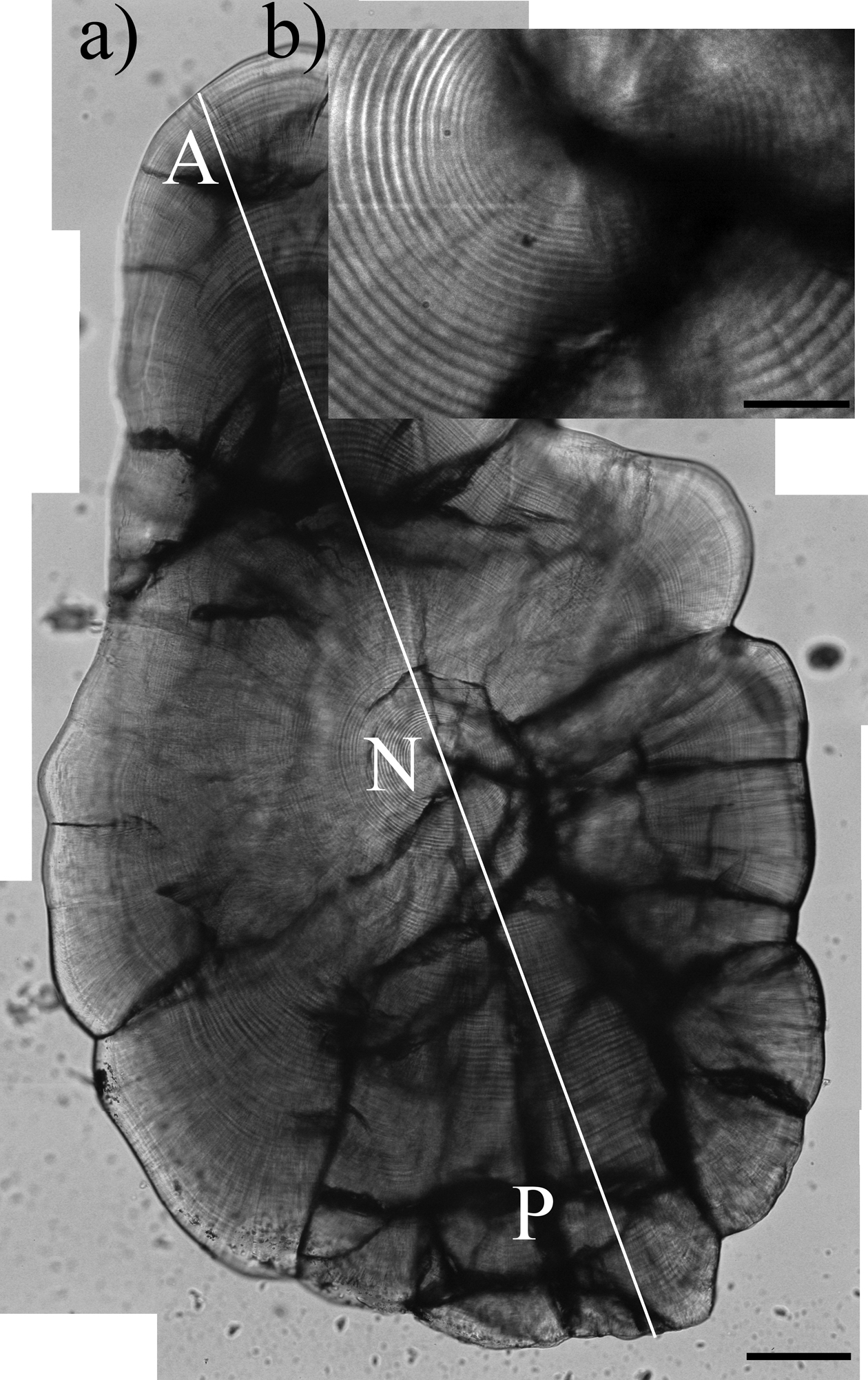

The left sagittal otolith was extracted from each individual and cleaned in water with 2-3 drops of sodium hypochlorite (Secor et al. 1992Secor D.H., Dean J.M., Laban E.H. 1992. Otolith removal and preparation for microstructural examination. In: Otolith Microstructure examination and analysis. Stevenson D.K., Campana S.E. (eds). Can. Spec. Publ. Fish. Aquat. Sci. 117: 19-57.). The otoliths were washed again with water and dried in an oven for 14 hours at 60°C followed by 1 hour in the desiccator. If the left otolith was damaged, the right otolith was weighed, as there was no significant difference between the weight of the right and left otoliths of each individual (Student-t =–0.066; n=42, p>0.05). Otolith diameter, the distance between the furthest edges of anterior and posterior zones, passing through the nucleus, was measured with a calibrated image analysis system using Visilog (version 6.3; Noesis; www.noesis.fr) (Fig. 1). Otoliths were mounted on a glass plate with Entellan^® (with the sulcus acousticus facing down) and polished with lapping film of 30, 9 and 0.3 µm grit until the growth increments and the nucleus became visible. Sequences of 50-60 micrographs of partial areas of the otolith were taken with a microscope with a magnification of 200× and manually combined to obtain a single picture of the whole otolith (Fig. 1). Daily growth rings were identified following criteria outlined in Ré (1984)Ré P. 1984. Evidence of daily and hourly growth in pilchard larvae based on otolith growth increments, Sardina pilchardus (Walbaum, 1792). Cybium 8: 33-38.. Daily rings were counted from the nucleus to the posterior edge (Fig. 1). Occasionally, daily increments were difficult to resolve. In such cases ring counts were linearly interpolated based on the widths of previous and subsequent clearly visible daily rings. Daily ages were calculated from the total number of rings plus 5 days, the average period of the endogenous feeding (Ré 1986Ré P. 1986. Otolith microstructure and detection of life history events in sardine and anchovy larvae. Ciênc. Biol. Ecol. Syst. 6: 9-17.).

The process of weighing and measuring a sample of 20 otoliths took 2 working days, on average. Otolith preparation and determination of daily rings of the same number of otoliths took 11 working days.

Data analyses

Spearman correlation coefficients were calculated for all pairwise combinations of age, T_L, W_T, O_D and O_W. A multiple linear regression model was fitted to age of TrS individuals using the four morphometric characteristics as additive effects. Model residuals were checked graphically. Age was log-transformed to comply with assumptions of normality and homogeneity of error variance. The model was selected by minimizing the Akaike Information Criterion (AIC).

The final model was used to predict the age of individuals from the TsS using morphometric measurements. Three approaches were used to compare model-predicted ages with ages determined by daily ring counts (hereby termed observed ages) of fish from the TsS: (i) differences between predicted and observed ages were tested using a pairwise Wilcoxon rank sum test, (ii) the frequency distributions of predicted and observed ages were compared using a Kolmogorov-Smirnov test and (iii) Gompertz growth models were fitted to predicted and observed ages versus length and compared using a likelihood ratio test. The Gompertz model fitted to age-length data has the following form:

L_t=L_∞*exp (–exp(–G*(t–t₀))),

where Lt is total fish length, L∞ is asymptotic length, G is the instantaneous rate of growth at age t₀, t₀ is the inflection point of the curve and the age at which absolute growth rate begins to decline (the age of maximal growth) (Ricker 1979Ricker W.E. 1979. Growth rates and models. In: Hoar W.S., Randal D.J., Brett J.R. (eds) Fish Physiology, Vol III Bioenergetics an Growth. Academic Press, pp. 677-744.). A likelihood ratio test (Kimura 1980Kimura D.K. 1980. Likelihood methods for the Von Bertalanfy growth curve. Fish. Bull. 77: 765-776.) was used to compare growth models. The hypothesis of separate curves for predicted and observed ages was set as a base case and tested against the alternative of simultaneous equality of the four growth parameters (i.e. whether the curves are coincident and therefore a single growth curve fits best the data). If this hypothesis was rejected, further tests could be carried out to evaluate differences between curves in each growth parameter at a time (L_∞, G, t₀). The mean absolute growth rate, between L₁ and L₂, g, was calculated as:

g=G*L₁*(lnL₂–lnL₁)

where L₁ and L₂ are predicted lengths at ages 124 and 272 days (minimum and maximum observed ages in pooled TrS and TsS).

Finally, to describe the birthdate distribution of the survivors of the 2004 year-class, the age prediction model was used to predict the ages of the remaining 126 individuals (pooled sample; Ps), for which only body and otolith measurements were available (Table 1). Ages (predicted and observed) were pooled from all samples to build the birthdate distribution of sardine. Individual birthdates were calculated by subtracting the age from the date of sampling.

Computations and statistical analyses were carried out using R software 2.15.0 (R Development Core Team 2008R Development Core Team. 2008. R: A language and environment for statistical computing. R Foundation for Statistical Computing, Vienna, Austria. URL http://www.R-project.org). The significance level was 0.05 in all tests of hypothesis.

RESULTSTop

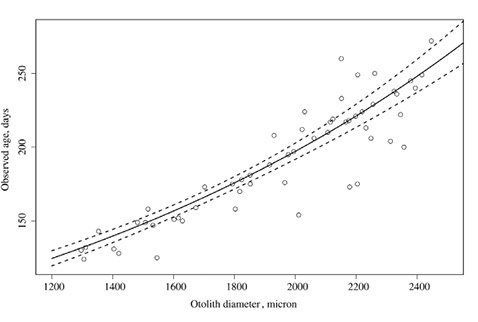

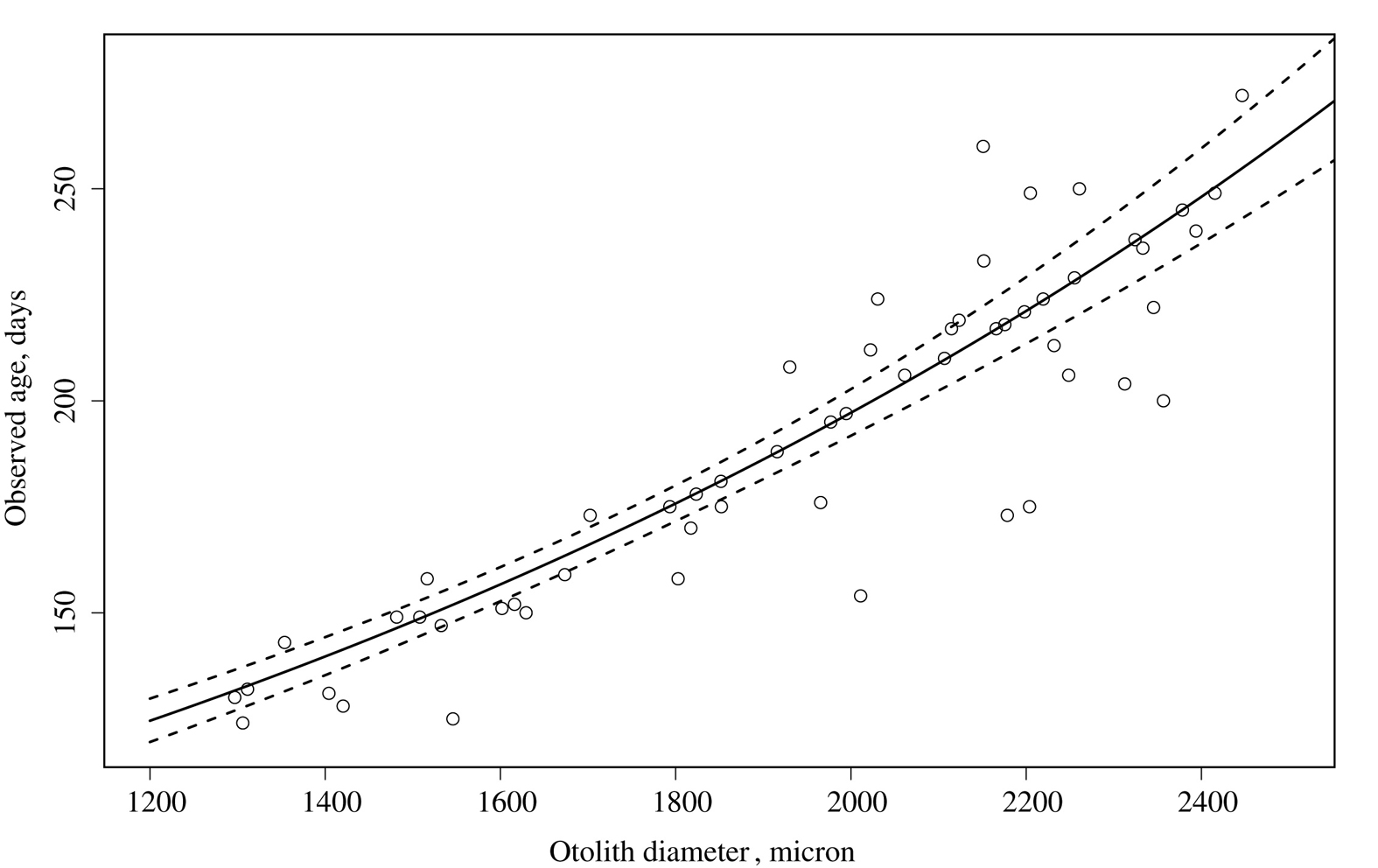

The summary statistics of age and morphometric characteristics of sardine juveniles in the TrS and TsS are presented in Table 2. Mean values of fish and otolith morphometric characteristics were slightly smaller in the TrS than in the TsS. However, the ranges were similar in the two samples, indicating only minor extrapolation when the age prediction model was used to estimate age of fish in the Ps. In the TrS the length of sardine juveniles ranged from 6.7 to 15.6 cm, corresponding to predicted ages of between 109 and 280 days (broadly 3.6 to 9.3 months).

Morphometric characteristics were significantly positively correlated both with each other and with fish age (Table 3). Otolith characteristics tend to have slightly higher correlations with age than body size characteristics. The final age prediction model, ln(age)=0.00057O_D +4.14, included only O_D as an independent variable. The regression in otolith diameter explained 86% of the variance of sardine juveniles’ age (Fig. 2). Differences between model-predicted ages and observed ages, termed absolute age estimation errors, for the TsS ranged from –45 days to +47 days and overall were not significant at the 5% level (n=56, p>0.17). Model-predicted ages were within an interval of ±7 days around the observed ages for 55.4% of the fish and within an interval of ±15 days for 69.6% of the fishes. Absolute age estimation errors were generally greater in older individuals; for example, the median error was 6 days for fishes younger than 200 days (first and third quantiles were 1 and 9 days, respectively) and 12.3 days for fishes older than 200 days (first and third quantiles were 0.5 and 19.5 days, respectively).

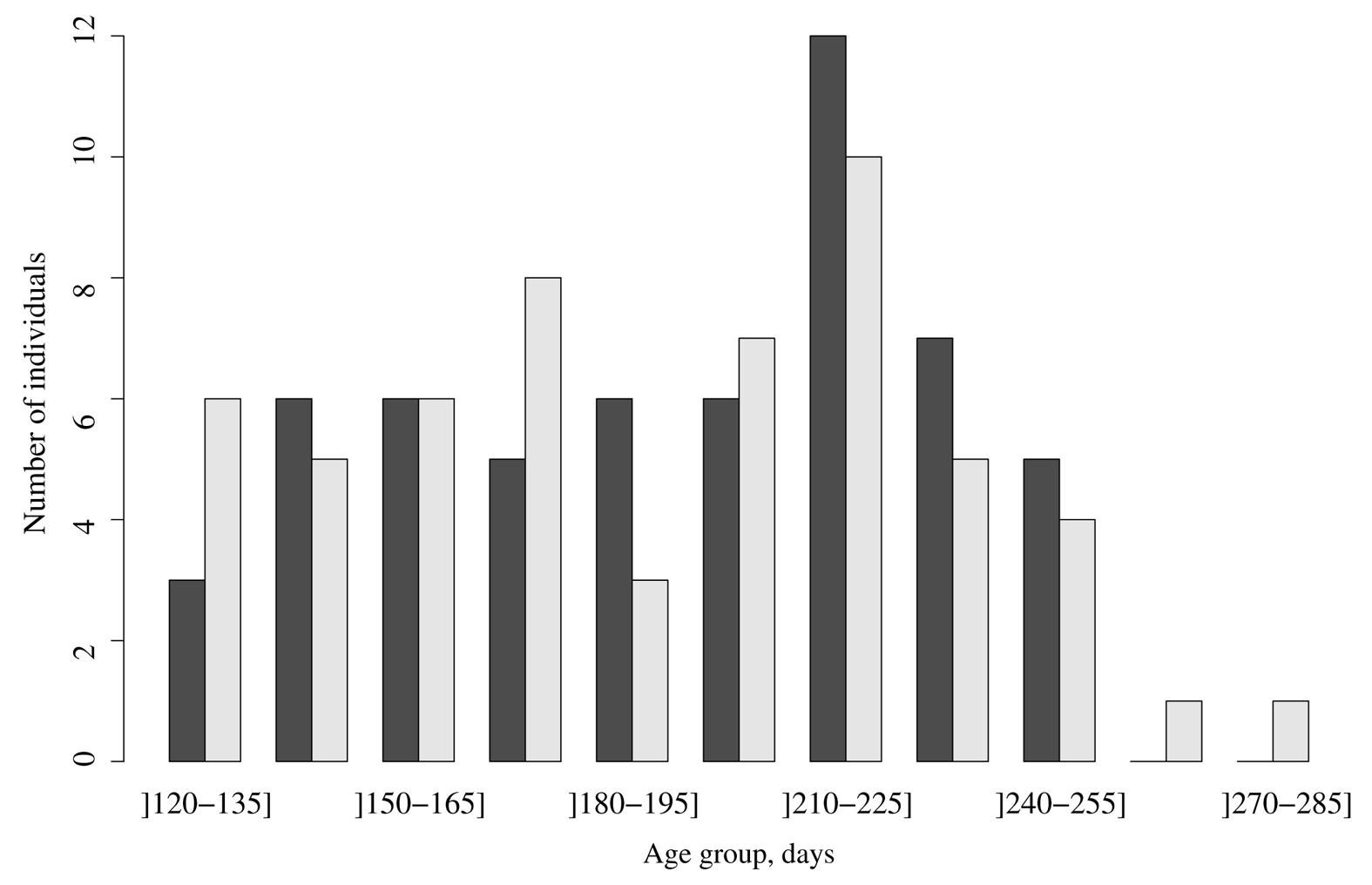

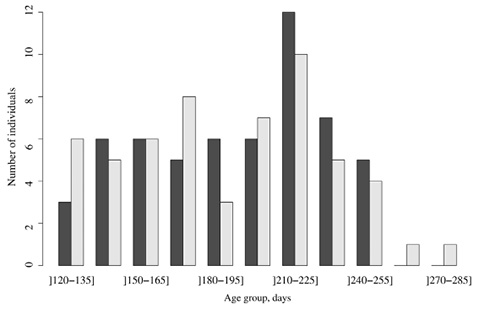

The frequency distributions of predicted and observed ages were not significantly different (D=0.11, n=58, p=0.90). The age distribution predicted by OD reflects the overall shape of the observed age distribution despite some smoothing (Fig. 3).

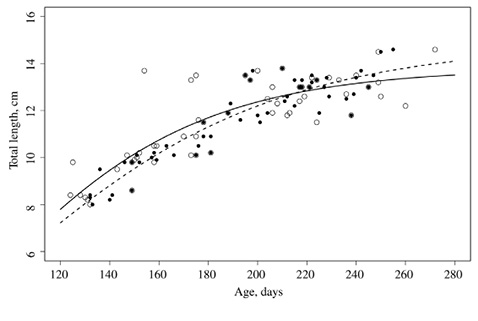

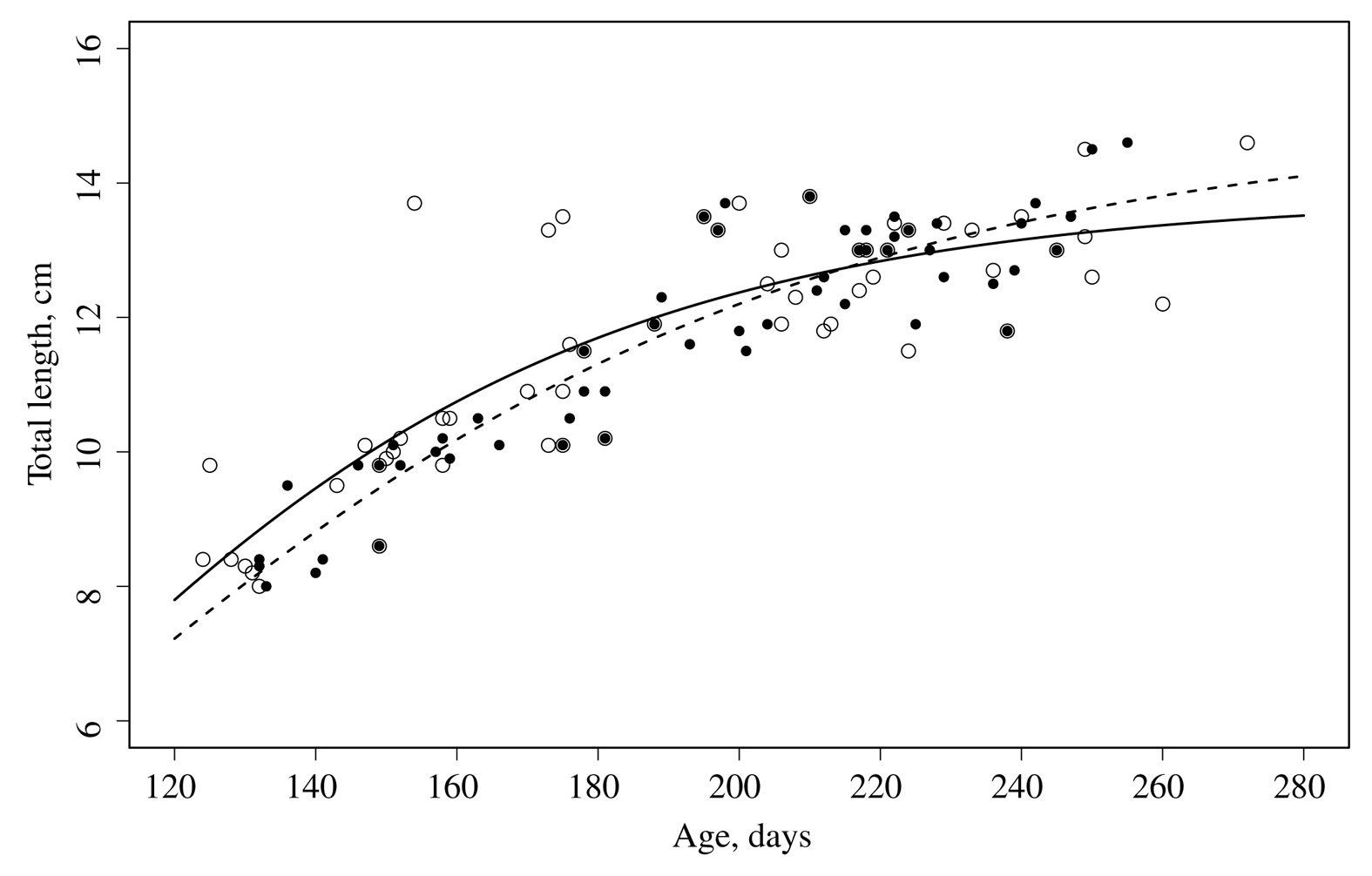

The Gompertz model provided a good description of the length-age relationship of sardine juveniles from the TrS and TsS and the Ps, as indicated by corresponding r² values (Table 4; Fig. 4). The likelihood ratio test indicated that growth curves based on predicted and observed ages were coincident (p=0.08). The Gompertz model estimates a maximum growth rate of 0.018 cm day^–1 at 94.4 days, but implies some extrapolation from the observed range of ages. The instantaneous mean growth rate of juveniles between 7.9 cm (124 days) and 13.7 cm (272 days) is 0.077 cm day^–1. The average growth rate of juvenile sardine in the same time interval was 0.041 cm day^–1.

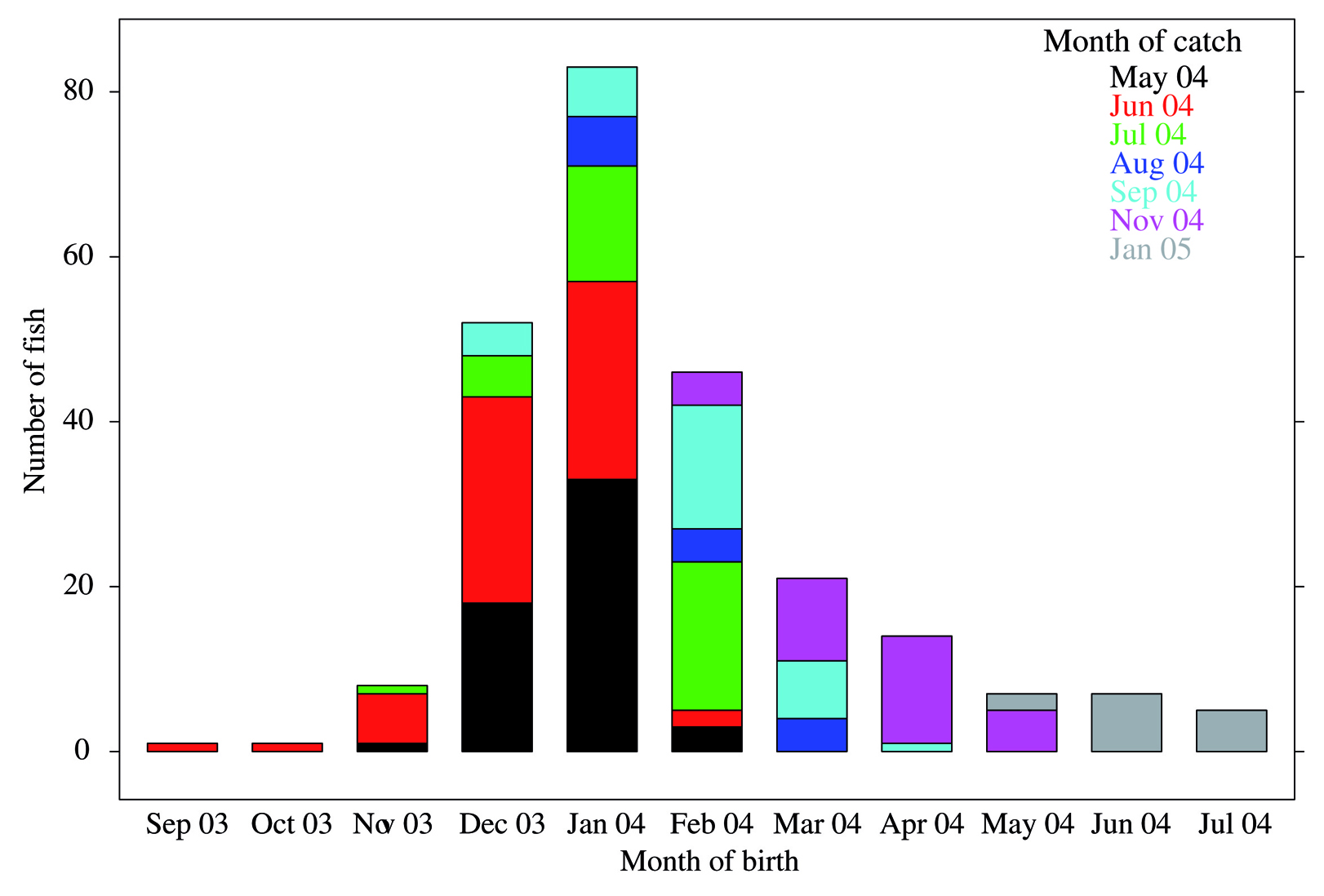

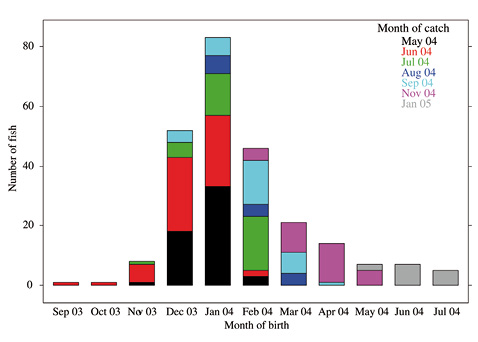

The age of all sardine juveniles sampled in this study ranged from 109 to 280 days, corresponding to birthdates between 29 September 2003 and 22 July 2004 (Fig. 5). Daily ages indicate that 74% of the individuals were born in 2004 and the remainder were born in 2003. The monthly birthdate distribution shows a peak in January 2004. There is a relationship between the month of capture and the birthdate, i.e. juveniles caught earlier in the year, for example in May-June, were born in the early birth season, September-January, while those caught later in the year, August-November, were born in the late birth season, March-May.

DISCUSSIONTop

Morphometric characteristics examined in this study, otolith weight and diameter and fish total length and weight, were linearly related to the logarithm of age in sardine juveniles 109-280 days old. Otolith characteristics were better correlated with age than fish characteristics. The best model for predicting the age of sardine juveniles was found for otolith diameter (O_D). Overall, ages predicted from the model for new individuals were unbiased in relation to ages determined from otolith examination. Moreover, predicted ages reproduced the overall shape of the observed age distribution and provided comparable growth estimates. The results also indicate that the prediction of daily age from otolith diameter is more accurate for younger (<200 days) than for older juveniles.

Most studies examining relationships between fish age and individual and otolith measurements have focused on annual ages and suggest otolith weight to be a better age predictor than otolith linear dimensions and fish morphometry. For example, otolith weight explained 70% to 90% of the variability in the age of adults of pelagic species such as Sardinops sagax neopilchardus (Fletcher 1995Fletcher W.J. 1995. Application of the otolith weight-age relationship for the Pilchard, Sardinops sagax neopilchardus. Can. J. Fish. Aquat. Sci. 52: 657-664.), Trachurus symmetricus and Trachurus mediterraneus (Kasapoglu and Duzgunes 2013Kasapoglu N., Duzgunes E. 2013. The relationship between somatic growth and otolith dimensions of Mediterranean horse mackerel (Trachurus mediterraneus) from Black Sea. J. App. Ichthyol. 29: 230-233.). The fact that the otolith grows continually over the life of fish while body growth slows down explains the better relationship of age with otolith dimensions than with fish body dimensions (Secor and Dean 1989Secor D. H., Dean J. M. 1989. Somatic growth effects on the otolith-fish size relationship in young pond-reared striped bass, Morone saxatilis. Can. J. Fish. Aquat. Sci. 46: 113-121.). Moreover, among fish of the same length, older fish tend to have bigger otoliths, meaning that otolith dimensions are more tightly coupled with fish age than body dimensions (Templeman and Squires 1956Templeman W., Squires H.J. 1956. Relationship of otolith length and weights in the haddock Melanogrammus aeglefinus (L.) to the rate of the growth of the fish. J. Fish Res. Board Can. 13: 467-487.). Otolith growth will eventually uncouple with fish growth and a variety of factors, such as temperature and feeding conditions, influence the degree or timing of this uncoupling (Moksness et al. 1995Moksness E., Rukan K., Ystanes L., et al. 1995. Comparison of somatic and otolith growth in North Sea herring (Clupea herengus L.) larvae: evolution of growth dynamics in mesocosms. In: Secor D.H., Dean J.M., Campana S.E. (eds), Recent Developments in Fish Otolith Research. University of South Carolina Press, pp. 119-134.). Linear dimensions are likely to uncouple earlier than otolith weight because as fish grow, otolith growth may not accumulate in the anterior-posterior axes (length), but rather continue to accrete to the medial axis (thickness, which is revealed in weight) (Wright et al. 1990Wright P.J., Metcalfe N.B., Thorpe J.E. 1990. Otolith and somatic growth rates in Atlantic salmon parr, Salmo salar L.: evidence against coupling. J. Fish Biol. 36: 241-249., Fletcher 1991Fletcher W.J. 1991. A test of the relationship between otolith weight and age for the Pilchard Sardinops neopilchardus. Can. J. Fish. Aquat. Sci. 48: 35-38., 1995Fletcher W.J. 1995. Application of the otolith weight-age relationship for the Pilchard, Sardinops sagax neopilchardus. Can. J. Fish. Aquat. Sci. 52: 657-664., Wilson et al. 2009Wilson J.A., Vigliola L., Meekan M.G. 2009. The back-calculation of size and growth from otoliths: validation and comparison on models at an individual level. J. Exp. Mar. Biol. Ecol. 368: 9-21.).

During the juvenile phase growth is fast and continuous, so both body and otolith morphometric characteristics are expected to have a strong association with fish age. In fact, the results of Fey and Linkowski (2006)Fey D.P., Linkowski T.B. 2006. Predicting juvenile Baltic cod (Gadus morhua) age from body and otolith size measurements. ICES J. Mar. Sci. 63:1045-1052. for Baltic cod (Gadus morhua), Megalofonou (2006)Megalofonou P. 2006. Comparison of otolith growth and morphology with somatic growth and age in young-of-the-year bluefin tuna. J. Fish Biol. 68: 1867-1878. for bluefin tuna (Thunnus thynnus) and those for sardine in the present study show that different otolith measurements and even individual fish measurements have a more similar performance as age predictors in the case of juvenile fish than in the case of adult fish. For Baltic cod and tuna, otolith weight was still the best daily age predictor. In the case of sardine, otolith diameter was the single variable retained in the multiple regression, with log age reflecting a slight advantage over otolith weight and a moderate advantage over body morphometric characteristics in terms of model fit. Having a single variable, the final age prediction model for sardine juveniles is exempt of colinearity issues. Moreover, due to the particularly small size of sardine otoliths, weighing is more difficult and time-consuming than measuring as it involves extra handling of otoliths. Weighing further requires a high precision analytical balance, which may not be available in a fish biology laboratory. Finally, although body morphometric characteristics are globally the easiest and fastest to measure, we consider that the higher explanatory power of otolith diameter outweighs the advantages of fish body measurements for predicting the age of sardine juveniles.

Age-otolith size relationships may change seasonally as a result of changes in temperature, food availability or size/growth-selective mortality during larval stages (Campana and Neilson 1985Campana S.E., Neilson J.D. 1985. Microstructure of fish otoliths. Can. J. Fish Aquat. Sci. 42: 1014-1032.). Growth-selective mortality has been described at earlier larval stages in sardine from the northern Alboran Sea (Ramírez et al. 2001Ramírez T., Cortés D., Garcia A. 2001. Growth of North Alboran Sea sardine larvae estimated by otolith microstructure, nucleic acids and protein content. J. Fish Biol. 59: 403-415.); slow-growing larvae, which thus have smaller otoliths at age, undergo higher mortality than fast-growing larvae and are therefore under-represented in older age groups. Unfortunately, the limited number of otoliths sampled per month prevented the investigation of seasonal changes in the age-otolith diameter relationship presented here for sardine. Nevertheless, we do not expect important biases since the majority of otoliths were sampled during a relatively short period of time (~4-5 months), mostly during summer when local environmental conditions do not change dramatically (Gago et al. 2011Gago J., Cabanas J.M., Casas G., et al. 2011. Thermohaline measurements in the continental shelf zone of the NW Iberian Peninsula, 1994–2006. Clim. Res. 48: 219-229.).

Despite the use of a regression model, predicted ages were not affected by “centric bias”, the tendency to overestimate (underestimate) the dependent variable for large (small) values of the independent variable (Francis and Campana 2004Francis R.I.C., Campana S.E. 2004. Inferring age from otolith measurements: a review and a new approach. Can. J. Fish. Aquat. Sci. 91: 1269-1284.), possibly due to the high correlation between age and otolith diameter. Predicted ages were close to observed ages in most of the younger juveniles (<200 days). However, the performance of otolith diameter deteriorated in older juveniles, with errors above ±20 days for 25% of >200-day-old individuals and a few very imprecise predictions. The increasing difference between predicted and observed age could reflect gradual uncoupling of otolith growth from fish growth, as seen, for example, in juvenile cod (e.g. Fey and Linkowski 2006Fey D.P., Linkowski T.B. 2006. Predicting juvenile Baltic cod (Gadus morhua) age from body and otolith size measurements. ICES J. Mar. Sci. 63:1045-1052.). Uncoupling was not observed in sardine larvae (Ramírez et al. 2001Ramírez T., Cortés D., Garcia A. 2001. Growth of North Alboran Sea sardine larvae estimated by otolith microstructure, nucleic acids and protein content. J. Fish Biol. 59: 403-415.) but it might occur in juveniles. However, this possibility is contradicted by the close linear relationship between otolith and somatic growth in sardine juveniles with a similar length to those analysed in the present study (Alemany et al. 2006Alemany F., Álvarez I., García A., et al. 2006. Post larvae and juvenile daily growth patterns of the Alboran Sea sardine (Sardina pilchardus, Walbaum): influence of wind. Sci. Mar. 70S2: 93-104.). On the other hand, the increasing discrepancy between predicted and observed ages is more likely to reflect a decrease in accuracy of observed ages in older individuals. Microincrements become increasingly difficult to read in older juveniles due to the slowdown of growth, which blurs the opaque and translucent zones and to the potential presence of false rings associated with the first maturity. These difficulties may lead to under- or overestimation of the true age, and therefore a biased birthdate distribution. However, the net result is uncertain and its clarification requires the validation of age in these older individuals.

Mean lengths at age and growth rates estimated in the present study are within the range of those reported for sardine juveniles of similar age in Portuguese waters and neighbouring areas. The linear mean growth rate estimated from the pooled sample, 0.041 cm day^–1, for 109-280 days old sardines is higher than that estimated for juveniles from the central western Portuguese waters, 0.024 cm day^–1 for sardines of 142-277 days (Meneses 2003Meneses I. 2003. Estimação de factores que Condicionam a Variabilidade do Recrutamento de Peixes na Costa Atlântica da Península Ibérica. PhD Thesis, Portuguese Institute for Fisheries and Sea Research (IPIMAR), Lisbon, Portugal.), but lower than that of juveniles sampled off Galicia, 0.054 cm day^–1 for sardines of 150-300 days (Álvarez and Alemany 1997Álvarez F., Alemany F. 1997. Birthdate analysis and its application to the study of recruitment of the Atlanto-Iberian sardine, Sardina pilchardus. Fish. Bull. 95: 187-194.). A growth rate similar to that obtained in this study, 0.040 cm day^–1 for 116-294 days old sardine, was reported for the Alboran Sea, southeastern Mediterranean (Alemany et al. 2006Alemany F., Álvarez I., García A., et al. 2006. Post larvae and juvenile daily growth patterns of the Alboran Sea sardine (Sardina pilchardus, Walbaum): influence of wind. Sci. Mar. 70S2: 93-104.). Daily ages obtained in this study confirmed the classification of juveniles in the 2004 year-class for most individuals (75%). Fortnightly age distributions of predicted ages are not significantly different from those of observed ages despite some underestimation in the youngest and oldest age groups. Nevertheless, the general pattern of bias does not indicate smoothing bias that can be generated by the use of simple regression models for age prediction (Francis and Campana 2004Francis R.I.C., Campana S.E. 2004. Inferring age from otolith measurements: a review and a new approach. Can. J. Fish. Aquat. Sci. 91: 1269-1284.).

The distribution of birthdates of sardine juveniles sampled in this study is broadly consistent with the species spawning season in the Portuguese waters, which takes place from October to March, with a maximum between December and February (Coombs et al. 2006Coombs S.H., Smyth T.J., Conway D.V.P., et al. 2006. Spawning season and temperature relationships for sardine (Sardina pilchardus) in the eastern North Atlantic. J. Mar. Biol. Assoc. U. K. 86: 1245-1252., Stratoudakis et al. 2007Stratoudakis Y., Coombs S., Lago de Lanzós A., et al. 2007. Sardine (Sardina pilchardus) spawning seasonality in European waters of the northeast Atlantic. Mar. Biol. 152: 201-212., Nunes et al. 2011Nunes C., Silva A., Soares E., et al. 2011. The use of hepatic and somatic indices and histological information to characterize the reproductive dynamics of Atlantic Sardine Sardina pilchardus from the Portuguese coast. Mar. Coast. Fish. 3: 127-144.). Samples collected along the recruitment season, from May 2004 to January 2005, show the progress of birthdates over the spawning season, from September 2003 to July 2004. Most of the survivors were born between December 2003 and February/March 2004, with a peak in January. Interestingly, juveniles sampled in the latest months of the recruitment season were born between May and July, i.e. outside the main spawning season. Though few females are reproductively active during summer months (Nunes et al. 2011Nunes C., Silva A., Soares E., et al. 2011. The use of hepatic and somatic indices and histological information to characterize the reproductive dynamics of Atlantic Sardine Sardina pilchardus from the Portuguese coast. Mar. Coast. Fish. 3: 127-144.), successful births in summer might be explained by higher survival of early life stages due to improved female condition (Nunes et al. 2011Nunes C., Silva A., Soares E., et al. 2011. The use of hepatic and somatic indices and histological information to characterize the reproductive dynamics of Atlantic Sardine Sardina pilchardus from the Portuguese coast. Mar. Coast. Fish. 3: 127-144.), higher temperatures and the onset of the upwelling season (Relvas et al. 2009Relvas P., Luís J., Santos A.M.P. 2009. Importance of the mesoscale in the decadal changes observed in the northern Canary upwelling system. Geophys. Res. Lett. 36: L22601.). Nevertheless, the above findings should be viewed with caution since our sampling was not designed for a quantitative estimation of the juveniles’ birthdate distribution.

The assignment of age from counts of daily growth rings is a complex and time-consuming procedure limiting the development of studies on growth and survival of juveniles. The collection of fish and otolith morphometry is simpler, faster and more cost-effective.

In conclusion otolith diameter used in a simple linear regression predicted the age of sardine juveniles with good precision and provided reliable estimates of their age/birthdate distribution and growth. The method is more precise for younger juveniles (<200 days old), although the appropriate precision of age determination depends on the prospective use of the data. Fish growth varies spatially and temporally and may depend on year-class abundance, thus precluding extrapolation of age-otolith relationships outside the range of observed periods, areas and fish size/age. The method presented here may be viewed as a way to complement daily ring counts in order to increase the volume of data. Further studies need to be carried out to examine seasonal changes in the relationship between age and morphometric characteristics for sardine.
