INTRODUCTIONTop
Octocorals in the Mediterranean Sea constitute a small group of 51 species (Vafidis in Coll et al. 2010Coll M., Piroddi C., Steenbeek J., et al. 2010. The Biodiversity of the Mediterranean Sea: Estimates, Patterns, and Threats. PLoS One 5: e11842.: Table S13) but are widespread from shallow to significant depths (Freiwald et al. 2009Freiwald A., Beuck L., Rüggeberg A., et al. 2009. The white coral community in the central Mediterranean Sea revealed by ROV surveys. Oceanography 22: 58-74., Mastrototaro et al. 2010Mastrototaro F., D’Onghia G., Corriero G., et al. 2010. Biodiversity of the white coral bank off Cape Santa Maria di Leuca (Mediterranean Sea): An update. Deep Sea Res. PT II 57: 412-430.) on both hard and soft substrates (Aguilar 2004Aguilar R. 2004. The corals of the Mediterranean. Oceana, Fundación Biodiversidad, Madrid, 86 pp.) and are important components of the valuable Mediterranean coralligenous communities (Ballesteros 2006Ballesteros E. 2006. Mediterranean coralligenous assemblages: a synthesis of present knowledge. Oceanogr. Mar. Biol. 44: 123-195.). Among them, some long-living species are considered as ‘‘ecosystem engineers’’ (Jones et al. 1994Jones C.J., Lawton J.H., Shachak M. 1994. Organisms as ecosystem engineers. Oikos 69: 373-386., Ponti et al. 2014Ponti M., Perlini R.A., Ventra V., et al. 2014. Ecological Shifts in Mediterranean Coralligenous Assemblages Related to Gorgonian Forest Loss. PLoS ONE 9(7): e102782) in Mediterranean marine hard-bottom communities, with significant effects on the structure, biomass and biodiversity of coralligenous communities (Ballesteros 2006Ballesteros E. 2006. Mediterranean coralligenous assemblages: a synthesis of present knowledge. Oceanogr. Mar. Biol. 44: 123-195.). Although scientific studies and conservation efforts focus increasingly on octocorals and mainly gorgonians, our knowledge on their presence and distribution in the eastern Mediterranean is yet insufficient (Salomidi et al. 2009Salomidi M., Smith C., Katsanevakis S., et al. 2009. Some observations on the structure and distribution of gorgonian assemblages in the eastern Mediterranean Sea. In: UNEP – MAP – RAC/SPA, Proceedings of the 1st Mediterranean symposium on the conservation of the coralligenous and other calcareous bio-concretions. Tabarka, Tunis, pp 242-245.).
Octocoral species from the Marmara Sea have been previously reported (Demir 1954Demir M. 1954. Boğaz ve Adalar Sahillerinin omurgasız dip hayvanları. Istanbul Univ, Faculty of Science, Hydrobiol. Res. Inst. Publ. 2A: 1-654 (in Turkish)., Öztürk and Bourguet 1990Öztürk B., Bourguet J.P. 1990. Données préliminaires sur le corail noir de la Mer de Marmara (Turquie) Gerardia savaglia (Bertolini, 1819). Ist. Univ. J. of Fish. 4: 45-48., Topçu and Öztürk 2013Topçu E.N., Öztürk B. 2013. Octocoral diversity of Balıkçı Island, the Marmara Sea. J. Black Sea/Medit. Environ. 19: 46-57.) but studies on the abundance and distribution of the species in the Marmara Sea have been rarely addressed. Although the Marmara Sea is connected to the Mediterranean via the Çanakkale Strait (Dardanelles), it has peculiar oceanographic, ecological and geomorphologic characteristics (Öztürk and Öztürk 1996Öztürk B., Öztürk A.A. 1996. On the biology of the Turkish straits system. Bull. Inst. Océanogr. Spec. No 17: 205-221.). This semi-enclosed sea, connecting the Black Sea to the Aegean Sea via the Turkish Straits System (TSS), is characterized by a two-layer stratification, with the brackish surface layer formed by the Black Sea water mass flowing into the Marmara Sea through the Istanbul Strait with a salinity of 18-24 and a temperature of 20-24°C in summer and 8-9°C in winter. More saline (up to 38.5) Mediterranean Sea water with a constant temperature of about 15°C resides 15-20 m below this layer (Beşiktepe et al. 1994Beşiktepe Ş.T., Sur H.İ., Özsoy E., et al. 1994. The circulation and hydrography of the Marmara Sea. Prog. Oceanogr. 34: 285-334). The TSS serves as an ecological barrier, a biological corridor and an acclimatization zone for the biota of the Mediterranean and the Black Sea (Öztürk and Öztürk 1996Öztürk B., Öztürk A.A. 1996. On the biology of the Turkish straits system. Bull. Inst. Océanogr. Spec. No 17: 205-221.). Suspended particulate organic matter and zooplankton, which constitute the bulk of octocorals’ diet, are very abundant in the whole Marmara Sea (Çoban-Yıldız et al. 2000Çoban-Yıldız Y., Tuğrul S., Ediger D., et al. 2000. A comparative study on the abundance and elemental composition of POM in three interconnected basins: the Black, the Marmara and the Mediterranean Seas. Mediterr. Mar. Sci. 1: 51-63., İşinibilir et al. 2011İşinibilir M., Svetlichny L., Hubareva E., et al. 2011. Adaptability and vulnerability of zooplankton species in the adjacent regions of the Black and Marmara Seas. J. Mar. Syst. 84: 18-27.), although the phytoplankton and microzooplankton biomass and production show a decreasing trend from the Istanbul Strait to the Aegean Sea (Zervoudaki et al. 2011Zervoudaki S., Christou E.D., Assimakopoulou G., et al. 2011. Copepod communities, production and grazing in the Turkish Straits System and the adjacent northern Aegean Sea during spring. J. Mar. Syst 86: 45-56.).
The aim of this study was to determine species composition and abundances of octocoral assemblages in the Marmara Sea and to compare the communities in the southern parts (closer to the Çanakkale strait connecting to the Aegean Sea) and northern parts (closer to the Istanbul Strait [Bosphorus] connecting to the Black Sea) with those in the Mediterranean Sea.
MATERIALS AND METHODSTop
Sampling design

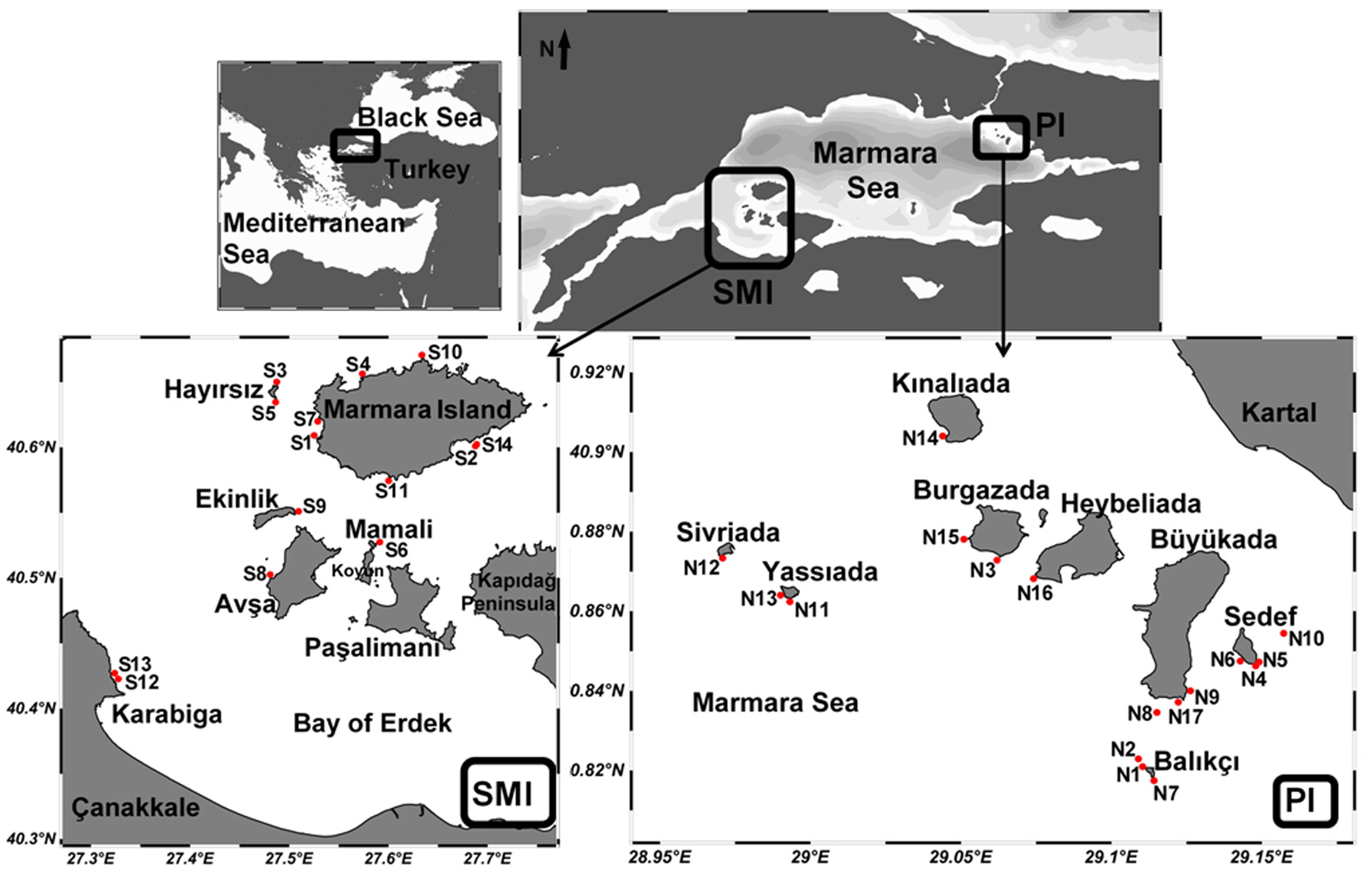

Thirty-one stations were sampled by SCUBA diving in coastal areas of various islands in the Marmara Sea (Fig. 1) from April 2012 to September 2013 in order to determine the presence of octocoral species. A total of 74 dives were performed and the first dives were dedicated to specimen collection and photography. A total of 17 stations (stations N1 to N17) were located in the northern group of islands (Prince Islands) and 14 (stations S1 to S14) in the Southern Marmara Islands (Table 1). Stations in the north were chosen to the south of the Prince Islands because there is not enough depth to reach the Mediterranean water layer on the northern coasts. Since the upper layer of the Marmara Sea is formed by Black Sea waters, all stations were surveyed for octocorals from the halocline (where the Mediterranean waters reside, starting from 15-20 m) to a maximum of 40 m depth. The presence of abandoned fishing gears was noted only at the northern stations due to the difficulty of working conditions and limited time in the south, although similar fishing pressure is active in the region. All octocoral species encountered at a station were photographed in situ before a segment of approximately 10 cm was cut from the colony. The collected specimens were preserved in ethanol and the species were identified by microscope slide preparations of sclerite morphology according to Carpine and Grasshoff (1975)Carpine C., Grasshoff M. 1975. Les Gorgonaires de la Méditerranée. Bull. Inst. Océanogr. Monaco 71: 1-140., Weinberg (1976Weinberg S. 1976. Revision of the common Octocorallia of the Mediterranean circalittoral. I. Gorgonacea. Beaufortia 313: 63-104., 1977)Weinberg S. 1977. Revision of the common Octocorallia of the Mediterranean circalittoral. II. Alcyonacea. Beaufortia 25: 131-166., Bayer (1981)Bayer F.M. 1981. Key to the genera of Octocorallia exclusive of Pennatulacea (Coelenterata: Anthozoa), with diagnoses of new taxa. Proc. BioI. Soc. Wash. 94: 902-947. and Williams (1995)Williams G.C. 1995. Living genera of sea pens (Coelenterata: Octocorallia: Pennatulacea) – illustrated key and synopses. Zool. J. Linn. Soc. 113: 93-140..
Code | Location | Description | Transect | Coordinates |
---|---|---|---|---|
N1 | Balıkçı Adası - Tektaş | The site is composed of very large to large / medium size rocks exhibiting small caves and crevices. Among the rocks, the bottom is composed of coarse sand/gravel/dead shells with a very slight slope | H | 40°49’12.95”N 29° 6’38.29”E |
N2 | Kufos taşı | The site is composed of large to medium size rocks. Among the rocks, the bottom is composed of coarse sand/gravel/dead shells with a very slight slope | M | 40°49’15.56”N 29° 6’36.25”E |
N3 | Burgazada - Yelkenkaya | The bottom is composed of sand with pebbles and dead shells, occasionally interrupted by small boulders, with a slope of approximately 15° | M | 40°52’24.59”N 29° 3’45.29”E |
N4 | Sedef Adası | The bottom is composed of sand with pebbles and dead shells, occasionally interrupted by small boulders, with a slope of approximately 15° | M | 40°50’ 47.84’’N 29° 08’ 50.37’’E |
N5 | Sedef Adası | The bottom is composed of sand with pebbles and dead shells, occasionally interrupted by small boulders, with a slope of approximately 15° | M | 40°50’ 50.90’’N 29°08’54.05’’E |
N6 | Sedef Adası | The bottom is composed of sand with pebbles and dead shells, occasionally interrupted by small boulders, with a slope of approximately 15° | M | 40°50’51.23’’N 29° 08’ 38.84’’E |
N7 | Balıkçı Adası - Liskari | The site is composed of large to medium size rocks until 35-40 m with a slope of approximately 30°. The bottom is then composed of fine sand with dead shells | H | 40°49’5.01”N 29° 6’49.53”E |
N8 | Büyükada - Manastır | The site is 400 m from the nearest shore. Large to medium size rocks are present from 35 m and continue deep with a slight slope | H | 40°50’04”N 29° 06’55.3”E |
N9 | Büyükada - Eşkina taşı | The site is composed of very large to large/medium size rocks with a slope of 40-50° | H | 40°50’25.30”N 29° 7’31.10”E |
N10 | Sedef Adası-Karaev | The site is 1.3 km from the nearest shore. The very large rocks start from 35 m and continue to 50 m, surrounded by sandy bottom | H | 40°51’0.97” N 29°09’3.17”E |
N11 | Yassıada Batı | The site is composed of large to medium size rocks with a slope of approximately 40° | H | 40°51’50.47”N 28°59’28.63”E |
N12 | Sivriada | The site is composed of very large rocks starting from 15 m, offering large walls that descend to 40-50 m where rocks are surrounded by coarse sand/gravel/dead shells | H | 40°52’26.15”N 28°58’14.30”E |
N13 | Yassıada Güney | The bottom is composed of sand with few pebbles and dead shells with a slope of approximately 10-15° | S | 40°51’48.93”N 28°59’41.33”E |
N14 | Kınalıada | The bottom is composed of fine sand/mud with few pebbles with a slope of approximately 10-15° | S | 40°54’10.40”N 29° 2’21.56”E |
N15 | Burgazada - Kalpazankaya | The bottom is composed of fine sand/mud with a slope of approximately 10-15° | S | 40°52’41.52”N 29° 3’7.36”E |
N16 | Heybeliada | The bottom is composed of fine sand/mud with a slope of approximately 10-15° | S | 40°52’3.91”N 29° 4’29.28”E |
N17 | Büyükada - Kurşunburnu | The bottom is composed of fine sand/mud with a slope of approximately 10-15° | S | 40°50’13.95”N 29° 7’18.67”E |
S1 | Paçanoz Kayalıkları | The bottom is composed of pebbles and dead shells interrupted with polychaete bioconcretions, with a slope of approximately 15° | M | 40°36’31.47”N 27°31’31.33”E |
S2 | Laz Kayası | The site is 230 m off the coast. The very large rocks start from 3 m and continue to 40-50 m, surrounded by coarse sand/gravels | H | 40°36’11.91”N 27°41’10.94”E |
S3 | Hayırsız Ada Kuzey | The site is composed of a wall descending to 30 m where large to medium size rocks are present on the bottom with a 10-30° slope | H | 40°38’47.71”N 27°29’12.47”E |
S4 | Badalan Dağaltı | The site is 200 m off the coast. Large rock starts from approximately 10 m and descends to 35 m, surrounded by gravels and dead shells | H | 40°39’18.41”N 27°34’23.96”E |
S5 | Hayırsız Ada Güney | The site is composed of a wall descending to 30 m where the bottom is composed of medium size rocks with a slope of approximately 40° | H | 40°38’8.48”N 27°29’19.20”E |
S6 | Mamali Adası | The rocks descends to 20 m where the bottom is composed of large to medium size rocks covered with bioconcretions with a slope of 15° | H | 40°31’30.08”N 27°35’16.48”E |
S7 | Çınarlı | The bottom is composed of fine sand/mud with a slope of approximately 10-15° | S | 40°37’11.55”N 27°31’44.35”E |
S8 | Avşa Adası | The bottom is composed of fine sand/mud with a slope of approximately 5-10° | S | 40°30’1.47”N 27°28’53.42”E |
S9 | Ekinlik Adası | The bottom is composed of fine sand/mud rarely interrupted with small boulders on a slope of approximately 5-10° | S | 40°33’10.45”N 27°30’17.53”E |
S10 | Domuz burnu feneri | The bottom is composed of fine sand/mud with a slope of approximately 5-10° | S | 40°40’4.52”N 27°37’52.45”E |
S11 | Gündoğdu | The bottom is composed of fine sand/mud with a slope of approximately 5-10° | S | 40°34’36.94”N 27°36’3.36”E |
S12 | Karabiga Cendere | The site is composed of a wall descending to 30 m where large to medium size rocks are present on the bottom with a slope of 10-30° | H | 40°25’34.92”N 27°19’14.10”E |
S13 | Karabiga Toptaş Kumsalı | The bottom is composed of sand with pebbles and dead shells occasionally interrupted by small boulders, with a slope of approximately 15° | M | 40°25’20.38”N 27°19’25.13”E |
S14 | Topağaç | The bottom is composed of fine sand/mud with a slope of approximately 10° | S | 40°36’14.64”N 27°41’7.32”E |
The abundance of octocorals was assessed by measuring density of colonies for each species found along transects (see below). We considered three types of substrates: hard substrate composed of hard beds and rocks [H], soft substrate composed of sandy/muddy bottom [S] and mixed substrate [M] composed of pebbles, shells and small rocks on muddy bottom. The slope in degrees and the structure of hard bottoms (whether wall or rocks) were also noted (Table 1). The rocks were categorized as “very large” when they were larger than 3×5 m (vertical×horizontal); “large” when they were 1-3 m (vertical) and 1-5 m (horizontal); “medium” when they measured 1×1 m; and “small” when they measured less than 1×1 m. A total of 17 stations in the north and 10 in the south were quantitatively sampled for octocoral diversity and abundance. Four stations in the south were not quantitatively sampled due to the sole presence of encrusting alcyonarian and stoloniferan species or very scarce gorgonians to be enumerated. Transects were conducted following a fixed depth line that varied from 32 to 36 m depending on the station. Octocoral colonies were enumerated in 1 m2 quadrats placed every metre (20 quadrats) on either side of the 20-m-long transect tape laid on the substrate. In case of vertical walls or large boulders, 20 quadrats were placed haphazardly on the substrate at the same depth range. The numbers of colonies in each quadrat of a station (including the quadrats with 0 colonies) were summed together, and then divided by 20 m2 to achieve density values in units of colonies m–2.
Statistical analysis
The hypothesis that octocoral density and diversity (Simpson index in the form 1/λ) of stations do not differ among each other was tested by the univariate non-parametric Kruskal-Wallis (N=27) test with the SPSS software (SPSS, Chicago, IL).
To explore potential differences across geographic regions and habitat types on octocoral assemblages (composition and abundance), we used a two-factor permutational multivariate analysis of variance (PERMANOVA, Anderson 2001Anderson M.J. 2001. A new method for non-parametric multivariate analysis of variance. Austral. Ecol. 26: 32-46.) in which each term was tested using 9999 random permutations. The two factors were Geographic Zone (north-south) and Habitat (Hard-Soft-Mixed). Station S14, where only one specimen of Funiculina quadrangularis was observed at the limit of observation (41 m), was excluded from the analyses. Species composition and abundance data were analysed separately because abundance data were not available at all stations. The analyses were based on Bray-Curtis similarity of previously transformed data (presence/absence in case of the species composition; fourth root in case of the abundances). The resemblance matrices informed principal coordinates analysis (PCO) plots in order to identify the relationships between sampling stations based on biological information. Pairwise comparisons were also carried out in order to ascertain patterns in the composition or abundances among stations. Finally, similarity percentage analysis (SIMPER) was performed to identify the taxa that best explain the variations observed among stations. All the above analyses were carried out with the Primer v6 software (Clarke and Gorley 2006Clarke K., Gorley R. 2006. PRIMER v6: User Manual/Tutorial. PRIMER-E, Plymouth, 91 pp.).
RESULTSTop
A total of 14 octocoral species were collected from the Sea of Marmara (Supplementary Material Table S1), with 11 of them from the Prince Islands coasts and 14 from the Southern Marmara Islands. Abundance values were obtained for only 9 species (Table 2) because rare species were generally not encountered in transects and encrusting corals were not counted. Octocoral abundance in the Marmara Sea was 5.21±5.11 colonies m–2 (mean±SD) on average calculated from a total of 1390 colonies counted in transects. Total octocoral abundance varied among stations from 0.30 to 17.70 colonies m–2 and octocoral abundance was higher in the north of the Marmara than in the south, though not significantly. Although more species were found in the south, the north of the Marmara Sea (Simpson mean=1.98±0.88) was significantly more diverse than the south (Simpson mean=1.24±0.38) (p<0.05).
VC | PG | AP | AA | PS | EC | PM | PC | SK | |
---|---|---|---|---|---|---|---|---|---|
N1 | 0 | 0 | 0.5 | 0 | 6.1 | 0.9 | 3.9 | 0.5 | 1.4 |
N2 | 0 | 0 | 0 | 0 | 7.1 | 0 | 0.7 | 0 | 0.3 |
N3 | 0.9 | 0 | 0.1 | 0 | 0 | 0 | 0 | 0 | 0.1 |
N4 | 0.3 | 0 | 0.3 | 0 | 1.3 | 0.1 | 1.2 | 0 | 0.8 |
N5 | 0 | 0 | 1.2 | 0 | 6.9 | 0 | 2.3 | 0 | 3.1 |
N6 | 0 | 0 | 0.4 | 0 | 5.6 | 0 | 1.7 | 0 | 1.1 |
N7 | 0 | 0 | 0.2 | 0 | 2.7 | 0 | 1.7 | 0 | 0.9 |
N8 | 0 | 0 | 0.2 | 0 | 1.8 | 0 | 0.5 | 0.4 | 0.1 |
N9 | 0 | 0 | 0.2 | 0 | 0 | 0 | 0.1 | 0 | 1.1 |
N10 | 0 | 0 | 0.7 | 0 | 4.1 | 0.2 | 1.5 | 0.2 | 0.4 |
N11 | 0 | 0 | 0.6 | 0.1 | 0.5 | 12.8 | 2.0 | 0 | 0.4 |
N12 | 0 | 0 | 1.0 | 0 | 0 | 13.9 | 2.1 | 0.1 | 0.6 |
N13 | 0.4 | 0 | 0.1 | 0 | 0 | 0 | 0 | 0 | 0.1 |
N14 | 1.2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
N15 | 1.6 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
N16 | 3.9 | 0 | 0.1 | 0 | 0 | 0 | 0 | 0 | 0.2 |
N17 | 3.6 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
S1 | 0 | 0 | 0 | 3.4 | 0 | 0 | 0 | 0 | 0 |
S3 | 0 | 0 | 0 | 0 | 1.4 | 0 | 0 | 0 | 0 |
S3 | 0 | 0 | 0 | 0 | 0 | 10.7 | 0 | 0.4 | 0.1 |
S6 | 0 | 0 | 0 | 2.5 | 0 | 0 | 0 | 0 | 0 |
S7 | 1.4 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
S8 | 0.2 | 0 | 0.2 | 0 | 0 | 0 | 0 | 0 | 0 |
S9 | 0 | 1.2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
S10 | 4.2 | 1.1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
S11 | 0.2 | 0 | 0.1 | 0 | 0 | 0 | 0 | 0 | 0 |
S13 | 0 | 0 | 0 | 0.8 | 0 | 0 | 0 | 0 | 0 |
Mean±sd | 1.63±1.54 | 1.15±0.07 | 0.40±0.30 | 1.70±1.51 | 3.75±2.52 | 6.43±6.69 | 1.61±1.03 | 0.32±0.16 | 0.71±0.77 |

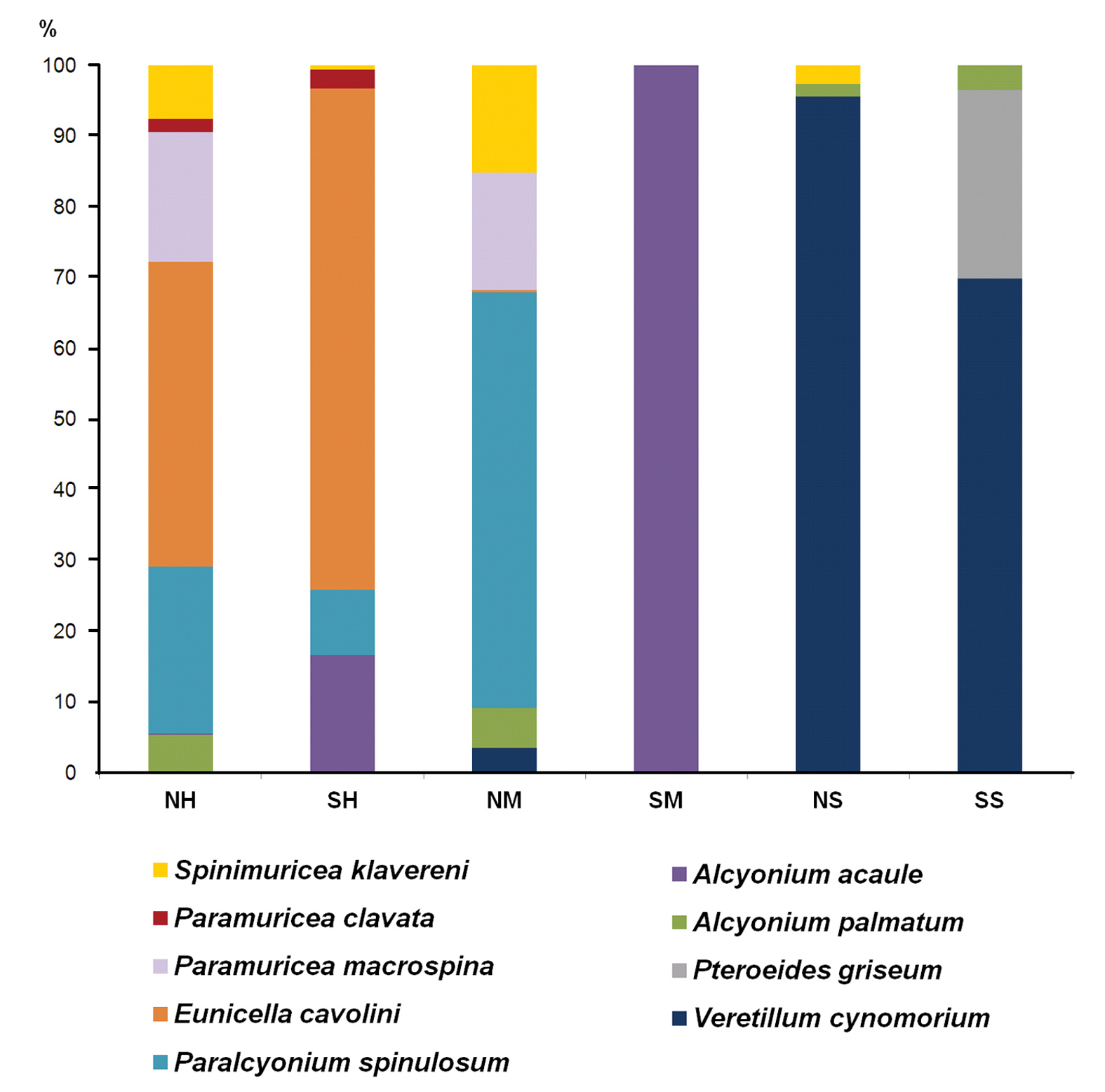

Species composition differed significantly between the north and the south as well as among different substrate types (Table 3). 60.5% of the variation was explained in axis 1 of the PCO plot (Fig. 2), where the discrimination of stations in the horizontal direction was by groups of substrate types.
PERMANOVA (Species Composition) | ||||||||
---|---|---|---|---|---|---|---|---|
Source | df | SS | MS | Pseudo-F | P(perm) | |||
ZO | 1 | 7844.9 | 7844.9 | 9.9859 | 0.0002 | |||
SU | 2 | 30282 | 15141 | 19.273 | 0.0001 | |||
ZOxSU | 2 | 6363.1 | 3181.6 | 4.0499 | 0.0037 | |||
Res | 24 | 18854 | 785.6 | |||||
Total | 29 | 62502 | ||||||
Pairwise comparisons | ||||||||
Within level ‘N’ of factor ‘ZONE’ | Within level ‘S’ of factor ‘ZONE’ | |||||||
Groups | t | P(perm) | Groups | t | P(perm) | |||
H. M | 2.1801 | 0.0105 | H. M | 2.1392 | 0.0339 | |||
H. S | 6.2103 | 0.0014 | H. S | 3.0846 | 0.002 | |||
M. S | 3.9635 | 0.0075 | M. S | 1.1489 | 0.3826 | |||
Within level ‘H’ of factor ‘SUBS’ | Within level ‘M’ of factor ‘SUBS’ | Within level ‘S’ of factor ‘SUBS’ | ||||||
Groups | t | P(perm) | Groups | t | P(perm) | Groups | t | P(perm) |
N. S | 2.2486 | 0.0032 | N. S | 4.723 | 0.045 | N. S | 1.3599 | 0.2382 |
PERMANOVA (Species Abundances) | ||||||||
Source | df | SS | MS | Pseudo-F | P(perm) | |||
Zo | 1 | 14303 | 14303 | 10.205 | 0.0001 | |||
Ha | 2 | 29247 | 14623 | 10.434 | 0.0001 | |||
ZoxHa | 2 | 9705.9 | 4852.9 | 3.4626 | 0.0005 | |||
Res | 21 | 29432 | 1401.5 | |||||
Total | 26 | 80938 | ||||||
Pairwise comparisons | ||||||||
Within level ‘N’ of factor ‘ZONE’ | Within level ‘S’ of factor ‘ZONE’ | |||||||
Groups | t | P(perm) | Groups | t | P(perm) | |||
H. M | 1.2634 | 0.1912 | H. M | 1.0796 | 0.3997 | |||
H. S | 5.7271 | 0.0023 | H. S | 1.693 | 0.0187 | |||
M. S | 3.7129 | 0.024 | M. S | 2.5067 | 0.0497 | |||
Within level ‘H’ of factor ‘SUBS’ | Within level ‘M’ of factor ‘SUBS’ | Within level ‘S’ of factor ‘SUBS’ | ||||||
Groups | t | P(perm) | Groups | t | P(perm) | Groups | t | P(perm) |
N. S | 1.8072 | 0.0155 | N. S | 3.8565 | 0.049 | N. S | 1.2635 | 0.3083 |
The stations with soft substrates were not significantly different between north and south in terms of either species composition or abundance but were significantly different between hard and mixed substrates (Table 3). Veretillum cynomorium was responsible alone for 86% of the similarity observed between stations of soft substrates (Table 4). Both species composition and abundances differed significantly on hard substrates and mixed substrates of the north and south (Table 3).
Species | Sim/SD | Contrib% | Cum.% | Species | Av.Diss | Diss/SD | Contrib% | Cum.% |
---|---|---|---|---|---|---|---|---|
Group H | Groups H and M | |||||||
Average similarity: 59.10 | Average dissimilarity = 42.62 | |||||||
PM | 2.35 | 27.03 | 27.03 | PS | 9.76 | 0.81 | 22.89 | 22.89 |
SK | 1.99 | 24.07 | 51.1 | EC | 8.8 | 0.81 | 20.65 | 43.54 |
AP | 2.36 | 22.38 | 73.48 | AA | 4.9 | 0.4 | 11.5 | 55.05 |
PS | 0.79 | 14.68 | 88.15 | PC | 4.68 | 0.91 | 10.99 | 66.04 |
EC | 0.5 | 6.87 | 95.03 | PM | 4.36 | 0.8 | 10.23 | 76.27 |
Group M | Groups H and S | |||||||
Average similarity: 62.61 | Average dissimilarity = 90.43 | |||||||
SK | 2.85 | 26.43 | 26.43 | VC | 20.47 | 1.95 | 22.64 | 22.64 |
PS | 0.98 | 25.79 | 52.21 | PS | 13.79 | 0.97 | 15.25 | 37.88 |
PM | 1.04 | 19.21 | 71.43 | PM | 11.48 | 1.46 | 12.69 | 50.57 |
AP | 1.04 | 13.67 | 85.09 | EC | 11.23 | 0.81 | 12.42 | 62.99 |
AA | 0.3 | 11.92 | 97.02 | AP | 9.23 | 1.19 | 10.2 | 73.19 |
SK | 8.91 | 1.13 | 9.85 | 83.04 | ||||
Group S | Groups M and S | |||||||
Average similarity: 54.82 | Average dissimilarity = 79.60 | |||||||
VC | 1.61 | 86.17 | 86.17 | VC | 18.5 | 1.41 | 23.24 | 23.24 |
AP | 0.31 | 6.25 | 92.41 | PS | 14.13 | 1.05 | 17.75 | 40.99 |
AA | 13.06 | 0.61 | 16.41 | 57.4 | ||||
PM | 10.22 | 1.12 | 12.83 | 70.23 | ||||
AP | 9.27 | 1.06 | 11.65 | 81.88 | ||||
SK | 8.85 | 1.09 | 11.12 | 93 |

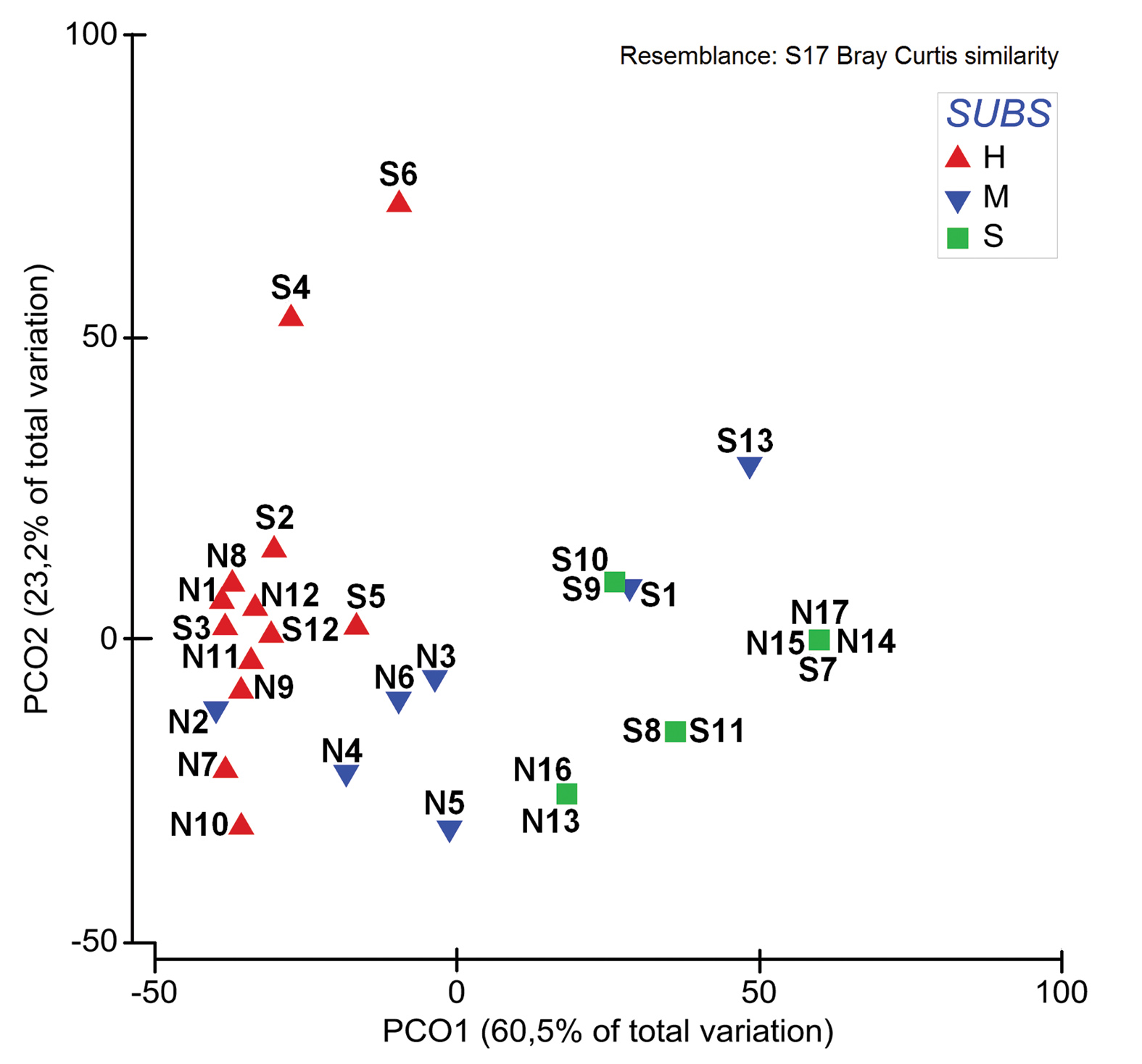

Species composition on hard and mixed bottoms was significantly different from each other in the north and south but abundances of the common taxa were not significantly different from each other in both zones (Table 3). Paramuricea macrospina, Spinimuricea klavereni, Alcyonium palmatum and to a certain extent Paralcyonium spinulosum seem to be the most common taxa on either hard or mixed substrates of the northern Marmara Sea (Fig. 3; Table 4) but P. macrospina and S. klavereni were rarely observed in the south. Alcyonium acaule was a common species on mixed and hard substrates of the south, with abundances of 0.8 to 3.4 colonies m–2 (Fig. 4A), whereas it was rarely observed in the north.
Abandoned fishing gears were encountered in 9 of the 17 stations (N1; N2; N4; N5; N7; N8; N9; N10; N14) on the Prince Islands coasts. The gears found most were purse seine nets, followed by set nets and fish lines.
DISCUSSIONTop
The most extensive study concerning corals/gorgonians in the Sea of Marmara dates back to the 1950s (Demir 1954Demir M. 1954. Boğaz ve Adalar Sahillerinin omurgasız dip hayvanları. Istanbul Univ, Faculty of Science, Hydrobiol. Res. Inst. Publ. 2A: 1-654 (in Turkish).) and there are very few recent studies focusing on corals (Öztürk and Bourguet 1990Öztürk B., Bourguet J.P. 1990. Données préliminaires sur le corail noir de la Mer de Marmara (Turquie) Gerardia savaglia (Bertolini, 1819). Ist. Univ. J. of Fish. 4: 45-48., Özalp 2012Özalp B.H. 2012. Manta-tow studies of the coral fauna of the Çanakkale Strait. Proceedings of the Fisheries and Aquatic Sciences Symposium. Eskişehir, Turkey, psst 197., Topçu and Öztürk 2013Topçu E.N., Öztürk B. 2013. Octocoral diversity of Balıkçı Island, the Marmara Sea. J. Black Sea/Medit. Environ. 19: 46-57.). In this regard, this study greatly enhances the knowledge on the composition and abundance of octocorals in the Marmara Sea.
Information available for the neighbouring areas of the Marmara Sea indicate that octocorals are present and diverse in the Aegean Sea (Vafidis in Coll et al. 2010Coll M., Piroddi C., Steenbeek J., et al. 2010. The Biodiversity of the Mediterranean Sea: Estimates, Patterns, and Threats. PLoS One 5: e11842.: Table S13), whereas only one species is present in the Black Sea. Virgularia mirabilis is found only in the small section of the southern Black Sea shelf close to the Istanbul Strait that creates a zone of high salinity and provides living conditions for many Mediterranean species (Zaitsev and Mamaev 1997Zaitsev Yu P., Mamaev V. 1997. Biological diversity in the Black Sea. Black Sea Environ Ser, Vol. 3, UN Publ, New York 208 pp.). In the Marmara Sea, connecting the Aegean and the Black Seas, 23 species were found in various studies (Table 5). The high number of species in the Marmara Sea in the Turkish literature is mainly due to the lack of research effort in other areas. The number of species is higher than in the Ionian Basin (15) and similar to that in the Adriatic Sea (20 species) and in the Aegean Sea (28) (species numbers/region were obtained from Vafidis in Coll et al. 2010Coll M., Piroddi C., Steenbeek J., et al. 2010. The Biodiversity of the Mediterranean Sea: Estimates, Patterns, and Threats. PLoS One 5: e11842.: Table S13). The Prince Islands form a boundary of the spatial distributions of octocorals in the Mediterranean Sea, except for V. mirabilis.
The soft bottoms of the Marmara Sea in the diving limits of depth seem to be colonized mainly by Pennatulaceans, most commonly V. cynomorium, followed by Pteroeides griseum, the two shallow-water species. These sea pens form large beds of a single species on the soft bottoms of the Marmara Sea, occasionally disrupted by a few alcyonaceans, as is frequently observed in the Mediterranean (Gili and Pagès 1987Gili J., Pagès F. 1987. Pennatuláceas (Cnidaria, Anthozoa) recolectados en la plataforma continental catalana (Mediterráneo occidental). Misc. Zool. 11: 25-39 (in Spanish).) and globally (Pérès 1982Pérès J.M. 1982. Major benthic assemblages. In: O. Kinne (Ed.) Marine Ecology. J. Wiley & Sons London 5: 373-522.).
The main rocky habitats of the Marmara Sea covered by coralligenous outcrops were composed of (1) vertical walls or large rocks on steep bottom colonized mainly by Eunicella cavolini with high abundances (10.7-13.9 colonies m–2) (Fig. 4B) and (2) large-medium size boulders on a slightly steep or flat bottom colonized by P. macrospina, S. klavereni, and P. spinulosum (3-13.3 colonies m–2) (Fig. 4C). The first type corresponds to one of the common coralligenous assemblages for the Mediterranean Sea, dominated by E. cavolini, as is often the case in the (rarely) gorgonian-dominated eastern Mediterranean coralligenous assemblages (Kružić 2007Kružić P. 2007. Anthozoan fauna of Telascica Nature Park (Adriatic Sea, Croatia). Nat. Croat. 16: 233-266., Salomidi et al. 2009Salomidi M., Smith C., Katsanevakis S., et al. 2009. Some observations on the structure and distribution of gorgonian assemblages in the eastern Mediterranean Sea. In: UNEP – MAP – RAC/SPA, Proceedings of the 1st Mediterranean symposium on the conservation of the coralligenous and other calcareous bio-concretions. Tabarka, Tunis, pp 242-245., Gerovasileiou et al. 2009Gerovasileiou V., Sini M.I., Poursanidis D., et al. 2009. Contribution to the knowledge of Coralligenous communities in the NE Aegean Sea. Proceedings of the 1st Mediterranean symposium on the conservation of the coralligenous and other calcareous bio-concretions. Tabarka, Tunis, pp 205-207.). E. verrucosa and E. singularis were rare observations in the southern Marmara Sea, as is also generally observed in the eastern Mediterranean.
The Sea of Marmara is highly impacted by various anthropogenic activities, such as wastewater discharge, agricultural run-off, illegal fishing and overfishing, marine litter and shipping (Öztürk et al. 2000Öztürk B., Kadıoğlu M., Öztürk H. 2000. Marmara Denizi 2000 Sempozyumu bildiriler kitabı. TUDAV Publ 5, 607 pp (in Turkish)., Öztürk 2010aÖztürk B. 2010a. Marmara Denizi 2010 Sempozyumu bildiriler kitabı. TUDAV Publ 32, 521 pp (in Turkish).). The semi-enclosed sea recently suffered from red-tides (Türkoğlu 2013Türkoğlu M. 2013. Red tides of the dinoflagellate Noctiluca scintillans associated with eutrophication in the Sea of Marmara (the Dardanelles, Turkey) Oceanologia 55:709-732.) and mucilage events (Aktan et al. 2008Aktan Y., Dede A., Çiftci P.S. 2008. Mucilage event associated with diatoms and dinoflagellates in Sea of Marmara, Turkey. Harmful Algae News 36: 1-3., Balkıs et al. 2011Balkis N., Atabay H., Türetgen I., et al. 2011. Role of single-celled organisms in mucilage formation on the shores of Büyükada Island (the Marmara Sea). J. Mar. Biol. Assoc. UK 91: 771-781.). In spite of such severe anthropogenic disturbances, dense assemblages of endemic gorgonians in the Marmara Sea were observed during this study, although gorgonian densities were lower than those of the western Mediterranean (e.g. in Linares et al. 2008Linares C., Coma R., Garrabou J., et al. 2008. Size distribution, density and disturbance in two Mediterranean gorgonians: Paramuricea clavata and Eunicella singularis. J. Appl. Ecol. 45(2): 688-699.). E. cavolini populations can reach densities as high as 180 colonies m–2 in the bay of Calvi (Corsica, France) (Weinbauer and Velimirov 1996Weinbauer M.G., Velimirov B. 1996. Population dynamics and overgrowth of the sea fan Eunicella cavolini (Coelenterata: Octocorallia). Est. Coast. Shelf Sci. 42(5): 583-595.), whereas the highest density in the Marmara Sea was approximately 14 colonies m–2.
P. macrospina is a Mediterranean endemic known to occur on rocks, detritic or sandy/muddy bottoms, mainly at depths of 40 to 100 m but also deeper (Carpine and Grasshoff 1975Carpine C., Grasshoff M. 1975. Les Gorgonaires de la Méditerranée. Bull. Inst. Océanogr. Monaco 71: 1-140.). This species is mentioned in the literature dealing mainly with deep sea fauna of the Mediterranean Sea (Watling et al. 2005Watling L., Auster P.J. 2005. Distribution of deep-water Alcyonacea off the Northeast Coast of the United States. Cold-Water Corals and Ecosystems Erlangen Earth Conference Series pp. 279-296., Aguilar et al. 2009Aguilar R., Pastor X., De la Torriente A., et al. 2009. Deep sea coralligenous beds observed with ROV on four seamounts in the western Mediterranean. In: UNEP – MAP – RAC/SPA, Proceedings of the 1st Mediterranean symposium on the conservation of the coralligenous and other calcareous bio-concretions. Tabarka, Tunis, pp 148-150., Mastrototaro et al. 2010Mastrototaro F., D’Onghia G., Corriero G., et al. 2010. Biodiversity of the white coral bank off Cape Santa Maria di Leuca (Mediterranean Sea): An update. Deep Sea Res. PT II 57: 412-430., Bo et al. 2012Bo M., Canese S., Spaggiari C., et al. 2012. Deep Coral Oases in the South Tyrrhenian Sea. PloS One 7: e49870., Angeletti et al. 2014Angeletti L., Taviani M., Canese S., et al. 2014. New deep-water cnidarian sites in the southern Adriatic Sea. Mediterr. Mar. Sci. 15: 263-273.) except in the Aegean Sea, where it was collected between 20 and 90 m (Vafidis et al. 1994Vafidis D., Koukouras A., Voultsiadou-Koukoura E. 1994. Octocoral fauna of the Aegean Sea with a check list of the Mediterranean species: new information, faunal comparisons. Ann. Inst. Oceanogr. 70(2): 217-229.); P. macrospina–dominated assemblages were abundant, especially in the north of the Marmara Sea, and this species was suggested to have greater adaptability than other gorgonians in relation to a relatively fast growing rate (Bo et al. 2012Bo M., Canese S., Spaggiari C., et al. 2012. Deep Coral Oases in the South Tyrrhenian Sea. PloS One 7: e49870.).
On the other hand, S. klavereni, another common species in the northern Marmara Sea, is an endemic Mediterranean species on which very limited information is available. It occurs on hard substrates of the circalittoral zone between 50-80 m deep (Carpine and Grasshoff 1975Carpine C., Grasshoff M. 1975. Les Gorgonaires de la Méditerranée. Bull. Inst. Océanogr. Monaco 71: 1-140., Grasshoff 1992Grasshoff M. 1992. Die Flachwasser-Gorgonarien von Europa und Westafrika (Cnidaria, Anthozoa). Courier Forsch. Int., Senckenberg, 149: 1-135.). It was recently reported from the Tyrrhenian Sea as a rare occurrence, on muddy substrates with patches of organogenic detritus at depths deeper than 70 m (Bo et al. 2012Bo M., Canese S., Spaggiari C., et al. 2012. Deep Coral Oases in the South Tyrrhenian Sea. PloS One 7: e49870.). In the northern Marmara Sea, it occurs on hard substrates like rocks or small pebbles/shells on sandy/muddy bottom starting from 25 m until our limit of observation (42 m), with abundances varying from 1 to 3.1 colonies m–2.
The Marmara Sea faced severe disturbances, particularly from the 1980s onward, due to rapid population growth and industrial revolution in the surrounding region (Burak 2008Burak S. 2008. Evaluation of pollution abatement policies in the Marmara Sea with water quality monitoring. Asian J. Chem. 20(5): 4117.) and in parallel to the catastrophic degradation period in the Black Sea (Bakan and Büyükgüngör 2000Bakan G., Büyükgüngör H. 2000. The Black Sea. Mar. Pollut. Bull. 41(1-6): 24-43.). In order to compare the present status of corals in the Sea of Marmara to that of the post-disturbances period (1960 to the 1970s), local divers and fishermen were questioned. Although we could not obtain quantitative data, they all agreed that they used to see more abundant dense gorgonian assemblages in the past. We also obtained a short video (Supplementary Material Video S1) taken in 1975 at Balıkçı Island by a local diver. In the video, a very dense assemblage of Savalia savaglia/P. clavata is clearly seen, revealing large colonies. Today, though both species are still present in the Marmara Sea, such dense assemblages are not encountered. Abandoned purse seine nets were pointed out by divers and small scale fishermen as the main reason behind the decrease of gorgonians and corals. In fact, this problem is continuous in the whole Marmara Sea (Yıldız and Karakulak 2010Yıldız T., Karakulak S. 2010. İstanbul Adalarında Hayalet Avcılık. In Öztürk B (ed.), Marmara Denizi 2010 Sempozyumu bildiriler kitabı. TUDAV Publ 32: 282-288.), causing serious damage to the ecosystem despite fishing net cleaning operations by local and environmental associations. Abandoned fishing gears highly impact corals and gorgonians via entanglement and overgrowth by epibionts (Bavestrello et al. 1997Bavestrello G., Cerrano C., Zanzi D., et al. 1997. Damage by fishing activities to the Gorgonian coral Paramuricea clavata in the Ligurian Sea. Aquat. Conserv. 7: 253-262., Bo et al. 2014Bo M., Bava S., Canese S., et al. 2014. Fishing impact on deep Mediterranean rocky habitats as revealed by ROV investigation. Biol. Conserv. 171: 167-176.). Abandoned nets were encountered at 53% of the stations in the north of the Marmara Sea during this study (Fig. 4D, E, F), causing harm to octocoral species and other sessile fauna.
The continuous disturbances by fishing gears, together with the peculiar oceanographic conditions in the Marmara Sea, could be responsible for the abundance of the opportunistic gorgonians. The Marmara Sea has received a significant pollution load in the last 30 years from both the Black Sea inflow and increased anthropogenic input (Tuğrul and Polat 1995Tuğrul S., Polat Ç. 1995. Quantitative comparison of the influxes of nutrients and organic carbon into the Sea of Marmara both from anthropogenic sources and from the Black Sea. Water Sci. Technol. 32: 115-121.). The semi-enclosed Marmara Sea is highly turbid, preventing daylight at very shallow depths (Çoban-Yıldız et al. 2000Çoban-Yıldız Y., Tuğrul S., Ediger D., et al. 2000. A comparative study on the abundance and elemental composition of POM in three interconnected basins: the Black, the Marmara and the Mediterranean Seas. Mediterr. Mar. Sci. 1: 51-63.) and the temperature below 20 m is lower (approximately 14.5°C) than at depths of the same range in the Mediterranean, so the conditions are similar to those of higher depths in the Mediterranean Sea. This could be the reason for high abundances at 25-40 m of P. macrospina and S. klavereni, which are found at greater depths in the Mediterranean. These relatively fast-growing gorgonians might be colonizing more easily the habitats emptied by other species due to the disturbances by fishing gears under the highly turbid conditions of the Marmara Sea since the 1970s.
A series of thermal anomalies recently affected Mediterranean benthic assemblages, causing mass mortalities at some locations and gorgonians were among the organisms most affected (Perez et al. 2000Perez T., Garrabou J., Sartoretto S., et al. 2000. Mortalité massive d’invertébrés marins: un événement sans précédent en Méditerranée nord-occidentale. Cr. Acad. Sci. III-Vie 323: 853-865., Garrabou et al. 2009Garrabou J., Coma R., Bensoussan N., et al. 2009. Mass mortality in Northwestern Mediterranean rocky benthic communities: effects of the 2003 heat wave. Glob. Change Biol. 15: 1090-1103.). In the Marmara Sea, temperature variances below 20 m are very low and the temperature is generally about 15°C. Therefore, gorgonian assemblages do not risk mortality events related to thermal stress as in the Mediterranean Sea, but an important threat arises from mucilage events. Mucilage events resulting from single-cell organisms are periodically observed in the Marmara Sea (Aktan et al. 2008Aktan Y., Dede A., Çiftci P.S. 2008. Mucilage event associated with diatoms and dinoflagellates in Sea of Marmara, Turkey. Harmful Algae News 36: 1-3., Balkıs et al. 2011Balkis N., Atabay H., Türetgen I., et al. 2011. Role of single-celled organisms in mucilage formation on the shores of Büyükada Island (the Marmara Sea). J. Mar. Biol. Assoc. UK 91: 771-781.) and the sedimentation of the aggregates causes negative effects by covering benthic organisms (Aktan et al. 2008Aktan Y., Dede A., Çiftci P.S. 2008. Mucilage event associated with diatoms and dinoflagellates in Sea of Marmara, Turkey. Harmful Algae News 36: 1-3.). The impact of mucilage on gorgonians has been previously reported, though it was caused by a different type of mucilage formed by the aggregation of filamentous algae; mucilage gets trapped on gorgonian branches positioned perpendicularly to currents and causes damage (sometimes irreparable) to gorgonians (Giuliani et al. 2005Giuliani S., Virno Lamberti C., Sonni C., et al. 2005. Mucilage impact on gorgonians in the Tyrrhenian Sea. Sci. Total Environ. 353: 340-349.). We observed in 2011 mucilage fragments on S. klavereni colonies and local divers informed us that several S. klavereni colonies died after the severe mucilage events of 2007-2008. The dead branches can still be observed at station N9, which is covered by epibionts (Fig. 4G).
Most of the octocoral species found in the Marmara Sea, such as A. coralloides, A. acaule, P. clavata and E. cavolini, are considered typical components of Mediterranean coralligenous communities, which are stated as the most important biocoenosis in “Guidelines for the Establishment and Management of Mediterranean Marine and Coastal Protected Areas” (Lopez Ornat 2006López Ornat A. (ed.) 2006. Guidelines for the Establishment and Management of Mediterranean Marine and Coastal Protected Areas. MedMPA Project Ed: UNEP-MAP RAC\SPA. Tunis.). According to Council Regulation 1967/2006 of the European Union (EU), fishing with trawl nets, dredges, shore seines or similar nets above coralligenous habitats shall be prohibited. Recently, purse seine fisheries were prohibited around the Prince Islands Area; however that ban does not cover all of the vulnerable assemblages. In the Marmara Sea, there is no regional or national legislation for the protection of corals and gorgonians except the complete prohibition of fisheries of Corallium rubrum and S. savaglia, according to the Statements 2012/66 and 2012/65. In order to ensure the conservation of coral assemblages in the Marmara Sea, we emphasize the need for specific measures such as the removal of abandoned fishing nets, enlargement of the prohibited area for purse seining, prohibition of anchoring, placement of mooring buoys and better prosecution of offenders. This study provides scientific support to complete some tasks required by the EU Marine Strategy Framework Directive in order to achieve and maintain Good Environmental Status (GES) by 2020 in Turkish waters.
