INTRODUCTIONTop

The fan mussel, Pinna nobilis L., is among the largest bivalves in the world, and the largest in the Mediterranean, attaining lengths of up to 120 cm (Zavodnik et al. 1991Zavodnik D., Hrs-Brenko M., Legac M. 1991. Synopsis on the fan shell Pinna nobilis L. in the eastern Adriatic Sea. In: Boudouresque C.F., Avon M., Gravez V. (eds), Les Espèces Marines à Protéger en Méditerranée. GIS Posidonie, Marseille, pp. 169-178.) and reaching an age of more than 20 years (Butler et al. 1993Butler A., Vicente N., De Gaulejac B. 1993. Ecology of de Pterioid bivalves Pinna bicolor Gmelin and P. nobilis L. Mar. Life 3: 37-45., Galinou-Mitsoudi et al. 2006Galinou-Mitsoudi S., Vlahavas G., Papoutsi O. 2006. Population study of the protected bivalve Pinna nobilis (Linnaeus, 1758) in Thermaikos Gulf (North Aegean Sea). J. Biol. Res. 5: 47-53.). The species suffered a serious decline about 20 to 30 years ago, mostly as a result of human activities such as persistent trawling and anchoring on nearby shore seagrass habitats and collection of shells for ornamental purposes (Richardson et al. 1999Richardson C.A., Kennedy H., Duarte C.M., et al. 1999. Age and growth of the fan mussel Pinna nobilis from south-east Spanish Mediterranean seagrass (Posidonia oceanica) meadows. Mar. Biol. 133: 205-212.). As a consequence, P. nobilis was listed as endangered in the Mediterranean Sea (Barcelona Convention, protocol ASPIM Annex 2) and is also strictly protected from all forms of deliberate capture or killing by the European Council Habitats Directive 92/43/EEC on the Conservation of Natural Habitats and the Wild Fauna and Flora (Habitats Directive Annex IV of EEC 1992). At present, despite decades of combined legal species and habitat protection, common abundances of P. nobilis are less than 1 individual per 100 m^–2 (Guallart and Templado 2012Guallart J., Templado J. 2012. Pinna nobilis. In: VV.AA., Bases ecológicas preliminares para la conservación de las especies de interés comunitario en España: Invertebrados. Ministerio de Agricultura, Alimentación y Medio Ambiente. Madrid, 81 pp.), although aggregations of more than 20 individuals per 100 m^–2 have been observed in some areas where the species is still abundant (e.g. Siletic and Peharda 2003Siletic T., Peharda M. 2003. Population study of the fan shell Pinna nobilis in Malo and Veliko Jezero of the Mljet National Park (Adriatic Sea). Sci. Mar. 67: 91-98., Rabaoui et al. 2008Rabaoui L., Tlig-Zouari S., Ben Hassine O.K. 2008. Distribution and habitat of the fan mussel Pinna nobilis Linnaeus, 1758 (Mollusca: Bivalvia) along the northern and eastern Tunisian coasts. Cah. Biol. Mar. 49: 67-78., 2010Rabaoui L., Tlig-Zouari S., Katsanevakis S., et al. 2010. Modelling population density of Pinna nobilis (Bivalvia) on the Eastern and Southeastern coast of Tunisia. J. Mollus. Stud. 76: 340-347., Addis et al. 2009Addis P., Secci M., Brundu G., et al. 2009. Density, size structure, shell orientation and epibiontic colonization of the fan mussel Pinna nobilis L. 1758 (Mollusca: Bivalvia) in three contrasting habitats in an estuarine area of Sardinia (W Mediterranean). Sci. Mar. 73: 143-152.).

The species distribution typically follows that of seagrass meadows of Posidonia oceanica, but to a lesser extent it also occurs on other soft-bottom habitats such as Cymodocea nodosa meadows and macroalgal beds and/or sandy and muddy shores in estuaries (Katsanevakis 2006Katsanevakis S. 2006. Population ecology of the endangered fan mussel Pinna nobilis in a marine lake. Mar. Biol. Prog. Ser. 1: 51-59., Guallart and Templado 2010Guallart J., Templado J. 2010. La población de Pinna nobilis (Mollusca, Pinnidae) en las Islas Chafarinas (Mar de Alborán, SW Mediterráneo). XVI Simposio Ibérico de Estudios de Biología Marina. Alicante (Spain), 6-10 September 2010, 149 pp., 2012Guallart J., Templado J. 2012. Pinna nobilis. In: VV.AA., Bases ecológicas preliminares para la conservación de las especies de interés comunitario en España: Invertebrados. Ministerio de Agricultura, Alimentación y Medio Ambiente. Madrid, 81 pp.). Individuals of Pinna nobilis can be found throughout an extensive depth range of 0.5 and 60 m (Butler et al. 1993Butler A., Vicente N., De Gaulejac B. 1993. Ecology of de Pterioid bivalves Pinna bicolor Gmelin and P. nobilis L. Mar. Life 3: 37-45.), although population maximums are usually reported from ca. 3-4 m to ca. 14-15 m (Garcia-March and Kersting 2006García-March J.R., Kersting D.K. 2006. Preliminary data on the distribution and density of Pinna nobilis and Pinna rudis in the Columbretes Islands Marine Reserve (Western Mediterranean, Spain). International Congress on Bivalvia, Universitat Autònoma de Barcelona, Bellaterra, Catalunya, Spain July 22-27., Katsanevakis 2007Katsanevakis S. 2007. Growth and mortality rates of the fan mussel Pinna nobilis in Lake Vouliagmeni (Korinthiakos Gulf, Greece): a generalized additive modelling approach. Mar. Biol. 152: 1319-1331., Coppa et al. 2013Coppa S., de Lucia G.A., Magni P., et al. 2013. The effect of hydrodynamics on shell orientation and population density of Pinna nobilis in the Gulf of Oristano (Sardinia, Italy). J. Sea. Res. 76: 201-210.). To our knowledge, populations peaking at depths of less than 1 m are rare and have only been reported once in a Tunisian coastal lagoon (see Zakhama-Sraieb et al. 2011Zakhama-Sraieb R., Sghaier Y.R., Omrane A., et al. 2011. Density and population structure of Pinna nobilis (Mollusca, Bivalvia) in the Ghar El Melh lagoon (N-E Tunisia). Bull. Inst. Natn. Scien. Tech. Mer de Salammbô 38: 65-71.). The spatial distribution also seems to be subjected to depth-size segregation, with very few large individuals in shallow and exposed areas, higher numbers at increasing depths (Addis et al. 2009Addis P., Secci M., Brundu G., et al. 2009. Density, size structure, shell orientation and epibiontic colonization of the fan mussel Pinna nobilis L. 1758 (Mollusca: Bivalvia) in three contrasting habitats in an estuarine area of Sardinia (W Mediterranean). Sci. Mar. 73: 143-152., Guallart and Templado 2012Guallart J., Templado J. 2012. Pinna nobilis. In: VV.AA., Bases ecológicas preliminares para la conservación de las especies de interés comunitario en España: Invertebrados. Ministerio de Agricultura, Alimentación y Medio Ambiente. Madrid, 81 pp.), and higher numbers of juveniles in shallow areas (Katsanevakis 2006Katsanevakis S. 2006. Population ecology of the endangered fan mussel Pinna nobilis in a marine lake. Mar. Biol. Prog. Ser. 1: 51-59.). Although the mechanism(s) for size segregation is not well-understood, it has been hypothesized to occur as a result of the movement of young individuals capable of releasing and regenerating byssus threads or as a result of depth-selective predation or hydrodynamic stress (García-March 2005García-March J.R. 2005. Aportaciones al conocimiento de la biología de Pinna nobilis Linneo, 1758 (Mollusca, Bivalvia) en el litoral Mediterráneo Ibérico. PhD tesis, Univ. Valencia, 332 pp.). In addition, shallow depths may induce the development of “dwarf” adults, thus preventing size-age comparisons among individuals of the same population inhabiting different depths (García-March et al. 2007aGarcía-March, J.R., García-Carrascosa A.M., Peña Cantero A.L., et al. 2007a. Population structure, mortality and growth of Pinna nobilis Linnaeus, 1758 (Mollusca, Bivalvia) at different depths in Moraira bay (Alicante, Western Mediterranean). Mar. Biol. 150: 861-871.).

The investigation of large underwater areas is often complicated by the large depth distribution of P. nobilis populations; individuals need to be carefully located by scuba diving and survey performance becomes constricted by working time, which involves great sampling efforts (Richardson et al. 2004Richardson C.A., Peharda M., Kennedy H., et al. 2004. Age, growth rate and season of recruitment of Pinna nobilis (L) in the Croatian Adriatic determined from Mg:Ca and Sr:Ca shell profiles. J. Exp. Mar. Biol. Ecol. 299: 1-16.). Possibly for this reason, most studies indicating high P. nobilis densities have only been carried out in areas smaller than 10000 m^–2 and the total population reported is usually much lower than 1000 individuals (e.g. Galinou-Mitsoudi et al. 2006Galinou-Mitsoudi S., Vlahavas G., Papoutsi O. 2006. Population study of the protected bivalve Pinna nobilis (Linnaeus, 1758) in Thermaikos Gulf (North Aegean Sea). J. Biol. Res. 5: 47-53., Garcia-March and Kersting 2006García-March J.R., Kersting D.K. 2006. Preliminary data on the distribution and density of Pinna nobilis and Pinna rudis in the Columbretes Islands Marine Reserve (Western Mediterranean, Spain). International Congress on Bivalvia, Universitat Autònoma de Barcelona, Bellaterra, Catalunya, Spain July 22-27., García-March et al. 2007aGarcía-March, J.R., García-Carrascosa A.M., Peña Cantero A.L., et al. 2007a. Population structure, mortality and growth of Pinna nobilis Linnaeus, 1758 (Mollusca, Bivalvia) at different depths in Moraira bay (Alicante, Western Mediterranean). Mar. Biol. 150: 861-871., Siletic and Peharda 2003iletic T., Peharda M. 2003. Population study of the fan shell Pinna nobilis in Malo and Veliko Jezero of the Mljet National Park (Adriatic Sea). Sci. Mar. 67: 91-98., Addis et al. 2009Addis P., Secci M., Brundu G., et al. 2009. Density, size structure, shell orientation and epibiontic colonization of the fan mussel Pinna nobilis L. 1758 (Mollusca: Bivalvia) in three contrasting habitats in an estuarine area of Sardinia (W Mediterranean). Sci. Mar. 73: 143-152., Zakhama-Sraieb et al. 2011Zakhama-Sraieb R., Sghaier Y.R., Omrane A., et al. 2011. Density and population structure of Pinna nobilis (Mollusca, Bivalvia) in the Ghar El Melh lagoon (N-E Tunisia). Bull. Inst. Natn. Scien. Tech. Mer de Salammbô 38: 65-71.). More exceptionally, some studies have explored areas larger than 100000 m^–2 and reported populations of thousands of individuals, in addition to very high local densities in discrete areas (Katsanevakis 2006Katsanevakis S. 2006. Population ecology of the endangered fan mussel Pinna nobilis in a marine lake. Mar. Biol. Prog. Ser. 1: 51-59., Katsanevakis and Thessalou-Legaki 2009Katsanevakis S., Thessalou-Legaki M. 2009. Spatial distribution, abundance and habitat use of the protected fan mussel Pinna nobilis in Souda Bay, Crete. Mar. Biol. Prog. Ser 8: 45-54.). Nevertheless, very small populations are in extreme jeopardy of falling prey to demographic stochasticity, studies at larger spatial scales are therefore necessary to assess the status of this endangered species and prevent the loss of genetic diversity.

The Alfacs Bay is a large, semi-enclosed estuarine water body located at the south of the Ebro River delta, NW Mediterranean. The bay is very important for the economy of the region due to its fish and shellfish aquaculture, particularly of oysters and mussels (Solé et al. 2009Solé J., Turiel A., Estrada M., et al. 2009. Climatic forcing on hydrography of a Mediterranean bay (Alfacs Bay). Cont. Shelf. Res. 29: 1786-1800.), and it receives seasonal freshwater inputs (ca. 275 10⁶ m³ yr^–1) from rice cultivation between April and October (Garcés et al. 1999Garcés E., Delgado M., Masó M., et al. 1999. In situ growth rate and distribution of the ichthyotoxic dinoflagellate Gyrodinium corsicum Paulmier in an estuarine embayment (Alfacs Bay, NW Mediterranean Sea). J. Plank. Res. 21: 1977-1991.). The shallow submerged platform along the inner shore (<2 m) is dominated by patches of the seagrass C. nodosa that are recurrently disturbed by the migration of subaqueous dunes (Marbà and Duarte 1995Marbà N., Duarte C.M. 1995. Coupling of seagrass (Cymodocea nodosa) patch dynamics to subaqueous dune migration. J. Ecol. 83: 381-389.) and follow a steady-state equilibrium between extinction and recolonization (Vidondo et al. 1997Vidondo B., Duarte C.M., Middelboe A.L., et al. 1997. Dynamics of a landscape mosaic: size and age distributions, growth and demography of seagrass Cymodocea nodosa patches. Mar. Ecol. Prog. Ser. 158: 131-138.). The southern shore (the Banya Sandspit) was included in the Ebro Delta Natural Park in 1986 and is also part of the Natura 2000 network of the European Union because of its importance for both C. nodosa and P. nobilis (Ibáñez 1997Ibáñez C. 1997. Pla XXI. Directrius per a la conservació i dessenvolupament sostenible al delta de l’Ebre. (Plan XXI: Guideliness for conservation and sustainible development in the Ebro Delta). Sociedad Española de Ornitología/ Birdlife. Tarragona, Spain.), according to its status in the Red Book of Endangered Species for the Spanish waters (Guallart and Templado 2012Guallart J., Templado J. 2012. Pinna nobilis. In: VV.AA., Bases ecológicas preliminares para la conservación de las especies de interés comunitario en España: Invertebrados. Ministerio de Agricultura, Alimentación y Medio Ambiente. Madrid, 81 pp.). Despite this protection status, approximately half of the Banya Sandspit is occupied by a salt factory with extensive salt pans, and recreational and fishing boats are free to access the area and anchor along the entire shoreline. In addition, there is also a ferry operating regularly between the port in Sant Carles de la Ràpita and a snack bar located close to the mouth of the bay that attracts high numbers of tourists to the area during the summer period.

Although P. nobilis is mentioned in the non-scientific literature and is well-known by local fishermen, this study provides the first scientific record of the species and its habitat uses in the Ebro Delta. According to Guallart and Templado (2012)Guallart J., Templado J. 2012. Pinna nobilis. In: VV.AA., Bases ecológicas preliminares para la conservación de las especies de interés comunitario en España: Invertebrados. Ministerio de Agricultura, Alimentación y Medio Ambiente. Madrid, 81 pp., the nearest populations of P. nobilis occur at the locality of L’Ametlla de Mar (ca. 35 km north of the Ebro Delta) and in Peñíscola (ca. 40 km south of the Ebro Delta). The objectives of this study were: (1) to estimate the population size, density, size structure, and distribution of P. nobilis in the Alfacs Bay; (2) to assess the influence of habitat features on the abundance of individuals; and (3) to assess the potential negative effects of human activities on the population, including quantification of direct damage to individuals by boating activities, and the presence of distribution patterns of that could be attributed to agricultural eutrophication and salt extraction.

MATERIALS AND METHODSTop

Study area

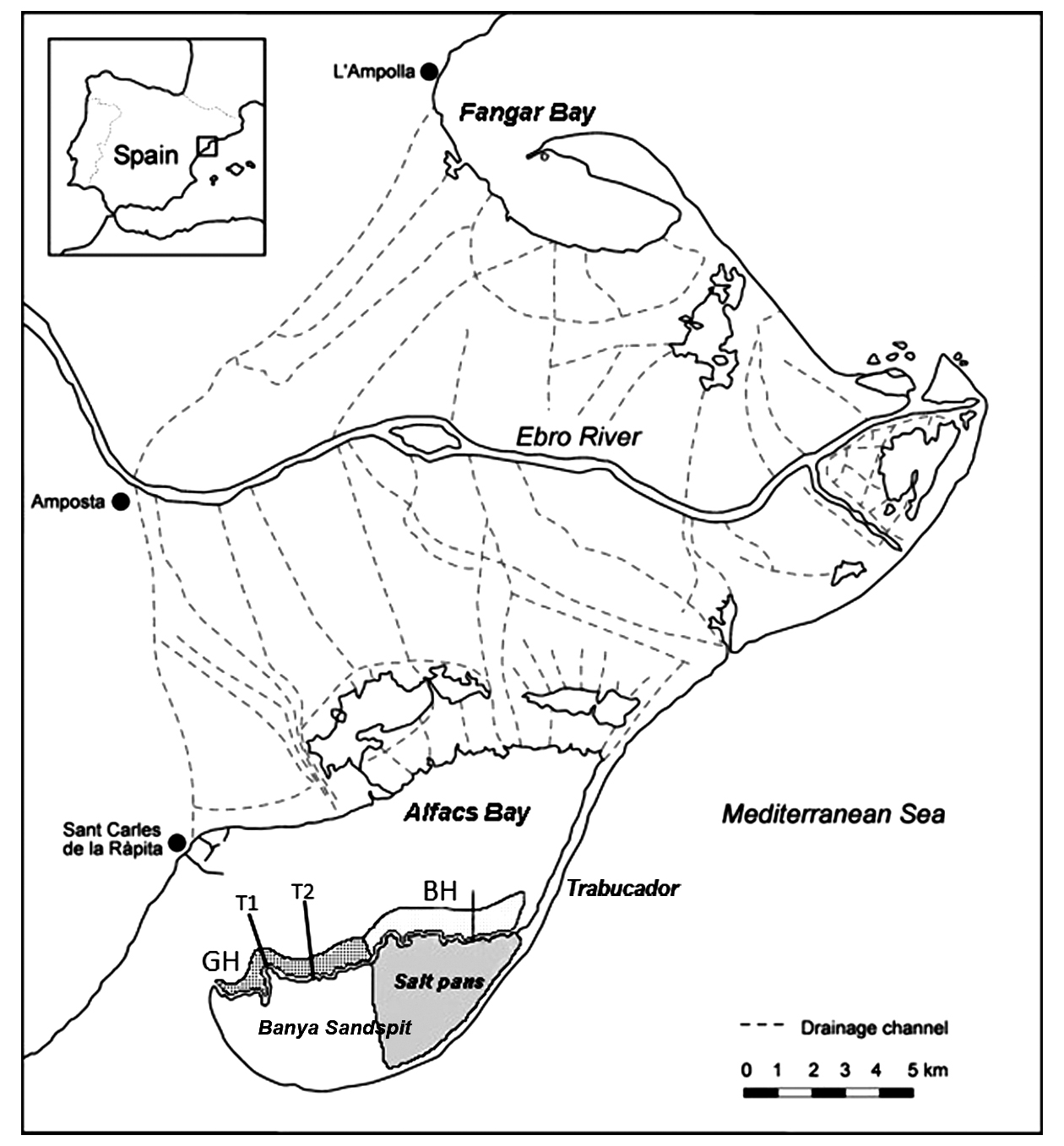

The Alfacs Bay is a semi-confined estuarine area of ca. 49 km² with an average depth of 3.13 m located on the southern part of the Ebro Delta (40°36’39” N, 0°39’25” E; Catalonia, NW Mediterranean). It is bordered by rice fields to the north and connected to the Banya Sandspit through a long sand bar known as the Trabucador that stretches along the eastern side of the bay (see Fig. 1). The mouth of the bay is ca. 2.5 km wide and its edges are surrounded by a shallow platform of 18 km² (ca. 700 m wide), which gently slopes from 0 to 1.5 m, with an average depth of 0.64 m (Garcés et al. 1999Garcés E., Delgado M., Masó M., et al. 1999. In situ growth rate and distribution of the ichthyotoxic dinoflagellate Gyrodinium corsicum Paulmier in an estuarine embayment (Alfacs Bay, NW Mediterranean Sea). J. Plank. Res. 21: 1977-1991.). Away from the edge, the platform leads to a more pronounced slope that descends to the muddy central basin at a maximum depth of 6.5 m. The northern part of the platform occupies 6 km² and is composed of silty sediments, whereas the eastern and southern sides, which occupy over 12 km², are sandy (Garcés et al. 1999Garcés E., Delgado M., Masó M., et al. 1999. In situ growth rate and distribution of the ichthyotoxic dinoflagellate Gyrodinium corsicum Paulmier in an estuarine embayment (Alfacs Bay, NW Mediterranean Sea). J. Plank. Res. 21: 1977-1991.). The northern edge of the bay is connected to irrigation channels from rice fields (Fig. 1) that bring significant amounts of nutrients and organic matter that favour the development of phytoplankton (Delgado 1987Delgado M. 1987. Fitoplancton de las bahias del Delta del Ebro. Inv. Pesq. 51: 517-548.) and fast growing macroalgal communities (Chaetomorpha linum and Ulva spp. P. Prado, pers. observ.) and decrease salinity in shallow waters (0 to 2-3 m depth) to ranges between 30% and 35‰ (Garcés et al. 1999Garcés E., Delgado M., Masó M., et al. 1999. In situ growth rate and distribution of the ichthyotoxic dinoflagellate Gyrodinium corsicum Paulmier in an estuarine embayment (Alfacs Bay, NW Mediterranean Sea). J. Plank. Res. 21: 1977-1991.). In contrast, the salinity at the southern edge of the bay is more similar to the open sea and macroalgae are mostly constricted to sparse patches of Caulerpa prolifera.

Field surveys

We conducted a preliminary visual survey from a boat with three observers to determine which areas of the Alfacs Bay hosted Pinna nobilis. Some surveys were also conducted in the northern Bay of El Fangar (Fig. 1), but no individuals were observed. On the northern shore of the bay, only a few isolated individuals were observed at the eastern end, with none found along the Trabucador sand bar. In contrast, increasing numbers of individuals were detected along the Banya Sandspit (southern shore of the bay), particularly from the north end of the salt pan area to the mouth of the bay. After the visual surveys, we conducted two across-shore transects along the depth gradient (0 to ca. 6 m) using scuba to define the depth range where individuals could be detected (Fig. 1). The population of P. nobilis was then studied in a total of 102 shore-parallel transects along the Banya Sandspit in the summer of 2011-2012. This survey covered a total length of ca. 10.5 km, at depths ranging from 0.1 to 1.3 m and covering the full depth range of the shallow shelf. After data analyses, the area containing P. nobilis was divided into two regions with distinctive abundance of individuals and delimited by the end of the salt pans that we named Bad Habitat (BH; from the Trabucador sandbar to the end of the salt pans) and Good Habitat (GH; from the end of the salt pans to the mouth of the bay). Line transects (ca. 100 m each) were established consecutively from the end of the former transect, starting on the shore of the Trabucador, and coordinates were saved on a GPS receiver. Individuals were counted by two wading observers, although sizes <10 cm (i.e. individuals belonging to the first size class; Katsanevakis 2006Katsanevakis S. 2006. Population ecology of the endangered fan mussel Pinna nobilis in a marine lake. Mar. Biol. Prog. Ser. 1: 51-59.), might have not been detected by eyesight or direct encounter. A third observer on board a support boat using a YSI 6660 V2 probe equipped with a 650 MDS data logger was responsible for data logging and recording of depth, seagrass cover, oxygen levels, temperature and salinity at the beginning and at the end of each transect. Differences in environmental variables between the two habitats were investigated using a Student’s t-test for independent samples.

In addition, for each observed individual, the following variables were recorded: the perpendicular distance from the transect line, shell width and height from the sediment surface, valve orientation, depth, sediment type and seagrass cover (semi-quantitative estimation). Shell width was measured in situ with aluminum vernier calipers, and for depth and perpendicular distance from the line we used a metre stick and a 10-m tape measure, respectively. The geographical orientation (0-180°) of the line of valve opening of each live specimen was measured with an underwater compass. The number of dead individuals and/ or those showing propeller scars per transect were also recorded.

Dead individuals found intact were measured for shell width (W) and full length (L) from the umbo to the ventral side, and the data were used to build a function for estimating the total length of living individuals buried on the seafloor and to determine the size distribution of the population. The allometric growth of W in relation to L was investigated using the Ln W = f(Ln L) relationship for a quadratic model indicated for P. nobilis in Rabaoui et al. (2007)Rabaoui L., Sabiha T.Z., Katsanevakis S., et al. 2007. Comparison of absolute and relative growth patterns among five Pinna nobilis populations along the Tunisian coastline: an information theory approach. Mar. Biol. 152: 537-548.. Then, the Levenberg-Marquardt algorithm was used as a method for least-squares estimation of non-linear parameters. All measurements were conducted during a 3-month period, in August-September 2011 and in June 2012.

Estimation of habitat size by depth intervals

To extrapolate our results from shore-parallel transects to the population within the whole Banya Sandspit, the bathymetry within the suitable habitat of P. nobilis was assessed by conducting 10 transects perpendicular to the southern shore of the bay and ca. 1 km apart. Transects were conducted from 130 cm depth to the shoreline with measures taken every 50 m up to a total of 230 georeferenced points. Then, the area of P. nobilis distribution in the GH and BH regions was estimated within the area between 20 and 130 cm depth using the area tool available in Google Earth Pro (Google, Mountain View, CA, USA). Then, the area of GH and BH by depth intervals of 10 cm was estimated as the percentage of points at each depth times the total estimated surface of each habitat.

Population estimates

The area of shore-parallel transects per 10-cm interval was estimated as the frequency of points at each depth range in the GH and in the BH (transect data values; 50 in the BH and 51 in the GH) times the total transect area sampled within each habitat (i.e. length of all transects in each habitat × twice the transect half-width given by Distance 6; see below). Then, the abundance of individuals per m² by depth interval was estimated as the quotient between the number of individuals found at each depth (50 in the BH and 1018 in the GH) and the estimated area at each interval. Finally, densities were multiplied by the area of GH or BH at each depth interval to obtain abundance values, uncorrected for the effect of distance and environmental factors affecting visual census.

The Distance 6 computer package (Laake et al. 1994Laake J.F., Buckland S.T., Anderson D.R., et al. 1994. Distance sampling: abundance estimation of biological populations. Distance user’s guide. Colorado Cooperative Fish and Wildlife Research Unit, Colorado State University, Fort Collins, CO.) was used to assess the possible underestimation of observer’s transect counts induced by distance and by environmental factors (covariates) such as seagrass cover and depth. This multiple covariate distance sampling (MCDS) approach was conducted separately for each habitat region (BH and GH) in order to obtain more accurate deviations of population estimates. Depth was selected as a covariate because it affects water transparency, and the presence of the seagrass C. nodosa was considered to account for the possibility of P. nobilis hiding under the leaf canopy. The size of individuals, however, was not included as covariate since observed individuals were very homogeneous in size.

The MCDS approach uses the distribution of the observed distances from the transect line to individuals and data of the covariates to estimate the probability of detecting P. nobilis as a function of distance. The different key functions suggested in MCDS by the Distance software are the half-normal and the hazard rate with cosine, simple polynomial and Hermite polynomial; possible combinations of series expansion terms or adjustment terms were all run in order to obtain the most robust estimates of density (Buckland et al. 2001Buckland S.T., Anderson D.R., Burnham K.P., et al. 2001. Introduction to distance sampling: Estimating abundance of biological populations. Oxford University Press, London, 441 pp.). Selection of the appropriate key function and series expansion for a given data set ultimately relies on model selection criteria such as the small-sample, bias-corrected form AICc (Hurvich and Tsai 1989Hurvich C.M., Tsai C.L. 1989. Regression and time series model selection in small samples. Biometrika 76: 297-307.) of Akaike’s Information Criterion (AIC) (Akaike 1985Akaike H. 1985. Prediction and entropy. In: Atkinson A.C., Fienberg S.E. (eds), A celebration of statistics. Springer-Verlag, Berlin, pp. 1-24.). The model with the smallest AICc value (AICc,min) was selected as the best among the models tested. The AICc differences, Δi = AICc_i–AICc_min, were computed for all candidate models. According to Burnham and Anderson (2002)Burnham K.P., Anderson D.R. 2002. Model selection and multimodel inference: a practical information-theoretic approach, 2nd edn. Springer, New York., models with Δi>10 have essentially no support and can be omitted from further consideration, models with Δi<2 have substantial support, and models with 4<Δi<7 have considerably less support. In addition, the program produces goodness of fit tests (Kolmogorov-Smirnov and chi-square) to evaluate the fit of the model. Right-truncation was explored as a method for removing outlying records at further distances (Buckland et al. 2001Buckland S.T., Anderson D.R., Burnham K.P., et al. 2001. Introduction to distance sampling: Estimating abundance of biological populations. Oxford University Press, London, 441 pp.) but did not improve estimates of population density or accuracy, so the largest distance observed from the transect line was maintained as the transect half-width.

Among output variables given by Distance 6, the following were included: transect half-width (used in previous calculations), density of individuals per m², and the total number of individuals within the area of specification (line transects). The latter was used to compare with the number of individuals counted by the two observers and thus to assess the underestimation resulting from distance and covariates. Then, this underestimation was added to uncorrected measures of abundance in each habitat region and depth interval to obtain a final estimate of the population size.

RESULTSTop

Habitat features

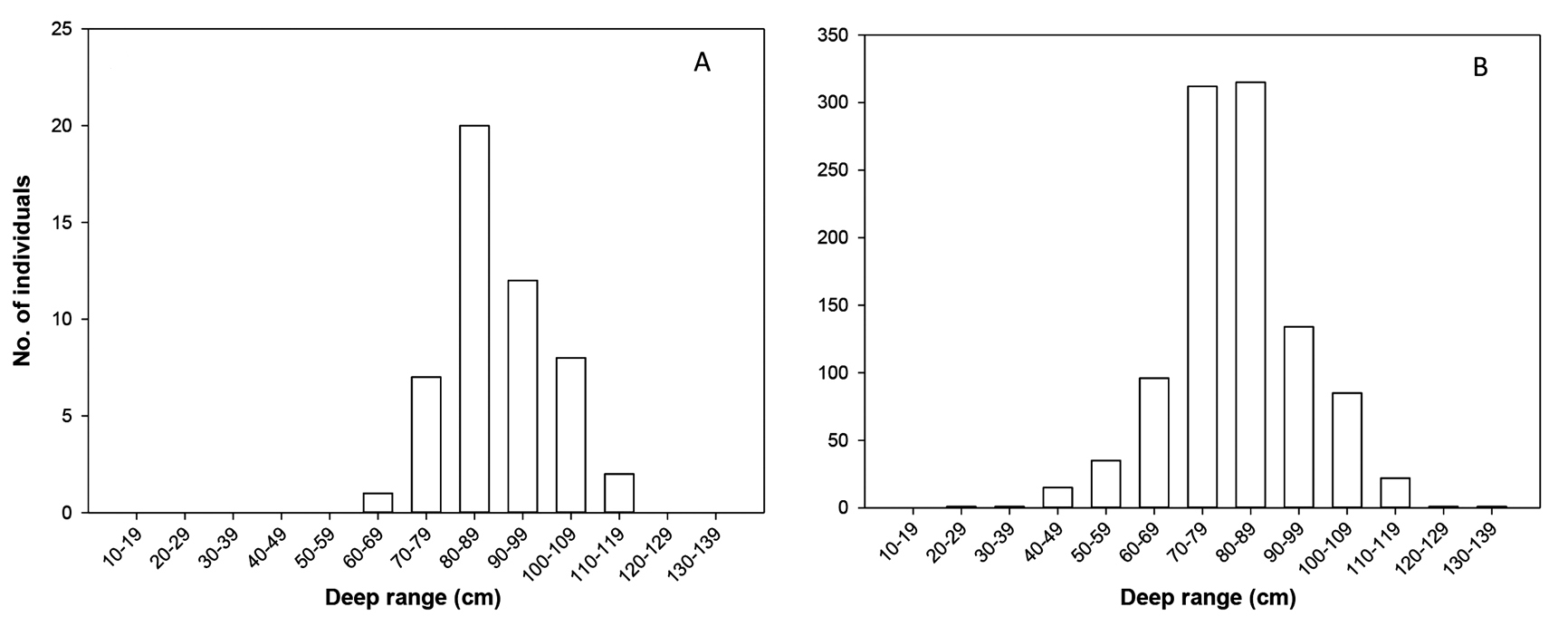

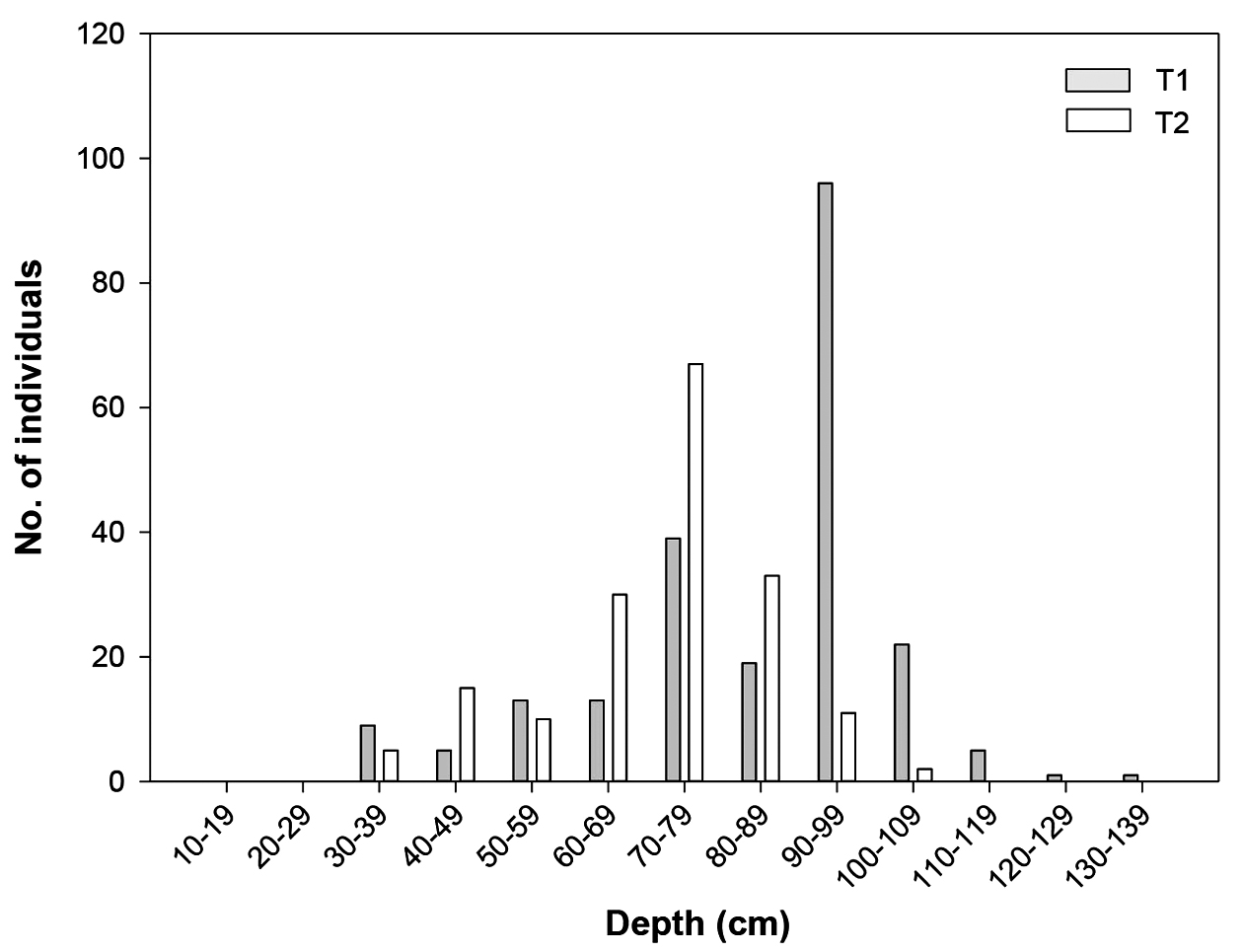

The two preliminary across-shore transects found that individuals were distributed between depths of ca. 20 and 130 cm water depth, with peaks at 70-80 cm (Transect 2) and 90-100 cm (Transect 1) and no significant differences in the observed number of individuals between transects (t=1.81; df=10; p>0.05; see Fig. 2). In addition, the curve for habitat use through depth ranges across the entire Sandspit (i.e. GH and BH) showed a clear density peak at 70 to 90 cm (1.59 to 1.69 ind./100 m²). For the seagrass Cymodocea nodosa, no evident effect on the abundance of individuals was observed until cover reached values of 80%-90%, and it caused an increase of ca. 40% at maximum values of 90%-100% (ca. 2.1 ind./100 m²) (see Fig. 3).

Significant differences in depth between BH and GH regions were found (85.3±3.1 and 73.3±2.6 cm, in the BH and the GH, respectively) (t=2.92; df=98; p<0.001). In contrast, seagrass cover (46.2±4.3 and 48.7±4.1% in the GH and the BH, respectively), and salinity (35.9±0.15 and 36.3±0.05 in the GH and the BH, respectively) showed no significant differences (t=1.6; df=98; p>0.05 for both cover and salinity). Temperature and oxygen levels showed considerable temporal variation but mean values varied between 27 and 24°C and 92% and 100% in the BH and the GH, respectively.

Estimates of density and population size

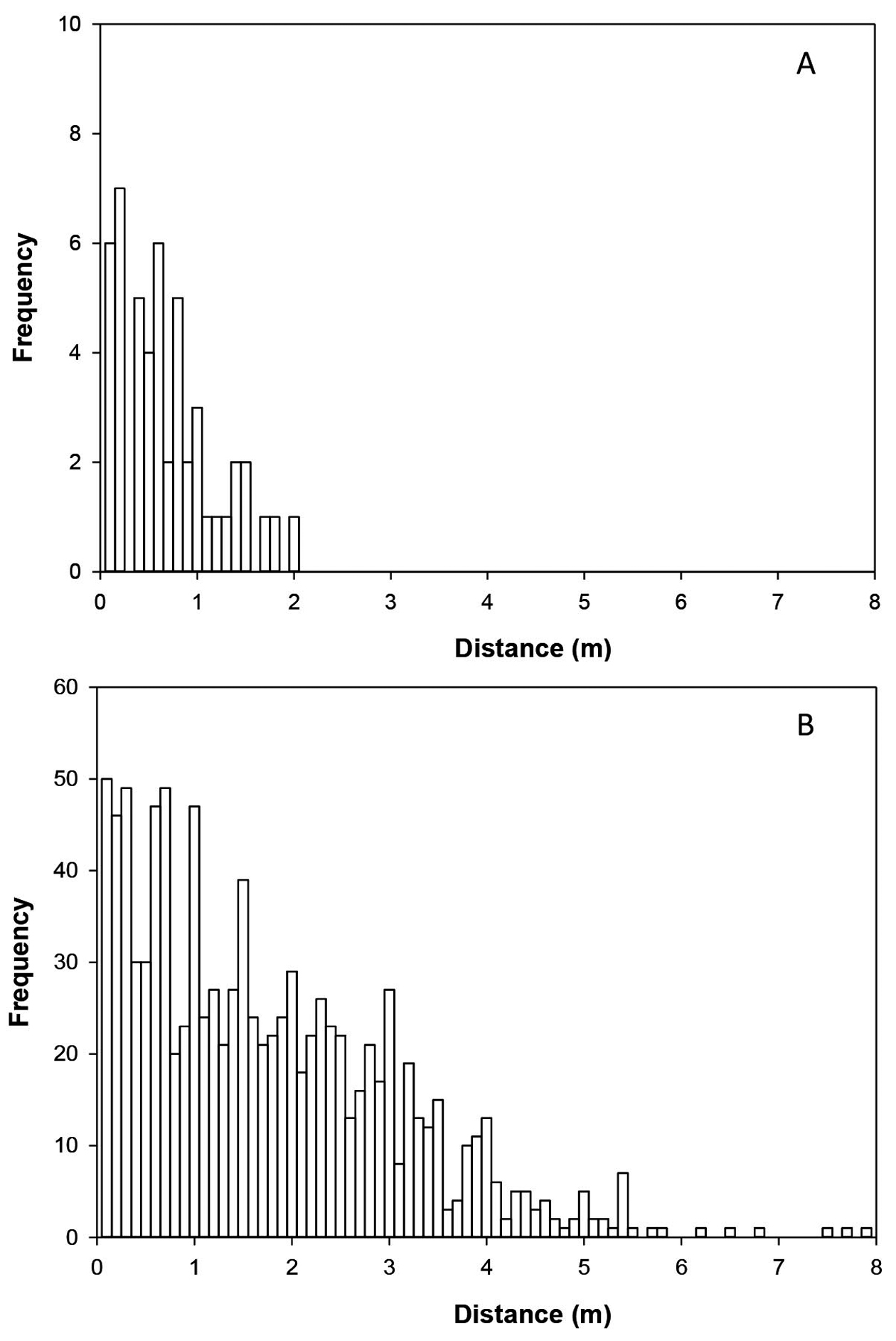

The frequency of detected individuals decreased with increasing distance from the observers up to a transect width of 2×2 m in the BH and 2×7.9 m in the GH (Fig. 4). The 50 transects conducted along the BH covered an approximate distance of 5263.2 m along the coast, with only 50 individuals of P. nobilis observed that just appeared at depths of 67 to 117 cm (Fig. 5). In the GH, the 51 transects conducted covered a similar distance along the coast (5382.17 m) but 1018 individuals were observed across depth ranges of 28 to 130 cm (Fig. 5). In addition, we found 22 dead individuals, 3 in the BH and 19 in the GH (ca. 2% of the total observed), as well as 11 individuals that had been pulled up out of the sediments (ca. 1% of the total), and up to 54 that had been scarred by boat propellers (ca. 5% of the total).

The area of the BH sampled from the 10 perpendicular transects along the Banya Sandspit was larger than that of the GH (4153100 and 2943200 m², respectively). Extrapolation of line transect abundances per depth range to the available area of BH and GH at each depth produced a raw estimate of 31683 individuals (5678 individuals in the BH and 26005 individuals in the GH), to which Distance 6 model corrections were added (see next).

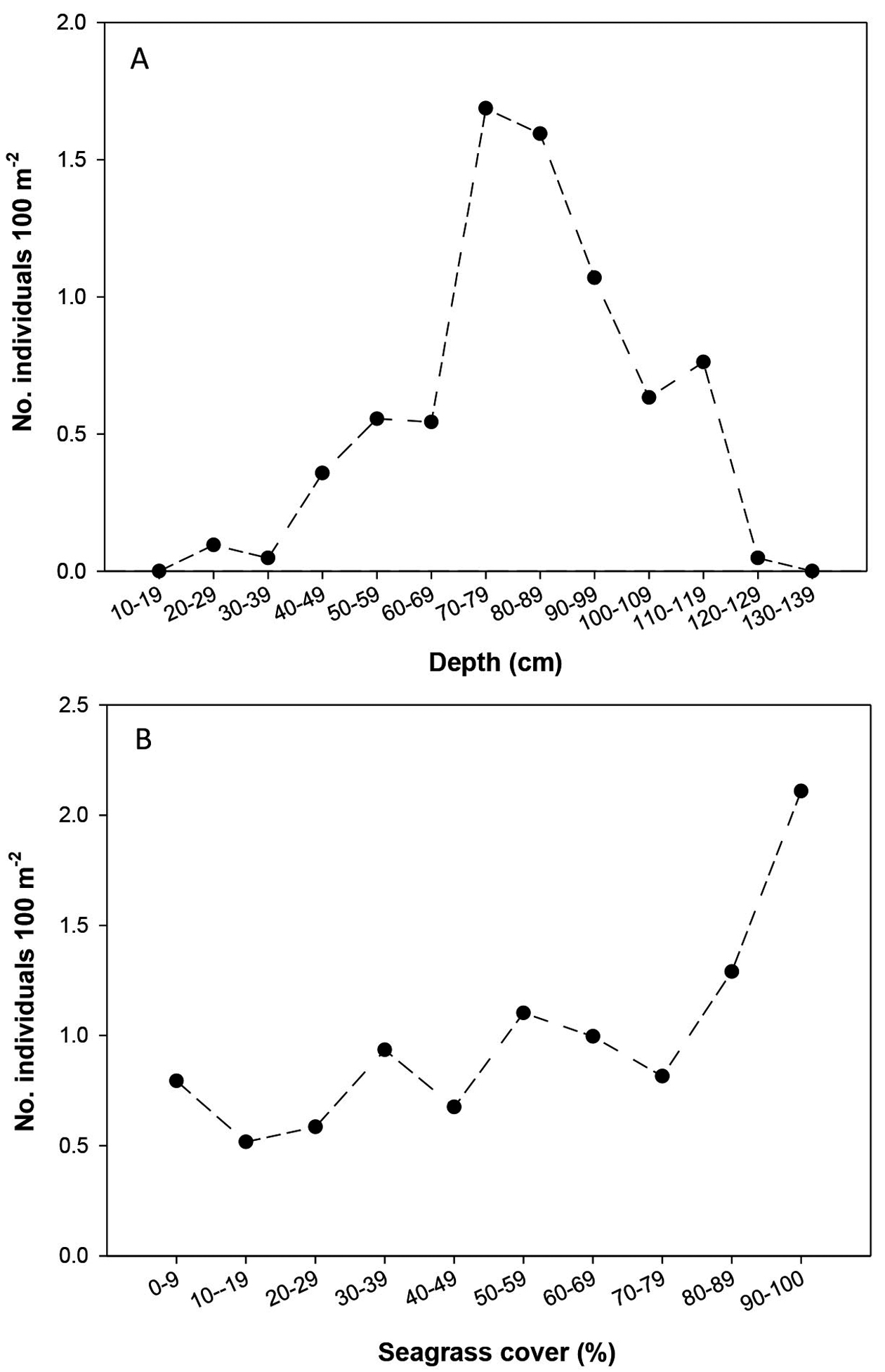

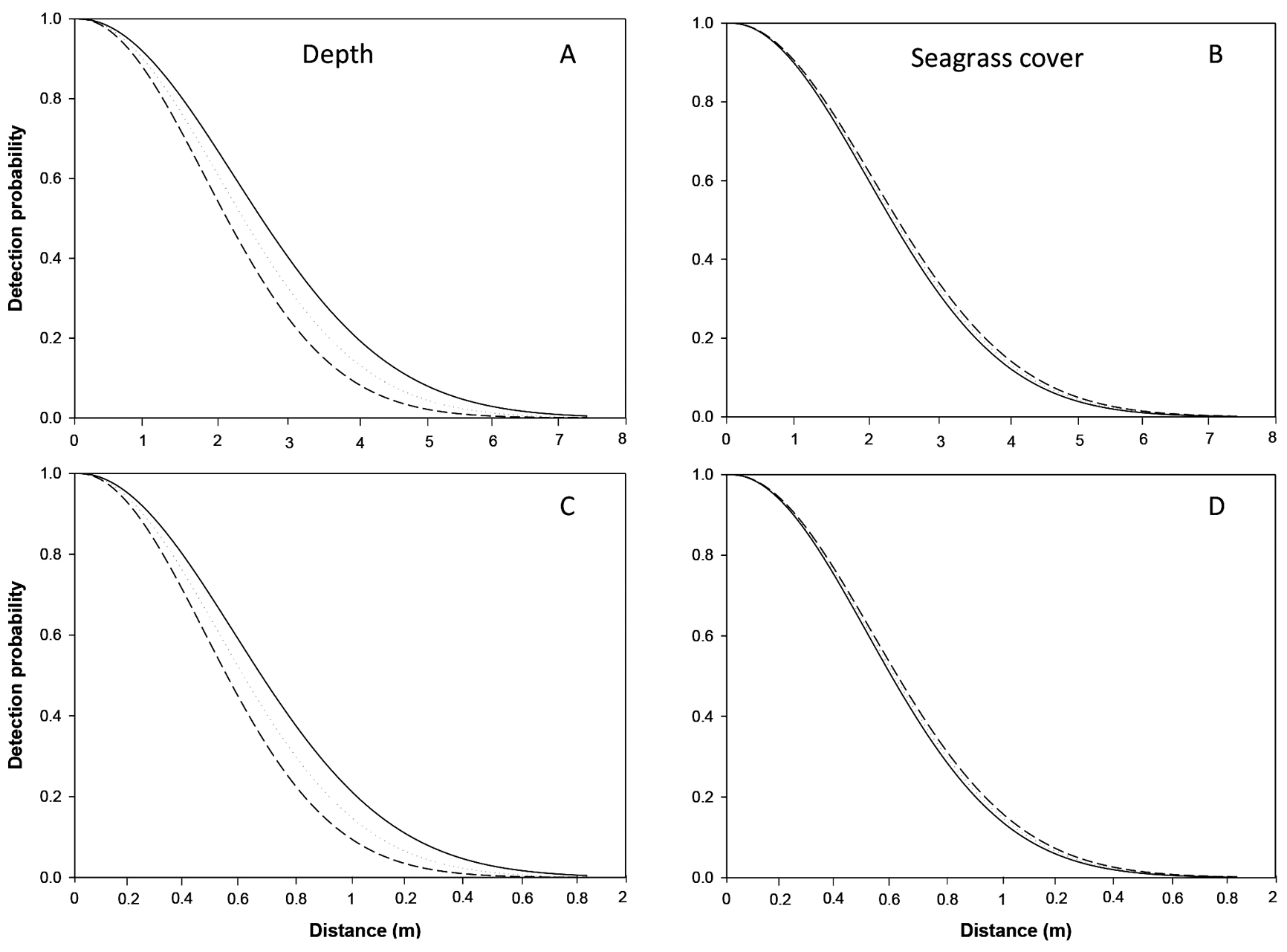

Model selection for evaluation of the effects of distance, depth and seagrass cover on population estimates based on the difference between the AICc of tested models and the smallest AICc provided values of 2.67 and 0.021 for the BH and the GH, respectively, and were considered to have substantial support. In both habitats, the best model for the detection function of P. nobilis individuals given by Distance 6 was the half-normal function with no series expansion:

g_s(y) = exp (–0.520 y²) in the BH

g_s(y) = exp (–0.106 y²) in the GH

Neither Kolmogorov-Smirnov (BH: Dn=0.1036; p=0.6571, GH: Dn=0.0266; p=0.4670) nor chi-square tests (BH: χ²=4.21; df=4; p=0.377, GH: χ²=37.7; df=23; p=0.057) evidenced any significant deviation in the fit of the model. In the two habitats, the resulting detection function proved to be strongly influenced by distance, and then by the depth covariate, possibly due to decreased visibility, whereas seagrass cover had little effect (Fig. 6a-d).

The model for the BH gave an estimation of 0.5 ind./100 m² and a total of 106.4 individuals within the study area (i.e. line transects 2×2 m), whereas only 50 individuals were observed, so the underestimation was 53.01% in this region. In contrast, the model for the GH gave an estimated density of 3.6 ind./100 m² and a total of 3064.9 individuals within the study area (i.e. line transects 2×7.9 m wide), which was much larger than the observed numbers (1018 ind.), so the underestimation was 66.75% (see also Fig. 6). These underestimation values were then added to raw estimates of individuals per depth interval to obtain a total estimate of 12084.99 individuals in the BH and 78218.52 individuals in the GH (see Table 1).

Population structure and valve orientation

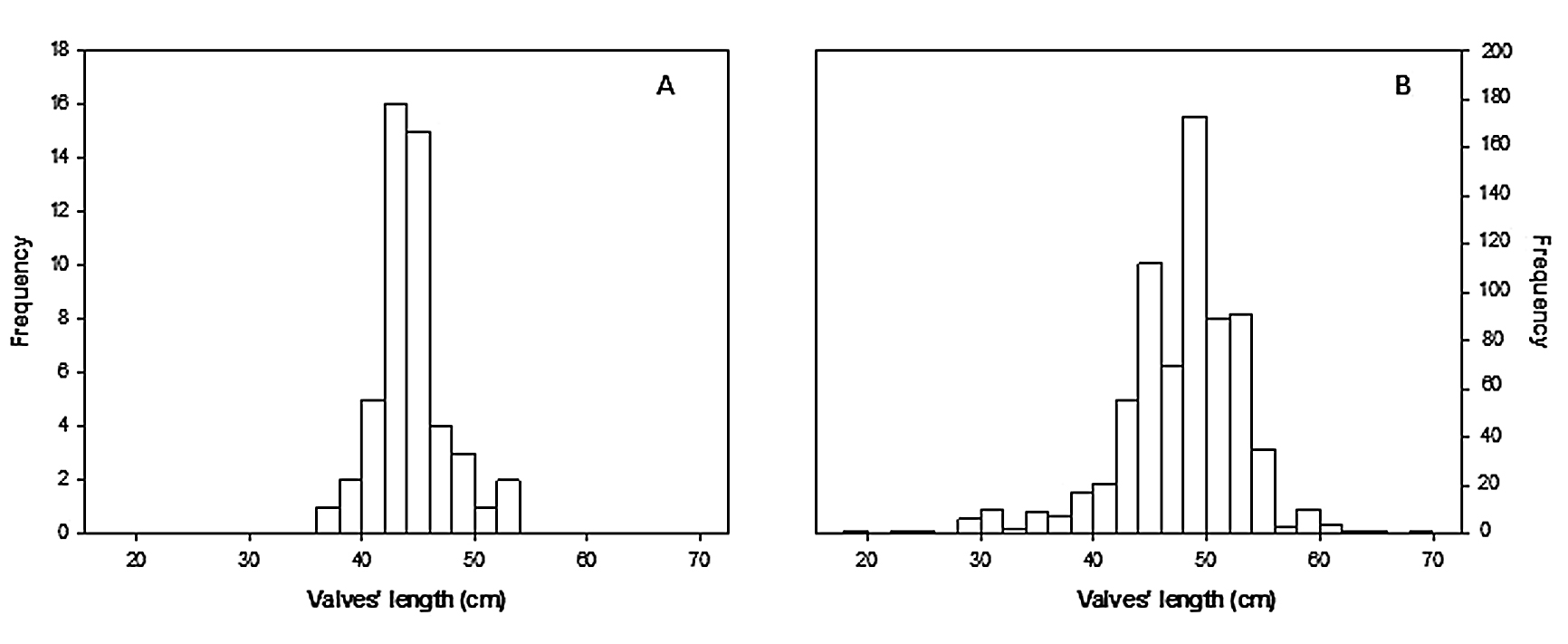

A significant and moderately strong relationship was found between valve width and maximum length for the intact dead individuals found during the study (R²=0.486; df=21; F=7801.5; p<0.001). Therefore, the width of individuals observed during the line transects (50 in the BH and 1022 in the GH, of which 720 individuals were measured) was converted into maximum valve length [Ln W= 1.2·(Ln L)²–8.5·Ln L +18.1] and then the size distribution was investigated separately in the two regions. In the BH, the smallest individual recorded was 36.9 cm long and the largest 53.3 cm, with 64% of the population from 42-46 cm long (Fig. 7). In the GH, the size range was more than double (19.3 cm to 68.5 cm), with up to 70% of the individuals in the 45-55 cm interval (Fig. 7).

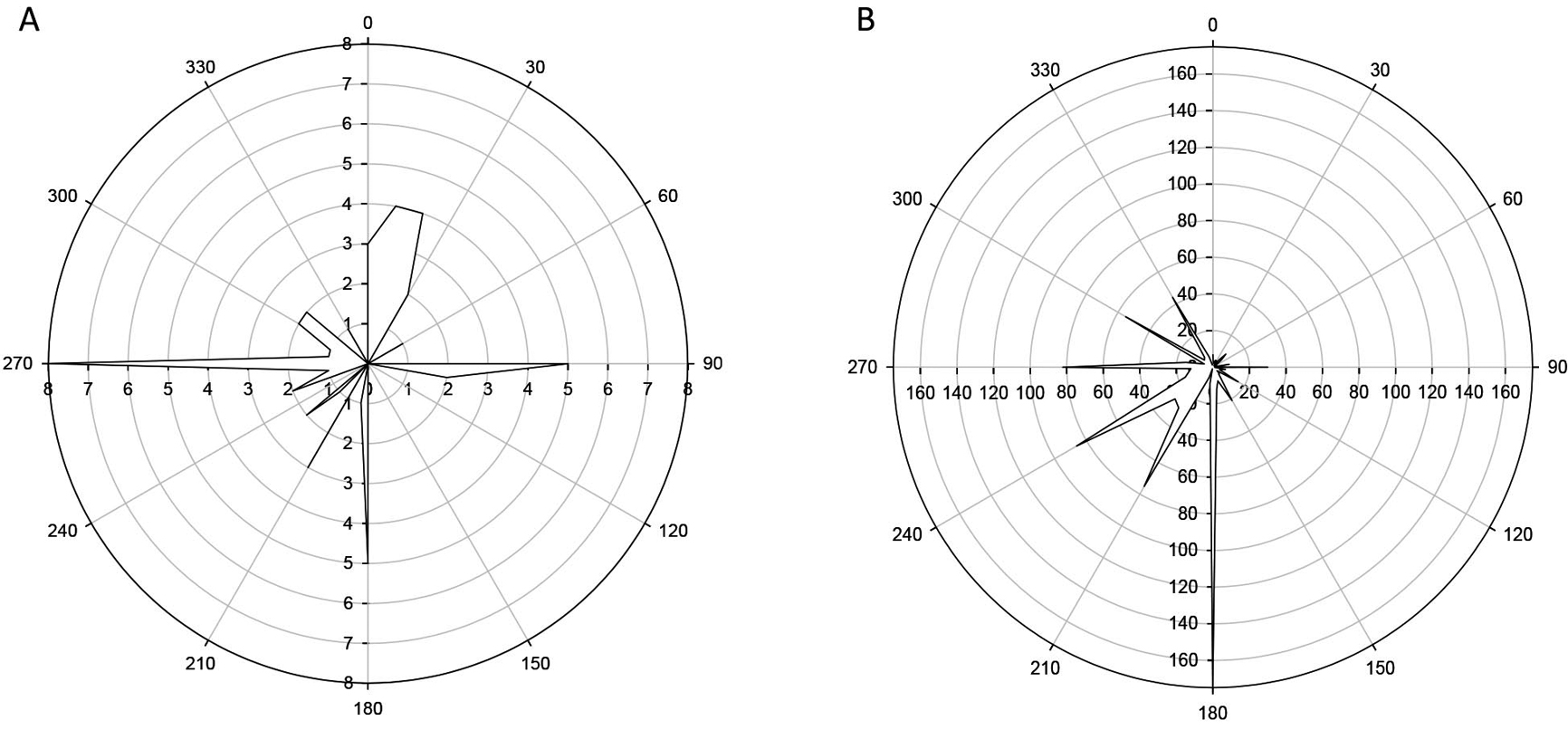

The geographical orientation (0°-180°) of the valves showed different patterns in each region. In the BH, individuals were oriented in all geographic directions, with a larger frequency from E-W: 26.5%; Fig. 8). In contrast, in the GH the N-S and the NE-SW orientation were the dominant directions (25.3% and 35.7% of individuals, respectively; Fig. 8), coinciding with the direction of the main local winds, Mistral (N), 337° to 24° and Garbi (SW), 180° to 210°.

DISCUSSIONTop

The population of Pinna nobilis in the Alfacs Bay was estimated to be 90303 individuals, the largest so far reported in shallow Mediterranean waters (<1.3 m) and comparable only to that reported by Katsanevakis and Thessalou-Legaki (2009)Katsanevakis S., Thessalou-Legaki M. 2009. Spatial distribution, abundance and habitat use of the protected fan mussel Pinna nobilis in Souda Bay, Crete. Mar. Biol. Prog. Ser 8: 45-54. for a bay in Greece at a depth range of 4 to 22 m. Over 90% of the observed individuals were adults of 40 to 60 cm length, with no occurrence of juveniles <20 cm (see also Richardson et al. 1999Richardson C.A., Kennedy H., Duarte C.M., et al. 1999. Age and growth of the fan mussel Pinna nobilis from south-east Spanish Mediterranean seagrass (Posidonia oceanica) meadows. Mar. Biol. 133: 205-212., 2004Richardson C.A., Peharda M., Kennedy H., et al. 2004. Age, growth rate and season of recruitment of Pinna nobilis (L) in the Croatian Adriatic determined from Mg:Ca and Sr:Ca shell profiles. J. Exp. Mar. Biol. Ecol. 299: 1-16.) and indicative of a declining population. This is the first scientific report of P. nobilis in the Ebro Delta region, with the closest referenced populations located at the towns of L’Ametlla de Mar (ca. 35 km north from the Alfacs Bay) and Peñíscola (ca. 40 km south from the Alfacs Bay), both with bad perspectives for the conservation of the species (Guallart and Templado 2012Guallart J., Templado J. 2012. Pinna nobilis. In: VV.AA., Bases ecológicas preliminares para la conservación de las especies de interés comunitario en España: Invertebrados. Ministerio de Agricultura, Alimentación y Medio Ambiente. Madrid, 81 pp.). Although other studies have reported much higher local densities (up to>100 ind./100 m², Galinou-Mitsoudi et al. 2006Galinou-Mitsoudi S., Vlahavas G., Papoutsi O. 2006. Population study of the protected bivalve Pinna nobilis (Linnaeus, 1758) in Thermaikos Gulf (North Aegean Sea). J. Biol. Res. 5: 47-53.) than those observed in Alfacs Bay, only three have investigated the abundance and the population structure of P. nobilis in areas larger than 10 ha (see Table 2). Given the similar adult sizes observed, the population in Alfacs Bay may endure recruitment gaps of several years that make it more susceptible to human activities and habitat alterations.

Depth was a central factor influencing the abundance patterns of P. nobilis in Alfacs Bay, but it had no apparent effect on shell size. All individuals were found at depths of between 0.3 and 1.3 m, with a peak at 0.6 to 0.9 m and sharp declines afterwards. Although the depth range of P. nobilis may vary from 0.5 to 60 m (Butler et al. 1993Butler A., Vicente N., De Gaulejac B. 1993. Ecology of de Pterioid bivalves Pinna bicolor Gmelin and P. nobilis L. Mar. Life 3: 37-45.), peaks at depths lower than 1 m are rarely reported (but see Zakhama-Sraieb et al. 2011Zakhama-Sraieb R., Sghaier Y.R., Omrane A., et al. 2011. Density and population structure of Pinna nobilis (Mollusca, Bivalvia) in the Ghar El Melh lagoon (N-E Tunisia). Bull. Inst. Natn. Scien. Tech. Mer de Salammbô 38: 65-71.). More commonly, depth distributions peak at ranges from 3 to 15 m (Garcia-March and Kersting 2006García-March J.R., Kersting D.K. 2006. Preliminary data on the distribution and density of Pinna nobilis and Pinna rudis in the Columbretes Islands Marine Reserve (Western Mediterranean, Spain). International Congress on Bivalvia, Universitat Autònoma de Barcelona, Bellaterra, Catalunya, Spain July 22-27., Katsanevakis 2007Katsanevakis S. 2007. Growth and mortality rates of the fan mussel Pinna nobilis in Lake Vouliagmeni (Korinthiakos Gulf, Greece): a generalized additive modelling approach. Mar. Biol. 152: 1319-1331., Coppa et al. 2013Coppa S., de Lucia G.A., Magni P., et al. 2013. The effect of hydrodynamics on shell orientation and population density of Pinna nobilis in the Gulf of Oristano (Sardinia, Italy). J. Sea. Res. 76: 201-210.) and may be explained by the need to minimize exposure to wave action, as also evidenced by increasing valve sizes at greater depths and shell orientations coincident with the exposure that minimizes hydrodynamic effects (García-March et al. 2007aGarcía-March, J.R., García-Carrascosa A.M., Peña Cantero A.L., et al. 2007a. Population structure, mortality and growth of Pinna nobilis Linnaeus, 1758 (Mollusca, Bivalvia) at different depths in Moraira bay (Alicante, Western Mediterranean). Mar. Biol. 150: 861-871.,bGarcía-March J.R., Pérez-Rojas L., García-Carrascosa A.M. 2007b. Influence of hydrodynamic forces on population structure of Pinna nobilis L., 1758 (Mollusca: Bivalvia): The critical combination of drag force, water depth, shell size and orientation. J. Exp. Mar. Biol. Ecol. 342: 202-212.). Although no depth effect was observed on the size distribution of P. nobilis, a greater proportion of individuals (56.7%) had valves oriented towards the dominant winds (Mistral, N-S, and Garbí, SW-NE), suggesting that this could also be an important factor shaping the structure of the population. At the shallower end of the distribution, the abundance of individuals may also be constrained by strong daily and seasonal variations in temperature (Palacin et al. 1991Palacin C., Martin D., Gili J.M. 1991. Features of spatial distribution of benthic infauna in a Mediterranean shallow-water bay. Mar. Bio. 110: 315-321.) falling above the thermal tolerance of the species at 38°C (Schlieper et al. 1960Schlieper C., Flϋgel H., Rudolf J. 1960. Temperature and salinity relationships in marine bottom invertebrates. Experientia 16: 470-472.). At the greater depths, the disappearance of P. nobilis coincided with the depth limit of Cymodocea nodosa at 1.3-1.5 m. Seagrass beds have been considered to be the most suitable substrate for P. nobilis, since their rhizomes allow a complex connection between byssus filaments and the sediments (García-March 2005García-March J.R. 2005. Aportaciones al conocimiento de la biología de Pinna nobilis Linneo, 1758 (Mollusca, Bivalvia) en el litoral Mediterráneo Ibérico. PhD tesis, Univ. Valencia, 332 pp.). In fact, although individuals were detected in both vegetated and unvegetated areas (see also Guallart and Templado 2012Guallart J., Templado J. 2012. Pinna nobilis. In: VV.AA., Bases ecológicas preliminares para la conservación de las especies de interés comunitario en España: Invertebrados. Ministerio de Agricultura, Alimentación y Medio Ambiente. Madrid, 81 pp.), higher abundances (by ca. 40%) were observed in areas with 80%-100% cover, thus suggesting that dense meadows may favour the highest abundances of individuals. Although P. nobilis can sometimes be found in muddy/silty sediments (e.g. Katsanevakis 2006Katsanevakis S. 2006. Population ecology of the endangered fan mussel Pinna nobilis in a marine lake. Mar. Biol. Prog. Ser. 1: 51-59.), resuspension of fine sediments may interfere with filtration and/or affect the abundance of phytoplankton and zooplankton, important dietary components of medium and large fan shells (Davenport et al. 2011Davenport J., Ezgeta-Balić D., Peharda M., et al. 2011. Size-differential feeding in Pinna nobilis L. (Mollusca: Bivalvia): exploitation of detritus, phytoplankton and zooplankton. Est. Coast. Shelf Sci. 92: 246-254.), and prevent the presence of individuals in areas under the influence of agricultural discharges. In addition, low oxygen conditions in muddy substrates such as those beyond the seagrass limit may also reduce the abundance of individuals (Centoducati et al. 2007Centoducati G., Tarsitano E., Bottalico A., et al. 2007. Monitoring of the endangered Pinna nobilis Linné, 1758 in the Mar Grande of Taranto (Ionian Sea, Italy). Environ. Monit. Assess. 131: 339-347.). In contrast, salinity stress is unlikely since ranges of variation at the northern shore of the Bay are above (ca. 30-35 ppm, Garcés et al. 1999Garcés E., Delgado M., Masó M., et al. 1999. In situ growth rate and distribution of the ichthyotoxic dinoflagellate Gyrodinium corsicum Paulmier in an estuarine embayment (Alfacs Bay, NW Mediterranean Sea). J. Plank. Res. 21: 1977-1991.) reported stress values at 25 ppm (Schlieper et al. 1960Schlieper C., Flϋgel H., Rudolf J. 1960. Temperature and salinity relationships in marine bottom invertebrates. Experientia 16: 470-472.). We hypothesize that habitat use is strongly determined by siltation and low oxygen conditions, which also determines seagrass presence; thus, prior to rice cultivation, P. nobilis could have been present in deeper areas in the Alfacs Bay, and even possibly in adjacent coastal lagoons connected to the bay.

The size structure of the P. nobilis population was homogeneous, with only 1.2% of individuals having sizes of 20-30 cm, and the majority (91.5%) being between 40 and 60 cm, which according to data from other Mediterranean locations corresponds to ages of 2 to 4 and 3 to 9 years, respectively (Richardson et al. 1999Richardson C.A., Kennedy H., Duarte C.M., et al. 1999. Age and growth of the fan mussel Pinna nobilis from south-east Spanish Mediterranean seagrass (Posidonia oceanica) meadows. Mar. Biol. 133: 205-212., 2004Richardson C.A., Peharda M., Kennedy H., et al. 2004. Age, growth rate and season of recruitment of Pinna nobilis (L) in the Croatian Adriatic determined from Mg:Ca and Sr:Ca shell profiles. J. Exp. Mar. Biol. Ecol. 299: 1-16.). A size distribution mainly characterized by large individuals is not uncommon in seagrass meadows (Addis et al. 2009Addis P., Secci M., Brundu G., et al. 2009. Density, size structure, shell orientation and epibiontic colonization of the fan mussel Pinna nobilis L. 1758 (Mollusca: Bivalvia) in three contrasting habitats in an estuarine area of Sardinia (W Mediterranean). Sci. Mar. 73: 143-152.) and may be the result of the effects of several factors. On the one hand, the influence of shallow waters has been suggested to induce the development of dwarf individuals, reaching a size plateau at ages ≥5 years (García-March et al. 2007aGarcía-March, J.R., García-Carrascosa A.M., Peña Cantero A.L., et al. 2007a. Population structure, mortality and growth of Pinna nobilis Linnaeus, 1758 (Mollusca, Bivalvia) at different depths in Moraira bay (Alicante, Western Mediterranean). Mar. Biol. 150: 861-871.). Therefore, given the narrow depth range observed for fan shell distribution (0.3 to 1.3 m), it could be possible that individuals in Alfacs Bay attain lower maximum sizes than those reported for other Mediterranean locations (Zavodnik et al. 1991Zavodnik D., Hrs-Brenko M., Legac M. 1991. Synopsis on the fan shell Pinna nobilis L. in the eastern Adriatic Sea. In: Boudouresque C.F., Avon M., Gravez V. (eds), Les Espèces Marines à Protéger en Méditerranée. GIS Posidonie, Marseille, pp. 169-178., Richardson et al. 1999Richardson C.A., Kennedy H., Duarte C.M., et al. 1999. Age and growth of the fan mussel Pinna nobilis from south-east Spanish Mediterranean seagrass (Posidonia oceanica) meadows. Mar. Biol. 133: 205-212.) and actually have a more heterogeneous age structure. On the other hand, the absence of juveniles ≤20 cm (Richardson et al. 1999Richardson C.A., Kennedy H., Duarte C.M., et al. 1999. Age and growth of the fan mussel Pinna nobilis from south-east Spanish Mediterranean seagrass (Posidonia oceanica) meadows. Mar. Biol. 133: 205-212.), which usually occur in shallower areas which extend to sheltered inlets (Katsanevakis 2006Katsanevakis S. 2006. Population ecology of the endangered fan mussel Pinna nobilis in a marine lake. Mar. Biol. Prog. Ser. 1: 51-59.), could be partly due to a negative effect of adults on recruitment, mostly because of ingestion of planktonic larvae during water filtration (Davenport et al. 2011Davenport J., Ezgeta-Balić D., Peharda M., et al. 2011. Size-differential feeding in Pinna nobilis L. (Mollusca: Bivalvia): exploitation of detritus, phytoplankton and zooplankton. Est. Coast. Shelf Sci. 92: 246-254.) or to resource limitation in areas with high densities, as observed for other bivalve species (e.g. Peterson 1982Peterson C.H. 1982. The importance of predation and Intra- and interspecific competition in the population biology of two infaunal suspension-feeding bivalves, Protothaca staminea and Chione undatella. Ecol. Monogr. 52: 437-475.). In addition, the survival of juvenile fan mussels can be significantly affected by the abundance of large potential predators such as decapods, gastropods and octopuses (García-March et al. 2007aGarcía-March, J.R., García-Carrascosa A.M., Peña Cantero A.L., et al. 2007a. Population structure, mortality and growth of Pinna nobilis Linnaeus, 1758 (Mollusca, Bivalvia) at different depths in Moraira bay (Alicante, Western Mediterranean). Mar. Biol. 150: 861-871., Katsanevakis and Thessalou-Legaki 2009Katsanevakis S., Thessalou-Legaki M. 2009. Spatial distribution, abundance and habitat use of the protected fan mussel Pinna nobilis in Souda Bay, Crete. Mar. Biol. Prog. Ser 8: 45-54.), all of which are common in the Alfacs Bay. Altogether, the homogeneous size structure observed may include one or more successful recruitment events, but the absence of young sizes suggests gaps of multiple years between them, as indicated at high adult densities for other species of bivalves (Strayer and Malcom 2006Strayer D.L., Malcom H.M. 2006. Long-term demography of a zebra mussel (Dreissena polymorpha) population. Freshw. Biol. 51: 117-130.).

Individuals of P. nobilis were mostly concentrated along the Banya inner shelf (few isolated individuals were also observed in the NE corner of the bay, in front of the Tancada lagoon) but two distinctive areas were observed with higher densities of individuals in the outer half of the sandspit closer to the opening with the sea (0.89 ind./100 m²) and lower densities in the inner half bordering the salt pans (0.14 ind./100 m²). Both habitats featured similar levels of seagrass cover and habitat features. The mechanism(s) mediating this distribution are not yet well-understood but the limit between the two zones was clearly marked by the end of the salt pan dikes, which possibly alter water circulation and turn-over in the area in front of them. Hence, in addition to persistent ineffective recruitment in the GH, hydrodynamic barriers such as dikes may alter further larval settlement and dispersal, and contribute to the very low effective recruitment observed within the bay. Overall, factors controlling planktonic and early benthic stages may constrict the abundance and size structure of the P. nolibis population in Alfacs Bay.

Several important implications for the conservation of the species emerge from the data presented here. Given the lack of awareness of the presence of P. nobilis in the area, there is no current regulation of boating activity in shallow waters around the Banya Sandspit and free access to high-density areas (mostly by local recreational fishermen) is causing damage and mortality of individuals by boat propellers. For example, we observed 11 pulled up, 22 dead, and up to 54 damaged individuals, with obvious scars from boat propellers. In addition, a ferry operating during the summer may account for the absence of P. nobilis near its mooring area. Given that the Banya Sandspit is a Natural Park and a Natural 2000 area and that P. nobilis is protected by the Barcelona Convention and the Habitats Directive (Annex IV), it appears necessary to develop a management plan that includes actions such as prohibited motor entrance and better coastal surveillance, particularly during the summer period. Another important issue for a conservation agenda is habitat preservation. Although no cause-effect relationships were established for human pressures in the habitat, there is a worrying coincidence between recurrent inputs of freshwater, nutrients and organic matter from rice cultivation (Delgado 1987Delgado M. 1987. Fitoplancton de las bahias del Delta del Ebro. Inv. Pesq. 51: 517-548., Garcés et al. 1999Garcés E., Delgado M., Masó M., et al. 1999. In situ growth rate and distribution of the ichthyotoxic dinoflagellate Gyrodinium corsicum Paulmier in an estuarine embayment (Alfacs Bay, NW Mediterranean Sea). J. Plank. Res. 21: 1977-1991.) and the absence of P. nobilis in northern regions of the bay. Similarly, the occurrence of lower numbers of individuals in the vicinity of salt pan dikes (i.e. the BH) suggests possible alterations of water circulation, wave exposure, and/ or water temperature and requires further investigation.

To conclude, though the population of P. nobilis in the Alfacs Bay is the second largest reported in the Mediterranean, it is especially vulnerable to a variety of human impacts. While the shallow limit of the distribution may be controlled by water temperature and exposure to desiccation, the deep limit appears to be related to an abrupt change in habitat, from sandy sediment with patches of C. nodosa to silty unvegetated sediments. Given the isolated nature of the Alfacs Bay population, and the absence of young size-classes, it might be especially vulnerable to losses of individuals and an integrative combination of conservation actions (i.e. boating and touristic restrictions, habitat restoration, artificial recruitment, and scientific monitoring) seems to be the most appropriate managerial approach.

ACKNOWLEDGEMENTSTop

In 2011 P. Prado was supported by a Beatriu de Pinós postdoctoral fellowship from the Catalan Government Research Agency (AGAUR) and in 2012 by a MEC-Fulbright postdoctoral scholarship with a travel grant for a short-stay project. We are grateful to Dr. Tiago Marques for assistance with interpretation of MCDS results in Distance 6 and to L. Jornet and D. Mateu for their help in the field. We are also very thankful to Professor Kenneth Heck for his useful comments, which significantly improved the final manuscript.

REFERENCESTop

Addis P., Secci M., Brundu G., et al. 2009. Density, size structure, shell orientation and epibiontic colonization of the fan mussel Pinna nobilis L. 1758 (Mollusca: Bivalvia) in three contrasting habitats in an estuarine area of Sardinia (W Mediterranean). Sci. Mar. 73: 143-152.

Akaike H. 1985. Prediction and entropy. In: Atkinson A.C., Fienberg S.E. (eds), A celebration of statistics. Springer-Verlag, Berlin, pp. 1-24.
http://dx.doi.org/10.1007/978-1-4613-8560-8_1

Barberà-Cebriàn C., Cañizares-Fernández S., Rull del Águila L. 1996. Estudio de la población del molusco eulamelibranquio Pinna nobilis L. 1758, en el litoral alicantino. Univ. Alicante.

Buckland S.T., Anderson D.R., Burnham K.P., et al. 2001. Introduction to distance sampling: Estimating abundance of biological populations. Oxford University Press, London, 441pp.

Burnham K.P., Anderson D.R. 2002. Model selection and multimodel inference: a practical information-theoretic approach, 2nd edn. Springer, New York.

Butler A., Vicente N., De Gaulejac B. 1993. Ecology of de Pterioid bivalves Pinna bicolor Gmelin and P. nobilis L. Mar. Life 3: 37-45.

Centoducati G., Tarsitano E., Bottalico A., et al. 2007. Monitoring of the endangered Pinna nobilis Linné, 1758 in the Mar Grande of Taranto (Ionian Sea, Italy). Environ. Monit. Assess. 131: 339-347.
http://dx.doi.org/10.1007/s10661-006-9479-z

Coppa S., de Lucia G.A., Magni P., et al. 2013. The effect of hydrodynamics on shell orientation and population density of Pinna nobilis in the Gulf of Oristano (Sardinia, Italy). J. Sea. Res. 76: 201-210.
http://dx.doi.org/10.1016/j.seares.2012.09.007

Davenport J., Ezgeta-Balić D., Peharda M., et al. 2011. Size-differential feeding in Pinna nobilis L. (Mollusca: Bivalvia): exploitation of detritus, phytoplankton and zooplankton. Est. Coast. Shelf Sci. 92: 246-254.
http://dx.doi.org/10.1016/j.ecss.2010.12.033

Delgado M. 1987. Fitoplancton de las bahias del Delta del Ebro. Inv. Pesq. 51: 517-548.

Galinou-Mitsoudi S., Vlahavas G., Papoutsi O. 2006. Population study of the protected bivalve Pinna nobilis (Linnaeus, 1758) in Thermaikos Gulf (North Aegean Sea). J. Biol. Res. 5: 47-53.

Garcés E., Delgado M., Masó M., et al. 1999. In situ growth rate and distribution of the ichthyotoxic dinoflagellate Gyrodinium corsicum Paulmier in an estuarine embayment (Alfacs Bay, NW Mediterranean Sea). J. Plank. Res. 21: 1977-1991.
http://dx.doi.org/10.1093/plankt/21.10.1977

García-March J.R. 2005. Aportaciones al conocimiento de la biología de Pinna nobilis Linneo, 1758 (Mollusca, Bivalvia) en el litoral Mediterráneo Ibérico. PhD tesis, Univ. Valencia, 332 pp.

García-March J.R., Kersting D.K. 2006. Preliminary data on the distribution and density of Pinna nobilis and Pinna rudis in the Columbretes Islands Marine Reserve (Western Mediterranean, Spain). International Congress on Bivalvia, Universitat Autònoma de Barcelona, Bellaterra, Catalunya, Spain July 22-27.

García-March, J.R., García-Carrascosa A.M., Peña Cantero A.L., et al. 2007a. Population structure, mortality and growth of Pinna nobilis Linnaeus, 1758 (Mollusca, Bivalvia) at different depths in Moraira bay (Alicante, Western Mediterranean). Mar. Biol. 150: 861-871.
http://dx.doi.org/10.1007/s00227-006-0386-1

García-March J.R., Pérez-Rojas L., García-Carrascosa A.M. 2007b. Influence of hydrodynamic forces on population structure of Pinna nobilis L., 1758 (Mollusca: Bivalvia): The critical combination of drag force, water depth, shell size and orientation. J. Exp. Mar. Biol. Ecol. 342: 202-212.
http://dx.doi.org/10.1016/j.jembe.2006.09.007

Guallart J., Templado J. 2010. La población de Pinna nobilis (Mollusca, Pinnidae) en las Islas Chafarinas (Mar de Alborán, SW Mediterráneo). XVI Simposio Ibérico de Estudios de Biología Marina. Alicante (Spain), 6-10 September 2010, 149 pp.

Guallart J., Templado J. 2012. Pinna nobilis. In: VV.AA., Bases ecológicas preliminares para la conservación de las especies de interés comunitario en España: Invertebrados. Ministerio de Agricultura, Alimentación y Medio Ambiente. Madrid, 81 pp.

Hurvich C.M., Tsai C.L. 1989. Regression and time series model selection in small samples. Biometrika 76: 297-307.
http://dx.doi.org/10.1093/biomet/76.2.297

Ibáñez C. 1997. Pla XXI. Directrius per a la conservació i dessenvolupament sostenible al delta de l’Ebre. (Plan XXI: Guideliness for conservation and sustainible development in the Ebro Delta). Sociedad Española de Ornitología/ Birdlife. Tarragona, Spain.

Katsanevakis S. 2006. Population ecology of the endangered fan mussel Pinna nobilis in a marine lake. Mar. Biol. Prog. Ser. 1: 51-59.

Katsanevakis S. 2007. Growth and mortality rates of the fan mussel Pinna nobilis in Lake Vouliagmeni (Korinthiakos Gulf, Greece): a generalized additive modelling approach. Mar. Biol. 152: 1319-1331.
http://dx.doi.org/10.1007/s00227-007-0781-2

Katsanevakis S., Thessalou-Legaki M. 2009. Spatial distribution, abundance and habitat use of the protected fan mussel Pinna nobilis in Souda Bay, Crete. Mar. Biol. Prog. Ser 8: 45-54.

Laake J.F., Buckland S.T., Anderson D.R., et al. 1994. Distance sampling: abundance estimation of biological populations. Distance user’s guide. Colorado Cooperative Fish and Wildlife Research Unit, Colorado State University, Fort Collins, CO.

Marbà N., Duarte C.M. 1995. Coupling of seagrass (Cymodocea nodosa) patch dynamics to subaqueous dune migration. J. Ecol. 83: 381-389.
http://dx.doi.org/10.2307/2261592

Palacin C., Martin D., Gili J.M. 1991. Features of spatial distribution of benthic infauna in a Mediterranean shallow-water bay. Mar. Bio. 110: 315-321.
http://dx.doi.org/10.1007/BF01313718

Peterson C.H. 1982. The importance of predation and Intra- and interspecific competition in the population biology of two infaunal suspension-feeding bivalves, Protothaca staminea and Chione undatella. Ecol. Monogr. 52: 437-475.
http://dx.doi.org/10.2307/2937354

Rabaoui L., Sabiha T.Z., Katsanevakis S., et al. 2007. Comparison of absolute and relative growth patterns among five Pinna nobilis populations along the Tunisian coastline: an information theory approach. Mar. Biol. 152: 537-548.
http://dx.doi.org/10.1007/s00227-007-0707-z

Rabaoui L., Tlig-Zouari S., Ben Hassine O.K. 2008. Distribution and habitat of the fan mussel Pinna nobilis Linnaeus, 1758 (Mollusca: Bivalvia) along the northern and eastern Tunisian coasts. Cah. Biol. Mar. 49: 67-78.

Rabaoui L., Tlig-Zouari S., Katsanevakis S., et al. 2010. Modelling population density of Pinna nobilis (Bivalvia) on the Eastern and Southeastern coast of Tunisia. J. Mollus. Stud. 76: 340-347.
http://dx.doi.org/10.1093/mollus/eyq023

Richardson C.A., Kennedy H., Duarte C.M., et al. 1999. Age and growth of the fan mussel Pinna nobilis from south-east Spanish Mediterranean seagrass (Posidonia oceanica) meadows. Mar. Biol. 133: 205-212.
http://dx.doi.org/10.1007/s002270050459

Richardson C.A., Peharda M., Kennedy H., et al. 2004. Age, growth rate and season of recruitment of Pinna nobilis (L) in the Croatian Adriatic determined from Mg:Ca and Sr:Ca shell profiles. J. Exp. Mar. Biol. Ecol. 299: 1-16.
http://dx.doi.org/10.1016/j.jembe.2003.08.012

Schlieper C., Flϋgel H., Rudolf J. 1960. Temperature and salinity relationships in marine bottom invertebrates. Experientia 16: 470-472.
http://dx.doi.org/10.1007/BF02171162

Siletic T., Peharda M. 2003. Population study of the fan shell Pinna nobilis in Malo and Veliko Jezero of the Mljet National Park (Adriatic Sea). Sci. Mar. 67: 91-98.

Solé J., Turiel A., Estrada M., et al. 2009. Climatic forcing on hydrography of a Mediterranean bay (Alfacs Bay). Cont. Shelf. Res. 29: 1786-1800.
http://dx.doi.org/10.1016/j.csr.2009.04.012

Strayer D.L., Malcom H.M. 2006. Long-term demography of a zebra mussel (Dreissena polymorpha) population. Freshw. Biol. 51: 117-130.
http://dx.doi.org/10.1111/j.1365-2427.2005.01482.x

Vidondo B., Duarte C.M., Middelboe A.L., et al. 1997. Dynamics of a landscape mosaic: size and age distributions, growth and demography of seagrass Cymodocea nodosa patches. Mar. Ecol. Prog. Ser. 158:131-138.
http://dx.doi.org/10.3354/meps158131

Zakhama-Sraieb R., Sghaier Y.R., Omrane A., et al. 2011. Density and population structure of Pinna nobilis (Mollusca, Bivalvia) in the Ghar El Melh lagoon (N-E Tunisia). Bull. Inst. Natn. Scien. Tech. Mer de Salammbô 38: 65-71.

Zavodnik D., Hrs-Brenko M., Legac M. 1991. Synopsis on the fan shell Pinna nobilis L. in the eastern Adriatic Sea. In: Boudouresque C.F., Avon M., Gravez V. (eds), Les Espèces Marines à Protéger en Méditerranée. GIS Posidonie, Marseille, pp. 169-178.
