INTRODUCTIONTop
A steady increase in gelatinous predator populations in marine ecosystems has been observed in recent years, and this has promoted studies on gelatinous macroplankton due to their significance in determining marine ecosystem structure (Mills 2001Mills C. 2001. Jellyfish blooms: are populations increasing globally in response to changing ocean conditions? Hydrobiology 451: 55-68., Brodeur et al. 2002Brodeur R., Sugisaki H., Hunt, G. 2002. Increases in jellyfish biomass in the Bering Sea: implications for the ecosystem. Mar. Ecol. Prog. Ser. 233: 89-103., Purcell et al. 2007Purcell J.E., Uye S., Lo W.T. 2007. Anthropogenic causes of jellyfish blooms and their direct consequences for humans: a review. Mar. Ecol. Prog. Ser. 350: 153-174.). Such predators include the siphonophores, a widespread and abundant group that are found in coastal and oceanic waters and play a critical ecological role as competitors and predators of other zooplankters, particularly micro-crustaceans and marine invertebrate and vertebrate larval stages (Mackie et al. 1987Mackie G.O., Pugh P.R., Purcell J.E. 1987. Siphonophore biology. Adv. Mar. Sci. 24: 97-262., Pugh 1999Pugh P. 1999. Siphonophorae. In: Boltovskoy D. (ed). South Atlantic zooplankton. Backhuys Publishers, Leiden, pp. 467-511.). Siphonophores have a polymorphic colony structure, with a life cycle allowing them to produce high quantities of the sexual stage (eudoxids in the Calycophorae), thus generating large population densities during some periods of the year, particularly in highly productive biological areas (Pugh 1999Pugh P. 1999. Siphonophorae. In: Boltovskoy D. (ed). South Atlantic zooplankton. Backhuys Publishers, Leiden, pp. 467-511., Palma and Apablaza 2004Palma S., Apablaza P. 2004. Abundancia estacional y distribución vertical del zooplancton gelatinoso carnívoro en un área de surgencia en el norte del Sistema de la Corriente de Humboldt. Invest. Mar., Valparaíso 32(1): 49-70., Thibault-Botha et al. 2004Thibault-Botha D., Lutjeharms J.R.E., Gibbons M.J. 2004. Siphonophore assemblages along the east coast of South Africa: mesoscale distribution and temporal variations. J. Plankton Res. 26(9): 1115-1128., Pavez et al. 2010Pavez M.A., Landaeta M.E., Castro L.R., et al. 2010. Distribution of carnivorous gelatinous zooplankton in the upwelling zone of central Chile (austral spring 2001). J. Plankton Res. 32(7): 1051-1065.).
Siphonophore communities have been studied in diverse geographical areas bathed by the Humboldt Current System in Chilean coastal waters, particularly in coastal areas of upwelling such as Antofagasta, Valparaíso and Concepción, where common species (e.g. Muggiaea atlantica and Sphaeronectes koellikeri) can reach high population densities during spring and summer (Palma 1994Palma S. 1994. Composición y distribución del macroplancton gelatinoso recolectado frente a la costa central de Chile. Rev. Biol. Mar., Valparaíso 29(1): 23 45., Palma and Rosales 1995Palma S., Rosales S. 1995. Composición, abundancia y distribución estacional del macroplancton de la bahía de Valparaíso. Invest. Mar., Valparaíso 23: 49-66., Pagès et al. 2001Pagès F., González H., Ramón M., et al. 2001. Gelatinous zooplankton assemblages associated with water masses in the Humboldt Current System, and potential predatory impact by Bassia bassensis (Siphonophora: Calycophorae). Mar. Ecol. Prog. Ser. 210: 13-24., Palma and Apablaza 2004Palma S., Apablaza P. 2004. Abundancia estacional y distribución vertical del zooplancton gelatinoso carnívoro en un área de surgencia en el norte del Sistema de la Corriente de Humboldt. Invest. Mar., Valparaíso 32(1): 49-70., Apablaza and Palma 2006Apablaza P., Palma, S. 2006. Efecto de la zona de mínimo oxígeno sobre la migración vertical de zooplancton gelatinoso en la bahía de Mejillones. Invest. Mar., Valparaíso 34(2): 81-95., Pavez et al. 2010Pavez M.A., Landaeta M.E., Castro L.R., et al. 2010. Distribution of carnivorous gelatinous zooplankton in the upwelling zone of central Chile (austral spring 2001). J. Plankton Res. 32(7): 1051-1065.). M. atlantica also commonly inhabits Chilean Patagonian fjords and channels and is a dominant species in this southern region (Palma and Silva 2004Palma S., Silva N. 2004. Distribution of siphonophores, chaetognaths and euphausiids and oceanographic conditions in the fjords and channels of southern Chile. Deep-Sea Res. II 51(6-9): 513-535., Villenas et al. 2009Villenas F., Soto D., Palma S. 2009. Cambios interanuales en la biomasa y biodiversidad de zooplancton gelatinoso en aguas interiores de Chiloé, sur de Chile (Primaveras 2004 y 2005). Rev. Biol. Mar. Oceanogr. 44(2): 309-324., Palma et al. 2007aPalma S., Apablaza P., Soto D. 2007a. Diversity and aggregation areas of planktonic cnidarians to the southern channels of Chile (Boca del Guafo to Pulluche Channel). Invest. Mar., Valparaíso 35(2): 71-82., 2011Palma S., Silva N., Retamal M.C., et al. 2011. Seasonal and vertical distributional patterns of siphonophores and medusae in the Chiloé inland sea, Chile. Cont. Shelf Res. 31(3-4): 260-271.).
The Chilean Patagonian fjords form one of the most extensive estuarine areas in the world, extending from the Reloncaví fjord (41°20’S) to Cape Horn (55°58’S) and including areas of complex geomorphology and oceanography. They are approximately 1600 km long and cover a total area of 240000 km2 (Palma and Silva 2004Palma S., Silva N. 2004. Distribution of siphonophores, chaetognaths and euphausiids and oceanographic conditions in the fjords and channels of southern Chile. Deep-Sea Res. II 51(6-9): 513-535.). This ecosystem involves a two-layer estuarine circulation system: a surface layer (from the surface to 20-30 m depth) of Estuarine Water (EW) flowing towards the adjacent ocean, with low salinity due to freshwater discharge, high annual precipitation and coastal runoff; and a deeper layer (20-30 m to the bottom), which is more saline, colder and of higher density as a result of the inward flow of the Subantarctic Water (SAAW). A strong halocline develops between the two layers and, therefore, a pycnocline forms at 20-30 m depth, thus generating a highly stratified system (Silva and Calvete 2002Silva N., Calvete C. 2002. Características oceanográficas físicas y químicas de canales australes chilenos entre el golfo de Penas y el estrecho de Magallanes (Crucero Cimar Fiordo 2). Cienc. Tecnol. Mar 25(1): 23-88.).
The ecosystem of the interior waters, located between the Reloncaví Fjord and the Elefantes Gulf (46º30’S), has been intensively studied during the last two decades because of activities associated with marine transportation, tourism, fisheries and aquaculture (Buschmann et al. 2006Buschmann A.H., Riquelme V.A., Hernández-González M.C., et al. 2006. A review of the impacts of salmonid farming on marine coastal ecosystems in the southeastern Pacific. ICES J. Mar. Sci. 63: 1338-1345., Silva and Palma 2008Silva N., Palma S. (eds). 2008. Progress in the oceanographic knowledge of Chilean interior waters, from Puerto Montt to Cape Horn. Comité Oceanográfico Nacional-Pontificia Universidad Católica de Valparaíso, Valparaíso, 161 pp.). Thus, numerous oceanographic and biological studies have been carried out in this zone (Silva and Palma 2008Silva N., Palma S. (eds). 2008. Progress in the oceanographic knowledge of Chilean interior waters, from Puerto Montt to Cape Horn. Comité Oceanográfico Nacional-Pontificia Universidad Católica de Valparaíso, Valparaíso, 161 pp.), including studies on siphonophores and jellyfish with results showing that the two-layer hydrographic structure may affect not only the species composition but also the vertical distribution of the zooplankton in interior waters (Palma et al. 2007aPalma S., Apablaza P., Soto D. 2007a. Diversity and aggregation areas of planktonic cnidarians to the southern channels of Chile (Boca del Guafo to Pulluche Channel). Invest. Mar., Valparaíso 35(2): 71-82., 2007bPalma S., Apablaza P., Silva N. 2007b. Hydromedusae (Cnidaria) of the Chilean southern channels (from Corcovado Gulf to Pulluche-Chacabuco Channels). Sci. Mar. 71(1): 65-74., 2011Palma S., Silva N., Retamal M.C., et al. 2011. Seasonal and vertical distributional patterns of siphonophores and medusae in the Chiloé inland sea, Chile. Cont. Shelf Res. 31(3-4): 260-271., Villenas et al. 2009Villenas F., Soto D., Palma S. 2009. Cambios interanuales en la biomasa y biodiversidad de zooplancton gelatinoso en aguas interiores de Chiloé, sur de Chile (Primaveras 2004 y 2005). Rev. Biol. Mar. Oceanogr. 44(2): 309-324., Bravo et al. 2011Bravo V., Palma S., Silva S. 2011. Seasonal and vertical distributional patterns of medusae in Aysén region, southern Chile. Lat. Am. J. Aquat. Res. 39(2): 359-377).
In contrast, the fjord ecosystem located between the Gulf of Penas (47°S) and Cape Horn has received little attention. In this vast area, the sector covering the Gulf of Penas and the Trinidad Channel (50°10’S) has been barely studied and published works on zooplankton are restricted to reports on siphonophores, chaetognaths, euphausiids and cladocerans (Palma et al. 1999Palma S., Ulloa R., Linacre L. 1999. Sifonóforos, quetognatos y eufáusidos de los canales australes entre el golfo de Penas y estrecho de Magallanes. Cienc. Tecnol. Mar 22: 111-142., Rosenberg and Palma 2003Rosenberg P., Palma S. 2003. Cladóceros de los fiordos y canales patagónicos localizados entre el golfo de Penas y el estrecho de Magallanes. Invest. Mar., Valparaíso 30(1): 15-24.), ichthyoplankton (Bustos et al. 2011Bustos C.A., Landaeta M.F., Balbontín F. 2011. Ichthyoplankton spatial distribution and its relation with water column stratification in fjords of southern Chile (46°48’-55º09’S) in austral spring 1996 and 2008. Cont. Shelf Res. 31(3-4): 393-303.) and decapod crustacean larvae (Mujica and Medina 2000Mujica A., Medina M. 2000. Distribución y abundancia de larvas de crustáceos decápodos en el zooplancton de los canales australes. Proyecto Cimar-Fiordo 2. Cienc. Tecnol. Mar 23: 49-68.). This southern area receives Subantarctic Water input from the adjacent Pacific, entering through the Gulf of Penas (0-150 m) to the north, the Ladrillero Gulf (0-50 m) in the centre and the Trinidad Gulf (0-70 m) to the south. These highly saline subantarctic waters merge with freshwater from rivers, such as the Baker (870 m3 s–1) and Pascua (574 m3 s–1) Rivers and melt water from the Southern Ice Field, thus forming EW flowing seawards in the upper 25-30 m depth stratum (Silva and Calvete 2002Silva N., Calvete C. 2002. Características oceanográficas físicas y químicas de canales australes chilenos entre el golfo de Penas y el estrecho de Magallanes (Crucero Cimar Fiordo 2). Cienc. Tecnol. Mar 25(1): 23-88., Calvete and Sobarzo 2011Calvete C., Sobarzo M. 2011. Quantification of the surface brackish water layer and frontal zones in southern Chilean fjords between Boca del Guafo (431°30’S) and Estero Elefantes (46°30’S) Cont. Shelf Res. 31(3-4): 162-171.).
This work analyses the effect of water column stratification on the spatial distribution of the polygastric and eudoxid stages of siphonophores in the central Patagonian fjords of southern Chile (47°-50°10’S).
MATERIALS AND METHODSTop

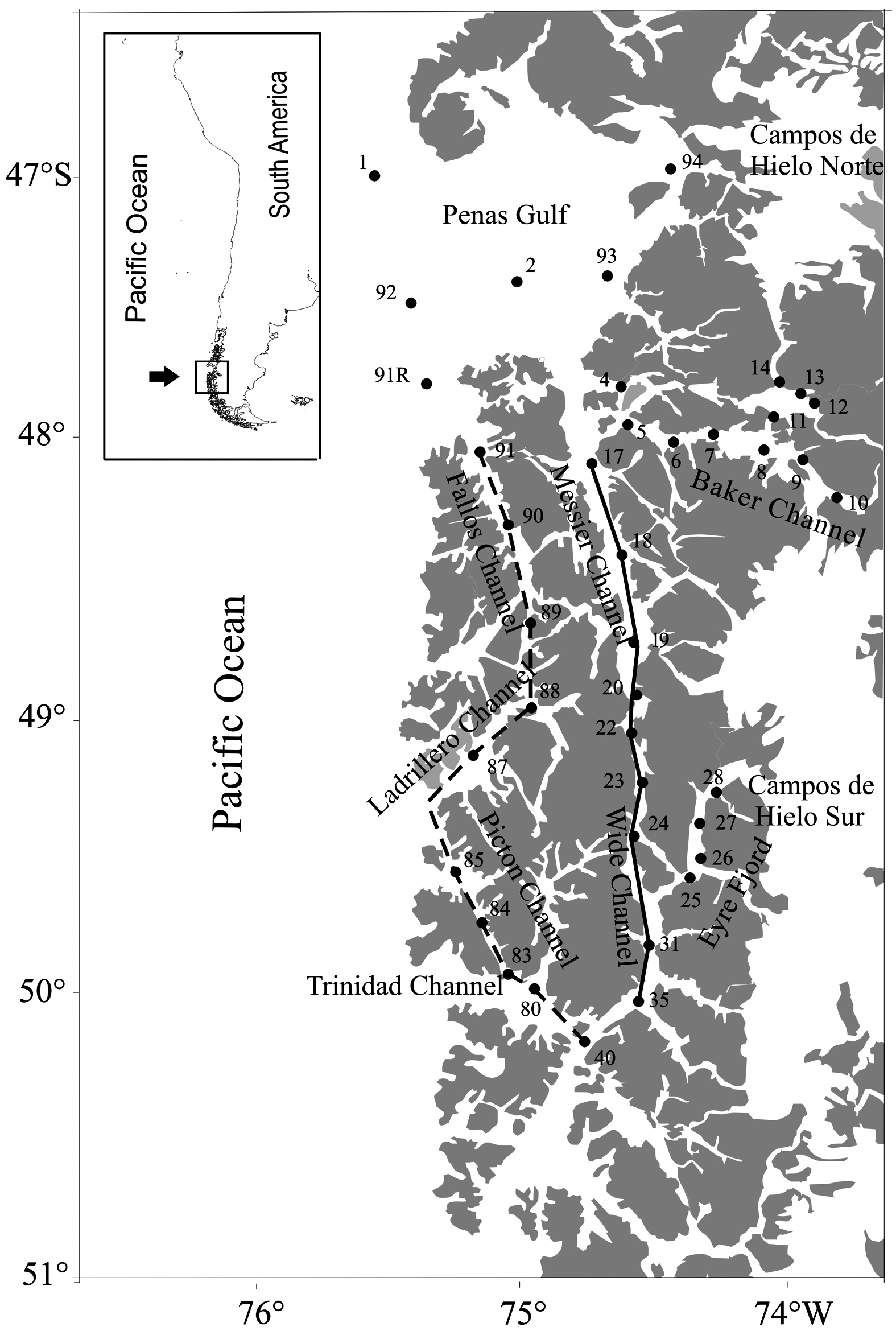

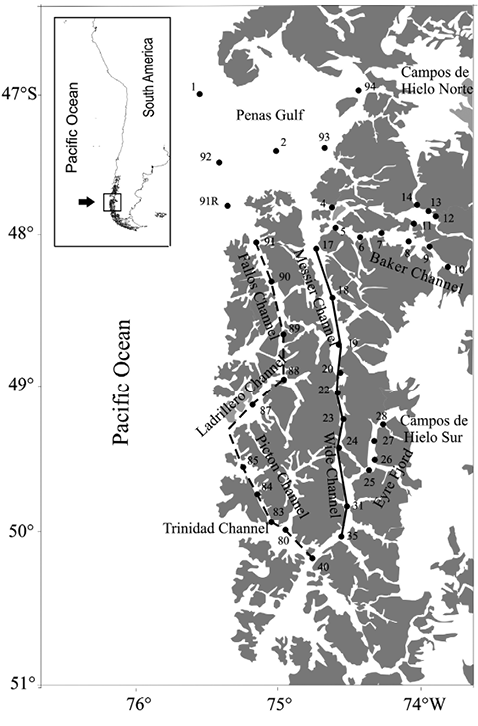

A total of 40 oceanographic stations were occupied during the CIMAR 14 Fiordos cruise performed between 25 October and 24 November 2008, and these were distributed between the Gulf of Penas (47°S) and the Trinidad Channel (50°10’S) (Fig. 1). Only the sampling stations situated along two longitudinal transects were considered in the vertical distribution analysis. The oceanic transect (OT, 10 stations) comprised the Gulf of Penas and the Fallos, Ladrillero, Picton and Trinidad Channels, and included the stations with the highest adjacent oceanic water input. The estuarine transect (ET, 9 stations), on the other hand, involved the Gulf of Penas and the Messier, Paso del Indio and Wide Channels and the stations with the highest EW input (Fig. 1).
A CTDO Sea-Bird model SBE 25 was used at each station to record the oceanographic variables of temperature, salinity and dissolved oxygen content in the water column. Salinity and dissolved oxygen records were corrected using the results from instrumental (salinometer) and chemical (Winkler) analyses of discrete samples collected in the water column during the CTDO casting.
Zooplankton samples were obtained by oblique tows in three strata: surface (0-25 m at 40 stations), middle (25-50 m at 40 stations) and deep (50-200 m or 50 m-near bottom, depending on bottom depth at 28 stations), during day and night. The strata were selected considering the two-layer oceanographic structure characterizing the interior region of the fjords and channels (Silva and Calvete 2002Silva N., Calvete C. 2002. Características oceanográficas físicas y químicas de canales australes chilenos entre el golfo de Penas y el estrecho de Magallanes (Crucero Cimar Fiordo 2). Cienc. Tecnol. Mar 25(1): 23-88.). The sampling gear was a Tucker trawl net (1-m2 mouth opening and 350-mm mesh aperture), which included a two-net system provided with a digital flowmeter in order to estimate the volume filtered by each net. Zooplankton samples were fixed immediately after collection and preserved in 5% formalin-seawater buffered with sodium borate.
A total of 108 vertically stratified samples were examined. The siphonophores were sorted from the original samples, and the nectophores (asexual polygastric stage) and eudoxids (sexual eudoxid stage) were identified and counted. The abundances of Calycophorae were estimated considering the highest number of anterior or posterior nectophores. Pyrostephos vanhoeffeni was the only species of the Physonectae collected, and its abundance was estimated by considering one individual to have 20 pairs of nectophores per colony (Totton 1965Totton A. 1965. A synopsis of the Siphonophora. British Museum (Natural History), London, 230 pp.). The taxonomic identification of siphonophore species followed the works of Totton (1965)Totton A. 1965. A synopsis of the Siphonophora. British Museum (Natural History), London, 230 pp. and Pugh (1999)Pugh P. 1999. Siphonophorae. In: Boltovskoy D. (ed). South Atlantic zooplankton. Backhuys Publishers, Leiden, pp. 467-511.. Polygastric and eudoxid stages for the whole column were converted for every stage to density (ind 1000 m–3), using the volume of water filtered by the nets. Only the dominant species (>5% of the total of individuals) were considered when characterizing the horizontal and vertical distribution patterns. Vertical distributions, using the normalized data, were expressed according to the percentage of individuals in each stratum compared to the total number of individuals collected from the entire water column; and differences in the vertical distributions in depth strata at sampling stations were tested by a Kruskal-Wallis test. The relationship between the distribution patterns of siphonophore abundances and oceanographic physical and chemical features over the sampling stations were explored using a canonical correspondence analysis (CCA; Ter Braak and Verdonschot 1995Ter Braak C.J.F., Verdonschot P.F.M. 1995. Canonical correspondence-analysis and related multivariate methods in aquatic ecology. Aquat. Sci. 57: 255-289.). The level of significance was set at p<0.05. Initial analysis included abundance data for 11 dominant faunal and 4 environmental variables (depth strata, temperature, salinity and dissolved oxygen). The Monte Carlo permutation test (with 999 unrestricted permutations) was used to determine the significance of fauna-environment relationships. The CCA analysis was performed using XLStat software (version 2011.4.04, Addinsoft).
RESULTSTop
Hydrographic characteristics

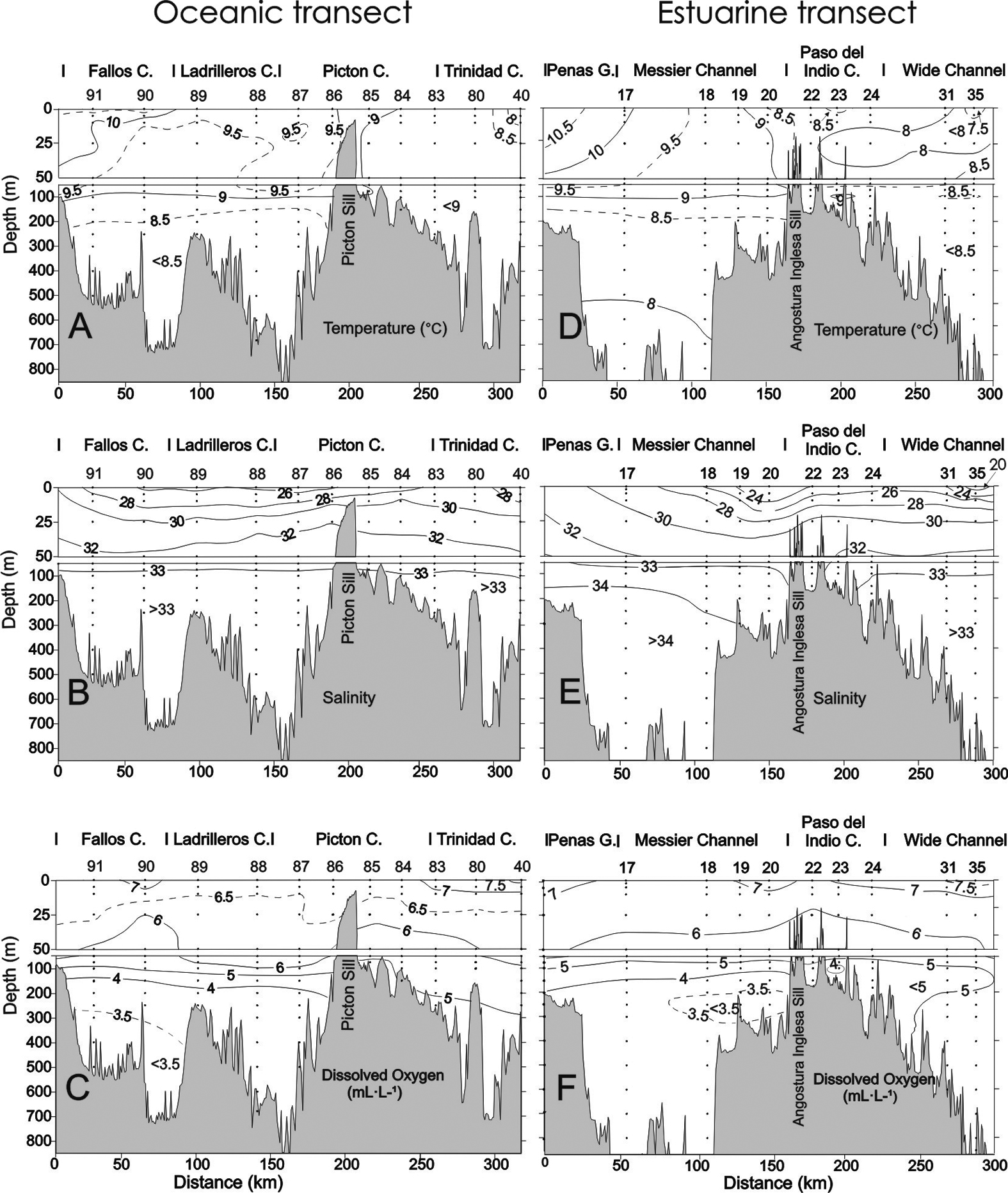

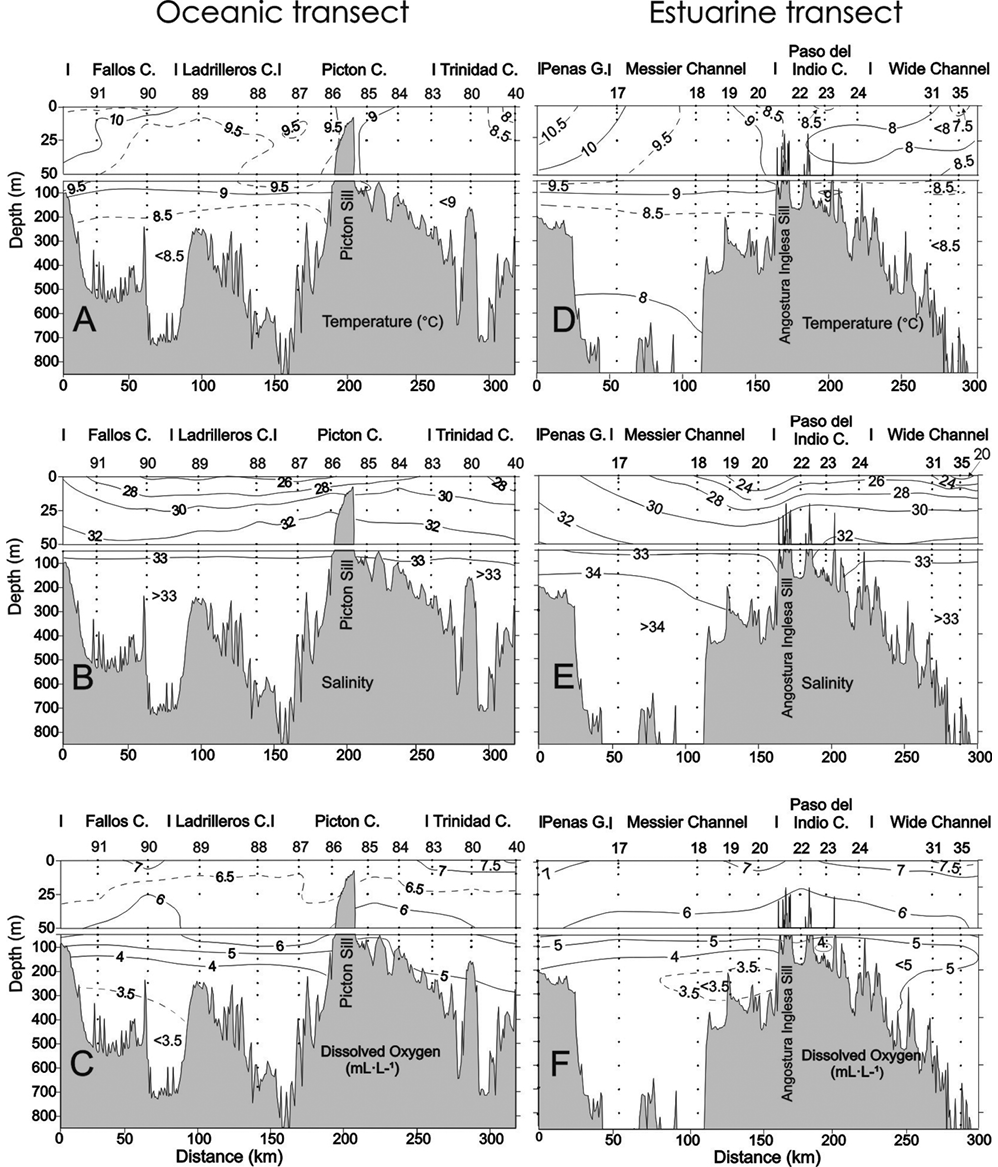

The surface temperatures in the Baker Fjord (not shown) were almost uniform from its mouth to its head (~9°C); in the Eyre Fjord (not shown), however, they decreased from its mouth (~8°C) to its head (~7°C). The water column was almost homothermal (~8°C) below 50 m in both fjords, while the whole water column was almost homothermal in the oceanic and longitudinal transects. Surface temperatures for the interior channels were around 8°C-9°C and around 9°C-10°C for the external channels (Fig. 2A and D). The highest surface temperature values were observed in the Gulf of Penas, at the northern extreme of both longitudinal transects. The lowest surface temperature values in the ET were observed near the middle of Angostura Inglesa and in the OT, at the southernmost end of the Concepción Channel. Below 200 m the temperature of the deep layer was almost homothermal in every single micro basin (~8°C).
The surface salinity in the Baker and Eyre Fjords decreased from their mouths to their heads (28 to 2 and 26 to 24, respectively). Both fjords had a highly stratified low salinity (20-33) surface layer (~50 m), giving rise to strong haloclines above 50 m (Fig. 2B and E). The water column below 50 m was almost homogeneous, with salinities around 33-34 in the Baker Fjord and 32-33 in the Eyre Fjord. In the ET transect, the lowest surface salinity values occurred near Angostura Inglesa (<24), Wide Channel (<20), in the OT transect and in the Fallos-Ladrillero channels (<26). A highly stratified low salinity (20-33) surface layer (~50 m) occurred in both transects, giving rise to strong haloclines. The depth of the bottom of the halocline generally coincided with the 32 salinity isopleth, which was at around 50 m depth. Below this highly stratified surface layer (i.e. >50 m), the water column was saltier (32-34) and almost homogeneous.
Dissolved oxygen concentration in the Baker and Eyre Fjords was almost homogeneous in the surface layer (~0-10 m) from mouth to head (~7 mL L–1). Below this well-oxygenated surface layer, dissolved oxygen decreased to around 3 mL L–1 in the Baker Fjord and to around 4 mL L–1 in the Eyre Fjord. In both longitudinal transects (Fig. 2C and F) the surface layer (~0-50 m) had a nearly homogeneous high dissolved oxygen content (>6 mL L–1). Below this layer, the dissolved oxygen decreased rapidly to 4 mL L–1 at around 100 m. In the deep layer of both transects the dissolved oxygen concentrations decreased below 3.5 mL L–1 in the northern micro basin and below 5 mL L–1 in the southern micro basin.
Specific composition
A total of 12 species of siphonophores (polygastric and eudoxid stages), 11 calycophorans and one physonect were identified. The total number of collected organisms, abundance ranges, average abundance, dominance and occurrence data are shown in Table 1. The calycophorans Muggiaea bargmannae, Lensia subtilis, Praya dubia and Sphaeronectes fragilis are recorded for the first time in this central Chilean Patagonian area (47-50°S). The presence of four nectophores of M. bargmannae in the Picton Channel (Sta. 88) represents the first record of this species in Chilean waters. L. subtilis and S. fragilis were collected from several stations; meanwhile, P. dubia was only represented by two stem groups collected in the Baker Fjord (stations 4 and 6). The dominant gelatinous species in terms of relative abundances were Muggiaea atlantica (78.6% of the total number of polygastric stages), Lensia conoidea (8.7%) and Dimophyes arctica (8.5%), while the remaining species were only found occasionally (Table 1). In decreasing order, the most commonly occurring species were M. atlantica (100% of stations), D. arctica (90% of stations) and L. conoidea (88% of stations).
Species | Life stage | Total number | Range of
non-zero abundances |
Average abundance |
Dominance (%) | Occurrence (%) |
---|---|---|---|---|---|---|
Muggiaea atlantica | Po | 124752 | 14-38174 | 3118.8 | 78.62 | 100 |
Eu | 95078 | 10-50136 | 2376.9 | 63.44 | 88 | |
Lensia conoidea | Po | 13854 | 6-3500 | 346.3 | 8.73 | 88 |
Eu | 13631 | 4-3707 | 340.8 | 9.10 | 83 | |
Dimophyes arctica | Po | 13428 | 13-2685 | 335.7 | 8.46 | 90 |
Eu | 36685 | 18-6455 | 917.1 | 24.48 | 93 | |
Pyrostephos vanhoeffeni | Ne | 2882 | 1-427 | 72.0 | 1.82 | 70 |
Lensia meteori | Po | 1535 | 3-419 | 38.4 | 0.97 | 58 |
Sphaeronectes koellikeri | Po | 847 | 3-289 | 21.2 | 0.53 | 25 |
Sphaeronectes fragilis | Po | 627 | 4-228 | 15.7 | 0.40 | 25 |
Lensia subtilis | Po | 391 | 13-186 | 9.8 | 0.25 | 10 |
Eudoxoides spiralis | Po | 320 | 6-107 | 8.0 | 0.20 | 20 |
Eu | 4466 | 10-2202 | 111.7 | 2.98 | 48 | |
Muggiaea bargmannae | Po | 21 | 1-21 | 0.5 | 0.01 | 3 |
Chelophyes appendiculata | Po | 13 | 1-13 | 0.3 | 0.01 | 3 |
Praya dubia | Sg | 2 | 1-1 | 0 | 0 | 5 |
Horizontal distribution

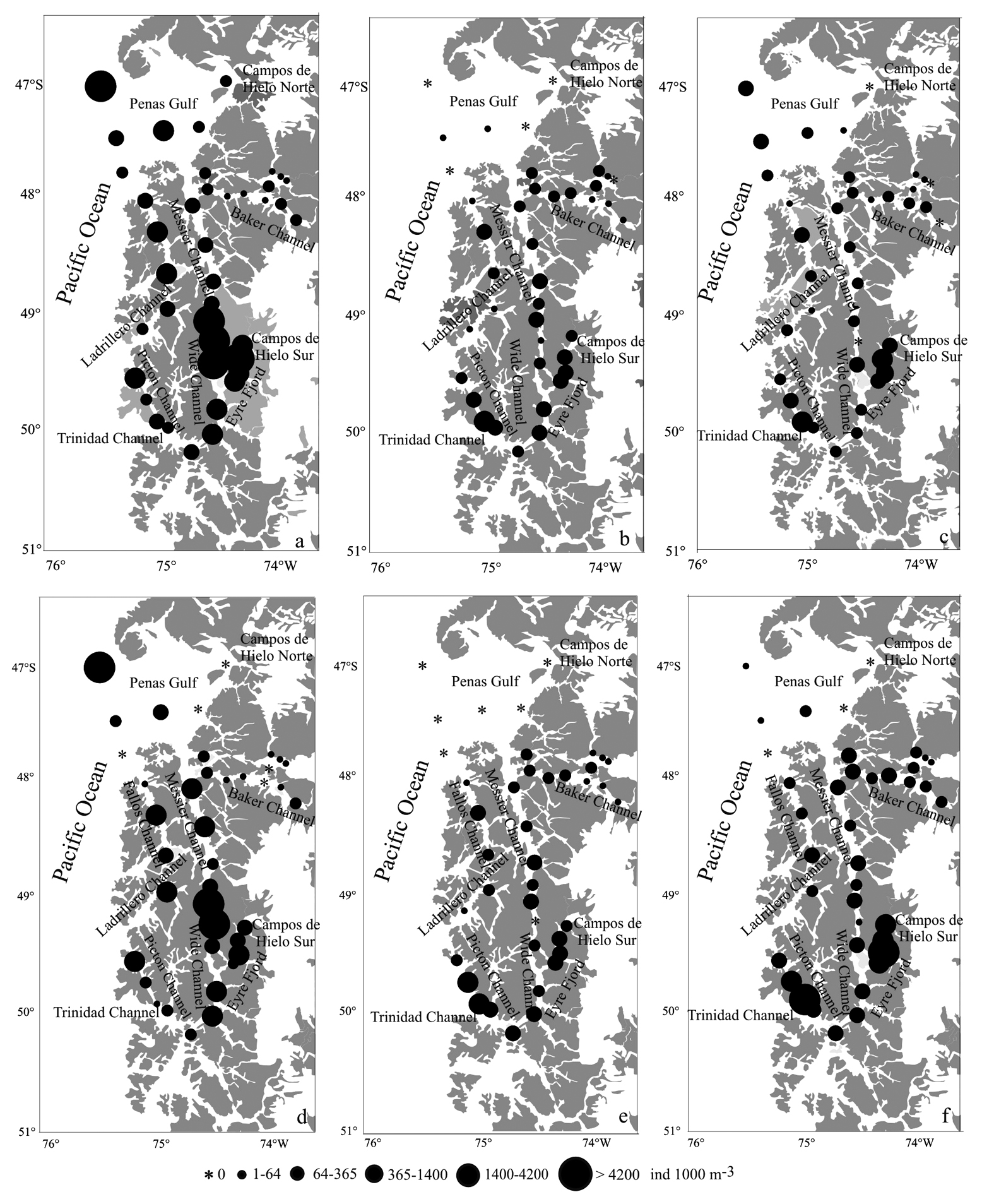

The abundances of siphonophores ranged between 35 and 39140 ind 1000 m–3 in the Picton and Messier channels (stations 87 and 22, respectively). M. atlantica occurred with a minimum abundance of 14 ind 1000 m–3 (station 14) in the Baker Channel, and a maximum of 38174 ind 1000 m–3 (station 22) in the Messier Channel (Fig. 3A). The highest densities were found in the Gulf of Penas (oceanic waters), the Messier Channel and the Eyre Fjord (interior waters). Intermediate densities were obtained in the oceanic channels (Fallos, Ladrillero, Picton and Trinidad) and the lowest density was found in the Baker Channel, where the salinity fluctuated between 5 and 33 in the upper 100 m. Lensia conoidea and Dimophyes arctica showed a very similar spatial distribution, with maxima in the Eyre Fjord and at some stations in the Messier and Trinidad channels (Fig. 3B-C). The most significant difference between the two species was found in the Gulf of Penas, where L. conoidea was almost absent, and D. arctica was collected at most stations, being concentrated at the mouth of the gulf.
The eudoxids of M. atlantica, L. conoidea and D. arctica were always more numerous than the polygastric stages. These eudoxids followed the same patterns of geographic distribution as the polygastric stages. Eudoxids of M. atlantica also exhibited abundance maxima in the Gulf of Penas and Messier Channel (Fig. 3D). Maximum concentrations of the eudoxids of L. conoidea were found in the Trinidad Channel and of D. arctica in this same channel and in the Eyre Fjord (Fig. 3E-F). It is worth mentioning that in the Gulf of Penas, where highly saline waters (ASAA) predominated, only M. atlantica eudoxids were abundant, with both L. conoidea and D. arctica being extremely rare.
The abundance of polygastric stages of M. atlantica (Table 2) exhibited significant differences between the two transects (p<0.05), with a higher dominance in the ET (90.7%) than in the OT (47.0%). This difference in abundance was also observed for rarer species, such as Pyrostephos vanhoeffeni, Lensia meteori and Sphaeronectes koellikeri (Table 2). Lensia conoidea and D. arctica also showed significant differences in abundance between the two transects (p<0.05); however, their maxima occurred in the OT, with dominance values of 32.5% and 16%, respectively—a trend also apparent in S. fragilis (Table 2).
Species | Oceanic Transect | Estuarine Transect | ||||||
---|---|---|---|---|---|---|---|---|
Range of non-zero abundances | Average per station | Dominance (%) | Occurrence (%) | Range of non-zero abundances |
Average per station | Dominance (%) | Occurrence (%) | |
Muggiaea atlantica | 8-2132 | 992.0 | 47.0 | 100 | 436-38174 | 7567.4 | 90.7 | 100 |
Lensia conoidea | 5-3499 | 685.4 | 32.5 | 100 | 17-995 | 402.0 | 4.8 | 100 |
Dimophyes arctica | 53-1611 | 337.3 | 16.0 | 100 | 58-661 | 222.3 | 2.7 | 90 |
Pyrostephos vanhoeffeni | 3-218 | 43.2 | 2.0 | 60 | 3-404 | 86.5 | 1.0 | 80 |
Sphaeronectes fragilis | 8-227 | 37.1 | 1.8 | 30 | 3-162 | 19.8 | 0.2 | 30 |
Lensia meteori | 8-38 | 11.6 | 0.5 | 60 | 6-75 | 17.6 | 0.2 | 50 |
Sphaeronectes koellikeri | 5-8 | 2.0 | 0.1 | 30 | 16-241 | 28.6 | 0.3 | 30 |
Vertical distribution in OTs and ETs

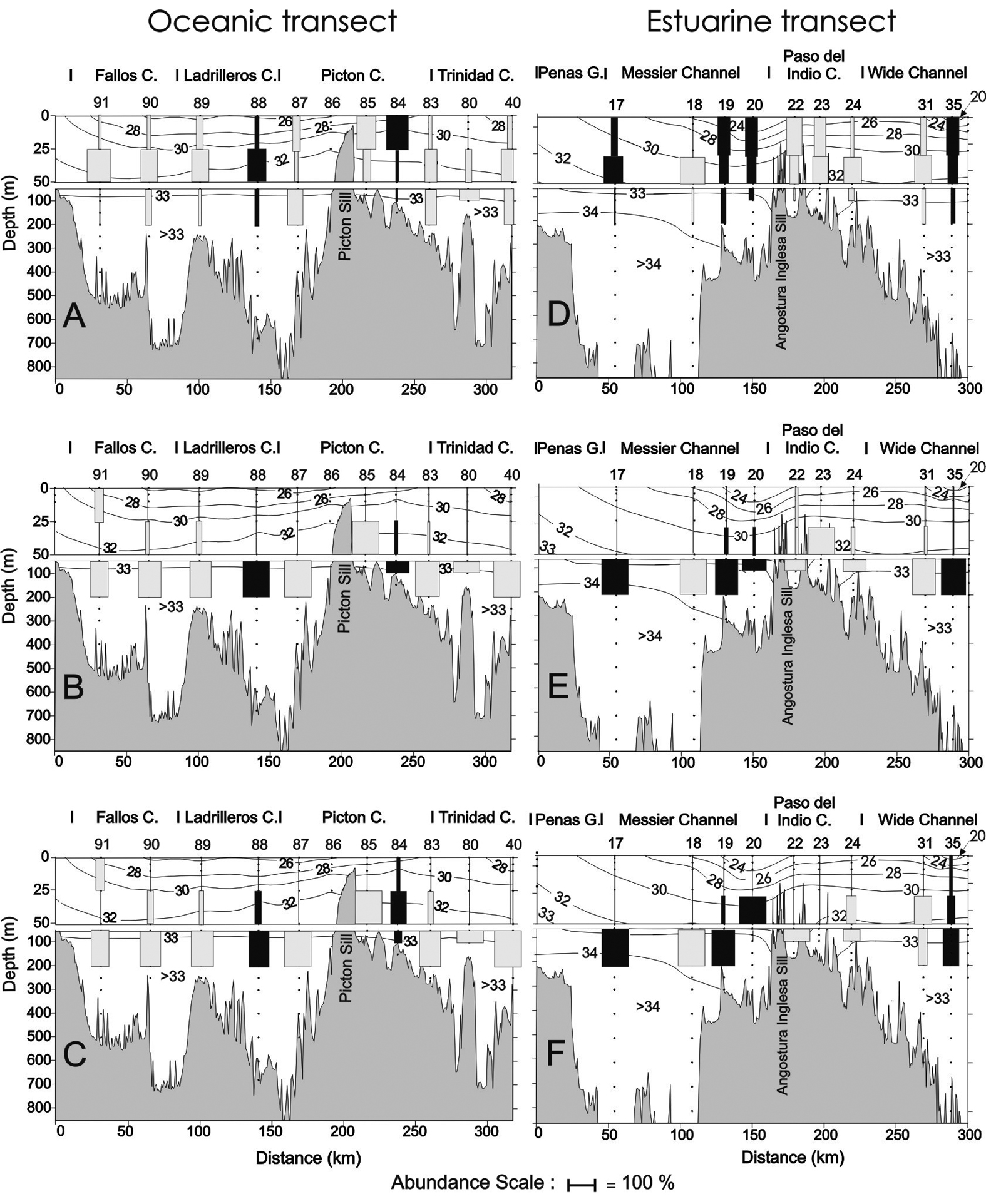

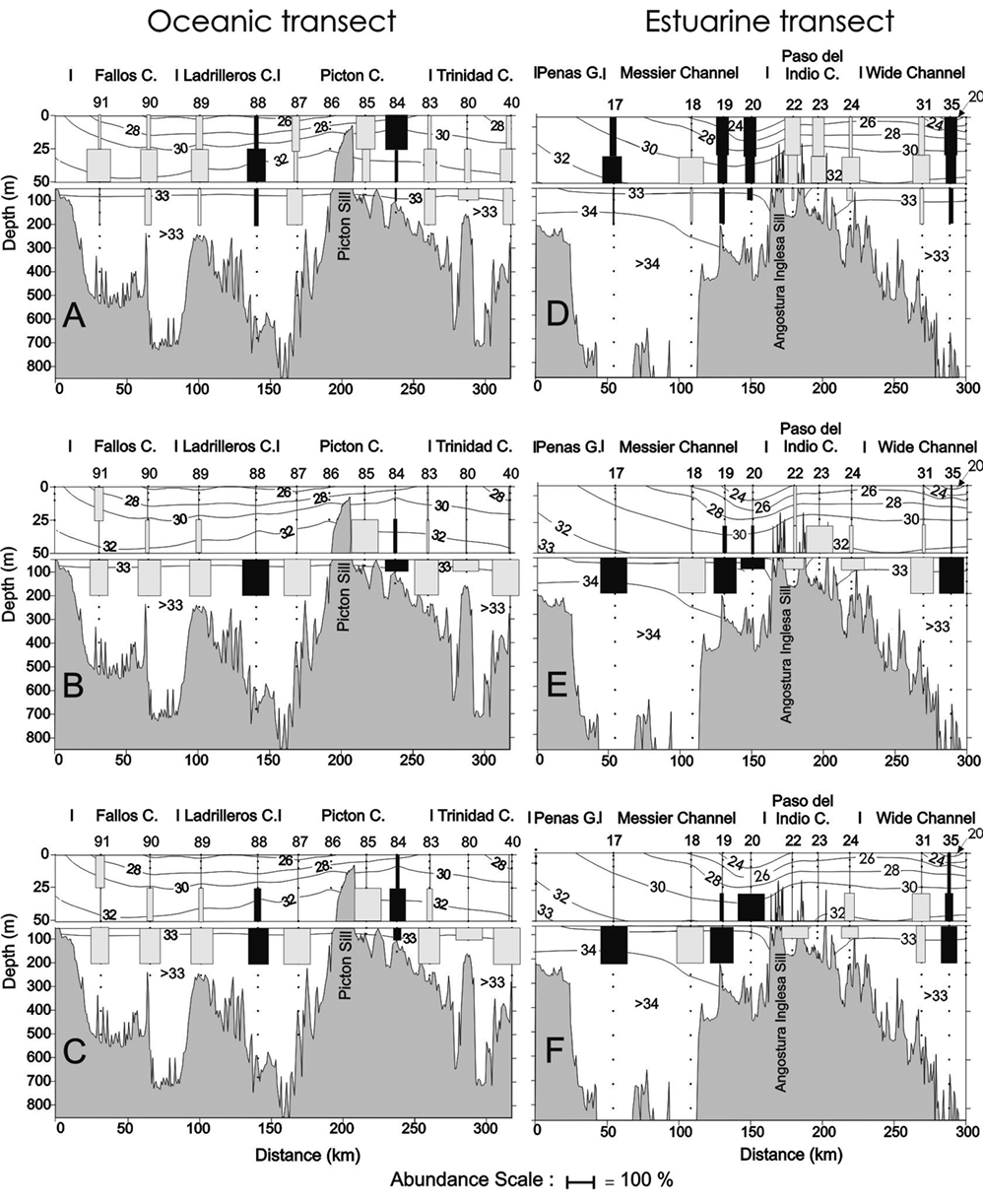

The dominant species showed two kinds of vertical distribution patterns. Muggiaea atlantica was found throughout the water column, the highest densities always being found in the upper 50 m, except at station 2 in the Gulf of Penas, where the greatest numbers were found below 50 m (Fig. 4A-B). On the other hand, Lensia conoidea and Dimophyes arctica were more abundant at greater depths, below 50 m at most stations (Fig. 4C and F). There were non-significant differences between the vertical distributions of polygastric and eudoxid stages of M. atlantica between the two transects (Kruskal-Wallis test, p>0.05, Table 3). In contrast, significant differences were obtained between the vertical distributions of polygastric and eudoxid stages for both L. conoidea and D. arctica in both transects (Kruskal-Wallis test, p<0.05, Table 3).
Oceanic transect | Estuarine transect | |||
---|---|---|---|---|
Polygastric stage | Eudoxid stage | Polygastric stage | Eudoxid stage | |
Muggiaea atlantica | 0.2653 | 0.8466 | 0.3845 | 0.2398 |
Lensia conoidea | 0.0089 | 0.0318 | 0.0021 | 0.0026 |
Dimophyes arctica | 0.0002 | 0.0227 | 0.00007 | 0.00003 |
Relationships between siphonophores and oceanographic conditions

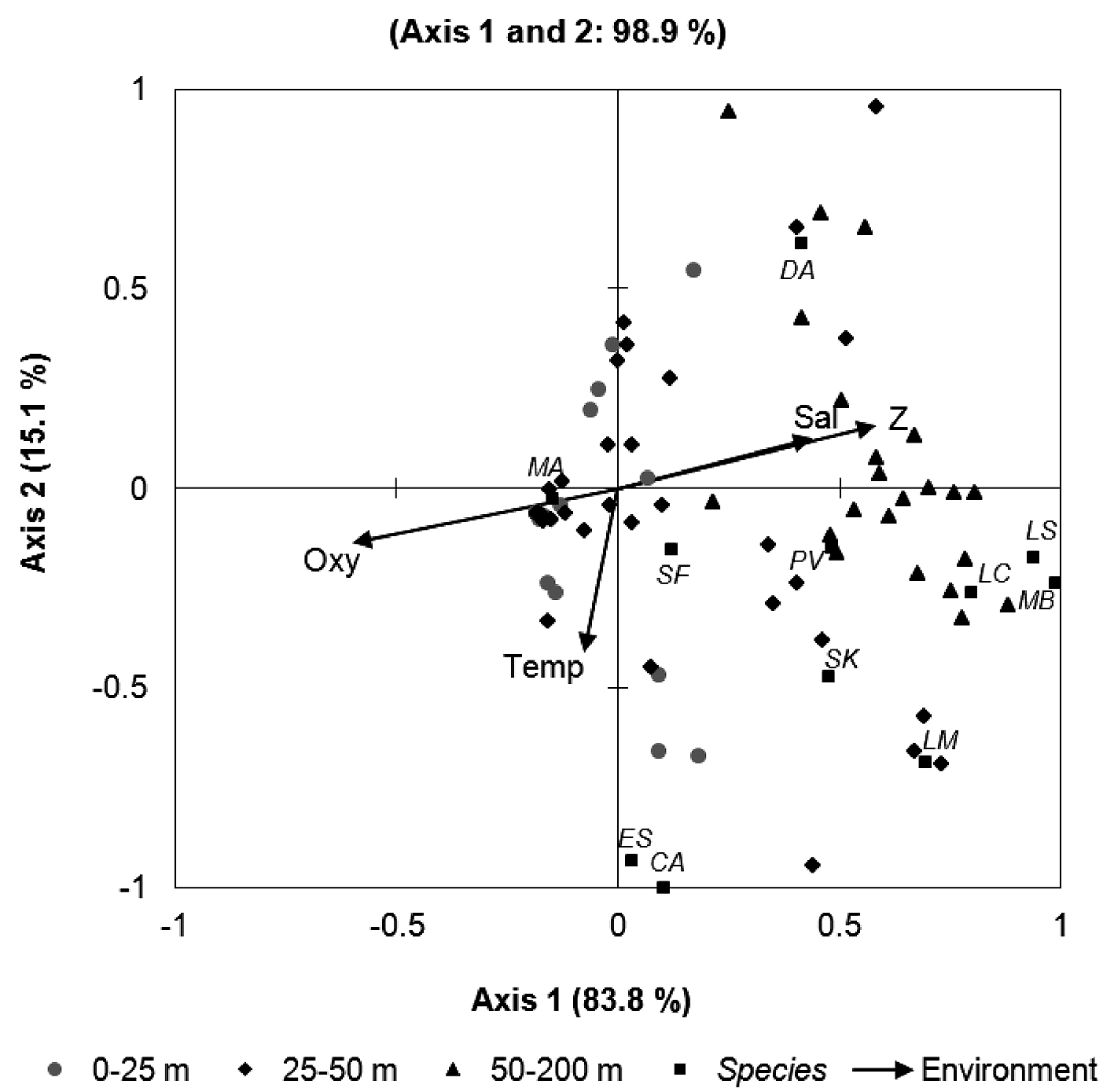

The relationships between siphonophore abundances and oceanographic variables are presented in a CCA triplot (Fig. 5). The Monte Carlo permutation test indicated significance in the ordination diagram (Fratio=2.83, p<0.001), in which the first two axes explained 98.9% of the total variance (83.8% in the first axis and 15.1% in the second axis). Axis one was positively correlated with depth strata and salinity, and negatively correlated with dissolved oxygen and temperature. This indicated an increase in salinity and depth strata from left to right in the diagram (Fig. 5), mainly evidenced at the deepest sampling stations (50-200 m). The species coupling with these environmental conditions in the deepest stratum were Muggiaea bargmannae, Lensia conoidea, L. meteori, L. subtilis, Pyrostephos vanhoeffeni, Sphaeronectes koellikeri and Dimophyes arctica (Fig. 5). On the other hand, the species associated with the shallower stratum, lower salinity and higher oxygen were Chelophyes appendiculata and Eudoxoides spiralis. At the centre of the diagram, Muggiaea atlantica is located as a dominant species which is not associated with any particular depth stratum, because it was found throughout the water column. The second axis explained a lower fraction of the total variance and was mainly negatively correlated with temperature, indicating an increase in this environmental variable in the shallower strata.
DISCUSSIONTop
Hydrographic characteristics
During the CIMAR 14 Fiordos cruise, the temperature was nearly homogeneous over the whole water column along both longitudinal transects, which was not the case for salinity, leading to a highly stratified water column (Fig. 2B and E). Therefore, the vertical density structure is governed by the salinity distribution. The vertical distribution of salinity was characterized by two layers: a surface layer (0 to ~30-50 m), and a deeper layer (30-50 m to the bottom) including a strong vertical salinity gradient and therefore a pycnocline. The vertical stratification was less intense at both the northern and southern oceanic ends and more intense at the centre of the transects (Fig. 2B and E), where the freshwater input from continental rivers and glacial melting is greater (Silva and Calvete 2002Silva N., Calvete C. 2002. Características oceanográficas físicas y químicas de canales australes chilenos entre el golfo de Penas y el estrecho de Magallanes (Crucero Cimar Fiordo 2). Cienc. Tecnol. Mar 25(1): 23-88., Sievers et al. 2002Sievers H., Calvete C., Silva N. 2002. Distribución de características físicas masas de agua y circulación general para algunos canales australes entre el golfo de Penas y el estrecho de Magallanes (Crucero Cimar Fiordo 2). Cienc. Tecnol. Mar 25(2): 17-43.). The freshwater input in the ET and at the heads of Baker and Eyre fjords is greater, due to the input from continental rivers, rain and melting water. This explains the lower salinities (20-32) in the surface layer of the ET, compared with the low salinities (26-32) along the OT, which receives mainly rainwater input. Below the highly stratified surface layer, a marine, saltier (33-34) deep layer is present (~50 m to the bottom), and is less variable and almost homohaline (Fig. 2B and E).
The surface layers (0-50 m) of the Baker and Eyre Fjords and along both longitudinal transects were well oxygenated, generally above 6 mL L–1 (>90% saturation; Fig. 2C and F), due to photosynthetic processes (Aracena et al. 2011Aracena C., Lange C.B., Iriarte J.L., et al. 2011. Latitudinal patterns of export production recorded in surface sediments of the Chilean Patagonian fjords (41-55°S) as a response to water column productivity. Cont. Shelf Res. 31(3-4): 340-355.) and ocean-atmosphere oxygen exchange. Beneath the highly oxygenated surface layer, dissolved oxygen concentrations dropped below 4 mL L–1 (<50% saturation), presumably due to consumption caused by the degradation of autochthonous and allochthonous particulate organic matter coming from the surface layer and river discharge (Silva 2008Silva N. 2008. Dissolved oxygen, pH, and nutrients in the austral Chilean channels and fjords. In: Silva N., Palma S. (eds). Progress in the oceanographic knowledge of Chilean interior waters, from Puerto Montt to Cape Horn. Comité Oceanográfico Nacional-Pontificia Universidad Católica de Valparaíso, Valparaíso, pp. 37-43.). Similar low dissolved oxygen concentrations (3-4 mL L–1) have been recorded previously in the area (Silva and Calvete 2002Silva N., Calvete C. 2002. Características oceanográficas físicas y químicas de canales australes chilenos entre el golfo de Penas y el estrecho de Magallanes (Crucero Cimar Fiordo 2). Cienc. Tecnol. Mar 25(1): 23-88.).
Subantarctic Water (SAAW) from the adjacent Pacific Ocean penetrates into the region through the Gulf of Penas and Trinidad Strait, giving the marine characteristics to the deeper layers. As the SAAW spreads into the channels and fjords, it mixes with freshwater (FW) in different proportions (Sievers and Silva 2008Sievers H., Silva N. 2008. Water masses and circulation in austral Chilean channels and fjords. In: Silva N., Palma S. (eds). Progress in the oceanographic knowledge of Chilean interior waters, from Puerto Montt to Cape Horn. Comité Oceanográfico Nacional-Pontificia Universidad Católica de Valparaíso, Valparaíso, pp. 53-58.). The water formed of salinities between 31 and 33 is known as Modified Subantarctic Water (MSAAW) or if fresher (2-31) it is known as Estuarine Water (EW). The EW remains in the surface layer and the MSAAW fills the subsurface and deeper layers of the interior fjords.
Siphonophore community composition and horizontal distribution
Results from spring 2008 were similar to those of spring 1996 (Palma et al. 1999Palma S., Ulloa R., Linacre L. 1999. Sifonóforos, quetognatos y eufáusidos de los canales australes entre el golfo de Penas y estrecho de Magallanes. Cienc. Tecnol. Mar 22: 111-142.), with 8 out of the 12 presently identified species overlapping (Table 4). The nine rare species that were recorded, representing 4.2% of the total number of siphonophores caught, were collected in estuarine interior waters and included some species found widely in oceanic waters, such as Eudoxoides spiralis, Chelophyes appendiculata, Lensia subtilis and Praya dubia (Totton 1965Totton A. 1965. A synopsis of the Siphonophora. British Museum (Natural History), London, 230 pp., Pugh 1999Pugh P. 1999. Siphonophorae. In: Boltovskoy D. (ed). South Atlantic zooplankton. Backhuys Publishers, Leiden, pp. 467-511.). However, it is supposed that the extreme oceanographic characteristics of these interior waters would be detrimental for the maintenance of reproducing populations. In general, all the identified species were epipelagic species, including some species abundant in Antarctic waters, such as Dimophyes arctica, Muggiaea bargmannae and Pyrostephos vanhoeffeni (Pagès et al. 1994Pagès F., Pugh P.R., Gili J.M. 1994. Macro- and megaplanktonic cnidarians collected in the eastern part of the Weddell gyre during summer 1979. J. Mar. Biol. Assoc. U.K. 74: 873-894., Pugh et al. 1997Pugh P.R., Pagès, F., Boorman, B. 1997. Vertical distribution and abundance of pelagic cnidarians in the Eastern Weddell Sea, Antarctica. J. Mar. Biol. Assoc. U.K. 77: 341-360.), and some species from warm and temperate oceanic waters (the remaining species), which may enter through the Gulf of Penas and the Ladrillero and Trinidad Channels. Their shallow sills (Ladrillero and Trinidad ~50 m, and Penas ~150 m) would prevent the entrance of mesopelagic species into interior waters.
Spring 1996 | Spring 2008 | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Species | Total | Range of non-zero abundances | Average per station | SD | D (%) | O (%) | Total | Range of non-zero abundances | Average per station | SD | D (%) | O (%) |
Muggiaea atlantica | 11476 | 3-3613 | 337.5 | 706.4 | 67.51 | 88.2 | 120761 | 14-38174 | 3551.8 | 7599.6 | 79.82 | 100.0 |
Lensia conoidea | 5104 | 4-1547 | 150.1 | 301.6 | 30.02 | 79.4 | 12813 | 6-3500 | 376.8 | 627.7 | 8.47 | 88.2 |
Dimophyes arctica | 168 | 3-47 | 4.9 | 8.9 | 0.99 | 44.1 | 11675 | 13-2685 | 343.4 | 551.7 | 7.72 | 88,2 |
Pyrostephos vanhoeffeni (ne) | 3 | 1-1 | 0.1 | 0.0 | 0.02 | 8.8 | 2459 | 1-427 | 72.3 | 115.0 | 1.63 | 73.5 |
Lensia meteori | 166 | 3-57 | 4.9 | 13.5 | 0.98 | 23.5 | 1486 | 4-419 | 43.7 | 95.6 | 0.98 | 58.8 |
Sphaeronectes koellikeri | 47 | 6-25 | 1.4 | 4.6 | 0.28 | 11.8 | 786 | 5-289 | 23.1 | 68.8 | 0.52 | 23.5 |
Eudoxoides spiralis | 29 | 8-21 | 0.9 | 3.8 | 0.17 | 5.9 | 267 | 9-107 | 7.8 | 21.8 | 0.18 | 17.6 |
Chelophyes appendiculata | 6 | 1-6 | 0.2 | 1.0 | 0.04 | 2.9 | 13 | 2-13 | 0.4 | 2.3 | 0.01 | 2.9 |
Abylopsis tetragona | 18 | 1-3 | 0.5 | 1.1 | 0.11 | 17.7 | 0 | 0 | 0 | 0 | 0 | 0 |
Sphaeronectes fragilis | 0 | 0 | 0 | 0 | 0 | 0 | 627 | 4-228 | 18.5 | 50.6 | 0.41 | 29.4 |
Lensia subtilis | 0 | 0 | 0 | 0 | 0 | 0 | 391 | 13-186 | 11.5 | 41.3 | 0.26 | 11.7 |
Muggiaea bargmannae | 0 | 0 | 0 | 0 | 0 | 0 | 21 | 2-21 | 0.6 | 3.6 | 0.01 | 2.9 |
Praya dubia | 0 | 0 | 0 | 0 | 0 | 0 | 9 | 1-1 | 0,3 | 1.2 | 0.01 | 5.9 |
Total | 170175 | 151288 |
M. bargmannae is a bipolar species mainly collected in boreal waters (Totton 1965Totton A. 1965. A synopsis of the Siphonophora. British Museum (Natural History), London, 230 pp., Pugh 1999Pugh P. 1999. Siphonophorae. In: Boltovskoy D. (ed). South Atlantic zooplankton. Backhuys Publishers, Leiden, pp. 467-511.). This finding represents the first record for Chilean waters, thus increasing the biodiversity of siphonophores known from the southeastern Pacific. The number of siphonophore species reported in the southern fjords ecosystem has therefore increased from the 14 previously recorded species (Palma and Silva 2004Palma S., Silva N. 2004. Distribution of siphonophores, chaetognaths and euphausiids and oceanographic conditions in the fjords and channels of southern Chile. Deep-Sea Res. II 51(6-9): 513-535., Palma et al. 2007aPalma S., Apablaza P., Soto D. 2007a. Diversity and aggregation areas of planktonic cnidarians to the southern channels of Chile (Boca del Guafo to Pulluche Channel). Invest. Mar., Valparaíso 35(2): 71-82., 2011Palma S., Silva N., Retamal M.C., et al. 2011. Seasonal and vertical distributional patterns of siphonophores and medusae in the Chiloé inland sea, Chile. Cont. Shelf Res. 31(3-4): 260-271., Villenas et al. 2009Villenas F., Soto D., Palma S. 2009. Cambios interanuales en la biomasa y biodiversidad de zooplancton gelatinoso en aguas interiores de Chiloé, sur de Chile (Primaveras 2004 y 2005). Rev. Biol. Mar. Oceanogr. 44(2): 309-324.) to 17 species. However, the southern Chilean Patagonian fjords exhibit a lower diversity of siphonophores than the Humboldt Current System, where 54 species have been recorded (Palma 1977Palma S. 1977. Contribución al estudio de los sifonóforos encontrados frente a la costa de Valparaíso. Aspectos ecológicos. Memorias Segundo Simposio Latinoamericano de Oceanografía Biológica. Cumaná, Venezuela, Vol. 2: 119 133., 1994Palma S. 1994. Composición y distribución del macroplancton gelatinoso recolectado frente a la costa central de Chile. Rev. Biol. Mar., Valparaíso 29(1): 23 45., Palma and Rosales 1995Palma S., Rosales S. 1995. Composición, abundancia y distribución estacional del macroplancton de la bahía de Valparaíso. Invest. Mar., Valparaíso 23: 49-66., Pagès et al. 2001Pagès F., González H., Ramón M., et al. 2001. Gelatinous zooplankton assemblages associated with water masses in the Humboldt Current System, and potential predatory impact by Bassia bassensis (Siphonophora: Calycophorae). Mar. Ecol. Prog. Ser. 210: 13-24., Palma and Apablaza 2004Palma S., Apablaza P. 2004. Abundancia estacional y distribución vertical del zooplancton gelatinoso carnívoro en un área de surgencia en el norte del Sistema de la Corriente de Humboldt. Invest. Mar., Valparaíso 32(1): 49-70., Apablaza and Palma 2006Apablaza P., Palma, S. 2006. Efecto de la zona de mínimo oxígeno sobre la migración vertical de zooplancton gelatinoso en la bahía de Mejillones. Invest. Mar., Valparaíso 34(2): 81-95., Pavez et al. 2010Pavez M.A., Landaeta M.E., Castro L.R., et al. 2010. Distribution of carnivorous gelatinous zooplankton in the upwelling zone of central Chile (austral spring 2001). J. Plankton Res. 32(7): 1051-1065.), and than the global ocean, where almost 190 species have been recorded (Pugh 1999Pugh P. 1999. Siphonophorae. In: Boltovskoy D. (ed). South Atlantic zooplankton. Backhuys Publishers, Leiden, pp. 467-511, Boltovskoy et al. 2005Boltovskoy D., Correa N., Boltovskoy A. 2005. Diversity and endemism in cold waters of the South Atlantic: contrasting patterns in the plankton and the benthos. In: Arntz W.E., Lovrich G.A., Thatje S. (eds). The Magellan Antarctic connection: links and frontiers at high southern latitudes. Sci. Mar. 69(Suppl. 2): 17-26.). In any event, the low diversity detected in Chilean fjords and channels has also been reported for Norwegian fjords (Båmstedt 1988Båmstedt U. 1988. The macrozooplankton community of Kosterfjorden, western Sweden. Abundance, biomass and preliminary data on the cycles of dominant species. Sarsia 73: 107-124., Hosia and Båmstedt 2007Hosia A., Båmstedt U. 2007. Seasonal changes in the gelatinous zooplankton community and hydromedusa abundances in Korsfjord and Fanafjord, western Norway. Mar. Ecol. Prog. Ser. 351: 113-127.).
The high abundance of Muggiaea atlantica was particularly noteworthy. It is a eurythermic and euryhaline species, widely distributed in both the adjacent oceanic SAAW and the interior MSAAW and EW throughout the study area. Both polygastric and eudoxid stages abundances were highest in the ET, particularly in the Wide Channel and Eyre Fjord (Table 2). We hypothesize that the high tolerance of M. atlantica to the temperature and salinity gradients favours its reproductive success in interior waters, where it is the dominant siphonophore species in the fjords of southern Chile (Pagès and Orejas 1999Pagès F., Orejas C. 1999. Medusae, siphonophores and ctenophores of the Magellan region. In: Arntz W.E., Rios C. (eds), Magellan-Antarctic: ecosystems that drifted apart. Sci. Mar. 63(Suppl. 1): 51-57., Palma et al. 1999Palma S., Ulloa R., Linacre L. 1999. Sifonóforos, quetognatos y eufáusidos de los canales australes entre el golfo de Penas y estrecho de Magallanes. Cienc. Tecnol. Mar 22: 111-142., 2007aPalma S., Apablaza P., Soto D. 2007a. Diversity and aggregation areas of planktonic cnidarians to the southern channels of Chile (Boca del Guafo to Pulluche Channel). Invest. Mar., Valparaíso 35(2): 71-82., 2011Palma S., Silva N., Retamal M.C., et al. 2011. Seasonal and vertical distributional patterns of siphonophores and medusae in the Chiloé inland sea, Chile. Cont. Shelf Res. 31(3-4): 260-271., Palma and Aravena 2001Palma, S., Aravena G. 2001. Distribución de sifonóforos, quetognatos y eufáusidos en la región magallánica. Cienc. Tecnol. Mar, 24: 47-59., Villenas et al. 2009Villenas F., Soto D., Palma S. 2009. Cambios interanuales en la biomasa y biodiversidad de zooplancton gelatinoso en aguas interiores de Chiloé, sur de Chile (Primaveras 2004 y 2005). Rev. Biol. Mar. Oceanogr. 44(2): 309-324.). M. atlantica is common in neritic zones and represents the predominant siphonophore along the coast of Chile, where it forms dense coastal aggregations in spring and summer (Palma 1977Palma S. 1977. Contribución al estudio de los sifonóforos encontrados frente a la costa de Valparaíso. Aspectos ecológicos. Memorias Segundo Simposio Latinoamericano de Oceanografía Biológica. Cumaná, Venezuela, Vol. 2: 119 133., 1994Palma S. 1994. Composición y distribución del macroplancton gelatinoso recolectado frente a la costa central de Chile. Rev. Biol. Mar., Valparaíso 29(1): 23 45., Palma and Rosales 1995Palma S., Rosales S. 1995. Composición, abundancia y distribución estacional del macroplancton de la bahía de Valparaíso. Invest. Mar., Valparaíso 23: 49-66., Ulloa et al. 2000Ulloa R., Palma S., Linacre L., et al. 2000. Seasonal changes in the bathymetric distribution of siphonophores, chaetognaths and euphausiids associated to water masses off of Valparaiso, Chile (Southeast Pacific). In: Farber J. (ed). Oceanography of the Eastern Pacific. Centro de Investigación Científica y de Educación Superior de Ensenada (CICESE), Ensenada, 1: 72-83., Palma and Apablaza 2004Palma S., Apablaza P. 2004. Abundancia estacional y distribución vertical del zooplancton gelatinoso carnívoro en un área de surgencia en el norte del Sistema de la Corriente de Humboldt. Invest. Mar., Valparaíso 32(1): 49-70., Apablaza and Palma 2006Apablaza P., Palma, S. 2006. Efecto de la zona de mínimo oxígeno sobre la migración vertical de zooplancton gelatinoso en la bahía de Mejillones. Invest. Mar., Valparaíso 34(2): 81-95.). M. atlantica occurs widely in coastal and shelf waters from warm and temperate regions in the Pacific, Atlantic and Indian Oceans, and the Mediterranean Sea (Alvariño 1971Alvariño A. 1971. Siphonophores of the Pacific with a review of the world distribution. Bull. Scripps Inst. Oceanogr. 16: 1 432.). It is also very frequent in areas of high productivity such as upwelling ecosystems like the Benguela Current (Pagès and Gili 1992Pagès F., Gili J.-M. 1992. Siphonophores (Cnidaria, Hydrozoa) of the Benguela Current (southeastern Atlantic). In: Pages F., Gili J.-M., Bouillon J. (eds), Planktonic cnidarians of the Benguela Current. Sci. Mar. 56(Suppl. 1): 65-112.) and the Humboldt Current (Palma and Rosales 1995Palma S., Rosales S. 1995. Composición, abundancia y distribución estacional del macroplancton de la bahía de Valparaíso. Invest. Mar., Valparaíso 23: 49-66., Palma and Silva 2004Palma S., Silva N. 2004. Distribution of siphonophores, chaetognaths and euphausiids and oceanographic conditions in the fjords and channels of southern Chile. Deep-Sea Res. II 51(6-9): 513-535., Pavez et al. 2010Pavez M.A., Landaeta M.E., Castro L.R., et al. 2010. Distribution of carnivorous gelatinous zooplankton in the upwelling zone of central Chile (austral spring 2001). J. Plankton Res. 32(7): 1051-1065.).
Lensia conoidea and Dimophyes arctica occurred at much lower densities than M. atlantica, and their highest densities were found in the OT (Table 2), where SAAW waters were dominant. Only some polygastric stages of L. conoidea were collected in the Gulf of Penas and eudoxids were not found there at all (Fig. 3E). On the other hand, a larger abundance of the polygastric stages of D. arctica occurred, although eudoxids were extremely scarce. The spatial distribution of eudoxids for both species was shifted towards MSAAW and EW with lower temperatures (<6°C) and salinities (<30) (Silva and Calvete 2002Silva N., Calvete C. 2002. Características oceanográficas físicas y químicas de canales australes chilenos entre el golfo de Penas y el estrecho de Magallanes (Crucero Cimar Fiordo 2). Cienc. Tecnol. Mar 25(1): 23-88.), a situation even clearer in the Eyre Fjord, where the highest densities of eudoxids were found (Fig. 3F).
L. conoidea is common and abundant in the great oceans, particularly in the California and Benguela currents, and in the Mediterranean Sea (Alvariño 1971Alvariño A. 1971. Siphonophores of the Pacific with a review of the world distribution. Bull. Scripps Inst. Oceanogr. 16: 1 432.), spanning a broad depth distribution from the surface down to the bathypelagic zone (Pagès and Gili 1992Pagès F., Gili J.-M. 1992. Siphonophores (Cnidaria, Hydrozoa) of the Benguela Current (southeastern Atlantic). In: Pages F., Gili J.-M., Bouillon J. (eds), Planktonic cnidarians of the Benguela Current. Sci. Mar. 56(Suppl. 1): 65-112.). D. arctica is a cosmopolitan species with a bipolar distribution, inhabiting the great oceans as well as the Antarctic, Arctic, and Mediterranean Sea (Alvariño 1971Alvariño A. 1971. Siphonophores of the Pacific with a review of the world distribution. Bull. Scripps Inst. Oceanogr. 16: 1 432.). In boreal and austral latitudes it is more abundant in epipelagic waters than in tropical and temperate waters, where it is more common in meso- and bathypelagic waters (Pagès and Gili 1992Pagès F., Gili J.-M. 1992. Siphonophores (Cnidaria, Hydrozoa) of the Benguela Current (southeastern Atlantic). In: Pages F., Gili J.-M., Bouillon J. (eds), Planktonic cnidarians of the Benguela Current. Sci. Mar. 56(Suppl. 1): 65-112.).
It is interesting to note that the dominant siphonophores (M. atlantica, Lensia conoidea and Dimophyes arctica) found in these Patagonian fjords have also been found in fjords in the northern hemisphere, such as the Norwegian fjords Fanasfjord, Korsfjord and Hardangerfjord (Bakke and Sands 1977Bakke J.L.W., Sands N.J. 1977. Hydrographical studies in Korsfjorden, western Norway, in the period 1972-1977. Sarsia 63: 7-16., Pagès et al. 1996Pagès F., Gonzalez H.E., Gonzalez S.R. 1996. Diet of the gelatinous zooplankton in Hardangerfjord (Norway) and potential predatory impact by Aglantha digitale (Trachymedusae). Mar. Ecol. Prog. Ser. 139: 69-77.). Though M. atlantica has been found sporadically, it appeared in large numbers during the warmer than average year of 2002 in Fanafjord (Fossa et al. 2003Fossa J.H., Flood P.R., Olsen A.B., et al. 2003. Sma of usynlige, men plagsomme maneter av arten Muggiaea atlantica. Havets Miljo, pp. 99-103.), which had received high salinity waters from the Atlantic Ocean (Hosia and Bamsted 2007Hosia A., Båmstedt U. 2007. Seasonal changes in the gelatinous zooplankton community and hydromedusa abundances in Korsfjord and Fanafjord, western Norway. Mar. Ecol. Prog. Ser. 351: 113-127., 2008Hosia A., Båmstedt U. 2008. Seasonal abundance and vertical distribution of siphonophores in western Norwegian fjords. J. Plankton Res. 30(8): 951-962.). In the Korsfjord Fjord, an abundance of polygastric stages of both Lensia conoidea and Dimophyes arctica has been found throughout the year, with the maximum abundance being reached in spring (late May to early June) (Hosia and Bamsted 2008Hosia A., Båmstedt U. 2008. Seasonal abundance and vertical distribution of siphonophores in western Norwegian fjords. J. Plankton Res. 30(8): 951-962.).
Vertical distribution
The presence of a strong pycnocline at around 50 m depth, separating the EW from the MSAAW, had an important effect on the vertical distribution of M. atlantica, concentrating the polygastric and eudoxid populations in the upper 50 m, where the more stable, oxygenated, low-salinity layer of the water column occurred (Fig. 4A-B). L. conoidea and D. arctica, on the other hand, for which the polygastric and eudoxid populations also coexisted, were distributed in deeper waters (below 50 m) where quasi-homogeneous conditions for temperature, salinity and dissolved oxygen occurred (Fig. 4C and F). The results of a Kruskal-Wallis test indicated that these species had a significantly different depth distribution, being deeper (>50 m) in both OTs and ETs (p<0.05; Table 3). The difference in the use of the water column suggests that M. atlantica has different ecological requirements to L. conoidea and D. arctica. The diel vertical distribution of this species could not be studied, because day and nighttime samplings were never performed at the same stations.
The vertical distribution pattern of some dominant siphonophore species (Lensia conoidea, Dimophyes arctica and Pyrostephos vanhoeffeni) was such that their presence and higher abundances were associated with the deeper (50-200 m) stratum: CCA plots showed a clear separation between the shallower (0-25 m and 25-50 m) and deeper strata. The CCA indicated that a relatively large proportion of among-site variances in the abundance of these three species among the sampling stations were positively correlated with depth strata and salinity, and negatively with dissolved oxygen and temperature. This is an expected association, because as depth increases so does the salinity, and the temperature and dissolved oxygen concentration decrease (Fig. 2). The oceanographic conditions in the deeper stratum where three species were most abundant are characteristic of the MSAAW water masses. The CCA also demonstrated that M. atlantica, the most dominant species, was mainly associated with high dissolved oxygen and low salinity in surface layers. However, the low correlation also indicates that M. atlantica can be distributed throughout the water column (Palma et al. 2011Palma S., Silva N., Retamal M.C., et al. 2011. Seasonal and vertical distributional patterns of siphonophores and medusae in the Chiloé inland sea, Chile. Cont. Shelf Res. 31(3-4): 260-271.). The canonical analysis also indicated that L. subtilis and M. bargmannae abundances were correlated with the deeper stratum with high salinity and low dissolved oxygen concentrations. E. spiralis and C. appendiculata were found in shallow and warm waters, probably associated with the influence of oceanic waters. Rare species such as L. meteori and S. koellikeri were correlated with the deeper stratum with higher salinity and temperatures.
Comparison between the results obtained in spring 1996 and 2008
Species richness in spring 1996 was 75% of that found in spring 2008 (see Palma et al. 1999Palma S., Ulloa R., Linacre L. 1999. Sifonóforos, quetognatos y eufáusidos de los canales australes entre el golfo de Penas y estrecho de Magallanes. Cienc. Tecnol. Mar 22: 111-142.), with Muggiaea bargmannae, Lensia subtilis, Praya dubia and Sphaeronectes fragilis being found for the first time in this area (9 and 12 species in 1996 and 2008, respectively). The average abundance per station for siphonophores was almost one order of magnitude higher in 2008 (Table 4). This trend was observed for most species, except for L. conoidea, whose average abundance per station was only 2-3 times higher in 2008. The most significant increases were observed in M. atlantica and D. arctica (Table 4). Moreover, D. arctica, which was a very rare species comprising less than 1% of the total number of siphonophores in spring 1996, comprised 7.7% of the total number of siphonophores in spring 2008, with a wide geographic distribution of both polygastric and eudoxid stages in the same area (Fig. 3C-F).
The results obtained in the spring of 1996 indicated that the community of siphonophores was mainly dominated by M. atlantica (67.51%) and L. conoidea (30.02%), while D. arctica (0.99%) was almost absent. However, in spring 2008, a high dominance of M. atlantica (80.37%) compared with L. conoidea (8.53%) and D. arctica (7.77%) was evident (Table 4). The large increase in the relative abundance of M. atlantica observed in different areas of the southern Chilean fjords ecosystem (Palma et al. 2007aPalma S., Apablaza P., Soto D. 2007a. Diversity and aggregation areas of planktonic cnidarians to the southern channels of Chile (Boca del Guafo to Pulluche Channel). Invest. Mar., Valparaíso 35(2): 71-82., 2011Palma S., Silva N., Retamal M.C., et al. 2011. Seasonal and vertical distributional patterns of siphonophores and medusae in the Chiloé inland sea, Chile. Cont. Shelf Res. 31(3-4): 260-271., Villenas et al. 2009Villenas F., Soto D., Palma S. 2009. Cambios interanuales en la biomasa y biodiversidad de zooplancton gelatinoso en aguas interiores de Chiloé, sur de Chile (Primaveras 2004 y 2005). Rev. Biol. Mar. Oceanogr. 44(2): 309-324.) confirms its high adaptability to areas of low water temperature and salinity, where the highest densities of its eudoxid phase were concentrated (Fig. 3D). In fact, in spring 1996 the highest densities were found in ocean channels (OT, Fallos and Ladrillero Channels), while in spring 2008 a peak of abundance was found in EWs with lower temperature and salinity (ET, Messier Channel and Eyre Fjord). This species has become the dominant species in the Chilean fjords ecosystem, where it has achieved considerable reproductive success.
This increase in abundance cannot be explained on the basis of inter-annual differences in the abiotic variables analysed, as temperature, salinity and dissolved oxygen concentration values recorded in spring 2008 were similar to those recorded in spring 1996 by Silva and Calvete (2002)Silva N., Calvete C. 2002. Características oceanográficas físicas y químicas de canales australes chilenos entre el golfo de Penas y el estrecho de Magallanes (Crucero Cimar Fiordo 2). Cienc. Tecnol. Mar 25(1): 23-88.. The increase may be the result of the different sampling gear used. In November 1996, integrated oblique tows (0-200 m) were carried out using bongo nets (0.28-m2 mouth opening and 350-mm mesh size),while in November 2008 the oblique tows were performed at three depth levels (0-200 m) using Tucker trawl nets with a much larger mouth opening (1 m2, 350-mm mesh size). The capture results were standardised according to the volumes filtered by each net (ind 1000 m–3) but, according to Pepin and Shears (1997)Pepin P., Shears T.H. 1997. Variability and capture efficiency of bongo and Tucker trawl samplers in the collection of ichthyoplankton and other macrozooplankton. Can. J. Fish. Aquat. Sci. 54(4): 765-773., the large sample volume of the Tucker trawl relative to the bongo nets can result in significantly higher estimates of species diversity for fish eggs and larvae but not for crustaceans or medusae. Therefore, the differences may actually be due to a higher abundance of gelatinous organisms in interior waters, especially for M. atlantica, a situation also observed in other areas of the interior water region in southern Chile (Palma et al. 2007aPalma S., Apablaza P., Soto D. 2007a. Diversity and aggregation areas of planktonic cnidarians to the southern channels of Chile (Boca del Guafo to Pulluche Channel). Invest. Mar., Valparaíso 35(2): 71-82., 2011Palma S., Silva N., Retamal M.C., et al. 2011. Seasonal and vertical distributional patterns of siphonophores and medusae in the Chiloé inland sea, Chile. Cont. Shelf Res. 31(3-4): 260-271., Villenas et al. 2009Villenas F., Soto D., Palma S. 2009. Cambios interanuales en la biomasa y biodiversidad de zooplancton gelatinoso en aguas interiores de Chiloé, sur de Chile (Primaveras 2004 y 2005). Rev. Biol. Mar. Oceanogr. 44(2): 309-324.).
FINAL REMARKSTop
A total of 12 species were recorded, of which Muggiaea bargmannae, Lensia subtilis, Praya dubia and Sphaeronectes fragilis were identified for the first time in the central Patagonian fjords. M. bargmannae represents a new record for the southeastern Pacific. The most common and abundant species in Chilean Central Patagonian fjords were Muggiaea atlantica (78.6% of total), Lensia conoidea (8.7%) and Dimophyes arctica (8.5%). M. atlantica, the dominant species, was present at high relative abundances in EW (ET, 90.7%), while L. conoidea and D. arctica were principally collected in oceanic waters (OT, 32.5% and 16.0%, respectively) (Table 2). The eudoxids of these species followed the same horizontal distribution patterns as their polygastric stages. These distributions allowed us to hypothesize that salinity and dissolved oxygen vertical gradients play an important role in determining the depth distribution patterns of some of the siphonophore species. This is in agreement with results reported for many species of gelatinous zooplankton from the northern hemisphere, which are distributed in different water column strata of varying thickness, also reflecting the physical/chemical structure of the water column (i.e. Graham et al. 2001Graham W.M., Pagès F., Hammer W.M. 2001. A physical context for gelatinous zooplankton aggregations: a review. Hydrobiologia 451: 199-212., Raskoff et al. 2005Raskoff K.A., Purcell J.E., Hopcroft R.R. 2005. Gelatinous zooplankton of the Arctic Ocean: in situ observations under the ice. Polar Biol. 28: 207-217.).
ACKNOWLEDGEMENTSTop
This investigation was supported by the Comité Oceanográfico Nacional (CONA), Chile, through the projects CONA-C14F 08-08 granted to Sergio Palma and CONA-CF14 08-13 granted to Nelson Silva. The authors thank Dr. Leonardo Castro, who facilitated the sampling of zooplankton. We also thank María Inés Muñoz, who was in charge of all zooplankton sampling at sea, as well as Paola Reinoso, who performed the dissolved oxygen analysis onboard the R/V Vidal Gormaz. The valuable comments by two anonymous reviewers are also appreciated.
REFERENCESTop
Alvariño A. 1971. Siphonophores of the Pacific with a review of the world distribution. Bull. Scripps Inst. Oceanogr. 16: 1 432.
Apablaza P., Palma, S. 2006. Efecto de la zona de mínimo oxígeno sobre la migración vertical de zooplancton gelatinoso en la bahía de Mejillones. Invest. Mar., Valparaíso 34(2): 81-95.
Aracena C., Lange C.B., Iriarte J.L., et al. 2011. Latitudinal patterns of export production recorded in surface sediments of the Chilean Patagonian fjords (41-55°S) as a response to water column productivity. Cont. Shelf Res. 31(3-4): 340-355.
http://dx.doi.org/10.1016/j.csr.2010.08.008
Bakke J.L.W., Sands N.J. 1977. Hydrographical studies in Korsfjorden, western Norway, in the period 1972-1977. Sarsia 63: 7-16.
Båmstedt U. 1988. The macrozooplankton community of Kosterfjorden, western Sweden. Abundance, biomass and preliminary data on the cycles of dominant species. Sarsia 73: 107-124.
Boltovskoy D., Correa N., Boltovskoy A. 2005. Diversity and endemism in cold waters of the South Atlantic: contrasting patterns in the plankton and the benthos. In: Arntz W.E., Lovrich G.A., Thatje S. (eds). The Magellan Antarctic connection: links and frontiers at high southern latitudes. Sci. Mar. 69(Suppl. 2): 17-26.
Bravo V., Palma S., Silva S. 2011. Seasonal and vertical distributional patterns of medusae in Aysén region, southern Chile. Lat. Am. J. Aquat. Res. 39(2): 359-377.
http://dx.doi.org/10.3856/vol39-issue2-fulltext-17
Brodeur R., Sugisaki H., Hunt, G. 2002. Increases in jellyfish biomass in the Bering Sea: implications for the ecosystem. Mar. Ecol. Prog. Ser. 233: 89-103.
http://dx.doi.org/10.3354/meps233089
Buschmann A.H., Riquelme V.A., Hernández-González M.C., et al. 2006. A review of the impacts of salmonid farming on marine coastal ecosystems in the southeastern Pacific. ICES J. Mar. Sci. 63: 1338-1345.
http://dx.doi.org/10.1016/j.icesjms.2006.04.021
Bustos C.A., Landaeta M.F., Balbontín F. 2011. Ichthyoplankton spatial distribution and its relation with water column stratification in fjords of southern Chile (46°48’-55º09’S) in austral spring 1996 and 2008. Cont. Shelf Res. 31(3-4): 393-303.
http://dx.doi.org/10.1016/j.csr.2010.03.013
Calvete C., Sobarzo M. 2011. Quantification of the surface brackish water layer and frontal zones in southern Chilean fjords between Boca del Guafo (431°30’S) and Estero Elefantes (46°30’S) Cont. Shelf Res. 31(3-4): 162-171.
http://dx.doi.org/10.1016/j.csr.2010.09.013
Fossa J.H., Flood P.R., Olsen A.B., et al. 2003. Sma of usynlige, men plagsomme maneter av arten Muggiaea atlantica. Havets Miljo, pp. 99-103.
Graham W.M., Pagès F., Hammer W.M. 2001. A physical context for gelatinous zooplankton aggregations: a review. Hydrobiologia 451: 199-212.
http://dx.doi.org/10.1023/A:1011876004427
Hosia A., Båmstedt U. 2007. Seasonal changes in the gelatinous zooplankton community and hydromedusa abundances in Korsfjord and Fanafjord, western Norway. Mar. Ecol. Prog. Ser. 351: 113-127.
http://dx.doi.org/10.3354/meps07148
Hosia A., Båmstedt U. 2008. Seasonal abundance and vertical distribution of siphonophores in western Norwegian fjords. J. Plankton Res. 30(8): 951-962.
http://dx.doi.org/10.1093/plankt/fbn045
Mackie G.O., Pugh P.R., Purcell J.E. 1987. Siphonophore biology. Adv. Mar. Sci. 24: 97-262.
Mills C. 2001. Jellyfish blooms: are populations increasing globally in response to changing ocean conditions? Hydrobiology 451: 55-68.
http://dx.doi.org/10.1023/A:1011888006302
Mujica A., Medina M. 2000. Distribución y abundancia de larvas de crustáceos decápodos en el zooplancton de los canales australes. Proyecto Cimar-Fiordo 2. Cienc. Tecnol. Mar 23: 49-68.
Pagès F., Gili J.-M. 1992. Siphonophores (Cnidaria, Hydrozoa) of the Benguela Current (southeastern Atlantic). In: Pages F., Gili J.-M., Bouillon J. (eds), Planktonic cnidarians of the Benguela Current. Sci. Mar. 56(Suppl. 1): 65-112.
Pagès F., Orejas C. 1999. Medusae, siphonophores and ctenophores of the Magellan region. In: Arntz W.E., Rios C. (eds), Magellan-Antarctic: ecosystems that drifted apart. Sci. Mar. 63(Suppl. 1): 51-57.
Pagès F., Pugh P.R., Gili J.M. 1994. Macro- and megaplanktonic cnidarians collected in the eastern part of the Weddell gyre during summer 1979. J. Mar. Biol. Assoc. U.K. 74: 873-894.
Pagès F., Gonzalez H.E., Gonzalez S.R. 1996. Diet of the gelatinous zooplankton in Hardangerfjord (Norway) and potential predatory impact by Aglantha digitale (Trachymedusae). Mar. Ecol. Prog. Ser. 139: 69-77.
http://dx.doi.org/10.3354/meps139069
Pagès F., González H., Ramón M., et al. 2001. Gelatinous zooplankton assemblages associated with water masses in the Humboldt Current System, and potential predatory impact by Bassia bassensis (Siphonophora: Calycophorae). Mar. Ecol. Prog. Ser. 210: 13-24.
http://dx.doi.org/10.3354/meps210013
Palma S. 1977. Contribución al estudio de los sifonóforos encontrados frente a la costa de Valparaíso. Aspectos ecológicos. Memorias Segundo Simposio Latinoamericano de Oceanografía Biológica. Cumaná, Venezuela, Vol. 2: 119 133.
Palma S. 1994. Composición y distribución del macroplancton gelatinoso recolectado frente a la costa central de Chile. Rev. Biol. Mar., Valparaíso 29(1): 23 45.
Palma S., Apablaza P. 2004. Abundancia estacional y distribución vertical del zooplancton gelatinoso carnívoro en un área de surgencia en el norte del Sistema de la Corriente de Humboldt. Invest. Mar., Valparaíso 32(1): 49-70.
Palma, S., Aravena G. 2001. Distribución de sifonóforos, quetognatos y eufáusidos en la región magallánica. Cienc. Tecnol. Mar, 24: 47-59.
Palma S., Rosales S. 1995. Composición, abundancia y distribución estacional del macroplancton de la bahía de Valparaíso. Invest. Mar., Valparaíso 23: 49-66.
Palma S., Silva N. 2004. Distribution of siphonophores, chaetognaths and euphausiids and oceanographic conditions in the fjords and channels of southern Chile. Deep-Sea Res. II 51(6-9): 513-535.
http://dx.doi.org/10.1016/j.dsr2.2004.05.001
Palma S., Ulloa R., Linacre L. 1999. Sifonóforos, quetognatos y eufáusidos de los canales australes entre el golfo de Penas y estrecho de Magallanes. Cienc. Tecnol. Mar 22: 111-142.
Palma S., Apablaza P., Soto D. 2007a. Diversity and aggregation areas of planktonic cnidarians to the southern channels of Chile (Boca del Guafo to Pulluche Channel). Invest. Mar., Valparaíso 35(2): 71-82.
Palma S., Apablaza P., Silva N. 2007b. Hydromedusae (Cnidaria) of the Chilean southern channels (from Corcovado Gulf to Pulluche-Chacabuco Channels). Sci. Mar. 71(1): 65-74.
http://dx.doi.org/10.3989/scimar.2007.71n165
Palma S., Silva N., Retamal M.C., et al. 2011. Seasonal and vertical distributional patterns of siphonophores and medusae in the Chiloé inland sea, Chile. Cont. Shelf Res. 31(3-4): 260-271.
http://dx.doi.org/10.1016/j.csr.2010.04.007
Pavez M.A., Landaeta M.E., Castro L.R., et al. 2010. Distribution of carnivorous gelatinous zooplankton in the upwelling zone of central Chile (austral spring 2001). J. Plankton Res. 32(7): 1051-1065.
http://dx.doi.org/10.1093/plankt/fbq029
Pepin P., Shears T.H. 1997. Variability and capture efficiency of bongo and Tucker trawl samplers in the collection of ichthyoplankton and other macrozooplankton. Can. J. Fish. Aquat. Sci. 54(4): 765-773.
http://dx.doi.org/10.1139/f96-347
Pugh P. 1999. Siphonophorae. In: Boltovskoy D. (ed). South Atlantic zooplankton. Backhuys Publishers, Leiden, pp. 467-511.
Pugh P.R., Pagès, F., Boorman, B. 1997. Vertical distribution and abundance of pelagic cnidarians in the Eastern Weddell Sea, Antarctica. J. Mar. Biol. Assoc. U.K. 77: 341-360.
http://dx.doi.org/10.1017/S002531540007171X
Purcell J.E., Uye S., Lo W.T. 2007. Anthropogenic causes of jellyfish blooms and their direct consequences for humans: a review. Mar. Ecol. Prog. Ser. 350: 153-174.
http://dx.doi.org/10.3354/meps07093
Raskoff K.A., Purcell J.E., Hopcroft R.R. 2005. Gelatinous zooplankton of the Arctic Ocean: in situ observations under the ice. Polar Biol. 28: 207-217.
http://dx.doi.org/10.1007/s00300-004-0677-2
Rosenberg P., Palma S. 2003. Cladóceros de los fiordos y canales patagónicos localizados entre el golfo de Penas y el estrecho de Magallanes. Invest. Mar., Valparaíso 30(1): 15-24.
Sievers H., Silva N. 2008. Water masses and circulation in austral Chilean channels and fjords. In: Silva N., Palma S. (eds). Progress in the oceanographic knowledge of Chilean interior waters, from Puerto Montt to Cape Horn. Comité Oceanográfico Nacional-Pontificia Universidad Católica de Valparaíso, Valparaíso, pp. 53-58.
Sievers H., Calvete C., Silva N. 2002. Distribución de características físicas masas de agua y circulación general para algunos canales australes entre el golfo de Penas y el estrecho de Magallanes (Crucero Cimar Fiordo 2). Cienc. Tecnol. Mar 25(2): 17-43.
Silva N. 2008. Dissolved oxygen, pH, and nutrients in the austral Chilean channels and fjords. In: Silva N., Palma S. (eds). Progress in the oceanographic knowledge of Chilean interior waters, from Puerto Montt to Cape Horn. Comité Oceanográfico Nacional-Pontificia Universidad Católica de Valparaíso, Valparaíso, pp. 37-43.
Silva N., Calvete C. 2002. Características oceanográficas físicas y químicas de canales australes chilenos entre el golfo de Penas y el estrecho de Magallanes (Crucero Cimar Fiordo 2). Cienc. Tecnol. Mar 25(1): 23-88.
Silva N., Palma S. (eds). 2008. Progress in the oceanographic knowledge of Chilean interior waters, from Puerto Montt to Cape Horn. Comité Oceanográfico Nacional-Pontificia Universidad Católica de Valparaíso, Valparaíso, 161 pp.
Ter Braak C.J.F., Verdonschot P.F.M. 1995. Canonical correspondence-analysis and related multivariate methods in aquatic ecology. Aquat. Sci. 57: 255-289.
http://dx.doi.org/10.1007/BF00877430
Thibault-Botha D., Lutjeharms J.R.E., Gibbons M.J. 2004. Siphonophore assemblages along the east coast of South Africa: mesoscale distribution and temporal variations. J. Plankton Res. 26(9): 1115-1128.
http://dx.doi.org/10.1093/plankt/fbh104
Totton A. 1965. A synopsis of the Siphonophora. British Museum (Natural History), London, 230 pp.
Ulloa R., Palma S., Linacre L., et al. 2000. Seasonal changes in the bathymetric distribution of siphonophores, chaetognaths and euphausiids associated to water masses off of Valparaiso, Chile (Southeast Pacific). In: Farber J. (ed). Oceanography of the Eastern Pacific. Centro de Investigación Científica y de Educación Superior de Ensenada (CICESE), Ensenada, 1: 72-83.
Villenas F., Soto D., Palma S. 2009. Cambios interanuales en la biomasa y biodiversidad de zooplancton gelatinoso en aguas interiores de Chiloé, sur de Chile (Primaveras 2004 y 2005). Rev. Biol. Mar. Oceanogr. 44(2): 309-324.
http://dx.doi.org/10.4067/S0718-19572009000200005
