First implementation of the Large Fish Index (LFI) in the eastern Mediterranean

Dor Edelist 1, Daniel Golani 2, Ehud Spanier 1

1 Department of Maritime Civilizations and The Leon Recanati Institute for Maritime Studies, Charney School for Marine Sciences, University of Haifa, Mount Carmel, Haifa 31905, Israel. E-mail: blackreefs@gmail.com
2 Department of Evolution, Systematics and Ecology, the Hebrew University, Jerusalem 91904, Israel.

Summary: The composition and structure of fish assemblages caught by trawl in the Levantine Sea (eastern Mediterranean) were summarized using a fishing-sensitive univariate indicator. This metric, called the "Large Fish Index" (LFI), has been developed in the North Sea since 2000 and is applied and adapted here for the first time in the eastern Mediterranean. It was defined as the fish biomass fraction above a pre-determined length threshold, expressed as proportion of the total fish biomass. Trawl-caught assemblages in the warm, oligotrophic, highly invaded Levant were found to be characterized by small fishes. "Large fish" were thus delineated as 20-30 cm (total length) for this region, as opposed to 40 cm set in the North Sea. Desired minimum LFI proportions were set as 0.5 for fishes longer than 20 cm and 0.3 for fishes longer than 30 cm and the actual values found in Israeli bottom trawl surveys from 2008 to 2012 were 0.3 and 0.155 respectively. These low LFI values for the small fishes caught by trawlers attest to the ecological unsustainability and economic inefficiency of bottom trawling in Israel and provide a tool for managers with which to assess the state of the fishery and the general health of the ecosystem.

Keywords: fish; overfishing; indicator; trawl; Mediterranean; Large Fish Index.

Primera aplicación del Índice de grandes peces (IGP) al Mediterráneo oriental

Palabras clave: peces; sobrepesca; indicador; arrastre; Mediterráneo; índice de grandes peces.

Citation/Como citar este artículo: Edelist D., Golani D., Spanier E. 2014. First implementation of the Large Fish Index (LFI) in the eastern Mediterranean. Sci. Mar. 78(2): 185-192. doi: http://dx.doi.org/10.3989/scimar.scimar.03936.26A

Editor: J. Lleonart.

Received: August 15, 2013. Accepted: January 15, 2014. Published: May 26, 2014.

Contents

INTRODUCTIONTop

Addressing anthropogenically induced changes in fish communities through community-level or ecosystem-level indicators is imperative to the proper management of fisheries (). In Mediterranean bottom trawling, this need is obviated by the multi-species nature of the fishery () and the rapid biogeographic changes caused by Red Sea invasion that the local ichthyofauna is undergoing (). These render single-species indicators such as those proposed by rather less practical and less indicative of the general state of the fishery or the ecosystem. Groundfish trawl surveys for assessing changes in various aspects of the community’s composition, structure and function are widely used in the Mediterranean. They have provided us with much knowledge in recent years but their development and implementation as viable tools for fishery management still lag far behind those in northern European seas. Various metrics can be considered as tell-tale variables although few are as indicative and simple to understand as the Large Fish Index (LFI). This indicator is defined as the biomass fraction of fish above a pre-determined length threshold (i.e. “large” fish), expressed as a proportion of the total fish biomass (, ). This metric is sensitive to decreases in large fish biomass, which might be caused by overfishing, as well as to increases in small fish biomass caused by reduced predation by large fish (). Therefore, the LFI responds to both the direct and indirect effects of fishing (). It has been adopted by the Oslo-Paris convention (OSPAR) as an indicator for fish community health as part of the Ecosystem Approach to Fisheries Management () and is listed as an indicator of “good environmental status” by the EU MSFD in descriptor 4, under which member states are required to strive for good environmental status by the year 2020 (). It has been successfully used in the North Sea (where it is most developed – see ), the Celtic Sea (), the Baltic Sea and the Grand Banks (). As part of the EU MFSD the LFI was also very recently introduced in the western Mediterranean as part of the MEDITS surveys (). Here we wish to demonstrate the possible implementation of LFI in the eastern Mediterranean and discuss prerequisite adjustments mandated by the nature of trawl catches in the new and rapidly changing Levantine environment.

The Levantine Sea is a highly oligotrophic body of water, with high salinity and temperatures (e.g. ). These characteristics are perceived to be the main natural reason for the low fishery yields of the region () and may also be associated with Levantine Nanism, characterized as “the smaller size and early maturation of several species in the Levant compared to conspecifics of the same sex and age in the northern and western Mediterranean” (). Mediterranean fish markets are thus culturally accustomed to and appreciative of smaller fishes, especially those harvested by the trawl fishery. This is accentuated in the Levant, where the main bottom trawl target species (e.g. goatfishes, pandoras, bogue) rarely attain sizes larger than 25 cm total length and are typically landed at only 10-15 cm (Appendix 1. also see ). The most striking phenomenon shaping species composition in the Levant is bioinvasion of tropical fauna through the Suez Canal and (), but its impacts on size spectra is yet unstudied. While smallness of the local fishes is a known fact, it is yet unknown whether it should be attributed solely to Levantine Nanism, or whether (and to what extent) excessive or unsustainable fishing is a contributing factor.

A sustainable fishery is expected to extract large animals, which have had time to reproduce and contribute to the gene pool (). Large fishes provide ecosystem services to humans (e.g. nutrition and employment), whereas small fish extraction represents economic wastage and inefficiency as well as an ecological crippling of future stocks. It therefore stands to reason that bottom trawling, long criticized for its low selectivity and extraction of small fish, is the chosen fishing method for implementation of the LFI. This is not the first time that trawling data have been proposed as an indicator for the state of fisheries in the Mediterranean. For example, the ratios of diversity and/or trophic level of the discarded and landed fractions of the catch were suggested by as such an indicator. , however, found that multi-species indicators based on empirical population indicators (such as the LFI) were more reliable than indicators based on food web modelling. Moreover, the LFI itself can be highly indicative of trophic changes in demersal fish communities, since ontogenetic change and inter-specific variation in diet are strongly linked to predator body size (). The present study aims to demonstrate that the LFI can be implemented in the Levantine Sea, and describes how it can be tailored and adapted to the smaller size spectra of its fish.

MATERIALS AND METHODS Top

Data collection

Data were collected from 228 commercial trawl hauls using two-panel nets with sweeps (54-72 m between trawl doors) and a 40 mm PE diamond mesh at the codend. As these codends are considered highly non-selective and allow few fishes to escape (), they sample the fish community with relatively little size-bias. Surveys were conducted monthly from November 2008 to June 2012 (detailed in , and ). Hauls were typically 3-5 h long, at a mean speed of 3 kn, and the 235-410 hp vessels produced a between trawl door opening of 55-75 m. These surveys spanned the 173-km-long Israeli coast between latitudes 31º43N and 33º05N, at depths of 15-240 m (Fig. 1). Surveys were performed year-round and seasons were defined as winter (Jan-Mar), spring (Apr-Jun), summer (Jul-Sep) and autumn (Oct-Dec). A box of fish (5-12 kg) was extracted from each haul, and fishes were taxonomically identified to the species level and measured to the nearest 0.5-cm interval. Specimens were later measured and weighed in the lab in order to find the respective length-weight relationships for the 101 commonest species (see Appendix 1). In instances where not enough specimens were weighed for a reliable length-weight assessment (usually due to scarcity of rarer species, accounting for less than 0.3% of the total biomass), weights were estimated based on length-weight relationships from the nearest location to the study site (). In Levantine trawling, specimens larger than ‘a box of fish’ are uncommon. The majority of such large fish are sharks or guitarfish, which are often discarded alive due to their low price (possibly this is related to religious preference due to their non-kosher status). Chondrichthyes, although measured and weighed, were thus later excluded from our LFI calculation. It is noteworthy, however, that particularly large and heavy fishes (mainly groupers and amberjacks) also affected the LFI strongly when included. In order to keep the overall picture conveyed to fishery managers clear and simple, here we adhered to the entire catch, excluding large Chondrichthyes (i.e. only bony fishes were included), which were later omitted from this analysis, as they are often discarded.

Data analysis

The length-weight relationships of fishes were used to allocate biomass to each measured specimen in samples. The LFI was then calculated sensu as follows: First, the total biomass of fishes in all samples (B) was calculated according to Equation 1:

$B= ∑ s=1 S ∑ L=min l=max ∑ n s,l =1 N s,l C s l b s$

where S is the total number of species, l is the length class and Ns,l is the total number of individuals in each length class of each species. The cs and bs values are the constant and exponent, respectively, in the species-specific weight-at-length relationship (appearing as ‘a’ and ‘b’ respectively in Appendix 1). The LFI was then calculated in Equation 2 (below) by summing the biomass exceeding every size group (i.e. the W exceeding every l) by the total biomass (B) from Equation 1 as follows:

$LFI= ∑ s=1 S ∑ l>40cm l=max ∑ n s,l =1 N s,l w s,l B$

Note that in the numerator for this equation, the summation is carried out across l>40 cm only (i.e. the North Sea LFI value) while here we proceeded to calculate it for the entire size spectrum.

Mediterranean trawl fisheries target much smaller finfish than Atlantic European fleets () and these essentially juvenile populations are much more susceptible to inter-annual variations in recruitment and in natural mortality (they cannot be assumed to have constant natural mortality). This obviates the need for indicators that will be both sensitive to fishing mortality (larger fish sizes, here we chose 30 cm) and suited to the small size of most target species (i.e. 20 cm) and we focus on these values in our analysis.

RESULTSTop

Our 2008-2012 surveys yielded 72812 bony fish length measurements, out of which 70461 (96.7%) were below 20 cm, and 72150 (99%) were below 30 cm. In the North Sea, for example, found that 95% of the trawled fish (by number) were shorter than 30 cm, underscoring the lack of large fishes in the Levantine assemblage. The LFI20 and LFI30 values were 0.3 and 0.15 respectively (Fig. 2), meaning that 70% and 85% of the fished biomass originates in fishes smaller than 20 cm and 30 cm, respectively.

As Mediterranean trawlers rely more on juvenile fishes than Atlantic ones (), the Mediterranean catch composition is expected to depend greatly on seasonality. This is, indeed, echoed in our results, as LFI values declined during the summer recruitment season by 0.05-0.2 (Fig. 3). This analysis was unavailable when the LFI was applied to data obtained from the 20 mm mesh MEDITS surveys, in which the annual analysis was the main application allocated to the LFI within the EU MSFD for the Mediterranean ().

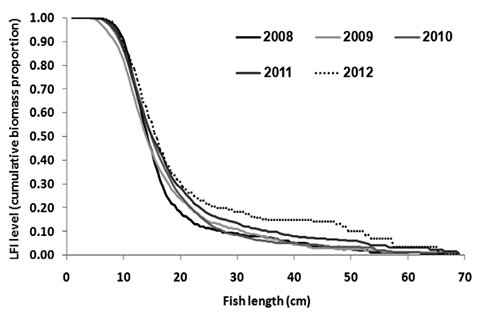

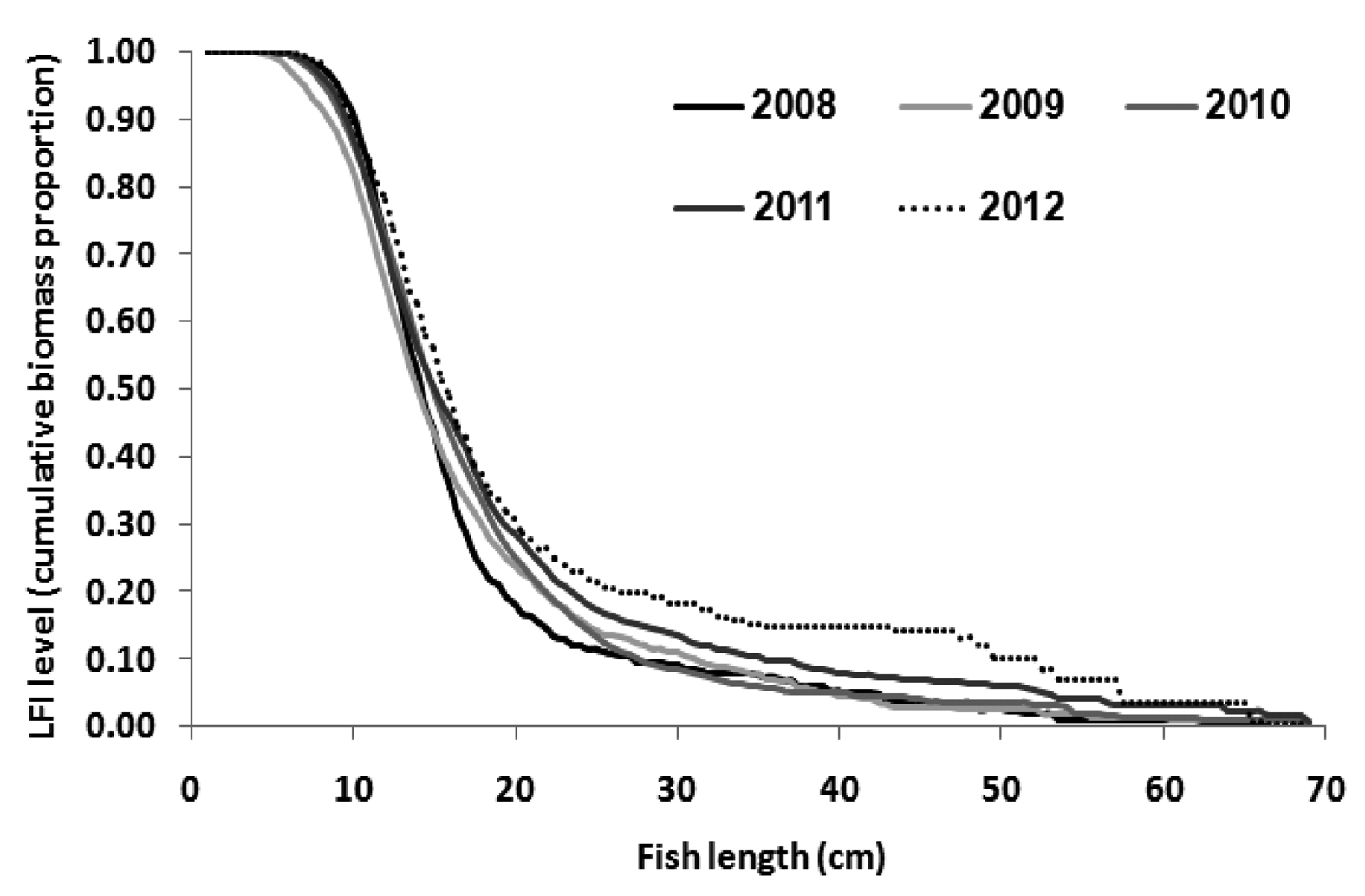

We also calculated the LFI separately for each year (Fig. 4). While LFI values seem to have improved over the study period, the low values for 2008 and high values for 2012 are a function of the seasonal variance in sampling and thus reflect seasonal rather than annual trends.

The ‘smallness’ of Levantine fish assemblages may also be rooted in invasive species. Of the 72812 fishes measured in this study, 56307 (58.4%) were Lessepsian Migrants—Nonindigenous fishes of Indo-Pacific origin. The three most common species in this study, accounting together for 30% of the specimens, were nonindigenous: 1) The tiny (typically 5-10 cm total length) pony fish Equulites klunzingeri, which almost creates its own new size class in the Mediterranean (Fig. 5); 2) The commercially important goatfish Upeneus moluccensis, rather smaller than its displaced indigenous confamilials, Mullus barbatus and M. surmuletus; 3) The venomous catfish Plotosus lineatus, which exploded in population () since its recent introduction a decade ago. While not nearly as short as the ponyfish (with Lmax of >20 cm), the slender catfish is very light compared to its length, and considerably negatively impacts the LFI. Unlike the goatfish, which is only discarded when smaller than 8-9 cm, the ponyfish and the catfish are wholly discarded.

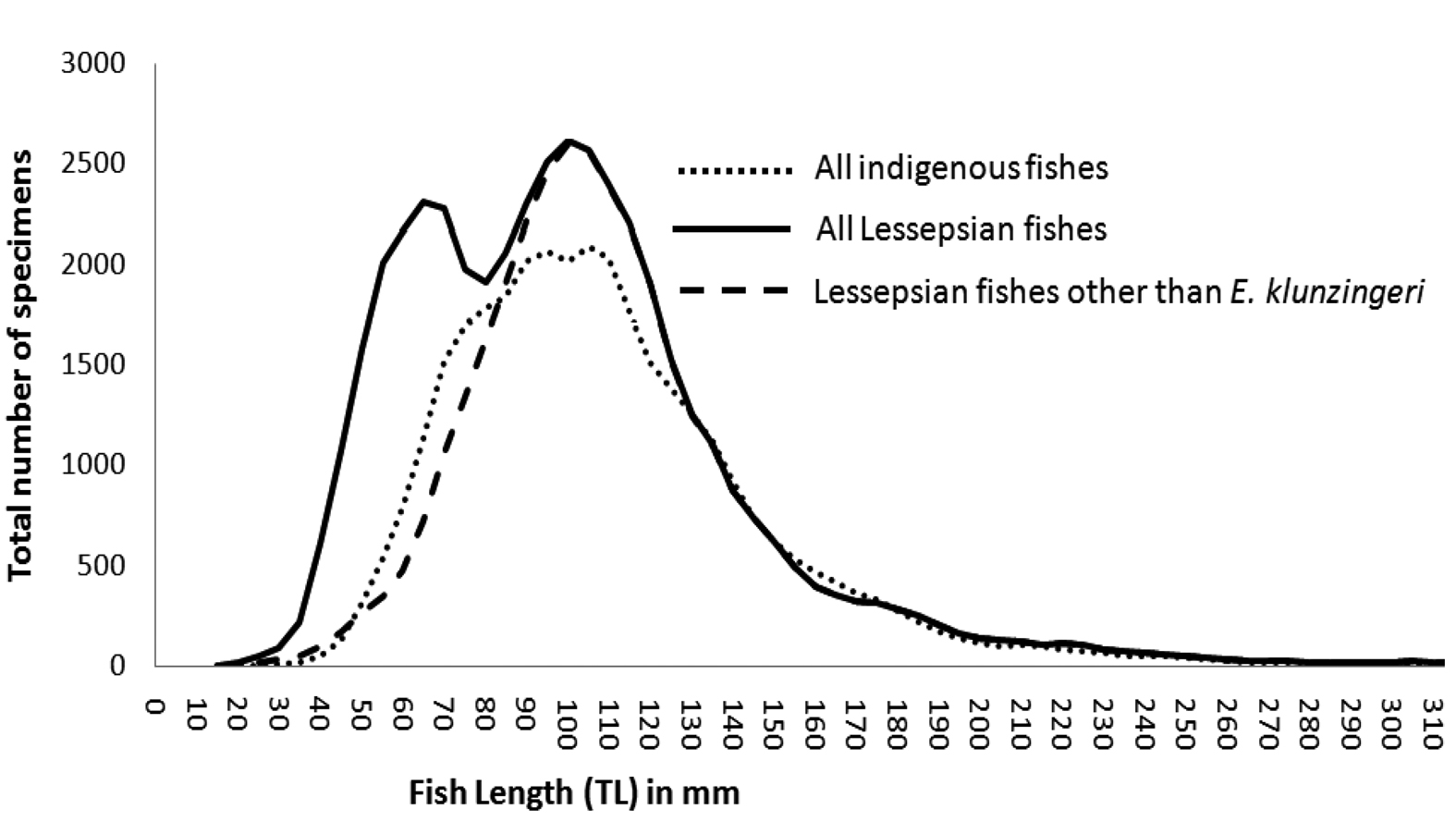

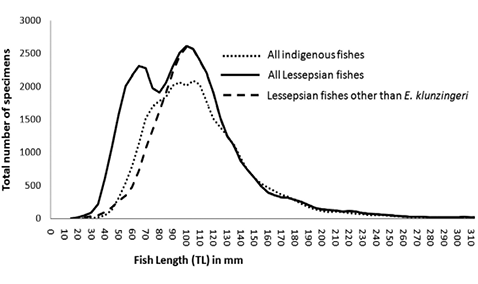

In sizes of 12.5-18 cm, indigenous species slightly outnumber nonindigenous ones, but many indigenous species are also by-caught in small sizes of 5-10 cm total length (Fig. 3). These are mainly juvenile porgies (Pagellus spp.), goatfishes (Mullus spp.) and Bogue (Boops boops), extracted in large abundance every spring and summer during their recruitment.

DISCUSSIONTop

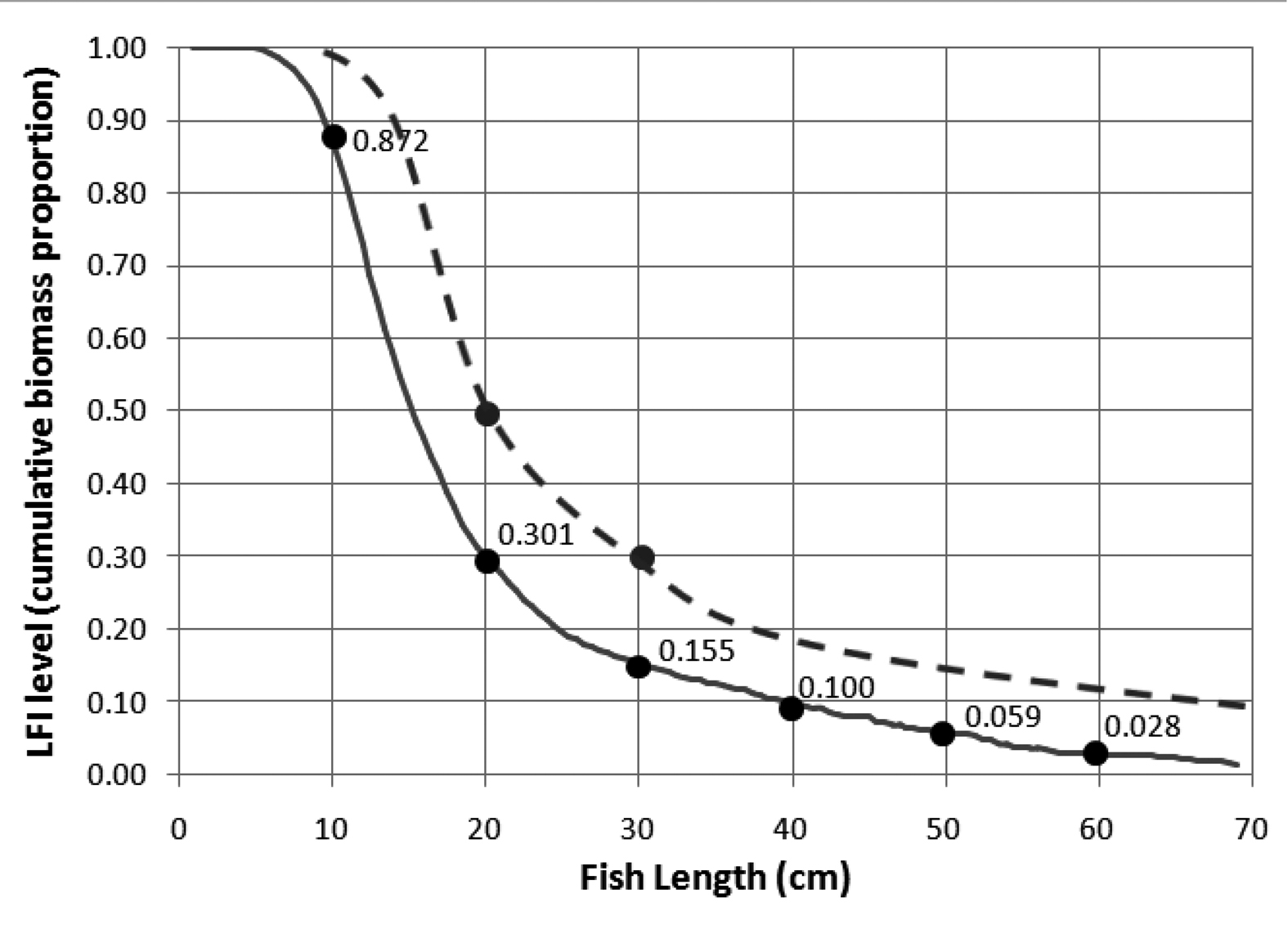

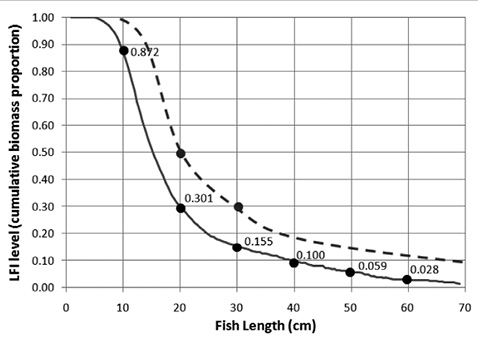

In Figure 2 we present (dashed line) a more sustainable LFI contour based on the arbitrarily set values of LFI20=0.5 and LFI30=0.3, which we consider as reasonable for the Levant. These values are higher than the actual values by about the same proportion as target LFI values of the North Sea are higher than actual values (i.e. the target values are 1.5-2 times the actual values, see and ). We propose them as indicative reference points that represent a healthy Levantine trawl fishery. Fishes 20 to 30 cm long thus abound in the Mediterranean in the same range of LFI values as 40-cm-long fishes do in the North Sea. We therefore suggest that considering the smallness of the Levantine species assemblage, 0.5 for 20 cm and 0.3 for 30 cm can similarly be considered as benign levels for this region. The 40 cm value proposed for the North Sea was set to maximize the LFI sensitivity to fishing pressure rather than to recruitment events and other ex-fishery factors (). The recruitment of (mainly indigenous) Mediterranean species occurs in the summer, following spawning (, ). This is when juveniles reach sizes large enough (typically 5-13 cm) to be caught in the ~40 mm diamond mesh nets dragged by the Israeli trawl fleet.

Ex-fishery factors contributing to small sizes in Levantine fishes

propose that an exploited groundfish community can be viewed as a three-level food chain with two upper levels that are target catch, while the lower level is subject mostly to environmental variation. Metrics relying on the lower level are therefore often criticized for their dependence on natural events (). However, the LFI was found to be comparably robust to such perturbations (, ) as biomass is less sensitive to changes in the lower level components of the catch. The fish assemblage of the eastern Mediterranean is ‘naturally’ small, but there is another way in which it varies significantly from that of the western Mediterranean.

The faunistic invasion via the Suez Canal has profoundly and irreversibly altered the composition of the Levantine ichthyofauna (). Indigenous species now occupy ever deeper strata, as they are being displaced by Indo-Pacific species along bathymetric axes and fishwise, Levantine shallows are now almost tropical. For example, have shown that nonindigenous fish accounted for 84% of the abundance and 66% of the biomass in waters shallower than 30 m in Israel. The difference between these percentages alludes to the small body size of migrants and also coincides with the upper, warmest layer in the water column. Surely the long-term impacts of this unidirectional process must be weighed carefully upon analysis of the LFI indicator.

One main natural cause in explaining overall diminished sizes in Levantine fishes is undoubtedly Bergmann’s rule, stating that within a broadly distributed species, specimens from cooler climates tend to be larger than conspecifics from warmer climates (). The waters of the eastern Mediterranean are warmer by ~6-9ºC than those of the western basin () and Levantine fishes are thus expected to be smaller not only than those from the North Sea, but also than those from the western Mediterranean. Another reason for this lies in the extreme natural oligotrophy of the region, previously suggested as the main reason for Levantine Nanism (). This is possibly exacerbated by damming of the Nile River in Aswan in 1964, which curtailed the annual flooding of this once giant river, cut its freshwater flow to less than 10% of previous levels, and eliminated phytoplankton blooms associated with the nutrients swept into the Mediterranean by floods (). Here we propose that a third factor is contributing to the small size of the assemblage - the influx of nonindigenous Indo-Pacific species through the Suez Canal.

The need to allocate a proper species complex for Levantine LFI

The 0.3 LFI level was proposed for the North Sea (using the 40 cm length) to denote 1983 levels. The actual values declined to a low of 0.05 in 2001, and recovered to 0.22 in 2008 (). This finding has been recently disputed by, who showed stable values of 0.1 to 0.15 in recent years, and this correction was later acknowledged by . These difficulties have arisen predominately from recent inclusion of different areas, not counted in earlier years, which skewed the impact of certain important species (particularly cod) in the complex. While fishing areas are not a decisive issue in the small Israeli fishery, choosing which species to include in the index is of paramount importance. The allocation of an appropriate species complex per region of study is critical to calculating the LFI (); and in the fast changing multi-species catch of the Israeli trawl fishery (, ) such deliberations are likely to turn into an ongoing discussion. The decision to exclude Chondrichthyes while including groupers and amberjacks is a useful example of such an adaptation.

Levantine size spectra and adjustment of the LFI

The LFI was created to serve as an indicator of the “general health” of the demersal fish community. Its strengths lie in its simplicity, wide acceptance and sensitivity to fishing pressure (). In the North Sea, it was chosen ahead of alternative metrics such as abundance, biomass, productivity, species richness, species diversity and mean life-history trait composition because it was found to be particularly sensitive to variation in fishing pressure. Therefore it directly reflects the effect of fishing on the state of the fish community (). We suggest that it can be applied in the Levant if the target levels are carefully adjusted to its unique, small bodied species assemblage.

Annual LFI measurements

We do not yet know how long it would take the Levantine fishery to respond to anomalous year classes, recruitment events or even fishery management measures, as the general state of knowledge of Levantine fisheries lags considerably behind that of the North Sea. Without this knowledge we forewarn against jumping to distracting and possibly misleading conclusions due to exceedingly high or low single-year values. This must also be taken into consideration during survey design, so that variables affecting size spectra are equally sampled. For example, in our study the low values in 2008 and high values in 2012 (Fig. 4) stemmed from partial seasonal coverage rather than annual variation, underlining the importance of sampling whole years.

Limitations and applications of the LFI

There are several obvious drawbacks of the LFI in its current form. First, invertebrates and especially shrimps and squids, which comprise a significant part of the catch of Israeli bottom trawlers, are excluded. Second, The LFI30 is insensitive to changes in the size classes of some of the commonest commercial species such as goatfishes or the smaller sparids, which have an Lmax smaller than 30 cm. The LFI20, however, makes the index more prone to recruitment class strength. Third, because samples rather than the entire catch were used the impact of larger and heavier specimens, caught much more sporadically than smaller-bodied species, was considerable. For example, the omission of sharks and guitarfish from the analysis decreased LFI values by 0.05-0.1, underlining the importance of proper species complex allocation. Finally, the inclusion of both by-caught species and target species in the catch means that large by-caught species regularly exceeding 30 cm (like the poisonous puffer Lagocephalus sceleratus), contribute heavily to the index. At the same time, smaller high value species such as goatfishes, which hardly reach 20 cm as adults, have a lower weight in the index ().

Despite these shortcomings, we maintain that the proposed LFI indicator can serve particularly well for several purposes. First, fishery managers, scientists and the public can be alerted to the unsustainable nature of trawling in the Levant today and the small size of the exploited assemblage with a simple to understand index. Second, the seasonal evolution of the LFI also allows makes it possible to detect when the fishery produces the largest juvenile proportion in the catch. The wastage incurred by fishing in the summer is well reflected in Figure 2. Trawlers fish year-round in Israel and there is unfortunately no summer moratorium on fishing as in other Mediterranean countries ( and references therein). The LFI can thus be used to evaluate the efficacy of management measures such as seasonal moratoria. Thrid, the LFI can be used to assess the response strength and lag-times for the trawled Levantine assemblage, and to further refine the index itself.

ConclusionsTop

The LFI can be applied in the Mediterranean and is presented here as a useful tool for examining the sustainability of bottom trawling in Israel. Even taking into consideration the smallness of Levantine ichthyofauna, the environmental performance of Israeli trawlers still seems rather poor, with fishes larger than 30 cm only accounting for 15% of the fish biomass. We therefore encourage managers to use measures such as seasonal closures, MPAs or gear changes in order to increase trawl selectivity. Also, we suggest that the arbitrary values set here as characterizing “Good Environmental Status” are revisited and discussed further if and when such measures are used. As advised for northern European seas (, ), we propose that the LFI should be used in conjunction with other metrics. This is imperative in order to facilitate a more complete assessment of ecosystem response to variations in fishing pressure and to other stressors, such as marine invasion, which profoundly shapes the region’s ichthyofauna. Finally, a wide-scale, long-term application of the LFI and its implementation in other Mediterranean fisheries can serve to further improve, calibrate and standardize the index, which can serve to further improve, calibrate and standardize the index, towards a better understanding of the impacts of fishing on Mediterranean stocks.

ACKNOWLEDGEMENTSTop

This study was supported by a research grant from the Israeli Ministry of Environmental Defense. The authors also wish to thank Dr. Jason Goldstein for the useful suggestions which have led to significant improvements of this manuscript.

REFERENCESTop

Bergmann C. 1847. Ueber die verhältnisse der wärmeökonomie der thiere zu ihrer grösse. Gottinger. studien. 3: 595-708

Caddy J.F., Refk R., Do-Chi T. 1995. Productivity estimates for the Mediterranean: evidence of accelerating ecological change. Ocean. Coast. Manage. 26: 1-18.
http://dx.doi.org/10.1016/0964-5691(95)00015-T

Caddy J.F. 2009. Practical issues in choosing a framework for resource assessment and management of Mediterranean and Black Sea fisheries. Med. Mar. Sci. 10(1): 83-119.

Edelist D. 2013. New length–weight relationships and Lmax values for fishes from the Southeastern Mediterranean Sea. J. App. Icht. 30: 521-526.
http://dx.doi.org/10.1111/j.1439-0426.2012.02060.x

Edelist D., Sonin O., Golani D., et al. 2011. Spatiotemporal patterns of catch and discards of the Israeli Mediterranean trawl fishery in the early 1990s: ecological and conservation perspectives. Sci. Mar. 75(4): 641-652.
http://dx.doi.org/10.3989/scimar.2011.75n4641

Edelist D., Golani D., Rilov G., et al. 2012a. The invasive venomous striped eel catfish Plotosus lineatus in the Levant: possible mechanisms facilitating its rapid invasional success. Mar. Biol. 159(2): 283-290.
http://dx.doi.org/10.1007/s00227-011-1806-4

Edelist D., Golani D., Spanier E. 2012b. Ecological indicators for overfishing in Israel’s trawl fishery. Tech. rep. submit. Israel Ministry Environm. Protect. 50 pp. (in Hebrew).

Edelist D., Rilov G., Golani D., et al. 2013. Restructuring the sea: Profound shifts in the world’s most invaded marine ecosystem. Divers. Distrib. 19: 69-77.
http://dx.doi.org/10.1111/ddi.12002

Froese R. 2004. Keep it simple: three indicators to deal with overfishing. Fish. Fisheries 5: 86-91.
http://dx.doi.org/10.1111/j.1467-2979.2004.00144.x

Froese R., Pauly D. (eds). 2011. FishBase. World Wide Web electronic publication. www.fishbase.org

Fung T., Farnsworth K.D., Reid D.G., et al. 2012. Recent data suggest no further recovery in North Sea Large Fish Indicator. ICES J. Mar. Sci. 69: 235–239.
http://dx.doi.org/10.1093/icesjms/fsr206

Greenstreet S.P.R, Fraser H.M., Cotter J., et al. 2010. Assessment of the “State” of the Demersal Fish Communities in UK waters. Technical background paper: Biodiversity and Ecosystem Services 1(3): 34 pp.

Greenstreet S.P.R., Rogers S.I., Rice J.C., et al. 2011. Development of the EcoQO for the North Sea fish community. ICES. J. Mar. Sci. 68: 1-11.
http://dx.doi.org/10.1093/icesjms/fsq156

Greenstreet S.P.R., Rogers S.I., Rice J.C., et al. 2012. A reassessment of trends in the North Sea Large Fish Indicator and a re-evaluation of earlier conclusions. ICES. J. Mar. Sci. 69: 343-345.
http://dx.doi.org/10.1093/icesjms/fsr201

Herut B., Almogi-Labin A., Jannink N., et al. 2000. The seasonal dynamics of nutrient and chlorophyll a concentrations on the SE Mediterranean shelf-slope. Oceanol. Acta. 23: 771-782.
http://dx.doi.org/10.1016/S0399-1784(00)01118-X

Heslenfeld P., Enserink E.L. 2008. OSPAR Ecological Quality Objectives: the utility of health indicators for the North Sea. ICES. J. Mar. Sci. 65: 1392-1397.
http://dx.doi.org/10.1093/icesjms/fsn159

ICES. 2011. Report of the Working Group on the Ecosystem Effects of Fishing Activities (WGECO), 13-20 April, Copenhagen, Denmark. ICES CM 2011/ACOM 24, 166 pp.

Jennings S. 2005. Indicators to support an ecosystem approach to fisheries. Fish. Fisheries. 6(3): 212-232.
http://dx.doi.org/10.1111/j.1467-2979.2005.00189.x

Nykjaer L. 2009. Mediterranean Sea surface warming 1985–2006. Clim. Res. 39: 11-17.
http://dx.doi.org/10.3354/cr00794

Oczkowski J.A., Nixon S.W., Granger S.L., et al. 2009. Anthropogenic enhancement of Egypt’s Mediterranean fishery. P. Natl. Acad. Sci. 106(5): 1364-1367.
http://dx.doi.org/10.1073/pnas.0812568106

Ordines F., Quetglas A., Massutí E., et al. 2013. Estrategia marina demarcacion marina Levantino-Balear Parte IV. Descriptores buen estado ambiental. Descriptor 4: Redes troficas evaluacion inicial y buen estado ambiental. Available online at:
http://www.magrama.gob.es/es/costas/temas/estrategias-marinas/IV_D4_Levantino_Balear_tcm7-207257.pdf

Pauly D., Christensen V., Dalsgaard J., et al. 1998. Fishing down marine food webs. Science. 279(5352): 860-863.
http://dx.doi.org/10.1126/science.279.5352.860

Rochet M.J., Trenkel V.M. 2003. Which community indicators can measure the impact of fishing? A review and proposals. Can. J. Fis. Aquat. Sci. 60: 86-99.
http://dx.doi.org/10.1139/f02-164

Rochet M.J., Trenkel V.M., Carpentier A., et al. 2010. Do changes in environmental pressures impact marine communities? An empirical assessment. J. App. Ecol. 47: 741-750.
http://dx.doi.org/10.1111/j.1365-2664.2010.01841.x

Sala A., Lucchetti A., Piccinetti C., et al. 2008. Size selection by diamond and square-mesh codends in multi-species Mediterranean demersal trawl fisheries. Fish. Res. 93(1-2): 8-21.
http://dx.doi.org/10.1016/j.fishres.2008.02.003

Shephard S., Reid D.G., Greenstreet S.P.R. 2011. Interpreting the large fish indicator for the Celtic Sea. ICES. J. Mar. Sci. 68: 1963–1972.
http://dx.doi.org/10.1093/icesjms/fsr114

Sonin O., Spanier E., Levi D., et al. 2007. Nanism (dwarfism) in fish: a comparison between red mullet Mullus barbatus from the southeastern and the central Mediterranean. Mar. Ecol. Prog. Ser 343: 221-228.
http://dx.doi.org/10.3354/meps06917

Tsagarakis, K., Machias A., Giannoulaki M., et al. 2008. Seasonal and temporal trends in metrics of fish community for otter-trawl discards in a Mediterranean ecosystem. ICES. J. Mar. Sci. 65(4): 539-550.
http://dx.doi.org/10.1093/icesjms/fsn023

Appendix 1. –Length-weight parameters (a,b); standard error [SE(b)]; R2; number of weighed specimens (n); minimum (Min) and maximum (Max) sizes found for the 101 commonest bony fish species (out of 146 total) caught in Israel by bottom trawl during the 2008-12 campaign. Lessepsian migrants are marked by *.

Species a b SE(b) R2 n Min Max
Alectis alexandrinus 0.0398 2.6263 0.027399 0.9949 3 7.5 33.5
Alepes djedaba* 0.011 2.972 0.007174 0.9899 43 3.5 23
Apogon imberbis 0.0161 2.9869 0.005903 0.9659 30 6.6 10.5
Apogonichthyoides pharonis* 0.017 3.1274 0.015471 0.9577 21 4 9.5
Argentina sphyraena 0.0007 3.8389 0.011064 0.9776 10 9.4 13.5
Ariosoma balearicum 0.0019 2.894 0.009562 0.9059 34 10.5 25
Arnoglossus sp. 0.0087 3.0721 0.011529 0.9022 68 4.5 11.2
Atherinomorus forskali 0.0125 2.8666 0.03419 0.77 11 8 11.9
Balistes carolinensis 0.0756 2.546 0.00942 0.981 33 15 66
Boops boops 0.011 2.9293 0.009304 0.9502 170 5 24
Bothus podas 0.0106 3.0636 0.008272 0.9535 92 6 16.3
Bregmasceros atlanticus 0.0301 2.183 0.021361 0.8173 12 5.2 7.5
Callionymus filamentosus* 0.0284 2.4409 0.006075 0.8306 199 6 15.5
Capros aper 0.0255 2.8223 0.023148 0.8649 14 2 10.5
Caranx crysos 0.0089 3.108 0.009288 0.9843 30 11.7 54
Chlorophthalmus agassizii 0.0065 3.0486 0.01641 0.909 78 4 12.5
Citharus linguatula 0.0071 3.021 0.011477 0.95 92 5.5 21
Conger conger 0.0011 3.0663 0.006989 0.9731 59 17 83
Cynoglossus sinusarabici* 0.0167 2.7044 0.007824 0.9683 37 6 16
Decapterus russelli* 0.0051 3.2185 0.006917 0.9855 70 6 21
Dentex macrophthalmus 0.011 3.1353 0.004401 0.9522 57 9 14.5
Diplodus annularis 0.0242 2.8583 0.012587 0.9475 9 9 13.5
Diplodus cervinus 0.014 3.023 0.009064 0.967 12 18 35
Diplodus puntazzo 0.0257 2.8483 0.007489 0.9448 11 15.5 22
Diplodus sargus 0.0171 3.0011 0.004452 0.9816 30 14 25.5
Diplodus vulgaris 0.0139 3.0335 0.004616 0.9508 32 12.5 24
Dussumieria elopsoides* 0.0053 3.1562 0.006841 0.976 37 8.2 14.5
Echelus myrus 0.0001 3.4528 0.006842 0.9555 36 34.4 74.5
Echeneis naucrates 0.0006 3.417 0.012928 0.9921 9 17.5 63.5
Engraulis encrasicolus 0.0081 2.9224 0.006573 0.9764 38 6 15
Epinephelus aeneus 0.013 2.958 0.006521 0.996 34 8.5 85
Equulites klunzingeri* 0.0086 3.1726 0.009908 0.9252 134 3.5 10.1
Etrumeus golani* 0.0088 2.9832 0.012074 0.9731 16 8 24
Euthynnus alletteratus 0.008 3.074 0.012671 0.993 10 31.5 97
Fistularia commersonii* 0.0001 3.3501 0.011223 0.983 40 13 99.5
Gobius niger 0.0073 3.1241 0.023896 0.9704 7 5.5 12.5
Helicolenus dactylopterus 0.0166 2.9725 0.005856 0.9896 52 6 16
Jaydia fasciatus* 0.014 3.1609 0.009218 0.9403 42 5.5 9.5
Jaydia smithi* 0.0161 2.9546 0.006961 0.9829 145 3.4 14.5
Lagocephalus sceleratus* 0.0225 2.8227 0.00821 0.9907 57 5 56.5
Lagocephalus spadiceus* 0.0243 2.8686 0.005618 0.9906 103 5.5 42
Lagocephalus suezensis* 0.012 2.999 0.003894 0.9684 128 6 19.5
Lepidopus caudatus 0.00005 3.7074 0.026623 0.9966 6 25 51.5
Lepidotrigla cavillone 0.0057 3.3492 0.009555 0.9412 121 4.5 12.5
Lepidotrigla dieuzeidei 0.0137 2.9418 0.012391 0.9504 6 9 11.5
Lithognathus mormyrus 0.0121 3.0175 0.004074 0.9852 86 7 25
Lophius budegassa 0.0049 3.264 0.017153 0.9908 5 21 61
Macrorhamphosus scolopax 0.008 2.8543 0.011771 0.9501 57 4 12
Merluccius merluccius 0.0035 3.233 0.005637 0.989 74 7.5 37
Microchirus ocellatus 0.0792 2.312 0.000785 0.8952 12 7 13
Mullus barbatus 0.0107 3.0012 0.007972 0.9686 182 5 22
Mullus surmuletus 0.0054 3.2824 0.003276 0.9827 167 7.5 23
Nemipterus randalli* 0.0101 3.0769 0.007346 0.9702 168 4 23.5
Oblada melanura 0.0247 2.781 0.005207 0.996 7 8.5 21
Ophiodon barbatum 0.0036 3.1103 0.005503 0.984 45 7.5 22
Oxyurichthys petersi* 0.0206 2.5365 0.012296 0.8528 26 11 22
Pagellus acarne 0.0055 3.3254 0.003376 0.9753 311 5 16.5
Pagellus bogaraveo 0.0188 2.9314 0.009847 0.9679 18 7 14.5
Pagellus erythrinus 0.0127 3.0257 0.005696 0.9873 143 4 24
Pagrus coeruleostictus 0.033 2.7504 0.008504 0.9935 37 6.5 44
Plotosus lineatus* 0.0034 3.2537 0.00794 0.9669 161 5 23
Pomadasys incisus 0.0095 3.1274 0.004264 0.9929 19 11 22.5
Pomadasys stridens* 0.0107 3.0889 0.01148 0.9485 10 9 14.5
Pteragogus pelycus* 0.015 2.929 0.007997 0.9782 14 6 10
Sardina pilchardus 0.0039 3.2882 0.003769 0.9672 261 6 21
Sardinella aurita 0.0025 2.6422 0.003634 0.9306 95 9 24
Sardinella maderensis 0.0112 2.9211 0.054406 0.9882 15 13.5 25.5
Sargocentron rubrum* 0.0214 2.938 0.005881 0.9635 35 11 23.5
Saurida undosquamis* 0.0039 3.1538 0.006612 0.9918 84 6 36
Scomber colias 0.0034 3.291 0.004591 0.9845 130 6.5 30.5
Scomberomorus commerson* 0.0113 2.8494 0.00593 0.9807 17 21.5 51.5
Scorpaena elongata 0.0146 3.0657 0.004879 0.999 8 7 24
Scorpaena notata 0.0258 2.855 0.014324 0.9737 12 6.5 12
Scorpaena porcus 0.0097 2.8389 0.013651 0.9918 5 10 21.5
Scorpaena scrofa 0.013 3.128 0.006939 0.9983 8 7 19.5
Seriola dumerili 0.0085 3.1225 0.006135 0.9726 23 21 39.5
Serranus cabrilla 0.0095 3.0729 0.009257 0.9845 36 6.3 22
Serranus hepatus 0.0118 3.159 0.007568 0.9656 97 4.5 10
Siganus rivulatus* 0.0145 2.8942 0.014034 0.9526 36 8.5 23.5
Sillago suezensis* 0.0063 3.0762 0.004672 0.9813 34 8.5 18.5
Solea solea 0.0721 2.3086 0.052164 0.9068 4 14.5 17.5
Sphoeroides pachygaster 0.0866 2.5455 0.018968 0.9412 9 12 26
Sphyraena chrysotaenia* 0.0089 2.8528 0.004931 0.9384 92 9.5 32
Sphyraena sphyraena 0.004 3.0077 0.009013 0.985 36 9.5 40
Spicara flexuosa 0.0103 3.0631 0.004677 0.9788 43 7.5 17.2
Spicara maena 0.0116 2.9541 0.004478 0.8523 209 8 17
Spicara smaris 0.0149 2.8043 0.004775 0.9387 232 5 15
Stephanolepis diaspros* 0.0164 3.0335 0.010481 0.9796 64 4 20.5
Synodus saurus 0.0112 2.8802 0.007566 0.9618 34 10 24
Torquigener flavimaculosus* 0.104 2.2155 0.022454 0.932 10 5.5 10.5
Trachinus draco 0.0018 3.4875 0.007315 0.9877 15 14 26
Trachurus indicus* 0.009 2.9372 0.004468 0.9798 205 6.5 12
Trachurus mediterraneus 0.0088 3.0041 0.010208 0.9808 47 7 24.5
Trachurus trachurus 0.0109 2.8978 0.004754 0.9885 103 5.5 29.5
Trichiurus lepturus 0.0029 2.5504 0.01876 0.895 20 16 44
Trigloporus lastoviza 0.0115 3.0112 0.006095 0.9834 45 8 23
Upeneus moluccensis* 0.0085 3.1033 0.004528 0.9538 162 6 20.5
Upeneus pori* 0.005 3.3081 0.006462 0.9773 68 7 17.5
Uranoscopus scaber 0.0123 3.1094 0.007136 0.9826 29 9.5 23.5
Xyrichthys novacula 0.0034 3.4817 0.014933 0.9656 7 11.5 19
Zeus faber 0.0029 2.7431 0.020001 0.9905 21 4.5 47
