IntroductionTop
Echinoderms are benthic marine invertebrates widely distributed throughout the world ocean. In southern South America, this group was early studied by L. Feuillée at the beginning of 1770 (Larraín 1995Larraín A. 1995. Biodiversidad de equinodermos chilenos: Estado actual del conocimiento y sinopsis biosistemática. Gayana Zool. 59: 73-96.); during the following centuries, most information from the Atlantic Ocean was produced on the basis of material collected by HMS Challenger (1873-1876) and RV Discovery (1925-1936) (Mortensen 1936Mortensen T. 1936. Echinoidea and Ophiuroidea. Discovery Reports XII: 109-348., Fisher 1940Fisher W.K. 1940. Asteroidea. Discovery Reports XX: 69-306.). The early work on taxonomy and biology of echinoderms of the Argentine Sea are contributions about echinoids, asteroids and ophiuroids of southern South America (Bernasconi 1947Bernasconi I. 1947. Distribución geográfica de los Equinoideos argentinos. An. Soc. Argent. Est. Geog. 8: 97-114., 1964aBernasconi I. 1964a. Asteroideos argentinos. Claves para los órdenes, familias, subfamilias y géneros. Physis 24: 241-277.,bBernasconi I. 1964b. Asteroideos argentinos V. Familia Ganeriidae. Rev. Mus. Argent. Cienc. Nat. Bernardino Rivadavia Inst. Nac. Invest. Cienc. Nat. (Argent) Zo. 9: 59-89.,cBernasconi I. 1964c. Distribución geográfica de los Equinoideos y Asteroideos de la extremidad austral de Sudamérica. Bol. Inst. Biol. Mar. 7: 43-50., Bernasconi and D'Agostino 1977Bernasconi I., D’Agostino M. 1977. Ofiuroideos del mar epicontinental argentino. Rev. Mus. Argent. Cienc. Nat. Bernardino Rivadavia Inst. Nac. Invest. Cienc. Nat. (Argent) Hid. 5: 65-123.). More recently, inventories have been developed in north Patagonian gulfs (Zaixso and Lizarralde 2000Zaixso H.E., Lizarralde Z. 2000. Distribución de equinodermos en el golfo San José y sur del golfo San Matías (Chubut, Argentina). Rev. Biol. Mar. Oceanogr. 35: 127-145.) and in the Straits of Magellan (Larraín et al. 1999Larraín A., Mutschke E., Riveros A. et al. 1999. Preliminary report on Echinoidea and Asteroidea (Echinodermata) of the Joint Chilean-German-Italian Magellan “Victor Hensen” Campaign, 17 October - 25 November 1994. Sci. Mar. 63: 433-438., Mutschke and Ríos 2006Mutschke E., Ríos C. 2006. Distribución espacial y abundancia relativa de los equinodermos en el Estrecho de Magallanes, Chile. Cienc. Tecnol. Mar. (Valpso) 29: 91-102.), which provide lists of species of echinoderms collected in particular environments. Other contributions have shown the distribution patterns of the most conspicuous species in large Atlantic shelf areas, between 26 and 38°S (Tommasi et al. 1988aTommasi L.R., de Castro S.M., de Sousa E. 1988a. Echinodermata coletados durante as campanhas oceanograficas do N/Oc. “Almirante Saldanha” no Atlantico sul occidental. Relat. Interno Inst. Oceanogr. Univ. Sao Paulo 21, 11 pp.,bTommasi L.R., Cernea M., Condeixa M. 1988b. Equinodermes coletados pelo N/Oc. “Almirante Saldanha”, entre 26°59’S e 38° 39’S. Relat. Interno Inst. Oceanogr. Univ. Sao Paulo 22, 11 pp.), and along the shelf break frontal area, between 36 and 43°S (Escolar 2010Escolar M. 2010. Variaciones espacio-temporales en la comunidad de invertebrados bentónicos asociada al frente de talud. Equinodermos como caso de estudio. PhD Thesis. Univ. Buenos Aires, Argentina, 189 pp.).
The assessment of biodiversity in terms of species richness in marine systems is important to understand the ecological patterns of species distribution as well as the functioning of ecosystems, and to manage the use of marine resources and the identification of priorities for conservation (Gray 2001Gray J. 2001. Antarctic marine benthic biodiversity in a world-wide latitudinal context. Polar Biol. 24: 633-641.). Anthropogenic impacts and the need for systematic conservation planning have prompted further analyses of the patterns of diversity (Worm et al. 2006Worm B., Barbier E., Beaumont N. et al. 2006. Impacts of Biodiversity Loss on Ocean Ecosystem Services. Science 314: 787-790.).
The current zoogeographic scheme established for the southwestern Atlantic between 34 and 56°S, with the Argentine and Magellan Provinces (Balech 1954Balech E. 1954. División zoogeográfica del litoral sudamericano. Rev. Biol. Mar. 4: 184-195.), has been confirmed for various groups of invertebrates in recent work on amphipods (López Gappa et al. 2006López Gappa J., Alonso G.M., Landoni N. 2006. Biodiversity of benthic Amphipoda (Crutacea: Peracarida) in the Southwest Atlantic between 35° and 56°S. Zootaxa 1342: 1-66.), hydroids (Genzano et al. 2009Genzano G.N., Giberto D., Schejter L. et al. 2009. Hydroid assemblages from the South-western Atlantic Ocean (34-42°S). Mar. Ecol. 30: 33-46.) and polychaetes (Bremec et al. 2010aBremec C., Souto V., Genzano G. 2010a. Polychaete assemblages in SW Atlantic: Results of “Shinkai Maru” IV, V, X and XI (1978-1979) cruises in Patagonia and Buenos Aires. An. Inst. Patagon. (Chile) 38: 47-57.). In the case of echinoderms, a great biodiversity is found in the Argentine Sea. Most echinoderm species are distributed from southern Brazil and Uruguay to the Province of Buenos Aires in Argentina, or belong to the sub-Antarctic fauna that can reach southern Uruguay (Brogger et al. 2013Brogger M., Gil D., Rubilar T. et al. 2013. Echinoderms from Argentina: Biodiversity, distribution and current state of knowledge. In Alvarado J., Solís-Marín F.A. (eds), Echinoderm Research and Diversity in Latin America. Springer-Verlag, Berlin Heidelberg, pp. 359-402.). However, knowledge of the taxonomy, ecology and biogeography of echinoderms on the Argentinean continental shelf is still incomplete.
The aim of this study was to compile and analyse available historical information on echinoderms in the southwestern Atlantic, in order to make a synthesis of present taxonomical knowledge and to identify patterns of geographical distribution. A database with geo-referenced records of echinoderm species that covers the Argentinean and Uruguayan continental shelves was used for the first time to test the validity of the current zoogeographical scheme.
Materials and Methods Top
Study area
This study was conducted on literature dealing with the area between 34 and 56°S and between the coastline and 50°W. The Argentinean continental shelf is characterized by the presence of two large water masses: a sub-Antarctic mass (the Malvinas Current) and a sub-tropical mass (the Brazil Current). The Malvinas current has a high primary productivity, and is a northward-running branch of the Subantarctic Cabo de Hornos Current, which has an influence on coastal and offshore areas. As it moves northward, the Malvinas Current is separate from the coast and affects only offshore waters. Mean temperature ranges yearly from 4 to 11°C. Salinity ranges yearly from 33.8 to 34.4. The Brazil Current is a branch of the South Equatorial Current; it moves from north to south along the Brazilian coast and reaches the coast of Buenos Aires. This water mass is less productive than the Malvinas Current; its mean temperature ranges yearly from 14 to 25°C, and its salinity from 35 to 35.5. The Brazil and Malvinas Currents meet at the subtropical convergence approximately at 35°S (Boltovskoy 1981Boltovskoy E. 1981. Masas de agua en el Atlántico Sudoccidental. Atlas del Atlántico Sudoccidental y métodos de trabajo con el zooplancton marino. Publ. Espec. INIDEP, Mar del Plata, 10 pp., Bastida et al. 1992Bastida R., Roux A., Martínez D. 1992. Benthic communities of the Argentine continental shelf. Oceanol. Acta 15: 687-698.).

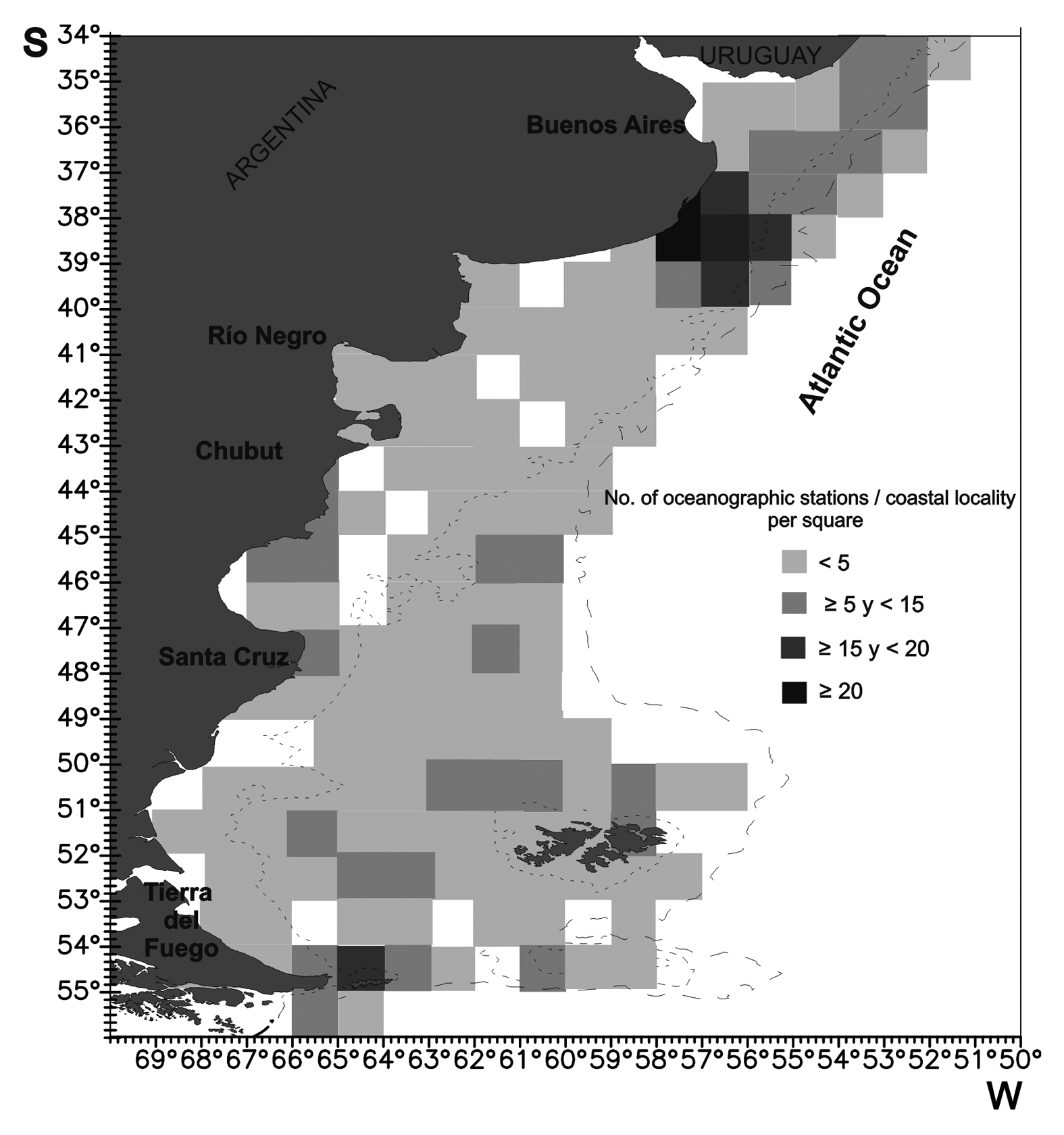

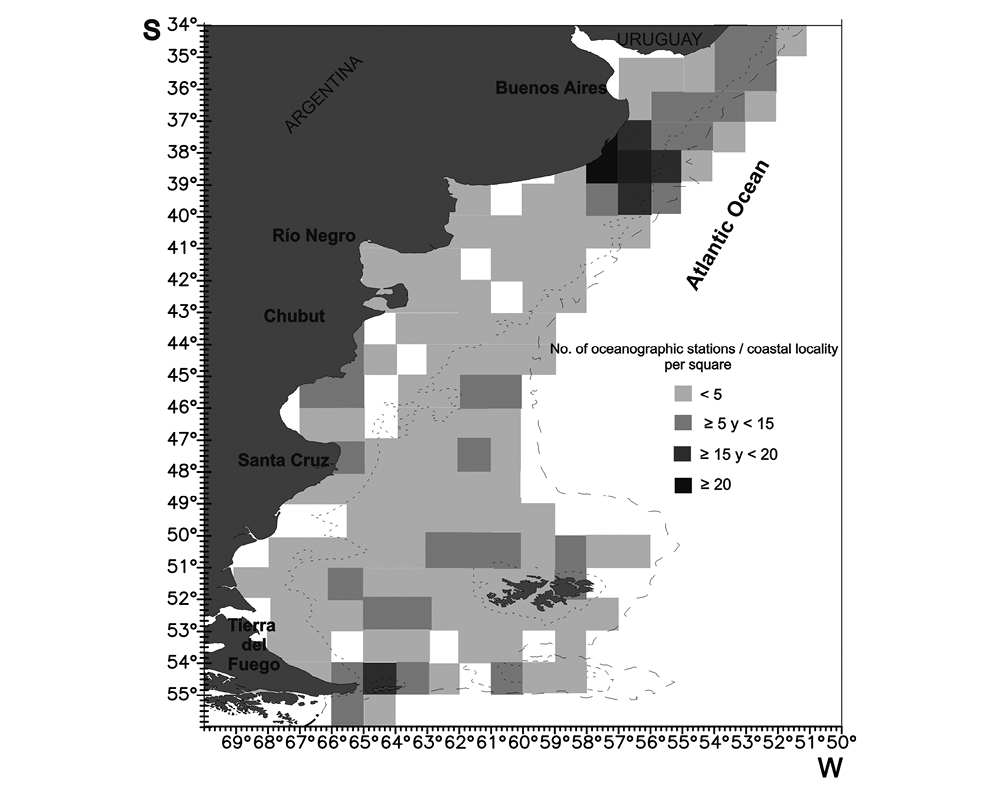

The whole study area was divided into a 1° square grid. The squares were numbered from west to east and from north to south, following a procedure applied for the study of other groups of benthic invertebrates (see López Gappa 2000López Gappa J. 2000. Species richness of marine Bryozoa in the continental shelf and slope off Argentina (South-West Atlantic). Diversity Distrib. 6: 15-27., López Gappa and Landoni 2005López Gappa J., Landoni N. 2005. Biodiversity of Porifera in the Southwest Atlantic between 35° and 56°S. Rev. Mus. Argent. Cient. Nat. 7: 191-219., Montiel et al. 2005Montiel A., Gerdes D., Arntz W.E. 2005. Distributional patterns of shallow-waters polychaetes in the Magellan Region: a zoogeographical and ecological synopsis. Sci. Mar. 69: 123-133., López Gappa et al. 2006López Gappa J., Alonso G.M., Landoni N. 2006. Biodiversity of benthic Amphipoda (Crutacea: Peracarida) in the Southwest Atlantic between 35° and 56°S. Zootaxa 1342: 1-66. and Genzano et al. 2009Genzano G.N., Giberto D., Schejter L. et al. 2009. Hydroid assemblages from the South-western Atlantic Ocean (34-42°S). Mar. Ecol. 30: 33-46.).
Database
An intensive search of geo-referenced data was carried out on the available literature to make a synthesis of taxonomic and distributional knowledge on echinoderms in order to create a historical database. Only data of presence and absence of species were used. We used taxonomic papers and other works published by specialists up to 2005. Valid species showing inaccurate locations, named in a single paper or found in a single location were excluded from the analyses.
Data processing
Spatial distribution of species richness
The study area was divided into degrees of latitude (34-56°S) and species richness and the number of sampling stations/coastal localities were estimated for each latitude. A correlation (Spearman rank correlation coefficient) was made between the two variables (López Gappa et al. 2006López Gappa J., Alonso G.M., Landoni N. 2006. Biodiversity of benthic Amphipoda (Crutacea: Peracarida) in the Southwest Atlantic between 35° and 56°S. Zootaxa 1342: 1-66.). If this correlation was significant, the number of species per oceanographic station/coastal locality was calculated for each degree of latitude in the study area. Then, the Spearman rank correlation coefficient was calculated again between the new variable (number of species per oceanographic station/coastal locality) and latitude.
Species composition through latitudinal and bathymetric ranges

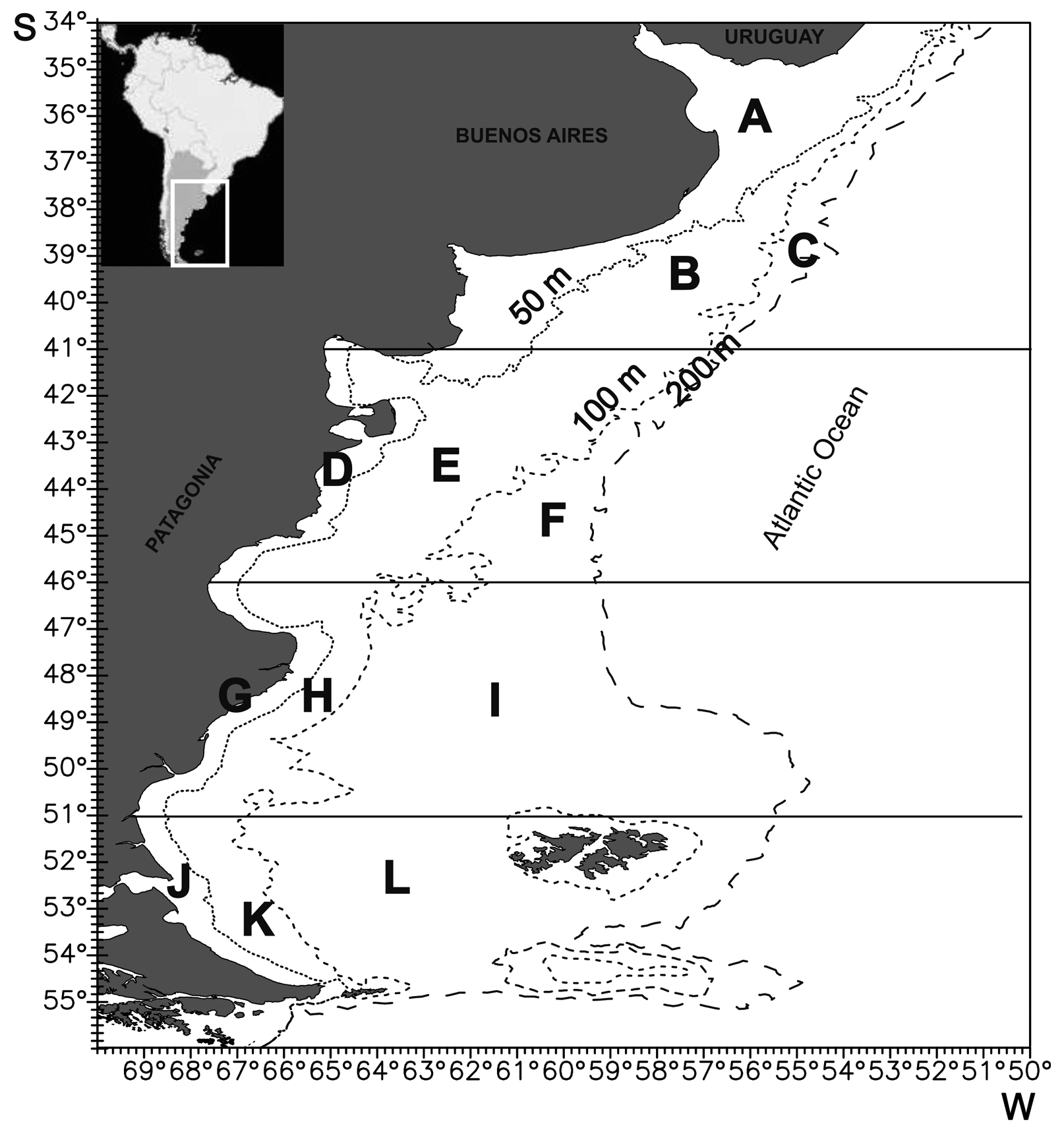

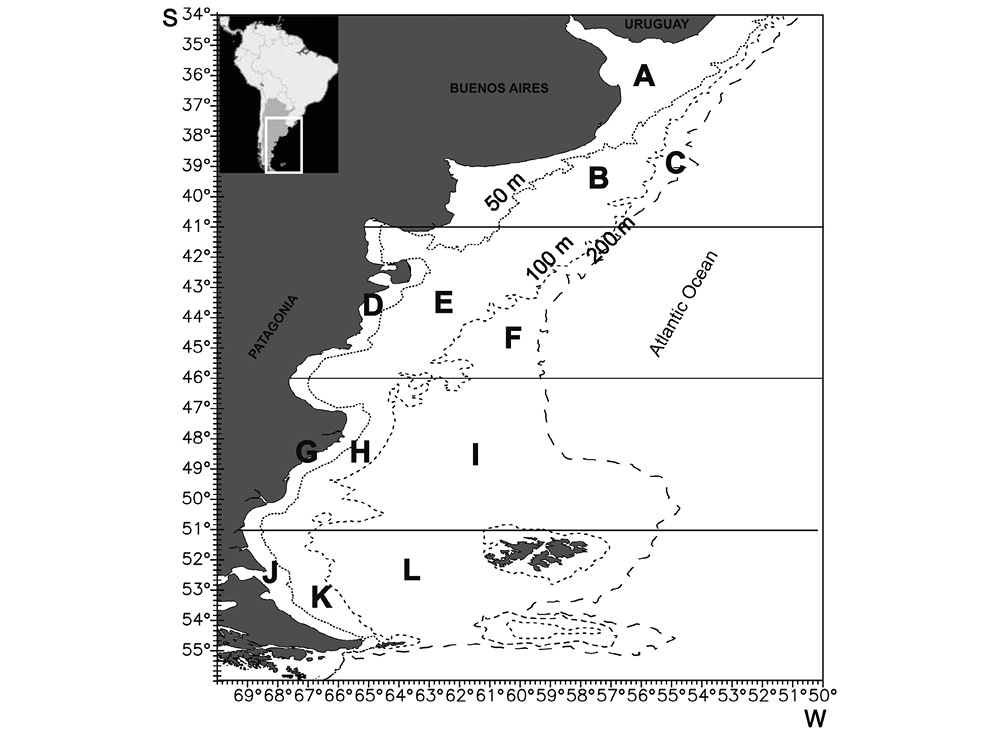

The study area was divided into 12 areas (A-L) to evaluate the faunal composition of echinoderms through latitudinal and bathymetric gradients. The study area was also divided into four latitudinal bands according to different oceanographic and geophysical features:
1) Off Buenos Aires (34-41°S). This region contains the subtropical/sub-Antarctic zone convergence, which is a product of the mixture of subtropical waters coming from the north, and sub-Antarctic waters. This convergence forms an area with specific oceanographic features, which is considered a transition area (Acha et al. 2004Acha E.M., Mianzan H.W., Guerrero R.A. et al. 2004. Marine fronts at the continental shelves of austral South America. Physical and Ecological processes. J. Mar. Syst. 44: 83-105.). This region also contains the Río de la Plata system, considered an important biogeographical barrier to many species.
2) Off Río Negro and Chubut (41-46°S). The Valdes Peninsula tidal front develops in this sector.
3) Off Santa Cruz (46-51°S). This area is characterized by low-salinity waters due to the discharge of continental waters and is also influenced by the contribution of Pacific waters through the Strait of Le Maire.
4) Off Tierra del Fuego and around the Malvinas Islands (51-56°S). This area receives a major contribution of continental waters that form a salinity front, and is influenced by Antarctic waters due to the proximity to the Drake Passage, the northern boundary of the Antarctic Region.
Each of these latitudinal bands was divided into three sectors in accordance with bathymetry: <50 m, 50-100 m and >100 m. 12 areas were thus obtained (Fig. 1). A matrix was made with the data of presence and absence of species contained in each of the 12 areas. An analysis of similarities (ANOSIM) was carried out (PRIMER 6.0, licensed software) to test the null hypothesis of no difference in species composition among the 12 areas (Clarke 1993Clarke K.R. 1993. Non-parametric multivariate analyses of changes in community structure. Aust. J. Ecol. 18: 117-143., Clarke and Warwick 2001Clarke K.R., Warwick R.M. 2001. Change in Marine Communities: An approach to Statistical Analysis and Interpretation. PRIMER-E, Plymouth, 177 pp.).
Species assemblages
In order to analyse the echinoderm associations in the study area, multivariate analyses (Clarke 1993Clarke K.R. 1993. Non-parametric multivariate analyses of changes in community structure. Aust. J. Ecol. 18: 117-143., Clarke and Warwick 2001Clarke K.R., Warwick R.M. 2001. Change in Marine Communities: An approach to Statistical Analysis and Interpretation. PRIMER-E, Plymouth, 177 pp.) (PRIMER 6.0, licensed software) were applied. We performed a cluster analysis among squares, using the Bray-Curtis similarity measures based on presence/absence data. A SIMPROF analysis was used to test whether the groups were significantly different. We applied the test of similarity percentage (SIMPER) to determine the contribution of each species to the similarity/dissimilarity within the group of squares. Finally, an ANOSIM among squares located in the Argentine Province (depths less than 60 m, between 35 and 42°S) and the Magellan Province (other squares) was performed to test the null hypothesis of no difference in species composition between the two biogeographic provinces traditionally established for the study area.
Results
A total of 110 species of echinoderms distributed in 5 classes, 16 orders and 37 families were recorded in the study area (Appendix 1) according to the information available in 36 taxonomic and other published works up to 2005 (Appendix 2). Twenty species were not considered because of inaccurate locations, presence in only one location or only one report. Therefore, a matrix of 152 squares for 90 species was used in the analysis. The geographical coverage of sampling fully covers the study area, but there were areas with higher sampling intensity such as the coast of Uruguay, Buenos Aires, Chubut, Tierra del Fuego and the Malvinas Islands (Fig. 2).
The class Asteroidea presented the highest species richness (47 species) representing over 50% of the total; the species richness in Ophiuroidea, Echinoidea and Holothuroidea was 18, 11 and 14 species, respectively.
Spatial distribution of species richness

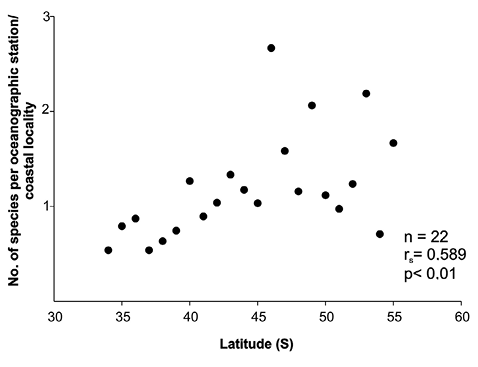

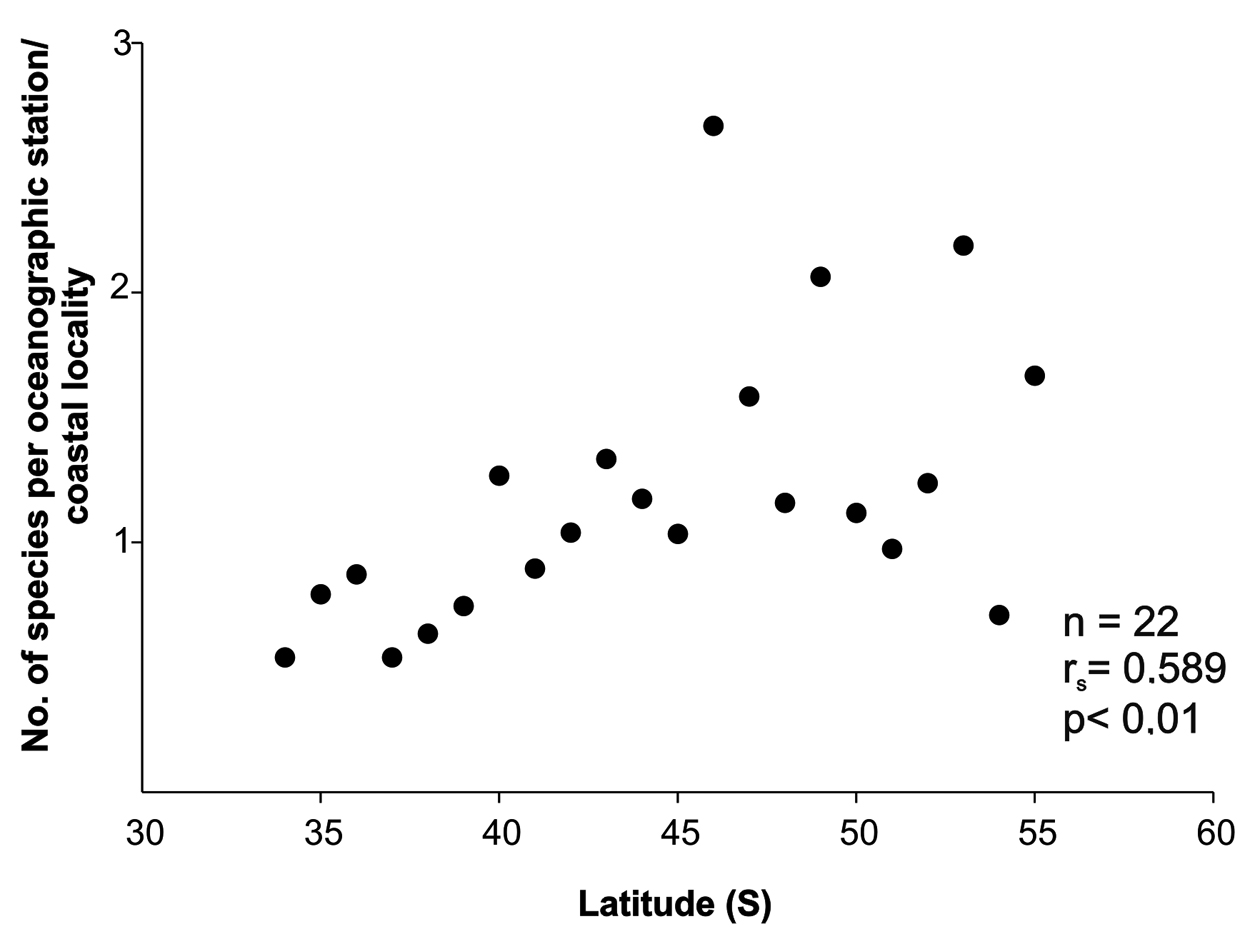

Given that species richness was biased by the sampling effort (Spearman rank correlation, N=22, R=0.618, P<0.01) the variable “number of species per oceanographic station/coastal locality” was used to analyse the relationship between richness and latitude. This correlation was positive (Spearman rank correlation, N=22, R=0.589, P<0.01) and the highest values were recorded between 47 and 55°S (Fig. 3).
Species composition through latitudinal and bathymetric ranges

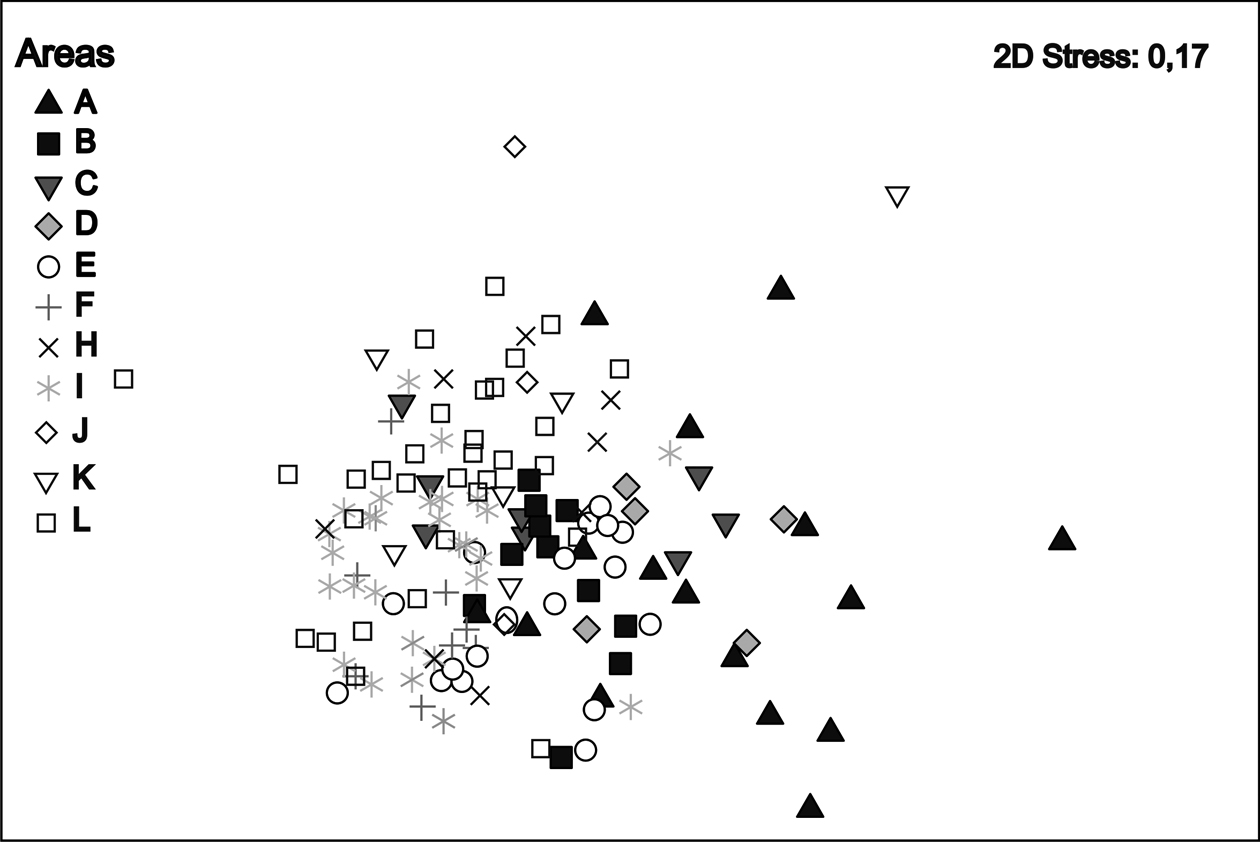

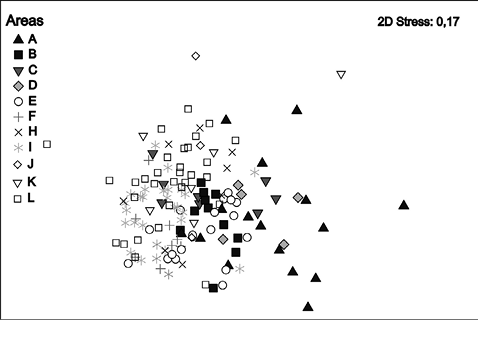

The multidimensional scaling (MDS) showed a spatial separation between those areas further south and deeper than 100 m (C, F, I, J, K and L) and areas located between 34 and 51°S at depths less than 100 m (A, B, D and H) (Fig. 4). Moreover, the comparison in pairs was significantly different between Area A vs. I (ANOSIM, R=0.535, P=0.01), A vs. L (ANOSIM, R=0.422, P=0.01), C vs. E (ANOSIM, R=0.358, P=0.01) and D vs. F (ANOSIM, R=0.629, P=0.01). Area G was not included in this analysis because it contained only a single square in which echinoderms were reported.
Species assemblages

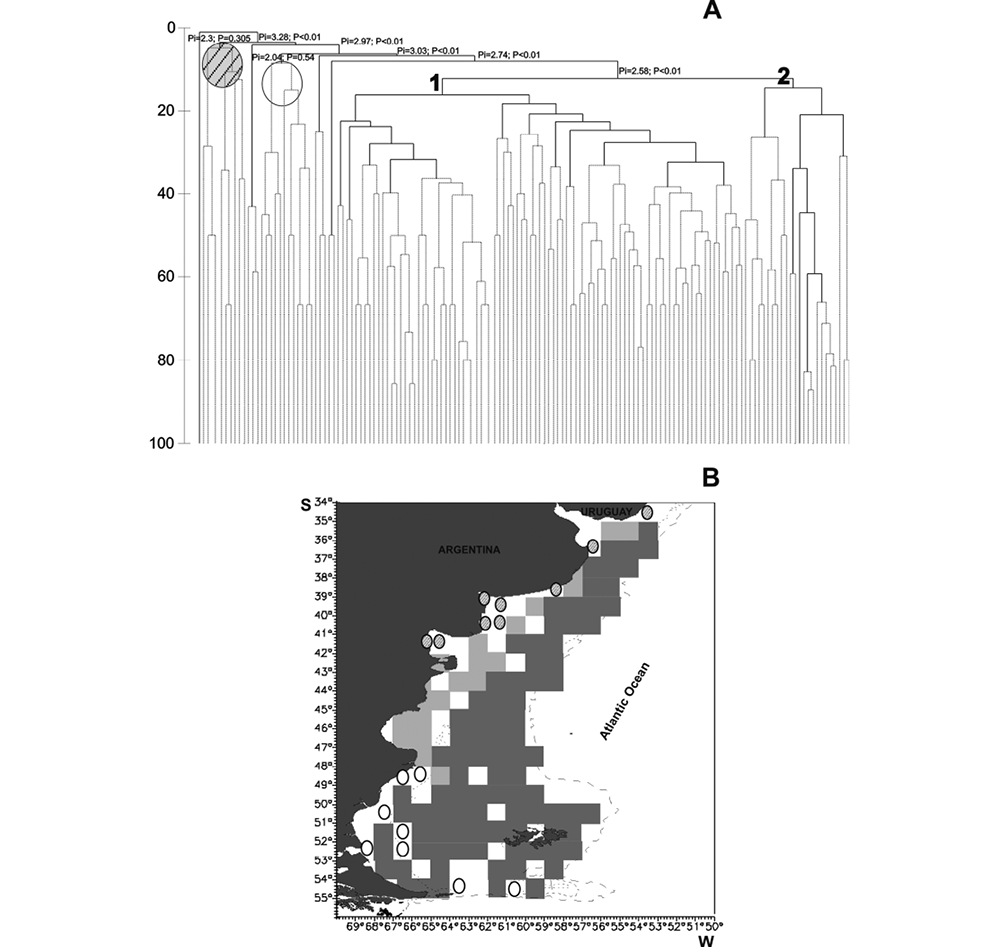

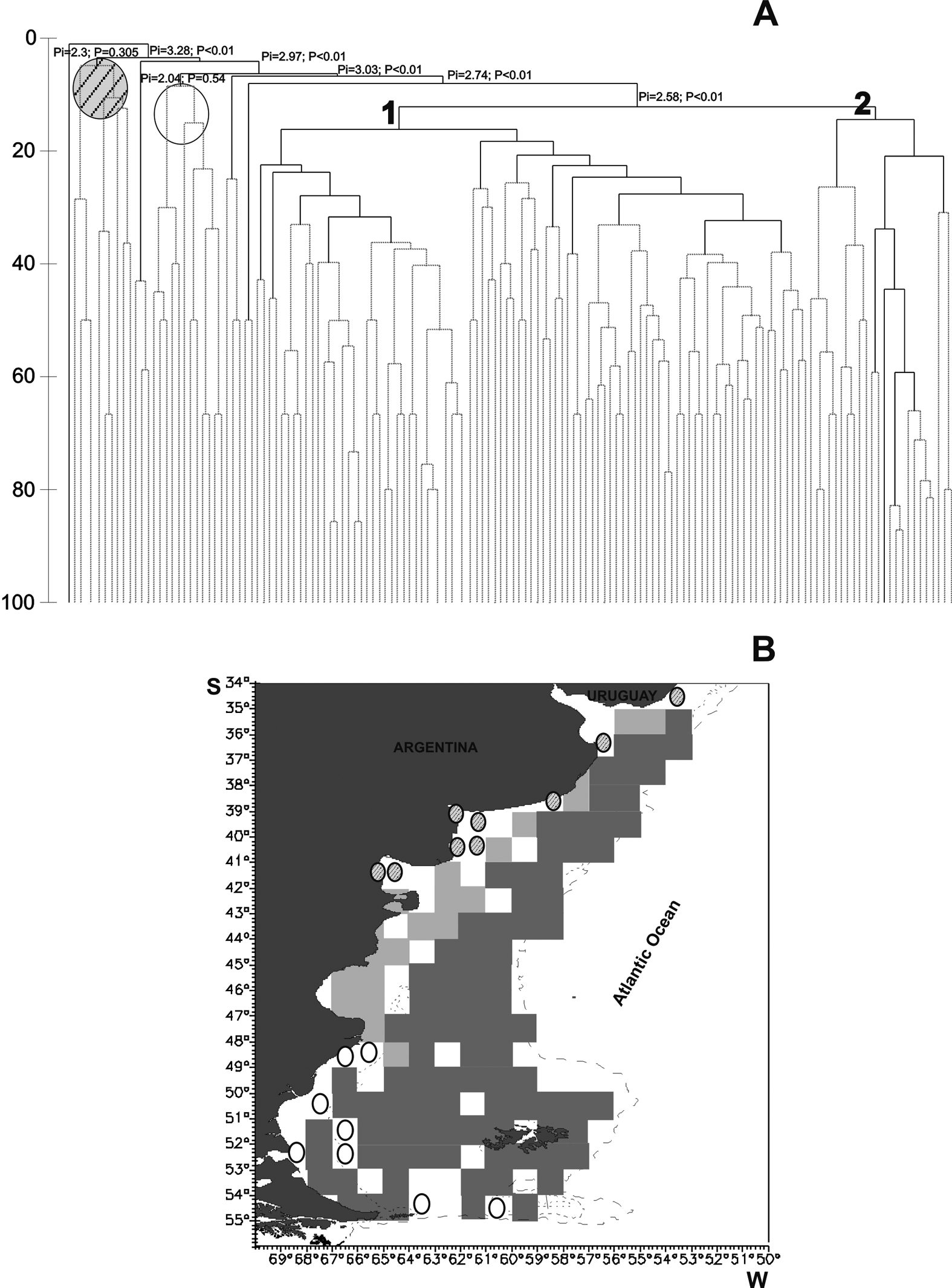

The cluster analysis indicated two main groups (group 1 and group 2) and two small groups of a few squares, mostly covering coastal waters between 34 and 42°S (Uruguay and Buenos Aires) and between 48 and 55°S (Patagonia) (Fig. 5A). There was an average dissimilarity equal to 88% between groups 1 and 2; the contribution of each of the species included in the study can be found in Table 1 (SIMPER test, presence-absence data). Group 1 (21% internal similarity) was composed of 90 squares occupying mainly shelf areas: between 34 and 48°S at depths greater than 50 m and between 48 and 55°S from shallow to deeper waters (Fig. 5B). In this sector, 86 species of echinoderms were registered, 48% exclusive. The species that most contributed to internal similarity of the group were Ctenodiscus australis, Ophiactis asperula, Odontaster penicillatus, Ophiocten amitinum, Austrocidaris canaliculata, Sterechinus agassizii, Ophiacantha vivipara, Tripylaster phillippi, Acodontaster e. granuliferus, Labidiaster radiosus, Astrotoma agassizii and Gorgonocephalus chilensis. Group 2 (27% internal similarity) was composed of 21 squares encompassing coastal and relatively shallow shelf areas, between 34 and 48°S and in general at depths of less than 60 m (Fig. 5). In this sector, 48 species of echinoderms were recorded. The most frequent species of this assemblage were Pseudechinus magellanicus, Arbacia dufresnii, Amphiura eugeniae, Cycethra verrucosa, Hemioedema spectabilis, Encope emarginata, Porianopsis mira, Cosmasterias lurida, Astropecten b. brasiliensis, Cladodactyla crocea, Pentamera chiloensis and Chiridota pisanii (Table 1).
Species | Av. Abund. G1 | Av. Abund. G2 | Av. Diss. | Diss/SD | Contrib.% | Cum.% |
---|---|---|---|---|---|---|
Ctenodiscus australis | 0.71 | 0.14 | 5.48 | 0.87 | 6.24 | 6.24 |
Pseudechinus magellanicus | 0.25 | 0.73 | 4.87 | 0.82 | 5.54 | 11.78 |
Amphiura eugeniae | 0.11 | 0.64 | 3.86 | 0.85 | 4.4 | 16.18 |
Arbacia dufresni | 0.13 | 0.59 | 3.82 | 0.81 | 4.35 | 20.53 |
Cycethra verrucosa | 0.26 | 0.41 | 3.21 | 0.66 | 3.65 | 24.18 |
Ophiactis asperula | 0.43 | 0.45 | 3.1 | 0.82 | 3.53 | 27.71 |
Austrocidaris canaliculata | 0.34 | 0.36 | 2.69 | 0.75 | 3.07 | 30.78 |
Sterechinus agassizii | 0.29 | 0.23 | 2.54 | 0.64 | 2.9 | 33.68 |
Henricia obesa | 0.22 | 0.36 | 2.5 | 0.65 | 2.85 | 36.52 |
Hemioedema spectabilis | 0.05 | 0.45 | 2.42 | 0.76 | 2.75 | 39.27 |
Odontaster penicillatus | 0.33 | 0.14 | 2.36 | 0.63 | 2.69 | 41.96 |
Encope emarginata | 0.03 | 0.41 | 2.23 | 0.68 | 2.54 | 44.5 |
Tripylaster philippii | 0.22 | 0.18 | 2.02 | 0.53 | 2.31 | 46.81 |
Ophiocten amitinum | 0.3 | 0.05 | 1.99 | 0.57 | 2.27 | 49.08 |
Ophiomyxa vivipara | 0 | 0.41 | 1.86 | 0.76 | 2.12 | 51.2 |
Porianiopsis mira | 0.01 | 0.36 | 1.71 | 0.7 | 1.95 | 53.15 |
Astropecten b. brasiliensis | 0.02 | 0.18 | 1.62 | 0.39 | 1.85 | 54.99 |
Ophiacanta vivipara | 0.28 | 0.05 | 1.6 | 0.55 | 1.82 | 56.81 |
Diplopteraster verrucosus | 0.12 | 0.23 | 1.55 | 0.54 | 1.76 | 58.58 |
Diplasterias brandti | 0.23 | 0.14 | 1.53 | 0.58 | 1.74 | 60.32 |
Acodontaster e. granulíferus | 0.27 | 0 | 1.45 | 0.49 | 1.65 | 61.97 |
Cosmasterias lurida | 0.03 | 0.23 | 1.38 | 0.47 | 1.57 | 63.54 |
Cladodactyla crocea | 0.06 | 0.23 | 1.3 | 0.48 | 1.48 | 65.02 |
Labidiaster radiosus | 0.21 | 0 | 1.25 | 0.4 | 1.42 | 66.45 |
Chiridota pisanii | 0.03 | 0.27 | 1.22 | 0.59 | 1.39 | 67.84 |
Bathybiaster loripes | 0.07 | 0.09 | 1.13 | 0.36 | 1.28 | 69.12 |
Astrotoma agassizii | 0.19 | 0 | 1.11 | 0.41 | 1.26 | 70.38 |
Pseudocnus dubiosus leoninus | 0.09 | 0.18 | 1.07 | 0.5 | 1.22 | 71.6 |
Gorgonocephalus chilensis | 0.18 | 0.05 | 1.07 | 0.44 | 1.22 | 72.82 |
Ceramaster patagonicus | 0.14 | 0 | 0.98 | 0.34 | 1.12 | 73.94 |
Ganeria hahni | 0.04 | 0.18 | 0.95 | 0.41 | 1.08 | 75.02 |
Trachythyone parva | 0.15 | 0 | 0.89 | 0.37 | 1.02 | 76.04 |
Diplopteraster clarki | 0.09 | 0.05 | 0.87 | 0.31 | 0.99 | 77.02 |
Pteraster stellifer | 0.13 | 0 | 0.83 | 0.34 | 0.95 | 77.97 |
Abatus philippii | 0.09 | 0 | 0.81 | 0.27 | 0.92 | 78.89 |
Cycethra verrucosa verrucosa | 0.04 | 0.14 | 0.8 | 0.41 | 0.92 | 79.81 |
Ophiura lymani | 0.14 | 0 | 0.8 | 0.33 | 0.91 | 80.72 |
Ophioplocus januarii | 0 | 0.18 | 0.79 | 0.44 | 0.9 | 81.62 |
Ophioplinthus inornata | 0.11 | 0 | 0.75 | 0.26 | 0.86 | 82.48 |
Trachythyone peruana | 0.11 | 0 | 0.68 | 0.31 | 0.78 | 83.26 |
Luidia ludwigi scotti | 0.02 | 0.05 | 0.67 | 0.21 | 0.77 | 84.03 |
Pteraster affinis lebruni | 0.12 | 0 | 0.64 | 0.34 | 0.72 | 84.75 |
Anasterias antarctica | 0.07 | 0.05 | 0.59 | 0.31 | 0.67 | 85.42 |
Henricia studeri | 0.09 | 0 | 0.57 | 0.27 | 0.65 | 86.08 |
Anasterias pedicellaris | 0.08 | 0.05 | 0.57 | 0.32 | 0.64 | 86.72 |
Pentamera chiloensis | 0.01 | 0.14 | 0.56 | 0.4 | 0.64 | 87.36 |
Amphiodia planispina | 0.02 | 0.09 | 0.56 | 0.31 | 0.64 | 88 |
Pseudocnus perrieri | 0.11 | 0 | 0.56 | 0.32 | 0.64 | 88.64 |
Amphiura princeps | 0.01 | 0.14 | 0.55 | 0.4 | 0.62 | 89.27 |
Ophiochondrus stelliger | 0.08 | 0 | 0.55 | 0.27 | 0.62 | 89.89 |
Lophaster stellans | 0.08 | 0 | 0.5 | 0.27 | 0.57 | 90.46 |
Abatus cavernosus | 0.07 | 0.05 | 0.5 | 0.31 | 0.57 | 91.03 |
Porania (Porania) antarctica magellanica | 0.1 | 0 | 0.47 | 0.3 | 0.53 | 91.56 |
Asterina stellifera | 0 | 0.09 | 0.46 | 0.3 | 0.52 | 92.09 |
Amphiura magellanica | 0.05 | 0.05 | 0.46 | 0.27 | 0.52 | 92.61 |
Amphioplus albidus | 0.04 | 0.05 | 0.45 | 0.24 | 0.51 | 93.12 |
Ganeria falklandica | 0.01 | 0.09 | 0.42 | 0.32 | 0.48 | 93.6 |
Taeniogyrus contortus | 0.04 | 0.05 | 0.42 | 0.25 | 0.47 | 94.07 |
The results of the ANOSIM analysis between squares from the Argentinean and Magellan Provinces showed significant differences in the echinoderm species composition (global R=0.339, P=0.01), and lead to the rejection of our null hypothesis.
DiscussionTop
We analysed the presence and distribution of 110 species of echinoderms, distributed in 5 classes, 16 orders and 37 families in the southwestern Atlantic. However, our analyses were performed with the most frequent species (N=90), in agreement with Brogger et al. (2013)Brogger M., Gil D., Rubilar T. et al. 2013. Echinoderms from Argentina: Biodiversity, distribution and current state of knowledge. In Alvarado J., Solís-Marín F.A. (eds), Echinoderm Research and Diversity in Latin America. Springer-Verlag, Berlin Heidelberg, pp. 359-402. in a recent contribution. It is interesting to point out that Crinoidea Antedonidae were early reported by Mortensen (1917Mortensen T. 1917. The Crinoidea of the Swedish Antarctic Expedition. Wiss Ergebn. Schwed. Südpolar Exp. 8: 10-15., 1920)Mortensen T. 1920. The Crinoidea. Wiss Ergebn Schwed Südpolar Exp 6: 1-24. and Bremec et al. (2010b)Bremec C., Marecos A., Escolar M. et al. 2010b. Riqueza específica en los bancos comerciales de vieira patagónica (Zygochlamys patagonica) a lo largo del frente de talud. Período 2009. Inf. Invest. INIDEP, 22, 18 pp. on the Argentinean slope, but excluded in this study due to their scarcity.
A biased distribution of the sampling effort occurred in the study area, a fact already reported for other groups of benthic invertebrates in the Argentine Sea (López Gappa 2000López Gappa J. 2000. Species richness of marine Bryozoa in the continental shelf and slope off Argentina (South-West Atlantic). Diversity Distrib. 6: 15-27., López Gappa and Landoni 2005López Gappa J., Landoni N. 2005. Biodiversity of Porifera in the Southwest Atlantic between 35° and 56°S. Rev. Mus. Argent. Cient. Nat. 7: 191-219., López Gappa et al. 2006López Gappa J., Alonso G.M., Landoni N. 2006. Biodiversity of benthic Amphipoda (Crutacea: Peracarida) in the Southwest Atlantic between 35° and 56°S. Zootaxa 1342: 1-66.). Although geographic coverage of historical sampling is wide, certain coastal areas have been sampled more intensively than others; this was the case of coastal bottoms of Uruguay, Buenos Aires, Chubut, Tierra del Fuego and the Malvinas Islands, where the number of species found could be a good estimation of species richness.
The latitudinal gradient in species richness is largely documented in both terrestrial and marine environments (Brown and Lomolino 1998Brown J.H., Lomolino M.V. 1998. Biogeography, 2nd edn. Sinauer, Sunderland.). The most clearly observed pattern occurs in the northern hemisphere, with the highest richness in the tropics and decreasing towards the polar regions (Roy et al. 1998Roy K., Jablonski D., Valentine J. et al. 1998. Marine latitudinal diversity gradients: tests of causal hypotheses. PNAS. 95: 3699-3702., Crame 2000Crame J.A. 2000. Evolution of taxonomic Diversity gradients in the marine realm: evidence from the composition of recent bivalve faunas. Paleobiology 26: 188-214., Hillebrand 2004Hillebrand H. 2004. On the Generality of the Latitudinal Diversity Gradient. Am. Nat. 163: 192-211.). In the southern hemisphere, there is no clear evidence of any increase in species richness from Antarctica towards the Equator (Crame 2000Crame J.A. 2000. Evolution of taxonomic Diversity gradients in the marine realm: evidence from the composition of recent bivalve faunas. Paleobiology 26: 188-214., Valdovinos et al. 2003Valdovinos C., Navarrete S., Marquet P. 2003. Mollusk species diversity in the Southeastern Pacific: why are there more species towards the pole? Ecography 26: 139-144., Barnes and Griffiths 2008Barnes D.K.A., Griffiths H.J. 2008. Biodiversity and biogeography of southern temperate and polar bryozoans. Glob. Ecol. Biogeogr. 17: 84-99.). The results of this study indicated that species richness of echinoderms in the southwestern Atlantic increases significantly with latitude (between 34 and 56°S); the highest species richness was observed between 46 and 56°S in the Argentine Sea. A similar pattern was observed for Bryozoa (López Gappa and Lichtschein 1988López Gappa J., Lichtschein V. 1988. Geographic distribution of bryozoans in the Argentine Sea (South-Western Atlantic). Oceanol. Acta 11: 89-99., López Gappa 2000López Gappa J. 2000. Species richness of marine Bryozoa in the continental shelf and slope off Argentina (South-West Atlantic). Diversity Distrib. 6: 15-27.), Porifera (López Gappa and Landoni 2005López Gappa J., Landoni N. 2005. Biodiversity of Porifera in the Southwest Atlantic between 35° and 56°S. Rev. Mus. Argent. Cient. Nat. 7: 191-219) and Amphipoda (López Gappa et al. 2006López Gappa J., Alonso G.M., Landoni N. 2006. Biodiversity of benthic Amphipoda (Crutacea: Peracarida) in the Southwest Atlantic between 35° and 56°S. Zootaxa 1342: 1-66.) in the southwestern Atlantic and for Mollusca (Valdovinos et al. 2003Valdovinos C., Navarrete S., Marquet P. 2003. Mollusk species diversity in the Southeastern Pacific: why are there more species towards the pole? Ecography 26: 139-144.) and Polychaeta (Lancellotti and Vásquez 2000Lancellotti D., Vásquez J. 2000. Zoogeografía de macroinvertebrados bentónicos de la costa de Chile: Contribución para la conservación marina. Rev. Chil. Hist. Nat. 73: 99-129.; Hernández et al. 2005Hernández C.E., Moreno R.A., Rozbaczylo N. 2005. Biogeographical patterns and Rapoport’s rule in southeastern Pacific benthic polychaetes of the Chilean coast. Ecography 28: 363-373.) along the southeast Pacific coast. Some authors postulate that the main component that generates this asymmetry of species richness in the latitudinal pattern, in comparison with the northern hemisphere, is the high species richness in the Antarctic Region (Griffiths et al. 2009Griffiths H., Barnes D., Linse K. 2009. Towards a generalized biogeography of the Southern Ocean benthos. J. Biogeogr. 36: 162-177.). In particular, echinoderms are well represented on both sides of the Drake Passage (Arntz et al. 2005Arntz W., Thatje S., Gerdes D. et al. 2005. The Antarctic-Magellan connection: macrobenthos ecology on the shelf and upper slope, a progress report. Sci. Mar. 69(Suppl. 2): 237-269.). Antarctica is considered a “hot-spot” in terms of echinoderm diversity (O’Loughlin et al. 2011O’Loughlin P., Paulay G., Davey N. et al. 2011. The Antarctic Region as marine biodiversity hot spot for echinoderms: Diversity and diversification of sea cucumbers. Deep Sea Res. Part II, 58: 254-275.). In addition, the Antarctic Region is the centre of origin and radiation of various taxa; many species that originated in the region have been able to migrate to cold temperate waters surrounding the sub-Antarctic region (Briggs 2006Briggs J.C. 2006. Proximate sources of marine biodiversity. J. Biogeogr. 33: 1-10.).
Specific composition of echinoderms changed through the studied bathymetric gradient, the most noticeable change being registered at depths greater than 100 m.
The bathymetric distribution patterns of echinoderms have been explained by physical factors (pressure, temperature, dissolved oxygen and sediment quality) and biological factors (mode of larval dispersal, predation and intra-and inter-specific competition) (Sokolova 1972Sokolova M.N. 1972. Trophic structure of deep-sea macrobenthos. Mar. Biol. 16: 1-12., Gage and Tyler 1982Gage J., Tyler P.A. 1982. Depth-related gradients in size structure and the bathymetric zonation of deep-sea brittle stars. Mar. Biol. 71: 299-308., Ventura and Fernandes 1995Ventura C., Fernandes F. 1995. Bathymetric distribution and population size structure of paxillosid seastars (Echinodermata) in the Cabo Frío upwelling ecosystem of Brazil. Bull. Mar. Sci. 56: 268-282.), which could be modified through the bathymetric gradient. According to Iken et al. (2010)Iken K., Konar B., Benedetti-Cecchi L. et al. 2010. Large-Scale spatial distribution patterns of echinoderms in nearshore rocky habitats. PLoS One 5: e13845., the echinoderm associations could be structured by different variables; a complex framework is generated and no single variable could explain the observed patterns. In our study area, the bathymetric gradient coincides with a water temperature gradient: we found shallow and warm waters in coastal areas, which became deeper and colder as we moved forward to the shelf break. Water temperature is considered the main limiting factor in the distribution of marine species (Stuardo 1964Stuardo B. 1964. Distribución de los moluscos marinos litorales en Latinoamérica. Bol. Inst. Biol. Mar. 7: 79-91., Vannucci 1964Vannucci M. 1964. Zoogeografia marinha do Brasil. Bol. Inst. Biol. Mar. 7: 113-121., Menni et al. 2010Menni R., Jaureguizar A., Stehmann M. et al. 2010. Marine biodiversity at the community level: zoogeography of sharks, skates, rays and chimaeras in the southwestern Atlantic. Biodiversity Conserv. 19: 775-796., Okolodkov 2010Okolodkov Y. 2010. Biogeografía Marina. Universidad Autónoma de Campeche. 217 pp.) and has been the basis of many discussions on the boundaries between biogeographic provinces in the southwestern Atlantic (Ekman 1953Ekman S. 1953. Zoogeography of the Sea. London, Sidwick & Jackson, 417 pp., Boltovskoy 1964Boltovskoy E. 1964. Provincias zoogeográficas de América del Sur y su sector Antárctico según los foraminíferos bentónicos. Bol. Inst. Biol. Mar. 7: 93-99.). The subtropical/sub-Antarctic convergence develops into the Argentinean Province; this mass of water is the product of the mixture of subtropical waters coming from the north transported by the Brazil Current and the sub-Antarctic waters arriving from the south carried by the Malvinas Current (Boltovskoy 1981Boltovskoy E. 1981. Masas de agua en el Atlántico Sudoccidental. Atlas del Atlántico Sudoccidental y métodos de trabajo con el zooplancton marino. Publ. Espec. INIDEP, Mar del Plata, 10 pp., Acha et al. 2004Acha E.M., Mianzan H.W., Guerrero R.A. et al. 2004. Marine fronts at the continental shelves of austral South America. Physical and Ecological processes. J. Mar. Syst. 44: 83-105.).
Changes in the benthic faunal composition at depths greater than 100 m on the Argentinean Continental Shelf have been reported by other authors (Bastida et al. 1992Bastida R., Roux A., Martínez D. 1992. Benthic communities of the Argentine continental shelf. Oceanol. Acta 15: 687-698., Escolar et al. 2013Escolar M., Hernández D.R., Bremec C. 2013. Latitudinal and bathymetric distribution patterns of ophiuroids (Echinodermata: Ophiuroidea) on scallop fishing grounds at the shelf-break frontal system, South-Western Atlantic. Mar. Biodiver. Rec. 6: 1-8.). These changes were explained in terms of the high productivity of the shelf break frontal system in the area, which is produced by the meeting of the sub-Antartic shelf waters and the cooler and more productive waters of the Malvinas Current (Acha et al. 2004Acha E.M., Mianzan H.W., Guerrero R.A. et al. 2004. Marine fronts at the continental shelves of austral South America. Physical and Ecological processes. J. Mar. Syst. 44: 83-105.).
The inventory and analysis of historical information about echinoderms conducted in this paper constitutes the first attempt to validate the preliminary biogeographical observations (see Bernasconi 1964cBernasconi I. 1964c. Distribución geográfica de los Equinoideos y Asteroideos de la extremidad austral de Sudamérica. Bol. Inst. Biol. Mar. 7: 43-50.) and confirms the two main zoogeographic divisions of the study area, the Argentinean and Magellan Provinces (Balech 1954Balech E. 1954. División zoogeográfica del litoral sudamericano. Rev. Biol. Mar. 4: 184-195.). The results of this study showed that the association of squares that represented the Argentinean Province was characterized by widely distributed species: there are subtropical (Asterina stellifera, Encope emarginata, Astropecten b. brasiliensis) (Tommasi 1970Tommasi L. 1970. Lista dos asteroides recentes N/Oc. “Almirante Saldanha” do Brasil. Contr. Avulsas Inst. Oceanogr. Univ. São Paulo Ser. Oceanogr. Biol. 18: 1-61., Tommasi et al. 1988aTommasi L.R., de Castro S.M., de Sousa E. 1988a. Echinodermata coletados durante as campanhas oceanograficas do N/Oc. “Almirante Saldanha” no Atlantico sul occidental. Relat. Interno Inst. Oceanogr. Univ. Sao Paulo 21, 11 pp.,bTommasi L.R., Cernea M., Condeixa M. 1988b. Equinodermes coletados pelo N/Oc. “Almirante Saldanha”, entre 26°59’S e 38° 39’S. Relat. Interno Inst. Oceanogr. Univ. Sao Paulo 22, 11 pp., Martínez 2008Martínez S. 2008. Shallow water Asteroidea and Ophiuroidea of Uruguay: composition and biogeography. Rev. Biol. Trop. 56: 205-214.) and sub-Antarctic species (Pseudechinus magellanicus, Arbacia dufresnii, Cycethra verrucosa, Porianopsis mira, Cosmasterias lurida) (Bernasconi 1947Bernasconi I. 1947. Distribución geográfica de los Equinoideos argentinos. An. Soc. Argent. Est. Geog. 8: 97-114., 1964cBernasconi I. 1964c. Distribución geográfica de los Equinoideos y Asteroideos de la extremidad austral de Sudamérica. Bol. Inst. Biol. Mar. 7: 43-50., Tommasi 1965Tommasi L. 1965. Faunistic provinces of the western South Atlantic littoral Region (summary). Anais Acad. Bras. Cienc. 37: 261-262., Escolar 2010Escolar M. 2010. Variaciones espacio-temporales en la comunidad de invertebrados bentónicos asociada al frente de talud. Equinodermos como caso de estudio. PhD Thesis. Univ. Buenos Aires, Argentina, 189 pp.). These results show that the Argentinean Province is characterized by low endemism and has high heterogeneity (Balech and Ehrlich 2008Balech E., Ehrlich M.D. 2008. Esquema biogeográfico del Mar Argentino. Rev. Invest. Desarr. Pesq. 19: 45-75.) owing to its particular hydrography, as explained above.
Our results confirm the extension of the Magellan Province towards lower latitudes. We found that typically Magellanic species such as Ctenodiscus australis, Acodontaster e. granuliferus, Austrocidaris canaliculata, Sterechinus agassizii and Tripylaster phillippi (Bernasconi 1964cBernasconi I. 1964c. Distribución geográfica de los Equinoideos y Asteroideos de la extremidad austral de Sudamérica. Bol. Inst. Biol. Mar. 7: 43-50.) extend northwards along the Malvinas current up to 36°-37°S, but always at depths greater than 100 m. Von Ihering (1927)Von Ihering H. 1927. Die geschichte des Atlantischen oceans. Gustav Fisher, Jena, 237 pp. was the first to mention the arrival of Magellanic fauna to Cabo Frio (Brazil) and several authors remark that this locality is the boundary between the Magellan and South Brazilian Provinces (Briggs 1974Briggs J.C. 1974. Marine Zoogeography. McGraw-Hill Co., New York, 475 pp., Boschi 1976Boschi E. 1976. Nuevos aportes al conocimiento de la distribución geográfica de los crustáceos decápodos del Mar Argentino. Physis 35: 59-68.). Similar results were obtained with benthic amphipods (López Gappa et al. 2006López Gappa J., Alonso G.M., Landoni N. 2006. Biodiversity of benthic Amphipoda (Crutacea: Peracarida) in the Southwest Atlantic between 35° and 56°S. Zootaxa 1342: 1-66.).
Almost half of the 86 species recorded in the Magellan Province and also half of the 46 species recorded in the Argentinean Province were also recorded by Lancellotti and Vásquez (2000)Lancellotti D., Vásquez J. 2000. Zoogeografía de macroinvertebrados bentónicos de la costa de Chile: Contribución para la conservación marina. Rev. Chil. Hist. Nat. 73: 99-129. in Chilean waters. Pérez-Ruzafa et al. (2013)Pérez-Ruzafa A., Alvarado J.J., Solís-Marín F.A. et al. 2013. Latin America Echinoderm Biodiversity and Biogeography: Patterns and Affinities. In Alvarado J., Solís-Marín F.A. (eds), Echinoderm Research and Diversity in Latin America. Springer-Verlag, Berlin Heidelberg, pp. 511-542. found that echinoderm fauna from Chile is more closely related to Argentina than to Peru. In fact, they established two biogeographical provinces, the Peru-Chilean and the South American or Magellan Provinces. This continuum in the distribution of species between the Pacific and Atlantic Oceans has been found in various groups of marine organisms, and is the main reason for asserting that the Magellan Province extends south from 40º-41ºS in the Pacific Ocean to approximately 30º-31°S in the Atlantic Ocean (Balech 1954Balech E. 1954. División zoogeográfica del litoral sudamericano. Rev. Biol. Mar. 4: 184-195., Briggs 1974Briggs J.C. 1974. Marine Zoogeography. McGraw-Hill Co., New York, 475 pp.). Several authors postulate that the opening of the Strait of Magellan 7000 years ago played an important role in the distribution and dispersal of species to create a corridor for the exchange of faunal elements between the two oceans (McCulloch and Davies 2001McCulloch R., Davies S. 2001. Late-glacial and holocene palaeoenvironmental change in the central Strait of Magellan, southern Patagonia. Palaeogeogr. Palaeoclimatol. Palaeoecol. 173: 143-173., Montiel et al. 2005Montiel A., Gerdes D., Arntz W.E. 2005. Distributional patterns of shallow-waters polychaetes in the Magellan Region: a zoogeographical and ecological synopsis. Sci. Mar. 69: 123-133.). In contrast, a low similarity (only 7%) was found between the echinoderm fauna from southern Brazil and the Magellan Province; Barboza et al. (2011)Barboza C., Bendayan de Moura R., Monnerat Lana A. et al. 2011. Echinoderms as clues to Antarctic - South American connectivity. Oecologia Australis 15: 86-110. postulated that this result suggests a clear turnover of species from the subtropical Brazil towards temperate areas, mainly at Uruguayan latitudes.
The 25% of the echinoderm species recorded in the Magellan Province in this study were registered in Antarctic waters by Bernasconi 1959Bernasconi I. 1959. Algunos asteroideos de Antártida. Contrib. Cient. Inst. Antart. Argent. 1: 2-22., 1964cBernasconi I. 1964c. Distribución geográfica de los Equinoideos y Asteroideos de la extremidad austral de Sudamérica. Bol. Inst. Biol. Mar. 7: 43-50., 1979Bernasconi I. 1979. Asteriidae, Cosconasteriinae de la Argentina y Antártida. Rev. Mus. Argent. Cienc. Nat. Bernardino Rivadavia Inst. Nac. Invest. Cienc. Nat. (Argent) Hid. 5: 241-249., Bernasconi and D’Agostino 1978Bernasconi I., D'Agostino M. 1978. Equinodermos Antárcticos III. Ofiuroideos de Sandwich del Sur y Georgias del Sur. Rev. Mus. Argent. Cienc. Nat. Bernardino Rivadavia Inst. Nac. Invest. Cienc. Nat. (Argent) Hid. 5: 203-222., Dahm 1999Dahm C. 1999. Ophiuroids (Echinodermata) of southern Chile and the Antarctic: Taxonomy, biomass, diet and growth of dominant species. Sci. Mar. 63: 427-432., Manjón-Cabeza and Ramos 2003Manjón-Cabeza M., Ramos A. 2003. Ophiuroid community structure of the South Shetland Islands and Antarctic Peninsula Region. Polar Biol. 26: 691-699., Chiantore et al. 2006Chiantore M., Guidetti M., Cavallero M. et al. 2006. Sea urchins, sea stars and brittle stars from Terra Nova bay (Ross Sea, Antarctica). Polar Biol. 29: 467-475., De Domenico et al. 2006De Domenico F., Chiantore M., Buongiovanni, S. et al. 2006. Latitude versus local effects on echinoderm assemblages along the Victoria Land Coast, Ross Sea, Antarctica. Antarc. Sci. 18: 655-662., O’Loughlin et al. 2011O’Loughlin P., Paulay G., Davey N. et al. 2011. The Antarctic Region as marine biodiversity hot spot for echinoderms: Diversity and diversification of sea cucumbers. Deep Sea Res. Part II, 58: 254-275.. These results confirm that there is a high degree of affinity between Antarctic and sub-Antartic echinoderm fauna previously mentioned by Barboza et al. (2011)Barboza C., Bendayan de Moura R., Monnerat Lana A. et al. 2011. Echinoderms as clues to Antarctic - South American connectivity. Oecologia Australis 15: 86-110.. The faunal connection between the sub-Antarctic Region of the Magellan Province and the Antarctic Region has also been reported for various groups of benthic invertebrates (Barnes and De Grave 2000Barnes D.K., De Grave S. 2000. Biogeography of Southern Ocean bryozoans. Vie Milieu. 50: 261-273., Montiel et al. 2005Montiel A., Gerdes D., Arntz W.E. 2005. Distributional patterns of shallow-waters polychaetes in the Magellan Region: a zoogeographical and ecological synopsis. Sci. Mar. 69: 123-133., Rodríguez et al. 2007Rodríguez E., López-González P., Gili J. 2007. Biogeography of Antarctic sea anemones (Anthozoa, Actiniaria): What do they tell us about the origin of the Antarctic benthic fauna? Deep-Sea Res. Part II. 54: 1876-1904.). The presence of species on both sides of the Drake Passage provides strong evidence to confirm the faunal exchange between the Magellan Province and the Antarctic Region; therefore, it was inferred that the Polar Front is not a strict barrier to dispersion of many species of benthic invertebrates (Arntz and Brey 2003Arntz W., Brey T. 2003. The expedition ANTARKTIS XIX/5 (LAMPOS) of RV "Polarstern" in 2002. Ber. Polarforsch. Meeresforsch. 462: 1-120., Montiel et al. 2005Montiel A., Gerdes D., Arntz W.E. 2005. Distributional patterns of shallow-waters polychaetes in the Magellan Region: a zoogeographical and ecological synopsis. Sci. Mar. 69: 123-133.).
It has been stated that echinoderm species could migrate from the Magellan Province through the Malvinas Plateau and shallow seas, following the arc of southern islands (the Scotia Arc) to reach the Antarctic: examples are Cycethra verrucosa, Anasterias antarctica, Arbacia dufresnii, Pseudechinus magellanicus (Bernasconi 1964cBernasconi I. 1964c. Distribución geográfica de los Equinoideos y Asteroideos de la extremidad austral de Sudamérica. Bol. Inst. Biol. Mar. 7: 43-50.). The same pattern but in the opposite direction was reported by Hedgpeth (1969)Hedgpeth J.W. 1969. Introduction to Antarctic zoogeography: Distribution of selected groups of marine invertebrates in waters south of 35ºS latitude. In: Bushnell V.C., Hedgpeth J.W. (eds), Antarctic Map Folio Series, American Geographical Society, New York, pp. 11: 1-9. for several species of Antarctic ophiuroids, such as Astrotoma agassizii, species with circumpolar Antarctic and sub-Antarctic distribution and with a wide dispersion northwards. Bernasconi and D’Agostino (1974)Bernasconi I., D’Agostino M. 1974. Ampliación de la Zona de distribución de Amphiura crassipes Ljungman, 1867 (Ophiuroidea, Amphiuridae). Physis 33: 135-138. found this species at the northern end of the Antarctic Peninsula, South Georgia, Burdwood Bank and the Malvinas Islands, reaching 42°S in the Pacific Ocean and 39°S in the Atlantic Ocean). Hedgpeth (1969)Hedgpeth J.W. 1969. Introduction to Antarctic zoogeography: Distribution of selected groups of marine invertebrates in waters south of 35ºS latitude. In: Bushnell V.C., Hedgpeth J.W. (eds), Antarctic Map Folio Series, American Geographical Society, New York, pp. 11: 1-9. also mention that the range of distribution of ophiuroids is controlled by depth, so the routes through shallow waters (Scotia Arc) have been of great importance in the spread of this and other classes of echinoderms.
Our results are in agreement with theories that attempt to explain the observed faunal affinities between Antarctica and South America, giving importance to the connection through the Scotia Arc (Arntz et al. 2005Arntz W., Thatje S., Gerdes D. et al. 2005. The Antarctic-Magellan connection: macrobenthos ecology on the shelf and upper slope, a progress report. Sci. Mar. 69(Suppl. 2): 237-269., Moyano 2005Moyano H. 2005. Scotia Arc bryozoans from the LAMPOS expedition: a narrow bridge between two different faunas. Sci. Mar. 69: 103-112.) and to the Antarctic Circumpolar Current and Antarctic Coastal Current in the case of echinoderms (Pawson 1969Pawson D. 1969. Holothuroidea fron Chile. Rep Nº 46 Lund Univ. Chile Exped. 1948-1949. Sarsia 38: 121-145., Díaz et al. 2006Díaz A., Palma A., Feral J. et al. 2006. Phylogeography of Sterechinus sea urchins in the Southern Ocean: a Antarctic and Subantarctic two-ring model. II Simposio Latinoamericano sobre Investigaciones Antárticas, 16-18 Agosto 2006, Concepción, Chile.).
Acknowledgements
We are grateful to Dr. Ana Roux for providing data collected during the cruises of FV Shinkai Maru (1978-1979). This is INIDEP Contribution N° 1862. Financial support was received from PICT 2007-02200 and EXA-UNMdP 546. V.S. is supported by a CONICET Doctoral Fellowship.
