The Ecosystem Approach to Fisheries in the
Mediterranean and Black Seas

J. Lleonart and F. Maynou (eds)

INTRODUCTIONTop

Trawling is widely held to be the human activity with the greatest impact on continental shelves all over the world (Jennings and Kaiser 1998Jennings S., Kaiser M.J. 1998. The effects of fishing on marine ecosystems. Adv. Mar. Biol. 34: 268-352., Thrush et al. 1998Thrush S.F., Hewitt J.E., Cummings V.J., Dayton P.K., Cryer M., Turner S.J., Funnell G.A., Budd R.G., Milburn C.J., Wilkinson M.R. 1998. Disturbance of the Marine Benthic Habitat by Commercial Fishing : Impacts at the Scale of the Fishery. Ecol. Appl. 8(3): 866-879.). Towed bottom fishing gears severely disturb the seabed and there are many studies highlighting their negative effects on benthic communities and habitats (e.g. Dayton et al 1995Dayton P.K., Thrush S.F, Agardy M.T., Hofman R.J. 1995. Environmental effects of marine fishing. Aquatic. Conserv. 5: 205-232., Kaiser et al. 2000Kaiser, M.J., Ramsay, K., Richardson, C.A., Spence, F.E., Brand, A.R. 2000. Chronic fishing disturbance has changed shelf sea benthic community structure. J. Anim. Ecol. 69(3): 494-503., Smith 2000Smith C. 2000. Impact of otter trawling on an eastern Mediterranean commercial trawl fishing ground. ICES J. Mar. Sci. 57(5): 1340-1351.). These habitats might provide critical environments for various life stages for many commercial species, i.e. spawning, recruitment and growth habitats, and are sometimes termed essential fish habitats (EFH) (Auster and Langton 1998Auster P.J., Langton R.W. 1998. The effects of fishing on fish habitat. Am. Fish. Soc. Symp. 22: 150-187.). Alterations to the seabed may therefore indirectly affect commercial species populations, especially for those species living in close relationship with benthos and feeding on it (de Juan et al. 2007ade Juan S., Cartes J. E., Demestre M. 2007a. Effects of commercial trawling activities in the diet of the flat fish Citharus linguatula (Osteichthyes: Pleuronectiformes) and the starfish Astropecten irregularis (Echinodermata: Asteroidea). J. Exp. Mar. Biol. Ecol. 349(1): 152-169., Fanelli et al. 2010Fanelli E., Badalamenti F., D’Anna G., Pipitone C., Romano C. 2010. Trophodynamic effects of trawling on the feeding ecology of pandora, Pagellus erythrinus, off the northern Sicily coast (Mediterranean Sea). Mar. Freshw. Res. 61(4): 408-417.).

The degree of seabed alteration and potential consequences on commercial species will depend on the intensity of the fishing effort. Therefore, it is important to understand the responses of benthic ecosystems to variations in trawling intensity. Communities vary over time and space in response to natural variability (de Juan and Hewitt 2014de Juan S., Hewitt J. 2014. Spatial and temporal variability in species richness in a temperate intertidal community. Ecography 37(2): 183-190.), which can be confounded with the temporal and spatial dynamics of anthropogenic disturbance factors (Koch et al. 2009Koch E.W., Barbier E.B., Silliman B.R., Reed D.J., Perillo G.M., Hacker S.D., Granek E.F., Primavera J.H., Muthiga N., Polasky S., Halpern B.S., Kennedy C.J., Kappel C.V, Wolanski E. 2009. Non-linearity in ecosystem services: temporal and spatial variability in coastal protection. Front. Ecol. Environ. 7(1): 29-37.). In this context, it is essential to consider the effects of the stressors over time and space, as i) the temporal frequency of the activity might condition the ability of the systems to recover between disturbance events, ii) the spatial intensity of stressors might be linked to the existence of less disturbed areas that, through connectivity mechanisms, can contribute to the ecosystem recovery (Thrush et al. 2013Thrush S.F., Hewitt J.E., Lohrer A.M., Chiaroni L.D. 2013. When small changes matter: the role of cross-scale interactions between habitat and ecological connectivity in recovery. Ecol. appl. 23(1): 226-238., Planes et al. 2006Planes S., García-Charton J.A., Pérez-Ruzafa A. (Coord.), 2006. Ecological effects of Atlanto-Mediterranean Marine Protected Areas in the European Union. EMPAFISH Project, Booklet, 1158 pp.), and iii) natural variability can influence the cumulative effects as natural oscillations of communities overlap with the stressor effects.

The effects of different levels of fishing pressure on habitats and benthic communities have been explored over spatial gradients of trawling disturbance (Thrush et al. 1998Thrush S.F., Hewitt J.E., Cummings V.J., Dayton P.K., Cryer M., Turner S.J., Funnell G.A., Budd R.G., Milburn C.J., Wilkinson M.R. 1998. Disturbance of the Marine Benthic Habitat by Commercial Fishing : Impacts at the Scale of the Fishery. Ecol. Appl. 8(3): 866-879., Jennings et al. 2001Jennings S., Dinmore T.A., Duplisea D.E., Warr K.J., Lancaster J.E. 2001. Trawling disturbance can modify benthic production processes. J. Anim. Ecol. 44: 459-475., Collie et al. 2005Collie J. S., Hermsen J. M., Valentine P. C. 2005. Effects of fishing on gravel habitats: assessment and recovery of benthic megafauna on Georges Bank. Am. Fish. Soc. Symp. 41: 325-343., de Juan and Demestre 2012de Juan S., Demestre M. 2012. A Trawl Disturbance Indicator to quantify large scale fishing impact on benthic ecosystems. Ecol. Indic. 18: 183-190.) and temporal closures (Smith 2000Smith C. 2000. Impact of otter trawling on an eastern Mediterranean commercial trawl fishing ground. ICES J. Mar. Sci. 57(5): 1340-1351., Hiddink et al. 2006aHiddink J., Hutton T., Jennings S., Kaiser M. 2006a. Predicting the effects of area closures and fishing effort restrictions on the production, biomass, and species richness of benthic invertebrate communities. ICES J. Mar. Sci. 63(5): 822-830., Demestre et al. 2008Demestre M., de Juan S., Sartor P., Ligas A. 2008. Seasonal closures as a measure of trawling effort control in two Mediterranean trawling grounds: effects on epibenthic communities. Mar. Pollut. Bull. 56(10): 1765-1773.). However, the effect of the temporal dynamics of trawling fleets (i.e. differences in fishing effort intensity over time in the same fishing ground) on benthic ecosystems are still unknown and cumulative impacts of trawling activities over time probably further compromise the resilience of communities (Hinz et al. 2009Hinz H., Prieto V., Kaiser M.J. 2009. Trawl disturbance on benthic communities: Chronic effects and experimental predictions. Ecol. Appl. 19(3): 761-773.).

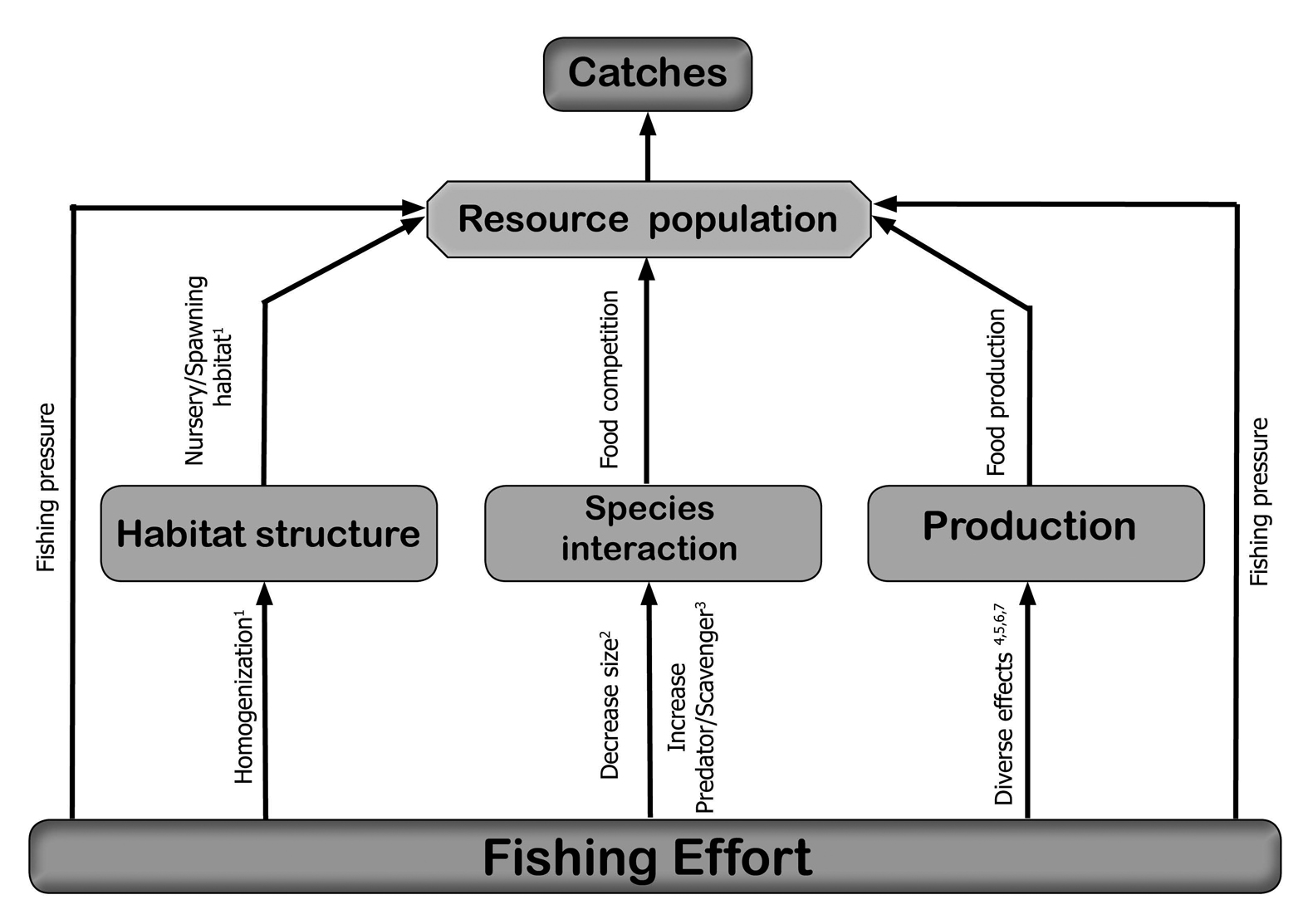

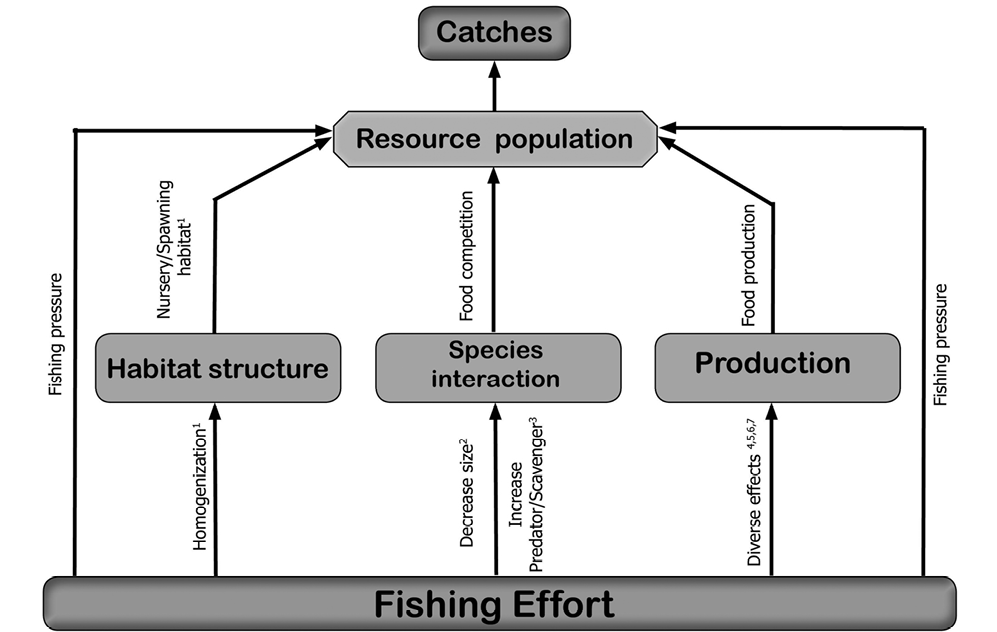

The European Marine Strategy Framework Directive (EMSFD) established by the European Commission 2008 (EC2008/56) encourages Member States to move towards an ecosystem-based fisheries management (EBFM) in order to protect ecosystems goods and services that marine ecosystems provide. Consequently, it is important to take into account the link between habitat and commercial species in management in order to move towards an EBFM if the goals of the EMSFD are to be met. There are a number of interactions through which fishing activity may influence commercial species (the principal ones are depicted in Fig. 1):

i) Production: ecosystem production is represented as a food source for demersal commercial species. Production by small infauna does not seem to be affected by high fishing intensity (Jennings et al. 2002Jennings S., Nicholson M., Dinmore T., Lancaster J. 2002. Effects of chronic trawling disturbance on the production of infaunal communities. Mar. Ecol. Progr. Ser. 243: 251-260.), although it can increase at moderate levels of disturbance (Jennings et al. 2001Jennings S., Dinmore T.A., Duplisea D.E., Warr K.J., Lancaster J.E. 2001. Trawling disturbance can modify benthic production processes. J. Anim. Ecol. 44: 459-475.), which may benefit species feeding on small opportunistic fauna (Rijnsdorp and Vingerhoed 2001Rijnsdorp A., Vingerhoed B. 2001. Feeding of plaice Pleuronectes platessa L. and sole Solea solea (L.) in relation to the effects of bottom trawling. J. Sea Res. 45(3-4): 219–229.). On the other hand, production by larger infauna and epifauna would decrease in heavily trawled areas (Jennings et al. 2001Jennings S., Dinmore T.A., Duplisea D.E., Warr K.J., Lancaster J.E. 2001. Trawling disturbance can modify benthic production processes. J. Anim. Ecol. 44: 459-475., Hiddink et al. 2006bHiddink J.G., Jennings,S., Kaiser M.J., Queirós A.M., Duplisea D.E., Piet G. J. 2006b. Cumulative impacts of seabed trawl disturbance on benthic biomass, production, and species richness in different habitats. Can. J. Fish. Aquat. Sci. 736: 721-736., Queirós et al. 2006Queirós A.M., Hiddink J.G., Kaiser M.J., Hinz H. 2006. Effects of chronic bottom trawling disturbance on benthic biomass, production and size spectra in different habitats. J. Exp. Mar. Bio. Ecol. 335(1): 91-103.), which may result in a food impoverishment for fish. Benthic carnivorous fish consume larger prey as they grow (Lukoschek and McCormick 2001Lukoschek V., McCormick M. 2001. Ontogeny of diet changes in a tropical benthic carnivorous fish, Parupeneus barberinus (Mullidae): relationship between foraging behaviour, habitat use, jaw size, and prey selection. Mar. Biol. 138(6): 1099-1113.), so a decrease in larger infauna might principally affect adult populations and the most economically important components of the stock (Fanelli et al. 2010Fanelli E., Badalamenti F., D’Anna G., Pipitone C., Romano C. 2010. Trophodynamic effects of trawling on the feeding ecology of pandora, Pagellus erythrinus, off the northern Sicily coast (Mediterranean Sea). Mar. Freshw. Res. 61(4): 408-417.). Another important food source for several demersal species, especially during the juvenile phase, is suprabenthos, whose abundance and biomass could also be affected by trawling (de Juan et al. 2007ade Juan S., Cartes J. E., Demestre M. 2007a. Effects of commercial trawling activities in the diet of the flat fish Citharus linguatula (Osteichthyes: Pleuronectiformes) and the starfish Astropecten irregularis (Echinodermata: Asteroidea). J. Exp. Mar. Biol. Ecol. 349(1): 152-169., Fanelli et al. 2011Fanelli E., Cartes J. E., Badalamenti F., D’Anna G., Pipitone C., Azzurro E., Rumolo P., Sprovieri M. 2011. Meso-scale variability of coastal suprabenthic communities in the southern Tyrrhenian Sea (Western Mediterranean). Estuar. Coast. Shelf Sci. 91(3): 351-360.).

ii) Habitat structure: important negative consequences of trawl fishing activity have also been described at the benthic habitat level. Habitat structure that provides shelter and favours the establishment of spawning and nursery habitats may also be altered as trawling activity is known to homogenize habitat structure (Jennings and Kaiser 1998Jennings S., Kaiser M.J. 1998. The effects of fishing on marine ecosystems. Adv. Mar. Biol. 34: 268-352., Thrush et al. 2001Thrush S., Hewitt J., Funnell G., Cummings V., Ellis J., Schultz D., Talley D., Norkko A. 2001. Fishing disturbance and marine biodiversity: role of habitat structure in simple soft-sediment systems. Mar. Ecol. Progr. Ser. 221: 255-264.).

iii) Species interactions: changes observed in trawled areas, such as changes in epifaunal composition, might also affect commercial species as some epifaunal species compete with commercial fish for food. The epifaunal size decrease caused by trawling (de Juan et al. 2007bde Juan S., Thrush S., Demestre M. 2007b. Functional changes as indicators of trawling disturbance on a benthic community located in a fishing ground (NW Mediterranean Sea). Mar. Ecol. Prog. Ser. 334: 117-129.) might actually benefit commercial species by releasing them from large potential competitors, but the increase in predator and scavenging species (Rumohr and Kujawski 2000Rumohr H., Kujawsky T. 2000. The impact of trawl fishery on the epifauna of the southern North Sea. ICES J. Mar. Sci. 57(5): 1389-1394.) could increase the food competition.

Current management strategies of the Mediterranean trawl fisheries imply effort limitation (temporal and spatial closed areas, engine power limitation, licence controls, etc.) and technical measures (minimum landing sizes, mesh size, etc.) (Caddy 1993Caddy J.F. 1993. Some future persperctives for assessment and management of Mediterranean fisheries. Sci. Mar. 57(2-3): 121-130., Smith 2000Smith C. 2000. Impact of otter trawling on an eastern Mediterranean commercial trawl fishing ground. ICES J. Mar. Sci. 57(5): 1340-1351., Lleonart and Maynou 2003Lleonart J., Maynou F. 2003. Fish stock assessments in the Mediterranean: state of the art. Sci. Mar. 67: 37-49.). All these measures focus mainly on the commercial species and are far from an integrated ecosystem approach.

Mediterranean trawl fisheries are characterized by seasonal dynamics which are mainly driven by the life cycle of the main target species (Martín et al. 1999Martín P., Sartor P., Garcia-Rodriguez M. 1999. Exploitation patterns of the European hake Merluccius merluccius, red mullet Mullus barbatus and striped red mullet Mullus surmuletus in the western Mediterranean. J. Appl. Ichthyol. 15(1): 24-28., 2014Martín P., Muntadas A., de Juan S., Sánchez P., Demestre M. 2014. Performance of a North Western Mediterranean bottom trawl fleet: How the integration of landings and VMS data can contribute to the implementation of ecosystem-based fi sheries management. Mar. Policy 43: 112-121.). These characteristics, added to implementation of a closed season for many fleets as a management measure, leads to a pattern of uneven fishing effort over the year.

One of the main demersal commercial species in the study area, a trawl fishing ground in the northwestern Mediterranean, is red mullet (Mullus barbatus), which constitutes an average of 7.2% of the total catches and 7.9% of the total income. Although these may seem low figures, it is important to take into account the multispecies nature of Mediterranean trawl fisheries, with typically fewer than five species exceeding 5% of the total catch (Sánchez et al. 2004Sánchez P., Demestre M., Martín P. 2004. Characterisation of the discards generated by bottom trawling in the northwestern Mediterranean. Fish. Res. 67(1): 71-80., Martín et al. 2014Martín P., Muntadas A., de Juan S., Sánchez P., Demestre M. 2014. Performance of a North Western Mediterranean bottom trawl fleet: How the integration of landings and VMS data can contribute to the implementation of ecosystem-based fi sheries management. Mar. Policy 43: 112-121.). Red mullet is a species closely linked to benthic ecosystems with a well-known biology and life cycle (Demestre et al. 1997Demestre M., Sbrana M., Alvarez F., Sánchez P. 1997. Analysis of the interaction of fishing gear in Mullus barbatus fisheries of the Western Mediterranean. J. Appl. Ichtyology 13: 49-56., 2000Demestre M., Sánchez P., Abelló P. 2000. Demersal fish assemblages and habitat characteristics on the continental shelf and upper slope of the North-Western Mediterranean. J. Mar. Biol. Assoc. U.K. 80: 981-988.). The study area is part of a nursery ground for red mullet, as muddy sediment and depth around 15-60 m constitute the typical characteristics for this species juvenile habitat (Lombarte et al. 2000Lombarte A., Recasens L., González M., Gil de Sola L. 2000. Spatial segregation of two species of Mullidae in relation to habitat. Mar. Ecol. Prog. Ser. 206: 239-249., Fiorentino et al. 2004Fiorentino F., Garofalo, G., Gristina M., Gancitano, S., Norrito G. 2004. Some relevant information on the spatial distribution of demersal resources, benthic biocoenoses and fishing pressure in the Strait of Sicily. Report of the MedSudMed Expert Consultation on Spatial Distribution of Demersal Resources in the Straits of Sicily and the Influence of Environmental Factors and Fishery Characteristics. GCP/RER/010/ITA/MSM-TD-02. MedSudMed Technical Documents 2: 50-66.). Likewise, the deepest zones of the study area, 50-80 m, constitute part of a reproductive habitat for this species (Machias and Labropoulou 2002Machias A., Labropoulou M. 2002. Intra-specific variation in resource use by red mullet, Mullus barbatus. Estuar. Coast. Shelf Sci. 55(4): 565–578., Fiorentino et al. 2004Fiorentino F., Garofalo, G., Gristina M., Gancitano, S., Norrito G. 2004. Some relevant information on the spatial distribution of demersal resources, benthic biocoenoses and fishing pressure in the Strait of Sicily. Report of the MedSudMed Expert Consultation on Spatial Distribution of Demersal Resources in the Straits of Sicily and the Influence of Environmental Factors and Fishery Characteristics. GCP/RER/010/ITA/MSM-TD-02. MedSudMed Technical Documents 2: 50-66.).

In the study area, fishing effects on benthic communities were assessed by characterizing it as a chronically impacted seabed (de Juan et al. 2007bde Juan S., Thrush S., Demestre M. 2007b. Functional changes as indicators of trawling disturbance on a benthic community located in a fishing ground (NW Mediterranean Sea). Mar. Ecol. Prog. Ser. 334: 117-129.). Moreover, analysis of a two-month closed period in this area revealed changes in abundance of some epifaunal mobile species (Demestre et al. 2008Demestre M., de Juan S., Sartor P., Ligas A. 2008. Seasonal closures as a measure of trawling effort control in two Mediterranean trawling grounds: effects on epibenthic communities. Mar. Pollut. Bull. 56(10): 1765-1773.). In the present study, we increased our current knowledge by evaluating ecosystem responses to seasonal dynamics of trawling activities, having an unfished site as reference and the potential consequences on the exploited red mullet.

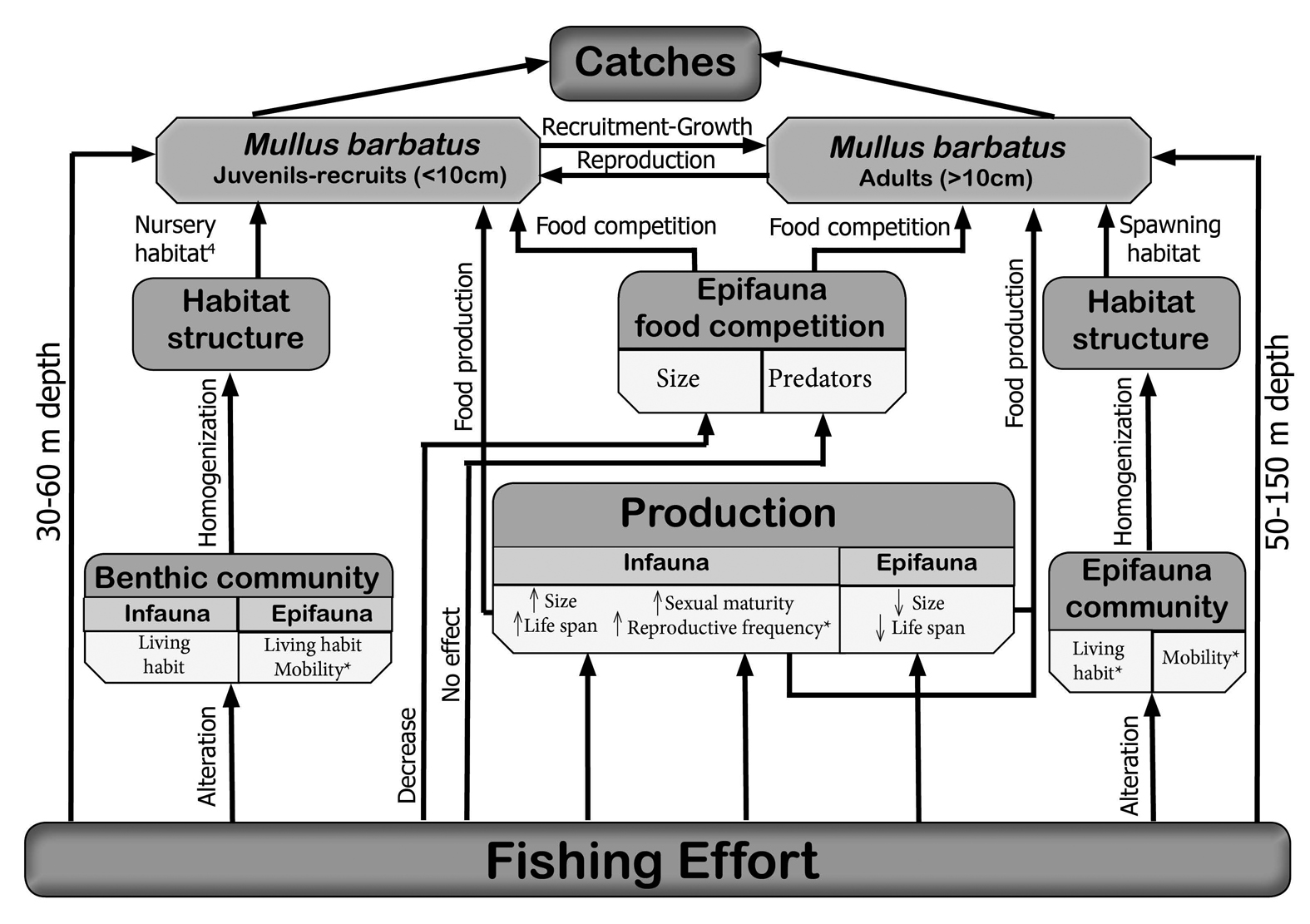

With the aim of advancing on EBFM approaches, taking into account all the effects depicted in Figure 1 and the estimations of fishing effort, the goal of the present work is to link changes in benthic functional structure with indirect effects on red mullet population under the following assumptions:

i) changes in benthic production will affect red mullet’s food provision;

ii) homogenization of habitat structure affects both nursery and spawning habitat for red mullet’s, and

iii) changes in epifaunal assemblage composition affect interspecific competition between epifaunal species and red mullet.

MATERIALS AND METHODSTop

Characteristics of the study area

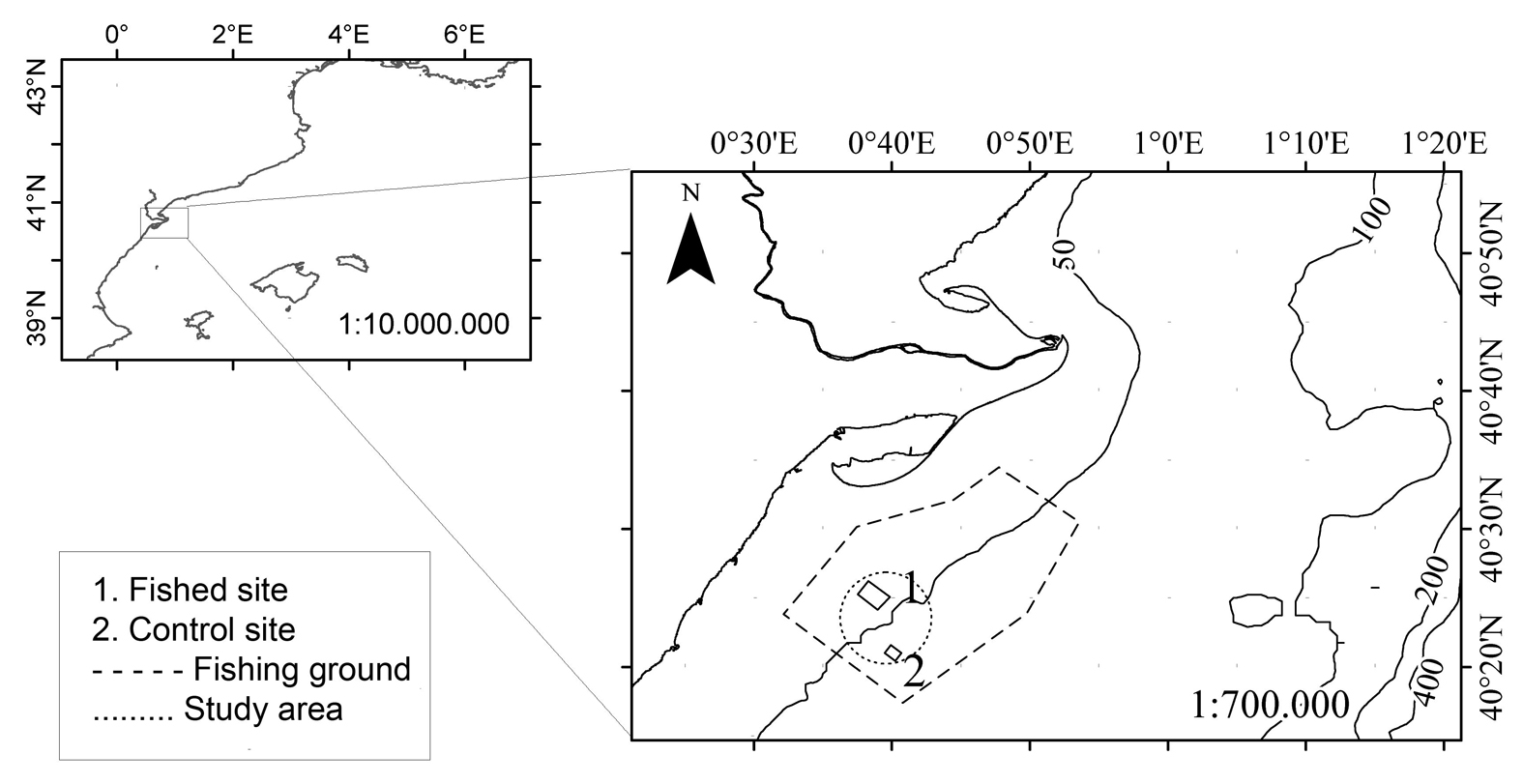

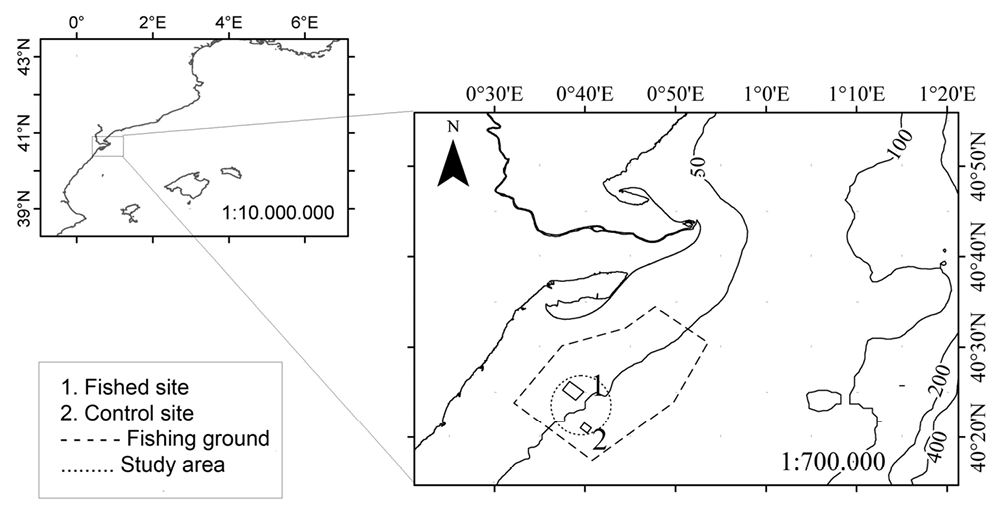

The study was conducted on a muddy fishing ground located in the northwestern Mediterranean. This fishing ground spreads over 400 km² in a depth range between 30 and 80 m, and the study area covers a depth range of 40-60 m (Fig. 2). Within this study area, samples were taken from a fished site and from a control site that had remained undisturbed for 20 years due to the presence of the remains of an oil platform (Fig. 2) (see de Juan et al. 2007b for details). The fishing ground was operated by Sant Carles de la Ràpita trawling fleet that, with 69 vessels, is the most important trawling fleet in the Catalonia region (northeast Spain). This fleet showed variable activity throughout the year: fishing effort was high during autumn and winter, low in spring and at the beginning of summer and observed a closed season during July and August. Data on fishing effort was obtained from St. Carles de la Ràpita fishermen’s association (see Demestre et al., 2008Demestre M., de Juan S., Sartor P., Ligas A. 2008. Seasonal closures as a measure of trawling effort control in two Mediterranean trawling grounds: effects on epibenthic communities. Mar. Pollut. Bull. 56(10): 1765-1773. for further details). Several abiotic characteristics of the area were measured during the benthic sampling, which was timed to cover seasonal pattern of fishing effort (Table 1). The mud sediment content was almost 100% over the whole study period and the temporal variability was not significant, which characterizes the area as a muddy habitat.

Collection and processing of samples

Samples of epifauna and infauna were collected during seven experimental cruises. Epifauna was collected with a surface dredge, similar to a 2 m beam-trawl with a 1-cm cod-end, and infauna with a 0.1-m² Van Veen grab. On each cruise, a total of three epifaunal and five infaunal replicates were randomly collected at both fished and control sites. To collect the minimum sample size, estimated from species accumulation curves, the surface dredge was towed for approximately 15 minutes for each replicate and five grabs were collected per replicate. Epifaunal and infaunal organisms were identified to the lowest possible taxonomical level, generally species for epifauna and genera for infauna, and counted (see de Juan et al. 2007bde Juan S., Thrush S., Demestre M. 2007b. Functional changes as indicators of trawling disturbance on a benthic community located in a fishing ground (NW Mediterranean Sea). Mar. Ecol. Prog. Ser. 334: 117-129. for details).

Data on landings and income

Data on landings and income from 2000 to 2011 were obtained from records from the local fish auction that takes place upon the arrival of vessels at port (data source: fishing statistics elaborated by the Fisheries Department of the Catalan government). Data were available on daily landings by species (weight and income) for each fishing vessel.

Trait classification to characterize benthic communities

Eleven biological traits covering aspects of the benthic organisms’ morphology, feeding patterns and life histories were selected to represent benthic community. The biological trait approach (BTA) allows community structure and functionality to be better represented in order to link them to the ecosystem services that the community can provide. In our case, a benthic ecosystem from a fishing ground, one of the main ecosystem services that this community provides is food production.

These 11 traits were broken down into categories. For example, feeding type was separated into the categories deposit feeder, filter/suspension feeder, opportunist/scavenger and predator (Table 2). The trait "age at sexual maturity" was treated differently for infauna and epifauna data due to the different life histories of these two groups, with most of the infauna taxa reaching the sexual maturity before a year time and epifauna species maturing later. To reduce the task to a manageable size, the data sets were reduced. For the infaunal assemblage, 25 of 147 taxa were used, comprising the species that contributed 80% of the total abundance plus those that, though not among the most abundant species, were continuously present in three of the five replicates either at fished or control sites over the study period. The epifaunal data set was reduced to 17 of 96 species, which accounted for 95% of the total abundance and met the frequency of occurrence criteria.

Each taxon in the database was scored for its affinity to each trait category using a scale of 0–3 (0 = no affinity to 3 = high affinity). The score was given using the ‘fuzzy scoring’ method, which allowed the taxa to exhibit more than one category of a given trait as long as the total score per trait was 3 (Bremner et al., 2003Bremner J., Rogers S., Frid C. 2003. Assessing functional diversity in marine benthic ecosystems: a comparison of approaches. Mar. Ecol. Prog. Ser. 254: 11-25.). This assignment was based on published accounts of the biology of each species and information codified in the BIOTIC database maintained by the Marine Biological Association UK (http://www.marlin.ac.uk/biotic/). This source of information was complemented with a literature review for potential regional differences, i.e. studies conducted in the Mediterranean. When information was not available at the species level we used data based on accounts of other members of the genera or, rarely, family (only in 7.6% of cases for infauna and 3.2% for epifauna). When no information on a particular trait was available for a taxon, zero values were entered for each category and the taxon did not contribute to the calculation of trait weightings.

The frequency of each trait category in the dataset was calculated by weighting the category scores by the abundance (number of individuals per m²) of each taxon exhibiting that category (Charvet et al. 1998Charvet S., Kosmala A. Statzner B. 1998. Biomonitoring through biological traits of benthic macroinvertebrates: perspectives for a general tool in stream management. Arch. für Hydrobiol. 142(4): 415-432.). This resulted in a sample by trait table that showed the abundance of biological traits at each station over the study period.

Statistical analysis

Similarity between each pair of samples was calculated using the Bray-Curtis index after a square root transformation of the data to reduce the influence of dominant traits/species. A PERMANOVA analysis was used to test for significant differences between sites (control and fished as fixed factors) and time (fishing effort periods, i.e. before, during and after closure, as fixed factor). The trait data were further analysed with the SIMPER routine to determine which traits accounted for the significant dissimilarities identified by PERMANOVA. Then, the most important traits highlighted by SIMPER (traits showing ratio of dissimilarity to standard deviation [diss/sd] >1.5 and being among the ones summing 50% of cumulative contribution to dissimilarity) were selected for univariate analyses. When traits had a normal distribution and homogeneity of variances, a two-way ANOVA was performed to test for the factors treatment and effort period. If traits were not normally distributed (even after log transformation), a Kruskall-Wallis test was performed instead. All the multivariate analyses were carried out using the PRIMER6 & PERMANOVA statistical package (Anderson et al. 2008Anderson M.J., Gorley R.N., Clarke K.R. 2008. PERMANOVA+ for PRIMER: Guide to Software and Statistical Methods. The University of Auckland Press, 214 pp.). Univariate analyses were performed using the R program, v.2.11.0.

RESULTSTop

Landings and fleet dynamics in the study area

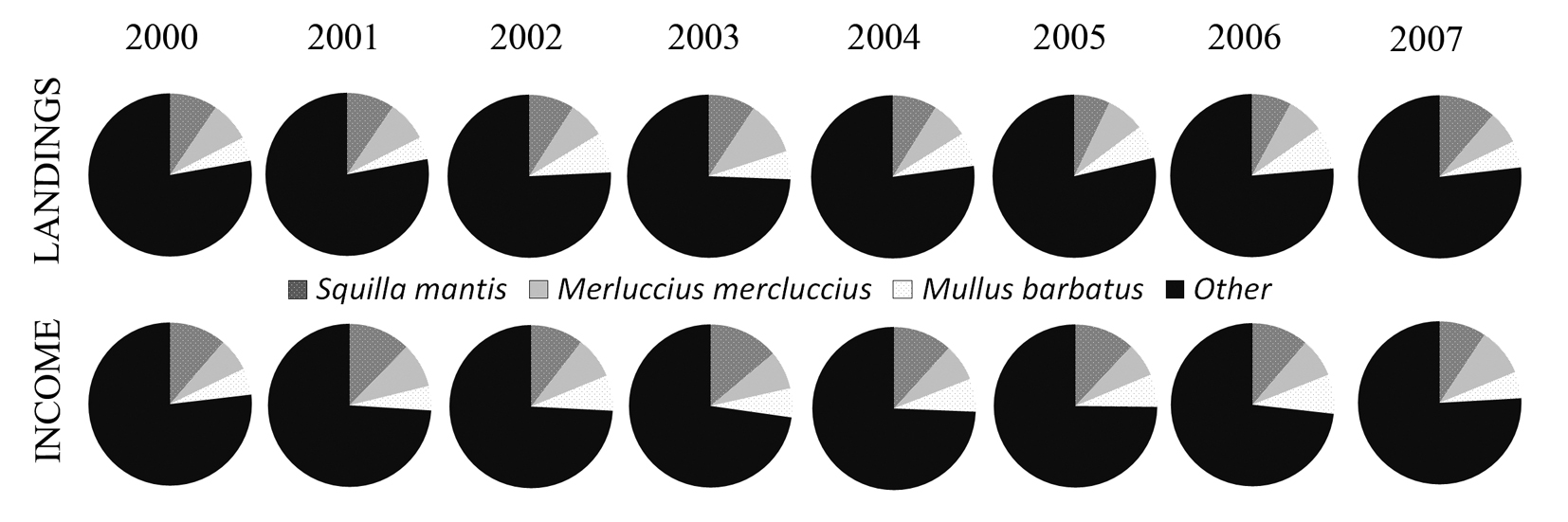

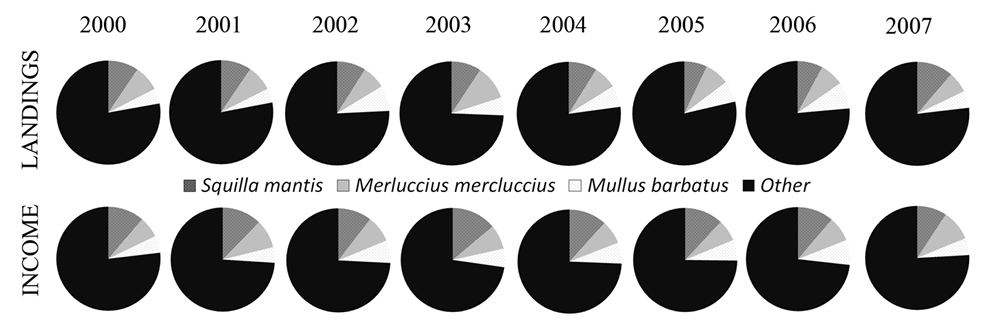

Figure 3 shows the percentage of mantis shrimp (Squilla mantis), hake (Merluccius merluccius) and red mullet (Mullus barbatus) landings and income with respect to the total landings and income in the study area. The importance of these three species remained consistent over the years, representing around 25% of the total landings and income. The "other" percentage comprises on average 53 species, most of them accounting for less than 5% of the total catches and only sporadically (e.g. in one or two years of the data series) more than 5%.

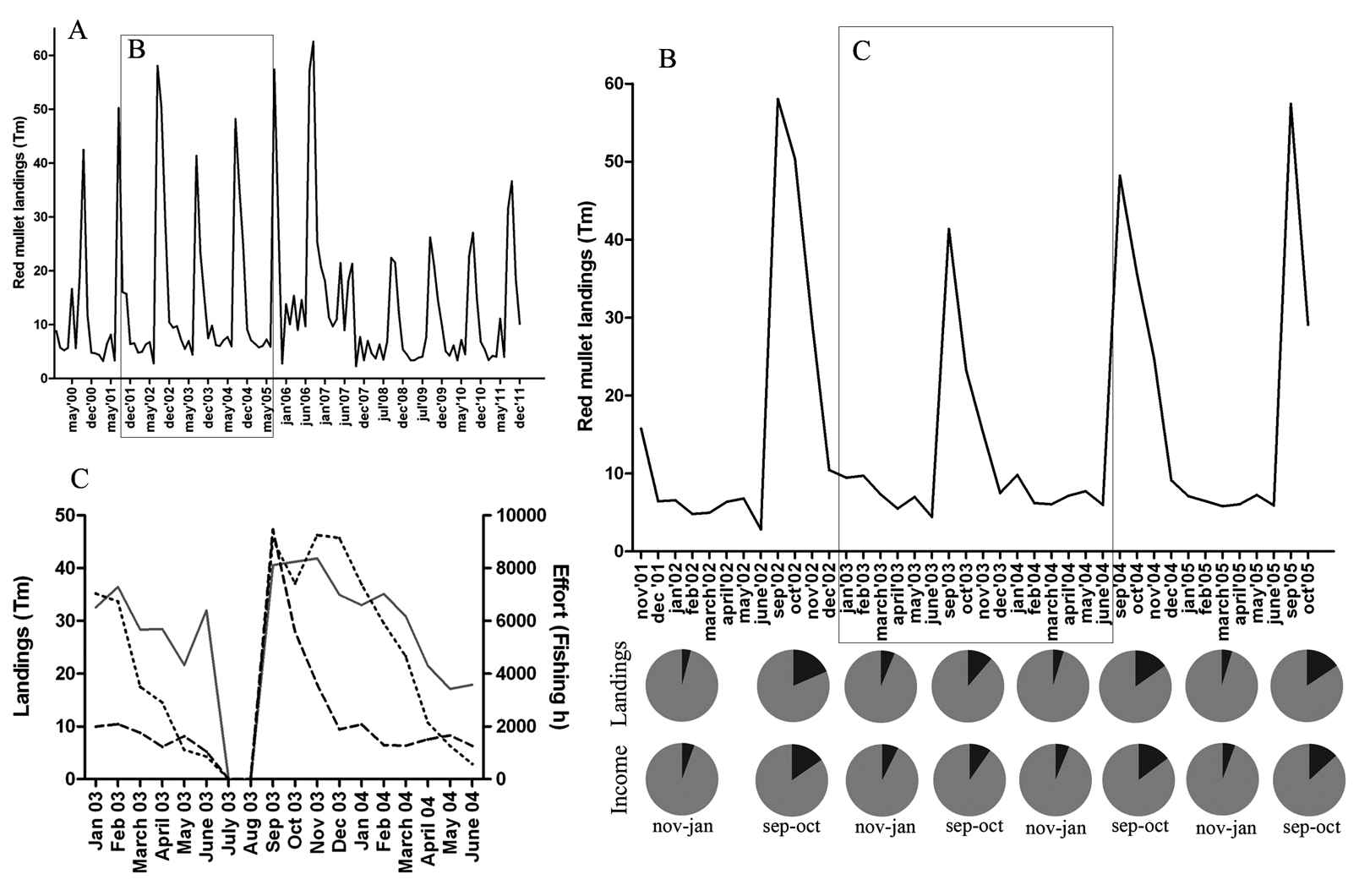

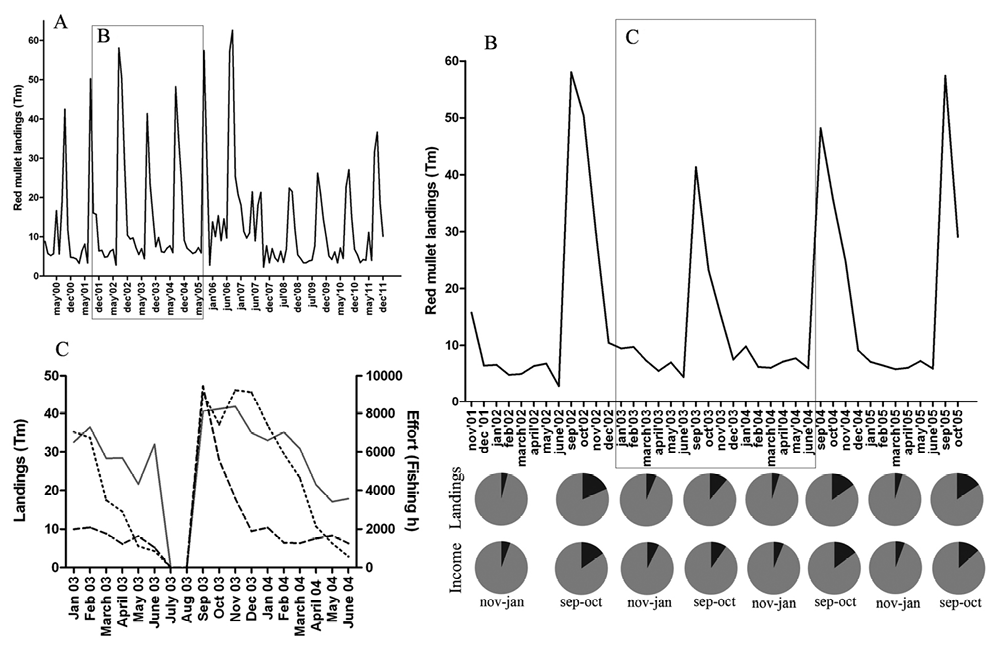

Despite an overall decrease since 2007, red mullet landings consistently followed the same trend, with a peak of catches in September/October (the recruitment months for this species), which accounted for almost 20% of the total landings (Fig. 4A, B). Figure 4C shows how this peak in red mullet catches coincided with the high effort period. However, red mullet landings dropped sharply in late autumn (November) whereas the decreasing trend of fishing effort was smoother as mantis shrimp landings were maintained over the winter (Fig. 4C). This figure shows how fleet dynamics followed red mullet population, as the highest landings and effort occurred just after the closed season, when the trawling fleet gathered on this fishing ground to fish red mullet recruits (Demestre et al. 1997Demestre M., Sbrana M., Alvarez F., Sánchez P. 1997. Analysis of the interaction of fishing gear in Mullus barbatus fisheries of the Western Mediterranean. J. Appl. Ichtyology 13: 49-56., Martín et al. 1999Martín P., Sartor P., Garcia-Rodriguez M. 1999. Exploitation patterns of the European hake Merluccius merluccius, red mullet Mullus barbatus and striped red mullet Mullus surmuletus in the western Mediterranean. J. Appl. Ichthyol. 15(1): 24-28.).

Functional changes in the benthic communities

PERMANOVA analyses highlighted significant differences for both infauna and epifauna between sites (control vs. fished) and time (different effort regimes), and site:time interaction for infauna (Table 3). Pairwise tests performed for infauna within fished sites showed significant differences between before closure and the closed season (p<0.01) and between before closure and after closure periods (p<0.05). Furthermore, differences between times for epifauna were independent of the site, and pairwise tests performed across all samples showed significant differences between before closure and after closure periods (p<0.01) and between closed season and after closure periods (p<0.01). Ordination of samples in a multi-dimensional scaling plot did not reflect any clear pattern and was not included.

SIMPER analysis for infaunal samples highlighted the traits "sexual maturity at less than 1 year" and "life span of less than 1 year" as the principal traits driving the differences between fished and control sites, both being more abundant in the control site. "Medium-large size" (more prevalent at the fished site) was also an important trait discriminating sites (Table 4).

SIMPER analysis performed only for infaunal fished samples revealed "high flexibility", "intermediate fragility" and "<1 y sexual maturity" as the main traits driving the differences between before closure and closed season periods, although they showed relatively low diss/sd (Table 4). All these traits were more abundant during the closed season. "Filter feeding" and "2 or more reproductive events per year", with relatively high diss/sd and also more abundant during the closed season, were important in discriminating between these two periods. Finally, "crawl" and "filter feeding" were the traits making the difference between the before closure and after closure period, both being more abundant in the latest (Table 4).

The SIMPER routine for epifaunal samples highlighted the traits "medium", ">5 y life span", "low flexibility" and "medium-large" as the most important traits driving the differences between control and fished sites, all of them being more abundant at the control site (Table 5). As the PERMANOVA test showed no significant interaction between site and time for epifaunal samples (Table 3), a SIMPER test based on the whole data set was performed to identify the traits driving the differences between effort regimes. This analysis highlighted "no flexibility", "deposit feeder", "permanent burrow dweller", "burrow" and "detritus"as the traits discriminating between the before and after closure periods and between the closed season and after closure periods. All these traits were more abundant in the before closure period and the closed season respectively. "Fragile", more abundant during the closed season, was also found to be important in discriminating between the closed season and the after closure period (Table 5).

Though these traits were highlighted by SIMPER analysis, it should be noted that average dissimilarities among fishing effort periods were low (10.03 and 8.65 for infauna and 16.33 and 13.83 for epifauna) (Tables 4, 5). Average dissimilarities between control and fished areas were also low (12.64 for infauna and 12.98 for epifauna).

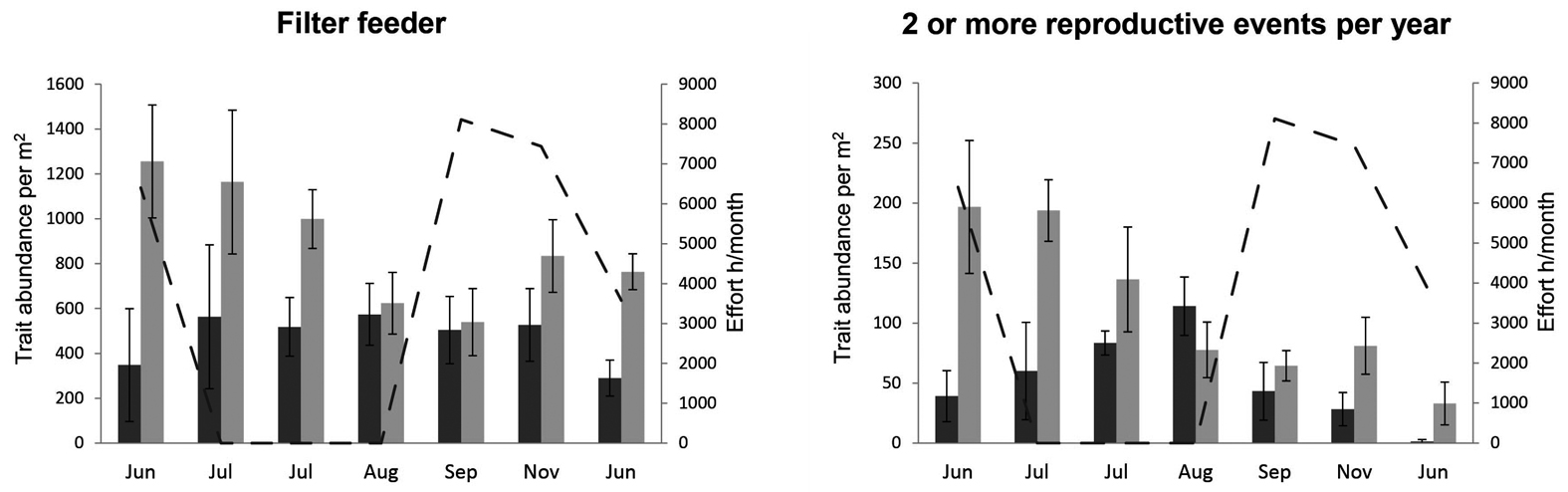

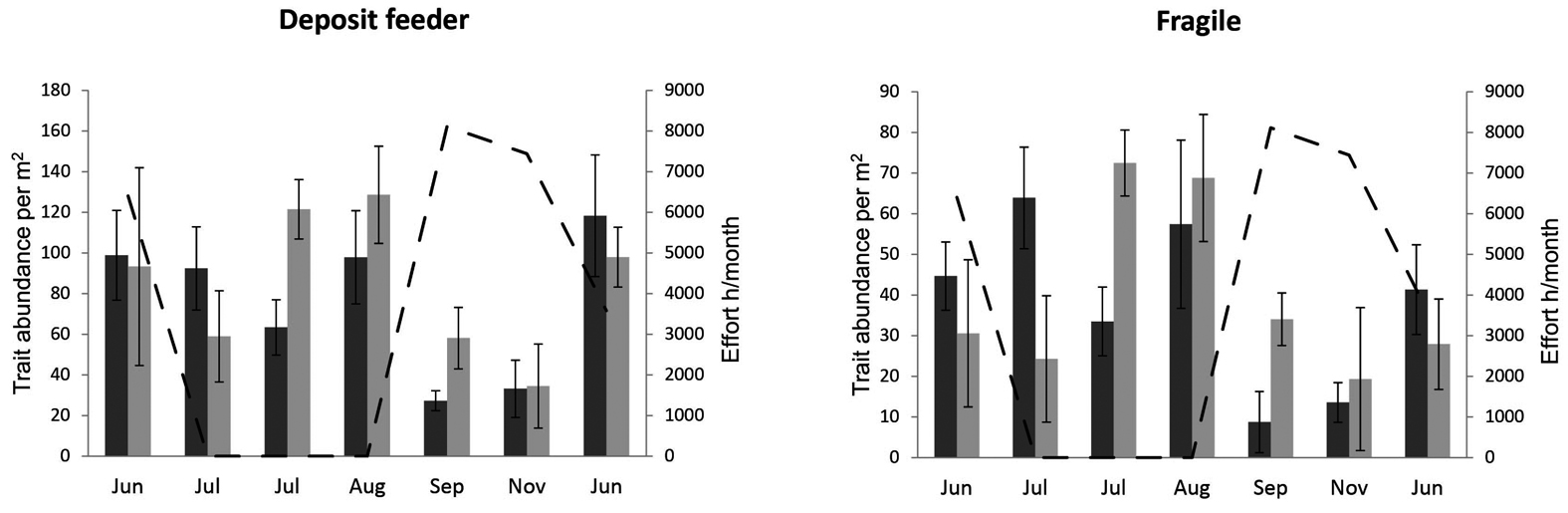

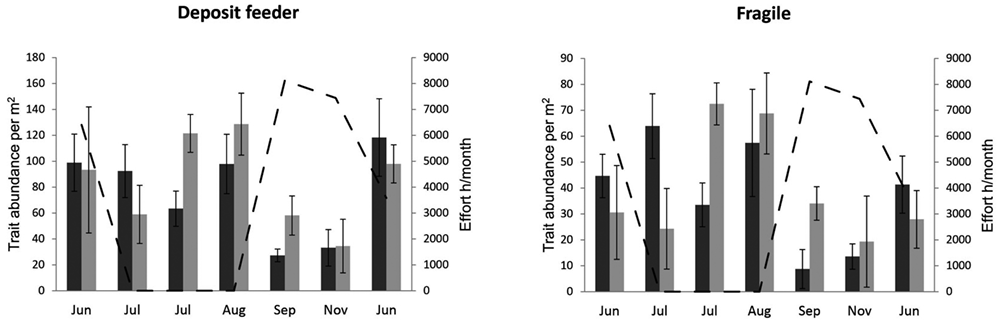

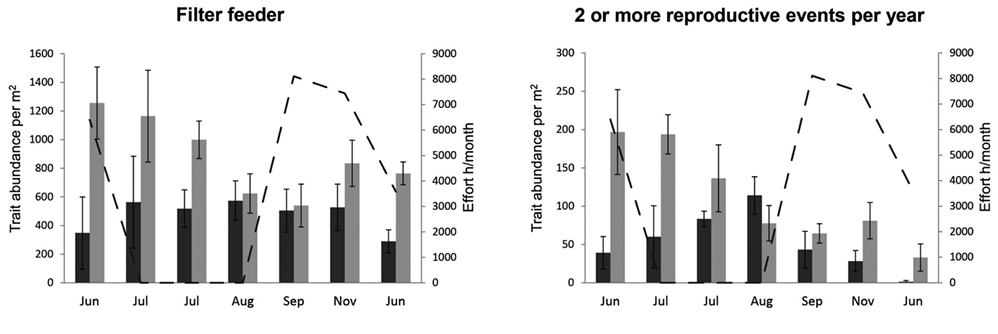

Figures 5 and 6 show the trends of two traits for infauna (Fig. 5) and epifauna (Fig. 6) over the study period. These traits were highlighted by the SIMPER routine as being important in discriminating between fishing effort periods. Infaunal "filter feeding" and "two or more reproductive events" showed a decreasing trend over the study period at the control site but, whereas for "filter feeding" there seems to be no change at the fished site, in "two or more reproductive events" there was an increasing trend until the end of the closed season and afterwards this trait abundance decreased. Fishing effort values are overlapped in the figure, showing that epifaunal "deposit feeder" and "fragile" organisms were more abundant at fished and control sites when effort was low or null, in the autumn months. Plots for other traits are not included as they showed similar trends to those in Figures 5 and 6: "Filter feeder" trend for infauna was similar to "high flexibility" and highly similar to "<1 y of life span", and "<1 y sexual maturity". On the other hand, the "deposit feeder" trend for epifauna was highly similar to "detritus", "burrow" and "no flexibility", and the "fragile" trend was highly similar to "permanent burrow dwelling".

Table 6 shows that differences over fishing effort periods (time) for almost all these traits were significant, confirming that they were important in discriminating between these periods. Factor time was not significant for infaunal "filter feeder" and thus all the traits show a similar trend; however, the site:time interaction was significant, suggesting an influence of fishing effort periods or seasonality on these traits’ changes. Traits highlighted by SIMPER as the ones driving the differences between control and fished sites also showed significant differences for the factor site.

DISCUSSIONTop

Potential effects of fishing on red mullet population caused by functional changes in benthic communities

Different fish species have different habitats requirements, which could be more or less resilient to trawling impacts (Kaiser et al. 1999Kaiser M.J., Rogers S.I., Ellis J.R. 1999. Importance of benthic habitat complexity for demersal fish assemblages. Am. Fish. Soc. Sym. 22: 212-223). The Sant Carles de la Ràpita fishing ground, our case study, is part of a nursery habitat for red mullet (Lombarte et al. 2000Lombarte A., Recasens L., González M., Gil de Sola L. 2000. Spatial segregation of two species of Mullidae in relation to habitat. Mar. Ecol. Prog. Ser. 206: 239-249., Fiorentino et al. 2004Fiorentino F., Garofalo, G., Gristina M., Gancitano, S., Norrito G. 2004. Some relevant information on the spatial distribution of demersal resources, benthic biocoenoses and fishing pressure in the Strait of Sicily. Report of the MedSudMed Expert Consultation on Spatial Distribution of Demersal Resources in the Straits of Sicily and the Influence of Environmental Factors and Fishery Characteristics. GCP/RER/010/ITA/MSM-TD-02. MedSudMed Technical Documents 2: 50-66.), which is one of the most important commercial fish in the study area (Sánchez et al. 2007Sánchez P., Sartor P., Recasens L., Ligas A., Martin J., de Ranieri S., Demestre M. 2007. Trawl catch composition during different fishing intensity periods in two Mediterranean demersal fishing grounds. Ecologia 71(4): 765-773.). Moreover, this species was chosen as a case study because it is a species closely related to the benthic system, with a well-known biology and life cycle which leads to particular catch dynamics (Fig. 4A). The existence of a nursery habitat is supported by the high catches of new recruits observed after the closed season, in September-October, which constitutes a specific characteristic of this species fisheries (Martin et al. 1999Martín P., Sartor P., Garcia-Rodriguez M. 1999. Exploitation patterns of the European hake Merluccius merluccius, red mullet Mullus barbatus and striped red mullet Mullus surmuletus in the western Mediterranean. J. Appl. Ichthyol. 15(1): 24-28.). Recruitment is a critical step for most fish life cycles and decline in recruitment may have important consequences for adult commercial stock (Bundy and Fanning 2005Bundy A., Fanning L.P. 2005. Can Atlantic cod (Gadus morhua) recover? Exploring trophic explanations for the non-recovery of the cod stock on the eastern Scotian Shelf, Canada. Can. J. Fish. Aquat. Sci. 62: 1474-1489., Caddy in pressCaddy J.F. in press. Why do assessments of demersal stocks largely ignore habitat? ICES J. Mar. Sci.). Therefore, the protection of benthic communities and habitat structure, which provide food and shelter for young fish, is essential to maintain a healthy adult stock.

As red mullet lives in a close relationship with the benthic environment for feeding, reproduction and refuge, this species might be particularly affected by the chronic alteration of benthic ecosystems (Auster and Langton 1998Auster P.J., Langton R.W. 1998. The effects of fishing on fish habitat. Am. Fish. Soc. Symp. 22: 150-187., Caddy in pressCaddy J.F. in press. Why do assessments of demersal stocks largely ignore habitat? ICES J. Mar. Sci.). In this study we aimed to assess potential negative effects of trawling on red mullet due to changes on benthic functional components in the fishing ground (Fig. 7).

Regarding the food availability, small, short-lived infaunal organisms were more abundant at the control site, which might contribute to higher food production for red mullet in this site, especially for young recruits that feed on smaller prey (Machias and Labropoulou 2002Machias A., Labropoulou M. 2002. Intra-specific variation in resource use by red mullet, Mullus barbatus. Estuar. Coast. Shelf Sci. 55(4): 565–578.). Moreover, during the closed season in summer, production of small infauna at the fished site may increase due to the higher prevalence of traits related to rapid reproduction (Fig. 7). The closed season coincides with the early phase of recruitment of red mullet (Fiorentino et al. 2008Fiorentino F., Badalamenti F., D’Anna G., Garofalo G., Gianguzza P., Gristina M., Pipitone C., Rizzo P., Fortibuoni T. 2008. Changes in spawning-stock structure and recruitment pattern of red mullet, Mullus barbatus after a trawl ban in the Gulf of Castellammare (central Mediterranean Sea). ICES J. Mar. Sci. 65: 1175-1183), so young red mullet recruits might benefit from higher food production in summer months. On the other hand, medium-large infaunal organisms dominated the fished site (Fig. 7), which could represent higher prey abundance for adult red mullet in the fishing ground. These results seems to contradict the current understanding of the effects of fishing on marine benthos, suggesting that communities in areas with a long history of fishing would consist mainly of small organisms (Jennings et al. 2001Jennings S., Dinmore T.A., Duplisea D.E., Warr K.J., Lancaster J.E. 2001. Trawling disturbance can modify benthic production processes. J. Anim. Ecol. 44: 459-475., Queirós et al. 2006Queirós A.M., Hiddink J.G., Kaiser M.J., Hinz H. 2006. Effects of chronic bottom trawling disturbance on benthic biomass, production and size spectra in different habitats. J. Exp. Mar. Bio. Ecol. 335(1): 91-103.). However, all medium-large taxa in the study area were deep burrowers that might avoid trawling disturbance (Brown et al. 2005Brown E.J., Finney B., Dommiss, M., Hills S. 2005. Effects of commercial otter trawling on the physical environment of the southeastern Bering Sea. Cont. Shelf Res. 25(10): 1281-1301.), and also generally opportunistic-predator feeders that usually benefit from fishing activity (Frid et al. 2000Frid C.L.J., Harwood K.G., Hall S.J., Hall J.A. 2000. Long-term changes in the benthic communities on North Sea fishing grounds. ICES J. Mar. Sci. 57(5): 1303-1309.).

Some of the observed trends in infaunal traits over the study period matched the fishing effort pattern, but the variability in infaunal abundance would more likely be related to seasonal patterns as the closed season in the fishing ground is too short to allow ecosystem recovery (Zajac 2003Zajac R. 2003. Community and population-level responses to disturbance in a sandflat community. J. Exp. Mar. Bio. Ecol. 294(1): 101-125., Kaiser et al. 2006Kaiser M., Clarke K., Hinz H., Austen, M., Somerfield P., Karakassis I. 2006. Global analysis of response and recovery of benthic biota to fishing. Mar. Ecol. Prog. Ser. 311: 1-14.). The decreasing trend for almost all infaunal traits at the control site in summer and early autumn (closed and after closed season) could indicate a decrease in the overall infaunal abundance consistent with the temporal cycles shown by macroinfauna in the Mediterranean (Sardá et al. 1999Sardá R., Pinedo S., Martin D. 1999. Seasonal dynamics of macroinfaunal key species inhabiting shallow soft-bottoms in the Bay of Blanes (NW Mediterranean). Acta Oecologica 20(4): 315-326.). In contrast, the reduction of this seasonal trend at the fished site could be due to chronic fishing disturbance, which could alter the natural macroinfaunal cycles (de Juan et al. 2007bde Juan S., Thrush S., Demestre M. 2007b. Functional changes as indicators of trawling disturbance on a benthic community located in a fishing ground (NW Mediterranean Sea). Mar. Ecol. Prog. Ser. 334: 117-129.). However, this lack of trend in the fished site cannot be unequivocally linked to the fishing activities as natural processes could also play a role, resulting in an additive effect of both fishing and environmental variability (Koch et al. 2009Koch E.W., Barbier E.B., Silliman B.R., Reed D.J., Perillo G.M., Hacker S.D., Granek E.F., Primavera J.H., Muthiga N., Polasky S., Halpern B.S., Kennedy C.J., Kappel C.V, Wolanski E. 2009. Non-linearity in ecosystem services: temporal and spatial variability in coastal protection. Front. Ecol. Environ. 7(1): 29-37.).

In the epifaunal community, as expected and in agreement with de Juan et al. (2009)de Juan S., Demestre M., Thrush S. 2009. Defining ecological indicators of trawling disturbance when everywhere that can be fished is fished: A Mediterranean case study. Mar. Policy 33 (3): 472-478., traits related to long life span and large size were more abundant at the control site (Table 5). This means that epifauna productivity (production/biomass) would be lower in the control area, although biomass production would be higher in this area. These large long-living organisms were fishes and large bivalves (e.g. Citharus linguatula or Acanthocardia echinata) that are not red mullet preys and, if they are predators, might compete with red mullet for prey. For example, Citharus linguatula, feeds in this area on decapoda and other small crustaceans (Juan et al. 2007ade Juan S., Cartes J. E., Demestre M. 2007a. Effects of commercial trawling activities in the diet of the flat fish Citharus linguatula (Osteichthyes: Pleuronectiformes) and the starfish Astropecten irregularis (Echinodermata: Asteroidea). J. Exp. Mar. Biol. Ecol. 349(1): 152-169.), which are potential prey for red mullet (Aguirre 2000Aguirre H. 2000. Aspectos Biológicos y Ecológicos del Salmonete de Fango Mullus barbatus L., 1758 y del Salmonete de Roca Mullus surmuletus L., 1758, del Mediterráneo Noroccidental. Ph.D. thesis, Tech. Univ. Catalonia, 147-213 pp.), so these two fish partially share the trophic niche. Therefore, although adult red mullet could potentially find more food at the control site, this food would be less available due to interspecific competiveness (Fig. 7).

Regarding the habitat structure, as the control site is slightly deeper than the fished site, it might be a spawning area for red mullet. However, no traits related to habitat structure (e.g. sessile emerging epifauna) were highlighted in the analysis. In general, the whole fishing ground holds a homogenized community with a reduced habitat structure due to historical trawling disturbance in the area (de Juan et al. 2007bde Juan S., Thrush S., Demestre M. 2007b. Functional changes as indicators of trawling disturbance on a benthic community located in a fishing ground (NW Mediterranean Sea). Mar. Ecol. Prog. Ser. 334: 117-129., 2009de Juan S., Demestre M., Thrush S. 2009. Defining ecological indicators of trawling disturbance when everywhere that can be fished is fished: A Mediterranean case study. Mar. Policy 33 (3): 472-478.) (Fig. 7). Nevertheless, physical habitat is also important in creating habitat structure for recruits and spawners, and ROV images showed higher abundance of sediment structures such as ripples, mounds and pits at the control site (Demestre 2006Demestre M. 2006. Response of benthic communities and sediment to different regimens of fishing disturbance in European coastal waters. EU Project Q5RS-2002-00787. Final Report, 639 pp.). Changes in the trait "burrow" or "permanent burrow dwelling", which seemed to occur in similar abundance at fished and control sites over the sampled months, would not benefit red mullet spawning as these traits would destabilize the sediment with negative consequences for the creation of habitat structure (Lohrer et al. 2008Lohrer A.M., Chiaroni L.D., Hewitt J. E., Thrush S.F. 2008. Biogenic disturbance determines invasion success in a subtidal soft-sediment system. Ecology 89(5): 1299-1307.). However, changes in these traits may affect bioturbation activity which may positively affect ecosystem production (Thrush and Dayton 2002Thrush S.F., Dayton P.K. 2002. Disturbance to marine benthic habitats by trawling and dredging: Implications for Marine Biodiversity. Annu. Rev. Ecol. Syst. 3(1): 449-473., Lohrer et al. 2004Lohrer A.M., Thrush S.F., Gibbs M.M. 2004. Bioturbators enhance ecosystem function through complex biogeochemical interactions. Nature 431(7012): 1092-1095.) and indirectly benefit red mullet population in terms of food availability by enhancing primary production.

Management considerations

Associating demersal fish with their habitats is very critical to the definition of EFH and to correctly managing those EFH impacted by trawling activities (Kaiser et al. 1999Kaiser M.J., Rogers S.I., Ellis J.R. 1999. Importance of benthic habitat complexity for demersal fish assemblages. Am. Fish. Soc. Sym. 22: 212-223). However, management strategies such as closed seasons are principally implemented to protect vulnerable steps of commercial species’ life cycles such as spawning and recruitment, focusing only on commercial species stock and not taking into account protection of benthic communities. Short-term closed seasons, such as the one implemented in the Sant Carles de la Ràpita fishing ground, do not enable benthic community recovery between successive periods of impact, especially on stable muddy bottoms where communities might take years to recover (Kaiser et al. 2006Kaiser M., Clarke K., Hinz H., Austen, M., Somerfield P., Karakassis I. 2006. Global analysis of response and recovery of benthic biota to fishing. Mar. Ecol. Prog. Ser. 311: 1-14.). Furthermore, short-term closures result in a concentration of the trawl effort and landings immediately after the closed season rather than in a more equitable pattern throughout the year (Martin et al. 1999Martín P., Sartor P., Garcia-Rodriguez M. 1999. Exploitation patterns of the European hake Merluccius merluccius, red mullet Mullus barbatus and striped red mullet Mullus surmuletus in the western Mediterranean. J. Appl. Ichthyol. 15(1): 24-28.). This concentration of fishing effort is also accompanied by an increase in discards (Sánchez et al. 2007Sánchez P., Sartor P., Recasens L., Ligas A., Martin J., de Ranieri S., Demestre M. 2007. Trawl catch composition during different fishing intensity periods in two Mediterranean demersal fishing grounds. Ecologia 71(4): 765-773.), which indicates a higher level of disturbance on benthic communities. An adequate management regulation should progressively increase the fleet capacity after the closed season to avoid resource depletion and the highest disturbance levels on ecosystems.

Red mullet are an important commercial species in the Mediterranean, being one of the main target species for trawling fleets (Caddy 1993Caddy J.F. 1993. Some future persperctives for assessment and management of Mediterranean fisheries. Sci. Mar. 57(2-3): 121-130., Tserpes et al. 2002Tserpes G., Fiorentino F., Levi D., Cau A., Murenu M., Zamboni A., Papaconstantinou C. 2002. Distribution of Mullus barbatus and M. surmuletus (Osteichthyes: Perciformes) in the Mediterranean continental shelf: implications for management. Sci. Mar. 66: 39-54.). In this case, the red mullet life cycle drives the fleet dynamics, as the highest fishing effort coincides with the highest landings (Fig. 4C), which are composed mainly of red mullet recruits (Demestre et al. 1997Demestre M., Sbrana M., Alvarez F., Sánchez P. 1997. Analysis of the interaction of fishing gear in Mullus barbatus fisheries of the Western Mediterranean. J. Appl. Ichtyology 13: 49-56., Martín et al. 1999Martín P., Sartor P., Garcia-Rodriguez M. 1999. Exploitation patterns of the European hake Merluccius merluccius, red mullet Mullus barbatus and striped red mullet Mullus surmuletus in the western Mediterranean. J. Appl. Ichthyol. 15(1): 24-28.). Though the red mullet population could apparently tolerate this level of exploitation due to its high turnover rate, the yield per recruit shows evidence of overexploitation (Demestre et al. 1997Demestre M., Sbrana M., Alvarez F., Sánchez P. 1997. Analysis of the interaction of fishing gear in Mullus barbatus fisheries of the Western Mediterranean. J. Appl. Ichtyology 13: 49-56.) and this dominance of young specimens in landings makes the stock highly vulnerable to recruitment changes (Tserpes et al. 2002Tserpes G., Fiorentino F., Levi D., Cau A., Murenu M., Zamboni A., Papaconstantinou C. 2002. Distribution of Mullus barbatus and M. surmuletus (Osteichthyes: Perciformes) in the Mediterranean continental shelf: implications for management. Sci. Mar. 66: 39-54.). Therefore, it would be advisable to protect red mullet nursery and spawning areas. Actually, Fiorentino et al. (2008)Fiorentino F., Badalamenti F., D’Anna G., Garofalo G., Gianguzza P., Gristina M., Pipitone C., Rizzo P., Fortibuoni T. 2008. Changes in spawning-stock structure and recruitment pattern of red mullet, Mullus barbatus after a trawl ban in the Gulf of Castellammare (central Mediterranean Sea). ICES J. Mar. Sci. 65: 1175-1183. reported an increase in the number of recruits and a wider recruitment period after a trawl ban in the Gulf of Castellammare, exemplifying that an implementation of a permanently closed area does benefit reproduction success of this species. Moreover, a benthic community in a permanent closed area will have the possibility to recover from trawling impact, which might benefit not only red mullet but also other commercial species (e.g. the structured soft-bottom community observed in the Medes Island MPA, de Juan et al. 2011de Juan S., Demestre M., Sánchez P. 2011. Exploring the degree of trawling disturbance by the analysis of benthic communities ranging from a heavily exploited fishing ground to an undisturbed area in the NW Mediterranean. Sci. Mar. 75(3): 507-516.).

This work shows that changes in the effort regime within a year only had limited consequences for benthic community structure, whereas changes between a non-fished control site and a fished site were clearly evident. The observed changes at the fished site might benefit adult red mullet, as their food provision will be higher due to an increase in medium-large infauna and to lower interspecific trophic competition. However, red mullet recruits will be negatively affected by functional changes caused by fishing as their food provision might overall decrease, although they could benefit from a short-term increase in food production during summer. Moreover, both adults and recruits will suffer from lack of protection of habitat structures. Thus, the overall effect of trawling on the red mullet stock, considering the high fishing pressure on recruits and the indirect negative effects caused by ecosystem disturbance, could be a decrease in the spawning stock that will worsen the recruit's stock situation.

This study highlights the idea that permanent closure areas, which would allow recovery of the benthic ecosystem, restructuring habitats and communities, might be more beneficial for commercial species and their habitats than temporary closures.

ACKNOWLEDGEMENTSTop

This study was funded by the EU project RESPONSE (Q5RS-2002-00787) and the COMSOM project (CTM2008-04617). We thank the participants in the "Veda" cruises and the crew of the RV Garcia del Cid for their help. Fishing effort data were provided by the Fishermen’s Association of Sant Carles. Alba Muntadas was supported by a CSIC JAE_predoc grant cofunded by the European Social Funds and Silvia de Juan was supported by a postdoctoral mobility grant from the Spanish Ministry of Education (Programa nacional de movilidad de recursos humanos del Plan Nacional I+D+i 2008-2011). This study is the result of a stay by A. Muntadas at the University of Liverpool funded by the JAE predoc programme.
