INTRODUCTIONTop

Small invertebrates have a large potential for analysis of spatial patterns of diversity, providing ideal candidates to test for models in biogeography and macroecology (Witman and Roy 2009Witman J.D., Roy K. 2009. Experimental marine macroecology: progress and prospects. In: Witman J.D. Roy R. (eds) Marine Macroecology. University of Chicago Press, Chicago, Illinois, pp. 341-356., Tuya et al. 2010Tuya F., Larsen K., Platt V. 2010. Patterns of abundance and assemblage structure of epifauna inhabiting two morphologically different kelp holdfasts. Hydrobiologia 658: 373-382.). However, understanding the diversity of such organisms is hampered by lack of comprehensive data on species distribution and by a difficult, and unreliable, taxonomy (Larsen 2005Larsen K. 2005. Deep-sea Tanaidacea (Peracarida) from the Gulf of Mexico. Crust. Mono. 5, Brill, Leiden, 381 pp.). A partial solution to this problem is provided by analyses of mtDNA, which have previously proven useful in obtaining reliable data (Larsen and Froufe 2013Larsen K., Froufe E. 2013. A new polymorphic species of Leptochelia (Crustacea: Tanaidacea) from Guinea Bissau, West Africa, with comments of genetic variation within Leptochelia. Afric. Invert. 54 (1): 105-125. ).

Pleistocene glaciations are known to have played a major role in shaping the phylogeographic patterns of many organisms, particularly during the last glacial maxima (Väinölä 2003Väinölä R. 2003. Repeated trans-Arctic invasions in littoral bivalves: molecular zoogeography of the Macoma balthica complex. Mar. Biol. 143: 935-946., Hewitt 2004Hewitt G.M. 2004. Genetic consequences of climatic oscillations in the Quaternary. Philos. Trans. R. Soc. Lond. B Biol. Sci. 359: 183-195. , Maggs et al. 2008Maggs C.A., Castilho R., Foltz D., Henzler C., Jolly M.T., Kelly J., Olson J., Perez K.E., Stam W., Vainola R., Viard F., Wares, J. 2008. Evaluating signatures of glacial refugia for North Atlantic benthic marine taxa. Ecology 89: 108-122.). Recently, gene flow between the Pacific and the Atlantic has been detected for several marine taxa; it is generally accepted that dispersal often goes in the Pacific-Atlantic direction (Teeter 1973Teeter J.W. 1973. Geographic distribution and dispersal of some recent shallow-water Ostracoda. Ohio J. Sci. 73: 46-54., Meehan et al. 1989Meehan B.W., Carlton J.T., Wenne R. 1989. Genetic affinities of the bivalve Macoma balthica from the Pacific coast of North America: evidence of recent introduction and historical distribution. Mar. Biol. 102: 235-241., Palumbi and Wilson 1990Palumbi S.R., Wilson A.C. 1990. Mitochondrial DNA diversity in the sea urchins Strongylocentrotus purpuratus and S. droebachiensis. Evol. 44: 403-415., Palumbi and Kessing 1991Palumbi S.R., Kessing B.D. 1991. Population biology of the trans-Arctic exchange: MtDNA sequence similarity between Pacific and Atlantic sea urchins. Evol. 45: 1790-1805, Taylor and Dodson 1994Taylor E.B., Dodson J.J. 1994. A molecular analysis of relationships and biogeography within a species complex of Holoarctic fish (genus Osmerus). Mol. Eco. 3: 235-248., Rawson and Hilbish 1995Rawson P.D., Hilbish T.J. 1995. Evolutionary relationships among the male and female lineages in the Mytilus edulis species complex. Mar. Biol. 12: 893-901., van Oppen et al. 1995van Oppen M.J.H., Draisma S.G.A., Olsen J.L., Stam W.T. 1995. Multiple trans-Arctic passages in the red-alga Phycodrys rubens: evidence from nuclear rDNA ITS sequences. Mar. Biol. 123: 179-188., Väinölä 2003Väinölä R. 2003. Repeated trans-Arctic invasions in littoral bivalves: molecular zoogeography of the Macoma balthica complex. Mar. Biol. 143: 935-946.). Gene flow related to inter-glacial periods is suggested for a number of invertebrates, including littoral bivalves (Väinölä 2003Väinölä R. 2003. Repeated trans-Arctic invasions in littoral bivalves: molecular zoogeography of the Macoma balthica complex. Mar. Biol. 143: 935-946.), sea urchins (Addison and Hart 2005Addison J.A., Hart. M.W. 2005. Colonization, dispersal and hybridization influence phylogeography of North Atlantic sea urchins (Strongylocentrotus droebachiensis). Evolution 59(3): 532-543.), crabs (Harrison and Crespi 1999Harrison M.K., Crespi B.J. 1999. Phylogenetics of Cancer Crabs (Crustacea: Decapoda: Brachyura). Mol. Phylo. Evol. 12(2): 186-199. ) and even peracarids, such as mysids (Audzijonytė et al. 2005Audzijonytė A., Damgaard J., Varvio S.-L., Vainio J.K., Väinölä R. 2005. Phylogeny of Mysis (Crustacea, Mysida): history of continental invasions inferred from molecular and morphological data. Cladistics 21(6): 575-596.). These findings show that the entire northeast Atlantic region has played an important role in the diversification of the marine biota, especially in the case of cold-water species. Some authors, however, suggest that the situation is a bit more complicated, including dispersal and gene flow going in both directions (Hardy et al. 2011Hardy S.M., Carr, C.M., Hardman, M., Steinke, D., Corstorphine, E. Mah, C. 2011. Biodiversity and phylogeography of Arctic marine fauna: insights from molecular tools. Mar. Biodiv. 41: 195-210.).

There is current consensus that species from temperate regions had to contract their distribution ranges into warmer southern areas during glacial periods, whereas during inter-glacial eras, organisms were able to recolonize warming northern areas (Hewitt 1996Hewitt G.M. 1996. Some genetic consequences of ice ages, and their role in divergence and speciation. Biol. J. Linn. Soc. 58: 247-276.). Such changes have resulted in a latitudinal gradient of genetic divergence, with higher levels of diversity at southern locations, which might have functioned as glacial refugia (Luttikhuizen et al. 2008Luttikhuizen P.C., Campos J., van Bleijswijk J., Peijnenburg K.T.C.A., van der Veer H.W. 2008. Phylogeography of the common shrimp, Crangon crangon (L.) across its distribution range. Mol. Phyl. Evol. 46: 1015-1030., Kettle et al. 2010Kettle A.J., Morales-Mu-iz A., Roselló-Izquierdo E., Heinrich D., Vøllestad L.A. 2010. Refugia of marine fish in the Northeast Atlantic during the Last Glacial Maximum: concordant assessment from archaeozoology and palaeotemperature reconstructions. Clim. Past Dis. 6: 1351-1389., Xavier et al. 2012Xavier R., Santos A.M., Branco M. 2012. MtDNA and nuclear data reveal patterns of low genetic differentiation for the isopods Stenosoma lancifer and Stenosoma acuminatum, with low dispersal ability along the northeast Atlantic coast. Sci. Mar. 76(1): 133-140. ). For example, in the eastern Atlantic, the Macaronesian archipelagos, the Iberian Peninsula, and the Atlantic coasts of North Africa have been suggested as such glacial refugia areas (Coyer et al. 2004Coyer J.A., Diekmann O.E., Serrão E.A., Procaccini G., Milchakova N., Pearson G.A., Stam W.T., Olsen J.L. 2004. Population genetics of dwarf eelgrass Zostera noltii throughout its biogeographic range. Mar. Ecol. Prog. Ser. 281: 51-62., Maggs et al. 2008Maggs C.A., Castilho R., Foltz D., Henzler C., Jolly M.T., Kelly J., Olson J., Perez K.E., Stam W., Vainola R., Viard F., Wares, J. 2008. Evaluating signatures of glacial refugia for North Atlantic benthic marine taxa. Ecology 89: 108-122., Kettle et al. 2010Kettle A.J., Morales-Mu-iz A., Roselló-Izquierdo E., Heinrich D., Vøllestad L.A. 2010. Refugia of marine fish in the Northeast Atlantic during the Last Glacial Maximum: concordant assessment from archaeozoology and palaeotemperature reconstructions. Clim. Past Dis. 6: 1351-1389.).

Tanaidaceans are among the most ecologically important and diverse benthic micro-crustaceans in the marine realm. The order currently contains more than 1000 species; the discovery of new species has been prominent in the last decade (Larsen 2005Larsen K. 2005. Deep-sea Tanaidacea (Peracarida) from the Gulf of Mexico. Crust. Mono. 5, Brill, Leiden, 381 pp., Blazewicz-Paszkowycz et al. 2012Blazewicz-Paszkowycz M., Bamber R., Anderson G. 2012. Diversity of Tanaidacea (Crustacea: Peracarida) in the World’s Oceans – How far have we come? PloS One 7(4): 1-11, Bamber and Błazewicz-Paszkowycz 2013Bamber R.N., Błazewicz-Paszkowycz M. 2013. Another inordinate fondness: diversity of the tanaidacean fauna of Australia, with description of three new taxa. J. Nat. His. 1-23). Yet, phylogenetic affinities of tanaidaceans are still poorly understood (Larsen and Wilson 2002Larsen K., Wilson G.D.F. 2002. Tanaidacean phylogeny. The first step: the superfamily Paratanaidoidea. J. Zool. Sys. Evol. Res. 40: 205-222., Bird and Larsen 2009Bird G.J., Larsen K. 2009. Tanaidacean Phylogeny: The second step. The basal Paratanaoidean families. Arthr. Syst. Phyl. 67: 137-158.). Tanaidaceans can occur at high densities, often exceeding 10000 individuals per m², with some reports of over 140000 individuals per m² (Delille et al. 1985Delille D., Guidi L.D., Soyer J. 1985. Nutrition of Allotanais hirsutus (Crustacea, Tanaidacea) at Kerguelen Islands. In: Siegfried W.R., Condy P.R., Laws R.M. (eds) Antarctic nutrient cycles and food webs. Berlin, Springer-Verlag, pp. 378-380.). Despite the obvious ecological importance displayed by such population densities, tanaidaceans are neglected in most ecological surveys, though several ecologists have acknowledged their relevance (Sokolova 1959Sokolova M.N. 1959. On the distribution of deep-water bottom animals in relation to their feeding habits and the character of sedimentation. Deep Sea Res. 6: 1-4., Pires 1980Pires A.M.S. 1980. Ecological studies on intertidal and infralittoral Brazilian Tanaidacea (Crustacea) (Peracarida). Stud. Neotrop. Fau. Envir. 15: 141-153., Tuya et al. 2010Tuya F., Larsen K., Platt V. 2010. Patterns of abundance and assemblage structure of epifauna inhabiting two morphologically different kelp holdfasts. Hydrobiologia 658: 373-382), for example to monitor environmental impacts (Riera et al. 2011Riera R., Tuya F., Sacramento A., Ramos E., Rodríguez M., Monterroso. 2011. The effects of brine disposal on a subtidal meiofauna community. Est. Coast. Shelf. Sci. 93: 359-365). Species of the genus Zeuxo (Tanaidacea: Peracarida) are brood-caring, non-swimming, and semi-sedentary animals for which long-distance dispersal is thought to be possible only by rafting, human transport via ballast water, or fouling (Larsen 2005Larsen K. 2005. Deep-sea Tanaidacea (Peracarida) from the Gulf of Mexico. Crust. Mono. 5, Brill, Leiden, 381 pp.). Therefore, their low dispersal potential makes them a good model for studying past vicariance events associated with glacial survival.

The identification of cryptic, or sibling, species is a well-known problem in systematics (Knowlton 1993Knowlton N. 1993. Sibling species in the sea. Ann. Rev. Eco. Syst. 24: 189-216.). Traditional classification has focused mainly on morphological comparisons of organisms, sometimes resulting in conflicting results when the homology of morphological characters was difficult to establish. For example, the morphological differentiation among species of tanaidaceans is notoriously difficult, because of factors such as sexual and ontogenetic polymorphism, as well as the presence of cryptic (and sometimes even sympatric) species (Larsen 2001Larsen K. 2001. Morphological and molecular investigation of polymorphism and cryptic species in tanaid crustaceans: implications for tanaid systematics and biodiversity estimates. Zool. J. Linn. Soc. 131: 353-379.). This is quite apparent for tanaidaceans, since even family-level diagnostic characters might change with development and gender (Larsen and Wilson 1998Larsen K., Wilson G.D.F. 1998. Tanaidomorphan systematics—is it obsolete? J. Crust. Biol. 18: 346-362., Larsen 2001Larsen K. 2001. Morphological and molecular investigation of polymorphism and cryptic species in tanaid crustaceans: implications for tanaid systematics and biodiversity estimates. Zool. J. Linn. Soc. 131: 353-379.). This paper aims to address these problems of species identification of cryptic species complexes based on morphological characters by combining these with molecular information.

The general purpose of this study was to investigate the phylogeographic patterns of certain species of Zeuxo, and in particular what has been thought to be a single species, Z. normani (Richardson 1905Richardson H. 1905. A monograph of the isopods of North America. Bull. US. Nat. Mus. 54: 1-727.), which has an almost cosmopolitan distribution. This species is recorded from all over the world, including Australia (Edgar 2008Edgar G.J. 2008. Shallow water Tanaidae (Crustacea: Tanaidacea) of Australia. Zootaxa 1836: 1-92.), Bermuda (Greve 1974Greve L. 1974. Anatanais normani (Richardson) found near Bermuda and notes on other Anatanais species. Sarsia 55: 115-120.), California (Richardson 1905Richardson H. 1905. A monograph of the isopods of North America. Bull. US. Nat. Mus. 54: 1-727., Sieg 1980Sieg J. 1980 Taxonomische monographie der Tanaidae Dana, 1849 (Crustacea, Tanaidacea). Abhandl. Sencken. Naturforsc. Gesel. 537: 1-267.), Japan (Shiino 1951Shiino S.M. 1951. On two new species of the family Apseudidae found at Seto. Rep. Facul. Fish., Prefec. Uni. Mie. 1: 11-25.), Sri Lanka (Stebbing 1905Stebbing T.R.R. 1905. Report to the Government of Ceylon on the Pearl Oyster Fisheries of the Gulf of Manaar, 4(Suppl. 23): 2-3.) and Spain (Cacabelos et al. 2010Cacabelos E., Lourido A., Troncoso J.S. 2010. Composition and distribution of subtidal and intertidal crustacean assemblages in soft-bottoms of the Ria de Vigo (NW Spain). Sci. Mar. 74(3): 455-464.). Such a cosmopolitan distribution is highly unlikely for organisms with low dispersal potential, such as tanaids (Larsen 2005Larsen K. 2005. Deep-sea Tanaidacea (Peracarida) from the Gulf of Mexico. Crust. Mono. 5, Brill, Leiden, 381 pp.), so the presence of a species complex is expected. To compare genetic divergence between species of the genus from different parts of the world, we include analysis of Z. holdichi (Bamber, 1990Bamber R.N. 1990. A new species of Zeuxo (Crustacea: Tanaidacea) from the French Atlantic Coast. J. Nat. His. 24: 1587-1596.), Z. exsargasso (Sieg, 1980Sieg J. 1980 Taxonomische monographie der Tanaidae Dana, 1849 (Crustacea, Tanaidacea). Abhandl. Sencken. Naturforsc. Gesel. 537: 1-267.) and two additional new species from Korea and Turkey. In particular, we compare diversity at the species level by coupling traditional taxonomy and DNA analyses. To accomplish this objective, we examined DNA sequence variation using three different genetic markers, one mitochondrial (COI), one nuclear large subunit ribosomal DNA sequence (28S rRNA), and one nuclear marker (H3).

Materials and MethodsTop

Taxon sampling

i) Thirteen specimens of Zeuxo (this species is here termed ‘A’ because we believe it is a new undescribed species and to separate it from sp ‘B’ from Turkey), collected by scraping from buoys and harbor walls by Mr. Ho Sung Hwang from three different locations in Korea were examined and six (two from each locality) were successfully sequenced (Table 1).

ii) Six specimens of Zeuxo holdichi (Bamber, 1990) were collected from rock pools by Dr. F. Arenas from one location in Northern France. Two were successfully sequenced but only for the 28S gene. Forty-one additional specimens were collected from a variety of algae by snorkelling at 1-1.5 m depth by K. Larsen and E. Froufe from one location in northern Spain. All specimens were examined morphologically and six were successfully sequenced (Table 1).

iii) One hundred and nineteen specimens of Zeuxo exsargasso (Sieg, 1980) were collected by K. Larsen from a variety of algae and eel-grass by snorkelling at 0.5-1.0 m depth from two locations in the Cape Verde archipelago and by F. Tuya from a variety of algae by snorkelling at 1.5-4 m depth at one location at Gran Canaria Island. All specimens were morphologically examined and four individuals from Cape Verde and five from Gran Canaria were successfully sequenced (Table 1).

iv) Fifty specimens of Zeuxo sp. B collected by Mr. Fikret Öndes from one location in Turkey were examined; three were successfully sequenced (Table 1).

v) Over 200 specimens of Tanais dulongii Audouin, 1826 were collected by K. Larsen, F. Tuya, and E. Froufe from a variety of algae by snorkelling at 0.5-1.5 m depth at Mindelo, northern Portugal. Multiple specimens were successfully sequenced. Additionally, three specimens from Helgoland (collection date missing) were successfully sequenced (Table 1).

DNA extraction, amplification and sequencing

To locate and evaluate the taxonomic value of the new samples relative to other Zeuxo species, we included the only sequences available in GenBank, provided by Drumm (2010)Drumm D.T. 2010. Phylogenetic relationships of Tanaidacea (Eumalacostraca: Peracarida) inferred from three molecular loci. J. Crust. Biol. 30: 692-698. , corresponding to one individual of Z. normani (for accession numbers see Table 1). For this reason, we sequenced the same genes, i.e. COI, 28S and H3.

Total genomic DNA was extracted from 27 Zeuxo spp. specimens (Table 1) using the JETQUICK Tissue DNA kit, following the method described in Larsen and Froufe (2010)Larsen K., Froufe E. 2010. Identification of polymorphic species within groups of morphologically conservative taxa: combining morphological and molecular techniques. In: Nimis P.L., Vignes-Lebbe R. (eds) Tools for Identifying Biodiversity: progress and problems. Trieste, University of Trieste, pp. 301-305., with the final elution step done with 30 µl. Additionally, two individuals of Tanais dulongii (Audouin, 1826) were also sequenced for this manuscript to be used as outgroups. All the molecular procedures, i.e. DNA extraction, PCR conditions, primers used and sequencing, were the same as those described below for Zeuxo spp.

Primers used in both amplification and sequencing were LCO1490 and HCO2198 (Folmer et al. 1994Folmer O., Black M., Hoeh W., Lutz R., Vrijenhoek R. 1994. DNA primers for amplification of mitochondrial cytochrome c oxidase subunit I from diverse metazoan invertebrates. Mol. Mar. Biol. Biotec. 3: 294-299.) for the COI gene, 28S-RD1.3f and 28S-rD4b (Whiting 2002Whiting M.F. 2002. Mecoptera is paraphyletic: multiple genes and phylogeny of Mecoptera and Siphonaptera. Zool. Scrip. 31: 93-104.) for the 28S gene, and H3AF and H3AR universal primers (Colgan et al. 1998Colgan D.J., MacLauchlan A., Wilson G.D.F., Livingston S.P., Edgecombe G.D., Macaranas J., Cassis G., Gray M.R. 1998. Histone H3 and U2 snRNA DNA sequences and arthropod molecular evolution. Aust. J. Zool. 46: 419-437.) for the H3 gene.

The PCR conditions (25-µl reactions) were as follows: each reaction contained 2.5 µl 10× Invitrogen PCR Buffer, 0.5 µl 10 mM of each primer, 1.5 µl 50 mM MgCl₂, 0.5 µl 10 mM dNTP’s, 0.1 µl Invitrogen Taq DNA Polymerase, 3µl DNA template and water to make up the 25-µl reaction. The cycle parameters were initial denaturation at 94°C for 3 min, denaturation at 94°C (30 s), annealing at 52°C (45 s) for both coding genes, 56°C (45s) for 28S and extension at 72°C (45 s) repeated for 38 cycles, with a final extension time of 5 min at 72°C. Amplified DNA templates were enzymatically purified (ExoSap) and sequenced using the ABI PRISM BigDye Terminator protocols. Sequences were read on an ABI-310 and are available for each species in GenBank (Table 1).

Phylogenetic analyses

Chromatograms were checked manually using ChromasPro 1.41 (technelysium.com.au). Additionally, one individual from Paratanais sp. (for accession numbers see Table 1) from Drumm (2010)Drumm D.T. 2010. Phylogenetic relationships of Tanaidacea (Eumalacostraca: Peracarida) inferred from three molecular loci. J. Crust. Biol. 30: 692-698. and the two sequenced Tanais dulongii were incorporated in the data set, to be used as outgroups. The sequences of 28S were aligned in MAFFT (Katoh et al. 2005Katoh K., Kuma K., Toh H., Miyata T. 2005. MAFFT version 806 5: improvement in accuracy of multiple sequence alignment. Nucleic Acids Res. 33(2): 511-518) and the sequences of the coding genes, COI and H3, were aligned with ClustalW using Bioedit v. 5.0.9 (Hall 1999Hall T.A. 1999. Bioedit: a user friendly biological sequence alignment editor and analysis program for Windows 95/98/NT. Nucl. Aci. Symp. 41: 95-98.). All the resulting alignments were then adjusted manually, but were not found to require additional editing.

The final combined data set alignment was then analysed using the maximum likelihood (ML) and Bayesian inference (BI) methods. The best-fit model of nucleotide substitution evolution under the corrected Akaike information criterion was estimated using JModelTest 0.1.1 (Posada 2008Posada D. 2008. jModelTest: phylogenetic model averaging. Mol. Biol. Evol. 25: 1253-1256.). The generalized time-reversible model plus gamma (GTR+G) was the most appropriate model of evolution for this dataset (G= 0.4320) and was therefore used in the phylogenetic analyses. ML trees were built in PhyML (Guindon and Gascuel 2003Guindon S., Gascuel O. 2003. A simple, fast, and accurate algorithm to estimate large phylogenies by maximum likelihood. Syst. Biol. 52: 696-704.) with 1000 bootstrap replicates and searching for the best-scoring ML tree. Phylogenetic BI was performed on MrBayes version 3.1.2 (Ronquist and Huelsenbeck 2003Ronquist F., Huelsenbeck J.P. 2003. MrBayes 3: Bayesian phylogenetic inference under mixed models. Bioinformatics. 19: 1572-1574.). Sequences were partitioned according to genes. Each partition was allowed independent parameters of sequence evolution under the model GTR+G. Analyses started with program-generated trees, with four heated Markov chains with default incremental heating; two independent runs 1.5×107 generations long were sampled at intervals of 100 generations, producing a total of 100000 trees. Burnin was determined upon convergence of log likelihood and parameter estimation values using Tracer (Rambaut and Drummond 2007Rambaut A., Drummond A.J. 2007. Tracer v1.4, Available from http://beast.bio.ed.ac.uk/Tracer).

Parameters of genetic divergence, i.e. total number of polymorphic and parsimony-informative sites, haplotype (Hd) and nucleotide diversity (Nd), were calculated with DnaSP v.5.10.01 (Librado and Rozas 2009Librado P., Rozas J. 2009. DnaSP v5: A software for comprehensive analysis of DNA polymorphism data. Bioinformatics 25: 1451-1452. ) for each gene separately, for each species and/or for the whole datasets. The estimates of evolutionary divergence over sequence pairs between groups and the average evolutionary divergence over sequence pairs within groups (all using uncorrected p distances) were calculated using MEGA5 (Tamura et al. 2007Tamura K., Dudley J., Nei M., Kumar S. 2007. MEGA4: Molecular Evolutionary Genetics Analysis (MEGA) software version 4.0. Mol. Biol. Evol. 24: 1596-1599.). Standard error estimates were obtained by a bootstrap procedure (1000 replicates).

Morphological analysis

Between four and six specimens were fully dissected from each locality, including both adult males and females, using chemically sharpened tungsten wire needles, and were examined under a high-powered compound scope. Full descriptions of both genders of the new species as well as re-descriptions of the known species will be published separately in a specialized taxonomical journal. All specimens used for molecular analysis were examined for diagnostic characters. This involved dissections of mandibles, pleopods and uropods, but not the full array of appendages.

ResultsTop

Molecular analysis

The final alignment of the combined data set yielded 1226 bp, of which 426 positions were variable and 286 parsimony-informative (98 and 63 for H3; 206 and 168 for COI; and 122 and 55 for 28S) for 27 individuals of Zeuxo species from seven localities (Table 1), and the three outgroup sequences. Both ML and the BI analysis recovered the same tree for the combined H3+COI+28S data that is shown in Figure 1A. Three highly supported clades were retrieved within Zeuxo with a large genetic divergence of 20% for the combined data set (Fig. 1A). The only Z. cf. normani available in GenBank was collected in Japan, no voucher material exists and we doubt the validity of this identification. The sequences from Japan seem almost identical to the new sequenced individuals from Korea, and cluster with another very well-supported sub-clade of Z. holdichi from the Atlantic coast of Spain and France (Clade 1. Fig. 1A). All three Zeuxo specimens from Turkey grouped in Clade 2. The nine specimens from the Macaronesian archipelagoes of Cape Verde and Canaries (Z. exsargasso) grouped together in a single clade (Clade 3) that had strong internal support. The relationships between the three major clades were poorly resolved in both analyses.

Additionally, as the two Z. holdichi individuals from France (Table 1) were only successfully analysed for 28S, the same phylogenetic analyses were performed for this data set alone. The final 28S alignment yielded 564 bp, of which 122 positions were polymorphic and 55 parsimony-informative. Within Zeuxo spp. specimens, there were 11 haplotypes depicted (differing by 1-2 bp), and relatively high levels of nucleotide variability were found (Hd=0.590, Nd=0.063). The Tamura-Nei plus Gamma model (TrN+G) was the most appropriate model of evolution for this dataset (G=0.5690). The results (both ML and BI analyses recovered the same tree) are shown in Figure 1B. Again, three highly supported clades were retrieved within Zeuxo spp: Clade 1 is a politomy and includes all the individuals collected in Korea (Z. sp. A, Korea), France and Spain (Z. holdichi) and also the Z. normani (hereafter termed Z. cf. normani) registered in GenBank (Drumm 2010Drumm D.T. 2010. Phylogenetic relationships of Tanaidacea (Eumalacostraca: Peracarida) inferred from three molecular loci. J. Crust. Biol. 30: 692-698.) from Japan; Clade 2 is composed of all the Z. exsargasso individuals sequenced from both the Canaries and Cape Verde archipelagos, which cluster well into two sub-groups; and Clade 3 includes the three specimens (Z. sp. B) from Turkey.

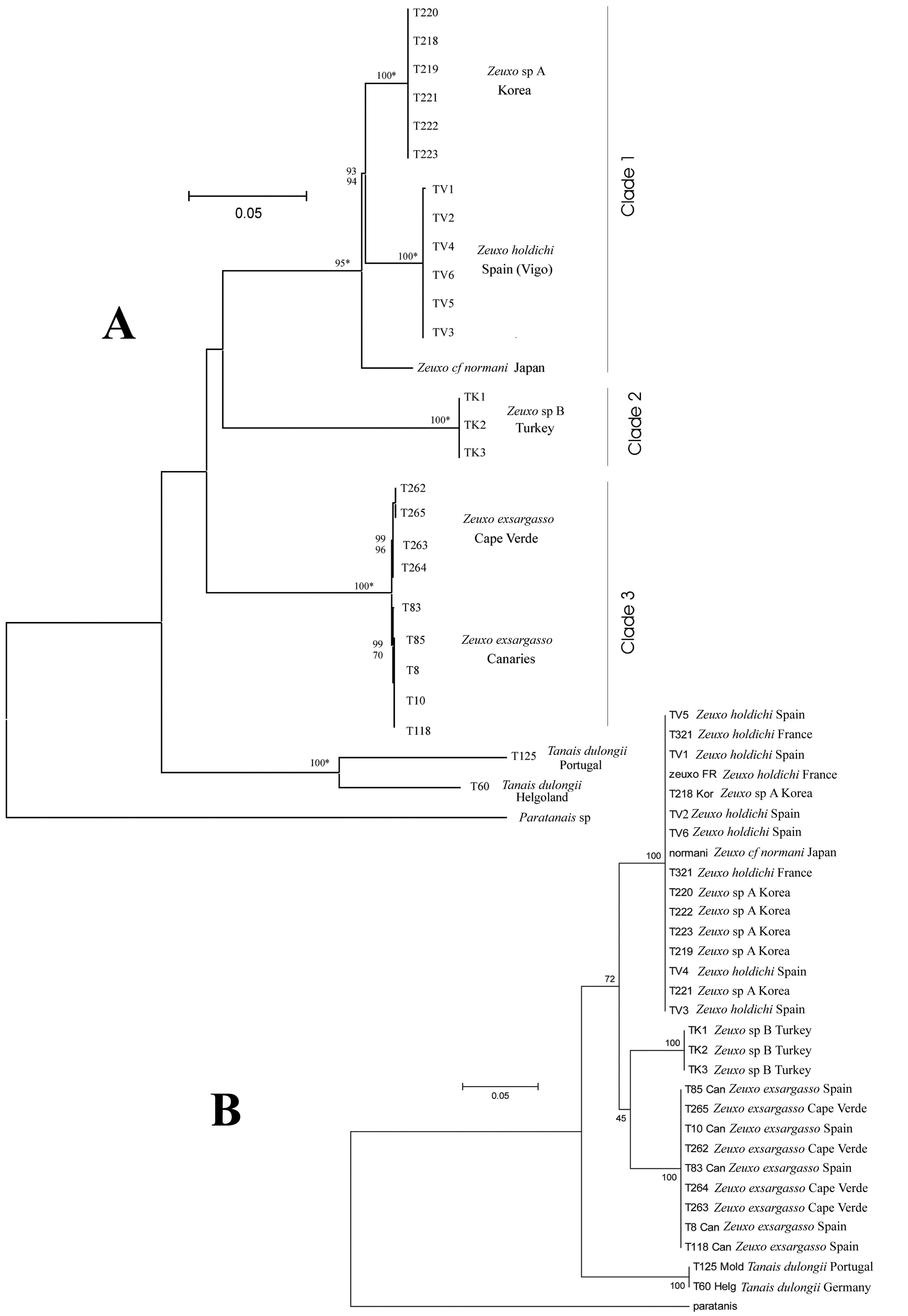

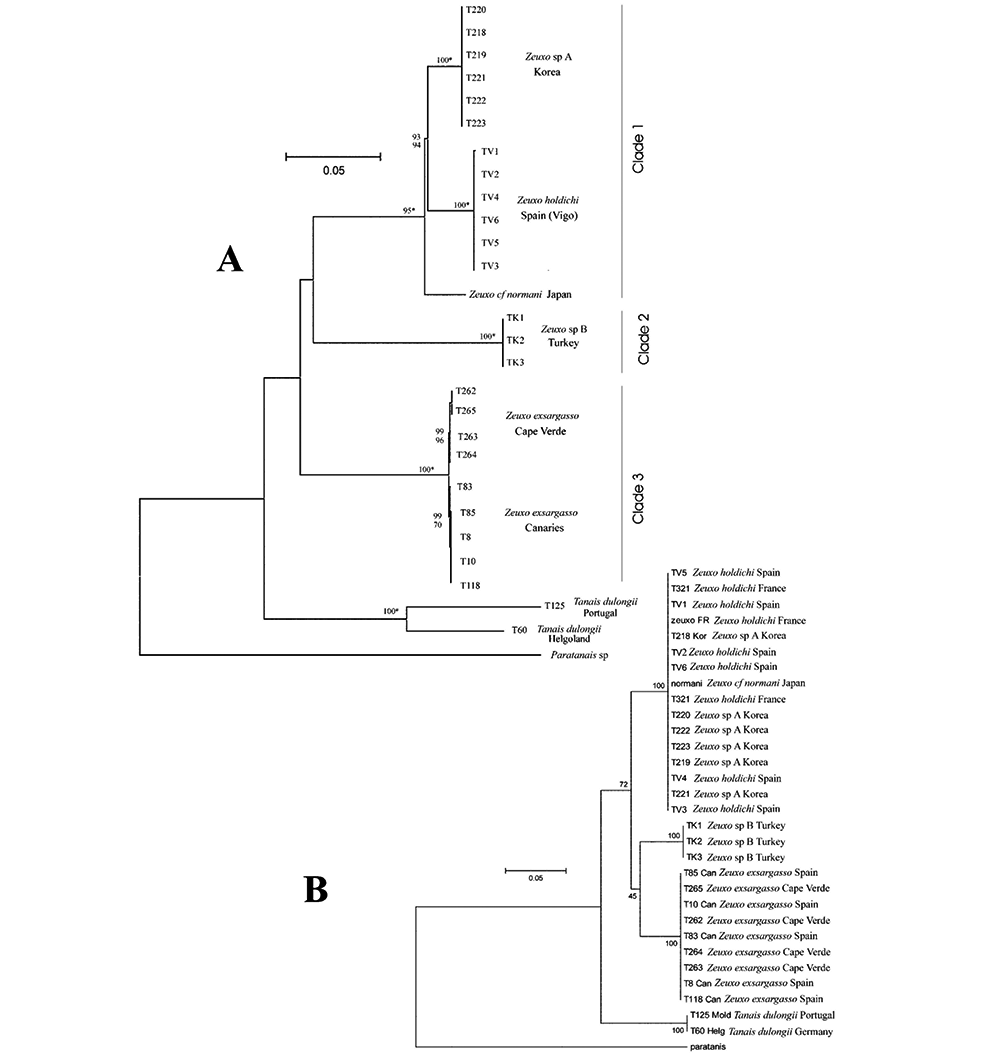

The Bayesian analysis revealed the same three highly supported monophyletic clades retrieved with 28S, but in the H3 phylogeny (see supplementary material, Fig. S1) Clade 3, which included individuals from Turkey, clustered with 84% support with Clade 2 (Zeuxo exsargasso individuals from Gran Canaria and the Cape Verde). When 28S was used, Clade 3 came basal to the other two clades (Fig. 1B).

H3. The final H3 alignment was 273 bp long and included the Z. cf. normani previously published (GenBank HM016171) and a total of 24 new Zeuxo spp. individuals (Table 1) in a total of 28 sequences. It contained 98 polymorphic and 63 parsimony-informative sites for the total data set, and within Zeuxo spp. specimens only eight haplotypes were depicted and high levels of nucleotide variability were found (Hd=0.759, Nd=0.062). The tree for the H3 gene is given in supplementary material Figure S1.

COI. The final COI alignment was 390 bp and it consisted of 28 sequences (Table 1), which contained 206 polymorphic and 168 parsimony-informative sites. Within Zeuxo spp. specimens, there were seven haplotypes depicted and high levels of nucleotide variability were found (Hd=0.850, Nd=0.033). The tree for the COI gene is given in supplementary material Figure S2.

The overall success rate for DNA extraction was 75%. Remaining specimens are currently kept at the collection in LMCEE. Zeuxo sp. A and B will be formally described in another paper and the remaining material (types) will be returned to natural history museums in their respective countries of origin.

Morphological results

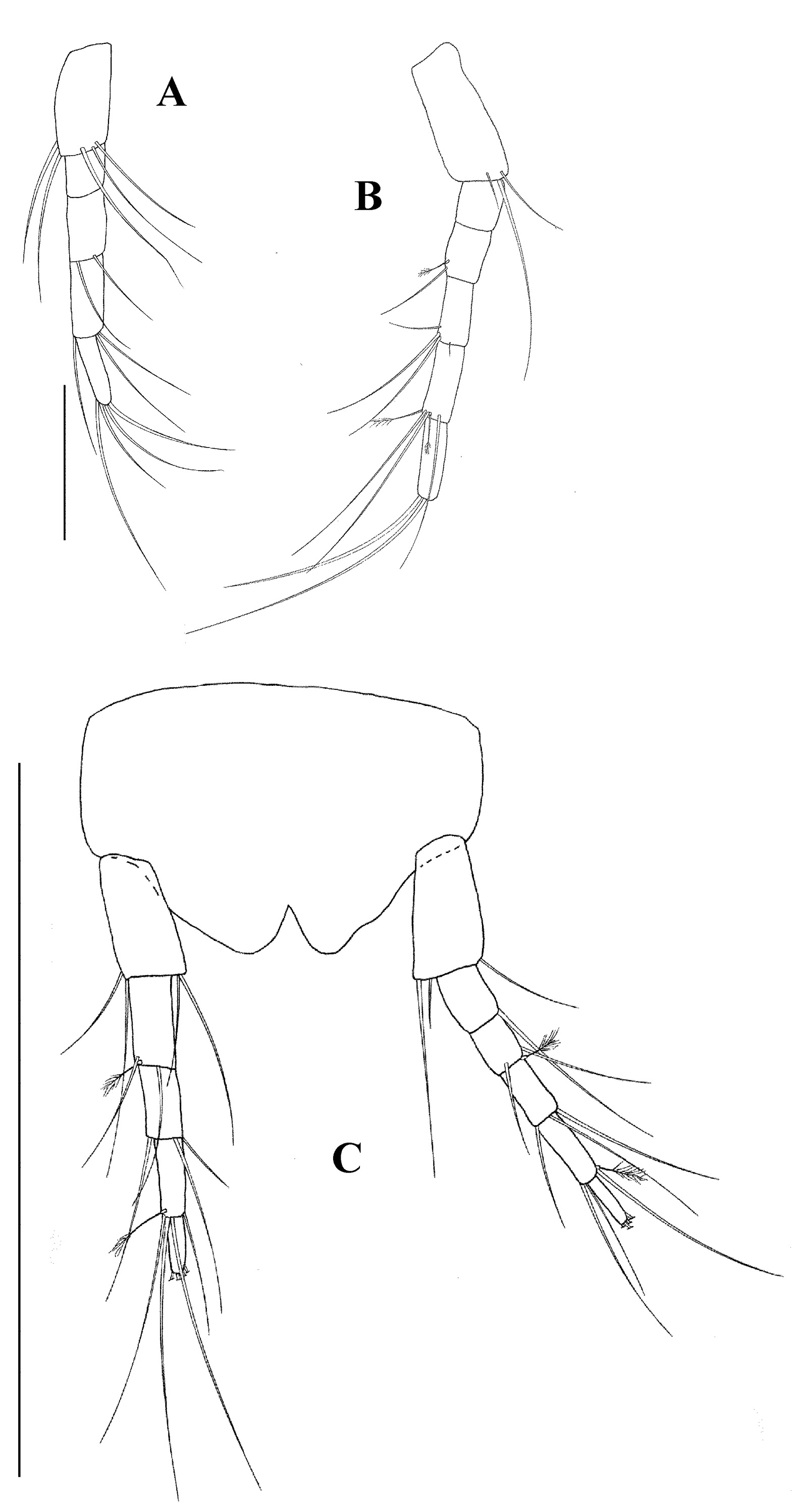

A number of currently considered diagnostic characters for species identification within Zeuxo were found to be unstable, some even within a single individual. 1) The number of uropod articles (Fig. 2). The uropodal article number varies between four and five in Z. sp. A from Korea (Fig. 2A, B), and between five and six in Z. exsargasso (Fig. 2C).

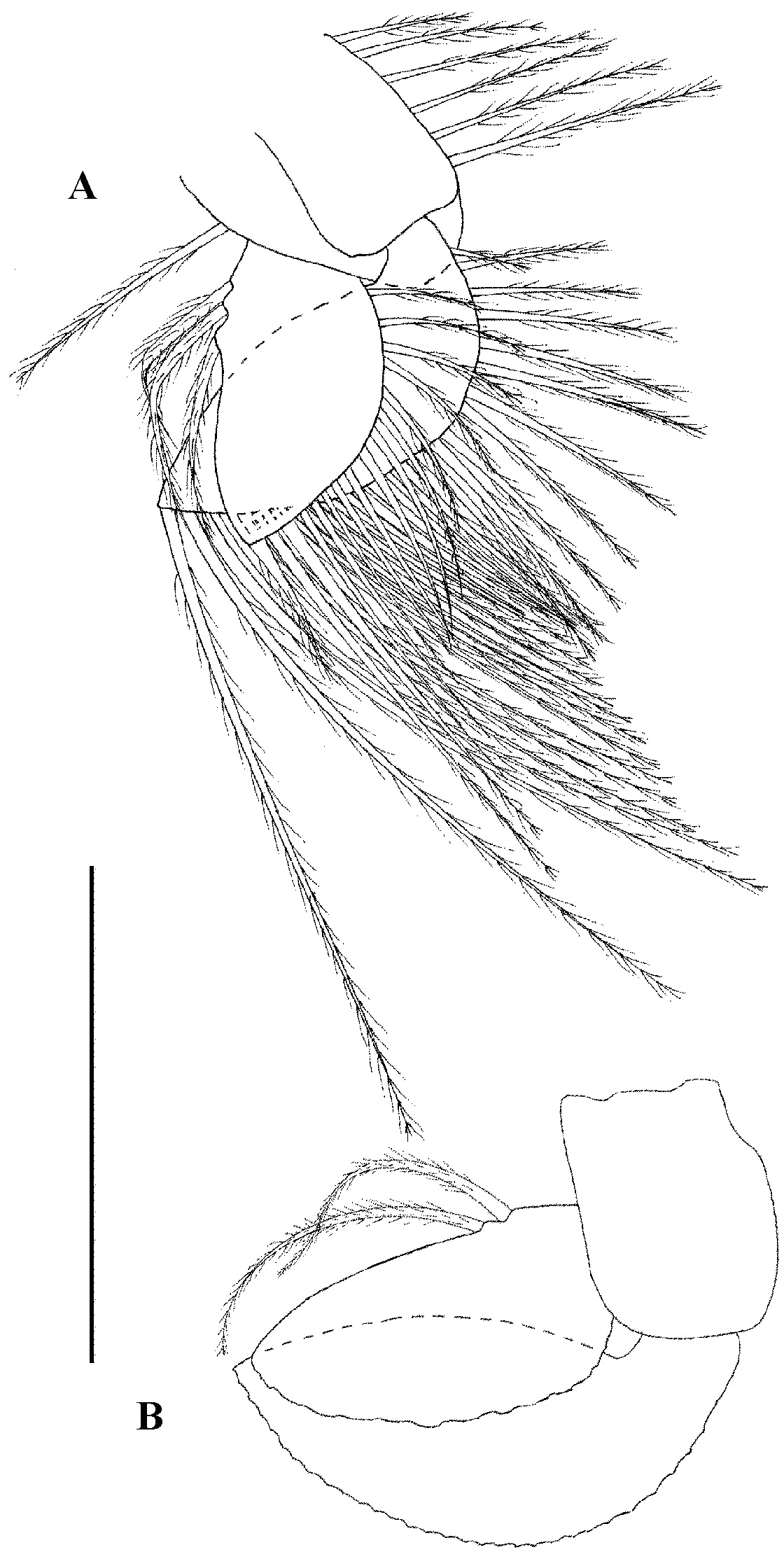

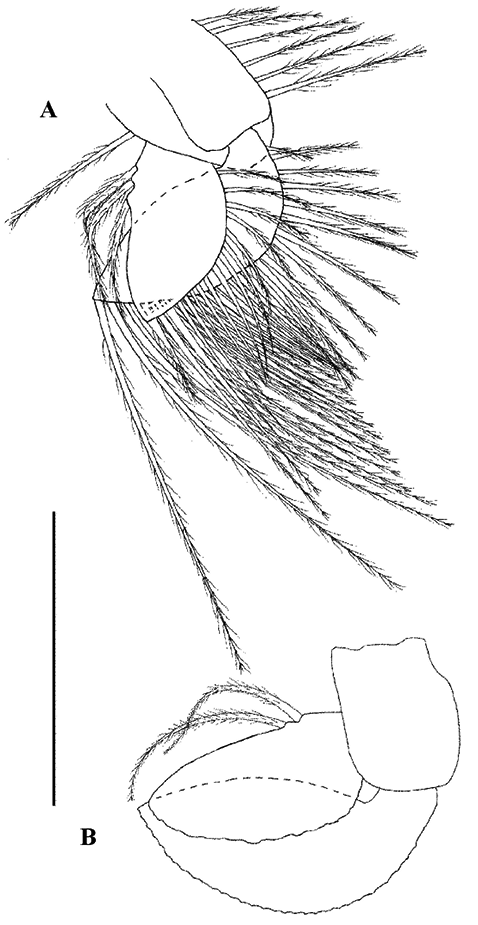

2) The pleopod setation (Fig. 3). In this study, the pleopod endopod had only one inner seta in Zeuxo exsargasso, which is otherwise described as having two (Sieg 1980Sieg J. 1980 Taxonomische monographie der Tanaidae Dana, 1849 (Crustacea, Tanaidacea). Abhandl. Sencken. Naturforsc. Gesel. 537: 1-267.: 219. Fig. 61). The same setal character was shown to vary also in Z. holdichi (Fig. 3A, B) and in both this species and Z. exsargasso the spiniform armament of the pereopod carpus also seems to vary.

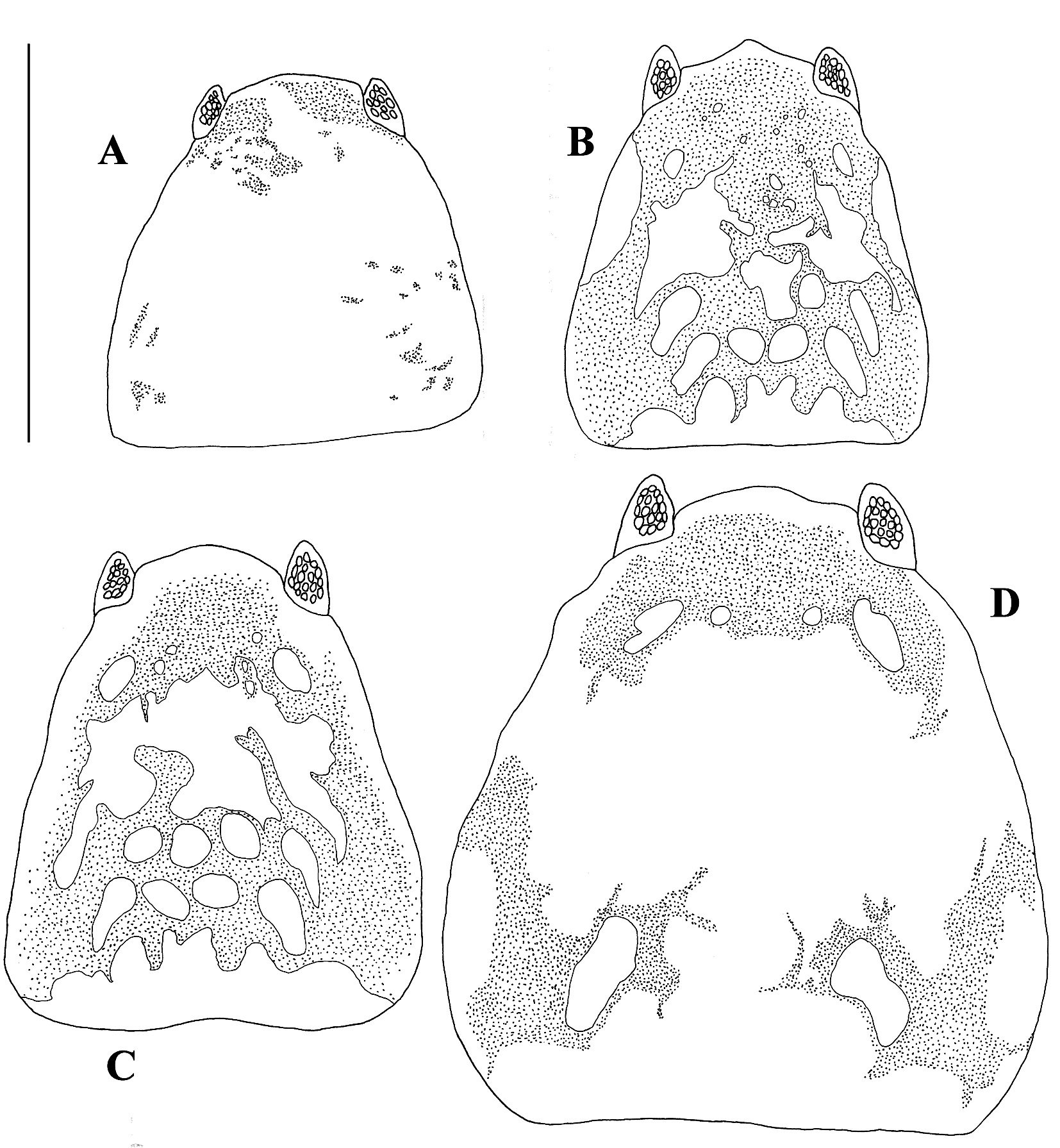

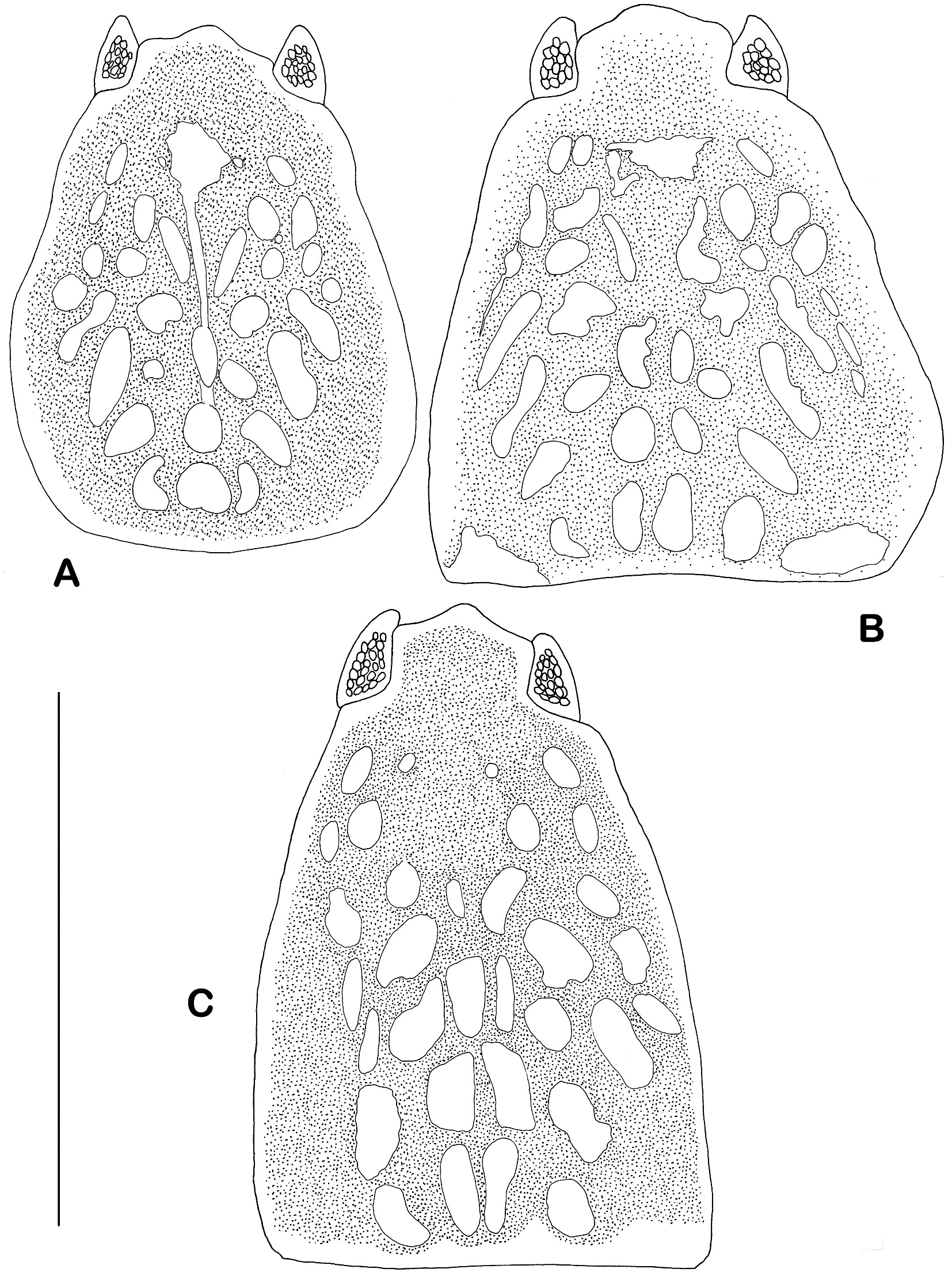

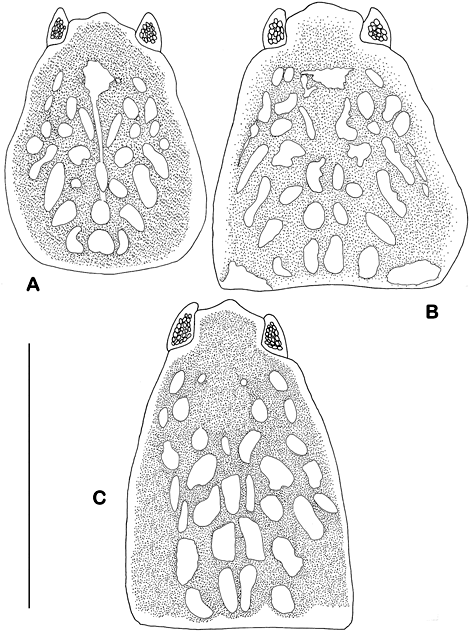

3) The carapace pigmentation (Figs 4 and 5). The specimens of Z. sp. A from Korea, while originating from three populations, displayed no variation in the carapace pigmentation patterns (Fig. 4A). The same situation was found in specimens of Z. sp. B from Turkey, although originating from one population only (Fig. 4B). However, the pigmentation pattern of Z. exsargasso from the Cape Verde (two populations) and Gran Canaria (one population) displayed large variation in the carapace pigmentation patterns within and between populations (Fig. 5A, B and Fig. 5C, D, respectively), as well as between the archipelagos (Fig. 5A, B versus Fig. 5C, D). Also, the pigmentation pattern for Z. holdichi varies between the French (Bamber 1990Bamber R.N. 1990. A new species of Zeuxo (Crustacea: Tanaidacea) from the French Atlantic Coast. J. Nat. His. 24: 1587-1596.:1589, Fig. 1B) and the Spanish populations (Fig. 4C).

DiscussionTop

This study describes, for the first time, the genetic distribution pattern of species within the order Tanaidacea, which have low dispersal potential. Tanaidacean species can thus be prone to maintaining signatures of genetic drift caused by vicariant events, as seen for other organisms (Petit et al. 2003Petit R.J., Aguinagalde I., de Beaulieu J.-L., Bittkau C., Brewer S., Cheddadi R., Ennos R., Fineschi S., Grivet D., Lascoux M., Mohanty A., Muller-Starck G., Demesure-Musch B., Palmé A., Martín J. P., Rendell S., Vendramin G.G. 2003. Glacial refugia: hotspots but not melting pots of genetic diversity. Science 300: 1563-1565. , Pelc et al. 2009Pelc R.A., Warner R.R., Gaines S.D. 2009. Geographical patterns of genetic structure in marine species with contrasting life histories. J. Biogeogr. 36: 1881-1890.).

The genetic analysis indicates that a ‘Zeuxo normani’ species complex exists (Fig. 1), spanning the Pacific and the North Atlantic. It furthermore indicates that there is a closer genetic relationship between the Pacific species and Z. holdichi than between Z. holdichi and other North Atlantic species. The Zeuxo normani species complex thus includes Z. normani California (Sieg 1980Sieg J. 1980 Taxonomische monographie der Tanaidae Dana, 1849 (Crustacea, Tanaidacea). Abhandl. Sencken. Naturforsc. Gesel. 537: 1-267.), Z. cf. normani, Japan (Drumm 2010Drumm D.T. 2010. Phylogenetic relationships of Tanaidacea (Eumalacostraca: Peracarida) inferred from three molecular loci. J. Crust. Biol. 30: 692-698.), Z. cf. normani, Australia (Edgar 2008Edgar G.J. 2008. Shallow water Tanaidae (Crustacea: Tanaidacea) of Australia. Zootaxa 1836: 1-92.), Z. sp. A, Korea (this study), and Z. holdichi, Spain and France (this study).

The long-distance dispersal found in certain species with otherwise low dispersal abilities, such as Z. exsargasso, is thought to depend on rafting on floating substrata, particularly on algae (e.g. the genus Sargassum) (Sieg 1980Sieg J. 1980 Taxonomische monographie der Tanaidae Dana, 1849 (Crustacea, Tanaidacea). Abhandl. Sencken. Naturforsc. Gesel. 537: 1-267.). Thus, the general absence of genetic divergence throughout the distribution of Z. exsargasso (albeit not examined over the entire distribution of the species) could suggest that randomness and regional hydrographic patterns can promote high population connectivity via the Gulf Stream. It has been suggested (Thiel and Haye 2006Thiel M., Haye P.A. 2006. The ecology of rafting in the marine environment. III. Biogeographical and evolutionary consequences. Oceanog. Mar. Biol. 44: 323-429.) that there may be convergence zones where multiple rafts arrive, thus favouring high levels of gene flow between distant populations and erasing the genetic signatures of founder effects. Such ‘arrival’ zones for eastward dispersal are likely to be the Macaronesian archipelagos (Bamber 2012aBamber R.N. 2012a. Littoral Tanaidacea (Crustacea: Peracarida) from Macaronesia: allopatry and provenance in recent habitats. J. Mar. Biol. Ass. UK 92(5): 1095-1116.).

Zeuxo holdichi (part of the ‘Z. normani’ species complex) may have retreated to refugia in the south (in northern Spain, Brittany and the English Channel) during the last glaciations, as was proposed for many cold-water taxa (e.g. Kettle et al. 2010Kettle A.J., Morales-Mu-iz A., Roselló-Izquierdo E., Heinrich D., Vøllestad L.A. 2010. Refugia of marine fish in the Northeast Atlantic during the Last Glacial Maximum: concordant assessment from archaeozoology and palaeotemperature reconstructions. Clim. Past Dis. 6: 1351-1389.). However, this species does not seem to be able to recolonize northern latitudes. Furthermore, it appears that a discontinuous interbreeding between the North Atlantic species (Z. holdichi) and the Pacific ‘parent’ species (Z. sp. A from Korea and Z. cf. normani from Japan) allow for morphological observable separation of this species (Z. holdichi): this is plausible if we accept that gene flow is in the Pacific-Atlantic direction. In contrast, while the genetic COI divergence (see Table 2) between Z. cf. normani from Japan and Z. sp. A from Korea is on a similar level (10.7%) to that of Z. holdichi (11.2% and 12.5%, respectively) only a marginal morphological difference can be found between these species according to the description by Shiino (1951)Shiino S.M. 1951. On two new species of the family Apseudidae found at Seto. Rep. Facul. Fish., Prefec. Uni. Mie. 1: 11-25.. Importantly, this shows that regardless of small genetic (COI) divergence, morphological difference can either be present or absent.

The molecular analyses showed, as expected, the same three highly supported clades within Zeuxo spp., although the relationships between them lacked strong support. It also showed that different species of Zeuxo appear to have a genetic divergence in the COI gene, ranging from 10.7% between Z. sp. A (Korea) and Z. cf. normani (Japan) to 28.2% to 28.5% between Z. sp. B (Turkey) and Zeuxo exsargasso (see Table 2). Although few genetic studies have been made on tanaidaceans, a 20% divergence has been reported between several species of Leptochelia (Drumm 2010Drumm D.T. 2010. Phylogenetic relationships of Tanaidacea (Eumalacostraca: Peracarida) inferred from three molecular loci. J. Crust. Biol. 30: 692-698., Larsen et al. 2012Larsen K., Nagaoka R., Froufe E. 2012. Tanaidacea (Crustacea) from Macaronesia III. The shallow-water Tanaidomorpha from the Cape Verde archipelago. Zootaxa 3498: 24-44., Larsen and Froufe 2013Larsen K., Froufe E. 2013. A new polymorphic species of Leptochelia (Crustacea: Tanaidacea) from Guinea Bissau, West Africa, with comments of genetic variation within Leptochelia. Afric. Invert. 54 (1): 105-125.).

The closer genetic similarity of Z. holdichi from the Atlantic coast of Spain to the Pacific Z. sp. A from Korea (11.2%) and Z. cf. normani from Japan (12.5%), compared with that of the geographically much closer Atlantic species, Z. exsargasso (28.2%-28.5%), indicates the presence of a Z. normani species complex spanning the Pacific and North Atlantic. This close genetic similarity of Z. holdichi to the North Pacific members of the Z. normani complex suggests a previous inter-glacial colonization. We then speculate that the populations of Z. holdichi from the Atlantic coast of Spain and France are remnants of such a circumpolar distribution.

Our results point out some issues on the current diagnostic characters for species of Zeuxo that were previously found to be unstable. First, it is well known that the number of uropodal articles (Fig. 2) can vary within species of Tanaoidea though it has still been accepted as one of the most important characters for species identification since the monograph by Sieg (1980)Sieg J. 1980 Taxonomische monographie der Tanaidae Dana, 1849 (Crustacea, Tanaidacea). Abhandl. Sencken. Naturforsc. Gesel. 537: 1-267.. However, already Kudinova-Pasternak (1989)Kudinova-Pasternak R.K. 1989. A supplement to the fauna of Tanaidacea (Crustacea) of Kurile Islands and the description of Zeuxo beringi sp. n. (Commander Islands). Zool. Zhur. 68: 128-130. mentioned variations of this character in Z. beringi, and both Bamber (1990)Bamber R.N. 1990. A new species of Zeuxo (Crustacea: Tanaidacea) from the French Atlantic Coast. J. Nat. His. 24: 1587-1596. and Edgar (2008)Edgar G.J. 2008. Shallow water Tanaidae (Crustacea: Tanaidacea) of Australia. Zootaxa 1836: 1-92. confirmed this observation in other species of Zeuxo. Similarly, this study, supported by genetic confirmation, proves that this character can be variable within a species and, indeed, even within an individual. A very thorough study on this character in the closely related genus Zeuxoides (Sieg, 1980) has been conducted by Bird (2008)Bird G.J. 2008. Untying the Gordian Knot: on Tanais novaezealandiae Thomson (Crustacea, Tanaidacea, Tanaidae) from New Zealand, with descriptions of two new Zeuxoides species. Zootaxa 1877: 1-36., demonstrating a clear correlation between body size (instars) and uropod article number. Our study has shown that variation can even exist between the left and right uropod of the same specimen (Fig. 2C), regardless of the body size. Therefore, the value of the number of uropodal articles as a character for species identification should be applied with caution. We have seen similar cases of uropod article variation within individuals of other tanaidaceans (Larsen et al. 2012Larsen K., Nagaoka R., Froufe E. 2012. Tanaidacea (Crustacea) from Macaronesia III. The shallow-water Tanaidomorpha from the Cape Verde archipelago. Zootaxa 3498: 24-44., Larsen and Froufe 2013Larsen K., Froufe E. 2013. A new polymorphic species of Leptochelia (Crustacea: Tanaidacea) from Guinea Bissau, West Africa, with comments of genetic variation within Leptochelia. Afric. Invert. 54 (1): 105-125.), and this is thus too often to just be considered a rare aberration. Second, the Parazeuxo subgenus diagnosis (Sieg 1980Sieg J. 1980 Taxonomische monographie der Tanaidae Dana, 1849 (Crustacea, Tanaidacea). Abhandl. Sencken. Naturforsc. Gesel. 537: 1-267.) depends mainly on the pleopod outer setation character and the number of spiniform setae on the pereopodal merus and carpus. This study has shown that the pleopod endopod setal character (Fig. 3) is variable in Z. exsargasso and Z. holdichi, thus making the subgenus diagnosis invalid. In both of these species, the spiniform armament of the pereopod carpus also seems to vary, and should be applied, again, with caution. Third, in recent years, some authors (Edgar 2008Edgar G.J. 2008. Shallow water Tanaidae (Crustacea: Tanaidacea) of Australia. Zootaxa 1836: 1-92., Bamber 2012aBamber R.N. 2012a. Littoral Tanaidacea (Crustacea: Peracarida) from Macaronesia: allopatry and provenance in recent habitats. J. Mar. Biol. Ass. UK 92(5): 1095-1116., Kakui pers. comm.) have suggested that pigmentation could be used for species identification without the need for dissection. However, our results do not completely support this premise (Figs 4 and 5), at least for Z. exsargasso and Z. holdichi. Since both the morphological and genetic analysis confirmed the conspecificity of these respective specimens, this suggests that some species have variable carapace pigmentation patterns. No specific patterns were recorded relative to gender, while younger developmental stages appear to have the pigmentation concentrated on the anterior part of the carapace.

In summary, the conclusions of this study are the following: 1) The assembly of the northeast Atlantic comprises species that originated from both the North Pacific and the northwest Atlantic; 2) traditional species identification clearly underestimates diversity; and 3) what have been perceived as reliable diagnostic morphological characters can often be variable.

Hence, more detailed morphological, distributional and molecular surveys, with an emphasis on the intertidal assemblage, are needed to answer the questions of wide distributions records of non-swimming species without a dispersal phase. Clearly there are at least two proven possibilities: frequent rafting events (Larsen 2005Larsen K. 2005. Deep-sea Tanaidacea (Peracarida) from the Gulf of Mexico. Crust. Mono. 5, Brill, Leiden, 381 pp., Bamber 2012aBamber R.N. 2012a. Littoral Tanaidacea (Crustacea: Peracarida) from Macaronesia: allopatry and provenance in recent habitats. J. Mar. Biol. Ass. UK 92(5): 1095-1116.); and the presences of multiple, morphologically almost inseparable species known as species complexes (Larsen 2001Larsen K. 2001. Morphological and molecular investigation of polymorphism and cryptic species in tanaid crustaceans: implications for tanaid systematics and biodiversity estimates. Zool. J. Linn. Soc. 131: 353-379., Bamber 2010Bamber R.N. 2010. In the footsteps of Henrik Nikolaj Krøyer: the rediscovery and redescription of Leptochelia savignyi (Krøyer, 1842) sensu stricto (Crustacea: Tanaidacea: Leptocheliidae). Proc. Biol. Soc. Wash. 123: 289-311., 2012bBamber R.N. 2012b. A re-assessment of Hexapleomera Dudich, 1931 Crustacea: Tanaidacea: Tanaidae), with designation of three new species. Zootaxa 3583: 51-70.).

AcknowledgementsTop

The authors are greatly indebted to several colleagues for providing material: Mr. Fikret Öndes and Dr. Kerem Bakir, Ege University, Turkey, for providing the material of Z. sp. B from Turkey; Dr. F. Arenas for providing the material of Z. holdichi from France; and Mr. Ho Sung Hwang, Kangnung National University, Korea, for providing the material of Z. sp. A from Korea.

ReferencesTop

Addison J.A., Hart. M.W. 2005. Colonization, dispersal and hybridization influence phylogeography of North Atlantic sea urchins (Strongylocentrotus droebachiensis). Evolution 59(3): 532-543.
http://dx.doi.org/10.1111/j.0014-3820.2005.tb01013.x

Audzijonytė A., Damgaard J., Varvio S.-L., Vainio J.K., Väinölä R. 2005. Phylogeny of Mysis (Crustacea, Mysida): history of continental invasions inferred from molecular and morphological data. Cladistics 21(6): 575-596.
http://dx.doi.org/10.1111/j.1096-0031.2005.00081.x

Bamber R.N. 1990. A new species of Zeuxo (Crustacea: Tanaidacea) from the French Atlantic Coast. J. Nat. His. 24: 1587-1596.
http://dx.doi.org/10.1080/00222939000770911

Bamber R.N. 2010. In the footsteps of Henrik Nikolaj Krøyer: the rediscovery and redescription of Leptochelia savignyi (Krøyer, 1842) sensu stricto (Crustacea: Tanaidacea: Leptocheliidae). Proc. Biol. Soc. Wash. 123: 289-311.
http://dx.doi.org/10.2988/10-14.1

Bamber R.N. 2012a. Littoral Tanaidacea (Crustacea: Peracarida) from Macaronesia: allopatry and provenance in recent habitats. J. Mar. Biol. Ass. UK 92(5): 1095-1116.
http://dx.doi.org/10.1017/S0025315412000252

Bamber R.N. 2012b. A re-assessment of Hexapleomera Dudich, 1931 Crustacea: Tanaidacea: Tanaidae), with designation of three new species. Zootaxa 3583: 51-70.

Bamber R.N., Błazewicz-Paszkowycz M. 2013. Another inordinate fondness: diversity of the tanaidacean fauna of Australia, with description of three new taxa. J. Nat. His. 47: 1767-1789.
http://dx.doi.org/10.1080/00222933.2012.742164

Bird G.J. 2008. Untying the Gordian Knot: on Tanais novaezealandiae Thomson (Crustacea, Tanaidacea, Tanaidae) from New Zealand, with descriptions of two new Zeuxoides species. Zootaxa 1877: 1-36.

Bird G.J., Larsen K. 2009. Tanaidacean Phylogeny: The second step. The basal Paratanaoidean families. Arthr. Syst. Phyl. 67: 137-158.

Blazewicz-Paszkowycz M., Bamber R., Anderson G. 2012. Diversity of Tanaidacea (Crustacea: Peracarida) in the World’s Oceans – How far have we come? PloS One 7(4): 1-11.
http://dx.doi.org/10.1371/journal.pone.0033068

Cacabelos E., Lourido A., Troncoso J.S. 2010. Composition and distribution of subtidal and intertidal crustacean assemblages in soft-bottoms of the Ria de Vigo (NW Spain). Sci. Mar. 74(3): 455-464.
http://dx.doi.org/10.3989/scimar.2010.74n3455

Colgan D.J., MacLauchlan A., Wilson G.D.F., Livingston S.P., Edgecombe G.D., Macaranas J., Cassis G., Gray M.R. 1998. Histone H3 and U2 snRNA DNA sequences and arthropod molecular evolution. Aust. J. Zool. 46: 419-437.
http://dx.doi.org/10.1071/ZO98048

Coyer J.A., Diekmann O.E., Serrão E.A., Procaccini G., Milchakova N., Pearson G.A., Stam W.T., Olsen J.L. 2004. Population genetics of dwarf eelgrass Zostera noltii throughout its biogeographic range. Mar. Ecol. Prog. Ser. 281: 51-62.
http://dx.doi.org/10.3354/meps281051

Delille D., Guidi L.D., Soyer J. 1985. Nutrition of Allotanais hirsutus (Crustacea, Tanaidacea) at Kerguelen Islands. In: Siegfried W.R., Condy P.R., Laws R.M. (eds) Antarctic nutrient cycles and food webs. Berlin, Springer-Verlag, pp. 378-380.
http://dx.doi.org/10.1007/978-3-642-82275-9_53

Drumm D.T. 2010. Phylogenetic relationships of Tanaidacea (Eumalacostraca: Peracarida) inferred from three molecular loci. J. Crust. Biol. 30: 692-698.
http://dx.doi.org/10.1651/10-3299.1

Edgar G.J. 2008. Shallow water Tanaidae (Crustacea: Tanaidacea) of Australia. Zootaxa 1836: 1-92.

Folmer O., Black M., Hoeh W., Lutz R., Vrijenhoek R. 1994. DNA primers for amplification of mitochondrial cytochrome c oxidase subunit I from diverse metazoan invertebrates. Mol. Mar. Biol. Biotec. 3: 294-299.

Guindon S., Gascuel O. 2003. A simple, fast, and accurate algorithm to estimate large phylogenies by maximum likelihood. Syst. Biol. 52: 696-704.
http://dx.doi.org/10.1080/10635150390235520

Greve L. 1974. Anatanais normani (Richardson) found near Bermuda and notes on other Anatanais species. Sarsia 55: 115-120.

Hall T.A. 1999. Bioedit: a user friendly biological sequence alignment editor and analysis program for Windows 95/98/NT. Nucl. Aci. Symp. 41: 95-98.

Hardy S.M., Carr, C.M., Hardman, M., Steinke, D., Corstorphine, E. Mah, C. 2011. Biodiversity and phylogeography of Arctic marine fauna: insights from molecular tools. Mar. Biodiv. 41: 195-210.
http://dx.doi.org/10.1007/s12526-010-0056-x

Harrison M.K., Crespi B.J. 1999. Phylogenetics of Cancer Crabs (Crustacea: Decapoda: Brachyura). Mol. Phylo. Evol. 12(2): 186-199.
http://dx.doi.org/10.1006/mpev.1998.0608

Hewitt G.M. 1996. Some genetic consequences of ice ages, and their role in divergence and speciation. Biol. J. Linn. Soc. 58: 247-276.
http://dx.doi.org/10.1006/bijl.1996.0035
http://dx.doi.org/10.1111/j.1095-8312.1996.tb01434.x

Hewitt G.M. 2004. Genetic consequences of climatic oscillations in the Quaternary. Philos. Trans. R. Soc. Lond. B Biol. Sci. 359: 183-195.
http://dx.doi.org/10.1098/rstb.2003.1388

Katoh K., Kuma K., Toh H., Miyata T. 2005. MAFFT version 806 5: improvement in accuracy of multiple sequence alignment. Nucleic Acids Res. 33(2): 511-518.
http://dx.doi.org/10.1093/nar/gki198

Kettle A.J., Morales-Muñiz A., Roselló-Izquierdo E., Heinrich D., Vøllestad L.A. 2010. Refugia of marine fish in the Northeast Atlantic during the Last Glacial Maximum: concordant assessment from archaeozoology and palaeotemperature reconstructions. Clim. Past Dis. 6: 1351-1389.
http://dx.doi.org/10.5194/cpd-6-1351-2010

Knowlton N. 1993. Sibling species in the sea. Ann. Rev. Eco. Syst. 24: 189-216.
http://dx.doi.org/10.1146/annurev.es.24.110193.001201

Kudinova-Pasternak R.K. 1989. A supplement to the fauna of Tanaidacea (Crustacea) of Kurile Islands and the description of Zeuxo beringi sp. n. (Commander Islands). Zool. Zhur. 68: 128-130.

Larsen K. 2001. Morphological and molecular investigation of polymorphism and cryptic species in tanaid crustaceans: implications for tanaid systematics and biodiversity estimates. Zool. J. Linn. Soc. 131: 353-379.
http://dx.doi.org/10.1111/j.1096-3642.2001.tb02241.x

Larsen K. 2005. Deep-sea Tanaidacea (Peracarida) from the Gulf of Mexico. Crust. Mono. 5, Brill, Leiden, 381 pp.

Larsen K., Froufe E. 2010. Identification of polymorphic species within groups of morphologically conservative taxa: combining morphological and molecular techniques. In: Nimis P.L., Vignes-Lebbe R. (eds) Tools for Identifying Biodiversity: progress and problems. Trieste, University of Trieste, pp. 301-305.

Larsen K., Froufe E. 2013. A new polymorphic species of Leptochelia (Crustacea: Tanaidacea) from Guinea Bissau, West Africa, with comments of genetic variation within Leptochelia. Afric. Invert. 54 (1): 105-125.
http://dx.doi.org/10.5733/afin.054.0105

Larsen K., Wilson G.D.F. 1998. Tanaidomorphan systematics—is it obsolete? J. Crust. Biol. 18: 346-362.
http://dx.doi.org/10.2307/1549329

Larsen K., Wilson G.D.F. 2002. Tanaidacean phylogeny. The first step: the superfamily Paratanaidoidea. J. Zool. Sys. Evol. Res. 40: 205-222.
http://dx.doi.org/10.1046/j.1439-0469.2002.00193.x

Larsen K., Nagaoka R., Froufe E. 2012. Tanaidacea (Crustacea) from Macaronesia III. The shallow-water Tanaidomorpha from the Cape Verde archipelago. Zootaxa 3498: 24-44.

Librado P., Rozas J. 2009. DnaSP v5: A software for comprehensive analysis of DNA polymorphism data. Bioinformatics 25: 1451-1452.
http://dx.doi.org/10.1093/bioinformatics/btp187

Luttikhuizen P.C., Campos J., van Bleijswijk J., Peijnenburg K.T.C.A., van der Veer H.W. 2008. Phylogeography of the common shrimp, Crangon crangon (L.) across its distribution range. Mol. Phyl. Evol. 46: 1015-1030.
http://dx.doi.org/10.1016/j.ympev.2007.11.011

Maggs C.A., Castilho R., Foltz D., Henzler C., Jolly M.T., Kelly J., Olson J., Perez K.E., Stam W., Vainola R., Viard F., Wares, J. 2008. Evaluating signatures of glacial refugia for North Atlantic benthic marine taxa. Ecology 89: 108-122.
http://dx.doi.org/10.1890/08-0257.1

Meehan B.W., Carlton J.T., Wenne R. 1989. Genetic affinities of the bivalve Macoma balthica from the Pacific coast of North America: evidence of recent introduction and historical distribution. Mar. Biol. 102: 235-241.
http://dx.doi.org/10.1007/BF00428285

Palumbi S.R., Kessing B.D. 1991. Population biology of the trans-Arctic exchange: MtDNA sequence similarity between Pacific and Atlantic sea urchins. Evol. 45: 1790-1805.
http://dx.doi.org/10.2307/2409832

Palumbi S.R., Wilson A.C. 1990. Mitochondrial DNA diversity in the sea urchins Strongylocentrotus purpuratus and S. droebachiensis. Evol. 44: 403-415.
http://dx.doi.org/10.2307/2409417

Pelc R.A., Warner R.R., Gaines S.D. 2009. Geographical patterns of genetic structure in marine species with contrasting life histories. J. Biogeogr. 36: 1881-1890.
http://dx.doi.org/10.1111/j.1365-2699.2009.02138.x

Petit R.J., Aguinagalde I., de Beaulieu J.-L., Bittkau C., Brewer S., Cheddadi R., Ennos R., Fineschi S., Grivet D., Lascoux M., Mohanty A., Muller-Starck G., Demesure-Musch B., Palmé A., Martín J. P., Rendell S., Vendramin G.G. 2003. Glacial refugia: hotspots but not melting pots of genetic diversity. Science 300: 1563-1565.
http://dx.doi.org/10.1126/science.1083264

Pires A.M.S. 1980. Ecological studies on intertidal and infralittoral Brazilian Tanaidacea (Crustacea) (Peracarida). Stud. Neotrop. Fau. Envir. 15: 141-153.
http://dx.doi.org/10.1080/01650528009360571

Posada D. 2008. jModelTest: phylogenetic model averaging. Mol. Biol. Evol. 25: 1253-1256.
http://dx.doi.org/10.1093/molbev/msn083

Rambaut A., Drummond A.J. 2007. Tracer v1.4, Available from http://beast.bio.ed.ac.uk/Tracer

Rawson P.D., Hilbish T.J. 1995. Evolutionary relationships among the male and female lineages in the Mytilus edulis species complex. Mar. Biol. 12: 893-901.

Richardson H. 1905. A monograph of the isopods of North America. Bull. US. Nat. Mus. 54: 1-727.

Riera R., Tuya F., Sacramento A., Ramos E., Rodríguez M., Monterroso O. 2011. The effects of brine disposal on a subtidal meiofauna community. Est. Coast. Shelf. Sci. 93: 359-365
http://dx.doi.org/10.1016/j.ecss.2011.05.001

Ronquist F., Huelsenbeck J.P. 2003. MrBayes 3: Bayesian phylogenetic inference under mixed models. Bioinformatics. 19: 1572-1574.
http://dx.doi.org/10.1093/bioinformatics/btg180

Shiino S.M. 1951. On two new species of the family Apseudidae found at Seto. Rep. Facul. Fish., Prefec. Uni. Mie. 1: 11-25.

Sieg J. 1980 Taxonomische monographie der Tanaidae Dana, 1849 (Crustacea, Tanaidacea). Abhandl. Sencken. Naturforsc. Gesel. 537: 1-267.

Sokolova M.N. 1959. On the distribution of deep-water bottom animals in relation to their feeding habits and the character of sedimentation. Deep Sea Res. 6: 1-4.

Stebbing T.R.R. 1905. Report to the Government of Ceylon on the Pearl Oyster Fisheries of the Gulf of Manaar. Ceylon Pearl Oyster Fisheries supplementary reports 23: 1-164.

Tamura K., Dudley J., Nei M., Kumar S. 2007. MEGA4: Molecular Evolutionary Genetics Analysis (MEGA) software version 4.0. Mol. Biol. Evol. 24: 1596-1599.
http://dx.doi.org/10.1093/molbev/msm092

Taylor E.B., Dodson J.J. 1994. A molecular analysis of relationships and biogeography within a species complex of Holoarctic fish (genus Osmerus). Mol. Eco. 3: 235-248.
http://dx.doi.org/10.1111/j.1365-294X.1994.tb00057.x

Teeter J.W. 1973. Geographic distribution and dispersal of some recent shallow-water Ostracoda. Ohio J. Sci. 73: 46-54.

Thiel M., Haye P.A. 2006. The ecology of rafting in the marine environment. III. Biogeographical and evolutionary consequences. Oceanog. Mar. Biol. 44: 323-429.

Tuya F., Larsen K., Platt V. 2010. Patterns of abundance and assemblage structure of epifauna inhabiting two morphologically different kelp holdfasts. Hydrobiologia 658: 373-382.
http://dx.doi.org/10.1007/s10750-010-0527-x

van Oppen M.J.H., Draisma S.G.A., Olsen J.L., Stam W.T. 1995. Multiple trans-Arctic passages in the red-alga Phycodrys rubens: evidence from nuclear rDNA ITS sequences. Mar. Biol. 123: 179-188.
http://dx.doi.org/10.1007/BF00350338

Väinölä R. 2003. Repeated trans-Arctic invasions in littoral bivalves: molecular zoogeography of the Macoma balthica complex. Mar. Biol. 143: 935-946.
http://dx.doi.org/10.1007/s00227-003-1137-1

Whiting M.F. 2002. Mecoptera is paraphyletic: multiple genes and phylogeny of Mecoptera and Siphonaptera. Zool. Scrip. 31: 93-104.
http://dx.doi.org/10.1046/j.0300-3256.2001.00095.x

Witman J.D., Roy K. 2009. Experimental marine macroecology: progress and prospects. In: Witman J.D. Roy R. (eds) Marine Macroecology. University of Chicago Press, Chicago, Illinois, pp. 341-356.

Xavier R., Santos A.M., Branco M. 2012. MtDNA and nuclear data reveal patterns of low genetic differentiation for the isopods Stenosoma lancifer and Stenosoma acuminatum, with low dispersal ability along the northeast Atlantic coast. Sci. Mar. 76(1): 133-140.
http://dx.doi.org/10.3989/scimar.03373.29A

Supplementary materialTop

The following material is available through the web page http://www.icm.csic.es/scimar/supplm/sm03878SMA.pdf

Fig. S1. – Maximum likelihood (ML) tree for the H3, inferred using the HKY+G model of sequence evolution showing relationships of Zeuxo sp. from different locations. The tree is rooted using Tanais dulongii and Paratanais sp. Bootstrap values above 60% are shown below nodes, and posterior probability values for the Bayesian analysis are above nodes.

Fig. S2. – Maximum likelihood (ML) tree for the COI, inferred using the HKY+G model of sequence evolution showing relationships of Zeuxo sp. from different locations. The tree is rooted using Tanais dulongii and Paratanais sp. Bootstrap values above 60% are shown below nodes, and posterior probability values for the Bayesian analysis are above nodes.
