Mediterranean demersal resources and ecosystems:
25 years of MEDITS trawl surveys

M.T. Spedicato, G. Tserpes, B. Mérigot and E. Massutí (eds)

Spatial distribution of marine macro-litter on the seafloor in the northern Mediterranean Sea: the MEDITS initiative

Maria Teresa Spedicato 1, Walter Zupa 1, Pierluigi Carbonara 1, Fabio Fiorentino 2, Maria Cristina Follesa 3, François Galgani 4, Cristina García-Ruiz 5, Angélique Jadaud 6, Christos Ioakeimidis 7, Giorgos Lazarakis 8, Giuseppe Lembo 1, Milica Mandic 9, Porzia Maiorano 10, Marina Sartini 11, Fabrizio Serena 2, Alessandro Cau 3, Antonio Esteban 12, Igor Isajlovic 13, Reno Micallef 14, Ioannis Thasitis 15

1 COISPA Tecnologia & Ricerca, via dei trulli 18, 70126 Bari, Italy.
(MTS) (Corresponding author) E-mail: spedicato@coispa.it. ORCID iD: https://orcid.org/0000-0001-9939-9426
(WZ) E-mail: zupa@coispa.eu. ORCID iD: https://orcid.org/0000-0002-2058-8652
(PC) E-mail: carbonara@coispa.it. ORCID iD: https://orcid.org/0000-0002-2529-2535
(GL) E-mail: lembo@coispa.it. ORCID iD: https://orcid.org/0000-0002-9899-6189
2 Italian National Research Council (CNR), Institute for Marine Biological Resources and Biotechnologies (IRBIM), Mazara del Vallo, Italy.
(FF) E-mail: fabio.fiorentino@irbim.cnr.it. ORCID iD: https://orcid.org/0000-0002-6302-649X
(FS) E-mail: fabrizio.serena@irbim.cnr.it. ORCID iD: https://orcid.org/0000-0003-1428-8124
3 Dipartimento di Scienze della Vita e dell’Ambiente, Cagliari University, Italy.
(MCF) E-mail: follesac@unica.it. ORCID iD: https://orcid.org/0000-0001-8320-9974
(AC) E-mail: alessandrocau@unica.it. ORCID iD: https://orcid.org/0000-0003-4082-7531
4 IFREMER/ LER/PAC, 20600, Bastia, France.
(FG) E-mail: francois.galgani@ifremer.fr. ORCID iD: https://orcid.org/0000-0001-8770-6054
5 Centro Oceanográfico de Málaga, Instituto Español de Oceanografía (IEO), Fuengirola, Málaga, Spain.
(CG-R) E-mail: cristina.garcia@ieo.es. ORCID iD: https://orcid.org/0000-0003-2767-4200
6 MARBEC, IFREMER, IRD, Université de Montpellier, CNRS, Avenue Jean Monnet - CS 30171, 34203 Sète Cedex, France.
(AJ) E-mail: ajadaud@ifremer.fr. ORCID iD: https://orcid.org/0000-0001-6858-3570
7 UN Environment / Mediterranean Action Plan, Mediterranean Pollution Assessment and Control Programme (MED POL), Barcelona Convention Secretariat, Vas. Konstantinou 48, Athens 11635, Greece.
(CI) E-mail: christos.ioakeimidis@un.org. ORCID iD: https://orcid.org/0000-0001-9932-7836
8 Hellenic Center for Marine Research, Institute of Marine Biological Resources and Inland Waters, 71003, Heraklion, Greece.
(GL) E-mail: glazaros@hcmr.gr. ORCID iD: https://orcid.org/0000-0002-9106-9809
9 University of Montenegro, Institute of marine biology, Dobrota bb, 85330 Kotor, Montenegro.
(MM) E-mail: mamilica@ac.me. ORCID iD: https://orcid.org/0000-0001-8501-7618
10 Department of Biology, University of Bari Aldo Moro, Via Orabona 4, 70125 Bari, Italy.
(PM) E-mail: porzia.maiorano@uniba.it. ORCID iD: https://orcid.org/0000-0001-5737-3025
11 Aplysia Soc. Coop.r.l., Via Menichetti 35, 57121 Livorno, Italy.
(MS) E-mail: marina.sartini@aplysia.it. ORCID iD: https://orcid.org/0000-0003-1545-2109
12 Centro Oceanográfico de Murcia, Instituto Español de Oceanografía (IEO), Murcia, Spain.
(AE) E-mail: antonio.esteban@ieo.es. ORCID iD: https://orcid.org/0000-0002-2896-7972
13 Institute of Oceanography and Fisheries, Set. I. Mestrovica 63, 21000 Split, Croatia.
(II) E-mail: igor@izor.hr. ORCID iD: https://orcid.org/0000-0001-7101-9575
14 Ministry for the Environment, Sustainable Development and Climate Change, Department of Fisheries and Aquaculture, Fisheries Resource Unit, Malta.
(RM) E-mail: reno.micallef@gov.mt. ORCID iD: https://orcid.org/0000-0003-1921-508X
15 Fisheries Resources Division, Department of Fisheries and Marine Research, Nicosia, Cyprus.
(IT) E-mail: ithasitis@dfmr.moa.gov.cy. ORCID iD: https://orcid.org/0000-0002-0940-2212

Summary: Marine litter is one of the main sources of anthropogenic pollution in the marine ecosystem, with plastic representing a global threat. This paper aims to assess the spatial distribution of plastic macro-litter on the seafloor, identifying accumulation hotspots at a northern Mediterranean scale. Density indices (items km–2) from the MEDITS trawl surveys (years 2013-2015) were modelled by generalized additive models using a Delta-type approach and several covariates: latitude, longitude, depth, seafloor slope, surface oceanographic currents and distances from main ports. To set thresholds for the identification of accumulation areas, the percentiles (85th, 90th and 95th) of the plastic spatial density distribution were computed on the raster data. In the northern Mediterranean marine macro-litter was widespread (90.13% of the 1279 surveyed stations), with plastic by far the most recurrent category. The prediction map of the plastic density highlighted accumulation areas (85th, 90th and 95th percentiles of the distribution, respectively, corresponding to 147, 196 and 316 items km–2) in the Gulf of Lions, eastern Corsica, the eastern Adriatic Sea, the Argo-Saronic region and waters around southern Cyprus. Maximum densities were predicted in correspondence to the shallower depths and in proximity to populated areas (distance from the ports). Surface currents and local water circulation with cyclonic and anticyclonic eddies were identified as drivers likely facilitating the sinking to the bottoms of floating debris.

Keywords: marine macro-litter; plastic; Mediterranean Sea; GAM modelling; accumulation areas; MEDITS.

La distribución espacial de la macro-basura marina en el fondo del Mediterráneo norte: los resultados de las campañas MEDITS

Palabras clave: macro-basura marina; plástico; mar Mediterráneo; Modelos Aditivos Generalizados (GAM); áreas de acumulación; MEDITS.

Citation/Cómo citar este artículo: Spedicato M.T., Zupa W., Carbonara P., Fiorentino F., Follesa M.C., Galgani F., García-Ruiz C., Jadaud A., Ioakeimidis C., Lazarakis G., Lembo G., Mandic M., Maiorano P., Sartini M., Serena F., Cau A., Esteban A., Isajlovic I., Micallef R., Thasitis I. 2019. Spatial distribution of marine macro-litter on the seafloor in the northern Mediterranean Sea: the MEDITS initiative. Sci. Mar. 83S1: 257-270. https://doi.org/10.3989/scimar.04987.14A

Editor: B. Mérigot.

Received: March 15, 2018. Accepted: August 6, 2019. Published: October 29, 2019.

Contents

INTRODUCTIONTop

Humans impact the marine environment in several ways, and marine litter has been considered one of the main issues of anthropogenic pollution in the marine ecosystem in the last few decades (). Waste quantities are continuously and globally increasing and estimates from 2010 indicate 275 million t of plastic waste generated in 192 coastal countries, with 4.8 to 12.7 million t entering the ocean ().

Waste production varies between countries and has been detected worldwide in all the marine habitats (). With more than 700 t of plastics entering the basin every day (), the Mediterranean Sea remains one of the most affected basins in the world (, , ).

Marine litter is consequently becoming a primary political and societal concern in many countries worldwide, prompting several major policy actions by international organizations. In 2015 the leaders of G7 recognized that marine litter, in particular plastic, represents a global challenge and stressed the need to address the identification and assessment of land and sea-based sources, removal actions, and education and research development (). More recently, the leaders of G20 reiterated the need for an action plan ().

The Circular Economy Action Package () makes the recycling of plastics a priority, while, following the Green Paper on the European Strategy on Plastic Waste in the Environment (), a new dedicated Plastics Strategy was very recently launched, including actions on marine litter ().

The Convention of the United Nations on the Law of the Sea (UNCLOS) agreed upon the legal framework within which all activities in the oceans and seas must be carried out (), including the need to prevent, reduce and control pollution of the marine environment from any source (e.g. dumping, PART XII, art. 194). For European Member States, the Marine Strategy Framework Directive sets the framework to achieve Good Environmental Status (GES) for marine waters by 2020, with descriptor 10 of this directive focusing specifically on marine litter and considering litter on the sea floor in its indicator 10DC1. Furthermore, 22 Mediterranean countries that were contracting parties to the Barcelona Convention (UN Environment/Mediterranean Action Plan) agreed to implement a novel and ambitious Integrated Monitoring and Assessment Programme of the Mediterranean Sea and Coast and Related Assessment Criteria (IMAP). This programme enabled for the first time a quantitative, integrated analysis of the state of the marine and coastal environment, including two common indicators on marine litter,

– the trend in the number/amount of marine litter deposited on the coast;
– the trend in the number/amount of marine litter on the water surface and the seafloor,

and one candidate indicator of marine litter impact,

– trends in the amount of litter ingested by or entangling marine organisms, especially marine mammals, birds, turtles and sharks ().

The main purpose was to facilitate the implementation of the Barcelona Convention and monitor related provisions to assess GES. The Meeting of the Contracting Parties in 2012 adopted ecological objectives, describing the desired results to be pursued to reach GES. In 2016 the Regional Cooperation Platform on Marine Litter in the Mediterranean was established at the invitation of the UN Environment/Mediterranean Action Plan (MAP) -Barcelona Convention Secretariat (http://web.unep.org/unepmap/second-meeting-regional-cooperation-platform-marine-litter-mediterranean-and-first-steering), aiming to foster the implementation of the Regional Plan on Marine Litter Management in the Mediterranean (https://wedocs.unep.org/bitstream/handle/20.500.11822/6012/13ig21_09_annex2_21_07_eng.pdf?sequence=1&isAllowed=y). This forum highlighted the need to harmonize and standardize monitoring and assessment methodologies and to ensure accuracy and predictability of the modelling tools.

provided a comprehensive definition of marine litter, which is adopted in this paper. Marine litter is considered any persistent processed or manufactured materials lost, discarded or transported in the marine environment. It can originate by a direct human introduction into the natural environment: municipal sewage discharges, coastal industries, tourism, fishing, aquaculture and other offshore activities (, , ). Intense maritime traffic is considered a potential cause of serious impacts. Indeed, marine transport is a strong traditional economic sector in the Mediterranean Sea, which is among the world’s busiest waterways, accounting for 15% of global transport on water (). By contrast, indirect introduction by litter dispersion could also result from the action of natural agents such as rainfall, rivers, currents, winds and natural disasters (, , ). High accumulation rates of marine macro-litter are reported in estuaries, where heavy objects accumulate due to the reduction of water flow speed, and in deep marine waters—for example in the vicinity of canyons, where the steepness of the seafloor increases ().

Recently several papers have focused on a numerical circulation model at Mediterranean (, ) or sub-basin scales (, , ) to mimic marine litter transport and accumulation through virtual particles acting as Lagrangian tracers, also considering potential source and sink trajectories.

There is thus an increasing need to model the distribution of the marine macro-litter on the seafloor in order to provide information useful for identifying accumulation areas, and to prompt actions aimed at achieving effective management in an ecosystem conservation-oriented planning.

In the Mediterranean Sea only a few studies conducted in the northwestern basin have used explicit spatial model analysis to obtain distribution maps of marine litter on the seafloor (, ), based on direct observations from trawl surveys. A standardized collection of marine litter data over a Mediterranean-wide spatial scale was not available until the initiative in 2013 of the MEDITS project (), which designed, within the framework of this scientific survey targeting demersal populations, a detailed protocol for data collection of marine litter on the seafloor (). The action was taken on a voluntary basis, though almost all the research groups involved in MEDITS felt committed to collect such data at the survey geographical scale ().

This paper therefore aims to model the distribution of marine litter on the seafloor and to identify hotspots, particularly of plastic, through a spatial analysis at a northern Mediterranean scale, using generalized additive models (GAMs) applied to the data collected in 18 geographical sub-areas (GSA; ).

Covariates (geographical descriptors and potential sources of litter) were used to describe their effects on the distribution of marine litter on the seafloor and accumulation areas: latitude and longitude, depth, seafloor slope, surface oceanographic currents, marine traffic and distance from main rivers and ports.

MATERIALS AND METHODSTop

Sampling

Marine macro-litter data were collected from the MEDITS bottom trawl survey using a standardized common protocol () during the spring-summer of 2013, 2014 and 2015 in the following GSAs: 1, 2, 5, 6, 7, 8, 9, 10, 11, 16, 18, 19, 15 (data available for 2016), 17 (only the eastern coasts: Slovenia, Croatia), 20, 22, 23 and 25.

A total of 1279 hauls carried out yearly were distributed over the depth range 10-800 m and allocated to five bathymetrical strata (details on the stratification scheme are in the ) (Fig. 1). Macro-litter data were catalogued using the nine categories and sub-categories of the MEDITS protocol ().

To obtain density indices (items km–2), the number of items collected per litter category was standardized to the km2 according to the swept area method. Given that the time series was still short, a mean value of the density indices per haul was calculated among the available years (2013-2015) for all the GSAs. From GSAs 1, 2 and 5 only mass data (kg km–2) were available and could not be used in the model, which was set using observations on the number of items, because the collection of this type of data has been mandatory since the beginning in the survey protocol. However, mass data of GSAs 1, 2 and 5 were used to describe the occurrence of litter categories.

Statistical analysis

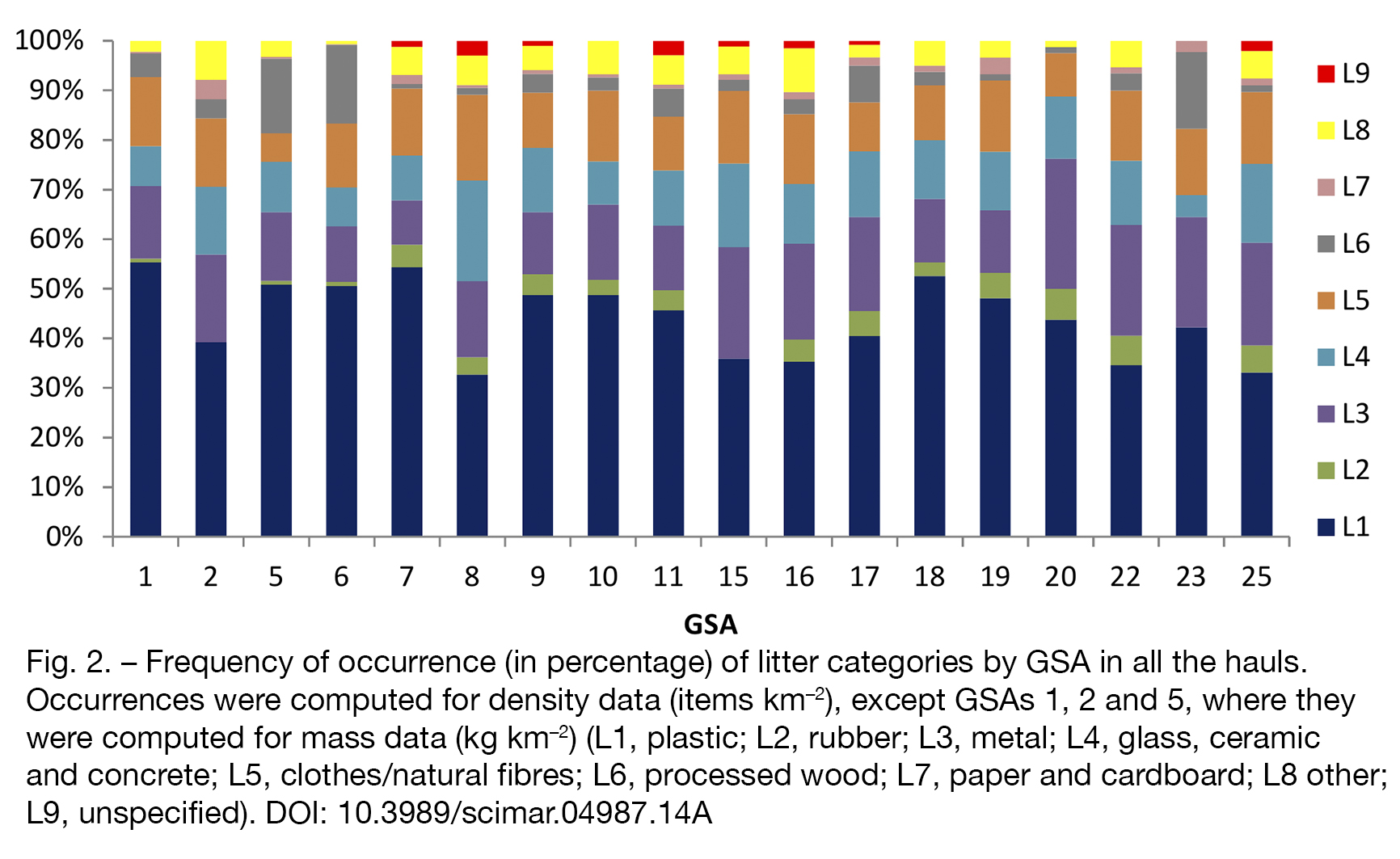

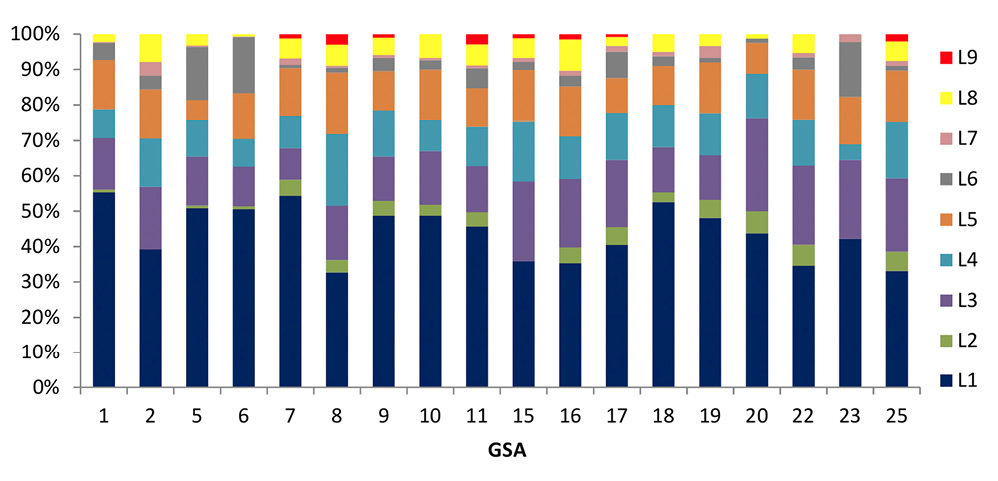

An exploratory analysis was first conducted to assess the litter categories recurrent in the study areas. Hence, the frequency of occurrence of each litter category was computed. Considering the large dominance of plastic in marine macro-litters (see Fig. 2), this category (L1) was retained for modelling analysis.

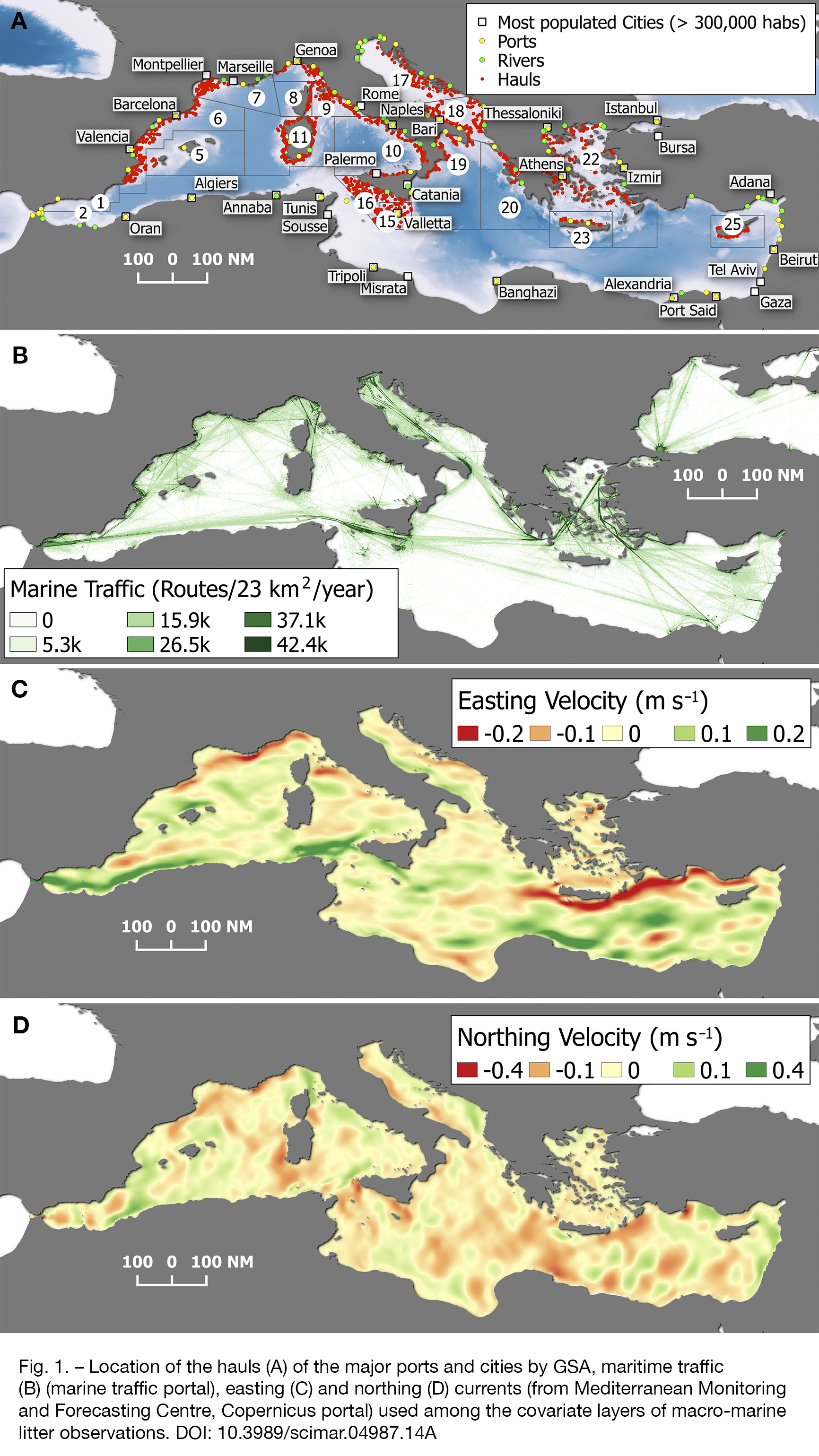

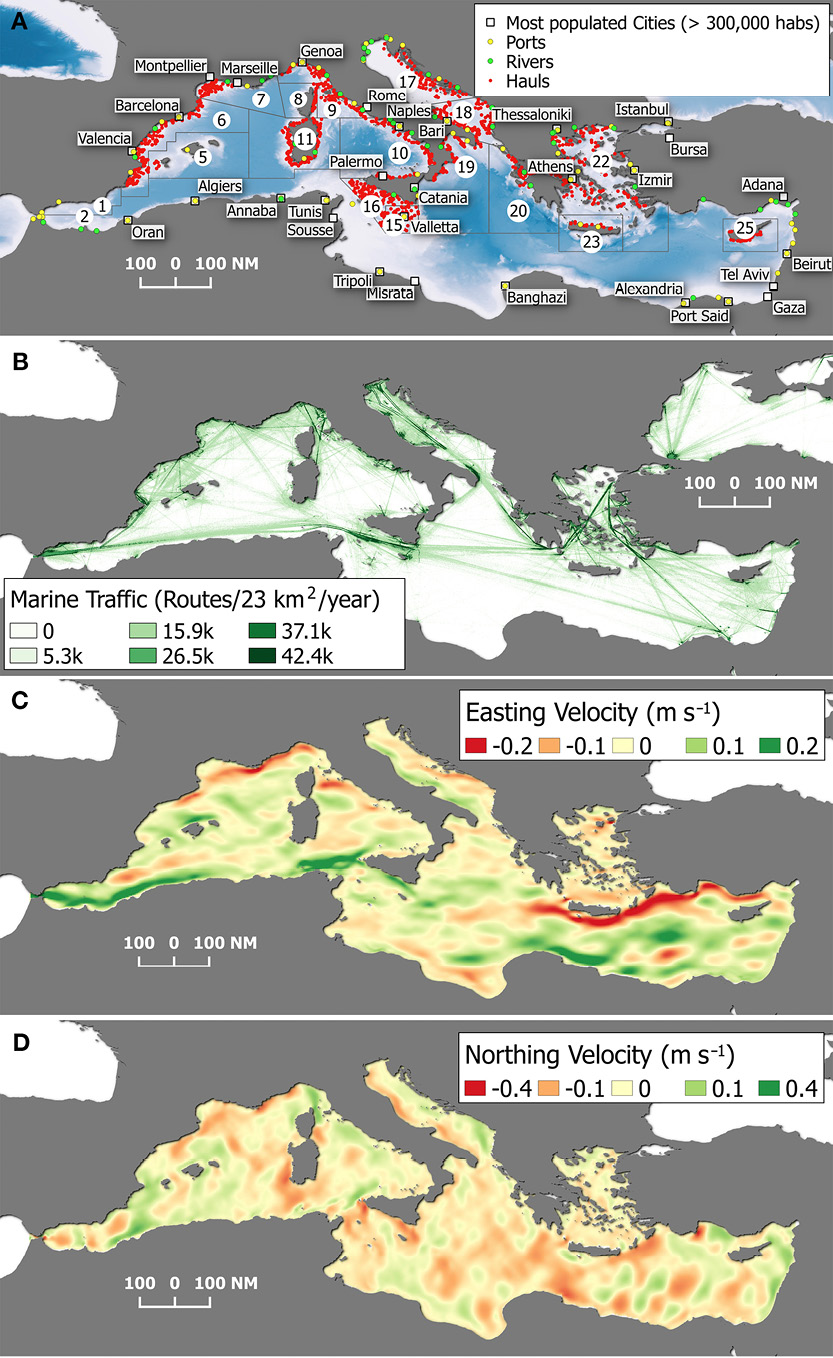

To model the macro-litter distribution pattern, georeferenced informative layers were collated (Table 1), considering key factors linked to the following:

– Geographical and geomorphological characteristics (latitude, longitude, depth and bottom slope).
– Euclidean distance from the major harbours, as many studies report the highest litter densities close to the most important port cities (, ).
– Euclidean distances from the most important river outlets, considering that considerable quantities of litter can be introduced in the marine environment by transportation from water courses (, , ).
– Ship traffic density (routes/23 km2/year) from the marine traffic portal, as marine traffic is also reported to be a mechanism likely linked to marine litter inputs () (Fig. 1). Marine traffic density was assigned to the hauls by sampling the raster of marine traffic density in the hauls’ mean position using the R software ().
– Mean annual surface current velocity, both northing (cury) and easting (curx) components of sea water velocity, as the current is an important driver influencing the movement and accumulation of floating debris (, , ) (Fig. 1).

Table 1. – Summary statistics of the data related to the informative layers used in the analysis (curx, easting component of the current velocity; cury, northing component of the current velocity).

Min. 1st qu. Median Mean 3rd qu. Max.
Longitude (degrees) –0.99 12.57 15.63 16.69 24.12 34.86
Latitude (degrees) 34.39 37.42 39.76 39.81 42.22 45.76
Depth (m) 0.00 75.40 151.20 255.10 424.00 800.00
Slope (degrees) 0 0.27 0.81 1.61 2.05 48.85
Traffic (routes/23 km2/year) 0 0 13523.1 12663.5 14133.3 42400
Distance from the rivers (km) 0 83.6 138.1 155.50 202.50 592.10
Distance from the ports (km) 0 40.31 63.73 68.73 92.63 228.17
curx (m s–1) –0.22 –0.017 –0.0006 0.003 0.02 0.87
cury (m s–1) –0.29 –0.03 –0.006 –0.01 0.01 0.24

Regarding geographical and geomorphological characteristics, reported that in addition to the high accumulations described in the marine canyons, macro-litters are widely dispersed at slope and abyssal depths. Marine bottom geomorphology is supposed to influence the dispersion of inert materials, so the bathymetric metadata and digital terrain model data products have been derived from the EMODnet Bathymetry portal in the form of a raster file, after processing using QGIS software () to generate the bottom slope map. Informative layers of current velocity (curx and cury) were obtained by the physical reanalysis component of the Mediterranean Monitoring and Forecasting Centre available on the Copernicus portal (http://marine.copernicus.eu/). Because of the coarse spatial resolution of current layers along the more nearshore areas, 69 hauls could not be included in the model prediction.

The main descriptive characteristics of the considered covariates are reported in Table 1.

The marine macro-litter density data were firstly tested for normality of distribution using the Shapiro-Wilk normality test (), and in cases of non-normal distribution, the data were log-transformed. The spatial analysis predictions were performed using a 0.03° resolution grid, which was created sampling the above described informative layers (Table 1 and Fig. 1).

The multivariate analysis was based on the use of GAMs, a nonparametric extension of GLMs that includes smooth functions (a piecewise polynomial curve) of explanatory variables (). GAMs are generally used when there is no a priori reason for choosing a particular response function (linear, quadratic, etc.); in this study we applied the two-steps or Delta models (). This method is suitable in cases of large proportions of zeros in the observations. In this Delta-type modelling approach, the positive values were fitted by a GAM using a Gaussian distribution, while the presence-absence data were fitted by a GAM with a binomial distribution. As the data predicted by the binomial model are not in the same scale as the raw data, they need to be transformed with the following formula ():

$π ^ i = e logit( π i ) 1+ e logit( π i )$

where logiti) is the prediction computed by the binomial GAM and πi is the rescaled value of the prediction. The two models were then multiplied to predict the litter density values on the grid described above. The smoother function used was a penalized cubic regression spline; the procedure automatically selects the degree of smoothing based on the generalized cross-validation (GCV) score.

A step-wise procedure was used to generate GAMs, using a one-dimensional smoother for each covariate and two-dimensional smoothers for geographic coordinates and current components. Collinearity between the covariates was analysed by means of variance inflation factor (VIF) values (). Variables with a high Pearson’s correlation coefficient (r) (>0.5, absolute value) and a high VIF value (>3) were considered correlated, and consequently only one of the two was retained in the following analysis. The chosen cut-off value for VIF was more conservative than the rule of thumb for VIFs ().

In the forward inclusion approach (, ), variables are added to the model one at a time. In each step, variables that are not already in the model are tested for inclusion. Covariates were excluded from the models following three criteria: (i) the estimated degrees of freedom was close to 1; (ii) the confidence interval was zero at each point of the function; and (iii) the GCV score () decreased when the term was removed. The model uses the Gaussian error distribution belonging to the exponential family and the parameter gamma=1.4 as a heavier penalty on each degree of freedom to counterbalance the tendency of overfitting.

GAMs were fitted using the mgcv package () in the open source statistical software R, version 3.3.2 (). The best model was then selected using the criteria of explained deviance, the GCV score and the Akaike Information Criterion (AIC), which provides a balance between model fit and parameters used. Finally, the percentiles (85th, 90th and 95th) of the predicted distribution were computed on the raster data of the plastic spatial density, so three levels close to the higher values were empirically set to ease the identification of hotspot accumulation areas. These thresholds can also be useful as reference in monitoring programmes to assess the move towards ecological objectives.

RESULTSTop

In the northern Mediterranean Sea marine macro-litter is widely distributed and was found at 90.13% of the 1279 surveyed stations. In the Gulf of Lions (GSA 7), eastern Corsica (GSA 8), the Ligurian and northern Tyrrhenian seas (GSA 9) and Crete (GSA 23), 100% of the hauls were positive to bottom macro-litter. Overall, plastic is by far the most recurrent macro-litter category, with a frequency of occurrence ranging from around 58% in Sardinian waters (GSA 11) to about 99% in the Gulf of Lions (GSA 7). In most of the GSAs the frequency of occurrence is higher than 90%. Secondarily, macro-litter categories such as metal (L3), clothes/natural fibres (L4) and glass/ceramic/concrete (L5) had a frequency of occurrence ranging from 20% to 30% (Fig. 2). Plastic was mostly between 70% and 90% of all the macro-litter when computed on a density index (items km–2).

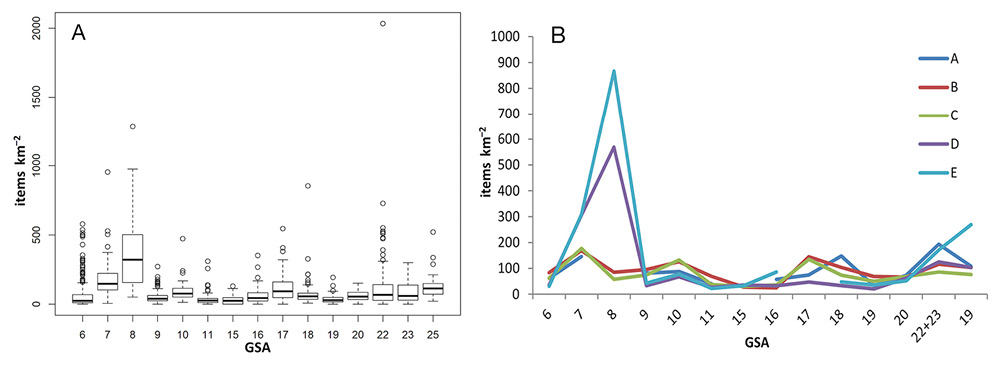

Overall, density indices (Fig. 3) per GSA were quite similar except in GSA 7 (Gulf of Lions), GSAs 22 and 23 (Aegean Sea), GSA 25 (southern Cyprus waters) and, to a greater extent, GSA 8 (eastern Corsica), in all of which density was higher than average. If depth is considered, the density among the strata was, on average, quite comparable among GSAs, except in the deeper strata in GSA 8, where extremely high density indices of plastic were observed. In most of the GSAs, in depth strata B and C (51-200 m) the mean density was higher than that in the other depth strata (Fig. 3). On average at GSA level, the density in terms of items km–2 ranged from 534 in eastern Corsica to 198, 136 and 112, respectively, in the waters around Cyprus, the Aegean Sea (especially the Argo-Saronic region), including Crete, and the northern-central Adriatic Sea (eastern side). The seafloor around the northern Ionian Sea, Sardinia and Malta was less impacted (36, 39, and 32 items km–2, respectively) than the other areas (Fig. 3).

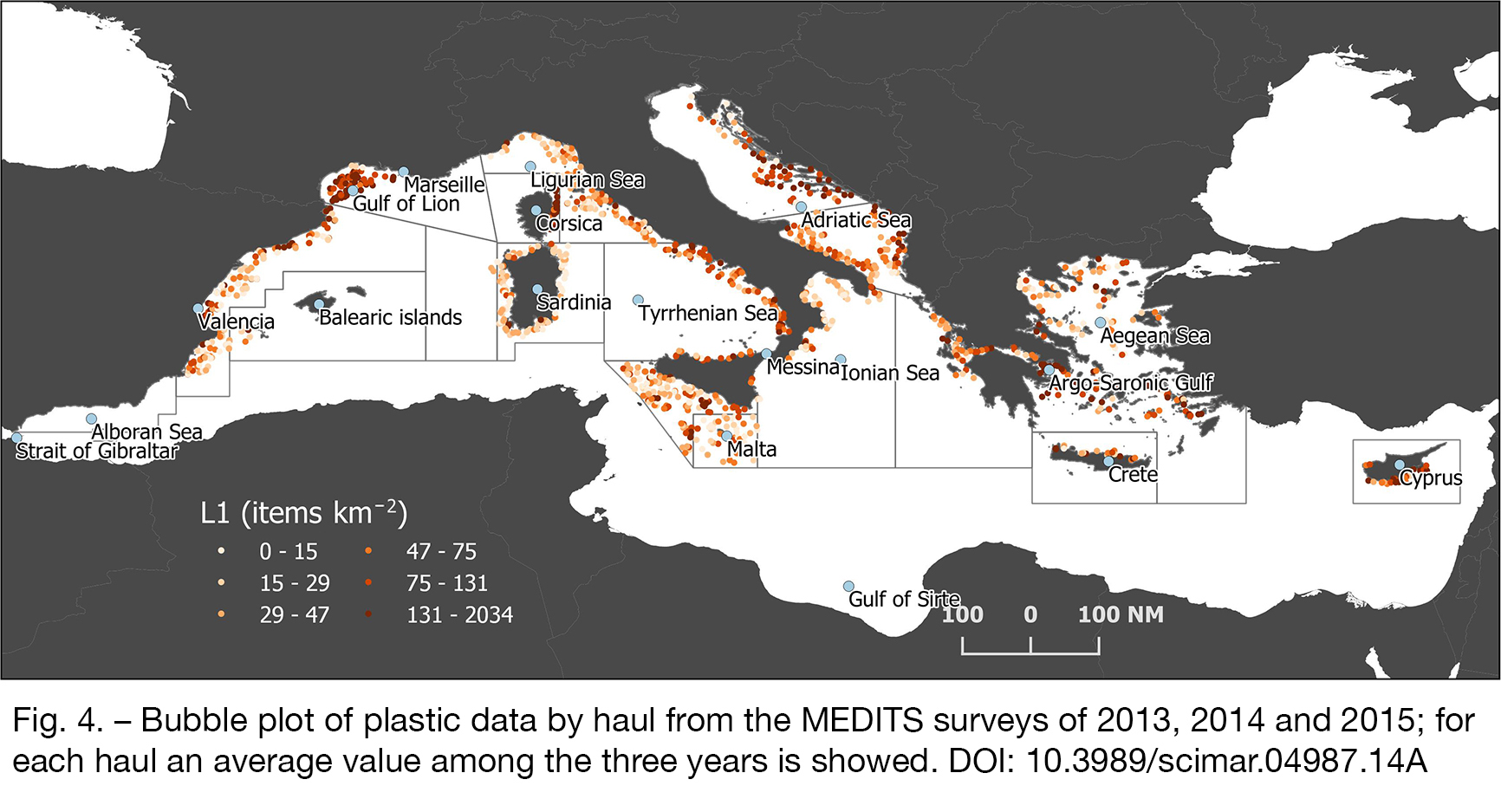

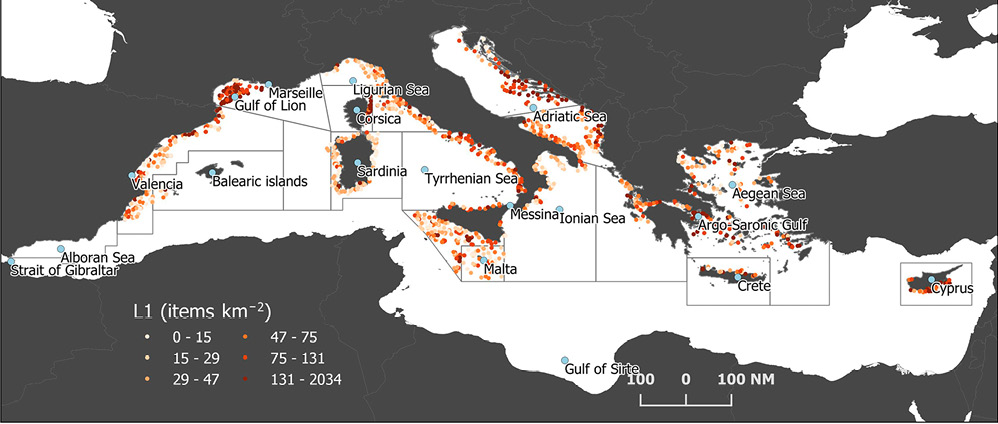

A bubble plot of the plastic density indices by haul (items km–2) is presented in Figure 4, showing areas with higher plastic density in the Gulf of Lions (GSA 7), eastern Corsica (GSA 8), the eastern coasts of the Adriatic Sea (GSA 17 and GSA 18), the Argo-Saronic region of Greece (GSA 22) and southern Cyprus waters (GSA 25). As multicollinearity was not detected by either Pearson’s correlation coefficient (<0.5, absolute values) and VIF values (<3), all the covariates reported in the Table 1 were included in the analysis.

The main results of the tested models are reported in Table 2. The best model was selected taking into account the lowest GCV value, the highest percentage of explained variance, the AIC (GCV=7265.7; AIC=12703.4; %DEV=53.3%) and the significance level of the smoothing functions. The selected GAMs (see Equations 1 and 2) identified statistically significant additive effects of latitude and longitude, current components, depth, slope and distance from ports, with latitude, longitude, current velocity and depth explaining most of the deviance:

 log(μi)~ α +f1(Loni, Lati) + f2(curxi, curyi) + f3(depthi) + f4(slopei)+ f5(portsi) + ε (1)

 logit(μi)~ β +g1(Loni, Lati) + g2(curxi, curyi) + g3(depthi) + g4(slopei) + g5(ports) + ε (2)

The binomial model (2) described 20.5% of the explained deviance in presence-absence data. All the variables used in the model had a significant effect on the probability of macro-litter presence (Table 2).

Table 2. – Main results of the tested models (X, Longitude; Y, Latitude; curx, easting component of the current velocity; cury, northing component of the current velocity). The best model used in the analysis is highlighted in bold, while the models in italics were excluded because the estimated degrees of freedom of at least one smoother was close to 1. R2, determination coefficient; % dev, deviance in percentage; GCV, generalized cross-validation; AIC, Akaike information criterion.

N Models R2 % dev. GCV AIC
1 marine litter ~ s(X, Y) 0.300 30.0% 9910 13075
2 marine litter ~ s(depth) 0.001 0.1% 13111 13404
3 marine litter ~ s(slope) 0.009 1.3% 13085 13399
4 marine litter ~ s(traffic) 0.002 0.3% 13105 13403
5 marine litter ~ s(river) 0.046 5.0% 12603 13358
6 marine litter ~ s(ports) 0.000 0.0% 13114 13405
7 marine litter ~ s(curx, cury) 0.071 8.7% 12564 13343
8 marine litter ~ s(X, Y)+s(curx, cury) 0.440 45.0% 8140 12845
9 marine litter ~ s(X, Y)+s(depth) 0.430 40.4% 8599 12914
10 marine litter ~ s(X, Y)+s(slope) 0.339 32.8% 9660 13042
11 marine litter ~ s(X, Y)+s(river) 0.310 32.4% 9665 13044
12 marine litter ~ s(X, Y)+s(traffic) 0.284 28.2% 10124 13099
13 marine litter ~ s(X, Y)+s(ports) 0.300 30.0% 9910 13075
14 marine litter ~ s(X, Y)+s(curx, cury)+s(depth) 0.507 51.2% 7393 12732
15 marine litter ~ s(X, Y)+s(curx, cury)+s(slope) 0.478 48.8% 7758 12785
16 marine litter ~ s(X, Y)+s(curx, cury)+s(traffic) 0.456 46.8% 8045 12825
17 marine litter ~ s(X, Y)+s(curx, cury)+s(ports) 0.440 45.0% 8140 12845
18 marine litter ~ s(X, Y)+s(curx, cury)+s(river) 0.462 47.4% 7950 12812
19 marine litter ~ s(X, Y)+s(curx, cury)+s(depth)+s(slope) 0.521 53.0% 7270 12706
20 marine litter ~ s(X, Y)+s(curx, cury)+s(depth)+s(river) 0.520 52.9% 7277 12707
21 marine litter ~ s(X, Y)+s(curx, cury)+s(depth)+s(traffic) 0.524 53.0% 7289 12708
22 marine litter ~ s(X, Y)+s(curx, cury)+s(depth)+s(ports) 0.507 51.2% 7393 12732
23 marine litter ~ s(X, Y)+s(curx, cury)+s(depth)+s(slope)+s(ports) 0.523 53.3% 7266 12703
24 marine litter ~ s(X, Y)+s(curx, cury)+s(depth)+s(slope)+s(traffic) 0.519 52.6% 7295 12711
25 marine litter ~ s(X, Y)+s(curx, cury)+s(depth)+s(slope)+s(river) 0.516 52.3% 7322 12717
26 marine litter ~ s(X, Y)+s(curx, cury)+s(depth)+s(slope) +s(ports)+s(traffic) 0.524 53.4% 7248 12701

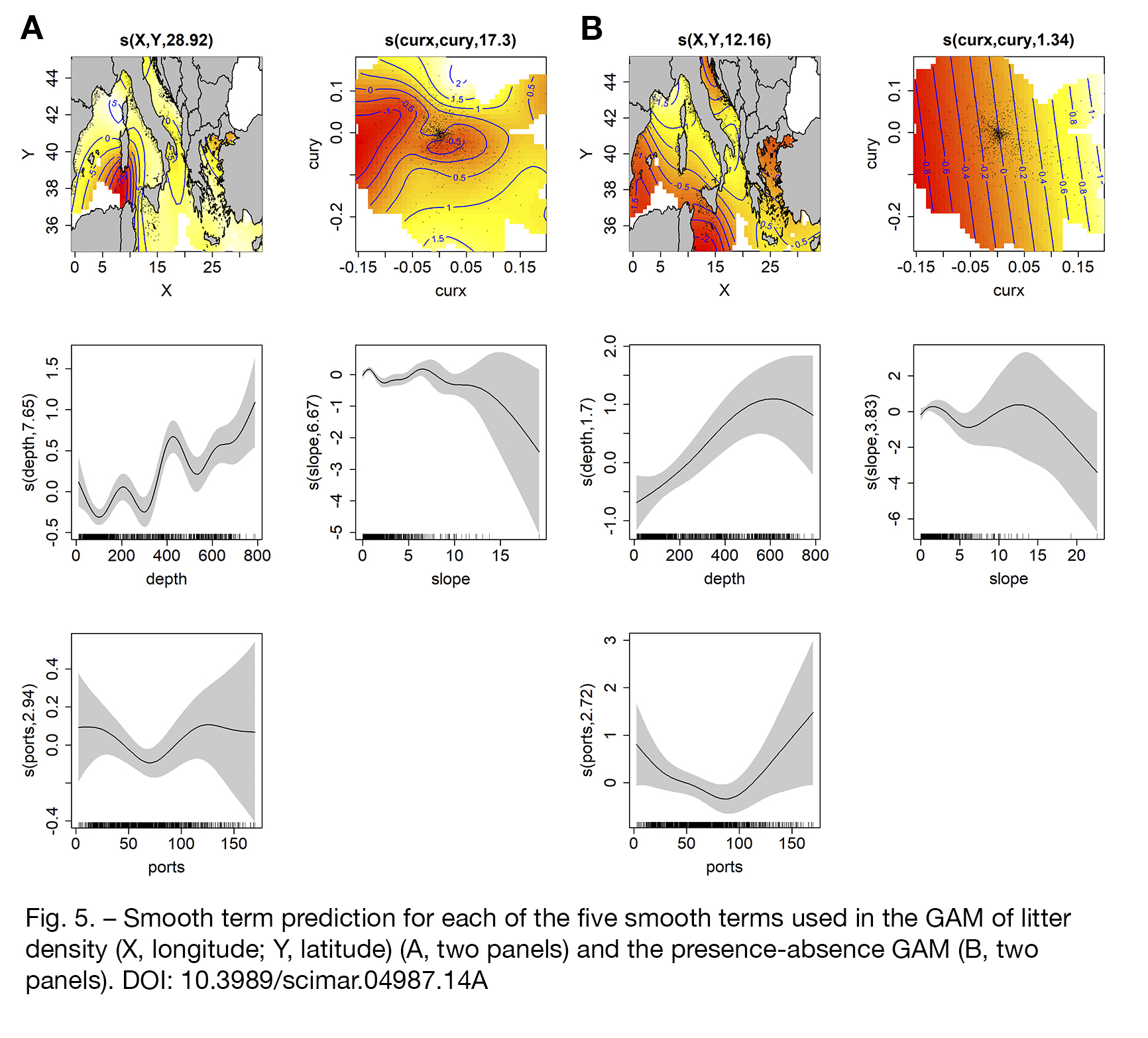

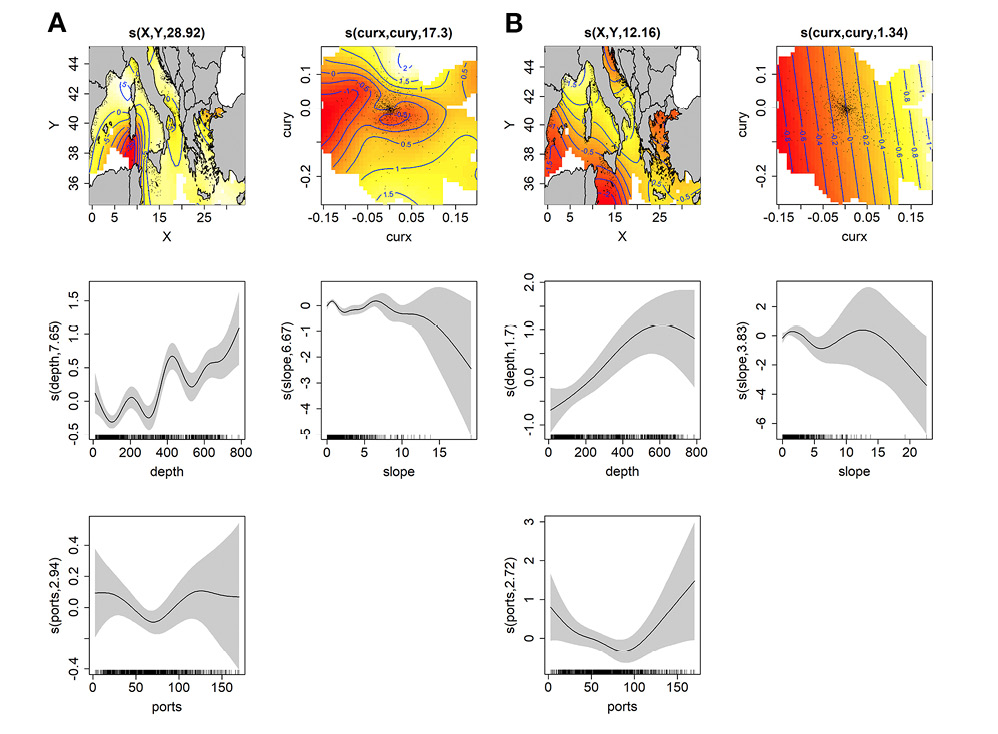

Smooth term prediction for each of the four smooth terms used in the GAM and in the presence-absence GAM are reported in Figure 5. The smoothing terms show the presence of four local maxima for the depth effect at approximately 200, 400 and 600 m depth (Fig. 5A, left panel). The effect of the distance from the ports is high in the proximity of the important port cities, lower at intermediate distances (around 80 km) and then increases again at greater distances. The slope effect is quite stable at the lower slope level and decreases at levels of around 12. Table 3 reports descriptive statistics related to observations, predictions and residuals. No trends were detected in the residuals and the predictions matched the observations (Pearson correlation coefficient=0.72).

Table 3. – Comparison between predictions and observations using the quantile distributions of the data.

Min. 1st qu. Median Mean 3rd qu. Max.
observations 0 21.48 45.58 79.19 92.89 1283.94
predictions 1.75E-22 11.36 46.19 70.49 99.50 1110.37
residuals –226.80 –32.56 6.32 8.71 39.35 453.30

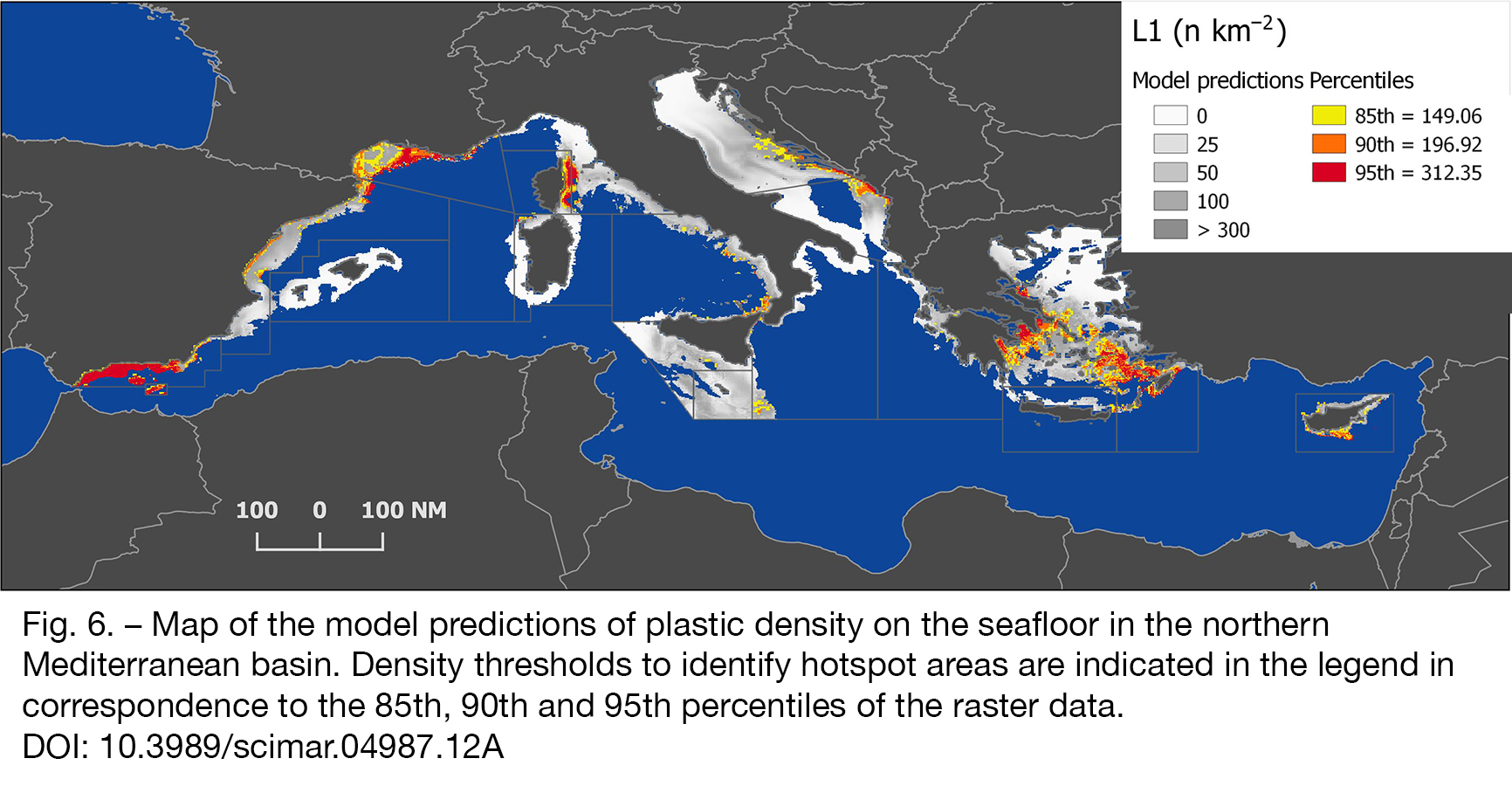

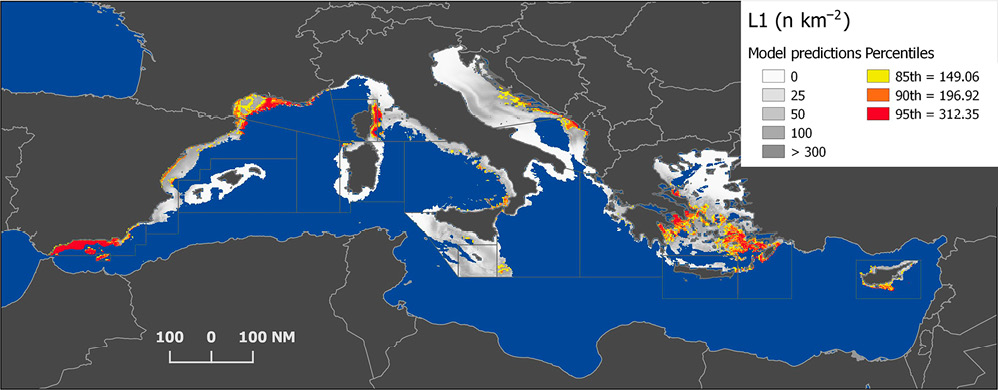

Figure 6 illustrates the map of the model predictions of plastic density in the northern Mediterranean basin, highlighting hotspots in terms of threshold densities corresponding to the 85th (149.1 items km–2), 90th (196.9 items km–2) and 95th (312.3 items km–2) percentiles. Figure 7 shows the map of the general circulation patterns in the Mediterranean basin based on data obtained from the Oceanography WMS service of the CoCoNet portal.

DISCUSSIONTop

This study gives evidence of widespread presence of marine macro-litter at a northern Mediterranean geographical scale, occurring at 90% of the 1279 examined stations sampled yearly during the MEDITS survey in the period 2013-2015. This occurrence ranged from about 69% in Sardinian waters (GSA 11) to 100% in the Gulf of Lions, eastern Corsica, the Ligurian and northern Tyrrhenian seas, and waters around Crete (respectively GSAs 7, 8, 9 and 23). Plastic was the most abundant litter category sinking on the seafloor, as stressed in previous studies (e.g. ) in the Ligurian and northern Tyrrhenian Sea (e.g. ), the waters around Malta (, ), the Strait of Sicily (), the northern Adriatic Sea (, , ) and the Aegean Sea (e.g. , , ).

Among marine litter materials, plastic is surely the most resistant to biodegradation and the most easily transportable by wind and current. For the moment little or no information is available regarding the lifetime of the synthetic polymers in the environment, and only a few studies have examined the lifetime of plastic items lying on the seafloor of the Mediterranean (). In general, the use of additives improves the resistance properties of plastics, explaining the proportion of plastic in comparison with other litter materials, as observed in all the surveyed GSAs of this study. Before sinking on the seafloor, plastic marine litter could have been transported from the place of origin on the water surface or in the water column in response to the local oceanographic conditions, which can facilitate the accumulation of macro-litter even far from the expected accumulation sites (such as in the proximity of ports or rivers estuaries) (, , ).

On average, depths ranging from 50 m to approximately the border of the continental shelf (200 m) were the most affected by the presence of plastic, though exceptions were observed in deeper waters. For example, in eastern Corsica, values were higher on seafloors deeper than 200 m and especially between 500 and 800 m depth. This is not surprising given that the variability within a GSA was sometimes higher than that between GSAs, indicating a contagious distribution of plastic on the seafloor, but also the fact that several factors may affect this distribution (e.g. , ), as discussed below.

The objective of identifying hotspots of plastic accumulation was achieved using GAM modelling and testing geographical, environmental and anthropogenic variables, to highlight the most important drivers influencing accumulation in the sinking areas. A wide range of mechanisms is potentially responsible for litter accumulation in the marine environment. Highly populated centres are the potential primary origin of marine macro-litter, as wastes are produced by direct disposal of domestic or tourism infrastructure activities to the sea () or through river inputs (, , ). Marine traffic activities could also be an important source of marine macro-litter (, , ).

However, the model proposed here recognizes that both bottom depth and slope are important drivers for the retention of plastic macro-litter. Looking at the density model smoothing terms, the depth effect shows the presence of four local maxima. The first corresponds to shallower waters, while the others are at aproximatively 200, 400 and 600 m depth. The maximum corresponding to the shallower depths is likely linked to the proximity to populated areas and human activities. This also appears quite evident from the effect of the distance from ports, which shows the highest levels of accumulation in the proximity of major port cities, where litter disposal very likely has the highest rates, such as in the areas of Valencia (GSA 6), Marseille (GSA 7) and the Argo-Saronic region, where the most important Greek port is located (). Other less prominent hotspots were identified in the Gulf of Salerno, on the Tyrrhenian side of the Strait of Messina (close to the ports of Messina and Gioia Tauro) and in the area of Limassol port in Cyprus. The effect is lower at intermediate distances (around 80 km) but increases again far from the port areas, as in the Gulf of Lions, because other factors also affect the litter distribution.

The slope has an interesting effect, and the accumulation is quite stable at lower slope steepness. However, when the slope increases and the litter cannot be retained by the seafloor, the accumulation is lower. , also reported evidence of the strong relation between the geomorphological characteristics of the seafloor, such as the presence of rocks, wrecks, depressions and channels, and the spatial distribution of marine litter.

The association of topographic and hydrodynamics components is also a pivotal factor influencing the dispersion or accumulation of marine macro-litter. Weak currents, for example, may facilitate deposition on shores, bays and lagoons more than in the open ocean (e.g. , ). Sinking macro-litter on continental shelves can be instead washed by bottom currents or by strong water flow from rivers towards deep submarine canyons, where it is tapped and accumulates, or even towards bathyal plains (, , ). The bathymetric profile and the slope of the marine bottom are thus responsible, in combination with the local hydrography, for the peculiar descent of macro-litter. Investigating more complex topographies that are accessible only with other investigation tools (e.g. , , ) might, in turn, provide further insights.

The GAM modelling highlighted the presence of hotspots of accumulation on the bottoms in the Strait of Gibraltar, the Gulf of Valencia, the Gulf of Lions, eastern Corsica, the eastern side of central-southern Adriatic Sea, the Argo-Saronic region, the eastern Aegean near the coasts of Asia Minor and the southern side of Cyprus. By analysing the geographic smooth term prediction of the model and mapping results, it is possible to identify the position of hotspots of plastic accumulation, mainly localized in the western and eastern parts of the Mediterranean, while the central part of the basin appears less affected. However, it should be considered that no data from the western part of the northern Adriatic Sea were available for the analysis. and reported a high marine litter concentration in this area, showing that the northern part of the Adriatic basin must be one of the most polluted areas of the Mediterranean Sea.

The model proposed in this paper recognized the surface current effect as another relevant factor responsible for the dispersion of marine macro-litter in marine environments and influencing the formation of hotspots of plastic accumulation. The Atlantic current (AW) enters the Mediterranean Sea through the Strait of Gibraltar, also transporting floating plastic debris in the western Alborán following the Western Anticyclonic Gyre () (Fig. 7). Conversely, the surface outflow current towards the Atlantic Ocean is insignificant, thus limiting the possibility of litter expulsion. The entering flow of Atlantic water determines a surface circulation describing along-slope anticyclonic gyres, which could facilatate the sinking of floating debris to the bottoms and be responsible for the western hotspot highlighted by the model close to the Strait of Gibraltar. Another important retention area was recognized in the northwestern Mediterranean basin (, ), where the Western Gyre of the Northern Current flows along the slope from the Ligurian Sea up to the Catalan area, forming frontal systems mainly along the shelf break and anticyclonic eddies mostly during the warm season (, , ). In addition, the canyons of the Gulf of Lions seem to show a trap effect on the dense water formed in the coastal zone, moving them towards deeper waters (). Furthermore, the circulation pattern in the western basin generates in the eastern part of the Strait of Bonifacio a system of coupled cyclonic and anticyclonic eddies which could be responsible for the plastic debris accumulation observed along the eastern coasts of Corsica. By contrast, Sardinian waters remain quite unaffected by this local circulation.

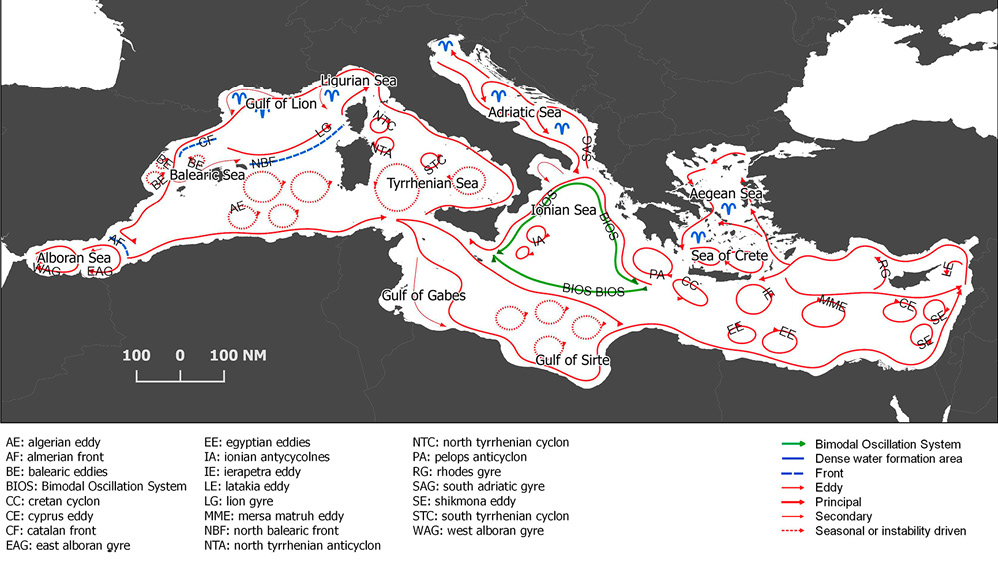

The main circulation in the Adriatic Sea is guaranted by the warm waters that move northward along the eastern coasts and the northern Adriatic current that moves in the opposite direction, conveying the fresh waters of the Po river towards the western-middle Adriatic current (). There is, however, another component likely influencing the advection of the macro-litter and accumulation areas identified by the GAM to a larger extent on the eastern-southern side of the basin along the southern Croatian and Montenegrin coasts, i.e. the Middle Adriatic and Southern Adriatic cyclonic gyres (caracterized by seasonal variations) (, ). This advection has also been modelled by other authors (, ), but using simulations for mimicking the trajectories of passive particles trough Lagrangian modelling.

The topografy of the eastern basin of the Mediterranean Sea has a crucial role in influencing one of the most important components of the water movements in this area: the Mid-Mediterranean Jet (MMJ) of the Levantine basin (), which bifurcates into two branches. The northern branch of the MMJ, pointing to Cyprus and then northward to feed the Asia Minor Current, and the Cretan Cyclon () might be responsible for hotspots of macro-litter accumulation in this part of the basin. The Asia Minor Current is also important because it reaches the waters around the Island of Rhodes, where the GAM predicts another noteworthy hotspot.

Considering the floating macro-litter, , simulating advection due to surface circulation, depicted the Tyrrhenian Sea, the northeast of the Balearic Islands and the Gulf of Sirte as possible litter accumulation areas in the western Mediterranean and the whole coastal strip from Tunisia to Syria as the favourite destination in the eastern basin. The formation of deep waters in winter and the convergence caused by anticyclonic eddies () should facilitate the sinking of light plastics from the more superficial levels to the bottoms. Dense plastic materials (e.g. vinyl chloride and polyethylene terephthalate) are negatively buoyant, falling down to the seafloor (), but even low-density synthetic polymers may sink under the weight of fouling. Because of the inhibition of plastic degradation (e.g. UV-induced photo-degradation reactions; , ) in the proximity of the seafloor, benthic litters are generally composed of near-intact items or their fragments. All these elements contribute additive factors to plastic accumulation on the seafloor.

The most important risk linked to the presence of plastic for living organisms is that of physical injuries, especially caused by ingestion (, , ) after fragmentation and entanglement in fishing gear litter (, ). This risk is increased by the high accumulation rate and ubiquity of macro-litter. However, damage can also affect operation of fishing gears—for example, when selection grids are used ().

Policy strategies to contrast marine litter, such as incentivized responsible waste management, the Circular Economy Action Package, replacing non-biodegradable plastics with other biodegradable materials and schemes for cleaning, sustainable consumption and production, and extended producer responsibility need information on the characterization, quantification and location of existing amounts of plastic marine litter. These strategies also require regular monitoring of the marine environment against agreed threshold values (currently agreed in the Mediterranean in the framework of the Barcelona Convention, while a similar initiative is ongoing at a European Union level) to verify the effectiveness of the measures.

Regularly collecting data on the real presence and accumulation of macro-litter on the seafloor is a pivotal point. Different kinds of sampling methods have been reported in literature for the characterization and assessment of marine litter on the seafloor. reviewed 26 studies and identified bottom trawl surveys as the most used method. Trawl surveys indeed give the possibility of exploring large seafloor areas at a wide range of depths using a standardized approach. Thus, spatial and temporal trend analyses of the collected data can be essential for setting reference points, or baselines, and monitoring the progressive achievement of agreed targets. A reference direction suggested by Ecological Objective 10 of the UNEP Mediterranean Action Plan () is, for example, to reduce seafloor litter by 10% in 5 years, considering a baseline of 130-230 items km–2 of marine macro-litter with a mean of 179 items. However, the availability of more detailed information at a wider geographical scale might suggest, for example, that baseline values should be revised in the future. In this paper, using trawl survey data at a Mediterranean-wide scale, we have identified three thresholds of macro-plastic distribution on the seafloor, which can be used as a benchmark for assessing the move towards ecological objectives.

So far, modelling marine litter distribution and accumulation at a Mediterranean (, ) or sub-basin level (, , ) has used Lagrangian modelling to mimic the dispersion of floating items, thus requiring validation of the predictions. Future research could link surface advection patterns with sinking processes and accumulation on the seafloor. Spatially explicit modelling is a powerful tool for environmental and conservation planning. The results of this paper provide a focus on the distribution of plastic marine macro-litter on the seafloor at a northern Mediterranean scale. Due to the expected accumulation of floating macro-litter on the southern coasts of the eastern basin (), monitoring on bottoms off southern countries of the Mediterranean would be beneficial to increase our knowledge on macro-litter distribution.

The GAM modelling approach used here allowed us to assess, through multiple predictors, the contemporary effects of explanatory variables on the spatial distribution of plastic macro-litter and to localize, for the first time at a wide geographical scale, hotspots of plastic accumulation associated with specific density values (items per km2). This use of GAM modelling is likely only the starting point for further studies aimed at giving insight to the distribution and accumulation of other litter categories and sub-categories.

ACKNOWLEDGEMENTSTop

The MEDITS surveys have been carried out within the Data Collection Framework. The European Commission and Member States of the Mediterranean countries are thankfully acknowledged. We are also grateful to all the colleagues who have spent effort and time collecting and classifying the macro-litter data during the MEDITS surveys.

REFERENCESTop

Andrady A.L. 2011. Microplastics in the marine environment. Mar. Pollut. Bull. 62: 1596-1605.
https://doi.org/10.1016/j.marpolbul.2011.05.030

Andrady A.L. 2015. Persistence of Plastic Litter in the Oceans. In: Bergmann M., Gutow L., Klages M. (eds), Marine Anthropogenic Litter. Springer, Cham, pp. 57-72.
https://doi.org/10.1007/978-3-319-16510-3_3

Angiolillo M., di Lorenzo B., Farcomeni A., et al. 2015. Distribution and assessment of marine debris in the deep Tyrrhenian Sea (NW Mediterranean Sea, Italy). Mar. Pollut. Bull. 92: 149-159.
https://doi.org/10.1016/j.marpolbul.2014.12.044

Anonymus. 2017. MEDITS-Handbook. Version n. 9. MEDITS Working Group. 106 pp.

Artegiani A., Bregant D., Paschini E., et al. 1997. The Adriatic Sea general circulation. Part II: Baroclinic circulation structure. J. Phys. Oceanogr. 27: 1515-1532.
https://doi.org/10.1175/1520-0485(1997)027<1515:TASGCP>2.0.CO;2

Barnes D.K.A., Galgani F., Thompson R.C., et al. 2009. Accumulation and fragmentation of plastic debris in global environments. Philos. Trans. R. Soc. Lond. B. 364: 1985-1998.
https://doi.org/10.1098/rstb.2008.0205

Camedda A., Marra S., Matiddi M., et al. 2014. Interaction between loggerhead sea turtles (Caretta caretta) and marine litter in Sardinia (Western Mediterranean Sea). Mar. Environ. Res. 100: 25-32.
https://doi.org/10.1016/j.marenvres.2013.12.004

Carlson D.F., Griffa A., Zambianchi E., et al. 2016. Observed and modeled surface Lagrangian transport between coastal regions in the Adriatic Sea with implications for marine protected areas. Cont. Shelf Res. 118: 23-48.
https://doi.org/10.1016/j.csr.2016.02.012

Carlson D.F., Suaria G., Aliani S., et al. 2017. Combining Litter Observations with a Regional Ocean Model to Identify Sources and Sinks of Floating Debris in a Semi-enclosed Basin: The Adriatic Sea. Front. Mar. Sci. 4: 78.
https://doi.org/10.3389/fmars.2017.00078

Cau A., Alvito A., Moccia D., et al. 2017. Submarine canyons along the upper Sardinian slope (Central Western Mediterranean) as repositories for derelict fishing gears. Mar. Pollut. Bull. 123: 357-364.
https://doi.org/10.1016/j.marpolbul.2017.09.010

Cau A., Bellodi A., Moccia D., et al. 2018. Dumping to the abyss: single-use marine litter invading bathyal plains of the Sardinian margin (Tyrrhenian Sea). Mar. Pollut. Bull. 135: 845-851.
https://doi.org/10.1016/j.marpolbul.2018.08.007

Consoli P., Andaloro F., Altobelli C., et al. 2018. Marine litter in an EBSA (Ecologically or Biologically Significant Area) of the central Mediterranean Sea: Abundance, composition, impact on benthic species and basis for monitoring entanglement. Environ. Pollut. 236: 405-415.
https://doi.org/10.1016/j.envpol.2018.01.097

Cooper D., Corcoran P. 2010. Effects of mechanical and chemical processes on the degradation of plastic beach debris on the island of Kauai, Hawaii. Mar. Pollut. Bull. 60: 650-654.
https://doi.org/10.1016/j.marpolbul.2009.12.026

Corcoran P.L. 2015. Benthic plastic debris in marine and fresh water environments. Environ. Sci. Processes Impacts 17: 1363-1369.
https://doi.org/10.1039/C5EM00188A

Cózar A., Sanz-Martín M., Martí E., et al. 2015. Plastic accumulation in the Mediterranean Sea. PLoS ONE 10: e0121762.
https://doi.org/10.1371/journal.pone.0121762

Dameron O.J., Parke M., Albins M.A., et al. 2007. Marine debris accumulation in the Northwestern Hawaiian Islands: An examination of rates and processes. Mar. Pollut. Bull. 54: 423-433.
https://doi.org/10.1016/j.marpolbul.2006.11.019

European Commission (EC). 2013. Green paper on a European strategy on plastic waste in the environment, COM(2013) 123 final. 20 pp.

European Commission (EC). 2015. Communication from the Commission to the European Parliament, the Council, the European Economic and Social Committee and the Committee of the Regions. Closing the loop - An EU action plan for the Circular Economy, COM/2015/0614 final. 21 pp.

European Commission (EC). 2018. Communication from the Commission to the European Parliament, the Council, the European Economic and Social Committee and the Committee of the Regions, SWD (2018) 16 final. 17 pp.

Eriksen M., Lebreton L.C.M., Carson H.S., et al. 2014. Plastic Pollution in the World’s Oceans: More than 5 Trillion Plastic Pieces Weighing over 250,000 Tons Afloat at Sea. PLoS ONE 9: e111913.
https://doi.org/10.1371/journal.pone.0111913

Fiorentino F., Lefkaditou E., Jadaud A., et al. 2013. Protocol for Litter Data Collection during the Medits Trawl Surveys. 40th CIESM Congress, Marseille, France, 28 Oct-1 Nov 2013.

Fiorentino F., Gancitano V., Giusto G.B., et al. 2015. Marine litter on trawlable bottoms of the strait of Sicily. Biol. Mar. Mediterr. 22: 225-228.

Frias J.P.G.L., Otero V., Sobral P. 2014. Evidence of microplastics in samples of zooplankton from Portuguese coastal waters. Mar. Environ. Res. 95: 89-95.
https://doi.org/10.1016/j.marenvres.2014.01.001

G20. 2017. Leaders’ Declaration - Shaping an interconnected world, 7-8 July 2017. 15 pp.

G7. 2015. Leaders’ declaration: G7 summit, 7-8 June 2015. 17 pp.

Galgani F., Souplet A., Cadiou Y. 1996. Accumulation of debris on the deep sea floor off the French Mediterranean coast. Mar. Ecol. Prog. Ser. 142: 225-234.
https://doi.org/10.3354/meps142225

Galgani F., Leaute J.P., Moguedet P., et al. 2000. Litter on the sea floor along European coasts. Mar. Pollut. Bull. 40: 516-527.
https://doi.org/10.1016/S0025-326X(99)00234-9

Galgani F., Fleet D., Van Franeker J., et al. 2010. Marine Strategy Framework Directive: task group 10 report: marine litter. European Commission Joint Research Centre. Office for Official Publ. EC, Luxembourg. 48 pp.

Galgani F., Clarob F., Depledgec M., et al. 2014. Monitoring the impact of litter in large vertebrates in the Mediterranean Sea within the European Marine Strategy Framework Directive (MSFD): constraints, specificities and recommendations. Mar. Environ. Res. 100: 3-9.
https://doi.org/10.1016/j.marenvres.2014.02.003

Galgani F., Hanke G., Maes T. 2015. Global distribution, composition and abundance of marine litter. In: Bergmann M., Gutow L., Klages M. (eds), Marine Anthropogenic Litter. Springer, Cham, pp. 29-56.
https://doi.org/10.1007/978-3-319-16510-3_2

Gall S.C., Thompson R.C. 2015. The impact of debris on marine life. Mar. Pollut. Bull. 92: 170-179.
https://doi.org/10.1016/j.marpolbul.2014.12.041

GFCM. 2009. Establishment of Geographical Sub-Areas in the GFCM area amending the resolution GFCM/31/2007/2, GFCM/33/2009/2.
http://www.fao.org/3/a-ax817e.pdf

Gu C., Wahba G. 1991. Minimizing GCV/GML Scores with Multiple Smoothing Parameters via the Newton Method. SIAM J. Sci. Stat. Comput. 12: 383-398.
https://doi.org/10.1137/0912021

Iñiguez M.E., Conesa J.A., Fullana A. 2016. Marine debris occurrence and treatment: A review. Renew. Sustain. Energy Rev. 64: 394-402.
https://doi.org/10.1016/j.rser.2016.06.031

Ioakeimidis C., Zeri C., Kaberi H., et al. 2014. A comparative study of marine litter on the seafloor of coastal areas in the Eastern Mediterranean and Black Seas. Mar. Pollut. Bull. 89: 296-304.
https://doi.org/10.1016/j.marpolbul.2014.09.044

Ioakeimidis C., Fotopoulou K.N., Karapanagioti H.K., et al. 2016. The degradation potential of PET bottles in the marine environment: An ATR-FTIR based approach. Sci. Rep. 6: 23501.
https://doi.org/10.1038/srep23501

Jambeck J.R., Geyer R., Wilcox C., et al. 2015. Plastic waste inputs from land into the ocean. Science 347: 768-771.
https://doi.org/10.1126/science.1260352

Jang Y.C., Hong S., Lee J., et al. 2014. Estimation of lost tourism revenue in Geoje Island from the 2011 marine debris pollution event in South Korea. Mar. Pollut. Bull. 81: 49-54.
https://doi.org/10.1016/j.marpolbul.2014.02.021

Karimova S. 2017. Observing surface circulation of the Western Mediterranean basin with satellite imagery. Int. Arch. Photogramm. Remote Sens. Spat. Inf. Sci. XLII-3/W2: 97-104.
https://doi.org/10.5194/isprs-archives-XLII-3-W2-97-2017

Law K.L. 2017. Plastics in the Marine Environment. Ann. Rev. Mar. Sci. 9: 205-229.
https://doi.org/10.1146/annurev-marine-010816-060409

Lebreton L.C.M., Greer S.D., Borrero J.C. 2012. Numerical modelling of floating debris in the world’s oceans. Mar. Pollut. Bull. 64: 653-661.
https://doi.org/10.1016/j.marpolbul.2011.10.027

Lebreton L.C.M., Van Der Zwet J., Damsteeg J.W., et al. 2017. River plastic emissions to the world’s oceans. Nat. Commun. 8: 1-10.
https://doi.org/10.1038/ncomms15611

Lee D.-I., Cho H.-S., Jeong S.-B. 2006. Distribution characteristics of marine litter on the sea bed of the East China Sea and the South Sea of Korea. Estuar. Coast. Shelf Sci. 70: 187-194.
https://doi.org/10.1016/j.ecss.2006.06.003

Lefkaditou E., Karkani M., Anastasopoulou A., et al. 2013. Litter composition on the shelf and upper slope of the Argosaronikos region and the eastern Ionian Sea, as evidenced by MEDITS surveys 1995-2008. ICES C. 2013/A 3357: 1-3.
http://www.ices.dk/sites/pub/CM%20Doccuments/CM-2013/Theme%20Session%20A%20contributions/A0613.pdf

Legendre P., Legendre L. 1998. Numerical ecology, Elsevier Science B.V., Amsterdam. 852 pp.

Leite A.S., Santos L.L., Costa Y., et al. 2014. Influence of proximity to an urban center in the pattern of contamination by marine debris. Mar. Pollut. Bull. 81: 242-247.
https://doi.org/10.1016/j.marpolbul.2014.01.032

Liubartseva S., Coppini G., Lecci R., et al. 2016. Regional approach to modeling the transport of floating plastic debris in the Adriatic Sea. Mar. Pollut. Bull. 103: 115-127.
https://doi.org/10.1016/j.marpolbul.2015.12.031

Liubartseva S., Coppini G., Lecci R., et al. 2018. Tracking plastics in the Mediterranean: 2D Lagrangian model. Mar. Pollut. Bull. 129: 151-162.
https://doi.org/10.1016/j.marpolbul.2018.02.019

Lusher A. 2015. Microplastics in the Marine Environment: Distribution, Interactions and Effects. In: Bergmann M., Gutow L., Klages M. (eds), Marine Anthropogenic Litter. Springer, Cham, pp. 245-307.
https://doi.org/10.1007/978-3-319-16510-3_10

Mansui J., Molcard A., Ourmières Y. 2015. Modelling the transport and accumulation of floating marine debris in the Mediterranean basin. Mar. Pollut. Bull. 91: 249-257.
https://doi.org/10.1016/j.marpolbul.2014.11.037

Melli V., Angiolillo M., Ronchi F., et al. 2017. The first assessment of marine debris in a Site of Community Importance in the north-western Adriatic Sea (Mediterranean Sea). Mar. Pollut. Bull. 114: 821-830.
https://doi.org/10.1016/j.marpolbul.2016.11.012

Mifsud R., Dimech M., Schembri P.J. 2013. Marine litter from circalittoral and deeper bottoms off the Maltese islands (Central Mediterranean). Mediterr. Mar. Sci. 14: 298-308.
https://doi.org/10.12681/mms.413

Millot C., Taupier-Letage I. 2005. Circulation in the Mediterranean Sea. In: Saliot A. (ed.), The Mediterranean Sea. Springer, Berlin, Heidelberg, pp. 29-66.

Munari C., Corbau C., Simeoni U., et al. 2016. Marine litter on Mediterranean shores: Analysis of composition, spatial distribution and sources in north-western Adriatic beaches. Waste Manage. 49: 483-490.
https://doi.org/10.1016/j.wasman.2015.12.010

Neves D., Sobral P., Pereira T. 2015. Marine litter in bottom trawls off the Portuguese coast. Mar. Pollut. Bull. 99: 301-304.
https://doi.org/10.1016/j.marpolbul.2015.07.044

O’brien R.M. 2007. A Caution Regarding Rules of Thumb for Variance Inflation Factors. Qual. Quant. 41: 673-690.
https://doi.org/10.1007/s11135-006-9018-6

Pace R., Dimech M., Camilleri M., et al. 2007. Litter as a source of habitat islands on deep water muddy bottoms. Rapp. Comm. Int. Mer Médit. 38 pp.

Pasquini G., Ronchi F., Strafella P., et al. 2016. Seabed litter composition, distribution and sources in the Northern and Central Adriatic Sea (Mediterranean). Waste Manage. 58: 41-51.
https://doi.org/10.1016/j.wasman.2016.08.038

Pellini G., Gomiero A., Fortibuoni T., et al. 2018. Characterization of microplastic litter in the gastrointestinal tract of Solea solea from the Adriatic Sea. Environ. Pollut. 234: 943-952.
https://doi.org/10.1016/j.envpol.2017.12.038

Pham C.K., Ramirez-Llodra E., Alt C.H.S., et al. 2014. Marine litter distribution and density in European seas, from the shelves to deep basins. PLoS ONE 9: e95839.
https://doi.org/10.1371/journal.pone.0095839

Pinardi N., Masetti E. 2000. Variability of the large scale general circulation of the Mediterranean Sea from observations and modelling: a review. Palaeogeogr. Palaeoclimatol. Palaeoecol. 158: 153-173.
https://doi.org/10.1016/S0031-0182(00)00048-1

Politikos D.V, Ioakeimidis C., Papatheodorou G., et al. 2017. Modeling the Fate and Distribution of Floating Litter Particles in the Aegean Sea (E. Mediterranean). Front. Mar. Sci. 4: 191.
https://doi.org/10.3389/fmars.2017.00191

QGIS Development Team. 2017. Geographic Information System. Open Source Geospatial Foundation Project.
http://www.qgis.org/

R Development Core Team. 2013. R: A Language and Environment for Statistical Computing. R Foundation for Statistical Computing, Vienna, Austria.
http://www.R-project.org/

Renault L., Oguz T., Pascual A., et al. 2012. Surface circulation in the Alborán Sea (western Mediterranean) inferred from remotely sensed data. J. Geophys. Res. 117: C08009.
https://doi.org/10.1029/2011JC007659

Robinson A.R., Hecht A., Michelato A., et al. 1992. General circulation of the Eastern Mediterranean. Earth-Sci. Rev. 32: 285-309.
https://doi.org/10.1016/0012-8252(92)90002-B

Robinson A.R., Leslie W.G., Theocharis A., et al. 2001. Mediterranean Sea Circulation. In: Steele J.H. (ed), Encyclopedia of Ocean Sciences. Academic Press, Oxford, pp. 710-725.
https://doi.org/10.1016/B978-012374473-9.00376-3

Rubec P.J., Kiltie R., Leone E., et al. 2016. Using delta-generalized additive models to predict spatial distributions and population abundance of juvenile pink shrimp in Tampa Bay, Florida. Mar. Coast. Fish. 8: 232-243.
https://doi.org/10.1080/19425120.2015.1084408

Sánchez P., Masó M., Sáez R., et al. 2013. Baseline study of the distribution of marine debris on soft-bottom habitats associated with trawling grounds in the northern Mediterranean. Sci. Mar. 77: 247-255.
https://doi.org/10.3989/scimar03702.10A

Serena F., Abella A.J., Baino R.T., et al. 2011. Anthropogenic waste in the marine ecosystem. Biol. Mar. Mediterr. 18: 161-164.

Shapiro S.S., Wilk M.B. 1965. An Analysis of Variance Test for Normailty (Complete Samples). Biometrika 52: 591-611.
https://doi.org/10.2307/1267427

Spedicato M.T., Massutí E., Merigot B., et al. 2019. The MEDITS trawl survey specifications in an ecosystem approach to fishery management. Sci. Mar. 83S1.
https://doi.org/10.3989/scimar.04915.11X

Spengler A., Costa M.F. 2008. Methods applied in studies of benthic marine debris. Mar. Pollut. Bull. 56: 226-230.
https://doi.org/10.1016/j.marpolbul.2007.09.040

Stefatos A., Charalampakis M., Papatheodorou G., et al. 1999. Marine debris on the seafloor of the Mediterranean Sea: Examples from two enclosed gulfs in western Greece. Mar. Pollut. Bull. 38: 389-393.
https://doi.org/10.1016/S0025-326X(98)00141-6

Strafella P., Fabi G., Spagnolo A., et al. 2015. Spatial pattern and weight of seabed marine litter in the northern and central Adriatic Sea. Mar. Pollut. Bull. 91: 120-127.
https://doi.org/10.1016/j.marpolbul.2014.12.018

Suaria G., Avio C.G., Mineo A., et al. 2016. The Mediterranean Plastic Soup: synthetic polymers in Mediterranean surface waters. Sci. Rep. 6: 37551.
https://doi.org/10.1038/srep37551

Thompson R., Moore C., Andrady A., et al. 2005. New Directions in Plastic Debris. Science 310: 1117.
https://doi.org/10.1126/science.310.5751.1117b

UNEP. 2016. Draft Integrated Monitoring and Assessment Guidance. UNEP(DEPI)/MED WG.429/Inf.6. 270 pp.
https://wedocs.unep.org/handle/20.500.11822/11098

UNEP/MAP. 2009. Plan Bleu: State of the Environment and Development in the Mediterranean, UNEP/MAP-Plan Bleu, Athens. 204 pp.
https://wedocs.unep.org/handle/20.500.11822/386

UNEP/MAP. 2012. State of the Mediterranean Marine and Coastal Environment, UNEP/MAP-Barcelona Convention, Athens, 96 pp.
https://wedocs.unep.org/handle/20.500.11822/364

UNEP/MAP. 2015. Marine Litter Assessment in the Mediterranean, UNEP/MAP, Athens. 88 pp.
https://wedocs.unep.org/handle/20.500.11822/7098

United Nations. 2016. The First Global Integrated Marine Assessment. United Nations.
https://doi.org/10.1017/9781108186148

Watters D.L., Yoklavich M.M., Love M.S., et al. 2010. Assessing marine debris in deep seafloor habitats off California. Mar. Pollut. Bull. 60: 131-138.
https://doi.org/10.1016/j.marpolbul.2009.08.019

Werner S., Budziak A., Van Franeker J.A., et al. 2016. Harm caused by marine litter. MSFD GES TG marine litter - Thematic report; JRC Technical report; EUR 28317 EN. 92 pp.
https://doi.org/10.2788/690366

Williams A.T., Simmons S.L. 1985. Estuarine Litter at the River/Beach Interface in the Bristol Channel, United Kingdom. J. Coast. Res. 13: 1159-1165.

Wood S.N. 2001. mgcv: GAMs and generalized ridge regression for R. R News 1: 20-25.
https://doi.org/10.1159/000323281

Wood S.N 2006. Generalized Additive Models: An Introduction with R. Chapman Hall/CRC, Boca Raton, FL. 410 pp.

Zambianchi E., Trani M., Falco P. 2017. Lagrangian Transport of Marine Litter in the Mediterranean Sea. Front. Environ. Sci. 5: 5.
https://doi.org/10.3389/fenvs.2017.00005

Zuur A.F. 2012. A beginner’s guide to generalized additive models with R. Highland Statistics Limited, Newburgh. 206 pp.

Zuur A.F., Ieno E.N., Elphick C.S. 2010. A protocol for data exploration to avoid common statistical problems. Methods Ecol. Evol. 1: 3-14.
https://doi.org/10.1111/j.2041-210X.2009.00001.x
