Grain size, morphometry and mineralogy of airborne input in the Canary basin: evidence of iron particle retention in the mixed layer

Alfredo Jaramillo-Vélez 1, Inmaculada Menéndez 2, Ignacio Alonso 2, José Mangas 2, Santiago Hernández-León 2

1 Grupo de Estudios Oceánicos “Luis Fernando Vásquez-Bedoya” (GEOc), Escuela Ambiental, Facultad de Ingeniería, Universidad de Antioquía UdeA, Calle 70 No. 52-21, Medellín, Colombia. E-mail: alfredo.jaramillov@udea.edu.co
2 Instituto de Oceanografía y Cambio Global, IOCAG, Universidad de Las Palmas de Gran Canaria, ULPGC, Campus de Taliarte, 35214 Telde, Gran Canaria, Spain.

Summary: Aeolian dust plays an important role in climate and ocean processes. Particularly, Saharan dust deposition is of importance in the Canary Current due to its content of iron minerals, which are fertilizers of the ocean. In this work, dust particles are characterized mainly by granulometry, morphometry and mineralogy, using image processing and scanning northern Mauritania and the Western Sahara. The concentration of terrigenous material was measured in three environments: the atmosphere (300 m above sea level), the mixed layer at 10 m depth, and 150 m depth. Samples were collected before and during the dust events, thus allowing the effect of Saharan dust inputs in the water column to be assessed. The dominant grain size was coarse silt. Dominant minerals were iron oxy-hydroxides, silicates and Ca-Mg carbonates. A relative increase of iron mineral particles (hematite and goethite) was detected in the mixed layer, reflecting a higher permanence of iron in the water column despite the greater relative density of these minerals in comparison with the other minerals. This higher iron particle permanence does not appear to be explained by physical processes. The retention of this metal by colloids or microorganisms is suggested to explain its long residence time in the mixed layer.

Keywords: textural analysis; Saharan dust; iron particles; Canary Islands.

Granulometría, morfometría y mineralogía de polvo atmosférico que entra a la cuenca canaria: evidencia de retención de partículas de hierro en la capa de mezcla

Resumen: El polvo atmosférico juega un papel importante en el clima y en los procesos oceánicos, particularmente la deposición del polvo sahariano es de suma importancia en la corriente canaria debido a que contiene minerales de hierro que actúan como fertilizante del océano. En este trabajo las partículas de polvo fueron caracterizadas mediante granulometría, morfometría y mineralogía, usando procesamiento de imágenes, microscopia electrónica (SEM-EDS). El polvo analizado en este estudio fue generado al norte de Mauritania y Sahara Occidental. Su concentración fue medida en tres ambientes diferentes: la atmósfera (300 m.s.n.m.), la capa de mezcla (10 m de profundidad) y a 150 m de profundidad). Las muestras fueron colectadas antes y durante los eventos de polvo, permitiendo la determinación del efecto del aporte de polvo sahariano a la columna de agua. El tamaño de grano predominante fueron los limos gruesos. Los minerales dominantes fueron oxi-hidróxidos, silicatos y carbonatos. Un incremento de partículas ricas en hierro (hematita y goetita) fue detectado en la capa de mezcla, reflejando una alta permanencia del hierro en la columna de agua a pesar de la alta densidad que presentan esos minerales con respecto a otros. Esta alta permanencia de hierro no parece ser explicada por procesos físicos. La retención de este metal por coloides o microrganismos es la explicación sugerida ante el alto tiempo de residencia en la capa de mezcla.

Palabras clave: análisis textural; polvo sahariano; partículas de hierro; Islas Canarias.

Citation/Como citar este artículo: Jaramillo-Vélez A., Menéndez I., Alonso I., Mangas J., Hernández-León S. 2016. Grain size, morphometry and mineralogy of airborne input in the Canary basin: evidence of iron particle retention in the mixed layer. Sci. Mar. 80(3): 395-408. doi: http://dx.doi.org/10.3989/scimar.04344.27A

Editor: P. Puig.

Received: September 1, 2015. Accepted: April 11, 2016. Published: July 6, 2016.

Contents

INTRODUCTIONTop

Dust plumes are the main atmospheric transport process of fine-grained eolian material from deserts to the oceans. They are generated in specific source areas of the Sahara desert, and they can be transported over thousands of kilometres through the Atlantic Ocean, following the pathway of the Trade Winds and the Saharan Air Layer, and can even reach the Caribbean Sea in about 5-7 days (). This transport of particulate material affects many atmospheric processes, including cloud formation, radiation balance (), biogeochemical processes () and human health (). The global dust production is estimated to be 1700 106 t yr–1 for particles <10 mm (, ) and the Saharan desert is considered the largest source of particulate material in the world (). Its contribution is almost two thirds of the global dust production, and approximately 26% reaches the oceans ().

Atmospheric dust has an important impact on the ocean biogeochemistry as it fertilizes the ocean with rich iron minerals (). Iron is the fourth most abundant element in the earth’s crust, with an estimated abundance of 5.63 104 mg kg–1, while the concentration in the ocean is 2 10–3 mg l–1 (). Iron appears in the continental crust as primary (rock-forming minerals) and/or supergenic (weathering) minerals, the most important of which are iron oxy-hydroxides (magnetite Fe3O4, hematite Fe2O3, goethite FeO (OH), ilmenite FeTiO3, etc.) and, to a lesser extent, iron carbonates, sulfides-sulfates, silicates and phosphates (). Precambrian volcanic rocks and banded-iron formation (BIF) deposits are abundant in the crystalline basement of the West African Craton, for instance, in the Tiris region of the Western Sahara or Quidiat Iyil in Mauritania (, ). These Precambrian outcrops can be an important source area of iron oxy-hydroxides and iron supergenic minerals associated with weathering processes (such as iron phyllosilicates, carbonates and sulfates), which have been reported as Saharan dust particles (, ). The aerosols from the continental crust are therefore a main natural source of iron minerals in the open ocean, which are commonly carried in the form of clay, other silicates, and even iron oxy-hydroxide (). Iron is a limiting micronutrient in some marine regions (), but limitation is not a direct consequence of its trace concentration in seawater.

Atmospheric samplers (, ), remote sensing (, ), ocean sediment cores () and even sediment traps (, ,, ) have been used to study aerosols and to infer the amount of atmospheric dust input to the North Atlantic (, ). The morphometric study of sediment particles is also of importance to understand their physical and chemical interactions with the environment. Irregular particles have a larger contact surface with the surrounding fluid, so they offer more resistance to sinking (), and can reach longer distances in suspension (in both air and water). A larger surface ratio implies higher chemical reactivity, favouring cohesive properties and the tendency towards formation of marine aggregates and ballasts (). The possible refilling effect of mineral particles in organic aggregates decreases their porosity and these mineral particles act as ballast, increasing their relative density and hence the sinking velocities hundreds of times ().

The main goal of this study was to characterize and compare the grain size, grain morphology and mineral composition of Saharan dust inputs and to monitor their distribution in the mixed layer. Textural and mineralogical characterization in the ocean and air environments is important to understand the role of atmospheric particle inputs in the Canary Region and their effect on the biogeochemistry of surface waters.

MATERIALS AND METHODSTop

Collection and treatment of samples

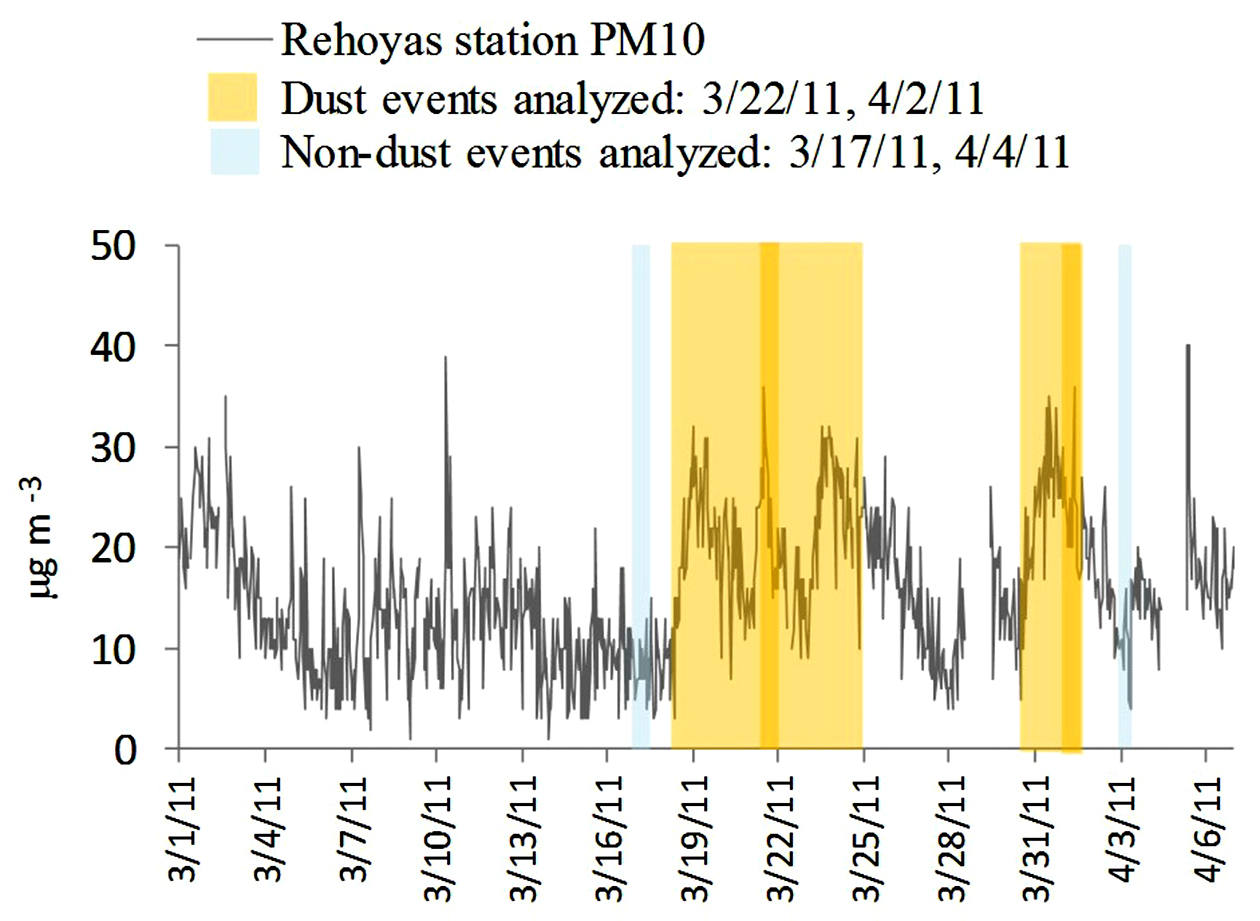

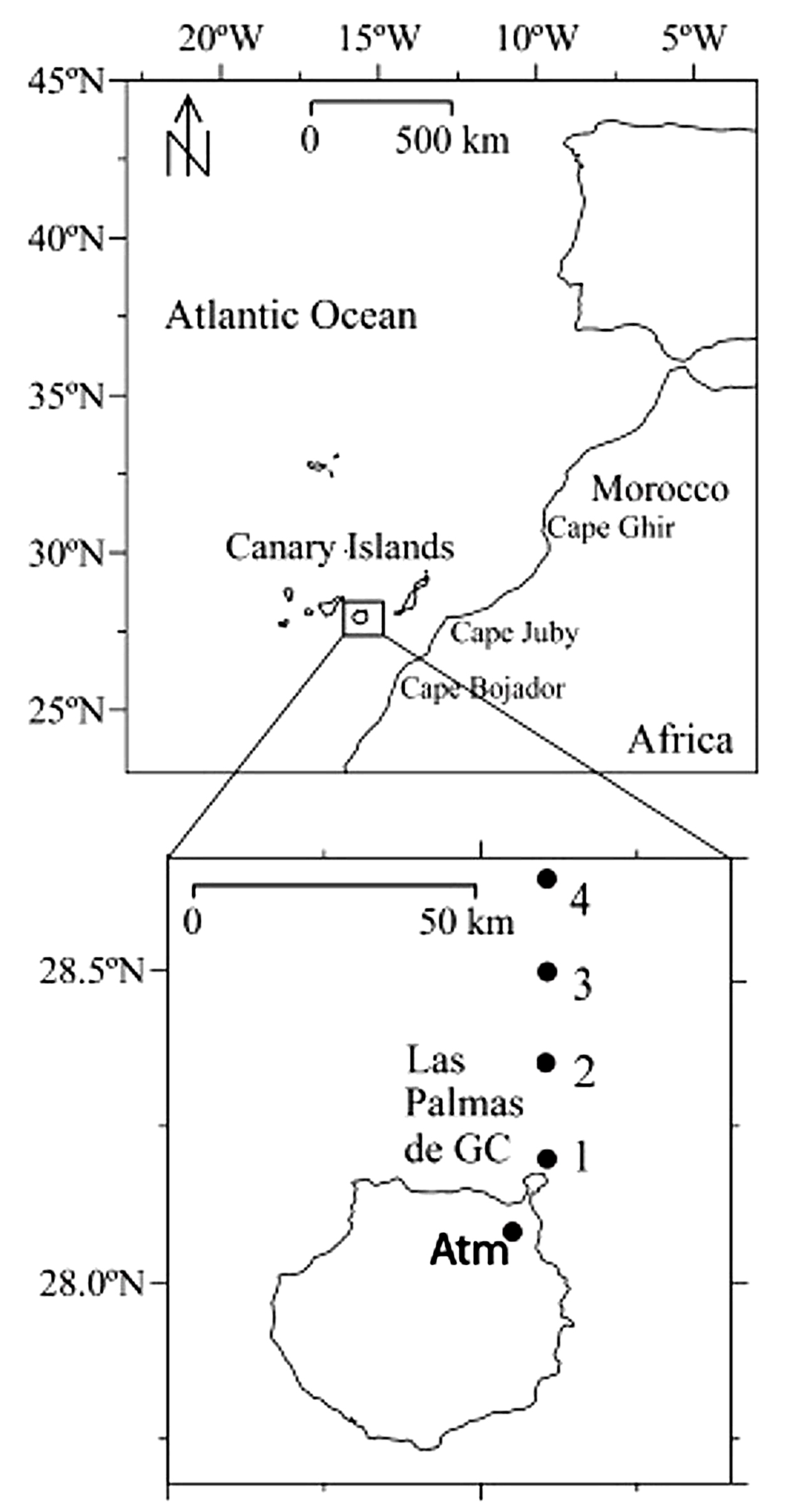

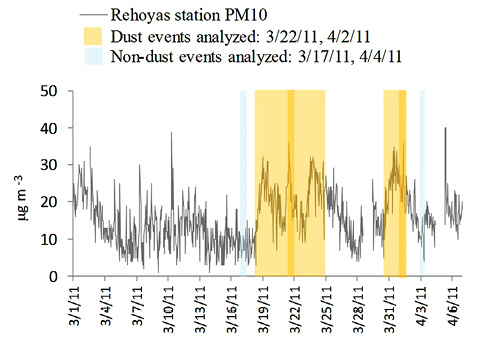

Weekly cruises were performed north of Gran Canaria Island (Canary Islands) from 20 January to 13 April 2011. Water samples were obtained at four stations 18.5 km apart (Fig. 1). Two dust events were studied: the first from 19 to 25 March, and the second from 31 March to 2 April (Fig. 2). The dust Events were identified by the dust load charts provided by the DREAM forecasting model. These concentration data charts for forecasting and real time analysis are available on the web site and its hourly back trajectories are available on the Spain HYSPLIT Programme web site (Fig. 3). Saharan plume dust was defined by the BSC-DREAM model with a threshold concentration higher than 10 mg m–3 (excluding the local background dust concentrations of the plume dust path). The atmospheric concentration measurements were obtained from the Las Rehoyas observing station ().

During the first dust event, samples were taken at 10 m depth using a Niskin bottle; during the second event, samples were collected at 150 m depth using a sediment trap with an area of 0.125 m2 (Table 1). Samples collected on the days previous to each Saharan dust event were considered as the control sample. During Saharan dust events and on non-Saharan dust days, atmospheric samples were obtained in order to compare with the ocean water samples.

Table 1. – Samples description.

Type Altitude or depth of sampling Method Nº of samples Nº of images analysed
(grain size - morphometry) (mass estimation- mineralogy)
Airborne 300 m.a.s.l. Airmetrics® Minivols 4 36 26
Ocean water 10 m depth Niskin Bottle 4 24 21
150 m depth Technicap PPS 3/3-24 S time-series sediment trap 4 24 23
Total 12 84 64

The sediment trap was deployed in a system drift at 150 m depth between Stations 3 and 4 (Fig. 1) in order to collect the sinking particles. Those samples were collected over 252 hours using a Technicap PPS 3/3-24S time-series sediment trap with a sampling frequency of 12 hours, so it was possible to discriminate between day and night. The preserving solution for the bottles was filled with filtered seawater, plus 5 g kg–1 NaCl solution, and made up to 3.5% buffered formalin. This sample manipulation and subsequent filtering were performed following .

Airborne samples were collected at a station on land located on a building roof 300 m above sea level (Fig. 1) through Airmetrics® Minivol low volume samplers (5 L of air per minute). They worked continuously and samples were obtained weekly for particle fraction larger than 2.5 mm using PM10 and PM2.5 impactors. These fractions represent around 80% of the total particle matter on airborne dust (). PM10 and PM2.5 stand for particulate matter that passes through a size-selective inlet with a 50% efficiency cut-off at 10 and 2.5 μm aerodynamic diameter, respectively.

Ocean samples were previously filtered in the laboratory through a 200-µm sieve to avoid zooplankton. This sieving did not affect dust particles collected since normal size ranges between 0.1 and 200 µm (). Afterwards, atmospheric and oceanic samples in watery suspension were filtered using Nucleopore© and glass fibre GF/C filters (pore diameters of 0.2 and 1.2 µm, respectively). The large zooplankton (swimmers) was manually removed following the procedure described by .

After filtration, samples were treated with hydrogen peroxide (3%) previously heated to 50°C for 30 minutes in order to eliminate organic matter. The procedure was repeated due to the low percentage of peroxide used. Finally, samples were dried at 50°C and preserved at 20°C. Hydrogen peroxide can act as an oxidant of Fe (II) at nanomolar levels (). However, iron solubility is inversely related to the size of the particles for Saharan dust, which shows the lowest values of solubility (). Crystalline Fe oxy-hydroxide phases (microparticles of goethite and/or hematite) and Fe-containing clay minerals are common in Saharan dust (), and they represent the “slow” solubility Fe pool of mineral Saharan dust. Experimentally, microparticles of crystalline Fe oxide phases and clays were completely dissolved at pH <3 for hundreds of hours, while Fe nanoparticles (<0.1 mm) only last several minutes in the same pH conditions ().

Image treatment and morphometric analysis

The filtered samples were photographed with a Leika® MZ6 stereomicroscope equipped with a photographic camera and non-polarized natural light at an image resolution of 5.0 megapixels, using a 12.6× and 40× zoom. Samples from the trap could only be photographed using a 12.6× zoom due to the low amount of particles observed at 40×. The real dimensions in these pictures were determined using a calibrated grid. Airborne samples were also analysed using an electron microscope (SEM-EDX) to obtain images at 150× and 500×, both of them at 0.8 megapixels resolution.

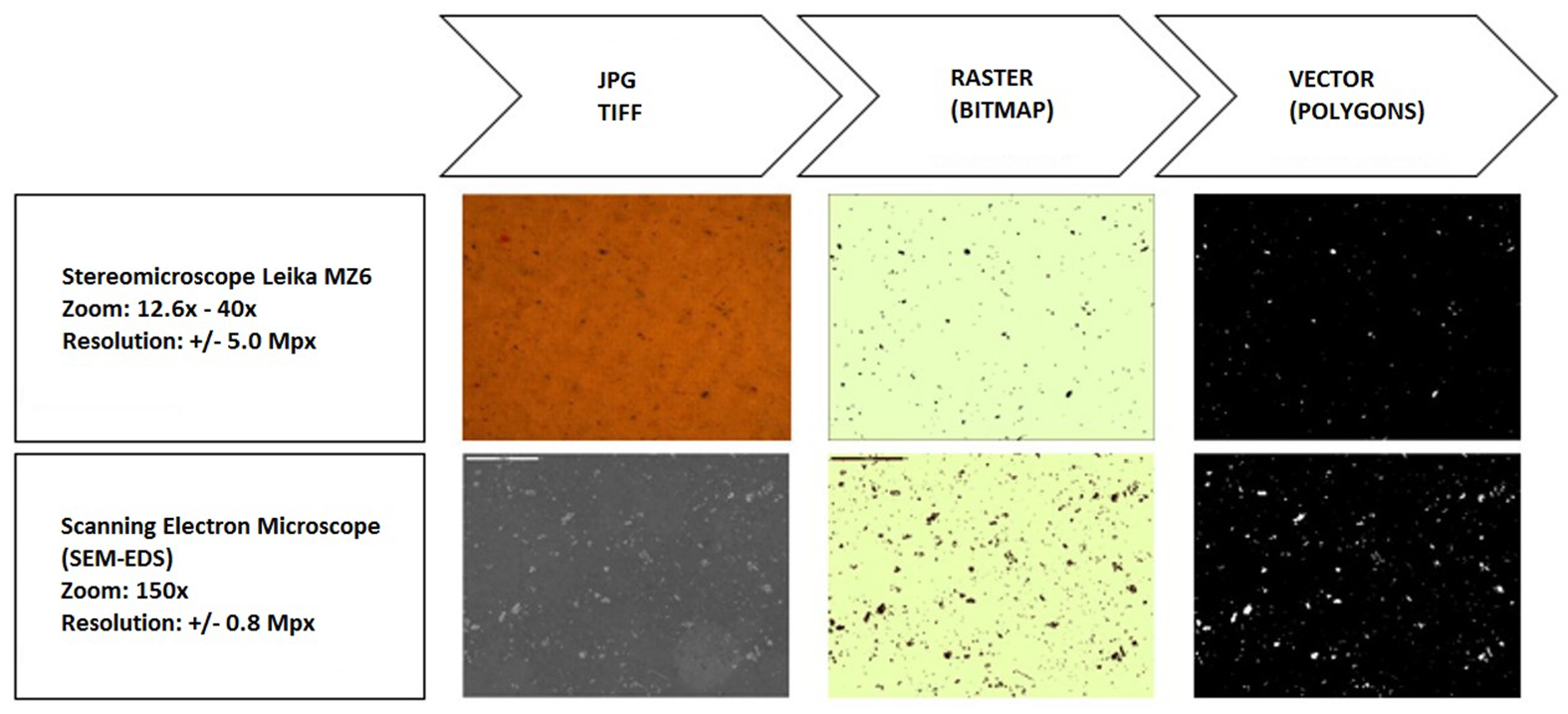

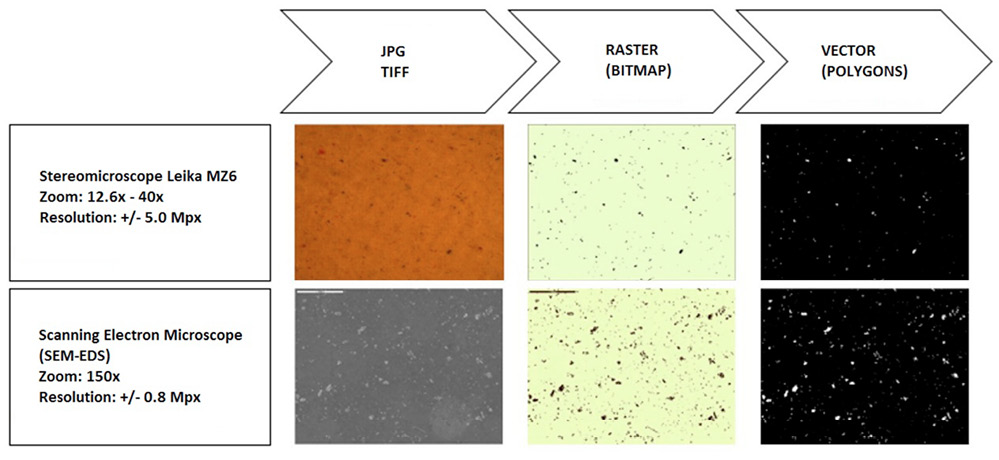

Each filter image passed through an image treatment. A set of 84 images were made (Table 1). Mineralogical information was also obtained from each filter with the electron microscope (JEOL 5410 equipped with an energy dispersion X ray analyser, EDS, OXFORD and ISIS-LINK model). This microscope was used at 20 KV with a high vacuum, sounding current around 10–9 A, and 20 mm work distance.

Each individual particle or agglomerate was transformed into irregular polygons through image treatment. In this process, the most suitable Red Green Blue threshold was fixed to binarize the images (conversion to black and white) to obtain the best possible discrimination. Similar light conditions were used for each picture to guarantee a standard process. Once binarized, the images were converted from raster format to a vector format through ArcGIS® software (Fig. 4), from which the geometrical properties (area, Ap and perimeter, P) of each polygon were obtained.

The zoom used in the image analysis could change the perception of the size in the analysed particle, and this is a factor that has to be considered when images analysis is used in granulometry measures (see Table 2). In this case, it was decided to use the zoom in which most amounts of particles were identified (40× for ocean surface particles, 12.5× for sediment trap particles).

Table 2. – Grain-size parameters of samples determined by optical and electronic microscopy. * non-dust event; ** dust event.

Sample Zoom Particles analysed Mean size (µm) Sorting Skewness Kurtosis
Airborne * 500× 882 4 2.0 0.1 1.0
Airborne ** 12.6× 8531 51 2.2 -0.2 0.8
40× 17736 37 2.2 0.0 0.8
150× 15120 21 2.3 -0.1 1.0
10 m depth* 12.6× 2805 43 2.0 -0.1 1.0
40× 1198 30 1.7 -0.3 0.9
10 m depth** 12.6× 7156 70 2.0 -0.2 0.9
40× 4140 33 1.7 -0.4 1.0
150 m depth day* 12.6× 966 24 1.7 0.0 1.2
150 m depth night* 12.6× 159 32 1.7 -0.4 1.0
150 m depth day** 12.6× 158 55 1.8 -0.1 0.9
150 m depth night** 12.6× 724 35 1.6 -0.4 1.0

Grain size analysis of particles was performed according to . In this study, the percentage volume was used to evaluate the grain-size distribution. The statistic parameters were obtained using Gradistat 4.0® software ().

The parameters used to describe the grain size distribution were (a) average size, (b) sorting, (c) symmetry or preferential spread (skewness) to one side of the average, and (d) degree of concentration of the grains relative to the average (kurtosis), following the descriptions of . For each particle, the number of pixels that it covered in 2D was estimated. The particles formed by fewer than three pixels were considered as noise. The parameters used to describe the particle characteristics were irregularity and sphericity or circularity (aspect ratio [AR], ). The irregularity (IC) is defined as

 $IC= 4πA p 2$ (1)

where A is a circle with the same particle area as the actual perimeter of the grain, and p is the perimeter (). The particle circularity was described through the AR () corresponding to:

 $AR= L min L max$ (2)

where Lmin is the minor axis and Lmax the major axe of the circumscribing ellipse.

Since this work was based on a 2D image treatment, it was not possible to analyse other aspects such as the shape and roundness.

Mineralogy and mass estimations

Through the basic morphometric parameters of particles it was possible to project their bidimensional image to a volume. Considering that the volume of the ellipsoid is between those of the sphere and spheroid, the ellipsoid geometry was used for the volume calculation, following the procedures of . The particle volume was calculated in the whole filter (Vfilter) by measuring all the particles of the photograph (Vphoto). The photographed area is in square pixels multiplied by its respective scale. The number of pictures in each sample (Aphoto), and the effective filter area, which corresponds to a circumference of 43 mm diameter (Afilter) multiplied by a unit conversion factor:

 $V filter = V photo A filter A photo$ (3)

Using SEM-EDS it was possible to determine the main chemical composition of the analysed particles, which was used to infer their mineralogy and therefore to estimate the mean density of each sample. Interference of Si and Zn composition was found in SEM-EDX analyses as a result of the glass fibre filter composition. However, this interference was continuous and homogeneous in all filters and could be excluded. The mineralogical characterization was made with particles randomly selected in each image, with a larger zoom (500×) because it was necessary for the geochemical identification. This allowed the researchers in this study to determine the percentage (Ci) of each mineral type. In addition, through the density of the different minerals (ρi), it was also possible to obtain the average weight density of the whole sample through the expression:

 $ρ ¯ = ∑ C i ρ i$ (4)

Once the density and volume of all the particles present in the filter was known, the total mass (Mfilter) was calculated as

 $M filter = ρ ¯ sample × V filter$ (5)

This mass estimation corresponded to the inorganic fraction of samples, and therefore both the concentration and flux values were related to this fraction.

Scanning electron microscopy (SEM) is a nondestructive technique that permits the direct observation of the morphometry and the geochemical characterization of dust particles. This technique has been widely used in desert dust analysis (grain size distribution, morphometry and mineralogy; ). In the present study, SEM was used for quantification of particle volume and mass analysis, because this technique has been successfully used for morphometric analysis of volcanic ashes ().

It was considered that this direct particle mineralogy procedure is more accurate than the conventional chemical digestion () to determine the lithogenic fraction. The conventional analysis, determines the litogenic fraction by the difference between total mass and the biogenic components removed by the digestion (i.e. opal, carbonates and organic matter), in which lithogenic material (i.e. continental carbonates and opal from lake diatoms, see Fig. 5) was also removed. This conventional technique may underestimate the lithogenic fraction, particularly in the dust from the Sahara, where it is common to found carbonates (calcite, aragonite and dolomite) (, ) and some quantities of amorphous silica such as opaline diatoms that may be destroyed by chemical digestion.

The concentration of particulate matter in the three environments (air, 10 m and 150 m depth) was also determined. These concentrations were directly obtained from the volume of filtered air and water at 10 m depth. The samples obtained from the trap (150 m depth) were flux data (mg m–2 d–1), since the mass values are related to the area of the trap (0.125 m2) and to the elapsed time to collect each sample (12 h). These flux data were transformed into concentration after being multiplied by the settling velocity (83.6 m day–1 for non-dust and 208.3 m day–1 for the dust event), which was obtained from the Stokes law, with the assumption of a static system (Table 3). This assumption is quite reasonable considering the drift motion of the sediment trap. Similarly, the dust concentration was converted to atmospheric dust flux (Table 3) assuming a settling rate of 1.4 cm s–1 (). The 10 m depth concentration data was not transformed into a flux because of the large amount of turbulence at this depth, which would make the settling velocity uncertain.

Table 3. – Mean density, lithogenic flux and concentration of particles in airborne and seawater samples. * calculated assuming a settling rate of 1.4 cm s–1 (); ** not calculated because the high turbulence at 10 m depth makes the settling velocity uncertain; *** calculated by mean flux vs. settling velocity. Settling velocity (83.6 m day–1 for non-dust and 208.3 m day–1 for dust event) obtained by the Stokes law, assuming a static system due to the drift motion of the sediment trap.

Mineral particulate matter Density (kg m–3) Flux (mg m–2 d–1) Concentration (mg m–3)
Airborne non-dust event 2727 5.685* 0.005
Airborne dust event 2968 122.170* 0.101
10 m depth non-dust event 3368 --- ** 3.493
10 m depth dust event 3576 --- ** 26.506
150 m depth non-dust event 3469 0.15 0.0018***
150 m depth dust event 3384 0.24 0.0012***

RESULTSTop

Grain size

The most frequent particle size in the samples was coarse silt (37 mm; Table 2). However, the grain size distribution showed high dispersion (high sorting value), and a slight displacement to finer sizes than the mode (negative skewness, Table 2). The particle size was 4 to 51 µm in the atmospheric samples, 30 to 70 µm at 10 m depth, and 24 to 55 µm at 150 m depth. The second aspect to be noted was the average grain size, which always increased during Saharan dust periods, as observed at both 10 and 150 m depth (Table 2).

Morphometry

Morphological particle analysis showed a systematic error due to the square shape of pixels. The largest problem occurred in very small (<10 pixels) and very large particles (>1400 pixels, Table 4). The complexity of particles in seawater was higher than in the atmosphere (see IC index in Table 5). Both environments suggest the same tendency in irregularity, with an increase with grain size. Particles were moderately elongated, but with high standard deviations. The AR showed no pattern of change relative to the particle size (from 2 to 150 mm). Similar results were found in samples with the IC and the AR morphometric parameters, 0.06 being the maximum difference of irregularity in the same size range. It was not possible to differentiate between dust and non-dust events using morphometric indexes in any type of samples, due to their high standard deviation values (Table 5).

Table 4. – Selection of particle images information: number of pixels, elongation (AR) and irregularity (IC) indexes. High elongation and irregularity of the particles correspond to lower index values. Note that the high particle size (in pixels, F and L) interferes with a good interpretation of both morphometric indices (AR and IC).

Particle Size in pixels Elongation (AR) Particle Size in pixels Irregularity (IC)
A 3 0.95 H 22 0.83
B 333 0.80 I 580 0.70
C 101 0.50 J 703 0.50
D 39 0.25 K 761 0.30
E 1003 0.12 L 1455 0.13
F 1455 0.07

Table 5. – Morphometry of each type of sample during dust and non-dust events. Mean values and standard deviation (between brackets) of the elongation (AR) and irregularity (IC) index.

% Particles IC AR
Non-dust event Dust event Non-dust event Dust event Non-dust event Dust event
Airborne:
1-2 µm 1% 1% 0.90 (0.00) 0.72 (0.06) 0.79 (0.17) 0.62 (0.24)
2-4 µm 84% 53% 0.80 (0.10) 0.64 (0.09) 0.6 (0.1) 0.60 (0.19)
4-8 µm 14% 16% 0.70 (0.10) 0.65 (0.09) 0.68 (0.05) 0.65 (0.16)
8-15.5 µm 1% 17% 0.60 (0.10) 0.64 (0.08) 0.43 (0.17) 0.61 (0.15)
15.5-31 µm 0% 11% - 0.57 (0.10) - 0.57 (0.17)
31-62.5 µm 0% 2% - 0.55 (0.09) - 0.65 (0.09)
Ocean: 10 m depth
0.5-1 µm 31% 31% - - - -
1-2 µm 11% 11% 0.73 (0.05) 0.73 (0.05) 0.61 (0.24) 0.65 (0.25)
2-4 µm 34% 31% 0.58 (0.08) 0.58 (0.08) 0.54 (0.15) 0.54 (0.17)
4-8 µm 9% 10% 0.56 (0.11) 0.56 (0.11) 0.61 (0.16) 0.60 (0.15)
8-15.5 µm 8% 8% 0.55 (0.12) 0.53 (0.13) 0.66 (0.14) 0.63 (0.15)
15.5-31 µm 5% 6% 0.54 (0.06) 0.49 (0.13) 0.59 (0.15) 0.61 (0.17)
31-62.5 µm 1% 2% 0.42 (0.11) 0.50 (0.13) 0.57 (0.28) 0.60 (0.18)
Ocean: 150 m depth
1-2 µm 0% 0% - - - -
2-4 µm 68% 74% - - - -
4-8 µm 12% 10% 0.71 (0.07) 0.71 (0.08) 0.61 (0.23) 0.59 (0.25)
8-15.5 µm 12% 8% 0.66 (0.09) 0.62 (0.12) 0.64 (0.17) 0.61 (0.15)
15.5-31 µm 8% 5% 0.63 (0.08) 0.56 (0.13) 0.61 (0.15) 0.59 (0.15)
31-62.5 µm 1% 3% 0.55 (0.20) 0.56 (0.13) 0.56 (0.23) 0.61 (0.17)

Mass estimation

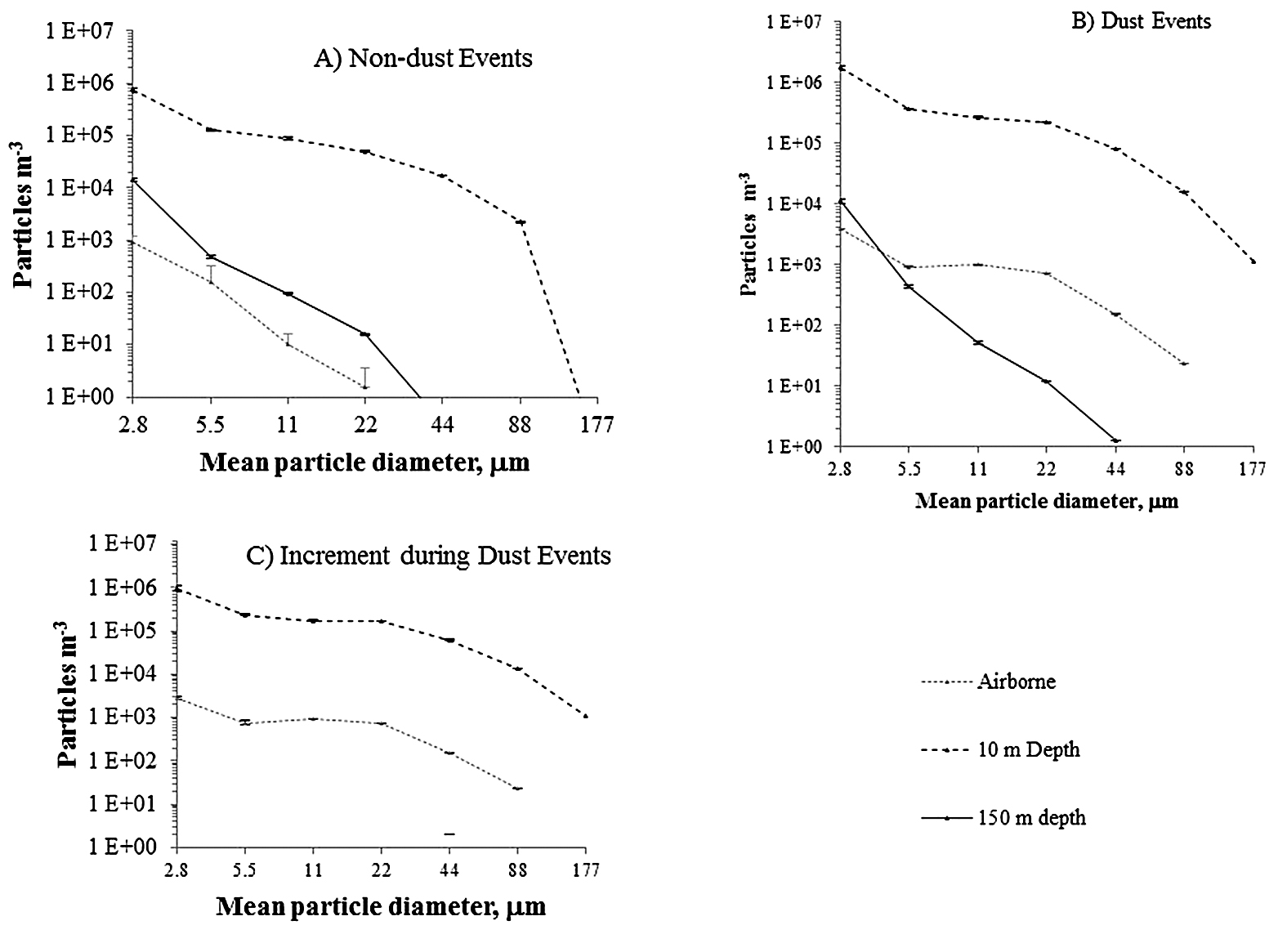

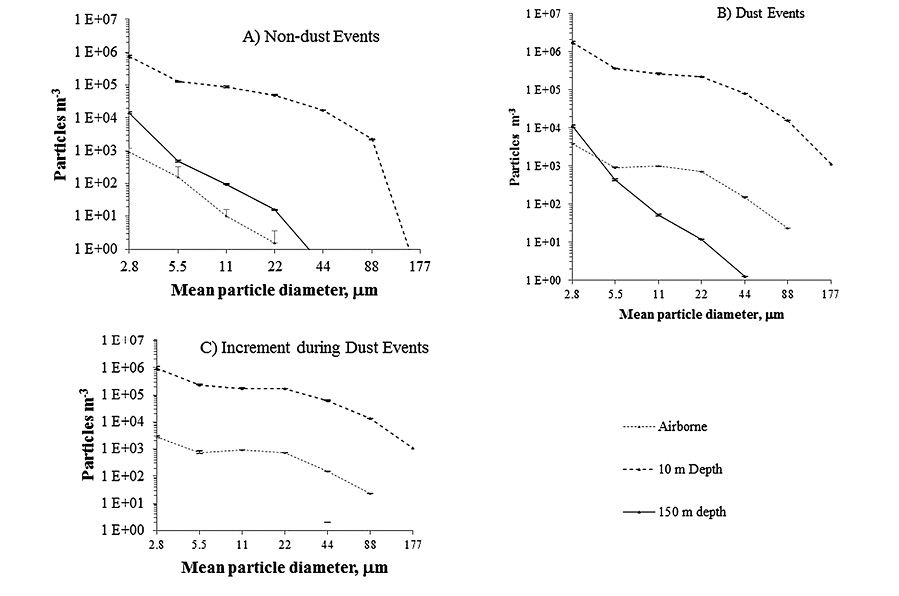

The concentration measured with the stereomicroscope (12.6 and 40×) and the SEM (150×) were similar. The atmospheric samples showed lower concentration values than the oceanic samples (10 m depth), possibly due to the viscosity differences between the two fluids. As expected, during dust events both the concentration and flux increased significantly, the concentration by a factor of 20 in the airborne samples and 8 in the mixed layer, and flux by a factor of 1.6 at 150 m water depth (Table 3).

In both dust and non-dust conditions, the particle concentration at 10 m depth was two to four orders of magnitude higher than the concentration found in air and at 150 m depth (Fig. 6, Table 3). The most noteworthy difference between dust and non-dust events was found in atmospheric samples, where concentration increased in the dust events by two orders of magnitude. By contrast, a small decrease of particle concentration was found during dust events at 150 m depth (Fig. 6C).

Mineralogy

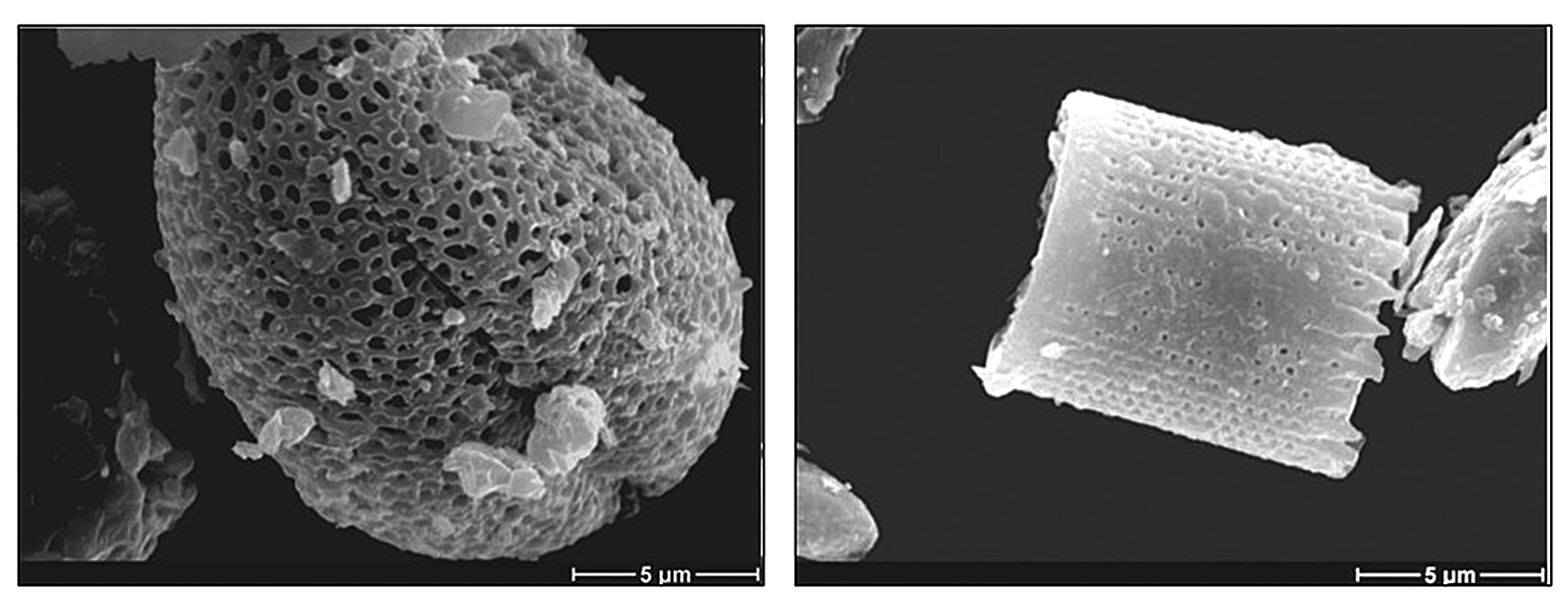

As expected, a large quantity of biogenic material was observed in the sediment trap samples. This feature was mainly related to the presence of foraminifers, radiolarians, faecal pellets and other organic aggregates with adhered mineral particles. The minerals found were mainly silicates (the tectosilicates quartz and opal, and the phyllosilicate illite), calcium-magnesium carbonates (calcite, aragonite and magnesium calcite), and iron oxy-hydroxides (hematite and goethite). Other silicates (the phyllosilicates chlorite and kaolinite; the tectosilicates plagioclase and alkali feldspar; the inosilicates pyroxene and the nesosilicate olivine), sulfates (barite and gypsum) and iron and titanium oxide (ilmenite) appeared in proportions lower than 15% (Fig. 7). Iron was found as a major chemical element in hematite, goethite and ilmenite, and in small amounts in illite, chlorite, pyroxene and olivine.

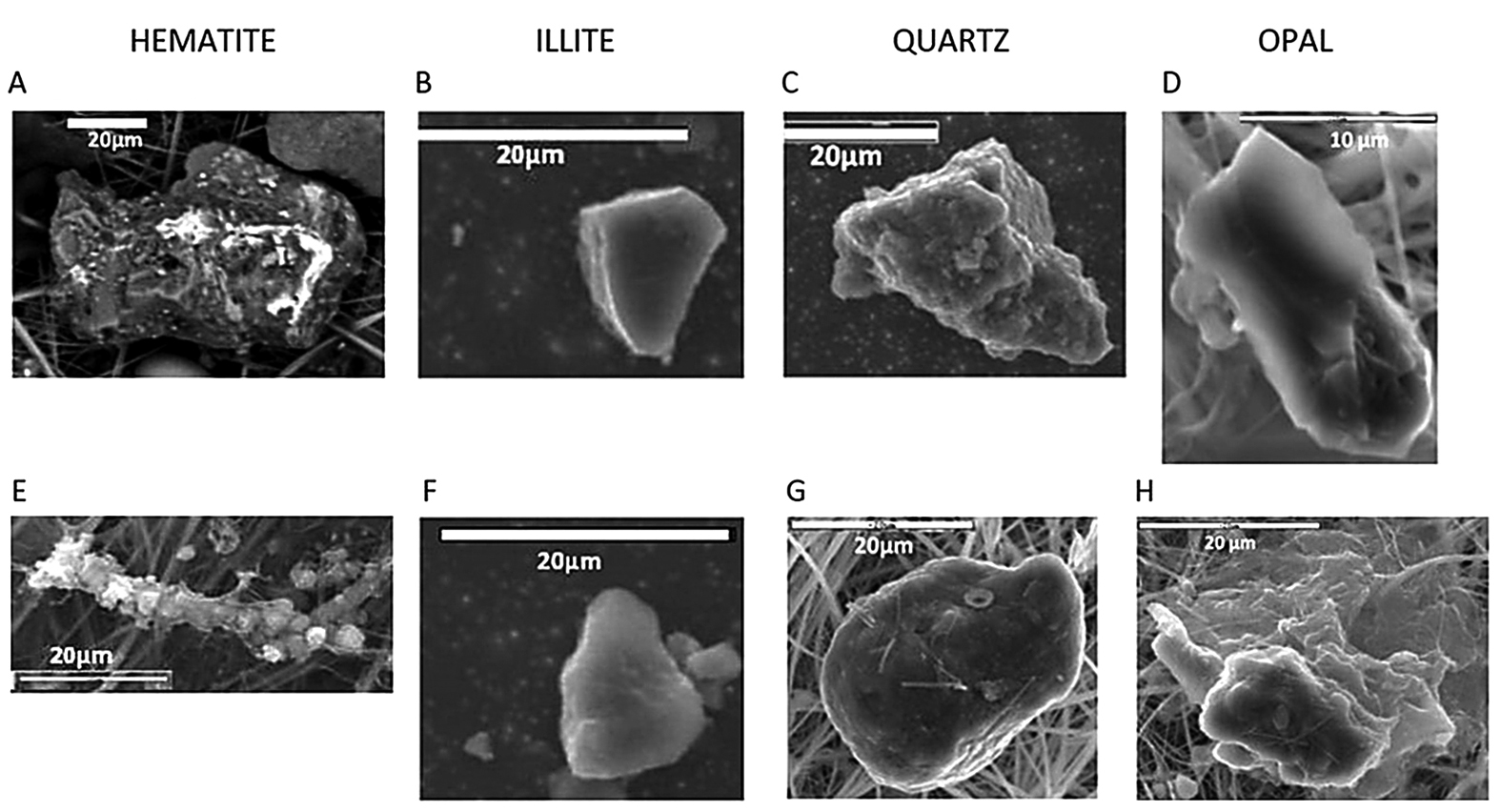

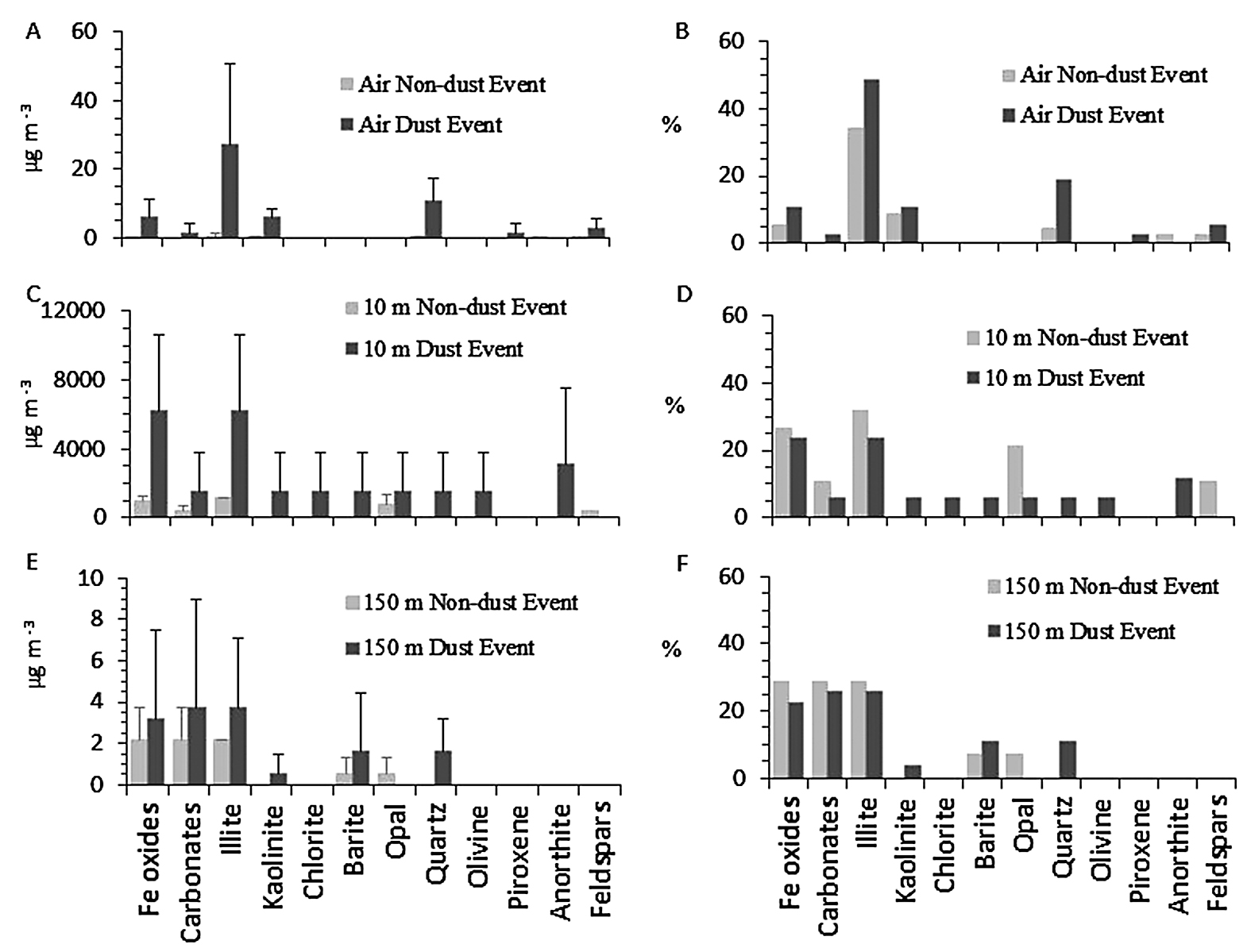

Illites, calcium-magnesium carbonates and iron oxy-hydroxides were found in all types of samples. Quartz appeared during dust events while opal was detected mainly in samples collected under non-dust conditions. The proportion of illite and quartz was higher in airborne than in marine samples, while iron oxy-hydroxides and carbonates showed the opposite pattern. In fact, the calcium-magnesium carbonate percentage at 150 m depth was more than twice that in the other environments.

DISCUSSIONTop

Grain size

Saharan dust events sampled within hundreds of kilometres from the source indicate a mean diameter of airborne particle of between 72 and 74 µm (), while numerous studies of dust transport over thousands of kilometres from the source have measured mean sizes of between 1 and 30 µm (). The dispersed-phase particles have a diameter of approximately 0.001-1 mm (). Thus, the fine fraction of aeolian dust acts as a colloid. Recent evidence suggests that only a minor fraction of “dissolved” iron (i.e. the size fraction <0.4 mm) is truly soluble (<0.02 mm) and we therefore lost this fraction in the filtration process ().

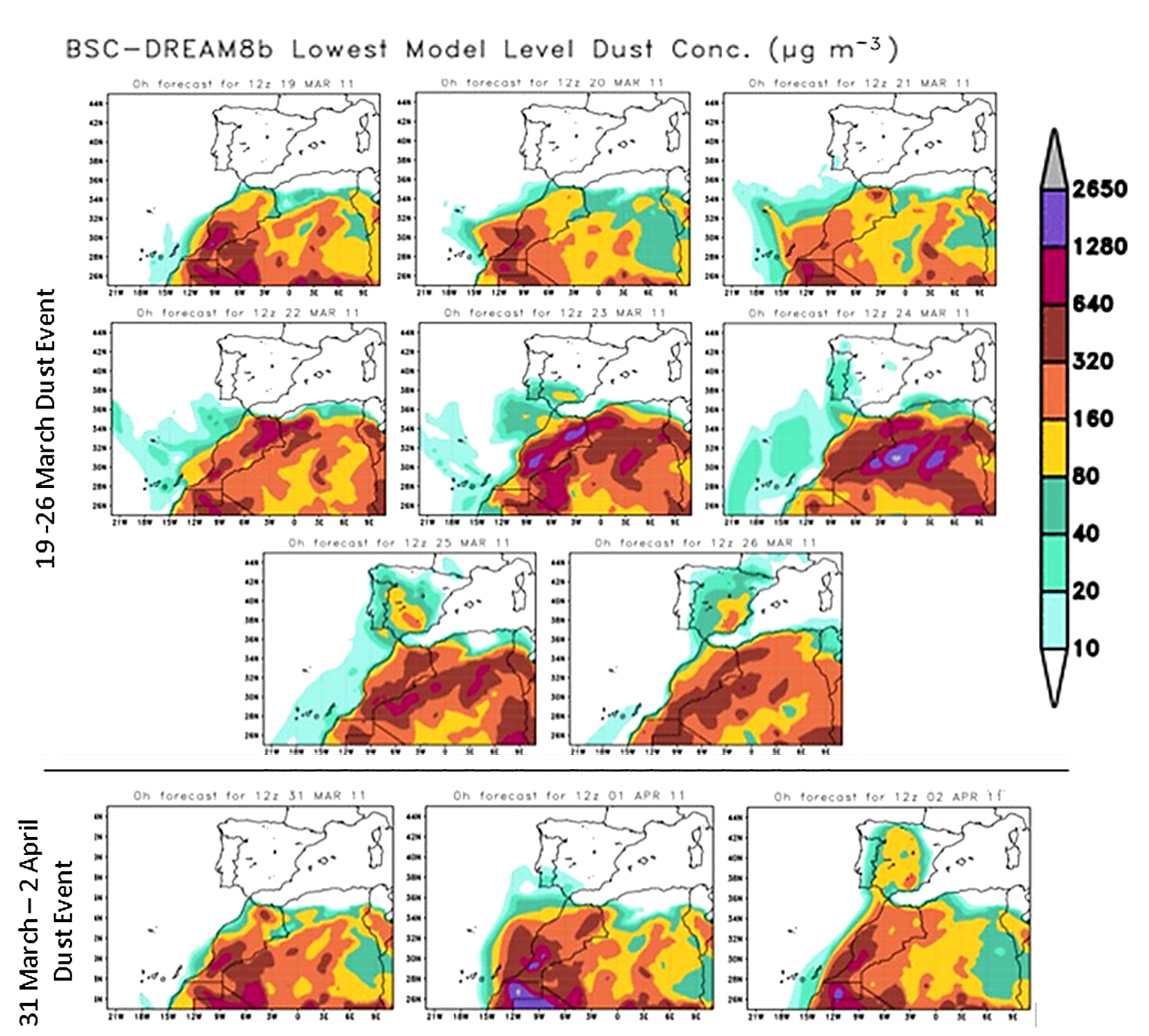

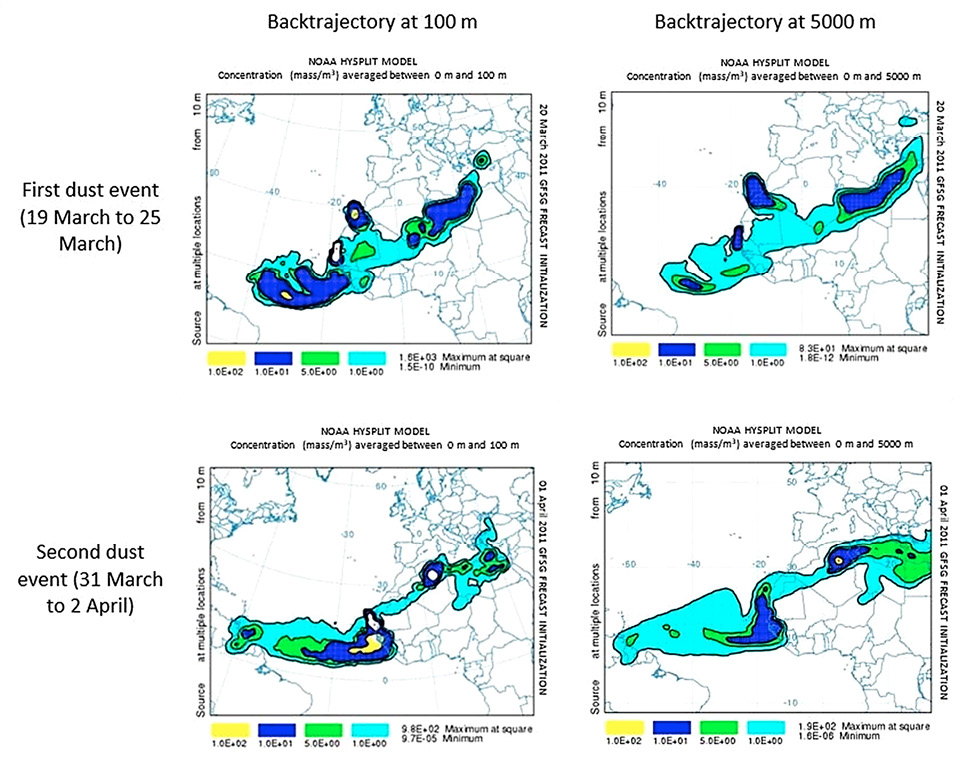

According to the model output from the Barcelona Supercomputing Centre and the Sahara Airmass Outbreak Model (application of HySPLIT) in 2011, the sources of the analysed dust events were the western Algeria, the Western Sahara and northern Mauritania (Figs 3 and 8). The size range shown in Table 2 varied between 4 and 51 µm in the airborne samples, 30 and 70 µm at 10 m depth, and 24 and 55 µm at 150 m depth. These average particle diameters were in the same range as earlier data obtained from areas located around 1000 km from the dust source ().

Morphometry

The parameters used (IC and AC) were a fairly good indicator of the morphological characteristics. However, large errors were found in very small (<10 px) and very large particles (>1000 px). In the case of the smallest particles, the error was due to the high ratio between pixel and particle size, which increased the uncertainty of the index (see Table 4, particle A). The large particles have a large number of smaller irregularities, which produce a significant increase in their perimeters. Therefore, IC indicated high irregularity in quite regular particles (particles E and F in Table 4). Another effect associated with large particles was the underestimation of the minor axis of the ellipse (b) and the elongation; in fact, they did not correspond to the real values (particle L, Table 4).

An additional issue was the relation between particle shape and mineralogy, since the structure of particles determines their falling velocity. For example, due to their laminated structure and sheet shape (Fig. 9B, F), illites have a higher resistance to deposition, remaining longer in the fluid than spherical or ellipsoidal particles. Laminar particles may even develop a vortex trail in their wake and start “wobbling” instead of settling along a straight line ().

The simultaneously increase in irregularity and particle size in the water column samples could reflect the formation of aggregates (). This increase in particle complexity in relation to size has also been described in other morphological studies of airborne dust (, ). The abundance of aggregates in larger sizes has been observed and, hence, a substantial increase in the perimeter/area ratio (). However, similar values of morphological index were detected before and during a dust event at 10 and 150 m depth.

Mass estimation

Table 3 shows the bulk density of the particles in seawater, which was about 600 kg m–3 higher than that of the atmospheric ones. This difference must be due to various factors, including the change in physical properties of the two fluids: the seawater density and viscosity at 20°C are 1027.75 kg m–3 and 1.08 10–3 Ns m–2, respectively, while the corresponding values in the air at the same temperature are 1.204 kg m–3 and 1.81 10–5 Ns m–2. Assuming no advection processes, such differences determined that the settling velocity (by Stokes’s Law) was two orders of magnitude higher in air than in seawater. Therefore, when particles settle into the water a stagnation effect is produced, and this fact could explain the large concentration of particles in the water compared with the air (Table 3). However, the higher proportion of iron oxy-hydroxide minerals (such as hematite and goethite) observed in seawater samples may contribute to increase the average density of these samples and consequently favour their sinking.

As stated in the introduction, the lithogenic particles may act as ballast of the organic particles, increasing their sinking velocities hundreds of times (). However, without discarding this sinking acceleration due to the ballast effect of the lithogenic particles, the observed effect in the surface waters seems to be the opposite, i.e. the increase of lithogenic particles and particularly in denser oxy-hydroxide minerals.

Unfortunately, there is little previous information from other authors using trap samples in the upper 200 m. The lithogenic flux values calculated in this work were lower than those reported in the Canarian region by deeper samplers. For example, calculated an average annual lithogenic particle flux of 9.5 mg m–2 d–1 at 2000 m depth at Kiel 276 station (33°N, 22°W). deployed several traps in the Canary Basin area (29°N, 15°W), measuring a lithogenic flux of 0.7 to 43.6 mg m–2 d–1 at 1000 m depth, and between 1.2 and 61.8 mg m–2 d–1 at 3000 m depth. This tendency of the flux to increase with depth explains the lower flux found in the shallower layer sampled in the present work (0.2 mg m–2 d–1 at 150 m depth). On the other hand, measured annual fluxes in a shallow trap (150 m depth) in the Central Arctic, obtaining values of 3.9, 0.8 and 2.6 g m–2 y–1 of lithogenic matter, CaCO3 and opal, respectively, and 11.3, 0.5 and 2.9 g m–2 y–1, respectively, in a deeper trap (1550 m depth). These data also confirm the increase of lithogenic fluxes with depth, which could be explained by lateral sediment fluxes in deep water. In addition, lithogenic fluxes from the Arctic are one order of magnitude higher than those reported in this research for the Canary Basin at 150 m depth. This difference could be related to the presence of fluvial inputs in the Arctic, but is practically inexistent nowadays in the area of the Canary Islands.

Mineralogy

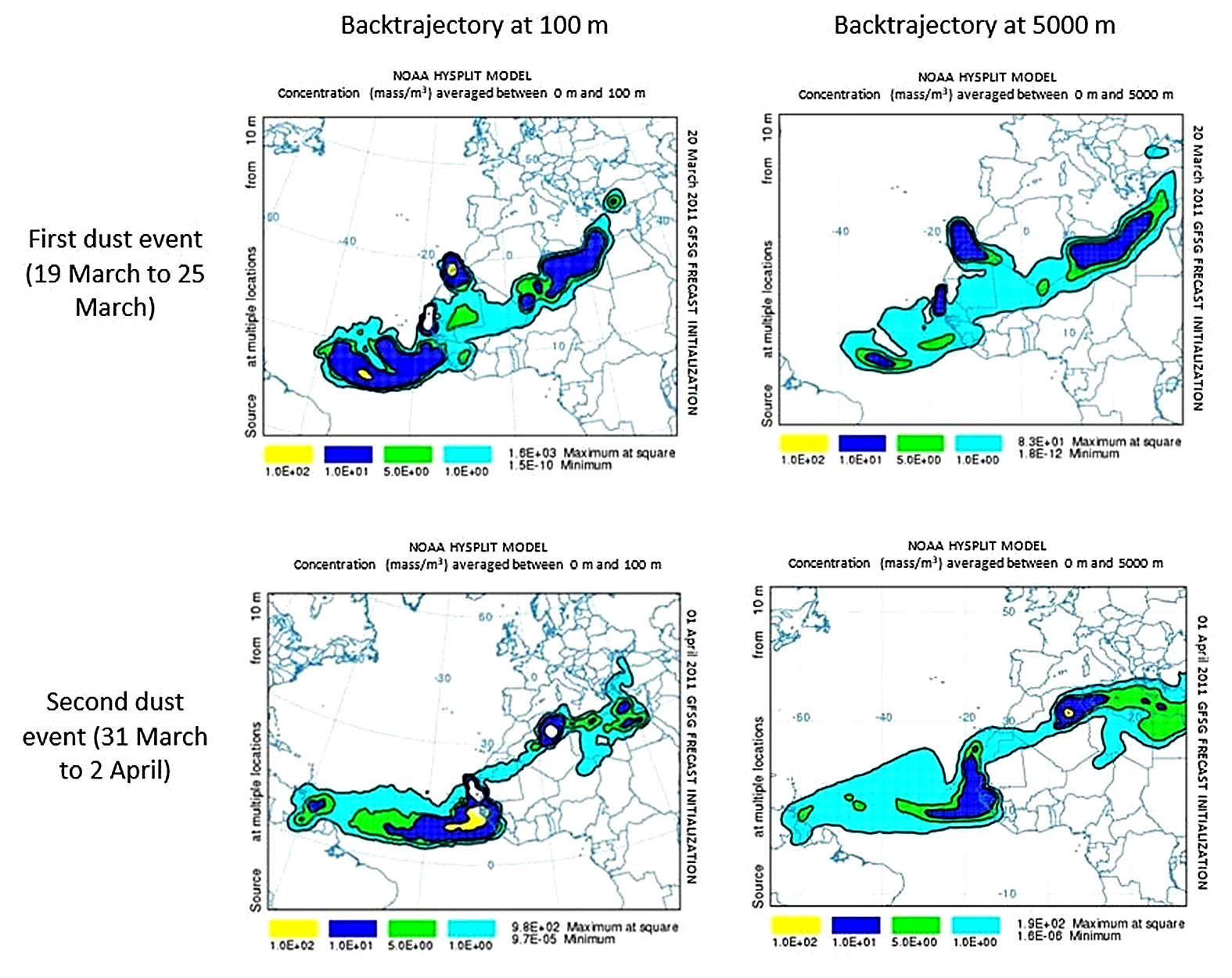

The dust events analysed in this study were generated close to northern Mauritania and the Western Sahara, which are around 700 km from the sampling area in Gran Canaria (Figs 3 and 8). From a geological point of view, this African area contains the West African Craton (the Reguibat Shield with Archean and Eburnean domains, of Precambrian age), the Mauritanides Fold Belt (Paleozoic age) and the Post-Paleozoic sedimentary cover (Taoudeni Basin to the east and Coastal Basin to the west), as described by and , among other authors. The Precambrian materials are formed by granitic rocks, volcanic and volcanoclastic formations, ophiolites, quartzites, migmatitic gneiss and ferruginous quartzites (BIF, , ).

The Paleozoic metamorphic rocks of the Mauritanides Fold Belt contain limestone, dolomites, sandstones, mudstones, shales and slates. In addition, these Precambrian and Paleozoic materials are covered and surrounded by varied Post-Paleozoic detrital sediments and soils. Therefore, many airborne minerals cited in this work may be derived mainly from the erosion of these Precambrian, Paleozoic and Post-Paleozoic rocks. Thus, quartz, plagioclase and K-feldspar mainly derive from granitic rocks, migmatitic gneiss, quartzites and shales; olivine, pyroxene, feldspar, ilmenite, hematite, goethite may derive from volcanic, ophiolitic, volcanoclastic and BIF series; Ca-Mg carbonates derive from limestones, dolomites and soils; and illite, kaolinite, opal, chlorite, gypsum and barite derive from soils and sediments produced by the weathering of old magmatic, metamorphic and sedimentary rocks. Consequently, there are many types of rocks in this part of Mauritania and the Western Sahara, producing varied detrital materials by erosion and these fine grains can be easily transported to the Atlantic Ocean and the Canary Island domains in dust events.

Most of the silicate lithogenic material (e.g. illite and quartz) was found on atmospheric samples compared to those at 150 m depth (Fig. 7); this finding could be explained by the southward direction of the Canary Current, as was shown in the ESTOC data analysis reported by . The opposite pattern was observed south of the Canaries, close to Mauritania (~20°N), where found that values at the deeper trap fluxes were 2-3 times larger than those of atmospheric dust, showing a retention effect of dust material in the water column being transported southward by the Canary Current.

The finding of quartz in the studied particles suggests that quartz is an excellent proxy for lithogenic material of exogenous origin of the Canary Islands due to its absence in the volcanic material. The Canary Archipelago is related to an oceanic intraplate hot spot and the volcanic materials which formed the islands varied the geochemical compositions between ultramafic-mafic (e.g. basanites, nephelinites, basalts, trachybasalts) and intermediate-felsic (e.g. phonolites, trachytes, rhyolites), and these silica-subsaturated alkaline volcanic rocks, which never show free quartz (). Quartz was found in the airborne samples during dust events, while opal (SiO2·nH2O meanly biogenic) was mostly found in seawater samples. Opal frequently showed laminar structures or evident biological structures such as spicules (Fig. 9). The increase of calcium-magnesium carbonates in sediment trap samples could be explained by the high biogenic contribution in the water column.

Crystalline hematite and goethite were the predominant forms of iron oxides present in Saharan dust, as previously observed (). The mean primary origin of these iron oxy-hydroxide particles can be related to the maphic volcanic rocks and the BIFs of the Precambrian crystalline basement in the Western Sahara and Mauritania area (, ). These iron formations contain magnetite, hematite and goethite, and these iron minerals may reach 75% in rock total volume, with fine-grained textures and size particles below 1 mm (). The estimation of the hematite/goethite ratio () of Saharan dust at Gran Canaria Island using optical methods (reflectance spectroscopy) showed a range between 0.3 and 0.6. Therefore, the higher density of Fe oxy-hydroxides should lead them to sink faster. Therefore, the anomalous high concentration of this mineral at 150 m depth (Fig. 7) is rather difficult to explain using classical patterns of gravitational settling.

The selective concentration pattern of iron particles could be explained by biological retention processes in the water column. Several studies have shown that phagotrophic flagellates could ingest even micrometric iron particles or colloids, dissolving and regenerating some types of particulate iron during digestion (, , ), and retaining the mineral in the water column (). Moreover, it has been suggested that colony formation in Trichodesmium is an adaptive strategy to trap the dust and enhance iron acquisition (), dissolving dust and oxides. It is also known that unicellular dinitrogen fixing cyanobacteria produce two to three orders of magnitude more extracellular polysaccharides (EPS) than other phytoplankton (). This behaviour could help to retain iron in the upper layers of the ocean, favouring cyanobacteria during dust events. observed that 66% of unicellular diazotrophs were attached to organic particles after a dust event. Whether the iron is ingested by protists, trapped by Trichodesmium colonies, or simply attached to organic particles through EPS, the iron retention in aggregates (Fig. 9A, E) seems to be the explanation for its higher proportion in comparison with other minerals in the mixed layer. This iron retention suggests an evolutionary adaptation of marine microorganisms to using limiting micronutrients in the ocean, and could explain the ability of many autotrophs and mixotrophs (e.g. dinoflagellates) to build aggregations.

CONCLUSIONSTop

The image particle analysis and the SEM-EDX mineralogy determination used to calculate the airborne concentration and the lithogenic fluxes are one of the innovations of this research. These techniques could complement the widely used lithogenic determination through biogenic mass elimination by acid digestion. It has been demonstrated that in this classical determination, around 10-30% of the carbonate fraction of the lithogenic mass may be lost (Fig. 5).

On the other hand, the AR and IC indexes were not a good proxy to differentiate dust or non-dust events. No significant differences were found in any type of sample between morphometric indexes in dust events particles in comparison with non-dust events particles. The dust events analysed in this study, which originated in northern Mauritania/the Western Sahara, showed a mean size of coarse silt of 37 mm. Grain size and particle concentration were higher at 10 and 150 m depth than in airborne samples, and were higher during dust events than during non-dust events for all samples (except at 150 m depth).

The concentration of illite and quartz particles was lower in lithogenic than in airborne samples, whereas the concentration of iron oxy-hydroxide particles (hematite and goethite) was higher in lithogenic particles. This anomalous retention of denser minerals could reveal the biological interaction of iron particles with microorganisms described by some authors (, , ). Under the sedimentological point of view, this anomalous “low sinking behaviour” of the densest iron oxy-hydroxide particles is another innovation presented in this research.

The airborne particles cited in this work (mainly quartz, illite, hematite, goethite, Ca-Mg carbonate and opal) were associated with sediments from the northern Mauritania and the Western Sahara, with two sources: particles from erosion of the Precambrian shield, the Paleozoic and Post-Paleozoic belt (iron oxides and silicates); and particles of organic origin from soils and desiccated lakes (carbonates and diatoms skeletons).

ACKNOWLEDGEMENTSTop

This study was partially funded by the projects “Mafia” (CTM2012-39587) and “Lucifer” (CTM2008-03538) of the Spanish Government, and the project PI2007/042 of the Canary Islands Government. Our thanks to Lidia Nieves for her valuable work and to the people involved in the cruises carried out to collect samples.
